Power Move Masters
SERIES: PMM

24V DC POWERED STANDARD

Power Move Masters are compact in size and easy to use. They are highly maneuverable, making them ideal for turning in tight spaces (not recommended for use on an incline or slope). DC powered for smooth, quiet operation with variable speed control for generous low speed torque and precise positioning. Built in battery charger for quick recovery. In addition, their ergonomic design provides stability and simple control. A variety of hitch attachments along with other options are available, contact factory. The tire size is 18" x 9-1/2". The hydraulic lift is standard on models PMM-3000 and PMM-3000-15, 9" to 26". Optional hydraulic lift option available on model PMM-1000. Three point mounting configurations allow for adjustable service range.

  • Power move master is compact and highly maneuverable in order to turn in tight spaces
  • Unit is DC powered with variable speed control for low speed torque and precise positioning
  • Includes a built in battery charger for quick recovery
  • Three point mounting configurations allow for adjustable service range

24V DC POWERED STANDARD

Power Move Masters are compact in size and easy to use. They are highly maneuverable, making them ideal for turning in tight spaces (not recommended for use on an incline or slope). DC powered for smooth, quiet operation with variable speed control for generous low speed torque and precise positioning. Built in battery charger for quick recovery. In addition, their ergonomic design provides stability and simple control. A variety of hitch attachments along with other options are available, contact factory. The tire size is 18" x 9-1/2". The hydraulic lift is standard on models PMM-3000 and PMM-3000-15, 9" to 26". Optional hydraulic lift option available on model PMM-1000. Three point mounting configurations allow for adjustable service range.

  • Power move master is compact and highly maneuverable in order to turn in tight spaces
  • Unit is DC powered with variable speed control for low speed torque and precise positioning
  • Includes a built in battery charger for quick recovery
  • Three point mounting configurations allow for adjustable service range

Other Trailer Movers

 Gas Powered Trailer Mover Power Move Masters Electric Powered Tuggers

Additional Models In This Family
view entire Image Gallery

PMM-1000

model PMM-1000

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PMM-1000 PMM-100090 Days Limited WarrantyPower Move Master 53 In. x 37-1/2 In. x 37 In. 1500 Lb. Capacity GrayUniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 40,000		858
PMM-3000 PMM-300090 Days Limited WarrantyPower Move Master 78 In. x 36 In. x 43 In. 3000 Lb. Capacity GrayUniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000		2008
PMM-3000-15 PMM-3000-1590 Days Limited WarrantyPower Move Master 96 In. x 36 In. x 43 In. 3000-1500 Lb. Capacity GrayUniform Tongue Weight Load from Lift Front/Top (lb.): 3,000/1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000		2036

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PMM-1000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 40,000
Uniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 40,000

PMM-3000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000
Uniform Tongue Weight Load from Lift (lb.): 1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000

PMM-3000-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Tongue Weight Load from Lift Front/Top (lb.): 3,000/1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000
Uniform Tongue Weight Load from Lift Front/Top (lb.): 3,000/1,000
Uniform Maximum Push/Pull Weight (lb.): 70,000
For More Details of the Option Click the Red Model Button

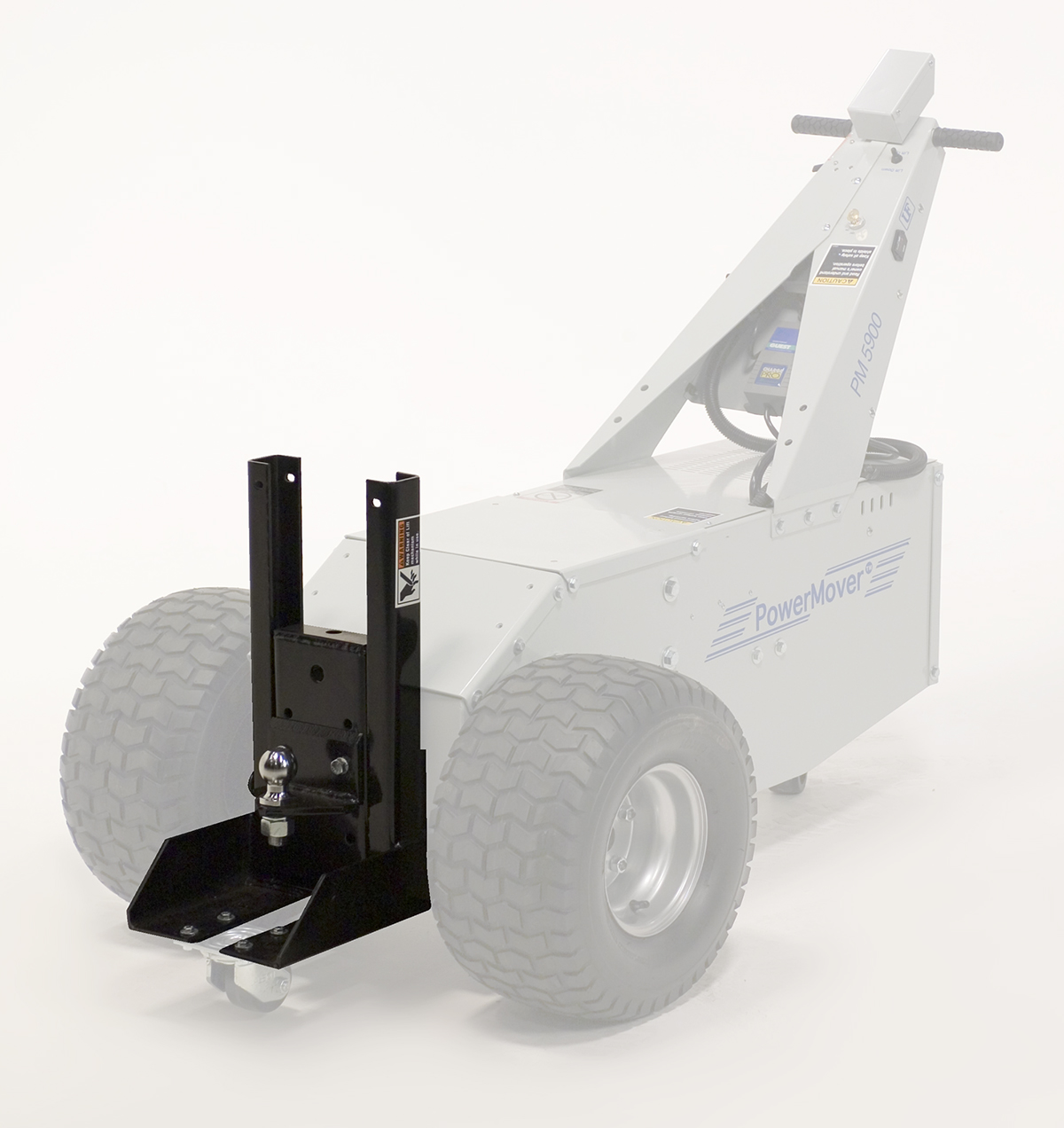

PMM-HYD-LIFT PMM-HYD-LIFT90 Days Limited WarrantyFactory Installed Hydraulic Lift 9 In. To 26 In. Lift For Power Move MasterLift (in.) to (in.): 9 to 26
150

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Power Move Masters PDF's will open in a new window when clicked.

Manuals


PMM-1000
Owners Manual

PMM-3000
Owners Manual

PMM-3000-15
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PMM-1000

PMM-3000

PMM-3000-15

Testing Certificates


PMM-3000

PMM-3000-15

SDS Sheets


Lead Acid Battery SDS Sheet for: PMM-1000
Hydraulic Oil SDS Sheet for: PMM-1000

Lead Acid Battery SDS Sheet for: PMM-3000
Hydraulic Oil SDS Sheet for: PMM-3000

Lead Acid Battery SDS Sheet for: PMM-3000-15
Hydraulic Oil SDS Sheet for: PMM-3000-15
Hydraulic Oil SDS Sheet for: PMM-HYD-LIFT

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What degree of incline this unit can handle?

A: Zero. The move master will not perform with any incline.
