FEATURED Carton Flow Racks

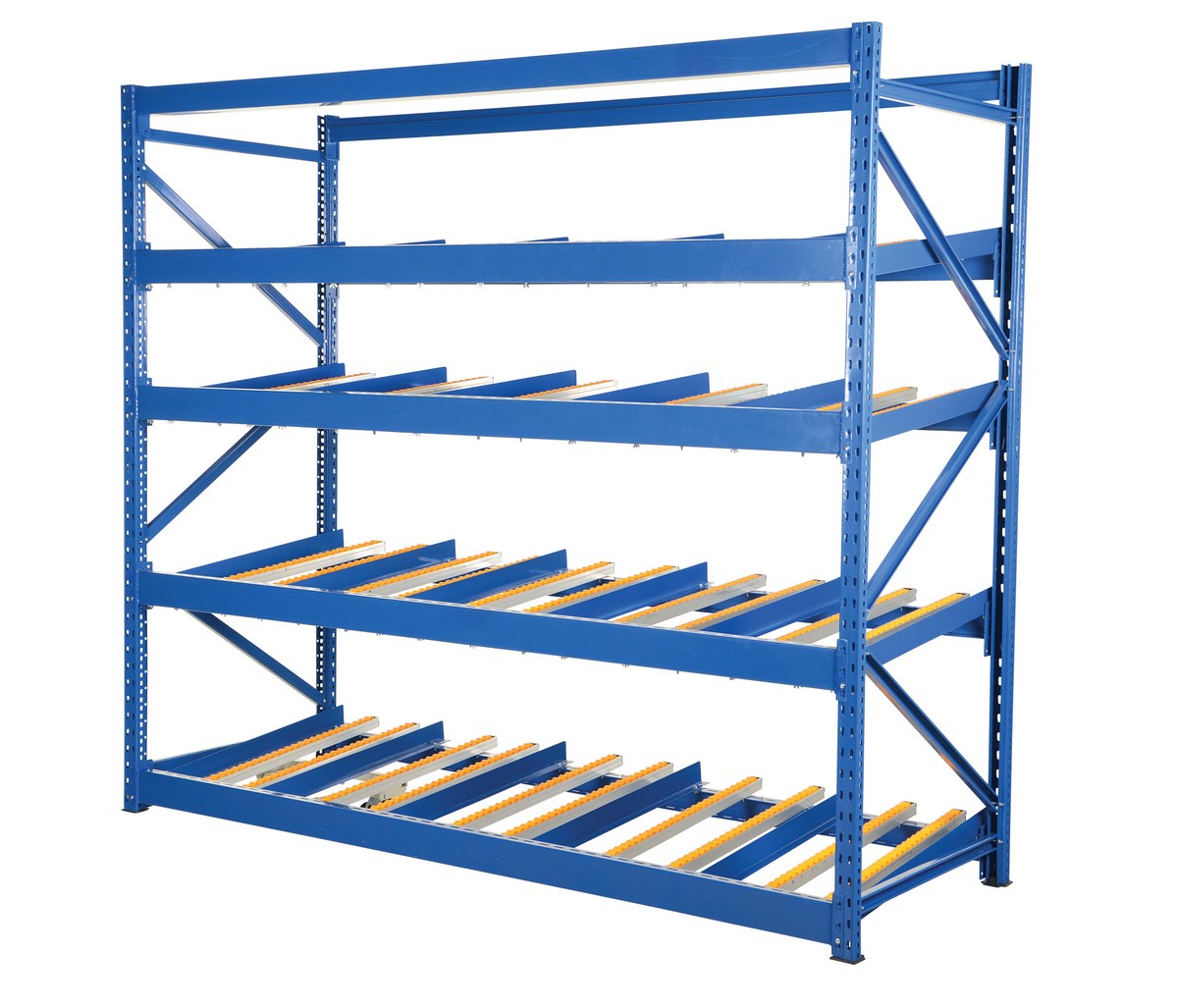

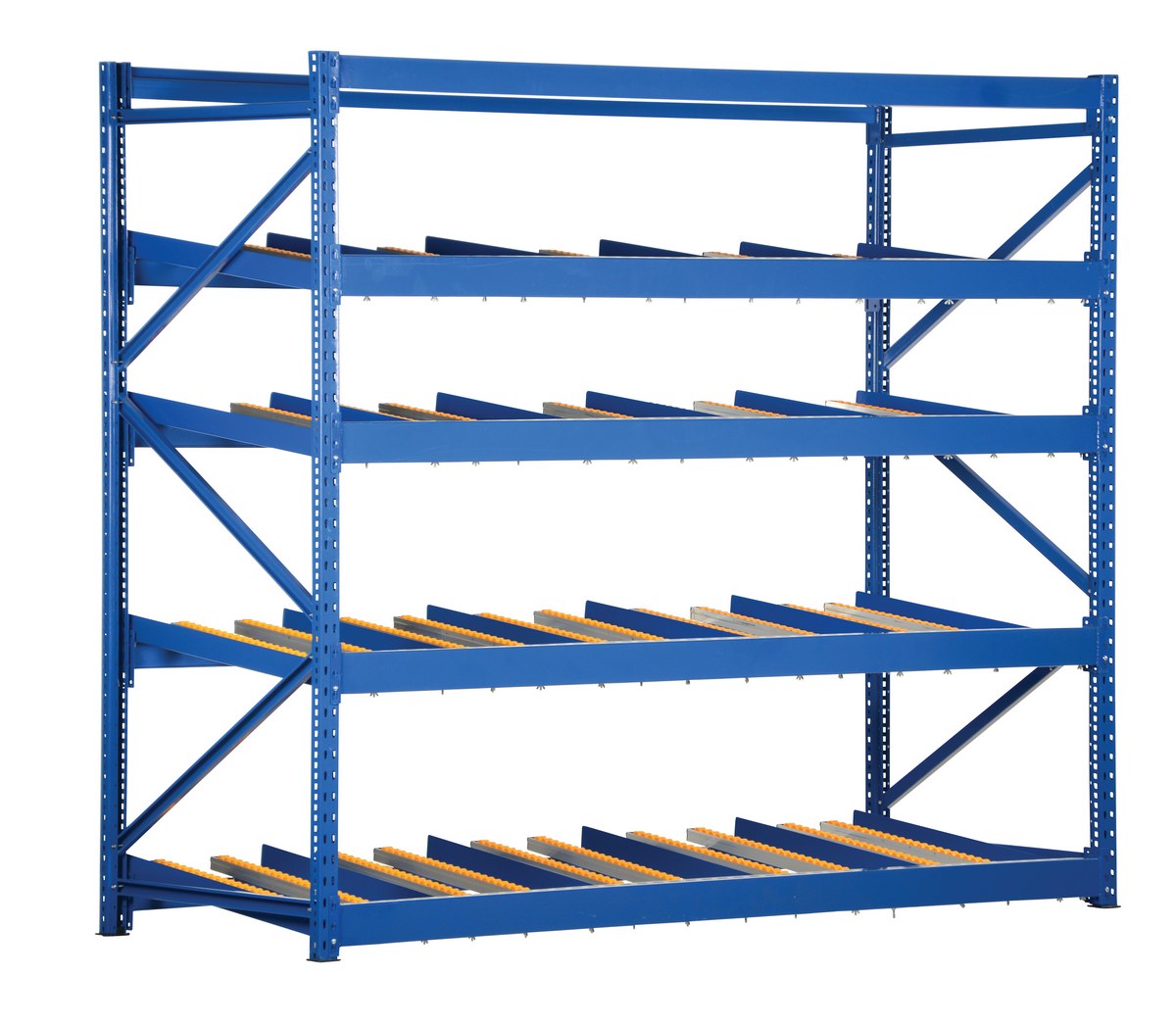

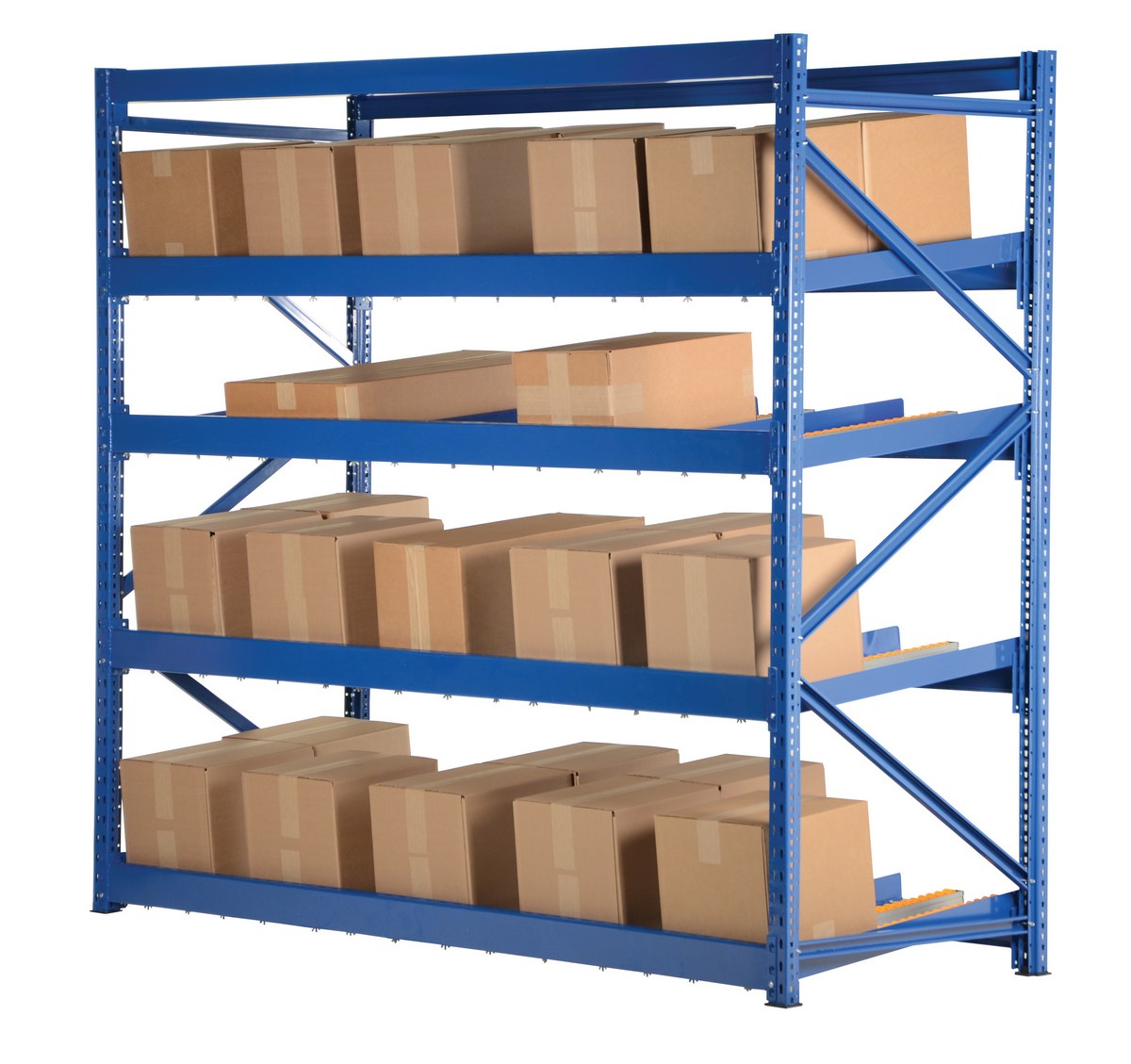

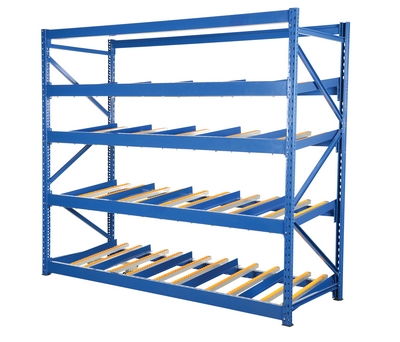

model: FLOW-3-4

FLOW-3-4_A.jpg FLOW-3-4_B.jpg FLOW-3-4_C.jpg More Images +
Carton Flow Racks
SERIES: FLOW   12Products 6Options
Powder Coat Quick Ship

Gravity Flow Carton Racks for FIFO Inventory Storage and Picking

Gravity flow carton racks provide an efficient storage and picking solution for cartons, boxes, totes, parts, and packaged inventory. Designed for warehouses, distribution centers, fulfillment areas, assembly lines, stockrooms, and order picking operations, these carton flow racks use roller tracks to move product forward for convenient first-in, first-out stock rotation.

FIFO Flow Rack Design

Cartons are gravity fed on rollers, helping operators access the next item quickly while keeping inventory organized by arrival sequence. This improves stock rotation, reduces unnecessary reaching, and supports faster picking in high-volume material handling and replenishment areas.

Heavy-Duty Level Capacity

Each flow level supports 1,000 lb. capacity and includes four pairs of rollers rated at 50 lb. per foot. Five divider sections per level help separate cartons or product lanes, making it easier to organize multiple SKUs within the same rack system.

Depth, Level, and Accessory Options

This family includes 96 inch wide racks in 36 inch and 48 inch depths, with 3, 4, or 5 flow levels. Units are 84 inches high and can be bolted together for additional depth. Available accessories include extra divider sections, additional rollers, and wood top shelves for expanded storage flexibility. Assembly is required, and the baked-in powder coat finish adds durability for daily industrial use.

Carton Flow Racks

model: FLOW-3-4

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
FLO-3-DIVD
FLO-3-RLR
FLO-4-DIVD
FLO-4-RLR
FLOW-3-3
FLOW-3-4
FLOW-3-5
FLOW-4-3
FLOW-4-4
FLOW-4-5
FLOW-WD-36
FLOW-WD-48
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

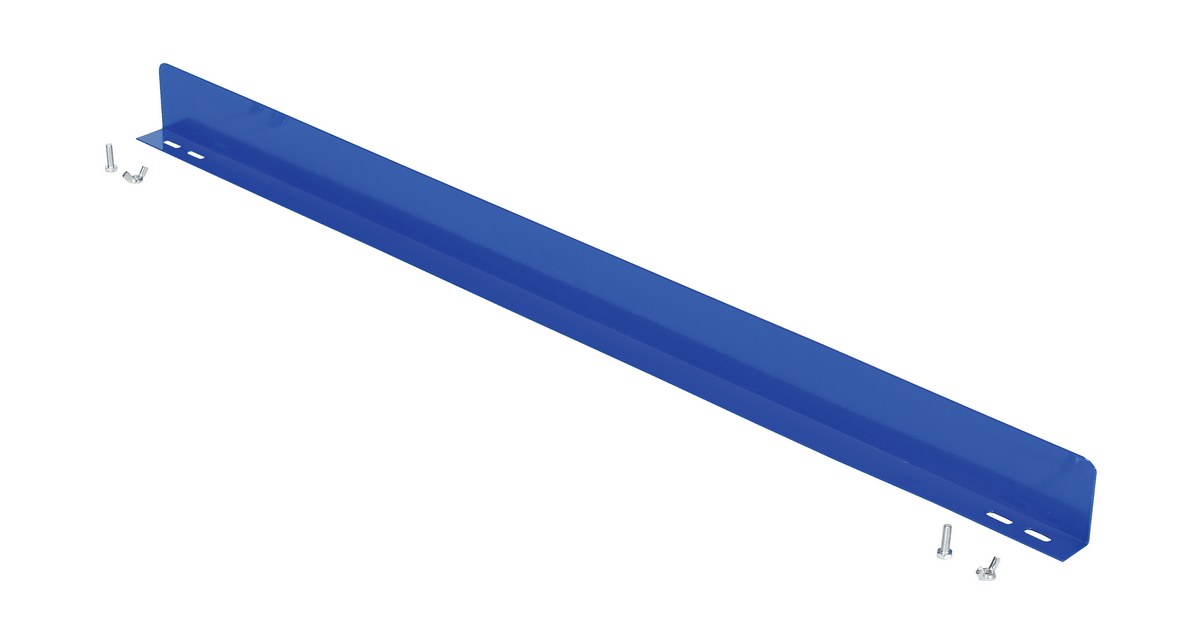

FLO-3-DIVD FLO-3-DIVD Steel Divider Section 36 In. Length For Flow Rack Models Blu… 90 Days Limited Warranty 5

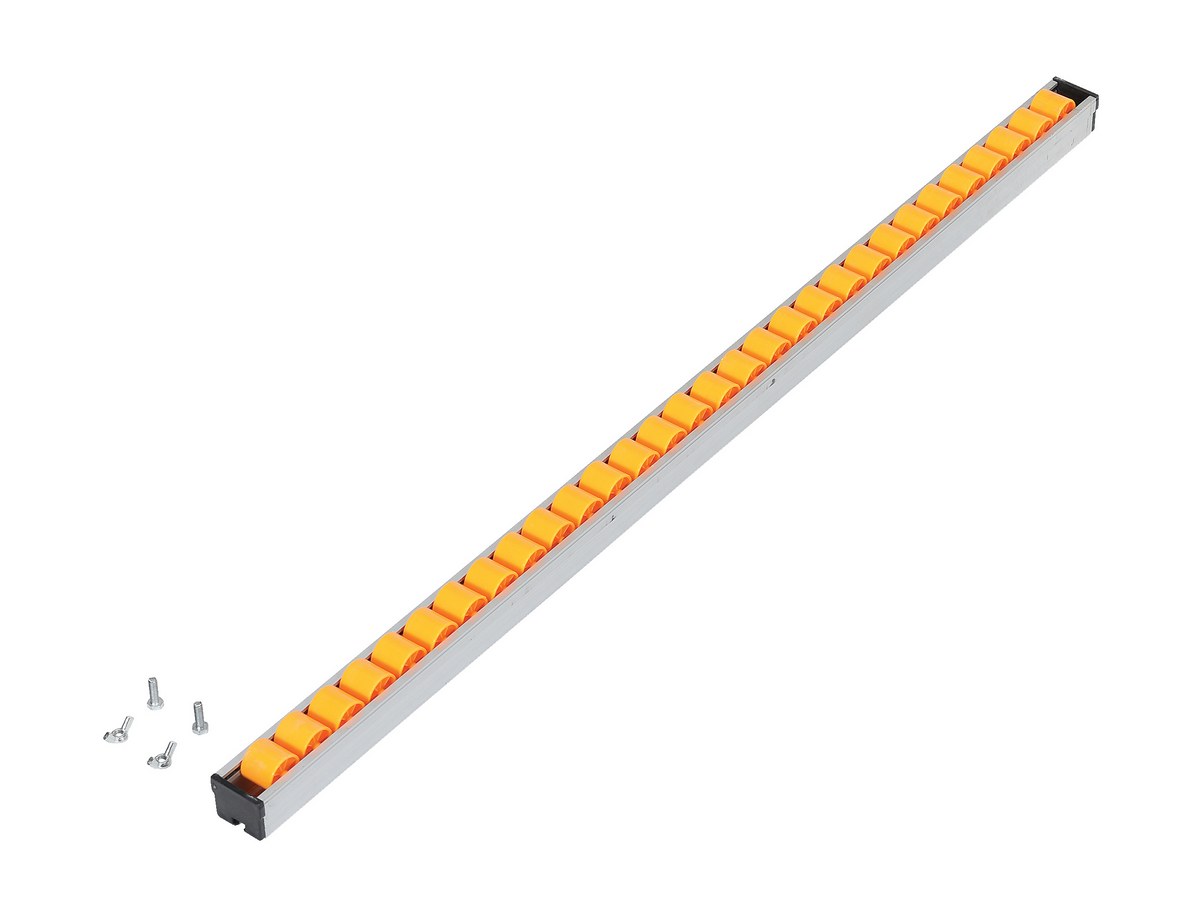

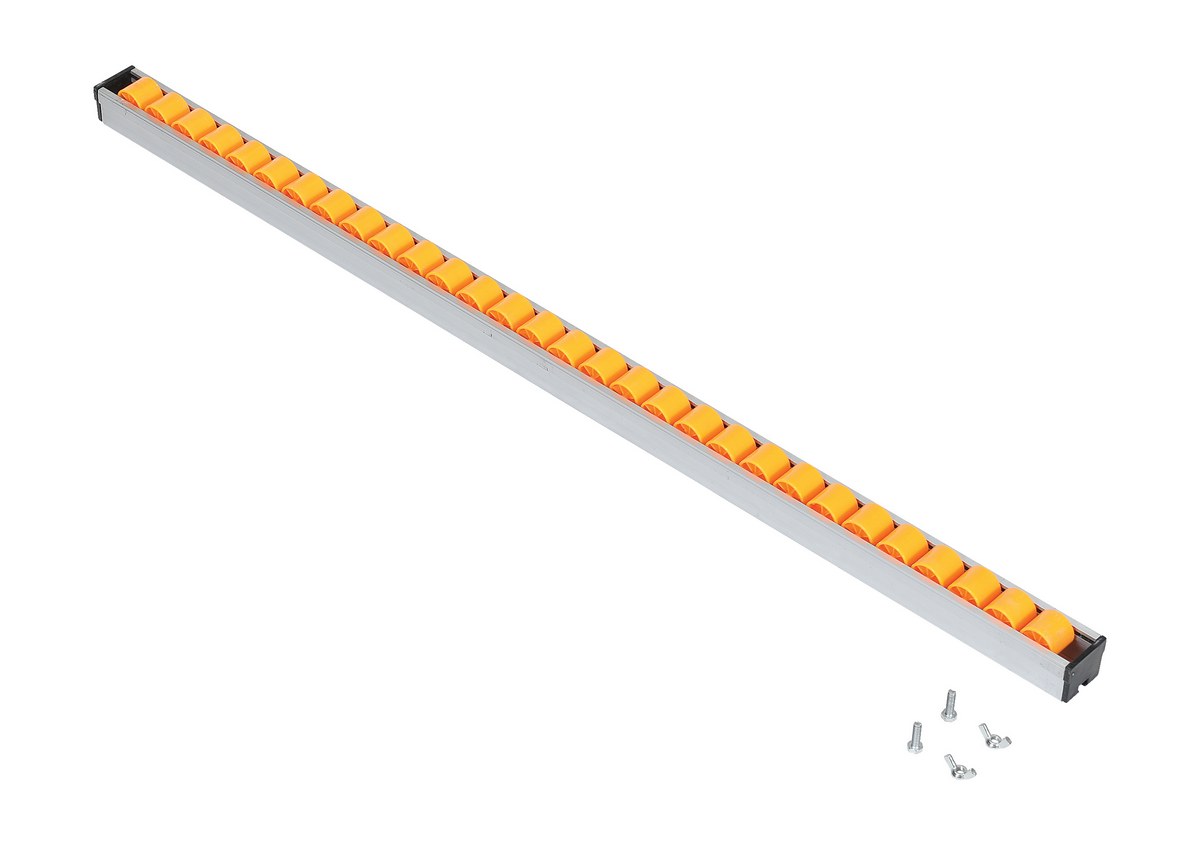

FLO-3-RLR FLO-3-RLR Aluminum Additional Roller For 3 Ft. Flow Rack Model Silver 90 Days Limited Warranty 2
FLO-4-DIVD FLO-4-DIVD Steel Divider Section 48 In. Length For Flow Rack Models Blu… 90 Days Limited Warranty 6
FLO-4-RLR FLO-4-RLR Aluminum Additional Roller For 4 Ft. Flow Rack Model Silver 90 Days Limited Warranty 3

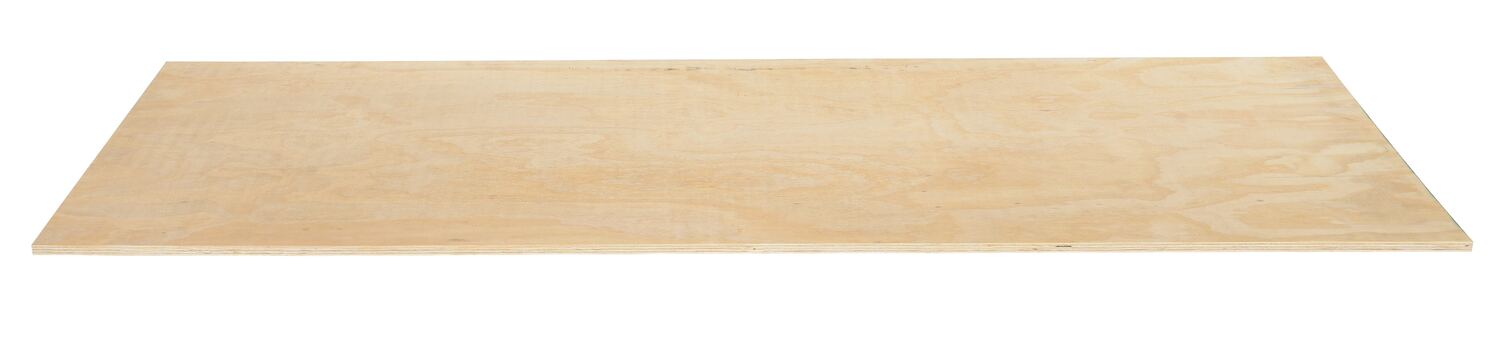

FLOW-WD-36 FLOW-WD-36 Wood Top Shelf For 36 In. Length For Carton Flow Rack Model … 30 Days Limited Warranty 89

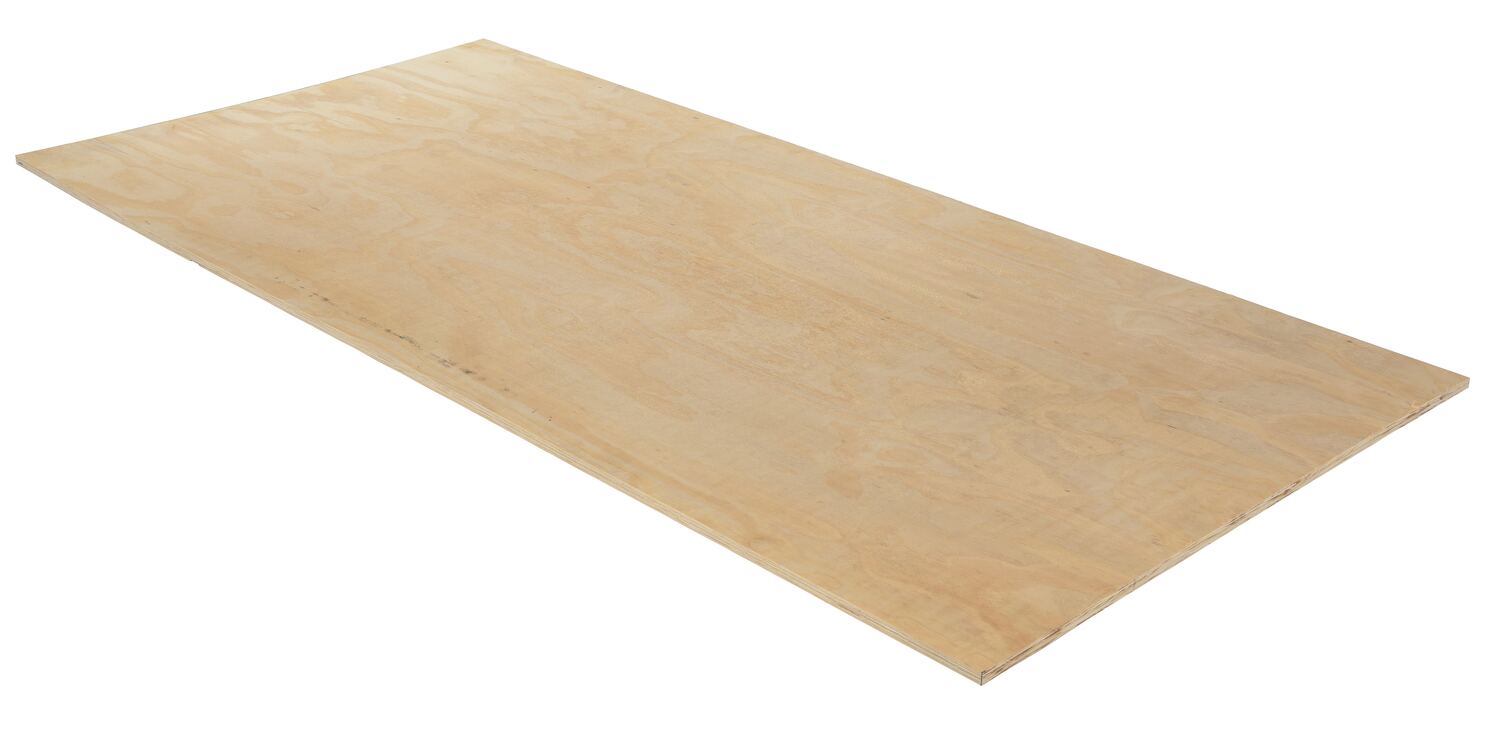

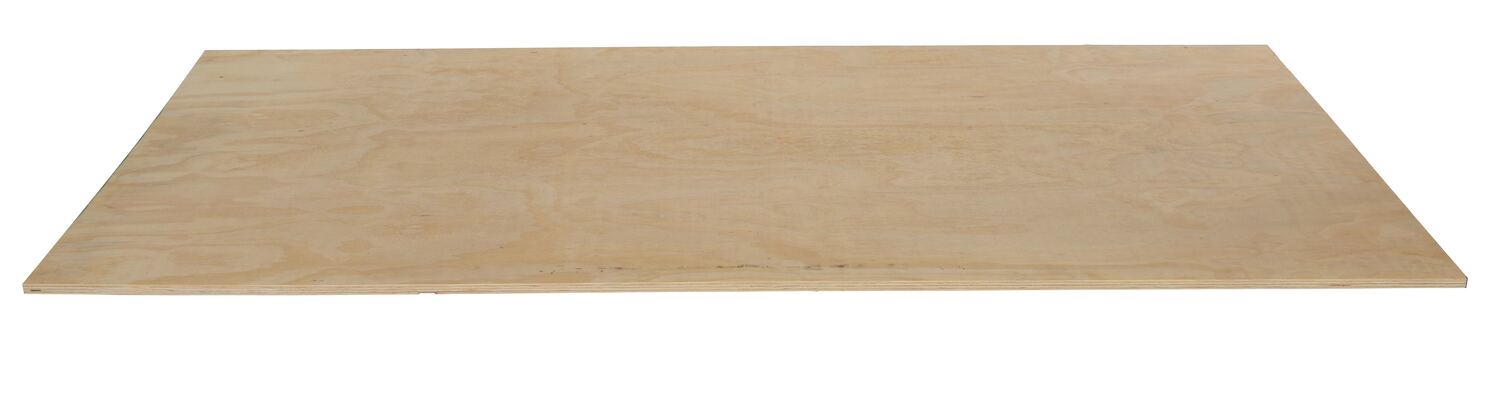

FLOW-WD-48 FLOW-WD-48 Wood Top Shelf For 48 In. Length For Carton Flow Rack Model … 30 Days Limited Warranty 99

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

3
FLOW-3-3, MANUAL
Open Manual
FLOW-4-3, MANUAL
Open Manual
FLOW, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

6
FLOW-3-3
Open Drawing
FLOW-3-4
Open Drawing
FLOW-3-5
Open Drawing
FLOW-4-3
Open Drawing
FLOW-4-4
Open Drawing
FLOW-4-5
Open Drawing

Testing Certificates

12
FLO-3-DIVD
Open Certificate
FLO-3-RLR
Open Certificate
FLO-4-DIVD
Open Certificate
FLO-4-RLR
Open Certificate
FLOW-3-3
Open Certificate
FLOW-3-4
Open Certificate
FLOW-3-5
Open Certificate
FLOW-4-3
Open Certificate
FLOW-4-4
Open Certificate
FLOW-4-5
Open Certificate
FLOW-WD-36
Open Certificate
FLOW-WD-48
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

1

Pallet Rack Gravity Flow Shelves Mailing Brochure

Related or Similar Products:

More From Various Racking





Carton Flow Racks




Gravity Flow Carton Racks for FIFO Inventory Storage and Picking

Gravity flow carton racks provide an efficient storage and picking solution for cartons, boxes, totes, parts, and packaged inventory. Designed for warehouses, distribution centers, fulfillment areas, assembly lines, stockrooms, and order picking operations, these carton flow racks use roller tracks to move product forward for convenient first-in, first-out stock rotation.

FIFO Flow Rack Design

Cartons are gravity fed on rollers, helping operators access the next item quickly while keeping inventory organized by arrival sequence. This improves stock rotation, reduces unnecessary reaching, and supports faster picking in high-volume material handling and replenishment areas.

Heavy-Duty Level Capacity

Each flow level supports 1,000 lb. capacity and includes four pairs of rollers rated at 50 lb. per foot. Five divider sections per level help separate cartons or product lanes, making it easier to organize multiple SKUs within the same rack system.

Depth, Level, and Accessory Options

This family includes 96 inch wide racks in 36 inch and 48 inch depths, with 3, 4, or 5 flow levels. Units are 84 inches high and can be bolted together for additional depth. Available accessories include extra divider sections, additional rollers, and wood top shelves for expanded storage flexibility. Assembly is required, and the baked-in powder coat finish adds durability for daily industrial use.


Model # Description Attributes Net Wt.
(lbs)

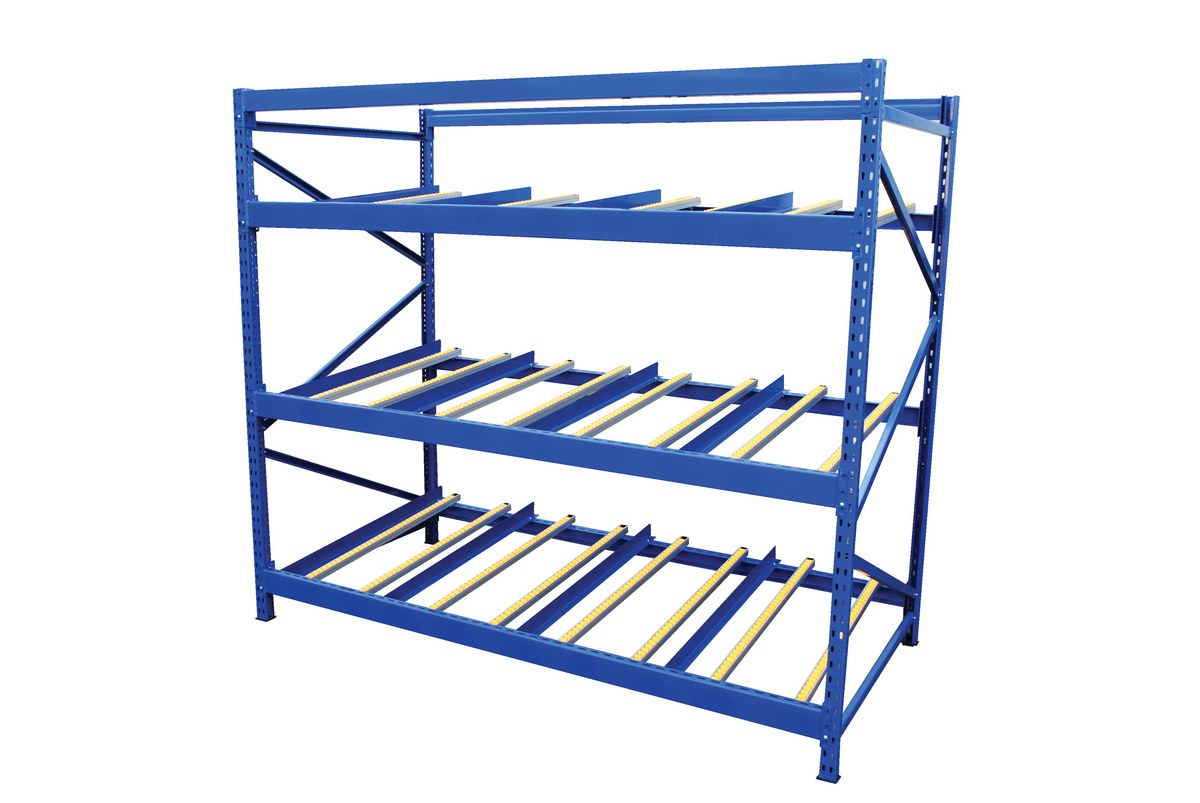

FLOW-3-3 FLOW-3-3Steel Carton Flow Rack 3 Ft. Length 3 Level 1,000 Lb. Capacity BlueUniform Capacity per Level (lb.): 1000
Roller Capacity per Foot (lb.): 50		311
FLOW-3-4 FLOW-3-4Steel Carton Flow Rack 3 Ft. Length 4 Level 1,000 Lb. Capacity BlueUniform Capacity per Level (lb.): 1000
Roller Capacity per Foot (lb.): 50		388

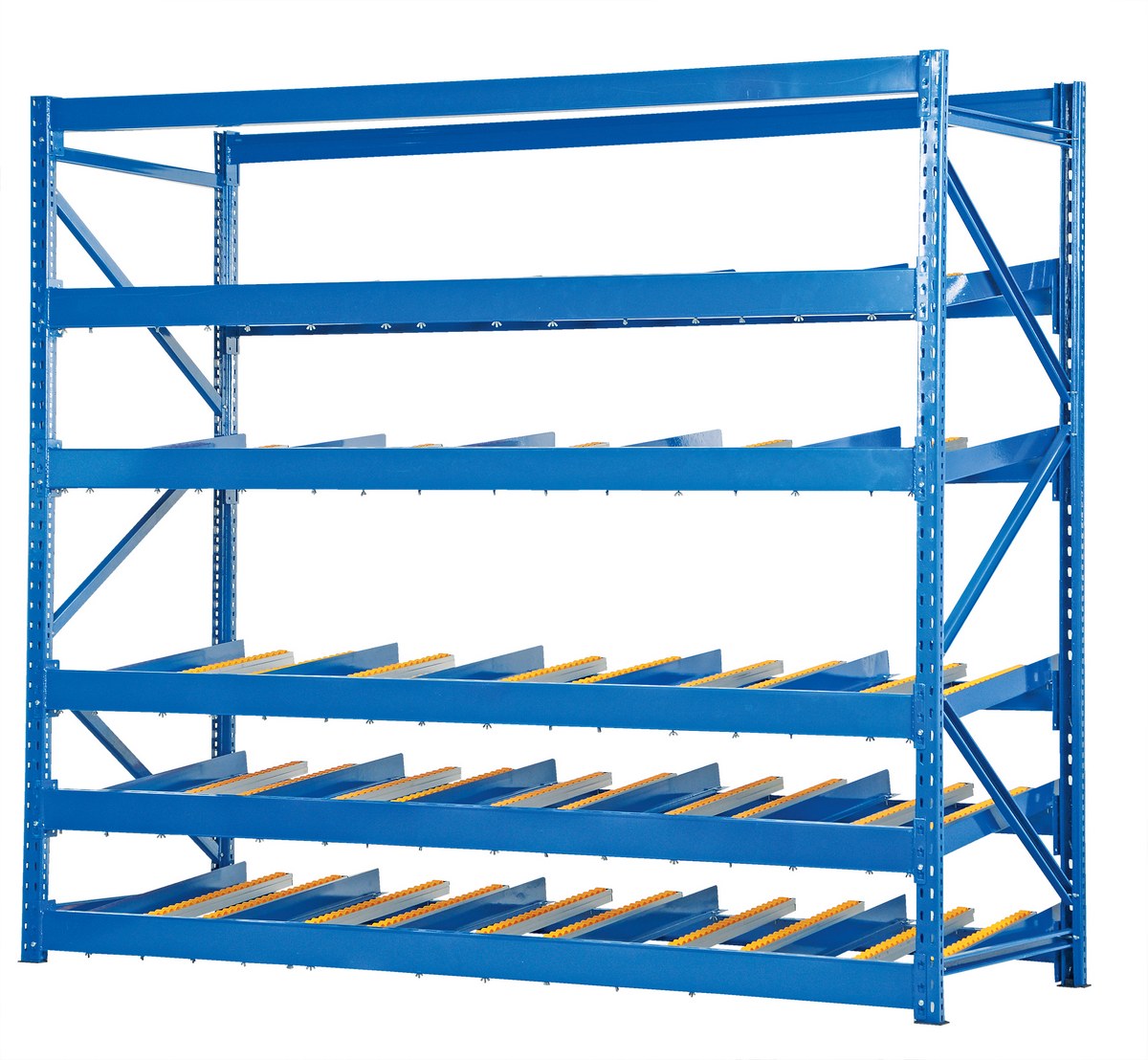

FLOW-3-5 FLOW-3-5Steel Carton Flow Rack 3 Ft. Length 5 Level 1,000 Lb. Capacity BlueUniform Capacity per Level (lb.): 1000
Roller Capacity per Foot (lb.): 50		429

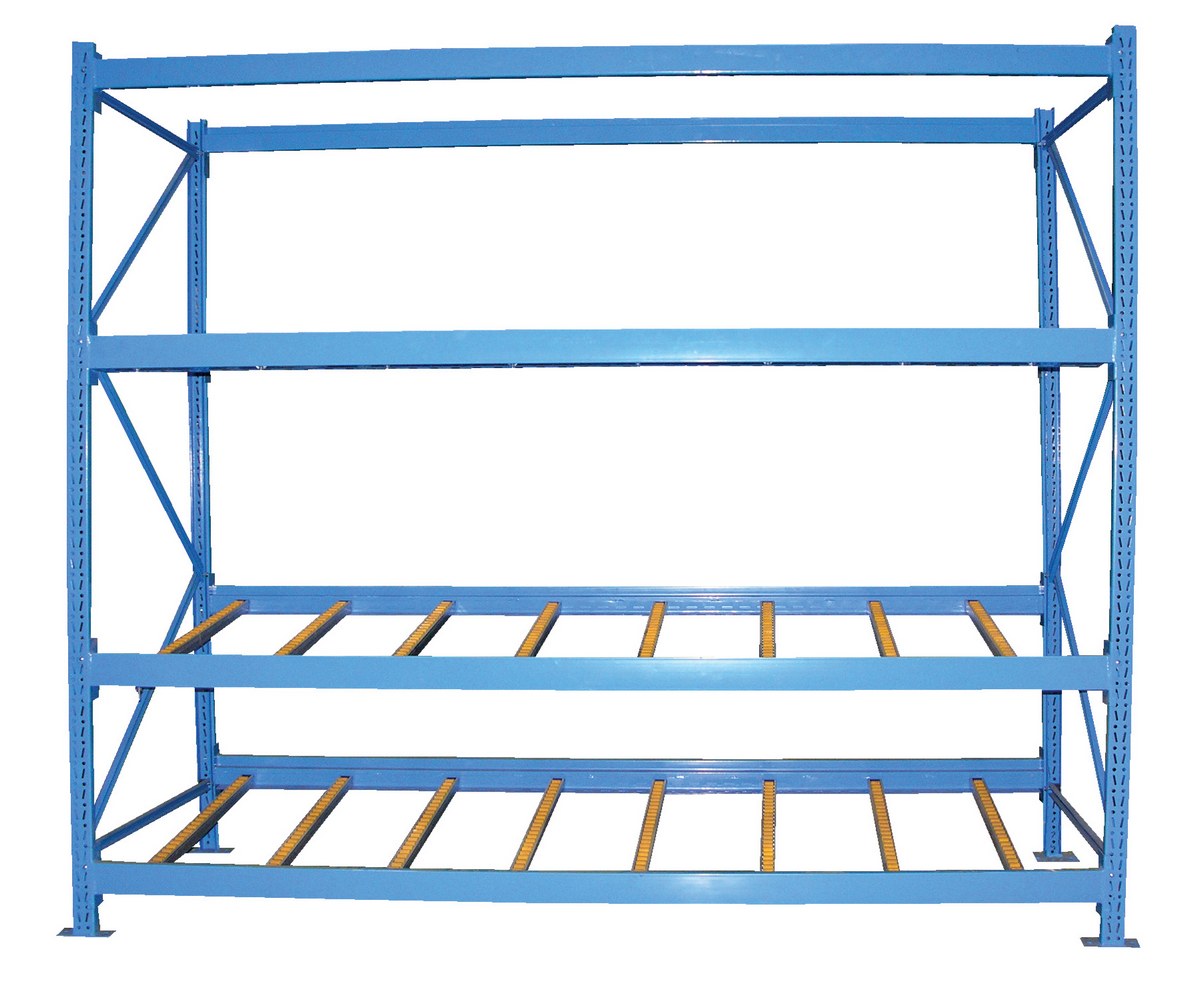

FLOW-4-3 FLOW-4-3Steel Carton Flow Rack 4 Ft. Length 3 Level 1,000 Lb. Capacity BlueUniform Capacity per Level (lb.): 1000
Roller Capacity per Foot (lb.): 50		373
FLOW-4-4 FLOW-4-4Steel Carton Flow Rack 4 Ft. Length 4 Level 1,000 Lb. Capacity BlueUniform Capacity per Level (lb.): 1000
Roller Capacity per Foot (lb.): 50		407

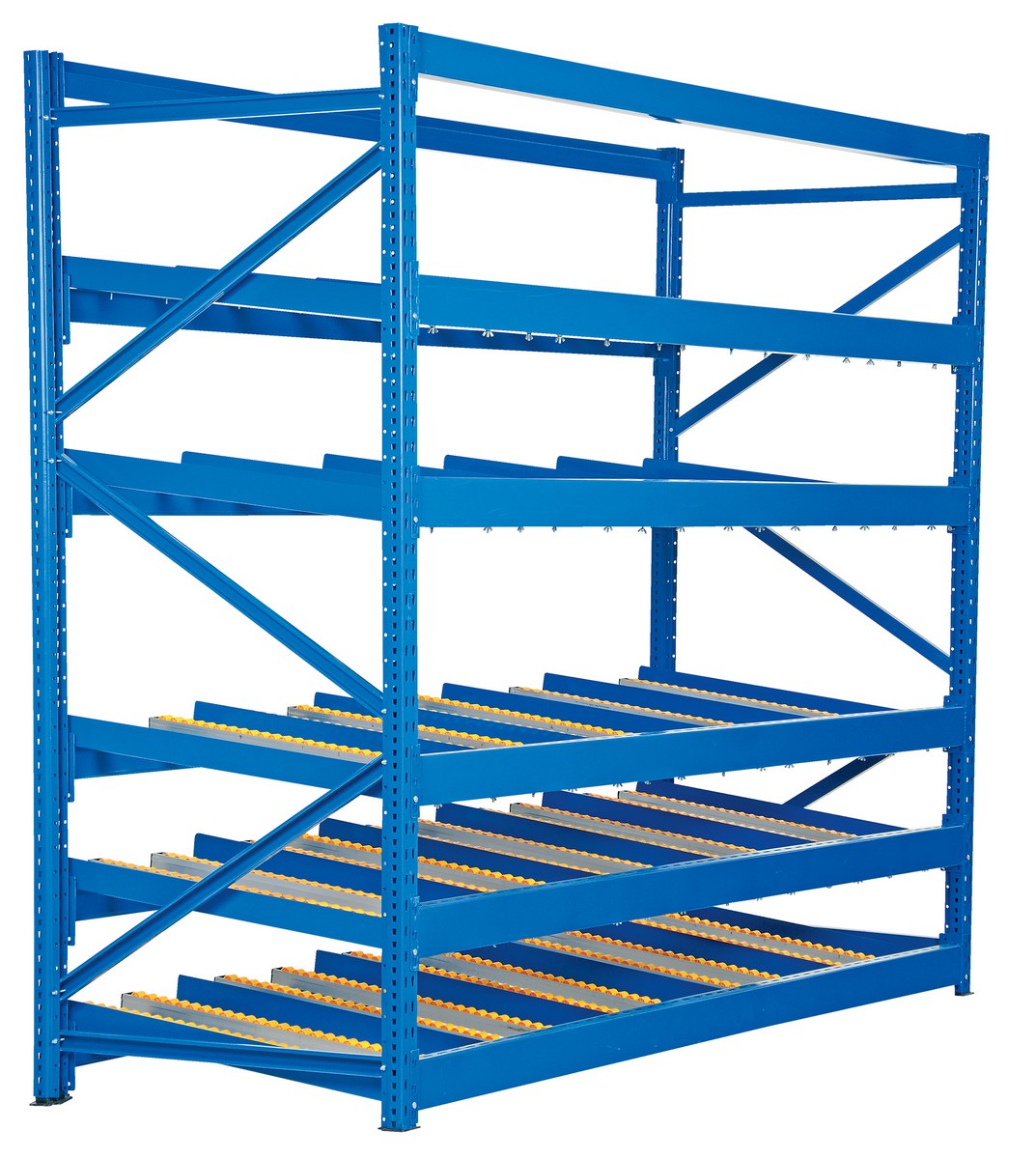

FLOW-4-5 FLOW-4-5Steel Carton Flow Rack 4 Ft. Length 5 Level 1,000 Lb. Capacity BlueUniform Capacity per Level (lb.): 1000
Roller Capacity per Foot (lb.): 50		474
