Product Family Overview


Internestable Portable Stackable Rack Systems
SERIES: NEST

Unique transport and storage racks will stack and nest for maximum versatility. Remove or change post height depending on application. All heights noted are for load heights. Each unit features a uniform capacity of 4,000 pounds. Design allows for stacking up to two (2) units high. Solid steel deck construction. Rugged welded steel construction with blue, baked-in powder-coat finish for added toughness. Large target and pintle for speedy alignment. Units are available with fork lift pockets, solid decking and caster kits upon request.

Unique transport and storage racks will stack and nest for maximum versatility. Remove or change post height depending on application. All heights noted are for load heights. Each unit features a uniform capacity of 4,000 pounds. Design allows for stacking up to two (2) units high. Solid steel deck construction. Rugged welded steel construction with blue, baked-in powder-coat finish for added toughness. Large target and pintle for speedy alignment. Units are available with fork lift pockets, solid decking and caster kits upon request.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

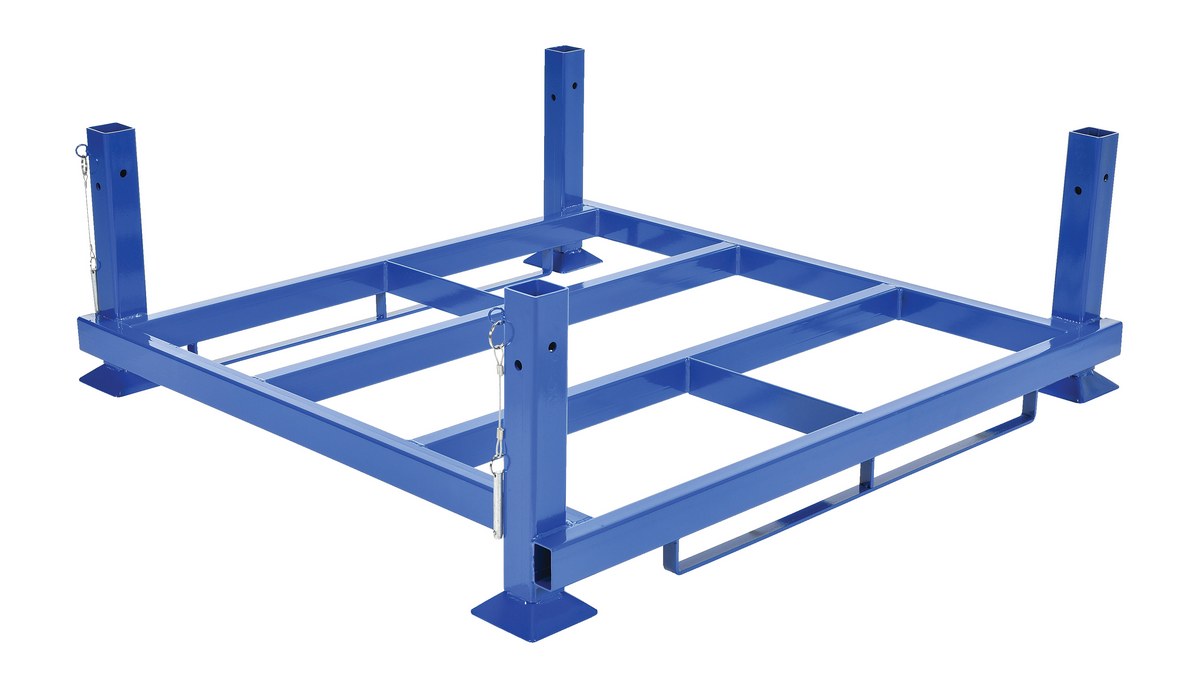

BASE-4848 BASE-48481 Year Limited WarrantySteel Nestable Portable Rack Base 51-3/4 In. x 55-1/2 In. x 18 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Component: Base
90

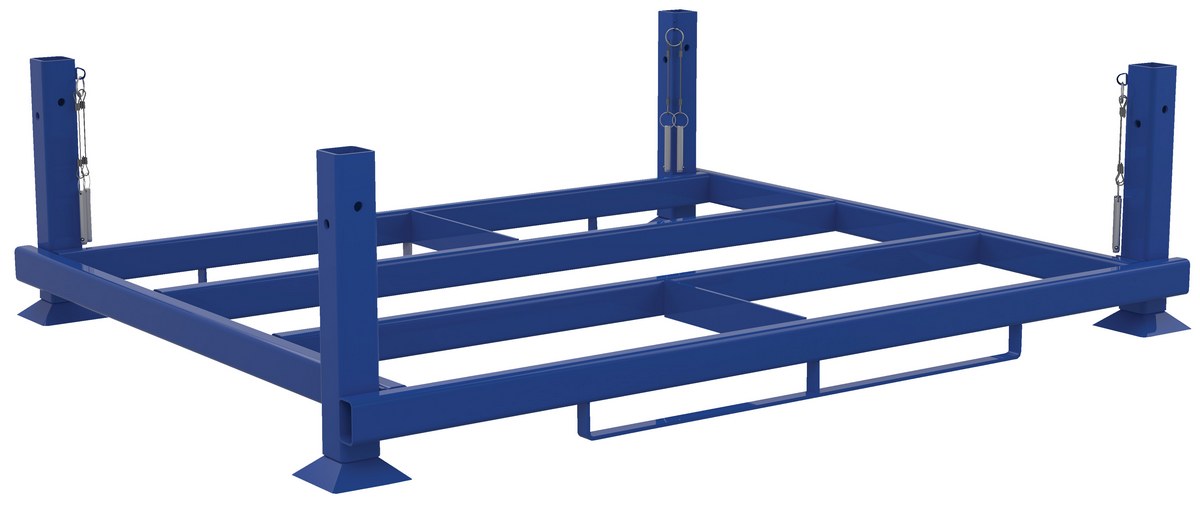

BASE-6048 BASE-60481 Year Limited WarrantySteel Nestable Portable Rack Base 51-3/4 In. x 67-1/2 In. x 18 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Component: Base
113
NEST-F-4848 NEST-F-484890 Days Limited WarrantySteel Nestable Stackable Racks with Adjustable Posts 51-3/4 In. x 55-1/2 In. x 29-3/16 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Maximum Post Height (in.): 35-3/16
263
NEST-F-6048 NEST-F-604890 Days Limited WarrantySteel Nestable Stackable Racks with Adjustable Posts 51-3/4 In. x 67-1/2 In. x 29-3/16 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Maximum Post Height (in.): 35-3/16
399

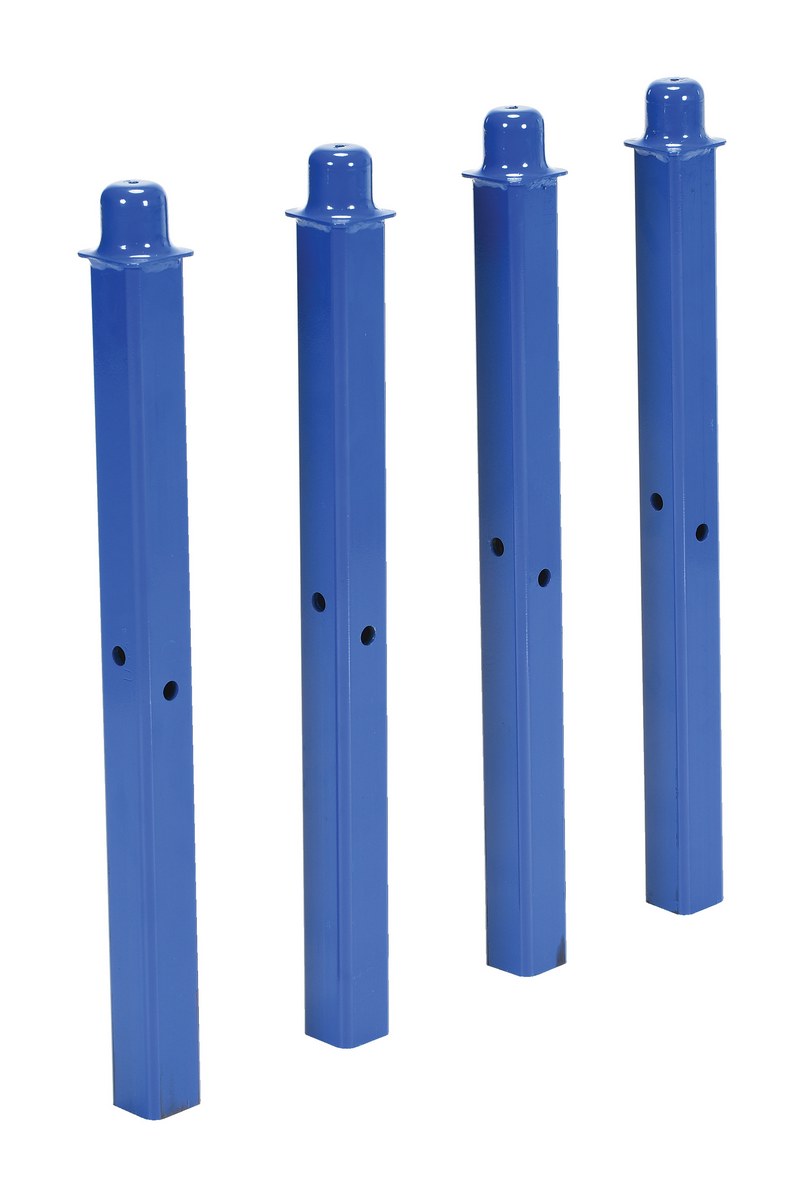

POST-24 POST-2490 Days Limited WarrantySteel Removable Posts 2-1/2 In. x 2-1/2 In. x 26-5/8 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Usable Height (in.): 24-5/8
60

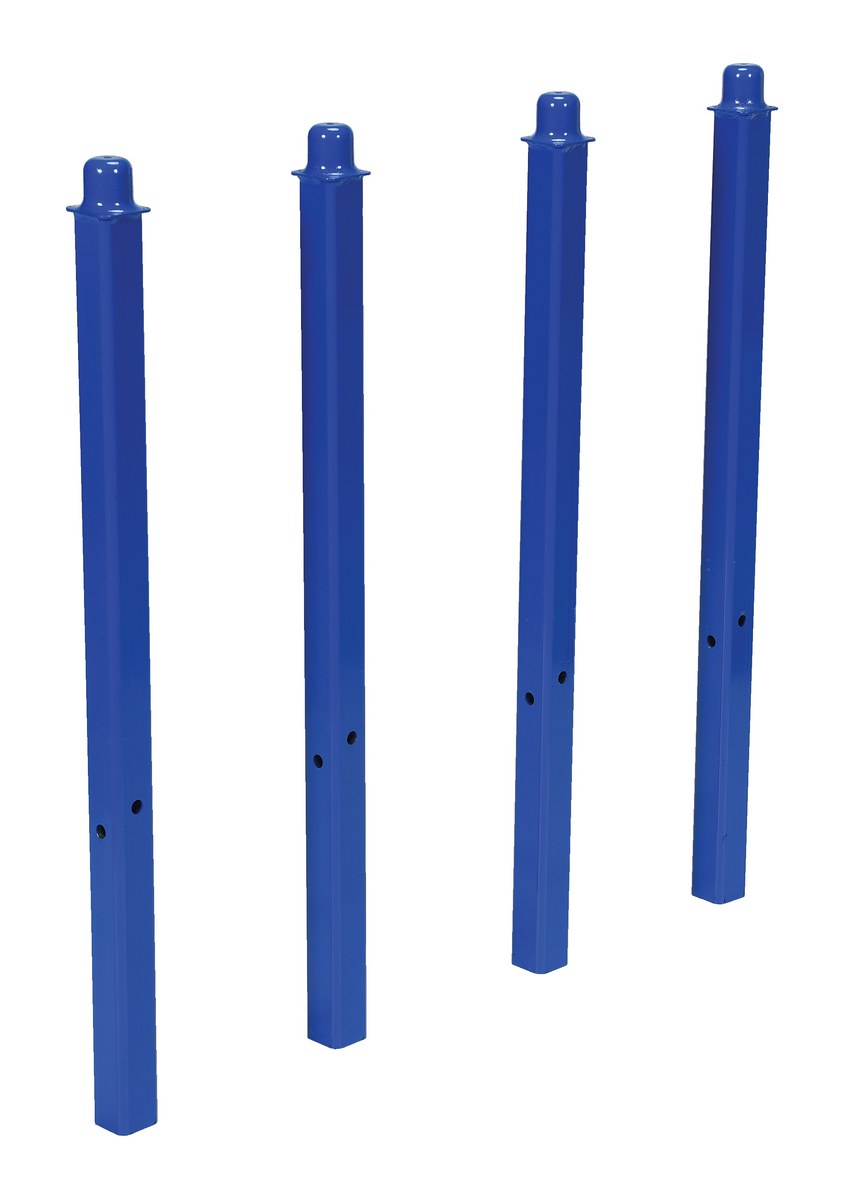

POST-36 POST-3690 Days Limited WarrantySteel Removable Posts 2-1/2 In. x 2-1/2 In. x 38-5/8 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Usable Height (in.): 36-5/8
62

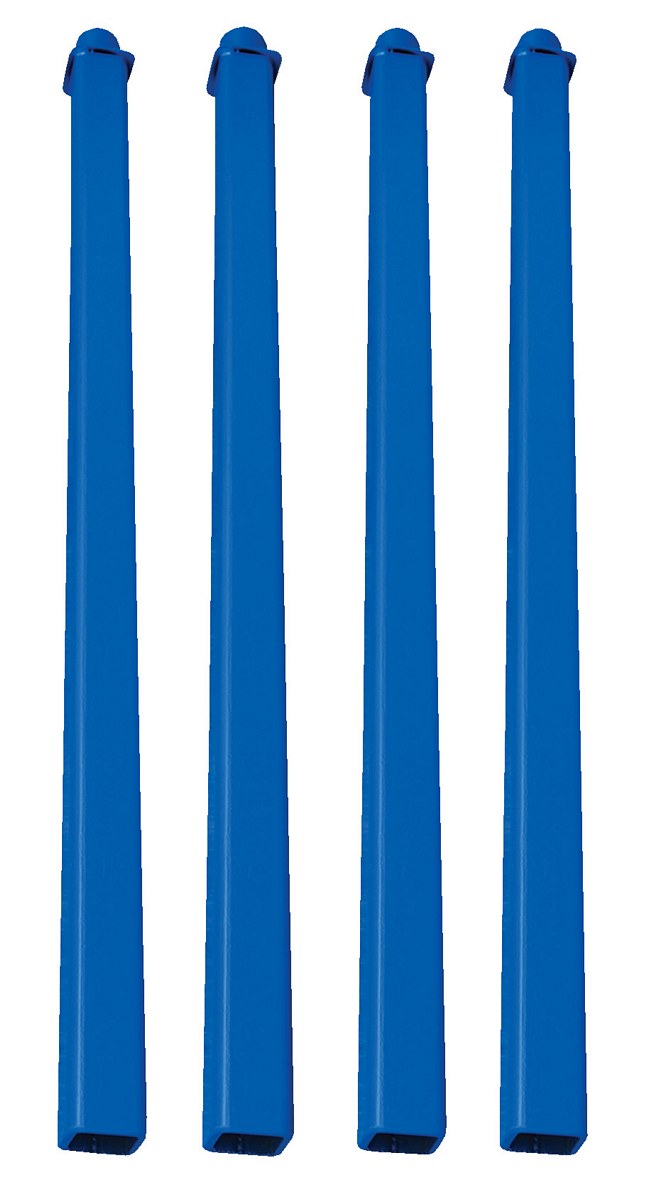

POST-48 POST-4890 Days Limited WarrantySteel Removable Posts 2-1/2 In. x 2-1/2 In. x 50-5/8 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Usable Height (in.): 48-5/8
72

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

BASE-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Component: Base
Uniform Capacity (lb.): 4,000
Component: Base

BASE-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Component: Base
Uniform Capacity (lb.): 4,000
Component: Base

NEST-F-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Maximum Post Height (in.): 35-3/16
Uniform Capacity (lb.): 4,000
Maximum Post Height (in.): 35-3/16

NEST-F-6048
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Maximum Post Height (in.): 35-3/16
Uniform Capacity (lb.): 4,000
Maximum Post Height (in.): 35-3/16

POST-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Height (in.): 24-5/8
Uniform Capacity (lb.): 4,000
Usable Height (in.): 24-5/8

POST-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Height (in.): 36-5/8
Uniform Capacity (lb.): 4,000
Usable Height (in.): 36-5/8

POST-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Usable Height (in.): 48-5/8
Uniform Capacity (lb.): 4,000
Usable Height (in.): 48-5/8

Internestable Portable Stackable Rack Systems PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


BASE-4848

BASE-6048

NEST-F-4848

NEST-F-6048

POST-24

POST-36

POST-48

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Is the BASE-4848 able to stack with the NEST-F-4848?

A: Yes. Both the BASE-4848 and the NEST-F-4848 are internestable and stackable.


Q: I want to stack BASE-4848 with the NEST-F-4848. Can I stack 3 levels?

A: The BASE-4848 and the NEST-F-4848 are internestable and stackable - 2 units high. For stacking more than 2 units high, please see NEST-106,NEST-210,NEST215 or NEST-230.
