Product Family Overview


Forklift Tie-Down Clamps
SERIES: FTDC

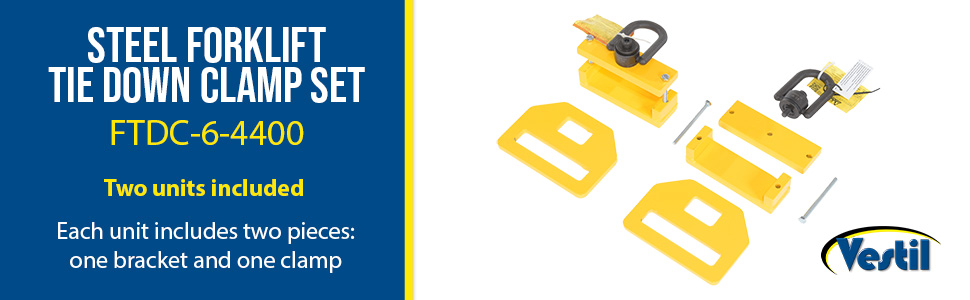

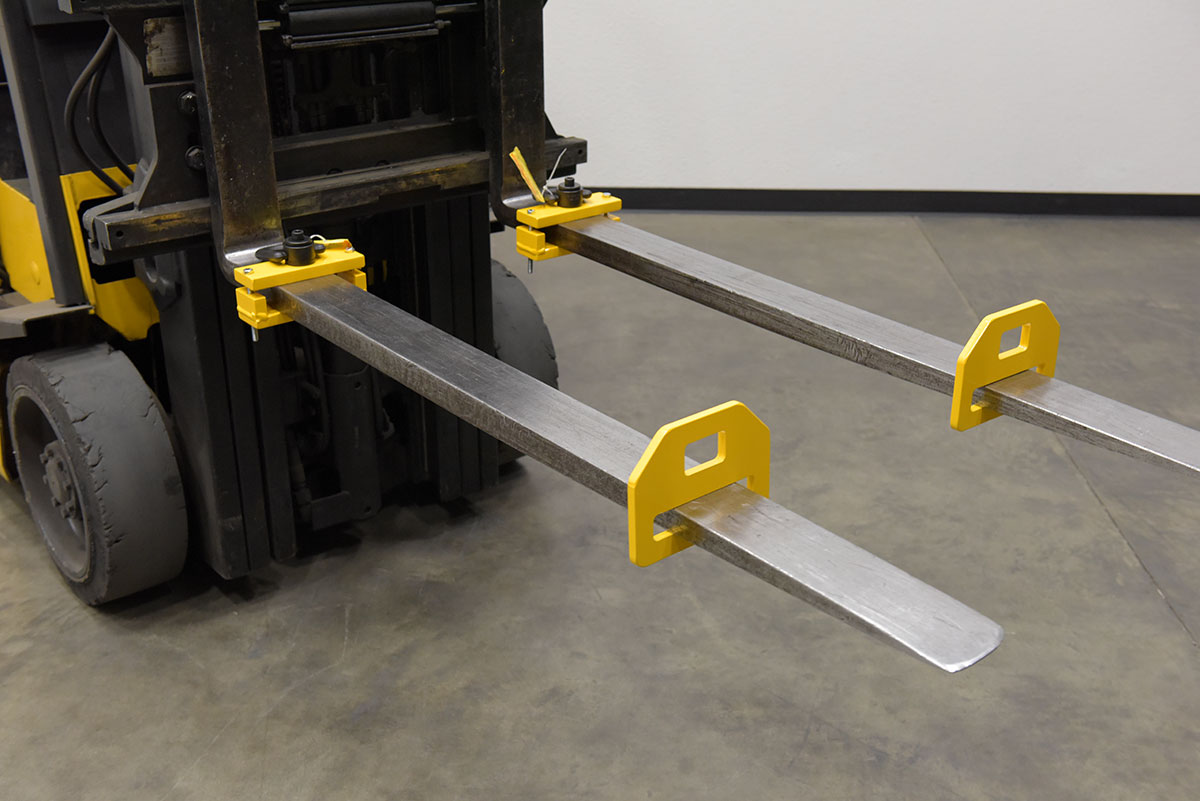

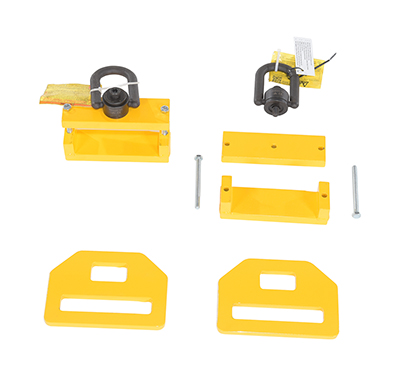

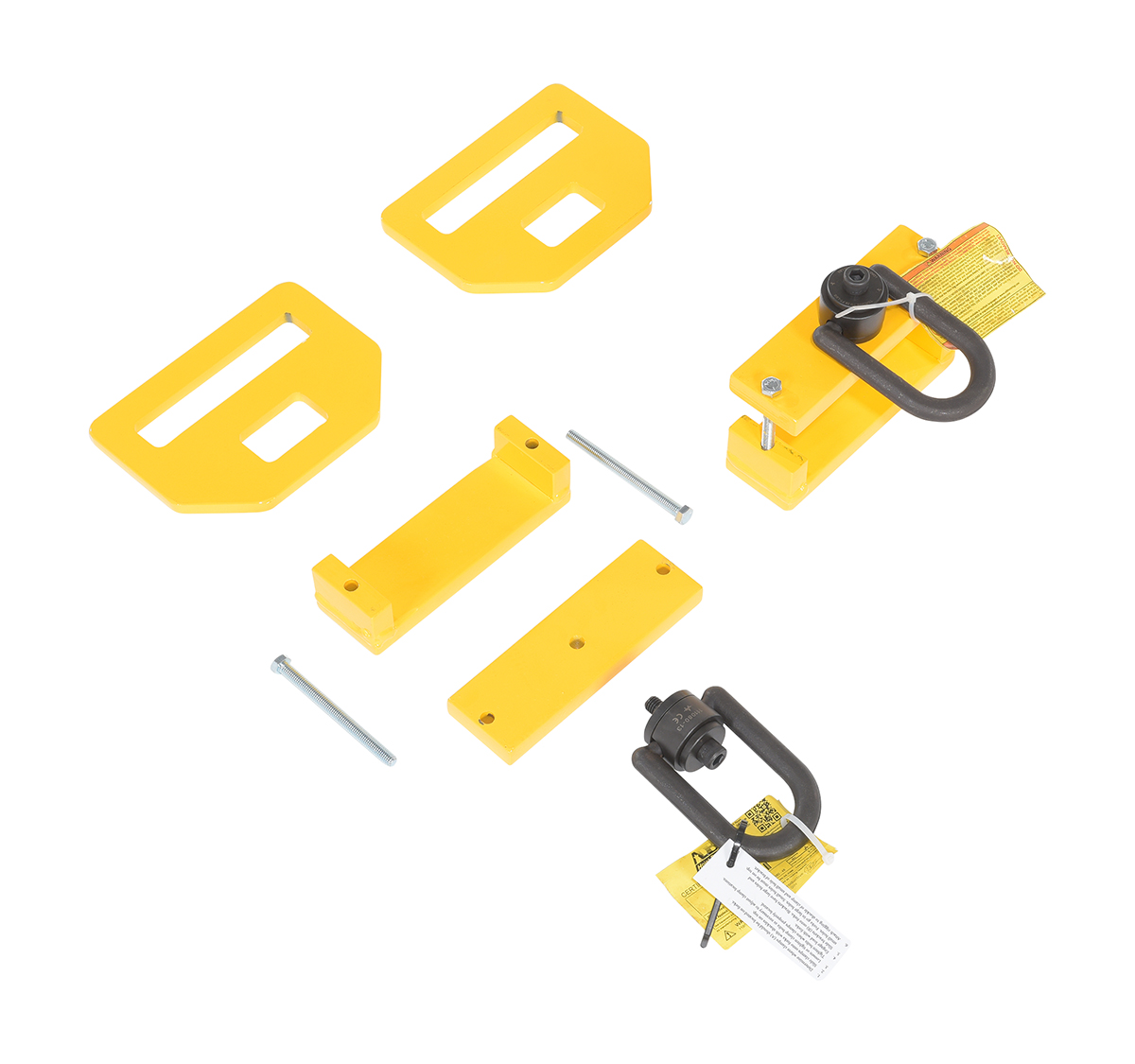

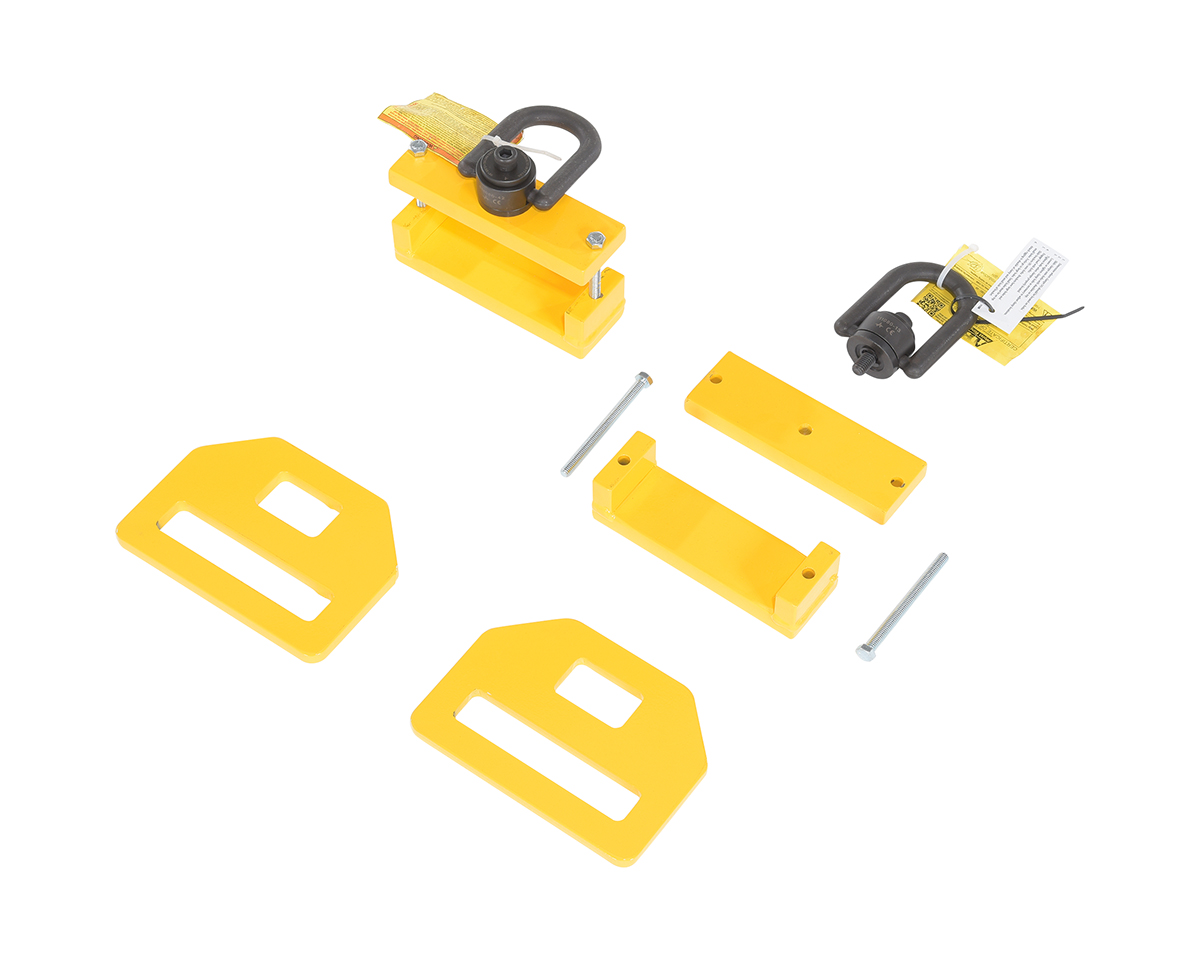

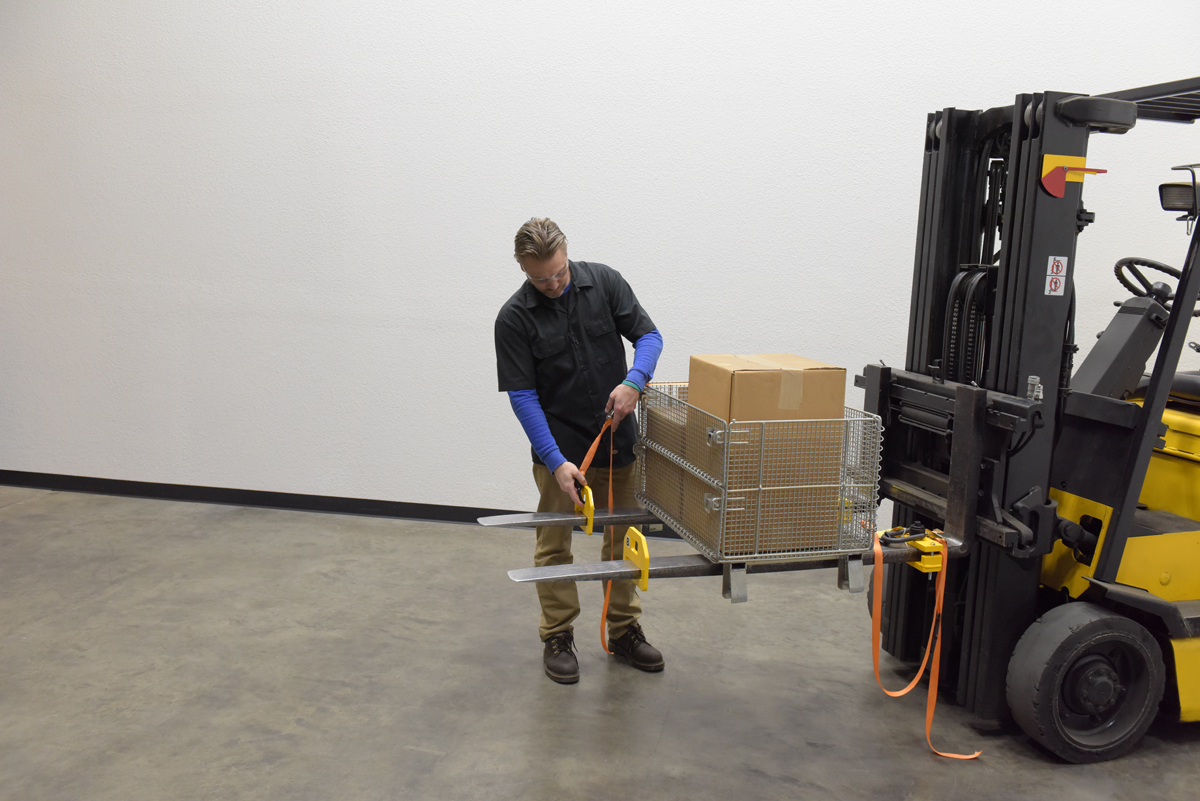

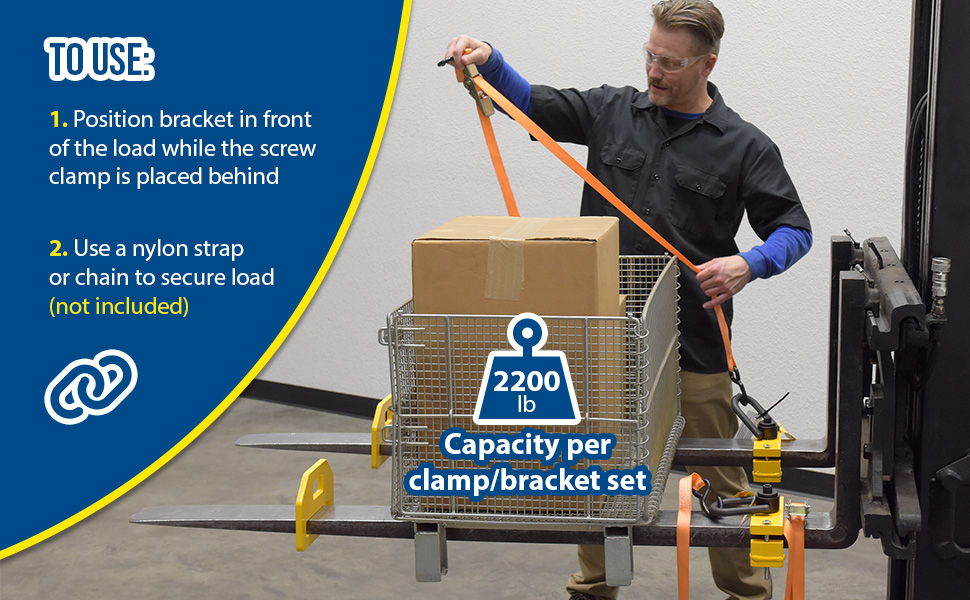

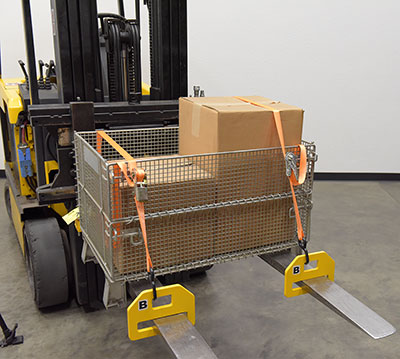

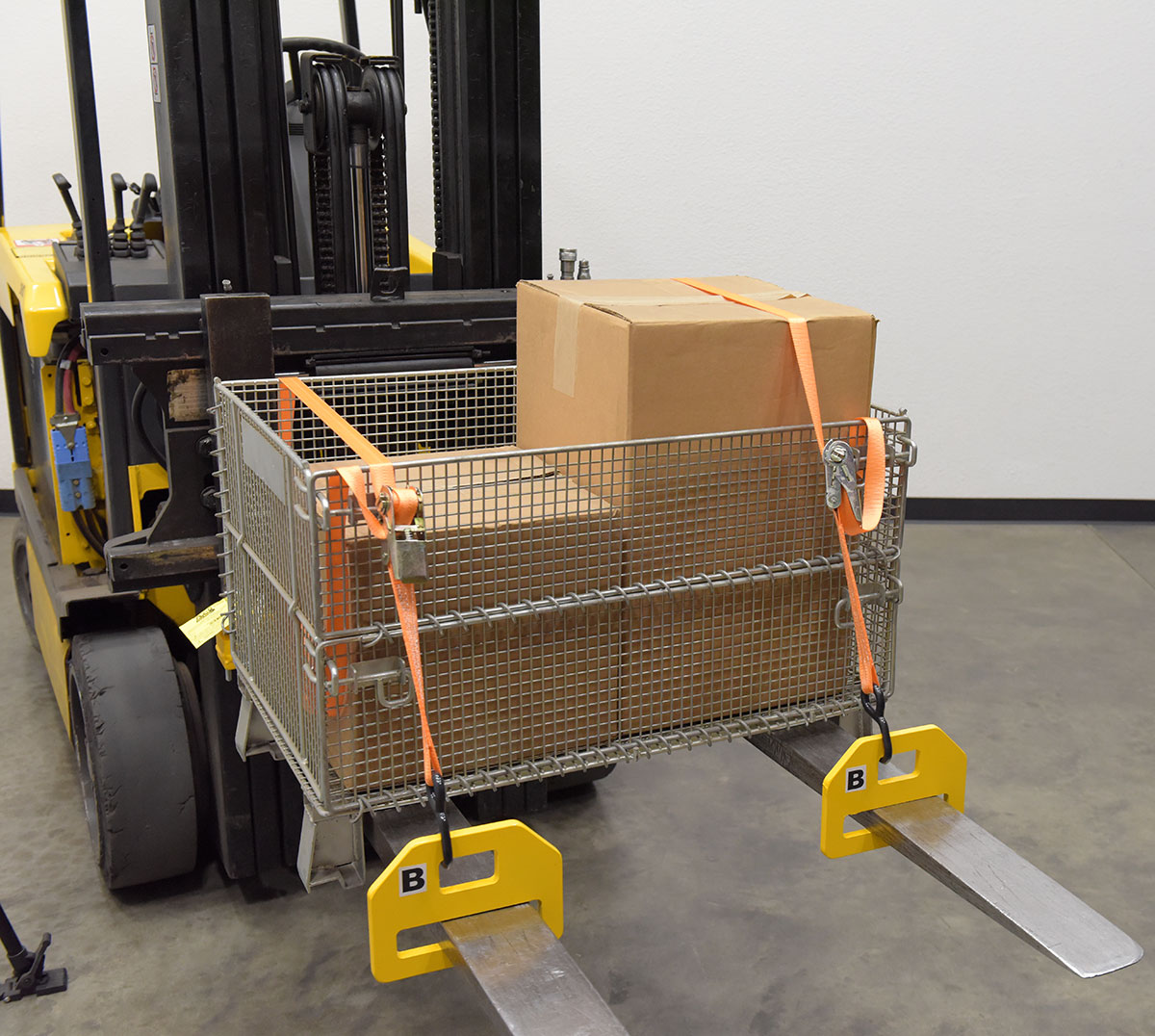

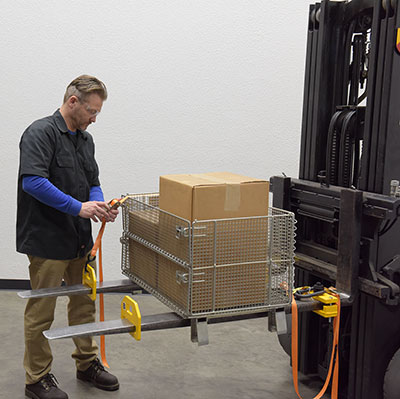

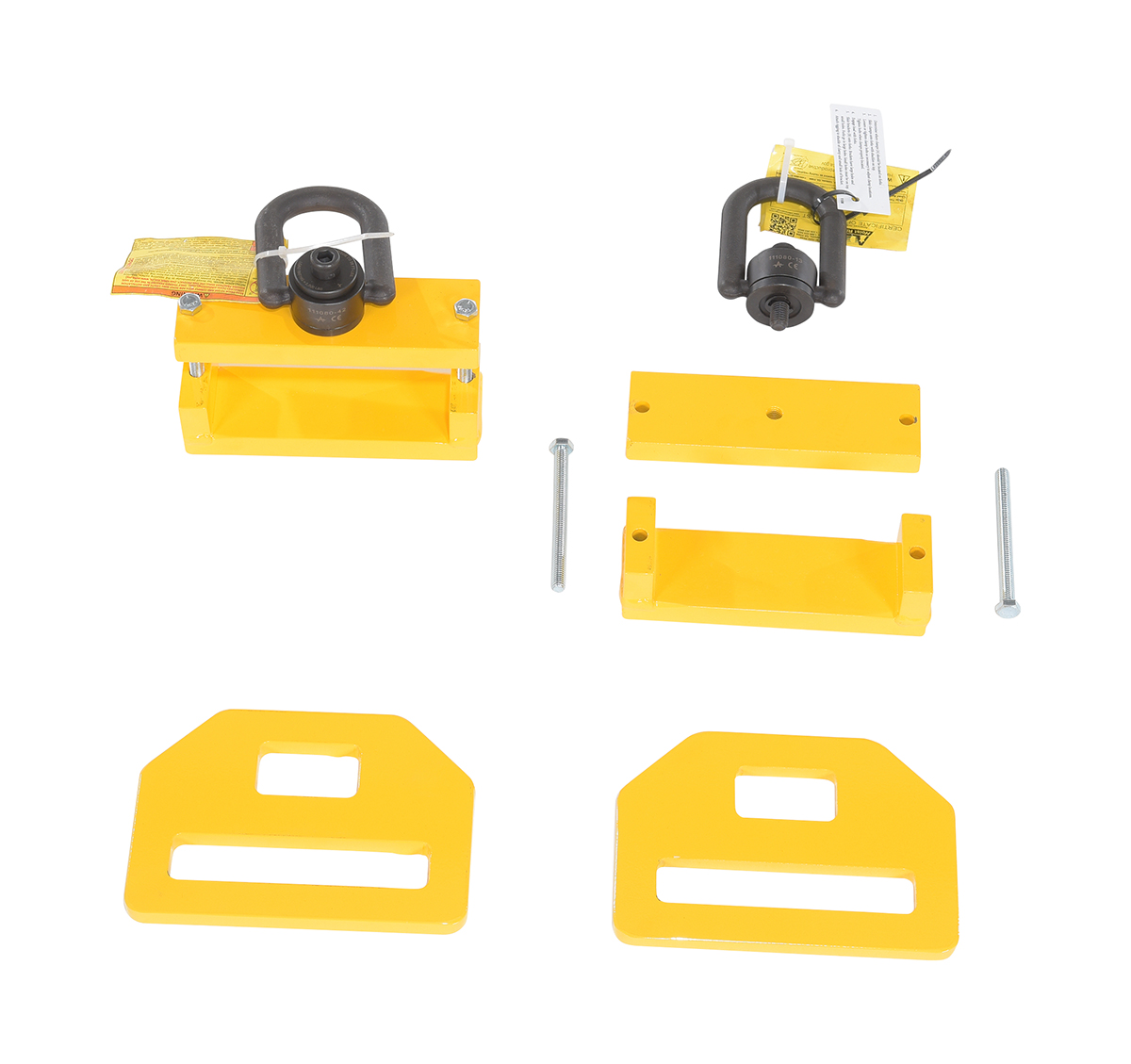

Forklift tie down clamps are a great asset when securing loads for transport. These are sold in pairs, so the entire unit is comprised of four pieces (2 brackets, 2 clamps). An eye bracket is positioned in front of the load while the screw clamp is placed behind the unit, closest to the forklift driver. These are put in place by sliding over the forks. Simply use the preferred type of tie down such as a nylon strap or chain to secure the load (chain and strap not included).

PRODUCT DETAILS

  • Uniform Capacity: 4,400 lbs. (2,200 lbs, per clamp/bracket)
  • Clamps To Fit Forks: 6"W x 2-3/4"H
  • Steel Construction
  • Tough Baked In Powder Coated Yellow Finish

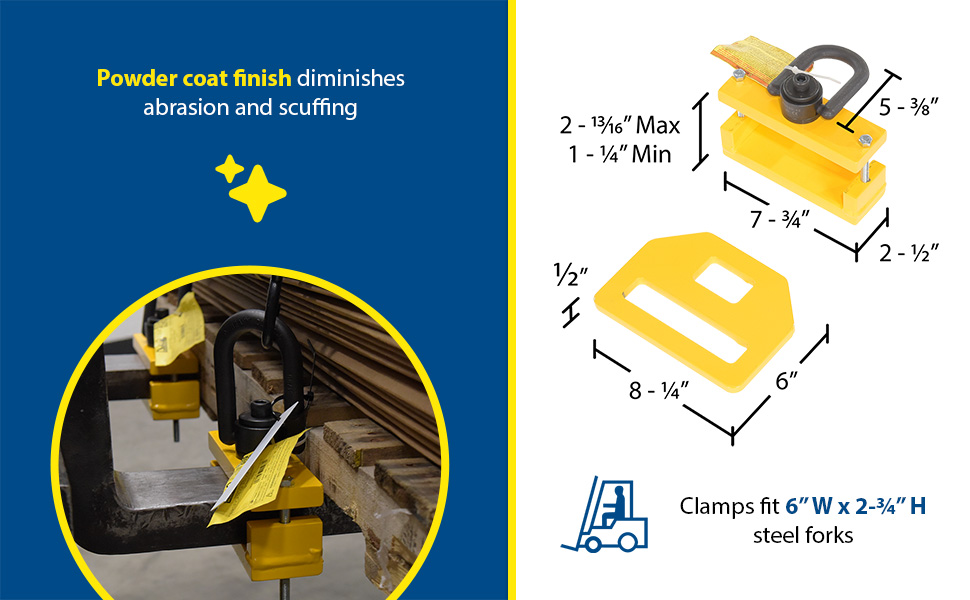

EYE BRACKET FEATURES

  • OVERALL EYE BRACKET WIDTH: 8 1/4"
  • OVERALL EYE BRACKET HEIGHT: 6"
  • EYE BRACKET FORK OPENING: 6 1/4"W x 1 1/4"H
  • EYE BRACKET LIFT OPENING: 2 1/2"W x 1 1/2"H
  • EYE BRACKET THICKNESS: 1/2"

SCREW CLAMP WITH SWIVEL EYE FEATURES

  • OVERALL SCREW CLAMP WIDTH: 7 3/4"
  • OVERALL SCREW CLAMP DEPTH: 2 1/2"
  • MAX. USABLE HEIGHT: 2 13/16"
  • MIN. USABLE HEIGHT: 1 1/4"
  • EACH CLAMP INCLUDES SWIVEL EYE

Forklift tie down clamps are a great asset when securing loads for transport. These are sold in pairs, so the entire unit is comprised of four pieces (2 brackets, 2 clamps). An eye bracket is positioned in front of the load while the screw clamp is placed behind the unit, closest to the forklift driver. These are put in place by sliding over the forks. Simply use the preferred type of tie down such as a nylon strap or chain to secure the load (chain and strap not included).

PRODUCT DETAILS

  • Uniform Capacity: 4,400 lbs. (2,200 lbs, per clamp/bracket)
  • Clamps To Fit Forks: 6"W x 2-3/4"H
  • Steel Construction
  • Tough Baked In Powder Coated Yellow Finish

EYE BRACKET FEATURES

  • OVERALL EYE BRACKET WIDTH: 8 1/4"
  • OVERALL EYE BRACKET HEIGHT: 6"
  • EYE BRACKET FORK OPENING: 6 1/4"W x 1 1/4"H
  • EYE BRACKET LIFT OPENING: 2 1/2"W x 1 1/2"H
  • EYE BRACKET THICKNESS: 1/2"

SCREW CLAMP WITH SWIVEL EYE FEATURES

  • OVERALL SCREW CLAMP WIDTH: 7 3/4"
  • OVERALL SCREW CLAMP DEPTH: 2 1/2"
  • MAX. USABLE HEIGHT: 2 13/16"
  • MIN. USABLE HEIGHT: 1 1/4"
  • EACH CLAMP INCLUDES SWIVEL EYE

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
FTDC-6-4400 FTDC-6-440090 Days Limited WarrantySteel Forklift Tie Down Clamps 2-1/2 In. x 8-1/4 In. x 8-1/2 In. 4400 Lb. Capacity YellowUniform Capacity (lbs.): 4400 (2200 per clamp/bracket set)
Clamps to Fit Forks Width/Height (in.): 6 x 2-3/4
36

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

FTDC-6-4400
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4400 (2200 per clamp/bracket set)
Clamps to Fit Forks Width/Height (in.): 6 x 2-3/4
Uniform Capacity (lbs.): 4400 (2200 per clamp/bracket set)
Clamps to Fit Forks Width/Height (in.): 6 x 2-3/4

Forklift Tie-Down Clamps PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


FTDC-6-4400

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Forklift Tie-Down Clamps




Forklift tie down clamps are a great asset when securing loads for transport. These are sold in pairs, so the entire unit is comprised of four pieces (2 brackets, 2 clamps). An eye bracket is positioned in front of the load while the screw clamp is placed behind the unit, closest to the forklift driver. These are put in place by sliding over the forks. Simply use the preferred type of tie down such as a nylon strap or chain to secure the load (chain and strap not included).

PRODUCT DETAILS

  • Uniform Capacity: 4,400 lbs. (2,200 lbs, per clamp/bracket)
  • Clamps To Fit Forks: 6"W x 2-3/4"H
  • Steel Construction
  • Tough Baked In Powder Coated Yellow Finish

EYE BRACKET FEATURES

  • OVERALL EYE BRACKET WIDTH: 8 1/4"
  • OVERALL EYE BRACKET HEIGHT: 6"
  • EYE BRACKET FORK OPENING: 6 1/4"W x 1 1/4"H
  • EYE BRACKET LIFT OPENING: 2 1/2"W x 1 1/2"H
  • EYE BRACKET THICKNESS: 1/2"

SCREW CLAMP WITH SWIVEL EYE FEATURES

  • OVERALL SCREW CLAMP WIDTH: 7 3/4"
  • OVERALL SCREW CLAMP DEPTH: 2 1/2"
  • MAX. USABLE HEIGHT: 2 13/16"
  • MIN. USABLE HEIGHT: 1 1/4"
  • EACH CLAMP INCLUDES SWIVEL EYE


Model # Description Attributes Net Wt.
(lbs)
FTDC-6-4400 FTDC-6-4400Steel Forklift Tie Down Clamps 2-1/2 In. x 8-1/4 In. x 8-1/2 In. 4400 Lb. Capacity YellowUniform Capacity (lbs.): 4400 (2200 per clamp/bracket set)
Clamps to Fit Forks Width/Height (in.): 6 x 2-3/4
36
