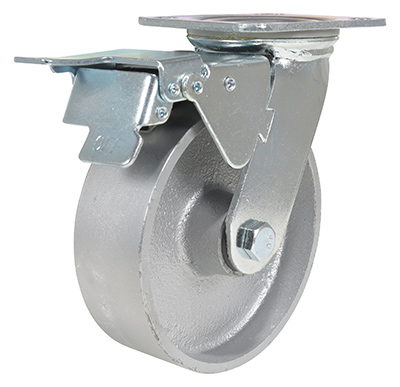

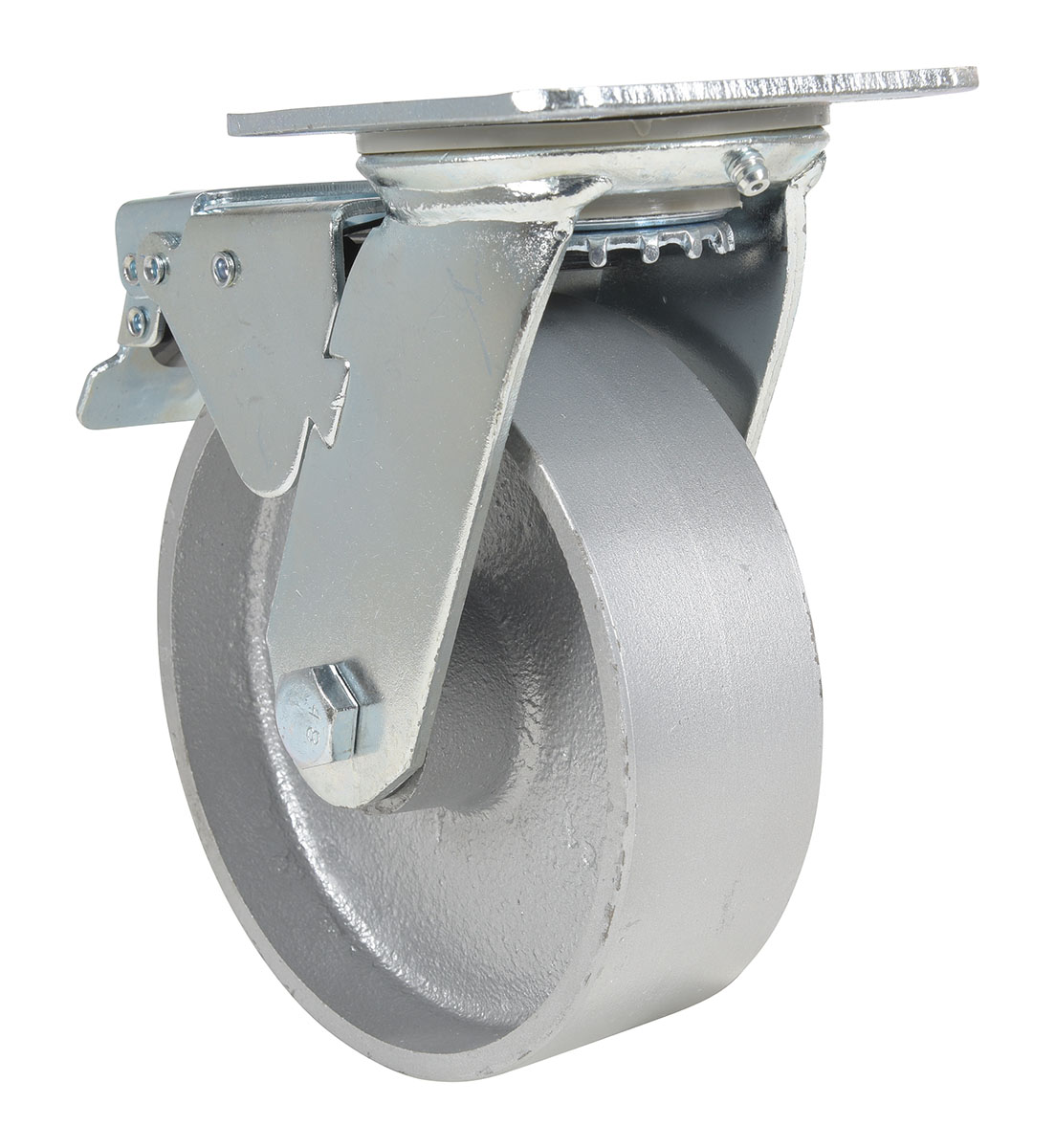

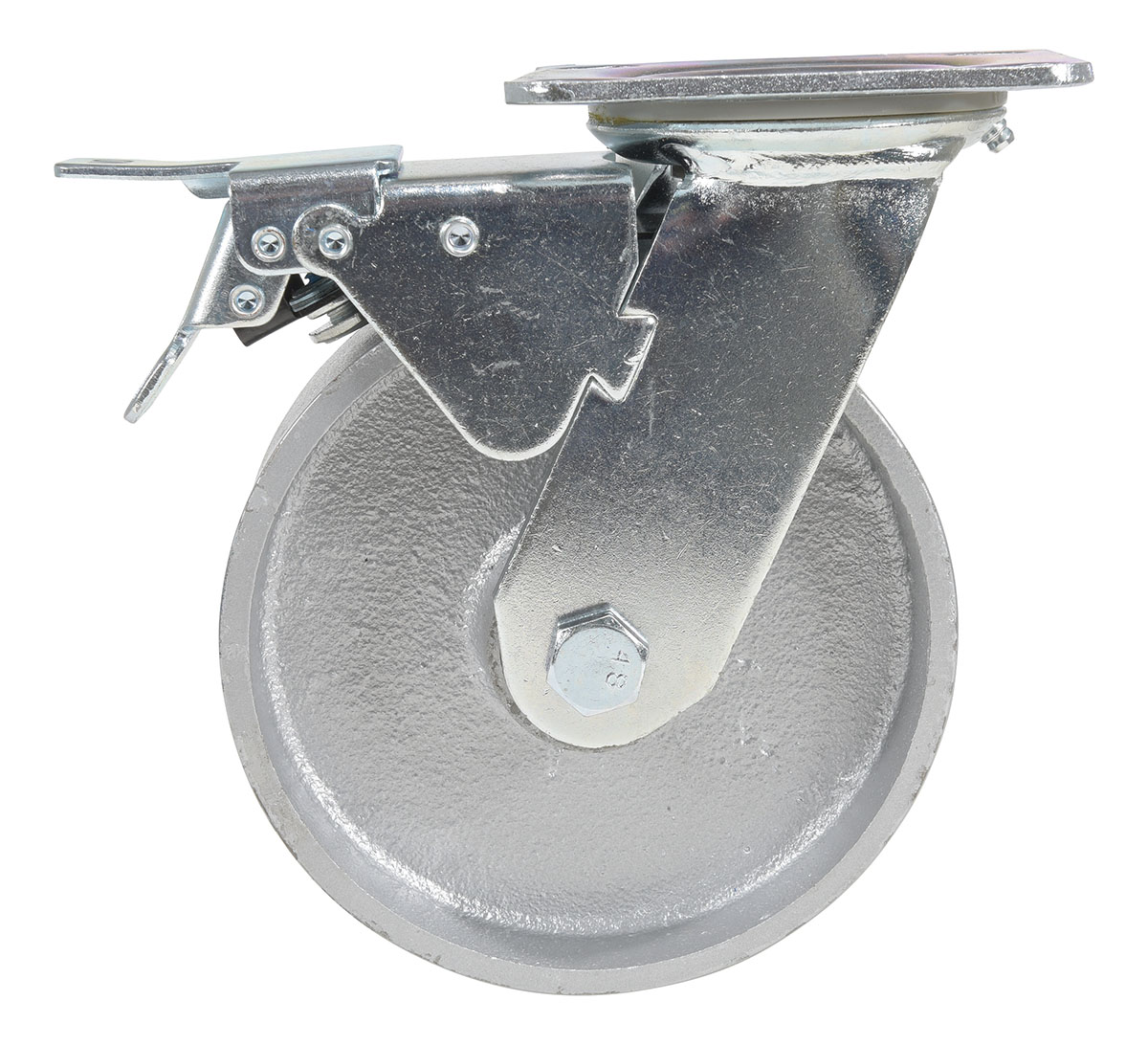

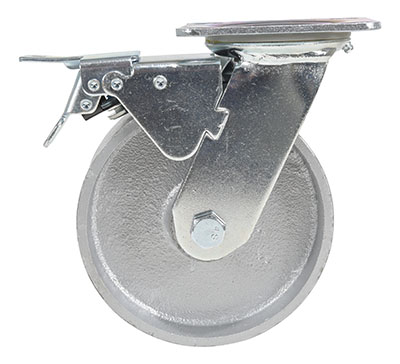

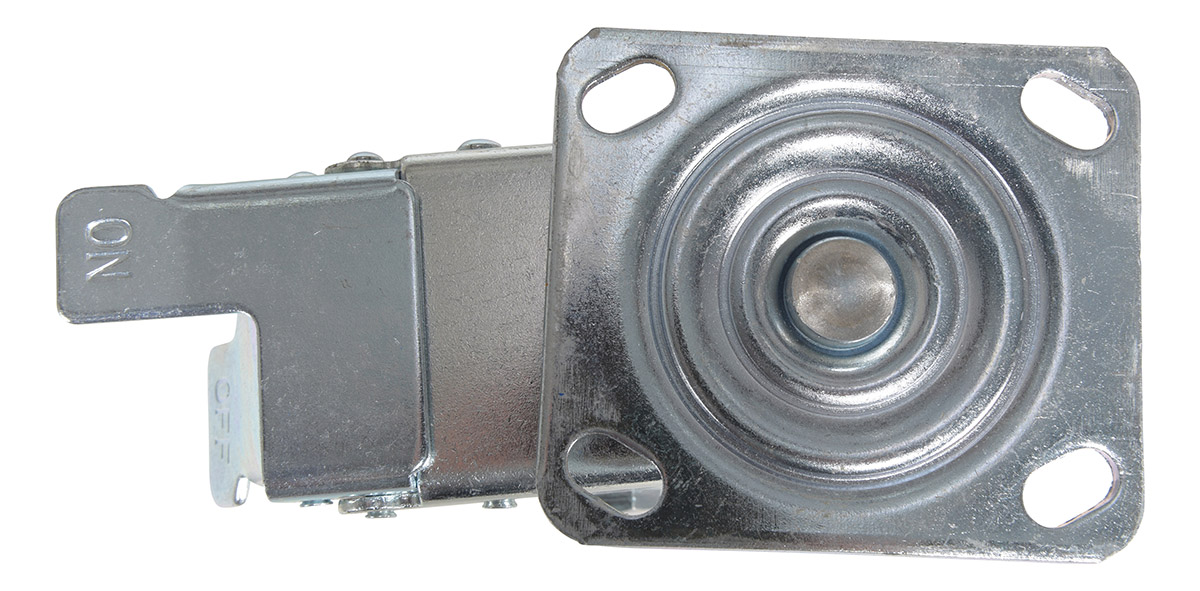

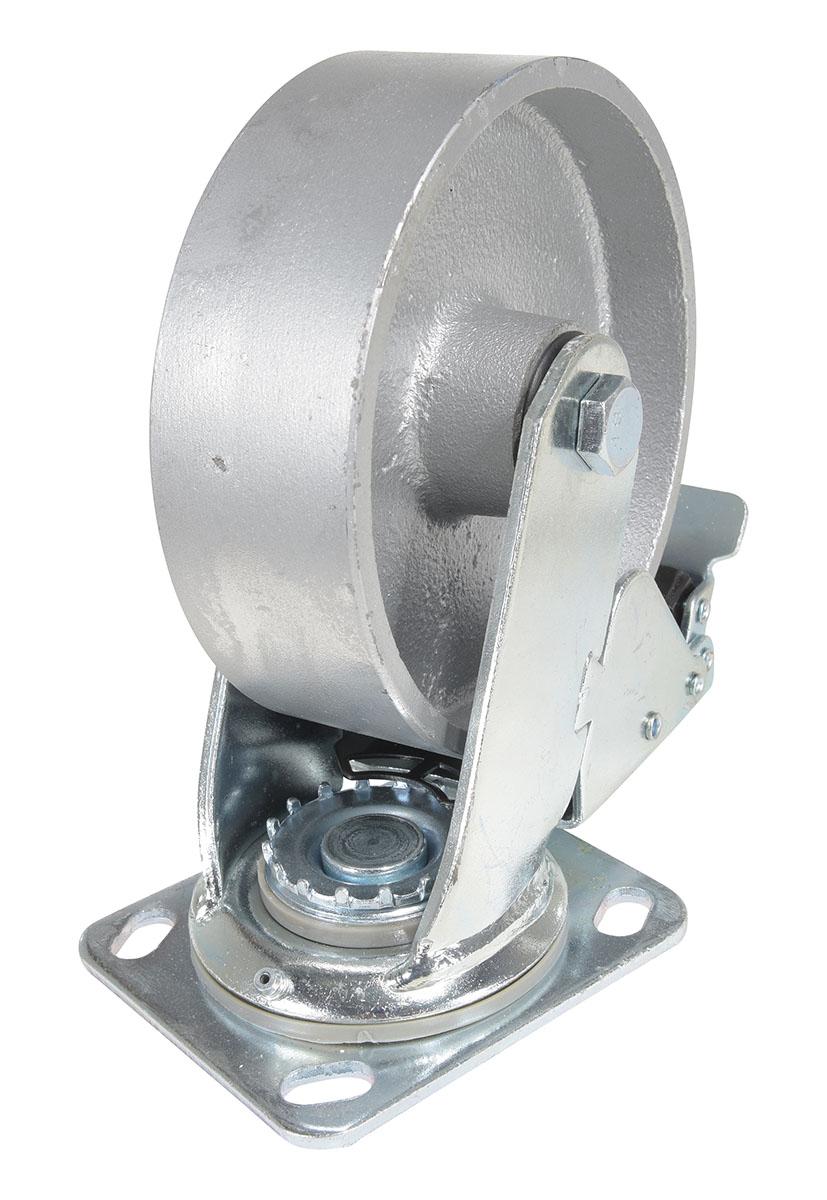

model: CST-VE-6X2CI-SWTB

Featured Casters & Wheels

Mold On Rubber Wheel

Polyurethane Casters (Yellow)

Upgraded Glass Filled Nylon, Light Duty (RX) Casters

Upgraded Kingpinless Glass Filled Nylon (RX) Casters

Metal Alloy Wheel

Caster Pads

Cast Iron Casters

Polyurethane Casters (Yellow)

Polyurethane (SI - Electrostatic Dissipating) Casters

model chart

Product Family Overview

Print Friendly

Cast Iron/ Semi-Steel Casters

SERIES: CST-VE-CI

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Gray tread color.

Bearing dust cover seals
Hardened bearing raceway
Double welds on inside & outside of fork mounts
Roller bearing
Anti-corrosive & rust resistant zinc plated finish

Bearing dust cover seals
Hardened bearing raceway
Double welds on inside & outside of fork mounts
Roller bearing
Anti-corrosive & rust resistant zinc plated finish

Other "Go-To" Casters

Polyurethane (SI) Casters

High-Temp Phenolic Casters

Cast Iron/ Semi-Steel Casters

Upgraded Kingpinless Glass Filled Nylon (RX) Casters

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

model CST-VE-4X2CI-SWTB

model CST-VE-5X2CI-SWTB

model CST-VE-8X2CI-S

model CST-VE-8X2CI-SWTB

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)
CST-VE-4X2CI-R	1YEAR Limited Warranty	4 x 2	RIGID	1102	5-5/8	4 x 4-1/2	7
CST-VE-5X2CI-R	1YEAR Limited Warranty	5 x 2	RIGID	1322	6-1/2	4 x 4-1/2	8
CST-VE-6X2CI-R	1YEAR Limited Warranty	6 x 2	RIGID	1543	7-1/2	4 x 4-1/2	9
CST-VE-8X2CI-R	1 YEAR Limited Warranty	8 x 2	RIGID	1760	9-1/2	4 x 4-1/2	10
CST-VE-4X2CI-S	1YEAR Limited Warranty	4 x 2	SWIVEL	1102	5-5/8	4 x 4-1/2	7
CST-VE-5X2CI-S	1YEAR Limited Warranty	5 x 2	SWIVEL	1322	6-1/2	4 x 4-1/2	8
CST-VE-6X2CI-S	1YEAR Limited Warranty	6 x 2	SWIVEL	1543	7-1/2	4 x 4-1/2	10
CST-VE-8X2CI-S	1 YEAR Limited Warranty	8 x 2	SWIVEL	1760	9-1/2	4 x 4-1/2	11
CST-VE-4X2CI-SWTB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/TOTAL BRAKE	1100	5-1/2	4 x 4-1/2	8
CST-VE-5X2CI-SWTB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/TOTAL BRAKE	1320	6-1/2	4 x 4-1/2	9
CST-VE-6X2CI-SWTB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/TOTAL BRAKE	1540	7-1/2	4 x 4-1/2	10
CST-VE-8X2CI-SWTB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/TOTAL BRAKE	1760	9-1/2	4 x 4-1/2	12
