Product Family Overview


Phenolic Casters
SERIES: CST-VE-PH

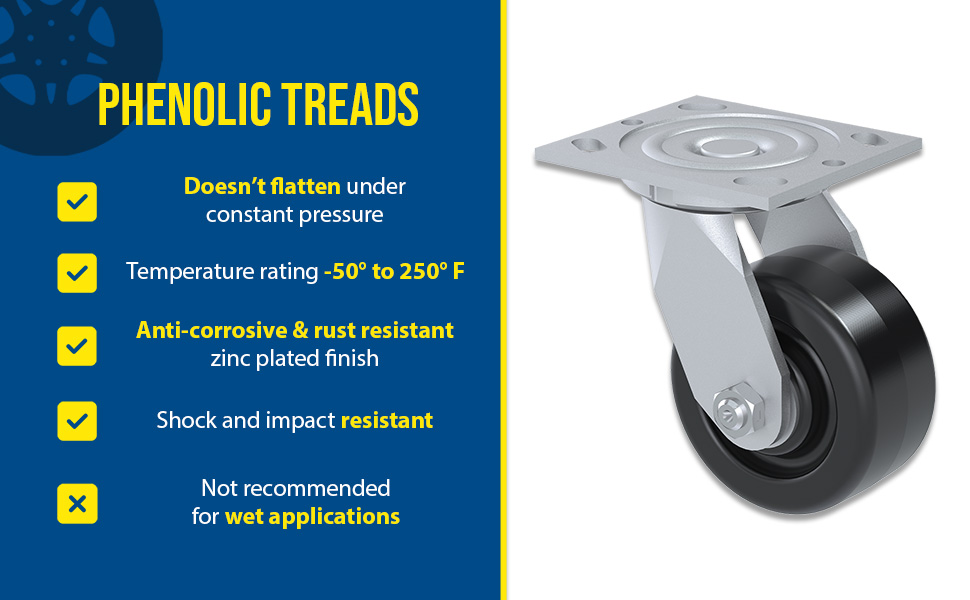

Phenolic wheels have a high resistance to impact damage, while providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark resistant and operates in a wide temperature range. Black tread color. Wheel core is phenolic. 100 Shore A.

  • RESISTANT TO MOST CHEMICALS
  • EASY ROLL PERFORMANCE
  • ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
  • HARDENED DOUBLE BALL RACEWAY
  • GREASE ZERK FITTINGS
  • ROLLER BEARINGS

Phenolic wheels have a high resistance to impact damage, while providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark resistant and operates in a wide temperature range. Black tread color. Wheel core is phenolic. 100 Shore A.

  • RESISTANT TO MOST CHEMICALS
  • EASY ROLL PERFORMANCE
  • ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
  • HARDENED DOUBLE BALL RACEWAY
  • GREASE ZERK FITTINGS
  • ROLLER BEARINGS

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)
CST-VE-4X2PH-R CST-VE-4X2PH-R1 YEAR Limited Warranty4 x 2RIGID8005-1/2 4 x 4-1/23.37

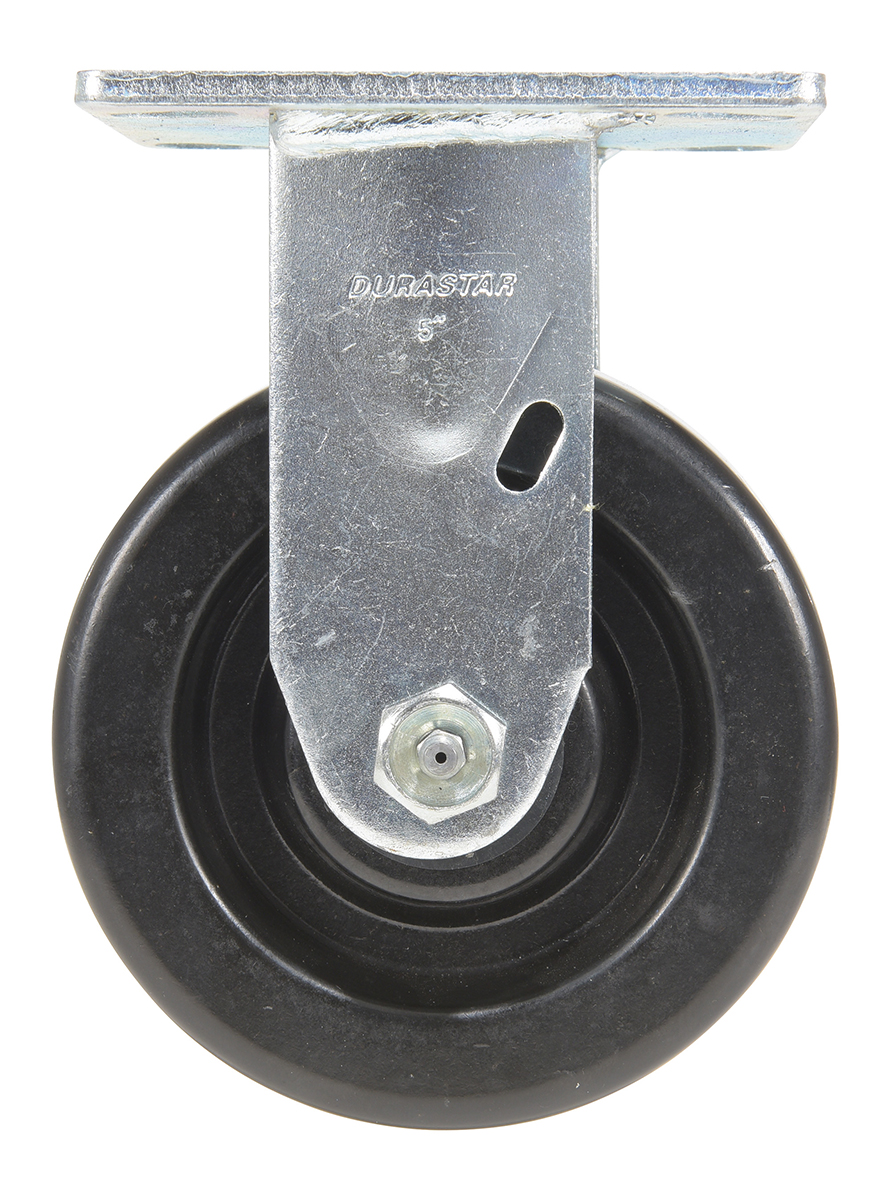

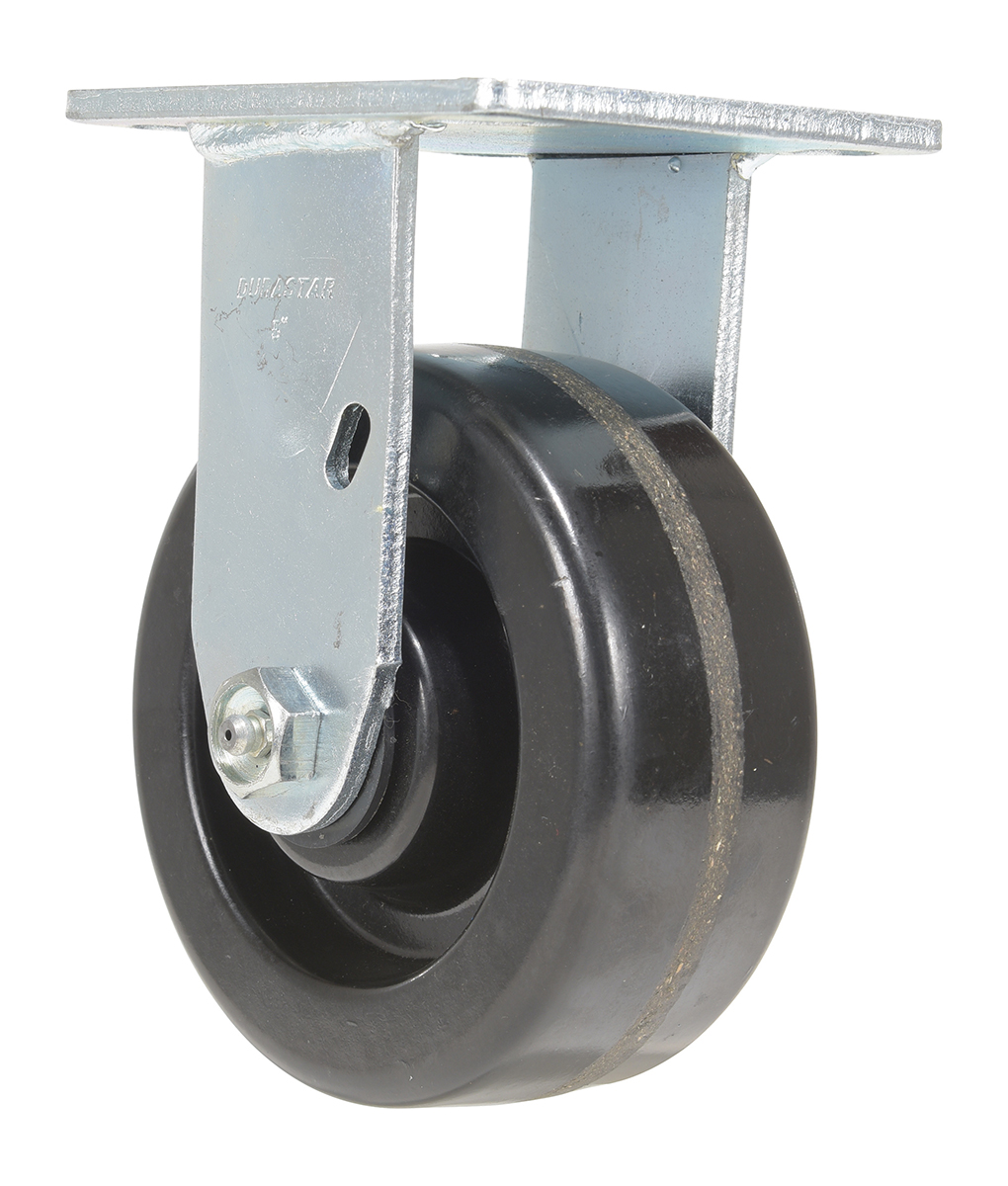

CST-VE-5X2PH-R CST-VE-5X2PH-R1 YEAR Limited Warranty5 x 2RIGID10006-1/2 4 x 4-1/23.98

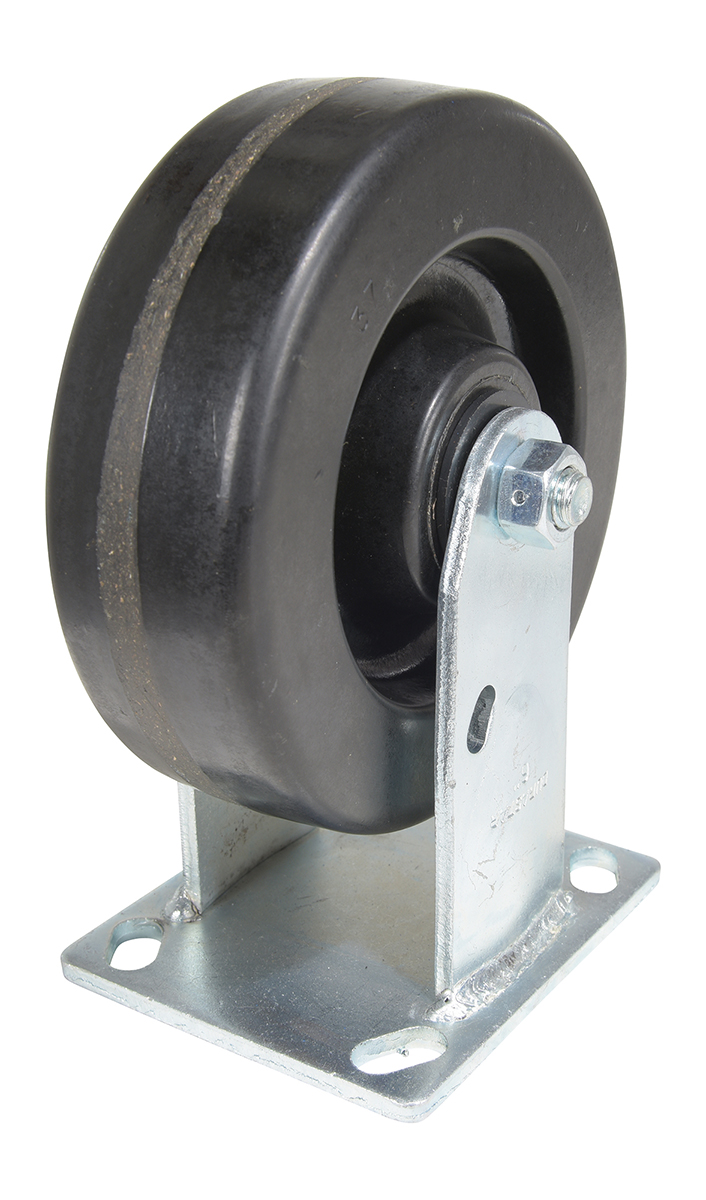

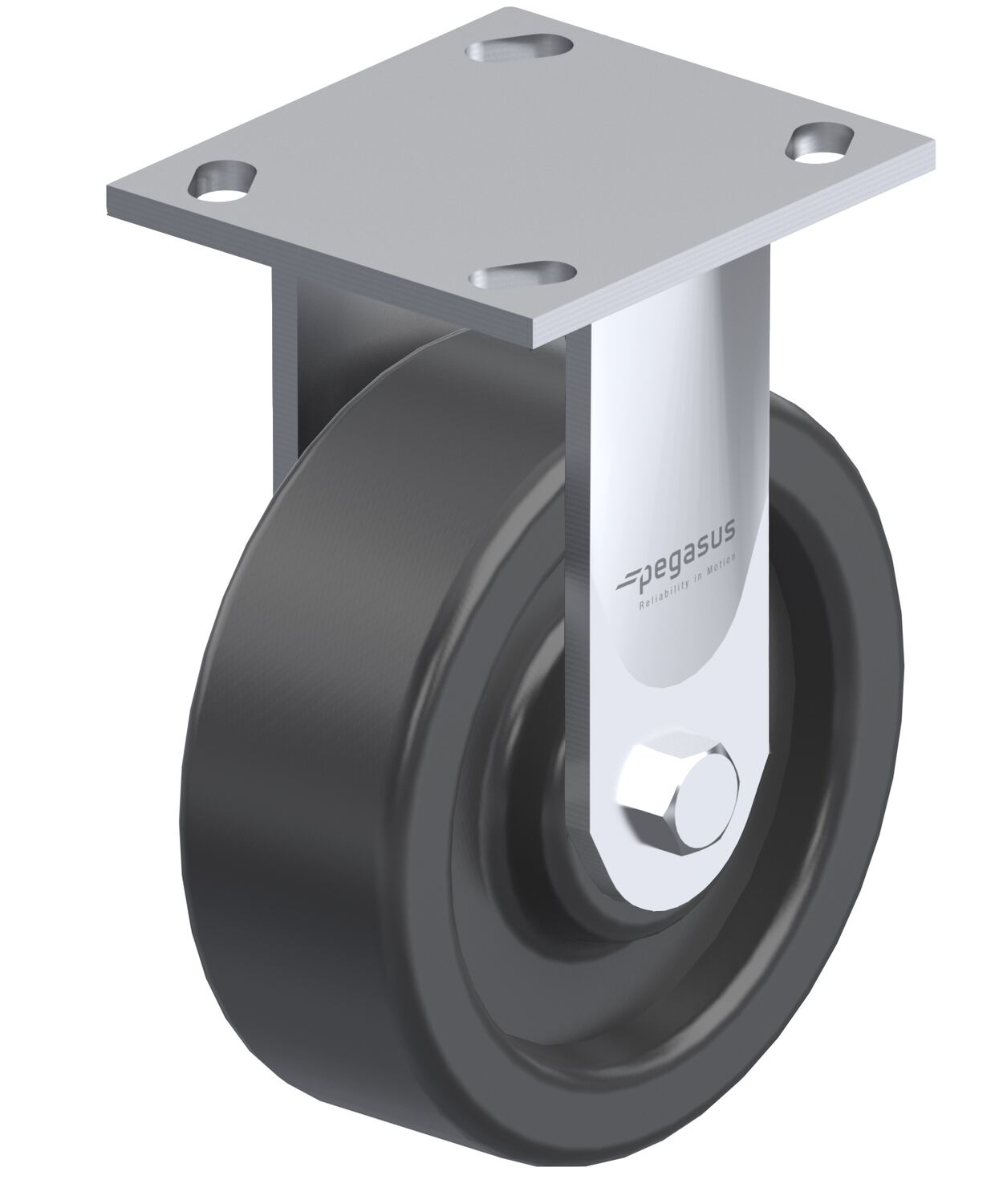

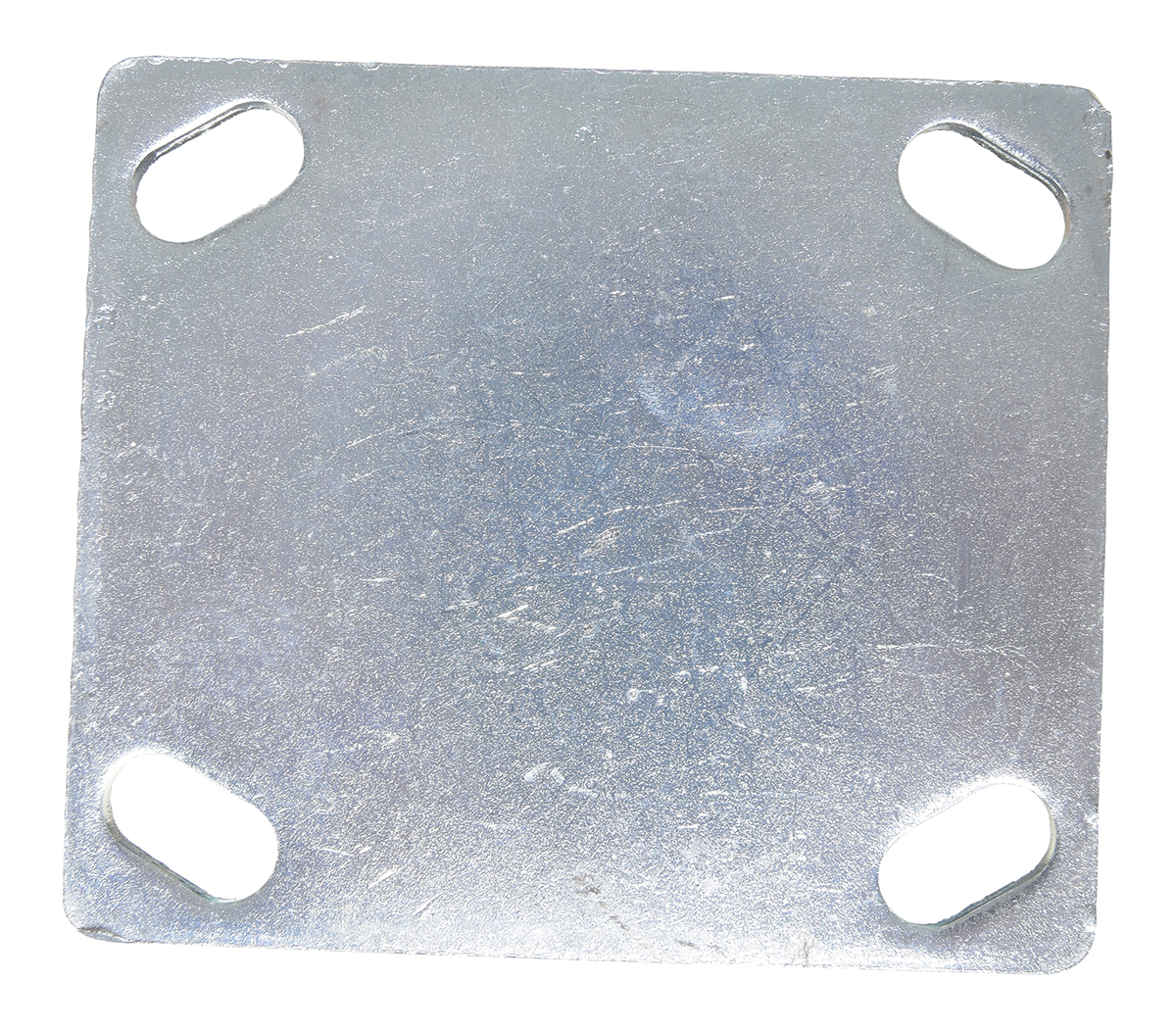

CST-VE-6X2PH-R CST-VE-6X2PH-R1 YEAR Limited Warranty6 x 2RIGID12007-1/2 4 x 4-1/24.74

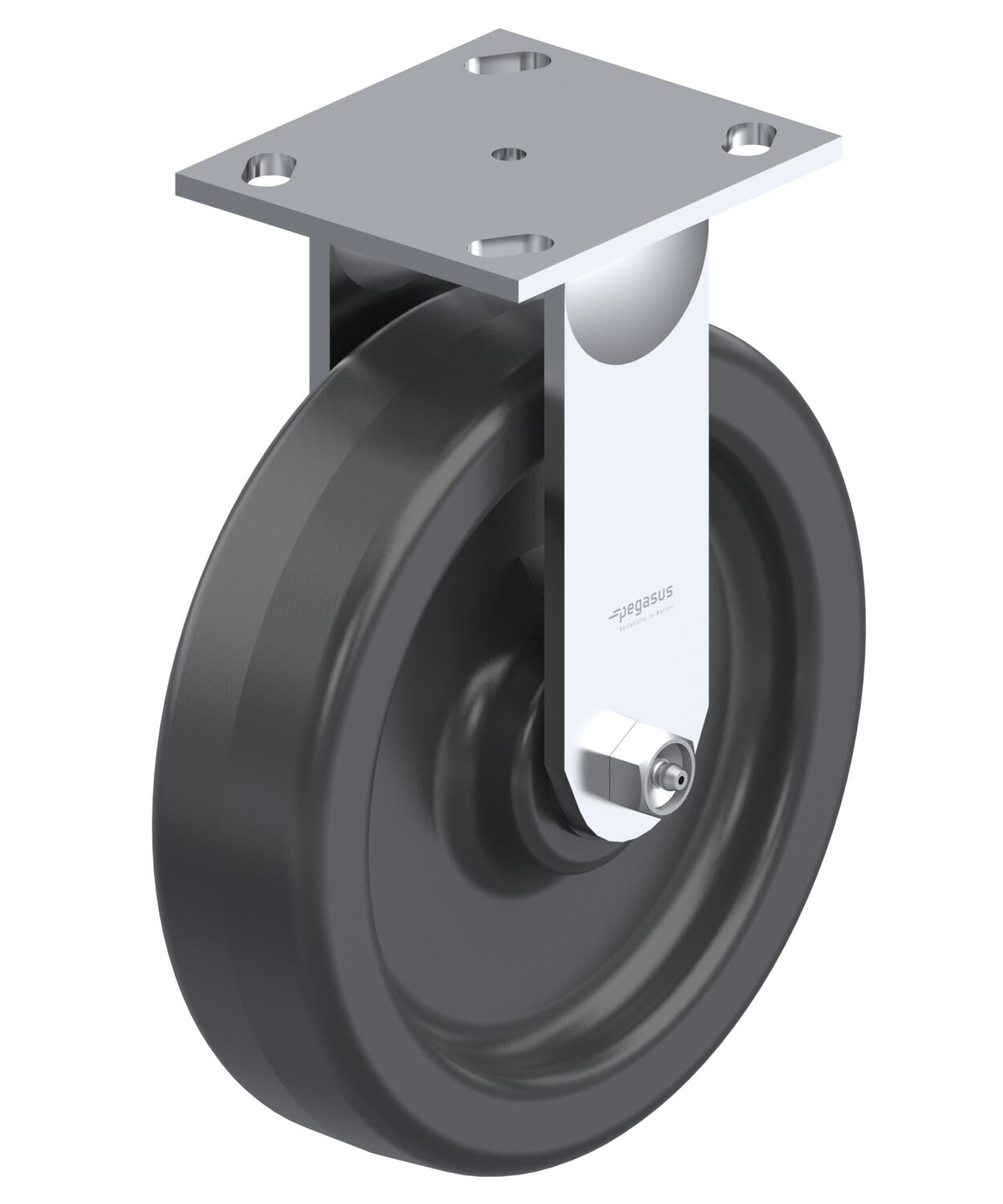

CST-VE-8X2PH-R CST-VE-8X2PH-R1 YEAR Limited Warranty8 x 2RIGID12509-1/2 4 x 4-1/26.26
CST-VE-8X3PH-R CST-VE-8X3PH-R Limited Warranty8 x 3RIGID25009-1/2 4-1/2 x 6-1/413.96

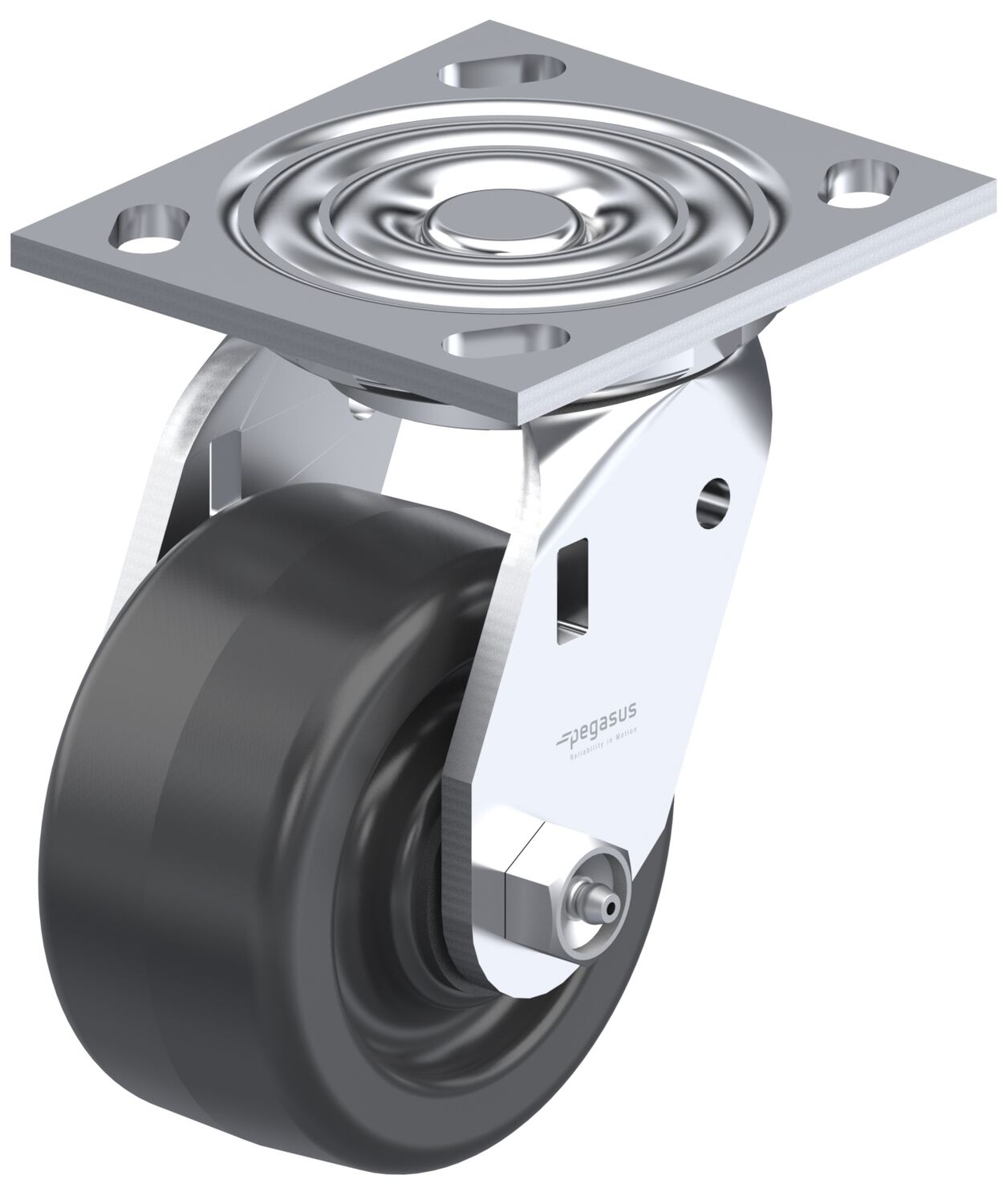

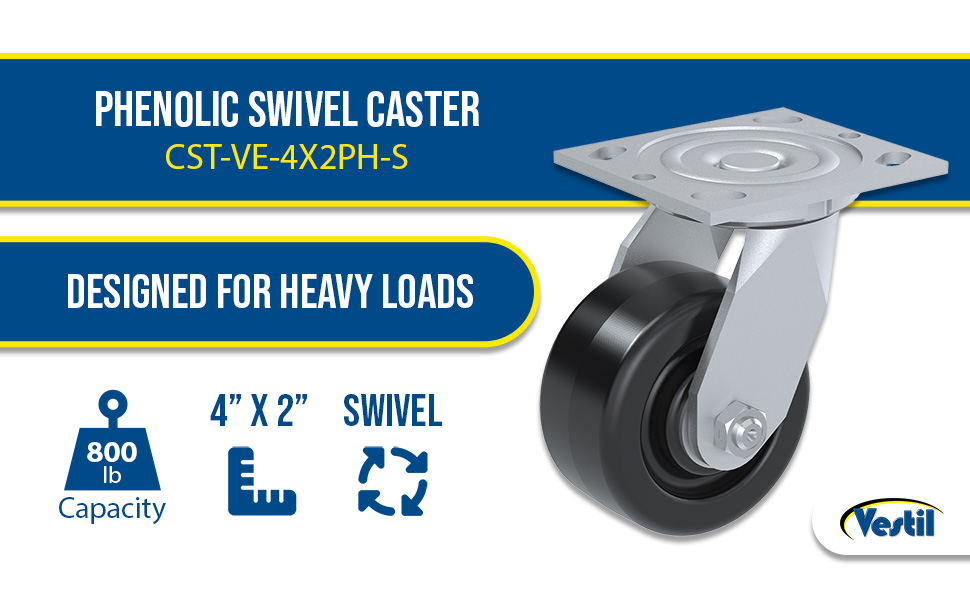

CST-VE-4X2PH-S CST-VE-4X2PH-S1 YEAR Limited Warranty4 x 2SWIVEL8005-1/2 4 x 4-1/24.15

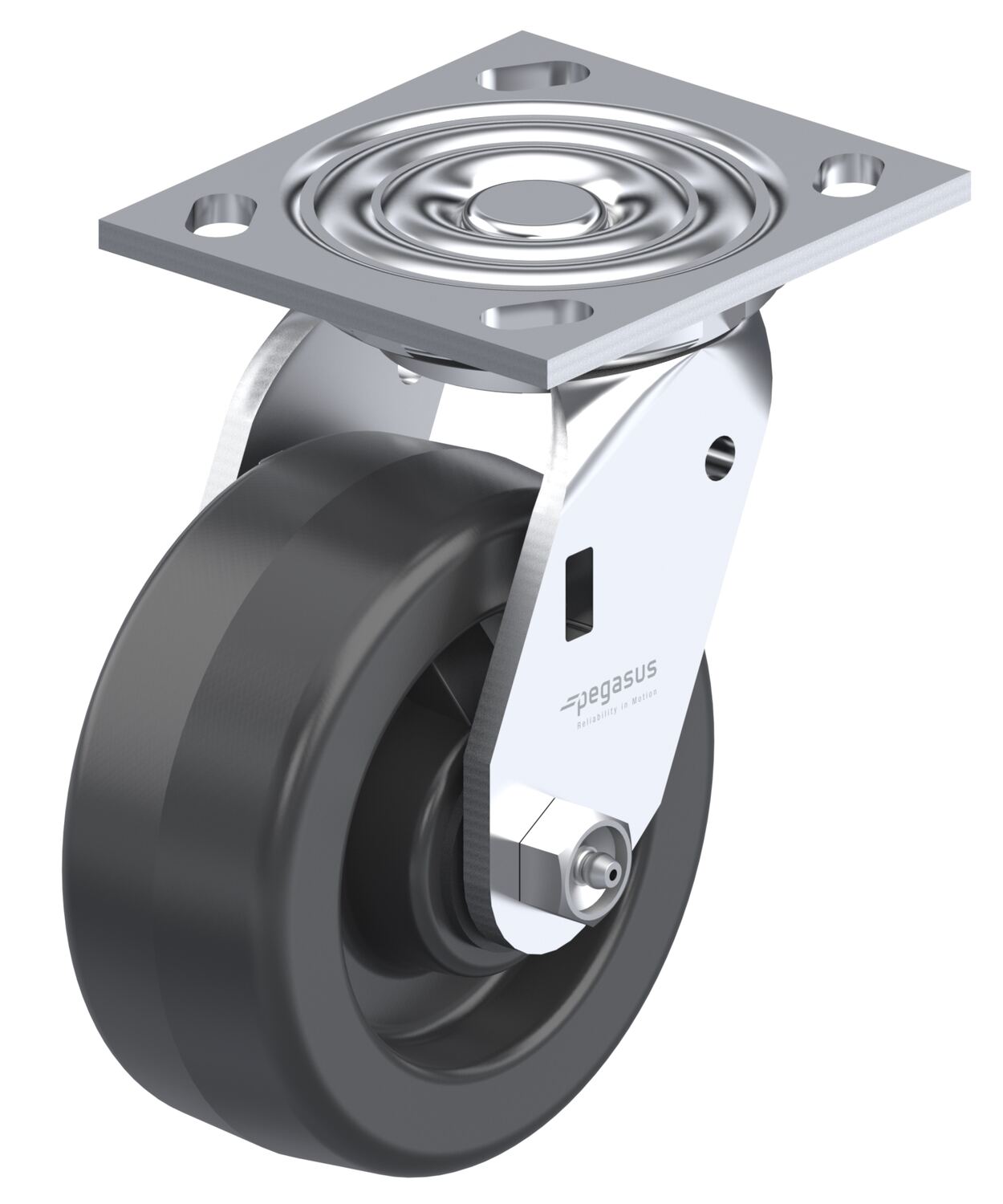

CST-VE-5X2PH-S CST-VE-5X2PH-S1 YEAR Limited Warranty5 x 2SWIVEL10006-1/2 4 x 4-1/24.7

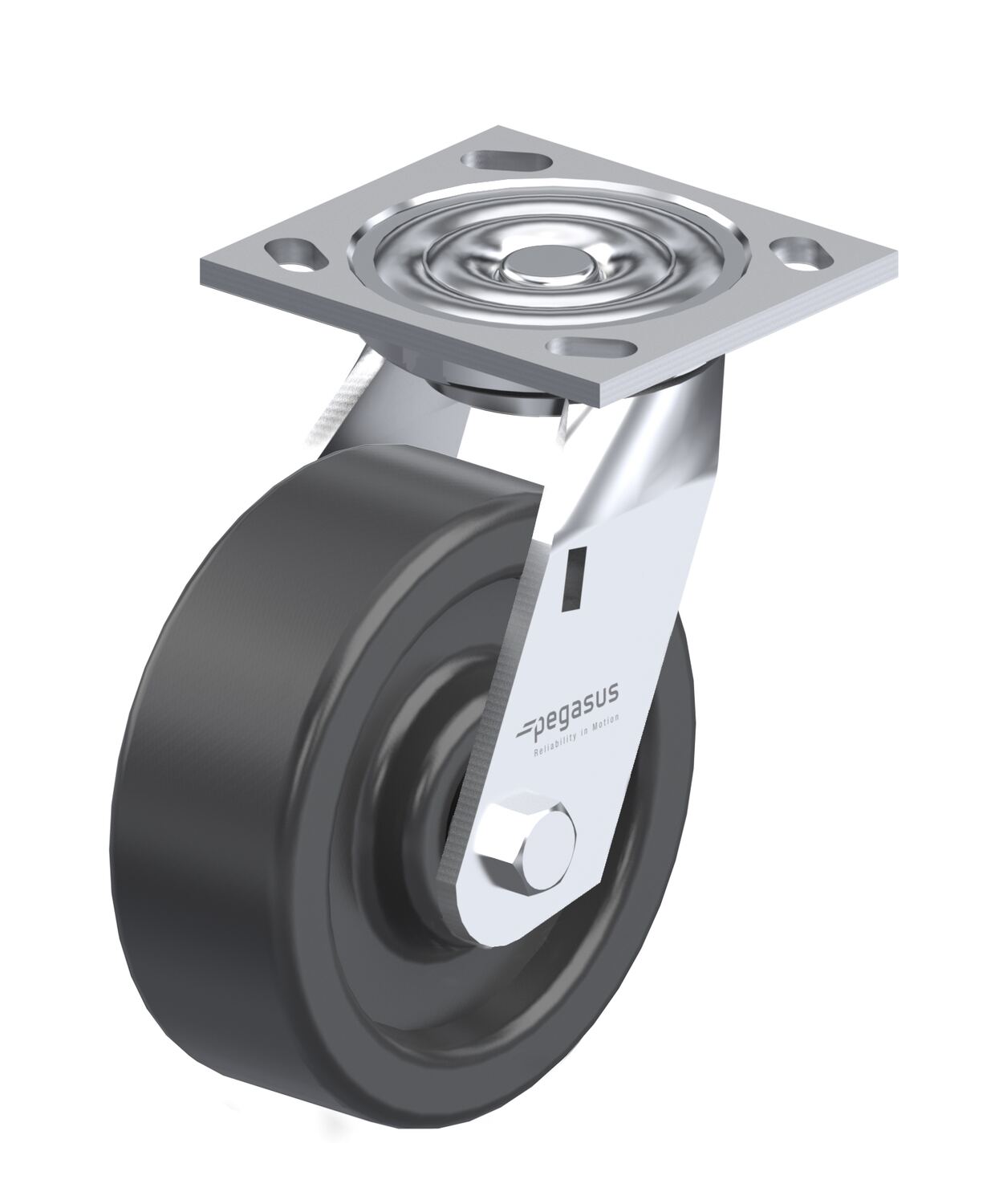

CST-VE-6X2PH-S CST-VE-6X2PH-S1 YEAR Limited Warranty6 x 2SWIVEL12007-1/2 4 x 4-1/25.59

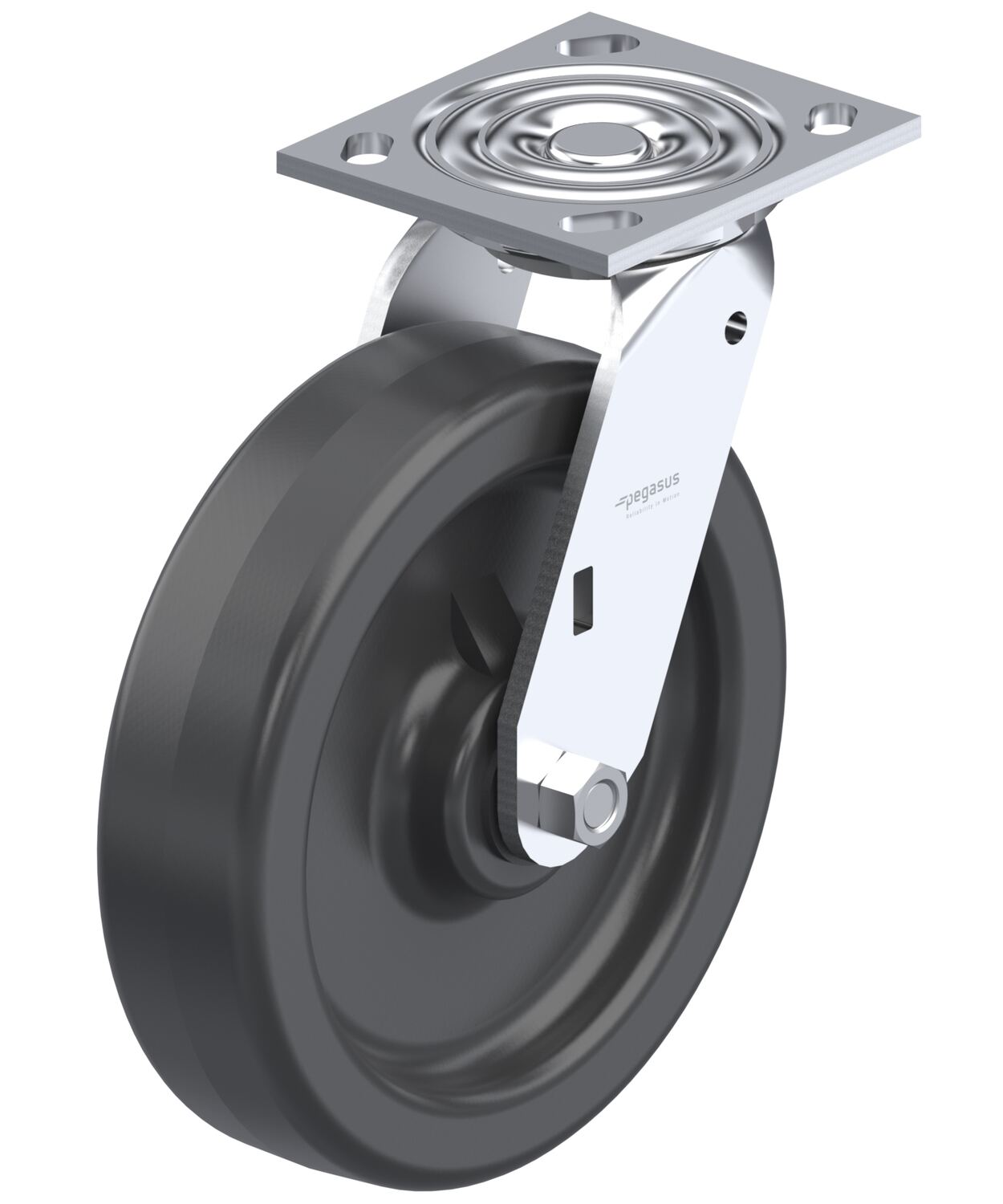

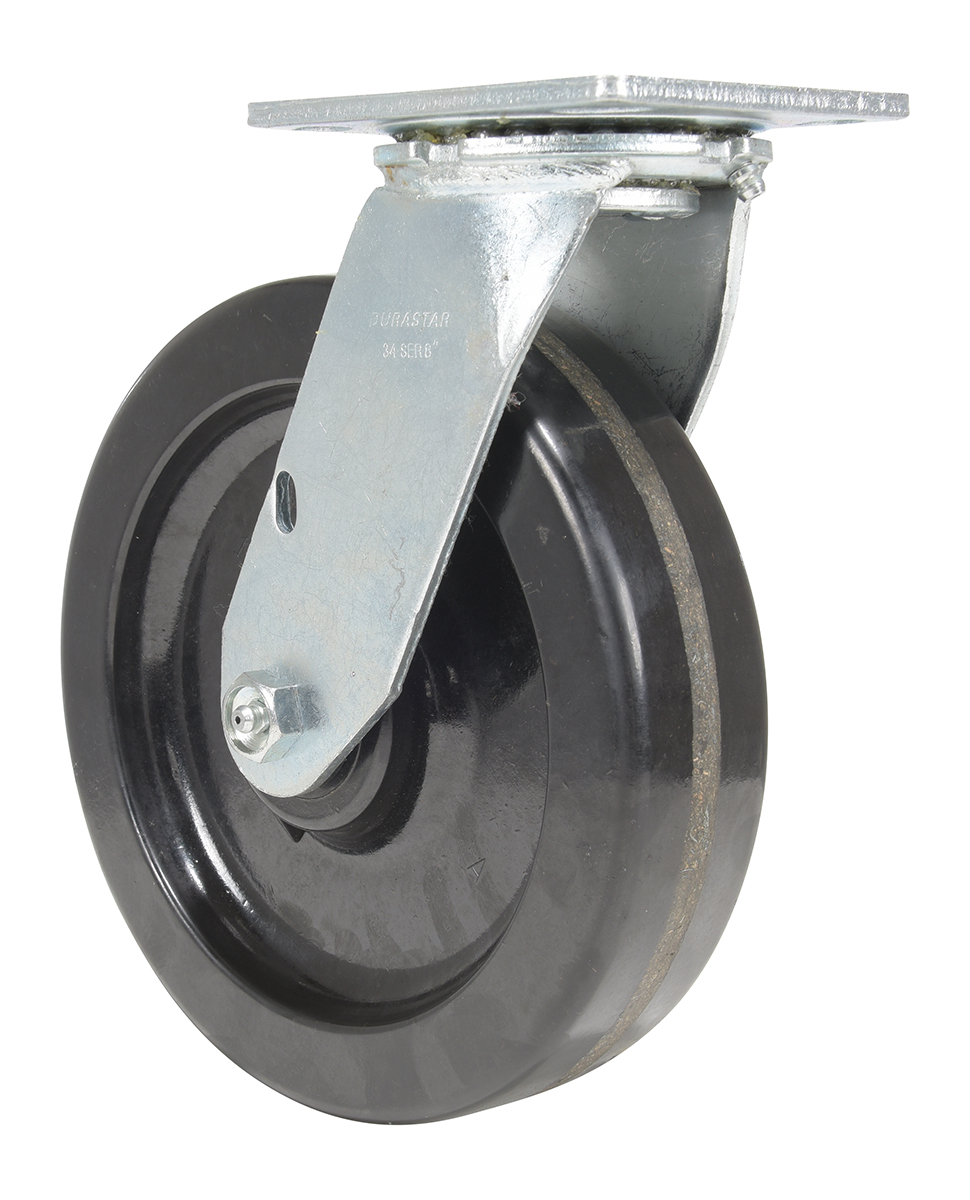

CST-VE-8X2PH-S CST-VE-8X2PH-S1 YEAR Limited Warranty8 x 2SWIVEL12509-1/2 4 x 4-1/27.1
CST-VE-8X3PH-S CST-VE-8X3PH-S Limited Warranty8 x 3SWIVEL250010 4-1/2 x 6-1/416.7

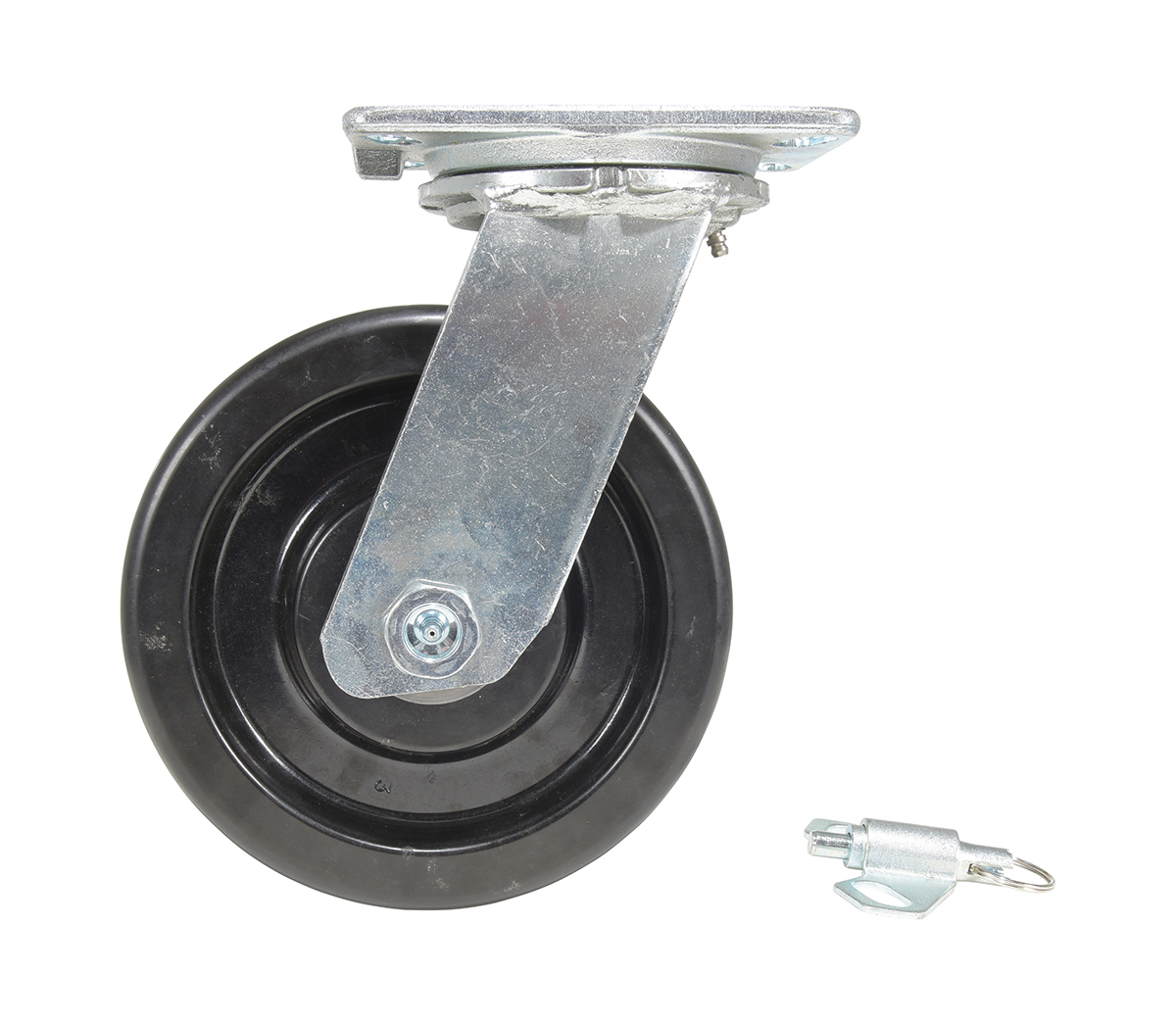

CST-VE-8X3PH-4PSL CST-VE-8X3PH-4PSL Limited Warranty8 x 3SWIVEL 4 LOCK250010 4-1/2 x 6-1/417.05

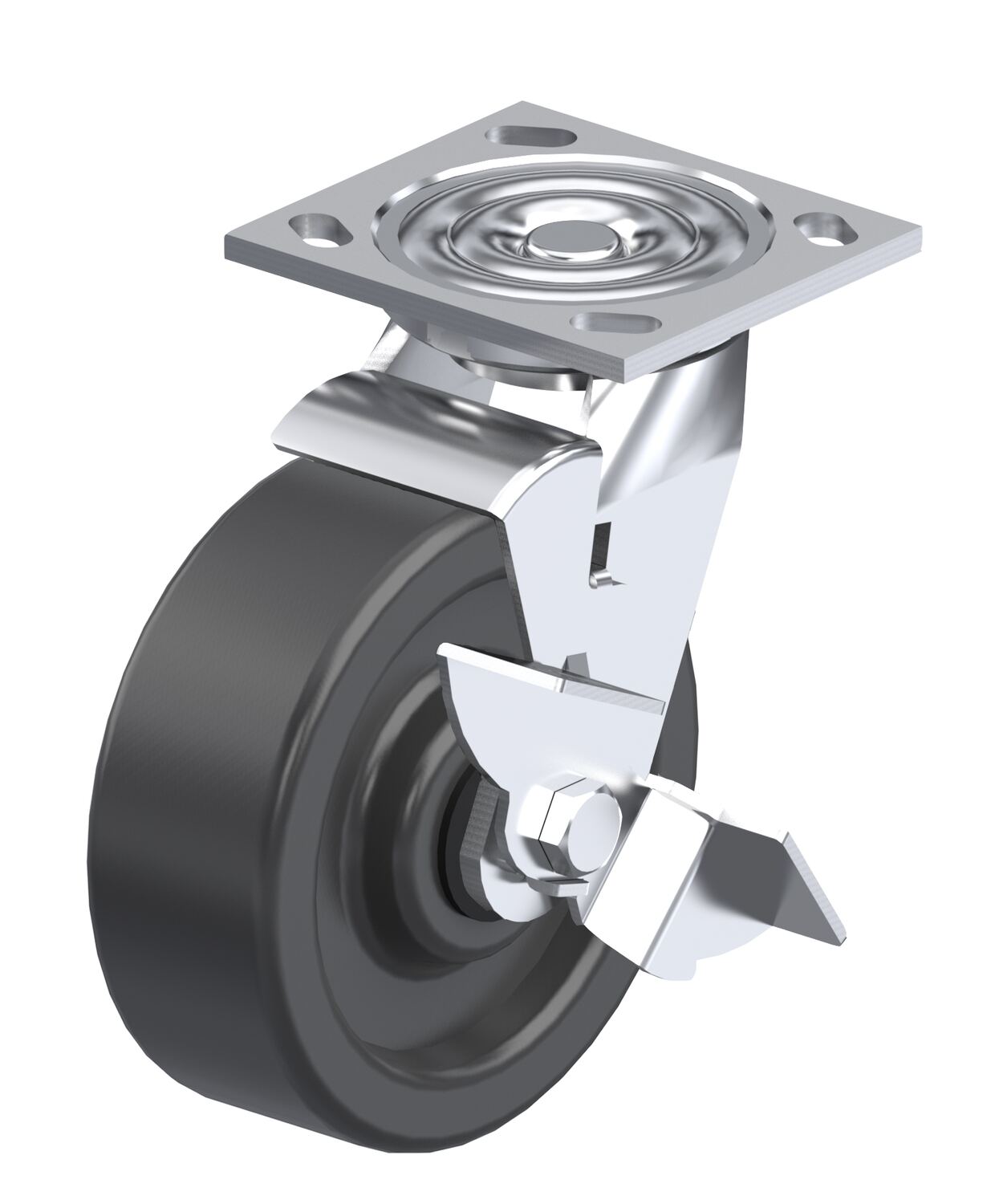

CST-VE-4X2PH-SWB CST-VE-4X2PH-SWB1 YEAR Limited Warranty4 x 2SWIVEL W/BRAKE8005-1/2 4 x 4-1/24.47
CST-VE-5X2PH-SWB CST-VE-5X2PH-SWB1 YEAR Limited Warranty5 x 2SWIVEL W/BRAKE10006-1/2 4 x 4-1/25.07

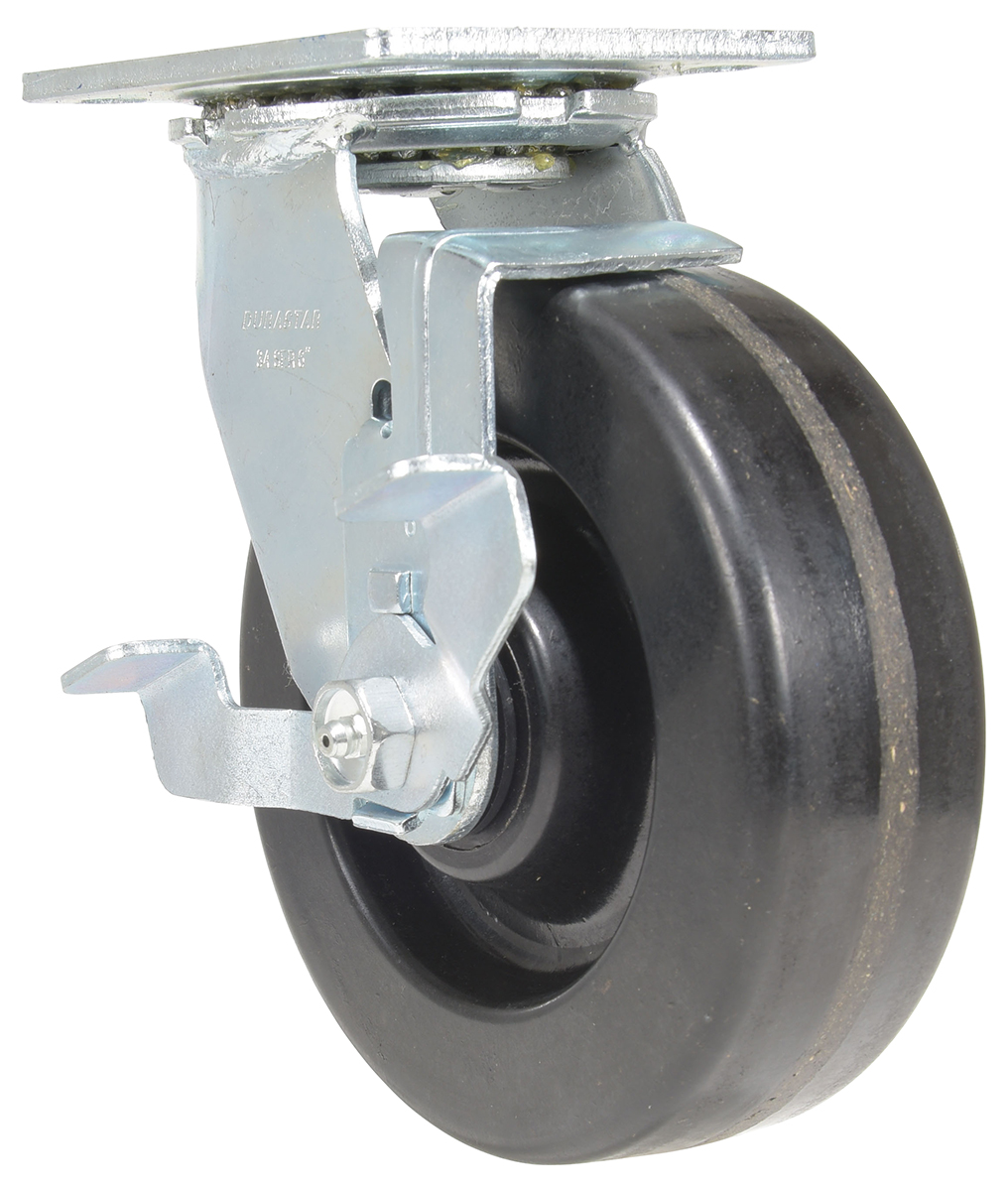

CST-VE-6X2PH-SWB CST-VE-6X2PH-SWB1 YEAR Limited Warranty6 x 2SWIVEL W/BRAKE12007-1/2 4 x 4-1/25.94
CST-VE-8X2PH-SWB CST-VE-8X2PH-SWB1 YEAR Limited Warranty8 x 2SWIVEL W/BRAKE12509-1/2 4 x 4-1/27.52

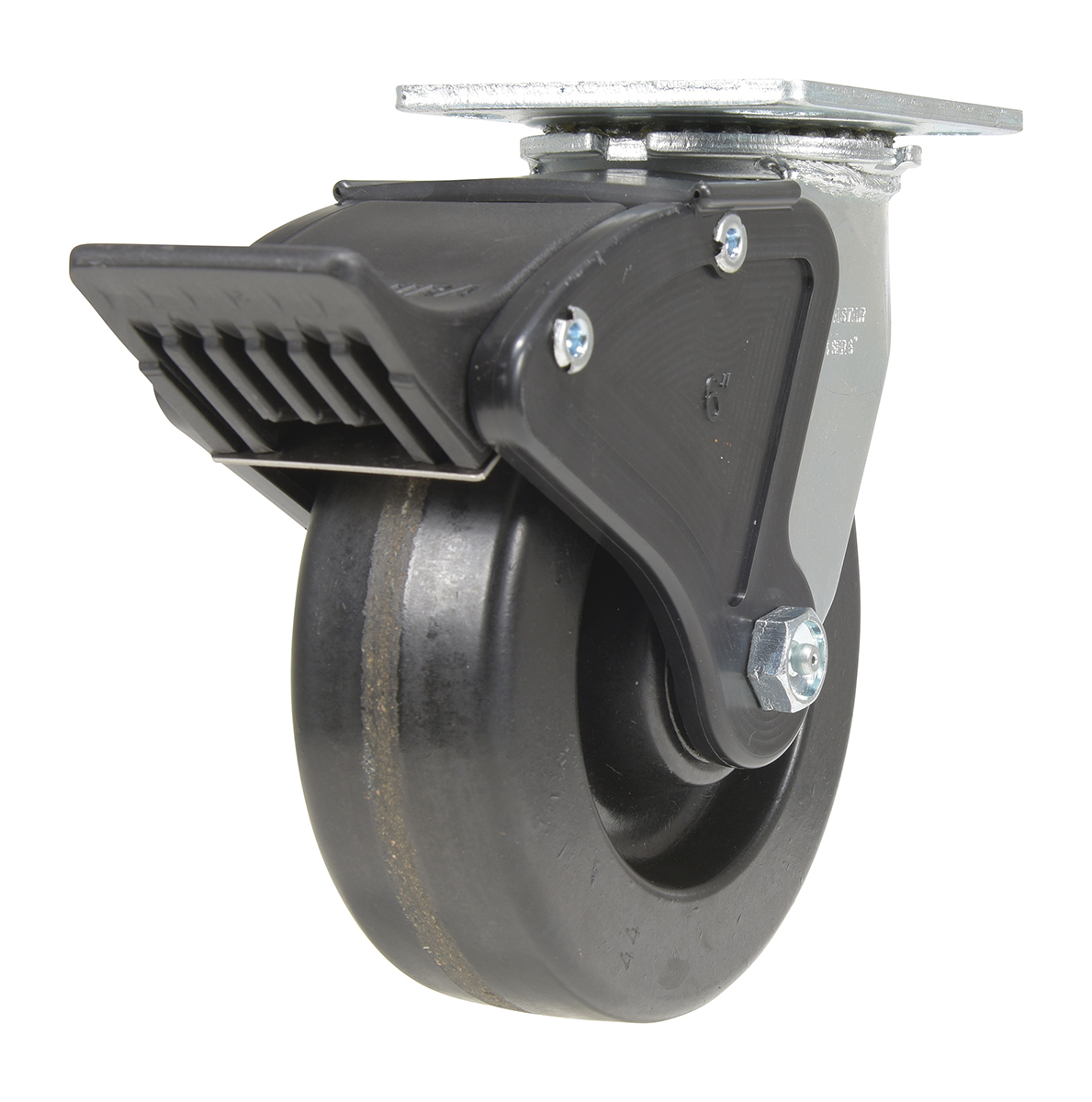

CST-VE-4X2PH-SWTB CST-VE-4X2PH-SWTB1 YEAR Limited Warranty4 x 2SWIVEL W/TOTAL BRAKE8005-1/2 4 x 4-1/24.66
CST-VE-5X2PH-SWTB CST-VE-5X2PH-SWTB1 YEAR Limited Warranty5 x 2SWIVEL W/TOTAL BRAKE10006-1/2 4 x 4-1/25.29

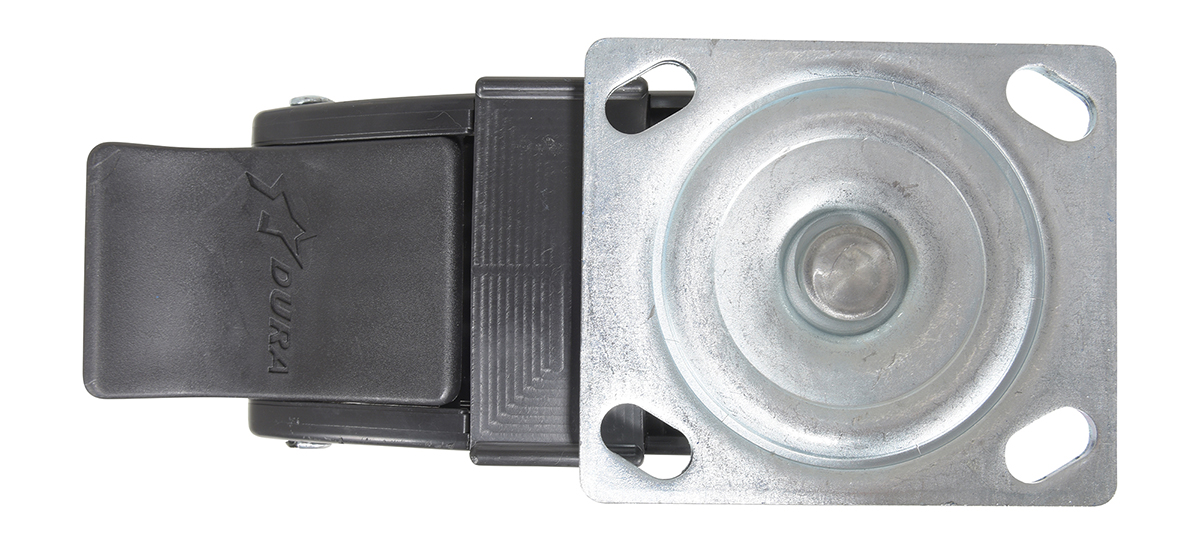

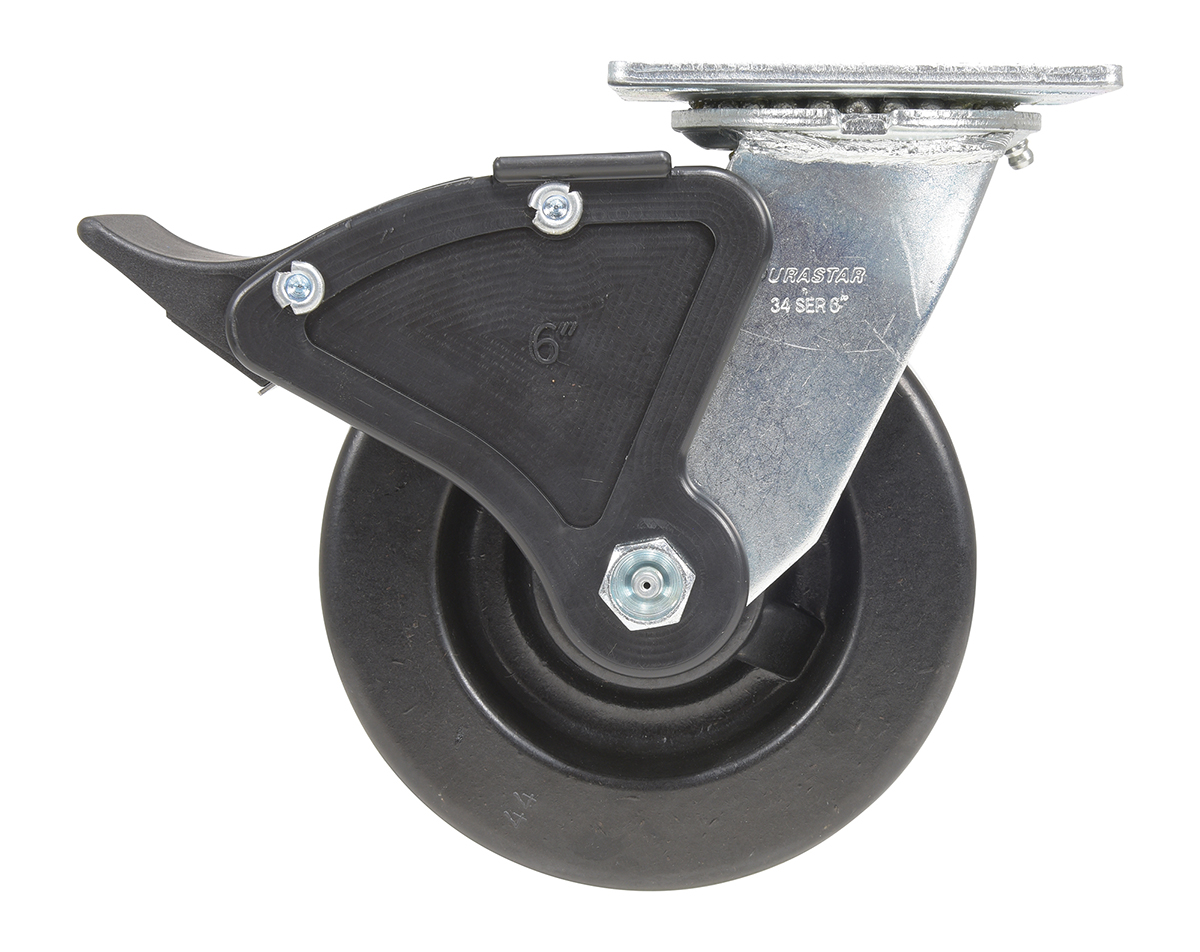

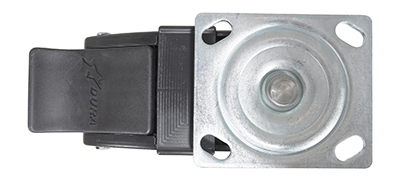

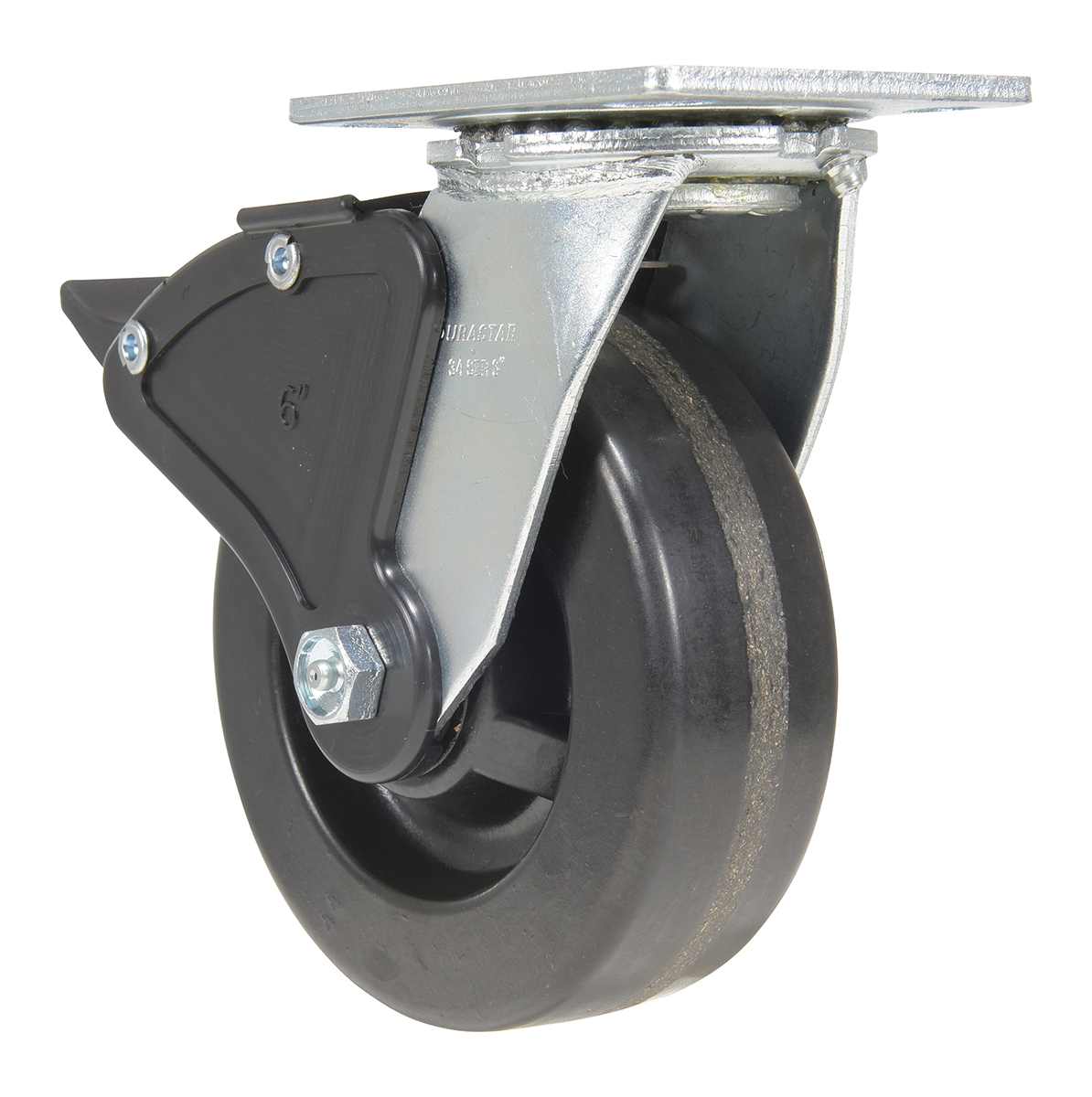

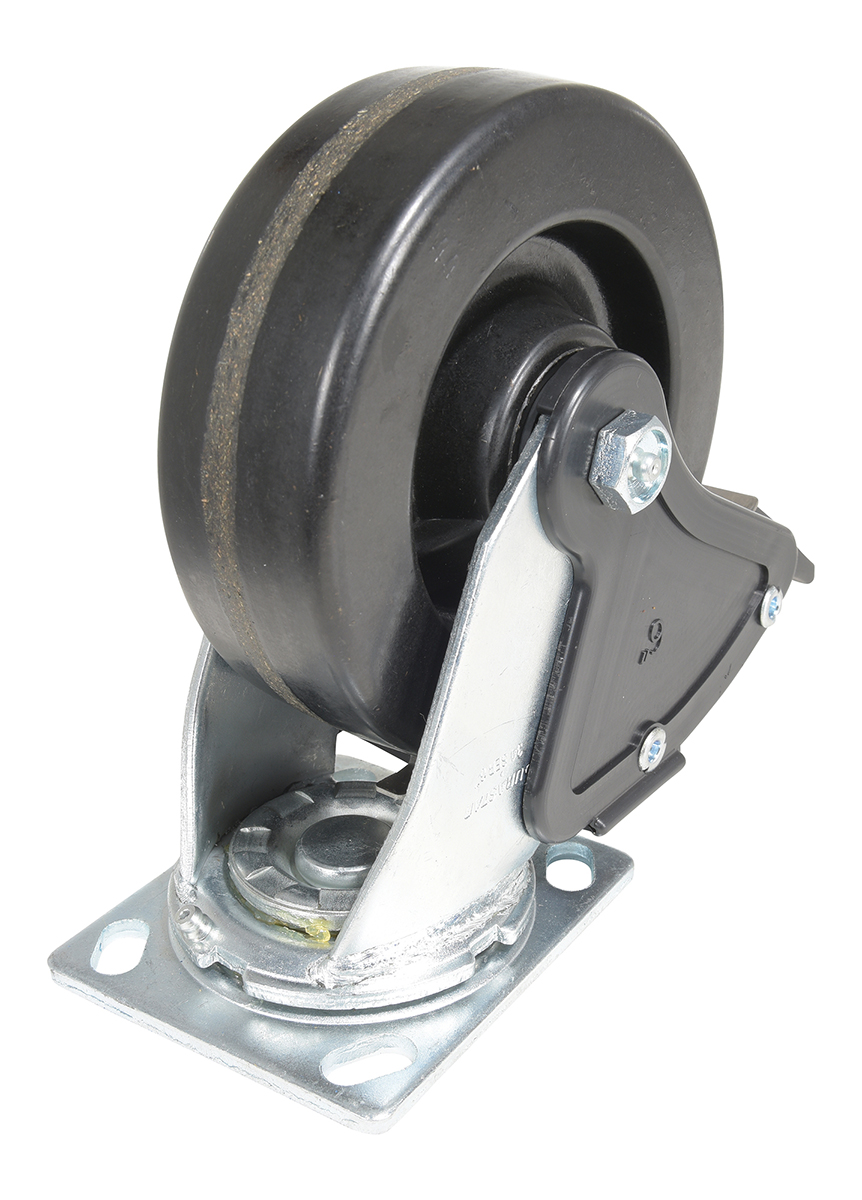

CST-VE-6X2PH-SWTB CST-VE-6X2PH-SWTB1 YEAR Limited Warranty6 x 2SWIVEL W/TOTAL BRAKE12007-1/2 4 x 4-1/26.16

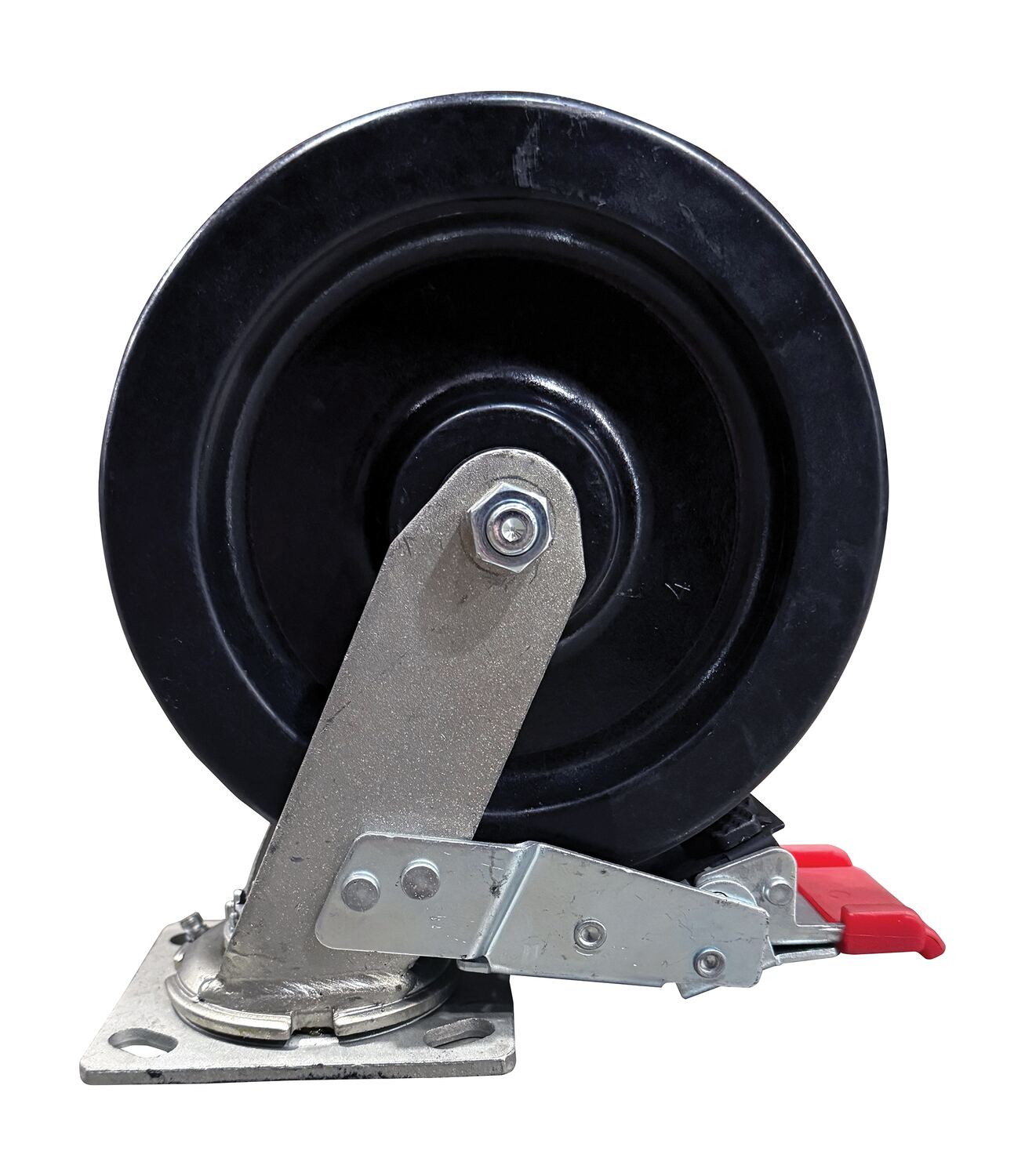

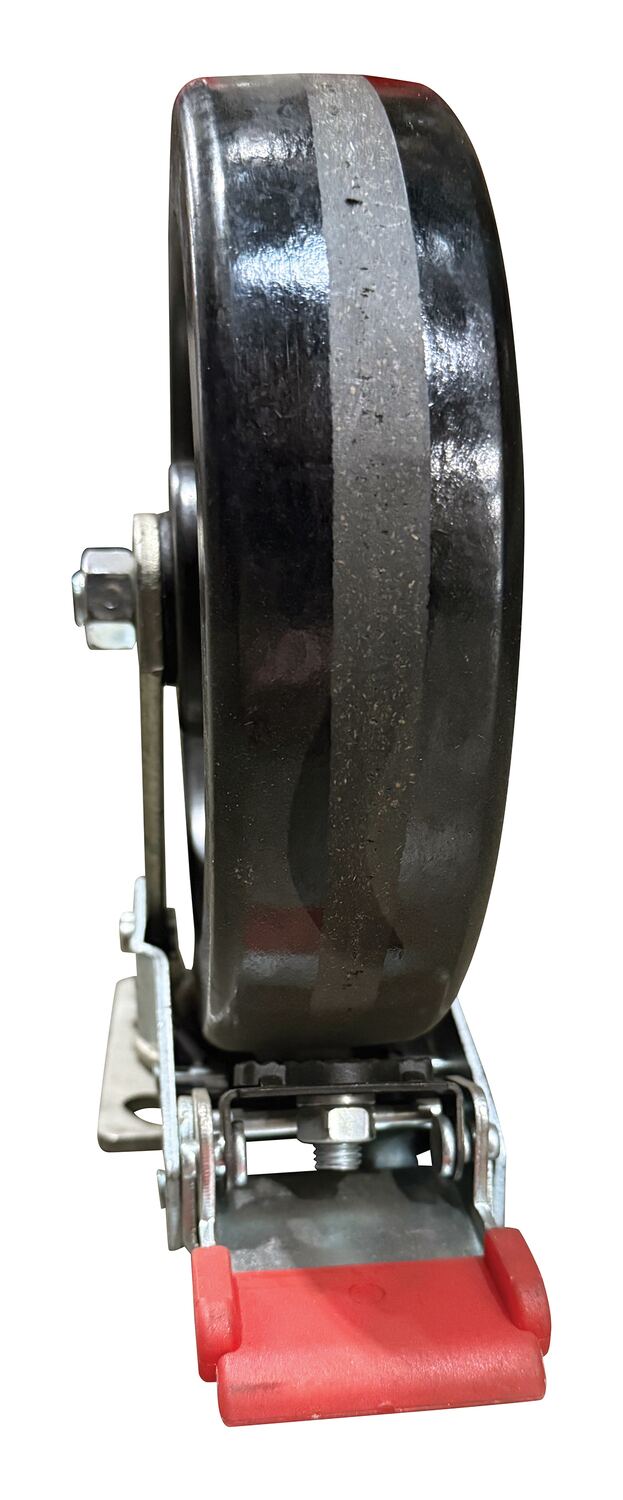

CST-VE-8X2PH-SWTB 1 YEAR Limited Warranty8 x 2SWIVEL W/TOTAL BRAKE1250 4 x 4-1/2

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Phenolic Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-VE-4X2PH-R

CST-VE-4X2PH-S

CST-VE-4X2PH-SWB

CST-VE-4X2PH-SWTB

CST-VE-5X2PH-R

CST-VE-5X2PH-S

CST-VE-5X2PH-SWB

CST-VE-5X2PH-SWTB

CST-VE-6X2PH-R

CST-VE-6X2PH-S

CST-VE-6X2PH-SWB

CST-VE-6X2PH-SWTB

CST-VE-8X2PH-R

CST-VE-8X2PH-S

CST-VE-8X2PH-SWB

CST-VE-8X2PH-SWTB

CST-VE-8X3PH-4PSL

CST-VE-8X3PH-R

CST-VE-8X3PH-S

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Phenolic Casters




Phenolic wheels have a high resistance to impact damage, while providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. It is also spark resistant and operates in a wide temperature range. Black tread color. Wheel core is phenolic. 100 Shore A.

  • RESISTANT TO MOST CHEMICALS
  • EASY ROLL PERFORMANCE
  • ANTI-CORROSIVE & RUST RESISTANT ZINC PLATED FINISH
  • HARDENED DOUBLE BALL RACEWAY
  • GREASE ZERK FITTINGS
  • ROLLER BEARINGS
