FEATURED Portable Pallet Inverters

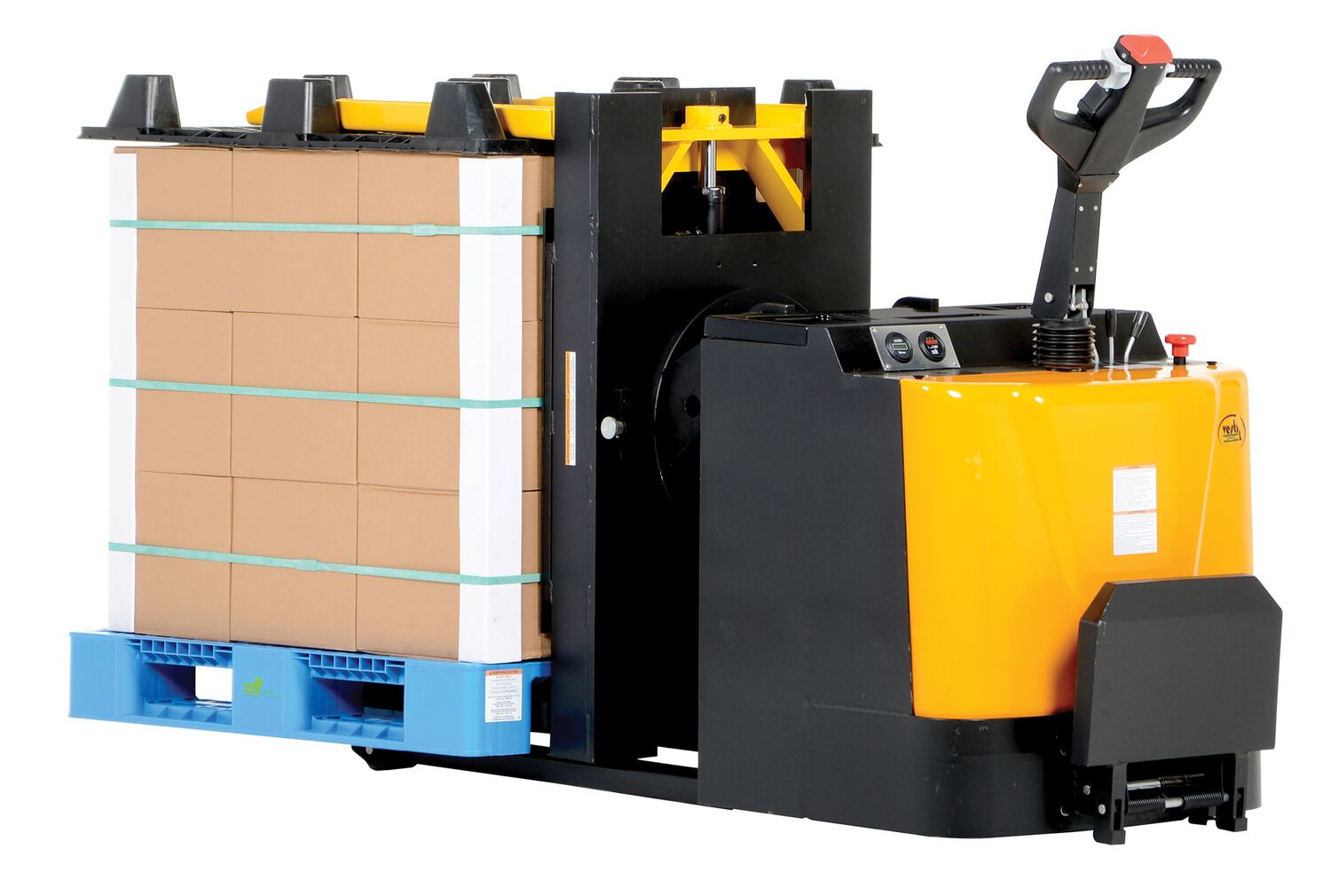

model: PI-P-3000-3254

Portable Pallet Inverters

SERIES: PI-P 5Products

Quick Ship

Powered Pallet Inverters and Tilt Trucks for Load Rotation

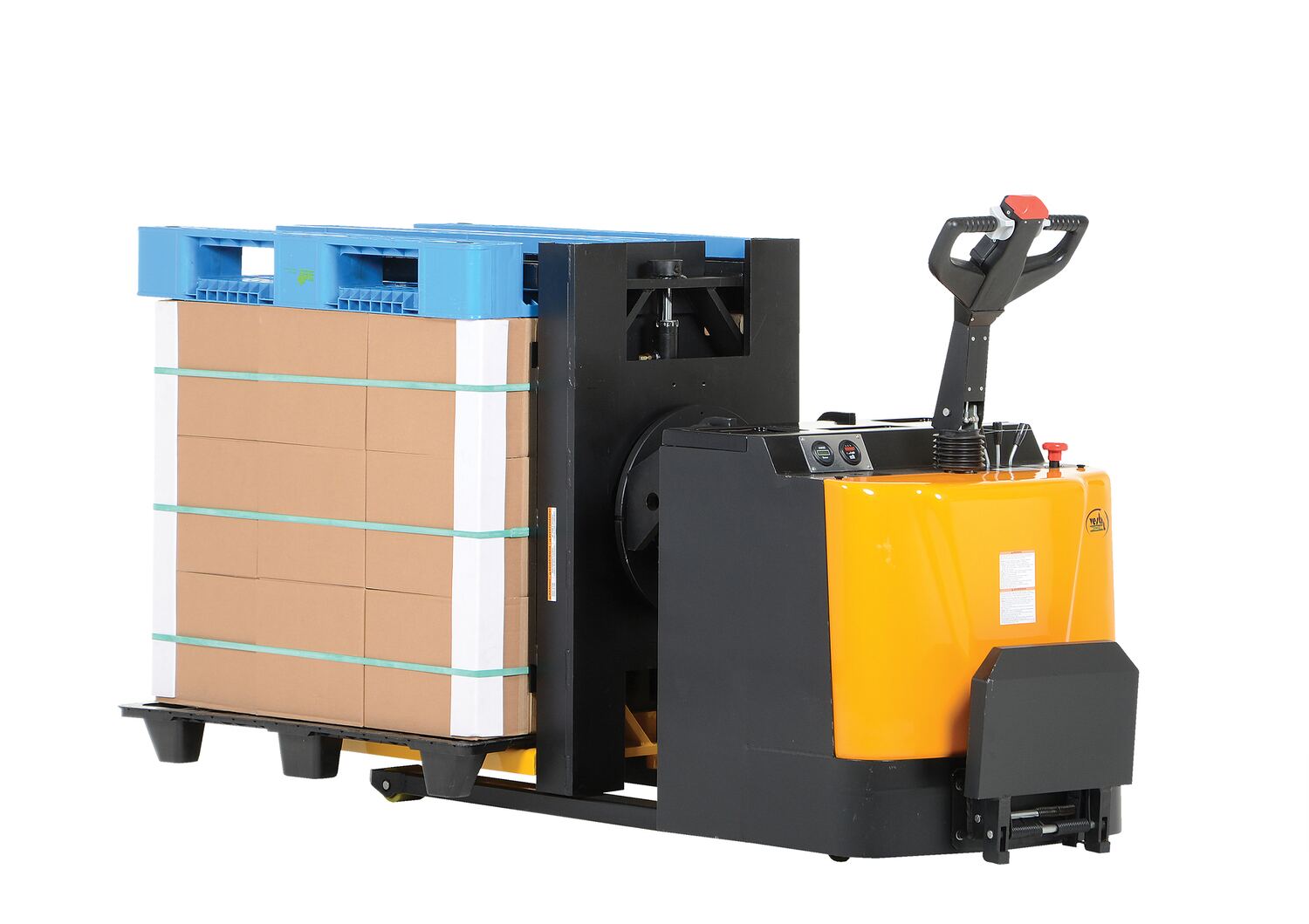

Powered pallet inverters provide a versatile solution for tilting, clamping, rotating, and transporting palletized loads in warehouses, loading docks, production areas, food processing facilities, pharmaceutical operations, and distribution centers. Designed to function as a powered pallet truck, powered pallet tilter, and manual rotation device, these units help reduce manual handling while improving productivity during pallet exchange, load transfer, product inspection, and material repositioning tasks.

Powered Travel and Tilt Operation

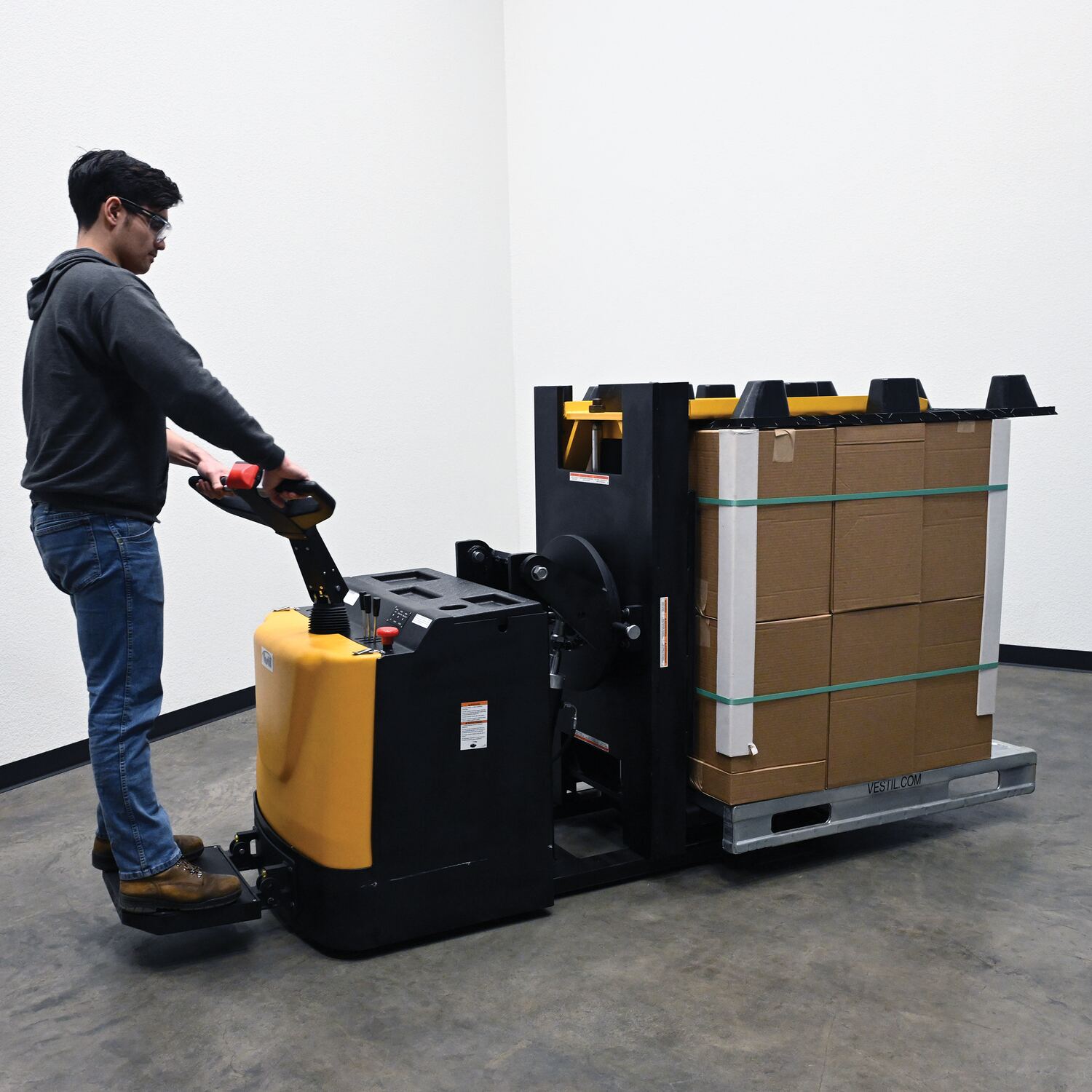

DC power lift and drive allow operators to move loads efficiently from workstation to workstation. The ergonomic control handle includes throttle control with forward and reverse travel, tilt and lower controls, horn, and a safety belly reverse button. An electromagnetic disc brake with automatic dead-man feature activates when the handle is released.

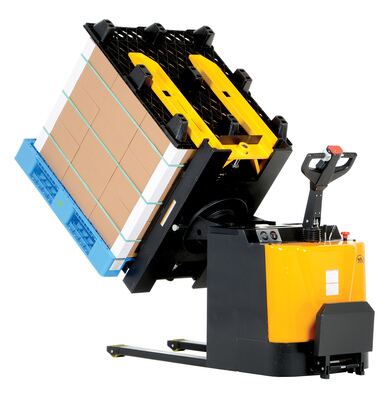

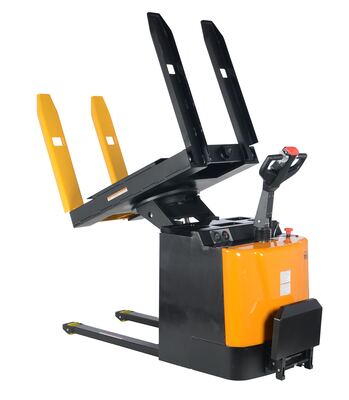

Load Handling and Rotation

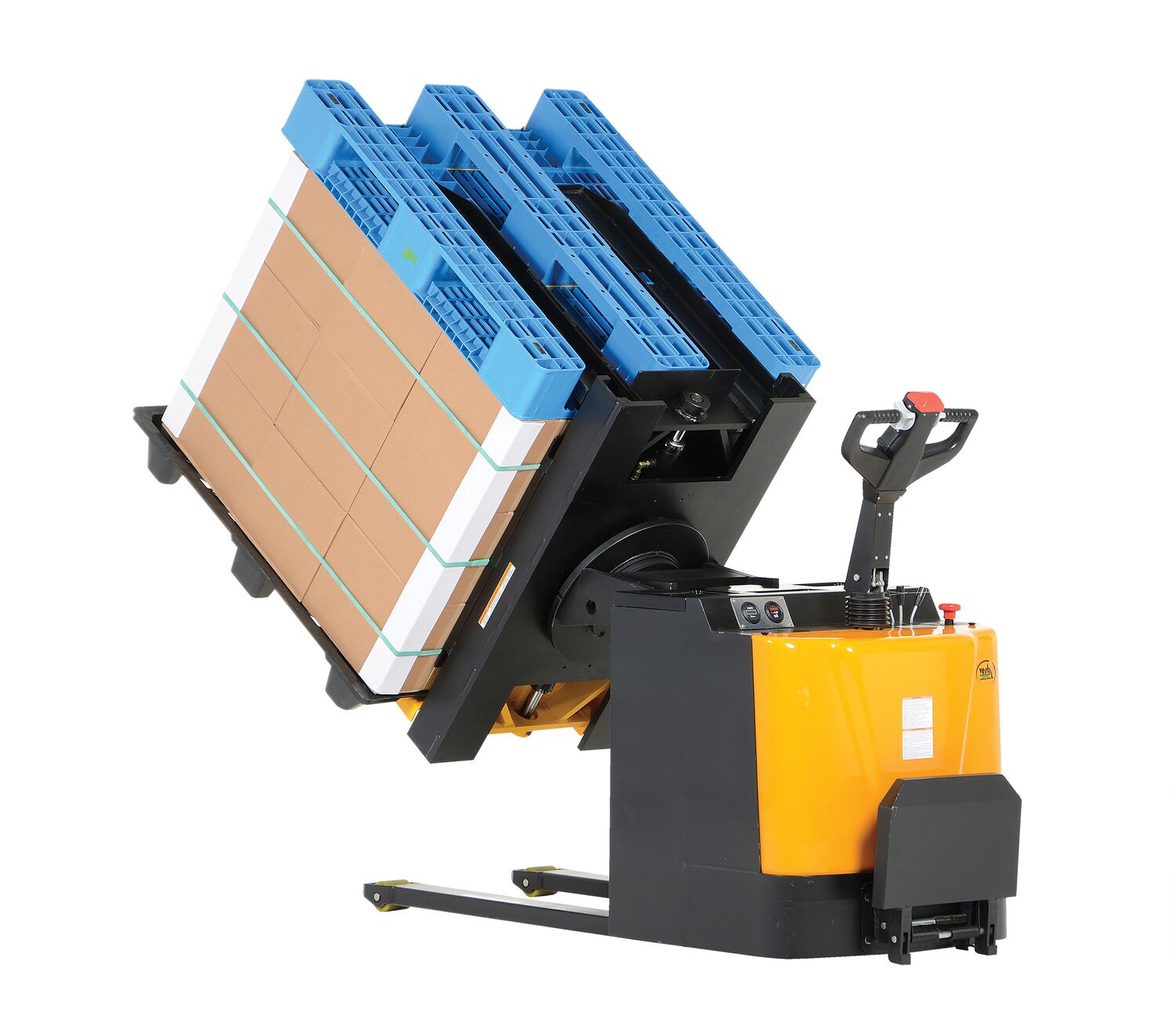

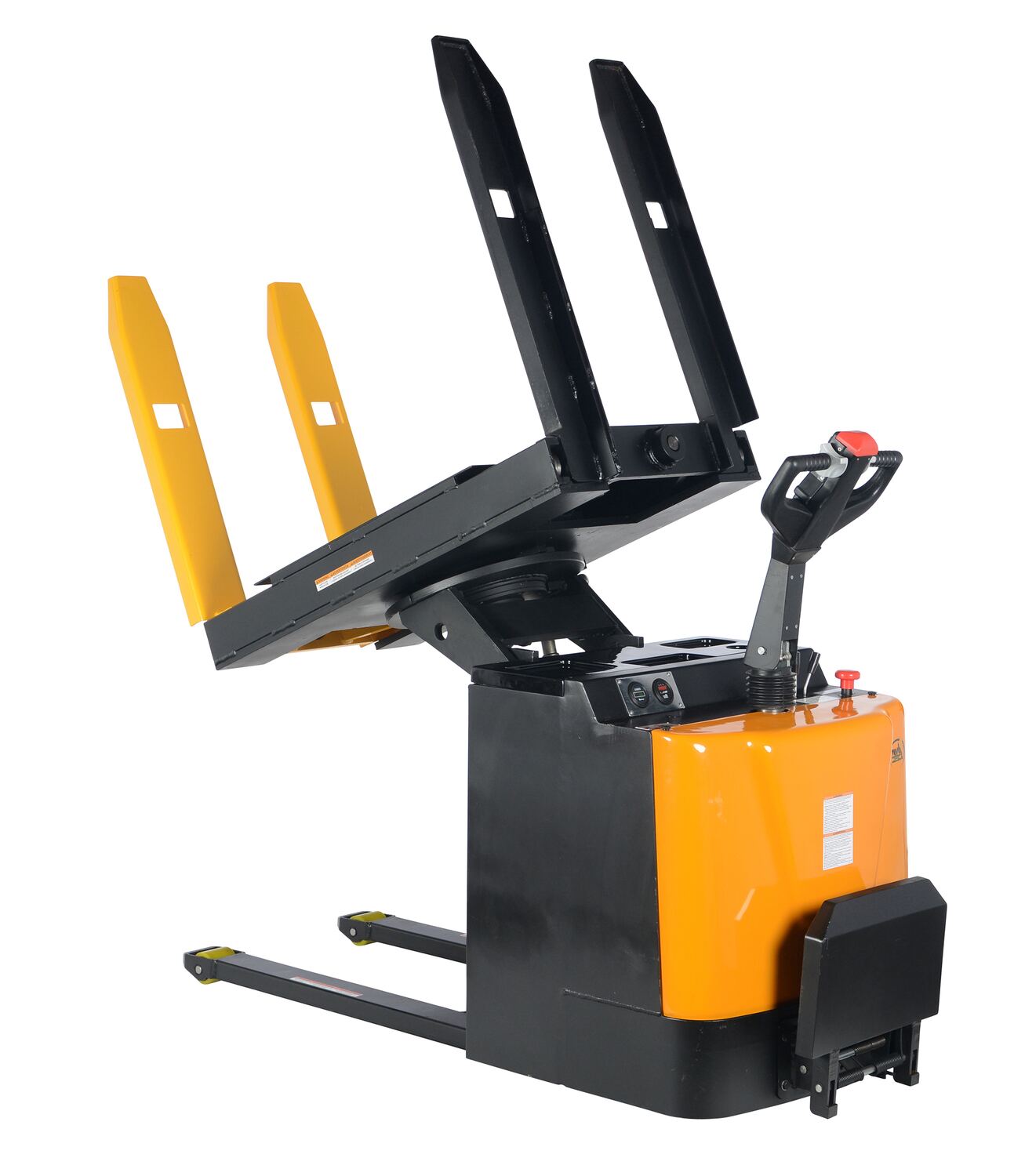

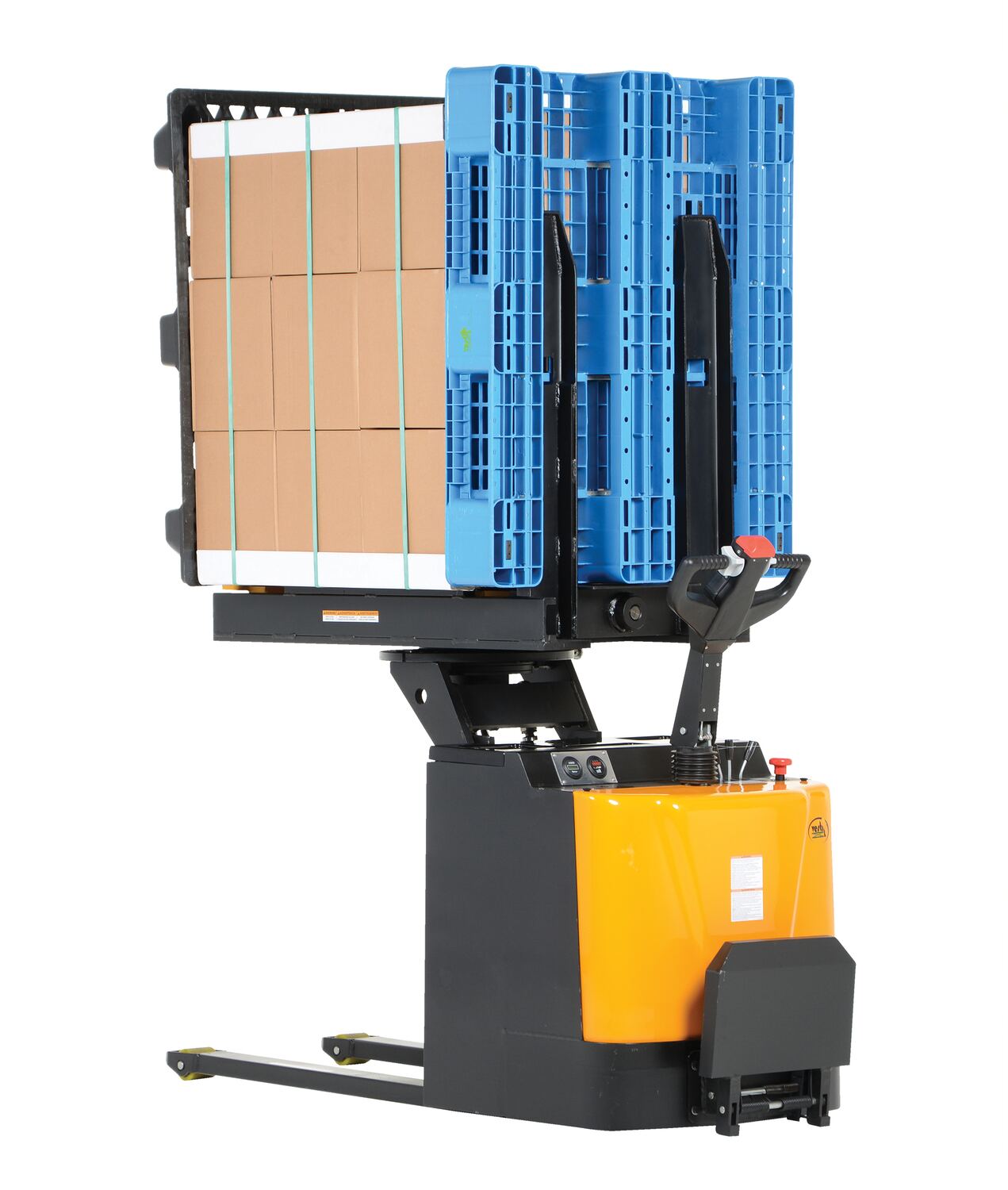

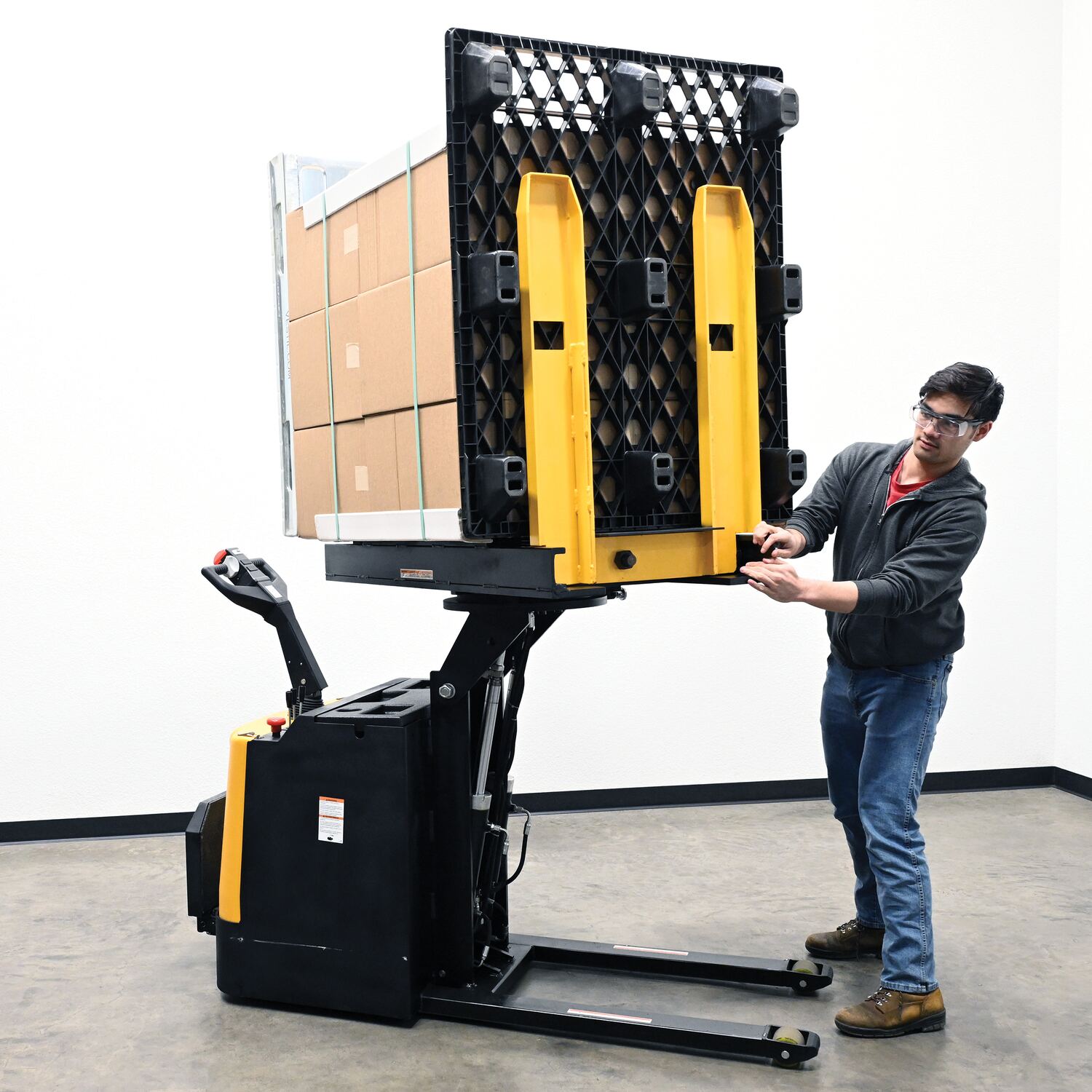

Each model supports 3,000 lb. capacity loads, with powered tilt up and down operation and manual rotation for controlled pallet inversion. Fork opening ranges are available for different load widths, and low lowered heights help operators engage pallets and containers more easily.

Battery System and Model Configurations

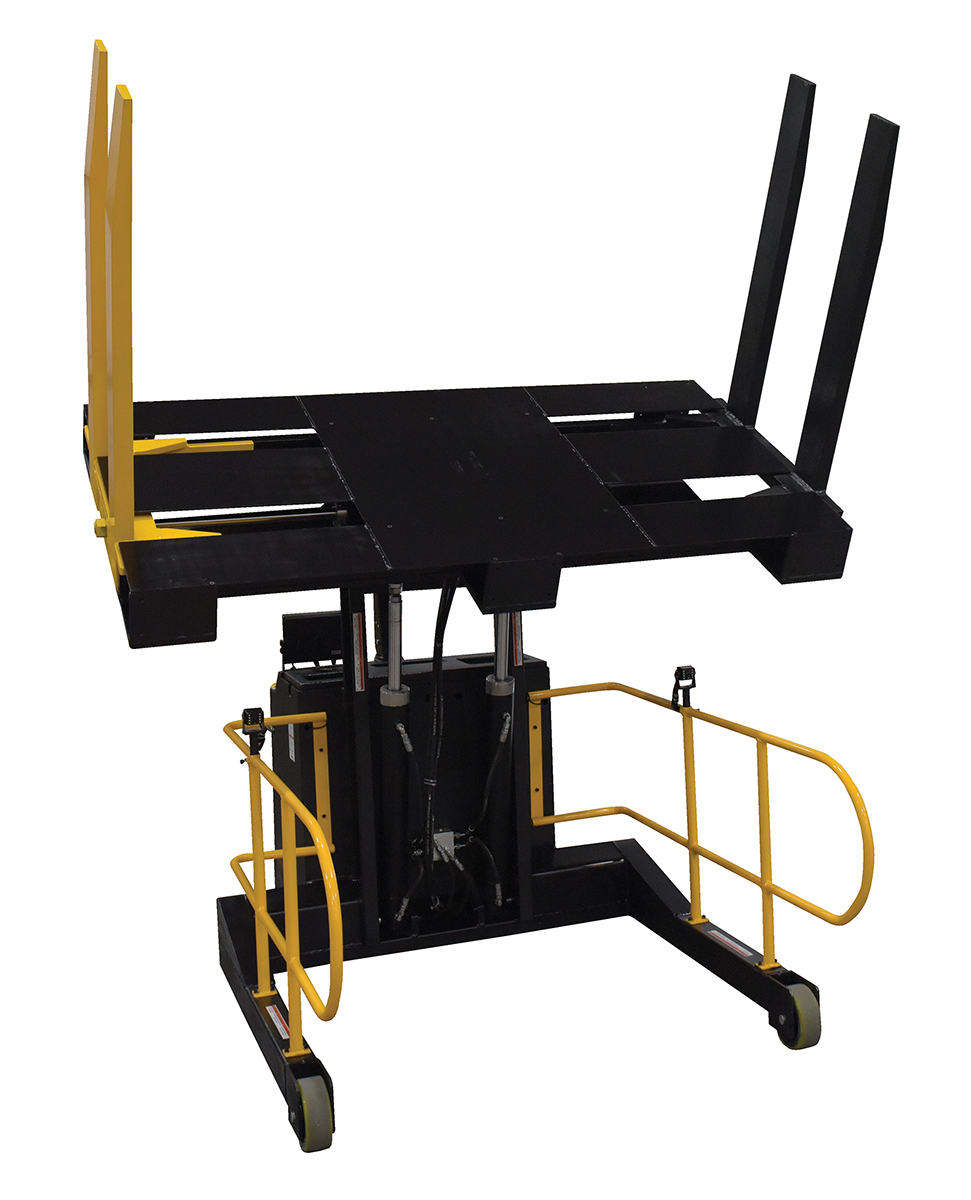

Standard 24V DC operation includes four 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Models are available in standard and straddle configurations, with select versions offering wider fork openings or a safety cage enclosure. Polyurethane steer and load wheels provide smooth rolling performance in demanding industrial environments.

24V DC STANDARD

Portable Pallet Inverters

model: PI-P-3000-3254

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

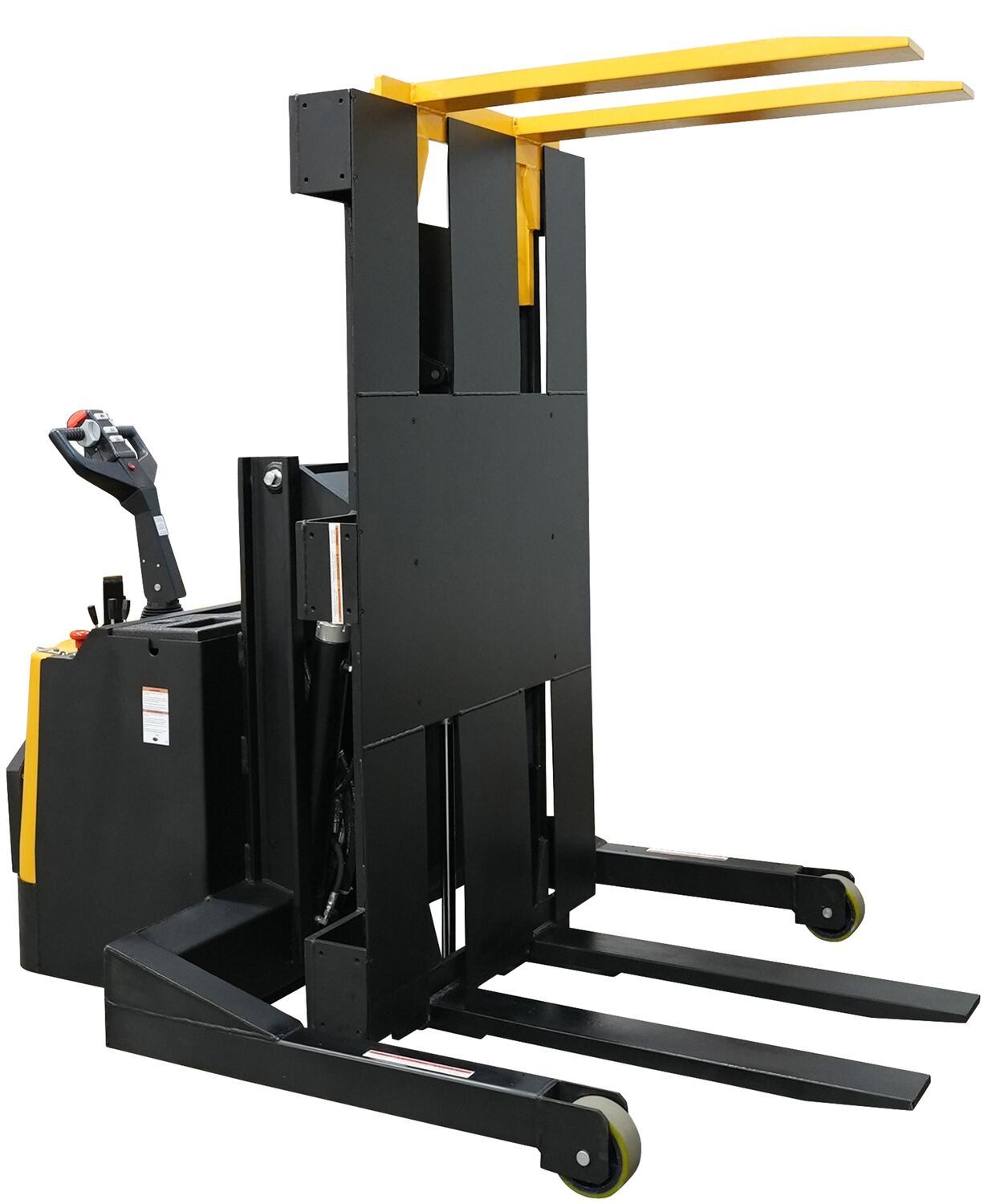

PI-P-SL-3000-3254

PI-P-SL-3000-3276

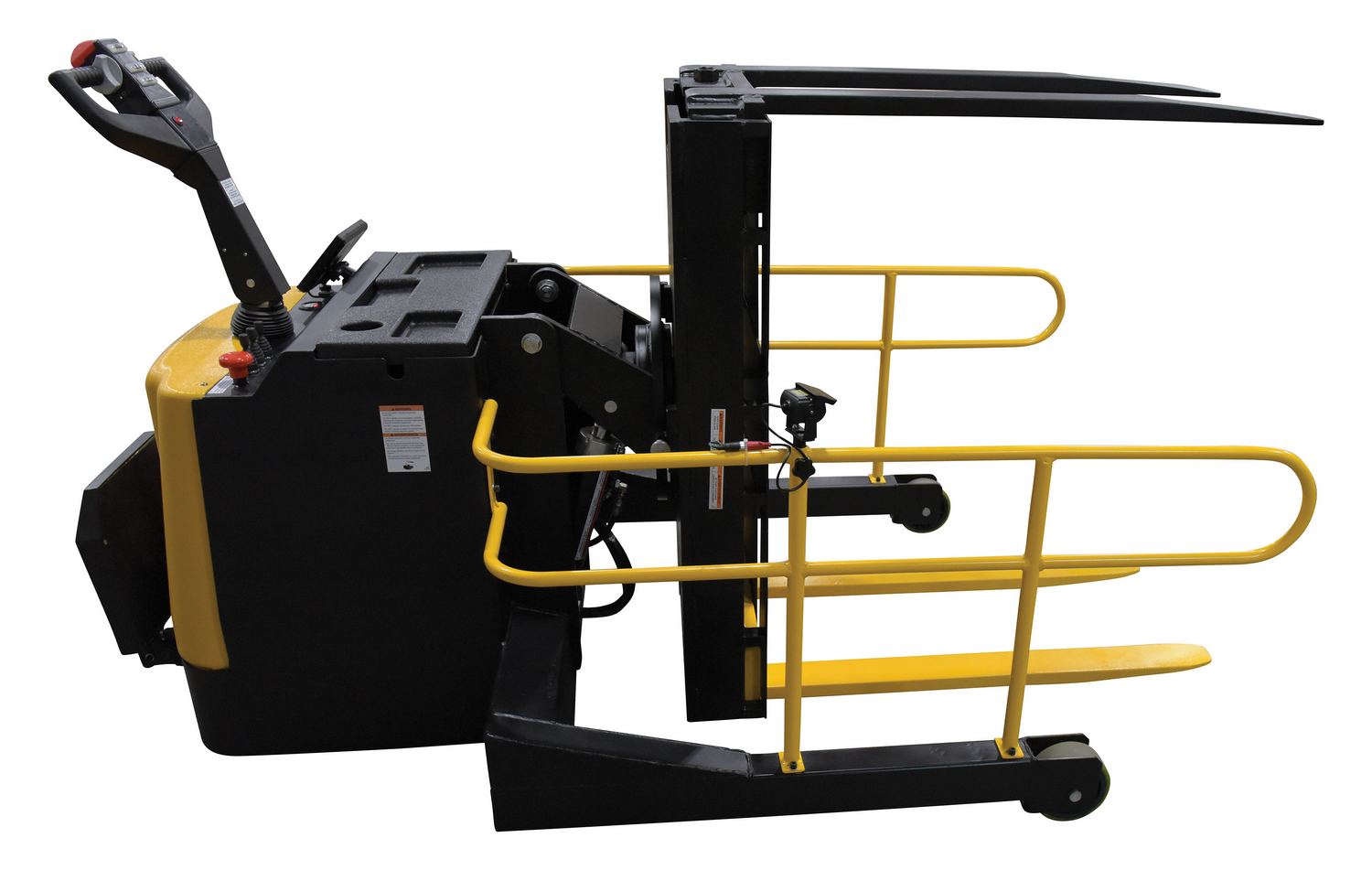

PI-P-SL-3000-4088

PI-P-SL-3276-PRSR

PDFs will open in a new window when clicked.

Owner's Manuals

1

PI-P-4400-3254, MANUAL

Survey Sheets

0

No survey sheets for this product family.

Approval Drawings

4

PI-P-SL-3000-3254

PI-P-SL-3000-3276

PI-P-SL-3276-PRSR

Testing Certificates

5

Open Certificate

PI-P-SL-3000-3254

Open Certificate

PI-P-SL-3000-3276

Open Certificate

PI-P-SL-3000-4088

Open Certificate

PI-P-SL-3276-PRSR

Open Certificate

SDS Sheets

9

PI-P-3000-3254 SDS

PI-P-SL-3000-3254 SDS

PI-P-SL-3000-3276 SDS

PI-P-SL-3000-4088 SDS

PI-P-SL-3276-PRSR SDS

PI-P-SL-3276-PRSR SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid

PI-P-SL-3000-3254 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid

PI-P-SL-3000-3276 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid

PI-P-SL-3000-4088 SDS

Other PDFs

1

Portable Pallet Inverter With Cage Mailing Brochure

Print Friendly

Related or Similar Products:

Portable Pallet Inverters

Powered Pallet Inverters and Tilt Trucks for Load Rotation

Powered pallet inverters provide a versatile solution for tilting, clamping, rotating, and transporting palletized loads in warehouses, loading docks, production areas, food processing facilities, pharmaceutical operations, and distribution centers. Designed to function as a powered pallet truck, powered pallet tilter, and manual rotation device, these units help reduce manual handling while improving productivity during pallet exchange, load transfer, product inspection, and material repositioning tasks.

Powered Travel and Tilt Operation

DC power lift and drive allow operators to move loads efficiently from workstation to workstation. The ergonomic control handle includes throttle control with forward and reverse travel, tilt and lower controls, horn, and a safety belly reverse button. An electromagnetic disc brake with automatic dead-man feature activates when the handle is released.

Load Handling and Rotation

Each model supports 3,000 lb. capacity loads, with powered tilt up and down operation and manual rotation for controlled pallet inversion. Fork opening ranges are available for different load widths, and low lowered heights help operators engage pallets and containers more easily.

Battery System and Model Configurations

Standard 24V DC operation includes four 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Models are available in standard and straddle configurations, with select versions offering wider fork openings or a safety cage enclosure. Polyurethane steer and load wheels provide smooth rolling performance in demanding industrial environments.

24V DC STANDARD

Model #		Description	Attributes	Net Wt. (lbs)
PI-P-3000-3254		Steel Portable Pallet Inverter Low Profile 32 In. to 54 In. Fork Opening 3000 Lb. Capacity Yellow/Black	Uniform Capacity (lb.): 3,000 Fork Opening (in.): 32 to 54	2388
PI-P-SL-3000-3254		Steel Portable Pallet Inverter 32 In. to 54 In Fork Opening 3000 Lb. Capacity Yellow/Black	Uniform Capacity (lb.): 3,000 Fork Opening (in.): 32-1/2 to 54	2388

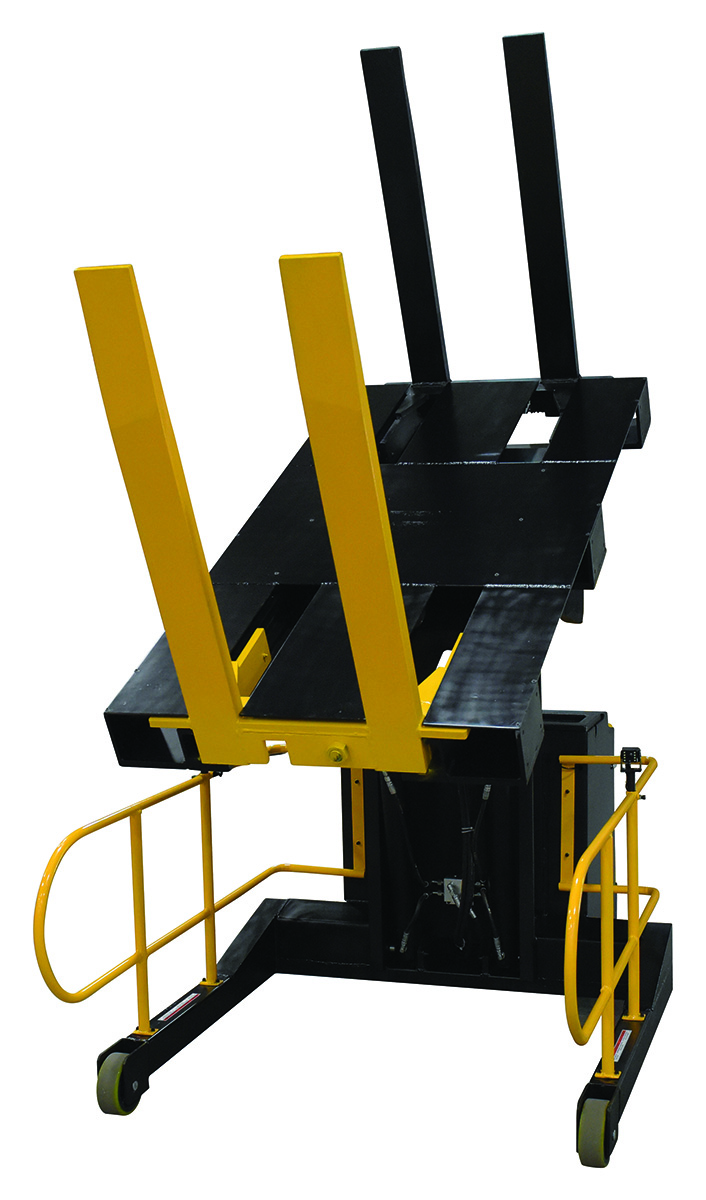

PI-P-SL-3000-3276		Steel Portable Pallet Inverter 32 In. to 76 In Fork Opening 3000 Lb. Capacity Yellow/Black	Uniform Capacity (lb.): 3,000 Fork Opening (in.): 31-1/2 to 76	3026

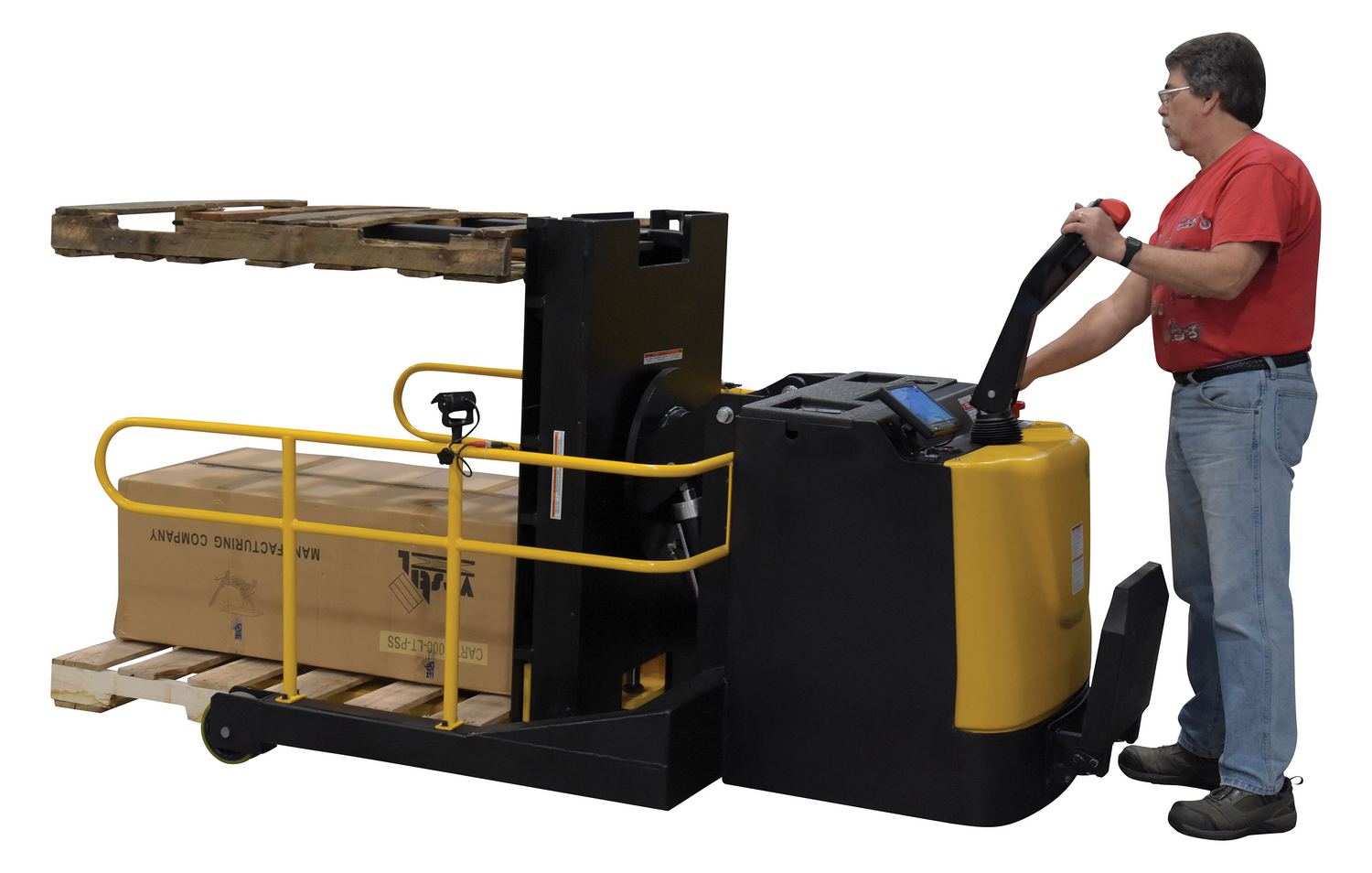

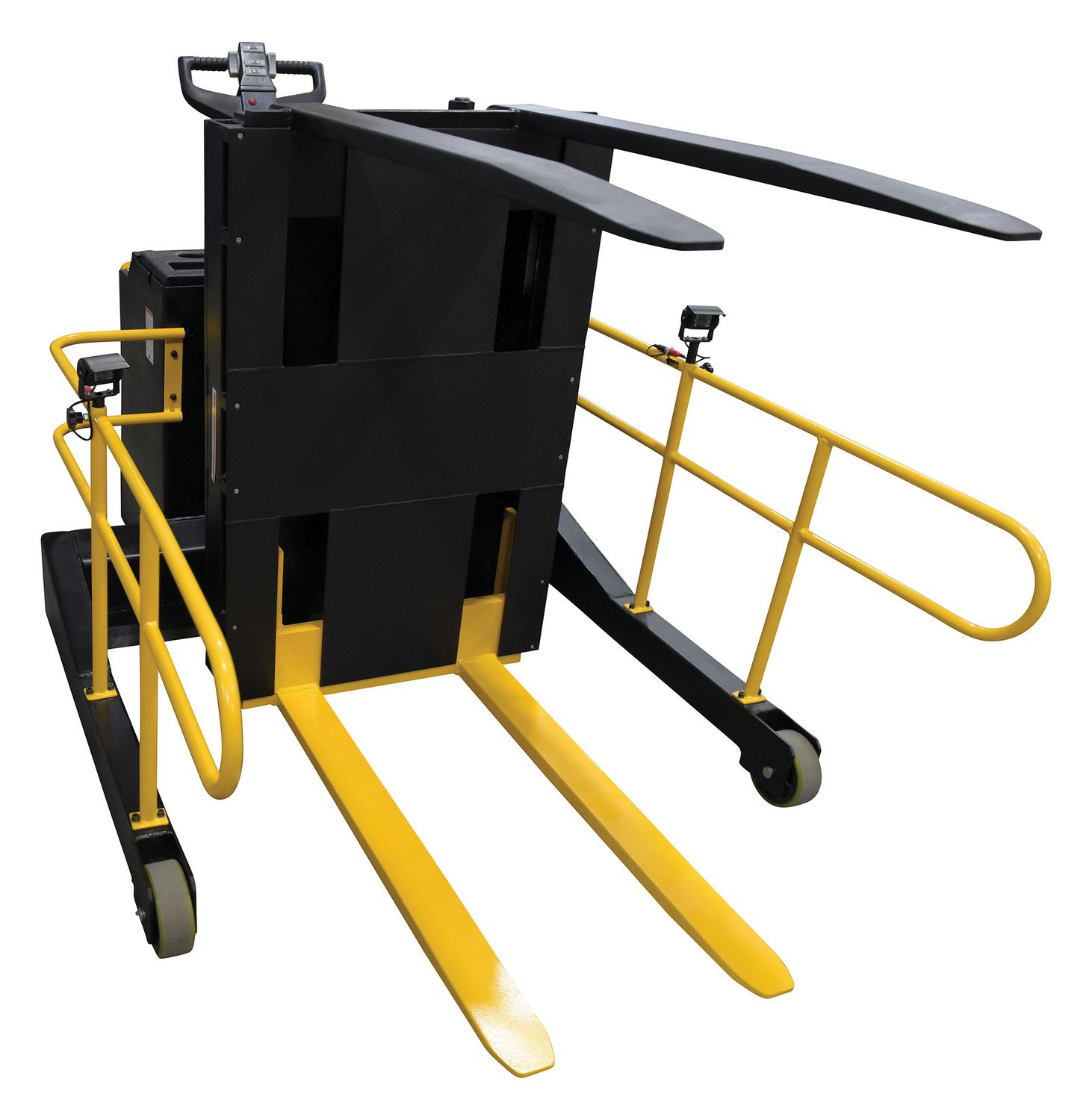

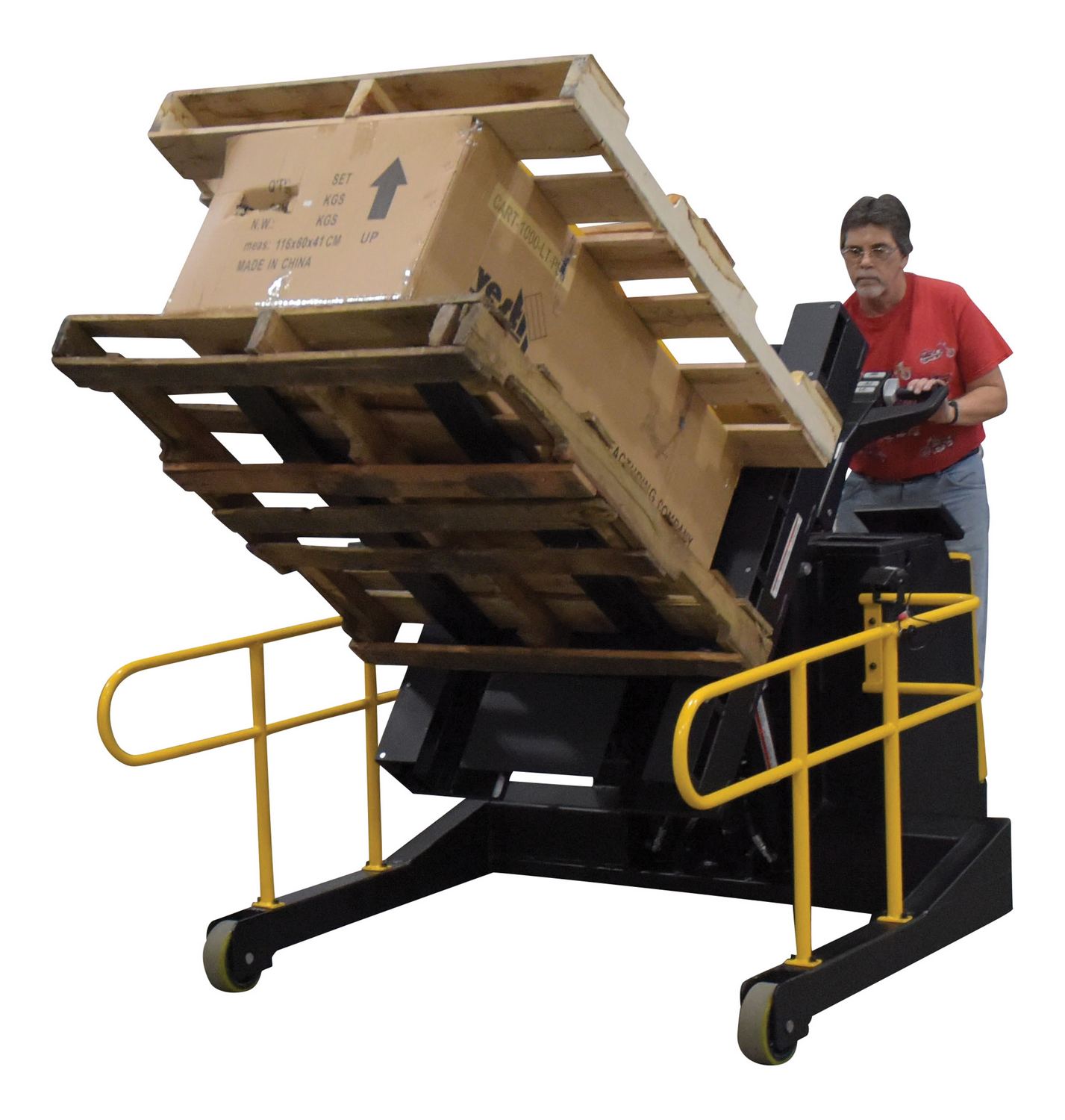

PI-P-SL-3000-4088		Steel Portable Pallet Inverter 40 In. to 88 In Fork Opening 3000 Lb. Capacity Yellow/Black	Uniform Capacity (lb.): 3,000 Fork Opening (in.): 40 to 88	3095

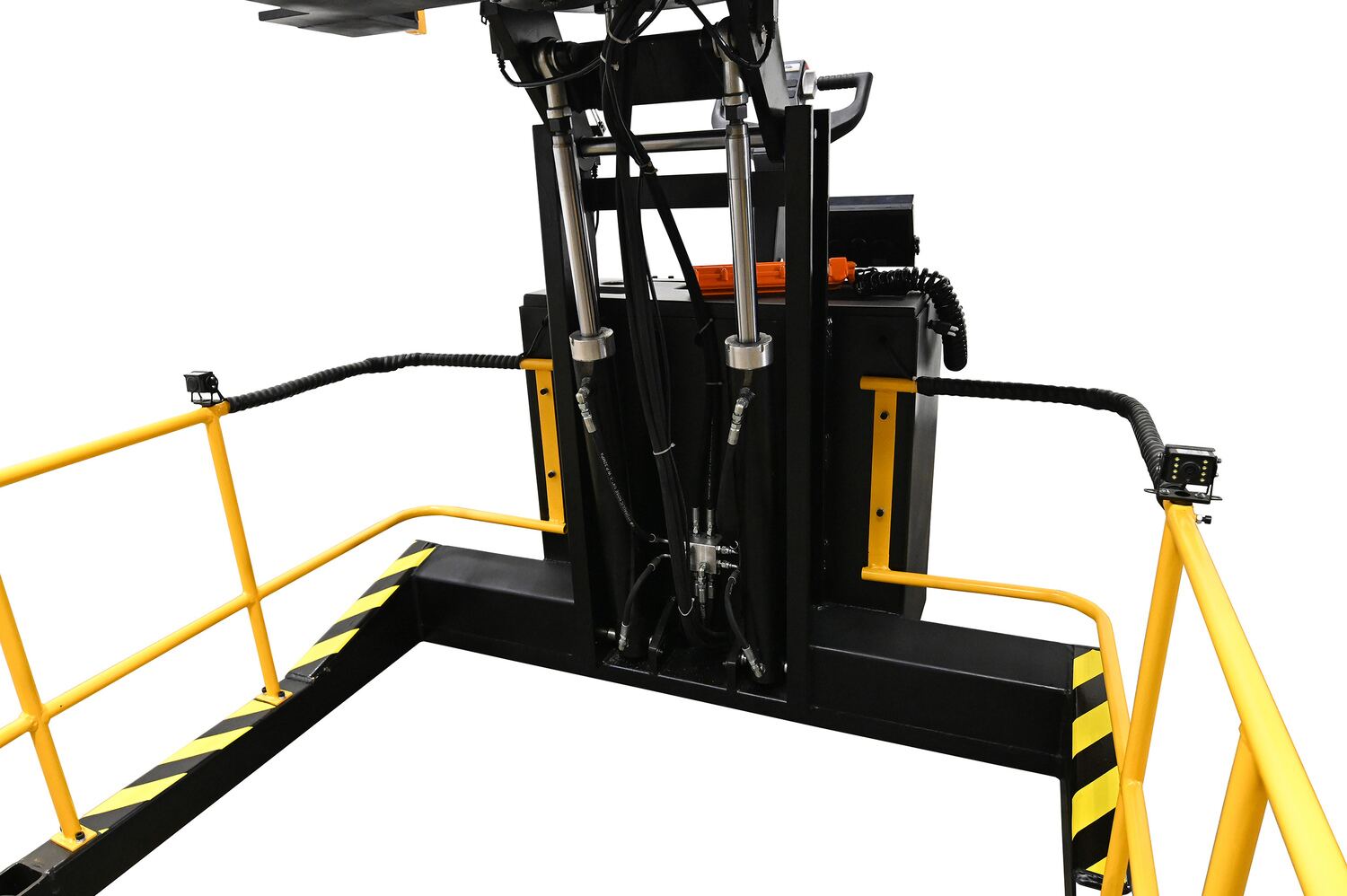

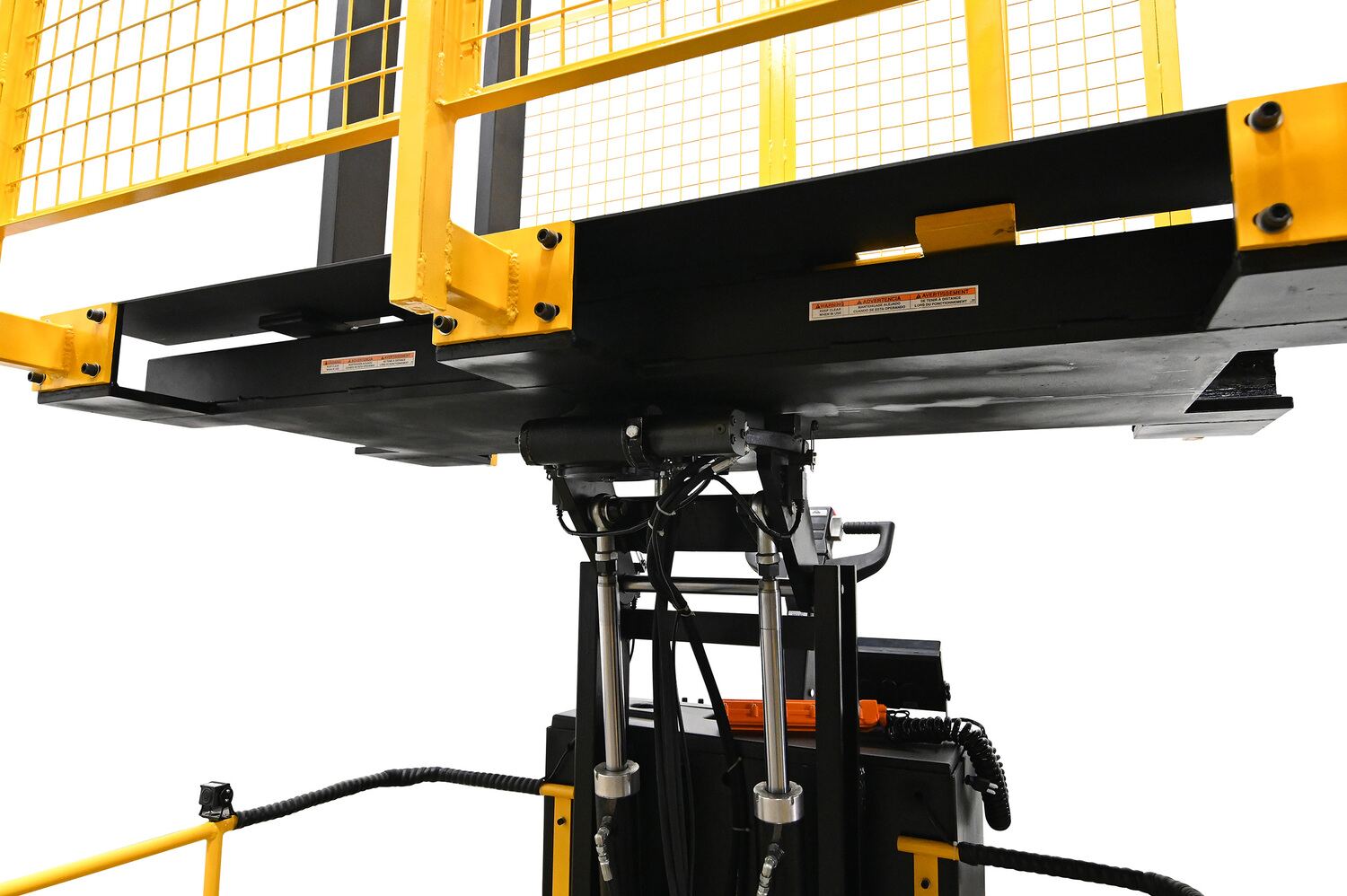

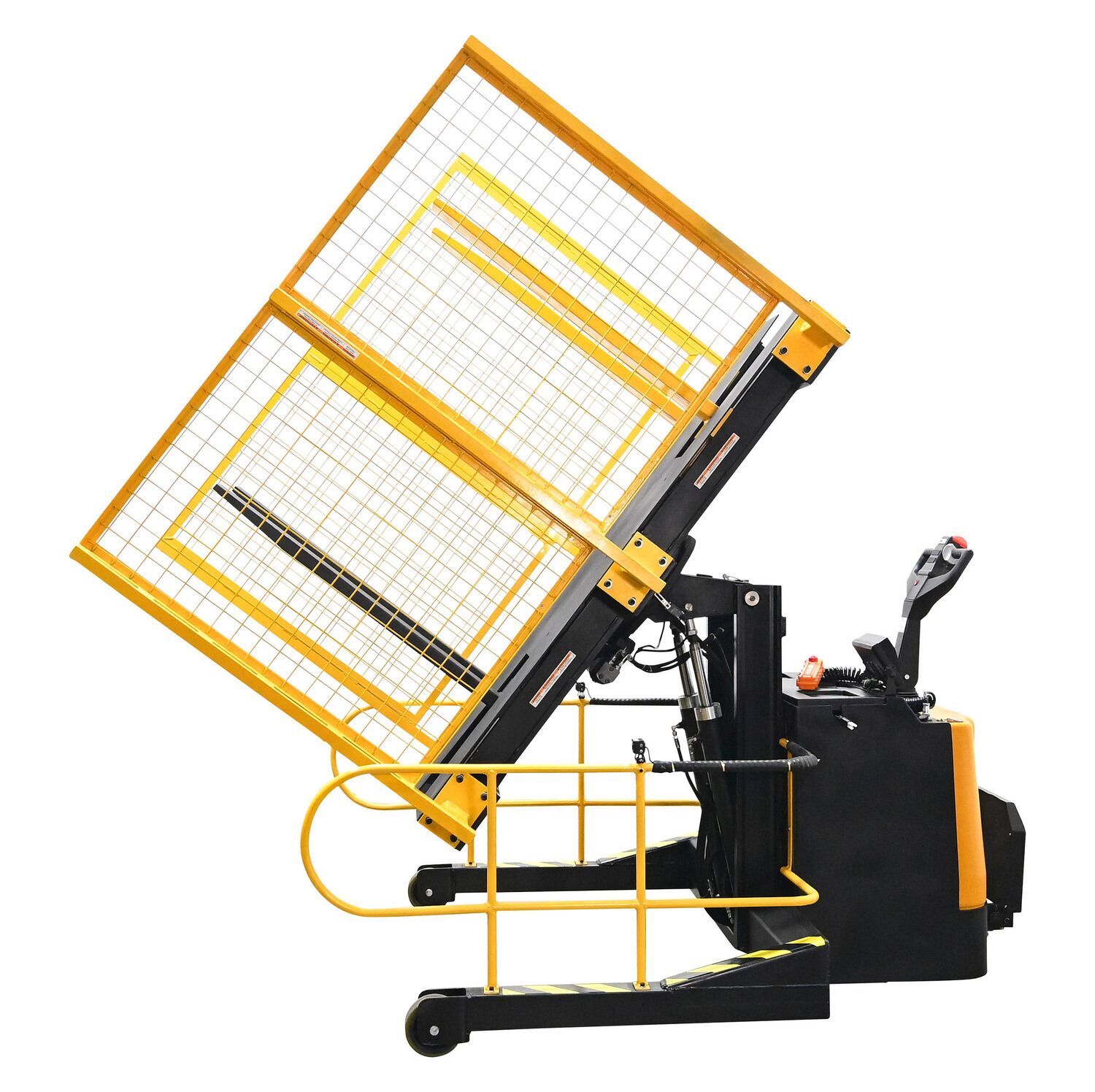

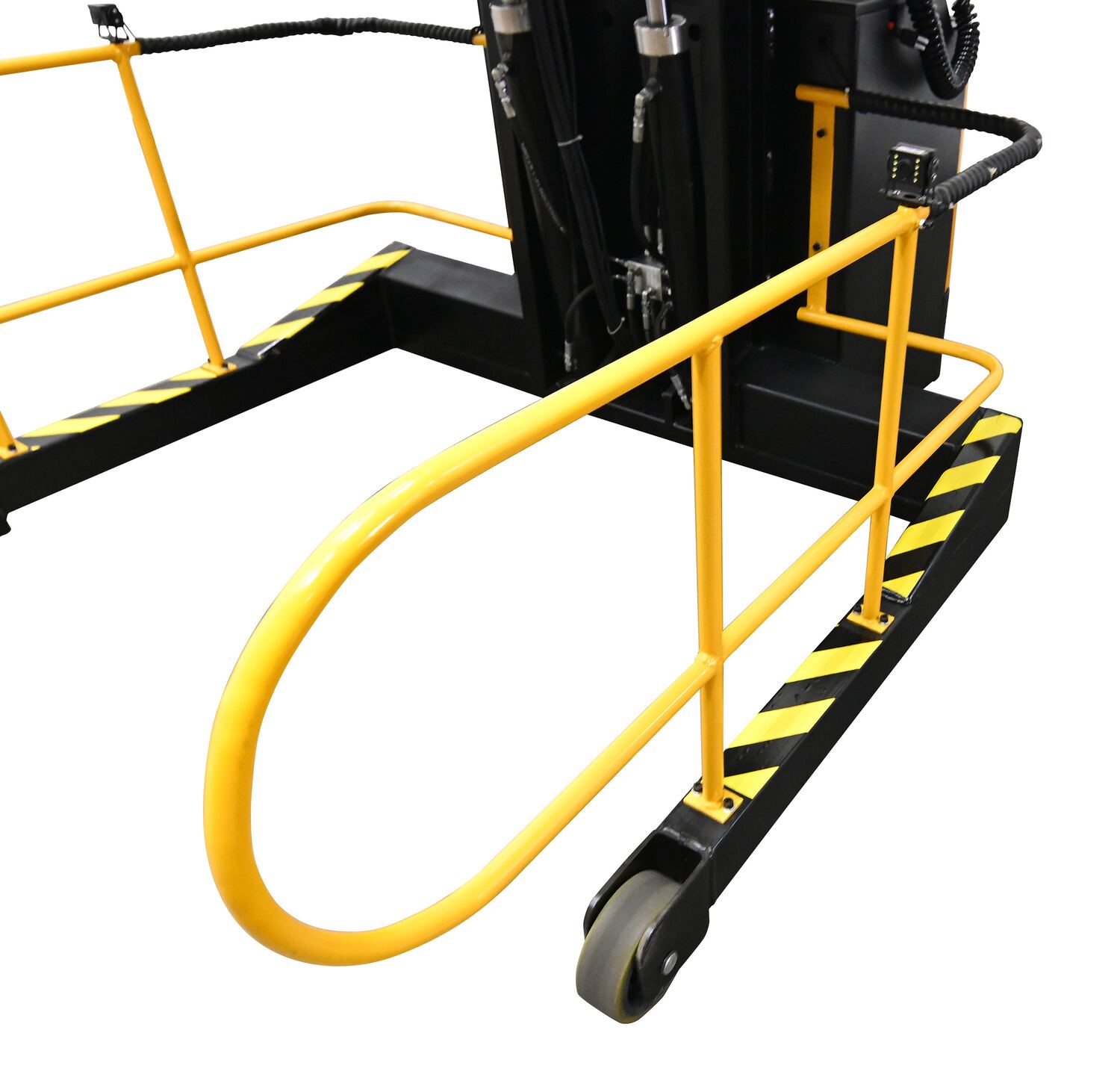

PI-P-SL-3276-PRSR		Steel Portable Pallet Inverter With Cage 32 In. to 76 In Fork Opening 3,000 Lb. Capacity Yellow/Black	Uniform Capacity (lb.): 3,000 Fork Opening (in.): 32 to 76	5400
