Long Deck Carts

Print Friendly

Model Chart
PDF's
Options
Image Gallery
FEATURED Long Deck Carts

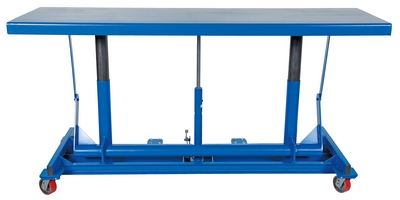

model: LDLT-3096

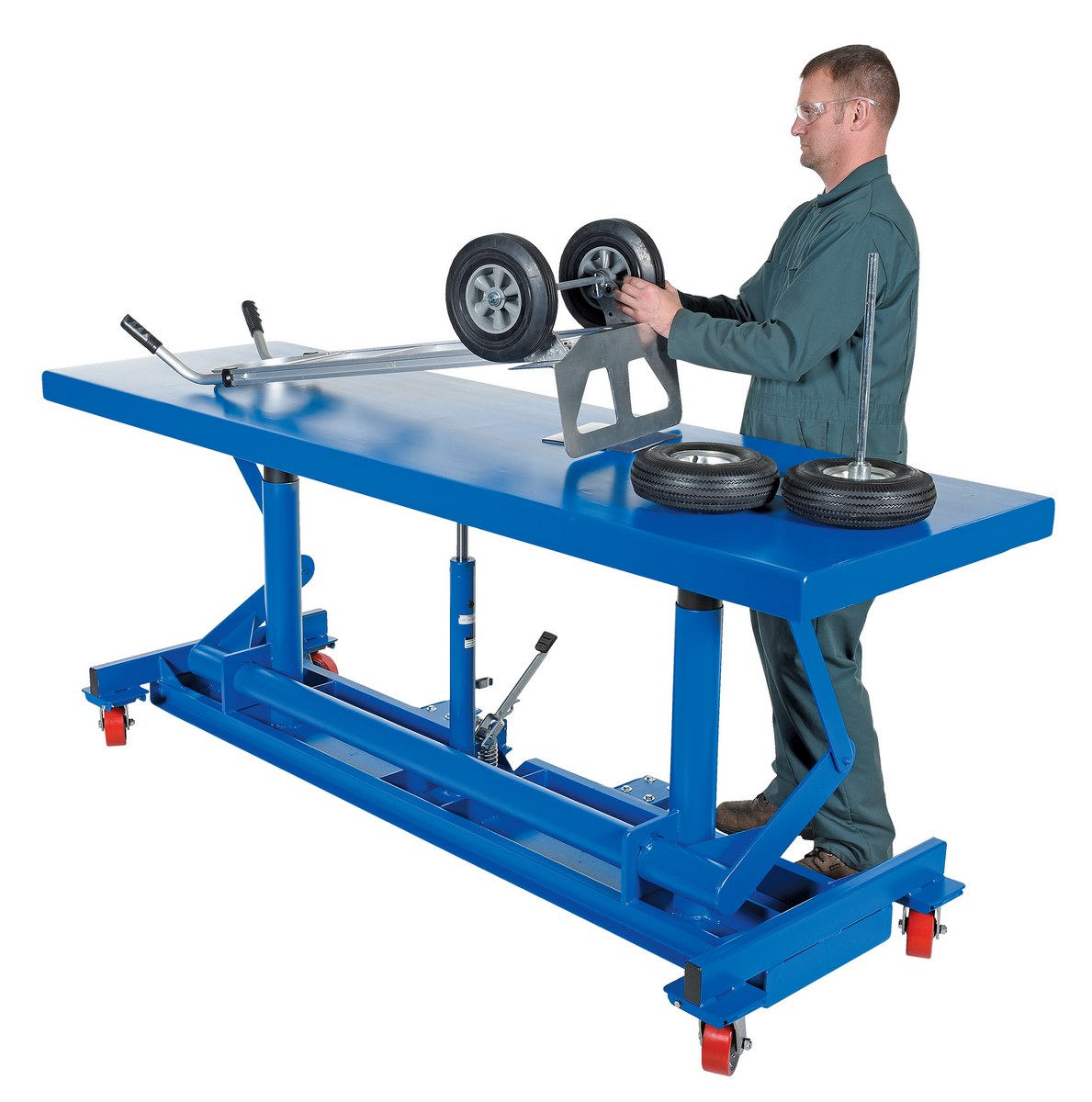

LDLT-3096_A.jpg LDLT-3096_B.jpg LDLT-3096_C.jpg LDLT-3096_D.jpg LDLT-3096_E.jpg LDLT-3096_F.jpg More Images +
Long Deck Carts
SERIES: LDLT   18Products 4Options
Quick Ship Custom Fabrication

Long Platform Lift Carts for Sheet, Strip, and Awkward Load Handling

Long platform lift carts provide ergonomic material handling for sheet goods, strip stock, panels, long components, and other awkward loads that are difficult to move or position on standard carts. Designed for warehouses, fabrication shops, assembly areas, maintenance departments, and production lines, these carts help operators raise, lower, transport, and stage materials at a more efficient working height.

Manual Hydraulic Height Adjustment

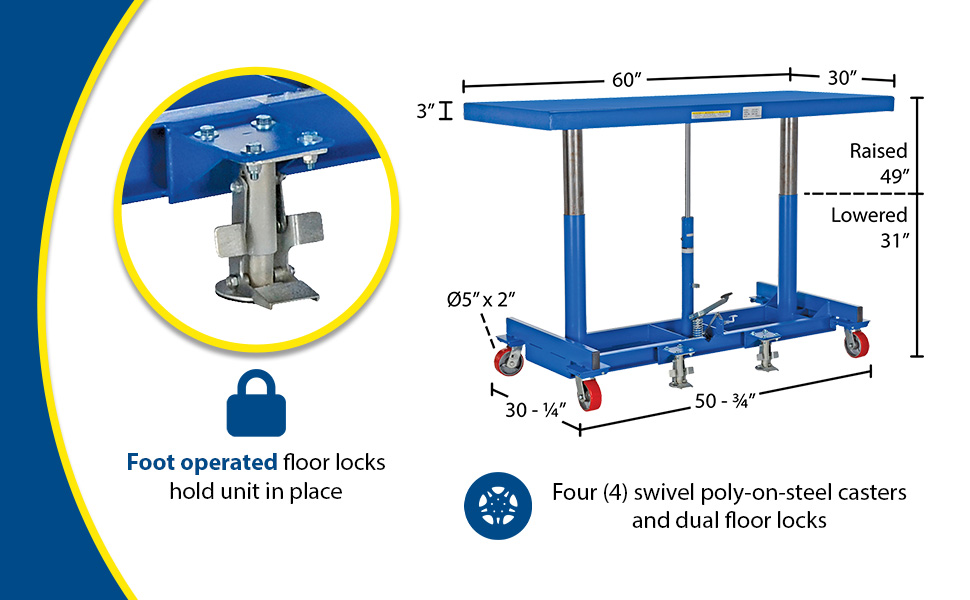

Standard models use a manual hydraulic foot pump to adjust the platform from a 31 inch lowered height to a 49 inch raised height. The 1/4 inch thick deck supports long material while the structural steel base helps distribute loads evenly during transport and positioning.

Platform Sizes and Capacities

This family includes 20 inch and 30 inch wide platforms with lengths from 60 inches to 120 inches. Models are available with 2,000 lb. or 4,000 lb. evenly distributed capacities, allowing users to match the cart to specific sheet handling, workstation feeding, and long-load transport requirements.

Mobility and Power Options

Four swivel 5 inch by 2 inch poly-on-steel casters allow smooth maneuvering, while dual floor locks help keep the cart in place during loading, unloading, and work positioning. Factory-installed power options include AC power, 12V DC battery power, reciprocating air/oil power with foot treadle control, and rotary air/oil power with muffler and hand control.

Long Deck Carts

model: LDLT-3096

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
LDLT-20120
LDLT-2060
LDLT-2060-4
LDLT-2072
LDLT-2072-4
LDLT-2096
LDLT-2096-4
LDLT-30120
LDLT-3060
LDLT-3060-4
LDLT-3072
LDLT-3072-4
LDLT-3096
LDLT-3096-4
LDLT-AC
LDLT-AIR
LDLT-DC
LDLT-RECIPR
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
LDLT-AC LDLT-AC Factory Installed AC 115, 208-230, 460 Volt And A 1 or 3 Pha… 1 Year Limited Warranty 40

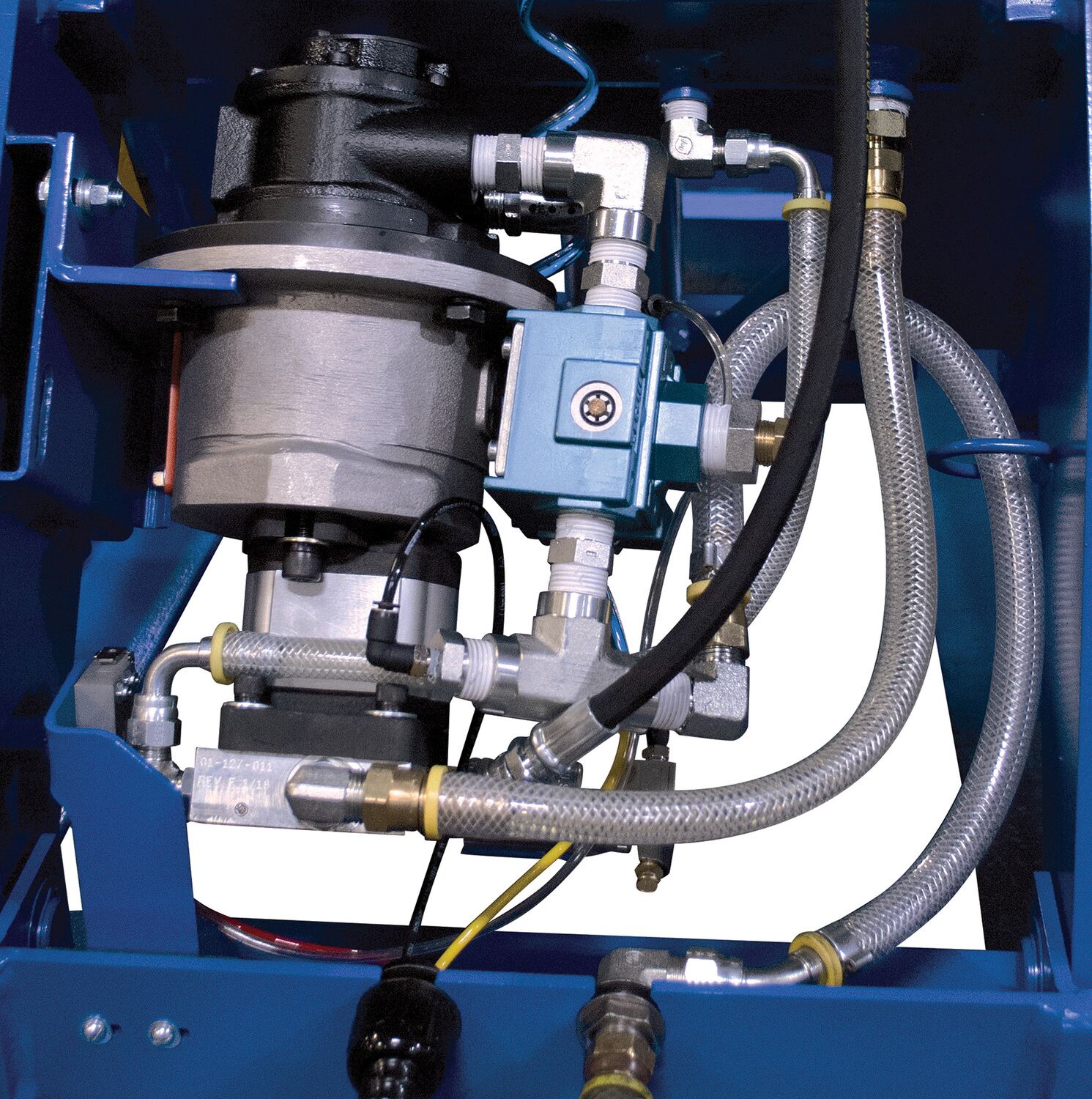

LDLT-AIR LDLT-AIR Factory Installed Rotary Air/Oil Power Unit With Muffler &am… 1 Year Limited Warranty 10

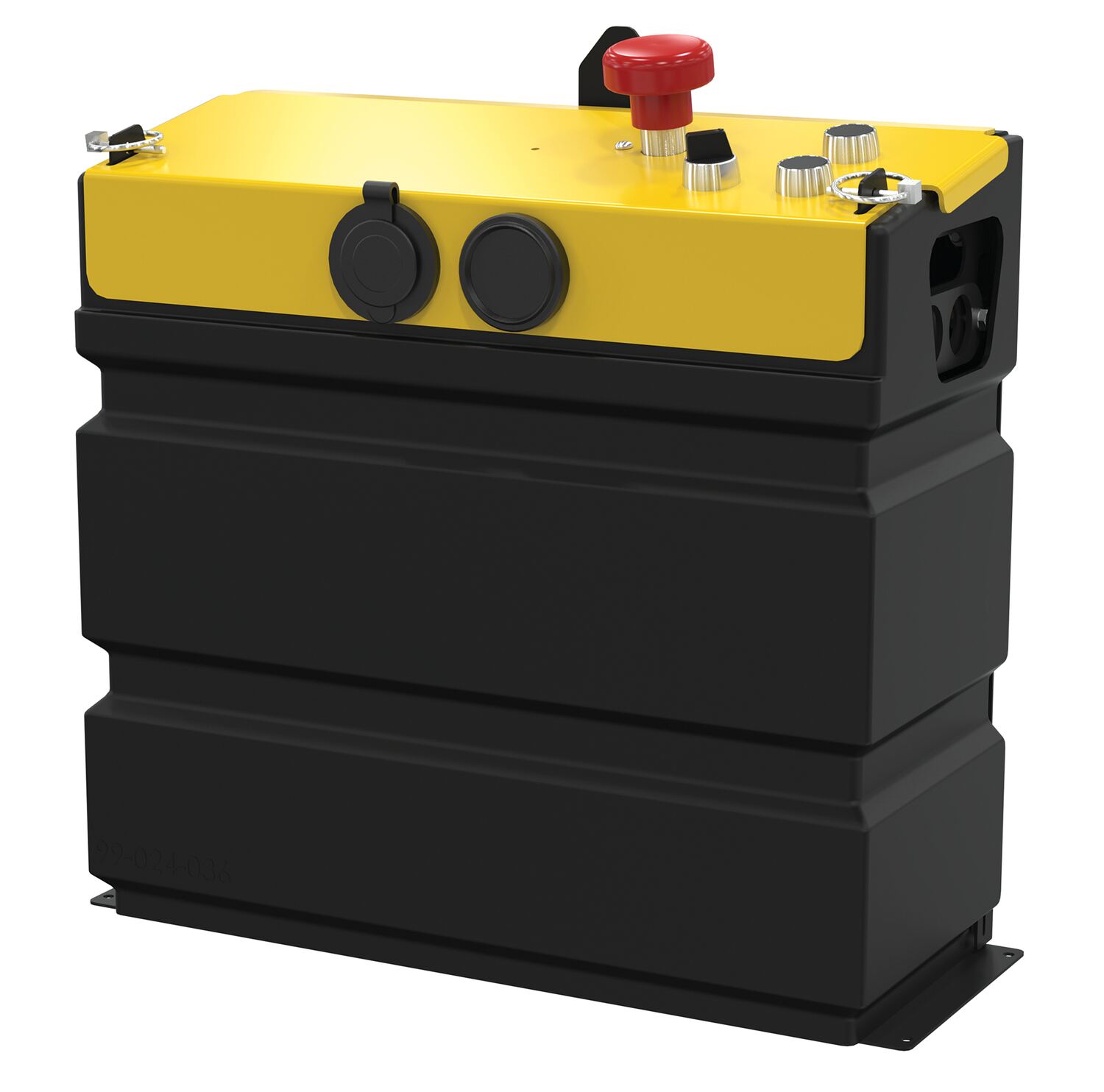

LDLT-DC LDLT-DC Factory Installed 12 Volt DC Power Unit With Charger For Lon… 1 Year Limited Warranty 68
LDLT-RECIPR LDLT-RECIPR Factory Installed Reciprocating Air/Oil Power Unit With Foot… 1 Year Limited Warranty 5

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

1
LDLT, MANUAL
Open Manual

Survey Sheets

1
LDLT
Open Survey

Approval Drawings

14
LDLT-20120
Open Drawing
LDLT-2060
Open Drawing
LDLT-2060-4
Open Drawing
LDLT-2072
Open Drawing
LDLT-2072-4
Open Drawing
LDLT-2096
Open Drawing
LDLT-2096-4
Open Drawing
LDLT-30120
Open Drawing
LDLT-3060
Open Drawing
LDLT-3060-4
Open Drawing
LDLT-3072
Open Drawing
LDLT-3072-4
Open Drawing
LDLT-3096
Open Drawing
LDLT-3096-4
Open Drawing

Testing Certificates

18
LDLT-20120
Open Certificate
LDLT-2060
Open Certificate
LDLT-2060-4
Open Certificate
LDLT-2072
Open Certificate
LDLT-2072-4
Open Certificate
LDLT-2096
Open Certificate
LDLT-2096-4
Open Certificate
LDLT-30120
Open Certificate
LDLT-3060
Open Certificate
LDLT-3060-4
Open Certificate
LDLT-3072
Open Certificate
LDLT-3072-4
Open Certificate
LDLT-3096
Open Certificate
LDLT-3096-4
Open Certificate
LDLT-AC
Open Certificate
LDLT-AIR
Open Certificate
LDLT-DC
Open Certificate
LDLT-RECIPR
Open Certificate

SDS Sheets

19
Hydraulic Oil
LDLT-20120 SDS
Open SDS
Hydraulic Oil
LDLT-2060 SDS
Open SDS
Hydraulic Oil
LDLT-2060-4 SDS
Open SDS
Hydraulic Oil
LDLT-2072 SDS
Open SDS
Hydraulic Oil
LDLT-2072-4 SDS
Open SDS
Hydraulic Oil
LDLT-2096 SDS
Open SDS
Hydraulic Oil
LDLT-2096-4 SDS
Open SDS
Hydraulic Oil
LDLT-30120 SDS
Open SDS
Hydraulic Oil
LDLT-3060 SDS
Open SDS
Hydraulic Oil
LDLT-3060-4 SDS
Open SDS
Hydraulic Oil
LDLT-3072 SDS
Open SDS
Hydraulic Oil
LDLT-3072-4 SDS
Open SDS
Hydraulic Oil
LDLT-3096 SDS
Open SDS
Hydraulic Oil
LDLT-3096-4 SDS
Open SDS
Hydraulic Oil
LDLT-AC SDS
Open SDS
Hydraulic Oil
LDLT-AIR SDS
Open SDS
Hydraulic Oil
LDLT-DC SDS
Open SDS
Hydraulic Oil
LDLT-RECIPR SDS
Open SDS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
LDLT-DC SDS
Open SDS

Other PDFs

0
No other PDFs for this product family.

Enhanced Product Content

LDLT-3060
LDLT-3060 LDLT-3060 A+ Content - 3
LDLT-3060 LDLT-3060 A+ Content - 1
LDLT-3060 LDLT-3060 A+ Content - 2

Related or Similar Products:

More From Post Tables





Long Deck Carts




Long Platform Lift Carts for Sheet, Strip, and Awkward Load Handling

Long platform lift carts provide ergonomic material handling for sheet goods, strip stock, panels, long components, and other awkward loads that are difficult to move or position on standard carts. Designed for warehouses, fabrication shops, assembly areas, maintenance departments, and production lines, these carts help operators raise, lower, transport, and stage materials at a more efficient working height.

Manual Hydraulic Height Adjustment

Standard models use a manual hydraulic foot pump to adjust the platform from a 31 inch lowered height to a 49 inch raised height. The 1/4 inch thick deck supports long material while the structural steel base helps distribute loads evenly during transport and positioning.

Platform Sizes and Capacities

This family includes 20 inch and 30 inch wide platforms with lengths from 60 inches to 120 inches. Models are available with 2,000 lb. or 4,000 lb. evenly distributed capacities, allowing users to match the cart to specific sheet handling, workstation feeding, and long-load transport requirements.

Mobility and Power Options

Four swivel 5 inch by 2 inch poly-on-steel casters allow smooth maneuvering, while dual floor locks help keep the cart in place during loading, unloading, and work positioning. Factory-installed power options include AC power, 12V DC battery power, reciprocating air/oil power with foot treadle control, and rotary air/oil power with muffler and hand control.


Model # Description Attributes Net Wt.
(lbs)
LDLT-20120 LDLT-20120Steel Ergonomic Long Deck Cart 120 In. x 20 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width (in.): 20		846
LDLT-2060 LDLT-2060Steel Ergonomic Long Deck Cart 60 In. x 20 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width (in.): 20		435
LDLT-2060-4 LDLT-2060-4Steel Ergonomic Long Deck Cart 60 In. x 20 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width (in.): 20		459
LDLT-2072 LDLT-2072Steel Ergonomic Long Deck Cart 20 In. x 72-1/4 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width (in.): 20		489

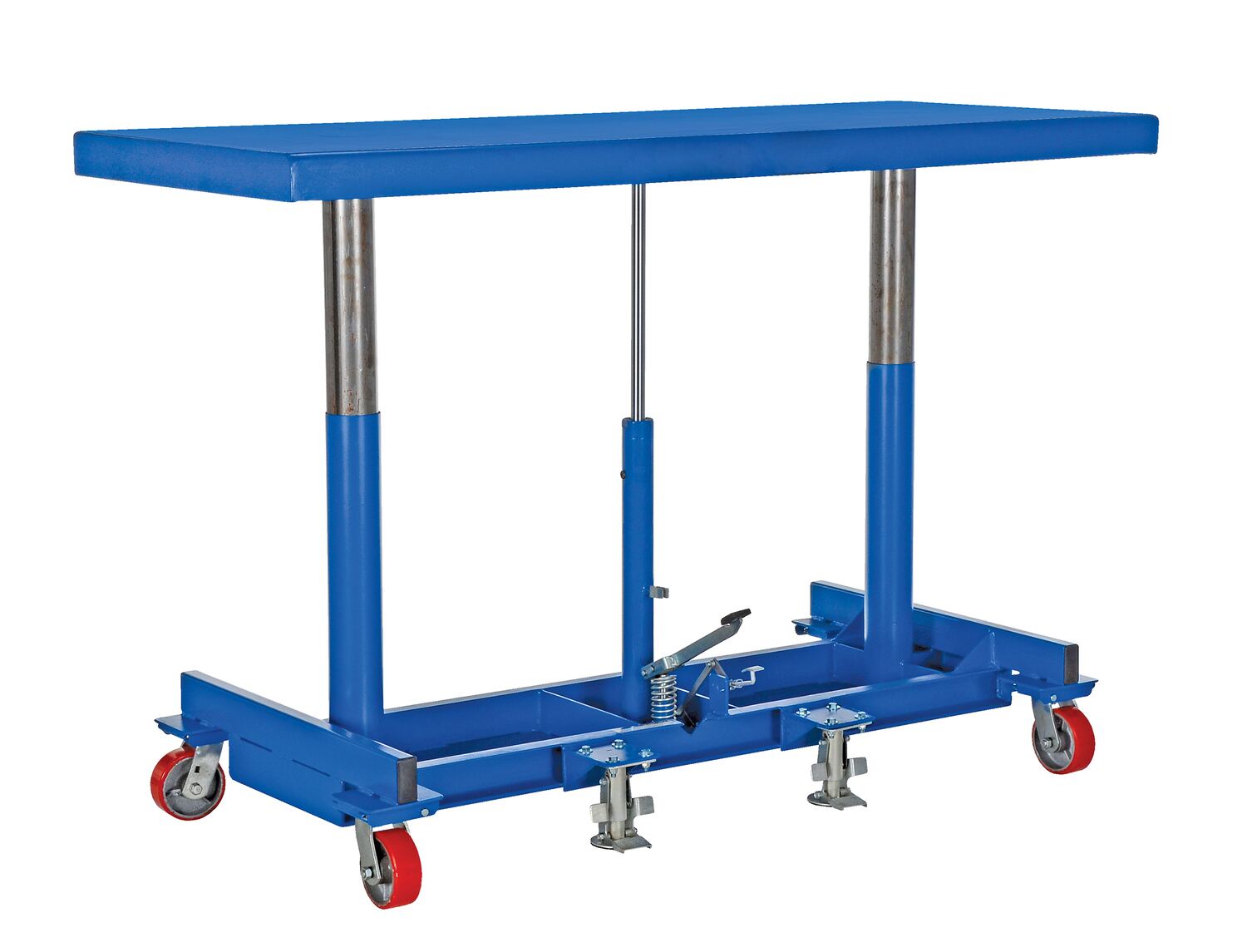

LDLT-2072-4 LDLT-2072-4Steel Ergonomic Long Deck Cart 20 In. x 72-1/4 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width (in.): 20		511
LDLT-2096 LDLT-2096Steel Ergonomic Long Deck Cart 20 In. x 96-1/4 In. x 49 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width (in.): 20		698
LDLT-2096-4 LDLT-2096-4Steel Ergonomic Long Deck Cart 96 In. x 20 In. x 49 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width (in.): 20		720

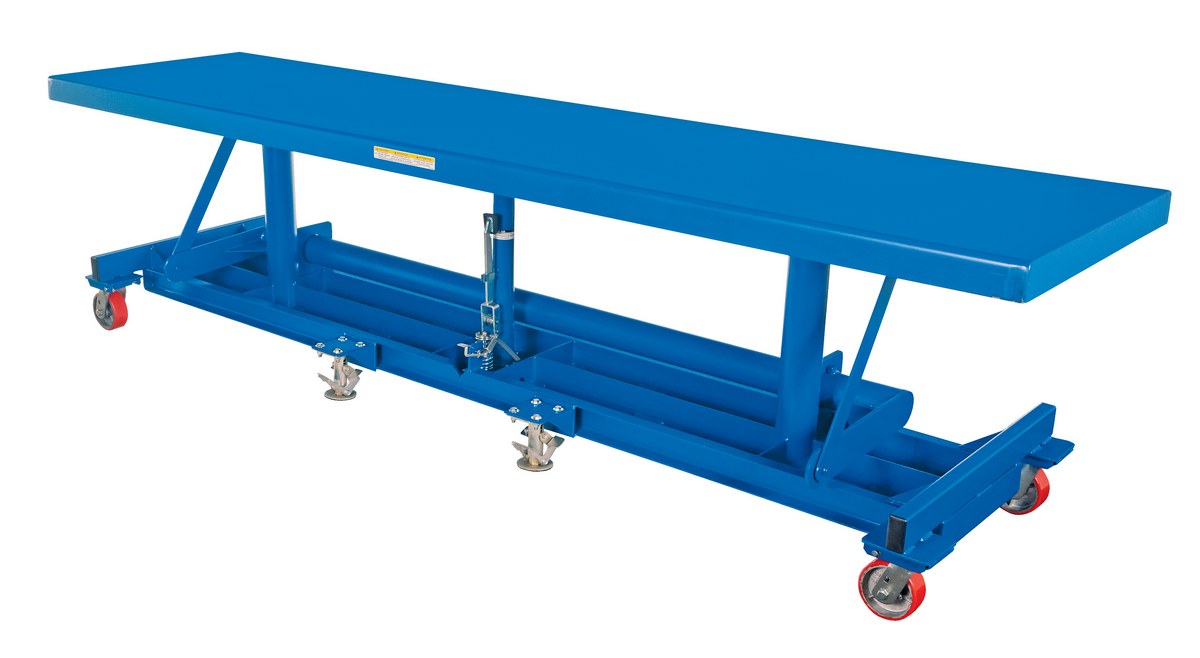

LDLT-30120 LDLT-30120Steel Ergonomic Long Deck Cart 120 In. x 30-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width (in.): 30		961
LDLT-3060 LDLT-3060Steel Ergonomic Long Deck Cart 60 In. x 30-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width (in.): 30		568
LDLT-3060-4 LDLT-3060-4Steel Ergonomic Long Deck Cart 60 In. x 30-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width (in.): 30		613
LDLT-3072 LDLT-3072Steel Ergonomic Long Deck Cart 30 In. x 72-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width (in.): 30		586
LDLT-3072-4 LDLT-3072-4Steel Ergonomic Long Deck Cart 30 In. x 72-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width (in.): 30		633

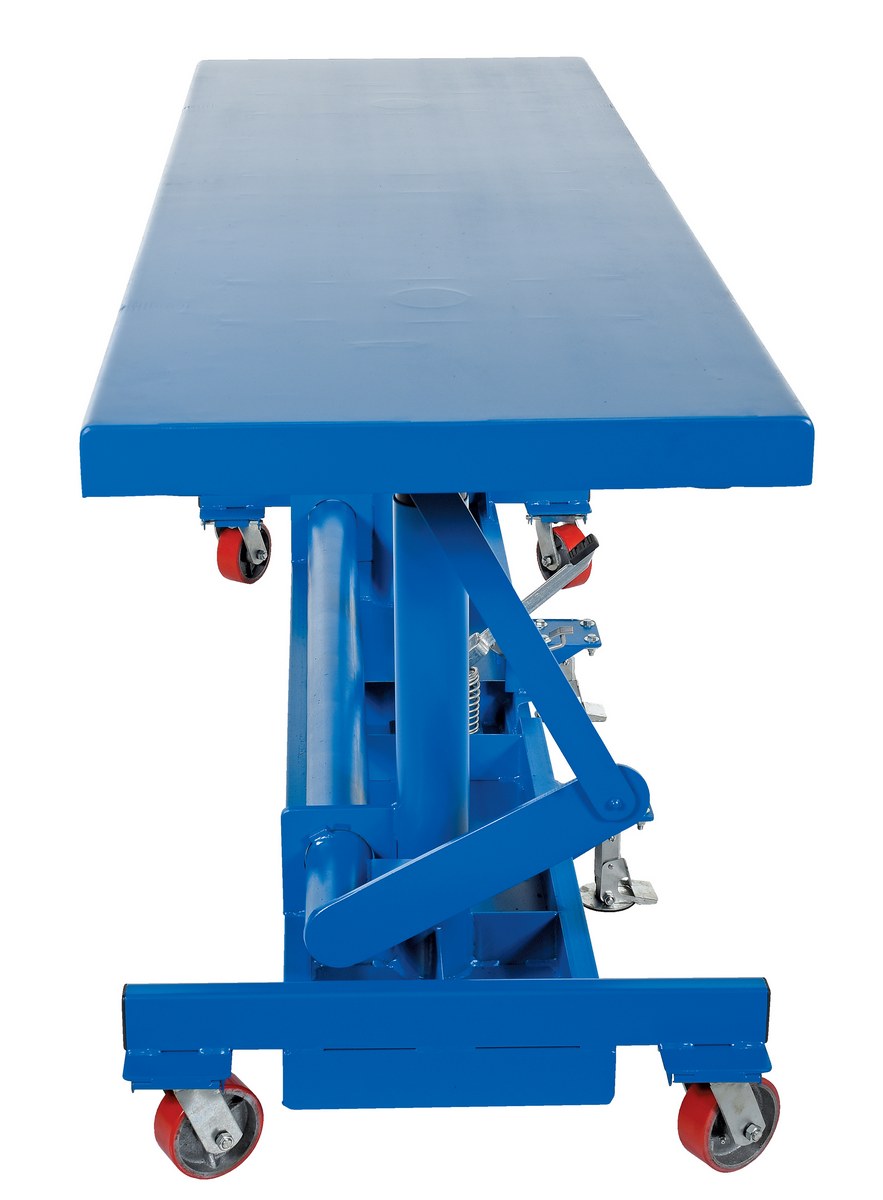

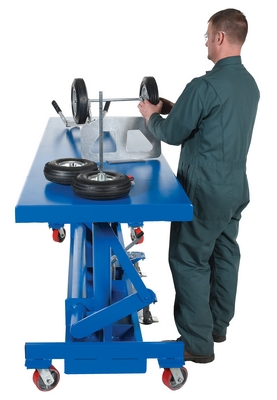

LDLT-3096 LDLT-3096Steel Ergonomic Long Deck Cart 30 In. x 96-1/4 In. x 31 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width (in.): 30		848
LDLT-3096-4 LDLT-3096-4Steel Ergonomic Long Deck Cart 96 In. x 30-1/4 In. x 31 In. 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width (in.): 30		829
