Aluminum Economizer Dockplates

Print Friendly

Model Chart
PDF's
Options
Videos
Image Gallery
FEATURED Aluminum Economizer Dockplates

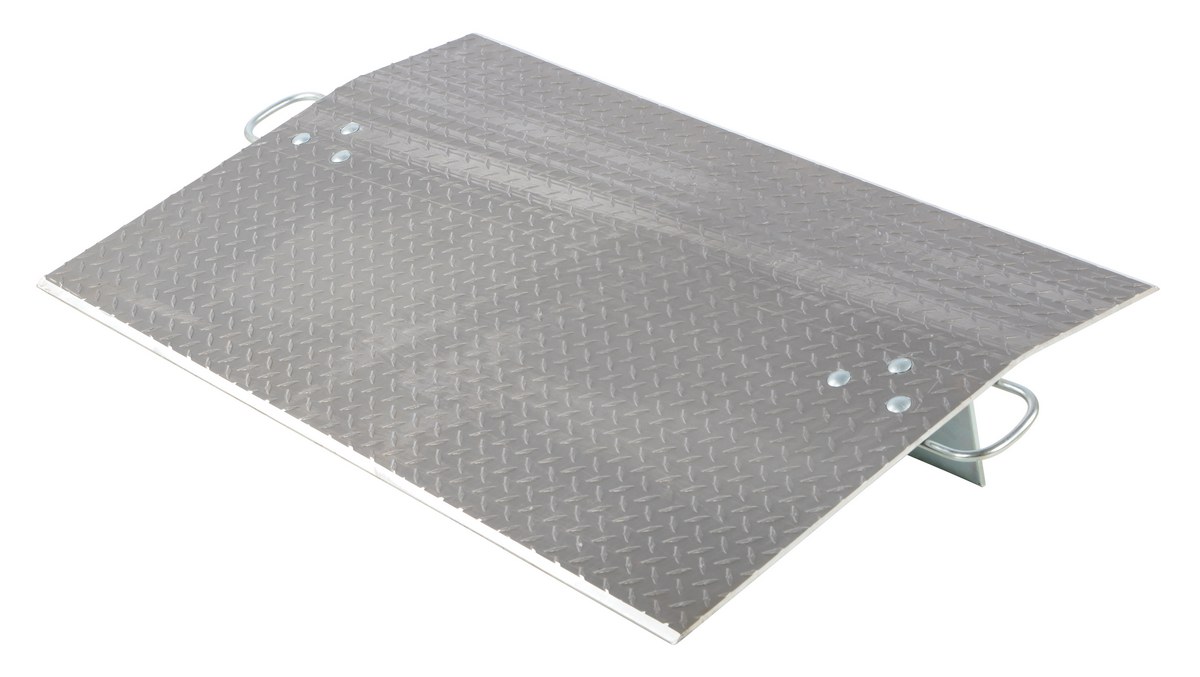

model: E-4830

E-4830_A.jpg E-4830_B.jpg E-4830_C.jpg E-4830_D.jpg E-4830_E.jpg E-4830_F.jpg E-4830_G.jpg E-4830_H.jpg More Images +
Aluminum Economizer Dockplates
SERIES: E,EH   55Products 7Options
Best Seller Quick Ship Custom Fabrication

Lightweight Aluminum Dock Plates for Hand Truck and Pallet Truck Loading

Lightweight aluminum dock plates provide an economical way to bridge the gap between a loading dock and trailer, helping speed up loading and unloading for foot traffic, hand trucks, and pallet trucks. Built from high-strength aluminum alloy tread plate, these dock plates offer a durable non-skid surface while remaining portable enough for frequent repositioning around shipping and receiving areas.

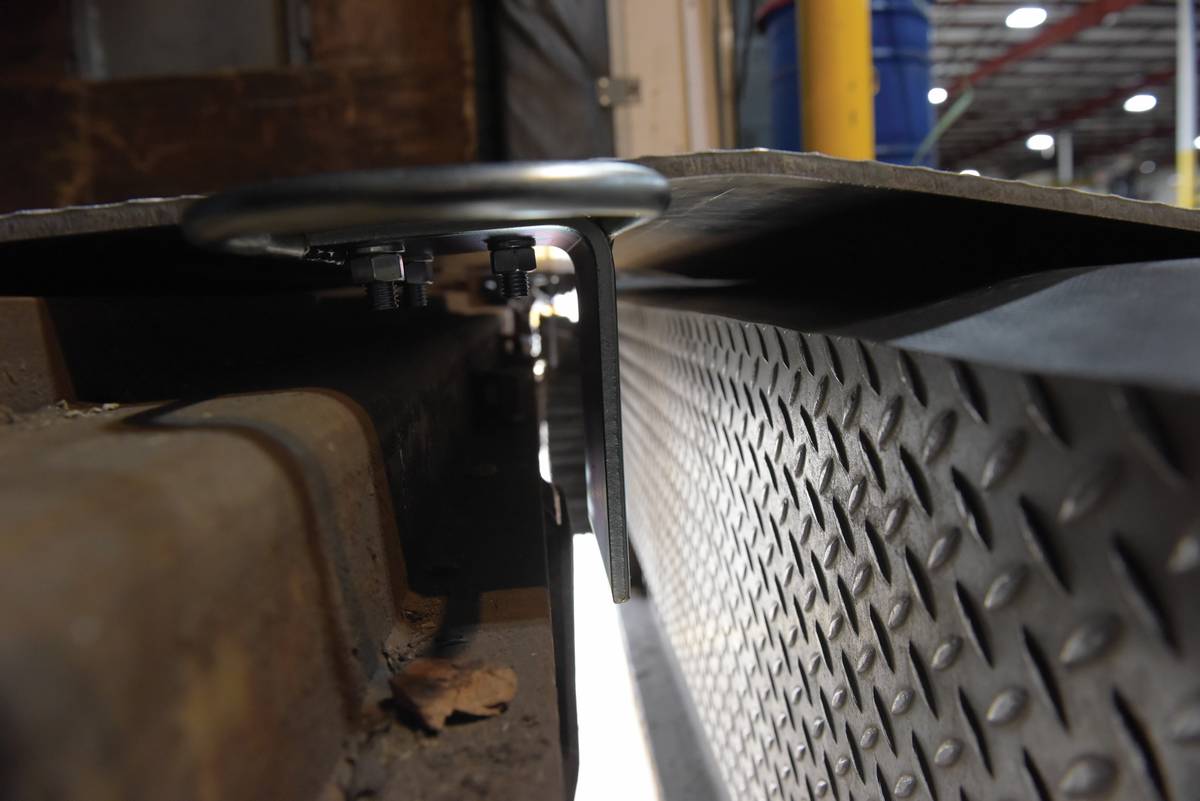

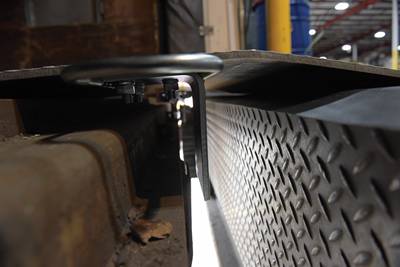

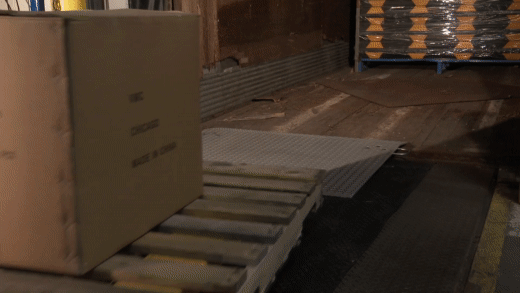

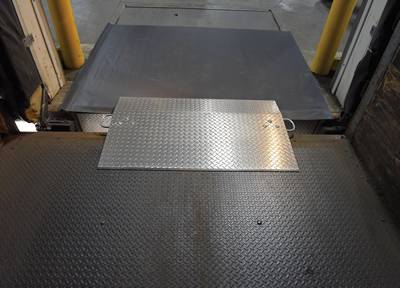

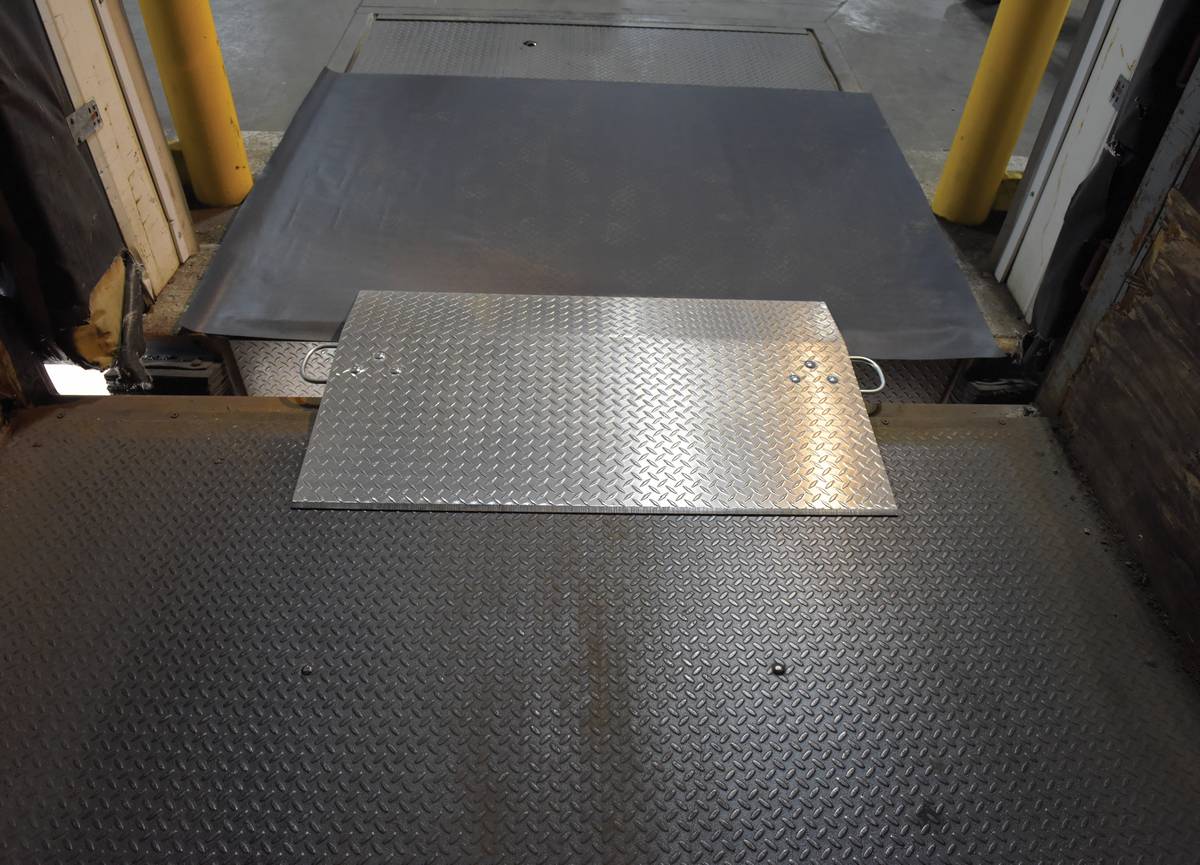

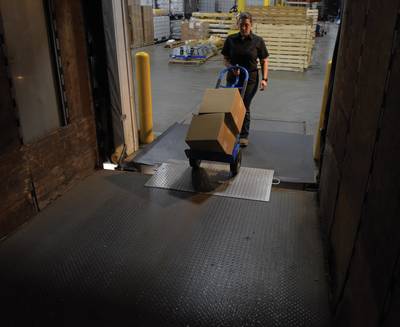

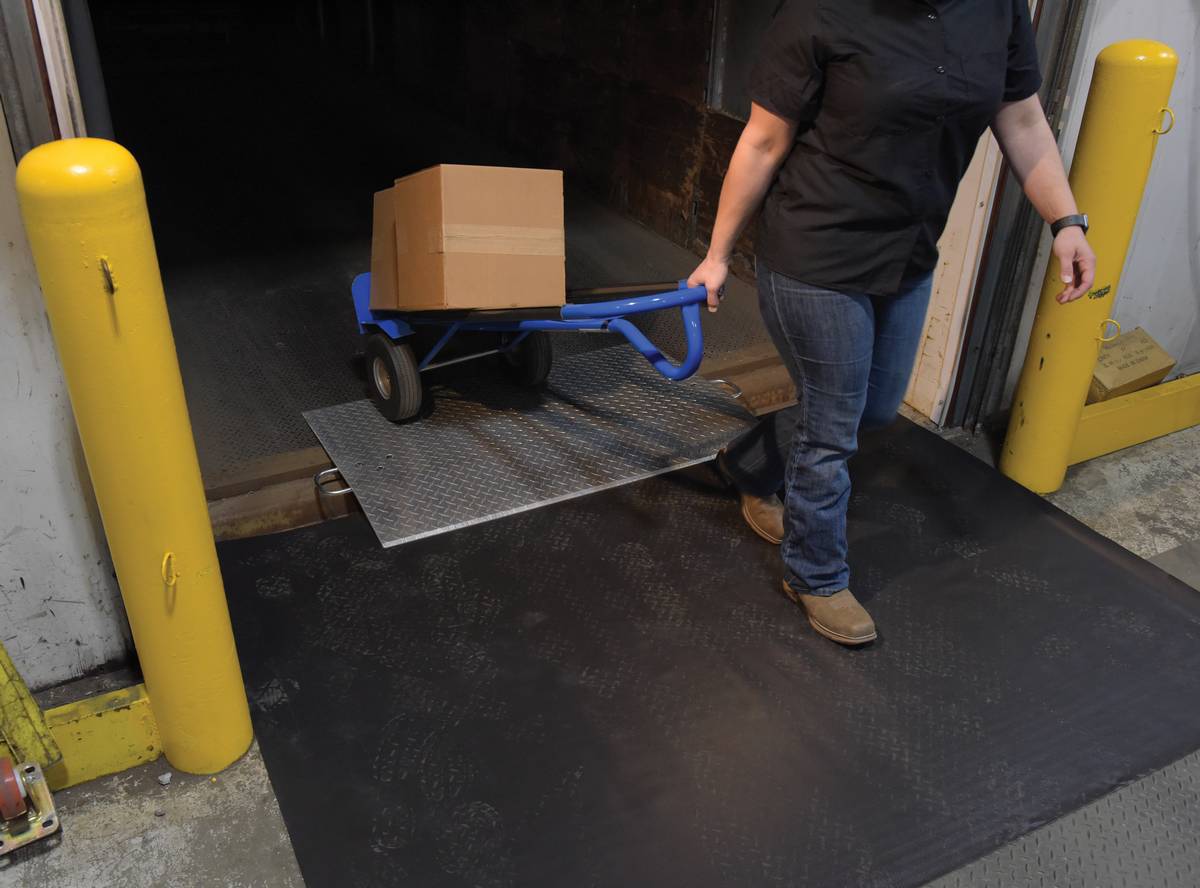

EH In Use
EH In Use

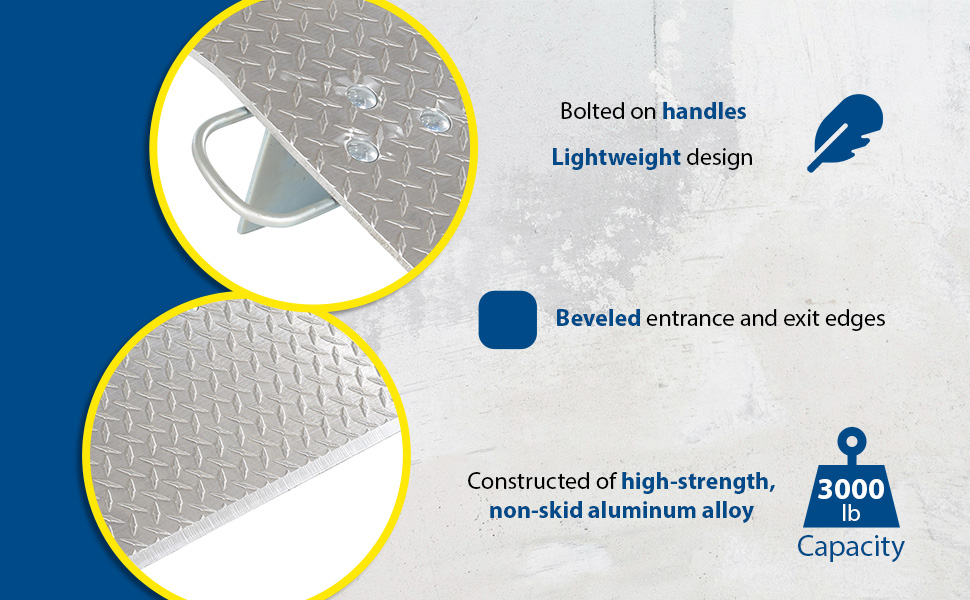

Portable Dock Access Design

Beveled entrance and exit edges support smoother transitions as personnel and material handling equipment move in and out of trailers. Bolt-on zinc plated legs and side handles make the plates easier to place, remove, and store between uses. Locking legs support OSHA compliance by helping keep the dock plate properly positioned during use.

Plate Thicknesses, Sizes, and Capacities

This family includes 3/8 inch and 1/2 inch aluminum plate thicknesses, with widths from 30 inches to 72 inches and lengths from 24 inches to 60 inches. Capacities range from lighter-duty economical models to heavier-duty options up to 11,900 lb., depending on plate size and thickness.

Options and Usage Guidelines

Factory-installed options include steel legs and handle hardware, smooth deck with grip tape, special bend locations, second bend locations, and special leg locations. Storage racks and anti-theft chains are also available. These dock plates are not intended for fork truck use.

Aluminum Economizer Dockplates

model: E-4830

Model # Description Attributes Net Wt.
(lbs)

* Custom Sizes Available As Special Order

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
E-3024
E-3030
E-3036
E-3048
E-3624
E-3630
E-3636
E-3648
E-3660
E-4824
E-4830
E-4836
E-4842
E-4848
E-4860
E-6024
E-6030
E-6036
E-6042
E-6048
E-6060
E-7224
E-7230
E-7236
E-7248
E-7260
EH-3024
EH-3030
EH-3036
EH-3048
EH-3624
EH-3630
EH-3636
EH-3648
EH-4824
EH-4830
EH-4836
EH-4842
EH-4848
EH-4860
EH-6024
EH-6030
EH-6036
EH-6042
EH-6048
EH-6060
EH-7224
EH-7230
EH-7236
EH-7248
LHDL
S2B
SBL
SDP
SLL
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
LHDL LHDL Factory Installed Steel Legs, Handle, and Hardware For Dock … 90 Days Limited Warranty 14
S2B S2B Factory Installed Second Bend Location For Aluminum Dock Pla… 30 Days Limited Warranty
SBL SBL Factory Installed Special Bend Location For Aluminum Dock Pl… 90 Days Limited Warranty
SDP SDP Factory Installed Smooth Deck With Grip Tape For Aluminum Ec… 30 Days Limited Warranty
SLL SLL Factory Installed Special Legs Location For Dock Boards 30 Days Limited Warranty
Model PDFs Description
DPR-2616 - Steel Dock Plate Storage Rack 26 In. x 6 In. Yellow
ATC-12 Compliance Certificate Anti-Theft Chain (144 in.)
TRADE Compliance Certificate Trade in Allowance (F.O.B. IN)
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

1
A, AH, E, EH, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

48
E-3024
Open Drawing
E-3030
Open Drawing
E-3036
Open Drawing
E-3048
Open Drawing
E-3624
Open Drawing
E-3630
Open Drawing
E-3636
Open Drawing
E-3648
Open Drawing
E-4824
Open Drawing
E-4830
Open Drawing
E-4836
Open Drawing
E-4842
Open Drawing
E-4848
Open Drawing
E-4860
Open Drawing
E-6024
Open Drawing
E-6030
Open Drawing
E-6036
Open Drawing
E-6042
Open Drawing
E-6048
Open Drawing
E-6060
Open Drawing
E-7224
Open Drawing
E-7230
Open Drawing
E-7236
Open Drawing
E-7248
Open Drawing
EH-3024
Open Drawing
EH-3030
Open Drawing
EH-3036
Open Drawing
EH-3048
Open Drawing
EH-3624
Open Drawing
EH-3630
Open Drawing
EH-3636
Open Drawing
EH-3648
Open Drawing
EH-4824
Open Drawing
EH-4830
Open Drawing
EH-4836
Open Drawing
EH-4842
Open Drawing
EH-4848
Open Drawing
EH-4860
Open Drawing
EH-6024
Open Drawing
EH-6030
Open Drawing
EH-6036
Open Drawing
EH-6042
Open Drawing
EH-6048
Open Drawing
EH-6060
Open Drawing
EH-7224
Open Drawing
EH-7230
Open Drawing
EH-7236
Open Drawing
EH-7248
Open Drawing

Testing Certificates

53
E-3024
Open Certificate
E-3030
Open Certificate
E-3036
Open Certificate
E-3048
Open Certificate
E-3624
Open Certificate
E-3630
Open Certificate
E-3636
Open Certificate
E-3648
Open Certificate
E-3660
Open Certificate
E-4824
Open Certificate
E-4830
Open Certificate
E-4836
Open Certificate
E-4842
Open Certificate
E-4848
Open Certificate
E-4860
Open Certificate
E-6024
Open Certificate
E-6030
Open Certificate
E-6036
Open Certificate
E-6042
Open Certificate
E-6048
Open Certificate
E-6060
Open Certificate
E-7224
Open Certificate
E-7230
Open Certificate
E-7236
Open Certificate
E-7248
Open Certificate
E-7260
Open Certificate
EH-3024
Open Certificate
EH-3030
Open Certificate
EH-3036
Open Certificate
EH-3048
Open Certificate
EH-3624
Open Certificate
EH-3630
Open Certificate
EH-3636
Open Certificate
EH-3648
Open Certificate
EH-4824
Open Certificate
EH-4830
Open Certificate
EH-4836
Open Certificate
EH-4842
Open Certificate
EH-4848
Open Certificate
EH-4860
Open Certificate
EH-6024
Open Certificate
EH-6030
Open Certificate
EH-6036
Open Certificate
EH-6042
Open Certificate
EH-6048
Open Certificate
EH-6060
Open Certificate
EH-7224
Open Certificate
EH-7230
Open Certificate
EH-7236
Open Certificate
EH-7248
Open Certificate
LHDL
Open Certificate
SDP
Open Certificate
SLL
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

1

Dock Plate Storage Rack Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

E-3024
E-3024 E-3024 A+ Content - 1
E-3024 E-3024 A+ Content - 3
E-3024 E-3024 A+ Content - 2
E-3030

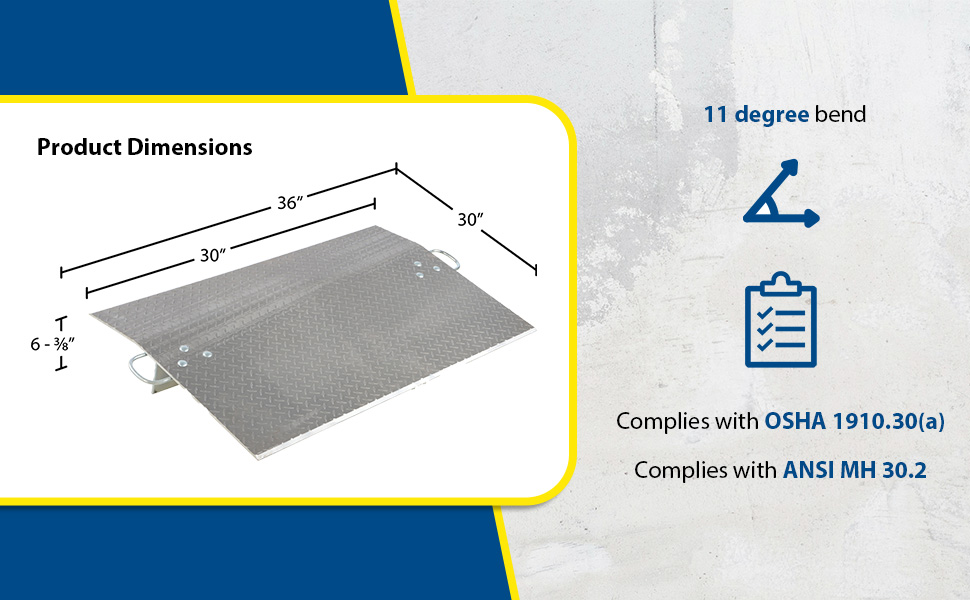

E-3030 E-3030 A+ Content - 3
E-3030 E-3030 A+ Content - 2
E-3030 E-3030 A+ Content - 1

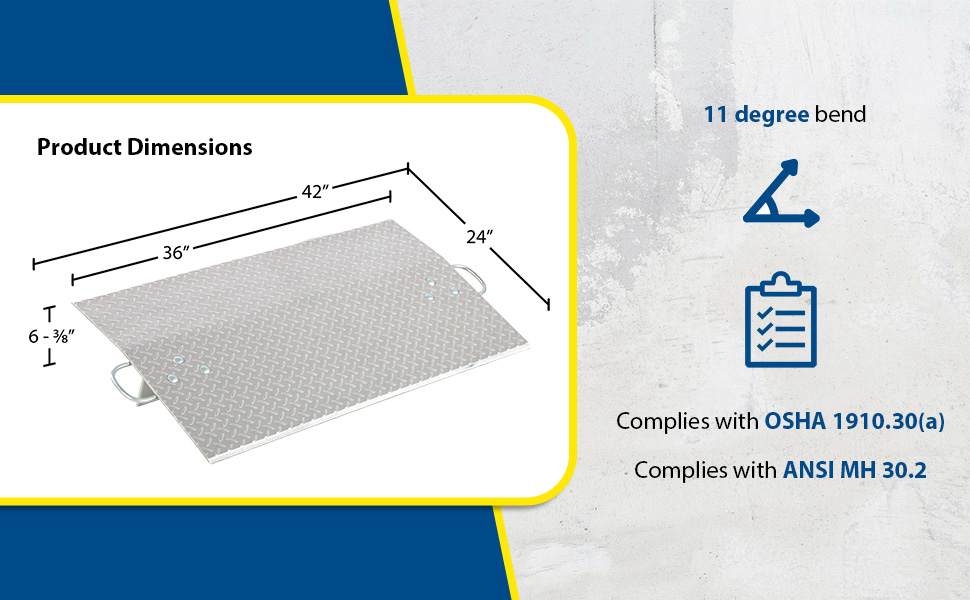

E-3624
E-3624 E-3624 A+ Content - 3
E-3624 E-3624 A+ Content - 2
E-3624 E-3624 A+ Content - 1

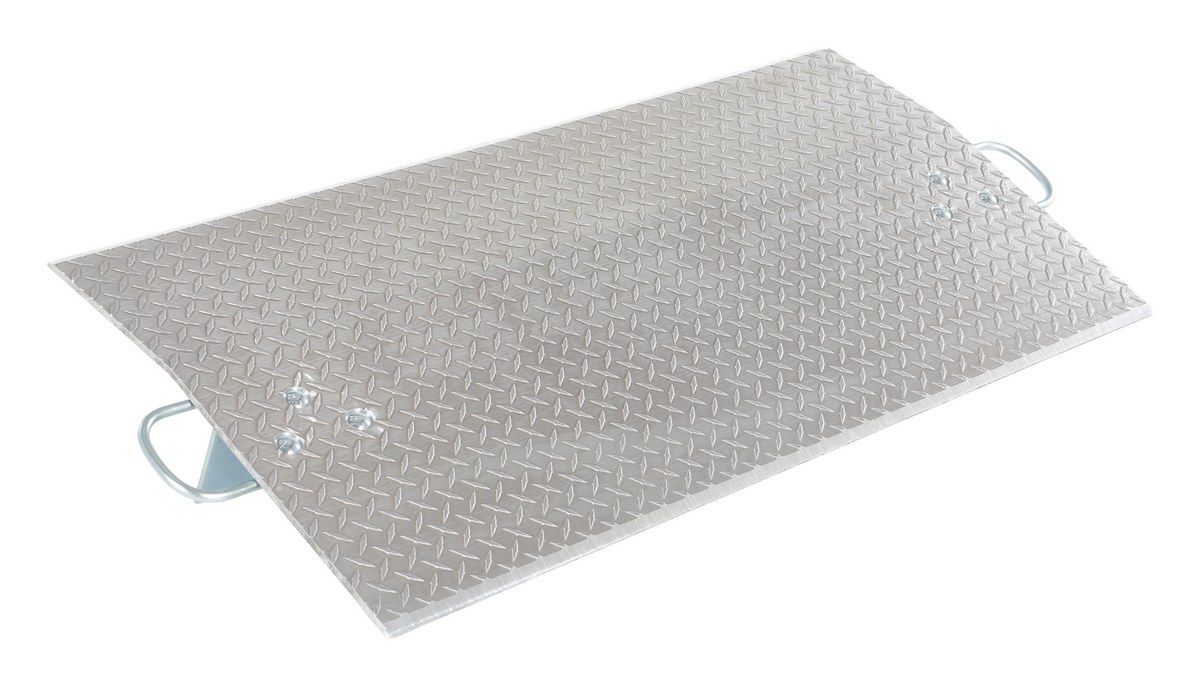

E-4824
E-4824 E-4824 A+ Content - 1
E-4824 E-4824 A+ Content - 3
E-4824 E-4824 A+ Content - 2
E-4836

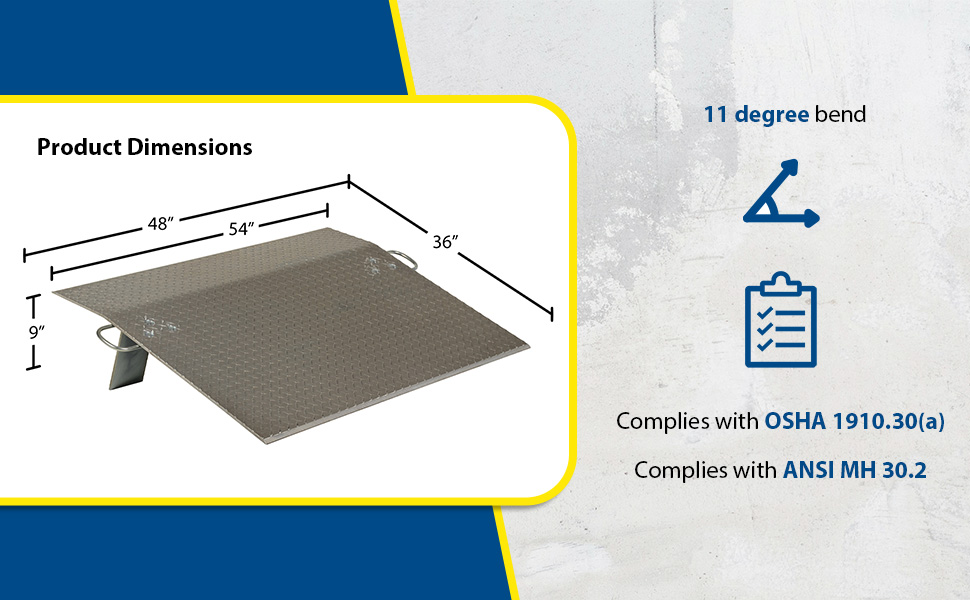

E-4836 E-4836 A+ Content - 3
E-4836 E-4836 A+ Content - 2
E-4836 E-4836 A+ Content - 1

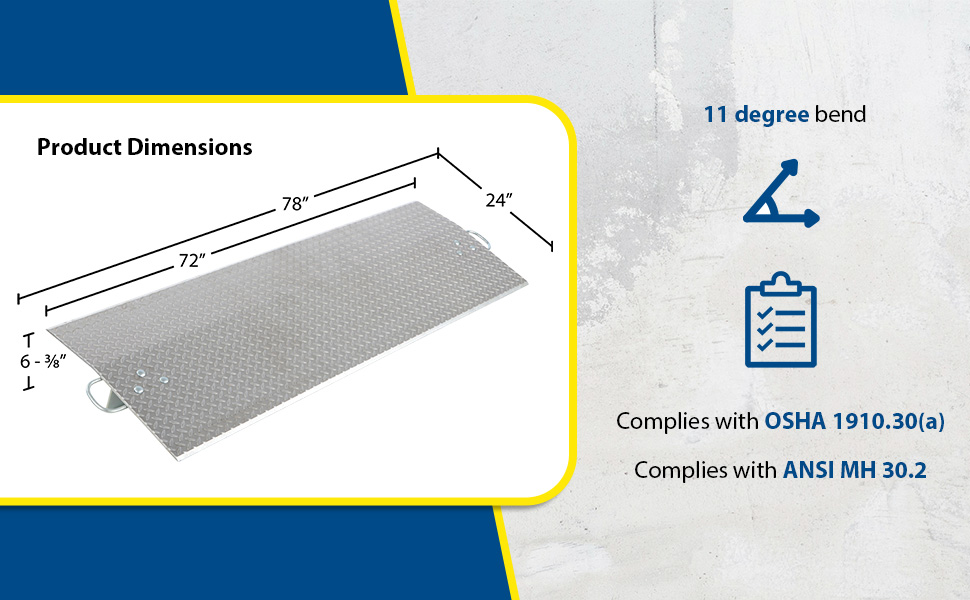

E-7224
E-7224 E-7224 A+ Content - 3
E-7224 E-7224 A+ Content - 2
E-7224 E-7224 A+ Content - 1

Related or Similar Products:

More From Dockplates & Dockboards





Aluminum Economizer Dockplates




Lightweight Aluminum Dock Plates for Hand Truck and Pallet Truck Loading

Lightweight aluminum dock plates provide an economical way to bridge the gap between a loading dock and trailer, helping speed up loading and unloading for foot traffic, hand trucks, and pallet trucks. Built from high-strength aluminum alloy tread plate, these dock plates offer a durable non-skid surface while remaining portable enough for frequent repositioning around shipping and receiving areas.

EH In Use
EH In Use

Portable Dock Access Design

Beveled entrance and exit edges support smoother transitions as personnel and material handling equipment move in and out of trailers. Bolt-on zinc plated legs and side handles make the plates easier to place, remove, and store between uses. Locking legs support OSHA compliance by helping keep the dock plate properly positioned during use.

Plate Thicknesses, Sizes, and Capacities

This family includes 3/8 inch and 1/2 inch aluminum plate thicknesses, with widths from 30 inches to 72 inches and lengths from 24 inches to 60 inches. Capacities range from lighter-duty economical models to heavier-duty options up to 11,900 lb., depending on plate size and thickness.

Options and Usage Guidelines

Factory-installed options include steel legs and handle hardware, smooth deck with grip tape, special bend locations, second bend locations, and special leg locations. Storage racks and anti-theft chains are also available. These dock plates are not intended for fork truck use.


Model # Description Attributes Net Wt.
(lbs)

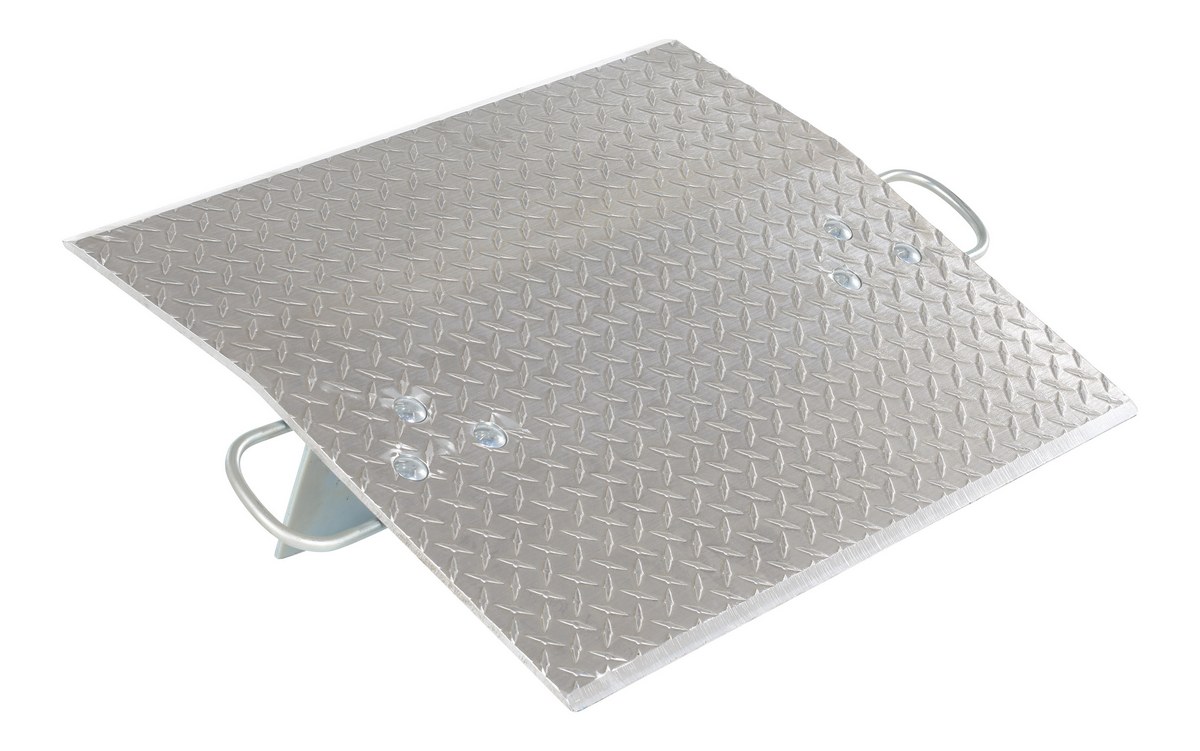

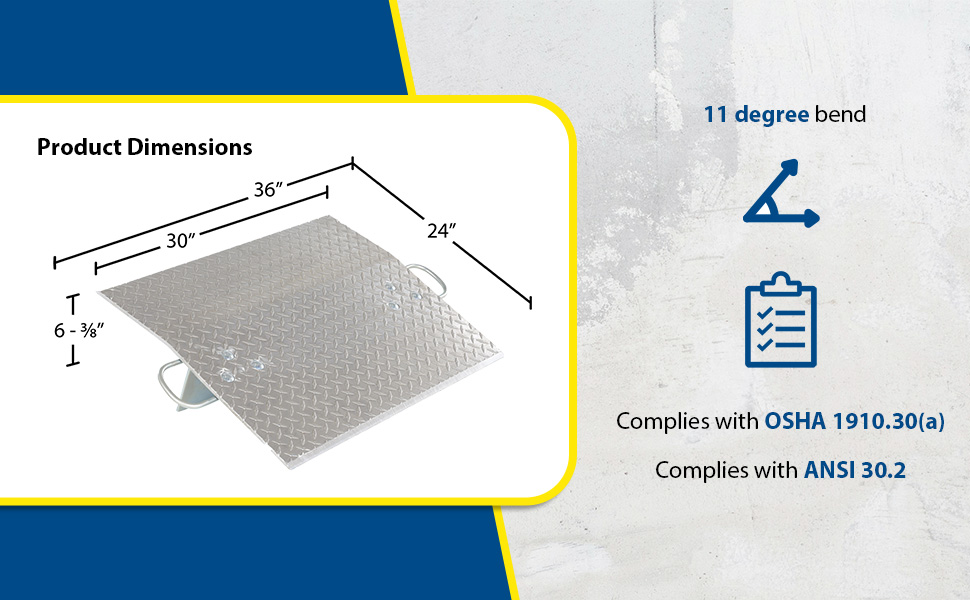

E-3024 E-3024Aluminum Economizer Dock Plate Usable 30 In. x 24 In. 3/8 In. Plate Thickness 3000 Lb. CapacityUniform Capacity (lb.): 3000
Bend or Crown (degrees): 11		23

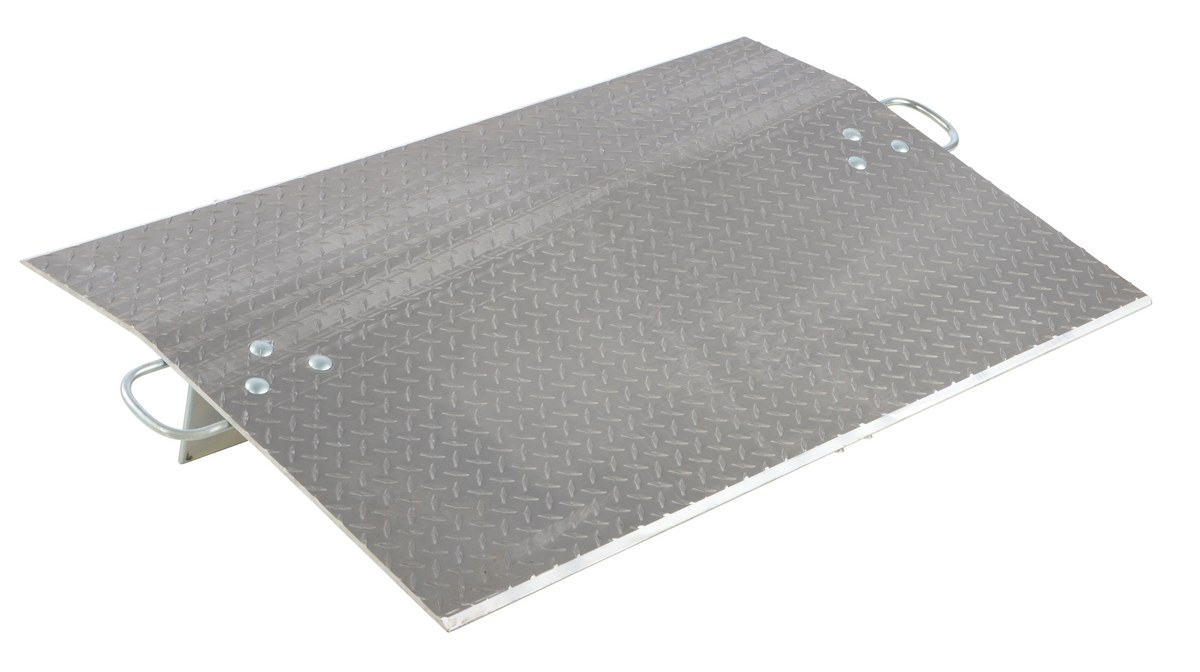

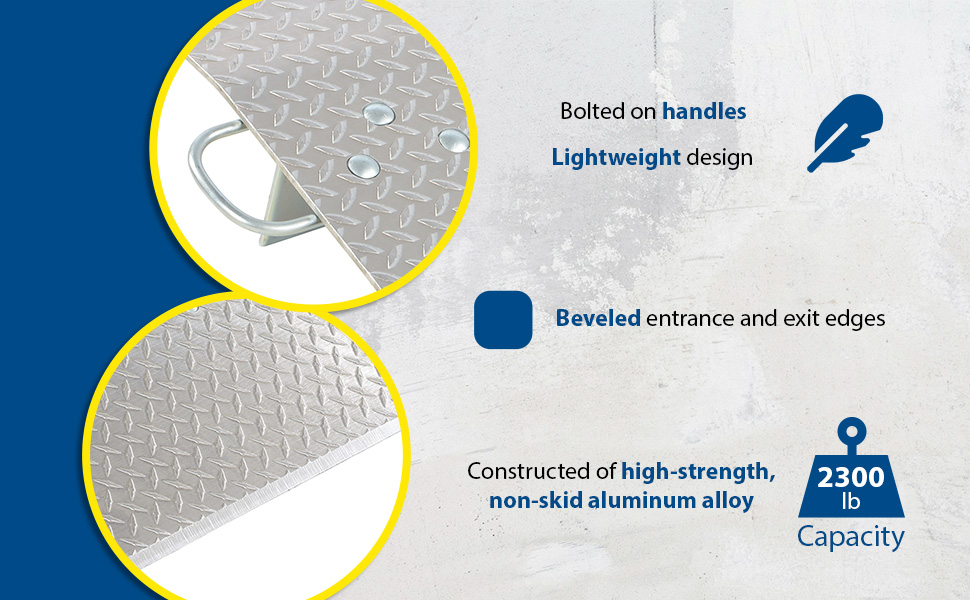

E-3030 E-3030Aluminum Economizer Dock Plate Usable 30 In. x 30 In. 3/8 In. Plate Thickness 2300 Lb. CapacityUniform Capacity (lb.): 2300
Bend or Crown (degrees): 11		40

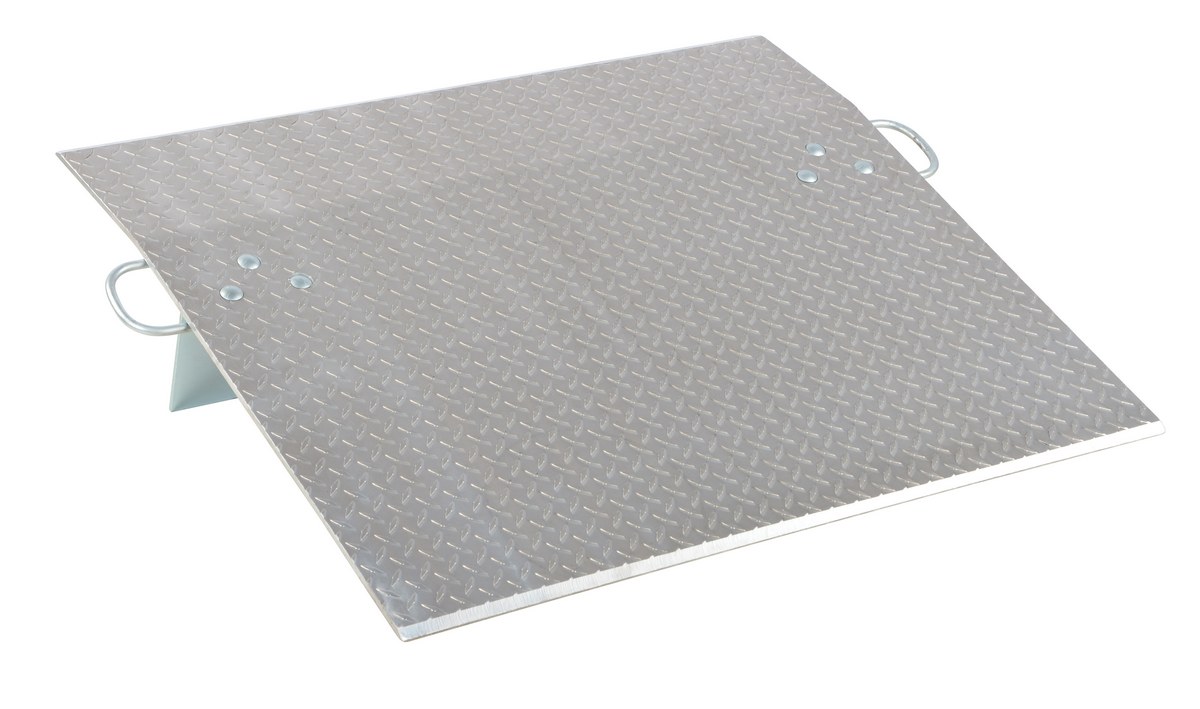

E-3036 E-3036Aluminum Economizer Dock Plate Usable 30 In. x 36 In. 3/8 In. Plate Thickness 1800 Lb. CapacityUniform Capacity (lb.): 1800
Bend or Crown (degrees): 11		34

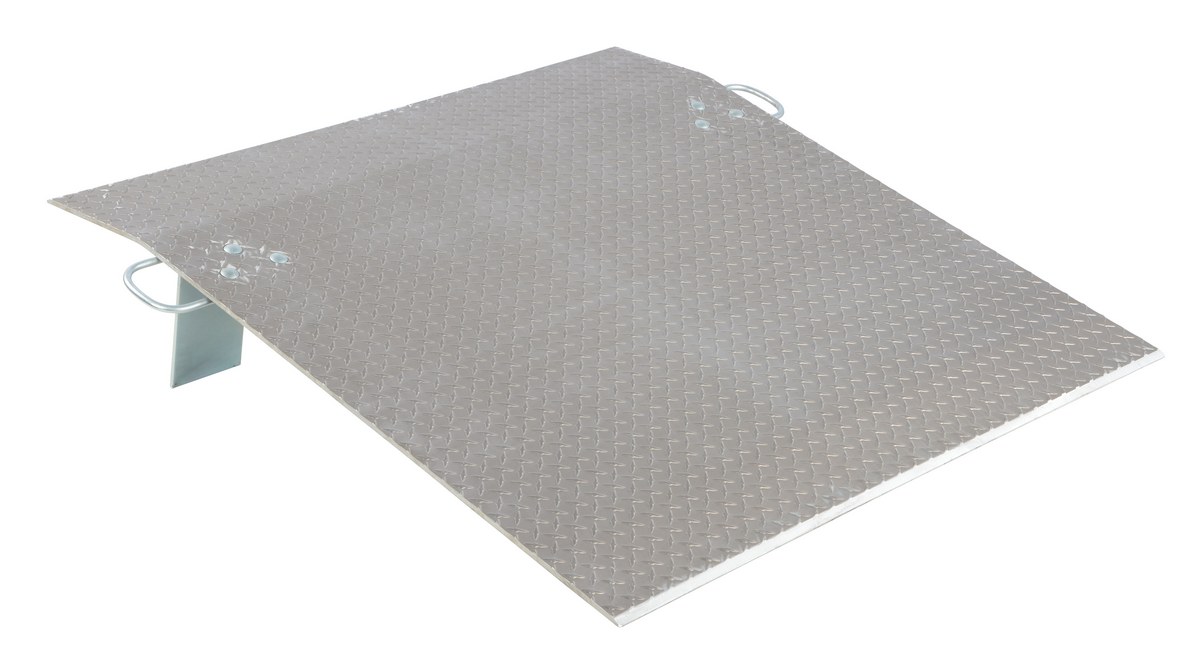

E-3048 E-3048Aluminum Economizer Dock Plate Usable 30 In. x 48 In. 3/8 In. Plate Thickness 1400 Lb. CapacityUniform Capacity (lb.): 1400
Bend or Crown (degrees): 11		56

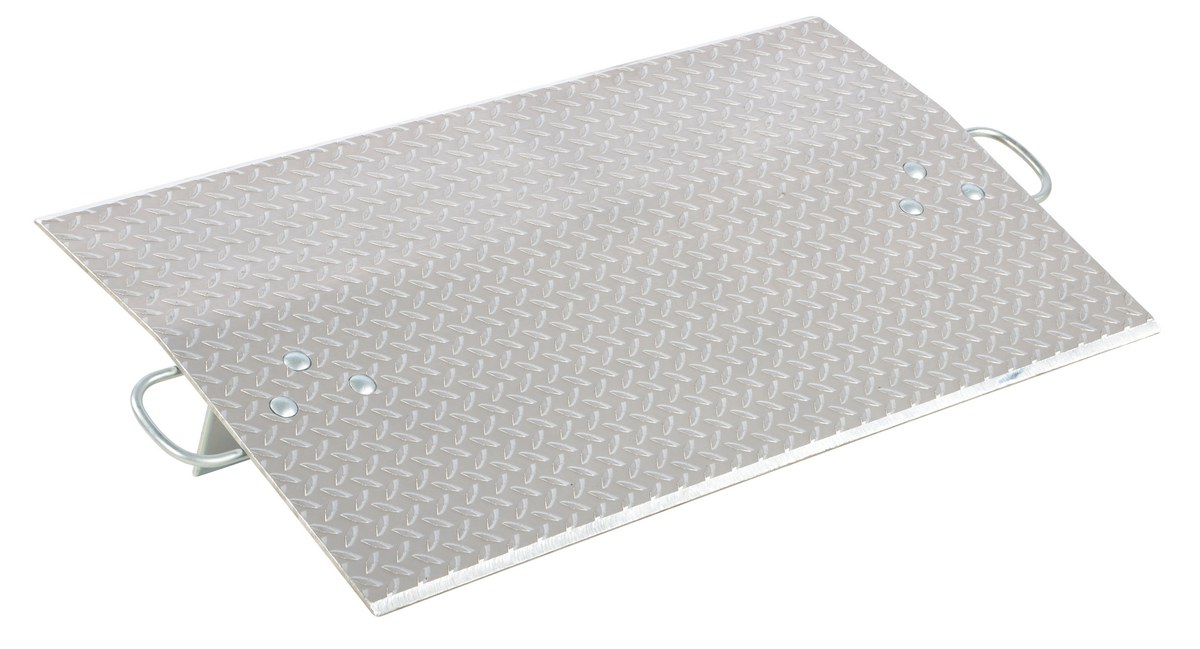

E-3624 E-3624Aluminum Economizer Dock Plate Usable 36 In. x 24 In. 3/8 In. Plate Thickness 3600 Lb. CapacityUniform Capacity (lb.): 3600
Bend or Crown (degrees): 11		54
E-3630 E-3630Aluminum Economizer Dock Plate Usable 36 In. x 30 In. 3/8 In. Plate Thickness 3000 Lb. CapacityUniform Capacity (lb.): 3000
Bend or Crown (degrees): 11		45
E-3636 E-3636Aluminum Economizer Dock Plate Usable 36 In. x 36 In. 3/8 In. Plate Thickness 2500 Lb. CapacityUniform Capacity (lb.): 2500
Bend or Crown (degrees): 11		67
E-3648 E-3648Aluminum Economizer Dock Plate Usable 36 In. x 48 In. 3/8 In. Plate Thickness 1900 Lb. CapacityUniform Capacity (lb.): 1900
Bend or Crown (degrees): 11		55
E-3660 E-3660Aluminum Economizer Dock Plate Usable 36 In. x 60 In. 3/8 In. Plate Thickness 1400 Lb. CapacityUniform Capacity (lb.): 1400
Bend or Crown (degrees): 11		88
E-4824 E-4824Aluminum Economizer Dock Plate Usable 48 In. x 24 In. 3/8 In. Plate Thickness 5200 Lb. CapacityUniform Capacity (lb.): 5200
Bend or Crown (degrees): 11		37

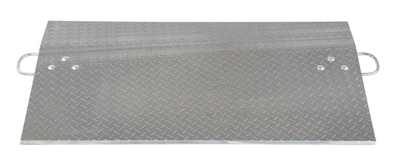

E-4830 E-4830Aluminum Economizer Dock Plate Usable 48 In. x 30 In. 3/8 In. Plate Thickness 4100 Lb. CapacityUniform Capacity (lb.): 4100
Bend or Crown (degrees): 11		50

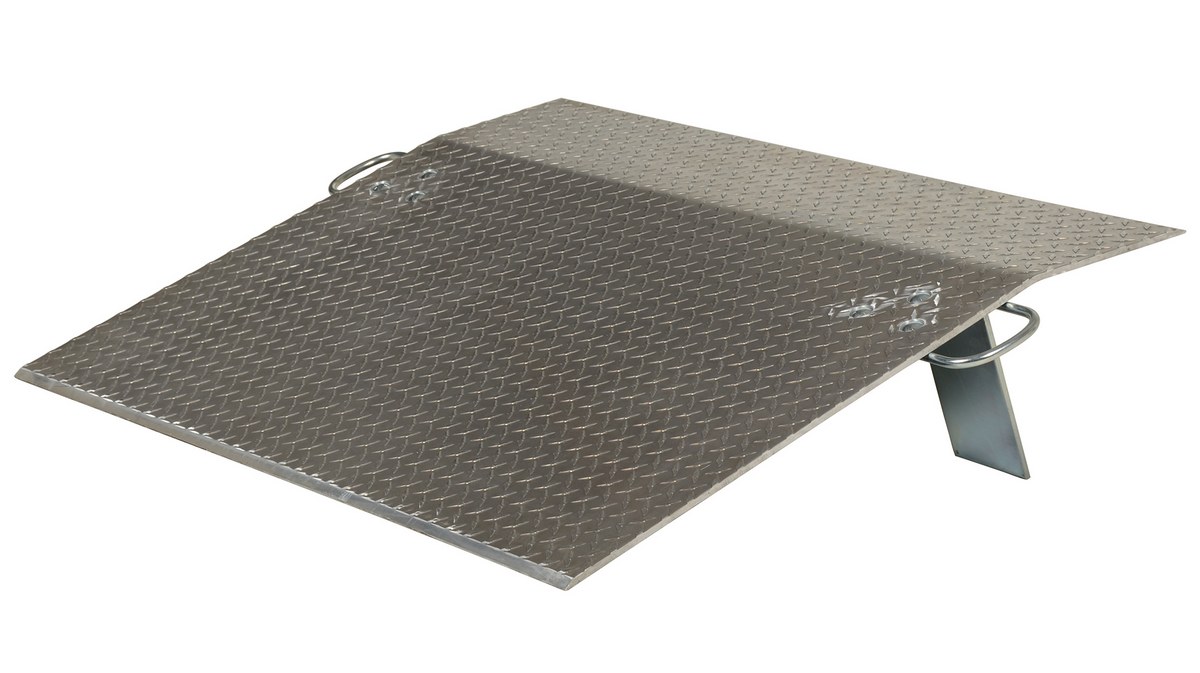

E-4836 E-4836Aluminum Economizer Dock Plate Usable 48 In. x 36 In. 3/8 In. Plate Thickness 3500 Lb. CapacityUniform Capacity (lb.): 3500
Bend or Crown (degrees): 11		110
E-4842 E-4842Aluminum Economizer Dock Plate Usable 48 In. x 42 In. 3/8 In. Plate Thickness 3000 Lb. CapacityUniform Capacity (lb.): 3000
Bend or Crown (degrees): 11		81
E-4848 E-4848Aluminum Economizer Dock Plate Usable 48 In. x 48 In. 3/8 In. Plate Thickness 2600 Lb. CapacityUniform Capacity (lb.): 2600
Bend or Crown (degrees): 11		91
E-4860 E-4860Aluminum Economizer Dock Plate Usable 48 In. x 60 In. 3/8 In. Plate Thickness 1800 Lb. CapacityUniform Capacity (lb.): 1800
Bend or Crown (degrees): 11		112

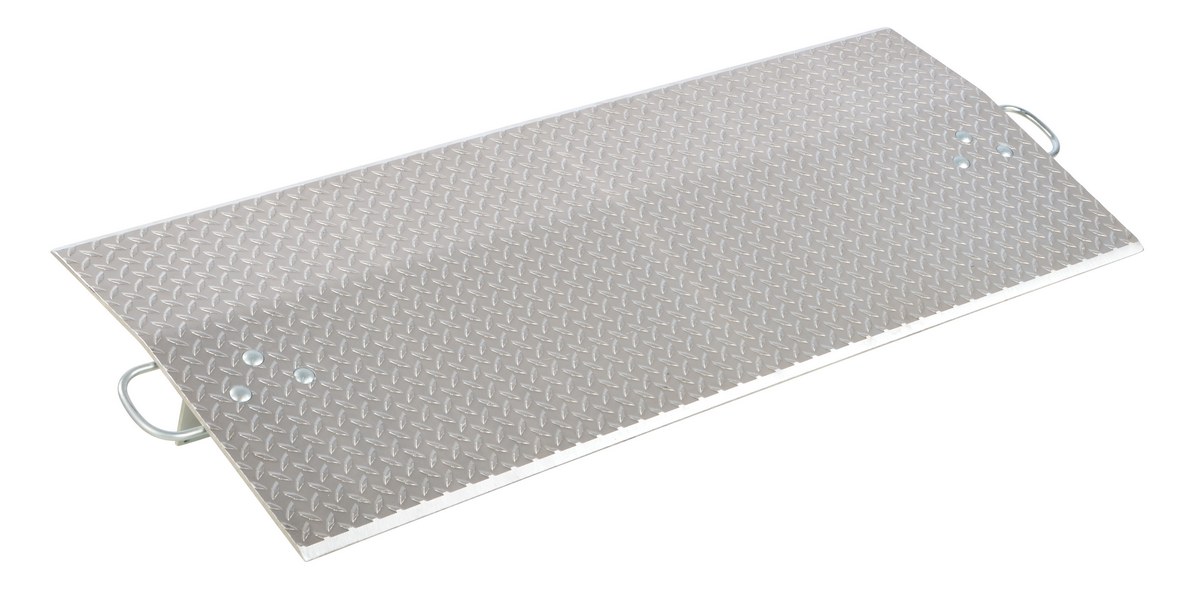

E-6024 E-6024Aluminum Economizer Dock Plate Usable 60 In. x 24 In. 3/8 In. Plate Thickness 5700 Lb. CapacityUniform Capacity (lb.): 5700
Bend or Crown (degrees): 11		100
E-6030 E-6030Aluminum Economizer Dock Plate Usable 60 In. x 30 In. 3/8 In. Plate Thickness 4600 Lb. CapacityUniform Capacity (lb.): 4600
Bend or Crown (degrees): 11		112

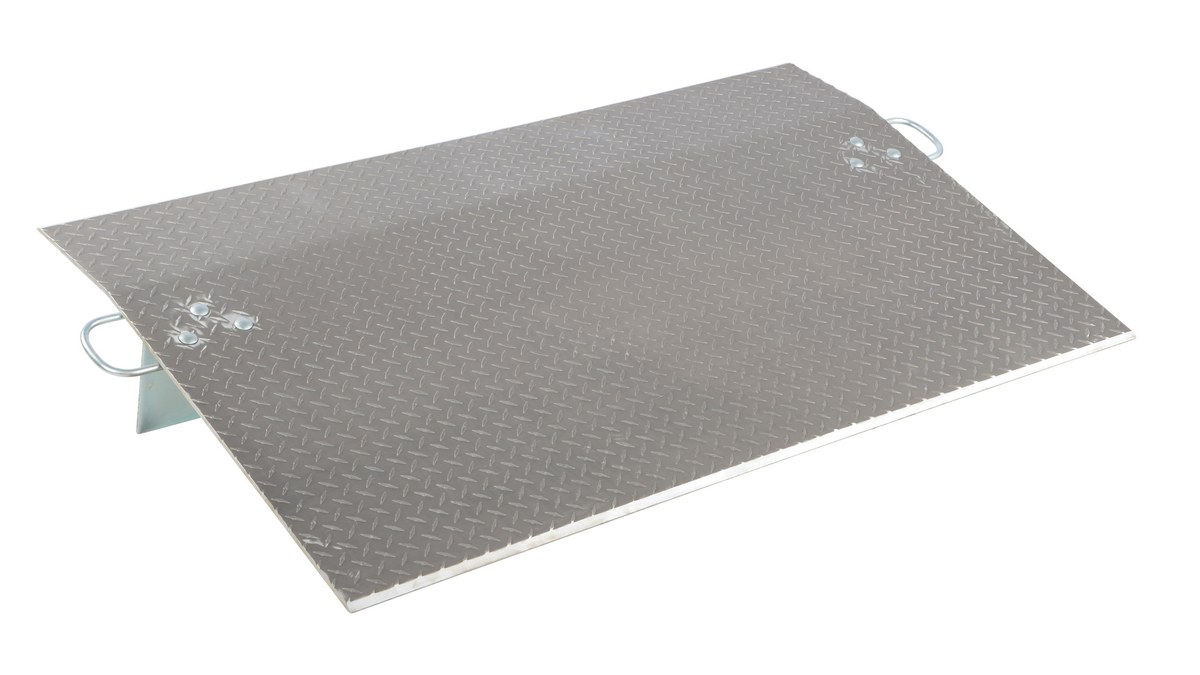

E-6036 E-6036Aluminum Economizer Dock Plate Usable 60 In. x 36 In. 3/8 In. Plate Thickness 4100 Lb. CapacityUniform Capacity (lb.): 4100
Bend or Crown (degrees): 11		90
E-6042 E-6042Aluminum Economizer Dock Plate Usable 60 In. x 42 In. 3/8 In. Plate Thickness 3500 Lb. CapacityUniform Capacity (lb.): 3500
Bend or Crown (degrees): 11		107
E-6048 E-6048Aluminum Economizer Dock Plate Usable 60 In. x 48 In. 3/8 In. Plate Thickness 2900 Lb. CapacityUniform Capacity (lb.): 2900
Bend or Crown (degrees): 11		119
E-6060 E-6060Aluminum Economizer Dock Plate Usable 60 In. x 60 In. 3/8 In. Plate Thickness 2000 Lb. CapacityUniform Capacity (lb.): 2000
Bend or Crown (degrees): 11		136
E-7224 E-7224Aluminum Economizer Dock Plate Usable 72 In. x 24 In. 3/8 In. Plate Thickness 6500 Lb. CapacityUniform Capacity (lb.): 6500
Bend or Crown (degrees): 11		84
E-7230 E-7230Aluminum Economizer Dock Plate Usable 72 In. x 30 In. 3/8 In. Plate Thickness 5400 Lb. CapacityUniform Capacity (lb.): 5400
Bend or Crown (degrees): 11		92

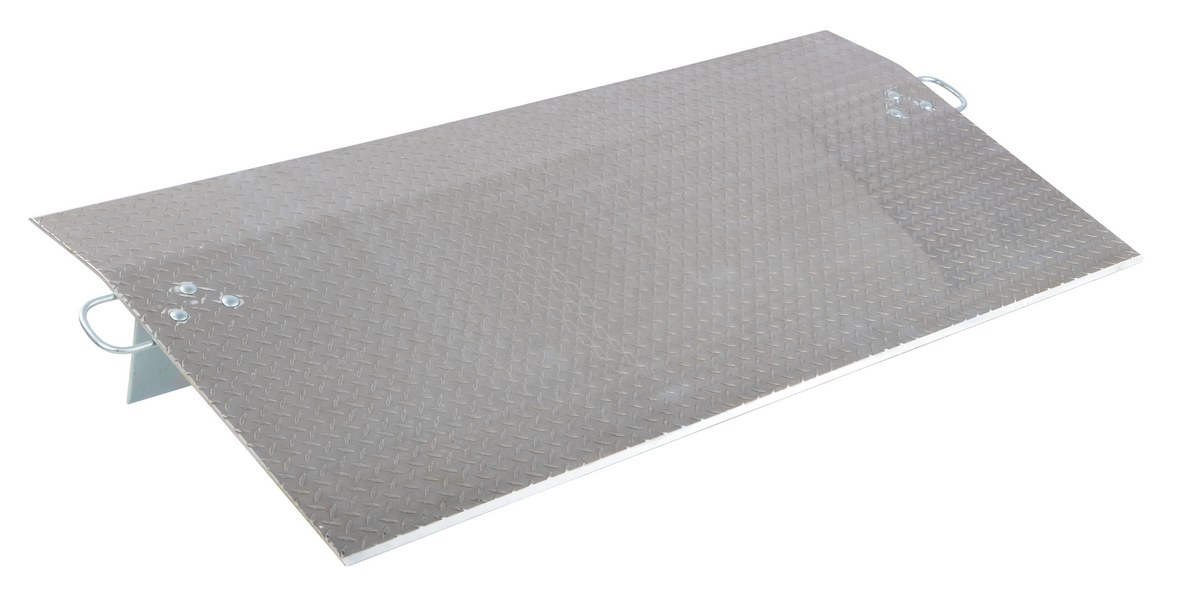

E-7236 E-7236Aluminum Economizer Dock Plate Usable 72 In. x 36 In. 3/8 In. Plate Thickness 4300 Lb. CapacityUniform Capacity (lb.): 4300
Bend or Crown (degrees): 11		100
E-7248 E-7248Aluminum Economizer Dock Plate Usable 72 In. x 48 In. 3/8 In. Plate Thickness 3400 Lb. CapacityUniform Capacity (lb.): 3400
Bend or Crown (degrees): 11		138

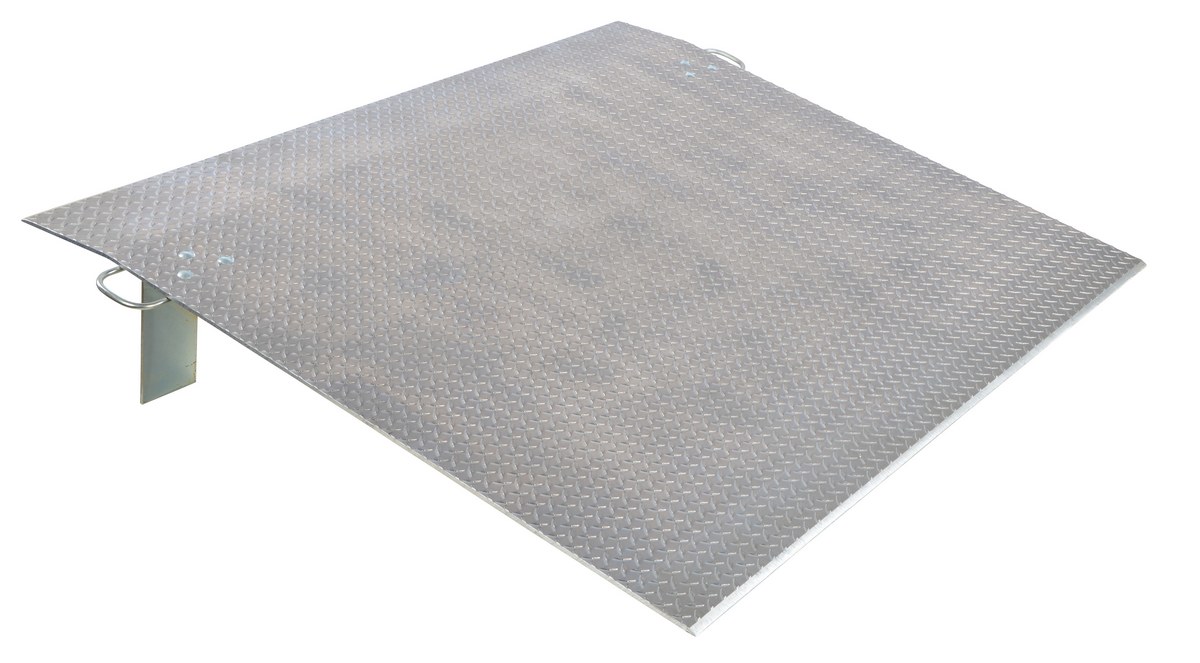

E-7260 E-7260Aluminum Economizer Dock Plate Usable 72 In. x 60 In. 3/8 In. Plate Thickness 2500 Lb. CapacityUniform Capacity (lb.): 2500
Bend or Crown (degrees): 11		156
EH-3024 EH-3024Aluminum Economizer Dock Plate 30 In. x 24 In. 1/2 In. Plate Thickness 5200 Lb. Capacity SilverUniform Capacity (lb.): 5200
Bend or Crown (degrees): 11		30
EH-3030 EH-3030Aluminum Economizer Dock Plate 30 In. x 30 In. 1/2 In. Plate Thickness 4100 Lb. Capacity SilverUniform Capacity (lb.): 4100
Bend or Crown (degrees): 11		38
EH-3036 EH-3036Aluminum Economizer Dock Plate 30 In. x 36 In. 1/2 In. Plate Thickness 3500 Lb. Capacity SilverUniform Capacity (lb.): 3500
Bend or Crown (degrees): 11		47
EH-3048 EH-3048Aluminum Economizer Dock Plate 30 In. x 48 In. 1/2 In. Plate Thickness 2600 Lb. Capacity SilverUniform Capacity (lb.): 2600
Bend or Crown (degrees): 11		59
EH-3624 EH-3624Aluminum Economizer Dock Plate 36 In. x 24 In. 1/2 In. Plate Thickness 6200 Lb. Capacity SilverUniform Capacity (lb.): 6200
Bend or Crown (degrees): 11		37
EH-3630 EH-3630Aluminum Economizer Dock Plate 36 In. x 30 In. 1/2 In. Plate Thickness 5100 Lb. Capacity SilverUniform Capacity (lb.): 5100
Bend or Crown (degrees): 11		48
EH-3636 EH-3636Aluminum Economizer Dock Plate 36 In. x 36 In. 1/2 In. Plate Thickness 4300 Lb. Capacity SilverUniform Capacity (lb.): 4300
Bend or Crown (degrees): 11		71
EH-3648 EH-3648Aluminum Economizer Dock Plate 36 In. x 48 In. 1/2 In. Plate Thickness 3000 Lb. Capacity SilverUniform Capacity (lb.): 3000
Bend or Crown (degrees): 11		77
EH-4824 EH-4824Aluminum Economizer Dock Plate 48 In. x 24 In. 1/2 In. Plate Thickness 8200 Lb. Capacity SilverUniform Capacity (lb.): 8200
Bend or Crown (degrees): 11		42
EH-4830 EH-4830Aluminum Economizer Dock Plate 48 In. x 30 In. 1/2 In. Plate Thickness 6300 Lb. Capacity SilverUniform Capacity (lb.): 6300
Bend or Crown (degrees): 11		73
EH-4836 EH-4836Aluminum Economizer Dock Plate 48 In. x 36 In. 1/2 In. Plate Thickness 5300 Lb. Capacity SilverUniform Capacity (lb.): 5300
Bend or Crown (degrees): 11		89
EH-4842 EH-4842Aluminum Economizer Dock Plate 48 In. x 42 In. 1/2 In. Plate Thickness 4300 Lb. Capacity SilverUniform Capacity (lb.): 4300
Bend or Crown (degrees): 11		103

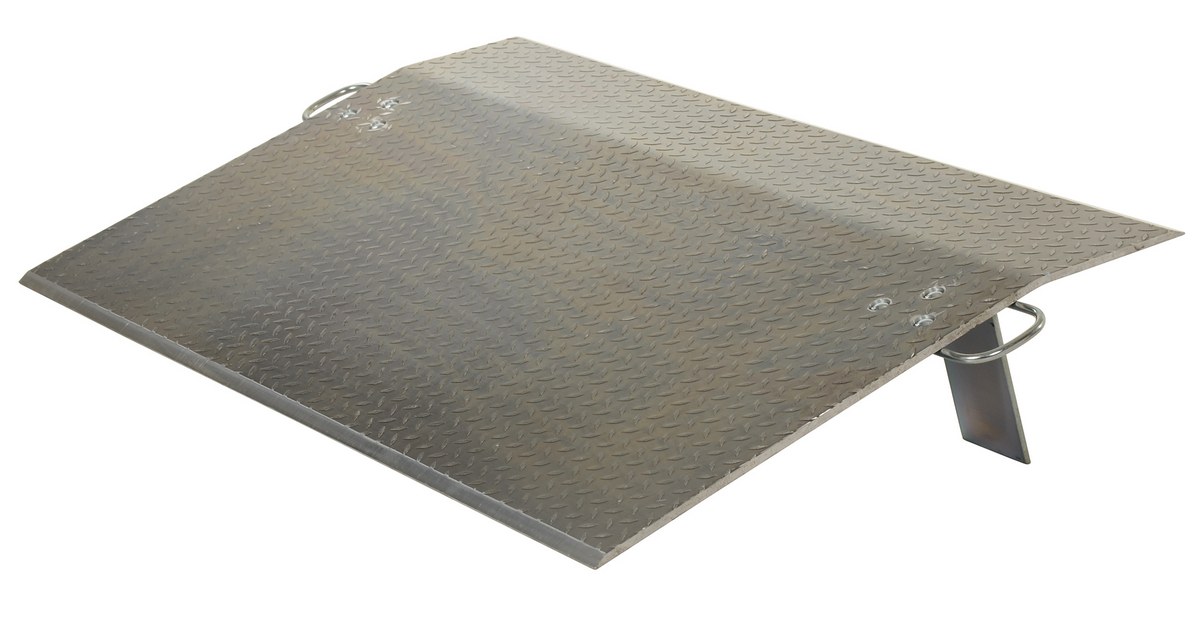

EH-4848 EH-4848Aluminum Economizer Dock Plate 48 In. x 48 In. 1/2 In. Plate Thickness 3800 Lb. Capacity SilverUniform Capacity (lb.): 3800
Bend or Crown (degrees): 11		118
EH-4860 EH-4860Aluminum Economizer Dock Plate 48 In. x 60 In. 1/2 In. Plate Thickness 2900 Lb. Capacity SilverUniform Capacity (lb.): 2900
Bend or Crown (degrees): 11		153
EH-6024 EH-6024Aluminum Economizer Dock Plate 60 In. x 24 In. 1/2 In. Plate Thickness 10000 Lb. Capacity SilverUniform Capacity (lb.): 10000
Bend or Crown (degrees): 11		78

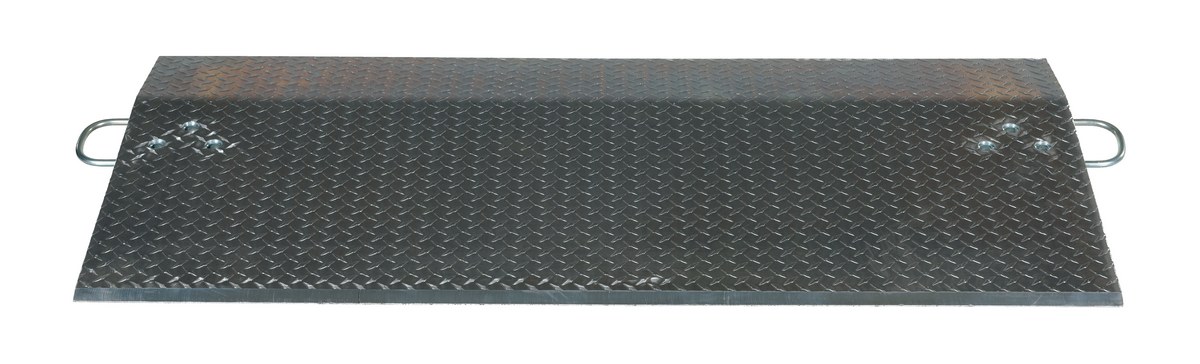

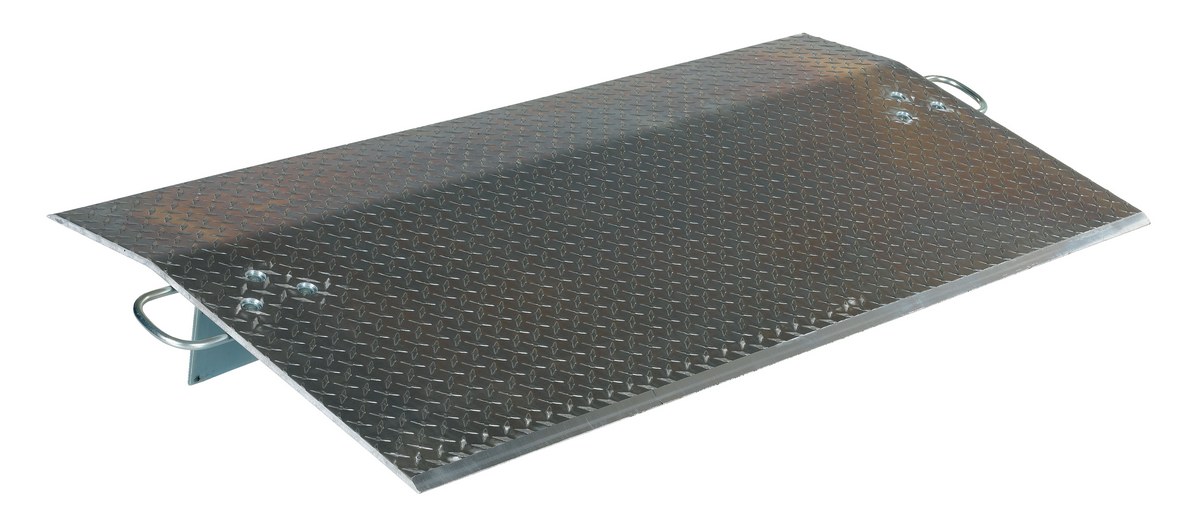

EH-6030 EH-6030Aluminum Economizer Dock Plate 60 In. x 30 In. 1/2 In. Plate Thickness 7800 Lb. Capacity SilverUniform Capacity (lb.): 7800
Bend or Crown (degrees): 11		88

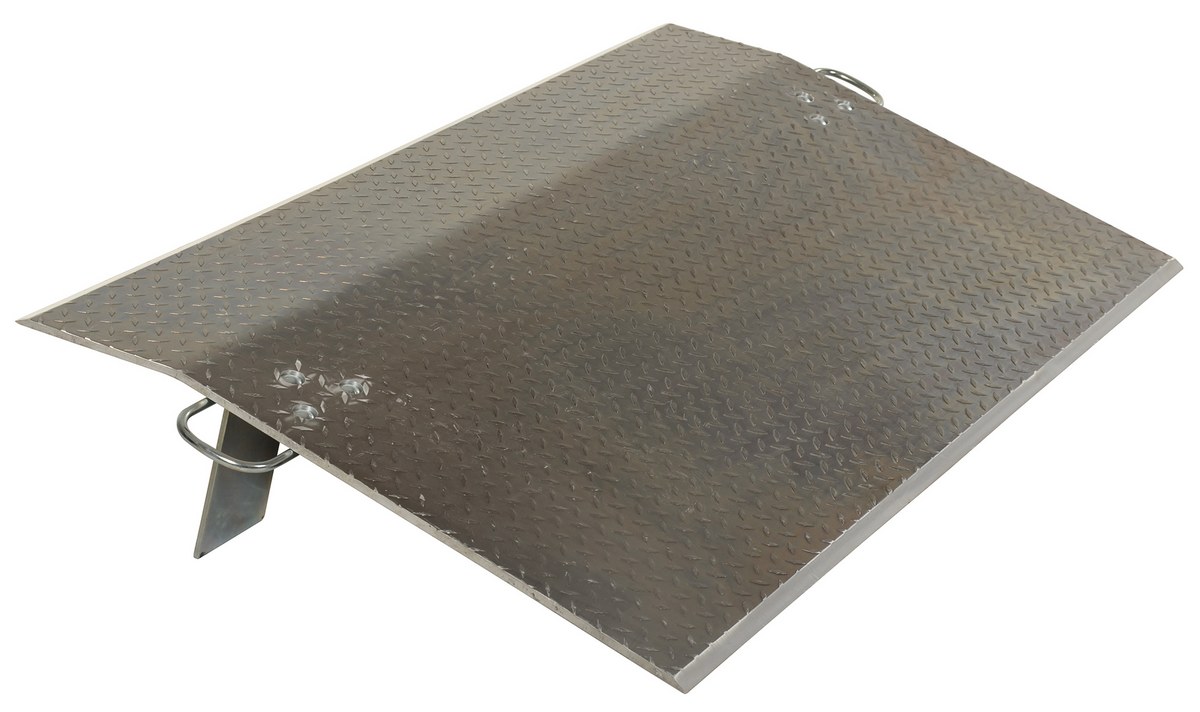

EH-6036 EH-6036Aluminum Economizer Dock Plate 60 In. x 36 In. 1/2 In. Plate Thickness 6600 Lb. Capacity SilverUniform Capacity (lb.): 6600
Bend or Crown (degrees): 11		109
EH-6042 EH-6042Aluminum Economizer Dock Plate 60 In. x 42 In. 1/2 In. Plate Thickness 5500 Lb. Capacity SilverUniform Capacity (lb.): 5500
Bend or Crown (degrees): 11		127
EH-6048 EH-6048Aluminum Economizer Dock Plate 60 In. x 48 In. 1/2 In. Plate Thickness 4800 Lb. Capacity SilverUniform Capacity (lb.): 4800
Bend or Crown (degrees): 11		146
EH-6060 EH-6060Aluminum Economizer Dock Plate 60 In. x 60 In. 1/2 In. Plate Thickness 3700 Lb. Capacity SilverUniform Capacity (lb.): 3700
Bend or Crown (degrees): 11		177

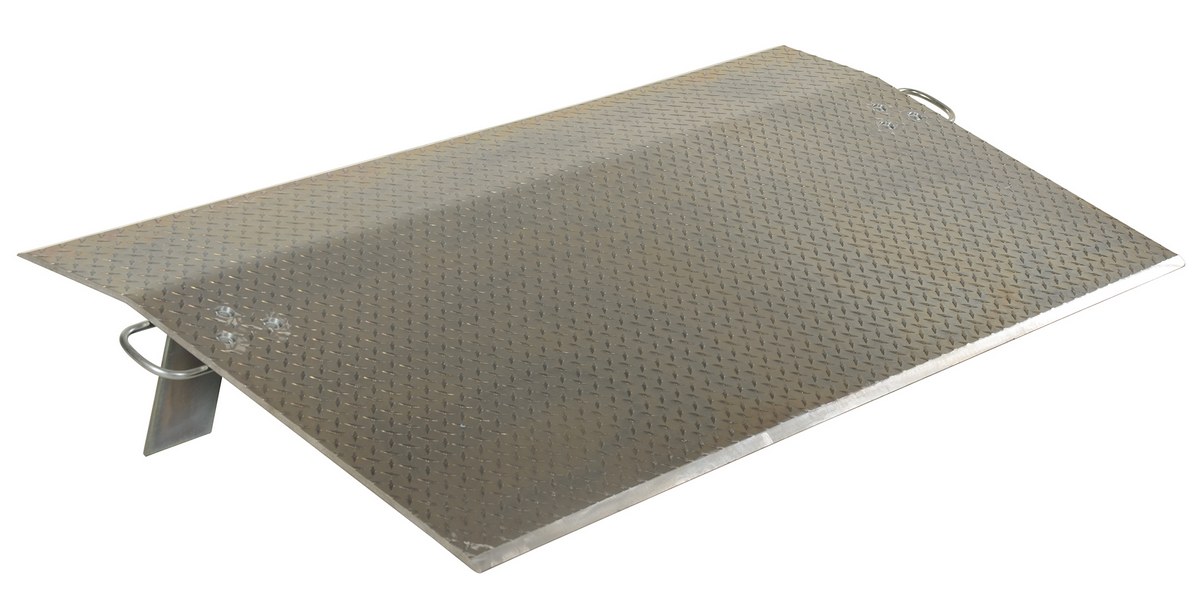

EH-7224 EH-7224Aluminum Economizer Dock Plate 72 In. x 24 In. 1/2 In. Plate Thickness 11900 Lb. Capacity SilverUniform Capacity (lb.): 11900
Bend or Crown (degrees): 11		132
EH-7230 EH-7230Aluminum Economizer Dock Plate 72 In. x 30 In. 1/2 In. Plate Thickness 9500 Lb. Capacity SilverUniform Capacity (lb.): 9500
Bend or Crown (degrees): 11		168
EH-7236 EH-7236Aluminum Economizer Dock Plate 72 In. x 36 In. 1/2 In. Plate Thickness 7800 Lb. Capacity SilverUniform Capacity (lb.): 7800
Bend or Crown (degrees): 11		176
EH-7248 EH-7248Aluminum Economizer Dock Plate 72 In. x 48 In. 1/2 In. Plate Thickness 5900 Lb. Capacity SilverUniform Capacity (lb.): 5900
Bend or Crown (degrees): 11		185

Options


Model PDFs Description
DPR-2616 - Steel Dock Plate Storage Rack 26 In. x 6 In. Yellow
ATC-12 Compliance Certificate Anti-Theft Chain (144 in.)
TRADE Compliance Certificate Trade in Allowance (F.O.B. IN)

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
