Wheel Nose Pallet Trucks

- - - -

Description
Model Chart
PDF's
Image Gallery
PM5-2738-WN_A.jpg PM5-2738-WN_B.jpg PM5-2738-WN_C.jpg PM5-2738-WN_D.jpg
Wheel Nose Pallet Trucks

model: PM5-2738-WN



Featured Ergonomic Solutions


Partially Stainless Steel Hydraulic Elevating Carts
Economy Hand Pallet Truck
Spring Scissor Tables (partially stainless steel)
Mini Hand Pallet Trucks
DC Powered and Manual Scissor Carts
Folding Arm Chair
Shorty Scissor Lift Tables
Powered All Terrain Stackers and Pallet Trucks
Hydraulic Work Positioner
model chart

Product Family Overview

Print Friendly
Wheel Nose Pallet Trucks
SERIES: PM5

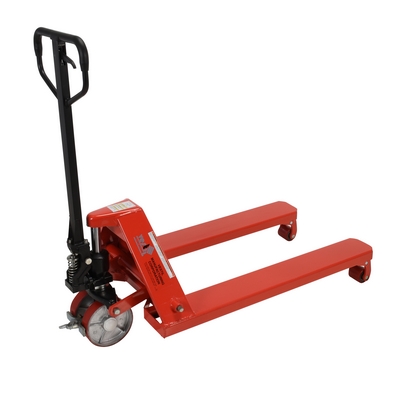

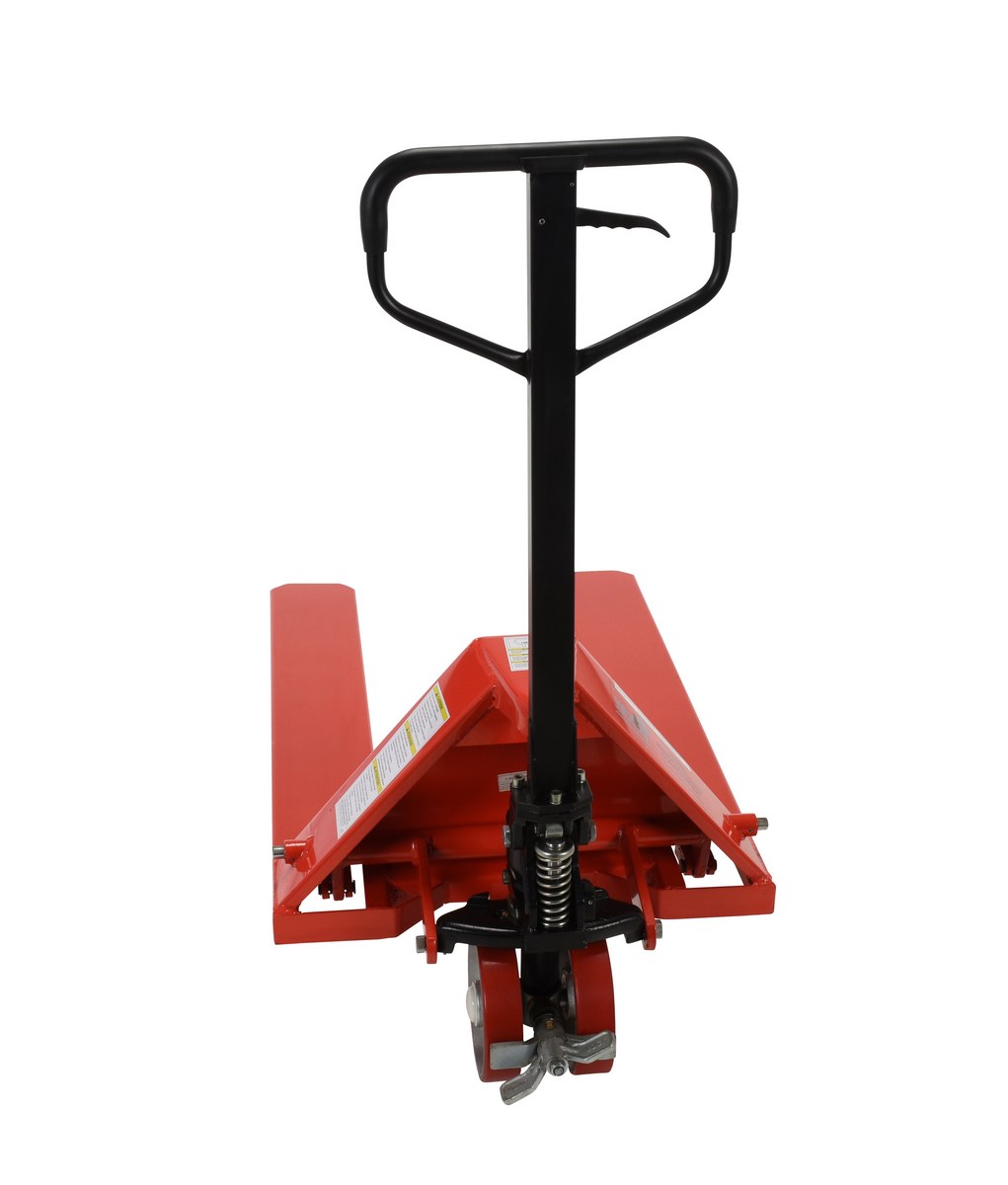

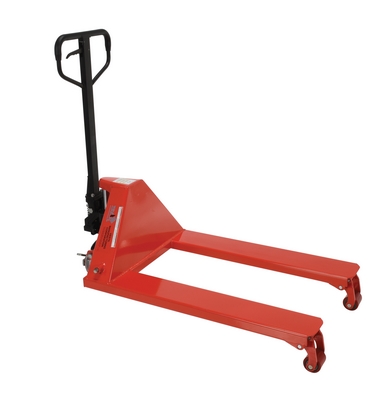

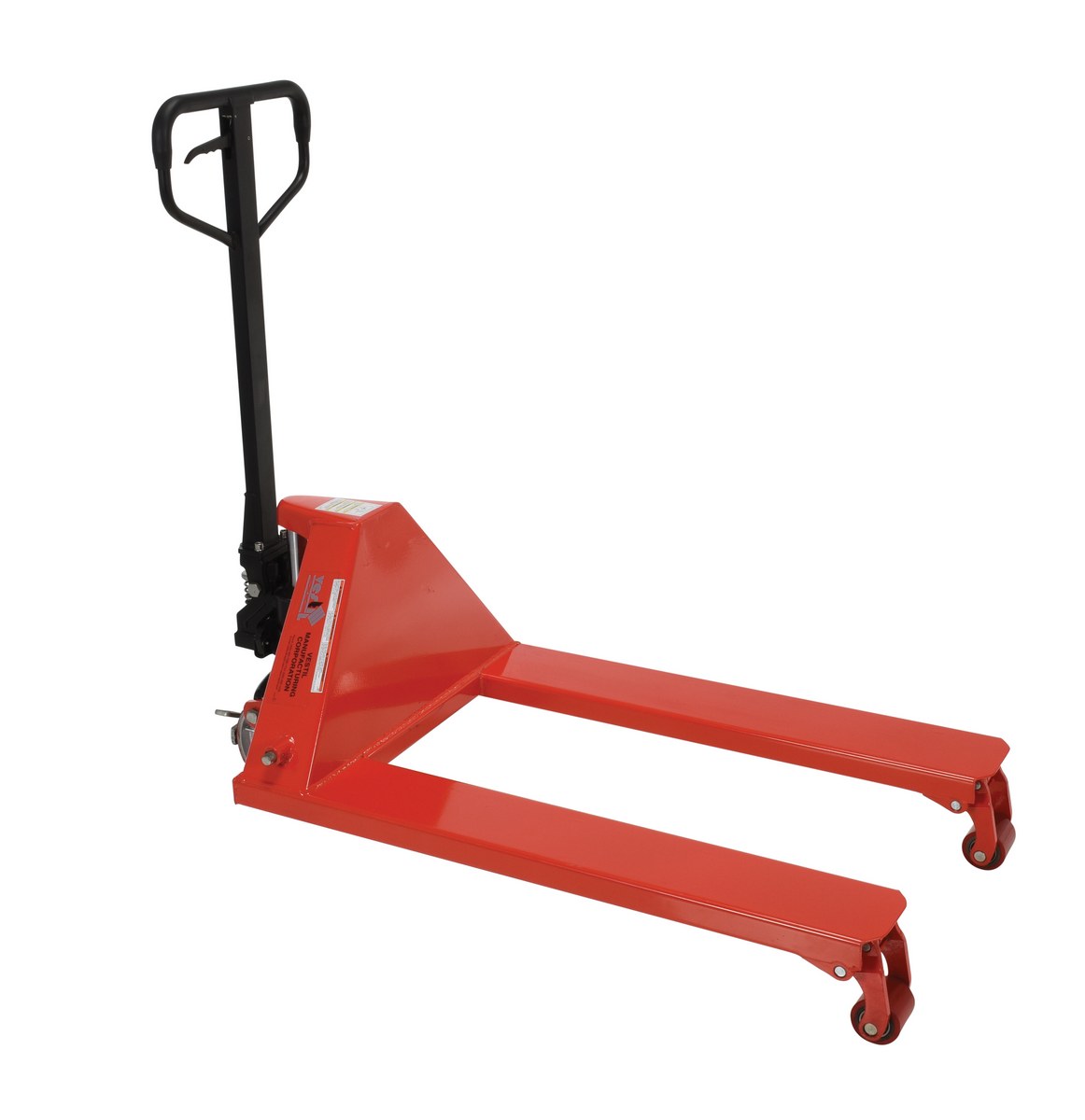

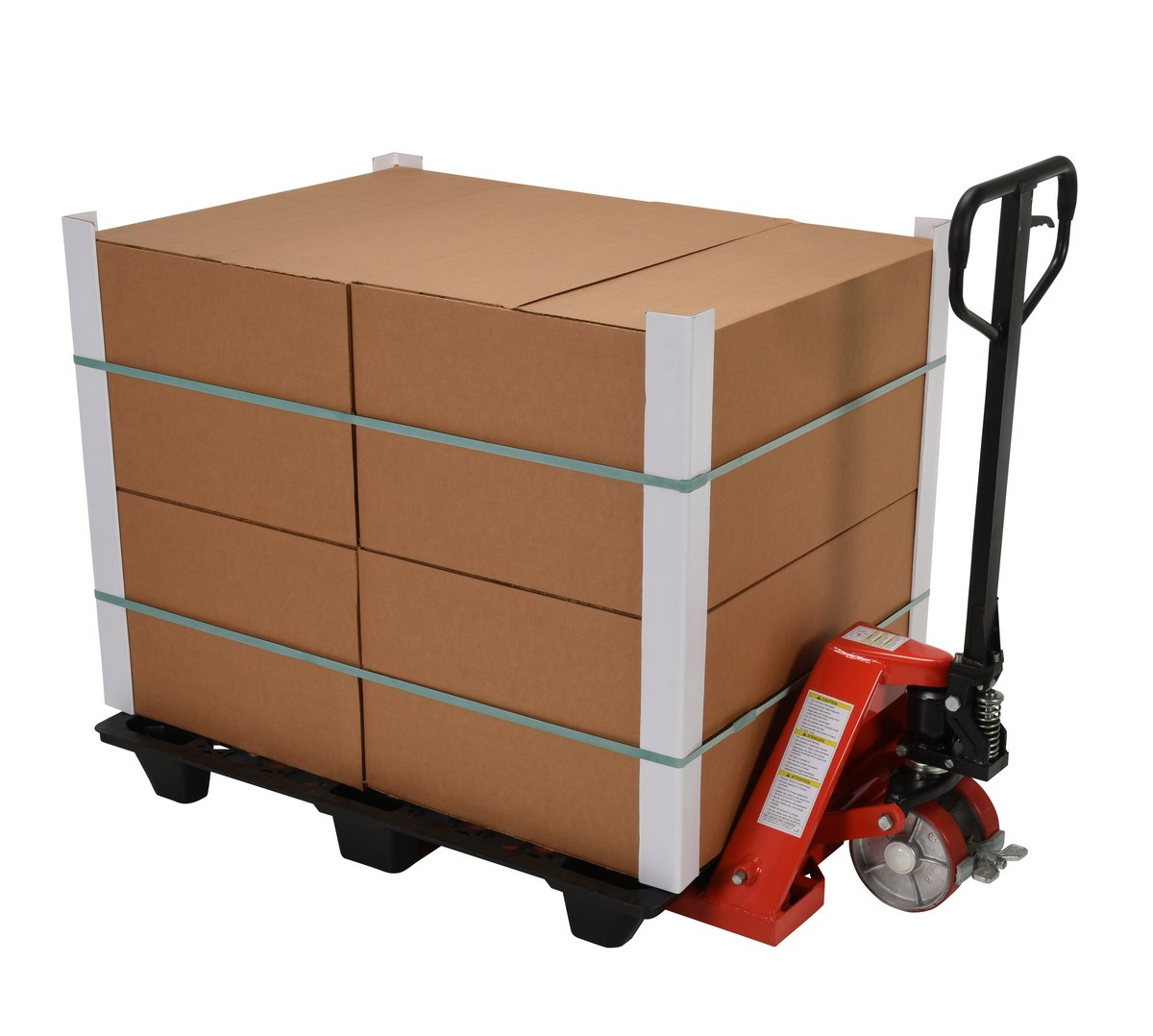

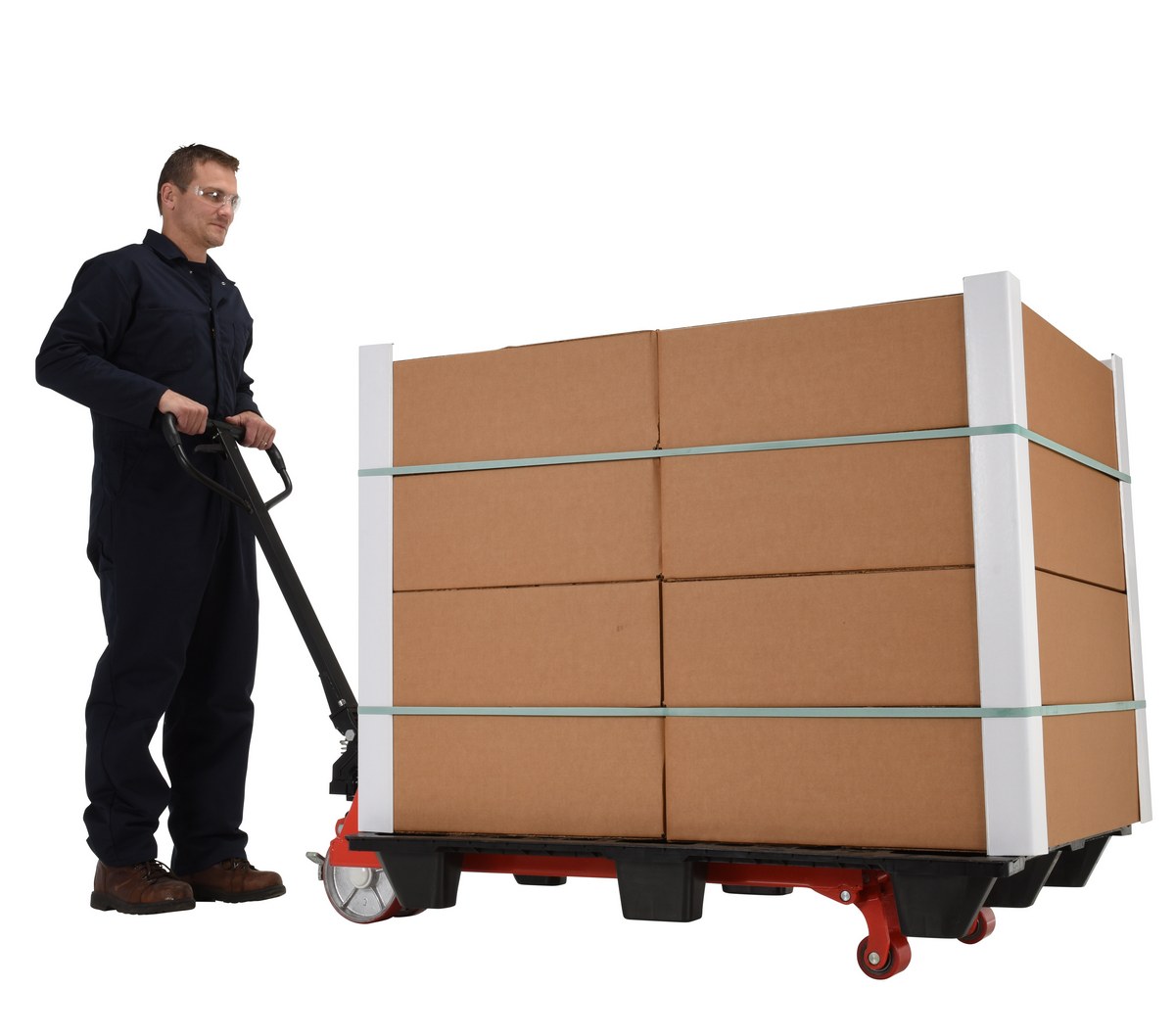

pt-whe30.jpgThe Wheel Nose Pallet Truck is designed to position pallets or skids closely together. The fork end is set back from the front rollers allowing for one pallet pick up at a time. The unit has a rubber grip handle with a three position lever for easy operation and maneuvering. This heavy-duty unit is rated at 5,000 pounds capacity and has a service range from 3-1/2" to 8". Units include two articulating steering wheels and two front load rollers. Spring loaded loop handle automatically returns to vertical position when not in use. 6-1/2"W x 38"L forks are used for maneuvering in tight spaces.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life

pt-whe30.jpgThe Wheel Nose Pallet Truck is designed to position pallets or skids closely together. The fork end is set back from the front rollers allowing for one pallet pick up at a time. The unit has a rubber grip handle with a three position lever for easy operation and maneuvering. This heavy-duty unit is rated at 5,000 pounds capacity and has a service range from 3-1/2" to 8". Units include two articulating steering wheels and two front load rollers. Spring loaded loop handle automatically returns to vertical position when not in use. 6-1/2"W x 38"L forks are used for maneuvering in tight spaces.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life

Other Manual Pallet Trucks

 All Terrain Pallet Trucks Ergonomic Power Assist Pallet Trucks Pallet Truck Roll Adapters Cold Room Hand Pallet Truck

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PM5-2738-WN PM5-2738-WN1 Year Limited WarrantySteel Heavy Duty Wheel Nose Pallet Truck 63 In. x 27 In. x 42 In. 5000 Lb. Capacity RedUniform Capacity (lb.): 5000
Overall Fork Width (in.): 27		258

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PM5-2738-WN
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 5000
Overall Fork Width (in.): 27
Wheel Nose Pallet Trucks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PM5-2738-WN

Testing Certificates


PM5-2738-WN

SDS Sheets

Hydraulic Oil SDS Sheet for: PM5-2738-WN

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Side Winder Pallet Truck
Product

Side Winder Pallet Truck

Specialized Pallet Trucks
Product

Specialized Pallet Trucks

Pallet Trucks with Digital Scale
Product

Pallet Trucks with Digital Scale

Stainless Steel Pallet Trucks
Product

Stainless Steel Pallet Trucks

Pallet Jockeys for
Product

Pallet Jockeys for "Walkie" Trucks

Pallet Truck Chock
Product

Pallet Truck Chock

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Wheel Nose Pallet Trucks




pt-whe30.jpgThe Wheel Nose Pallet Truck is designed to position pallets or skids closely together. The fork end is set back from the front rollers allowing for one pallet pick up at a time. The unit has a rubber grip handle with a three position lever for easy operation and maneuvering. This heavy-duty unit is rated at 5,000 pounds capacity and has a service range from 3-1/2" to 8". Units include two articulating steering wheels and two front load rollers. Spring loaded loop handle automatically returns to vertical position when not in use. 6-1/2"W x 38"L forks are used for maneuvering in tight spaces.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life

Model # Description Attributes Net Wt.
(lbs)
PM5-2738-WN PM5-2738-WNSteel Heavy Duty Wheel Nose Pallet Truck 63 In. x 27 In. x 42 In. 5000 Lb. Capacity RedUniform Capacity (lb.): 5000
Overall Fork Width (in.): 27		258
