Product Family Overview


Low Profile Scales & Ramps
SERIES: SCALE

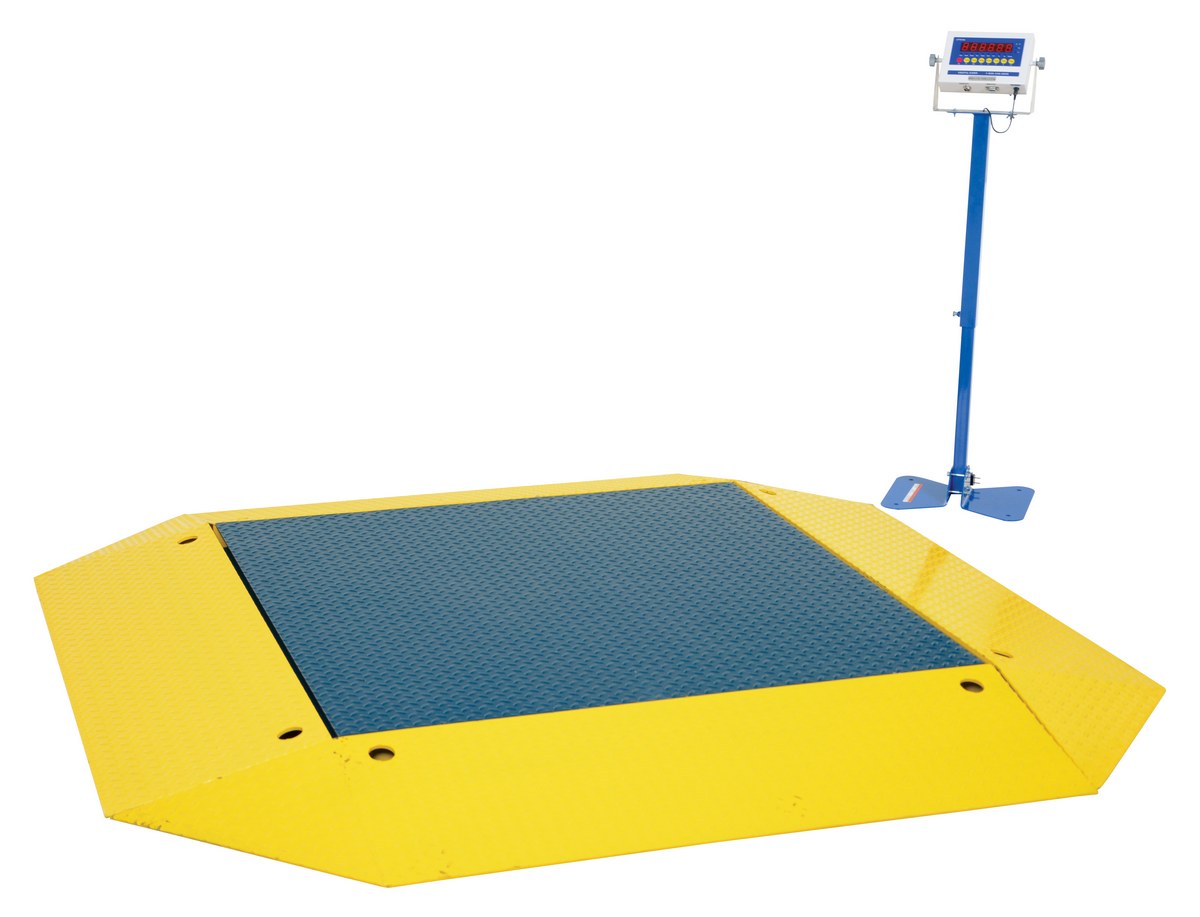

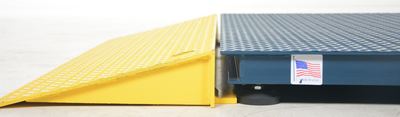

Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature 1/2 deck plate, grid core, and a 3/8 bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 degree or 20 percent slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is 115V, 1 phase AC power, cord included.

  • Low profile air freight scales with wrap-around ramps for ideal operation
  • Bottom skin with three center supports prevent sagging for maximum efficiency
  • Features durable construction for added strength and long life
  • Fully electronic load cells on shock absorbing spherical washers are ideal for optimal results

Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature 1/2 deck plate, grid core, and a 3/8 bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 degree or 20 percent slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is 115V, 1 phase AC power, cord included.

  • Low profile air freight scales with wrap-around ramps for ideal operation
  • Bottom skin with three center supports prevent sagging for maximum efficiency
  • Features durable construction for added strength and long life
  • Fully electronic load cells on shock absorbing spherical washers are ideal for optimal results

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SCALE-LP-44-10K SCALE-LP-44-10K1 Year Limited WarrantyLow Profile Scale 78 In. x 78 In. x 3-1/2 In. 10,000 Lb. Capacity YellowCapacity (lbs): 10000
Legal For Trade: Yes
700
SCALE-LP-44-20K SCALE-LP-44-20K1 Year Limited WarrantyLow Profile Scale 150 In. x 150 In. x 3-1/2 In. 20,000 Lb. Capacity YellowCapacity (lbs): 20000
Legal For Trade: Yes
1480
SCALE-LP-44-5K SCALE-LP-44-5K1 Year Limited WarrantyLow Profile Scale 78 In. x 78 In. x 3-1/2 In. 5,000 Lb. Capacity YellowCapacity (lbs): 5000
Legal For Trade: Yes
700

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

SCALE-LP-44-10K
Unit:
Size: W x L x H
Weight:
Limited Warranty
Capacity (lbs): 10000
Legal For Trade: Yes
Capacity (lbs): 10000
Legal For Trade: Yes

SCALE-LP-44-20K
Unit:
Size: W x L x H
Weight:
Limited Warranty
Capacity (lbs): 20000
Legal For Trade: Yes
Capacity (lbs): 20000
Legal For Trade: Yes

SCALE-LP-44-5K
Unit:
Size: W x L x H
Weight:
Limited Warranty
Capacity (lbs): 5000
Legal For Trade: Yes
Capacity (lbs): 5000
Legal For Trade: Yes

Low Profile Scales & Ramps PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Does this scale read in 0.2 or 0.5 increments?

A: The scale would automatically come calibrated in 1 lb. increments, but can be modified to 0.5 lb. increments.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Low Profile Scales & Ramps




Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature 1/2 deck plate, grid core, and a 3/8 bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 degree or 20 percent slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is 115V, 1 phase AC power, cord included.

  • Low profile air freight scales with wrap-around ramps for ideal operation
  • Bottom skin with three center supports prevent sagging for maximum efficiency
  • Features durable construction for added strength and long life
  • Fully electronic load cells on shock absorbing spherical washers are ideal for optimal results


Model # Description Attributes Net Wt.
(lbs)
SCALE-LP-44-10K SCALE-LP-44-10KLow Profile Scale 78 In. x 78 In. x 3-1/2 In. 10,000 Lb. Capacity YellowCapacity (lbs): 10000
Legal For Trade: Yes
700
SCALE-LP-44-20K SCALE-LP-44-20KLow Profile Scale 150 In. x 150 In. x 3-1/2 In. 20,000 Lb. Capacity YellowCapacity (lbs): 20000
Legal For Trade: Yes
1480
SCALE-LP-44-5K SCALE-LP-44-5KLow Profile Scale 78 In. x 78 In. x 3-1/2 In. 5,000 Lb. Capacity YellowCapacity (lbs): 5000
Legal For Trade: Yes
700
