Steel Wheel Risers

SERIES: SWR

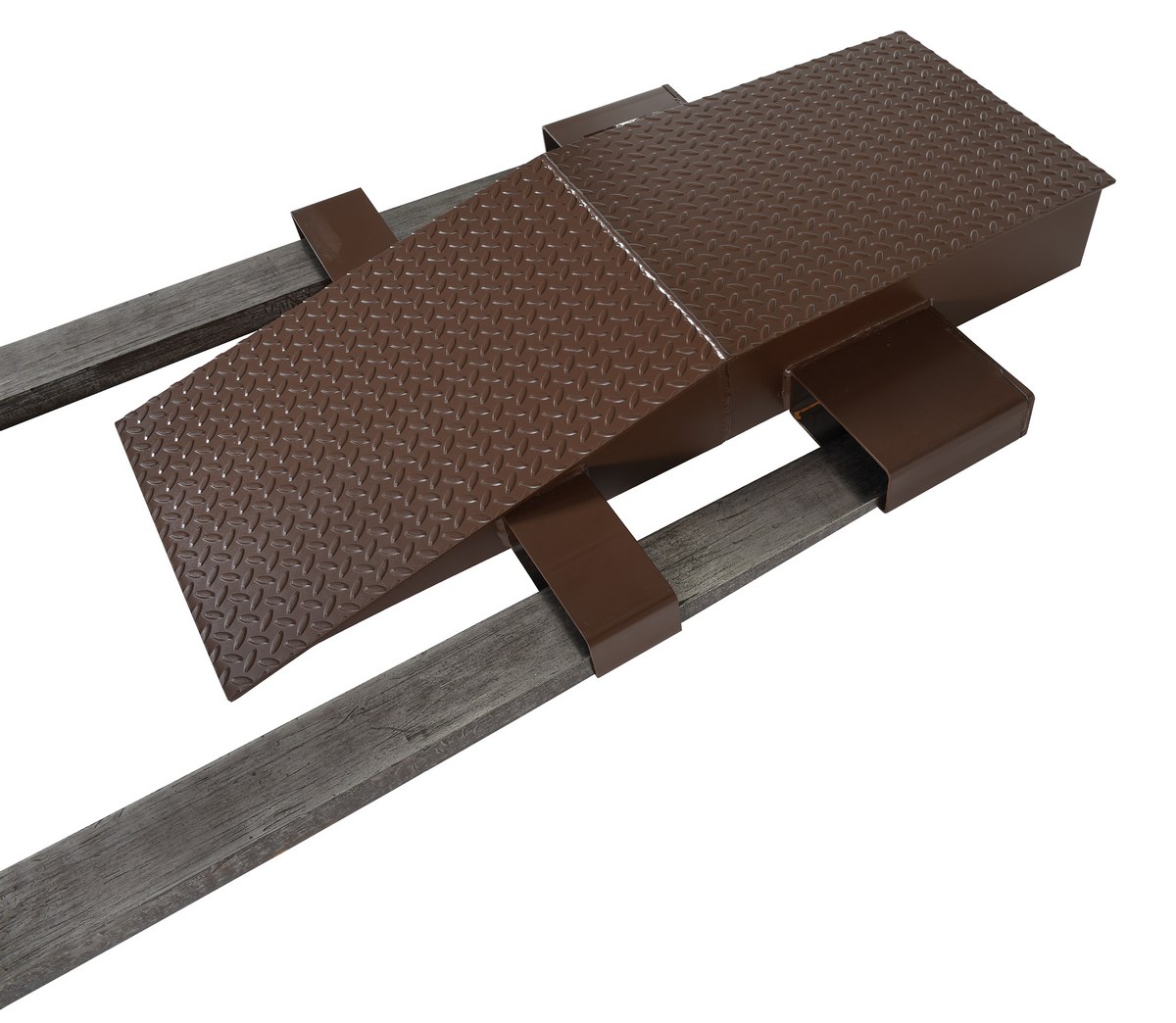

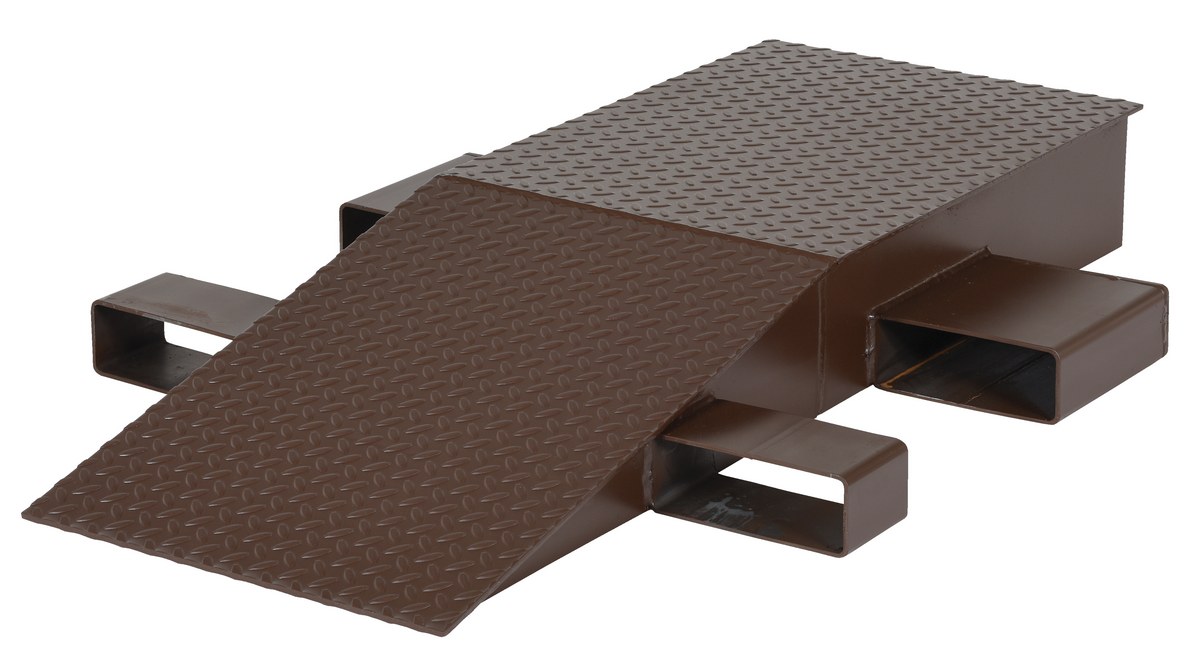

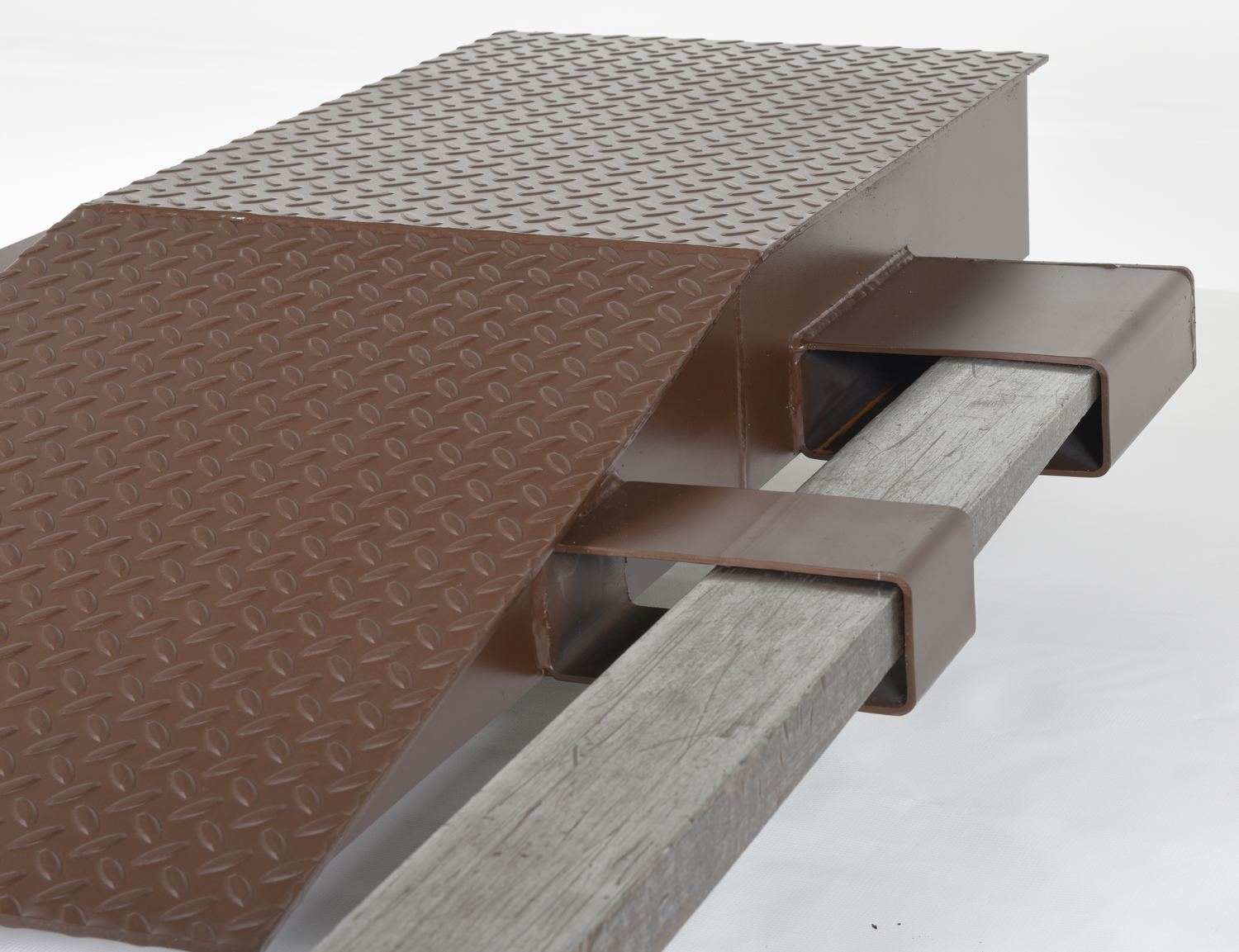

The Steel Wheel Riser is equipped with fork slots for ease in fork truck transporting. Ramps may be stacked for compact storage when not in use. Fork pockets are 7-1/2" wide by 2-1/2" high usable. These fork pockets add approximately 15" to the overall width of the riser. Wheel Risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel construction. Uniform capacity per pair is 40,000 lbs. (Sold Each). (1/4" thick material).

Wheel Risers Are Priced And Sold Each

See our Aluminum Wheel Risers

See Our Steel Wheel Risers w Connected Fork Tubes

Wheel Risers Are Priced And Sold Each

See our Aluminum Wheel Risers

See Our Steel Wheel Risers w Connected Fork Tubes

Other Wheel Risers

Steel Wheel Riser with Central Fork Pocket

Aluminum Wheel Risers

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

SWR-24-6-84

SWR-24-12-96

SWR-18-6-84

SWR-ROG-18-8-72

SWR-24-6-60

SWR-24-6-48

SWR-ROG-18-10-96

SWR-24-6-72

SWR-ROG-24-12-96

SWR-18-6-72

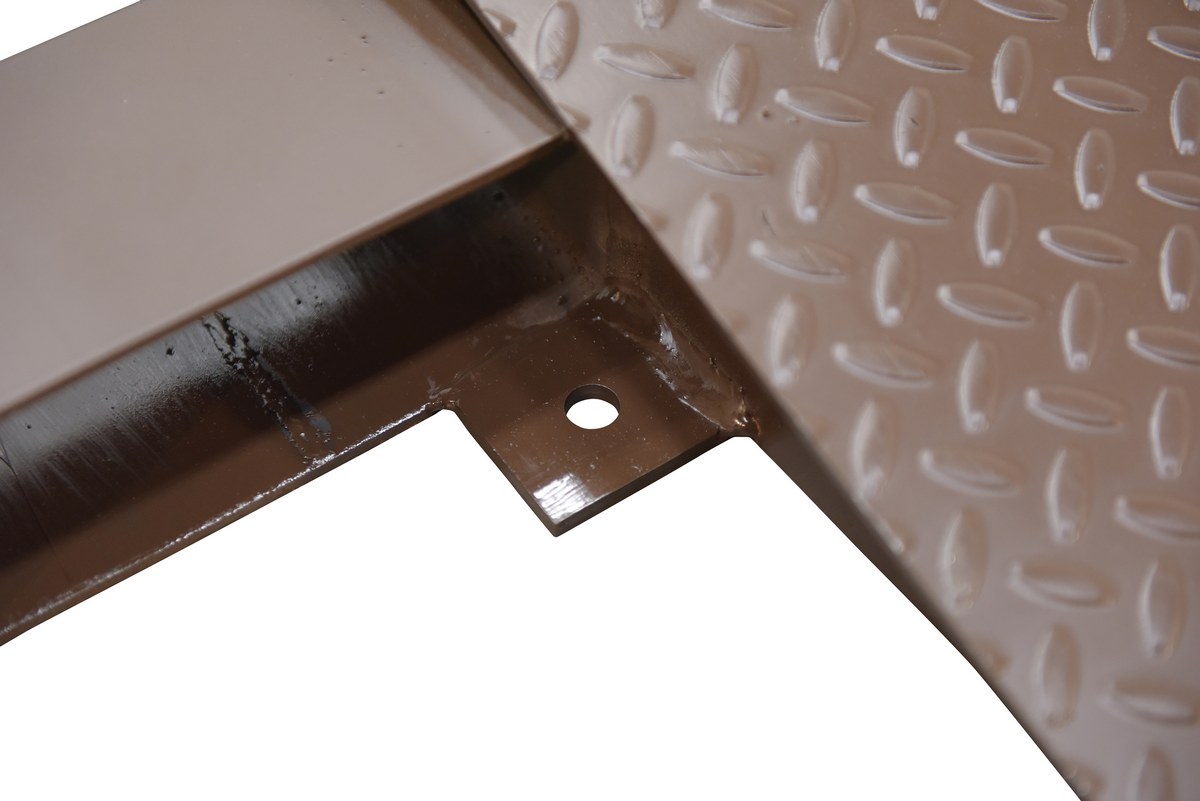

SWR-ABRK

SWR-ROG-18-10-84

SWR-24-8-60

SWR-ROG-18-10-84

SWR-24-12-96

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

Model #		Description	Attributes	Net Wt. (lbs)
SWR-18-10-60	1 Year Limited Warranty	Steel Wheel Riser 60 In. x 18 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	237
SWR-18-10-72	1 Year Limited Warranty	Steel Wheel Riser 72 In. x 18 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	300
SWR-18-10-84	1 Year Limited Warranty	Steel Wheel Riser 84 In. x 18 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	346
SWR-18-10-96	1 Year Limited Warranty	Steel Wheel Riser 96 In. x 18 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	392
SWR-18-12-108	1 Year Limited Warranty	Steel Wheel Riser 108 In. x 18 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	467

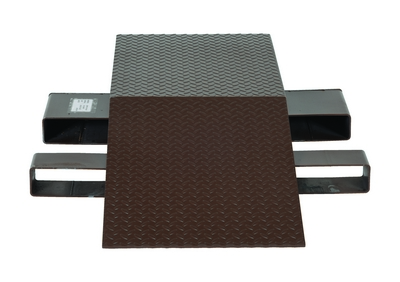

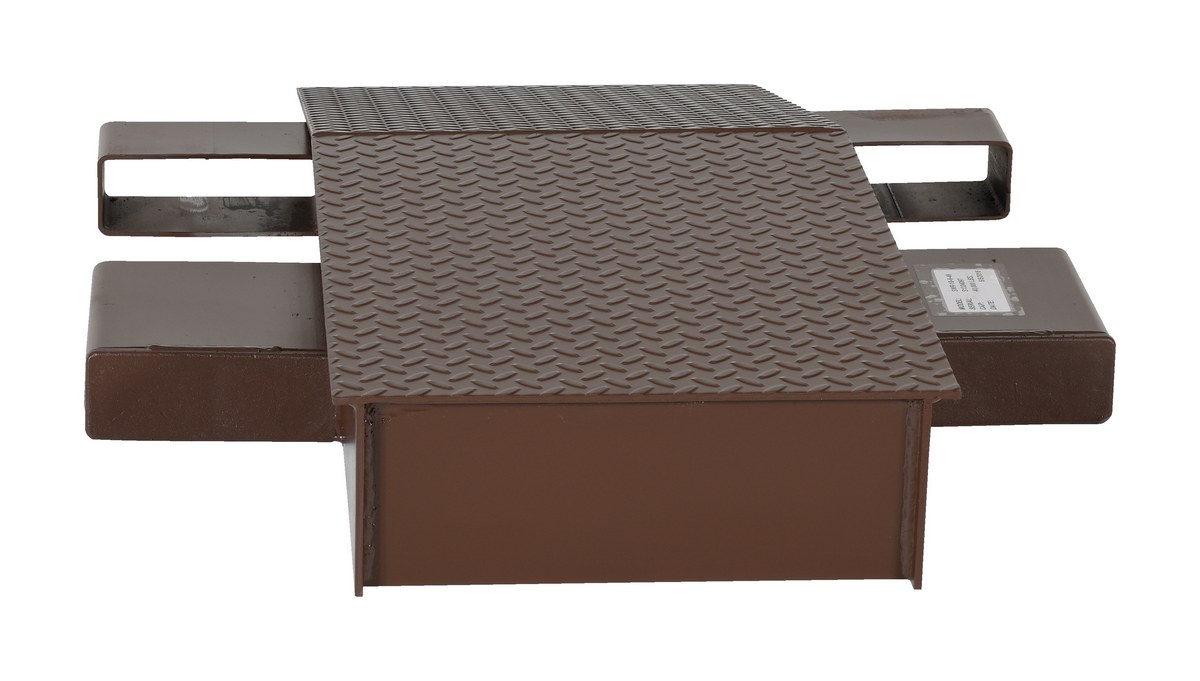

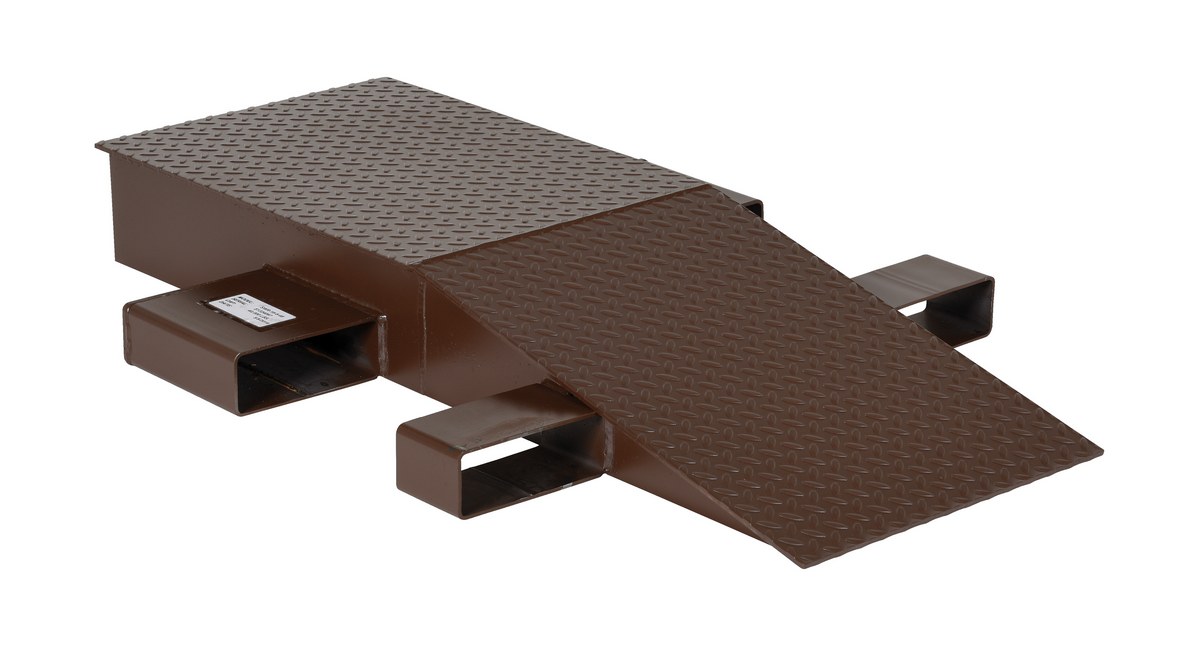

SWR-18-6-48	1 Year Limited Warranty	Steel Wheel Riser 48 In. x 18 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	233
SWR-18-6-60	1 Year Limited Warranty	Steel Wheel Riser 60 In. x 18 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	255
SWR-18-6-72	1 Year Limited Warranty	Steel Wheel Riser 84 In. x 18 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	296
SWR-18-6-84	1 Year Limited Warranty	Steel Wheel Riser 84 In. x 18 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	353
SWR-18-8-60	1 Year Limited Warranty	Steel Wheel Riser 60 In. x 18 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	324
SWR-18-8-72	1 Year Limited Warranty	Steel Wheel Riser 72 In. x 18 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	347
SWR-18-8-84	1 Year Limited Warranty	Steel Wheel Riser 84 In. x 18 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	388
SWR-18-8-96	1 Year Limited Warranty	Steel Wheel Riser 96 In. x 18 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	445
SWR-24-10-60	1 Year Limited Warranty	Steel Wheel Riser 60 In. x 24 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	330
SWR-24-10-72	1 Year Limited Warranty	Steel Wheel Riser 72 In. x 24 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	361

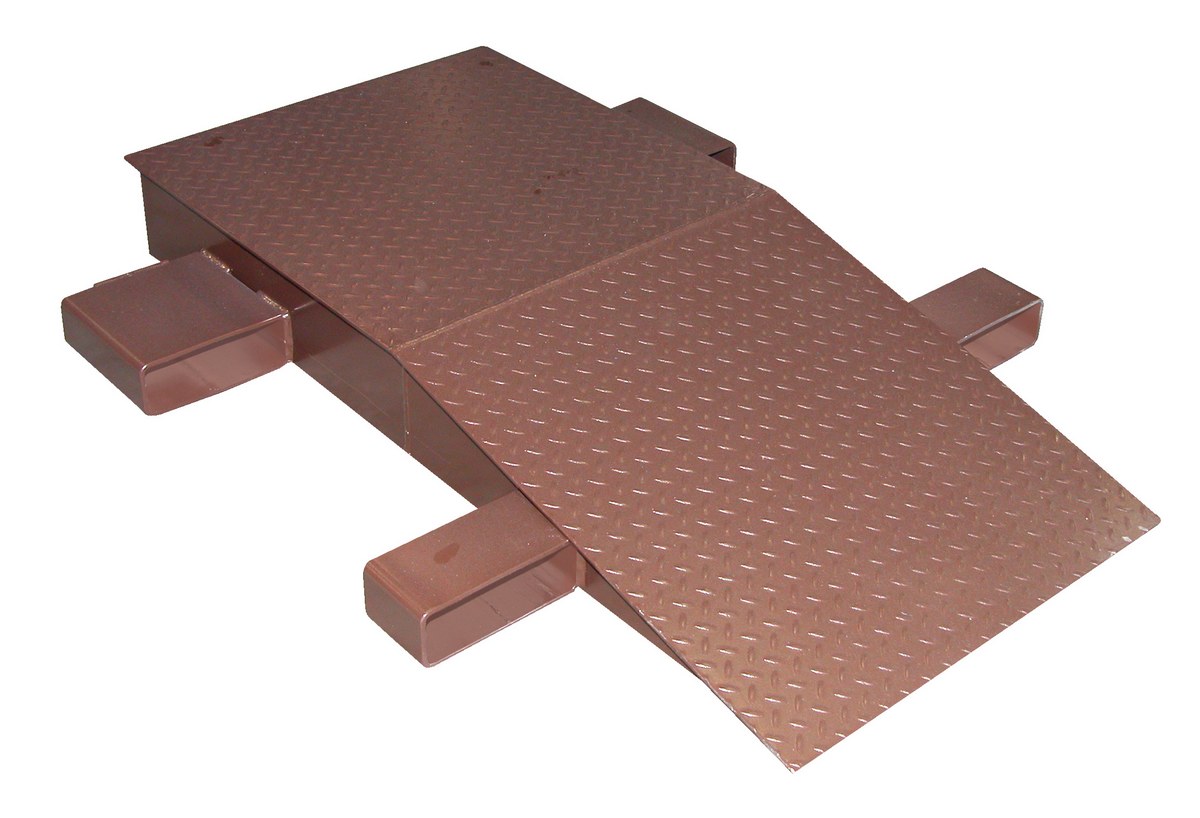

SWR-24-10-84	1 Year Limited Warranty	Steel Wheel Riser 84 In. x 24 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	448

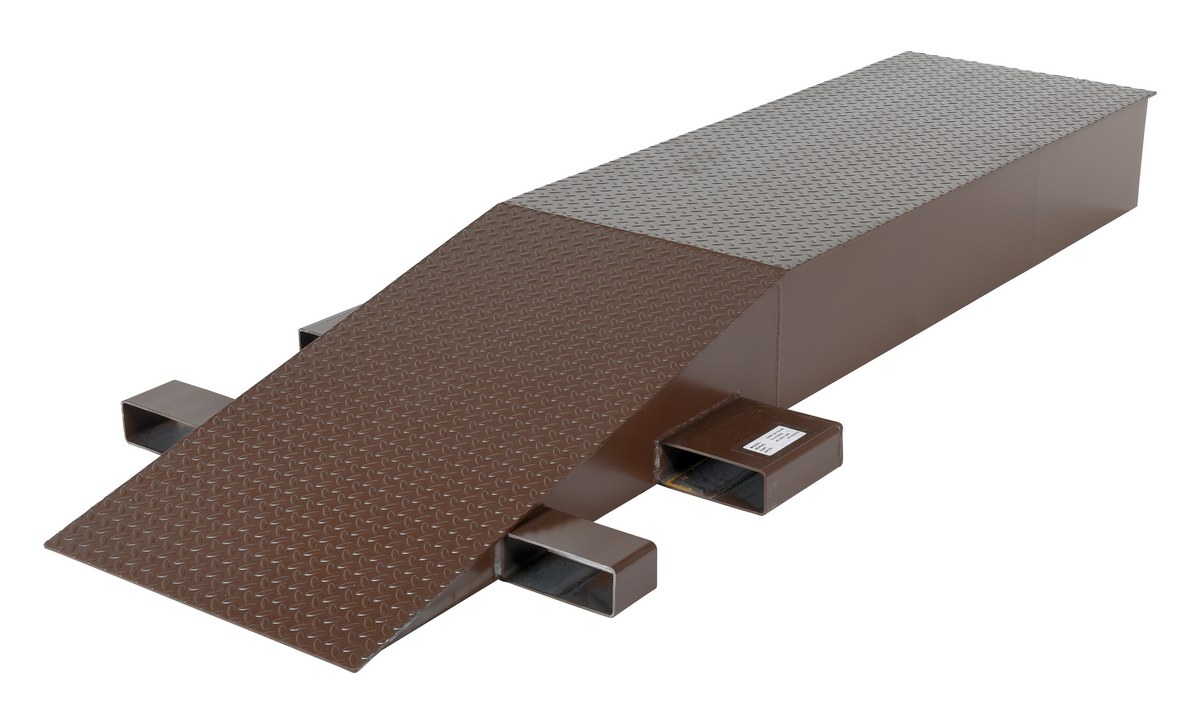

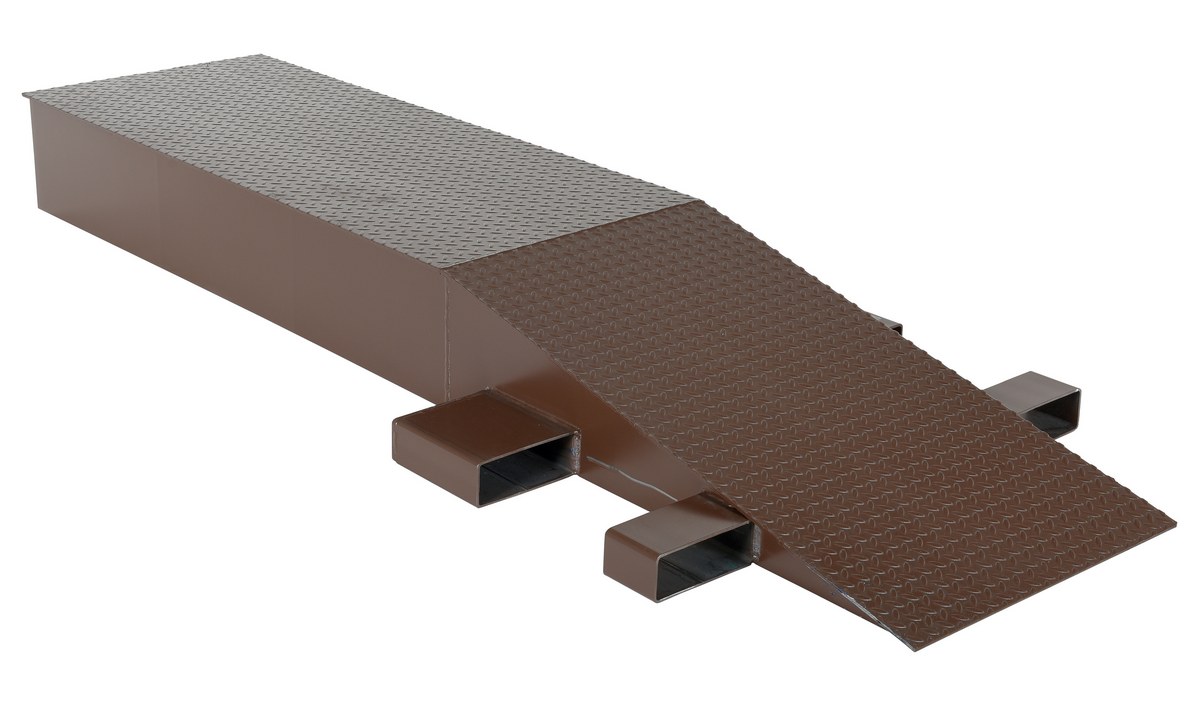

SWR-24-10-96	1 Year Limited Warranty	Steel Wheel Riser 96 In. x 24 In. x 10-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	486

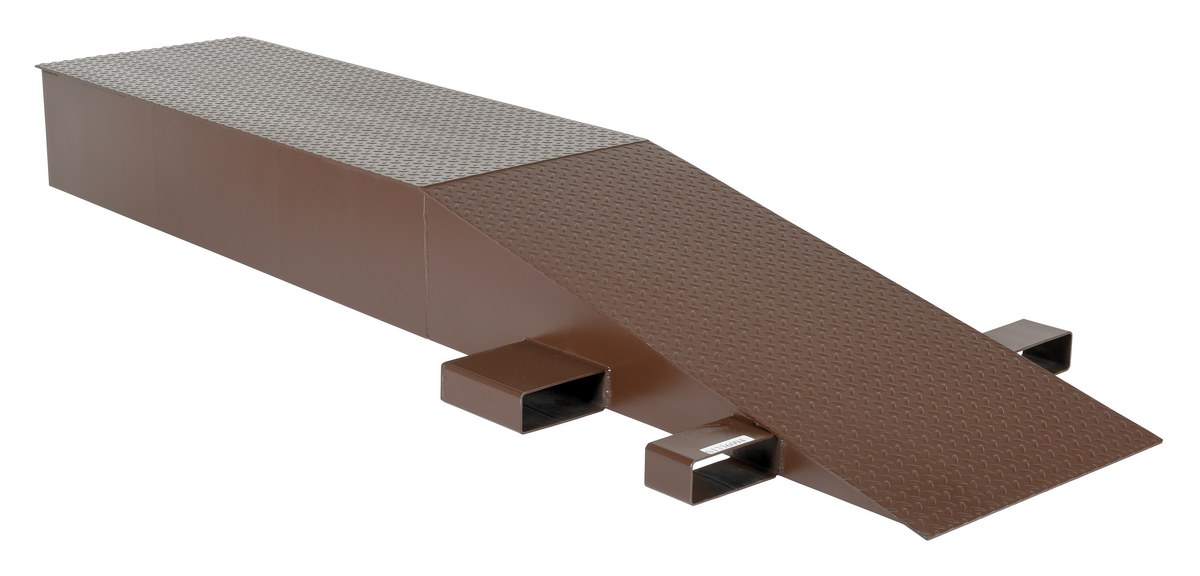

SWR-24-12-108	1 Year Limited Warranty	Steel Wheel Riser 108 In. x 24 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	524
SWR-24-12-72	1 Year Limited Warranty	Steel Wheel Riser 72 In. x 24 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	377

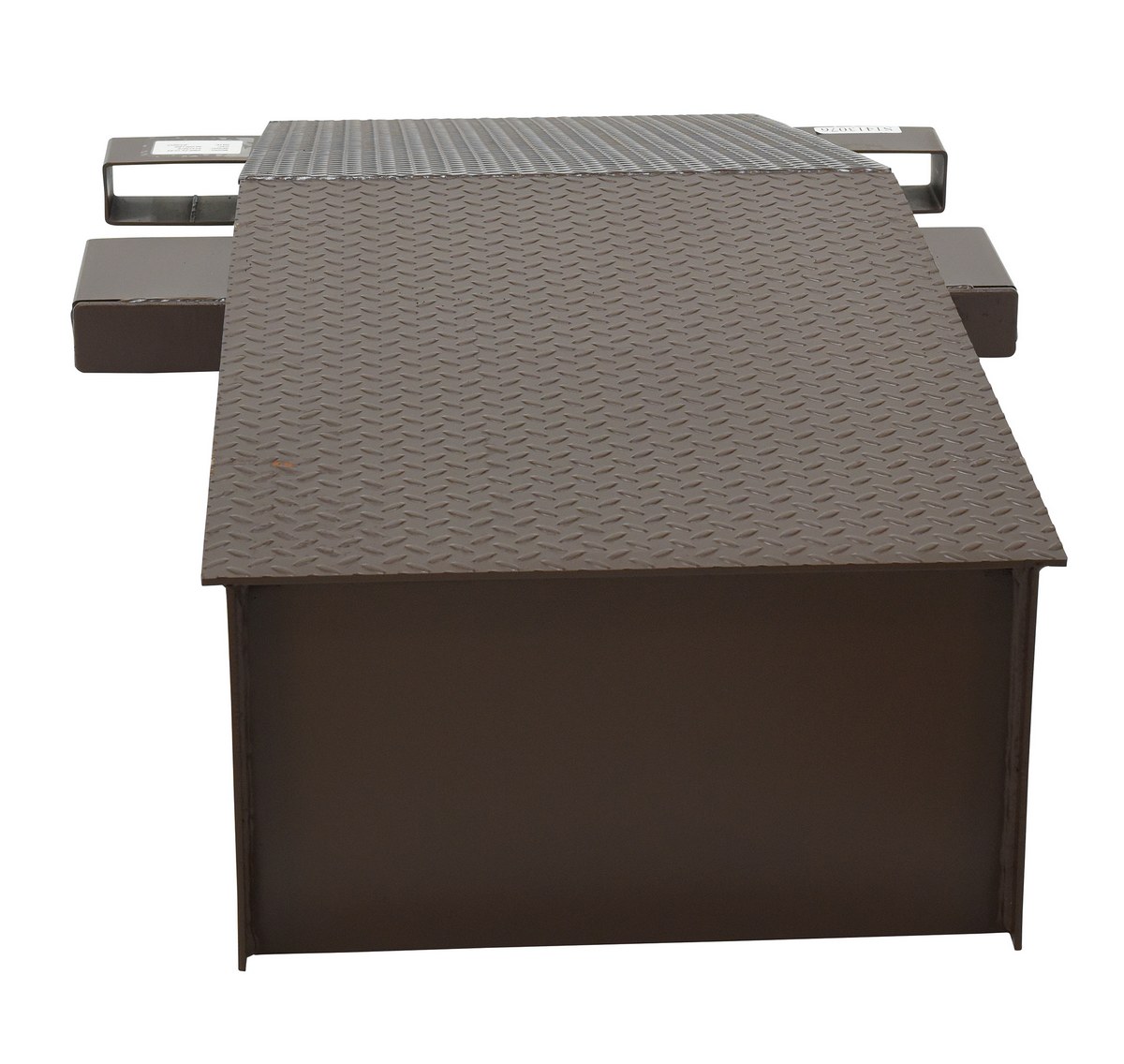

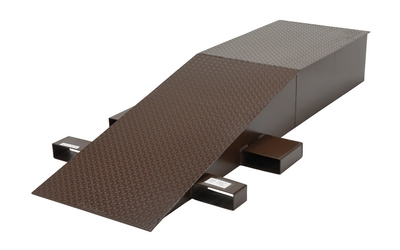

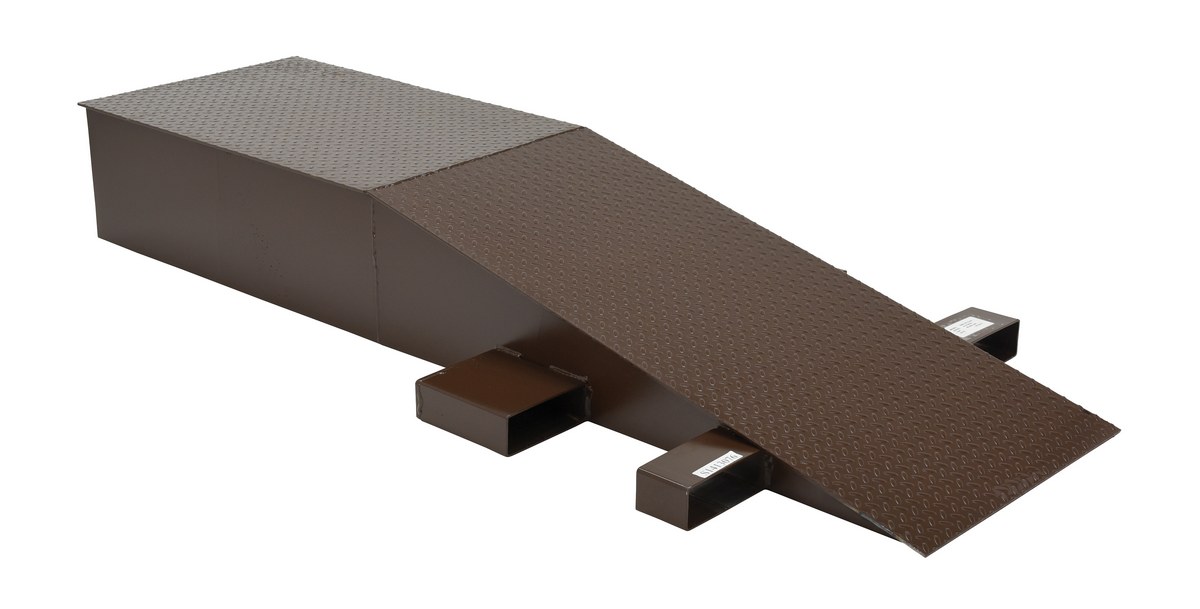

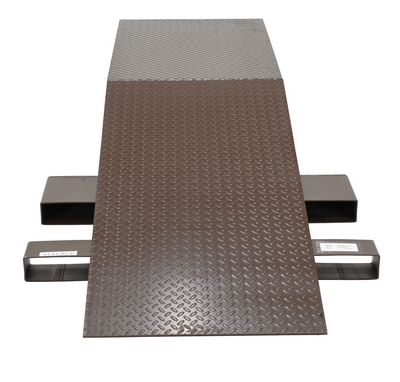

SWR-24-12-84	1 Year Limited Warranty	Steel Wheel Riser 84 In. x 24 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	396

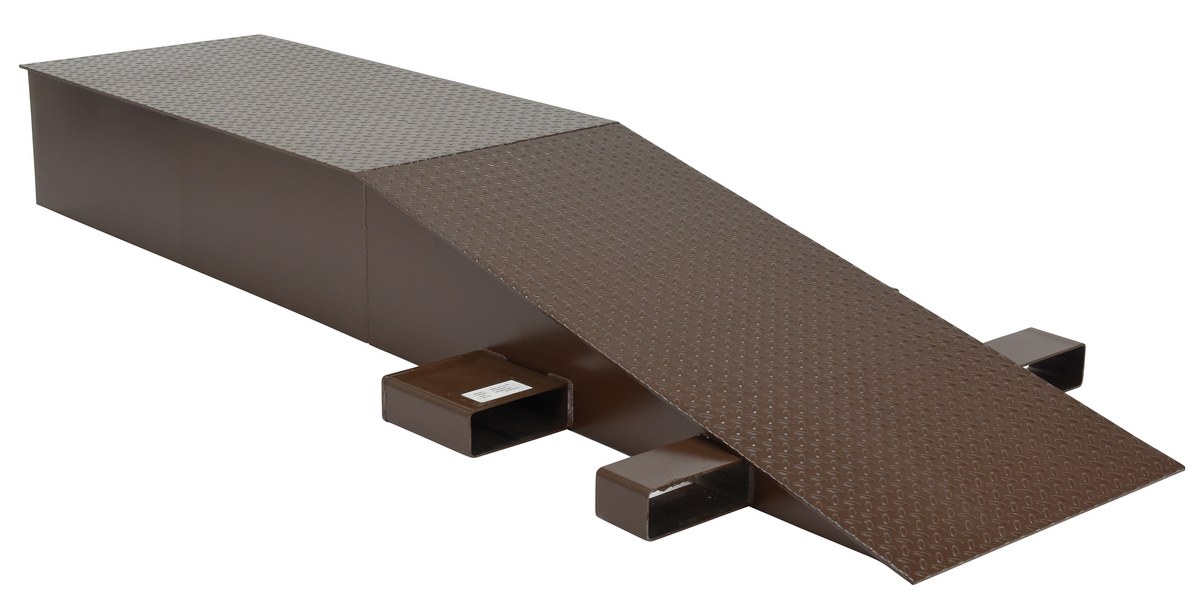

SWR-24-12-96	1 Year Limited Warranty	Steel Wheel Riser 96 In. x 24 In. x 12-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	429

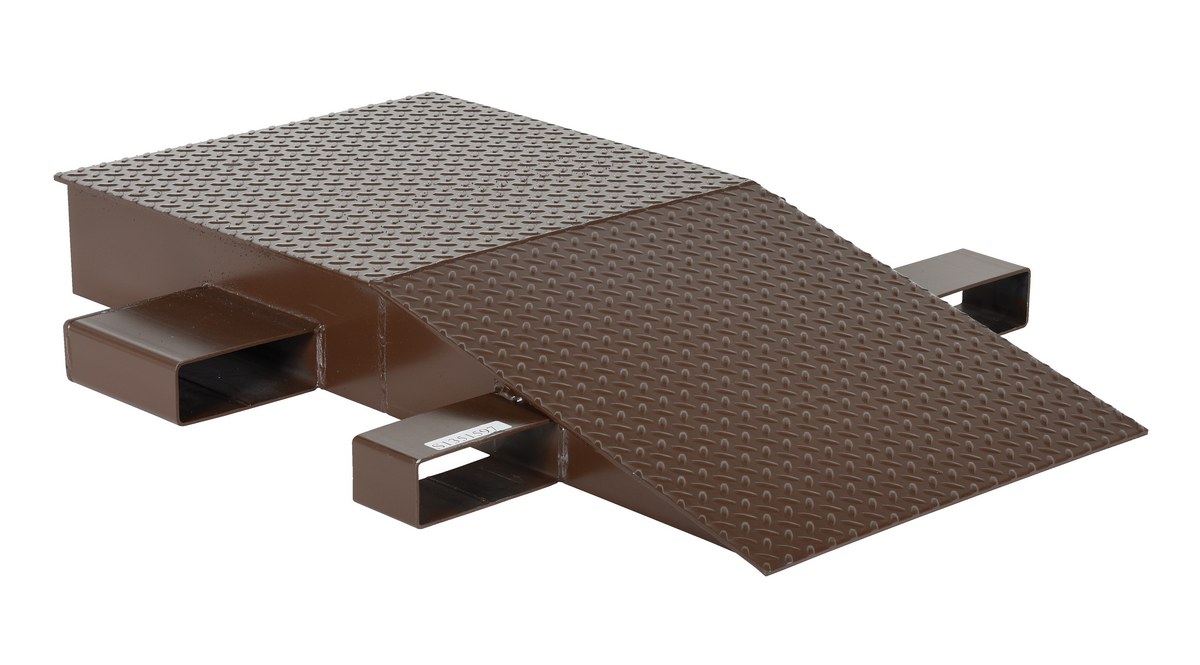

SWR-24-6-48	1 Year Limited Warranty	Steel Wheel Riser 48 In. x 24 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	218

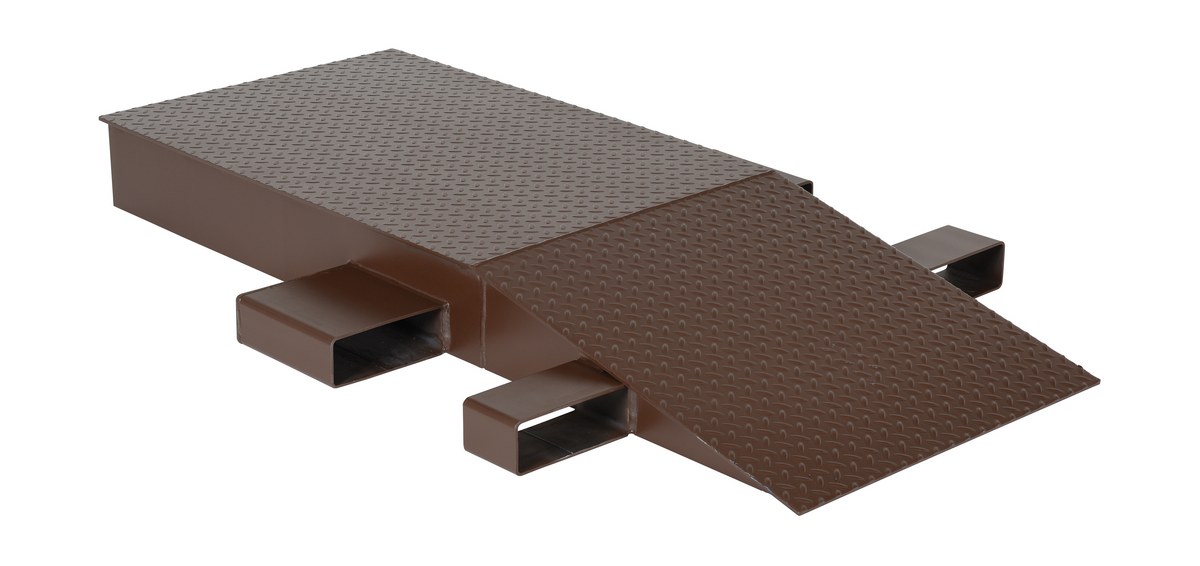

SWR-24-6-60	1 Year Limited Warranty	Steel Wheel Riser 60 In. x 24 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	266

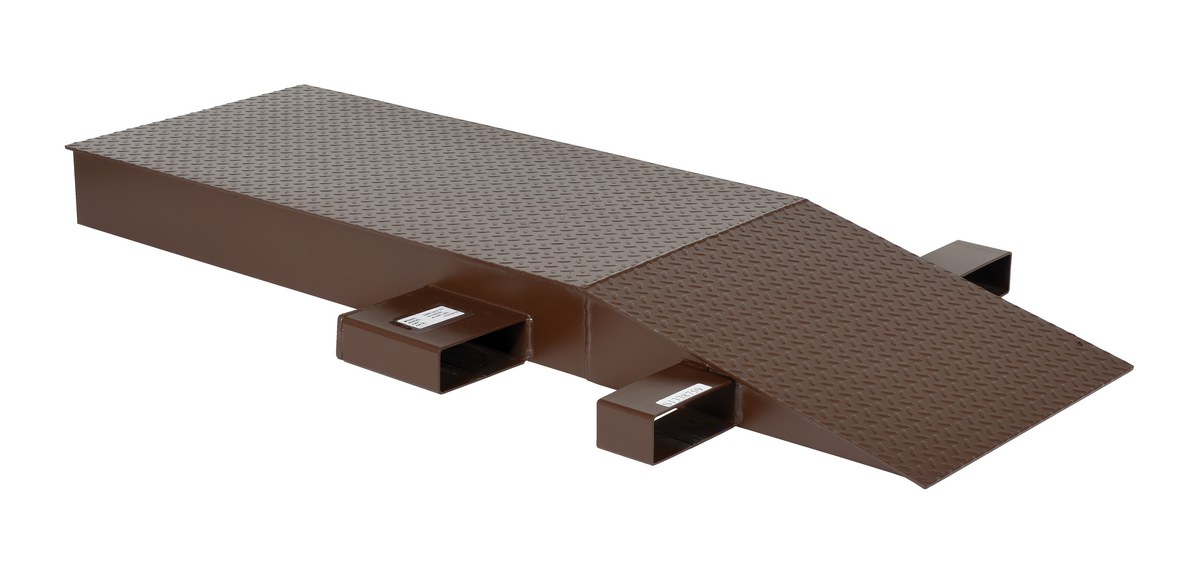

SWR-24-6-72	1 Year Limited Warranty	Steel Wheel Riser 72 In. x 24 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	310
SWR-24-6-84	1 Year Limited Warranty	Steel Wheel Riser 84 In. x 24 In. x 6-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	363

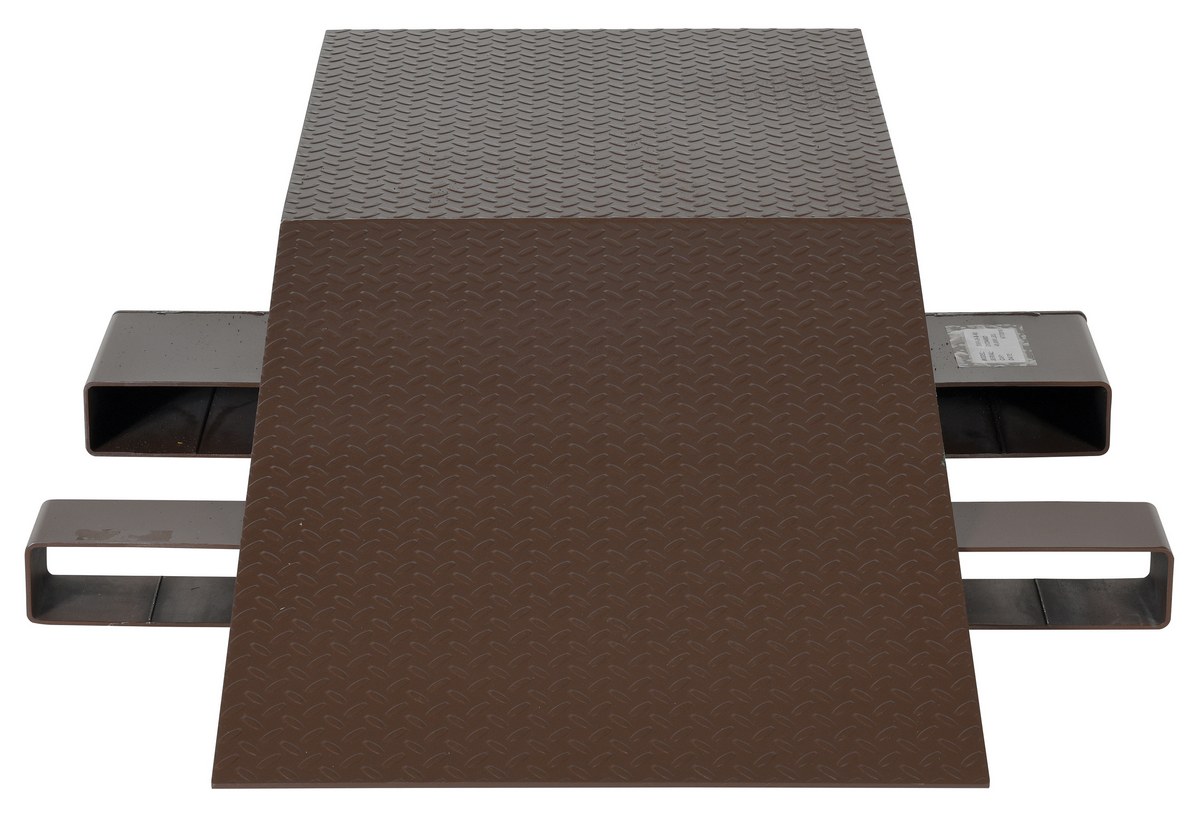

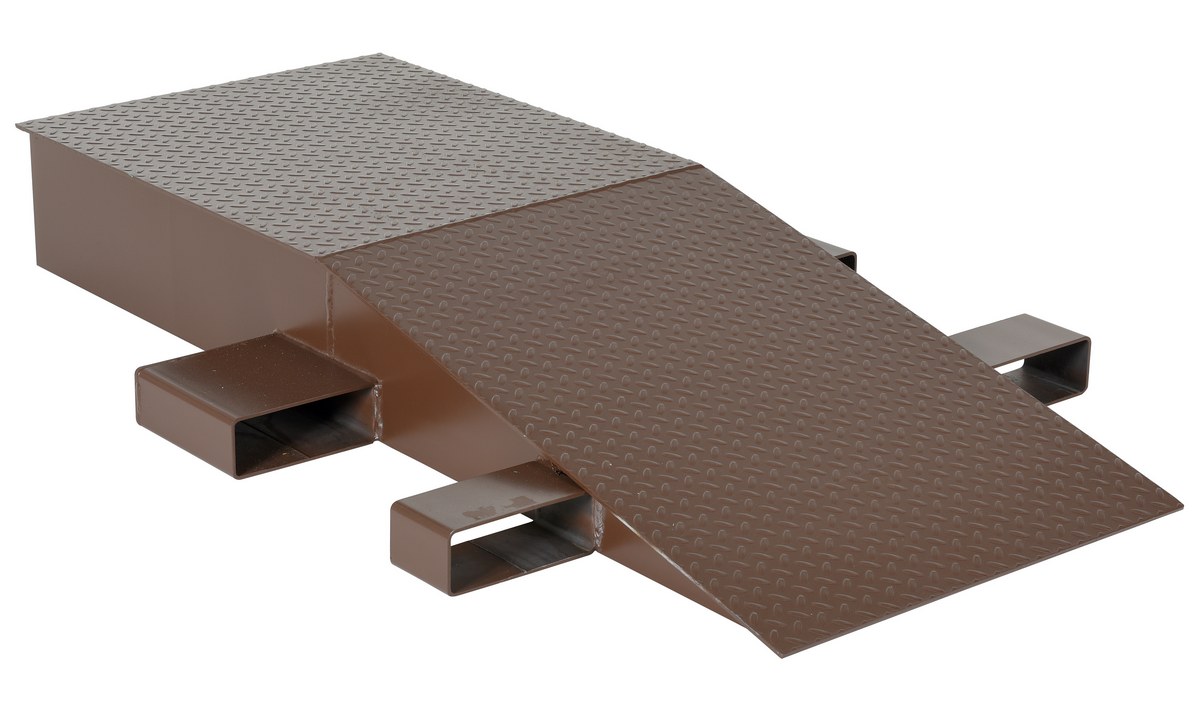

SWR-24-8-60	1 Year Limited Warranty	Steel Wheel Riser 60 In. x 24 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	271
SWR-24-8-72	1 Year Limited Warranty	Steel Wheel Riser 72 In. x 24 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	334

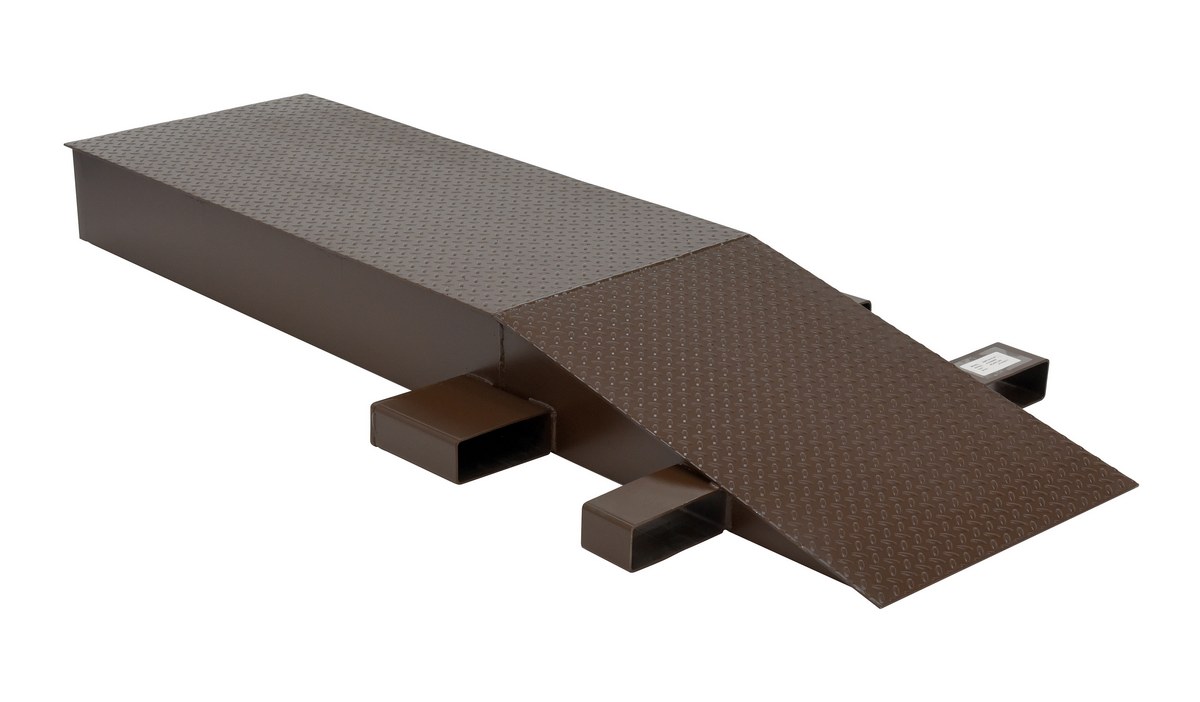

SWR-24-8-84	1 Year Limited Warranty	Steel Wheel Riser 84 In. x 24 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	371

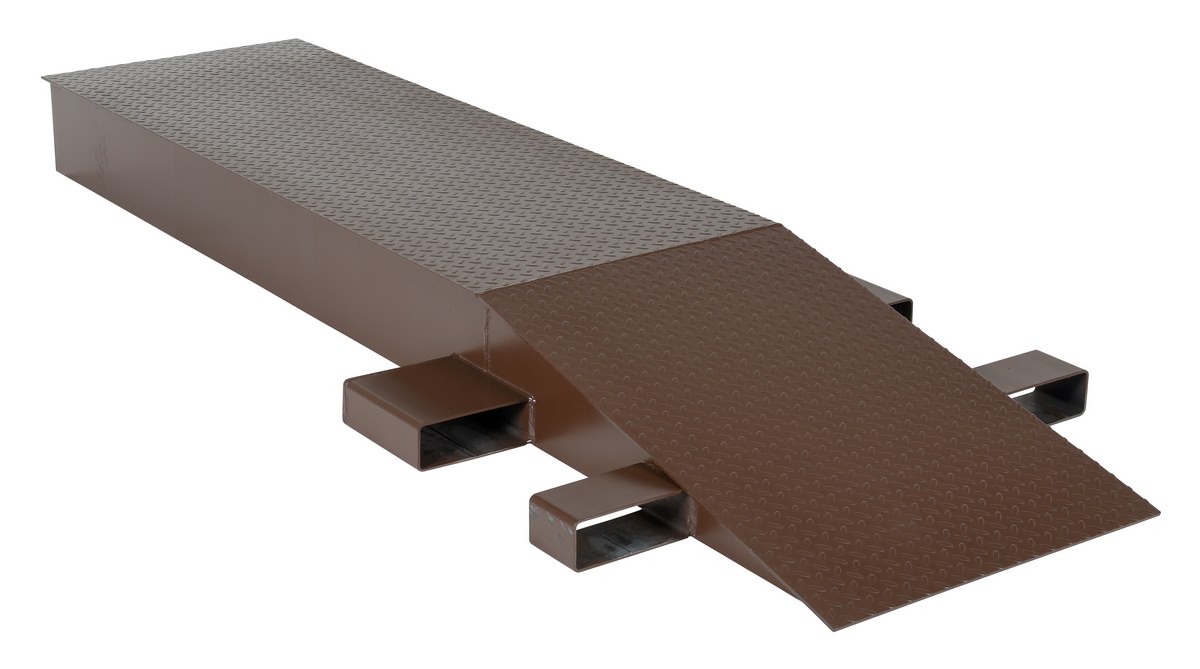

SWR-24-8-96	1 Year Limited Warranty	Steel Wheel Riser 96 In. x 24 In. x 8-1/4 In. 40,000 Lb. Capacity Brown	Uniform Capacity Per Pair - [Sold Each] (lb.): 40000 Top Treadplate Thickness (in.): 1/4	416

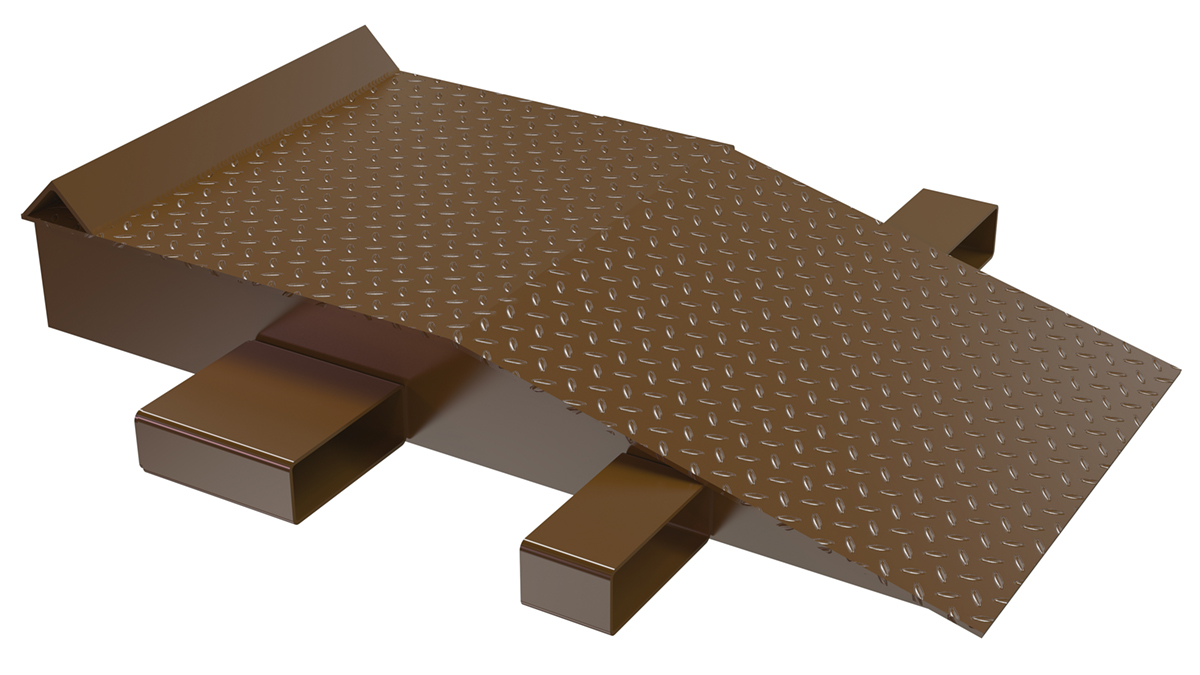

SWR-ROG-18-10-60	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 60 In. x 18 In. x 10 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	242
SWR-ROG-18-10-72	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 72 In. x 18 In. x 10 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	286
SWR-ROG-18-10-84	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 84 In. x 18 In. x 10 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	318
SWR-ROG-18-10-96	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 96 In. x 18 In. x 10 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	364
SWR-ROG-18-12-108	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 108 In. x 18 In. x 12 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	428
SWR-ROG-18-12-72	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 72 In. x 18 In. x 12 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	292

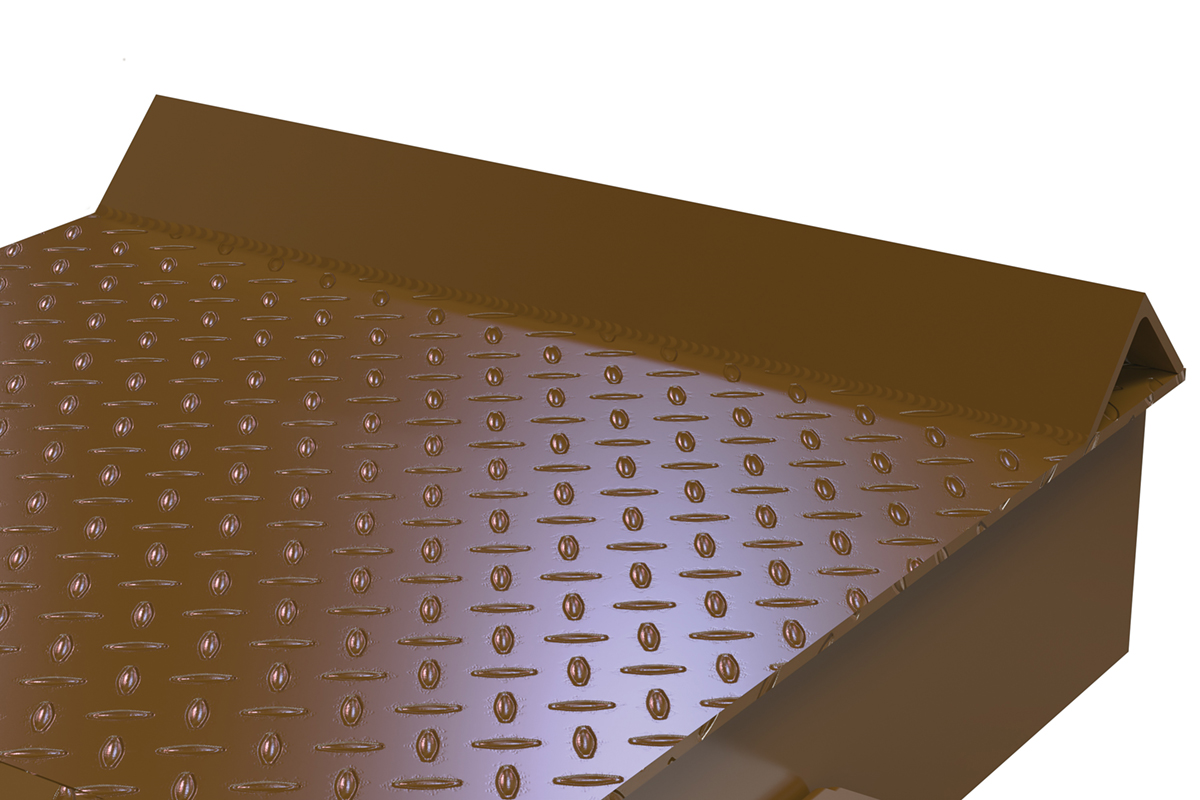

SWR-ROG-18-12-84	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 84 In. x 18 In. x 12 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	341
SWR-ROG-18-12-96	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 96 In. x 18 In. x 12 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	377
SWR-ROG-18-6-48	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 48 In. x 18 In. x 6 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	185
SWR-ROG-18-6-60	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 60 In. x 18 In. x 6 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	217
SWR-ROG-18-6-72	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 72 In. x 18 In. x 6 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	242
SWR-ROG-18-6-84	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 84 In. x 18 In. x 6 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	277
SWR-ROG-18-8-60	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 60 In. x 18 In. x 8 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	233
SWR-ROG-18-8-72	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 72 In. x 18 In. x 8 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	262
SWR-ROG-18-8-84	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 84 In. x 18 In. x 8 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	302
SWR-ROG-18-8-96	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 96 In. x 18 In. x 8 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	331
SWR-ROG-24-10-60	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 60 In. x 24 In. x 10 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	282
SWR-ROG-24-10-72	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 72 In. x 24 In. x 10 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	335
SWR-ROG-24-10-84	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 84 In. x 24 In. x 10 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	372
SWR-ROG-24-10-96	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 96 In. x 24 In. x 10 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	428
SWR-ROG-24-12-108	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 108 In. x 24 In. x 12 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	524
SWR-ROG-24-12-72	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 72 In. x 24 In. x 12 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	340
SWR-ROG-24-12-84	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 84 In. x 24 In. x 12 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	400
SWR-ROG-24-12-96	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 96 In. x 24 In. x 12 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	440
SWR-ROG-24-6-48	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 48 In. x 24 In. x 6 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	212
SWR-ROG-24-6-60	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 60 In. x 24 In. x 6 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	252
SWR-ROG-24-6-72	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 72 In. x 24 In. x 6 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	283
SWR-ROG-24-6-84	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 84 In. x 24 In. x 6 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	326
SWR-ROG-24-8-60	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 60 In. x 24 In. x 8 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	271
SWR-ROG-24-8-72	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 72 In. x 24 In. x 8 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	305
SWR-ROG-24-8-84	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 84 In. x 24 In. x 8 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	355
SWR-ROG-24-8-96	90 Days Limited Warranty	Steel Wheel Riser With Roll Off Guard 96 In. x 24 In. x 8 In. 40,000 Lb. Capacity Brown	Uniform Capacity (lbs.): 40000	389

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SWR-18-10-60

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Per Pair - [Sold Each] (lb.): 40000
Top Treadplate Thickness (in.): 1/4
Uniform Capacity Per Pair - [Sold Each] (lb.): 40000
Top Treadplate Thickness (in.): 1/4
