Product Family Overview

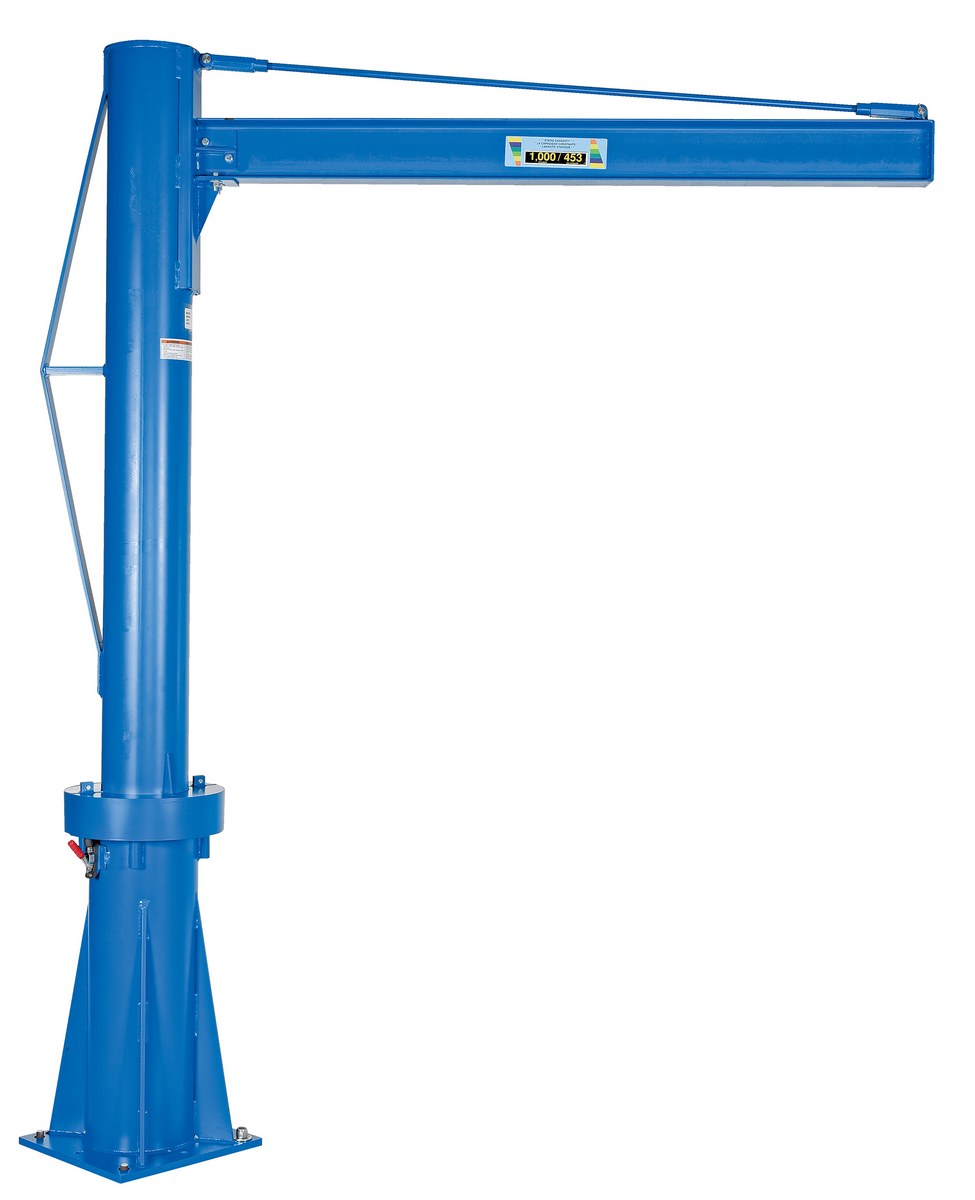

Multi-Station Transportable Jib Cranes
SERIES: JIB-P

Designed for use in multiple locations, includes jib crane and one base socket. Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. 360 degree continuous rotation of heavy loads. Handle most applications up to 1,000 lbs. 6" high I-beam with 4" flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoists & Trollies can be ordered seperately. Painted finish.

  • Unique Jib designed can be used in multiple locations

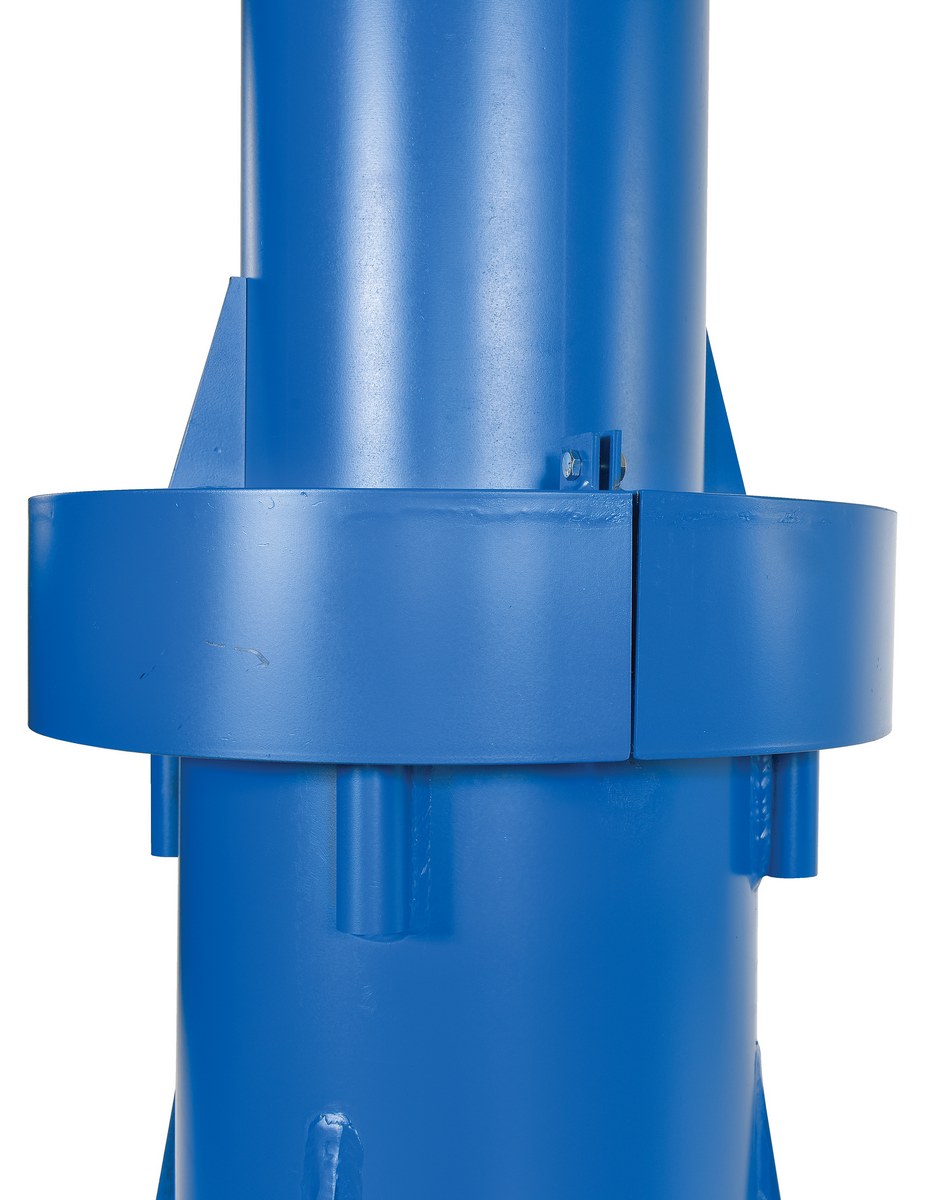

  • Friction brake design allows positive locking and controlled rotation of heavy loads
  • Arm manually rotates 360 degrees for maximum versatility
  • Rugged welded steel construction provides long lasting use

Designed for use in multiple locations, includes jib crane and one base socket. Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. 360 degree continuous rotation of heavy loads. Handle most applications up to 1,000 lbs. 6" high I-beam with 4" flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoists & Trollies can be ordered seperately. Painted finish.

  • Unique Jib designed can be used in multiple locations
  • Friction brake design allows positive locking and controlled rotation of heavy loads
  • Arm manually rotates 360 degrees for maximum versatility
  • Rugged welded steel construction provides long lasting use

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

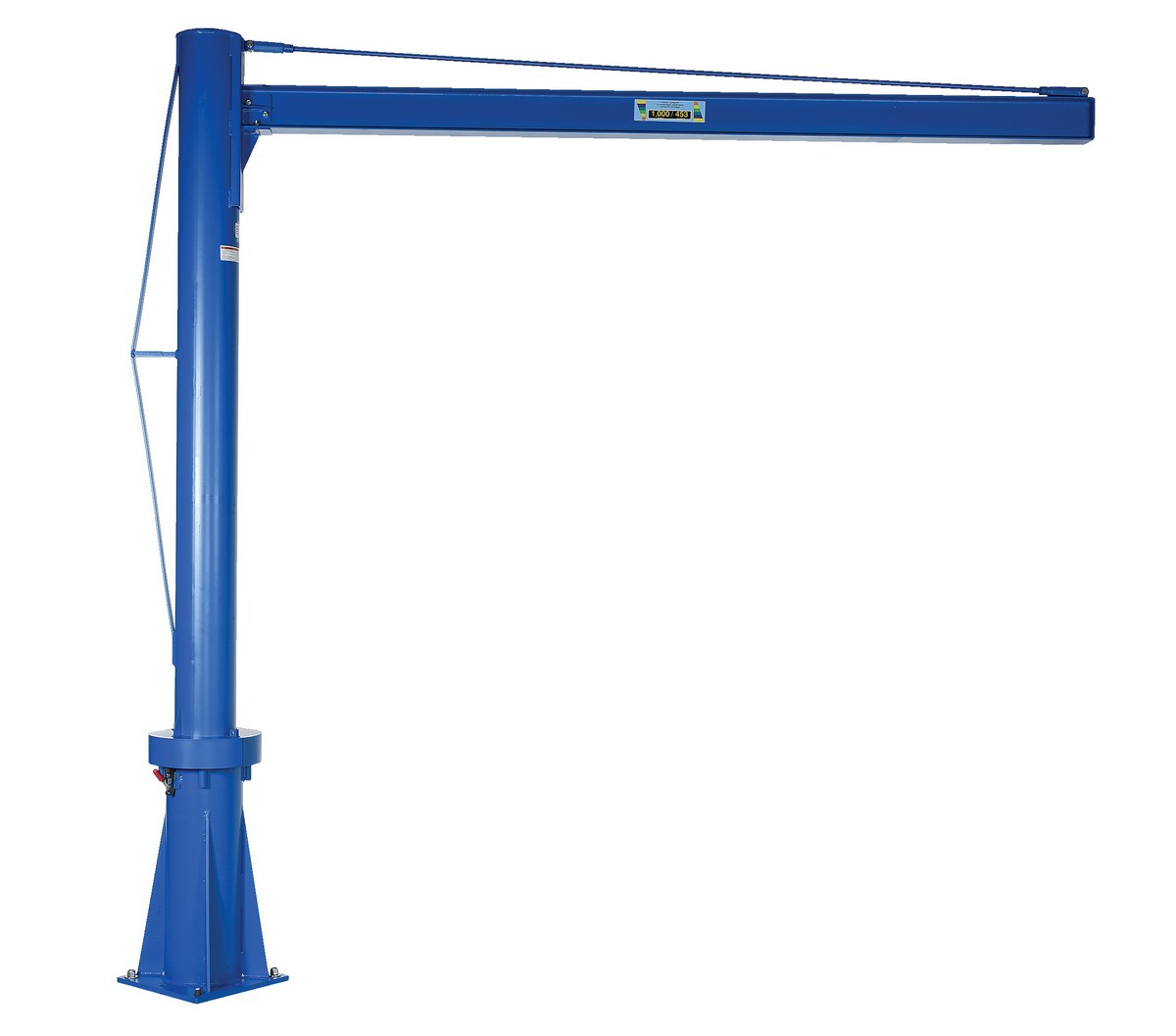

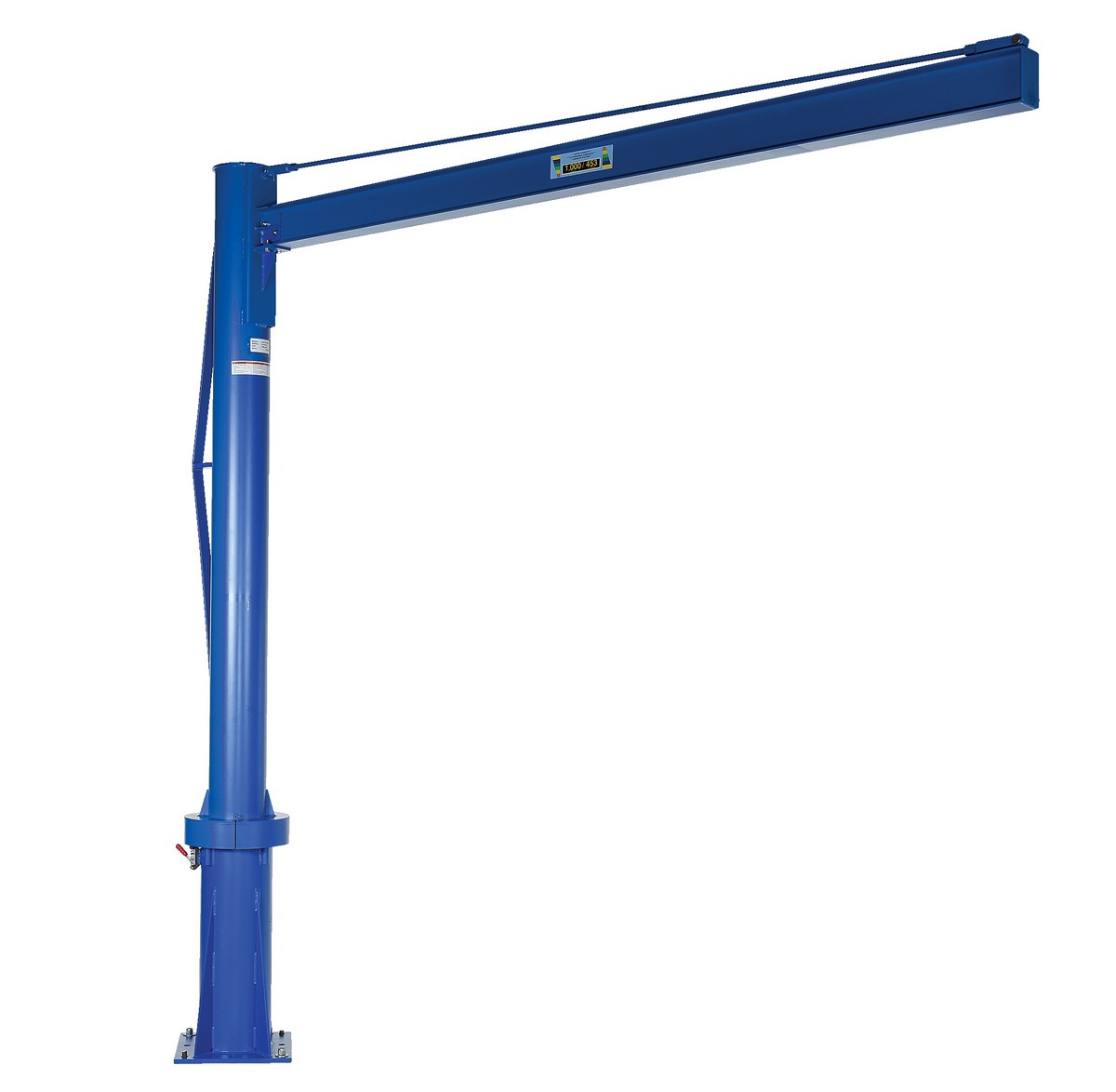

JIB-P-10-10-10 JIB-P-10-10-101 Year Limited WarrantySteel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120
640

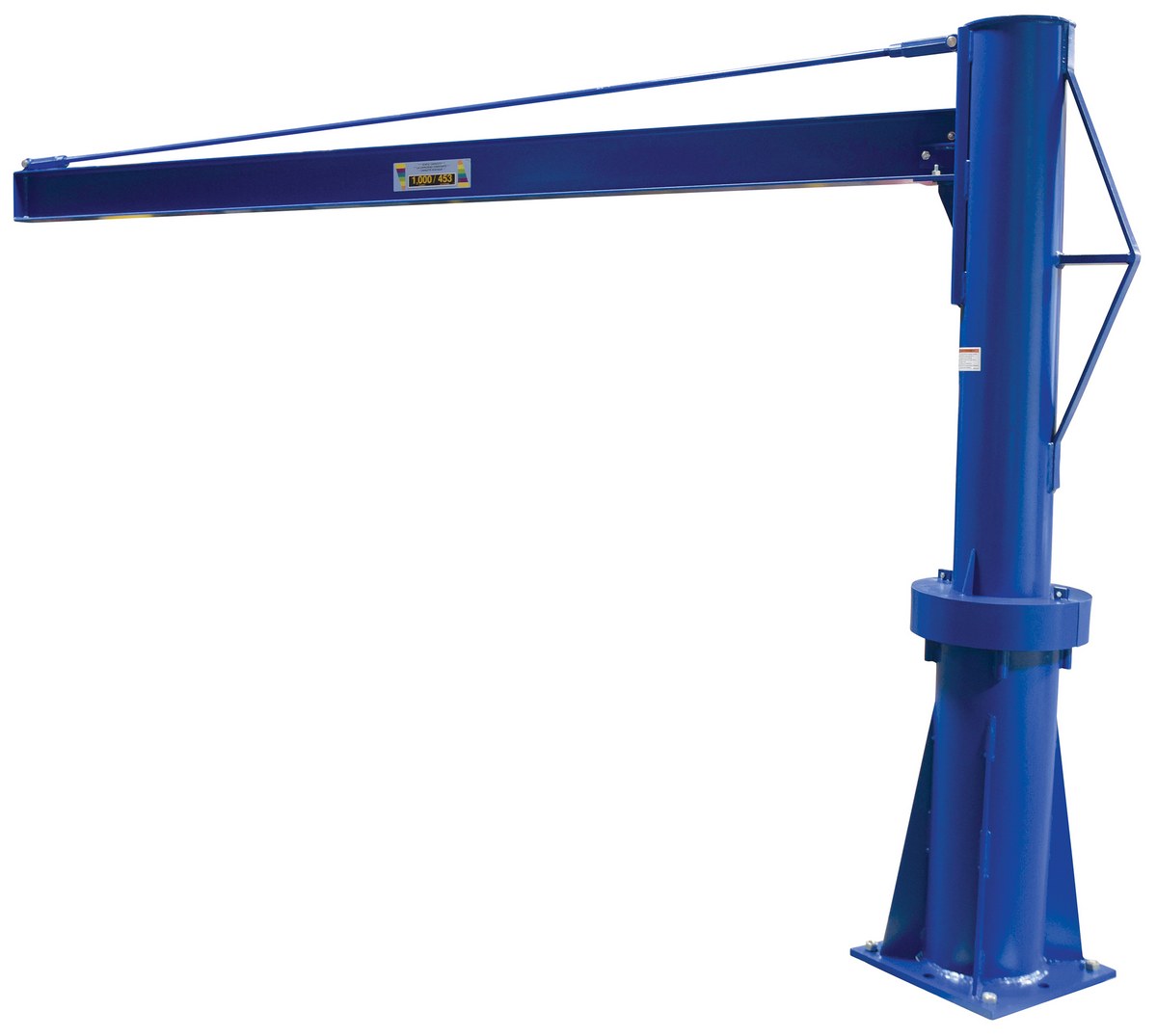

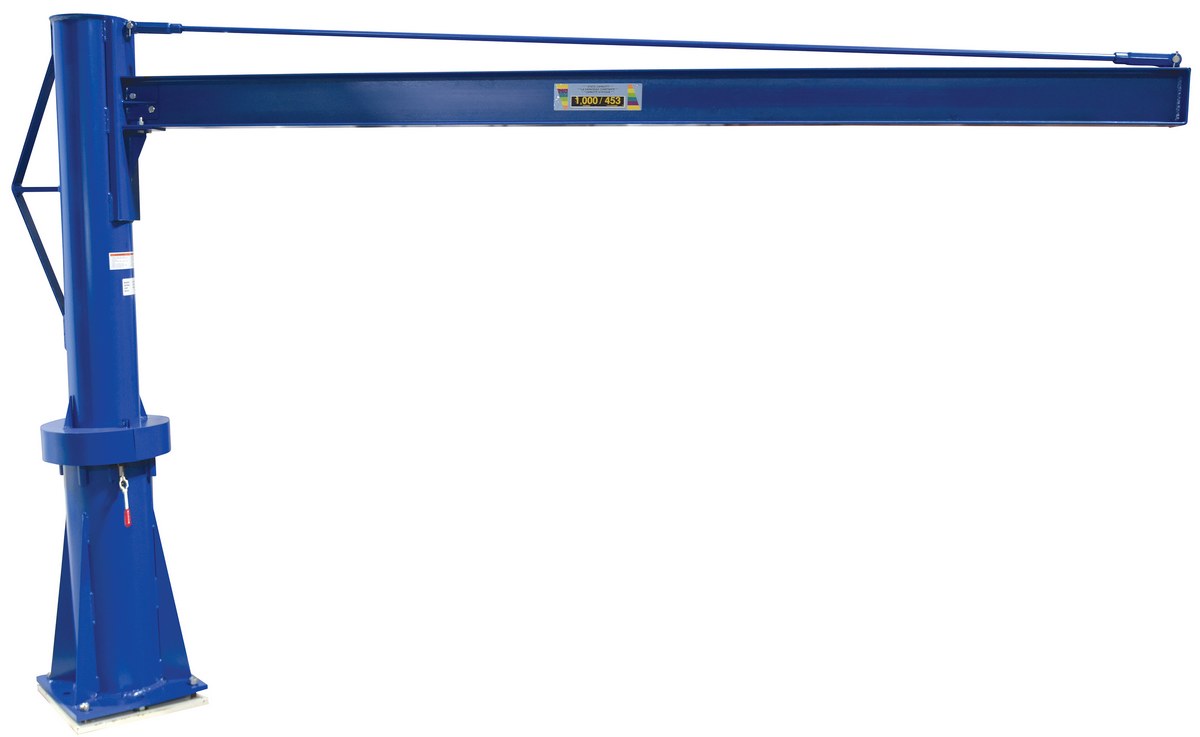

JIB-P-10-10-6 JIB-P-10-10-61 Year Limited WarrantySteel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120
710

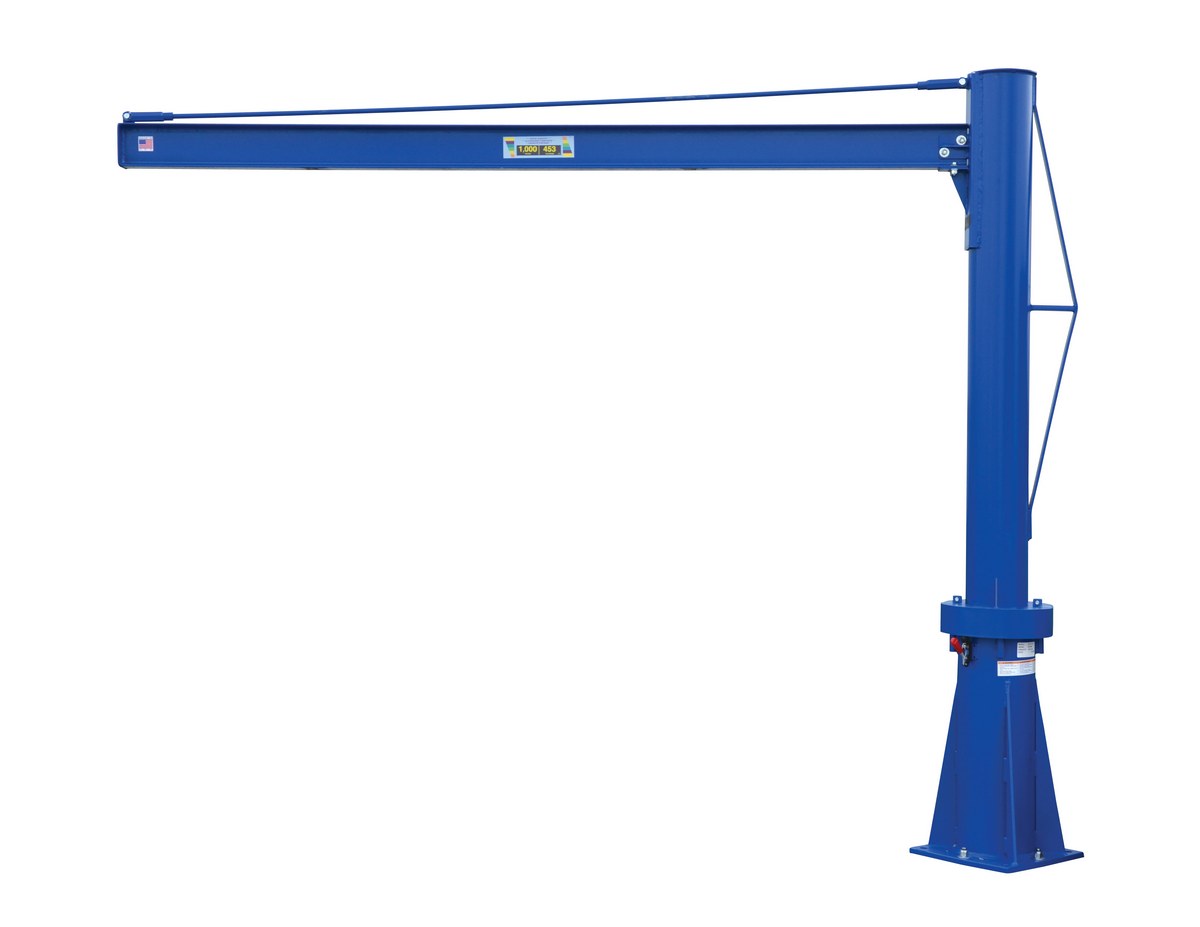

JIB-P-10-10-8 JIB-P-10-10-81 Year Limited WarrantySteel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120
790

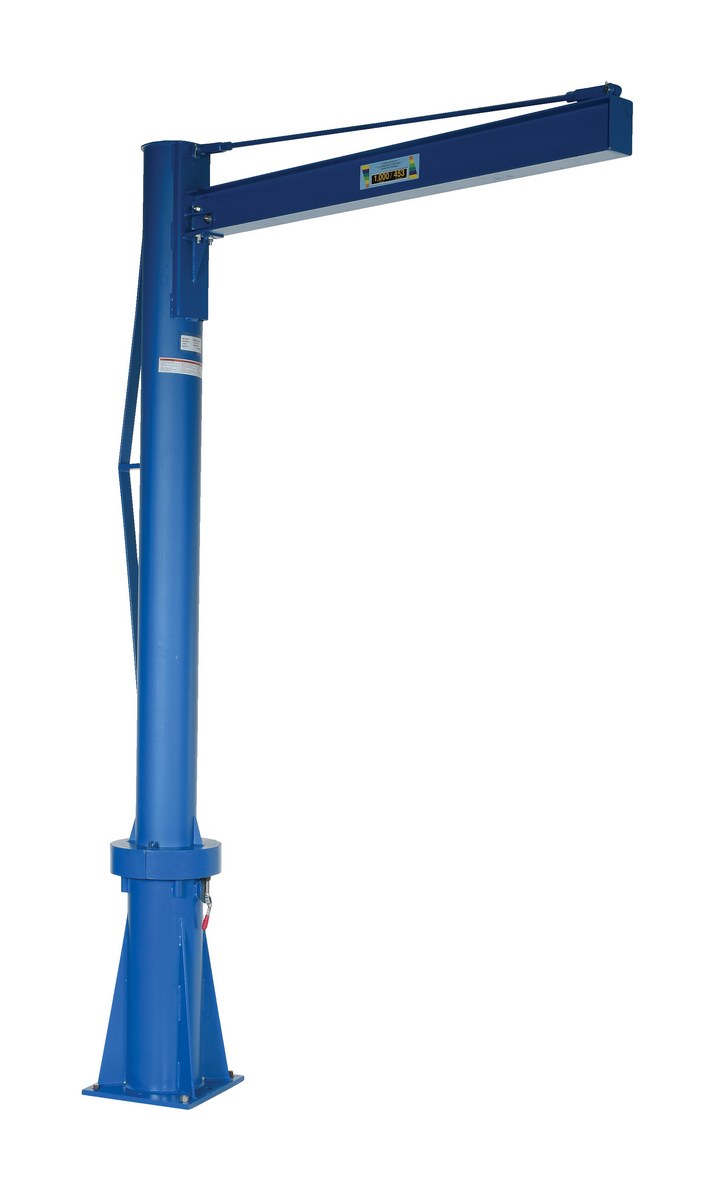

JIB-P-10-6-10 JIB-P-10-6-101 Year Limited WarrantySteel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72
731

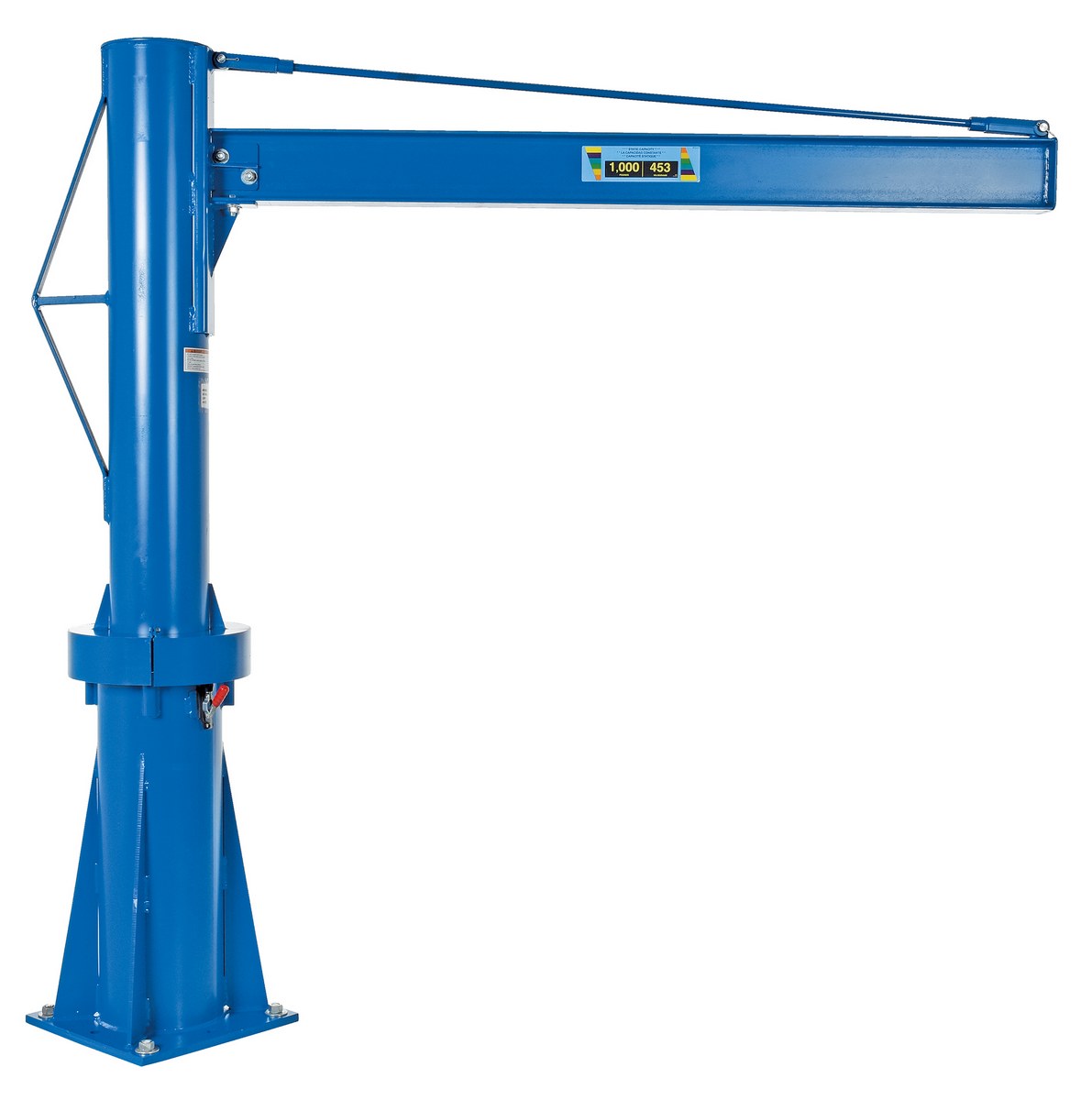

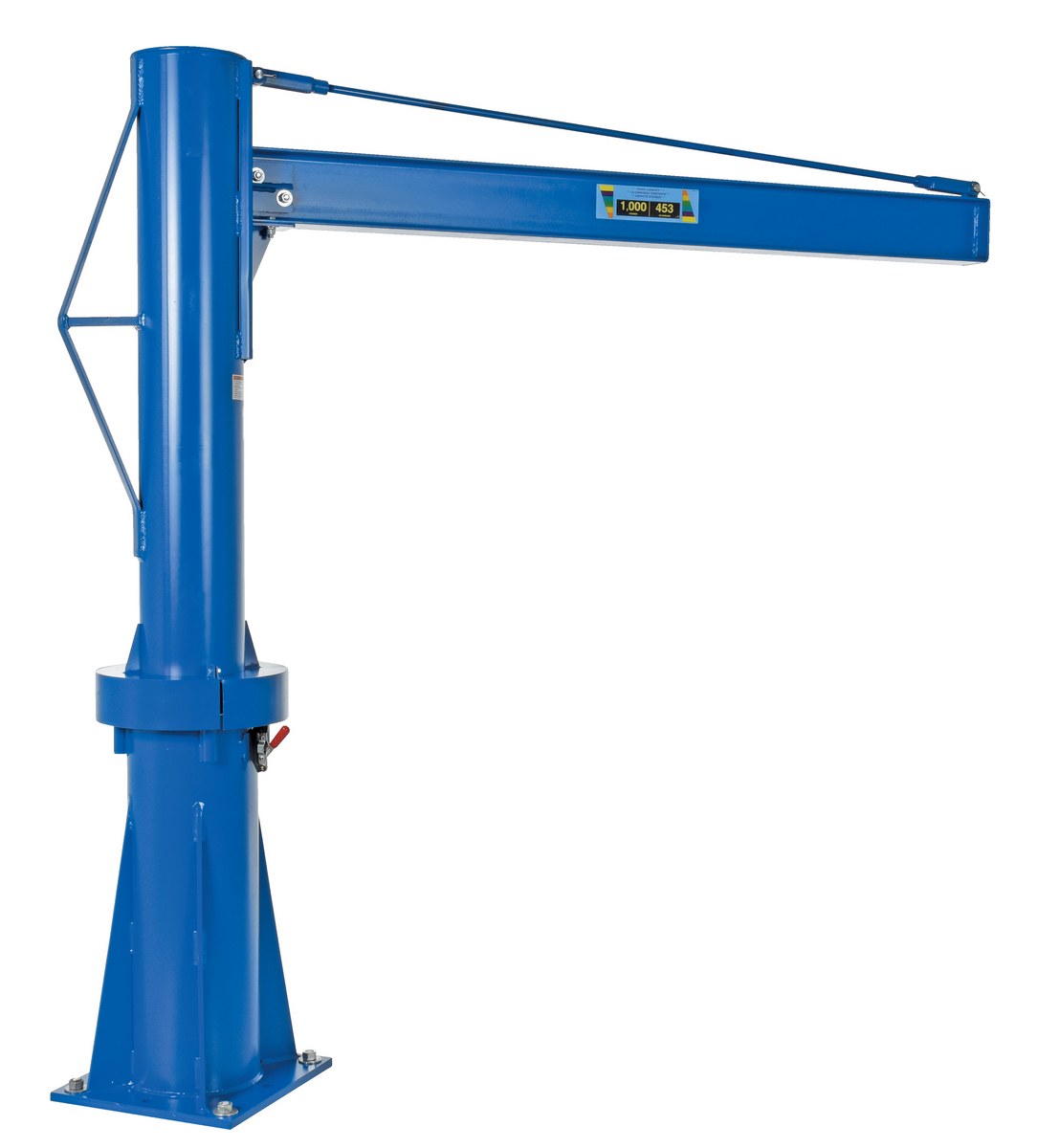

JIB-P-10-6-6 JIB-P-10-6-61 Year Limited WarrantySteel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72
710

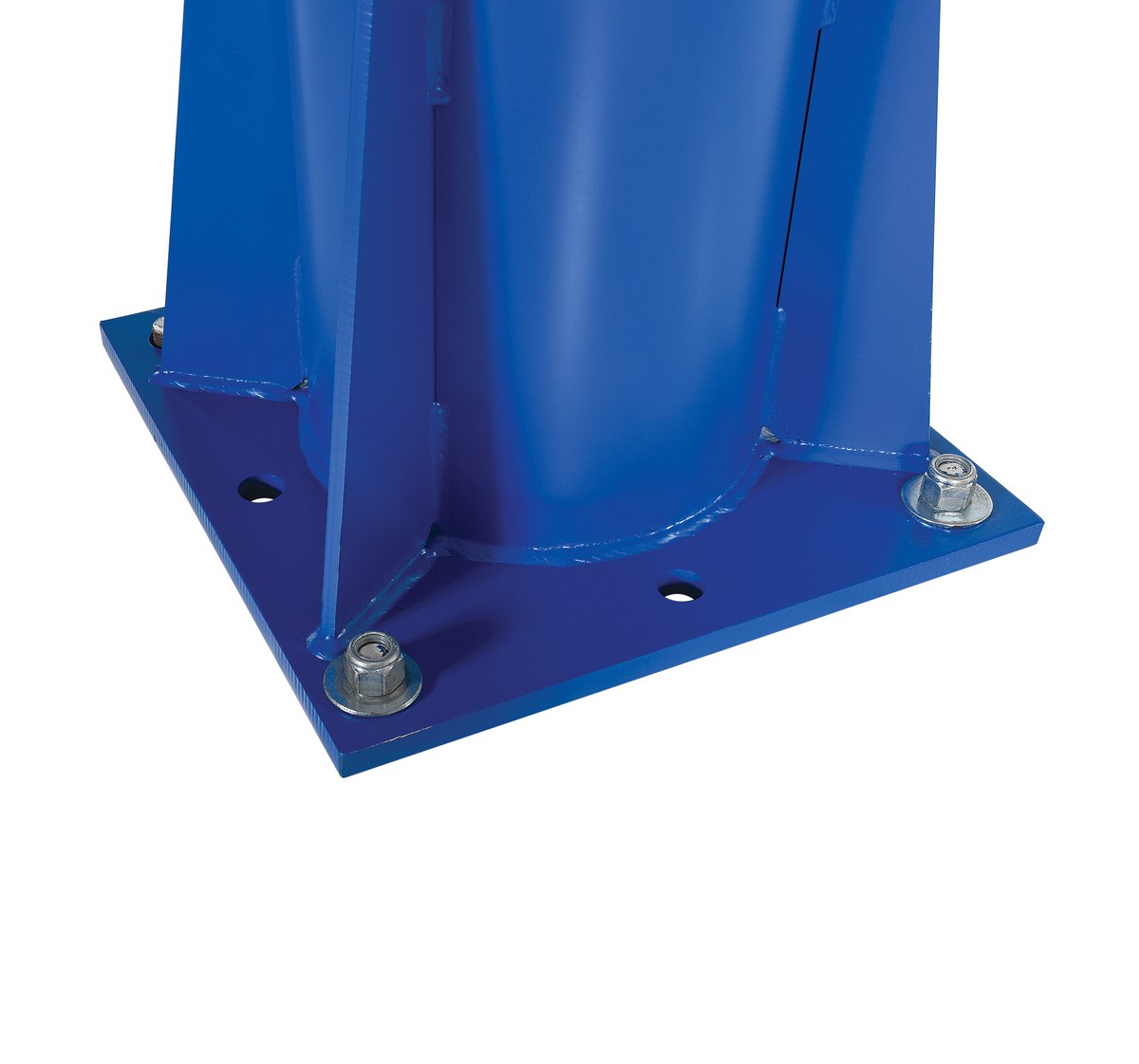

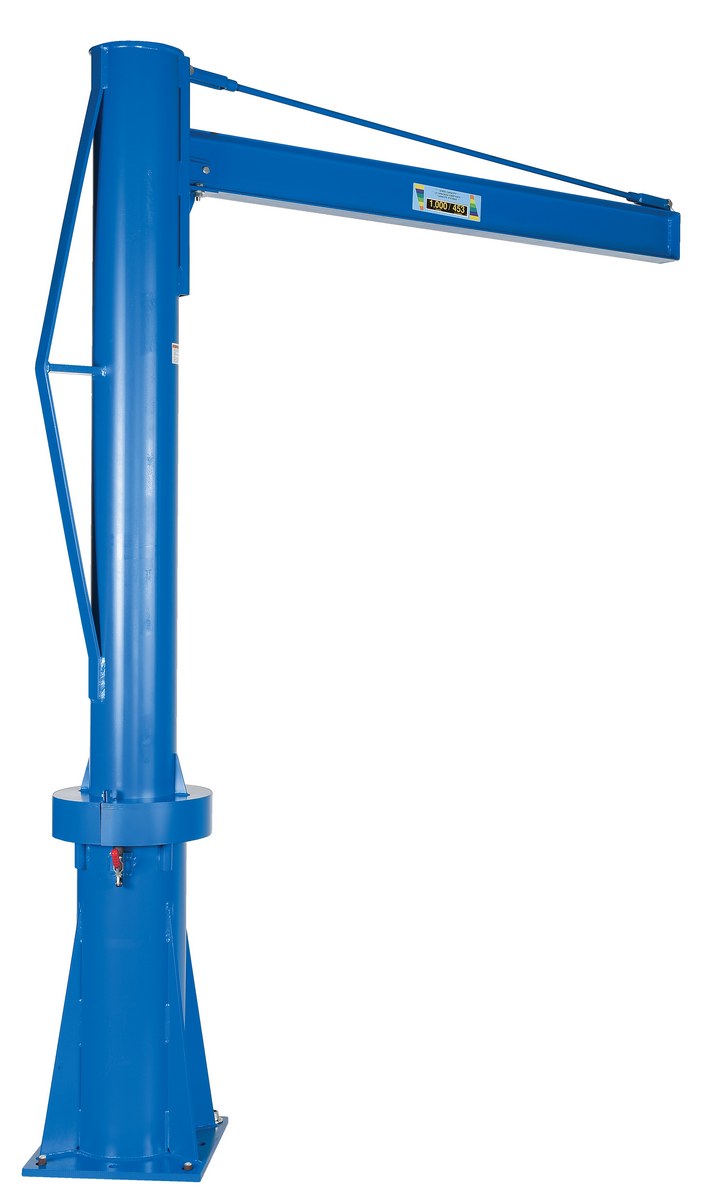

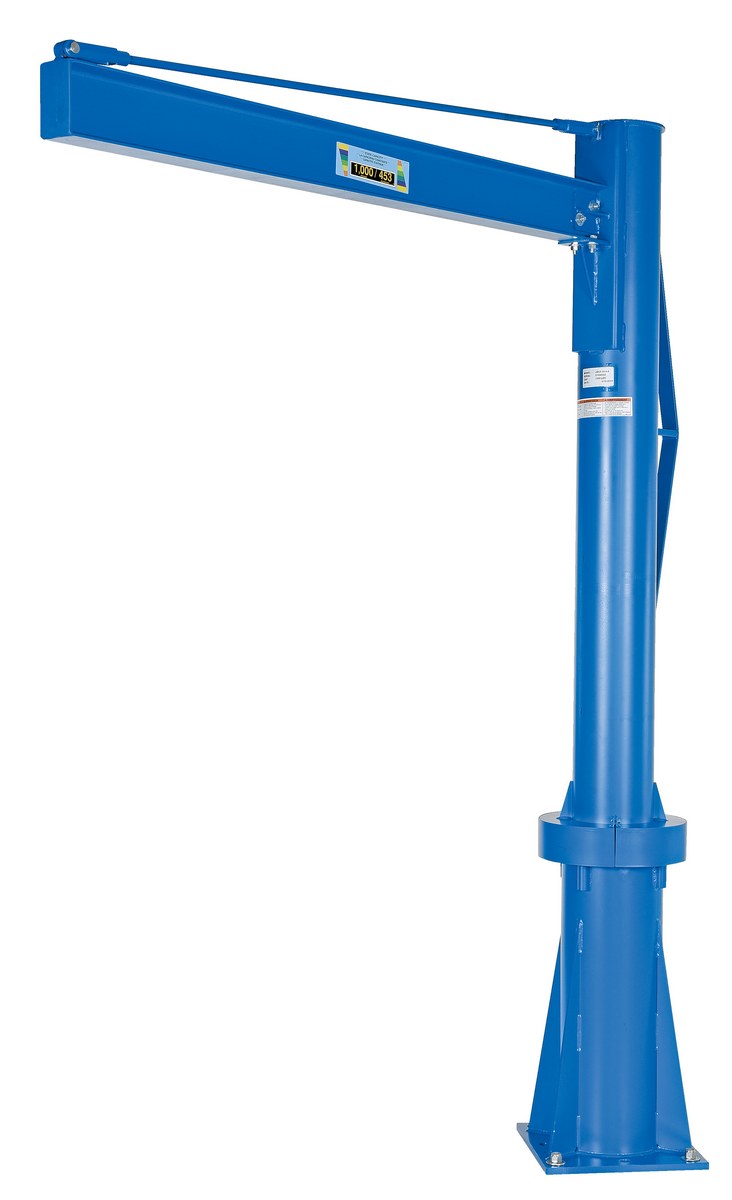

JIB-P-10-6-8 JIB-P-10-6-81 Year Limited WarrantySteel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72
716

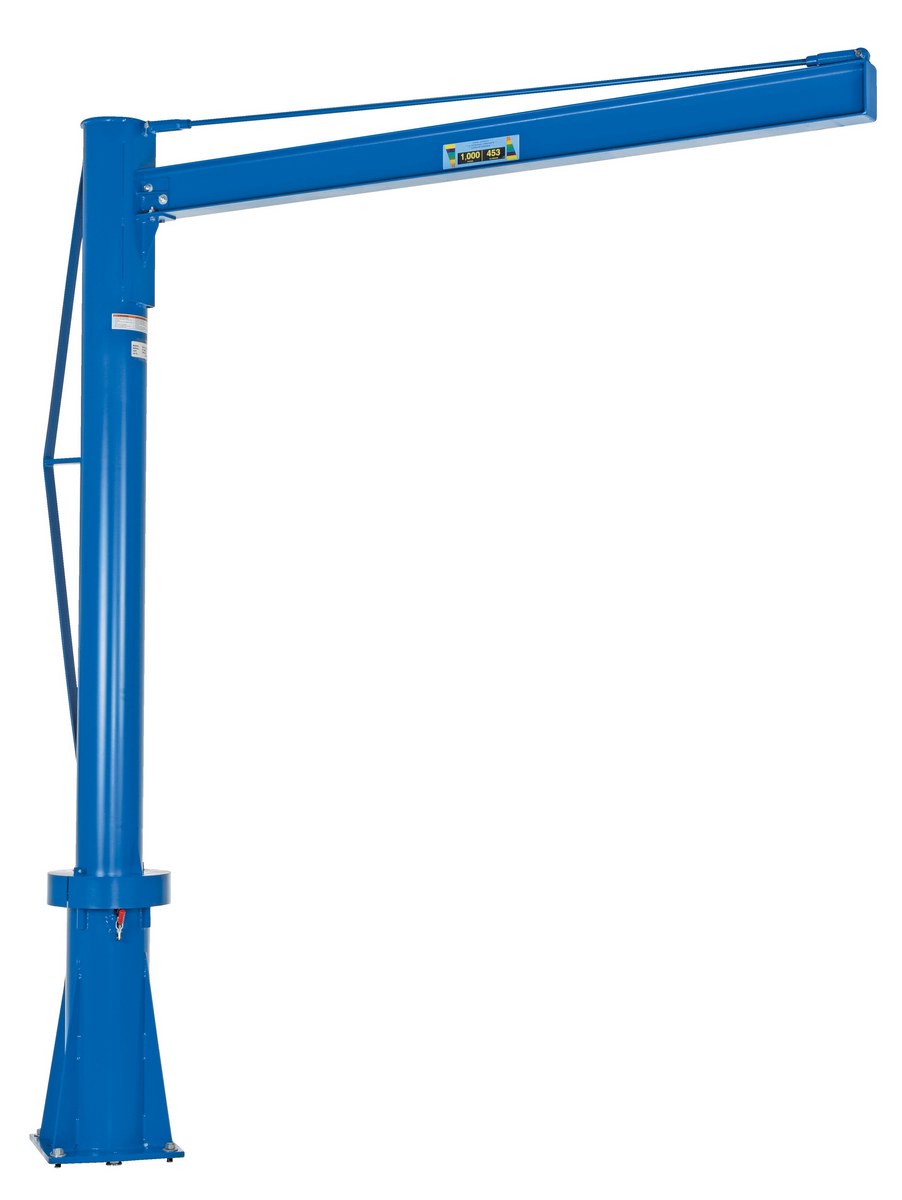

JIB-P-10-8-10 JIB-P-10-8-101 Year Limited WarrantySteel Multi Station Jib Crane 96 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96
773
JIB-P-10-8-6 JIB-P-10-8-61 Year Limited WarrantySteel Multi Station Jib Crane 96 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96
606

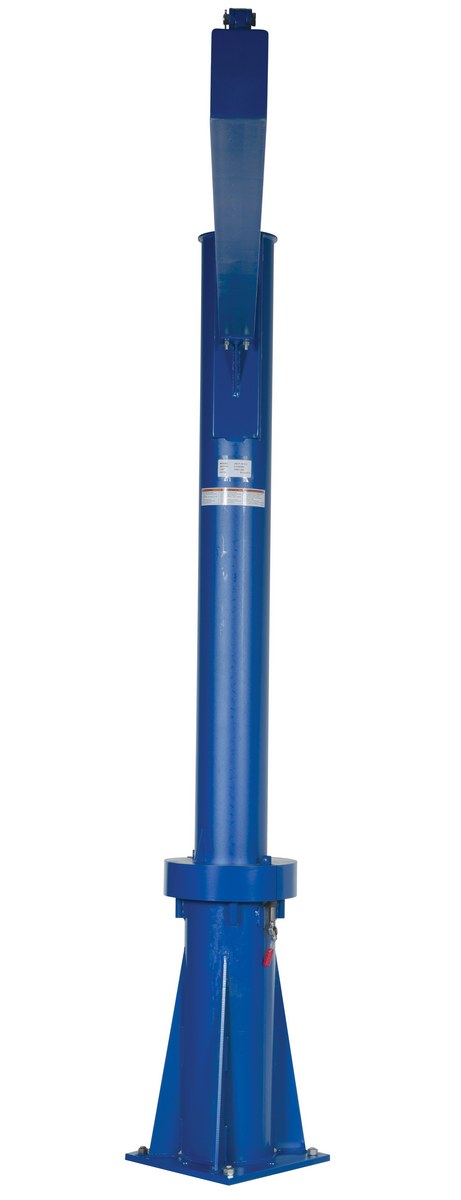

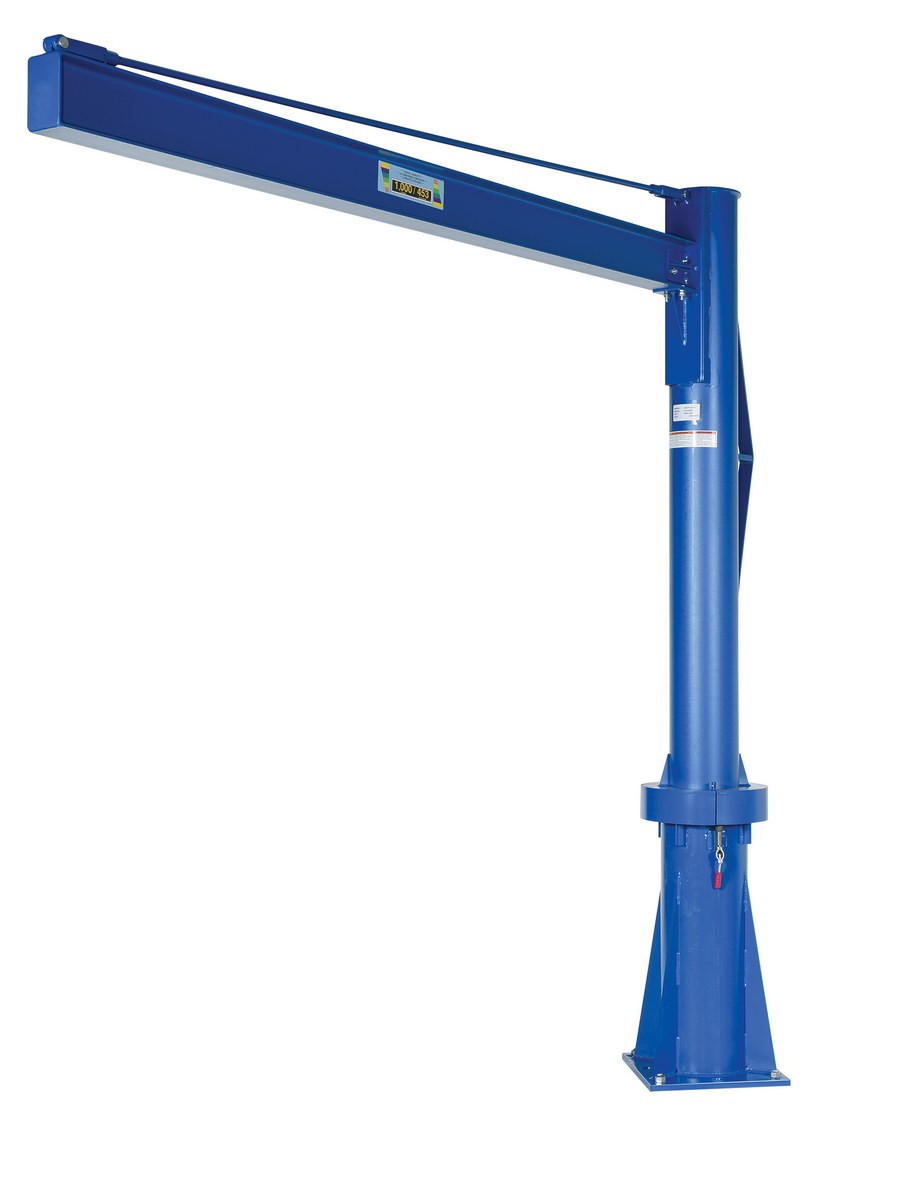

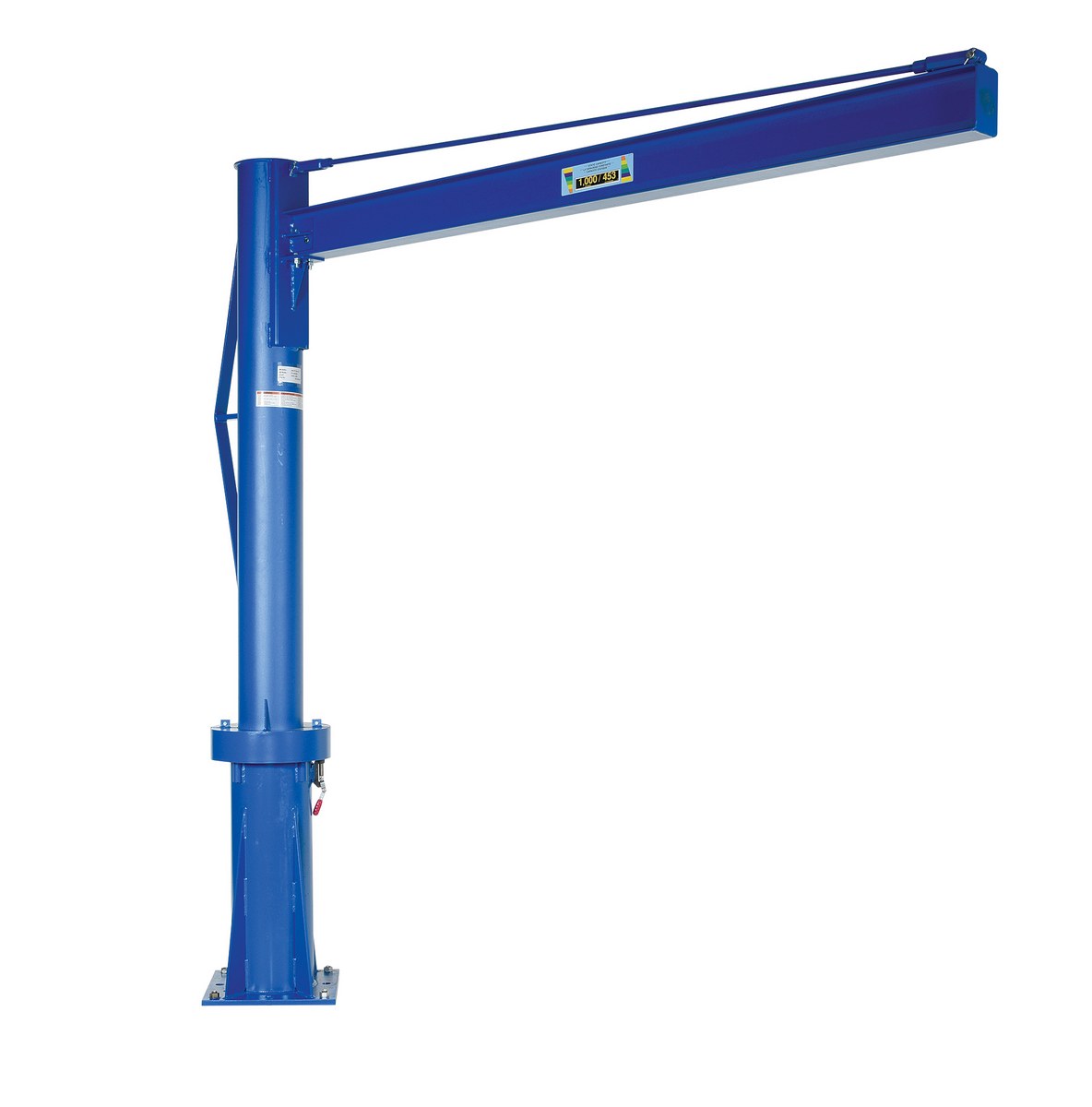

JIB-P-10-8-8 JIB-P-10-8-81 Year Limited WarrantySteel Multi Station Jib Crane 96 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96
683

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

JIB-P-10-10-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120

JIB-P-10-10-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120

JIB-P-10-10-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120

JIB-P-10-6-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72

JIB-P-10-6-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72

JIB-P-10-6-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72

JIB-P-10-8-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96

JIB-P-10-8-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96

JIB-P-10-8-8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96
Uniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96
For More Details of the Option Click the Red Model Button

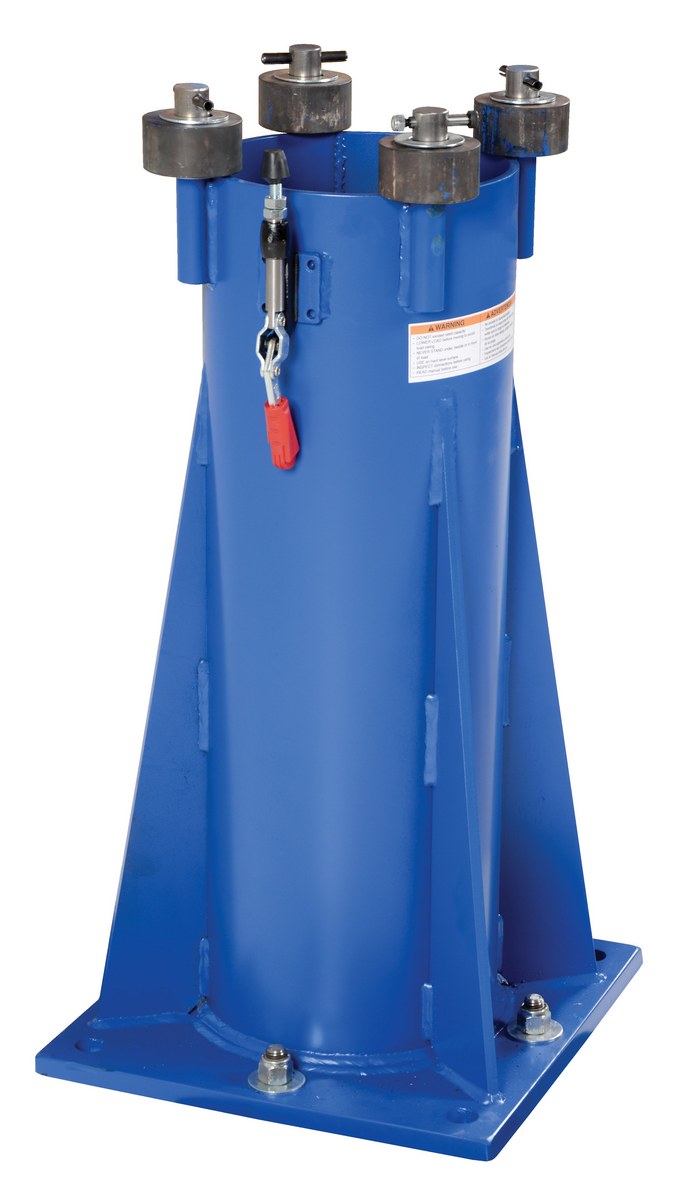

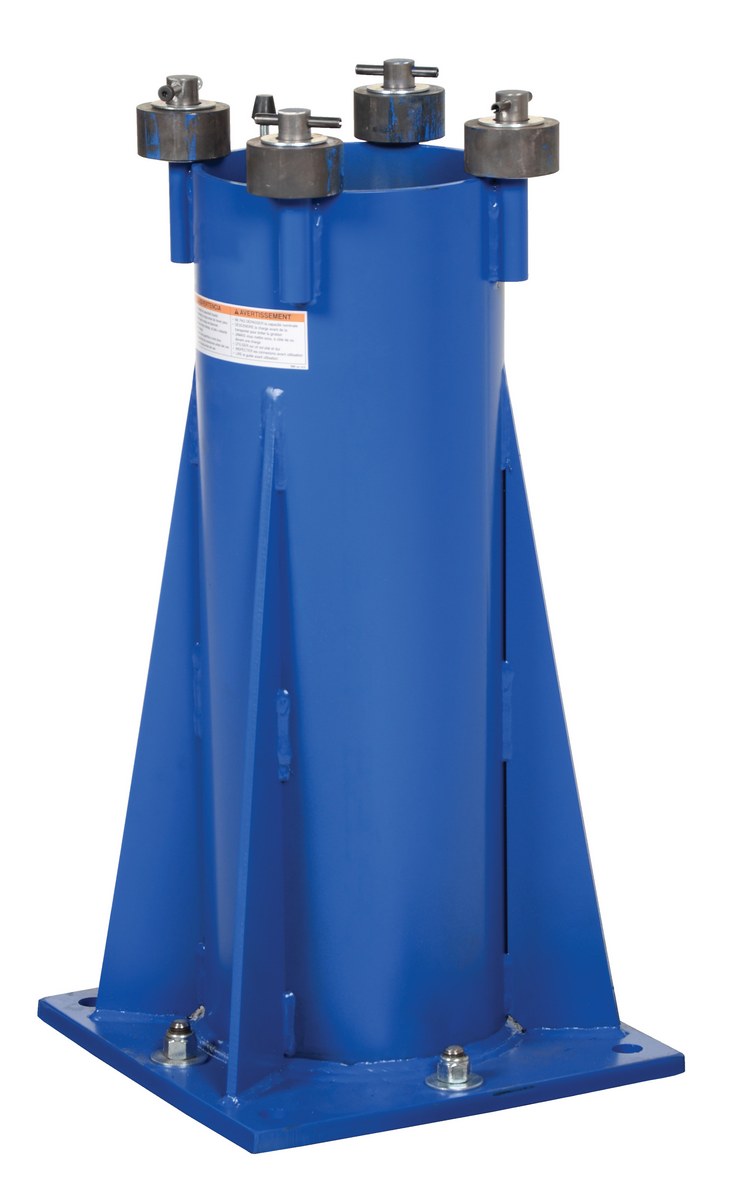

JIB-P-B JIB-P-B1 Year Limited WarrantyFactory Installed Steel Base Socket For Multi Station Transportable Jib Crane BlueCap or Base Type: Base
Compatible Post Width (in): 17
267

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Multi-Station Transportable Jib Cranes PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


JIB-P-10-10-10

JIB-P-10-10-6

JIB-P-10-10-8

JIB-P-10-6-10

JIB-P-10-6-6

JIB-P-10-6-8

JIB-P-10-8-10

JIB-P-10-8-6

JIB-P-10-8-8

JIB-P-B

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: I am interested in the multi station JIB. I have concrete where I want to install it. Must we pour a new foundation?

A: Because we do not know the condition and strength of the users concrete, pouring a new foundation is the only way we can guarantee the unit will not fail. We can only recommend installing per the instructions in the owners manual. Normal use of the jib causes vibrations that could potentially loosen a wedge anchor. We spec out J-anchors for use in new concrete.
