FEATURED Extruded Aluminum Hose & Cable Crossovers

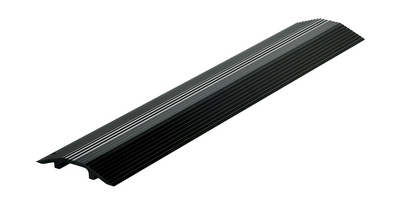

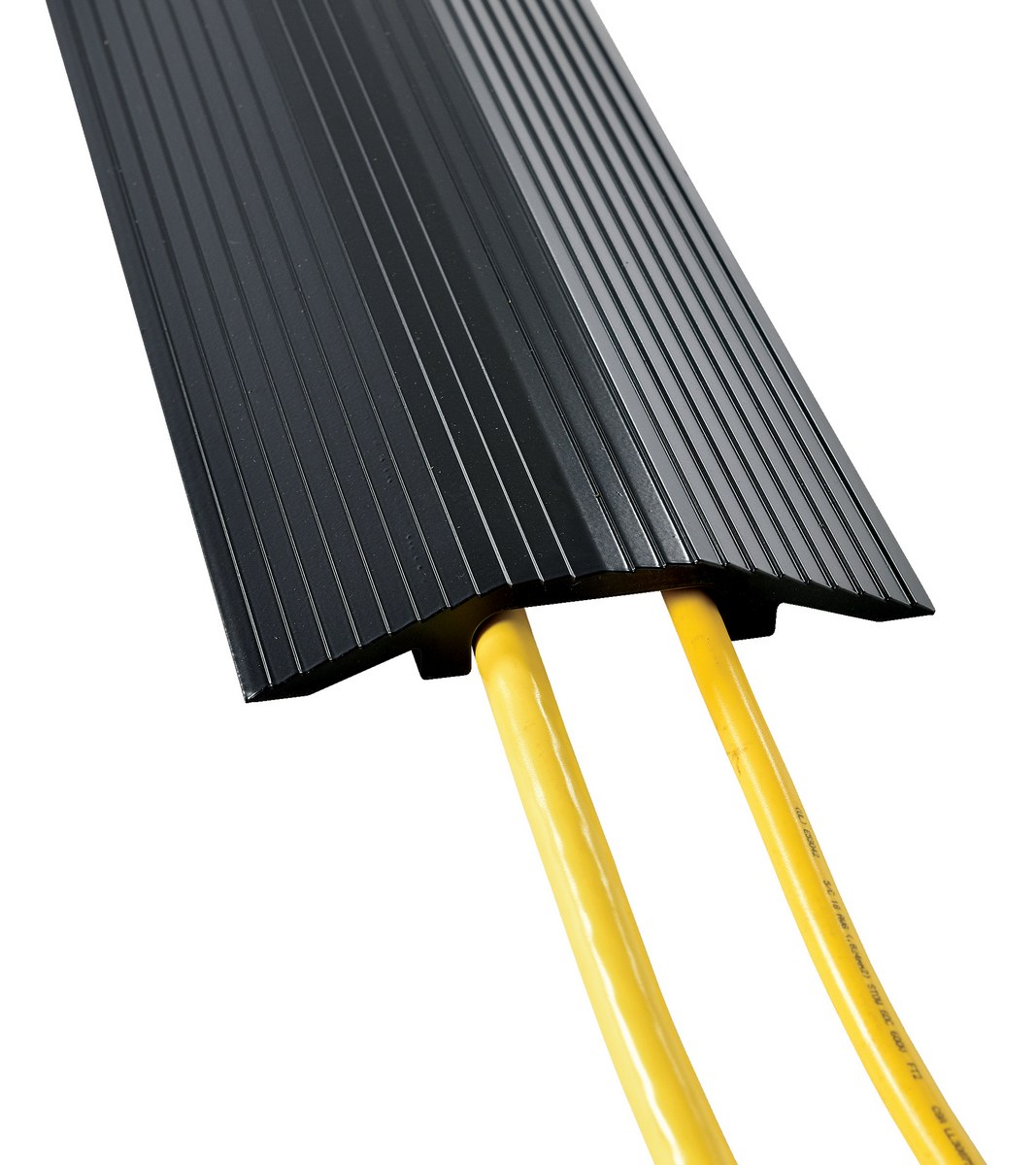

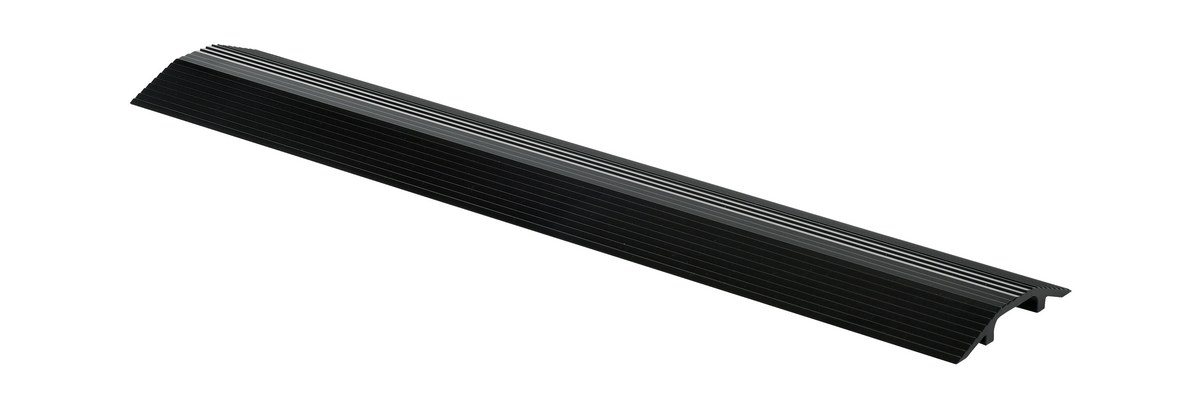

model: HCR-36-BK

Extruded Aluminum Hose & Cable Crossovers

SERIES: WR,HCR,LHCR,XHCR 56Products

Best Seller

Powder Coat

Quick Ship

Aluminum Hose and Cable Bridges for Traffic Protection

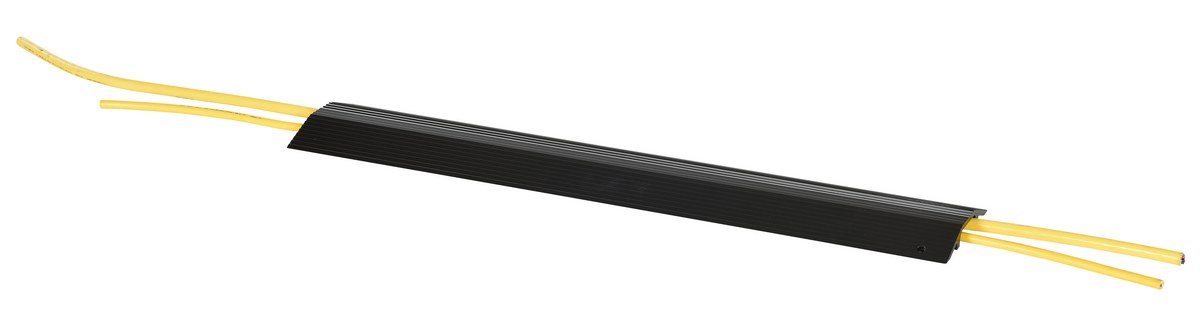

Extruded aluminum hose and cable crossovers provide a durable way to protect cords, hoses, wires, and small lines from pedestrian traffic, carts, hand trucks, and rolling equipment. Designed for warehouses, maintenance areas, production floors, event spaces, construction zones, and commercial facilities, these cable protector bridges help reduce trip hazards, abrasion, and downtime from damaged lines.

Heavy-Duty Aluminum Construction

Extruded aluminum construction provides strength, corrosion resistance, and a clean professional appearance. Serrated top surfaces and edges improve traction as personnel and equipment pass over the crossover, while baked-in powder coat finishes are available on select models for added visibility and toughness.

Channel Sizes and Load Ratings

This family includes compact wire ramps, standard hose and cable ramps, low-profile crossovers, and extra-heavy-duty bridge designs. Usable spans range from smaller 1-1/4 inch wide openings to larger 4-1/2 inch wide channels, with single wheel capacities from 2,500 lb. to 10,000 lb. depending on model.

Lengths and Finish Options

Standard lengths include 24 inch, 36 inch, 48 inch, 60 inch, and 72 inch models, with special lengths available by contacting the factory. Aluminum, black, brown, and yellow finish options help match facility appearance, visibility needs, or traffic control requirements. These crossovers offer a practical solution for protecting hoses and cables while keeping work areas safer and more organized.

Extruded Aluminum Hose & Cable Crossovers

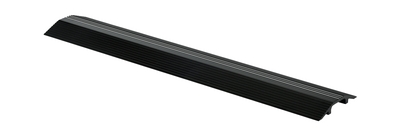

model: HCR-36-BK

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

PDFs will open in a new window when clicked.

Owner's Manuals

0

No owner's manuals for this product family.

Survey Sheets

0

No survey sheets for this product family.

Approval Drawings

56

Testing Certificates

56

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

SDS Sheets

0

No SDS sheets for this product family.

Other PDFs

1

Extruded Hose & Cable Bridges Mailing Brochure

Print Friendly

Related or Similar Products:

More From Hose & Cable Crossovers

Sidewinder Cord Protector

Sidewinder Cord Protector

Long Extruded Rubber Cord Protectors

Long Extruded Rubber Cord Protectors

Extruded Aluminum Hose & C...

Aluminum Hose and Cable Bridges for Traffic Protection

Extruded aluminum hose and cable crossovers provide a durable way to protect cords, hoses, wires, and small lines from pedestrian traffic, carts, hand trucks, and rolling equipment. Designed for warehouses, maintenance areas, production floors, event spaces, construction zones, and commercial facilities, these cable protector bridges help reduce trip hazards, abrasion, and downtime from damaged lines.

Heavy-Duty Aluminum Construction

Extruded aluminum construction provides strength, corrosion resistance, and a clean professional appearance. Serrated top surfaces and edges improve traction as personnel and equipment pass over the crossover, while baked-in powder coat finishes are available on select models for added visibility and toughness.

Channel Sizes and Load Ratings

This family includes compact wire ramps, standard hose and cable ramps, low-profile crossovers, and extra-heavy-duty bridge designs. Usable spans range from smaller 1-1/4 inch wide openings to larger 4-1/2 inch wide channels, with single wheel capacities from 2,500 lb. to 10,000 lb. depending on model.

Lengths and Finish Options

Standard lengths include 24 inch, 36 inch, 48 inch, 60 inch, and 72 inch models, with special lengths available by contacting the factory. Aluminum, black, brown, and yellow finish options help match facility appearance, visibility needs, or traffic control requirements. These crossovers offer a practical solution for protecting hoses and cables while keeping work areas safer and more organized.

Model #		Description	Attributes	Net Wt. (lbs)

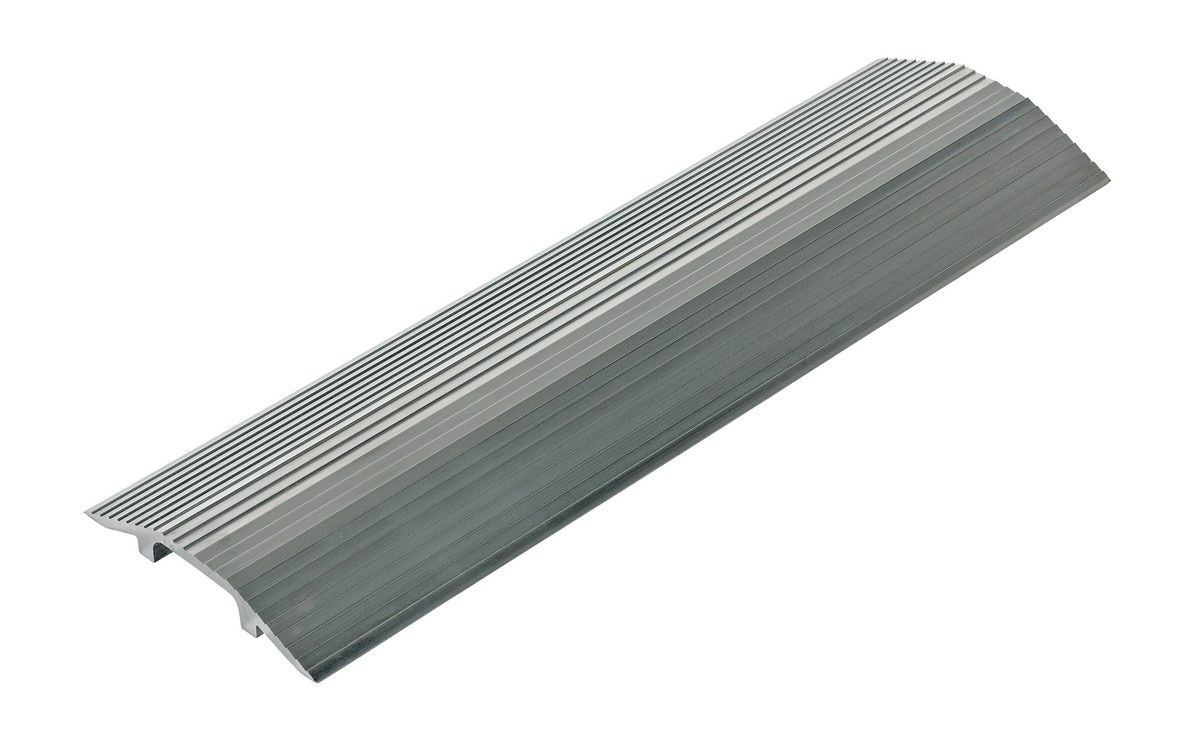

HCR-24		Aluminum Extruded Hose and Cable Crossover 24 In. Length Silver	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	7

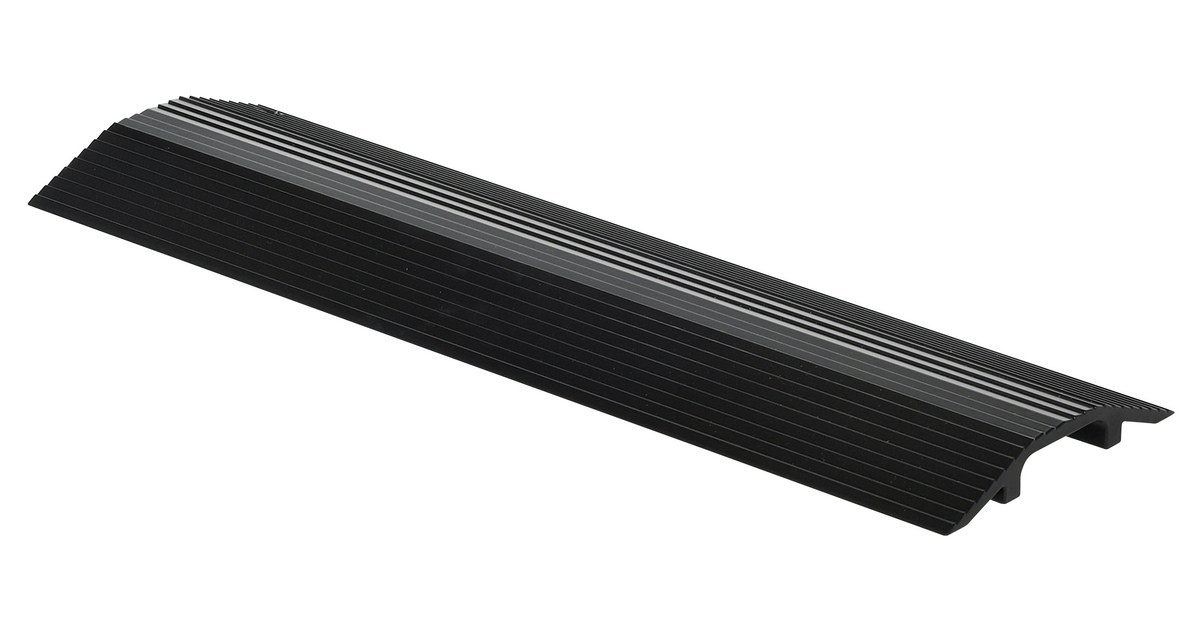

HCR-24-BK		Aluminum Extruded Hose and Cable Crossover 24 In. Length Black	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	7

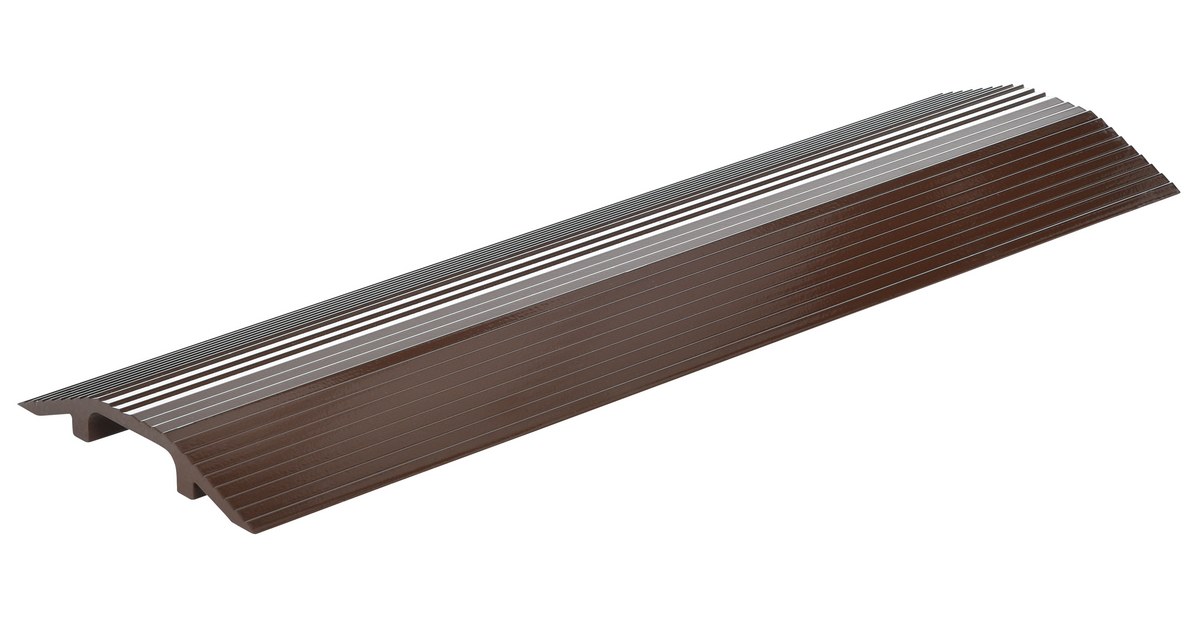

HCR-24-BRN		Aluminum Extruded Hose and Cable Crossover 24 In. Length Brown	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	7

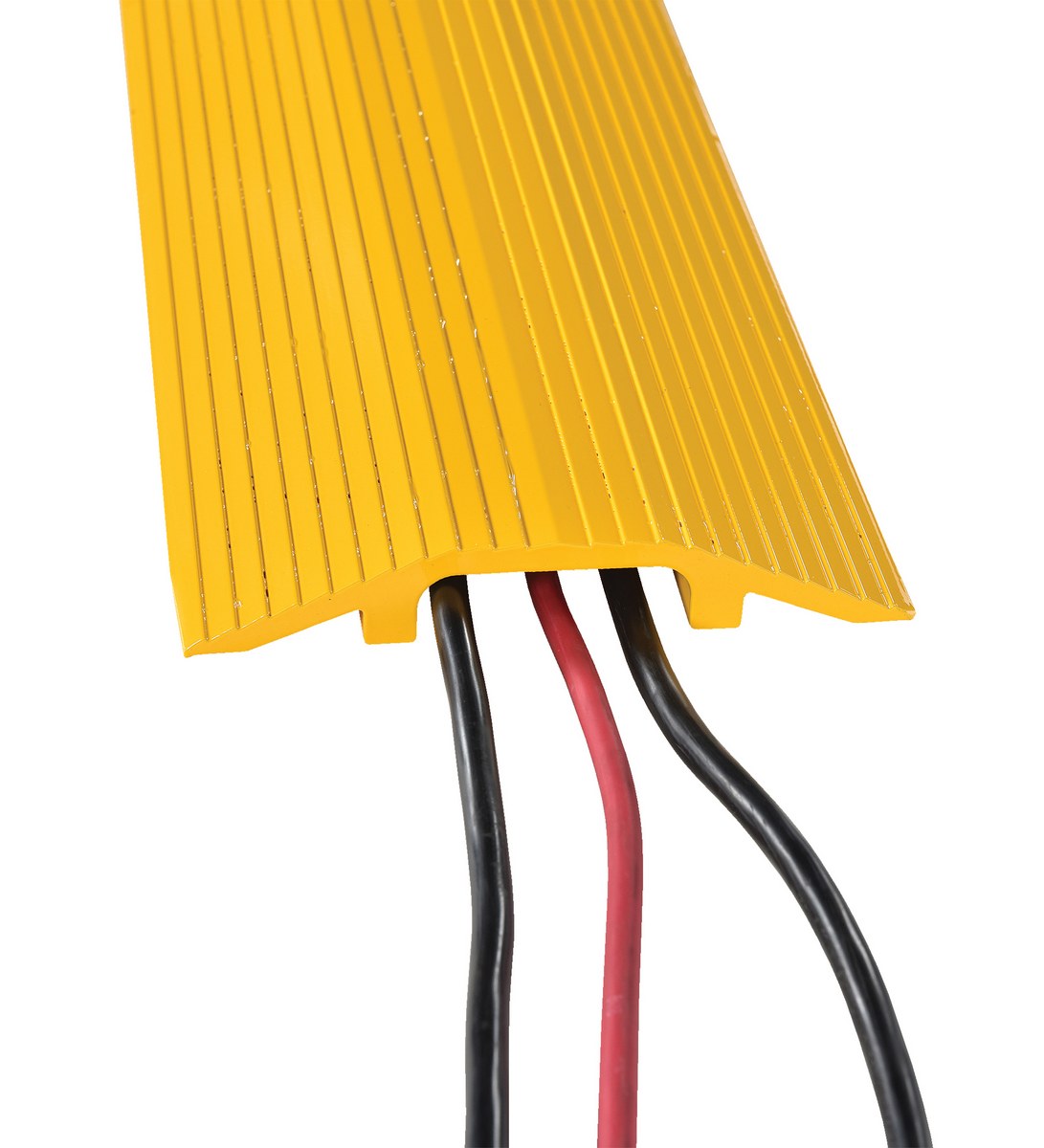

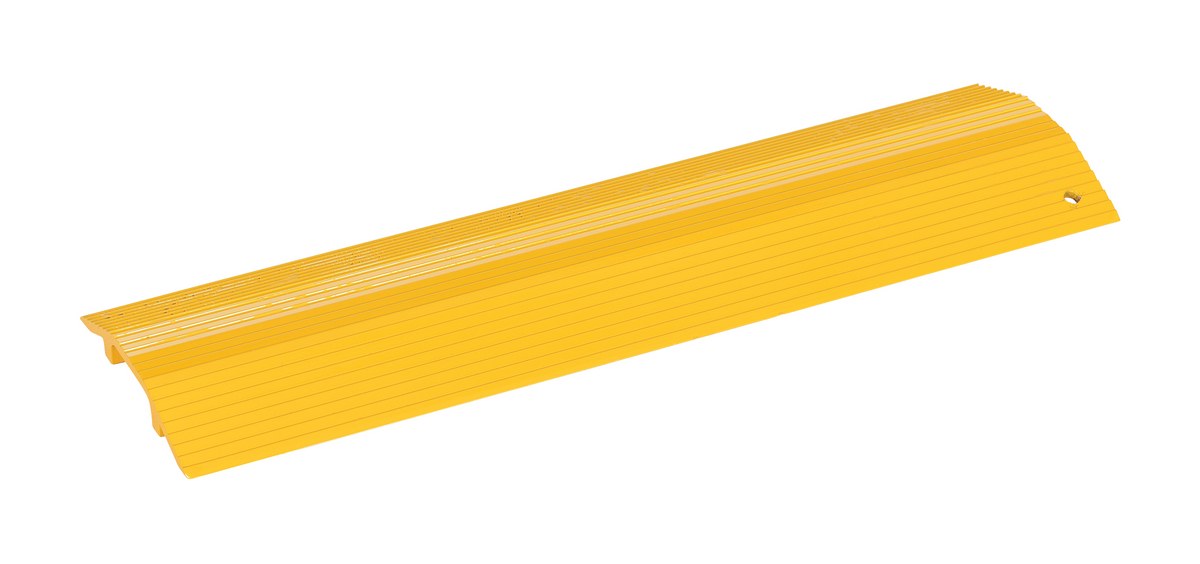

HCR-24-Y		Aluminum Extruded Hose and Cable Crossover 24 In. Length Yellow	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	7

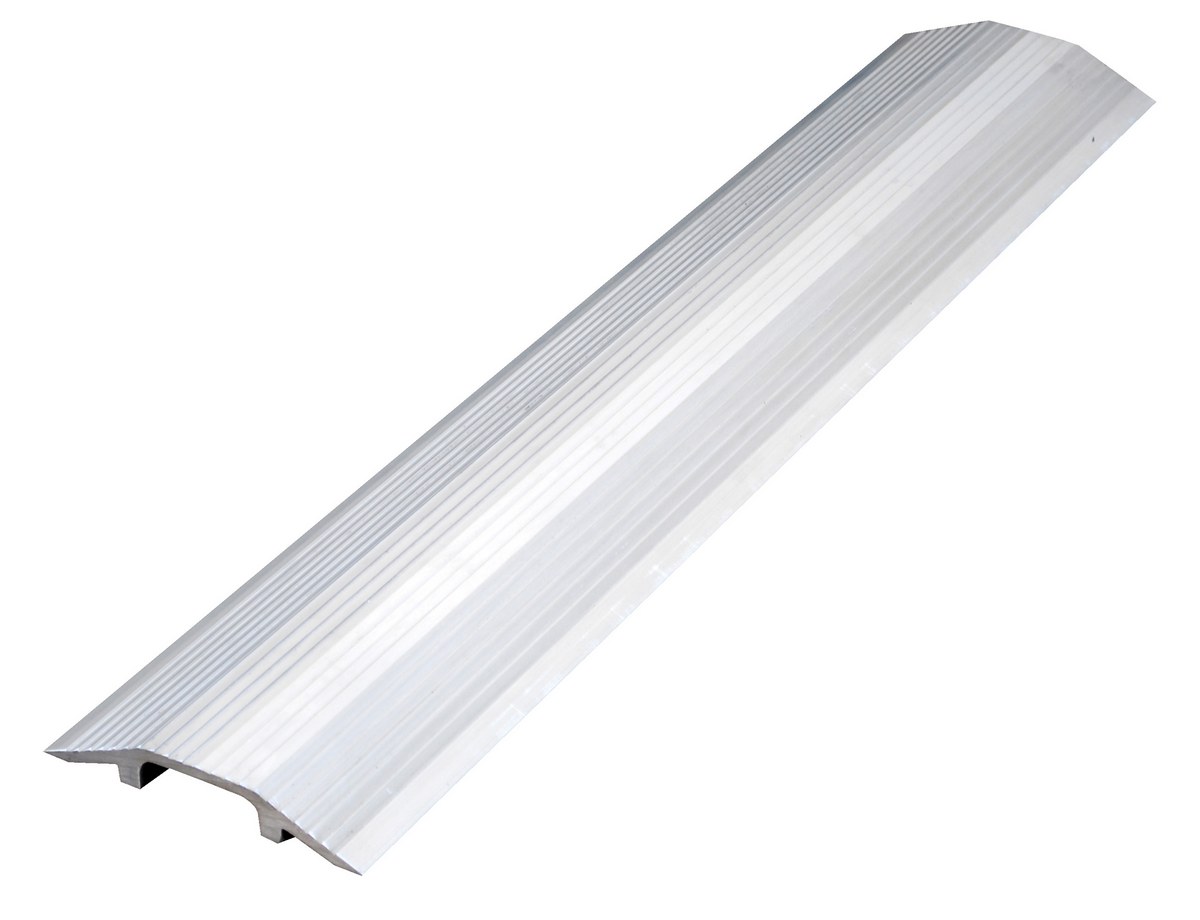

HCR-36		Aluminum Extruded Hose and Cable Crossover 36 In. Length Silver	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	8

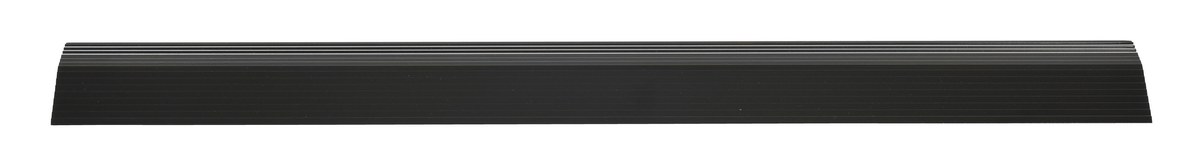

HCR-36-BK		Aluminum Extruded Hose and Cable Crossover 36 In. Length Black	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	10

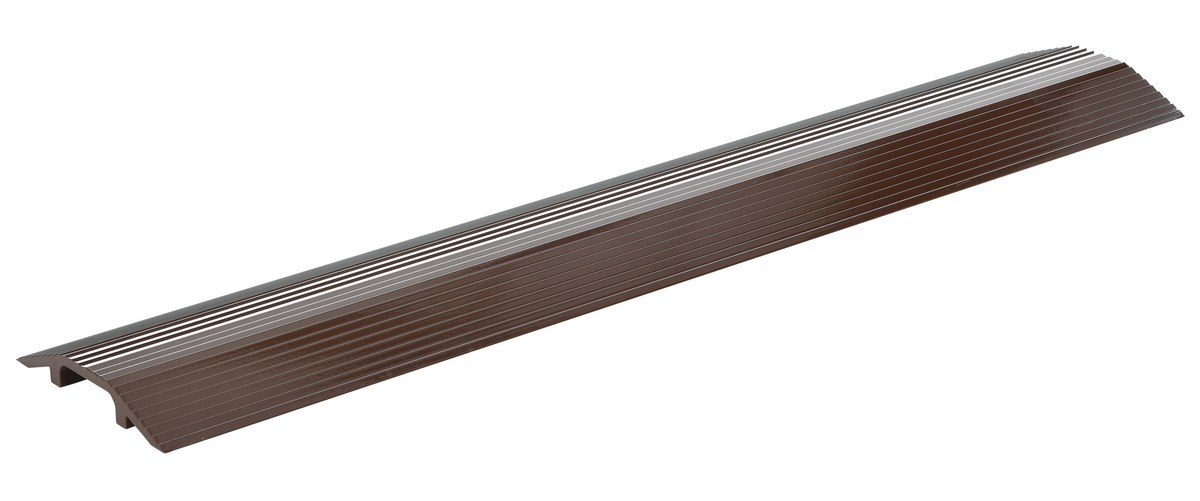

HCR-36-BRN		Aluminum Extruded Hose and Cable Crossover 36 In. Length Brown	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	10

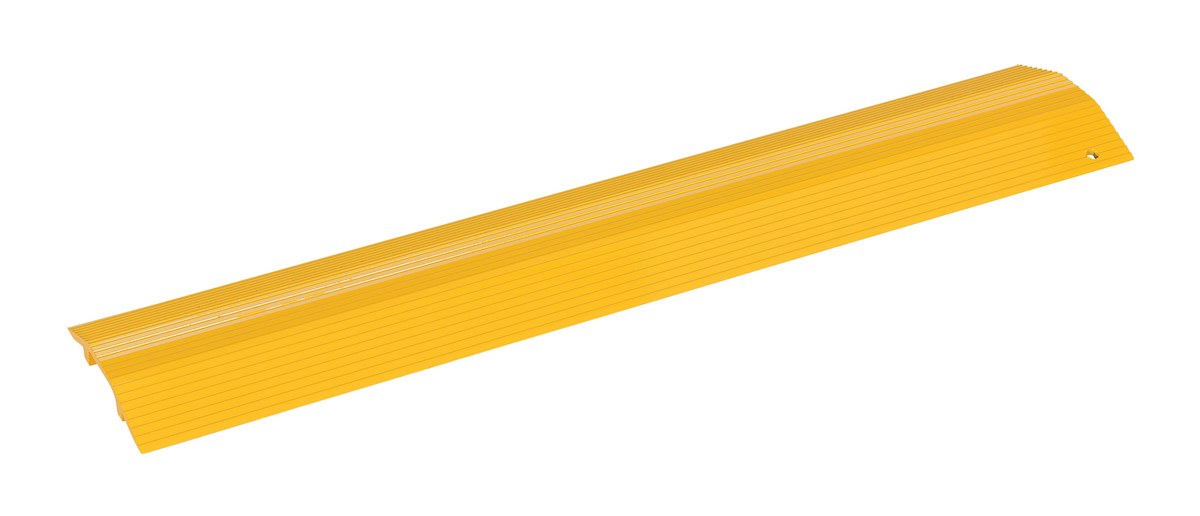

HCR-36-Y		Aluminum Extruded Hose and Cable Crossover 36 In. Length Yellow	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	10
HCR-48		Aluminum Extruded Hose and Cable Crossover 48 In. Length Silver	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	13

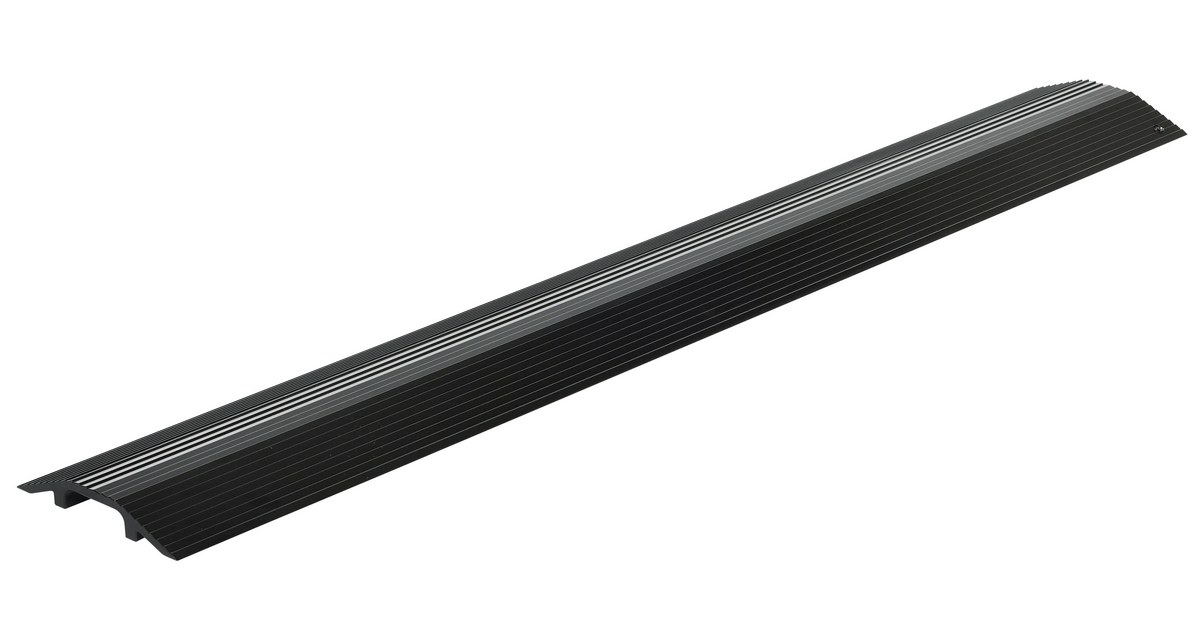

HCR-48-BK		Aluminum Extruded Hose and Cable Crossover 48 In. Length Black	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	13

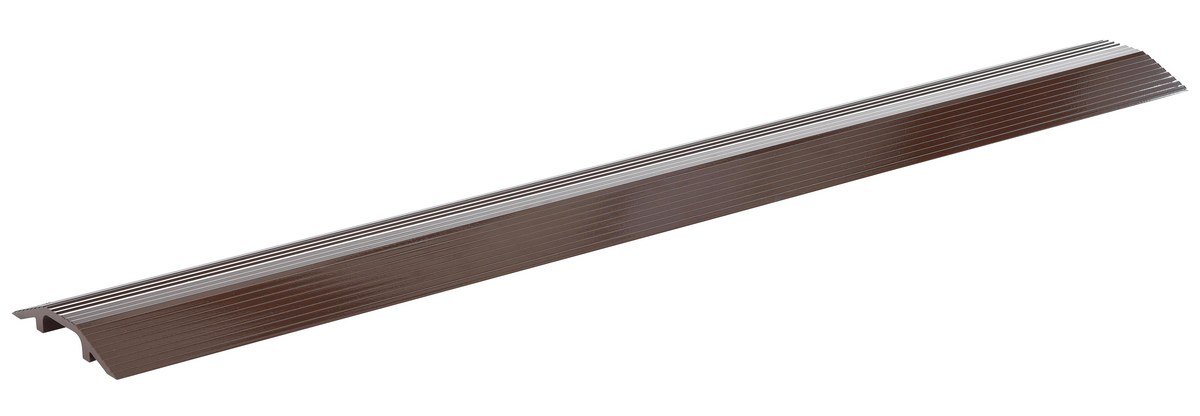

HCR-48-BRN		Aluminum Extruded Hose and Cable Crossover 48 In. Length Brown	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	13

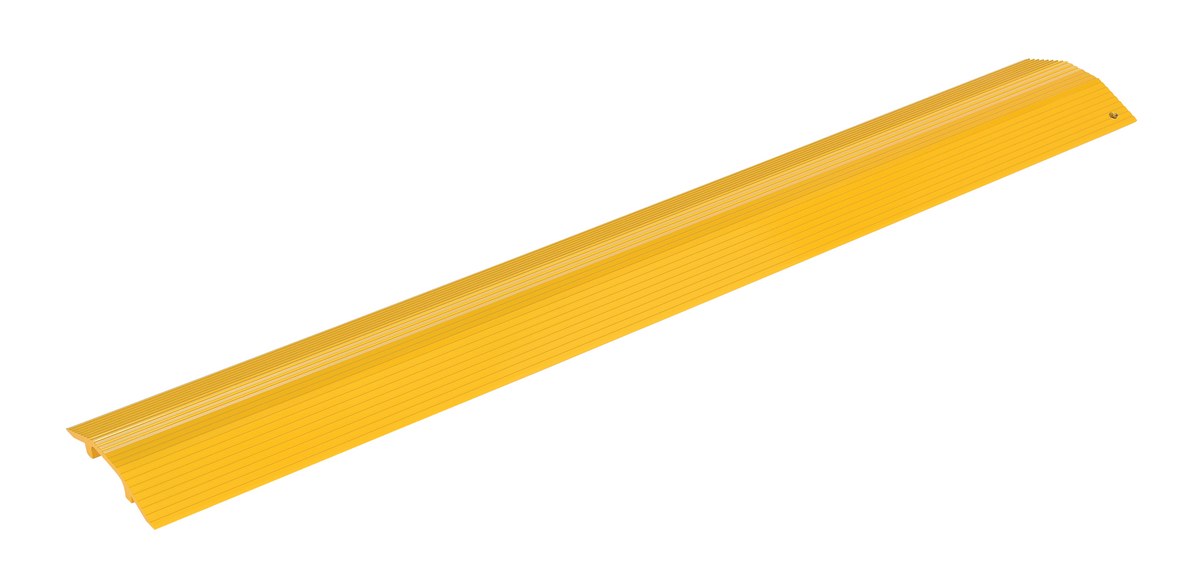

HCR-48-Y		Aluminum Extruded Hose and Cable Crossover 48 In. Length Yellow	Uniform Capacity-Single Wheel (lb.): 10,000 Cable Opening Width (in.): 2-5/8	13

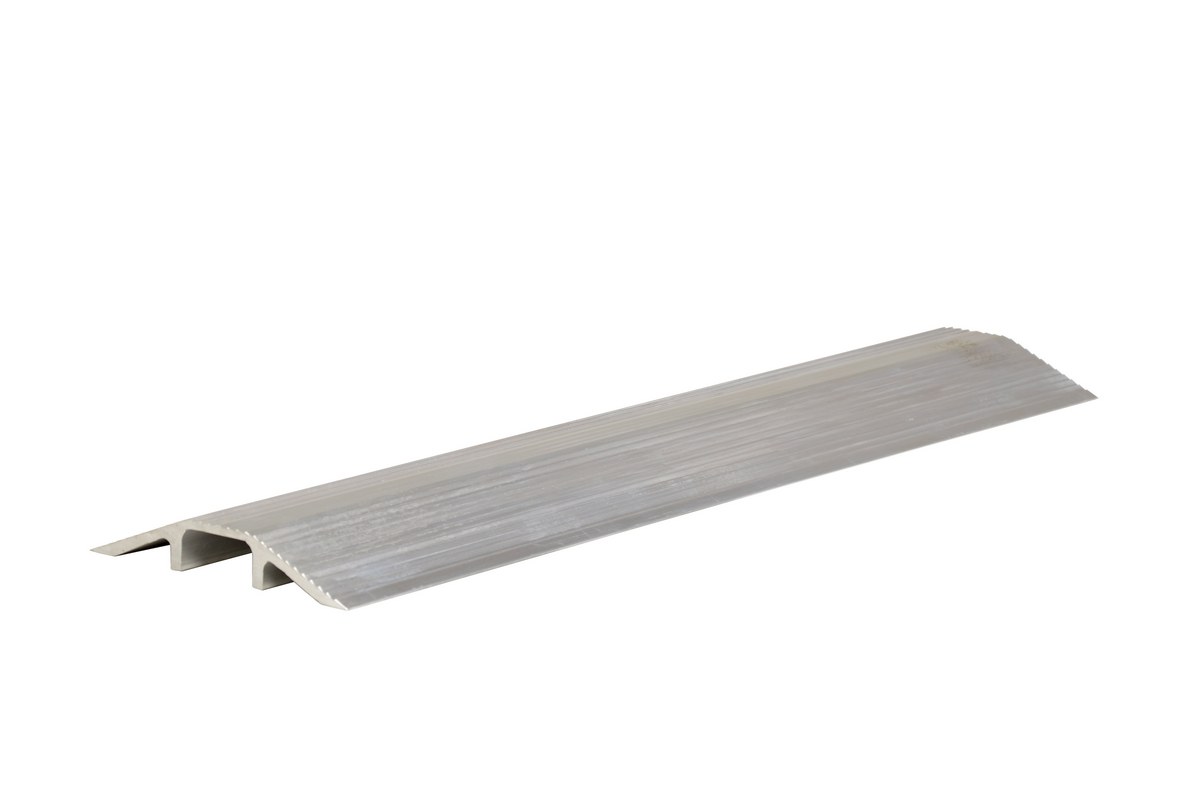

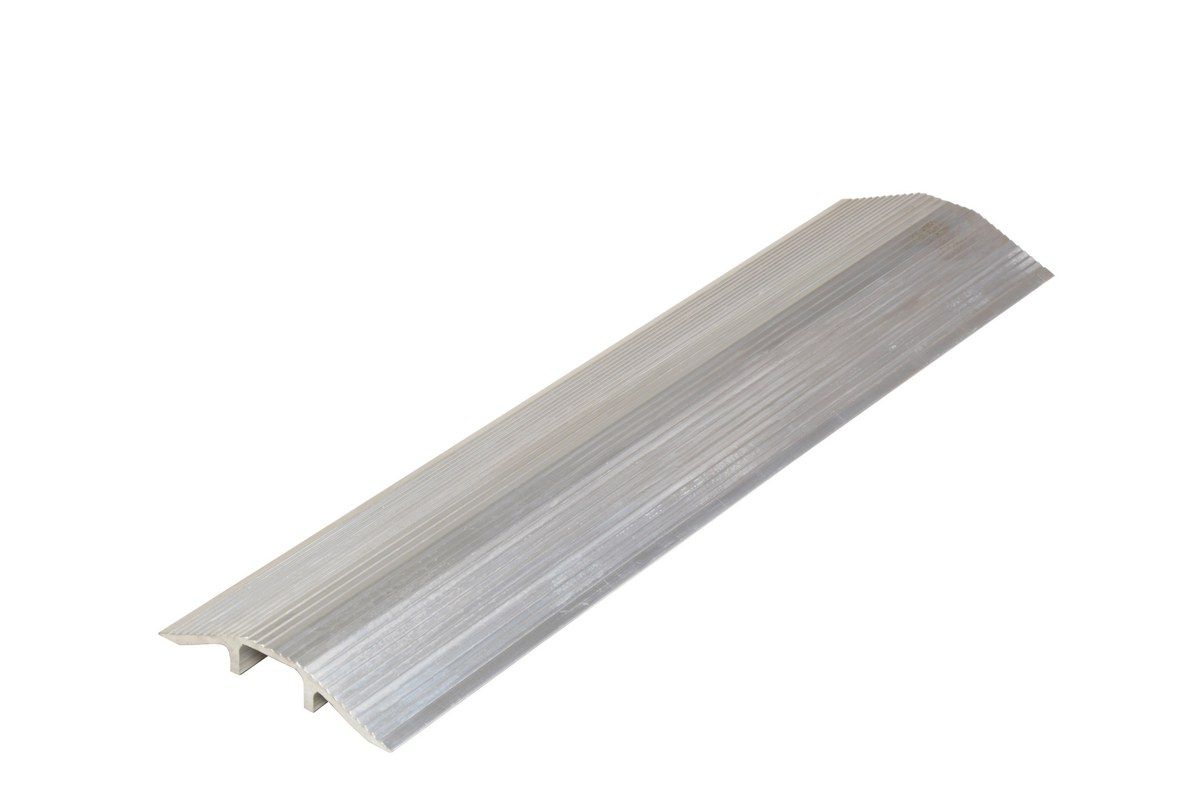

LHCR-36		Aluminum Hose and Cable Crossover 36 In. Length 10,000 Lb. Capacity Silver	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	13

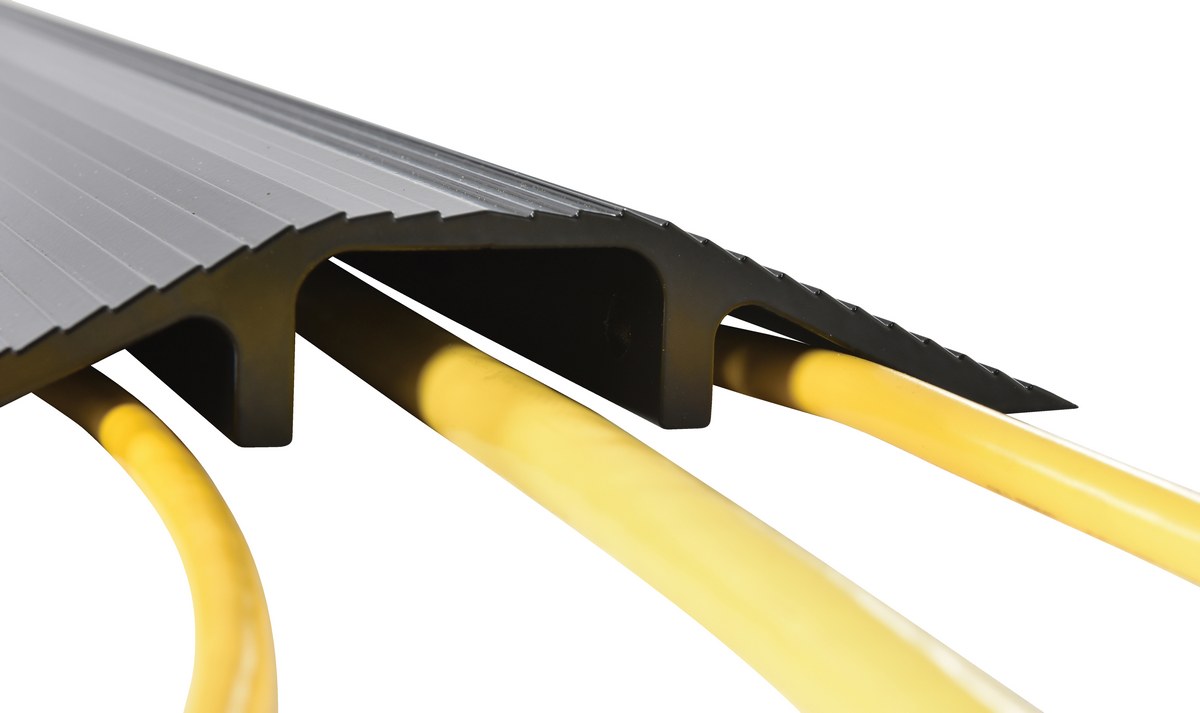

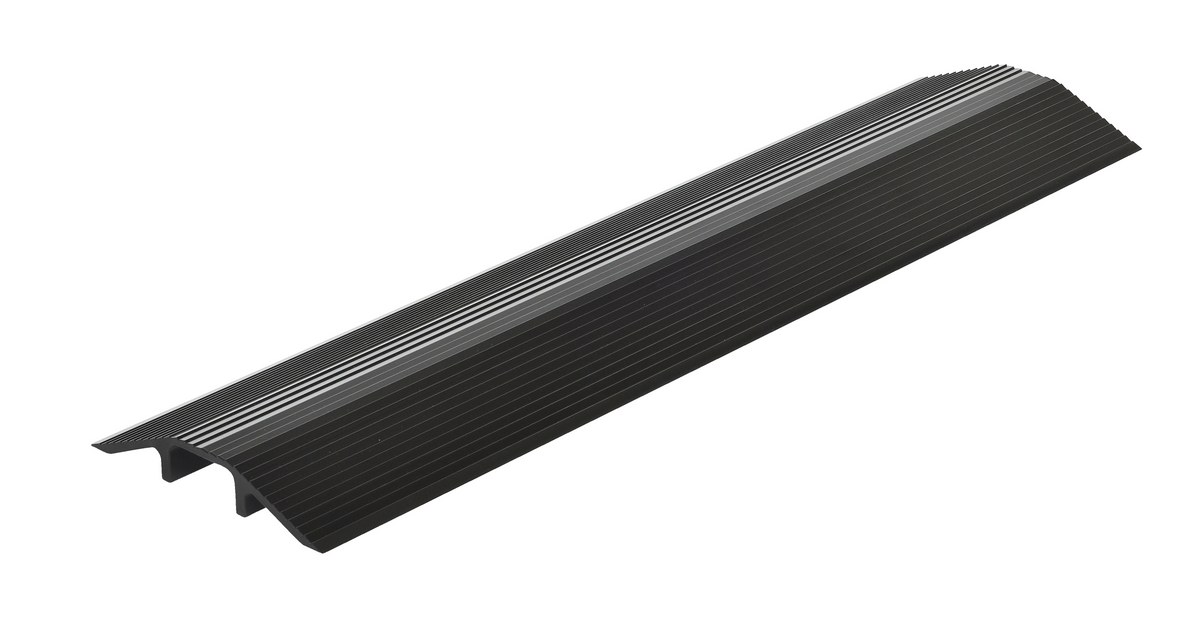

LHCR-36-BK		Aluminum Hose and Cable Crossover 36 In. Length 10,000 Lb. Capacity Black	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	13

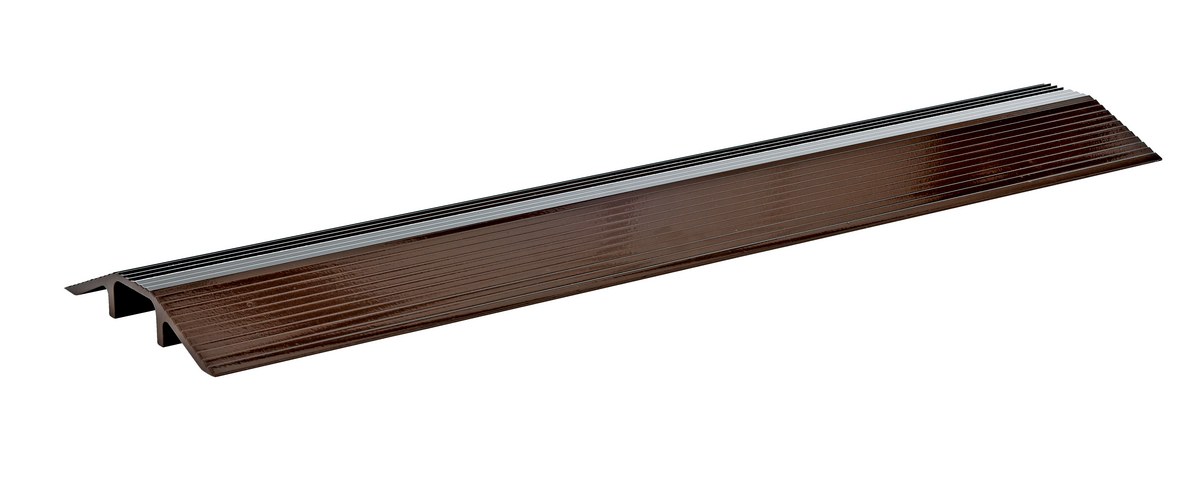

LHCR-36-BRN		Aluminum Hose and Cable Crossover 36 In. Length 10,000 Lb. Capacity Brown	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	13

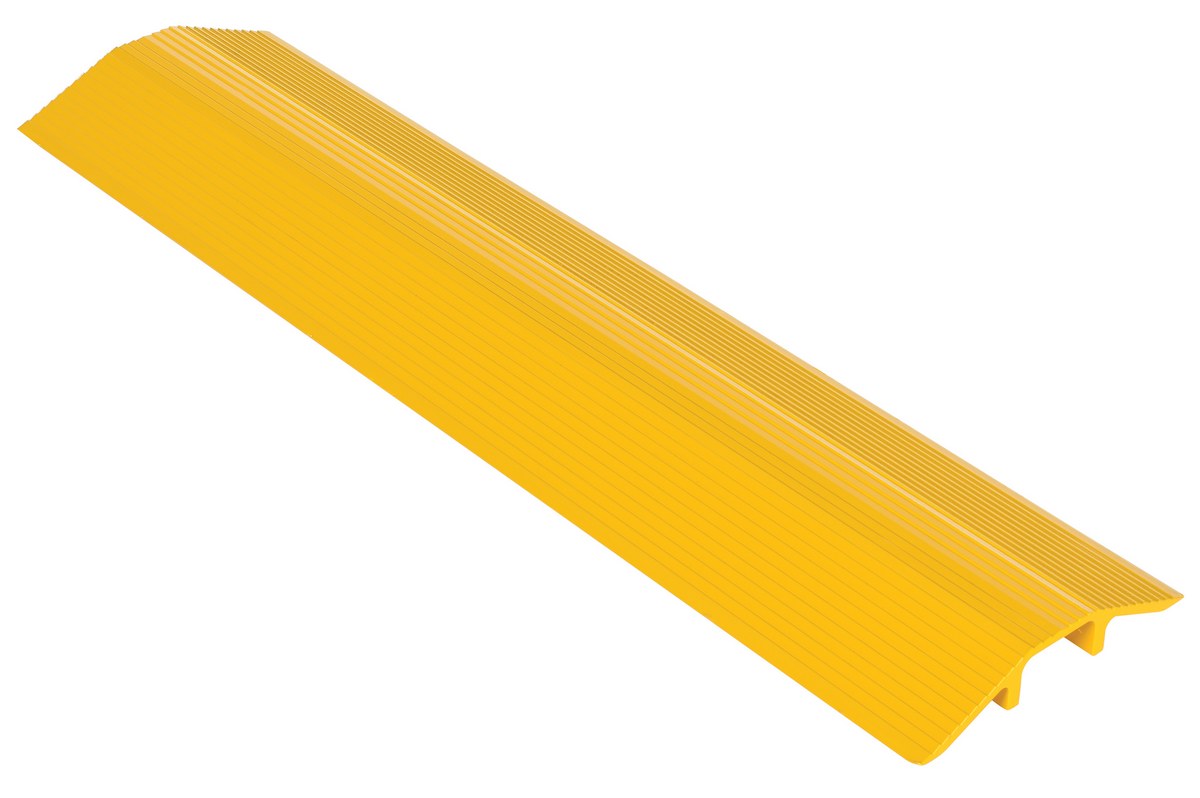

LHCR-36-Y		Aluminum Hose and Cable Crossover 36 In. Length 10,000 Lb. Capacity Yellow	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	13

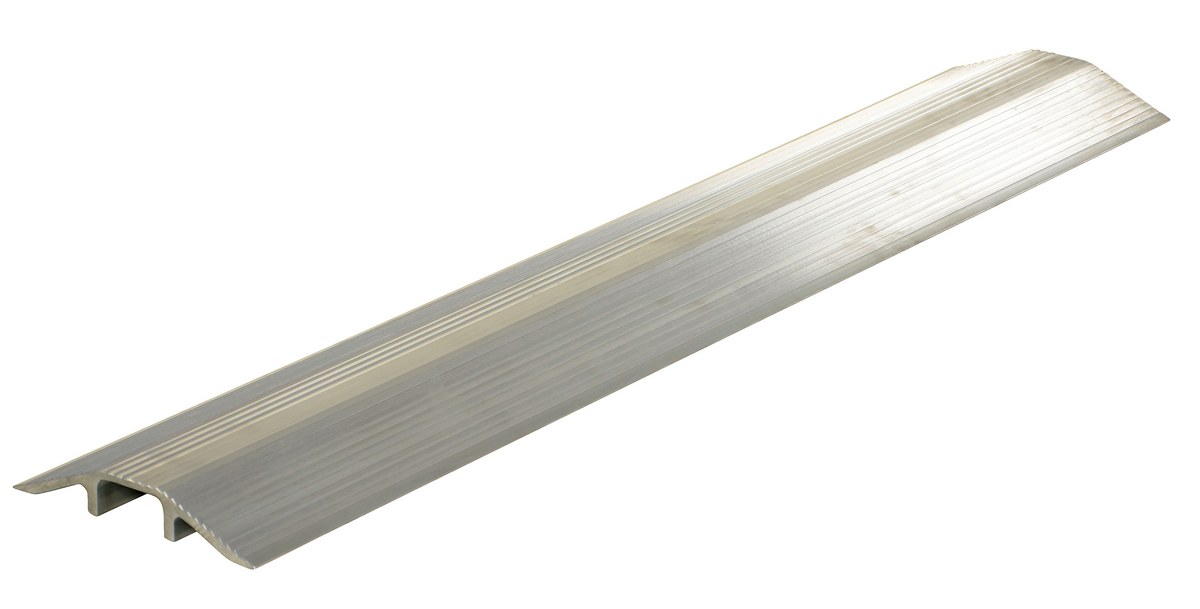

LHCR-48		Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Silver	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	17

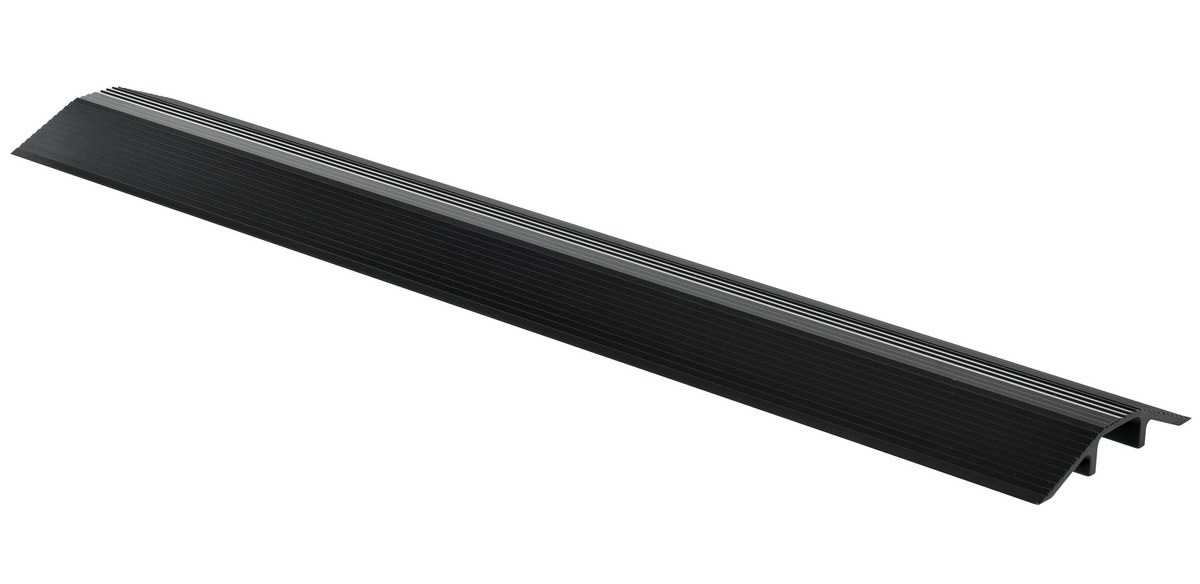

LHCR-48-BK		Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Black	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	17

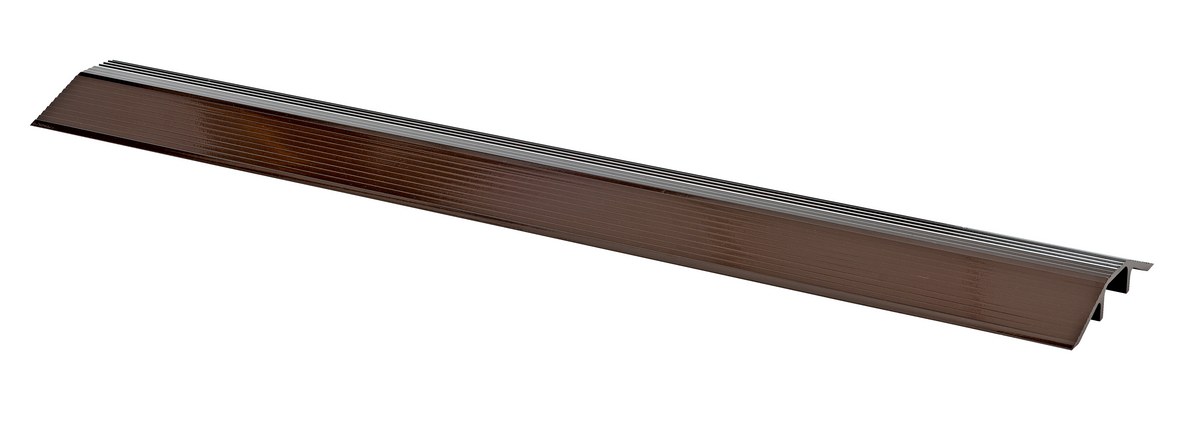

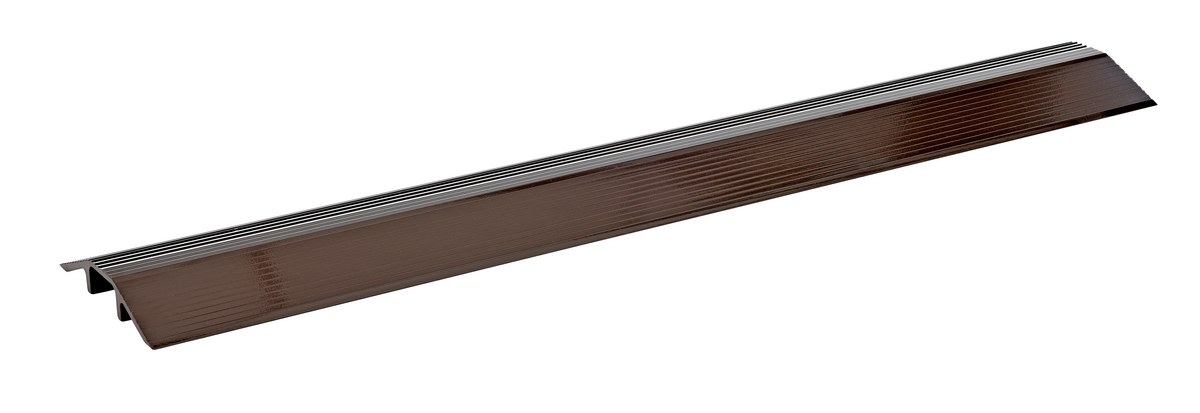

LHCR-48-BRN		Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Brown	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	17
LHCR-48-Y		Aluminum Hose and Cable Crossover 48 In. Length 10,000 Lb. Capacity Yellow	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	17

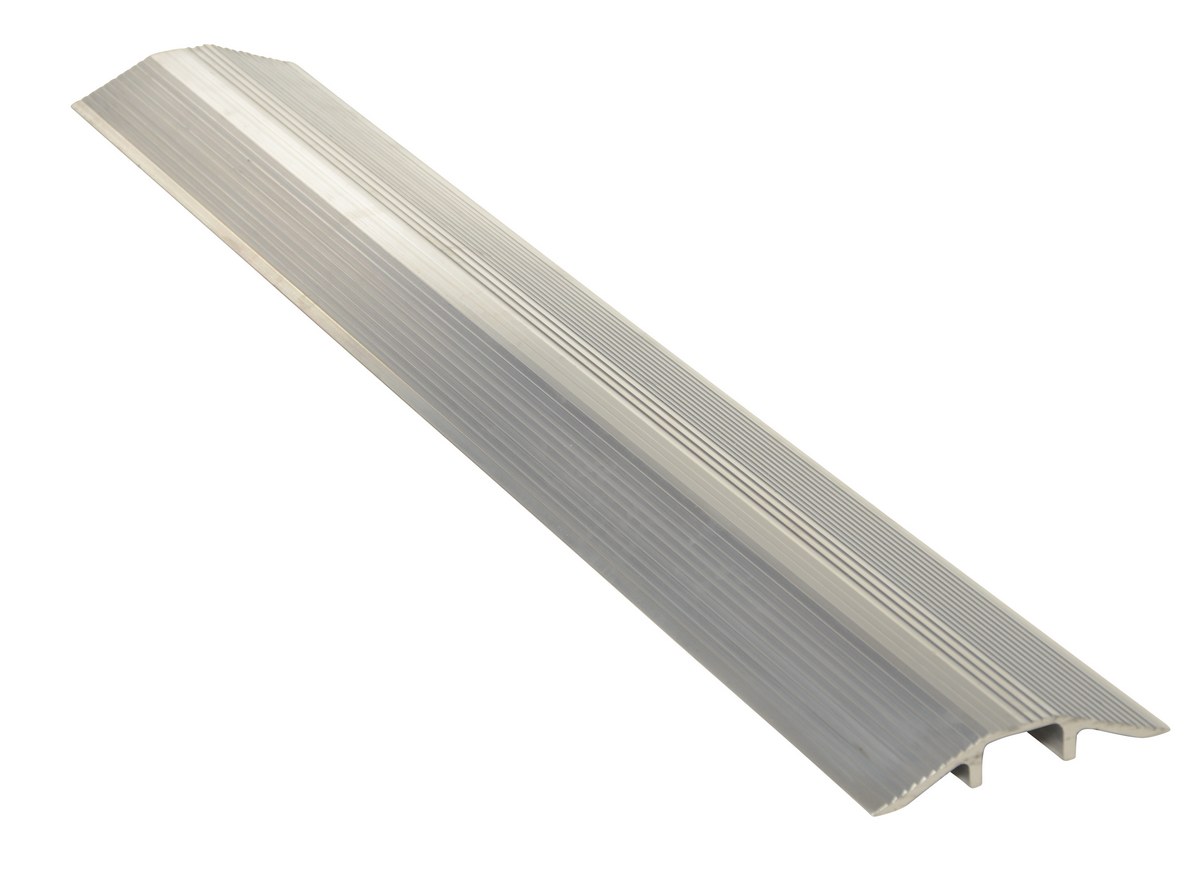

LHCR-60		Aluminum Hose and Cable Crossover 60 In. Length 10,000 Lb. Capacity Silver	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	24

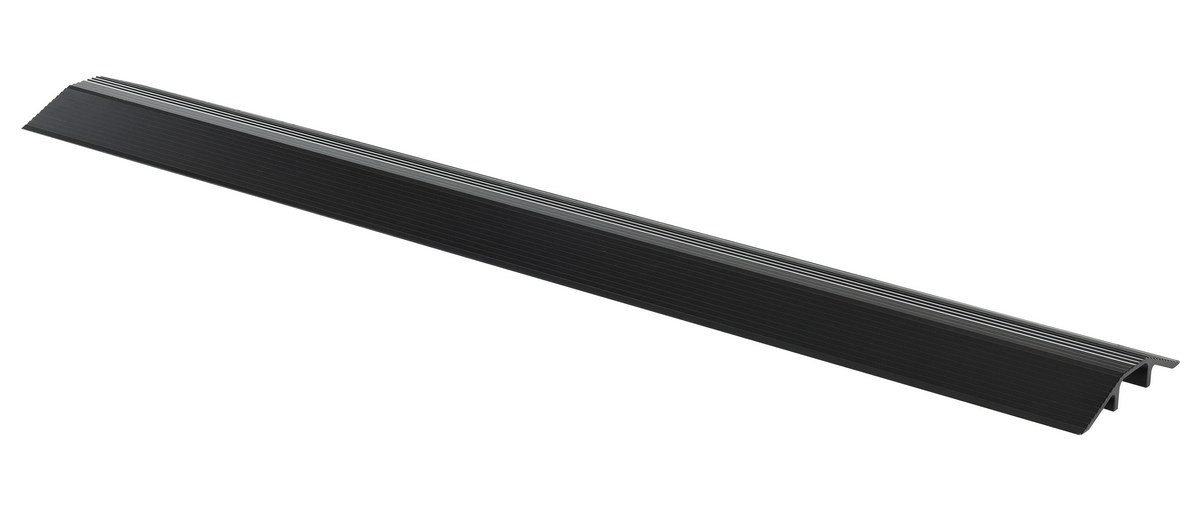

LHCR-60-BK		Aluminum Hose and Cable Crossover 60 In. Length 10,000 Lb. Capacity Black	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	24
LHCR-60-BRN		Aluminum Hose and Cable Crossover 60 In. Length 10,000 Lb. Capacity Brown	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	24

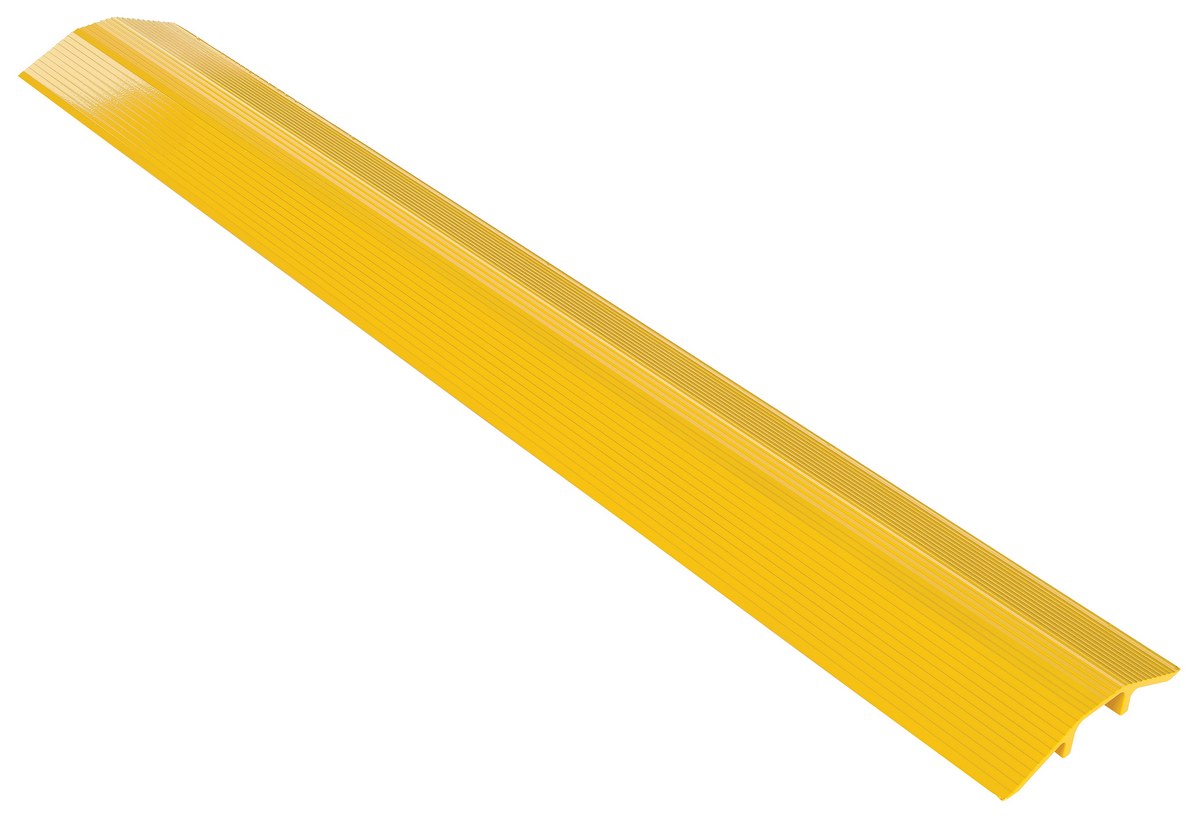

LHCR-60-Y		Aluminum Hose and Cable Crossover 60 In. Length 10,000 Lb. Capacity Yellow	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	24

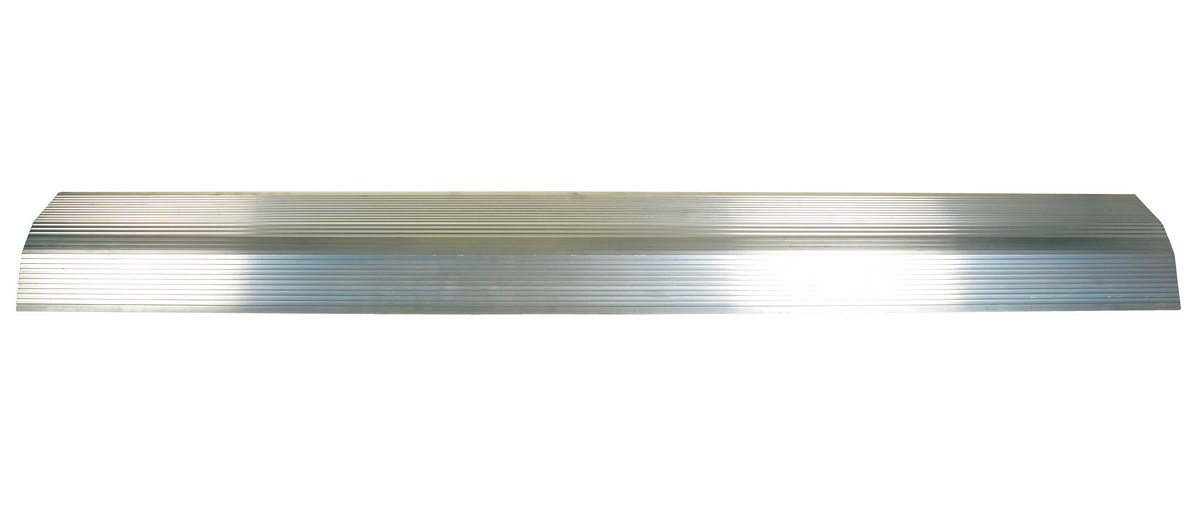

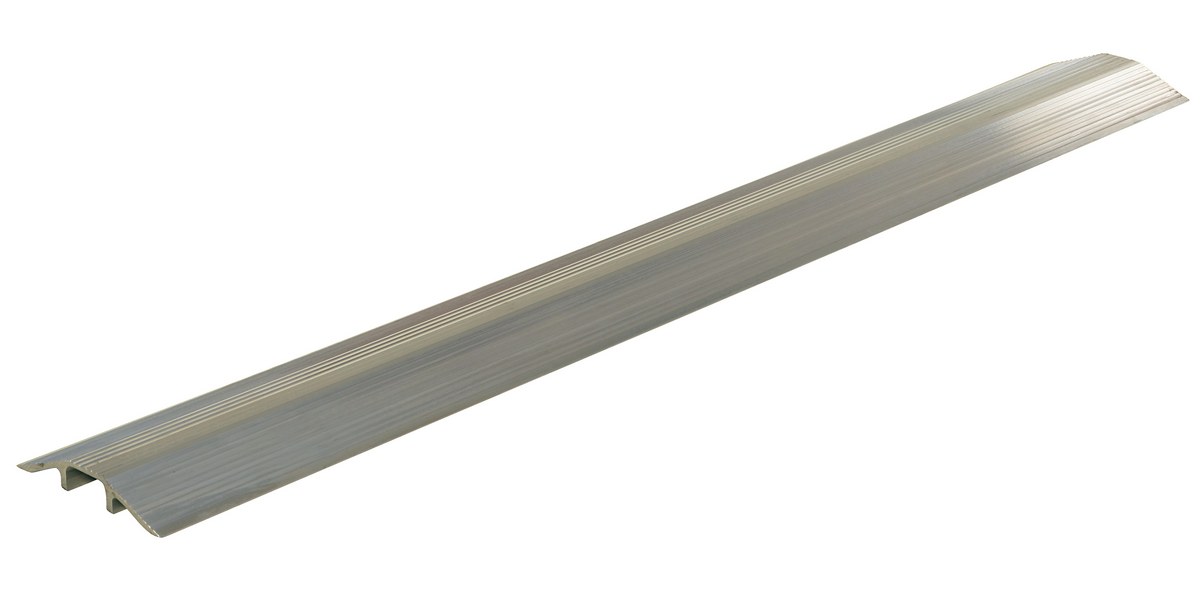

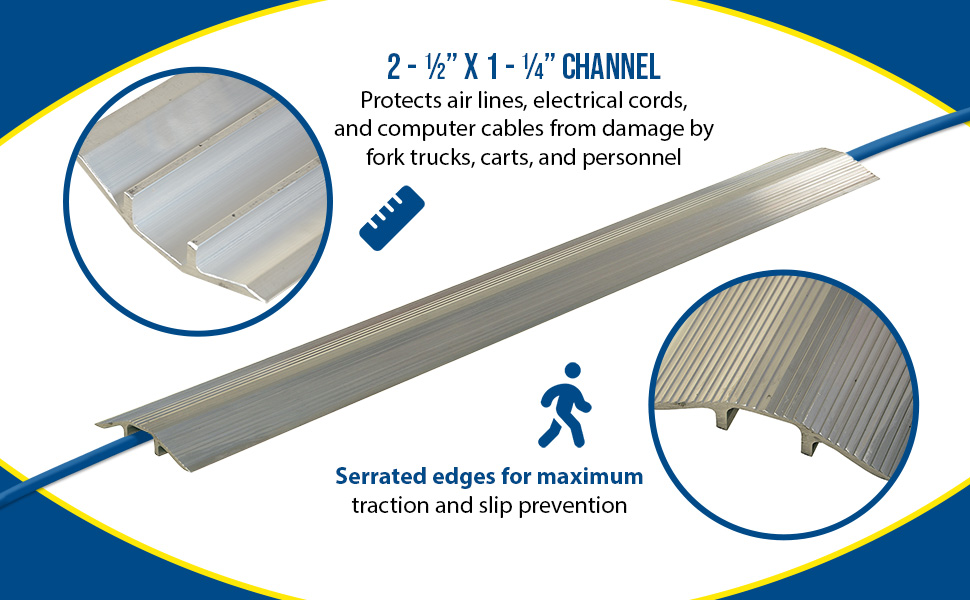

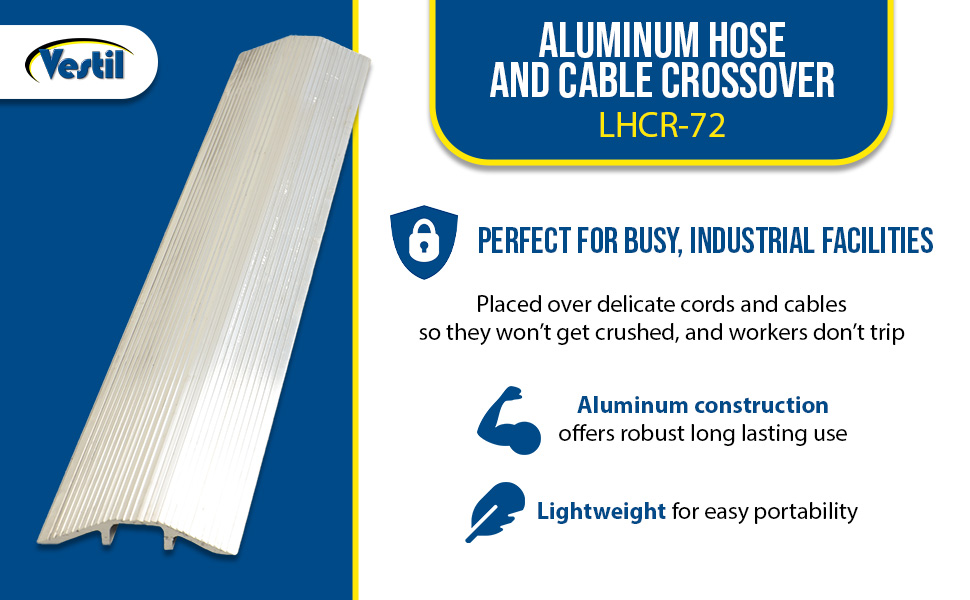

LHCR-72		Aluminum Hose and Cable Crossover 72 In. Length 10,000 Lb. Capacity Silver	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	26

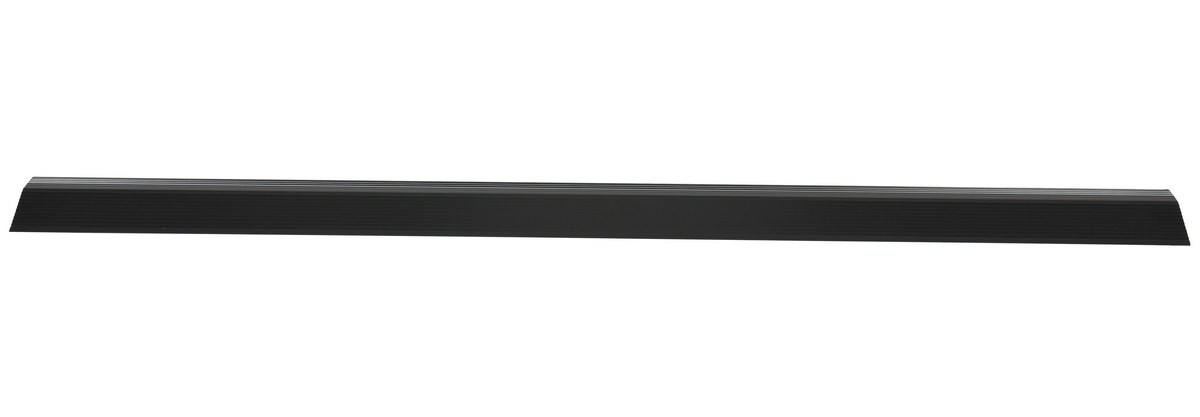

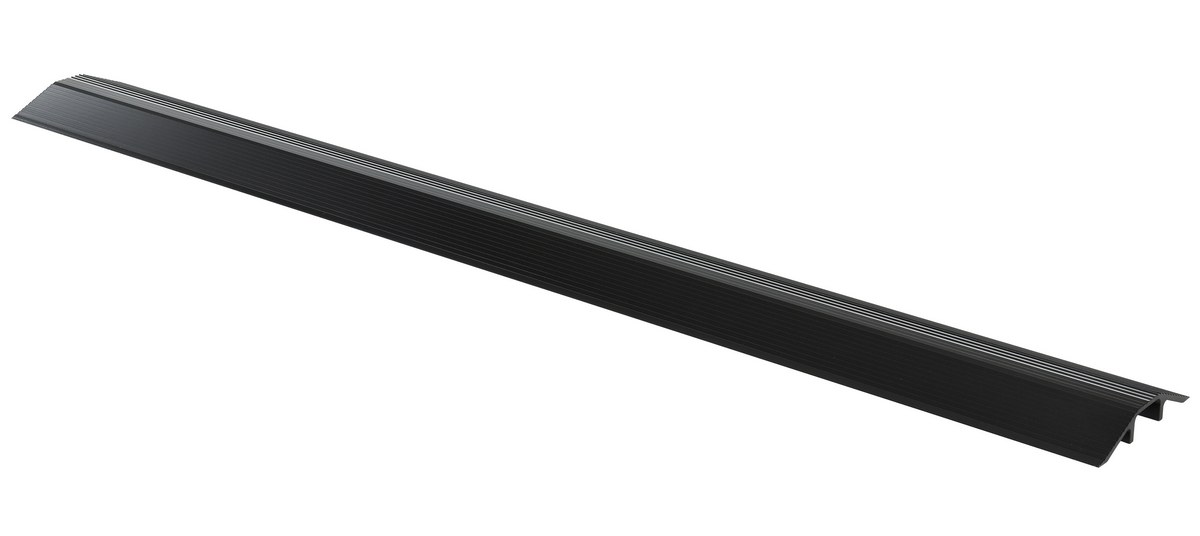

LHCR-72-BK		Aluminum Hose and Cable Crossover 72 In. Length 10,000 Lb. Capacity Black	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	26

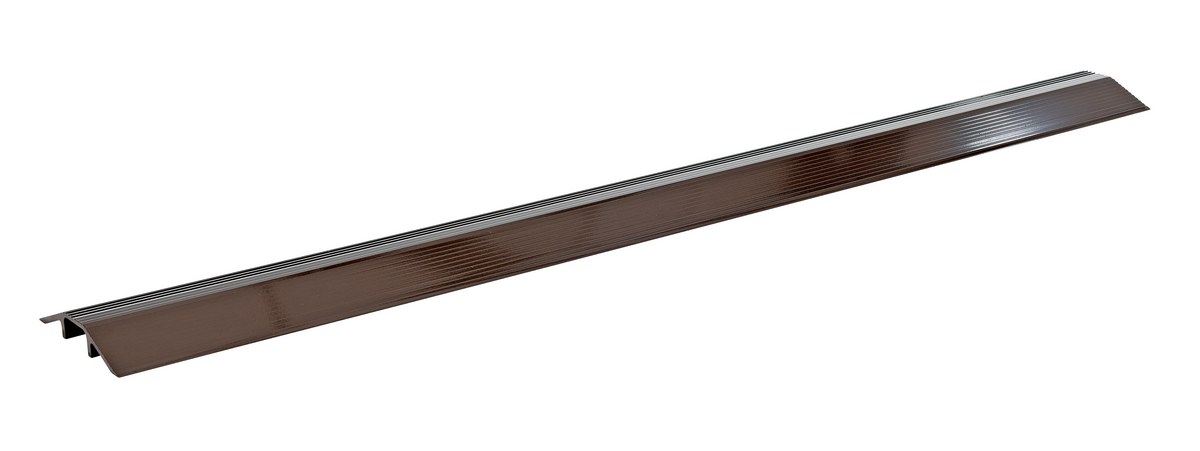

LHCR-72-BRN		Aluminum Hose and Cable Crossover 72 In. Length 10,000 Lb. Capacity Brown	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	26

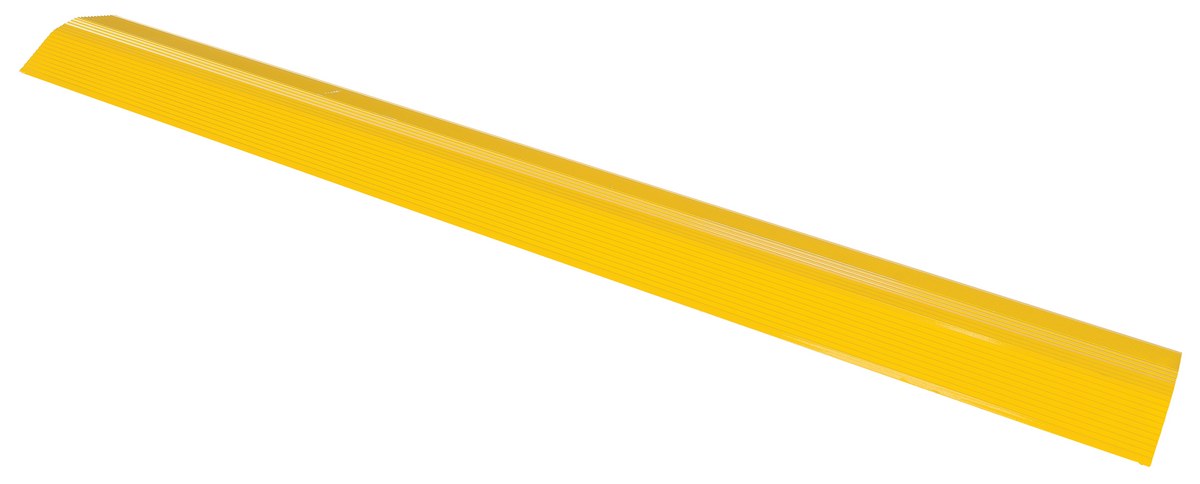

LHCR-72-Y		Aluminum Hose and Cable Crossover 72 In. Length 10,000 Lb. Capacity Yellow	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 2-1/2	26

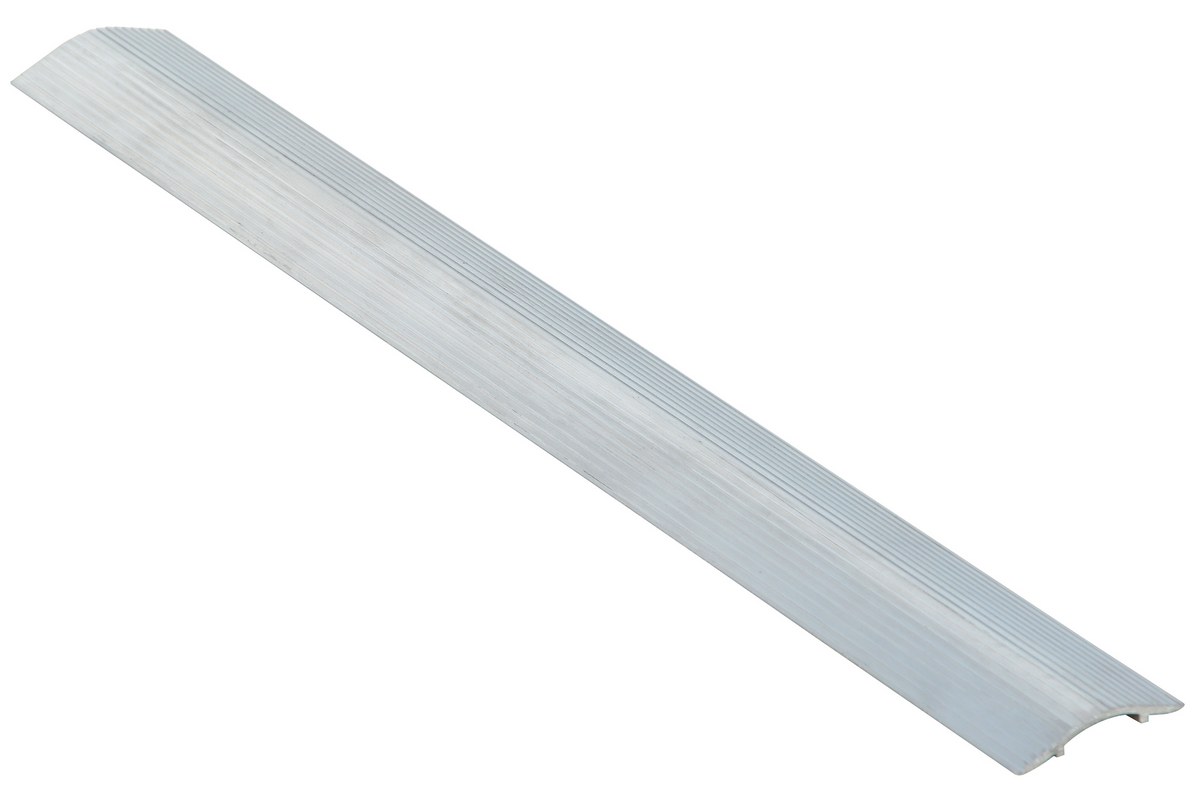

WR-24		Extruded Aluminum Hose/Cable Crossover 24 In. Length Silver	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	2

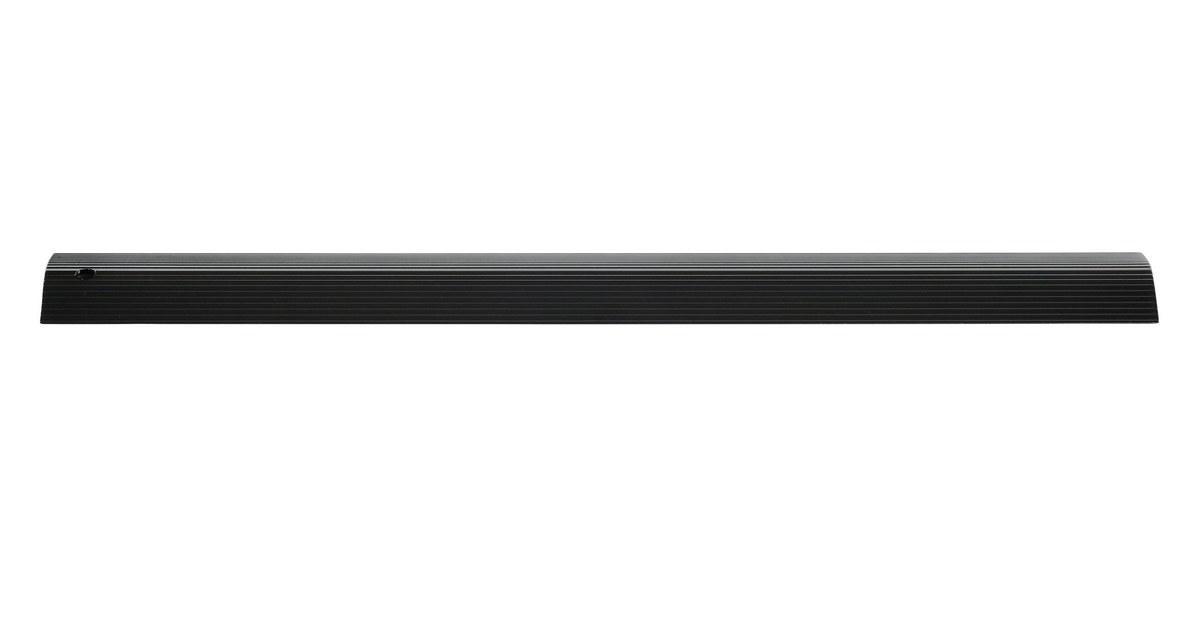

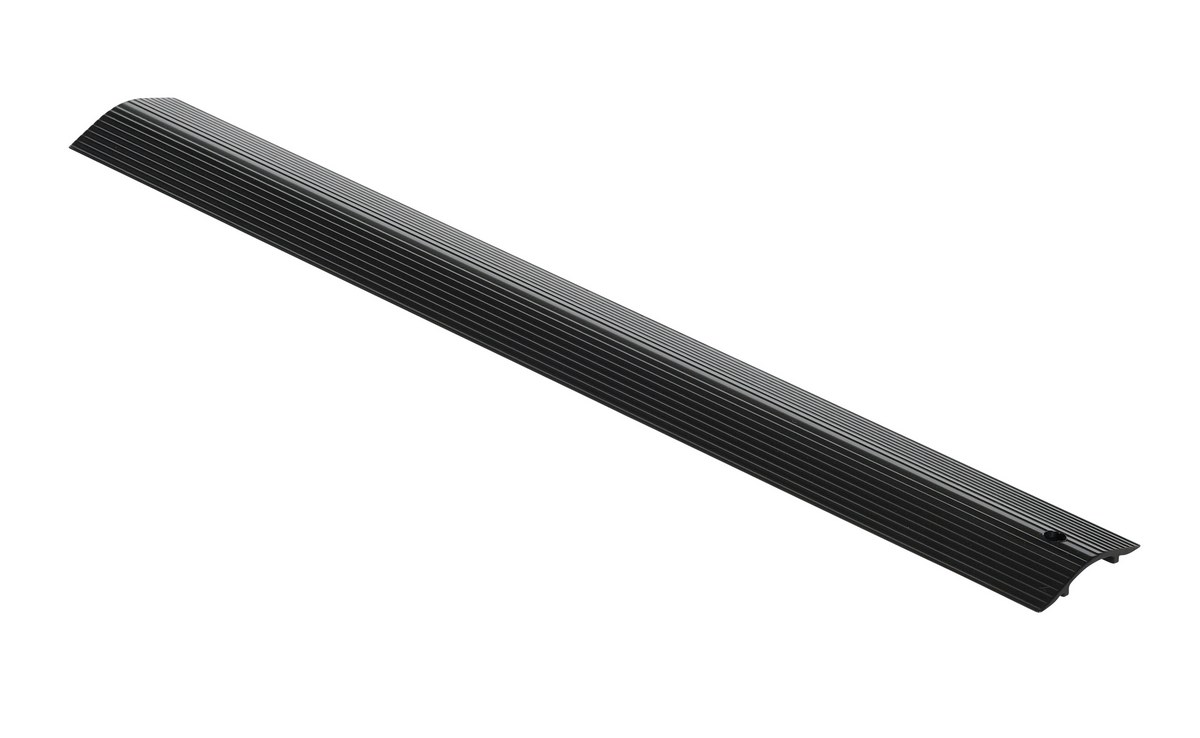

WR-24-BK		Extruded Aluminum Hose/Cable Crossover 24 In. Length Black	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	2

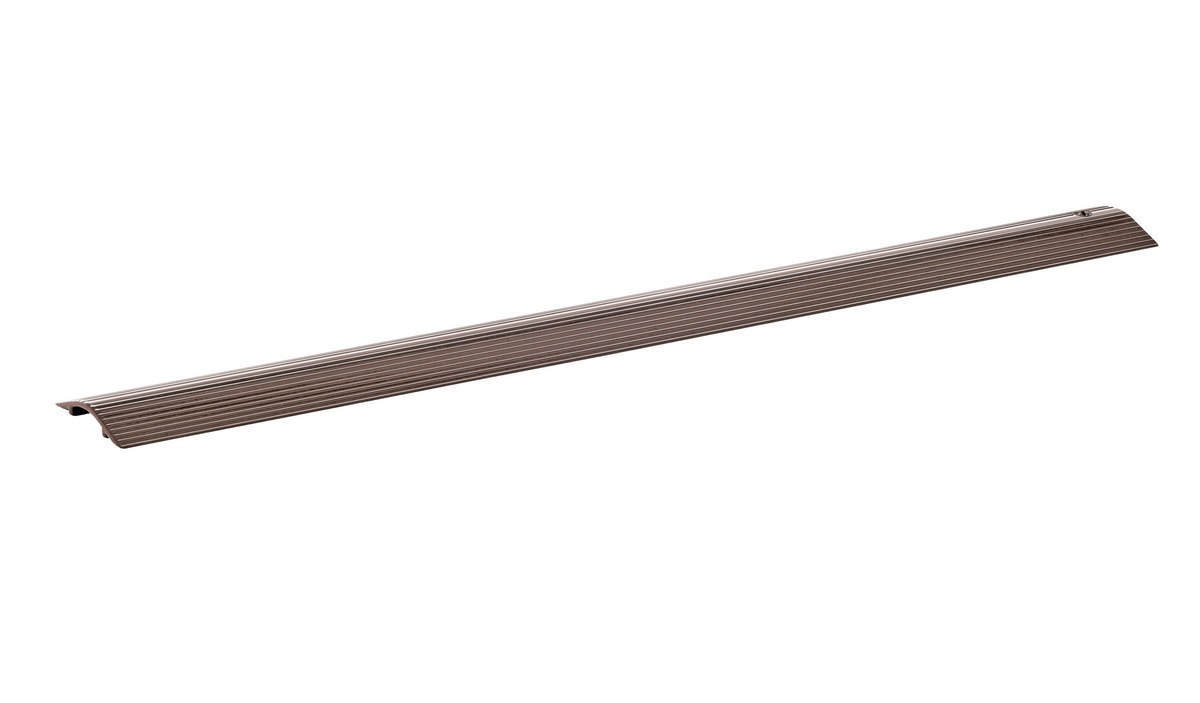

WR-24-BRN		Extruded Aluminum Hose/Cable Crossover 24 In. Length Brown	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	2
WR-24-Y		Extruded Aluminum Hose/Cable Crossover 24 In. Length Yellow	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	2

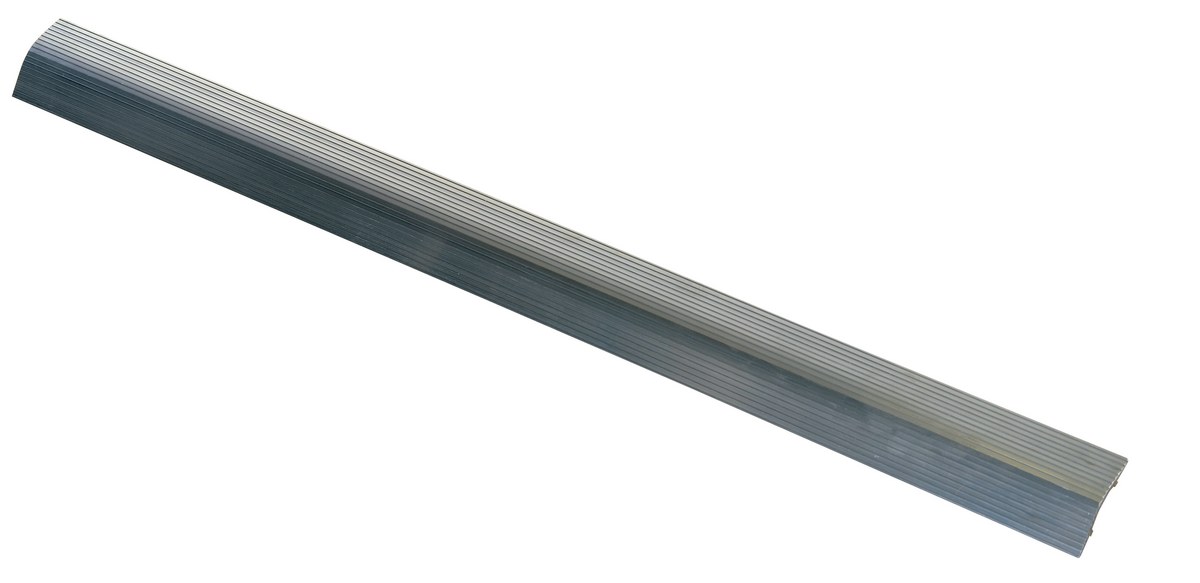

WR-36		Extruded Aluminum Hose/Cable Crossover 36 In. Length Silver	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	4

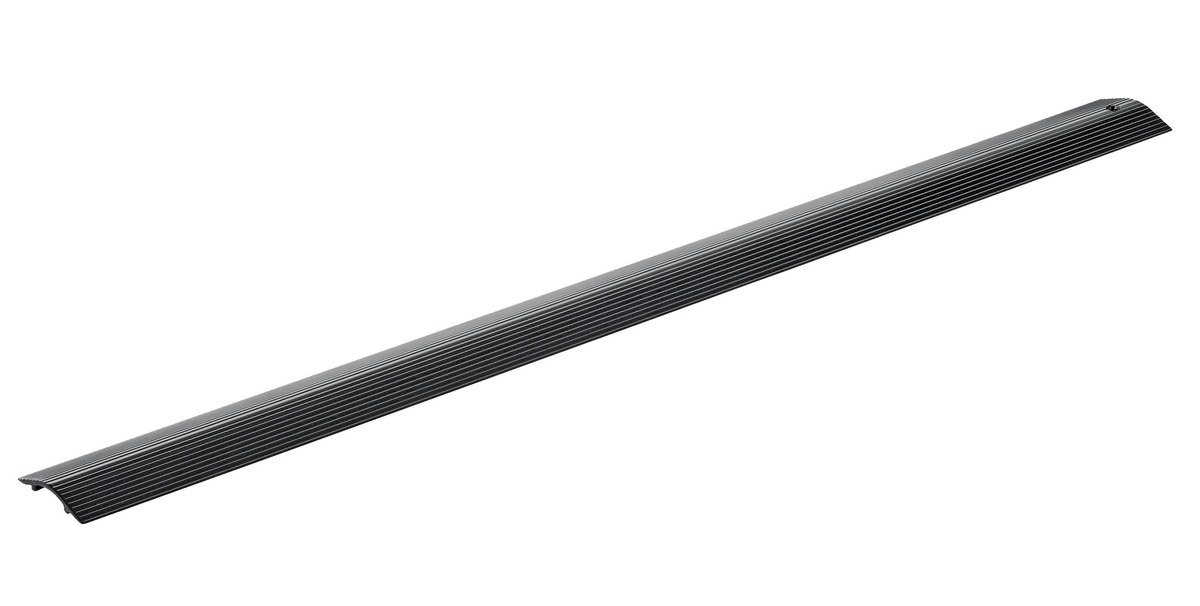

WR-36-BK		Extruded Aluminum Hose/Cable Crossover 36 In. Length Black	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	4

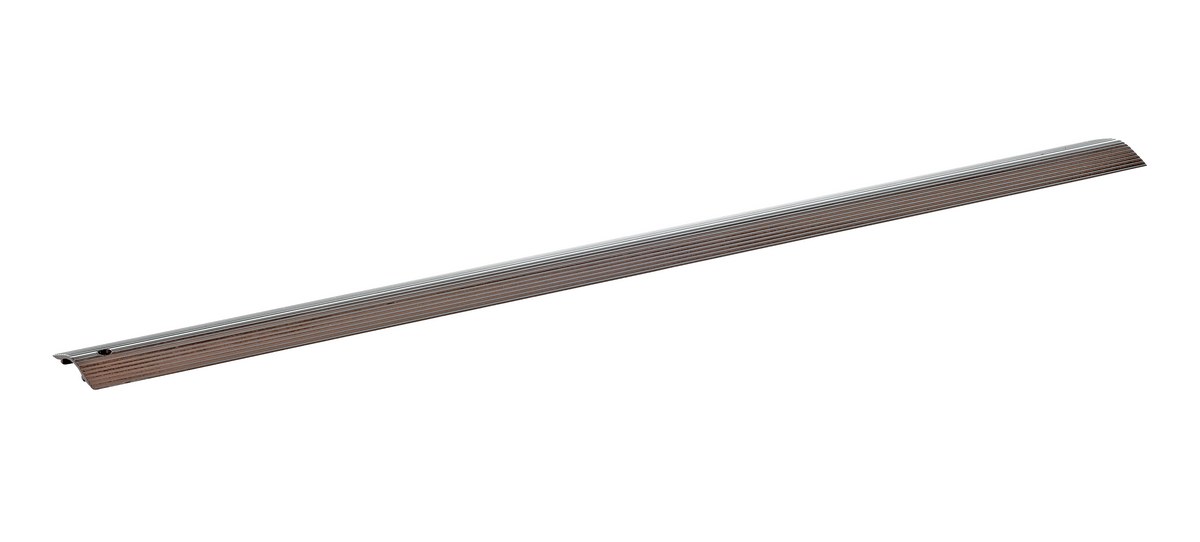

WR-36-BRN		Extruded Aluminum Hose/Cable Crossover 36 In. Length Brown	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	4

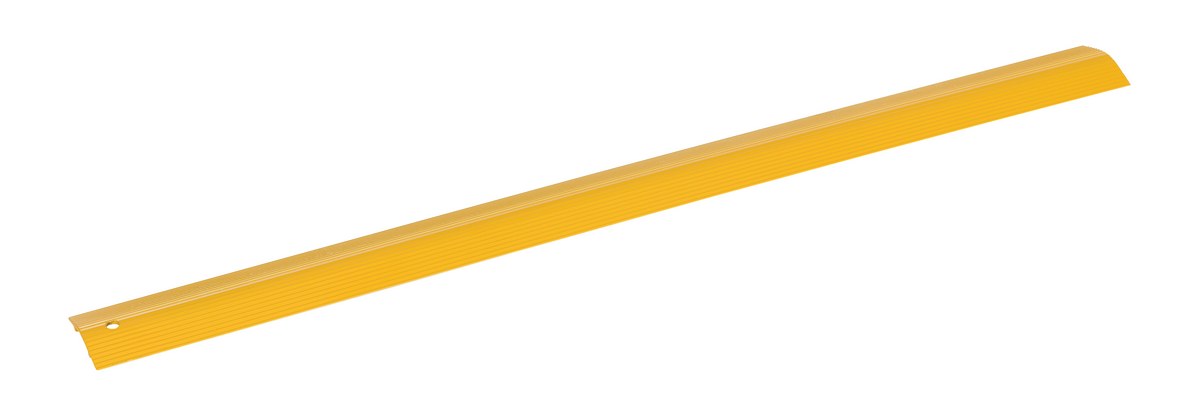

WR-36-Y		Extruded Aluminum Hose/Cable Crossover 36 In. Length Yellow	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	4

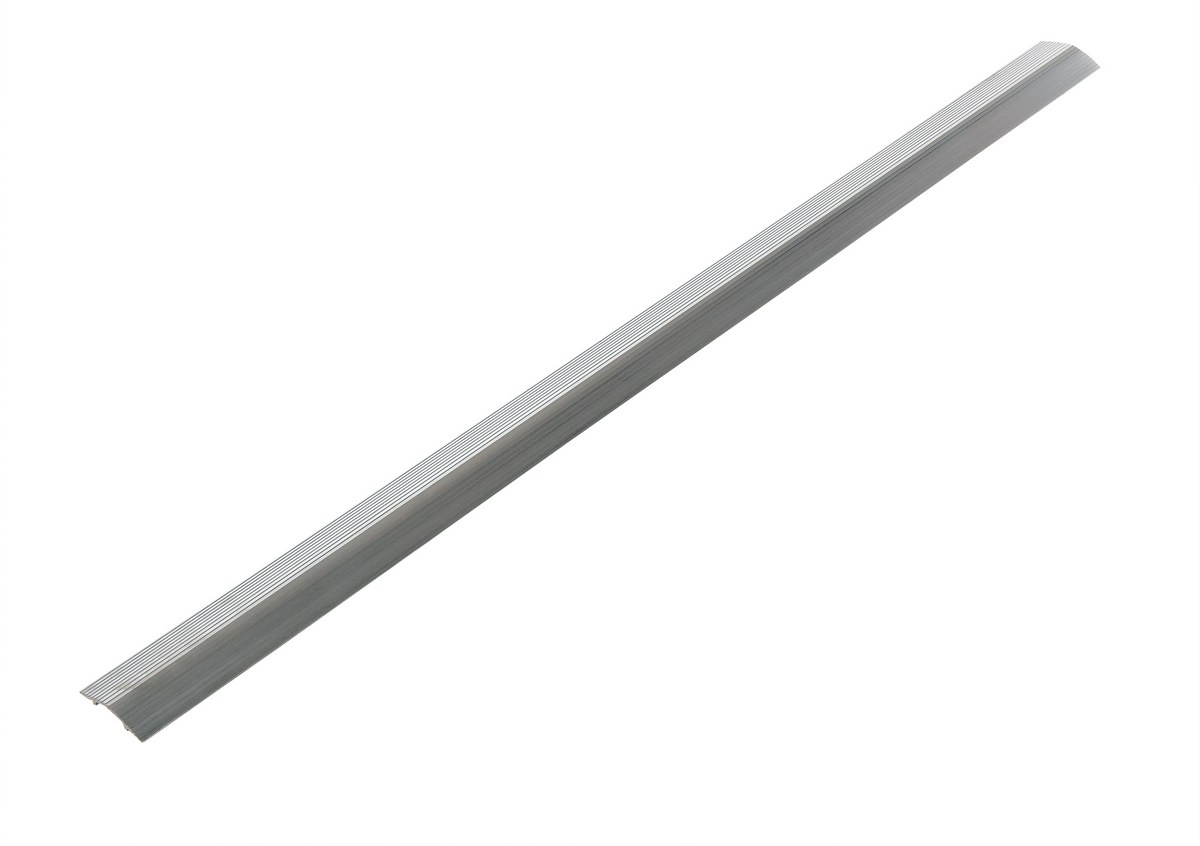

WR-48		Extruded Aluminum Hose/Cable Crossover 48 In. Length Silver	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	5

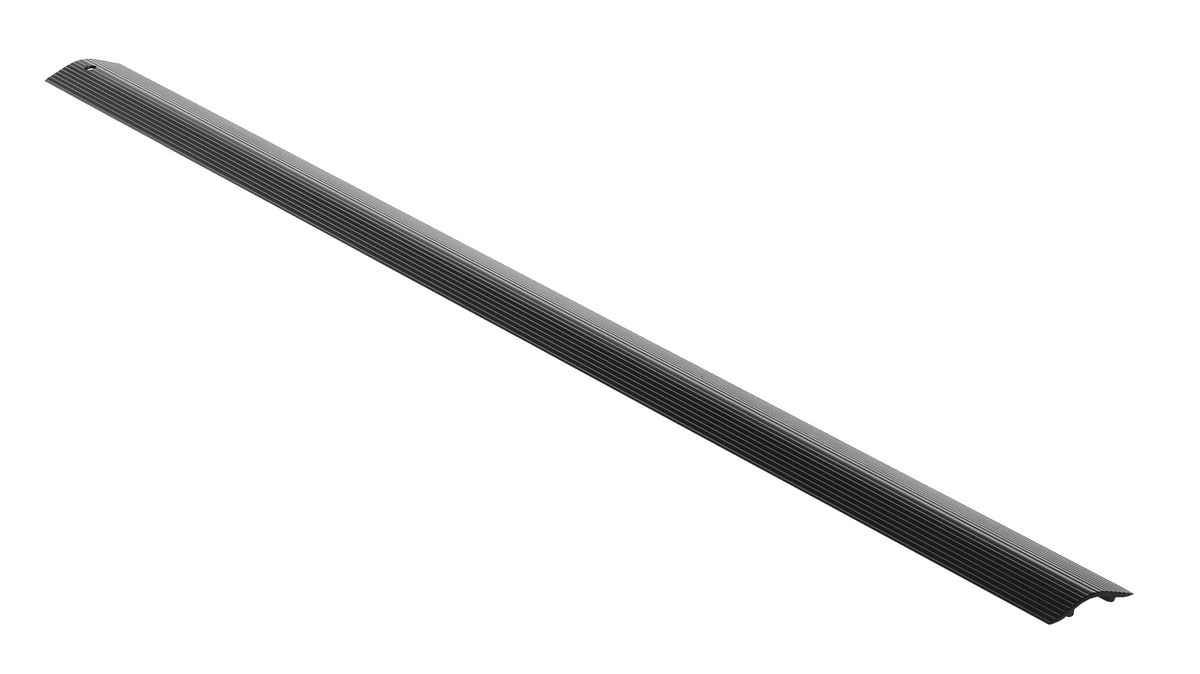

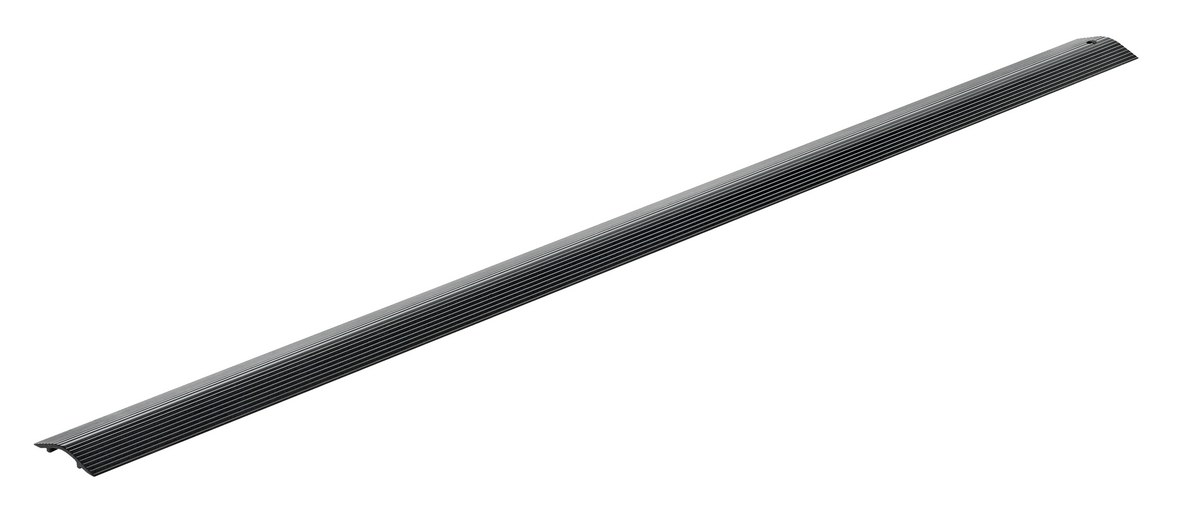

WR-48-BK		Extruded Aluminum Hose/Cable Crossover 48 In. Length Black	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	5

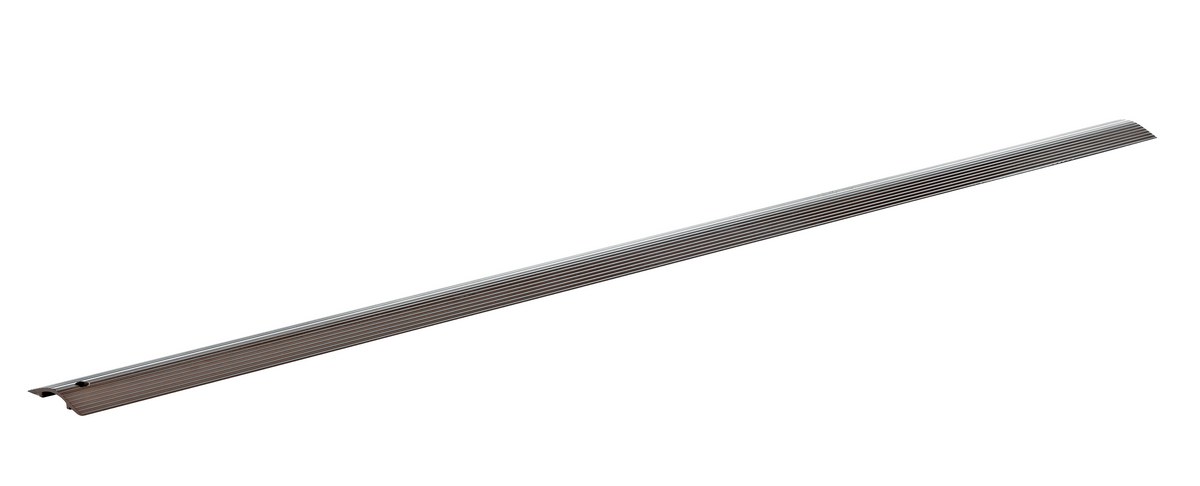

WR-48-BRN		Extruded Aluminum Hose/Cable Crossover 48 In. Length Brown	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	5

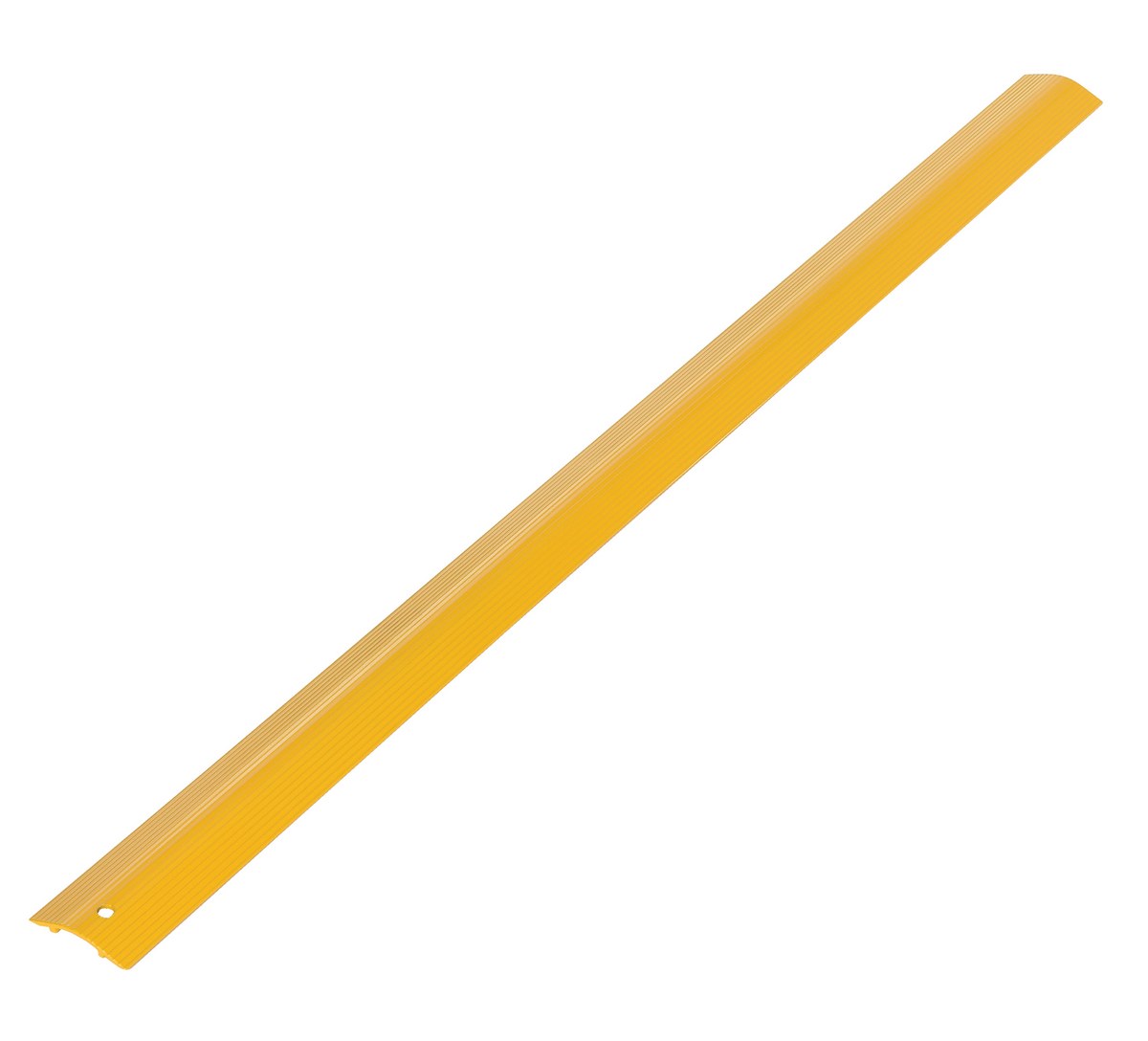

WR-48-Y		Extruded Aluminum Hose/Cable Crossover 48 In. Length Yellow	Single Wheel Uniform Capacity (lb.): 2,500 Usable Span Width (in.): 1-1/4	5

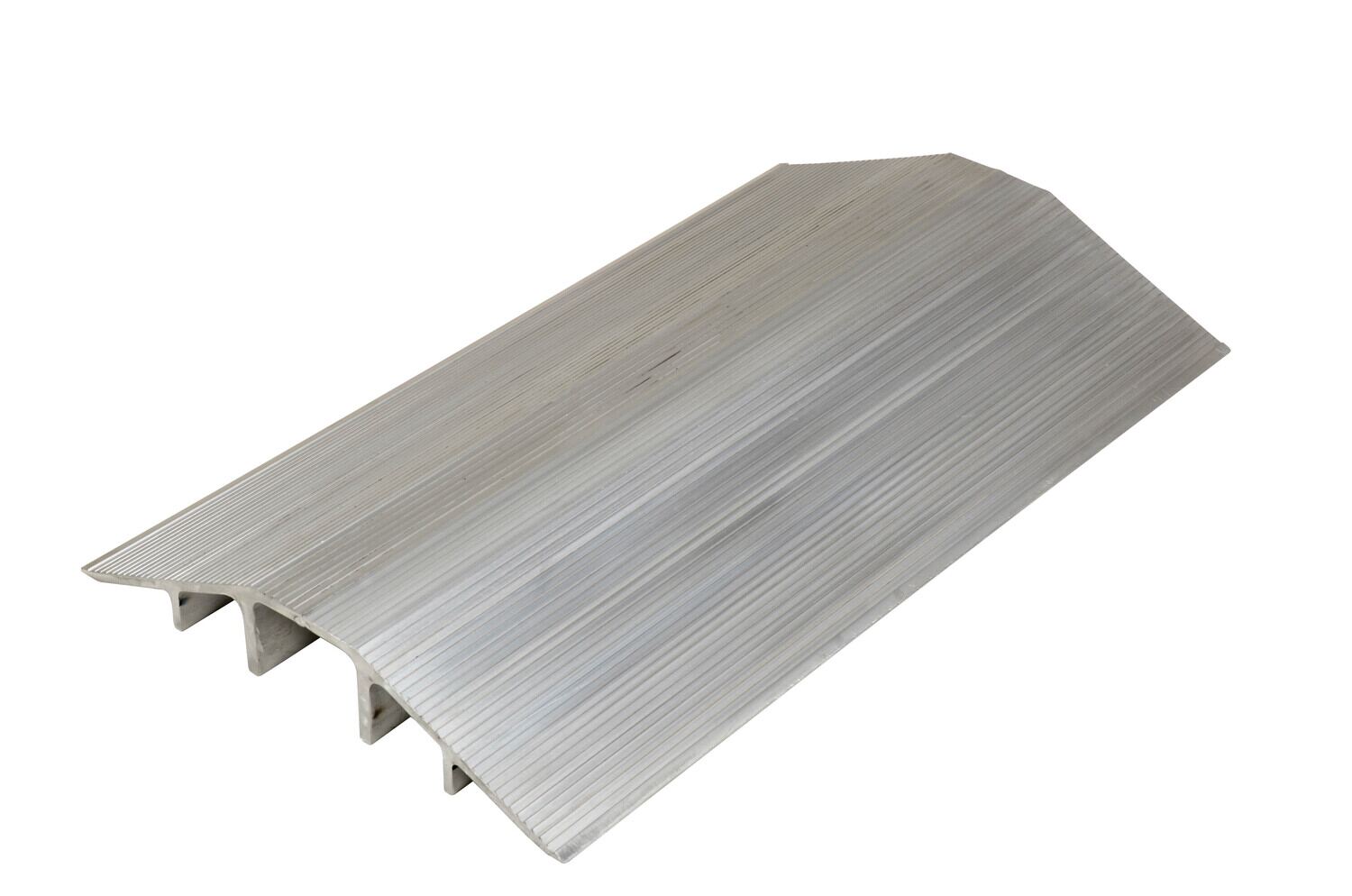

XHCR-36		Aluminum Extruded Hose/Cable Crossover 36 In. Length Silver	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	51

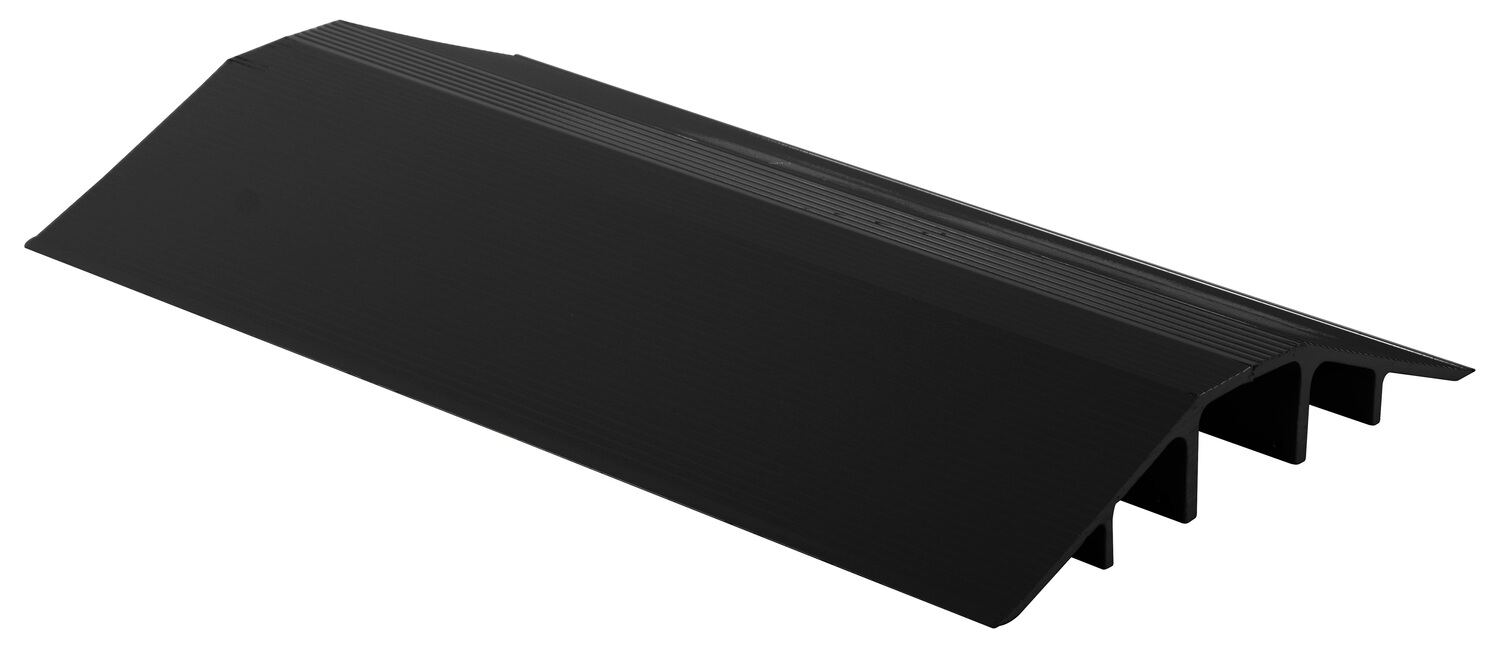

XHCR-36-BK		Aluminum Extruded Hose/Cable Crossover 36 In. Length Black	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	51

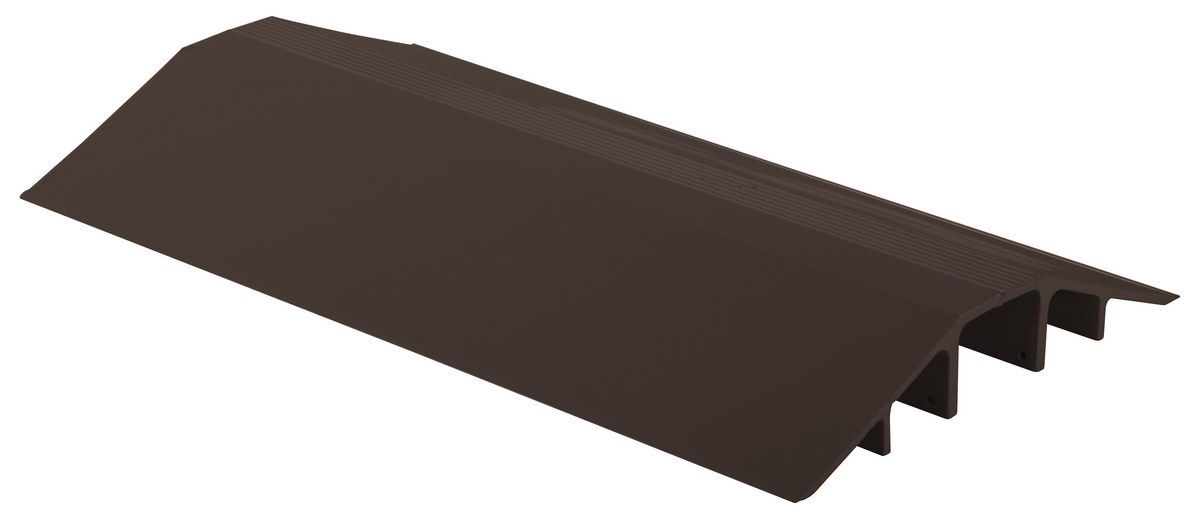

XHCR-36-BRN		Aluminum Extruded Hose/Cable Crossover 36 In. Length Brown	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	51
XHCR-36-Y		Aluminum Extruded Hose/Cable Crossover 36 In. Length Yellow	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	51
XHCR-48		Aluminum Extruded Hose/Cable Crossover 48 In. Length Silver	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	58

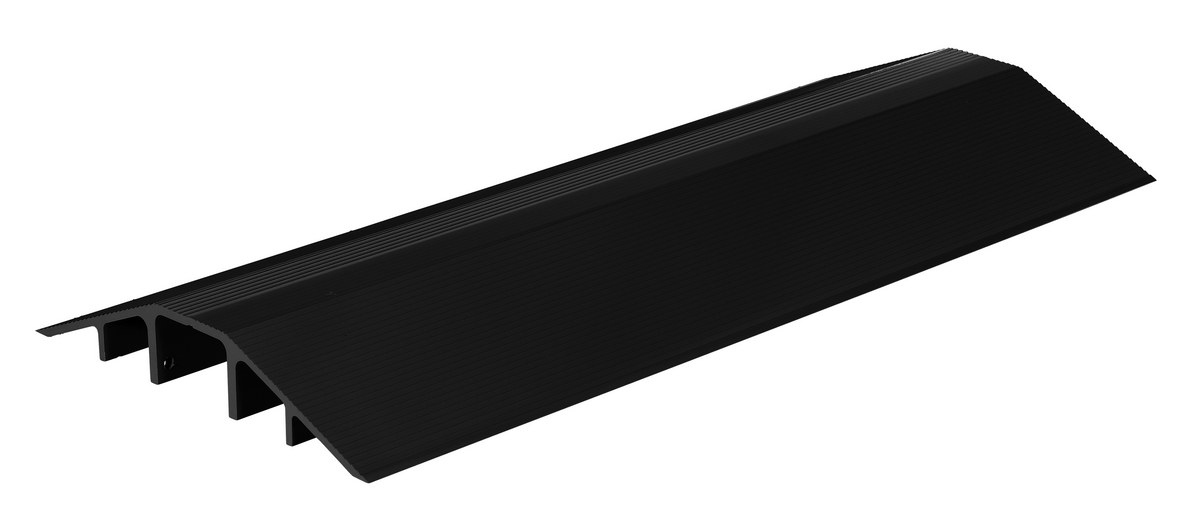

XHCR-48-BK		Aluminum Extruded Hose/Cable Crossover 48 In. Length Black	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	58
XHCR-48-BRN		Aluminum Extruded Hose/Cable Crossover 48 In. Length Brown	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	58

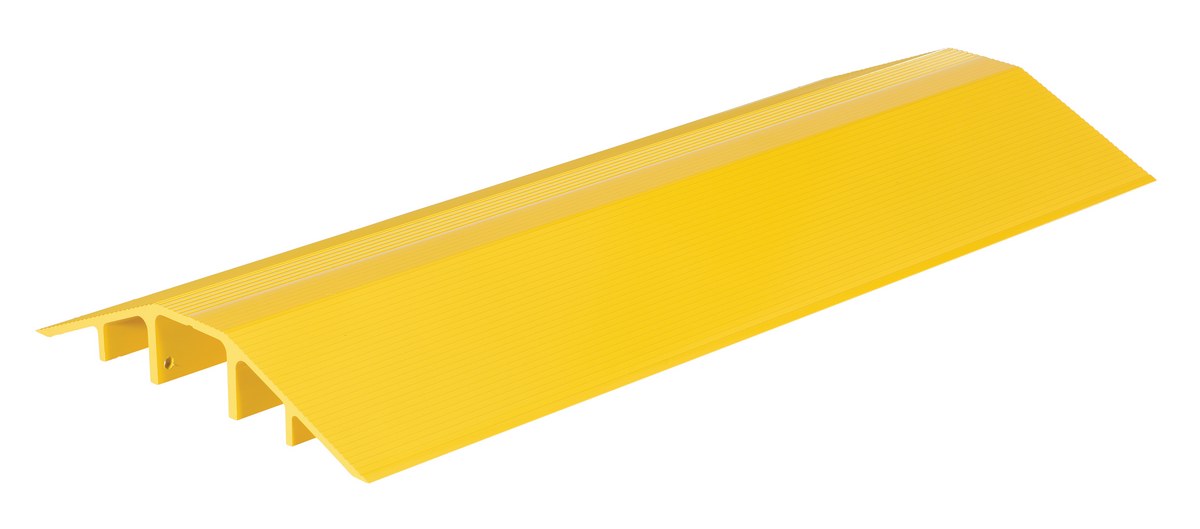

XHCR-48-Y		Aluminum Extruded Hose/Cable Crossover 48 In. Length Yellow	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	58
XHCR-60		Aluminum Extruded Hose/Cable Crossover 60 In. Length Silver	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	73

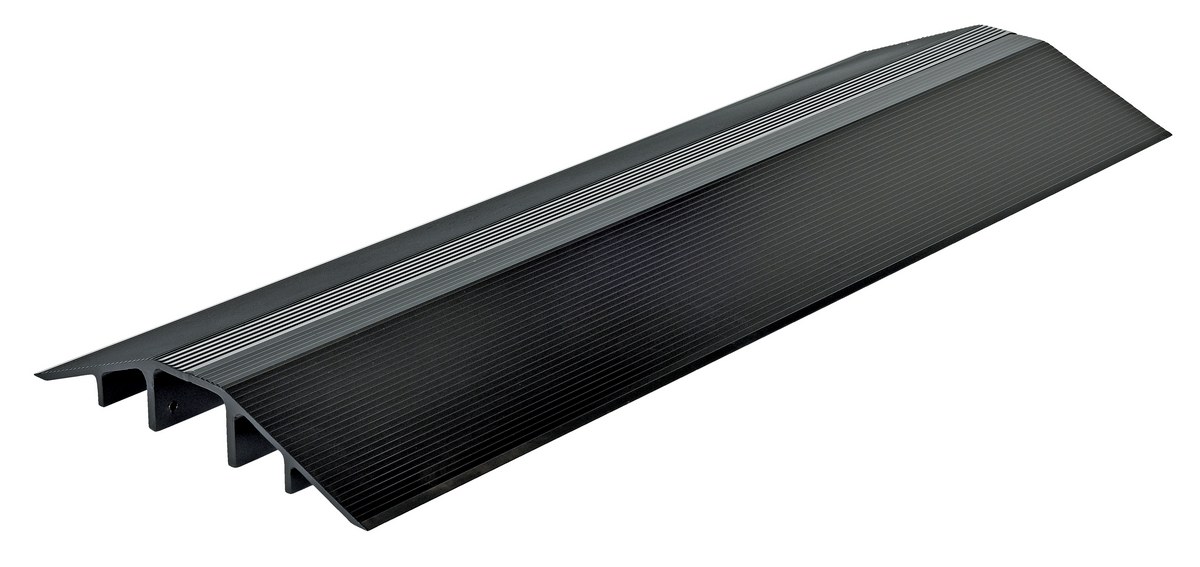

XHCR-60-BK		Aluminum Extruded Hose/Cable Crossover 60 In. Length Black	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	73
XHCR-60-BRN		Aluminum Extruded Hose/Cable Crossover 60 In. Length Brown	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	73

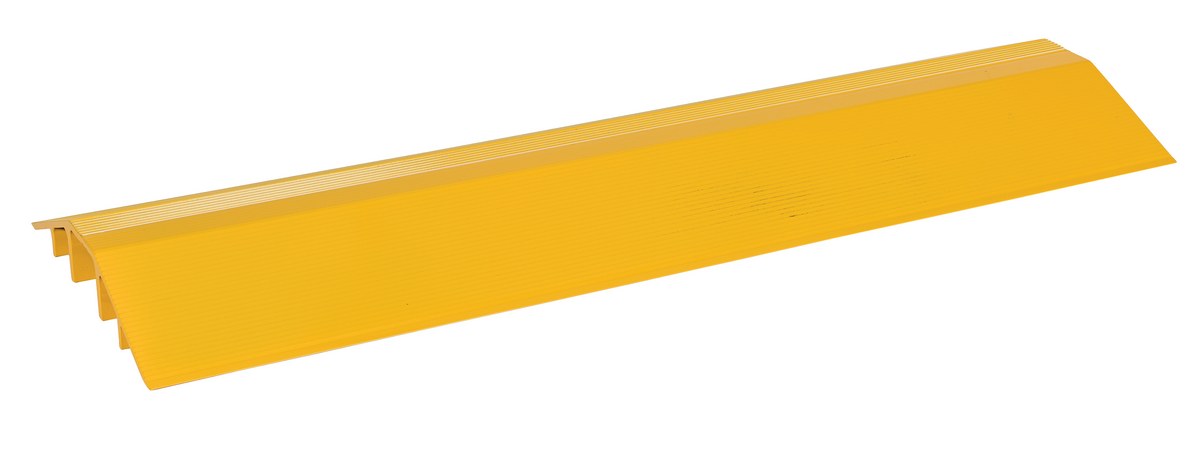

XHCR-60-Y		Aluminum Extruded Hose/Cable Crossover 60 In. Length Yellow	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	73

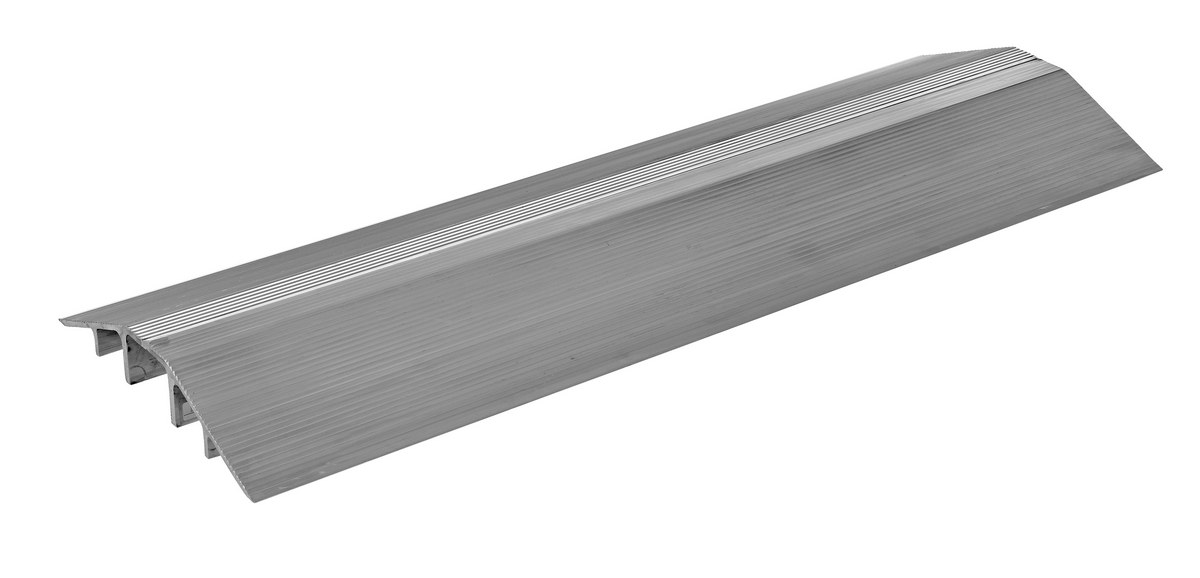

XHCR-72		Aluminum Extruded Hose/Cable Crossover 72 In. Length Silver	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	88
XHCR-72-BK		Aluminum Extruded Hose/Cable Crossover 72 In. Length Black	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	88

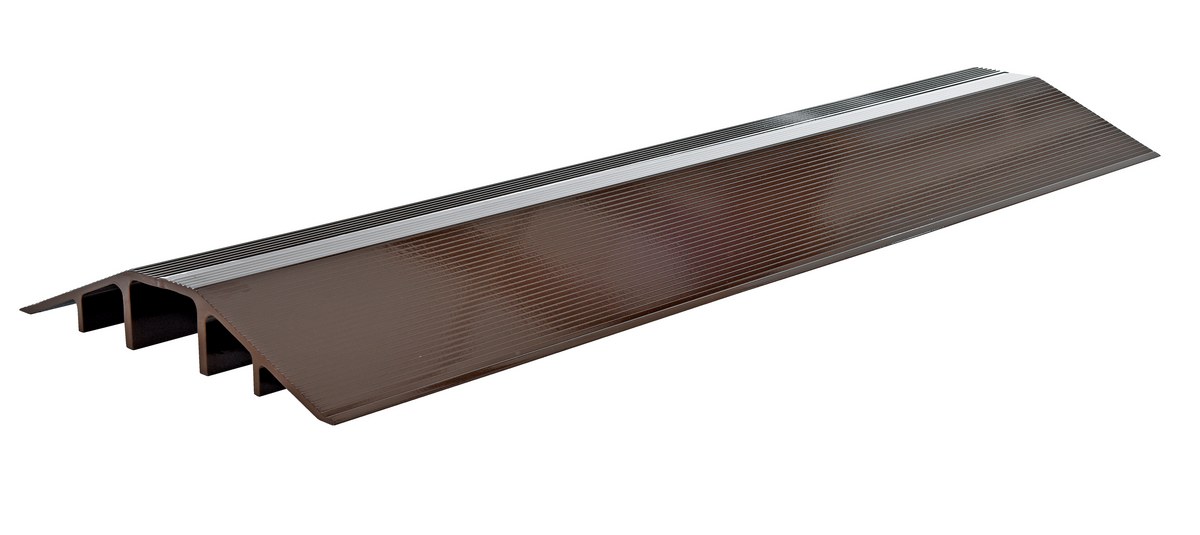

XHCR-72-BRN		Aluminum Extruded Hose/Cable Crossover 72 In. Length Brown	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	88
XHCR-72-Y		Aluminum Extruded Hose/Cable Crossover 72 In. Length Yellow	Single Wheel Uniform Capacity (lb.): 10,000 Cable Opening Width (in.): 4-1/2	88
