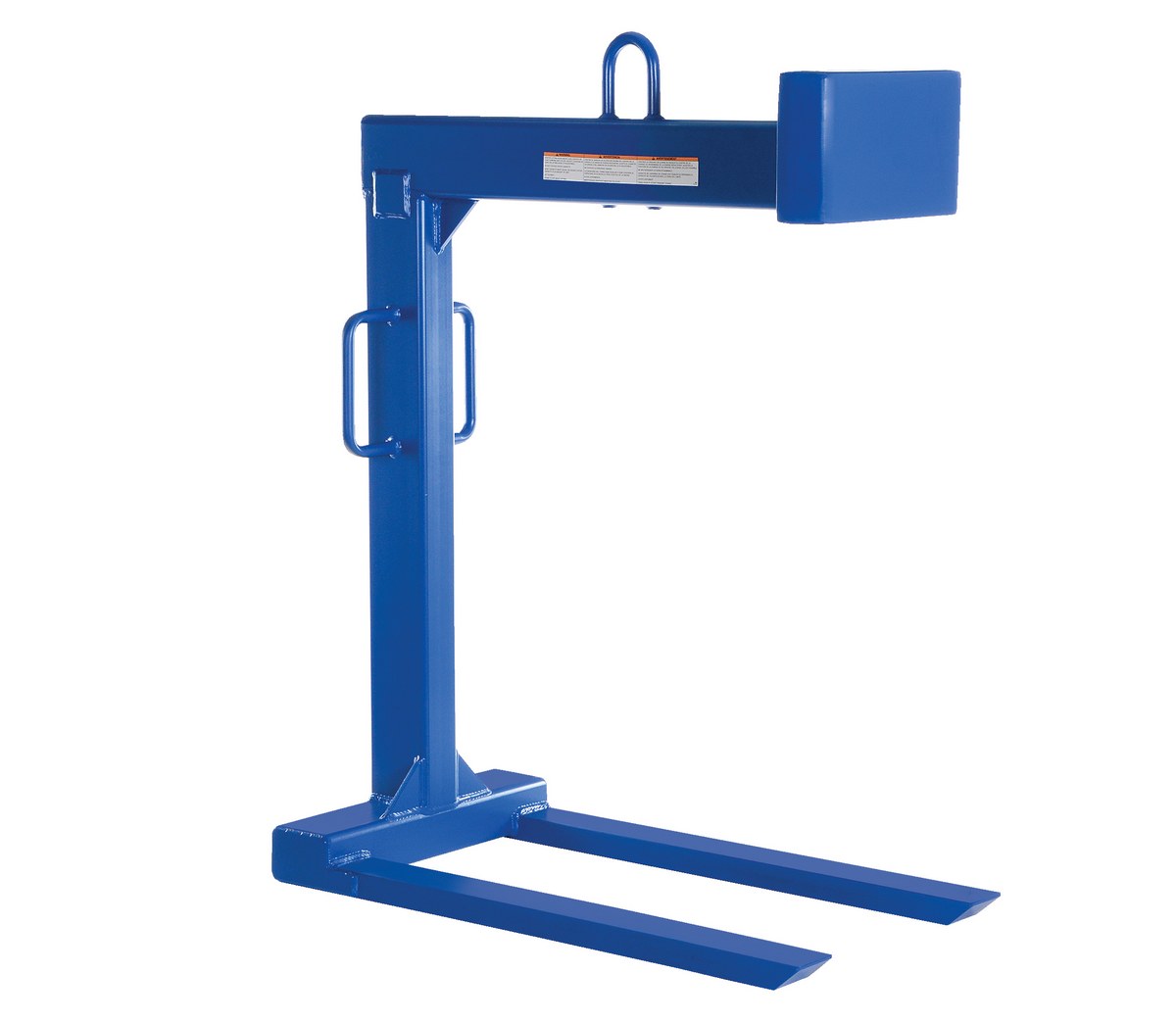

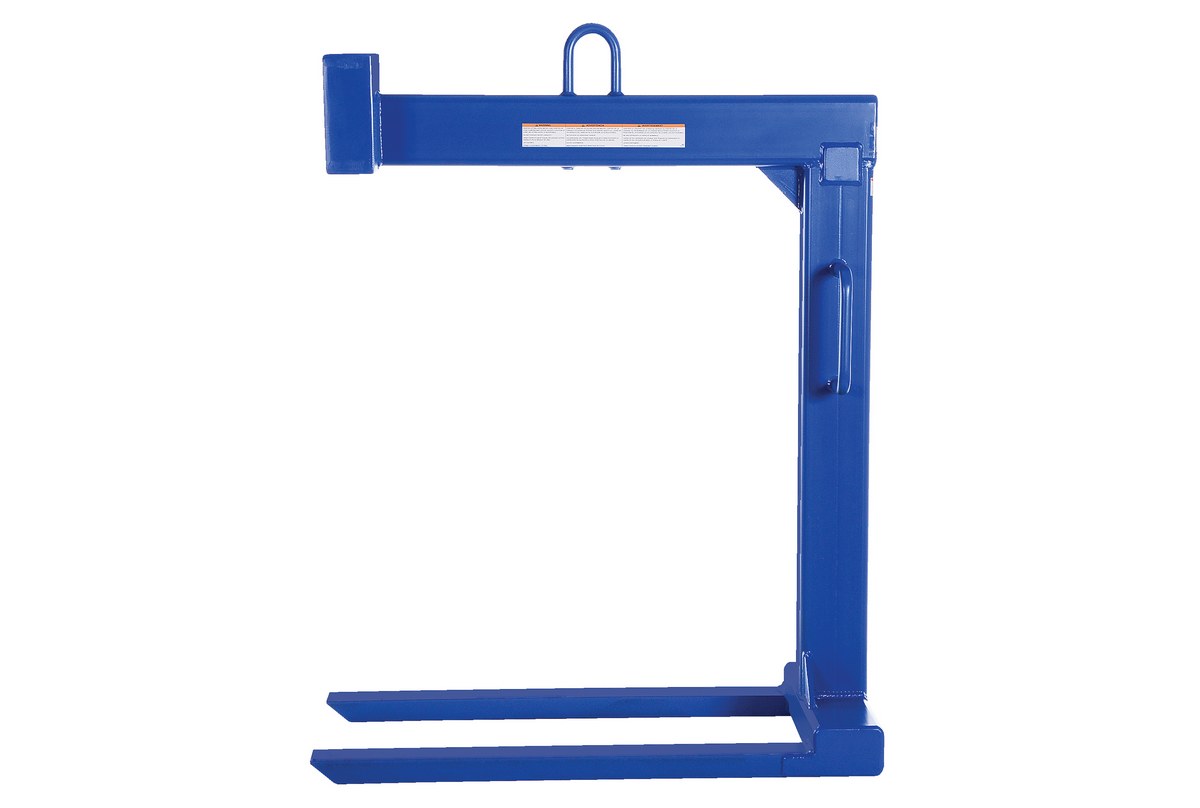

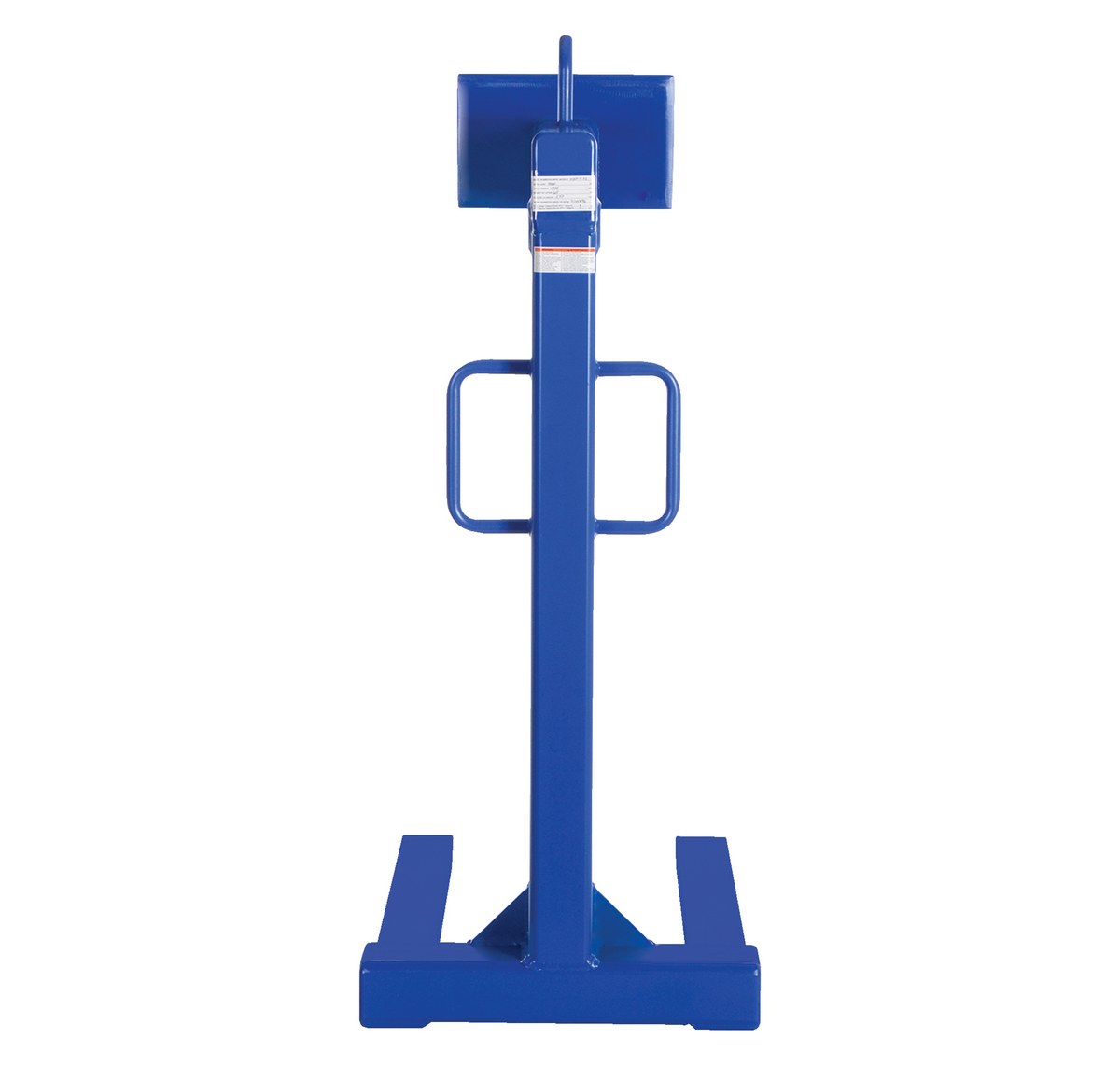

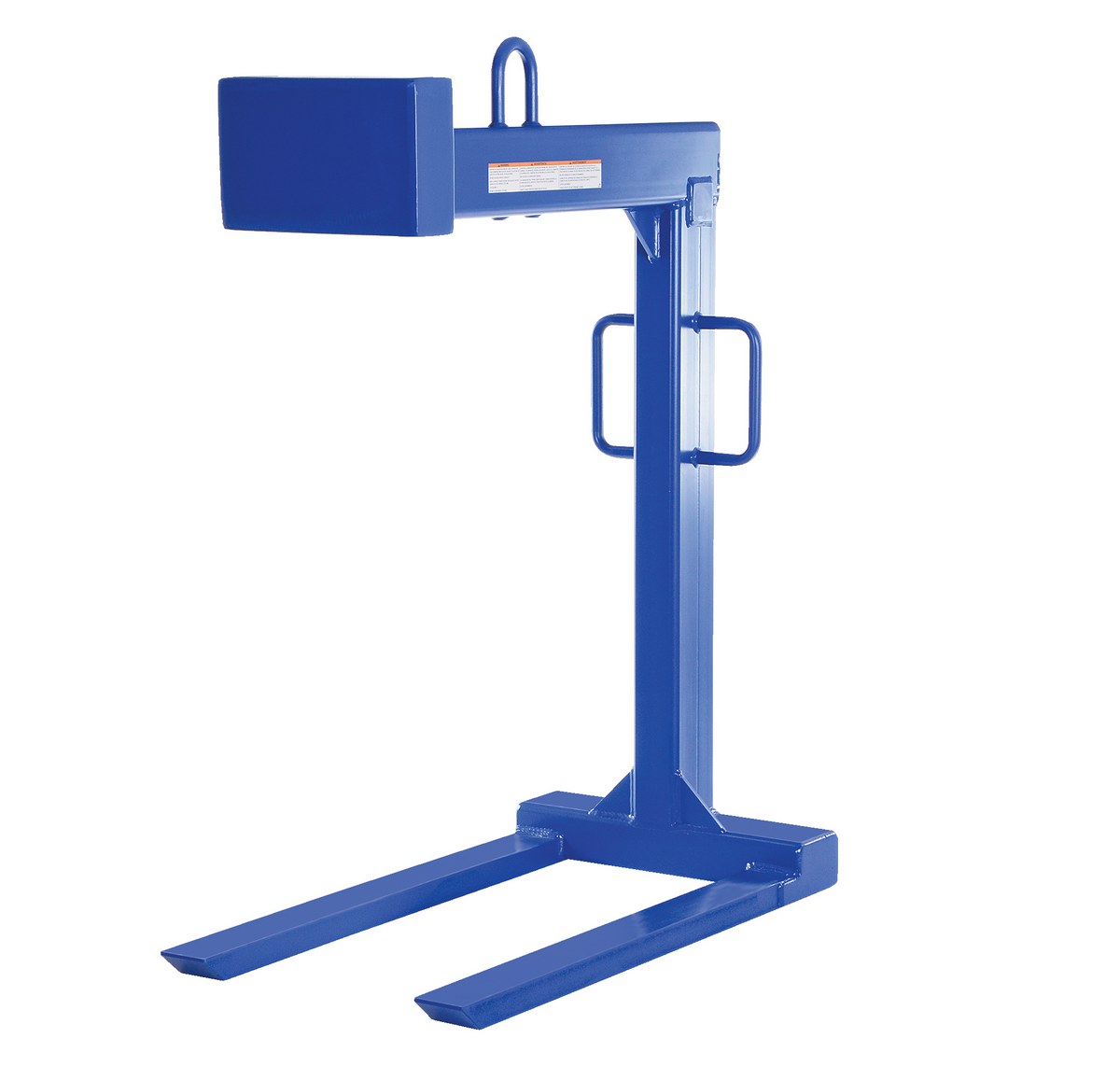

model: HDP-4-42

HDP-4-42_A.jpg HDP-4-42_B.jpg HDP-4-42_C.jpg HDP-4-42_D.jpg HDP-4-42_E.jpg HDP-4-42_F.jpg HDP-4-42_G.jpg HDP-4-42_H.jpg More Images +
Pallet Lifters
SERIES: HDP   13Products 4Options
Custom Fabrication

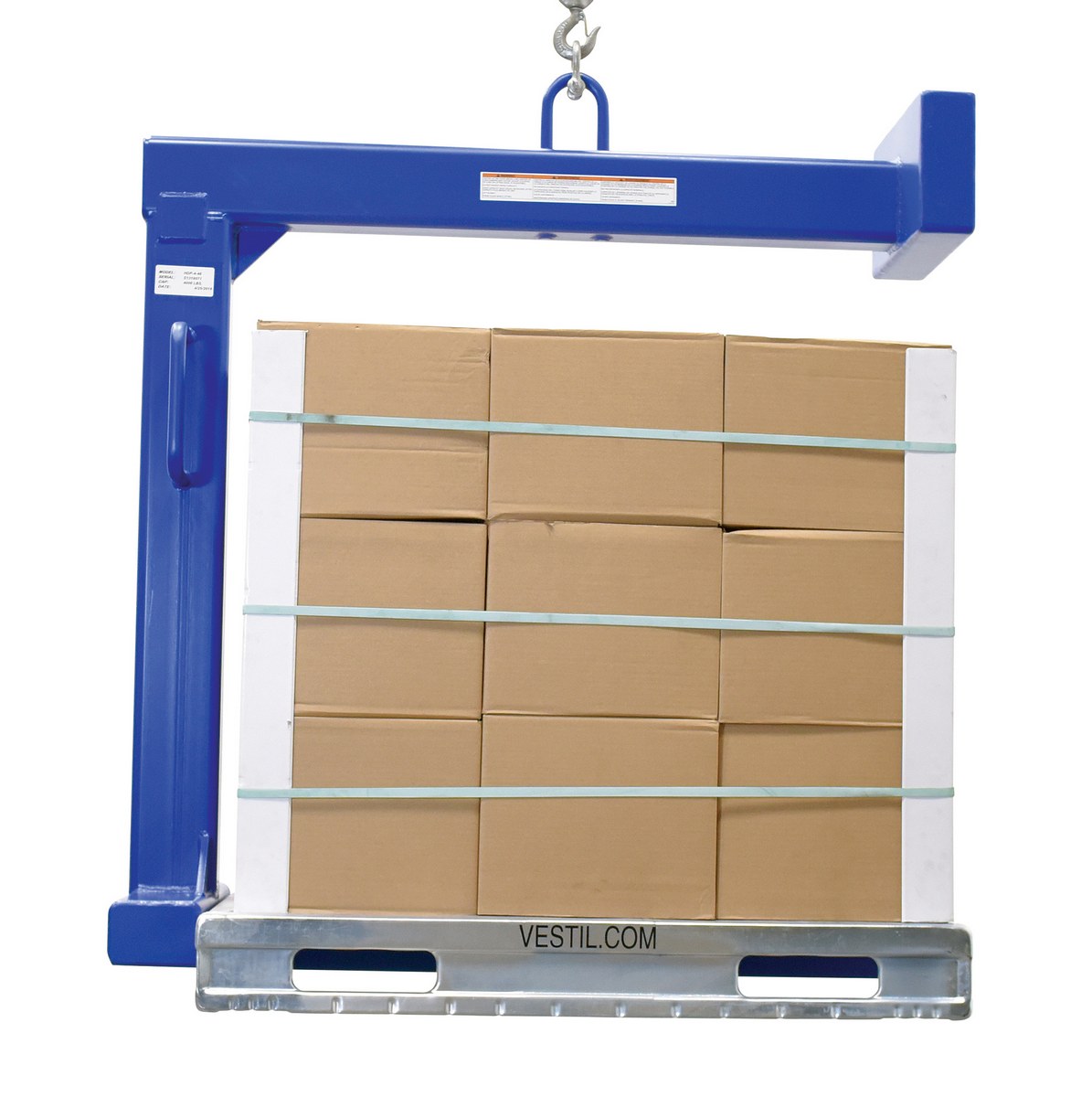

Crane Mounted Pallet Lifters for Overhead Load Handling

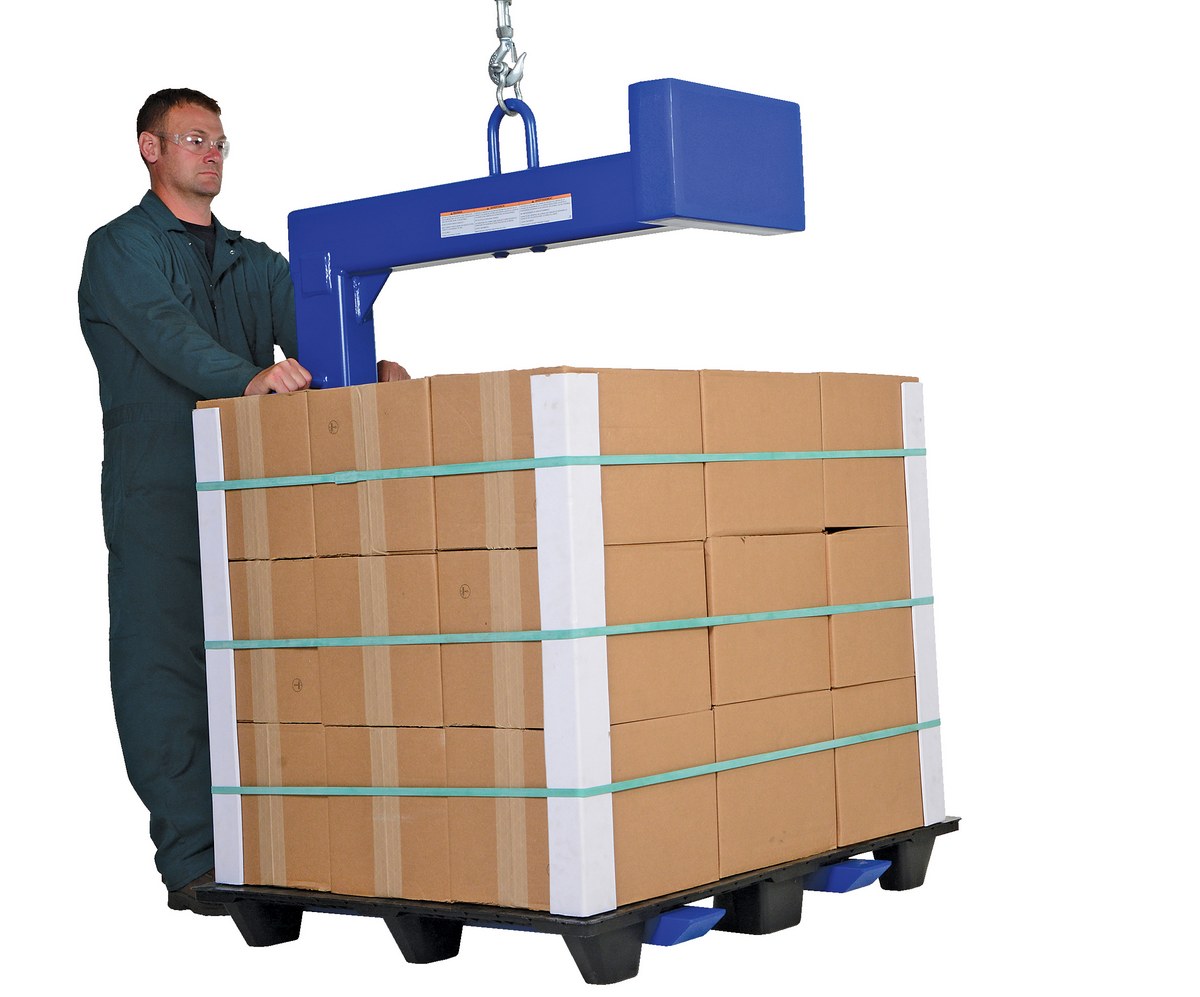

Crane mounted pallet lifters convert an overhead hoist or crane into a fork-style lifting solution for moving palletized loads where a fork truck may not be practical. Designed for construction sites, ship loading, barges, open-top trucks, unpaved storage areas, and material staging zones, these below-the-hook pallet lifters help raise and position loads from above with dependable control.

Heavy-Duty Fork Lifting Design

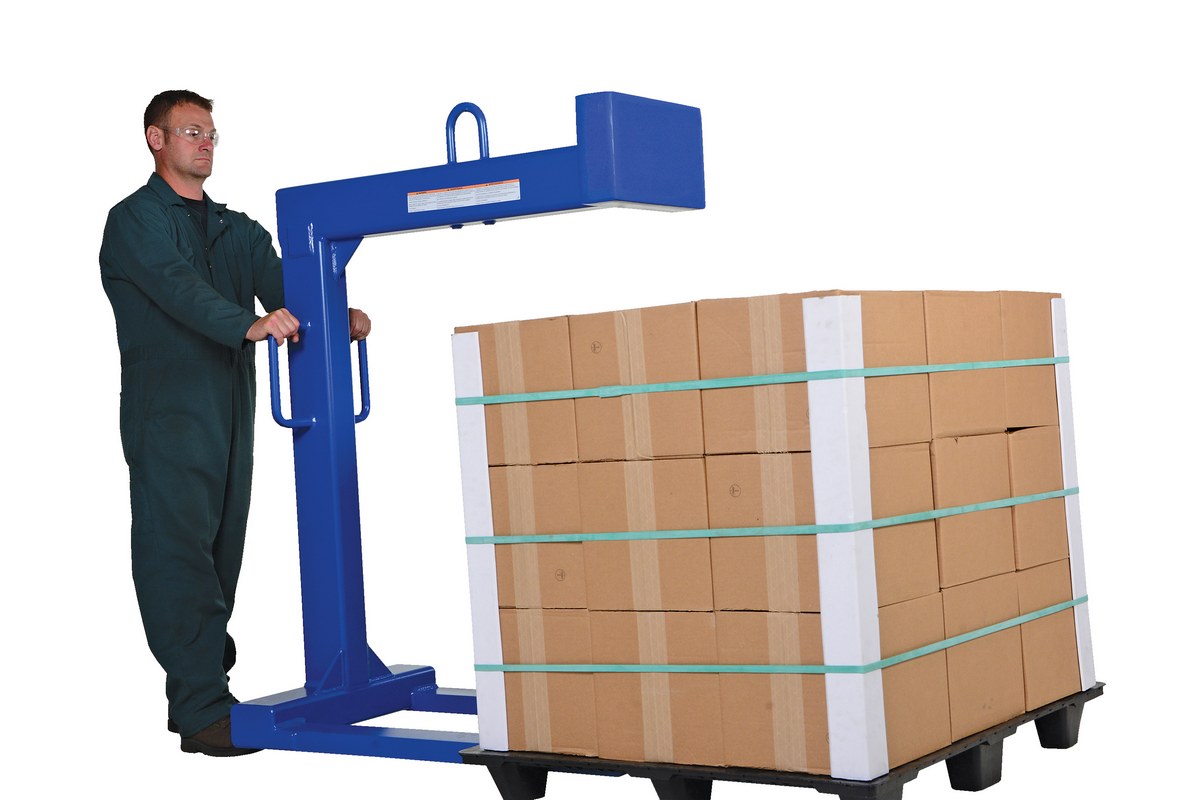

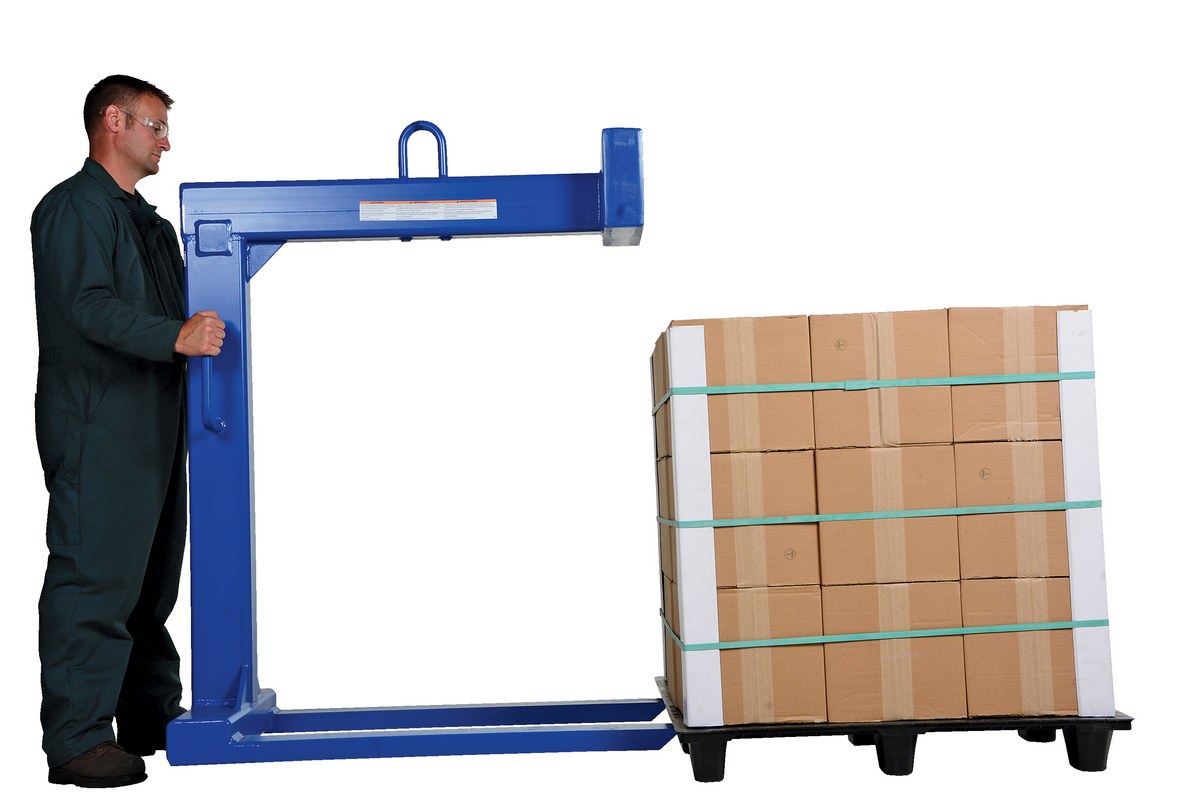

Solid steel construction provides long service life in demanding lifting applications. Tapered forks allow easier entry into pallet or skid fork openings, while the built-in backstop helps position the load correctly on the tines. Handles on the main support allow personnel to guide and position the lifter when unloaded.

Counterbalanced for Easier Handling

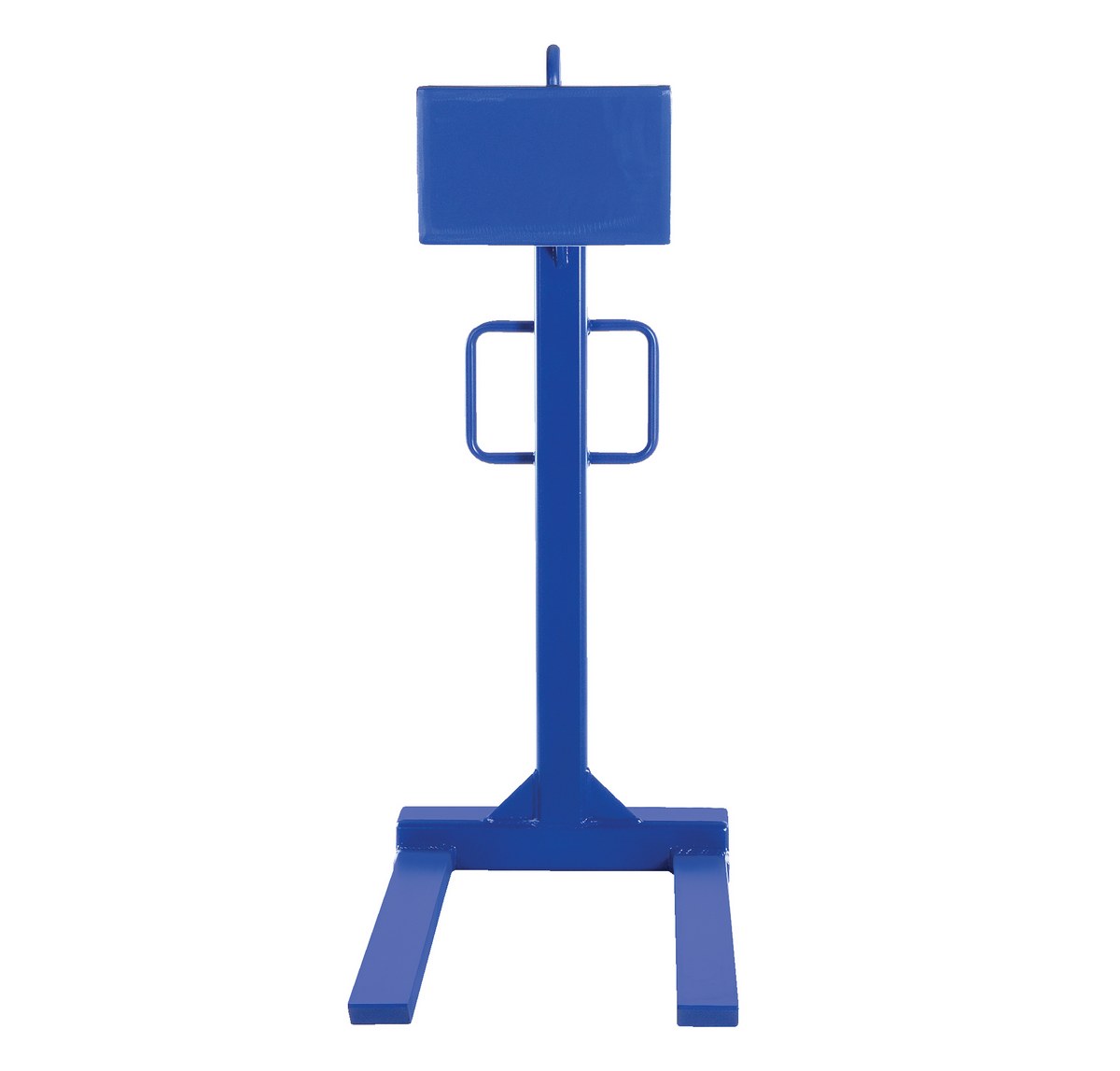

A large square head serves as a counterweight to help keep the lifter level when no load is attached. The lifting bail connects to the hoist hook, allowing palletized materials to be raised, moved, and placed in areas where ground-based equipment has limited access.

Capacities, Fork Lengths, and Options

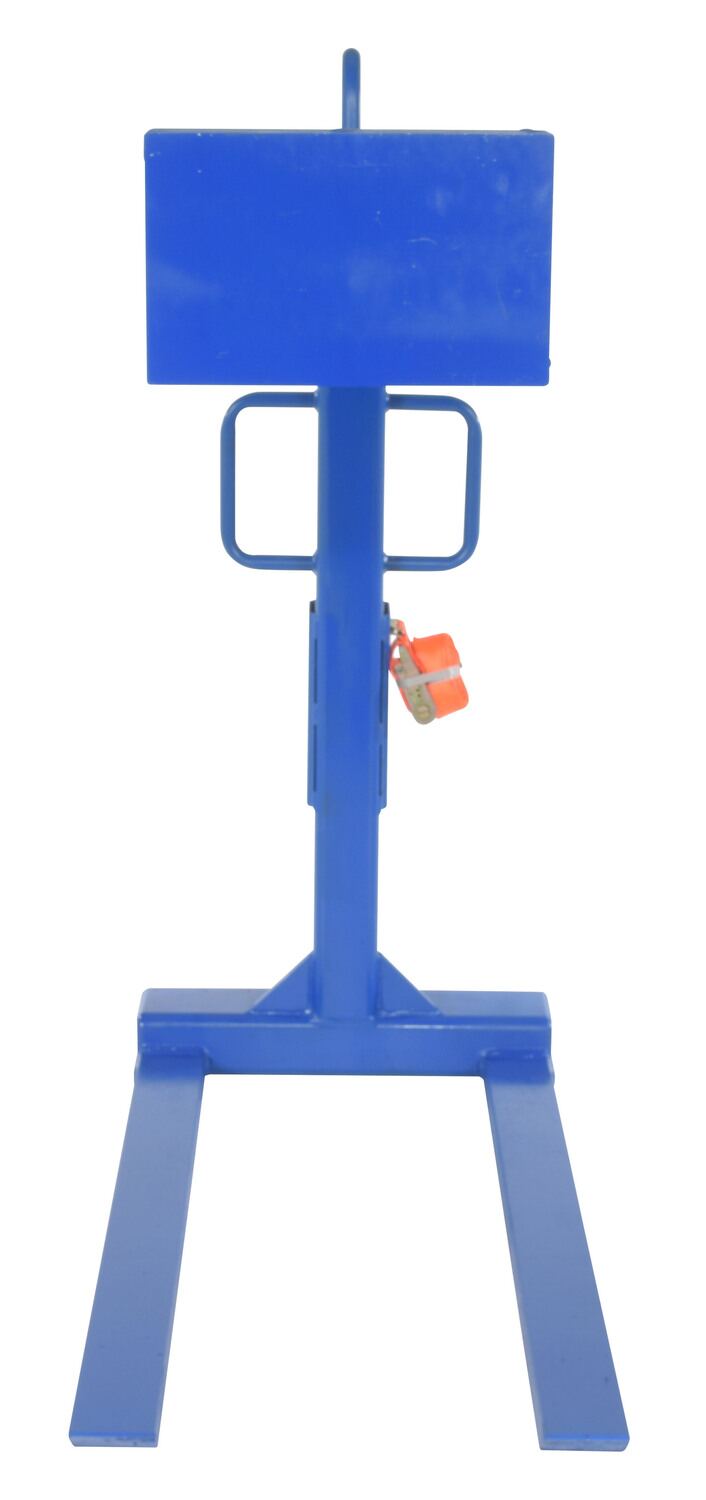

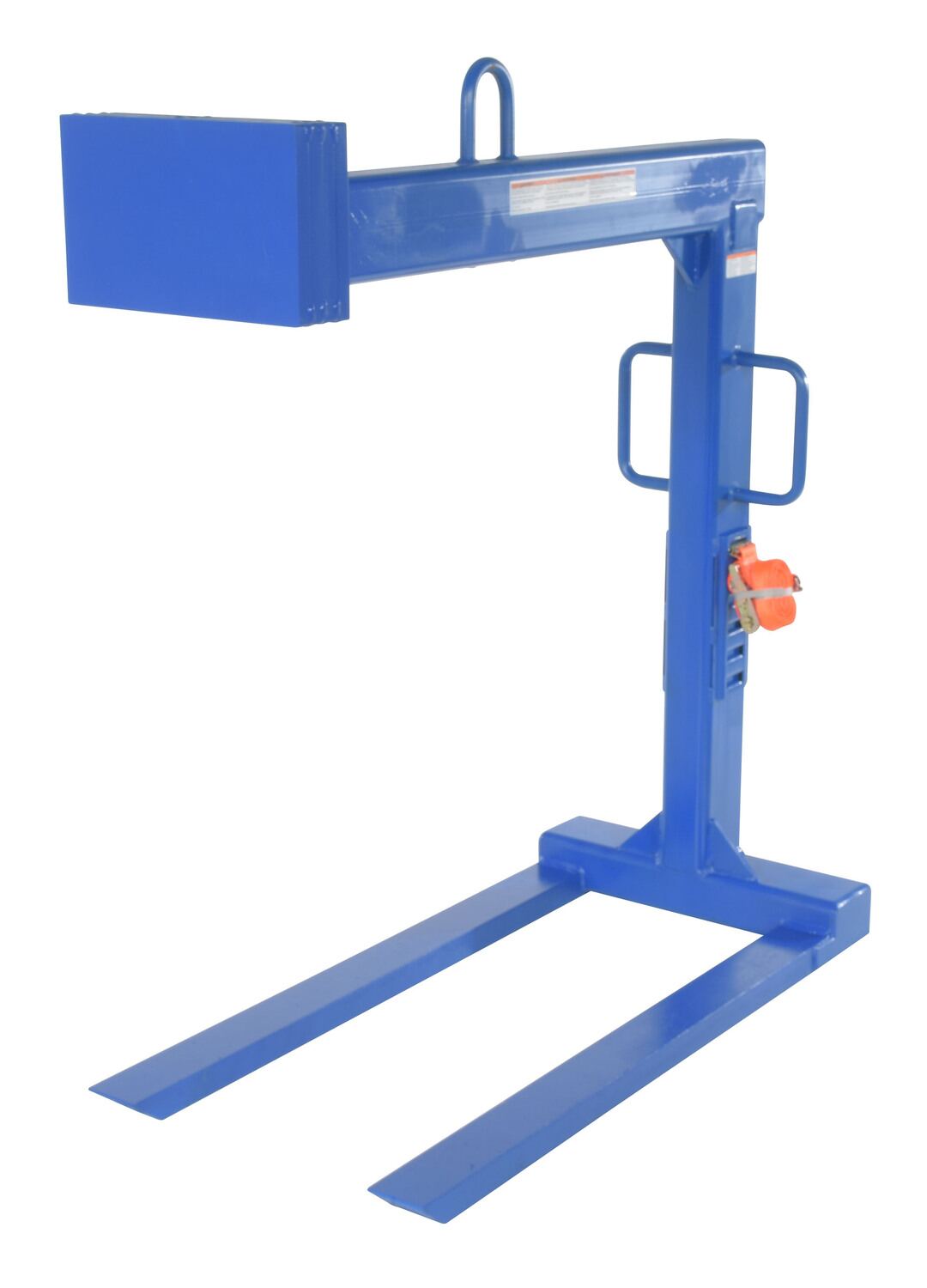

Models are available with 2,000 lb., 4,000 lb., and 6,000 lb. capacities, with fork lengths from 36 inches to 54 inches depending on capacity. Optional factory-installed adjustable bails and tie down track are available for added load control.  Optional Tie Down Track for HDP's - Factory Installed Option Only

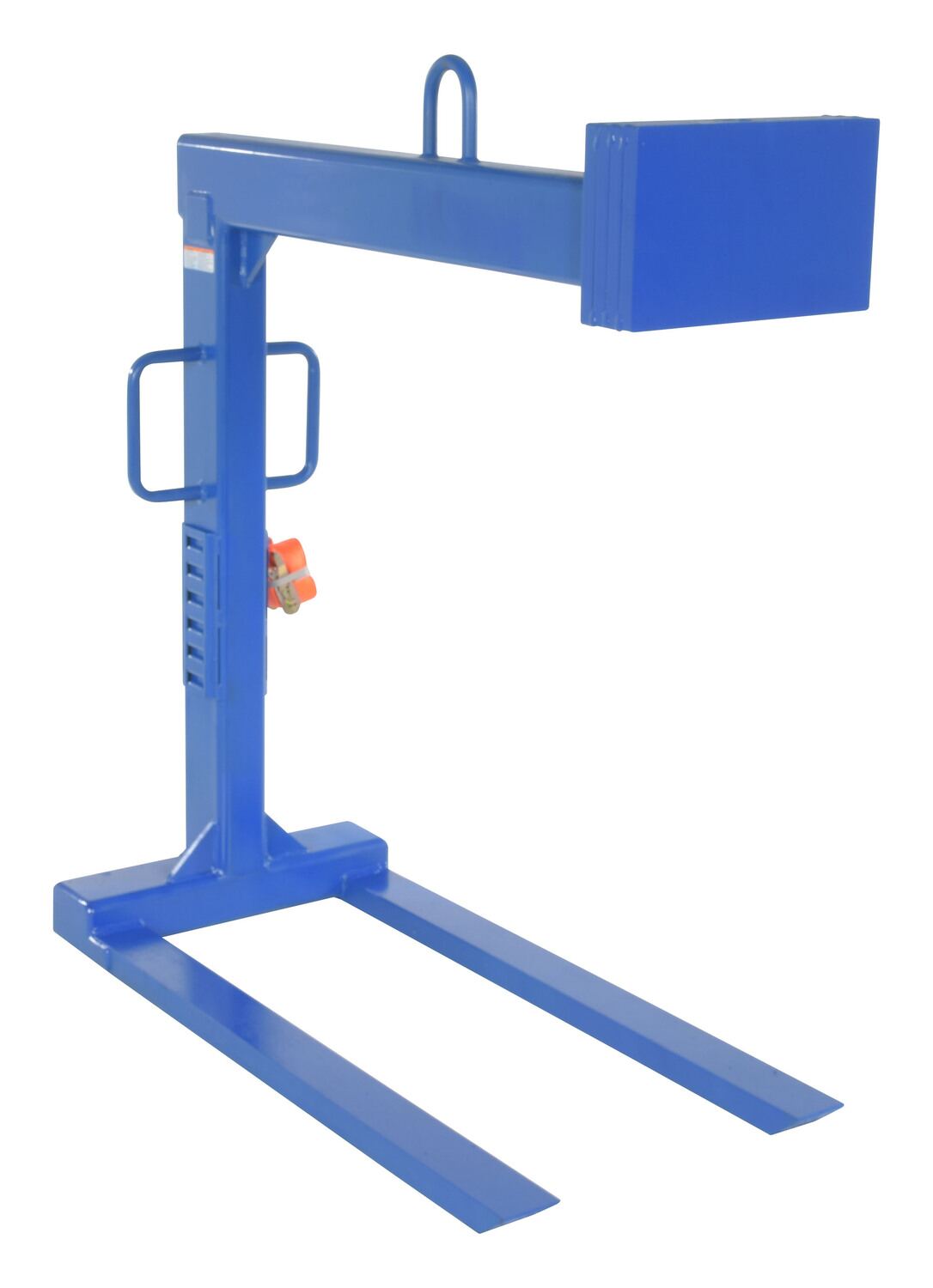

Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.

Pallet Lifters

model: HDP-4-42

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
HDP-2-36
HDP-2-42
HDP-2-48
HDP-2-AB
HDP-4-36
HDP-4-42
HDP-4-48
HDP-4-AB
HDP-6-42
HDP-6-48
HDP-6-54
HDP-6-AB
HDP-TIE-DOWN
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

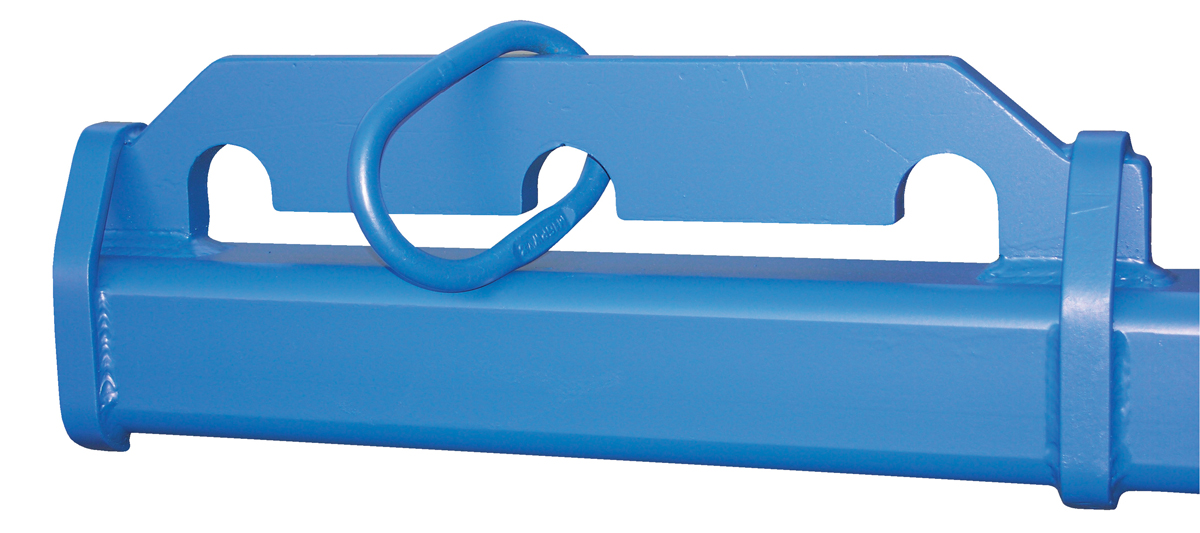

HDP-2-AB HDP-2-AB Factory Installed Steel Adjustable Bail For 2000 Lb. Capacit… 90 Days Limited Warranty
HDP-4-AB HDP-4-AB Factory Installed Steel Adjustable Bail For 4000 Lb. Capacit… 90 Days Limited Warranty
HDP-6-AB HDP-6-AB Factory Installed Steel Adjustable Bail For 6000 Lb. Capacit… 90 Days Limited Warranty
HDP-TIE-DOWN HDP-TIE-DOWN Steel Factory Installed Optional HDP Tie Down Blue 90 Days Limited Warranty NEW 3

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

1
HDP, Manual
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

9
HDP-2-36
Open Drawing
HDP-2-42
Open Drawing
HDP-2-48
Open Drawing
HDP-4-36
Open Drawing
HDP-4-42
Open Drawing
HDP-4-48
Open Drawing
HDP-6-42
Open Drawing
HDP-6-48
Open Drawing
HDP-6-54
Open Drawing

Testing Certificates

12
HDP-2-36
Open Certificate
HDP-2-42
Open Certificate
HDP-2-48
Open Certificate
HDP-2-AB
Open Certificate
HDP-4-36
Open Certificate
HDP-4-42
Open Certificate
HDP-4-48
Open Certificate
HDP-4-AB
Open Certificate
HDP-6-42
Open Certificate
HDP-6-48
Open Certificate
HDP-6-54
Open Certificate
HDP-6-AB
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

1

Overhead Pallet Lifters Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Overhead Load Lifters





Pallet Lifters




Crane Mounted Pallet Lifters for Overhead Load Handling

Crane mounted pallet lifters convert an overhead hoist or crane into a fork-style lifting solution for moving palletized loads where a fork truck may not be practical. Designed for construction sites, ship loading, barges, open-top trucks, unpaved storage areas, and material staging zones, these below-the-hook pallet lifters help raise and position loads from above with dependable control.

Heavy-Duty Fork Lifting Design

Solid steel construction provides long service life in demanding lifting applications. Tapered forks allow easier entry into pallet or skid fork openings, while the built-in backstop helps position the load correctly on the tines. Handles on the main support allow personnel to guide and position the lifter when unloaded.

Counterbalanced for Easier Handling

A large square head serves as a counterweight to help keep the lifter level when no load is attached. The lifting bail connects to the hoist hook, allowing palletized materials to be raised, moved, and placed in areas where ground-based equipment has limited access.

Capacities, Fork Lengths, and Options

Models are available with 2,000 lb., 4,000 lb., and 6,000 lb. capacities, with fork lengths from 36 inches to 54 inches depending on capacity. Optional factory-installed adjustable bails and tie down track are available for added load control.  Optional Tie Down Track for HDP's - Factory Installed Option Only
Give your products more security with the addition of the optional tie down track. The track is constructed of steel and includes six slots, allowing the user to position the (included) strap at varying heights. The design minimizes set up time, while increasing user safety. With the track welded to the vertical post of the pallet lifter, straps can then be quickly secured to the track and around many products.


Model # Description Attributes Net Wt.
(lbs)

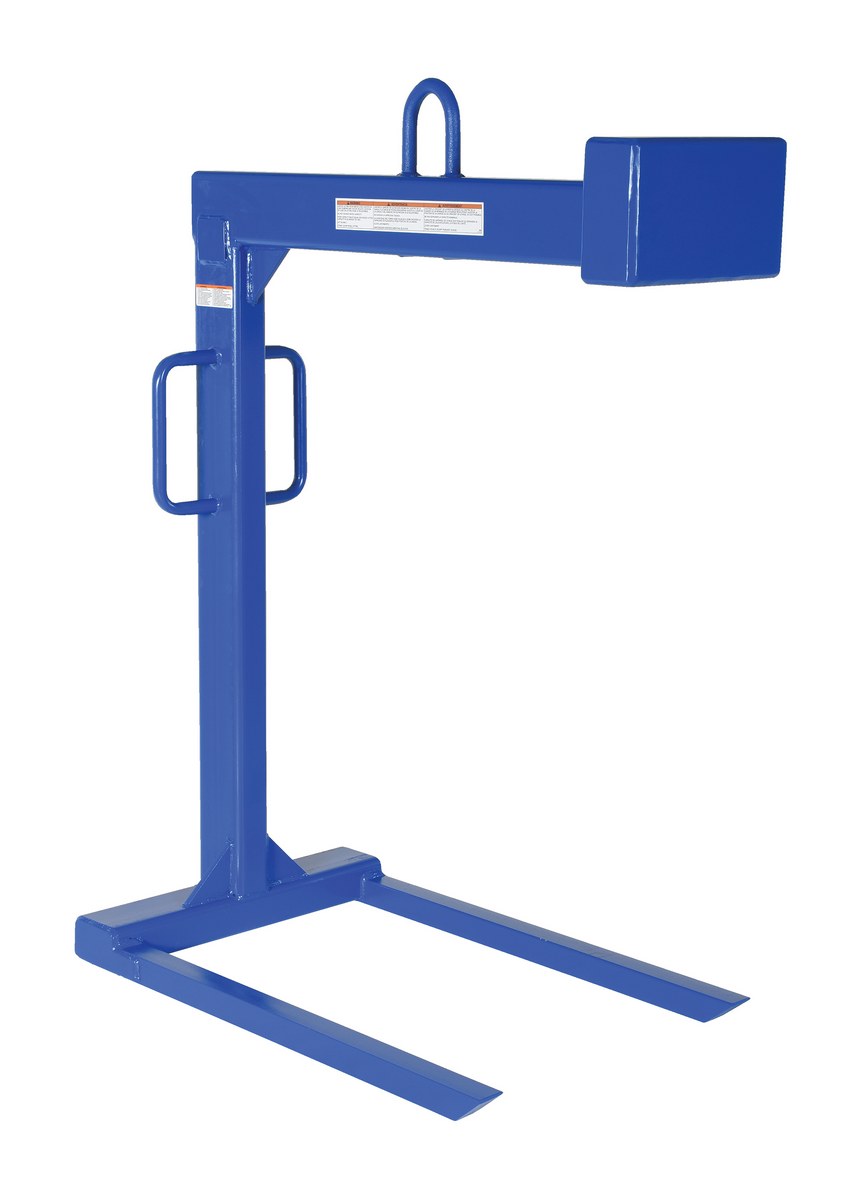

HDP-2-36 HDP-2-36Steel Pallet Lifter 36 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		436

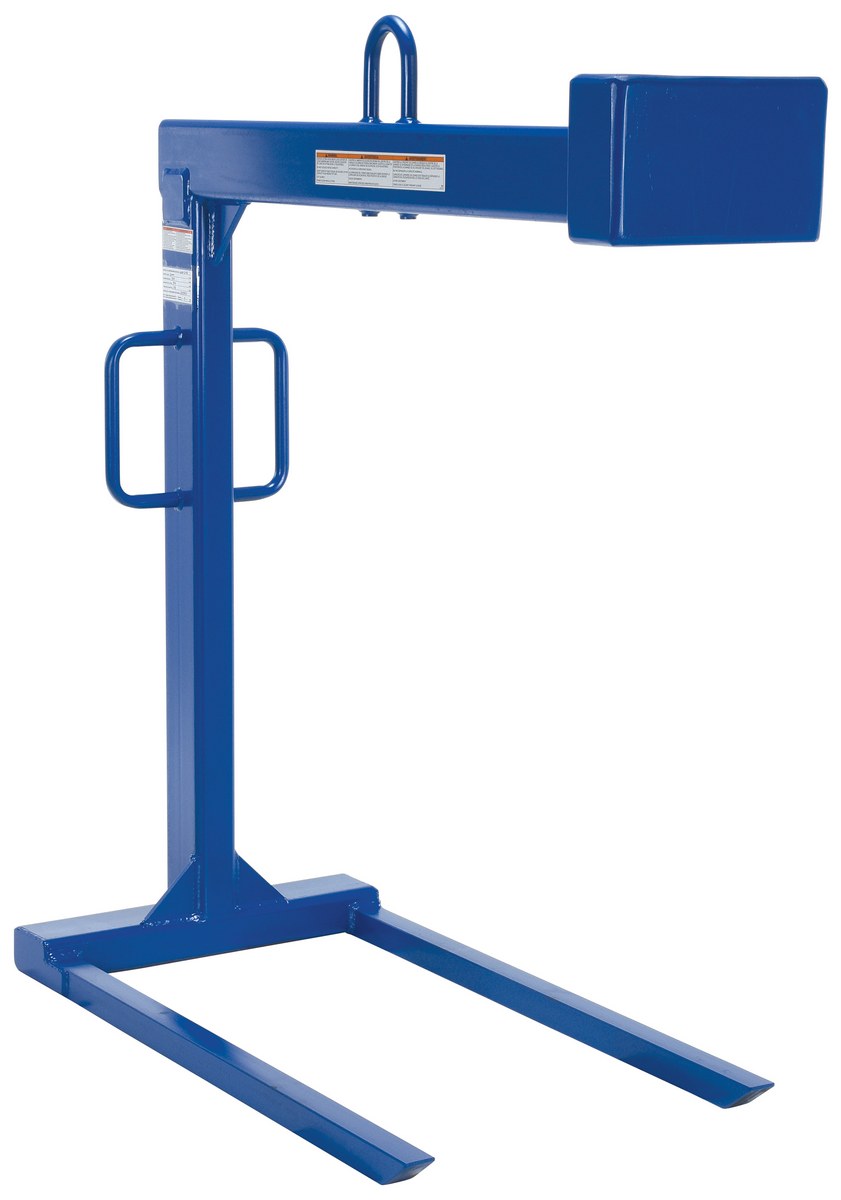

HDP-2-42 HDP-2-42Steel Pallet Lifter 42 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		470

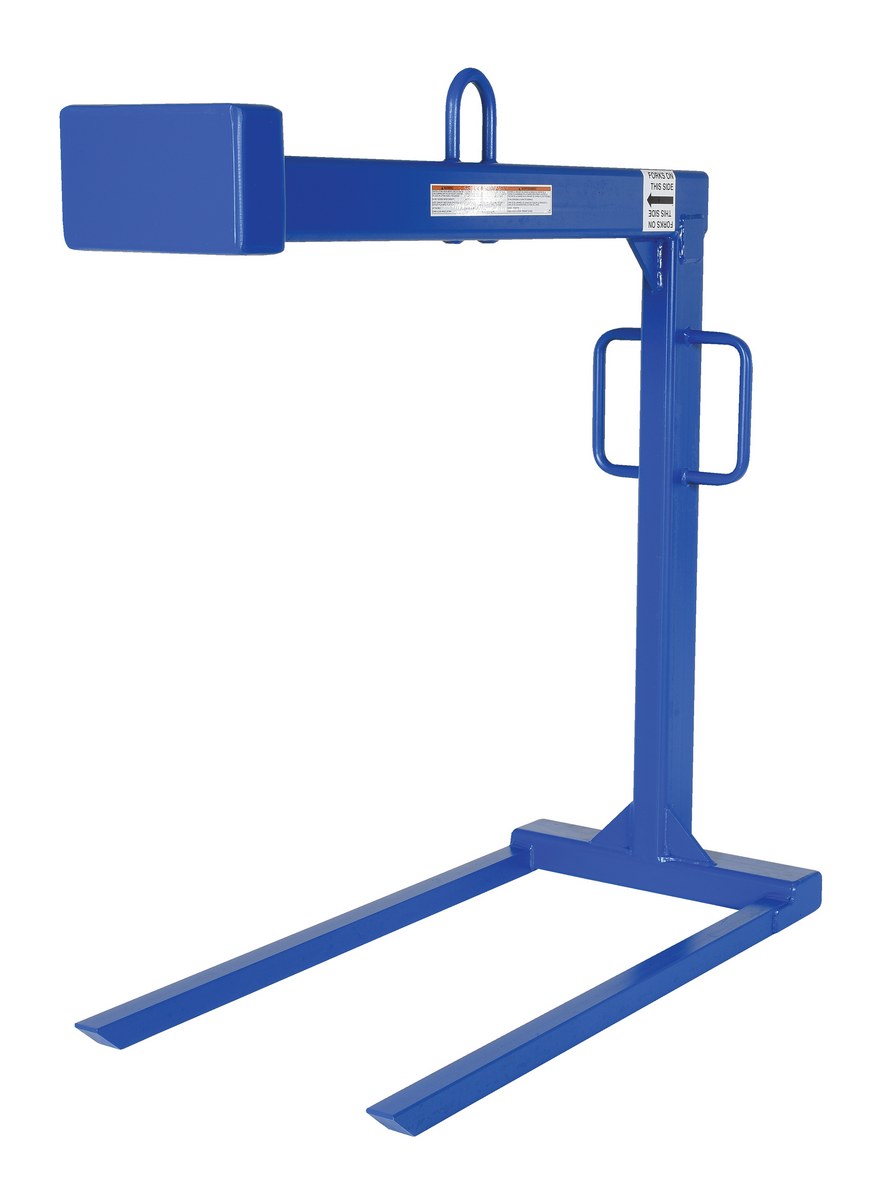

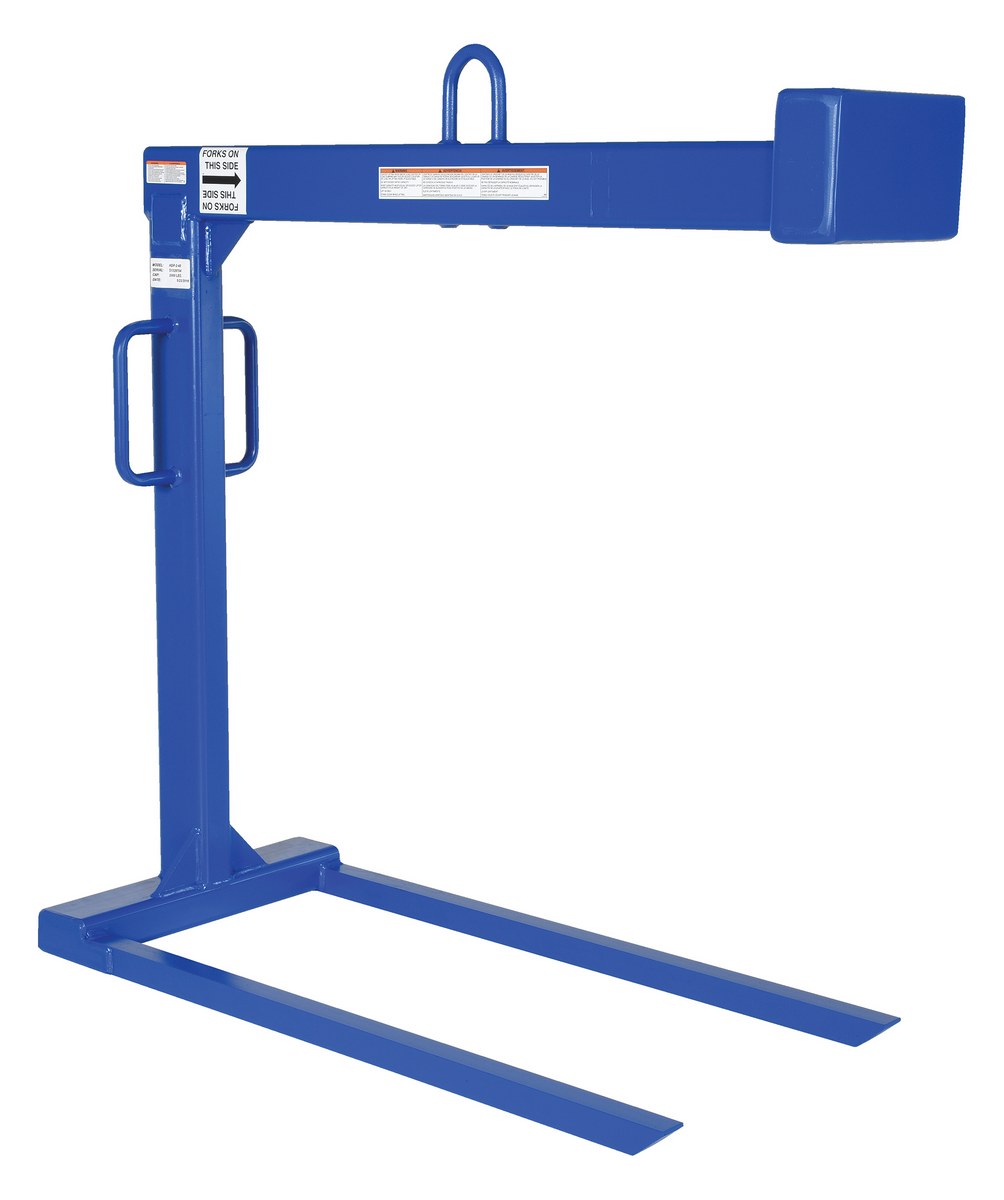

HDP-2-48 HDP-2-48Steel Pallet Lifter 48 In. Fork 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Fork Spacing (in.): 21		474

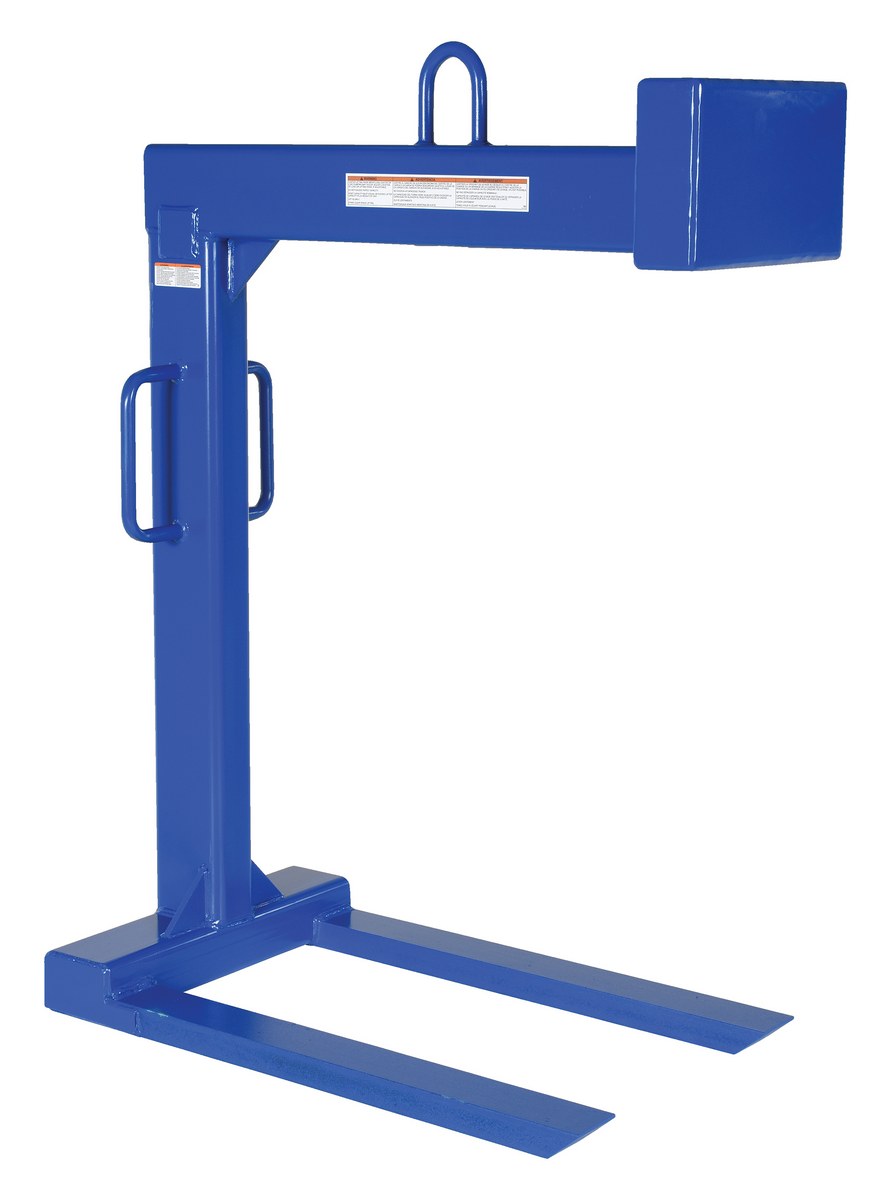

HDP-4-36 HDP-4-36Steel Pallet Lifter 36 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		629
HDP-4-42 HDP-4-42Steel Pallet Lifter 42 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		658

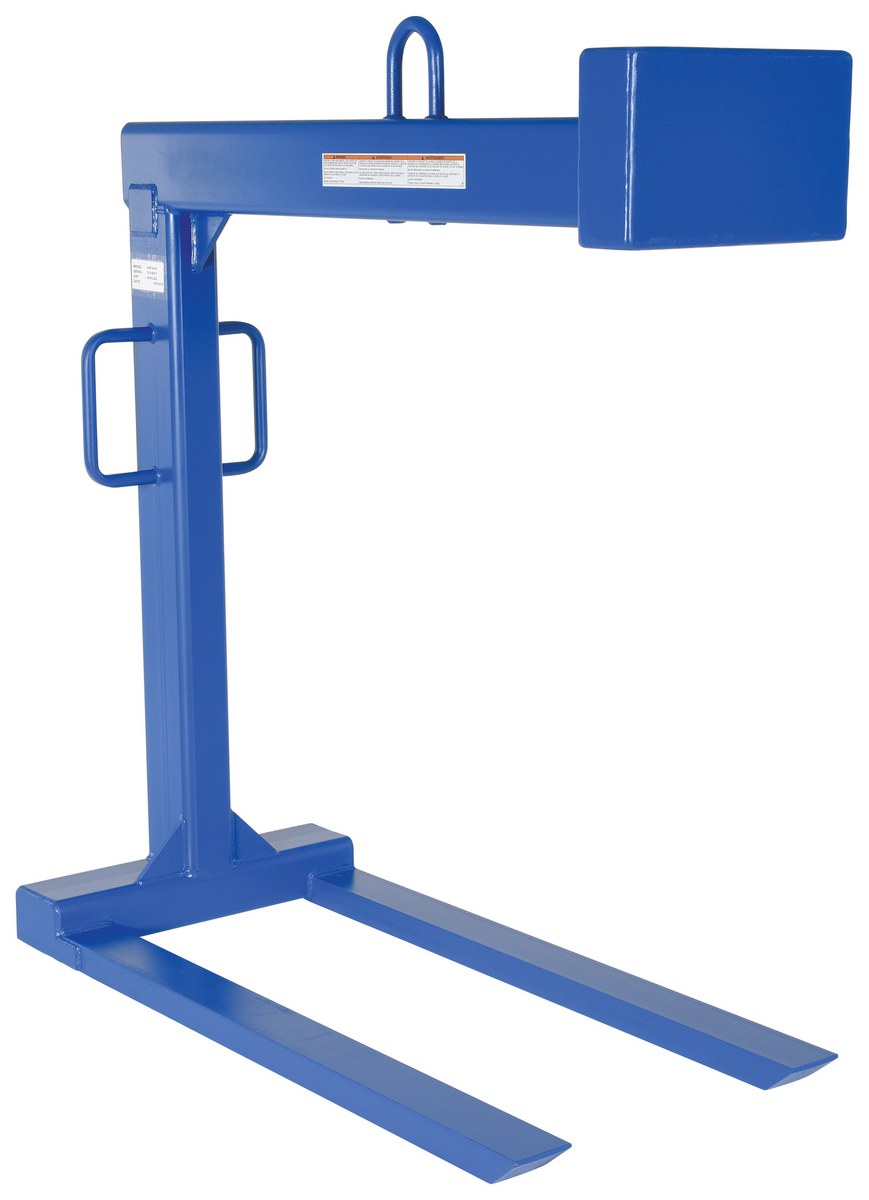

HDP-4-48 HDP-4-48Steel Pallet Lifter 48 In. Fork 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Fork Spacing (in.): 17		693

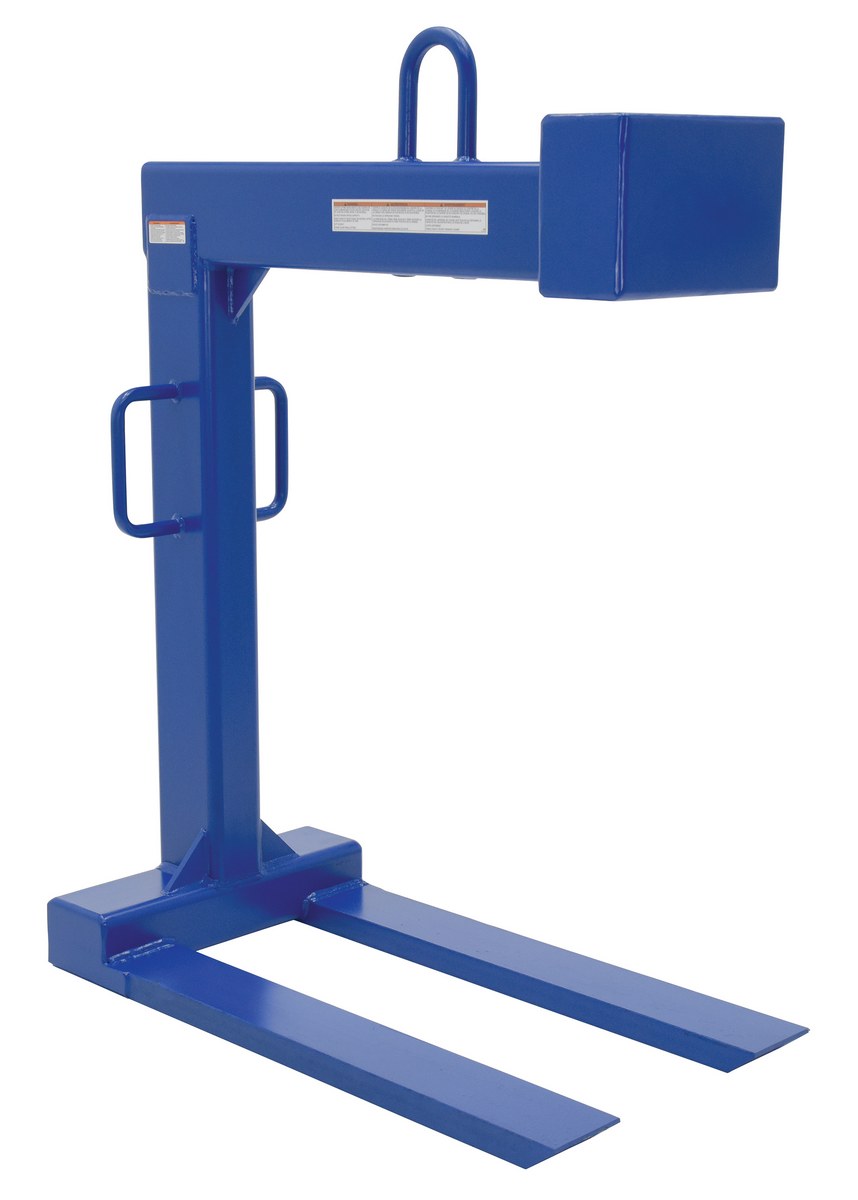

HDP-6-42 HDP-6-42Steel Pallet Lifter 42 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		675
HDP-6-48 HDP-6-48Steel Pallet Lifter 48 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		1005
HDP-6-54 HDP-6-54Steel Pallet Lifter 54 In. Fork 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Fork Spacing (in.): 13		1006
