Product Family Overview

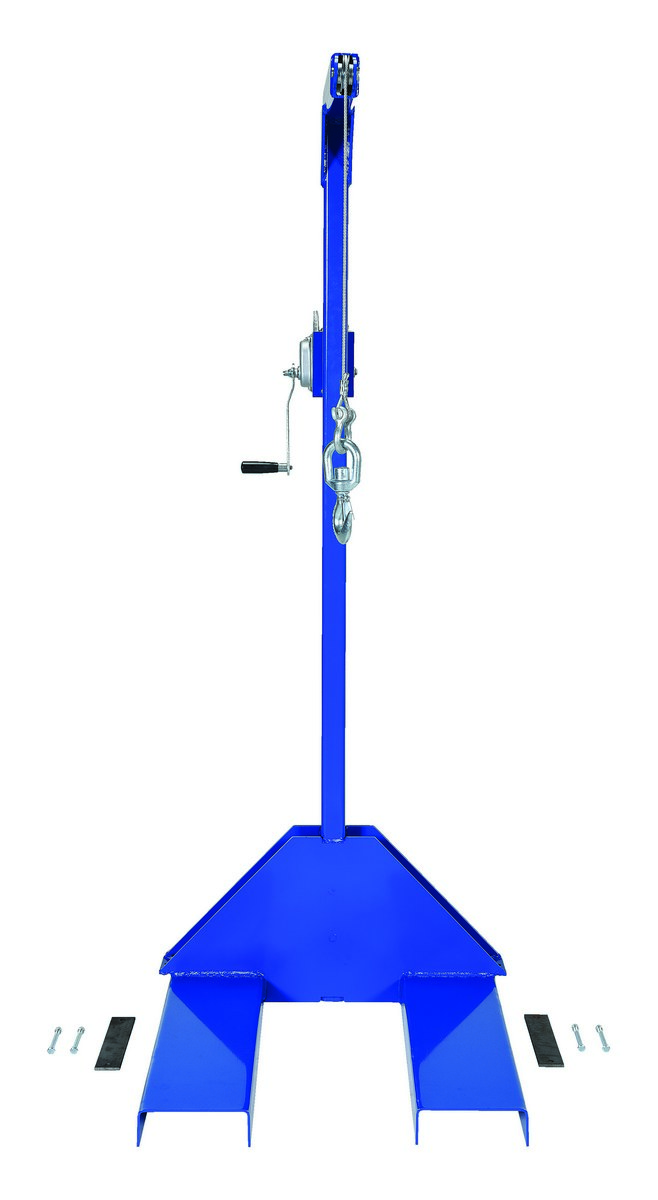

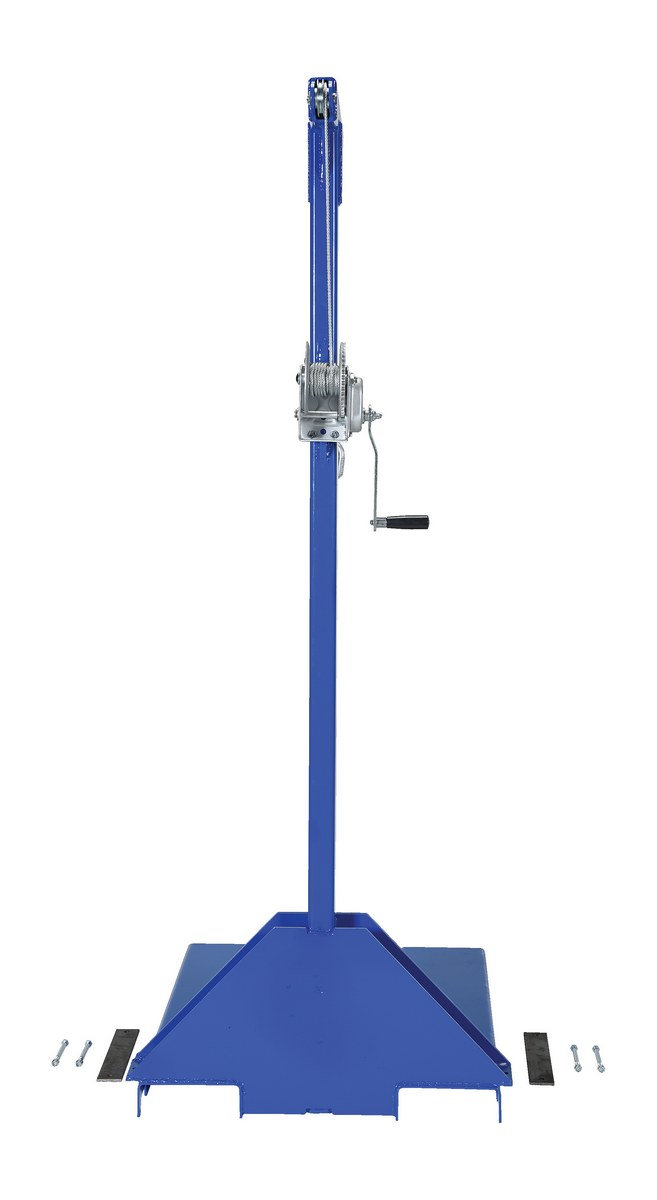

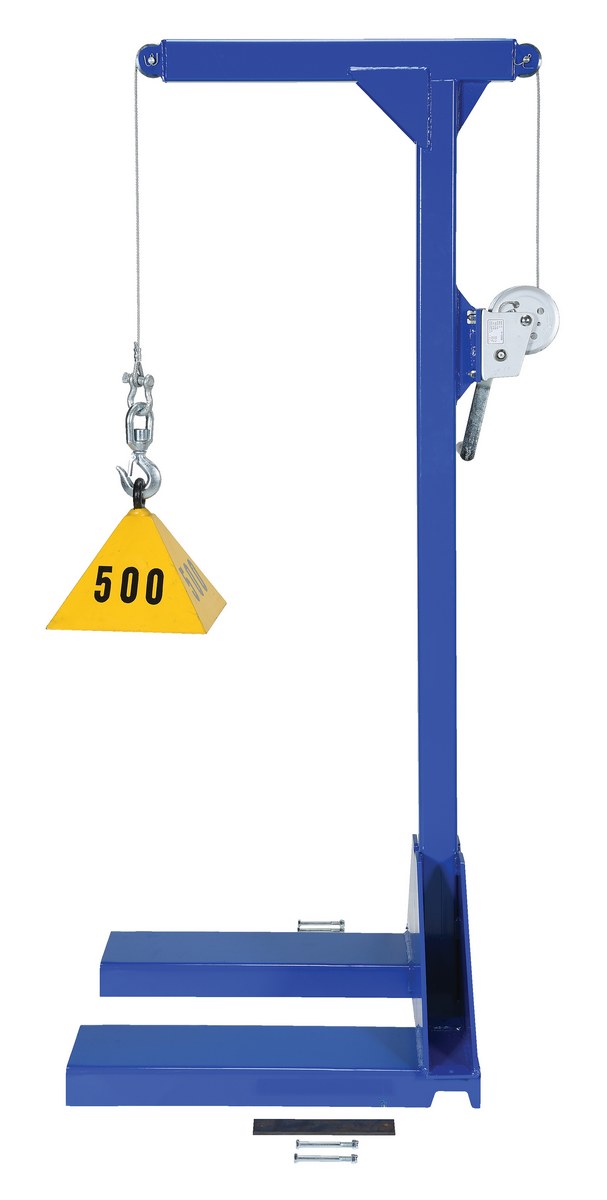

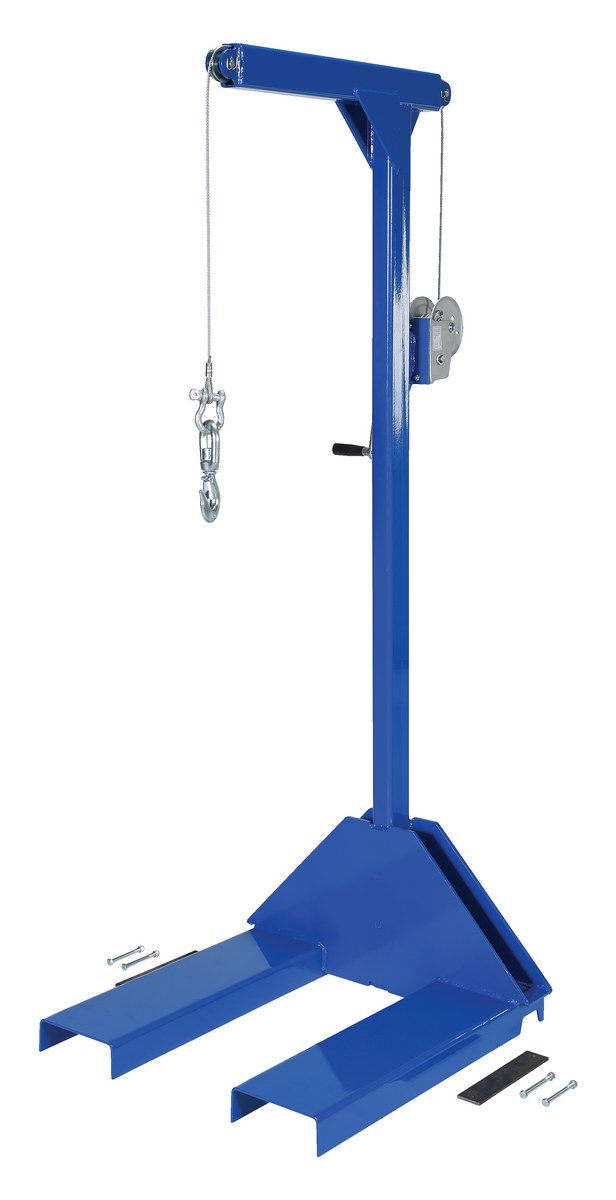

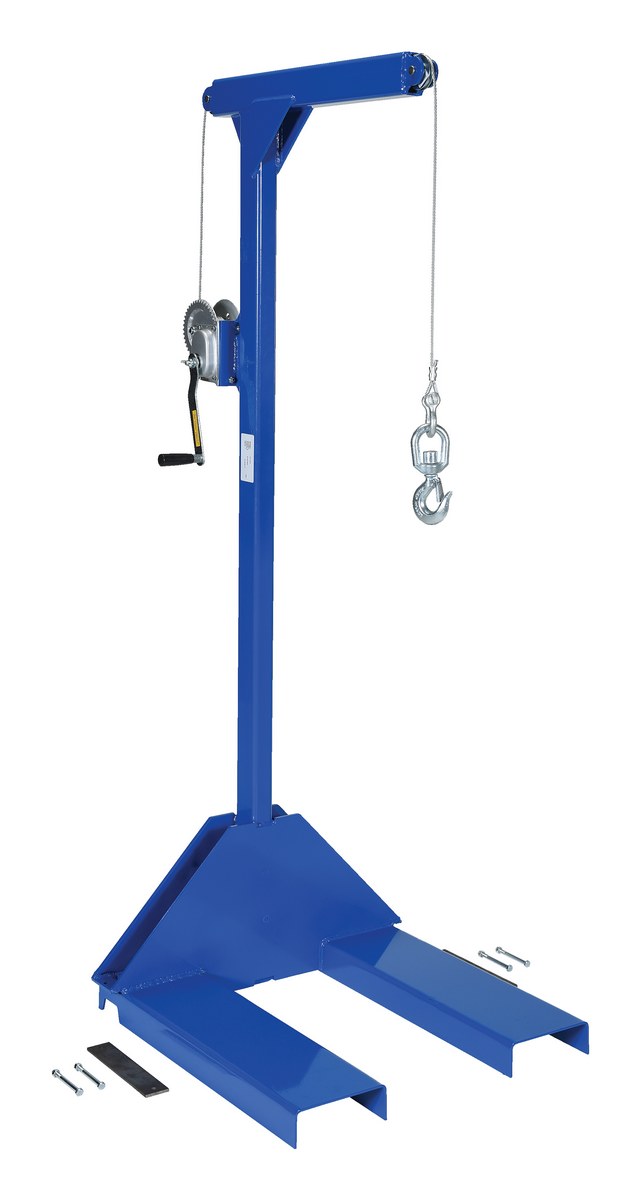

Pallet Truck Hoist
SERIES: PJ-LIFT

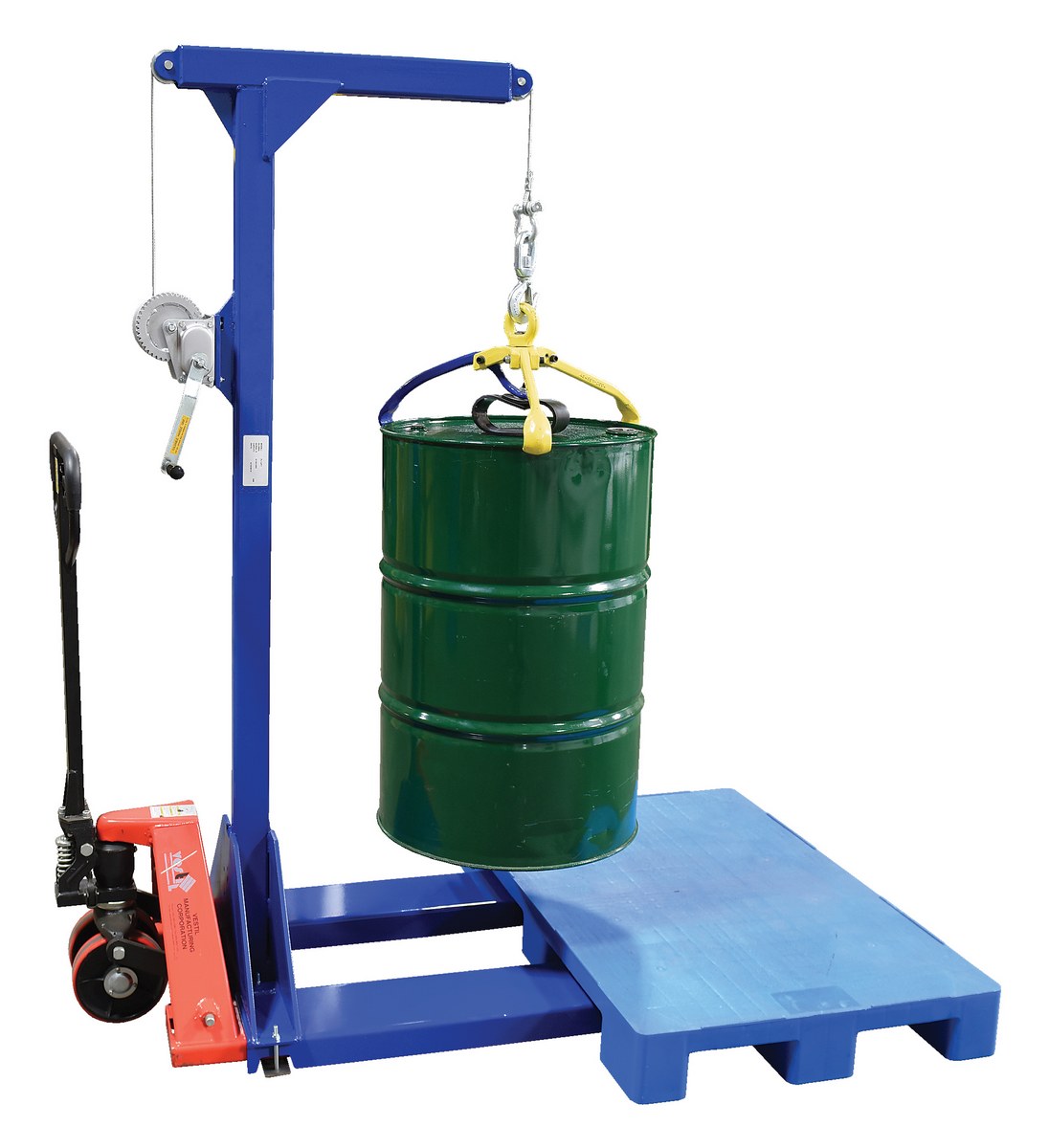

The pallet truck hoist is an affordable and practical alternative for lifting and lowering loads to and from elevated work stations. It provides workers with a mobile lifting jib that quickly secures to a standard 27" x 48" pallet truck. Fork pockets measure 7-5/8"W x 1-7/8"H inside. Once installed, the pallet truck can still be used with most pallets and skids allowing for transport of heavy pallet loads while retaining the ability to lift and lower loads to and from the pallet. It uses a clutchless cable winch with 80" of cable (88" with hook and shackle) for easy lifting and lowering. Lower load onto forks before moving. Steel construction with baked-in powder coat finish for added toughness.

  • Alternative for lifting and lowering to and from elevated work stations
  • Mobile jib quickly secures to a standard 27" x 48" pallet truck
  • Features a clutch less cable winch for easy lifting and lowering
  • Baked-in powder-coated toughness

The pallet truck hoist is an affordable and practical alternative for lifting and lowering loads to and from elevated work stations. It provides workers with a mobile lifting jib that quickly secures to a standard 27" x 48" pallet truck. Fork pockets measure 7-5/8"W x 1-7/8"H inside. Once installed, the pallet truck can still be used with most pallets and skids allowing for transport of heavy pallet loads while retaining the ability to lift and lower loads to and from the pallet. It uses a clutchless cable winch with 80" of cable (88" with hook and shackle) for easy lifting and lowering. Lower load onto forks before moving. Steel construction with baked-in powder coat finish for added toughness.

  • Alternative for lifting and lowering to and from elevated work stations
  • Mobile jib quickly secures to a standard 27" x 48" pallet truck
  • Features a clutch less cable winch for easy lifting and lowering
  • Baked-in powder-coated toughness

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PJ-LIFT PJ-LIFT90 Days Limited WarrantySteel Pallet Truck Hoist 37-7/16 In. x 30 In. x 77-1/4 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Boom Length (in.): 21
210

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PJ-LIFT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Boom Length (in.): 21
Uniform Capacity (lb.): 500
Boom Length (in.): 21

Pallet Truck Hoist PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


PJ-LIFT

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Pallet Truck Hoist




The pallet truck hoist is an affordable and practical alternative for lifting and lowering loads to and from elevated work stations. It provides workers with a mobile lifting jib that quickly secures to a standard 27" x 48" pallet truck. Fork pockets measure 7-5/8"W x 1-7/8"H inside. Once installed, the pallet truck can still be used with most pallets and skids allowing for transport of heavy pallet loads while retaining the ability to lift and lower loads to and from the pallet. It uses a clutchless cable winch with 80" of cable (88" with hook and shackle) for easy lifting and lowering. Lower load onto forks before moving. Steel construction with baked-in powder coat finish for added toughness.

  • Alternative for lifting and lowering to and from elevated work stations
  • Mobile jib quickly secures to a standard 27" x 48" pallet truck
  • Features a clutch less cable winch for easy lifting and lowering
  • Baked-in powder-coated toughness


Model # Description Attributes Net Wt.
(lbs)
PJ-LIFT PJ-LIFTSteel Pallet Truck Hoist 37-7/16 In. x 30 In. x 77-1/4 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Boom Length (in.): 21
210
