Magnetic Lifters| Model # | Description | Attributes |
Net Wt. (lbs) |
|---|
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

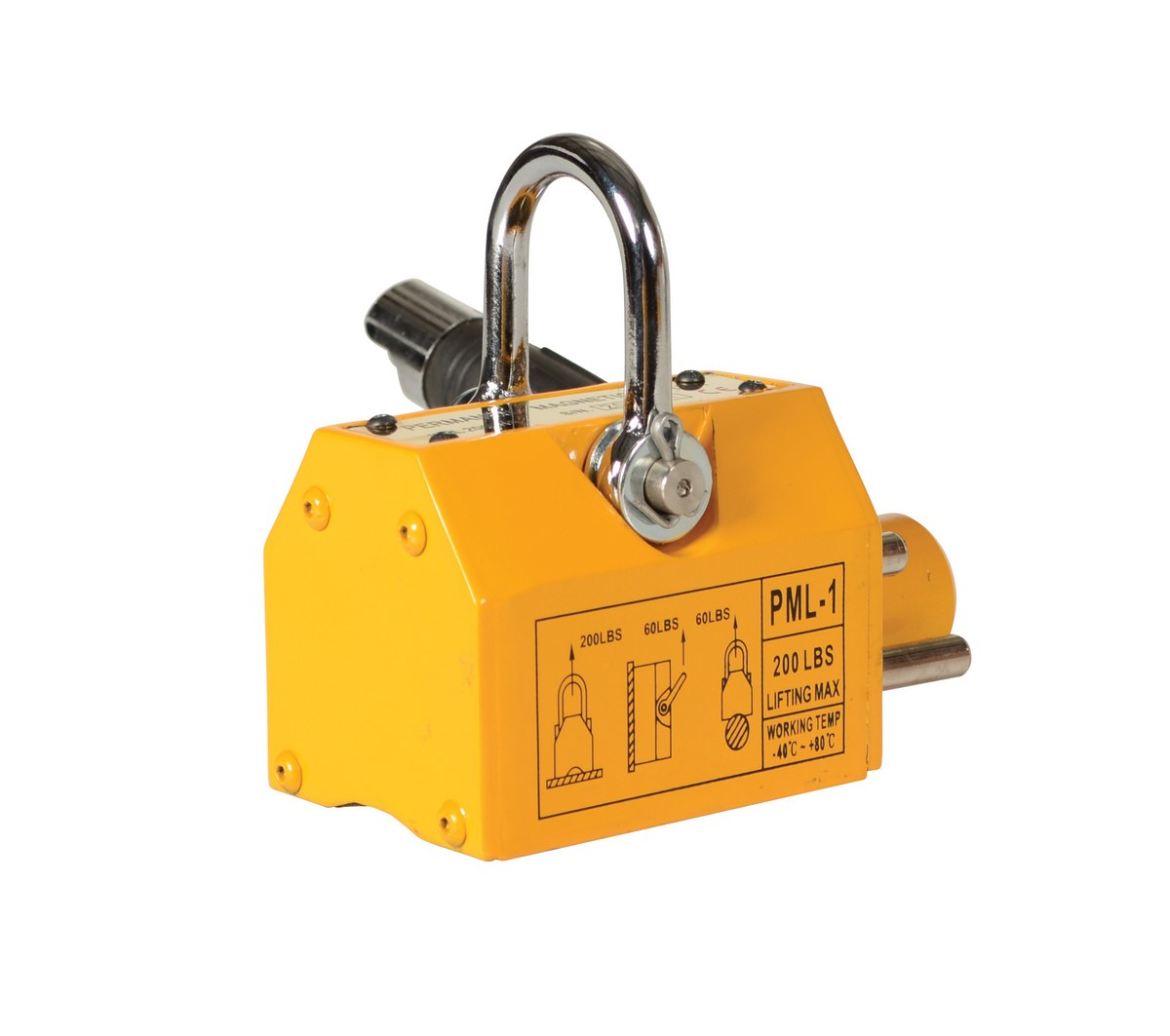

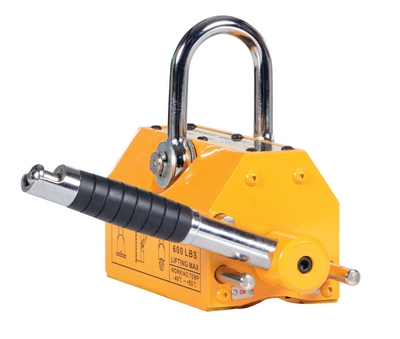

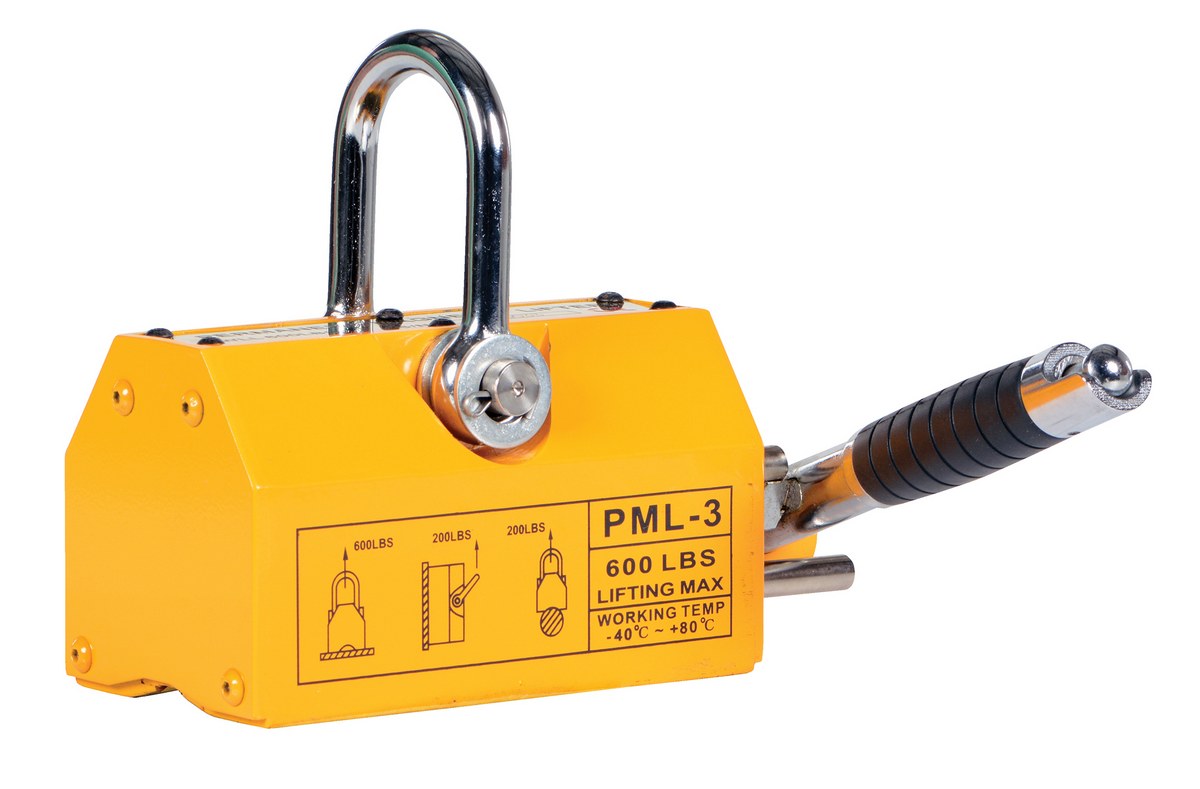

| ML-2 - Nominal Capacity 220 lbs | ML-6 - Nominal Capacity 660 lbs. | ||||
| Min. Thickness (in) | Holding Power (%) | Actual Capacity (lbs) | Min. Thickness (in) | Holding Power (%) | Actual Capacity (lbs) |
| 1/16 | 60 | 132 | 1/8 | 40 | 264 |
| Up to 1/4 | 100 | 220 | 1/4 | 70 | 462 |
| - | 3/8 & Up | 100 | 660 | ||

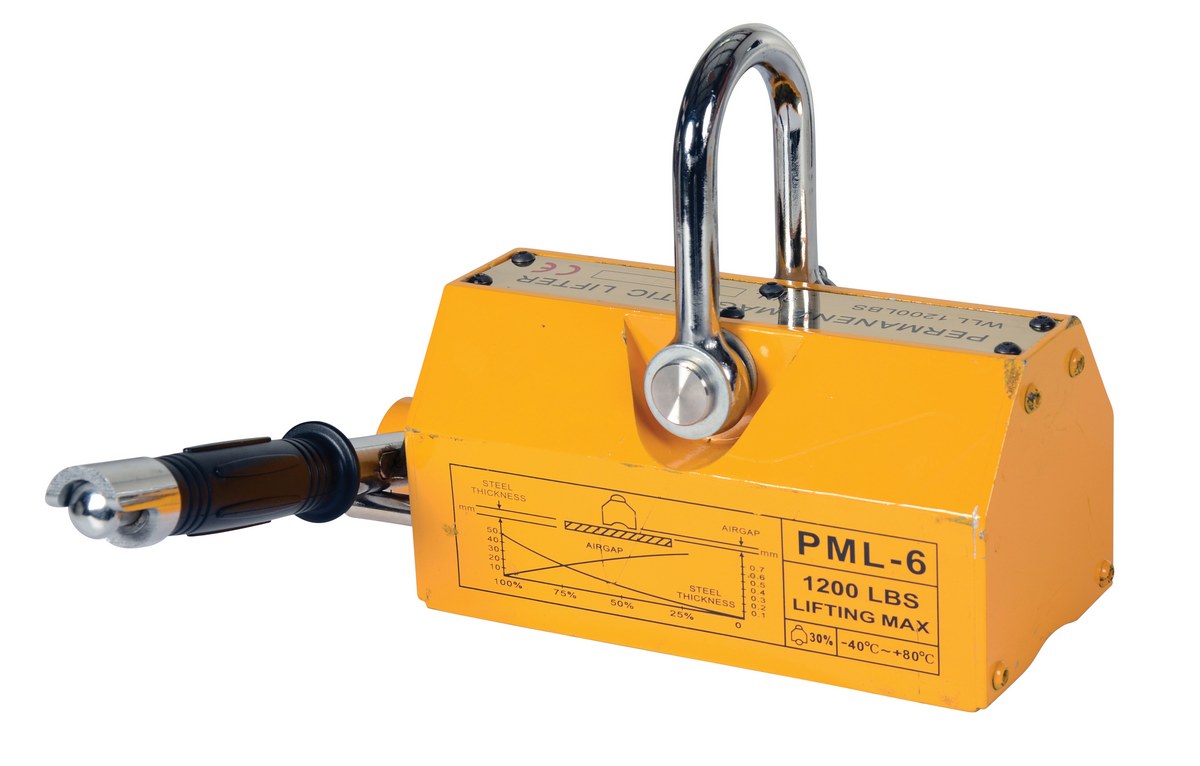

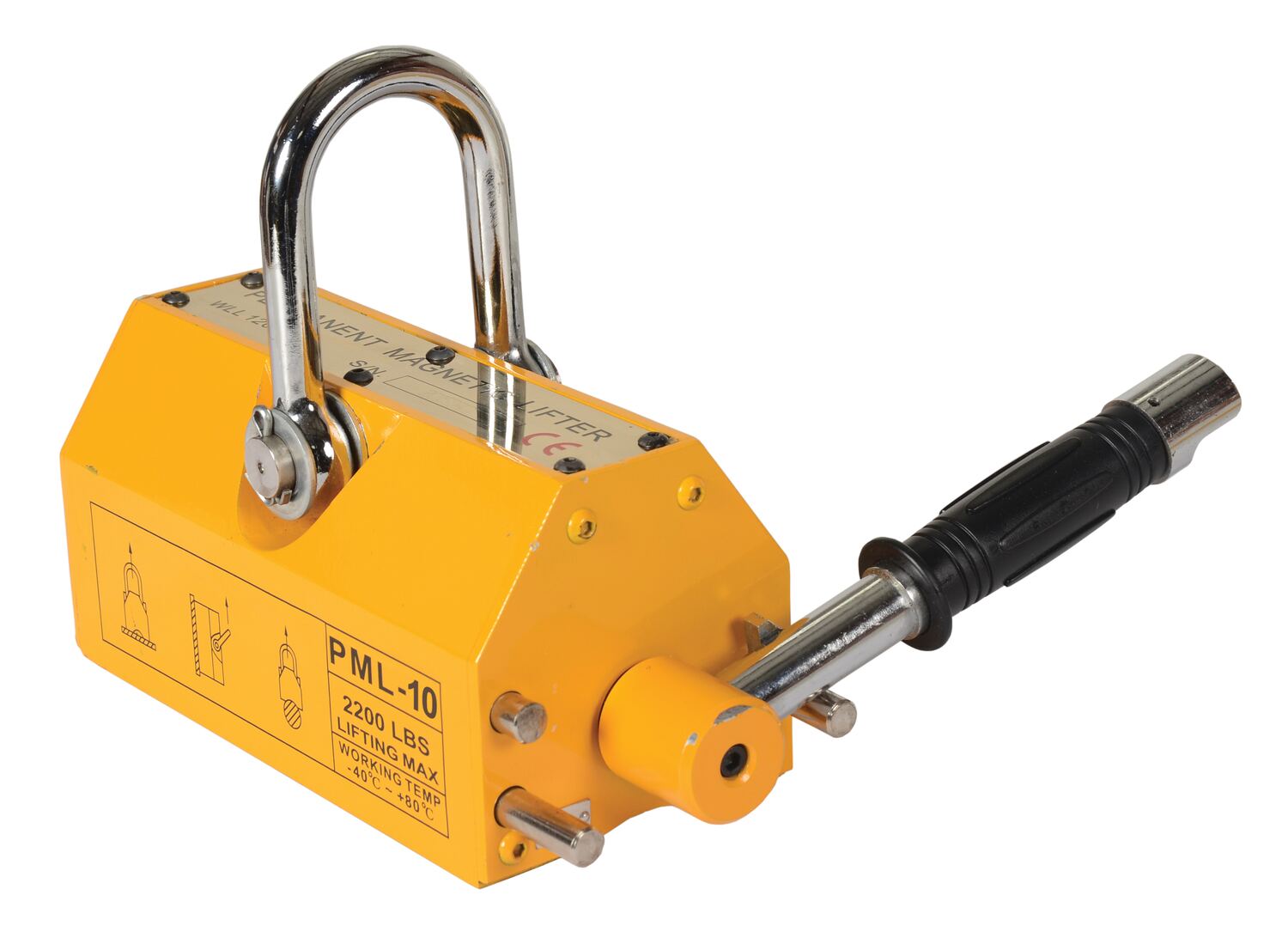

| ML-12 - Nominal Capacity 1320 lbs | ML-22 - Nominal Capacity 2200 lbs | ||||
| Min. Thickness (in) | Holding Power (%) | Actual Capacity (lbs) | Min. Thickness (in) | Holding Power (%) | Actual Capacity (lbs) |
| 1/8 | 20 | 264 | 1/8 | 15 | 330 |
| 1/4 | 40 | 528 | 1/4 | 30 | 660 |
| 3/8 | 60 | 792 | 3/8 | 40 | 880 |
| 5/8 | 85 | 1122 | 5/8 | 65 | 1430 |
| 3/4 | 95 | 1254 | 3/4 | 70 | 1540 |
| 1 & Up | 100 | 1320 | 1 | 87 | 1914 |
| - | 1-1/4 & Up | 100 | 2200 | ||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Magnetic Lifters |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

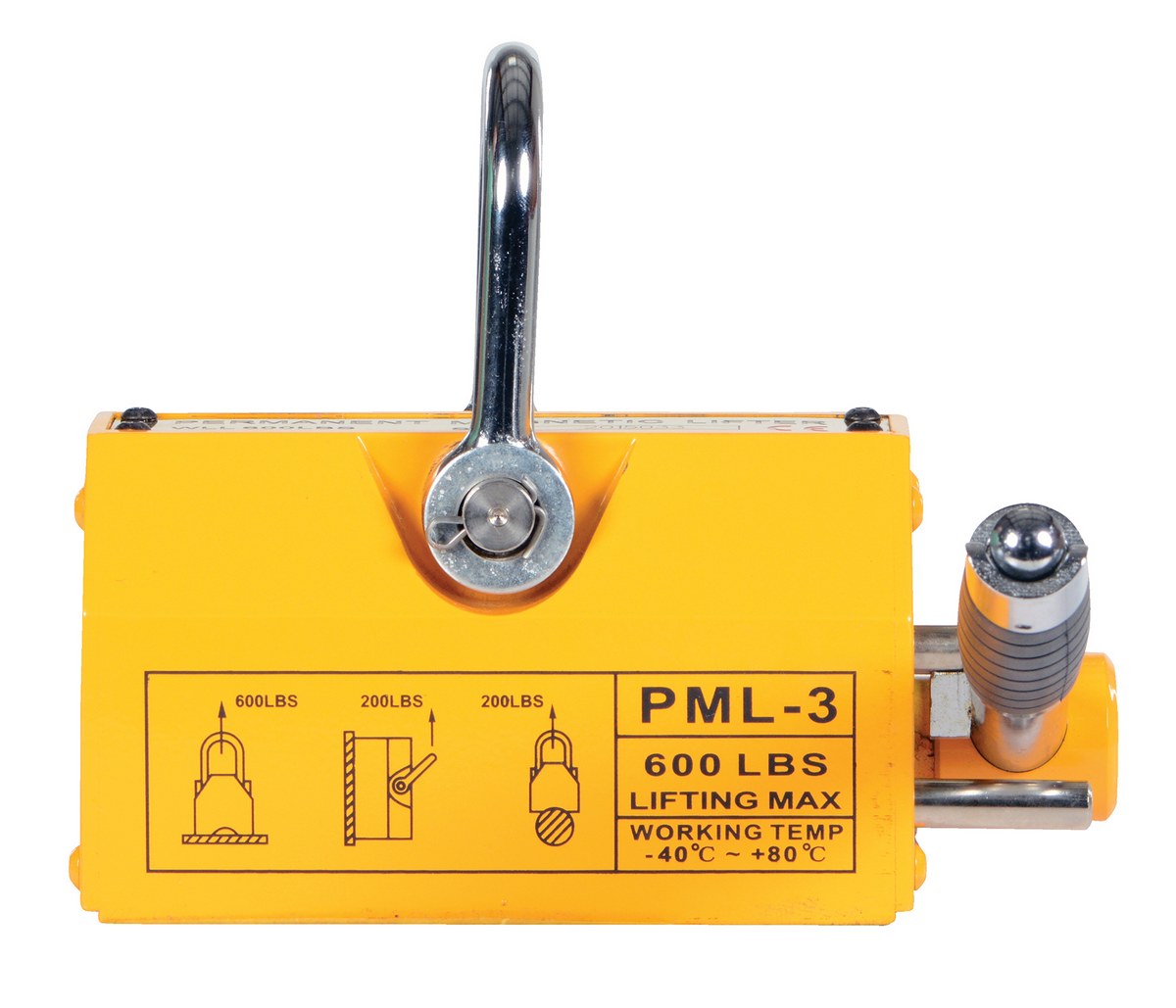

Permanent Magnetic Lifting Magnets for Steel Plate and Round Stock Handling

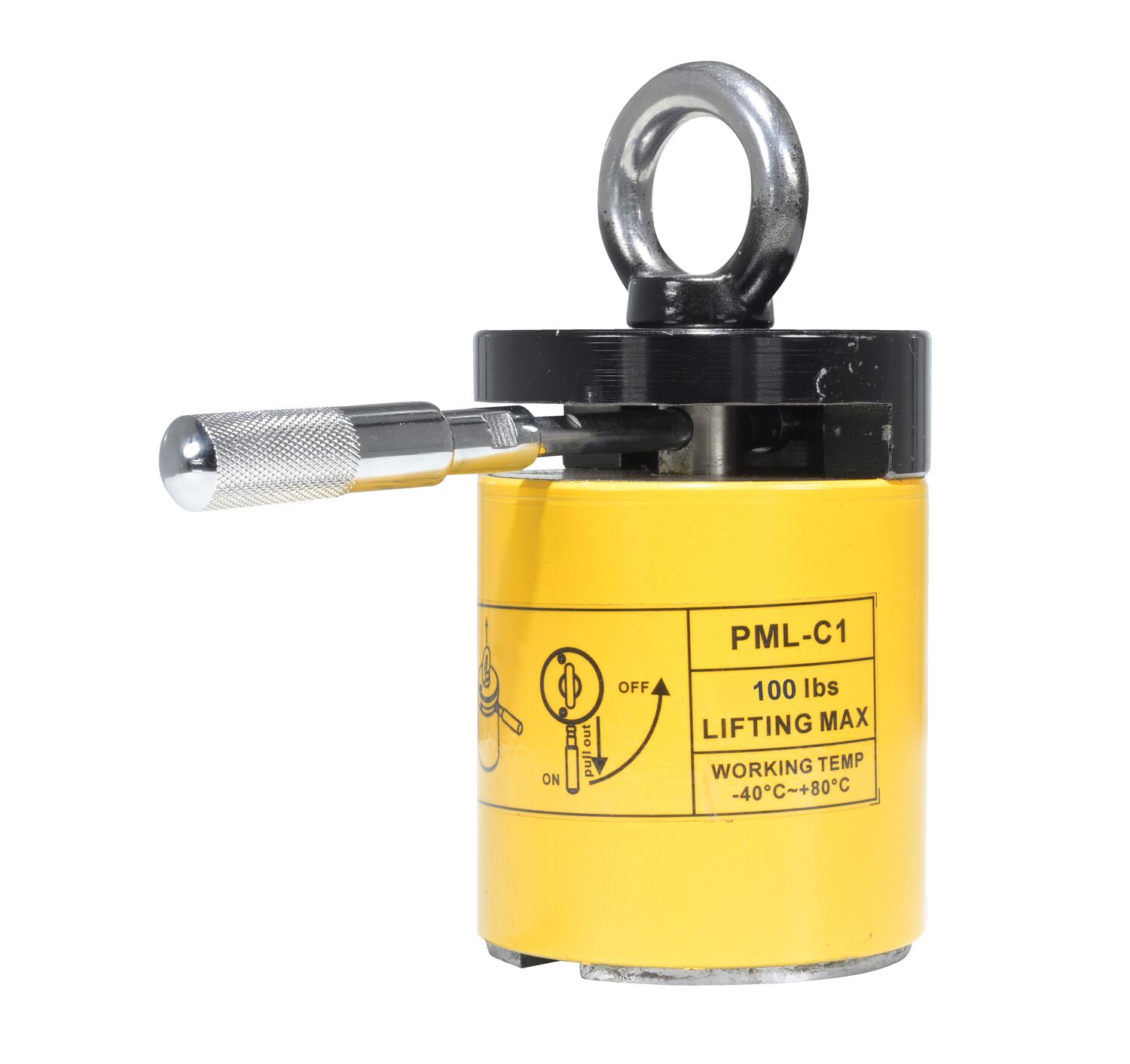

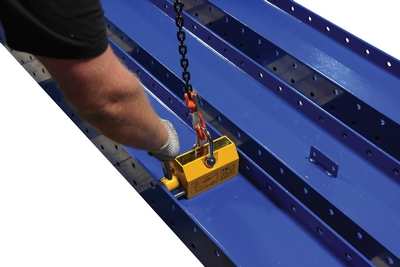

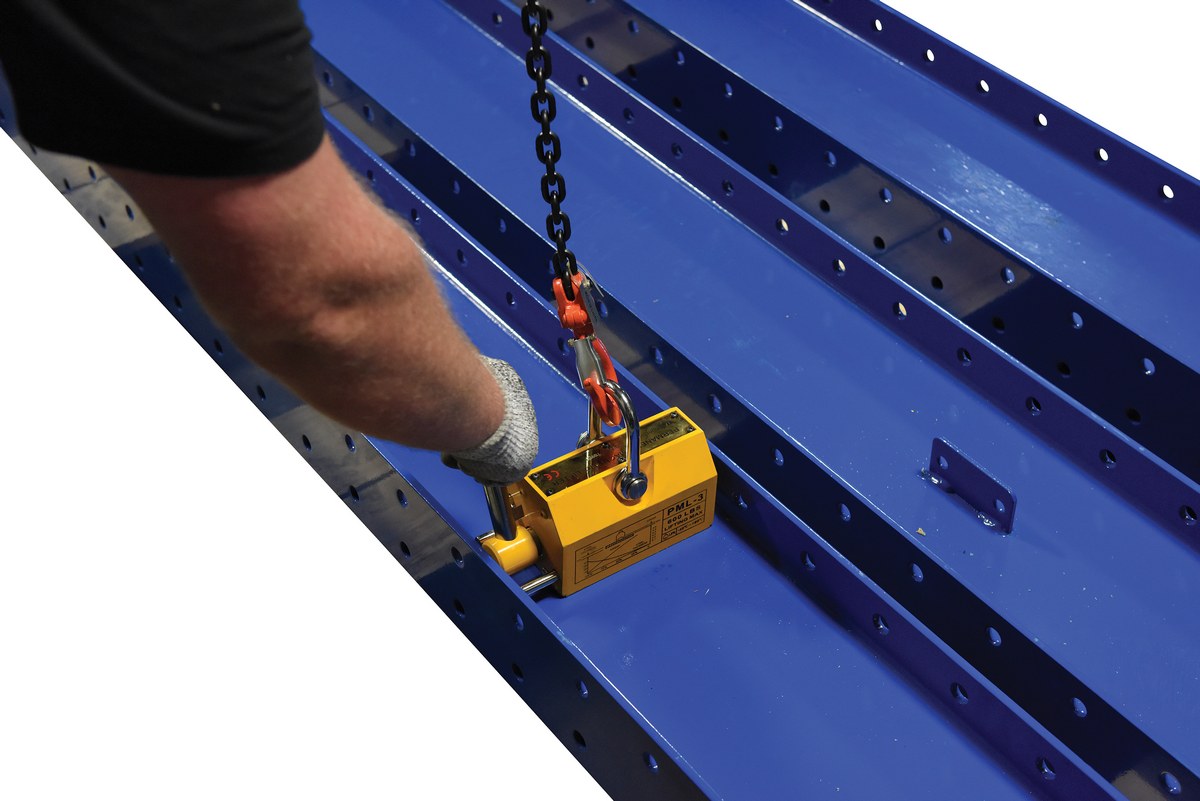

Simple Lever-Activated OperationThe magnet is activated or deactivated by rotating the lever, allowing operators to engage or release the load without requiring external power. The lightweight design makes the lifters easier to move from one work area to another, while the permanent magnetic design supports dependable lifting for everyday industrial use. Flat and Round Steel Capacity OptionsThis family includes models with uniform flat steel capacities from 100 lb. to 2,200 lb. and round steel capacities from 40 lb. to 800 lb. Multiple base plate sizes give users options for different material dimensions, load weights, and handling requirements. Standard and Cylindrical Lifter DesignsStandard magnetic lifters are well suited for steel plate and sheet handling, while the cylindrical magnetic lifter provides concentrated lifting force in a compact footprint for large or small items. Steel construction and durable finishes support long service life in demanding material handling environments.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Our Customer Service Associates Are Here To Assist You! |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

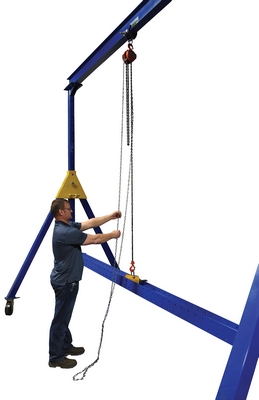

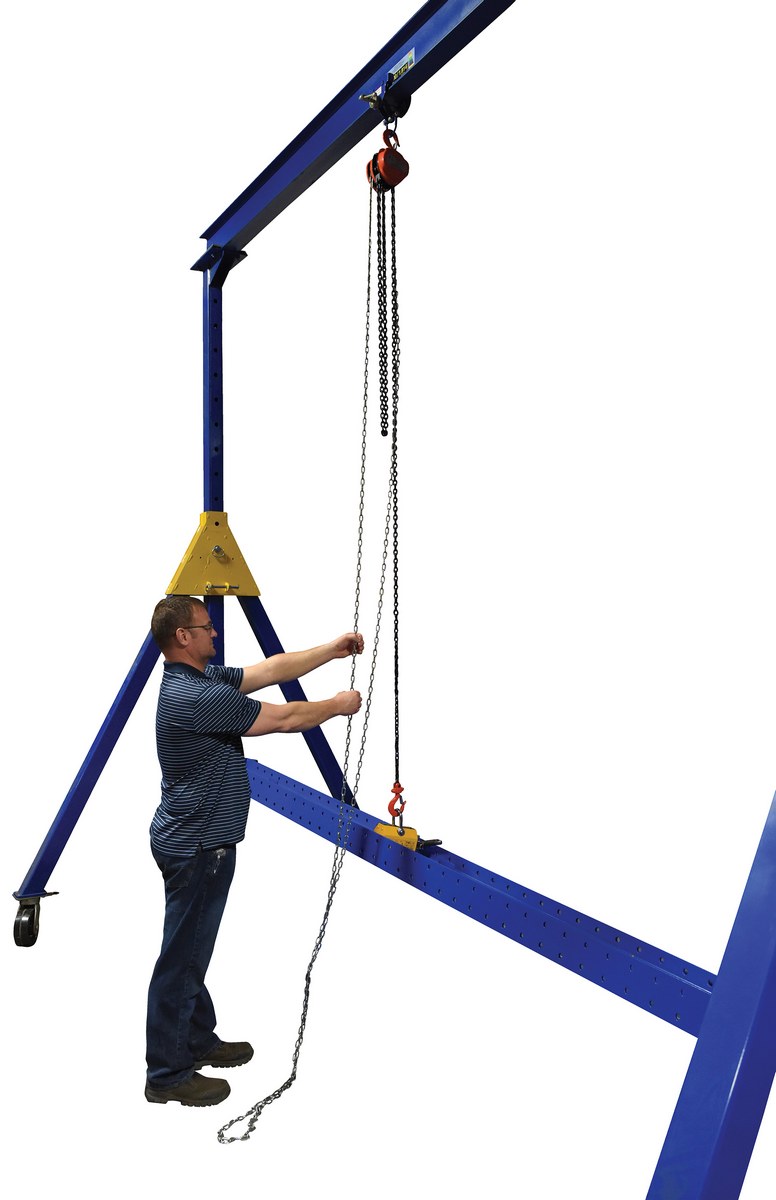

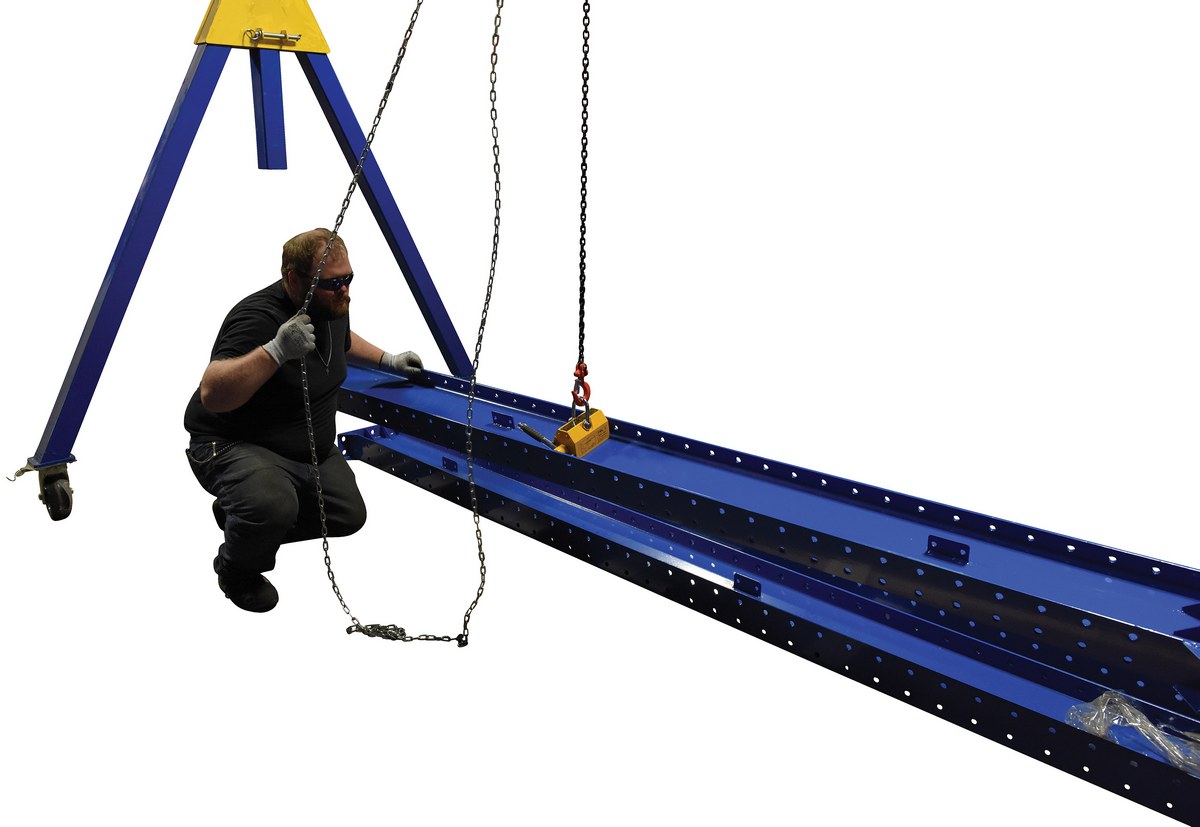

Permanent magnetic lifting magnets provide a compact, efficient way to pick up and position steel sheets, plates, bars, and compatible round materials using an overhead crane, chain, or hoist. Designed for fabrication shops, machine shops, warehouses, steel service centers, and manufacturing areas, these lifters help reduce manual handling while improving control when moving ferrous materials between workstations.
