Adjustable Step Stands with Handrail

Print Friendly

Model Chart
PDF's
Videos
Image Gallery
FEATURED Adjustable Step Stands with Handrail

model: ASP-24-HR

ASP-24-HR_A.jpg ASP-24-HR_B.jpg ASP-24-HR_C.jpg ASP-24-HR_D.jpg ASP-24-HR_E.jpg ASP-24-HR_F.jpg ASP-24-HR_G.jpg ASP-24-HR_H.jpg ASP-24-HR_I.jpg ASP-24-HR_J.jpg ASP-24-HR_K.jpg More Images +
Adjustable Step Stands with Handrail
SERIES: ASP-HR   8Products
Powder Coat Custom Colors Custom Fabrication

Adjustable Industrial Step Platforms with Handrails for Safer Access

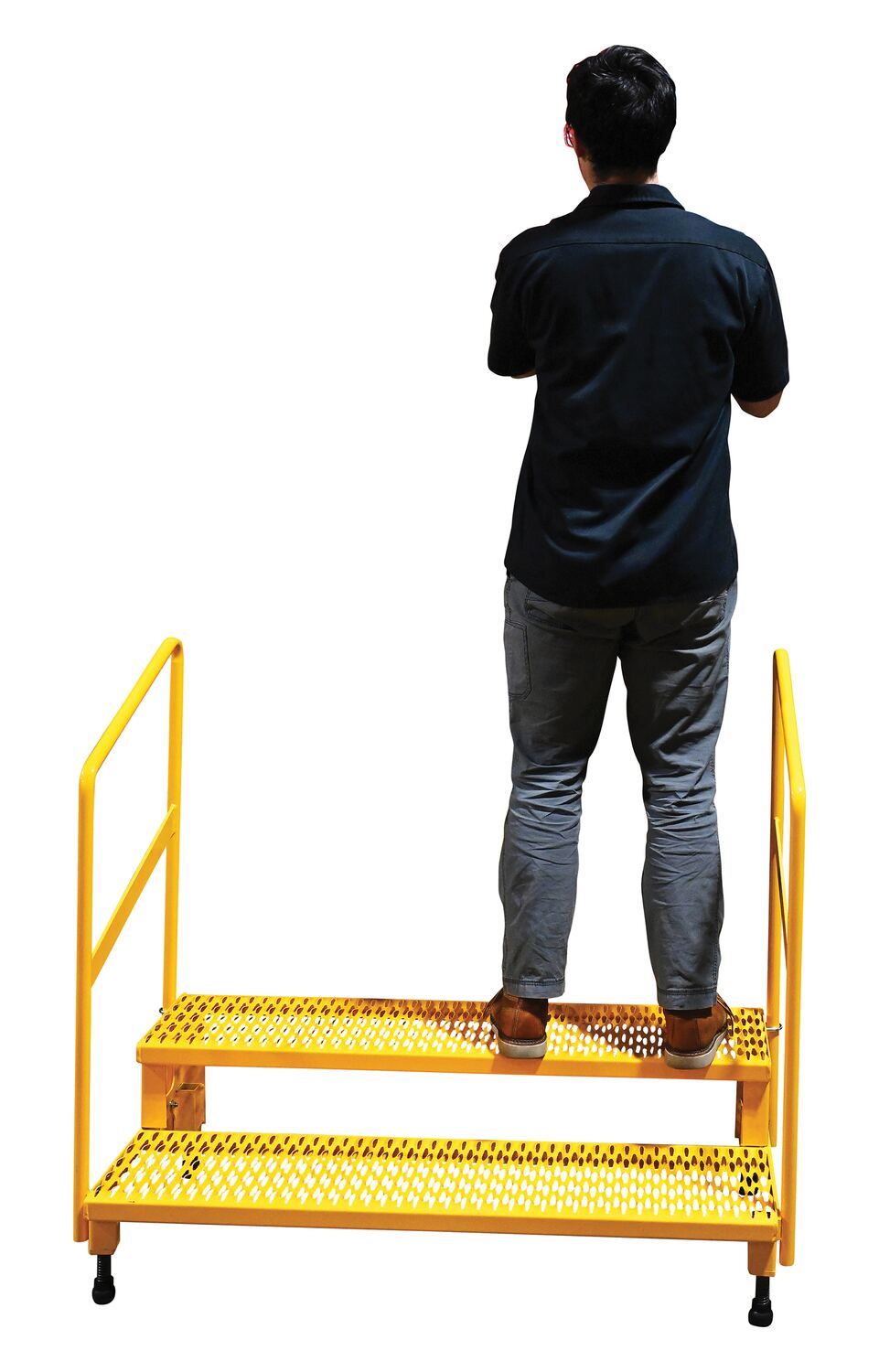

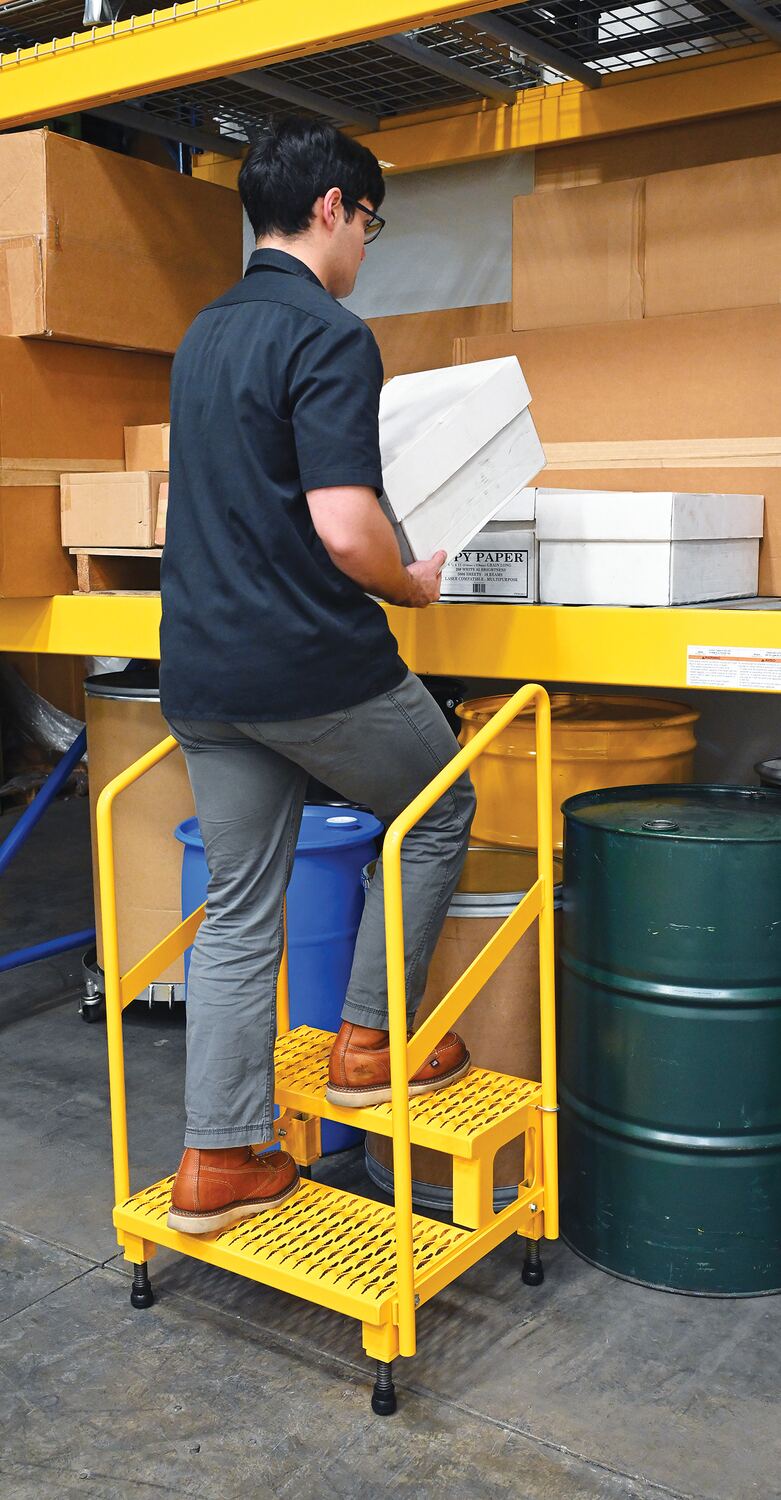

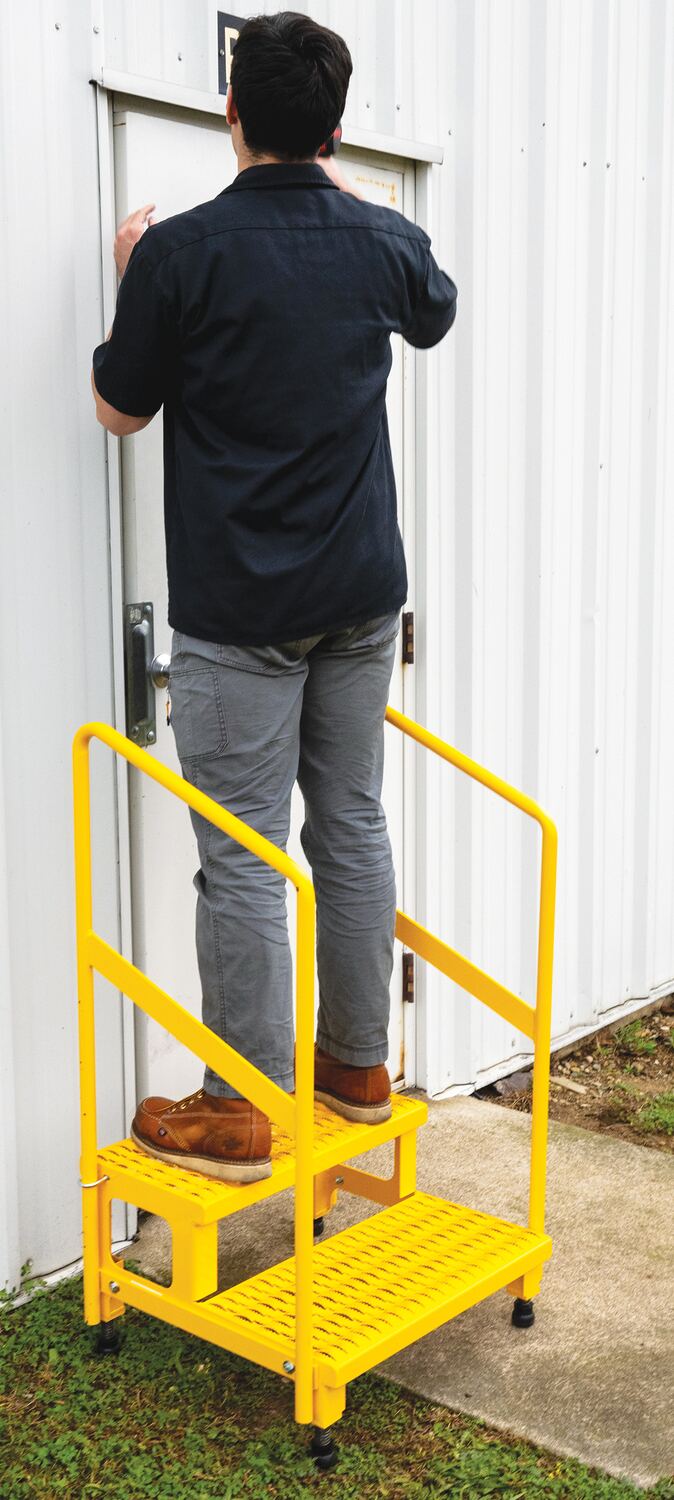

ASP-36-HR_L.jpgAdjustable industrial step platforms with handrails provide stable, elevated access for workstations, machinery, maintenance areas, stockrooms, warehouse aisles, and production floors. Designed for use as a worker platform or semi-permanent step, these stands help operators reach equipment, materials, and elevated work areas while maintaining better footing and support during use.

Adjustable Height for Uneven Surfaces

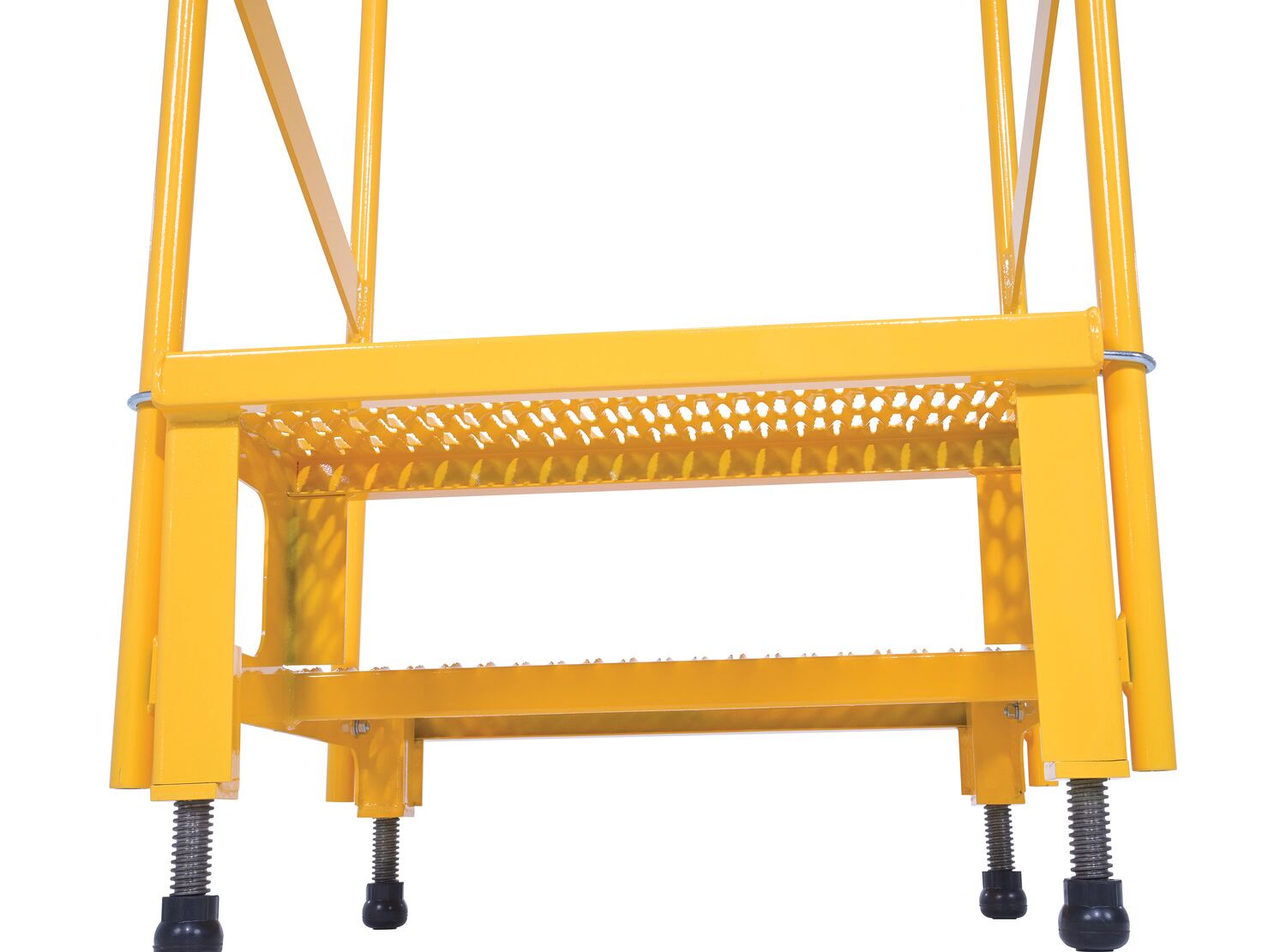

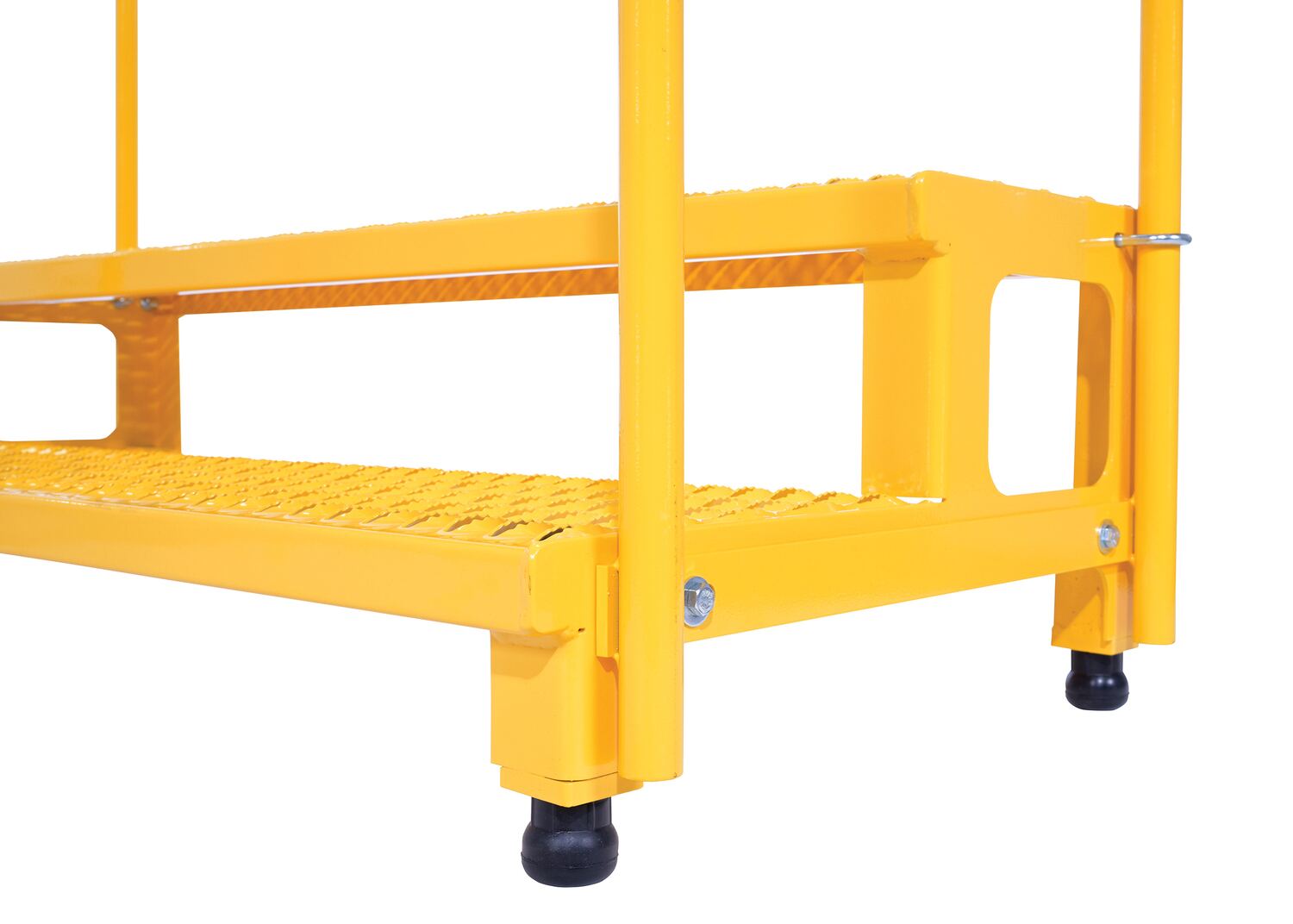

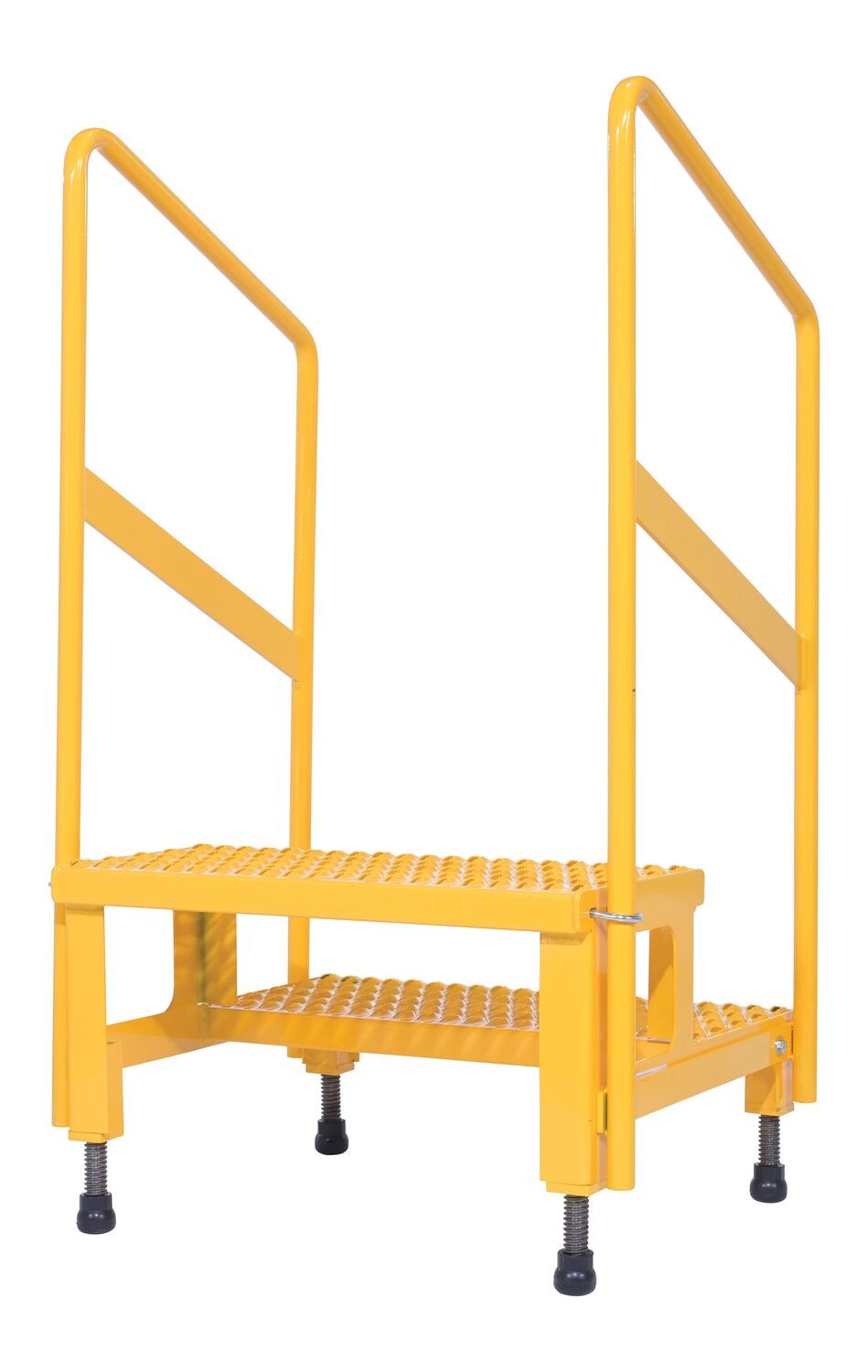

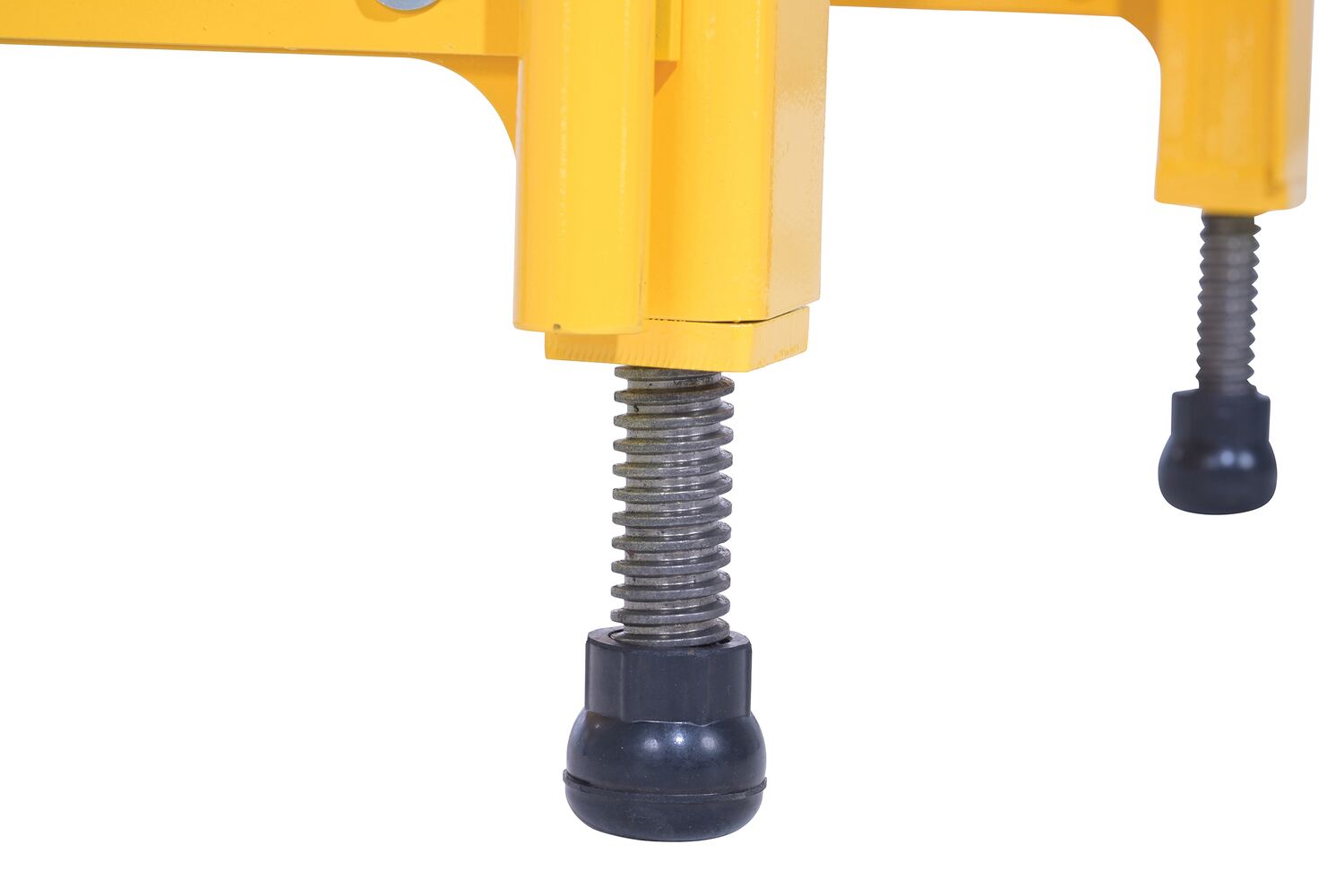

Each leg adjusts independently by screwing into or out of the leg base, allowing the stand to be leveled on surfaces that may not be perfectly even. Rubber tips on each leg help improve grip and floor contact. Ensure the stand is always fully level and stable before use, and it should not be occupied if proper leveling cannot be achieved.

Traction and Handrail Support

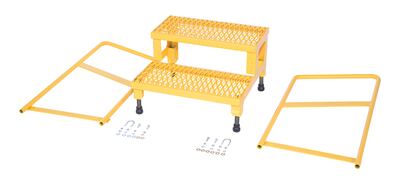

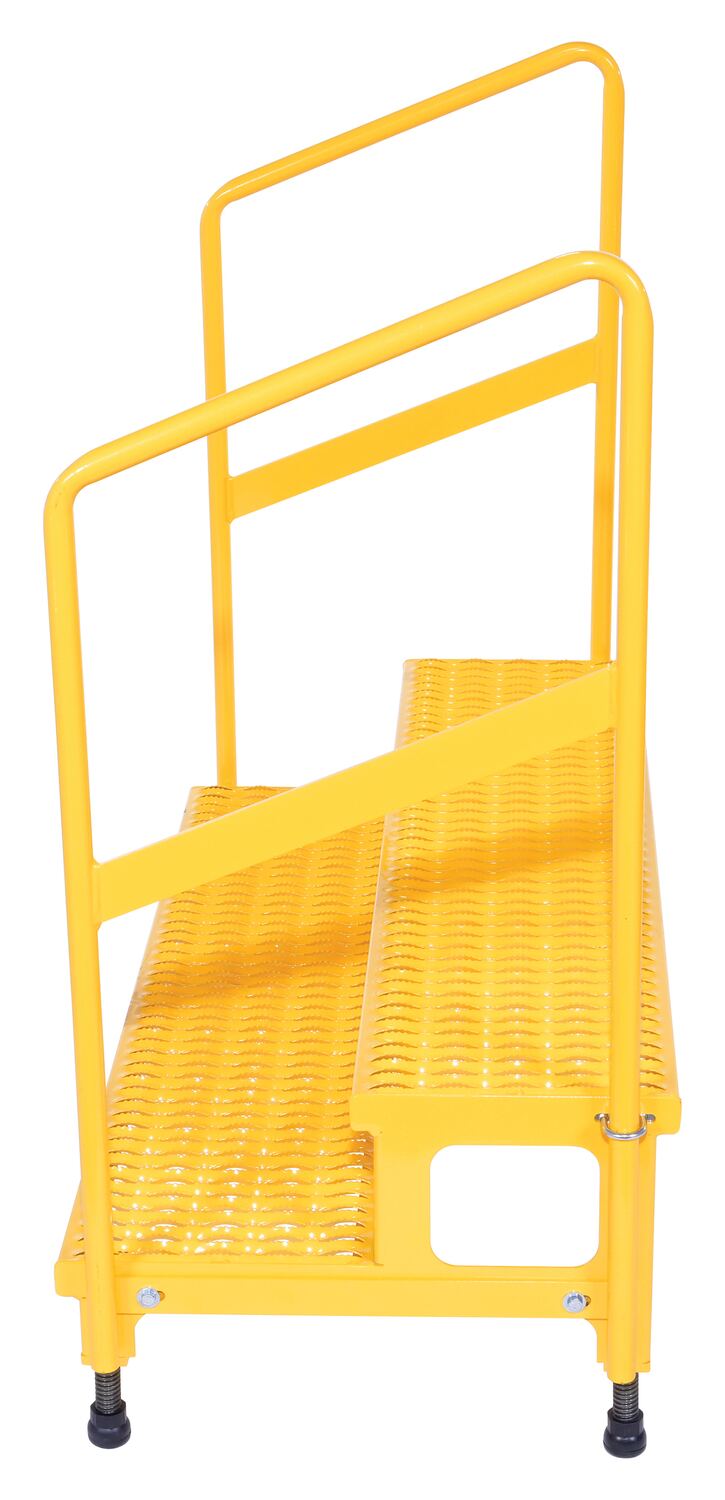

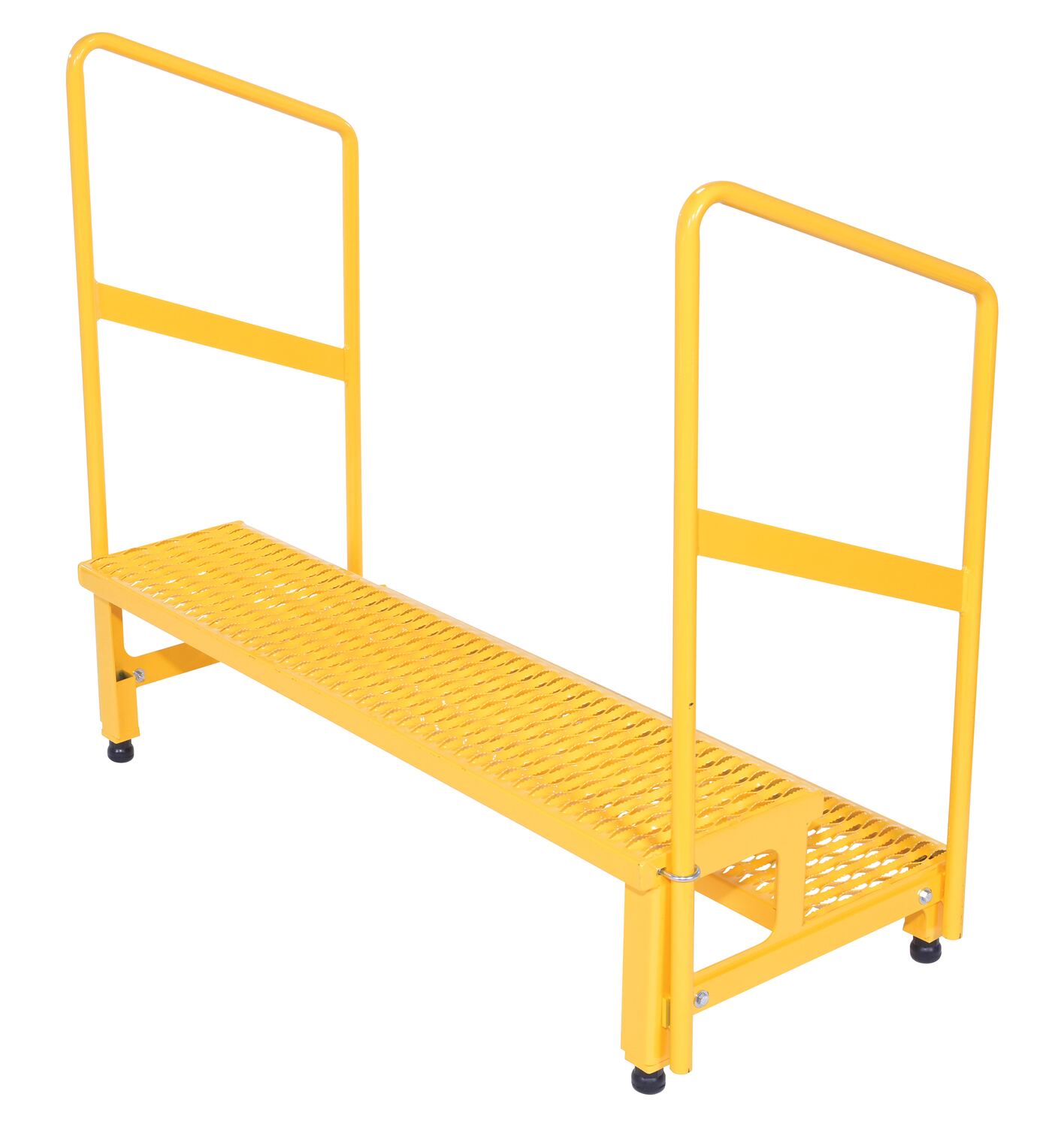

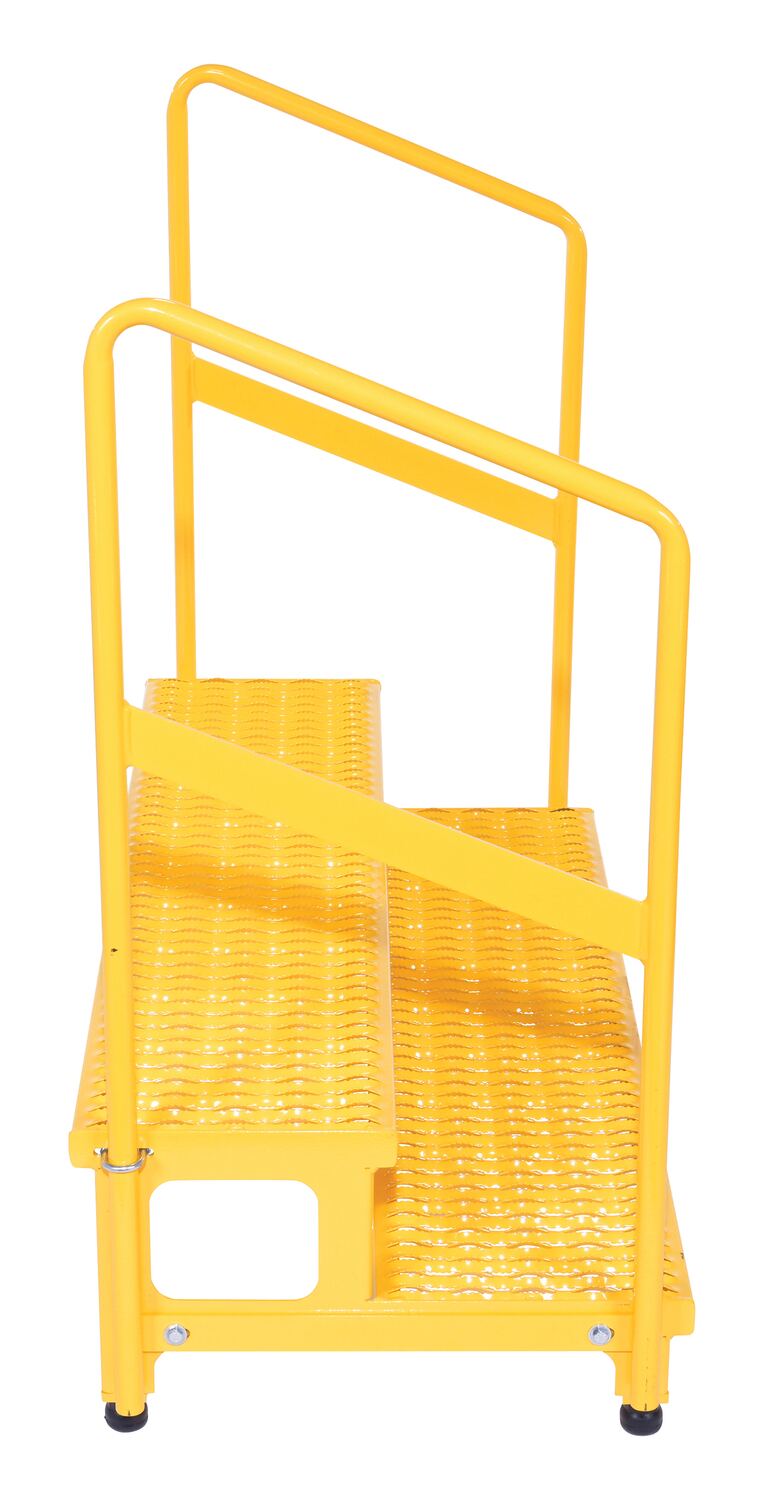

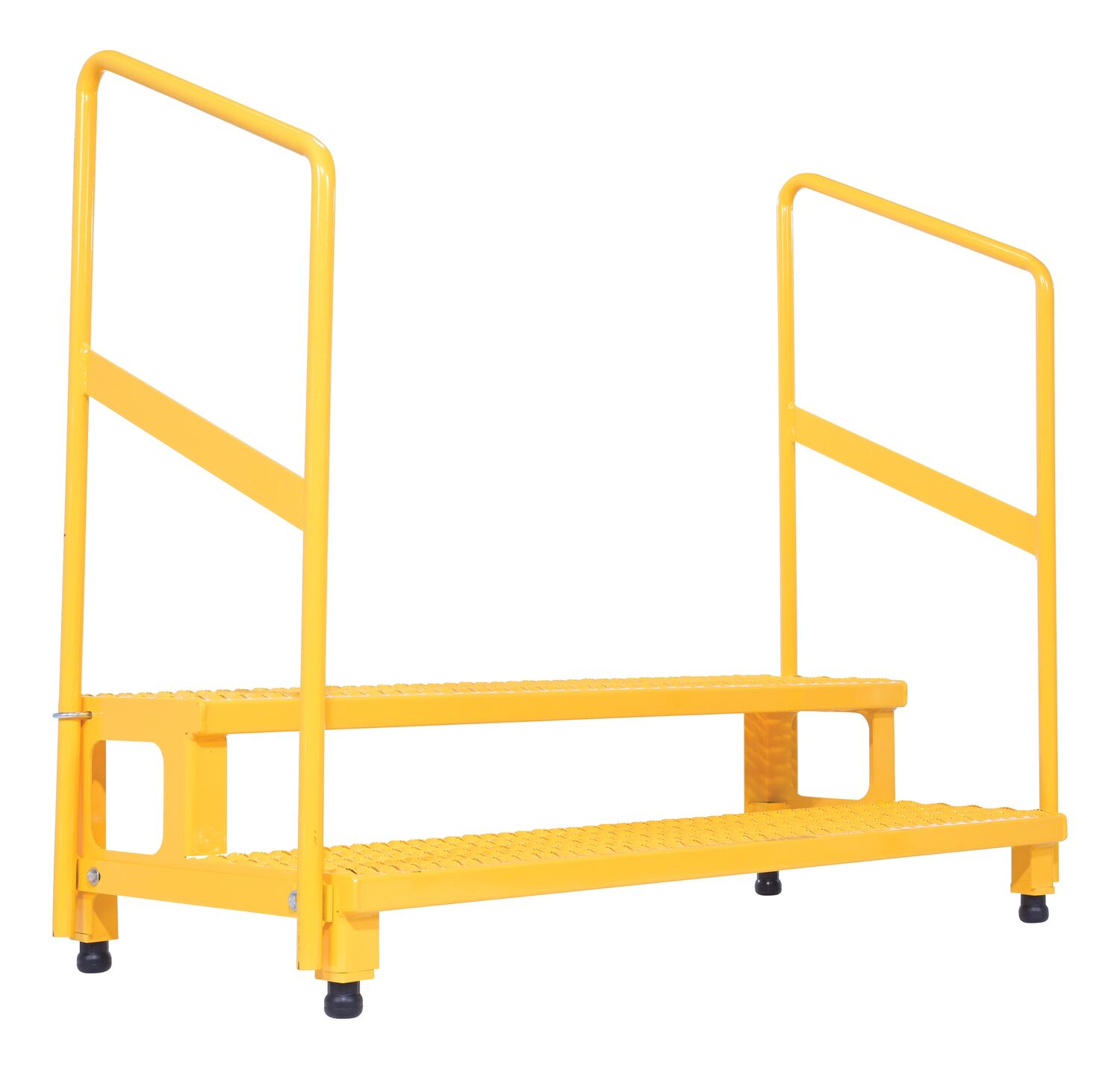

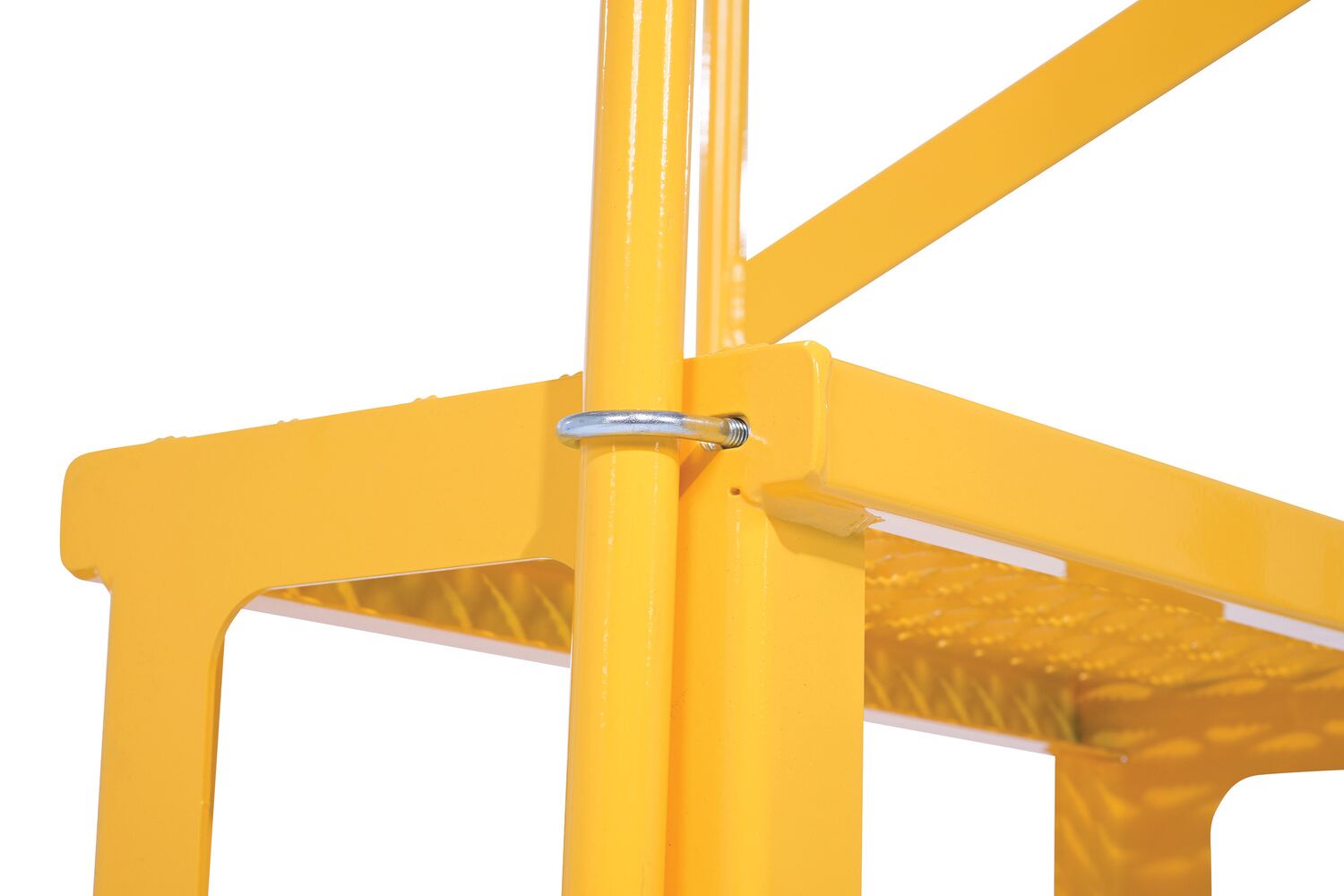

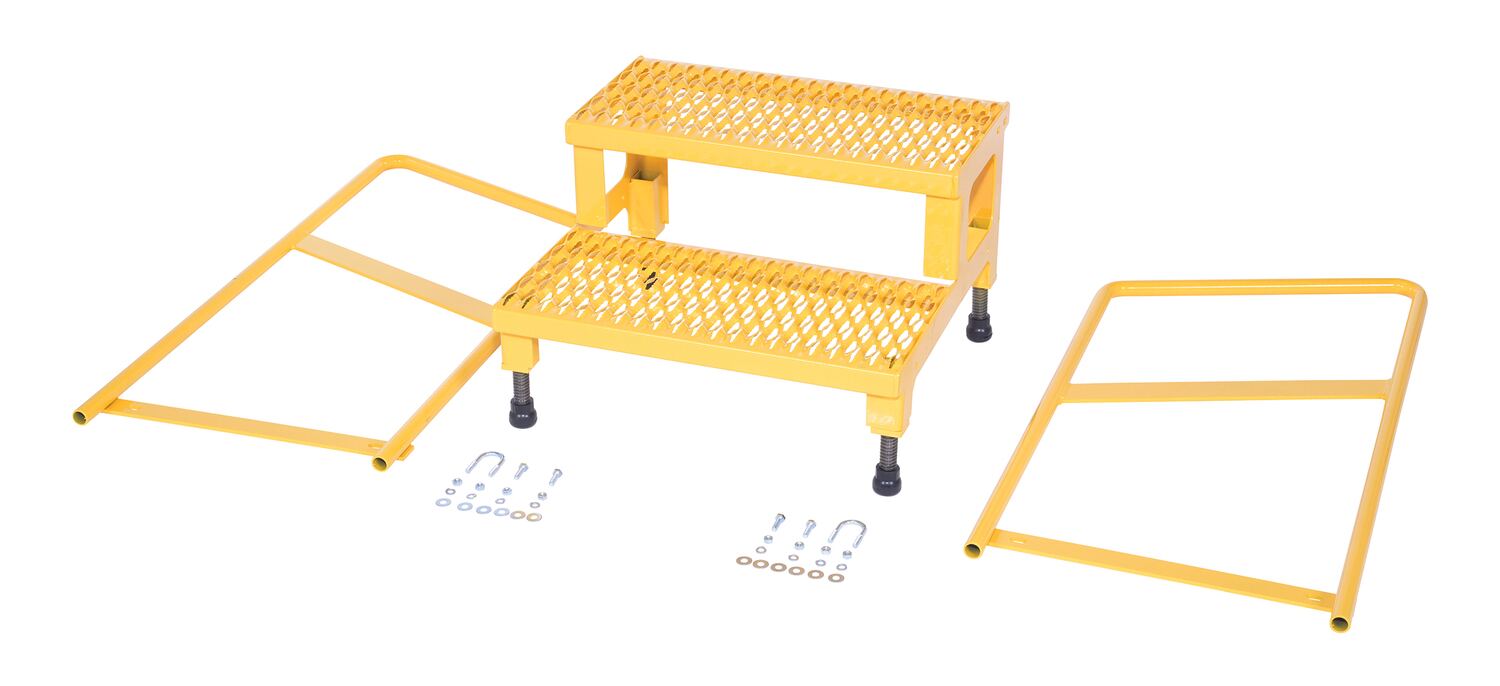

Serrated step surfaces provide strong traction to help reduce slipping during climbing and standing. Models include two bolt-on handrails for added stability, giving users extra support when stepping up, working from the platform, or transitioning back to the floor. The 11-3/4 inch step depth provides a comfortable standing area for routine tasks.

Two-Step and Three-Step Configurations

This family includes two-step and three-step models with usable widths ranging from approximately 24 inches to 72 inches, supporting different work areas and access requirements. Uniform capacity is 500 lb. Welded steel construction and a yellow baked-in powder coat finish provide long-lasting durability and high visibility for demanding industrial environments.


See Our Standard Adjustable Step-Mate Stands
Adjustable Step Stands with Handrail

model: ASP-24-HR

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

ASP-24-3-HR
ASP-24-HR
ASP-36-3-HR
ASP-36-HR
ASP-48-3-HR
ASP-48-HR
ASP-60-HR
ASP-72-HR
PDFs will open in a new window when clicked.

Owner's Manuals

1
ASP, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

8
ASP-24-3-HR
Open Drawing
ASP-24-HR
Open Drawing
ASP-36-3-HR
Open Drawing
ASP-36-HR
Open Drawing
ASP-48-3-HR
Open Drawing
ASP-48-HR
Open Drawing
ASP-60-HR
Open Drawing
ASP-72-HR
Open Drawing

Testing Certificates

8
ASP-24-3-HR
Open Certificate
ASP-24-HR
Open Certificate
ASP-36-3-HR
Open Certificate
ASP-36-HR
Open Certificate
ASP-48-3-HR
Open Certificate
ASP-48-HR
Open Certificate
ASP-60-HR
Open Certificate
ASP-72-HR
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

1

Step Stands Mailing Brochure

Adjustable Step Stands w/ Handrails Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Step Stands





Adjustable Step Stands with Ha...




Adjustable Industrial Step Platforms with Handrails for Safer Access

ASP-36-HR_L.jpgAdjustable industrial step platforms with handrails provide stable, elevated access for workstations, machinery, maintenance areas, stockrooms, warehouse aisles, and production floors. Designed for use as a worker platform or semi-permanent step, these stands help operators reach equipment, materials, and elevated work areas while maintaining better footing and support during use.

Adjustable Height for Uneven Surfaces

Each leg adjusts independently by screwing into or out of the leg base, allowing the stand to be leveled on surfaces that may not be perfectly even. Rubber tips on each leg help improve grip and floor contact. Ensure the stand is always fully level and stable before use, and it should not be occupied if proper leveling cannot be achieved.

Traction and Handrail Support

Serrated step surfaces provide strong traction to help reduce slipping during climbing and standing. Models include two bolt-on handrails for added stability, giving users extra support when stepping up, working from the platform, or transitioning back to the floor. The 11-3/4 inch step depth provides a comfortable standing area for routine tasks.

Two-Step and Three-Step Configurations

This family includes two-step and three-step models with usable widths ranging from approximately 24 inches to 72 inches, supporting different work areas and access requirements. Uniform capacity is 500 lb. Welded steel construction and a yellow baked-in powder coat finish provide long-lasting durability and high visibility for demanding industrial environments.


See Our Standard Adjustable Step-Mate Stands

Model # Description Attributes Net Wt.
(lbs)

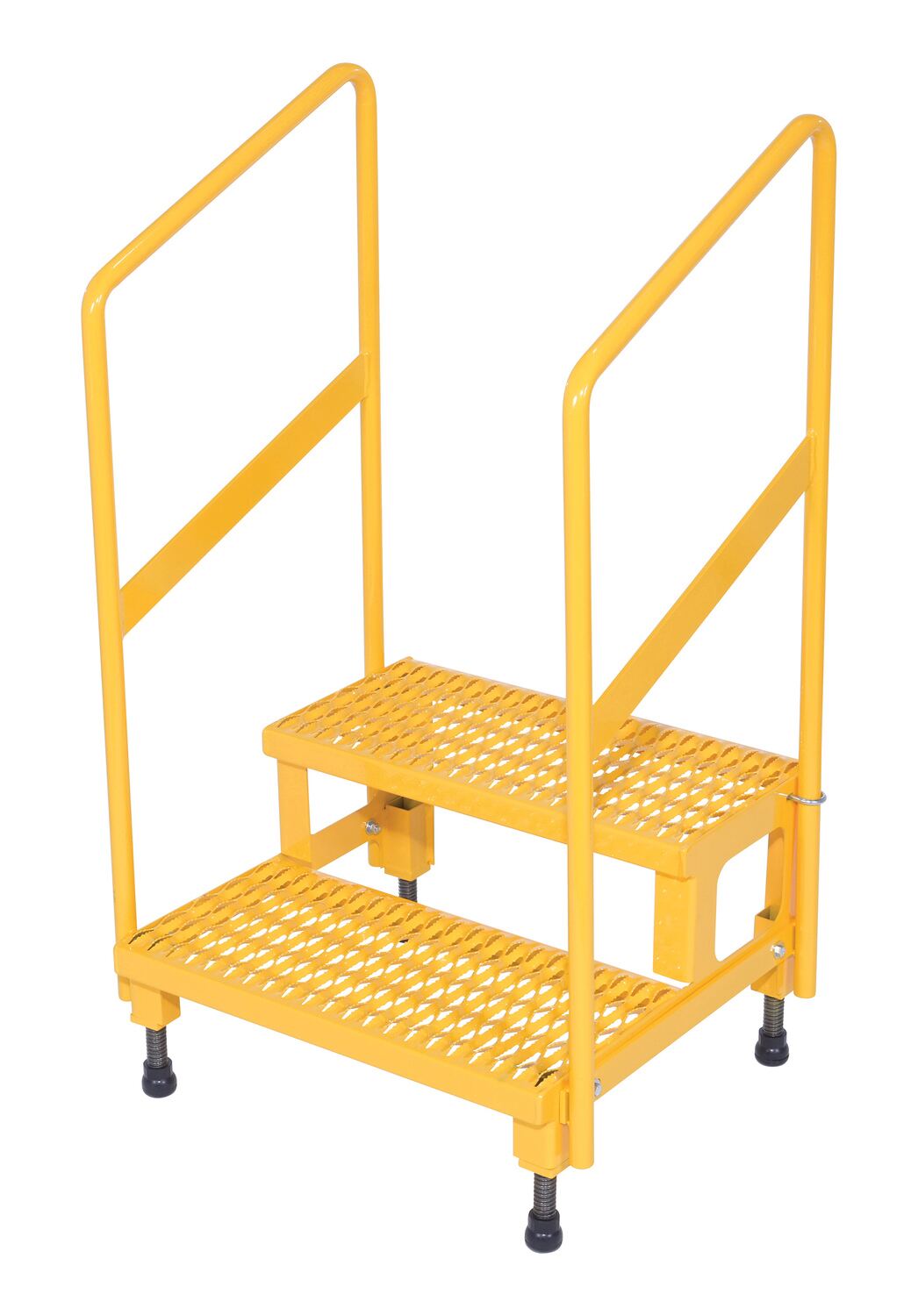

ASP-24-HR ASP-24-HRSteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 25-15/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUsable Width (in.): 24-5/16
Number of Steps: 2		98
ASP-36-HR ASP-36-HRSteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 38-3/16 In. x 43-1/8 In. 500 Lb. Capacity YellowUsable Width (in.): 36-11/16
Number of Steps: 2		110
ASP-48-HR ASP-48-HRSteel Adjustable Step Mate Stand 2 Step with Handrails 22-7/8 In. x 50-1/2 In. x 43-1/8 In. 500 Lb. Capacity YellowUsable Width (in.): 49
Number of Steps: 2		122

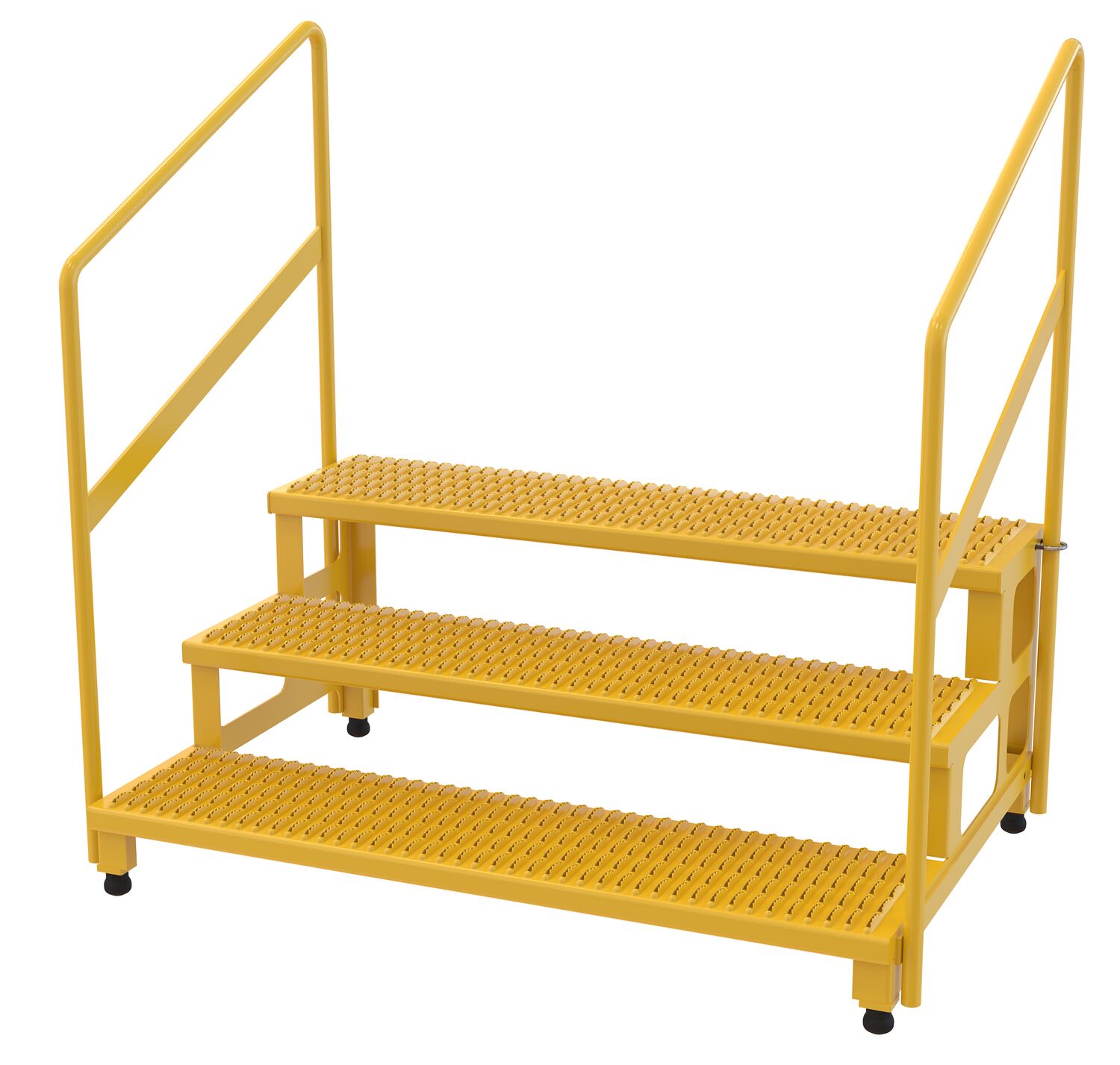

ASP-48-3-HR ASP-48-3-HRSteel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity YellowUsable Width (in.): 49
Number of Steps: 3		169
ASP-36-3-HR ASP-36-3-HRSteel Adjustable Step Stand 36 inches Wide 3-Step with Handrails 500 Lb. Capacity YellowUsable Width (in.): 36-11/16
Number of Steps: 3		148

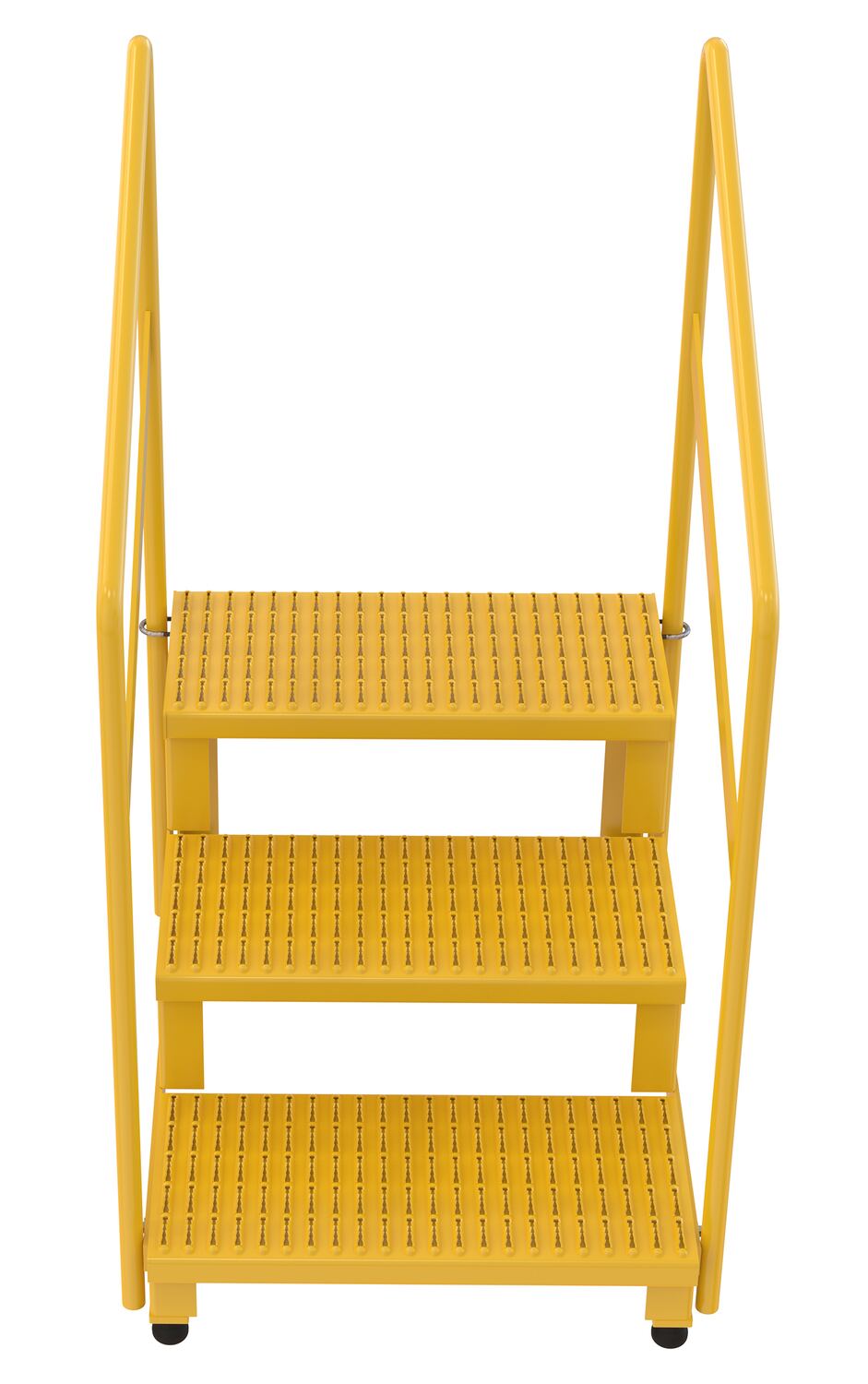

ASP-24-3-HR ASP-24-3-HRSteel Adjustable Step Stand 24 inches Wide 3-Step with Handrails 500 Lbs. Capacity YellowUsable Width (in.): 24-5/16
Number of Steps: 3		128

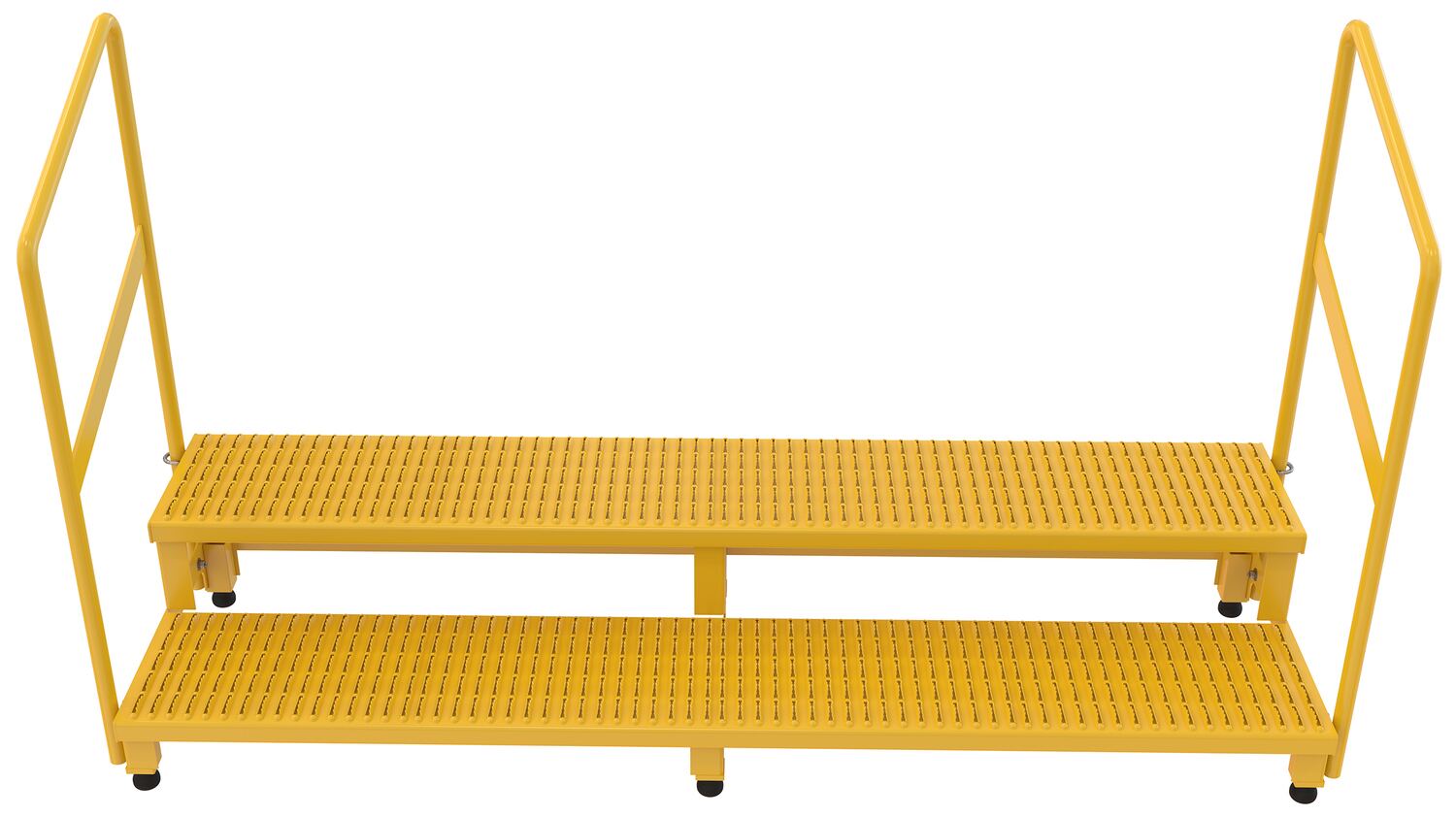

ASP-72-HR ASP-72-HRSteel Adjustable Step Stand 72 inch Wide 2-Step with Handrails 500 Lb. Capacity YellowUsable Width (in.): 72-9/16
Number of Steps: 2		172

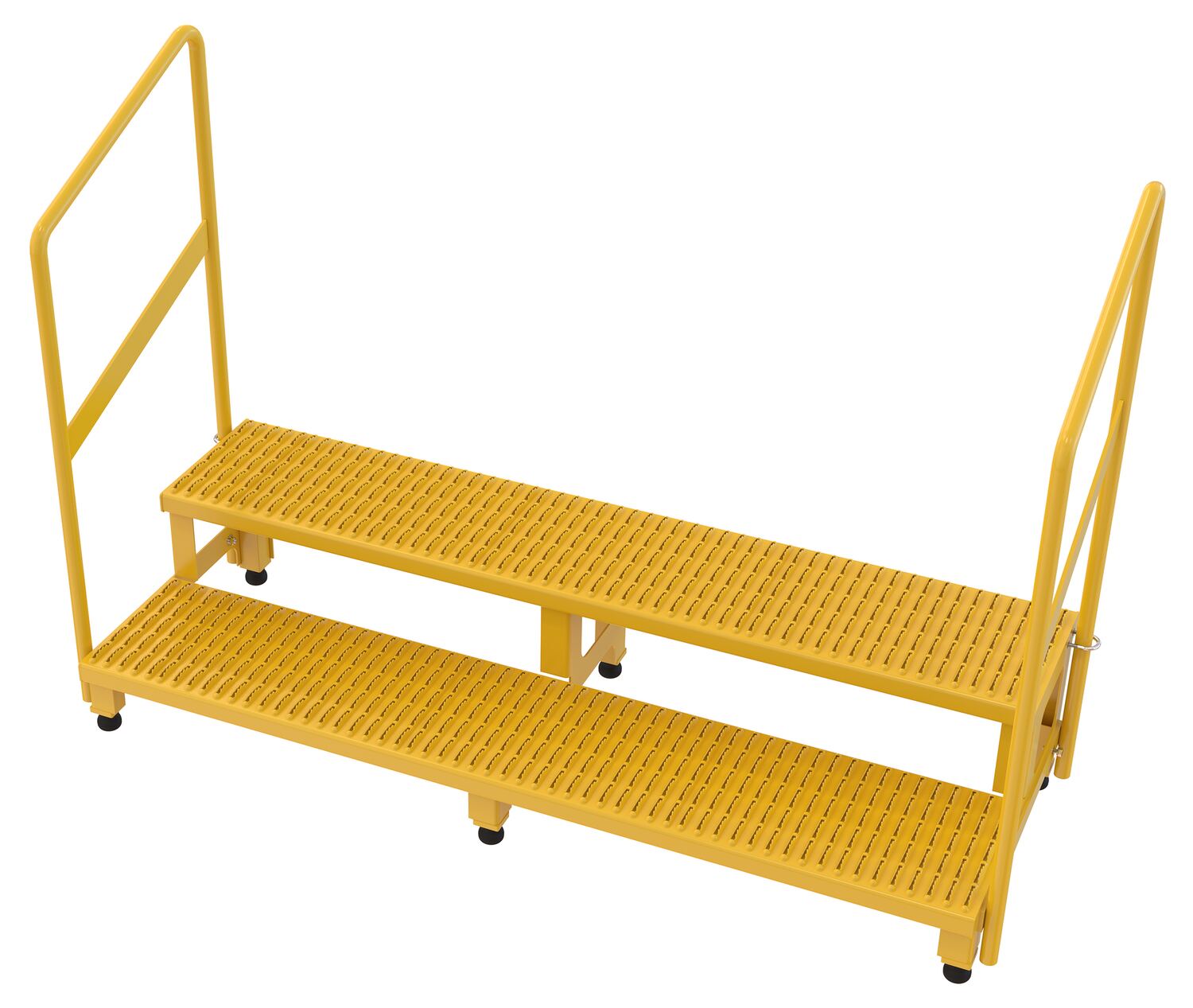

ASP-60-HR ASP-60-HRSteel Adjustable Step Stand 60 Inches Wide 2-Step with Handrails 500 Lb. Capacity YellowUsable Width (in.): 60-1/4
Number of Steps: 2		157
