Product Family Overview


Ultra-Spill Pallets & Decks
SERIES: DR

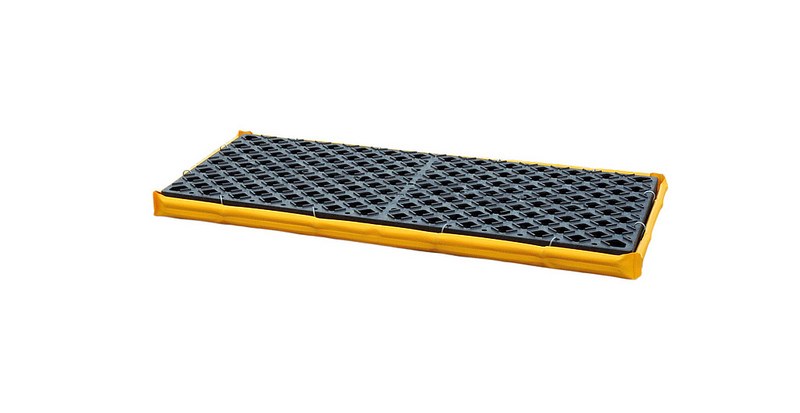

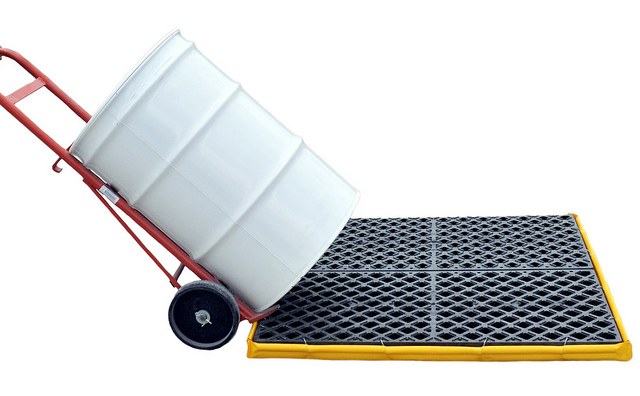

Low Profile Spill Decks are designed to catch spills. Model VLPUT-2448, has a volume capacity of 11 gallons, while model VLPUT-4848 has an 22 gallon volume capacity. Grating is manufactured from chemical resistant polyethylene. Outer yellow sump is constructed of heavy-duty, 18.5 oz. PVC material-folds/rolls down easily for convenient storage. Removable decking standard. Quick and easy to assemble.

Drum Spill Pallets, series DR, industrial strength molded polyethylene pallets with unique patented grid pattern drainage deck captures container spills and leaks of expensive materials for reuse. Unique design minimizes sloshing when transporting. Excellent for collecting most hazardous products. Dozens of applications when coordinated with many other containment products.

Low Profile Spill Decks are designed to catch spills. Model VLPUT-2448, has a volume capacity of 11 gallons, while model VLPUT-4848 has an 22 gallon volume capacity. Grating is manufactured from chemical resistant polyethylene. Outer yellow sump is constructed of heavy-duty, 18.5 oz. PVC material-folds/rolls down easily for convenient storage. Removable decking standard. Quick and easy to assemble.

Drum Spill Pallets, series DR, industrial strength molded polyethylene pallets with unique patented grid pattern drainage deck captures container spills and leaks of expensive materials for reuse. Unique design minimizes sloshing when transporting. Excellent for collecting most hazardous products. Dozens of applications when coordinated with many other containment products.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

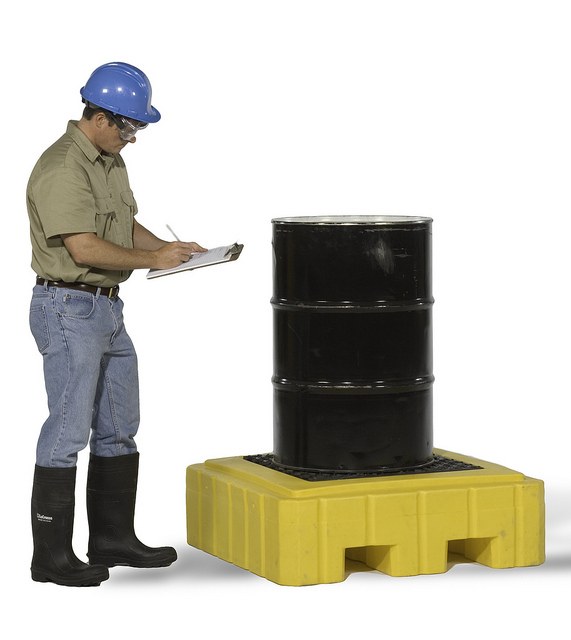

DR-1-UT DR-1-UT1 Year Limited WarrantyPolyethylene Ultra Spill Pallet 1 Drum Capacity 800 Lbs. YellowUniform Capacity (lb.): 800
Sump Capacity (gal.): 62
51

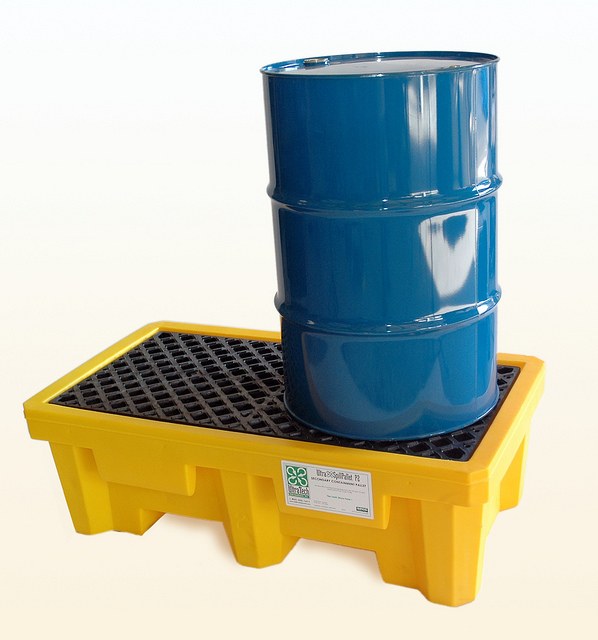

DR-2-UT DR-2-UT1 Year Limited WarrantyPolyethylene Ultra Spill Pallet 2 Drum Capacity 3000 Lbs. YellowUniform Capacity (lb.): 3,000
Sump Capacity (gal.): 66
63

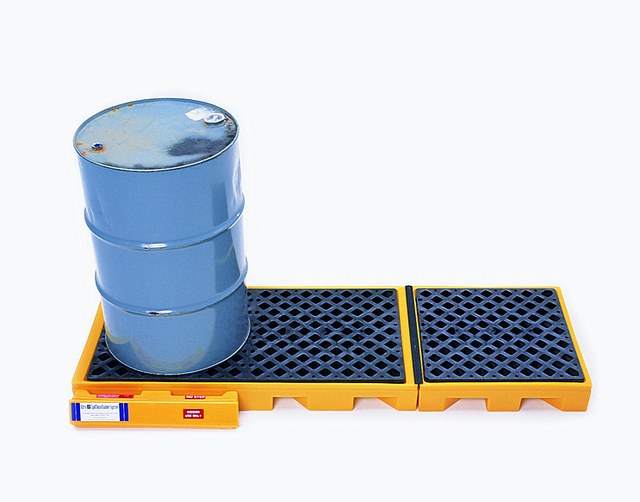

DR-3-UT DR-3-UT1 Year Limited WarrantyPolyethylene Ultra Spill Pallet 3 Drum Capacity 4500 Lbs. YellowUniform Capacity (lb.): 4,500
Sump Capacity (gal.): 99
117

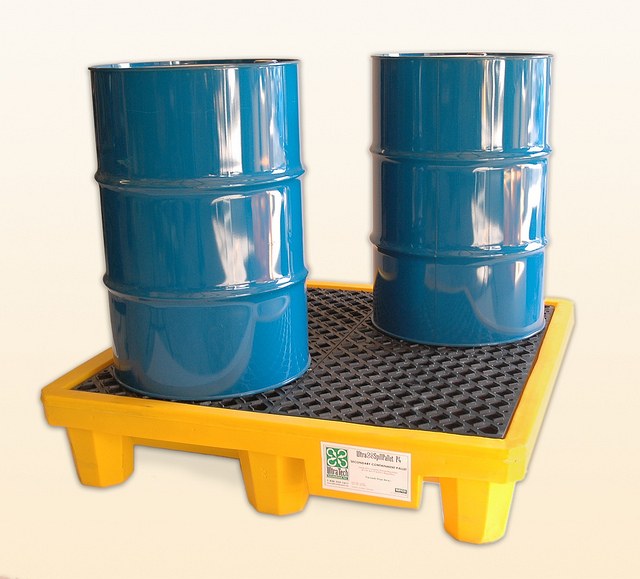

DR-4-UT DR-4-UT1 Year Limited WarrantyPolyethylene Ultra Spill Pallet 4 Drum Capacity 6000 Lbs. YellowUniform Capacity (lb.): 6,000
Sump Capacity (gal.): 66
90
VLPUT-2448 VLPUT-24481 Year Limited WarrantyPolyethylene Ultra Spill Containment Deck 24 In. x 48 In. 3,000 Lb./2 Drum Capacity BlackUniform Capacity (lb.): 3,000
Sump Capacity (gal.): 11
22
VLPUT-4848 VLPUT-48481 Year Limited WarrantyPolyethylene Ultra Spill Containment Deck 48 In. x 48 In. 6,000 Lb./4 Drum Capacity BlackUniform Capacity (lb.): 6,000
Sump Capacity (gal.): 22
44

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

DR-1-UT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Sump Capacity (gal.): 62
Uniform Capacity (lb.): 800
Sump Capacity (gal.): 62

DR-2-UT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 66
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 66

DR-3-UT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,500
Sump Capacity (gal.): 99
Uniform Capacity (lb.): 4,500
Sump Capacity (gal.): 99

DR-4-UT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 66
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 66

VLPUT-2448
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 11
Uniform Capacity (lb.): 3,000
Sump Capacity (gal.): 11

VLPUT-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 22
Uniform Capacity (lb.): 6,000
Sump Capacity (gal.): 22
For More Details of the Option Click the Red Model Button

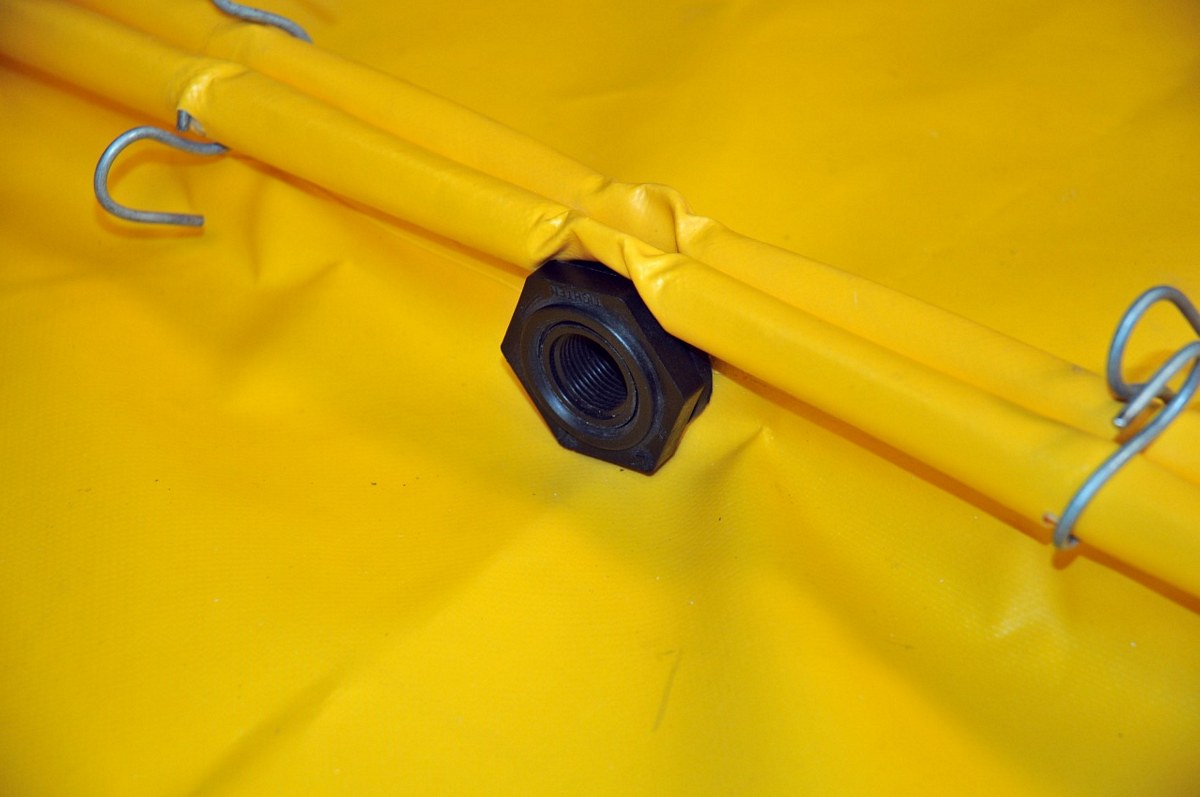

VLPUT-BF VLPUT-BF90 Days Limited WarrantyPolyethylene Bulkhead Fitting Flexible Spill Deck BlackCSA B125 Compliant: Exempt From Standard
FM Approved: Exempt
1

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Ultra-Spill Pallets & Decks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


DR-4-UT

VLPUT-BF

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Do these pallets have a drain plug?

A: Yes, the ultra spill pallets have a drain plug.


Q: What is the life expectancy of this spill pallet?

A: ) Expected lifespan is at least ten (10) years. You can expect longer, but the actual life is dependent on several factors. These pallets use the highest rated UV package in the resin formulation it uses to create the longest outdoor life available for a PE product. These pallets are designed for secondary spill containment for four 55-gal drums or smaller containers. They hold a total of 66-gal should one of the containers on the pallet were to fail and have either a leak or spill. Deterioration will depend on the application and what chemicals may come into contact with the LLDPE that is used to mold this pallet.
