Product Family Overview


Drum Lifters
SERIES: FDT

Both models are designed exclusively for lifting closed and open-head drums, with a secured lid!

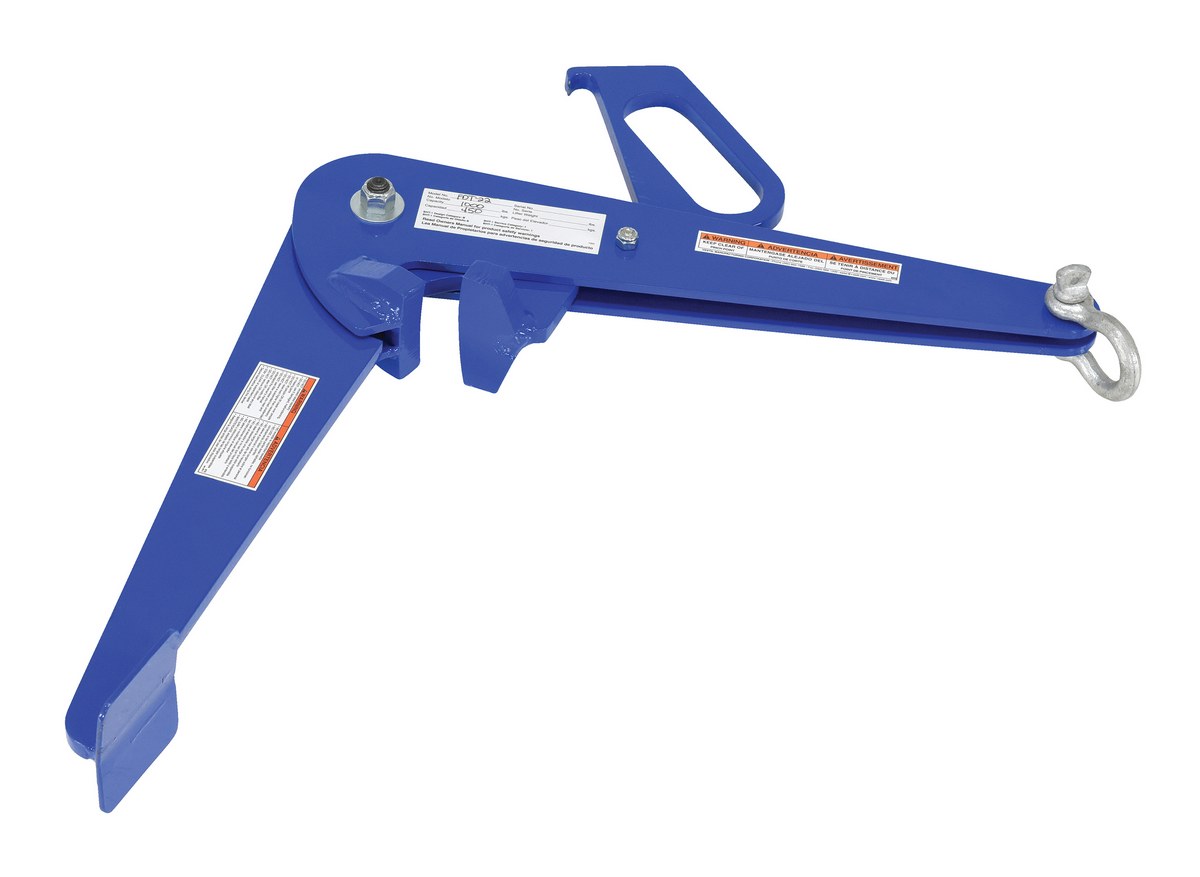

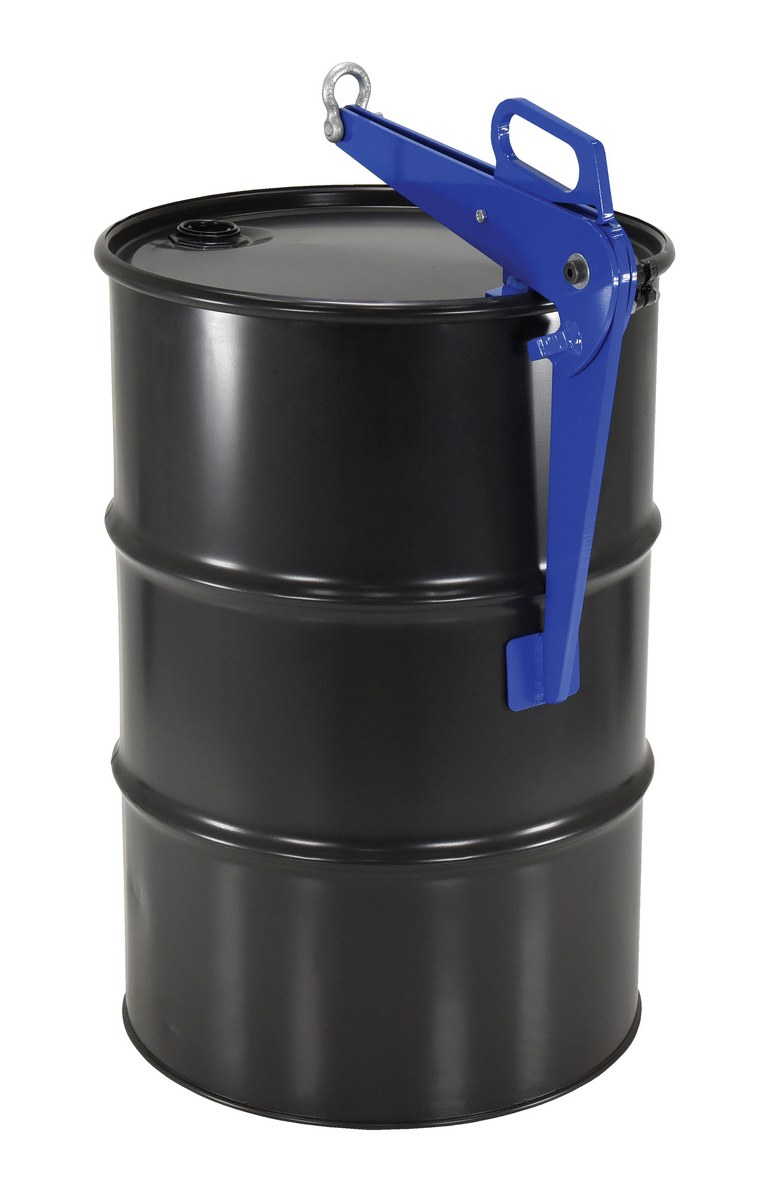

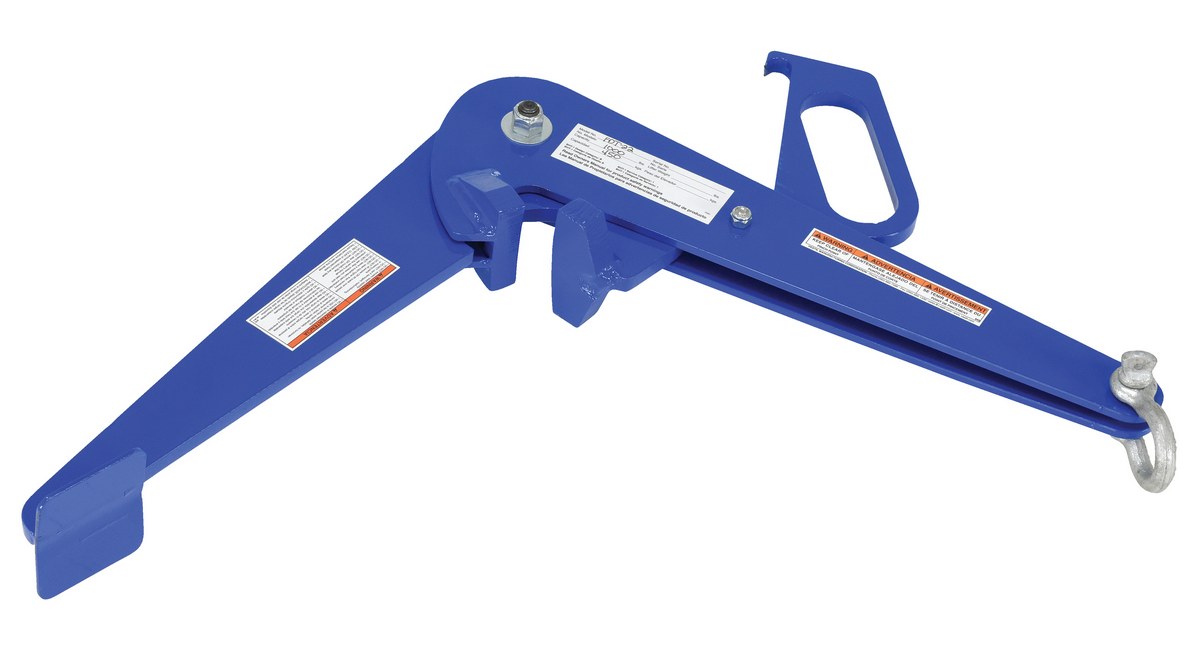

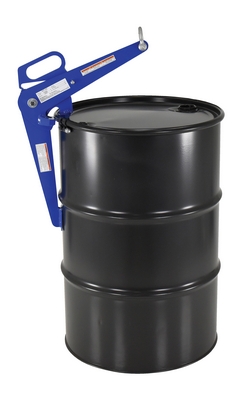

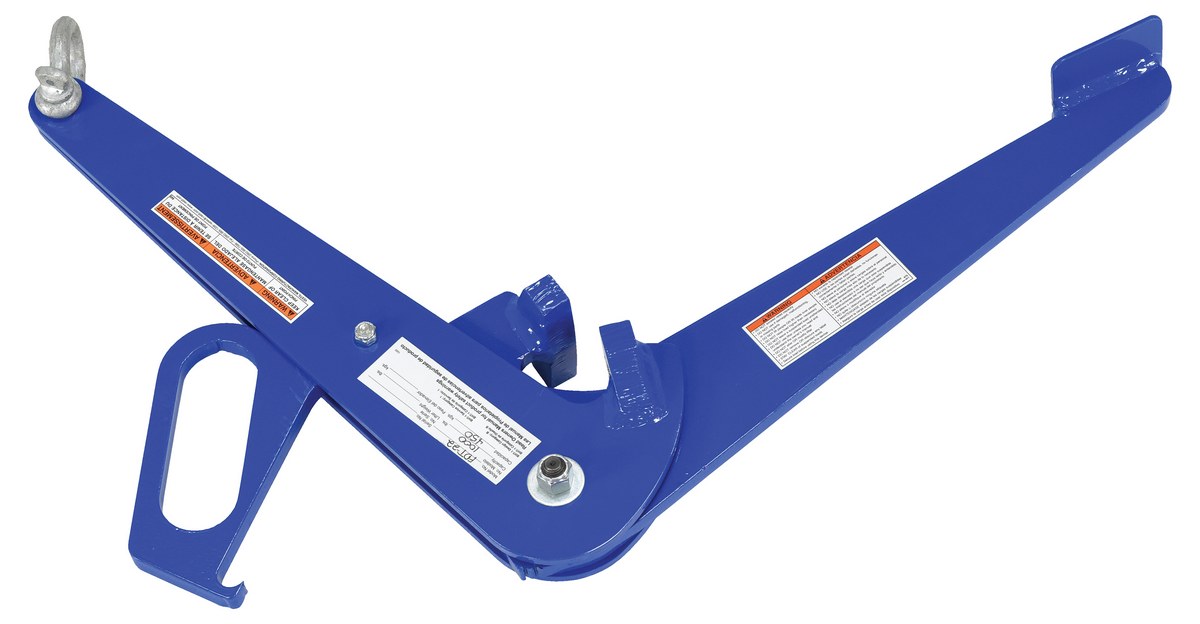

Model FDT-22 can be used to lift both 30 and 55 gallon steel drums with either an overhead chain or hoist. This unique lifting system holds drums securely with a locking safety handle. Steel construction with a baked-in powder-coat finish for added toughness.

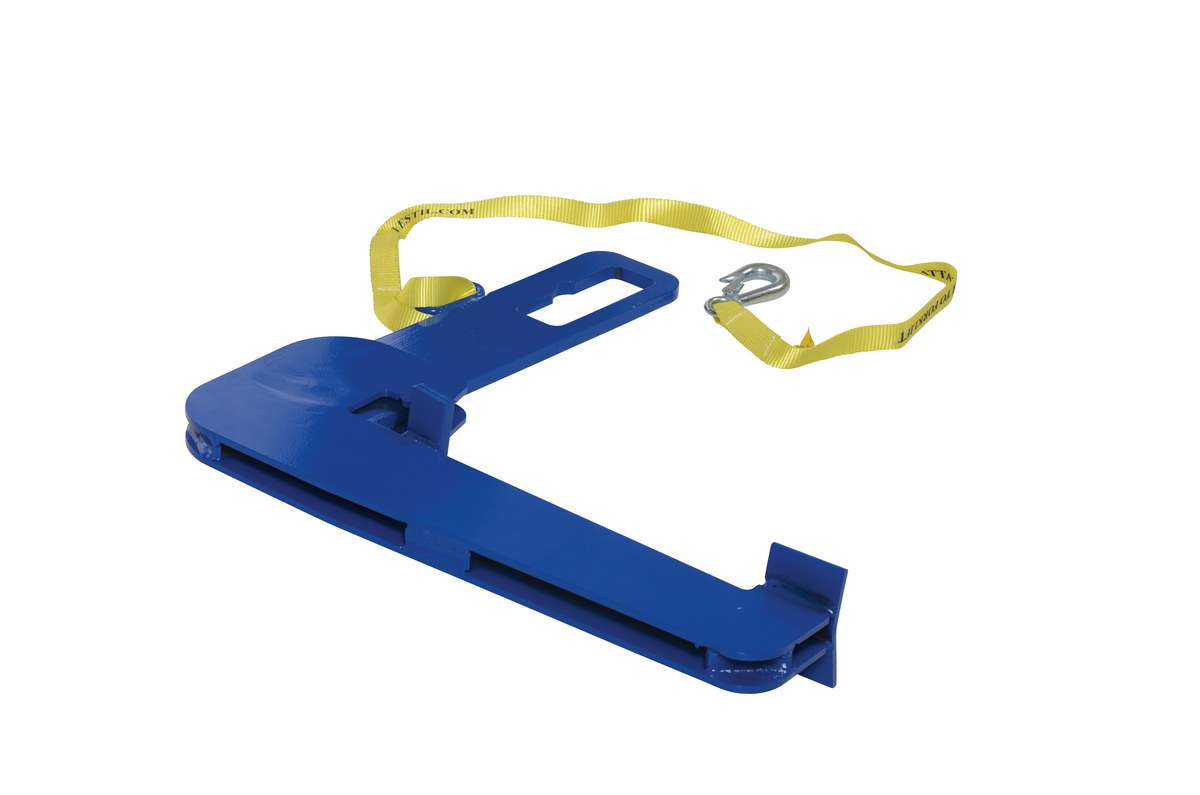

Model DL-31 may be used to lift 30 and 55 gallon steel drums with either an overhead chain or fork truck. Fork/Hook opening measures 5-1/2"W x 2-1/16"H. Steel construction with a baked-in powder-coat finish for added toughness.

Both models are designed exclusively for lifting closed and open-head drums, with a secured lid!

Model FDT-22 can be used to lift both 30 and 55 gallon steel drums with either an overhead chain or hoist. This unique lifting system holds drums securely with a locking safety handle. Steel construction with a baked-in powder-coat finish for added toughness.

Model DL-31 may be used to lift 30 and 55 gallon steel drums with either an overhead chain or fork truck. Fork/Hook opening measures 5-1/2"W x 2-1/16"H. Steel construction with a baked-in powder-coat finish for added toughness.

Additional Models In This Family

DL-31

model DL-31

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DL-31 DL-3190 Days Limited WarrantySteel Drum Lifter Fork/Chain 20-13/16 In x 4-1/16 In x 22-1/4 In 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Accepts: 30 & 55-gallon steel drums
30
FDT-22 FDT-2290 Days Limited WarrantySteel Drum Lifter 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Accepts: 30 & 55-gallon steel drums
23

* Designed exclusively for lifting closed & open-head drums with a secured lid installed.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DL-31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Accepts: 30 & 55-gallon steel drums
Uniform Capacity (lb.): 1,500
Accepts: 30 & 55-gallon steel drums

FDT-22
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Accepts: 30 & 55-gallon steel drums
Uniform Capacity (lb.): 1,000
Accepts: 30 & 55-gallon steel drums

Drum Lifters PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


DL-31

FDT-22

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Drum Lifters




Both models are designed exclusively for lifting closed and open-head drums, with a secured lid!

Model FDT-22 can be used to lift both 30 and 55 gallon steel drums with either an overhead chain or hoist. This unique lifting system holds drums securely with a locking safety handle. Steel construction with a baked-in powder-coat finish for added toughness.

Model DL-31 may be used to lift 30 and 55 gallon steel drums with either an overhead chain or fork truck. Fork/Hook opening measures 5-1/2"W x 2-1/16"H. Steel construction with a baked-in powder-coat finish for added toughness.



Model # Description Attributes Net Wt.
(lbs)
DL-31 DL-31Steel Drum Lifter Fork/Chain 20-13/16 In x 4-1/16 In x 22-1/4 In 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Accepts: 30 & 55-gallon steel drums
30
FDT-22 FDT-22Steel Drum Lifter 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Accepts: 30 & 55-gallon steel drums
23
