Product Family Overview


Drum Deheaders
SERIES: DD

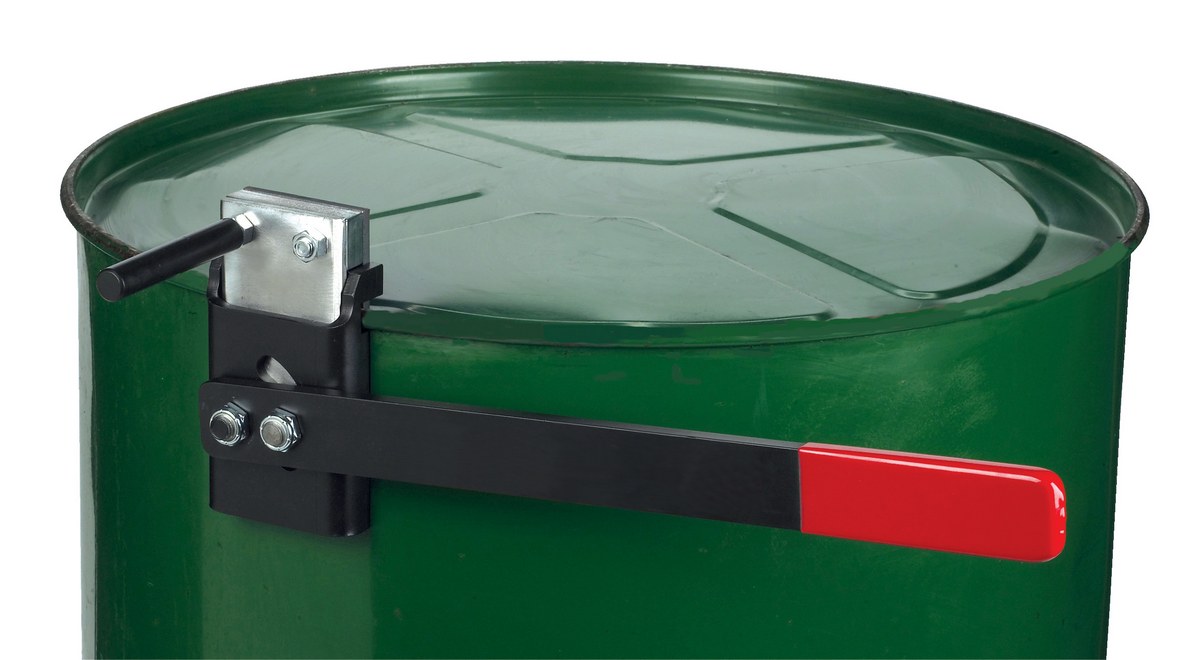

Manual Drum Deheader, model DD-M is for use with occasional drum deheading. Ribbed grip for comfort. Inside Chime out.

Burr-Free Manual Drum Deheader, model DD-EZ-M is a ratchet style manual drum deheader. For use with moderate drum volumes and leaves a burr-free edge. Inside Chime out.

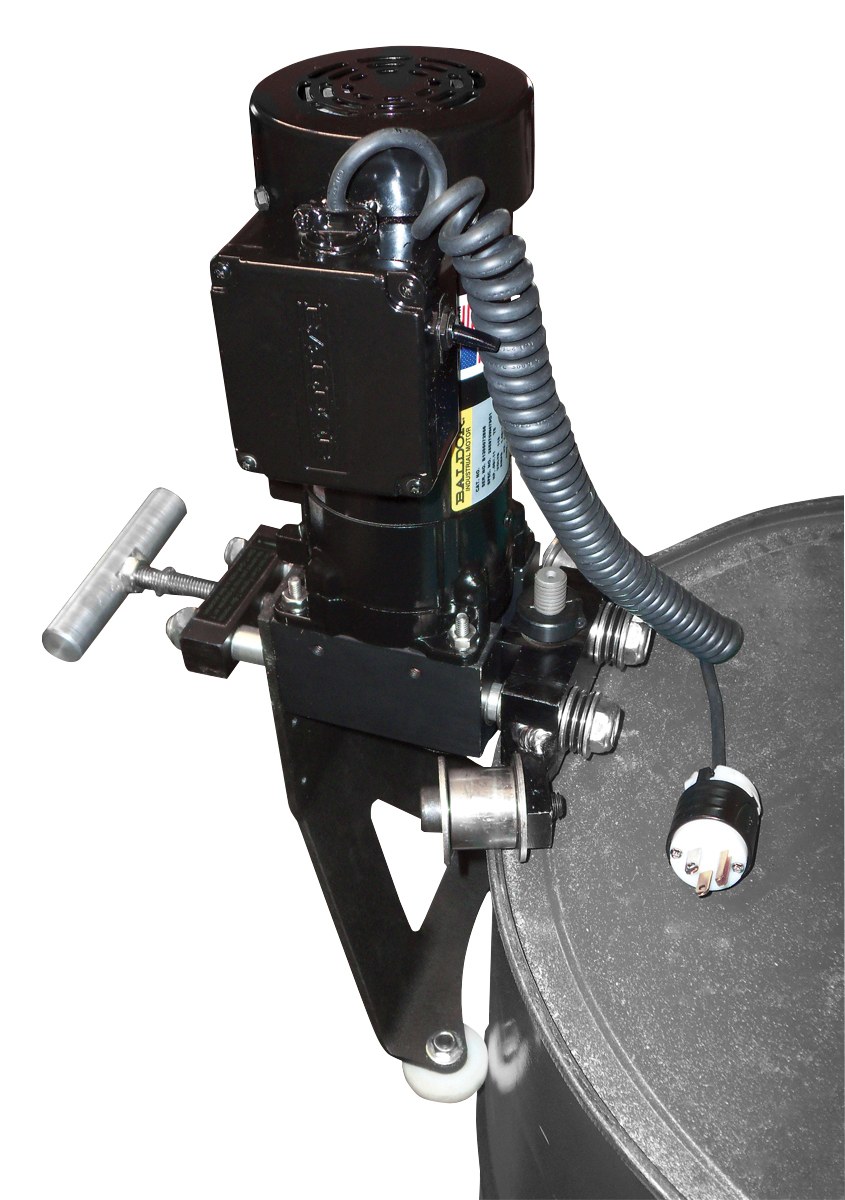

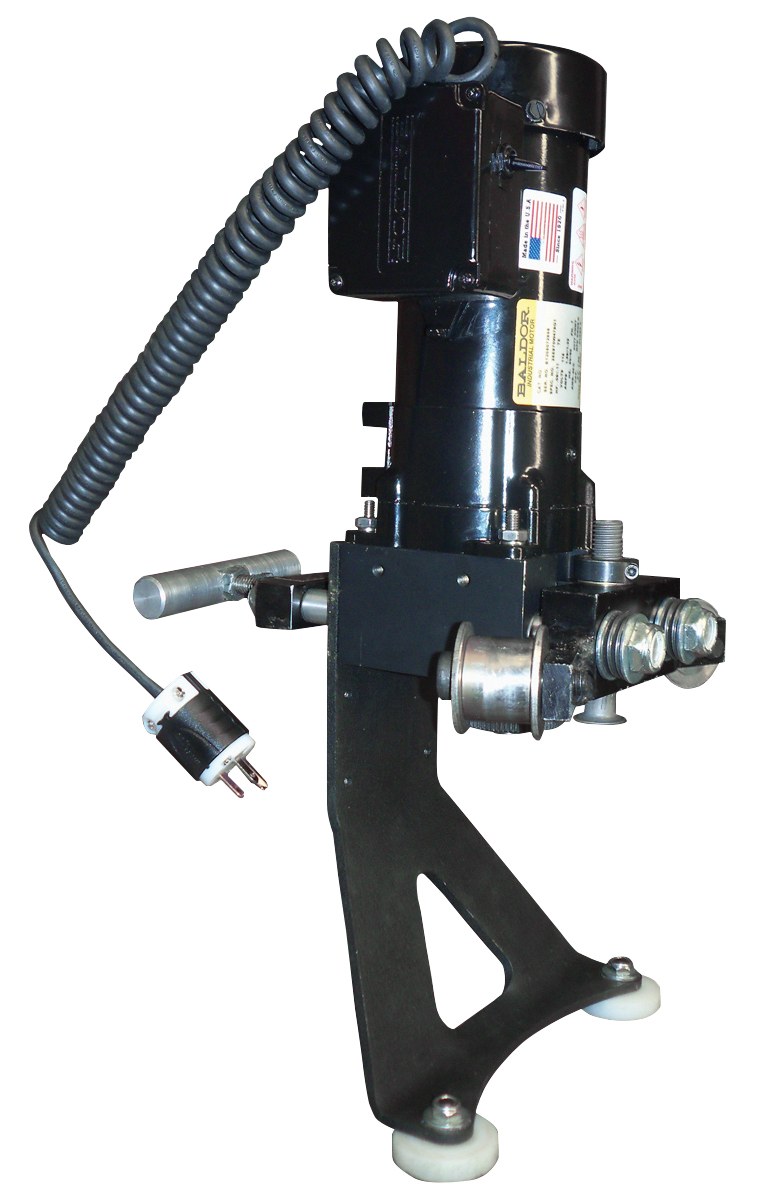

Electric Drum Deheader, model DD-EZ-E is a compact, portable, self-propelled, electric unit. It is also quiet, easy to use and designed for moderate drum deheading and leaves a burr-free edge. 1/3 HP, 110V, 60 Hz. Inside Chime out.

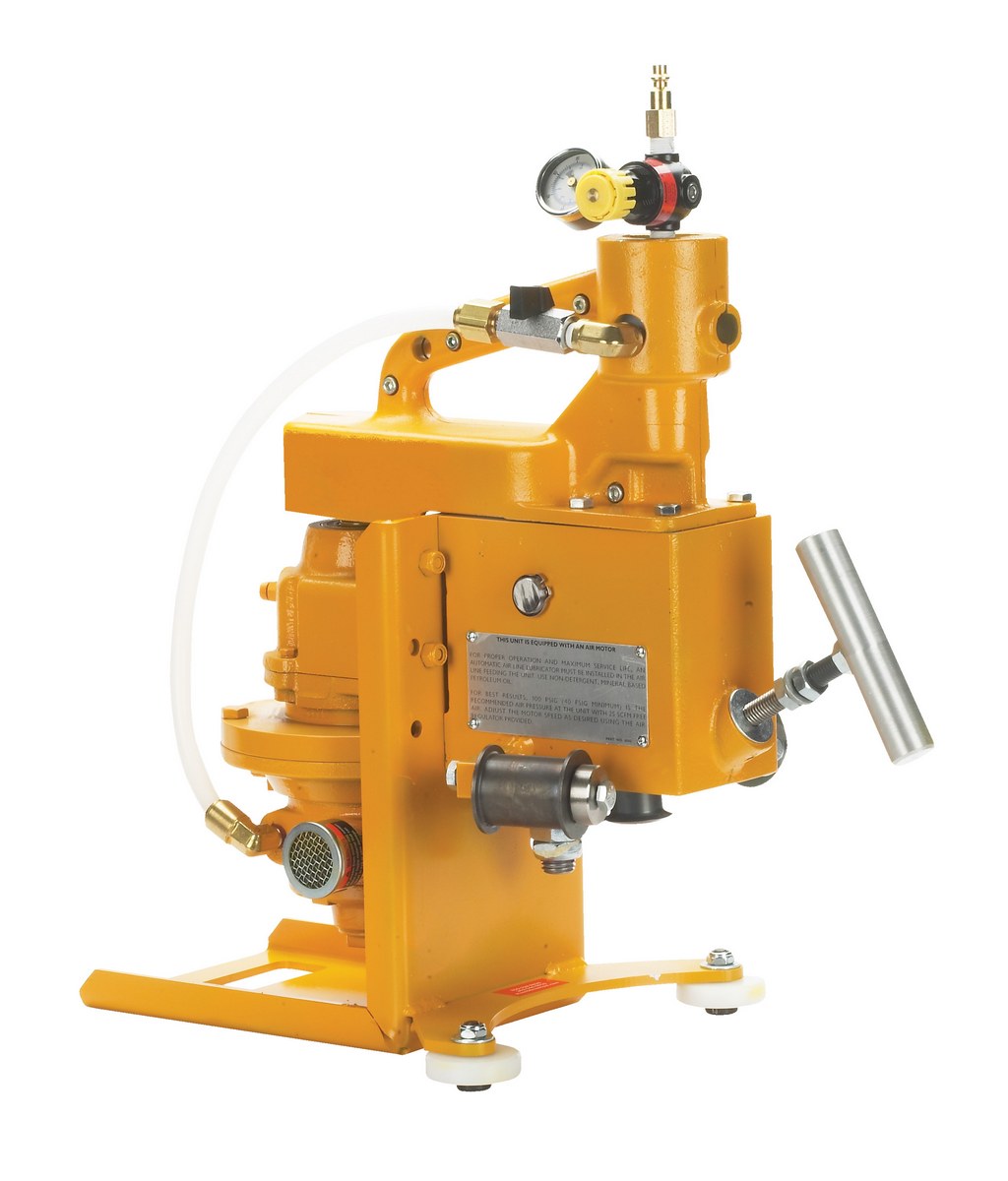

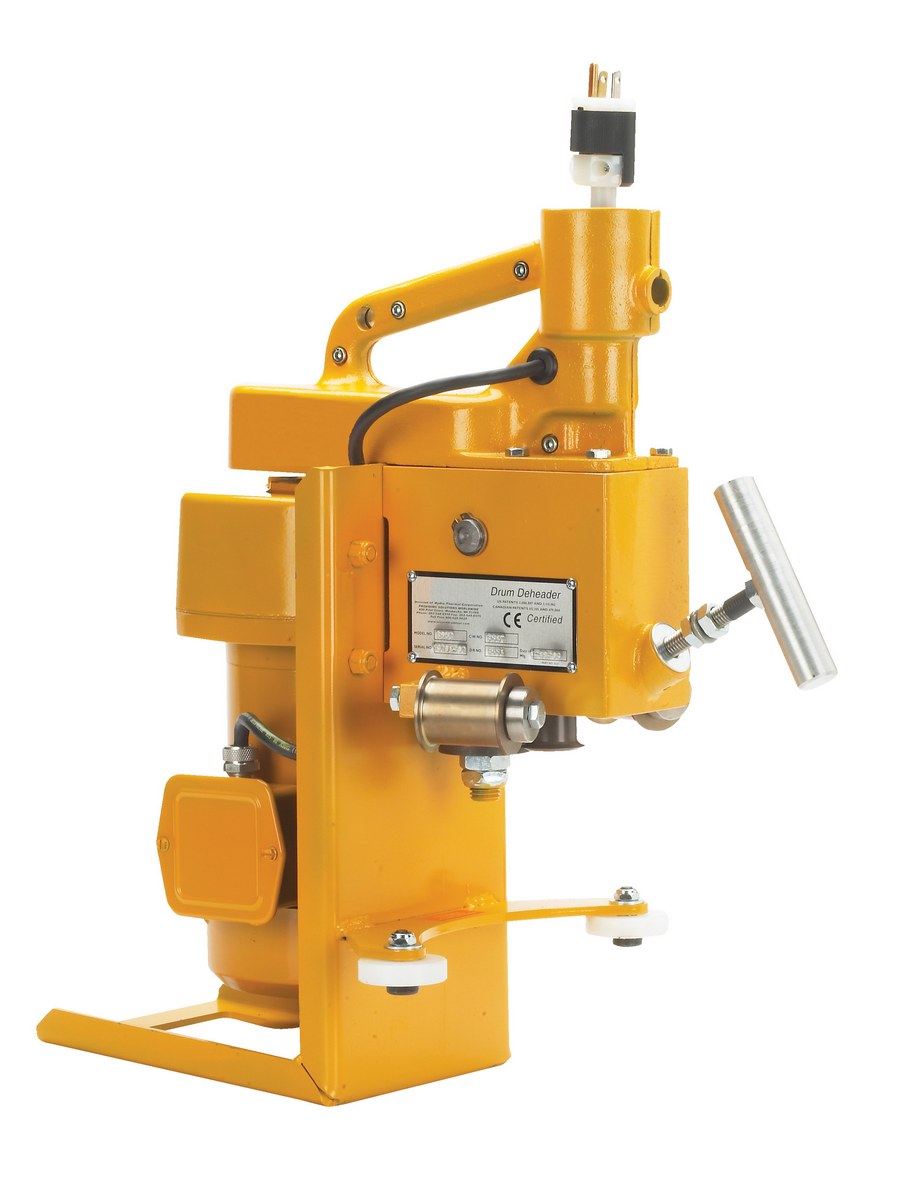

High Duty Drum Deheader, model DD-EX-E (electric) and model DD-EX-A (air powered) are designed for moderate to high drum deheading. Deheads a drum in less than 1 minute, leaves a burr-free edge, and is long lasting. 1/3 HP, 110V, 60 Hz. 60-100 psi, 25 cfm. FLR is required; not included. Inside Chime out.

Manual Drum Deheader, model DD-M is for use with occasional drum deheading. Ribbed grip for comfort. Inside Chime out.

Burr-Free Manual Drum Deheader, model DD-EZ-M is a ratchet style manual drum deheader. For use with moderate drum volumes and leaves a burr-free edge. Inside Chime out.

Electric Drum Deheader, model DD-EZ-E is a compact, portable, self-propelled, electric unit. It is also quiet, easy to use and designed for moderate drum deheading and leaves a burr-free edge. 1/3 HP, 110V, 60 Hz. Inside Chime out.

High Duty Drum Deheader, model DD-EX-E (electric) and model DD-EX-A (air powered) are designed for moderate to high drum deheading. Deheads a drum in less than 1 minute, leaves a burr-free edge, and is long lasting. 1/3 HP, 110V, 60 Hz. 60-100 psi, 25 cfm. FLR is required; not included. Inside Chime out.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DD-EX-A DD-EX-A1 Year Limited WarrantySteel Air Powered Drum Deheader 1-2 Pass 17 In. x 11 In. x 25 In. YellowOperation: Air
Motor (HP): 1/2
80
DD-EX-E DD-EX-E1 Year Limited WarrantySteel High Duty Electric Drum Deheader 1-2 Pass 17 In. x 11 In. x 25 In. YellowOperation: Electric
Motor (HP): 1/3
80
DD-EZ-E DD-EZ-E1 Year Limited WarrantySteel Electric Drum Deheader 3-5 Pass 12 In. x 10 In. x 24 In. BlackOperation: Self-propelled, Electric
Motor (HP): 0.09
34
DD-EZ-M DD-EZ-M1 Year Limited WarrantySteel Burr-Free Manual Drum Deheader 3-5 Pass 12 In. x 7 In. x 18 In. BlackPasses to cut lid (qty.): 3 to 5
Operation: Manual Ratchet Style
34
DD-M DD-M1 Year Limited WarrantySteel Manual Drum Deheader 1 Pass 12 In. x 4 In. x 12 In. BlackOpens Drums (gal.): 30 and 55
Passes to cut lid (qty.): 1
7

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

DD-EX-A
Unit:
Size: W x L x H
Weight:
Limited Warranty
Operation: Air
Motor (HP): 1/2
Operation: Air
Motor (HP): 1/2

DD-EX-E
Unit:
Size: W x L x H
Weight:
Limited Warranty
Operation: Electric
Motor (HP): 1/3
Operation: Electric
Motor (HP): 1/3

DD-EZ-E
Unit:
Size: W x L x H
Weight:
Limited Warranty
Operation: Self-propelled, Electric
Motor (HP): 0.09
Operation: Self-propelled, Electric
Motor (HP): 0.09

DD-EZ-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Passes to cut lid (qty.): 3 to 5
Operation: Manual Ratchet Style
Passes to cut lid (qty.): 3 to 5
Operation: Manual Ratchet Style

DD-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Opens Drums (gal.): 30 and 55
Passes to cut lid (qty.): 1
Opens Drums (gal.): 30 and 55
Passes to cut lid (qty.): 1
For More Details of the Option Click the Red Model Button

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Drum Deheaders PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

Hydraulic Oil SDS Sheet for: DD-EX-A

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Does the DD-EX-E leave the chime attached to the drum?

A: Yes it does leave the chime on. It cuts inside the drum.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Drum Deheaders




Manual Drum Deheader, model DD-M is for use with occasional drum deheading. Ribbed grip for comfort. Inside Chime out.

Burr-Free Manual Drum Deheader, model DD-EZ-M is a ratchet style manual drum deheader. For use with moderate drum volumes and leaves a burr-free edge. Inside Chime out.

Electric Drum Deheader, model DD-EZ-E is a compact, portable, self-propelled, electric unit. It is also quiet, easy to use and designed for moderate drum deheading and leaves a burr-free edge. 1/3 HP, 110V, 60 Hz. Inside Chime out.

High Duty Drum Deheader, model DD-EX-E (electric) and model DD-EX-A (air powered) are designed for moderate to high drum deheading. Deheads a drum in less than 1 minute, leaves a burr-free edge, and is long lasting. 1/3 HP, 110V, 60 Hz. 60-100 psi, 25 cfm. FLR is required; not included. Inside Chime out.



Model # Description Attributes Net Wt.
(lbs)
DD-EX-A DD-EX-ASteel Air Powered Drum Deheader 1-2 Pass 17 In. x 11 In. x 25 In. YellowOperation: Air
Motor (HP): 1/2
80
DD-EX-E DD-EX-ESteel High Duty Electric Drum Deheader 1-2 Pass 17 In. x 11 In. x 25 In. YellowOperation: Electric
Motor (HP): 1/3
80
DD-EZ-E DD-EZ-ESteel Electric Drum Deheader 3-5 Pass 12 In. x 10 In. x 24 In. BlackOperation: Self-propelled, Electric
Motor (HP): 0.09
34
DD-EZ-M DD-EZ-MSteel Burr-Free Manual Drum Deheader 3-5 Pass 12 In. x 7 In. x 18 In. BlackPasses to cut lid (qty.): 3 to 5
Operation: Manual Ratchet Style
34
DD-M DD-MSteel Manual Drum Deheader 1 Pass 12 In. x 4 In. x 12 In. BlackOpens Drums (gal.): 30 and 55
Passes to cut lid (qty.): 1
7
