Product Family Overview


Cylinder Storage Cabinets (Canada sales)
SERIES: CYL

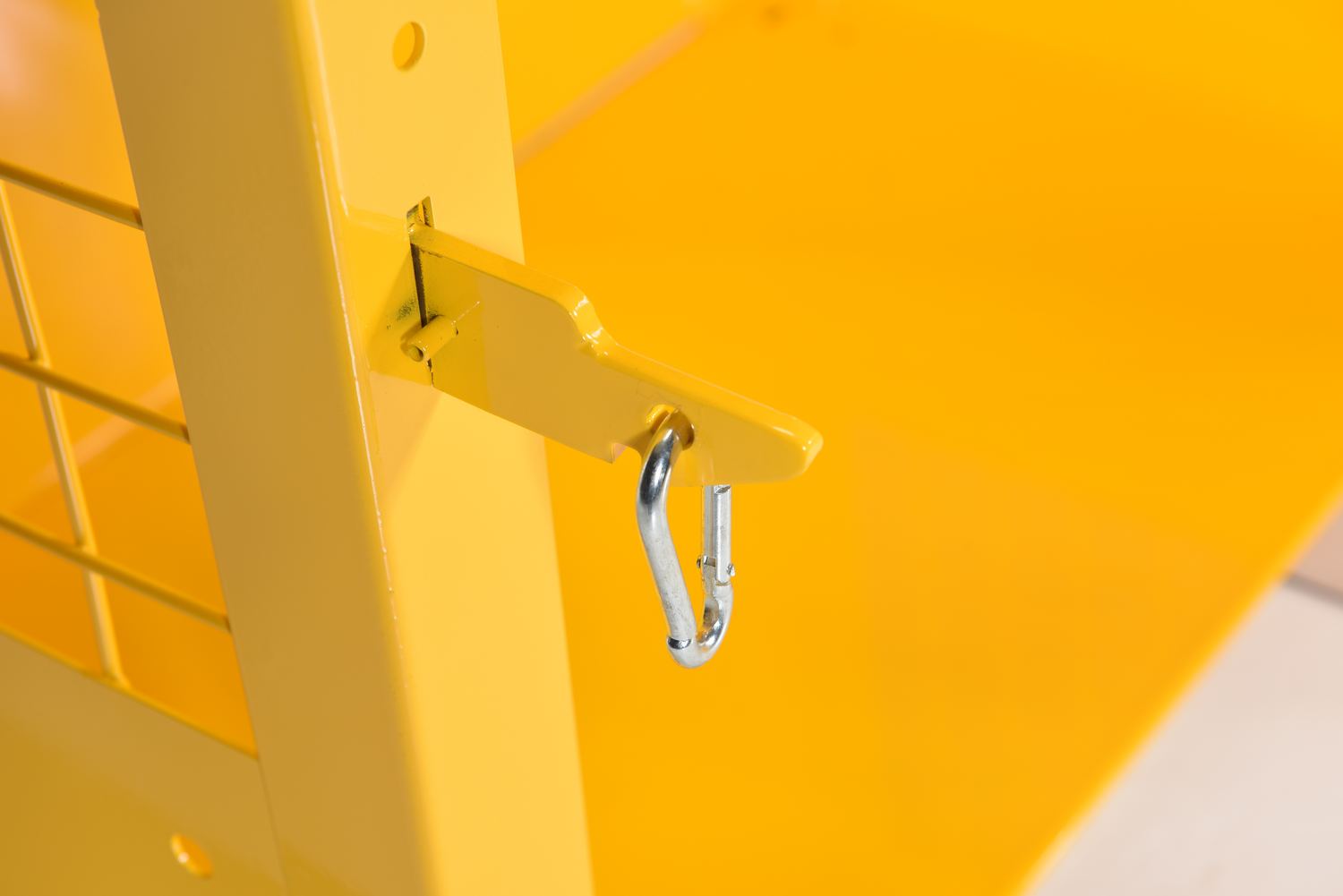

Durable steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel. The top, bottom, and back is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing unit to floor (hardware is not included). Vertical units include chains for securing cylinders. Includes red lettered signage noting "No Smoking" message in English and French. Meets CSA B-149.2, NFPA 58, and OSHA sec. 1910.110 (f)(6)(ii) design standards. Rugged welded steel construction with a baked in powder coate safety yellow finish for added toughness. All units shipped fully assembled.

  • Meets OSHA 1910 110 (f)(6)(ii) and CSA B-149 2
  • Ideal for storage of LP gas cylinders
  • Made of expanded steel mesh & of solid sheet steel
  • Includes lockable doors lag holes in base for security

Check out Vestil's Other Storage Cabinets:

Flammable Safety Cabinets Cylinder Storage Cabinets (USA sales)

Durable steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel. The top, bottom, and back is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing unit to floor (hardware is not included). Vertical units include chains for securing cylinders. Includes red lettered signage noting "No Smoking" message in English and French. Meets CSA B-149.2, NFPA 58, and OSHA sec. 1910.110 (f)(6)(ii) design standards. Rugged welded steel construction with a baked in powder coate safety yellow finish for added toughness. All units shipped fully assembled.

  • Meets OSHA 1910 110 (f)(6)(ii) and CSA B-149 2
  • Ideal for storage of LP gas cylinders
  • Made of expanded steel mesh & of solid sheet steel
  • Includes lockable doors lag holes in base for security

Check out Vestil's Other Storage Cabinets:

Flammable Safety Cabinets Cylinder Storage Cabinets (USA sales)

Additional Models In This Family

CYL-G-8-CA

model CYL-G-8-CA

CYL-LP-4-CA

model CYL-LP-4-CA

CYL-LP-8-CA

model CYL-LP-8-CA

CYL-LP-16-CA

model CYL-LP-16-CA

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

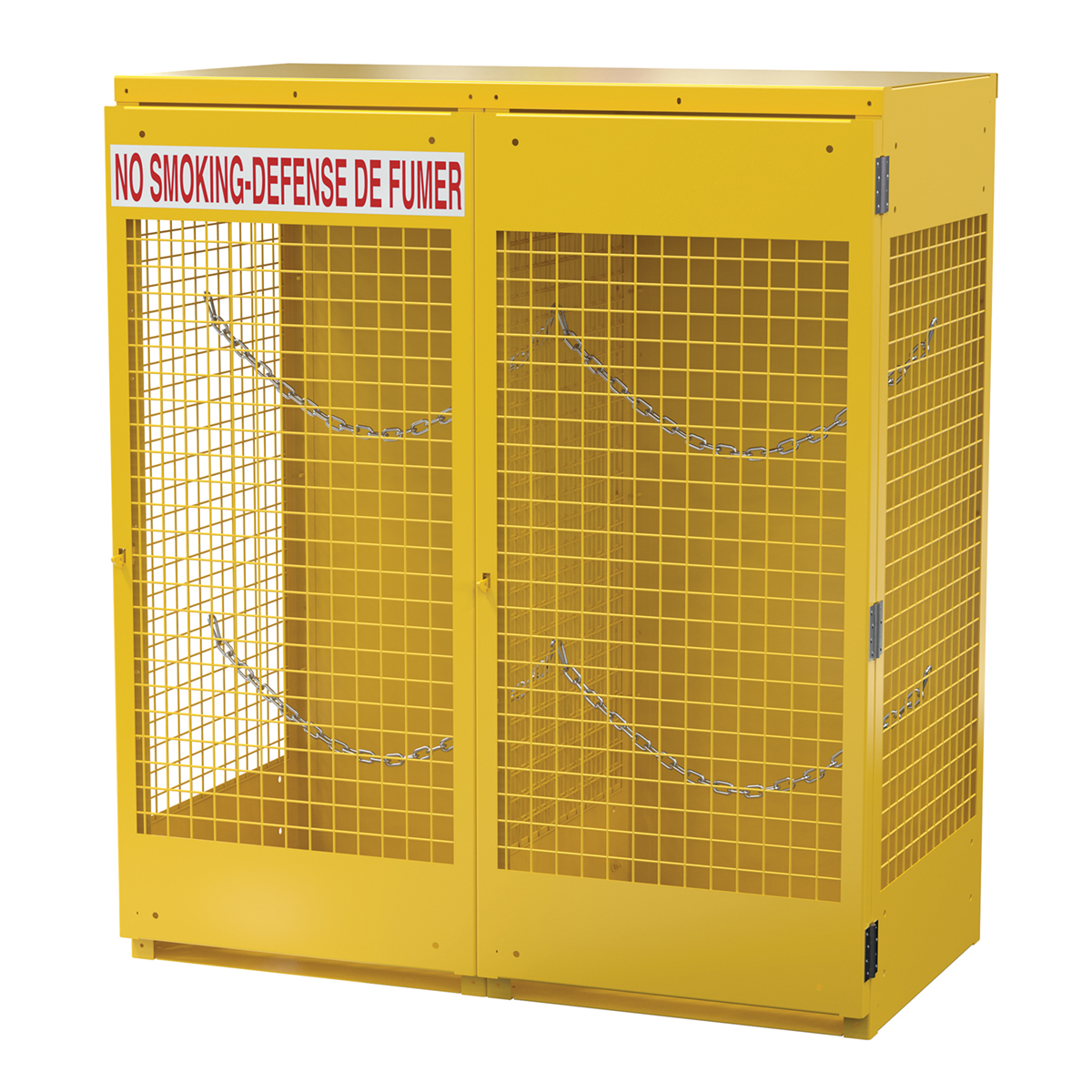

CYL-G-12-CA CYL-G-12-CA90 Days Limited WarrantySteel Canadian Cylinder Storage Cabinet 32 In. x 60 In. x 68-1/4 In. 12 Cylinder Capacity YellowUniform Cylinder Capacity (qty.): 12
Number of Shelves: Zero
432

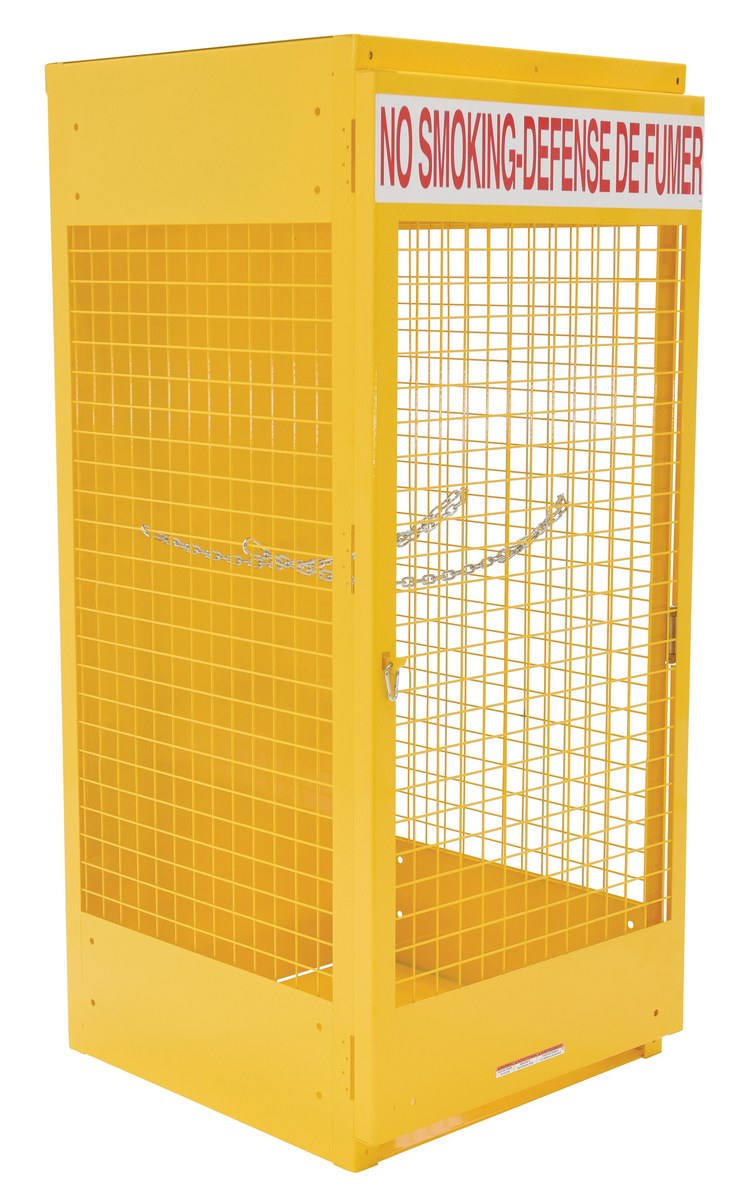

CYL-G-8-CA CYL-G-8-CA90 Days Limited WarrantySteel Canadian Cylinder Storage Cabinet 32 In. x 30 In. x 68-1/4 In. 8 Cylinder Capacity YellowUniform Cylinder Capacity (qty.): 8
Number of Shelves: Zero
231

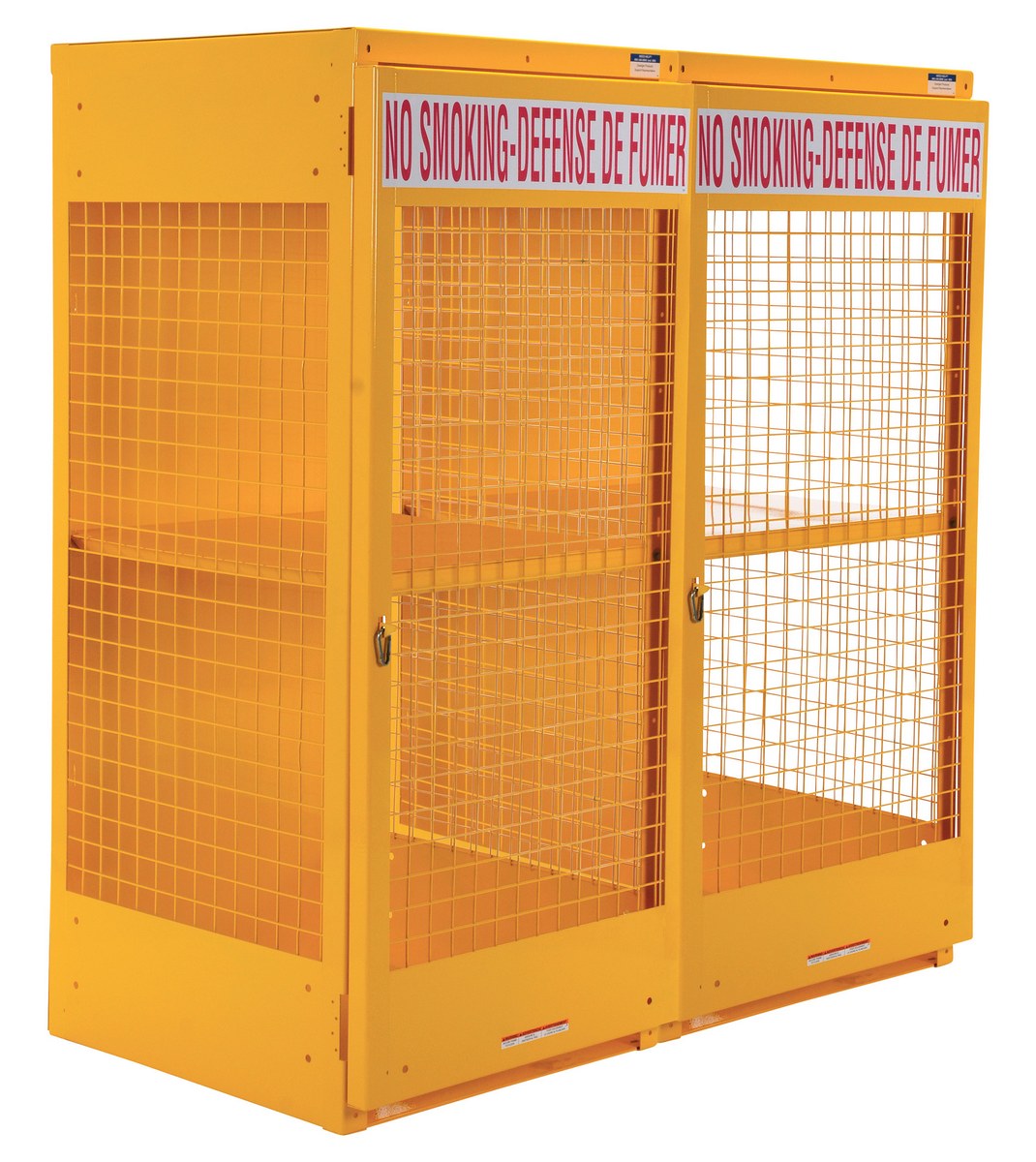

CYL-LP-16-CA CYL-LP-16-CA90 Days Limited WarrantySteel Canadian LP Cylinder Storage Cabinet 32 In. x 60 In. x 68-1/4 In. 16 Cylinder Capacity YellowUniform Cylinder Capacity (qty.): 16
Uniform Capacity (lb.): 520
501

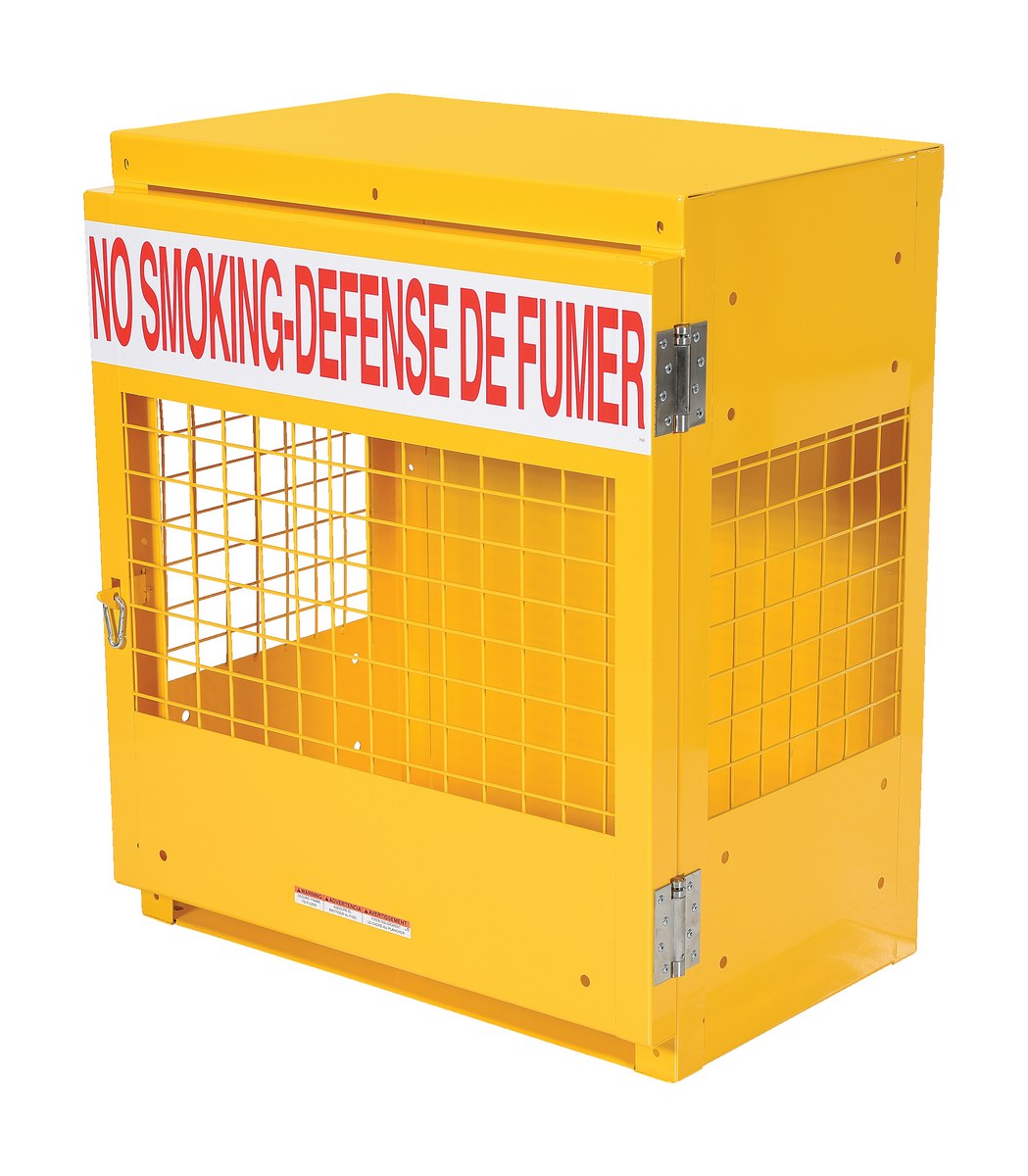

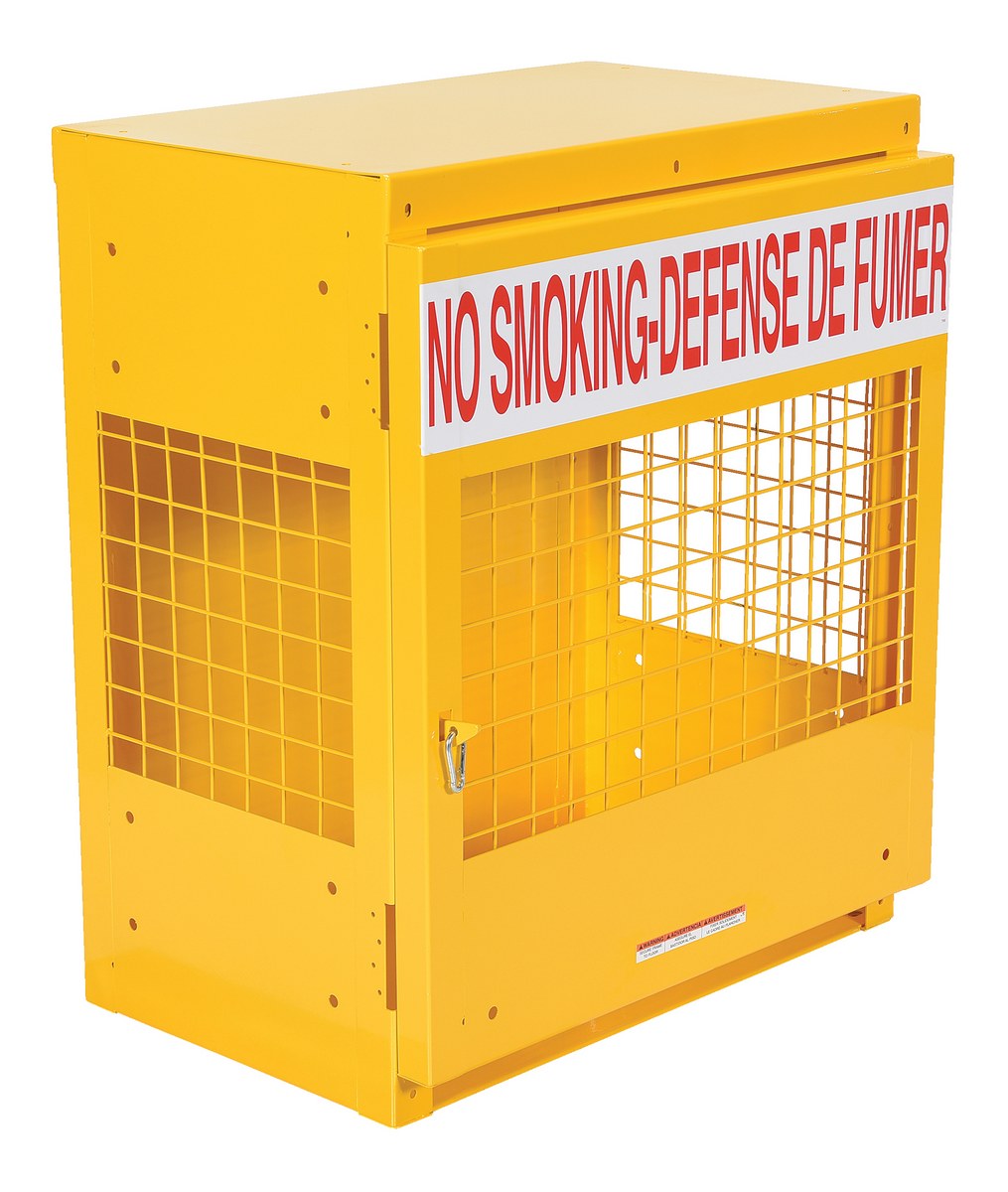

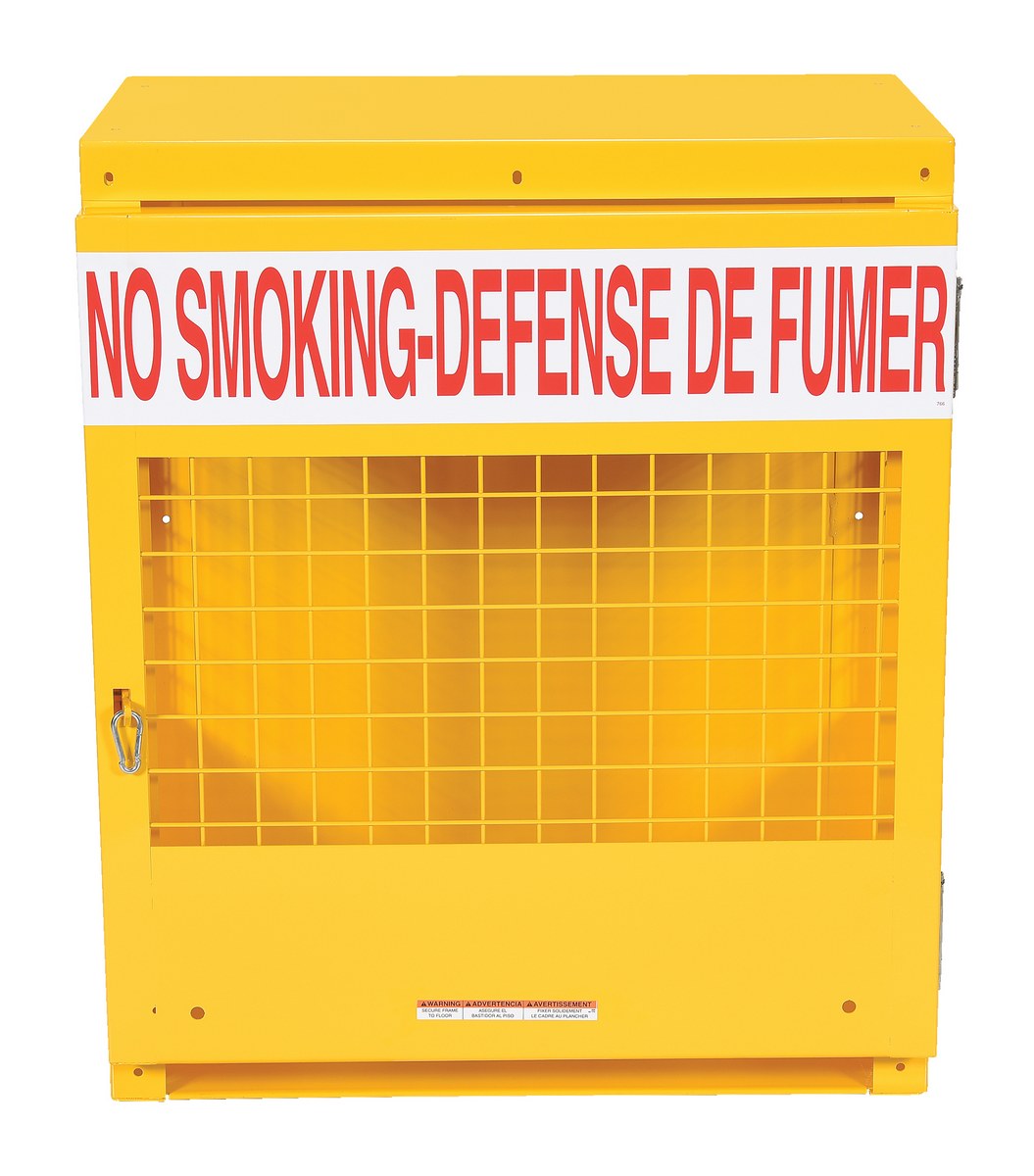

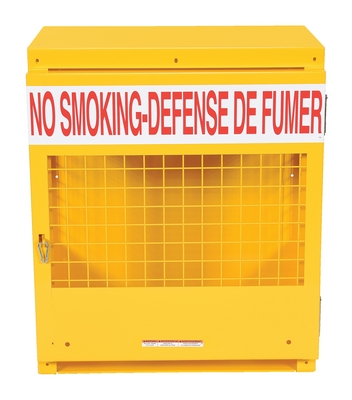

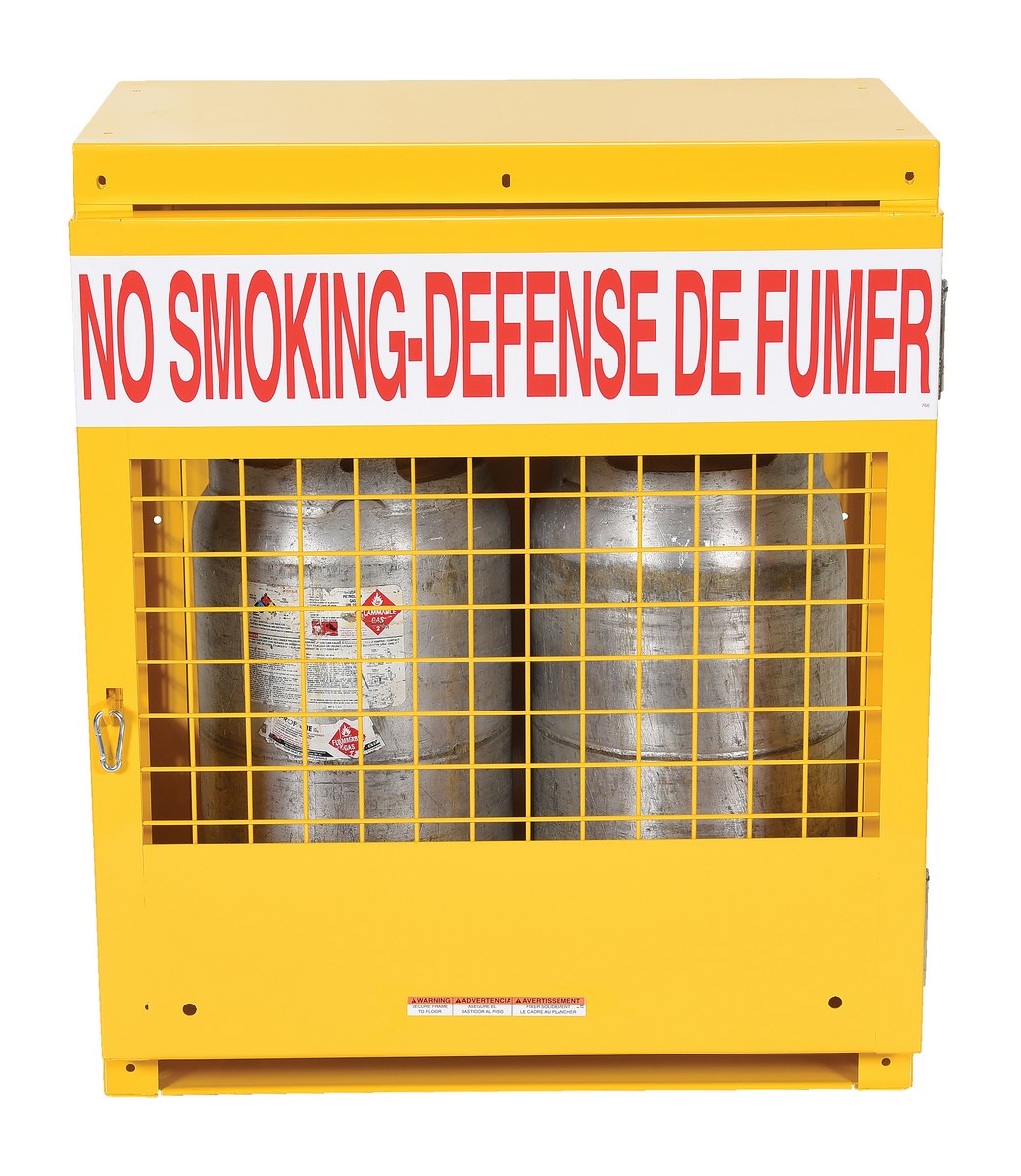

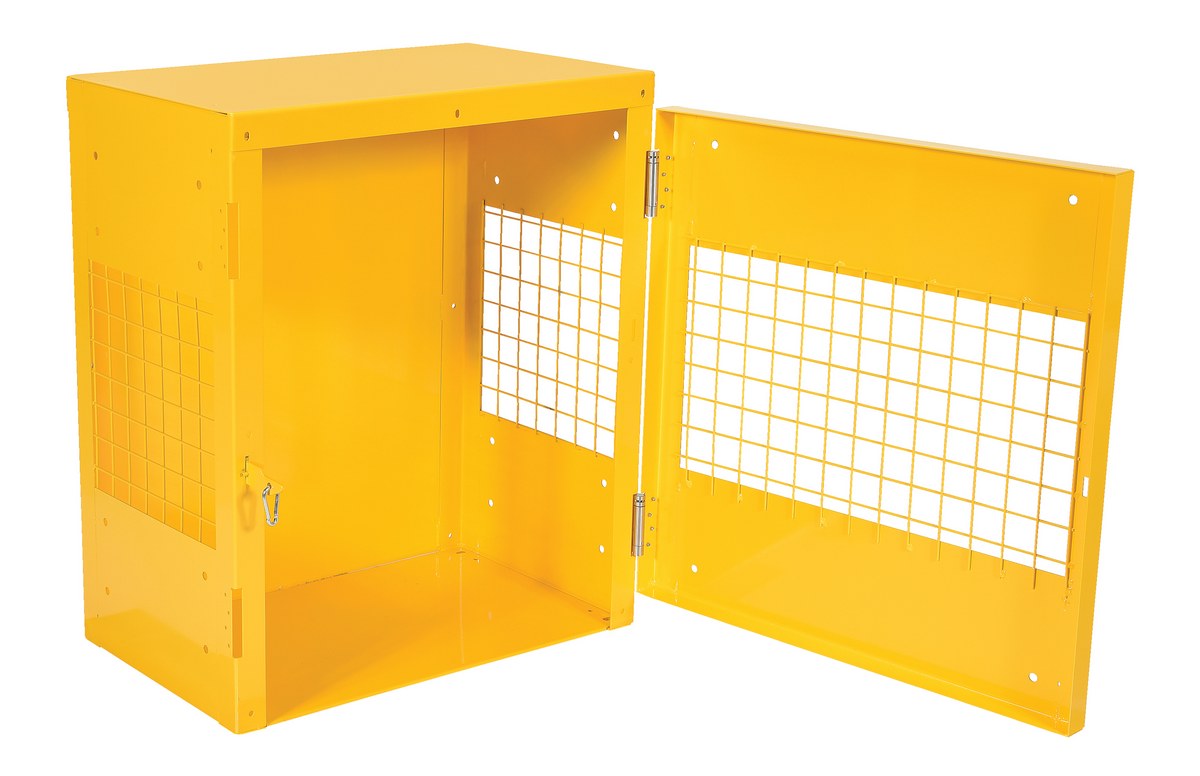

CYL-LP-2-CA CYL-LP-2-CA90 Days Limited WarrantySteel Canadian LP Cylinder Storage Cabinet 20 In. x 30 In. x 35-1/4 In. 2 Cylinder CapacityUniform Cylinder Capacity (qty.): 2
Uniform Capacity (lb.): 90
125

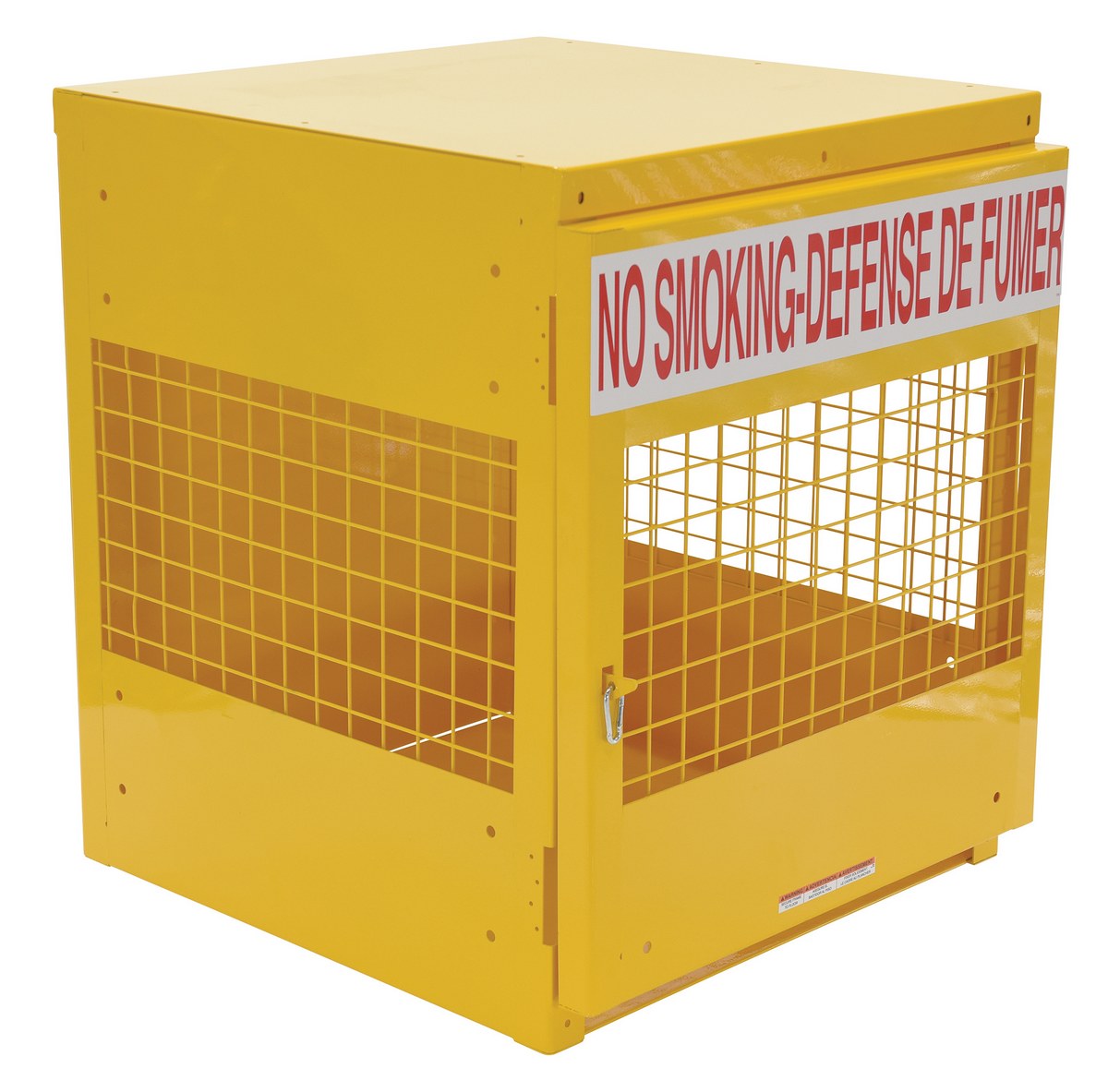

CYL-LP-4-CA CYL-LP-4-CA90 Days Limited WarrantySteel Canadian LP Cylinder Storage Cabinet 32 In. x 30 In. x 35-1/2 In. 4 Cylinder CapacityUniform Cylinder Capacity (qty.): 4
Uniform Capacity (lb.): 130
178

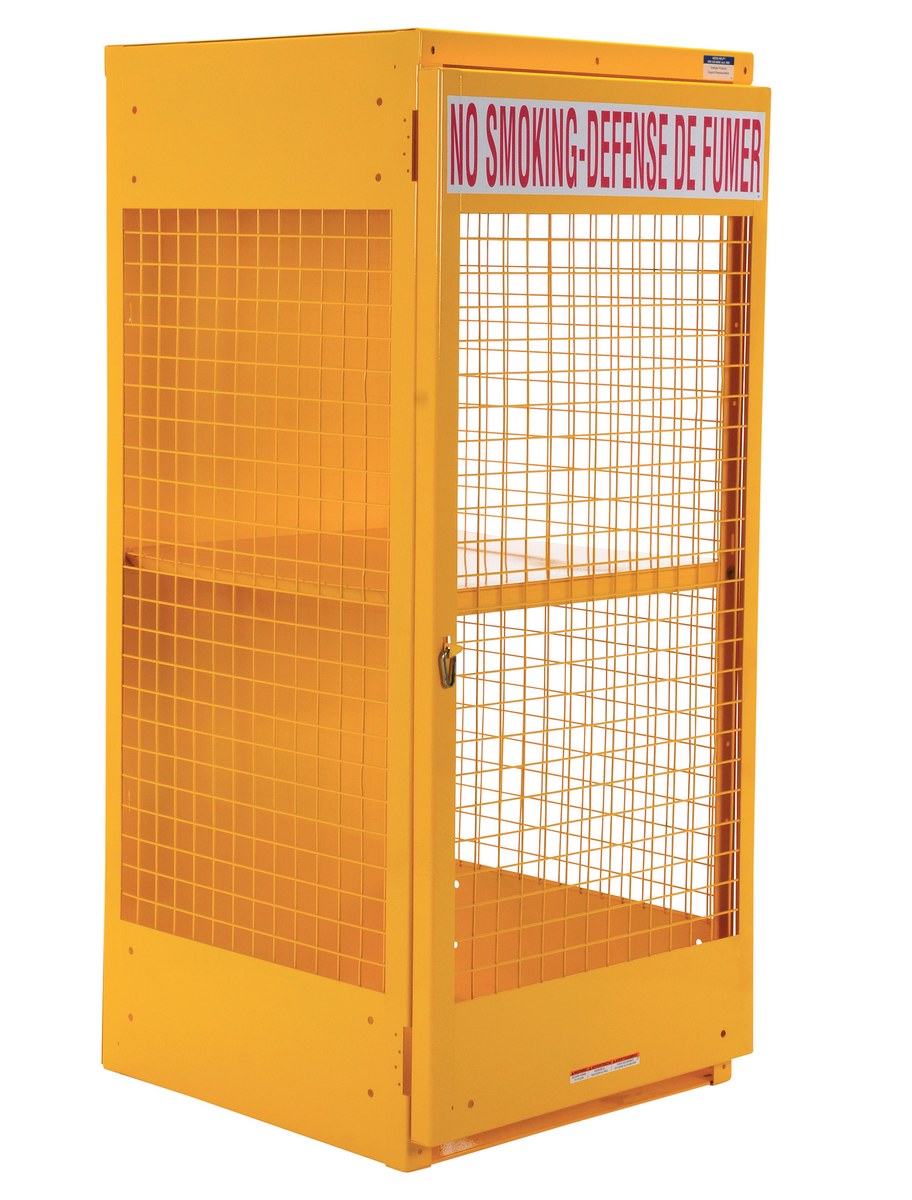

CYL-LP-8-CA CYL-LP-8-CA90 Days Limited WarrantySteel Canadian LP Cylinder Storage Cabinet 32 In. x 30 In. x 68-1/4 In. 8 Cylinder CapacityUniform Cylinder Capacity (qty.): 8
Uniform Capacity (lb.): 260
247

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CYL-G-12-CA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cylinder Capacity (qty.): 12
Number of Shelves: Zero
Uniform Cylinder Capacity (qty.): 12
Number of Shelves: Zero

CYL-G-8-CA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cylinder Capacity (qty.): 8
Number of Shelves: Zero
Uniform Cylinder Capacity (qty.): 8
Number of Shelves: Zero

CYL-LP-16-CA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cylinder Capacity (qty.): 16
Uniform Capacity (lb.): 520
Uniform Cylinder Capacity (qty.): 16
Uniform Capacity (lb.): 520

CYL-LP-2-CA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cylinder Capacity (qty.): 2
Uniform Capacity (lb.): 90
Uniform Cylinder Capacity (qty.): 2
Uniform Capacity (lb.): 90

CYL-LP-4-CA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cylinder Capacity (qty.): 4
Uniform Capacity (lb.): 130
Uniform Cylinder Capacity (qty.): 4
Uniform Capacity (lb.): 130

CYL-LP-8-CA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Cylinder Capacity (qty.): 8
Uniform Capacity (lb.): 260
Uniform Cylinder Capacity (qty.): 8
Uniform Capacity (lb.): 260

Cylinder Storage Cabinets (Canada sales) PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CYL-G-12-CA

CYL-G-8-CA

CYL-LP-16-CA

CYL-LP-2-CA

CYL-LP-4-CA

CYL-LP-8-CA

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Cylinder Storage Cabinets (Can...




Durable steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel. The top, bottom, and back is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing unit to floor (hardware is not included). Vertical units include chains for securing cylinders. Includes red lettered signage noting "No Smoking" message in English and French. Meets CSA B-149.2, NFPA 58, and OSHA sec. 1910.110 (f)(6)(ii) design standards. Rugged welded steel construction with a baked in powder coate safety yellow finish for added toughness. All units shipped fully assembled.

  • Meets OSHA 1910 110 (f)(6)(ii) and CSA B-149 2
  • Ideal for storage of LP gas cylinders
  • Made of expanded steel mesh & of solid sheet steel
  • Includes lockable doors lag holes in base for security

Check out Vestil's Other Storage Cabinets:

Flammable Safety Cabinets Cylinder Storage Cabinets (USA sales)


Model # Description Attributes Net Wt.
(lbs)
CYL-G-12-CA CYL-G-12-CASteel Canadian Cylinder Storage Cabinet 32 In. x 60 In. x 68-1/4 In. 12 Cylinder Capacity YellowUniform Cylinder Capacity (qty.): 12
Number of Shelves: Zero
432
CYL-G-8-CA CYL-G-8-CASteel Canadian Cylinder Storage Cabinet 32 In. x 30 In. x 68-1/4 In. 8 Cylinder Capacity YellowUniform Cylinder Capacity (qty.): 8
Number of Shelves: Zero
231
CYL-LP-16-CA CYL-LP-16-CASteel Canadian LP Cylinder Storage Cabinet 32 In. x 60 In. x 68-1/4 In. 16 Cylinder Capacity YellowUniform Cylinder Capacity (qty.): 16
Uniform Capacity (lb.): 520
501
CYL-LP-2-CA CYL-LP-2-CASteel Canadian LP Cylinder Storage Cabinet 20 In. x 30 In. x 35-1/4 In. 2 Cylinder CapacityUniform Cylinder Capacity (qty.): 2
Uniform Capacity (lb.): 90
125
CYL-LP-4-CA CYL-LP-4-CASteel Canadian LP Cylinder Storage Cabinet 32 In. x 30 In. x 35-1/2 In. 4 Cylinder CapacityUniform Cylinder Capacity (qty.): 4
Uniform Capacity (lb.): 130
178
CYL-LP-8-CA CYL-LP-8-CASteel Canadian LP Cylinder Storage Cabinet 32 In. x 30 In. x 68-1/4 In. 8 Cylinder CapacityUniform Cylinder Capacity (qty.): 8
Uniform Capacity (lb.): 260
247
