FEATURED Laminated Dock Bumpers

model: 1096-4.5

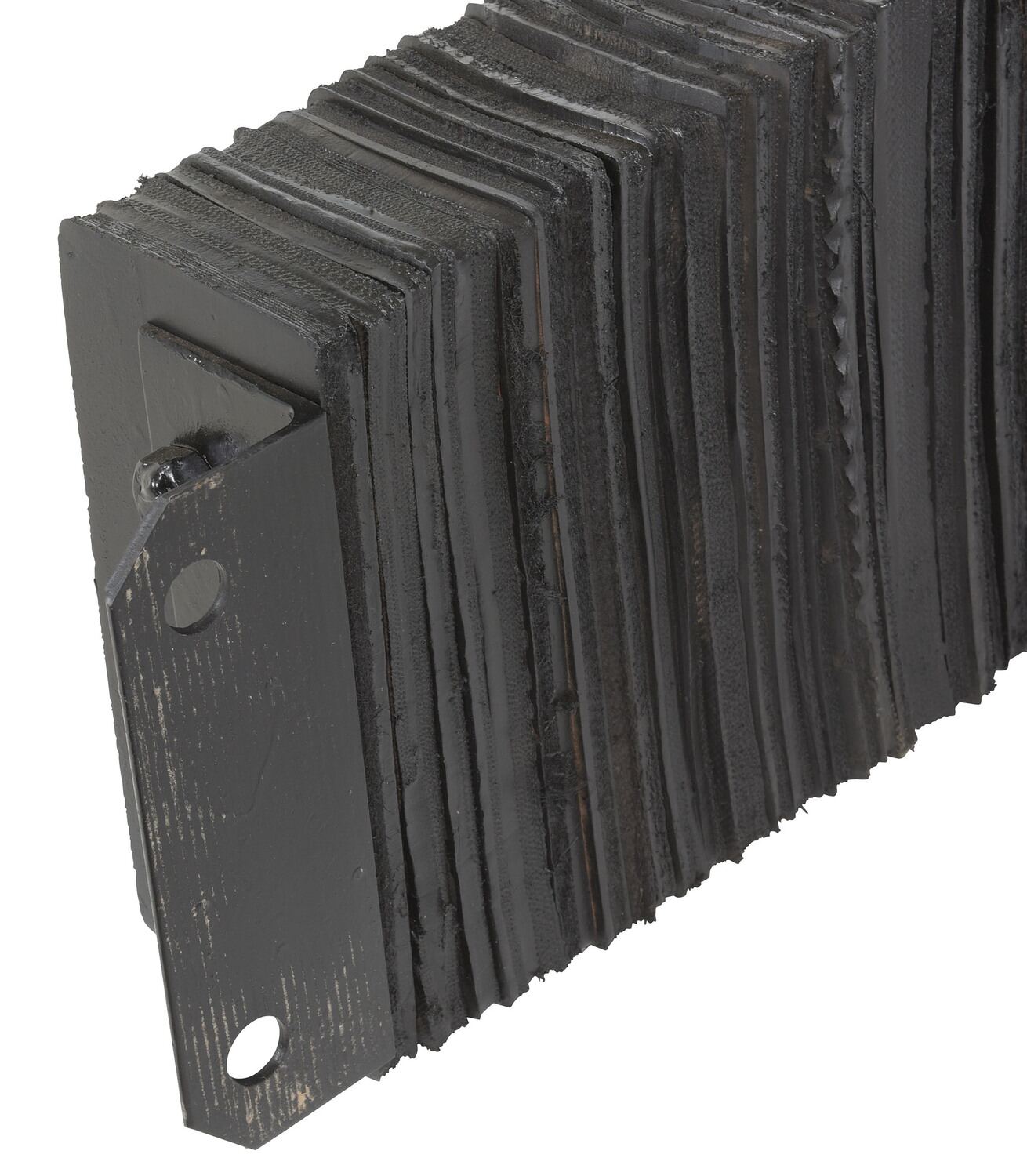

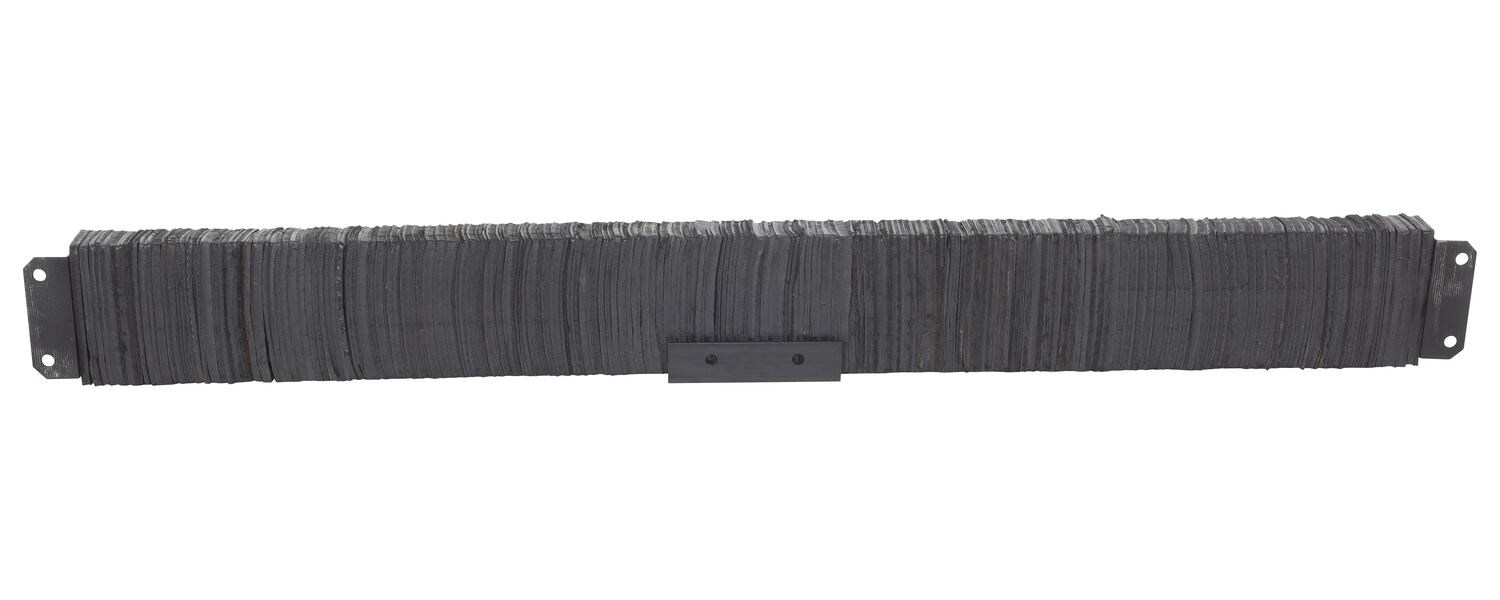

1096-4.5_A.jpg 1096-4.5_B.jpg 1096-4.5_C.jpg 1096-4.5_D.jpg 1096-4.5_E.jpg 1096-4.5_F.jpg More Images +
Laminated Dock Bumpers
SERIES:    39Products 1Options
Best Seller Quick Ship

Rubber Loading Dock Bumpers for Trailer and Dock Protection

Rubber loading dock bumpers provide durable, economical protection for dock walls, doors, levelers, and trailers during daily loading and unloading. Built from fabric-reinforced recycled truck tire rubber, these laminated dock bumpers help absorb impact from backing trailers while reducing damage to building structures and material handling equipment.

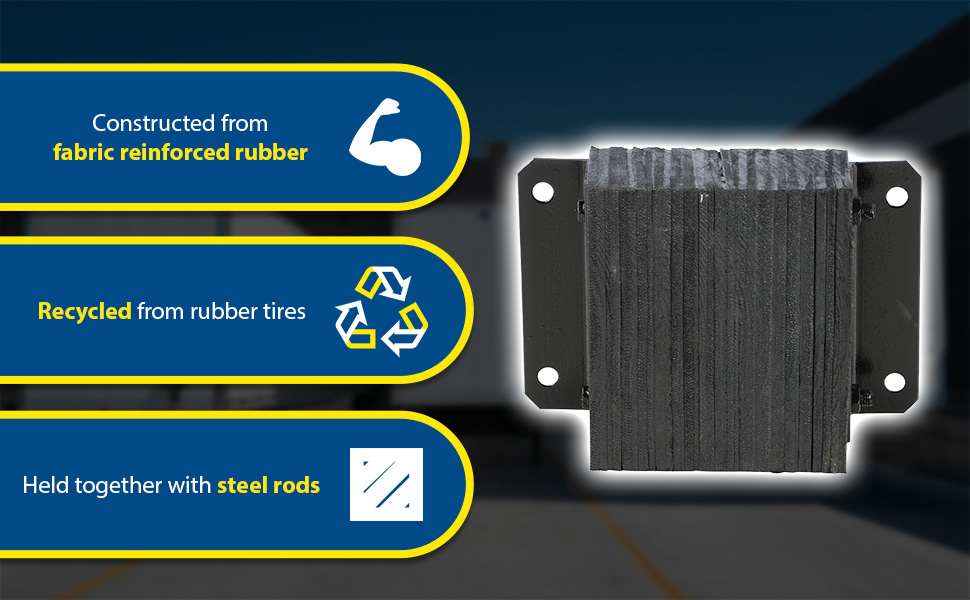

Heavy-Duty Laminated Construction

Rubber pads are laminated between painted structural steel angles and secured with 3/4 inch steel tie rods for long service life in demanding dock environments. The rugged design is well suited for warehouses, distribution centers, manufacturing plants, freight terminals, and commercial shipping areas.

Multiple Styles and Projections

This family includes projection style bumpers, vertical style bumpers, and flat-on-one-side laminated bumpers for different dock layouts and trailer contact points. Models are available in 4-1/2 inch and 6 inch projections, with heights from 6 inches to 36 inches and widths up to 96 inches depending on style.

Installation and Dock Fit

Laminated dock bumpers can be bolted or welded to the dock for quick installation. Large 96 inch wide bumpers include a 12 inch center support bracket. Anchor bolt hardware is available for concrete installation. This product family offers a broad selection of replacement dock bumpers and new dock protection options for improving facility durability and reducing maintenance costs.

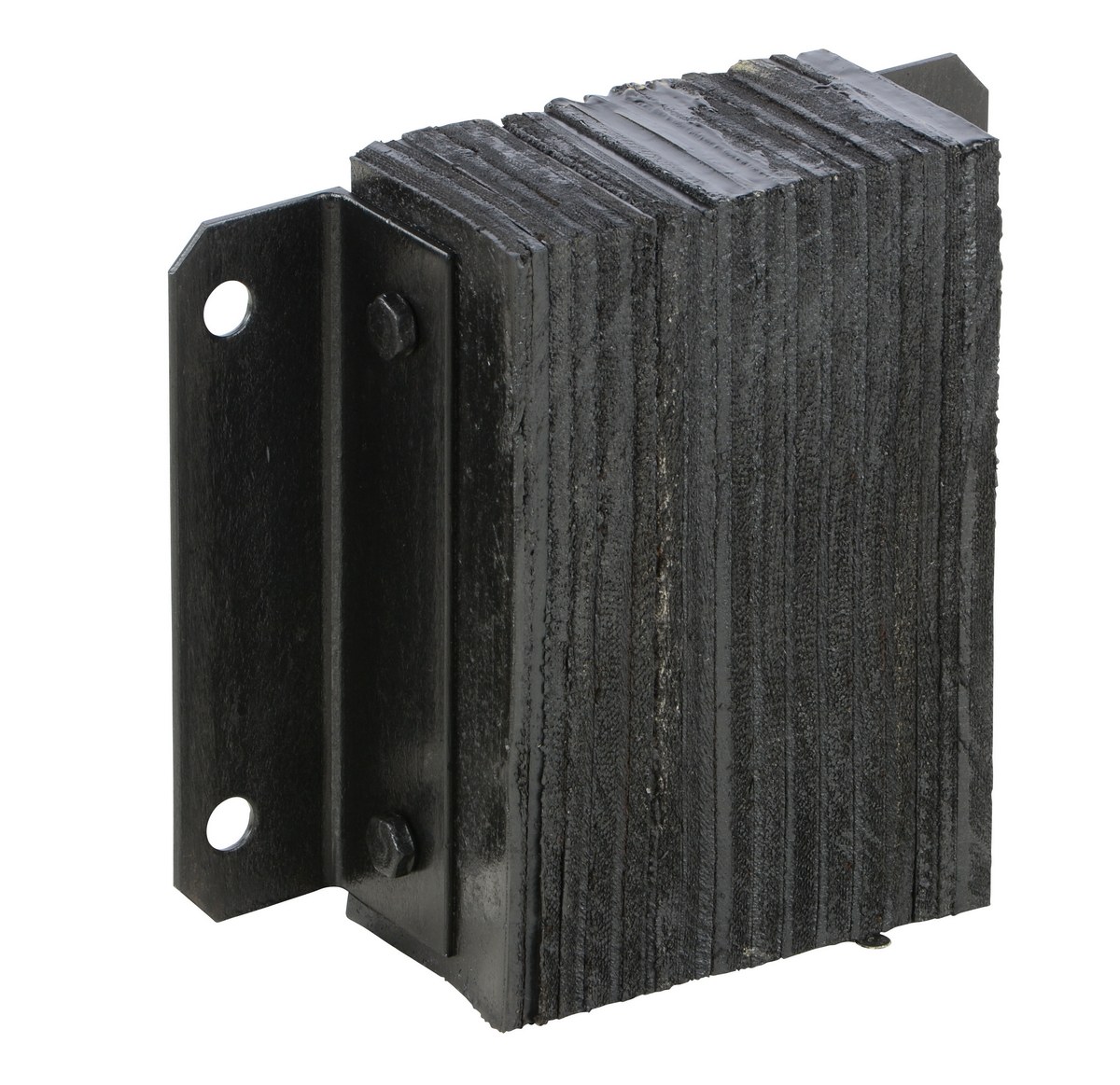

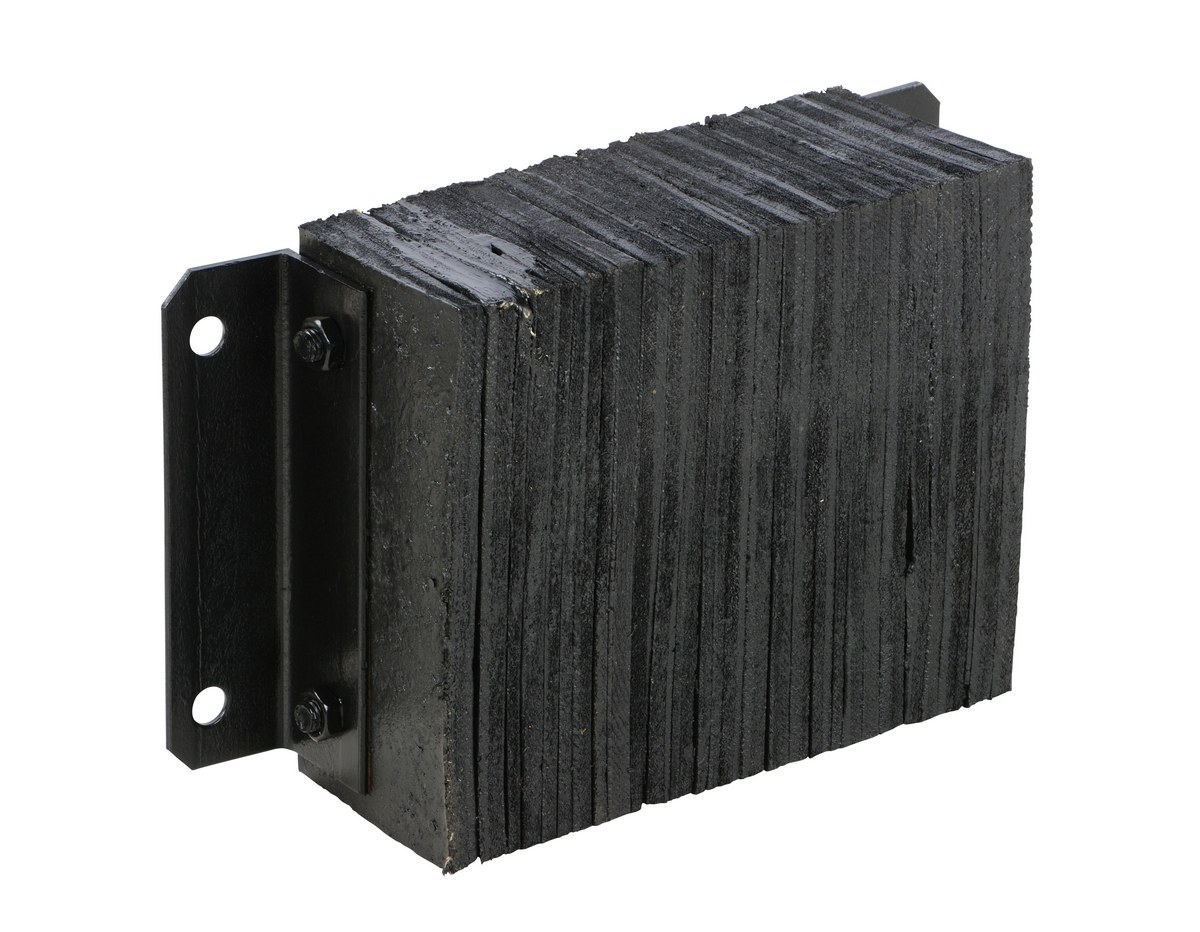

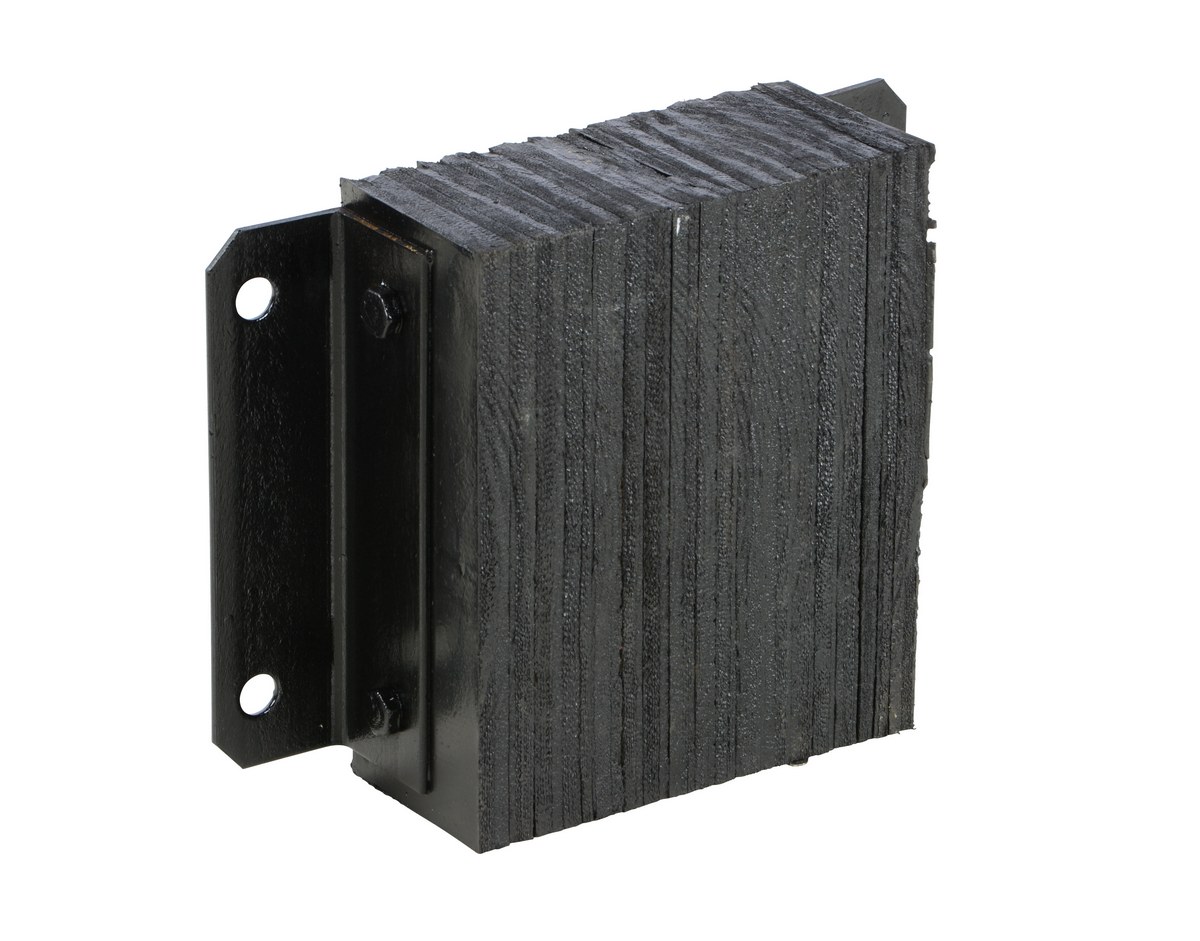

TYPE A: Projection Style Laminated Bumper

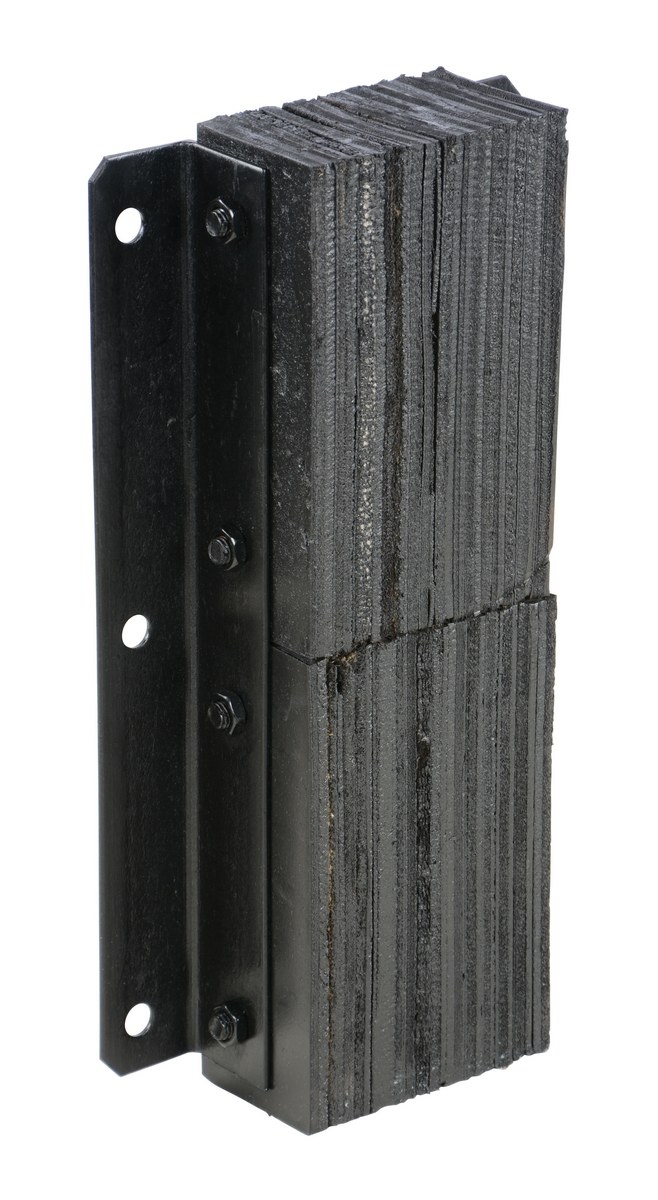

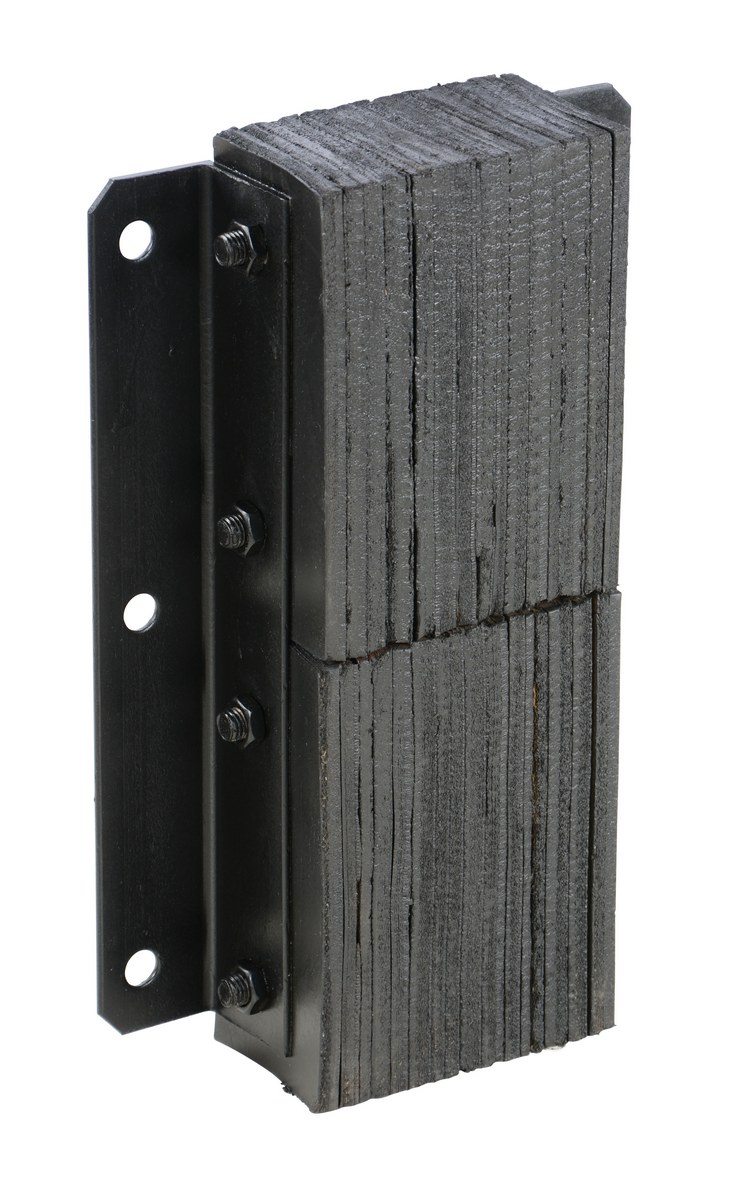

TYPE B: Vertical Style Laminated Bumper (V- prefix)

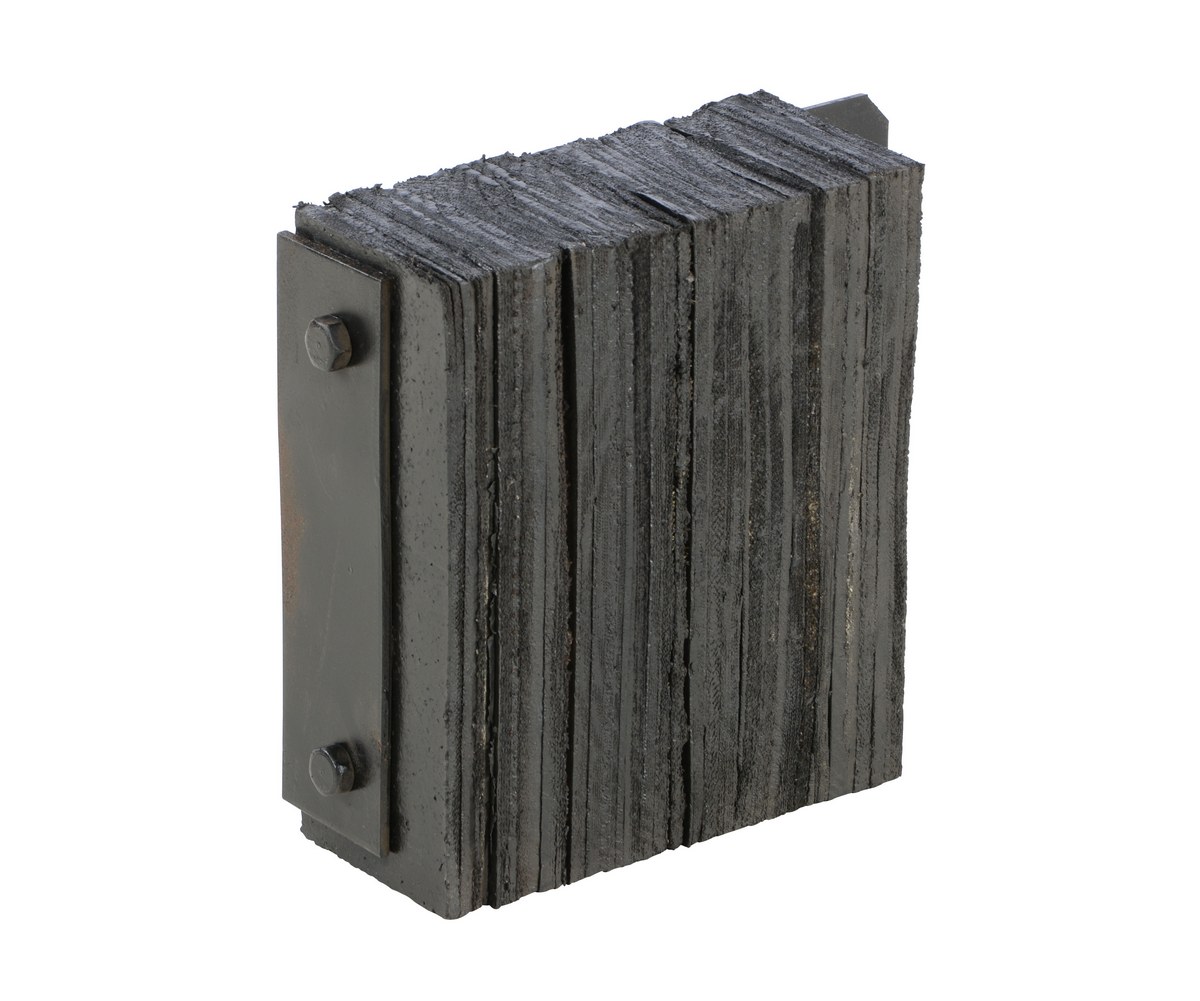

TYPE C: Flat On One Side Laminated Bumper (-F suffix)



Laminated Dock Bumpers

model: 1096-4.5

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
1012-4.5
1012-6
1014-4.5
1014-4.5F
1014-6
1018-4.5
1018-6
1024-4.5
1024-6
1030-4.5
1030-6
1036-4.5
1036-6
1096-4.5
1212-4.5
1212-6
1214-4.5
1214-4.5F
1214-6
1218-4.5
1218-6
1224-4.5
1224-6
1230-4.5
1230-6
1236-4.5
1236-6
1296-4.5
1296-6
624-4.5
636-4.5
V-1120-4.5
V-1120-6
V-1124-4.5
V-1124-6
V-1130-4.5
V-1130-6
V-1136-4.5
V-1136-6
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
Anchor Bolts Hardware for Concrete Installation
Model Image Quantity
& Size		 Wt. (lbs)
AS-344 (1) 3/4" x 4" 2
AS-344-4PK (4) 3/4"x 4" 2
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

0
No owner's manuals for this product family.

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

38
1012-4.5
Open Drawing
1012-6
Open Drawing
1014-4.5
Open Drawing
1014-6
Open Drawing
1018-4.5
Open Drawing
1018-6
Open Drawing
1024-4.5
Open Drawing
1024-6
Open Drawing
1030-4.5
Open Drawing
1030-6
Open Drawing
1036-4.5
Open Drawing
1036-6
Open Drawing
1096-4.5
Open Drawing
1212-4.5
Open Drawing
1212-6
Open Drawing
1214-4.5
Open Drawing
1214-4.5F
Open Drawing
1214-6
Open Drawing
1218-4.5
Open Drawing
1218-6
Open Drawing
1224-4.5
Open Drawing
1224-6
Open Drawing
1230-4.5
Open Drawing
1230-6
Open Drawing
1236-4.5
Open Drawing
1236-6
Open Drawing
1296-4.5
Open Drawing
1296-6
Open Drawing
624-4.5
Open Drawing
636-4.5
Open Drawing
V-1120-4.5
Open Drawing
V-1120-6
Open Drawing
V-1124-4.5
Open Drawing
V-1124-6
Open Drawing
V-1130-4.5
Open Drawing
V-1130-6
Open Drawing
V-1136-4.5
Open Drawing
V-1136-6
Open Drawing

Testing Certificates

39
1012-4.5
Open Certificate
1012-6
Open Certificate
1014-4.5
Open Certificate
1014-4.5F
Open Certificate
1014-6
Open Certificate
1018-4.5
Open Certificate
1018-6
Open Certificate
1024-4.5
Open Certificate
1024-6
Open Certificate
1030-4.5
Open Certificate
1030-6
Open Certificate
1036-4.5
Open Certificate
1036-6
Open Certificate
1096-4.5
Open Certificate
1212-4.5
Open Certificate
1212-6
Open Certificate
1214-4.5
Open Certificate
1214-4.5F
Open Certificate
1214-6
Open Certificate
1218-4.5
Open Certificate
1218-6
Open Certificate
1224-4.5
Open Certificate
1224-6
Open Certificate
1230-4.5
Open Certificate
1230-6
Open Certificate
1236-4.5
Open Certificate
1236-6
Open Certificate
1296-4.5
Open Certificate
1296-6
Open Certificate
624-4.5
Open Certificate
636-4.5
Open Certificate
V-1120-4.5
Open Certificate
V-1120-6
Open Certificate
V-1124-4.5
Open Certificate
V-1124-6
Open Certificate
V-1130-4.5
Open Certificate
V-1130-6
Open Certificate
V-1136-4.5
Open Certificate
V-1136-6
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

0
No other PDFs for this product family.







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

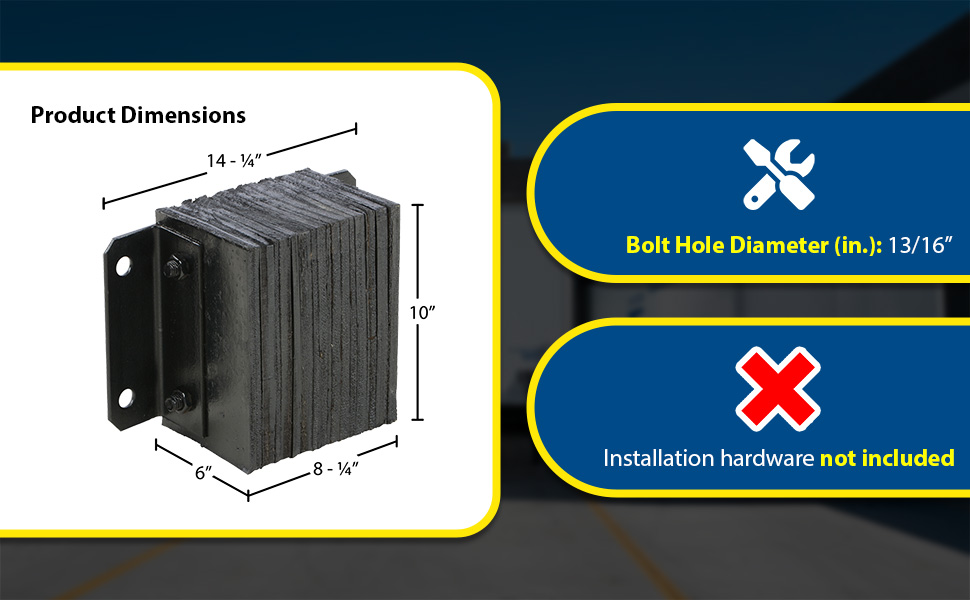

1012-6
1012-6 1012-6 A+ Content - 3
1012-6 1012-6 A+ Content - 2
1012-6 1012-6 A+ Content - 1

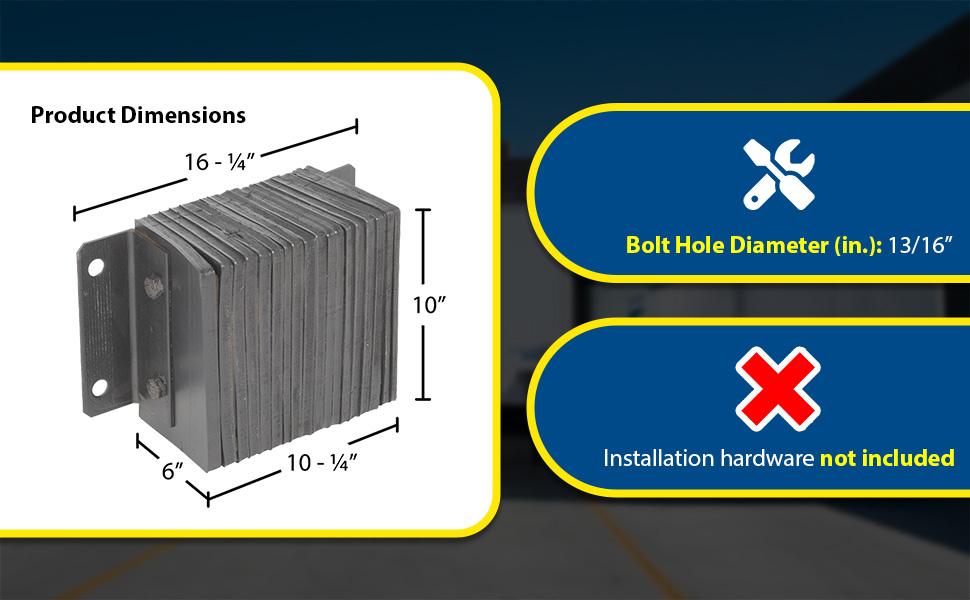

1014-6
1014-6 1014-6 A+ Content - 3
1014-6 1014-6 A+ Content - 2
1014-6 1014-6 A+ Content - 1
1214-4.5
1214-4.5 1214-4.5 A+ Content - 2
1214-4.5 1214-4.5 A+ Content - 1
1214-4.5 1214-4.5 A+ Content - 3

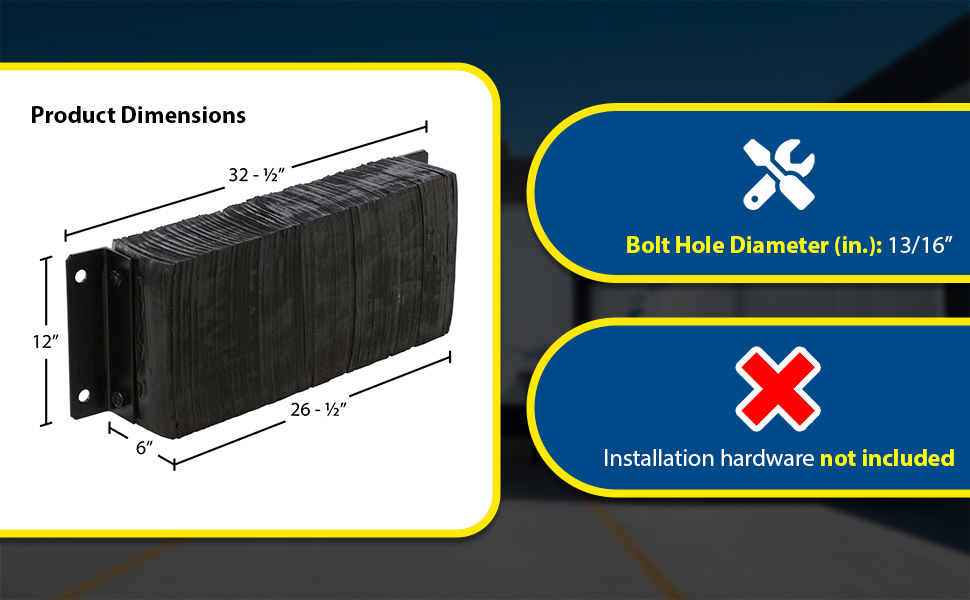

1230-6
1230-6 1230-6 A+ Content - 3
1230-6 1230-6 A+ Content - 2
1230-6 1230-6 A+ Content - 1

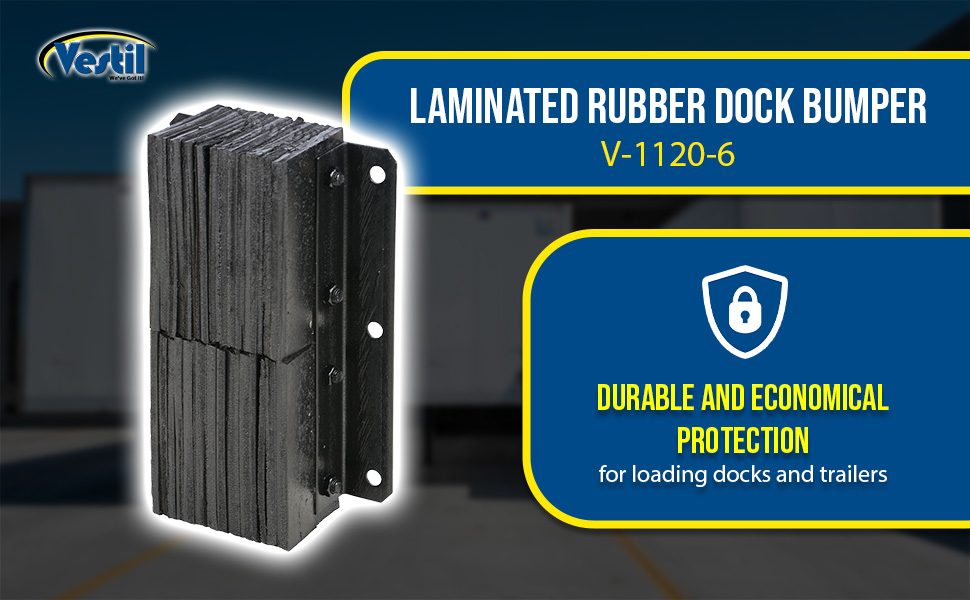

V-1120-6
V-1120-6 V-1120-6 A+ Content - 1
V-1120-6 V-1120-6 A+ Content - 3
V-1120-6 V-1120-6 A+ Content - 2

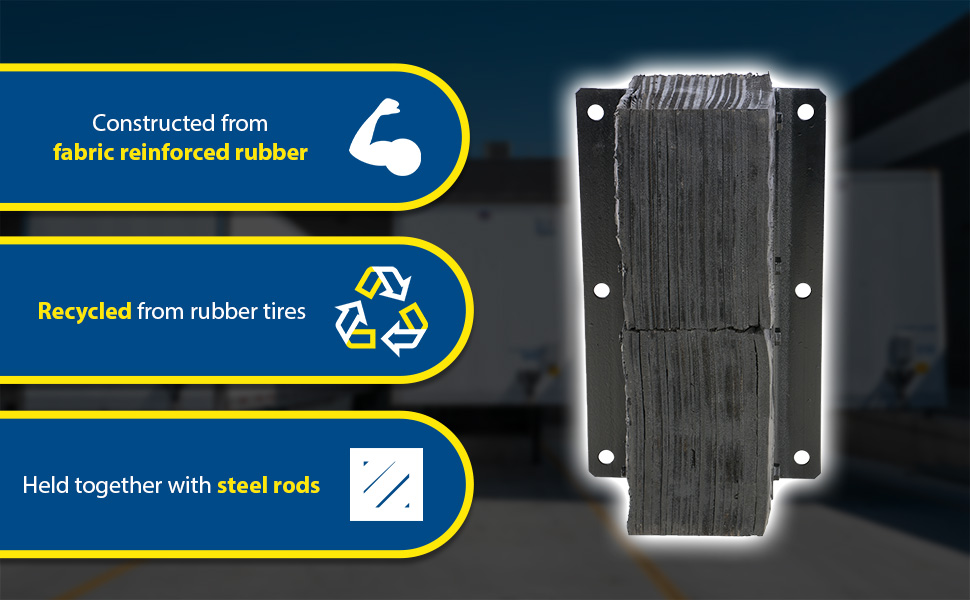

V-1124-6
V-1124-6 V-1124-6 A+ Content - 2
V-1124-6 V-1124-6 A+ Content - 1
V-1124-6 V-1124-6 A+ Content - 3

Related or Similar Products:





Laminated Dock Bumpers




Rubber Loading Dock Bumpers for Trailer and Dock Protection

Rubber loading dock bumpers provide durable, economical protection for dock walls, doors, levelers, and trailers during daily loading and unloading. Built from fabric-reinforced recycled truck tire rubber, these laminated dock bumpers help absorb impact from backing trailers while reducing damage to building structures and material handling equipment.

Heavy-Duty Laminated Construction

Rubber pads are laminated between painted structural steel angles and secured with 3/4 inch steel tie rods for long service life in demanding dock environments. The rugged design is well suited for warehouses, distribution centers, manufacturing plants, freight terminals, and commercial shipping areas.

Multiple Styles and Projections

This family includes projection style bumpers, vertical style bumpers, and flat-on-one-side laminated bumpers for different dock layouts and trailer contact points. Models are available in 4-1/2 inch and 6 inch projections, with heights from 6 inches to 36 inches and widths up to 96 inches depending on style.

Installation and Dock Fit

Laminated dock bumpers can be bolted or welded to the dock for quick installation. Large 96 inch wide bumpers include a 12 inch center support bracket. Anchor bolt hardware is available for concrete installation. This product family offers a broad selection of replacement dock bumpers and new dock protection options for improving facility durability and reducing maintenance costs.

TYPE A: Projection Style Laminated Bumper
TYPE B: Vertical Style Laminated Bumper (V- prefix)
TYPE C: Flat On One Side Laminated Bumper (-F suffix)




Model # Description Attributes Net Wt.
(lbs)

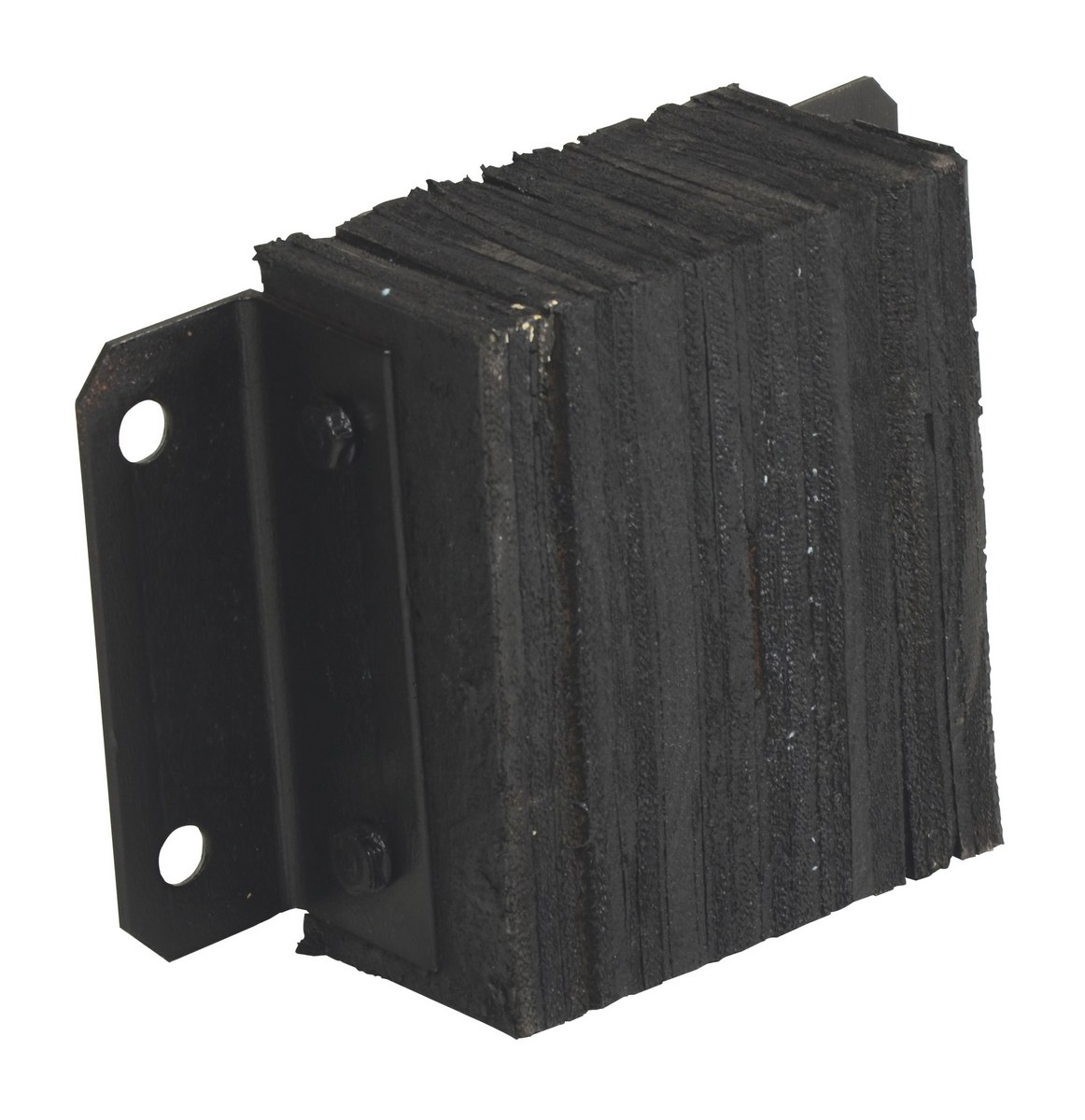

1012-4.5 1012-4.5Laminated Rubber Dock Bumper 10 In. x 12 In. x 4-1/2 In. BlackRubber Height (in.): 10
Rubber Width (in.): 8		22

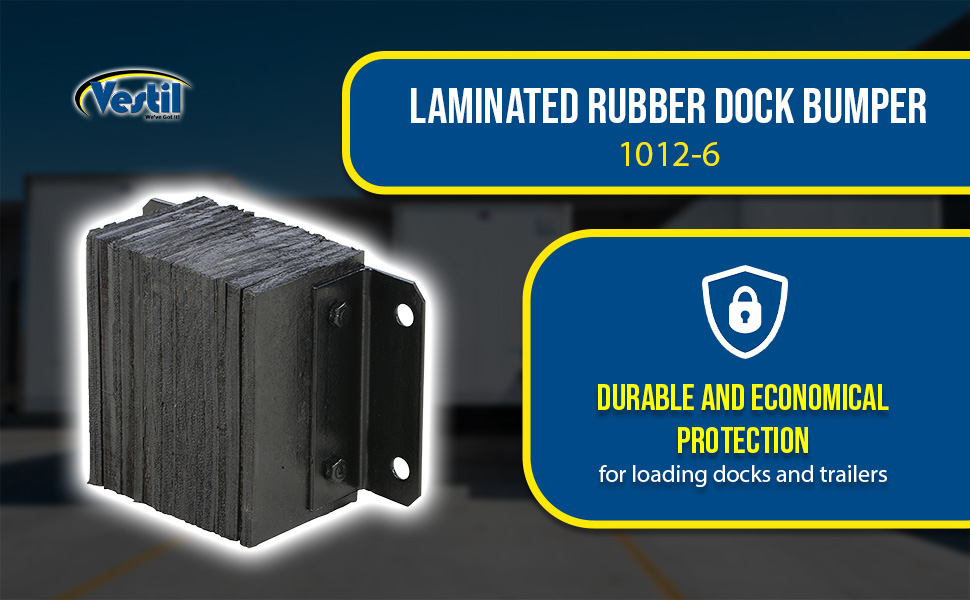

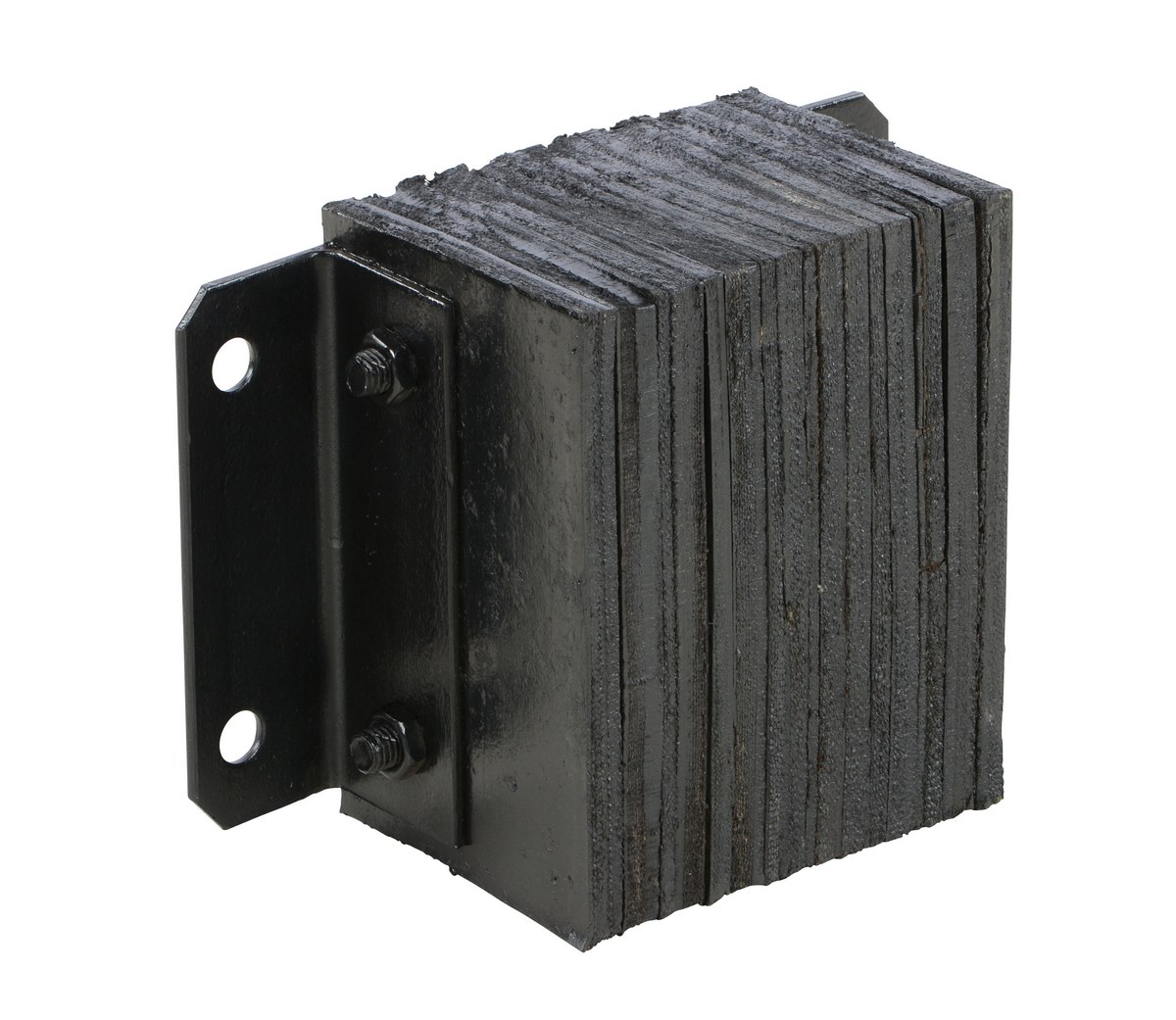

1012-6 1012-6Laminated Rubber Dock Bumper 10 In. x 12 In. x 6 In. BlackRubber Height (in.): 10
Rubber Width (in.): 8-1/4		27

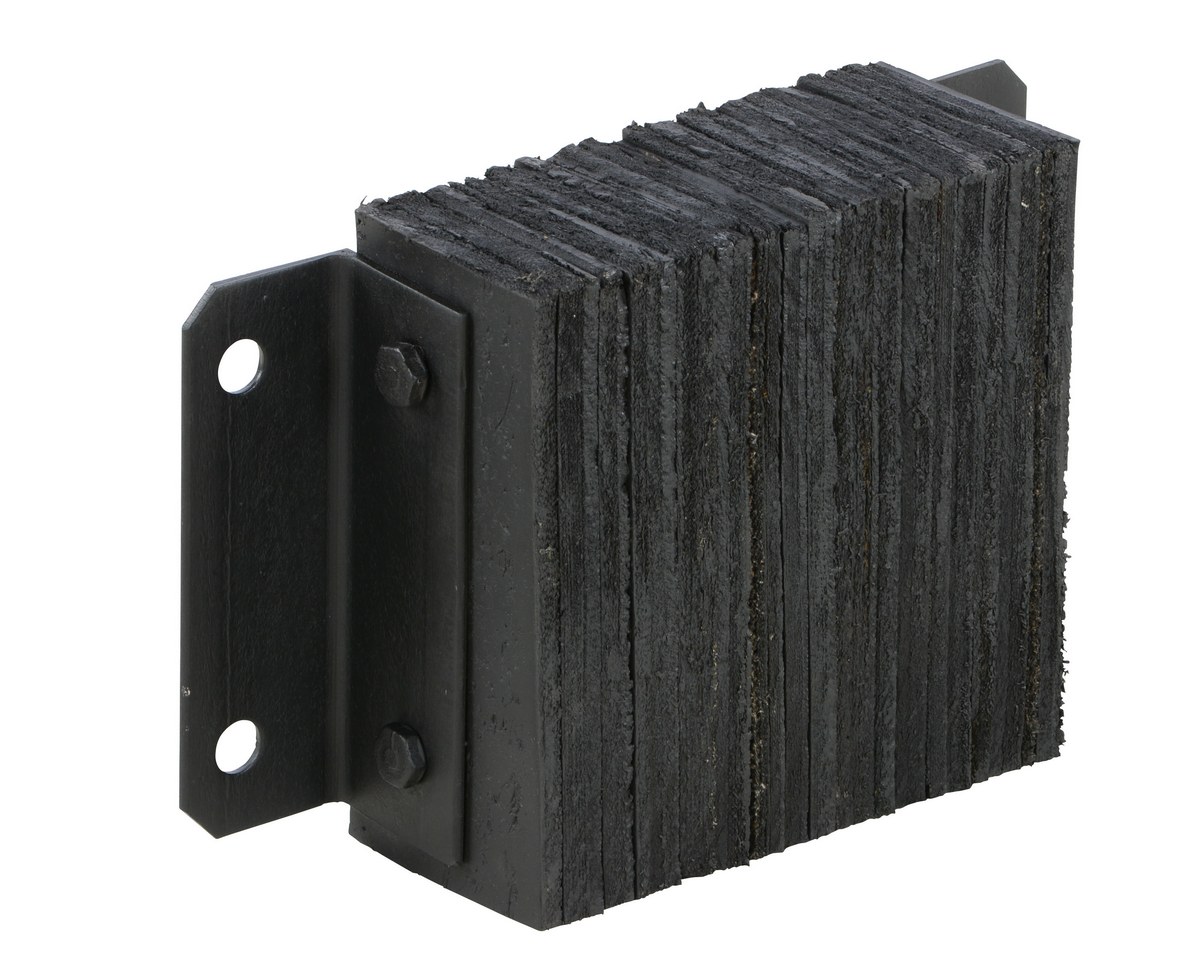

1014-4.5 1014-4.5Laminated Rubber Dock Bumper 10 In. x 14 In. x 4-1/2 In. BlackRubber Height (in.): 10
Rubber Width (in.): 10		25

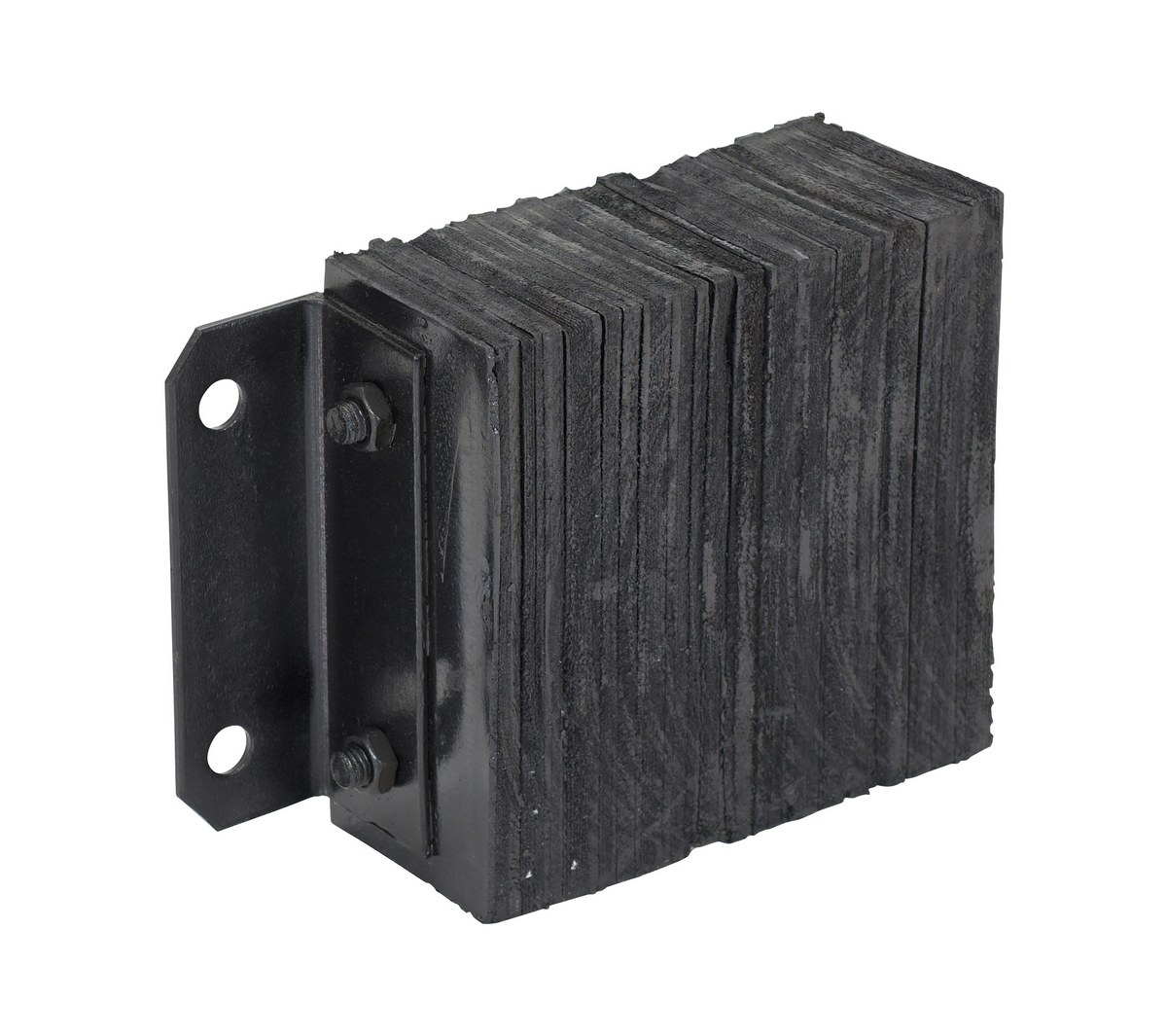

1014-4.5F 1014-4.5FLaminated Rubber Dock Bumper 10 In. x 14 In. x 4-1/2 In. BlackRubber Height (in.): 10
Rubber Width (in.): 10		32

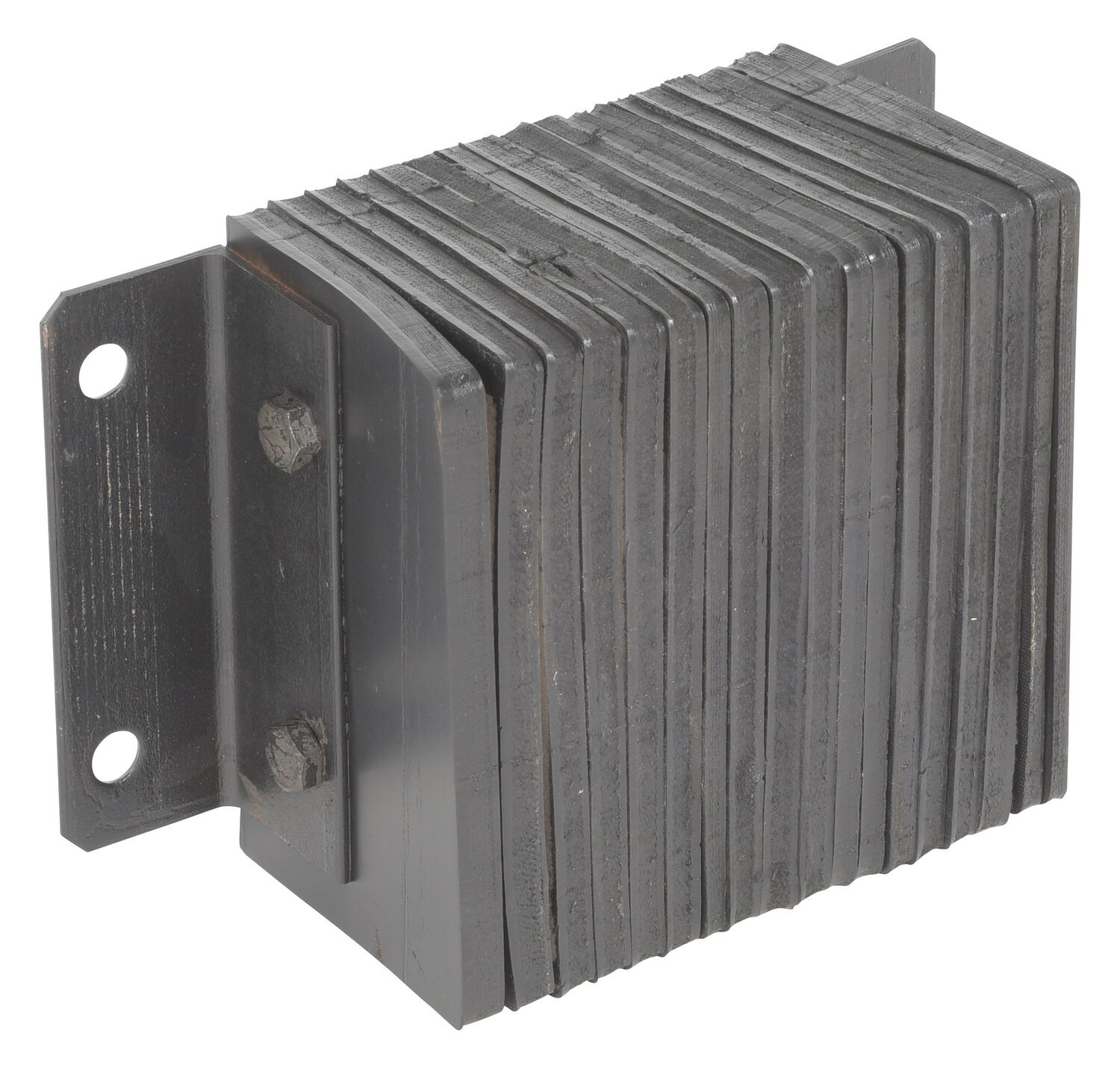

1014-6 1014-6Laminated Rubber Dock Bumper 10 In. x 14 In. x 6 In. BlackRubber Height (in.): 10
Rubber Width (in.): 10-1/4		34

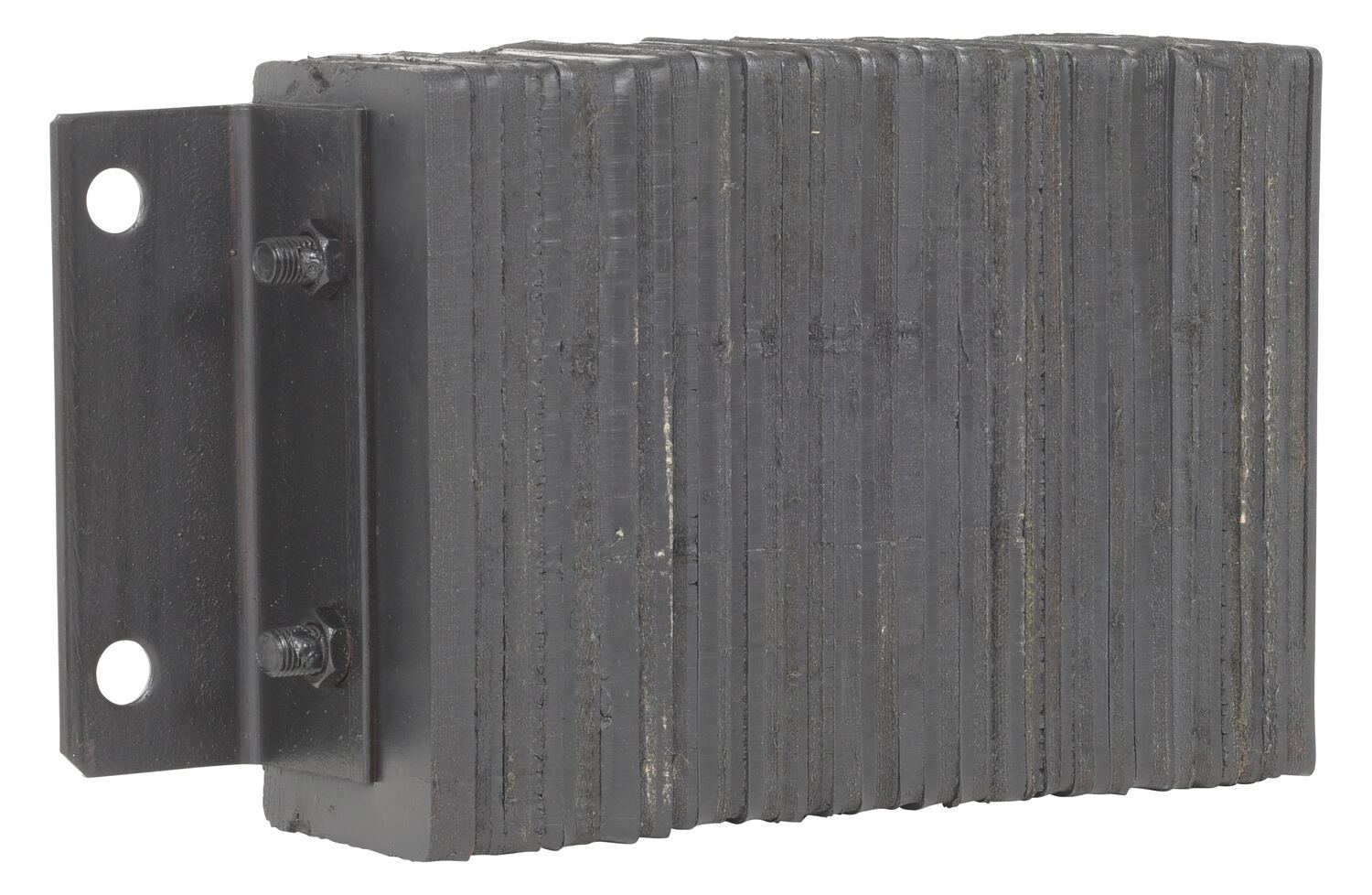

1018-4.5 1018-4.5Laminated Rubber Dock Bumper 10 In. x 18 In. x 4-1/2 In. BlackRubber Height (in.): 10
Rubber Width (in.): 14		36

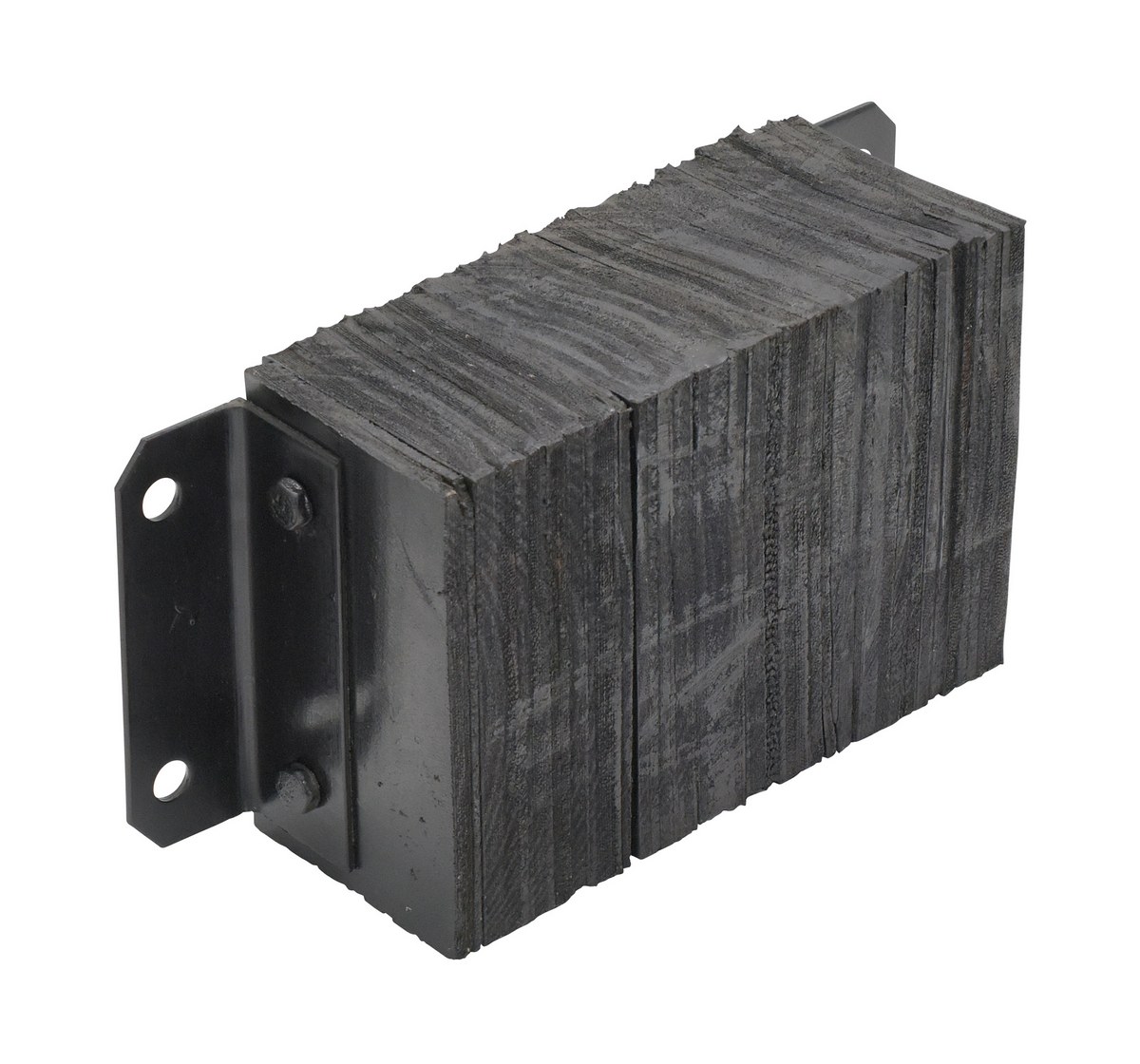

1018-6 1018-6Laminated Rubber Dock Bumper 10 In. x 18 In. x 6 In. BlackRubber Height (in.): 10
Rubber Width (in.): 14-1/4		43

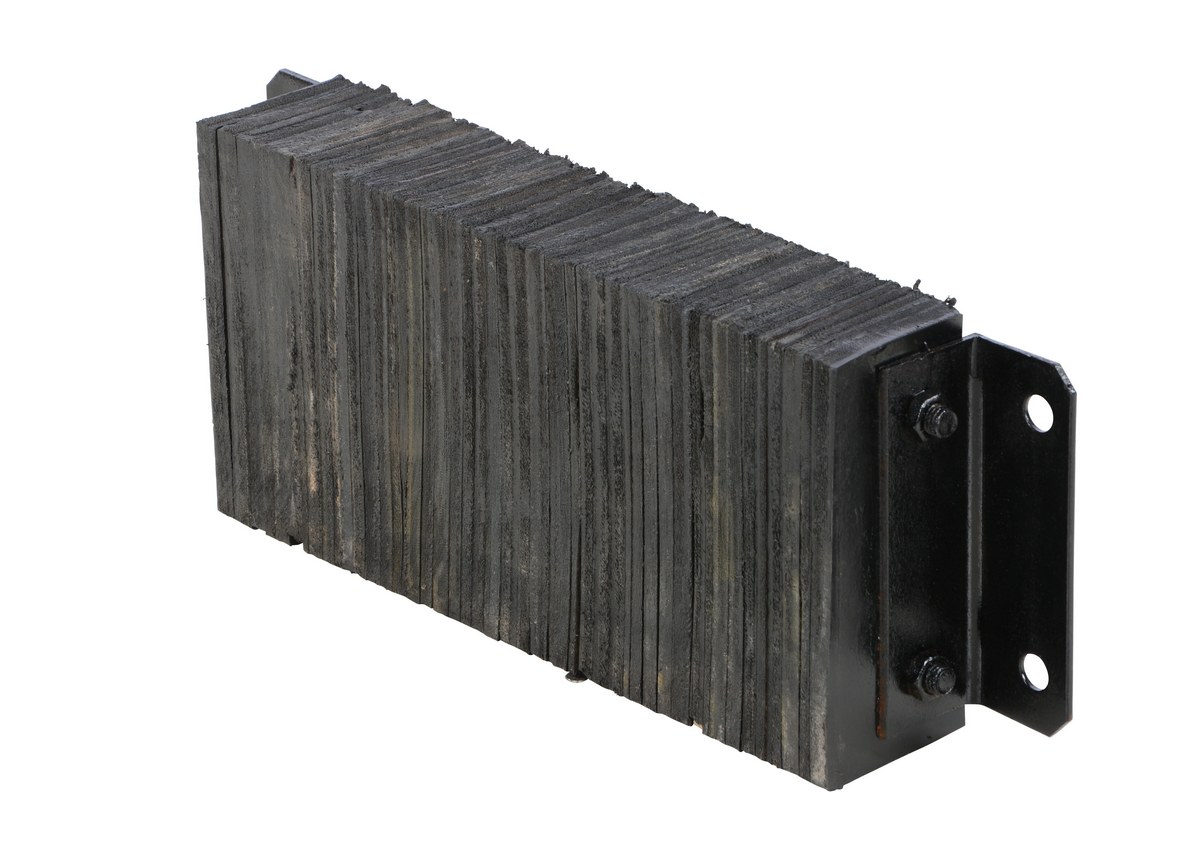

1024-4.5 1024-4.5Laminated Rubber Dock Bumper 10 In. x 24 In. x 4-1/2 In. BlackRubber Height (in.): 10
Rubber Width (in.): 20		45

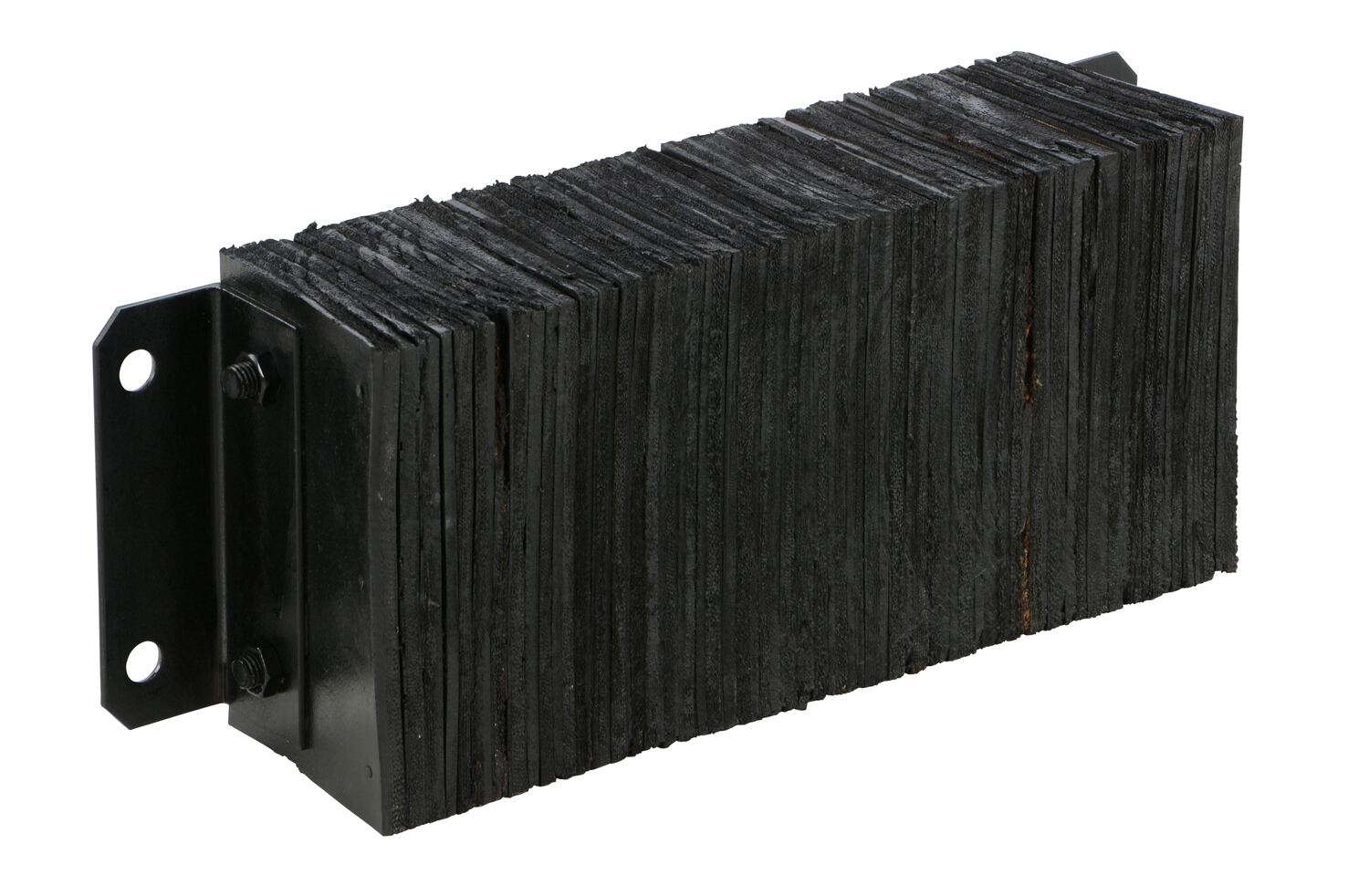

1024-6 1024-6Laminated Rubber Dock Bumper 10 In. x 24 In. x 6 In. BlackRubber Height (in.): 10
Rubber Width (in.): 20-1/4		58

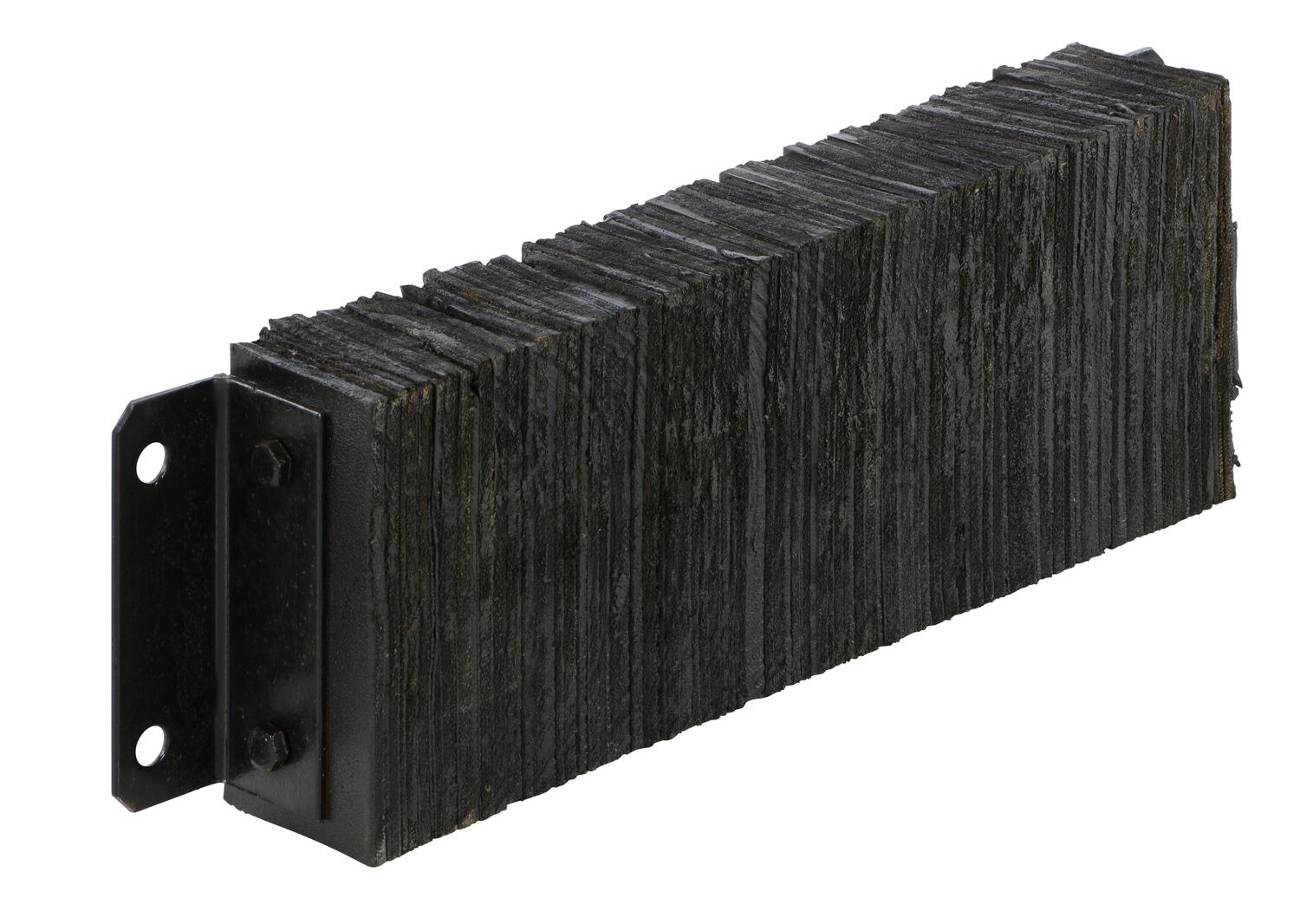

1030-4.5 1030-4.5Laminated Rubber Dock Bumper 10 In. x 30 In. x 4-1/2 In. BlackRubber Height (in.): 10
Rubber Width (in.): 26		60

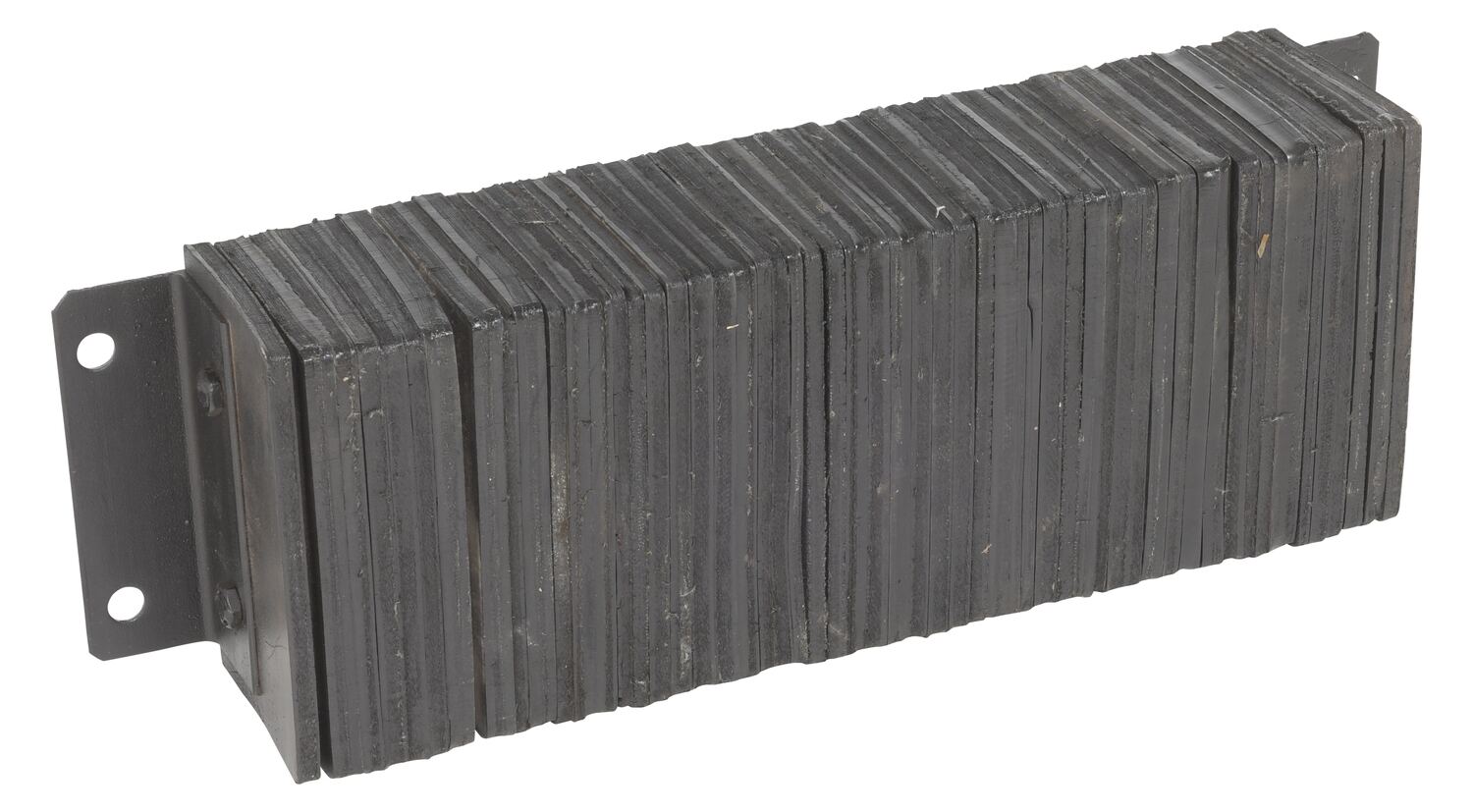

1030-6 1030-6Laminated Rubber Dock Bumper 10 In. x 30 In. x 6 In. BlackRubber Height (in.): 10
Rubber Width (in.): 26-1/4		75

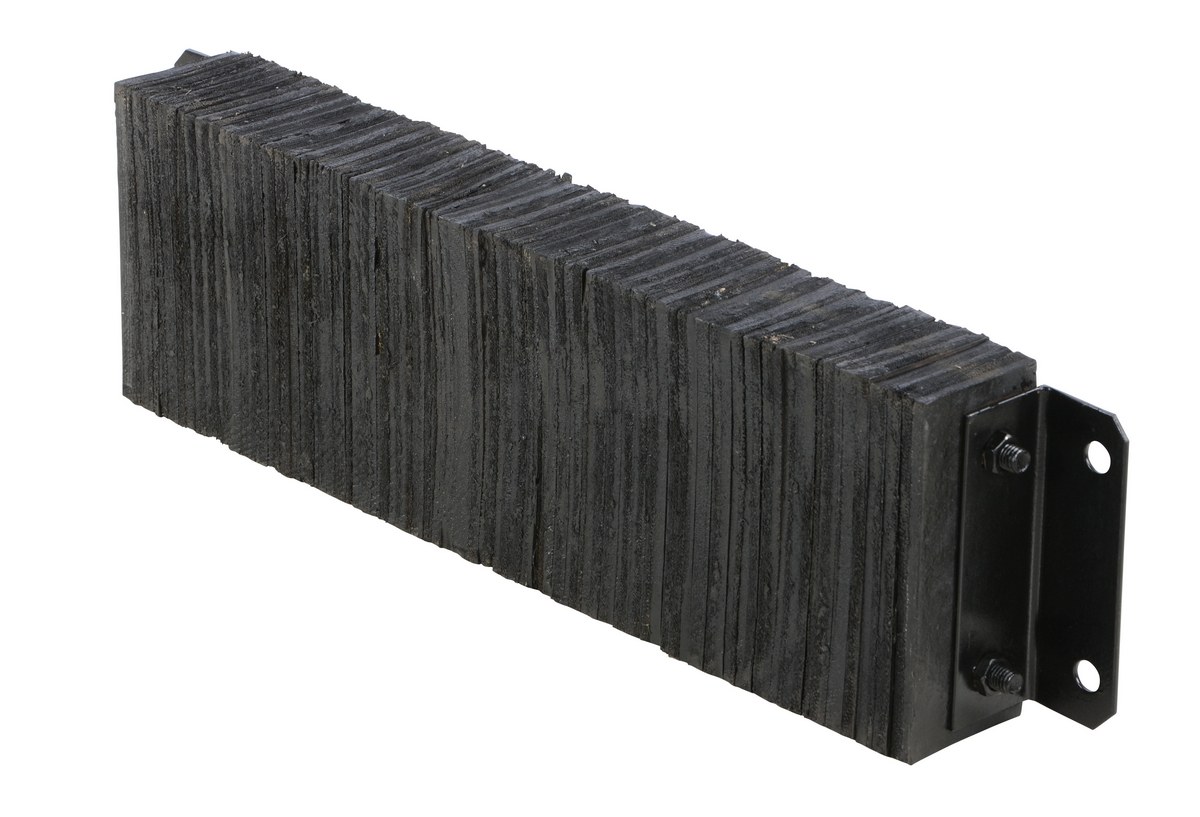

1036-4.5 1036-4.5Laminated Rubber Dock Bumper 10 In. x 36 In. x 4-1/2 In. BlackRubber Height (in.): 10
Rubber Width (in.): 32		68

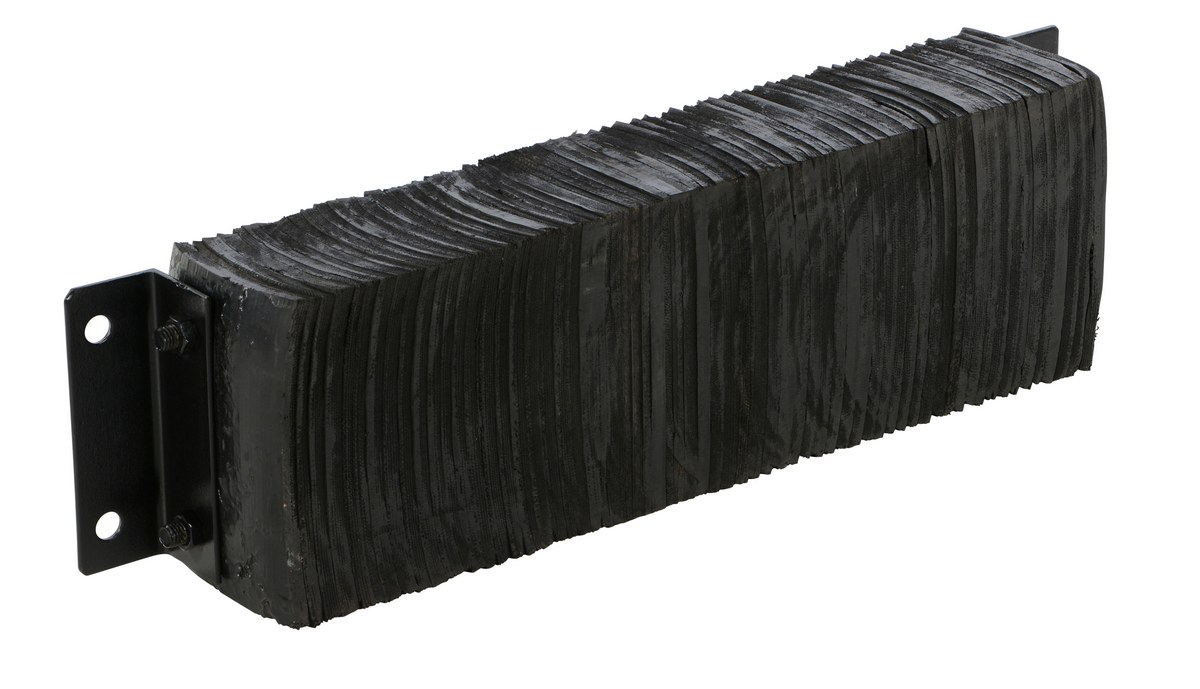

1036-6 1036-6Laminated Rubber Dock Bumper 10 In. x 36 In. x 6 In. BlackRubber Height (in.): 10
Rubber Width (in.): 32-1/4		89

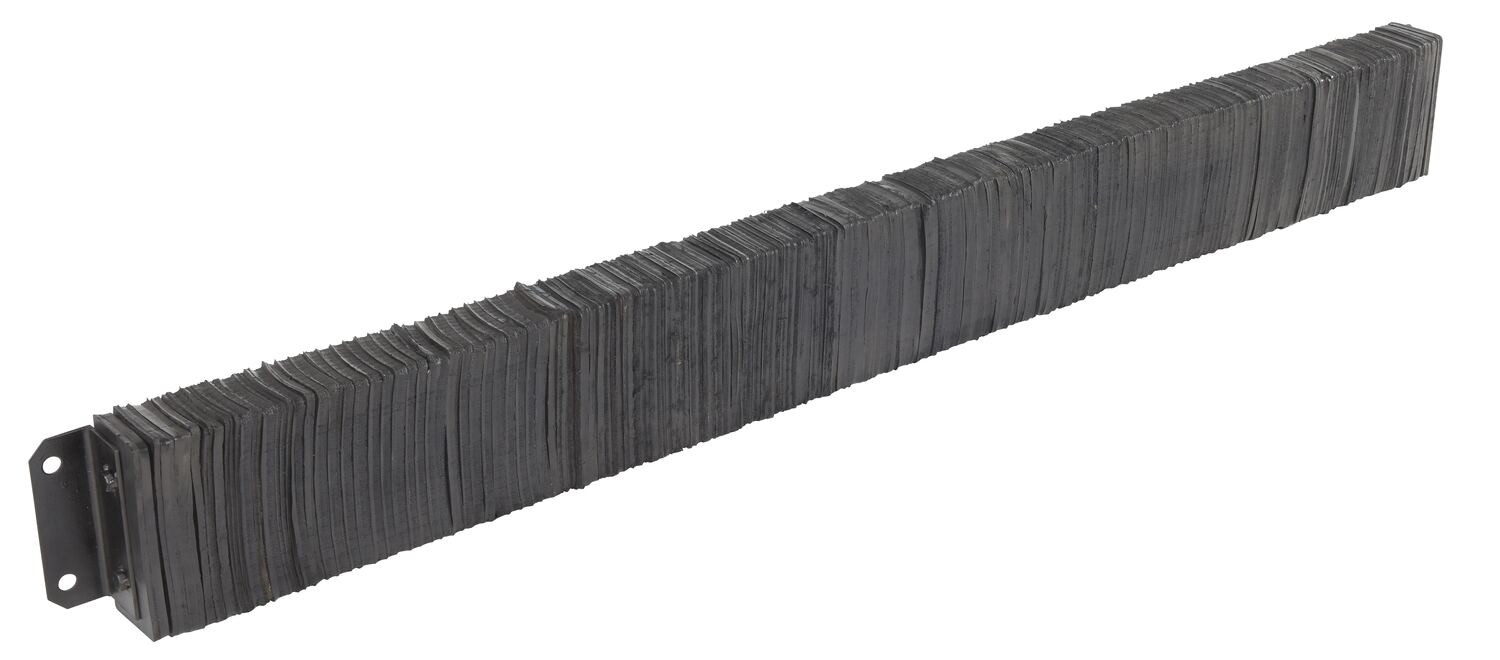

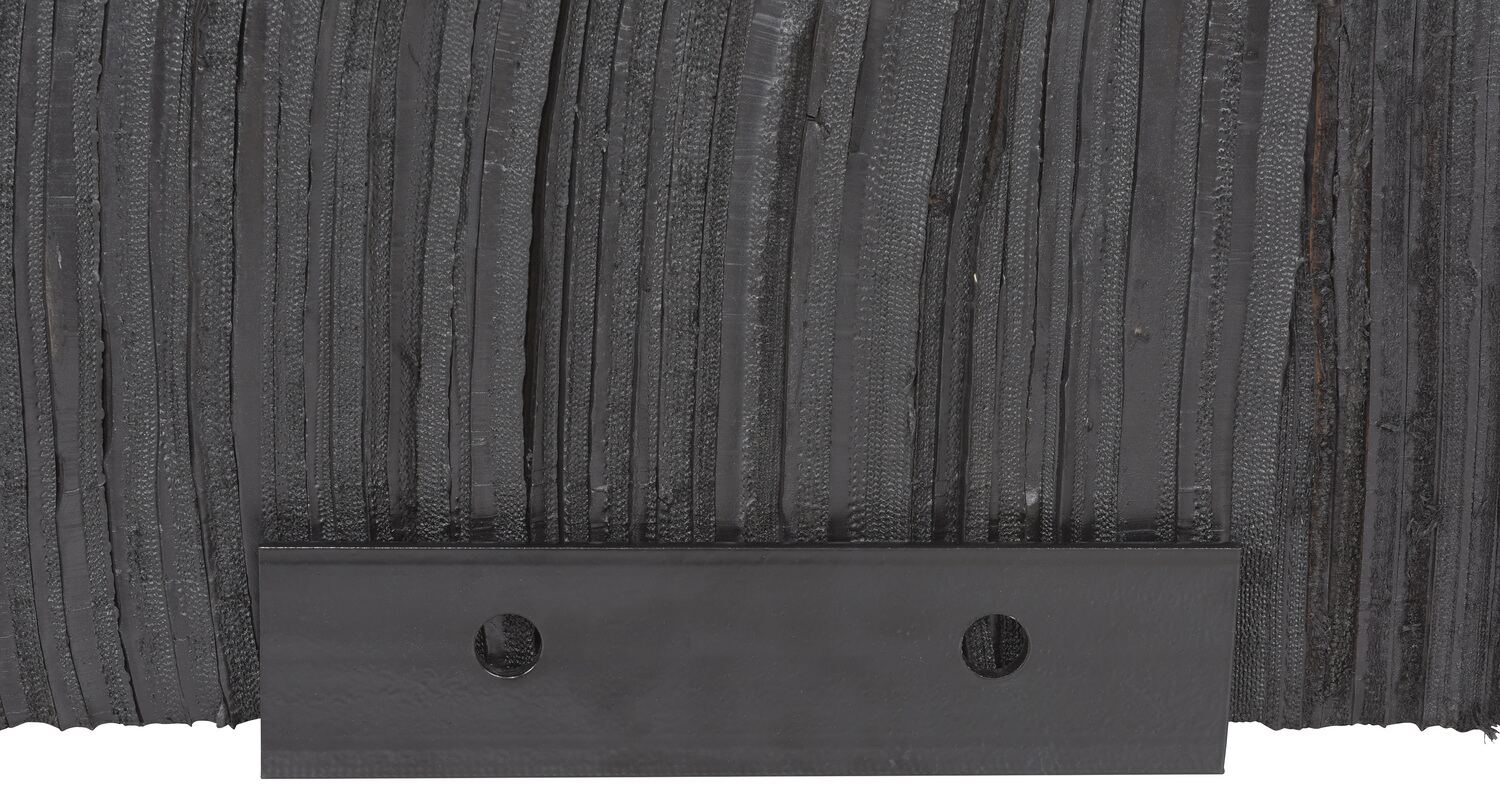

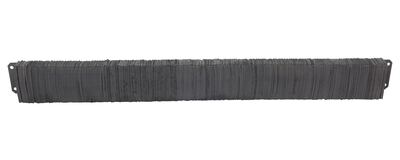

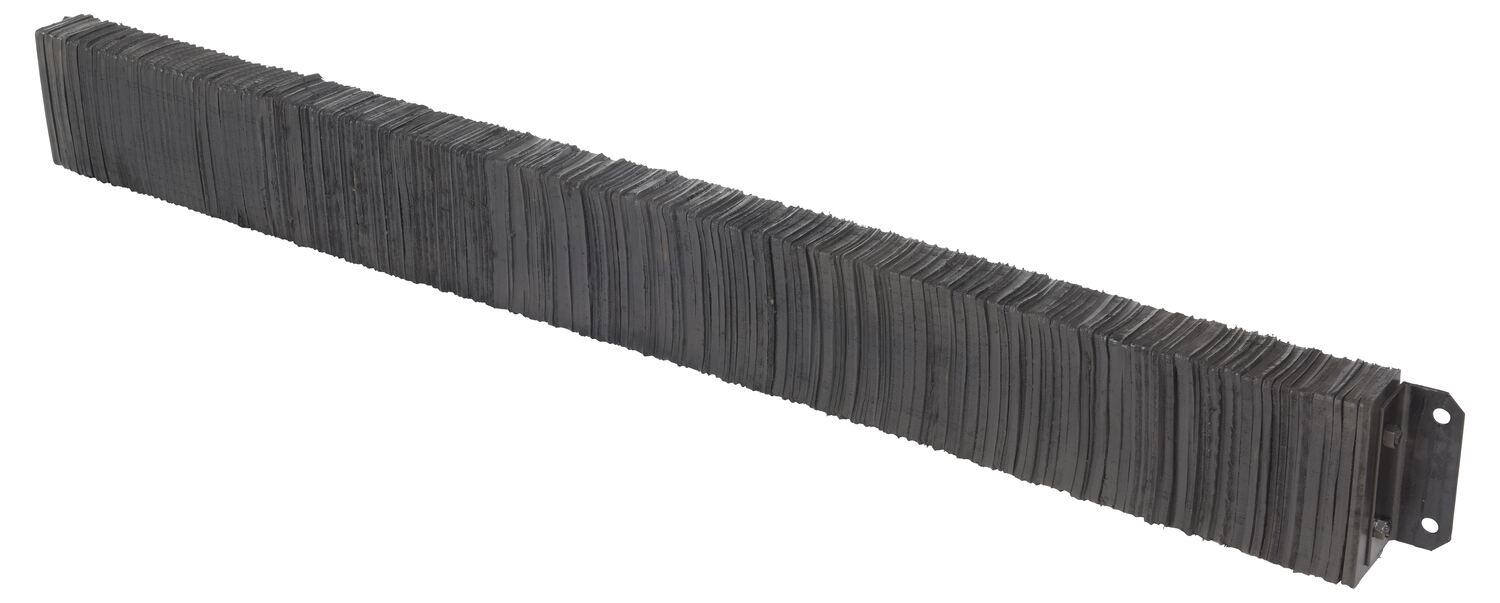

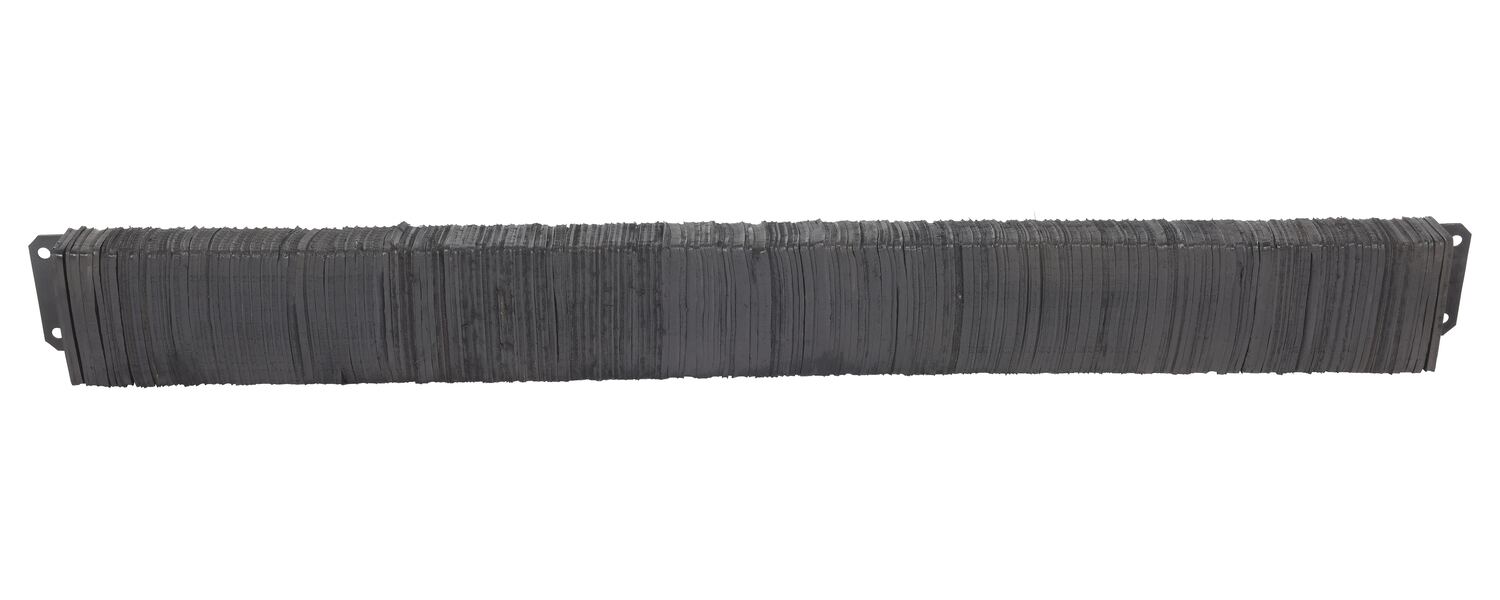

1096-4.5 1096-4.5Laminated Rubber Dock Bumper 10 In. x 96 In. x 4-1/2 In. BlackRubber Height (in.): 10
Rubber Width (in.): 92		191
1212-4.5 1212-4.5Laminated Rubber Dock Bumper 12 In. x 12 In. x 4-1/2 In. BlackRubber Height (in.): 12
Rubber Width (in.): 8		26

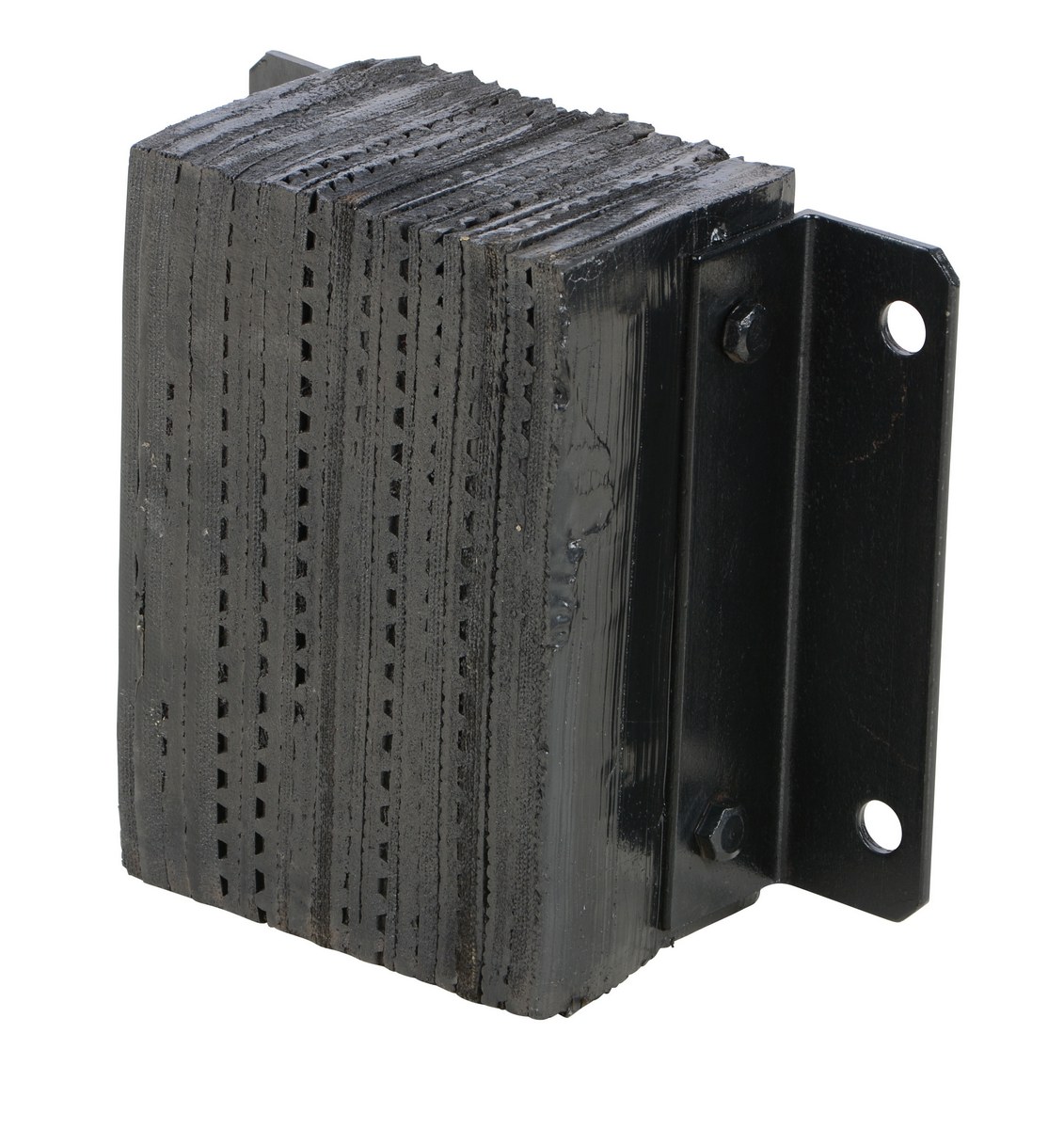

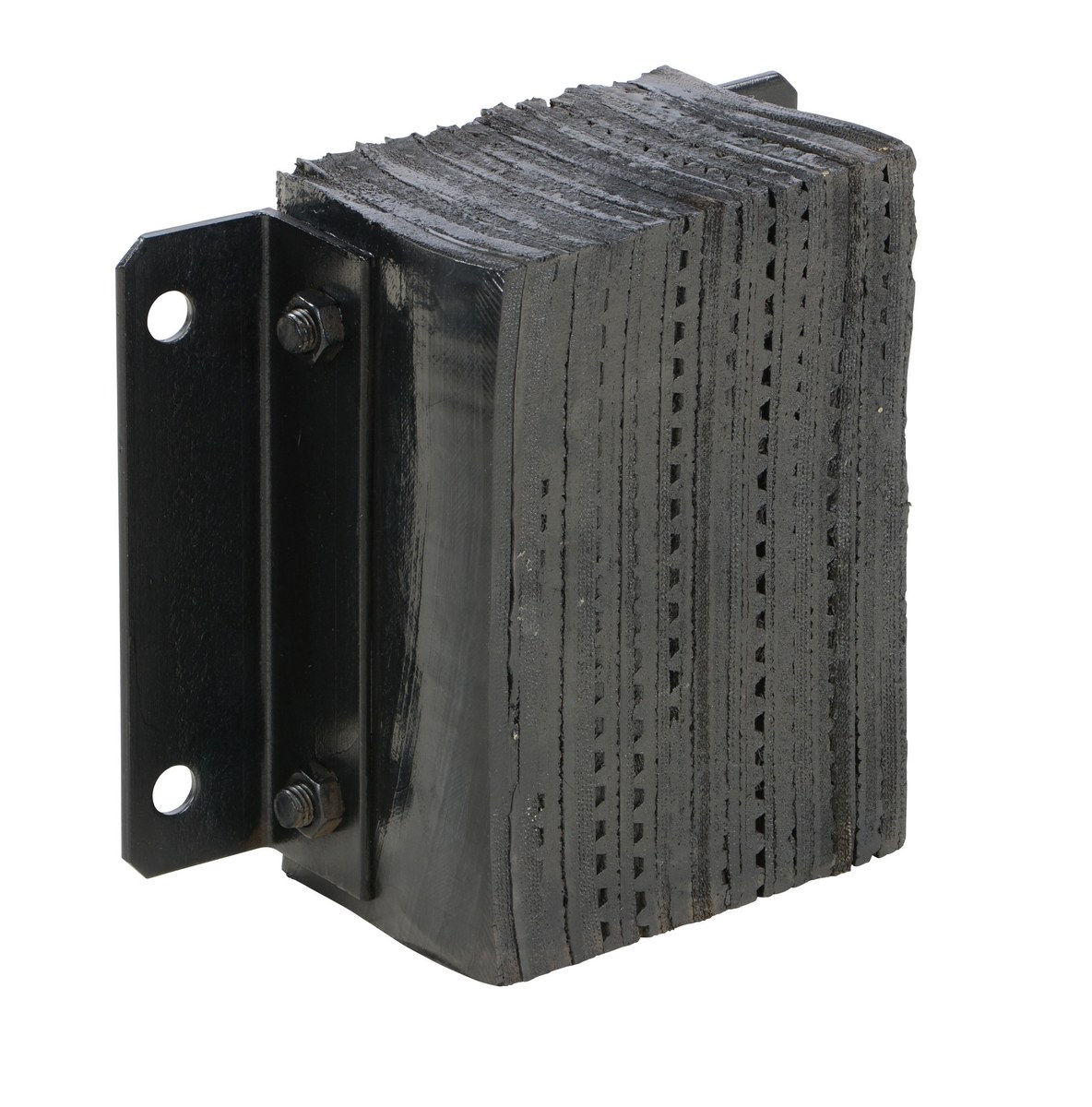

1212-6 1212-6Laminated Rubber Dock Bumper 12 In. x 12 In. x 6 In. BlackRubber Height (in.): 12
Rubber Width (in.): 8-1/2		31

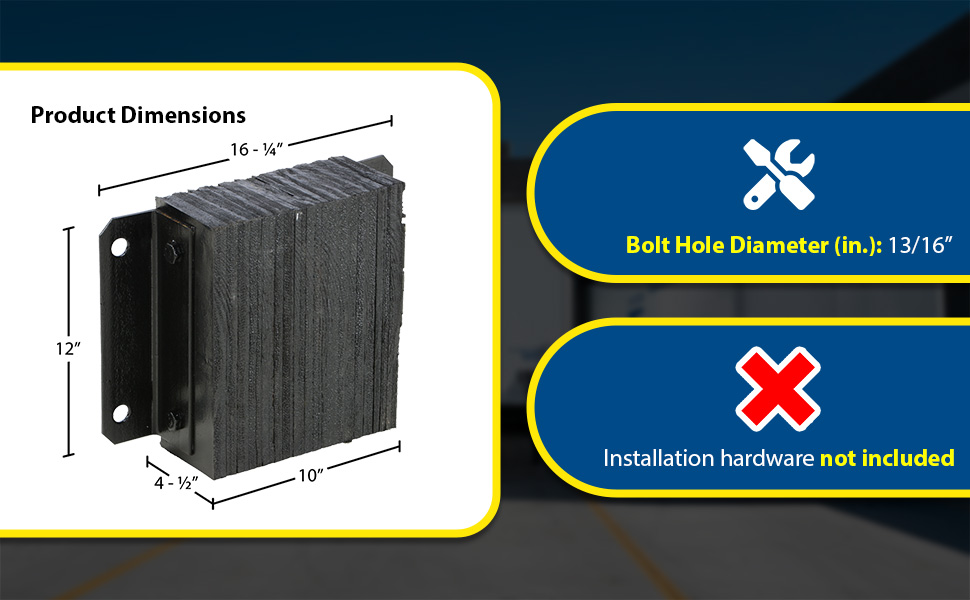

1214-4.5 1214-4.5Laminated Rubber Dock Bumper 12 In. x 14 In. x 4-1/2 In. BlackRubber Height (in.): 12
Rubber Width (in.): 10		31

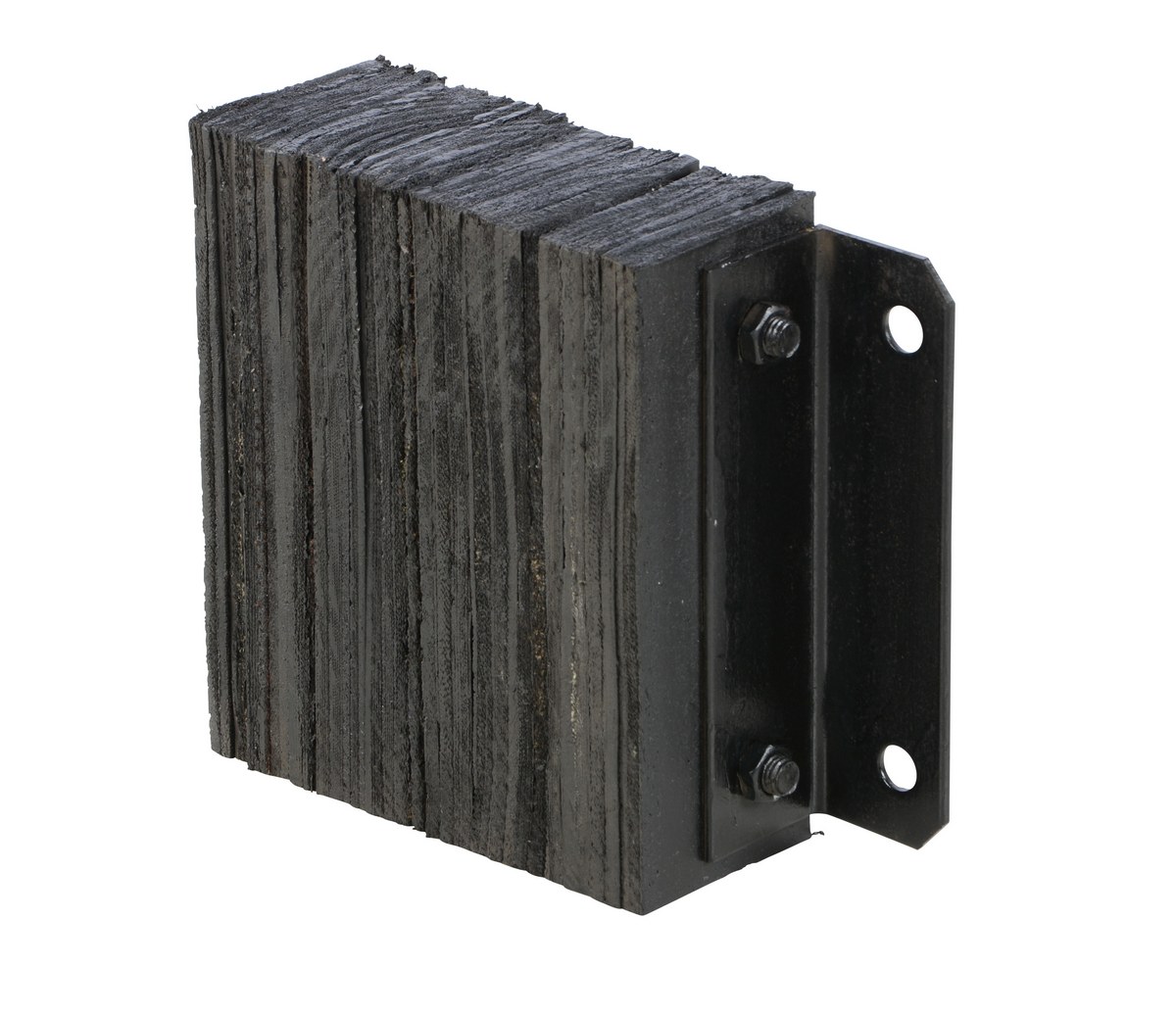

1214-4.5F 1214-4.5FLaminated Rubber Dock Bumper 12 In. x 14 In. x 4-1/2 In. BlackRubber Height (in.): 12
Rubber Width (in.): 10		32

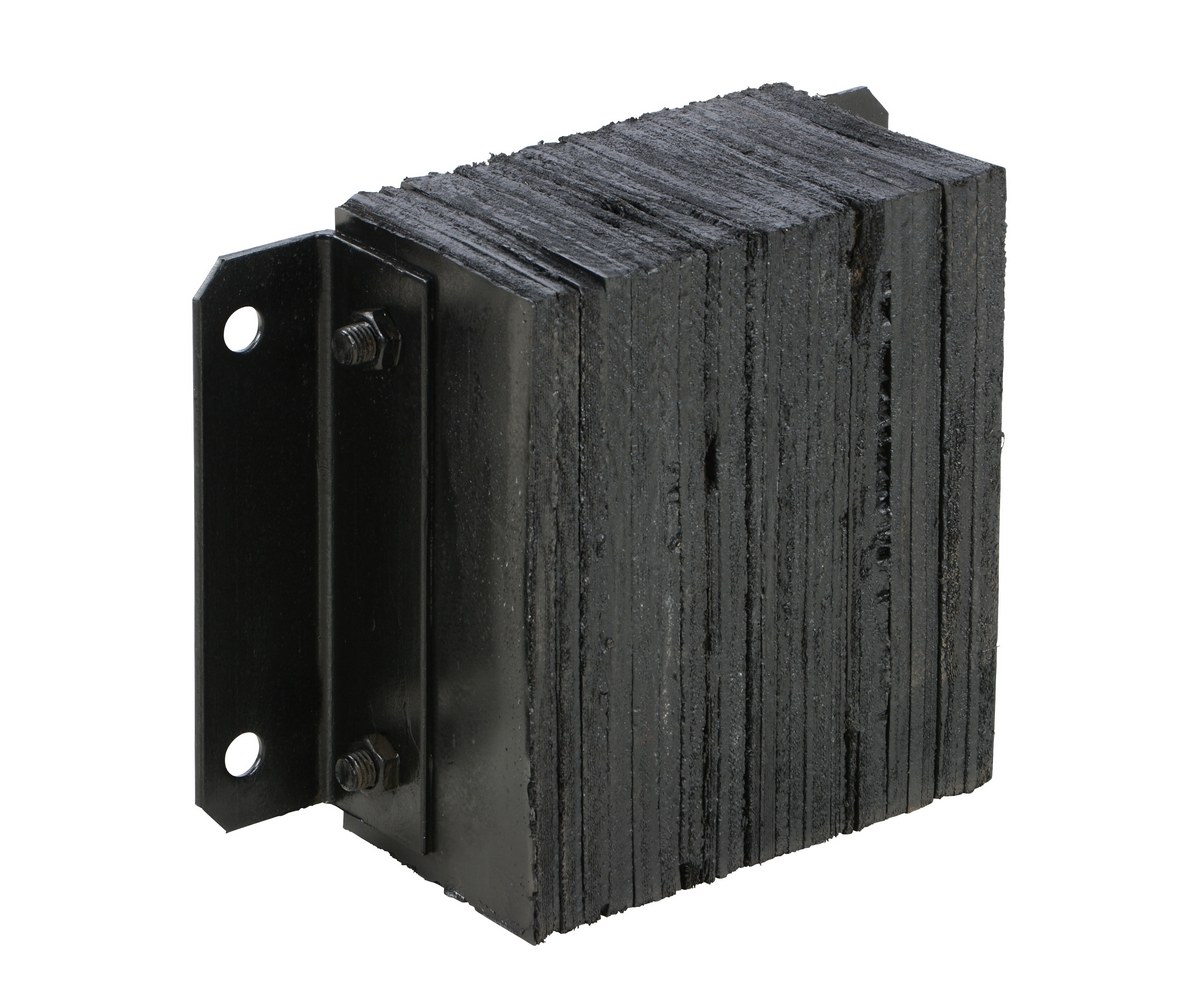

1214-6 1214-6Laminated Rubber Dock Bumper 12 In. x 14 In. x 6 In. BlackRubber Height (in.): 12
Rubber Width (in.): 10-1/2		39

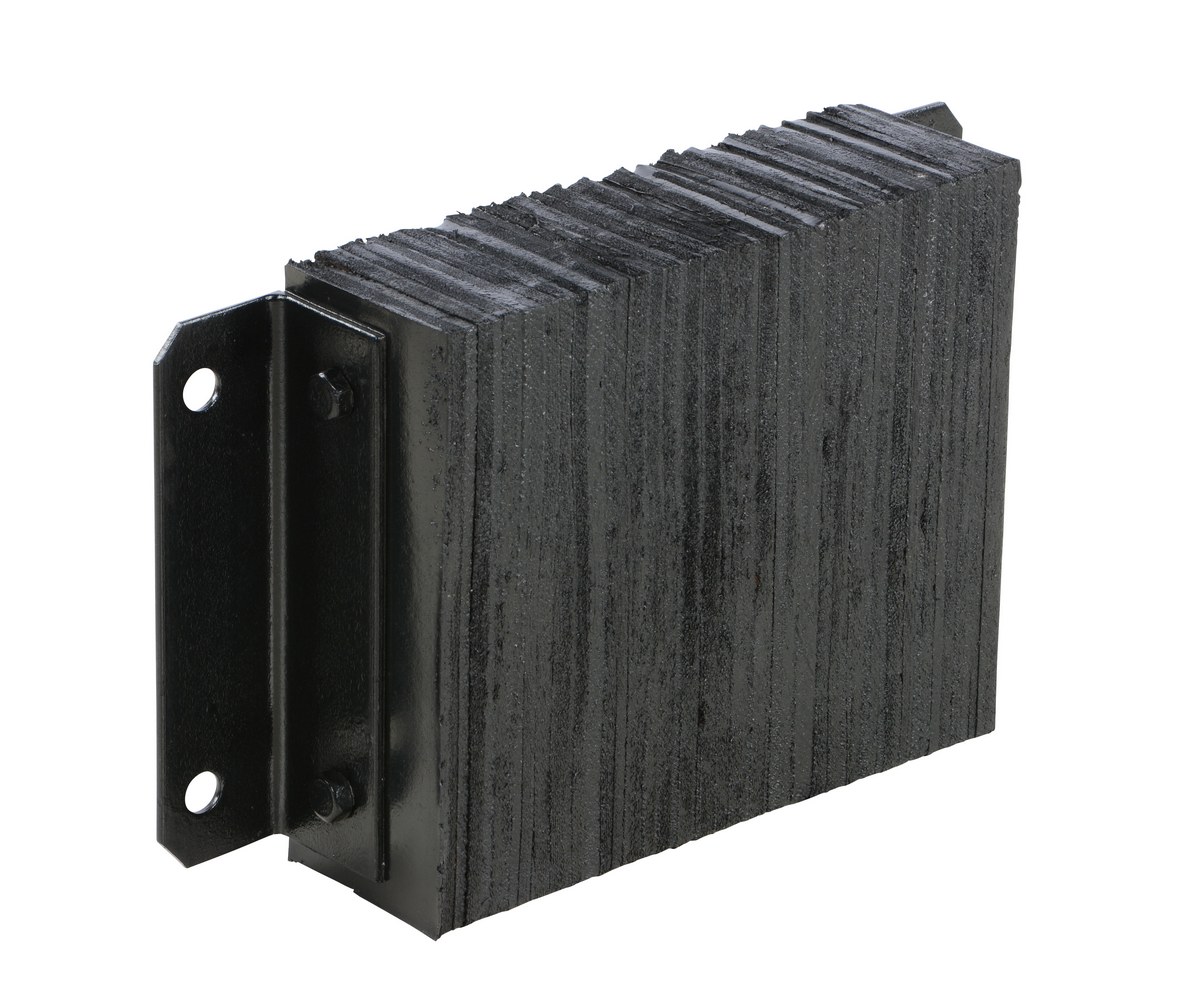

1218-4.5 1218-4.5Laminated Rubber Dock Bumper 12 In. x 18 In. x 4-1/2 In. BlackRubber Height (in.): 12
Rubber Width (in.): 14		41
1218-6 1218-6Laminated Rubber Dock Bumper 12 In. x 18 In. x 6 In. BlackRubber Height (in.): 12
Rubber Width (in.): 14-1/2		51

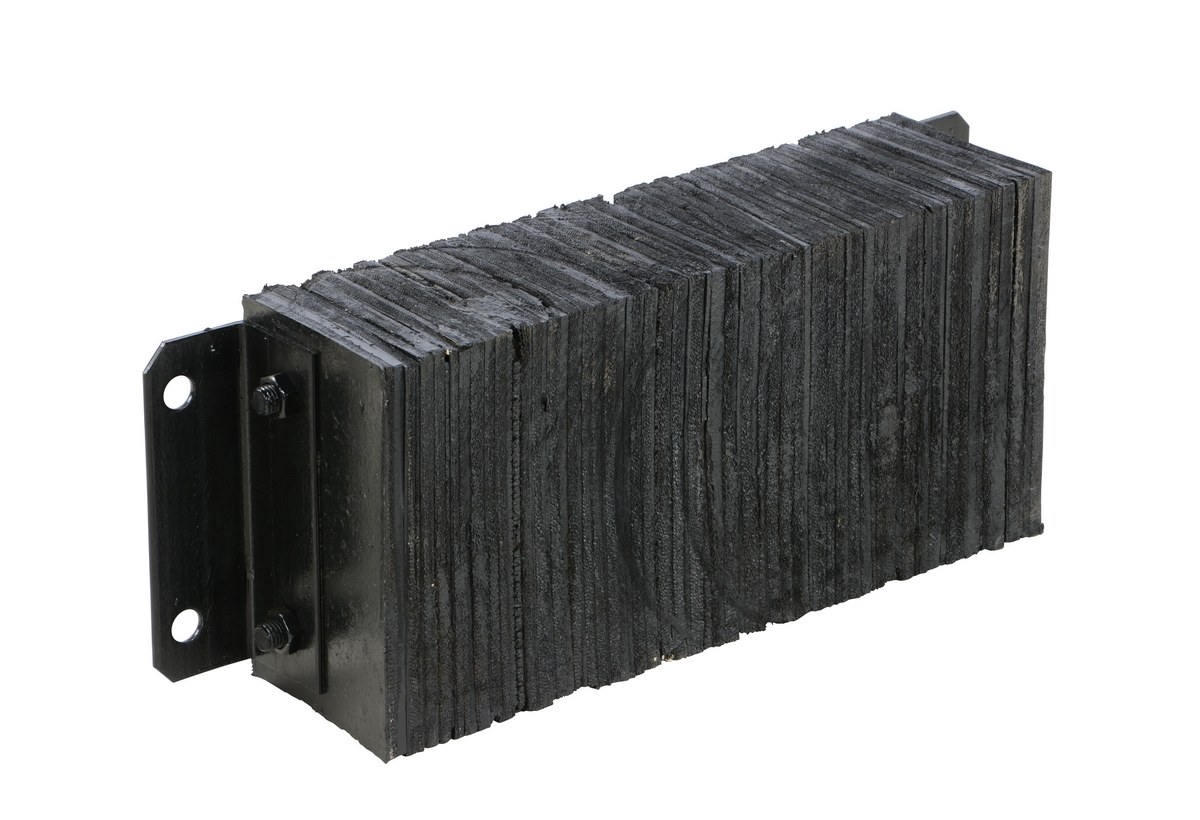

1224-4.5 1224-4.5Laminated Rubber Dock Bumper 12 In. x 24 In. x 4-1/2 In. BlackRubber Height (in.): 12
Rubber Width (in.): 20		56

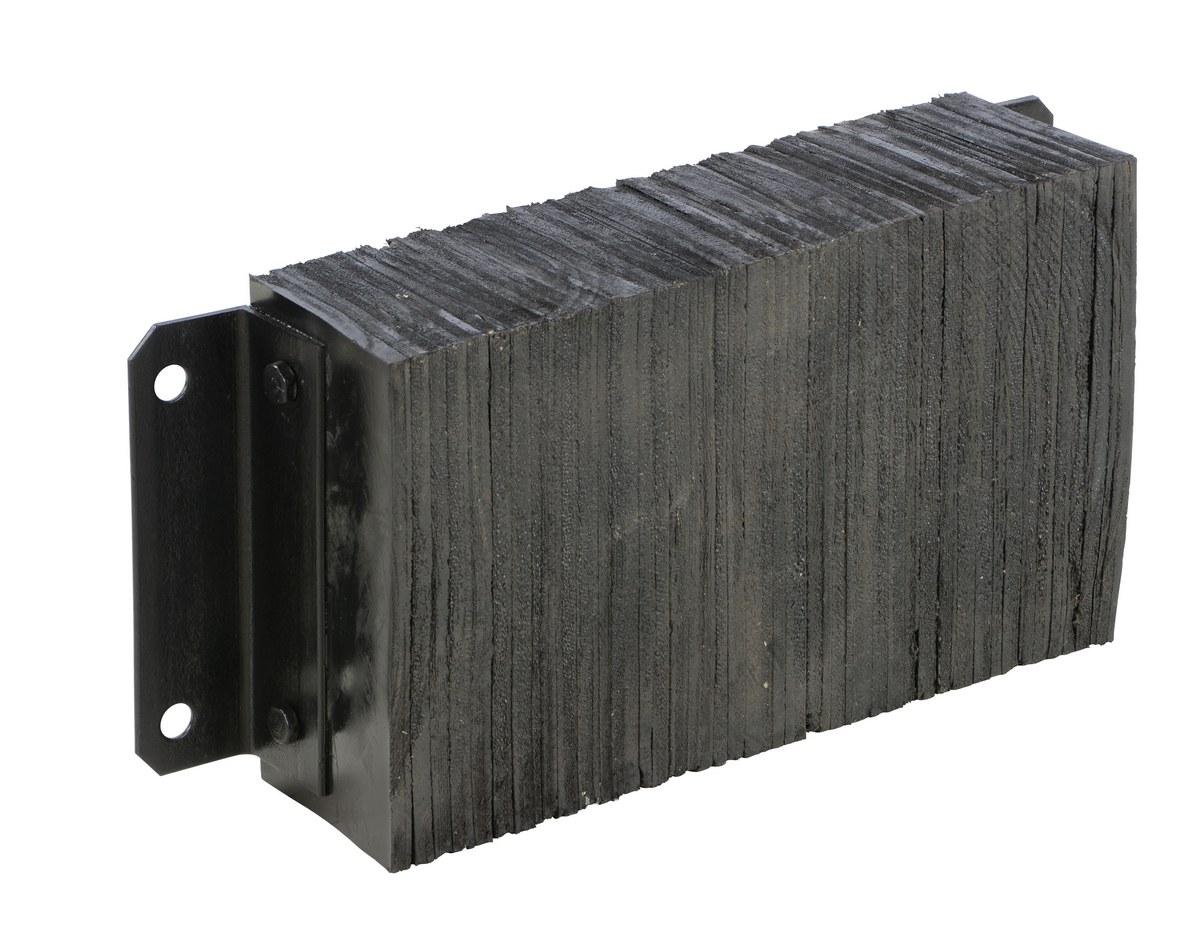

1224-6 1224-6Laminated Rubber Dock Bumper 12 In. x 24 In. x 6 In. BlackRubber Height (in.): 12
Rubber Width (in.): 20-1/2		67
1230-4.5 1230-4.5Laminated Rubber Dock Bumper 12 In. x 30 In. x 4-1/2 In. BlackRubber Height (in.): 12
Rubber Width (in.): 26		69

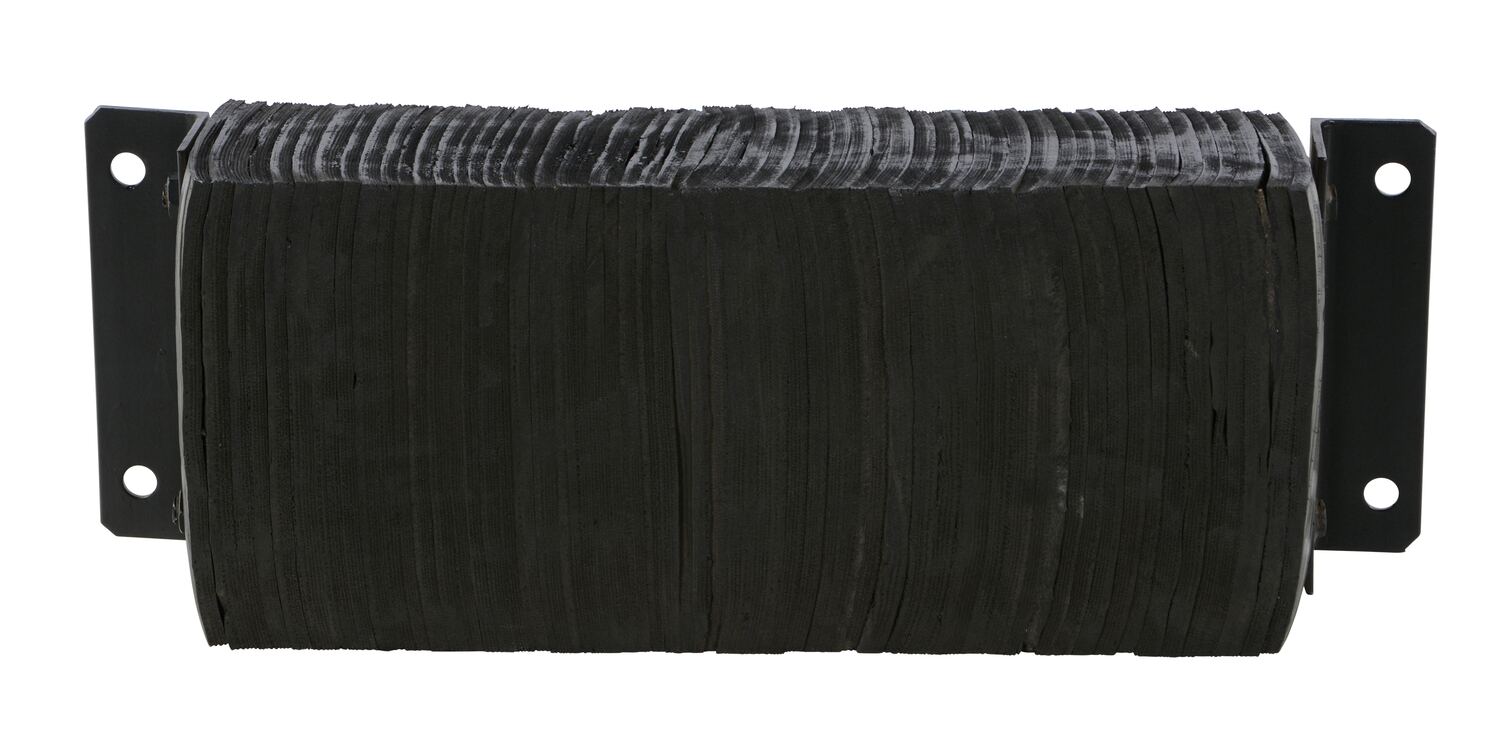

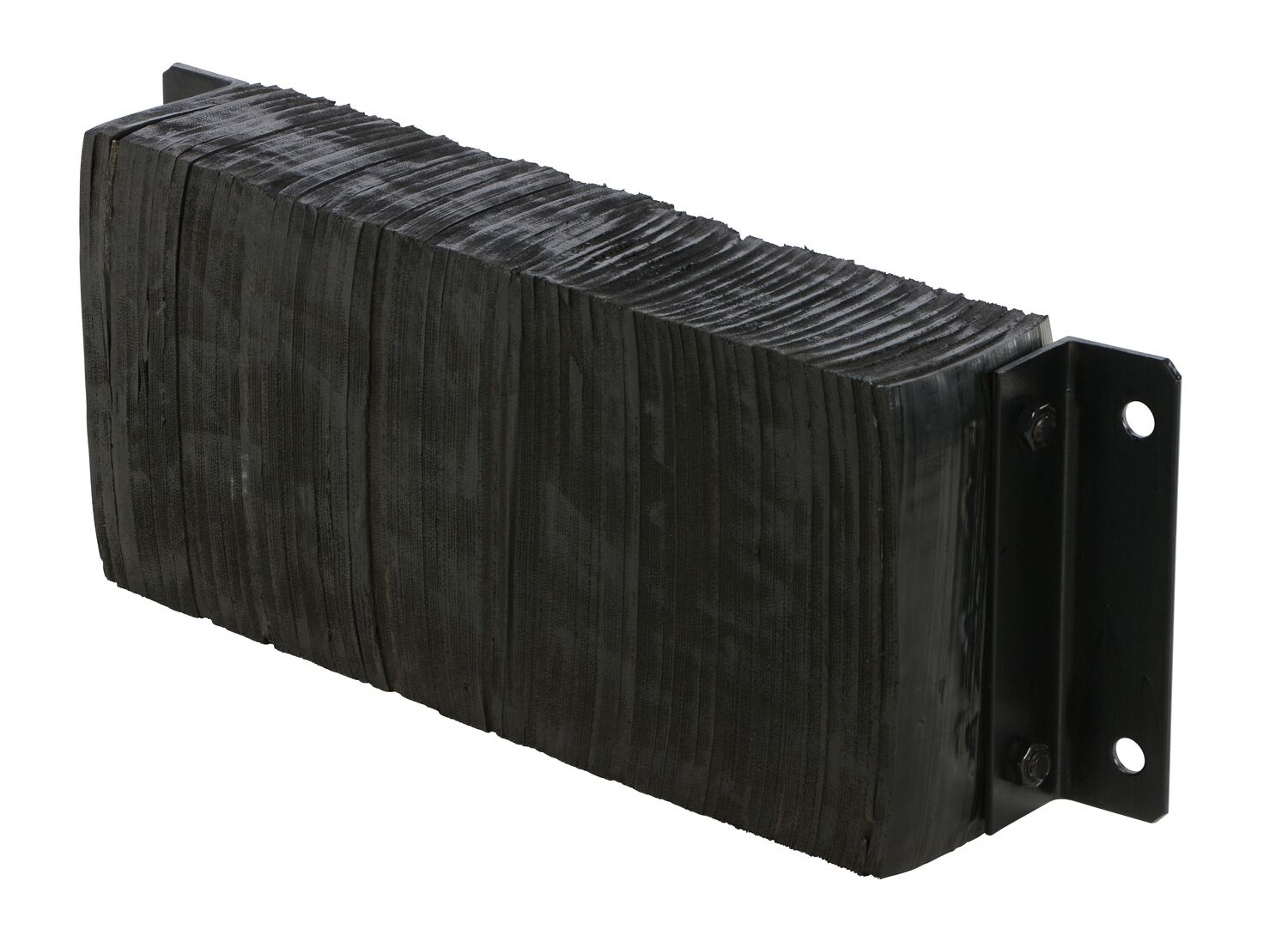

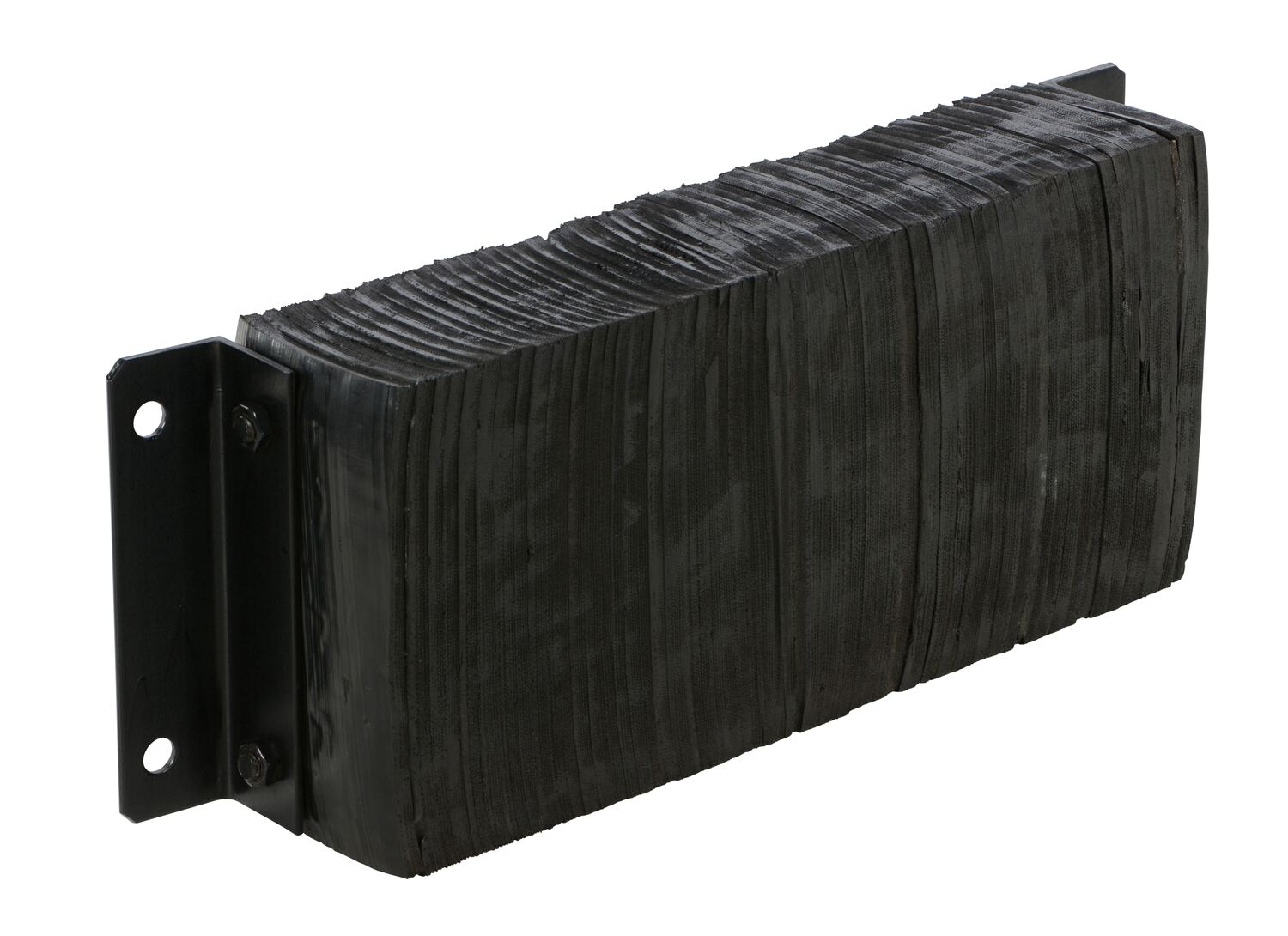

1230-6 1230-6Laminated Rubber Dock Bumper 12 In. x 30 In. x 6 In. BlackRubber Height (in.): 12
Rubber Width (in.): 26-1/2		77
1236-4.5 1236-4.5Laminated Rubber Dock Bumper 12 In. x 36 In. 4-1/2 In. BlackRubber Height (in.): 12
Rubber Width (in.): 32		88

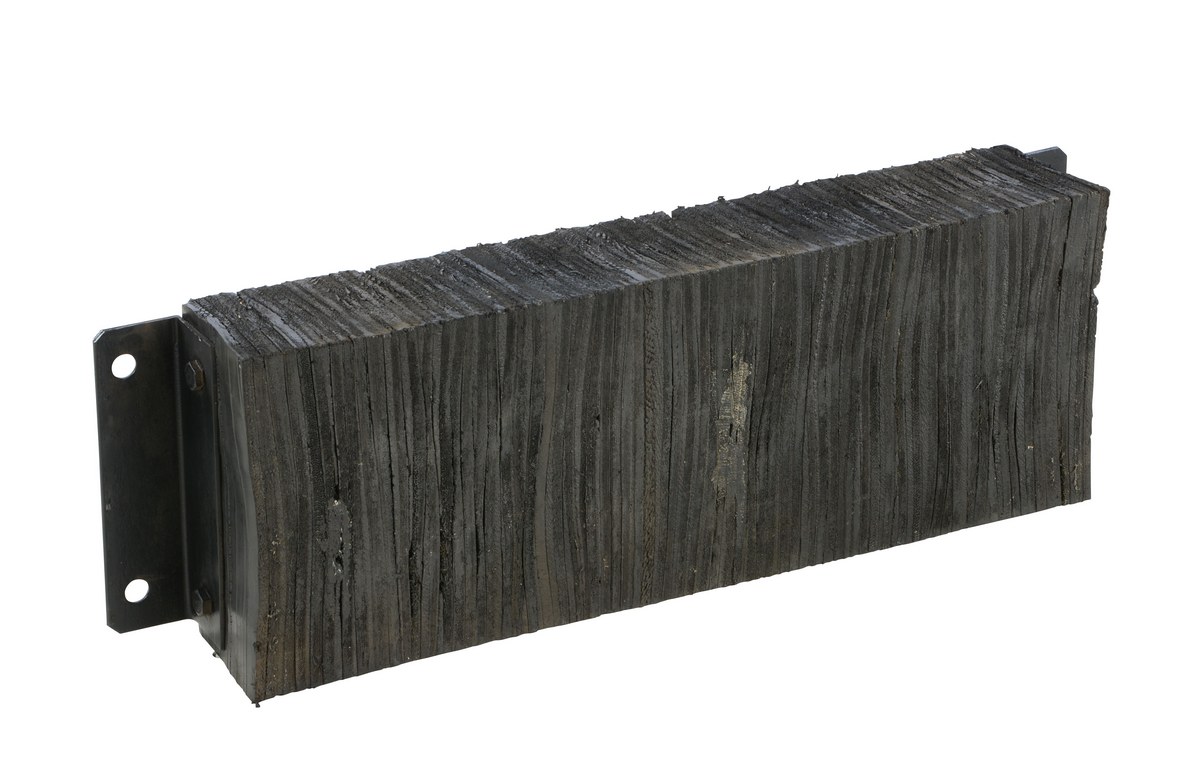

1236-6 1236-6Laminated Rubber Dock Bumper 12 In. x 36 In. 6 In. BlackRubber Height (in.): 12
Rubber Width (in.): 32-1/2		110
1296-4.5 1296-4.5Laminated Rubber Dock Bumper 12 In. x 96 In. 4-1/2 In. BlackRubber Height (in.): 12
Rubber Width (in.): 92		215

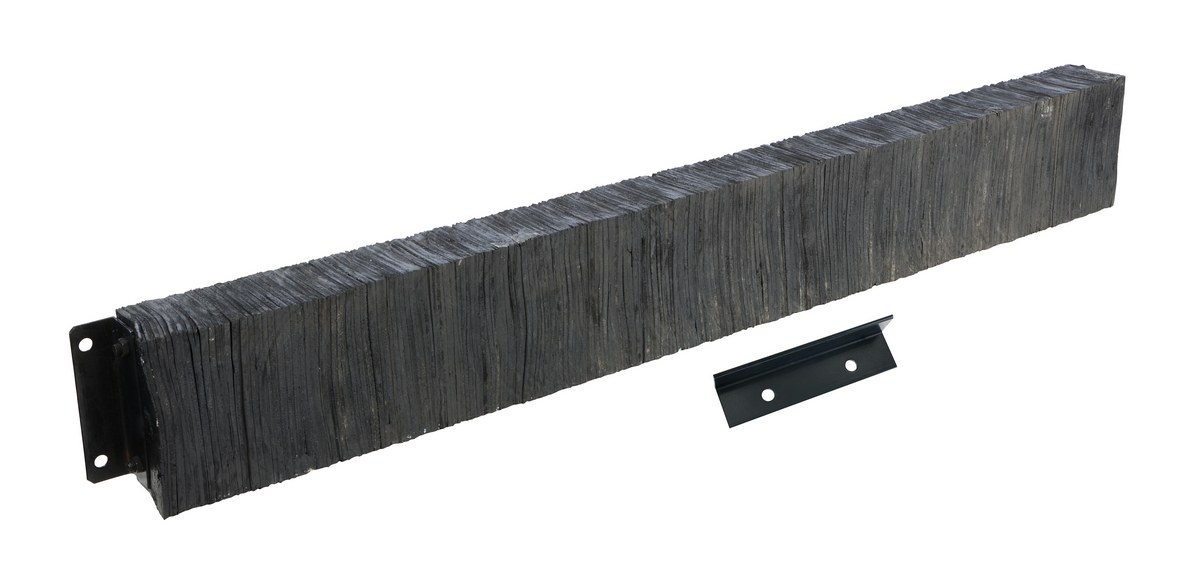

1296-6 1296-6Laminated Rubber Dock Bumper 12 In. x 96 In. 6 In. BlackRubber Height (in.): 12
Rubber Width (in.): 92-1/2		316

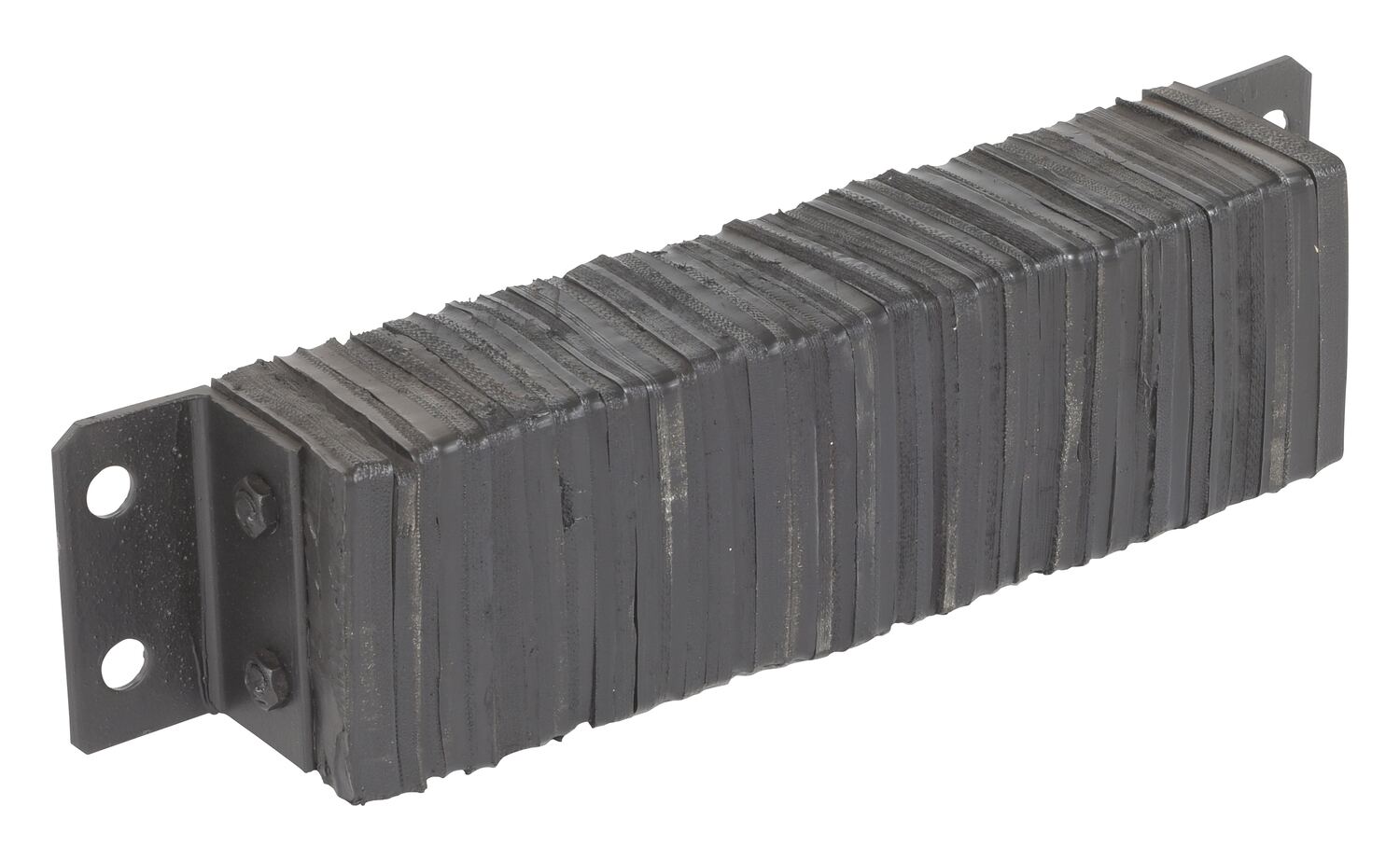

624-4.5 624-4.5Laminated Rubber Dock Bumper 6 In. x 24 In. x 4-1/2 In. BlackRubber Height (in.): 6
Rubber Width (in.): 20		30

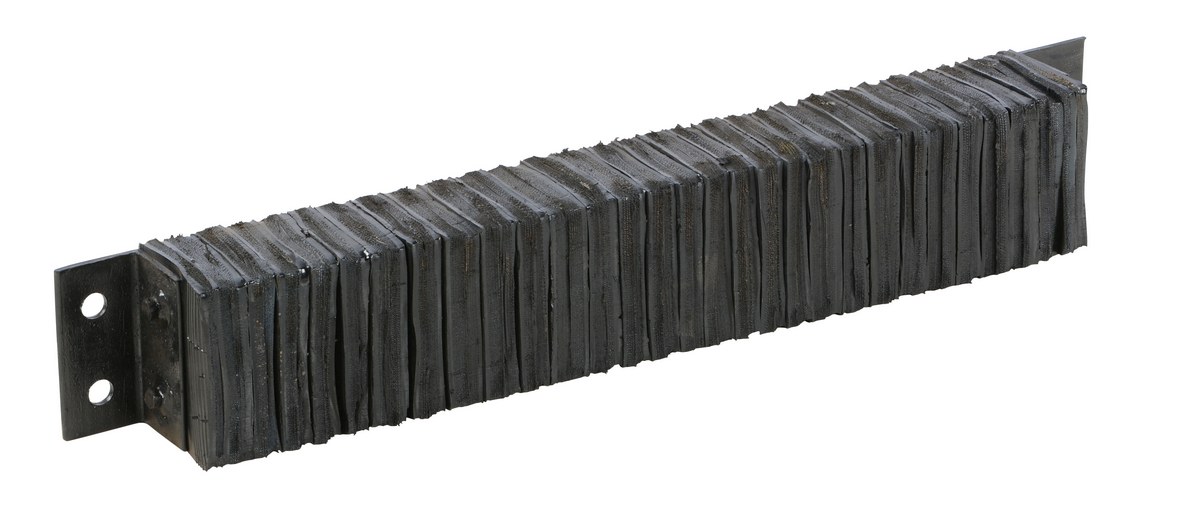

636-4.5 636-4.5Laminated Rubber Dock Bumper 6 In. x 36 In. x 4-1/2 In. BlackRubber Height (in.): 6
Rubber Width (in.): 32		45
V-1120-4.5 V-1120-4.5Rubber Laminated Dock Bumper 20 In. x 11 In. x 4-1/2 In. BlackRubber Height (in.): 20
Rubber Width (in.): 7-1/4		41

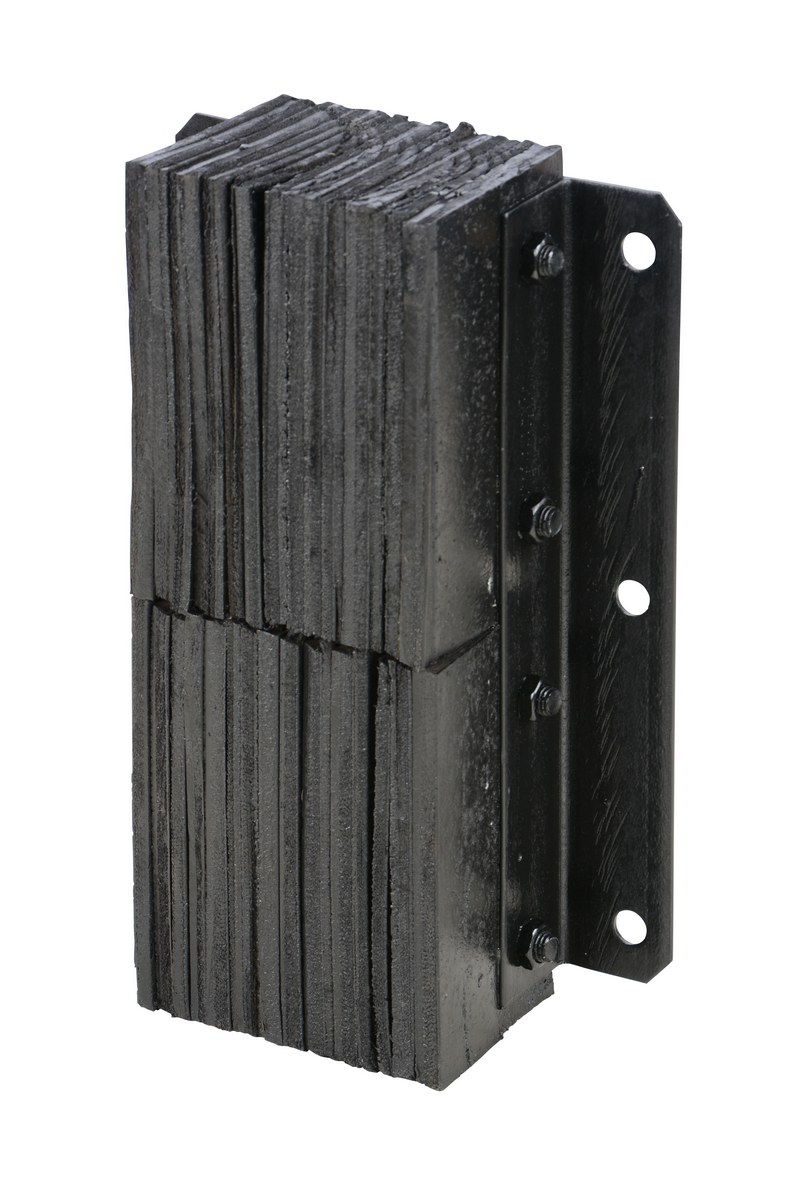

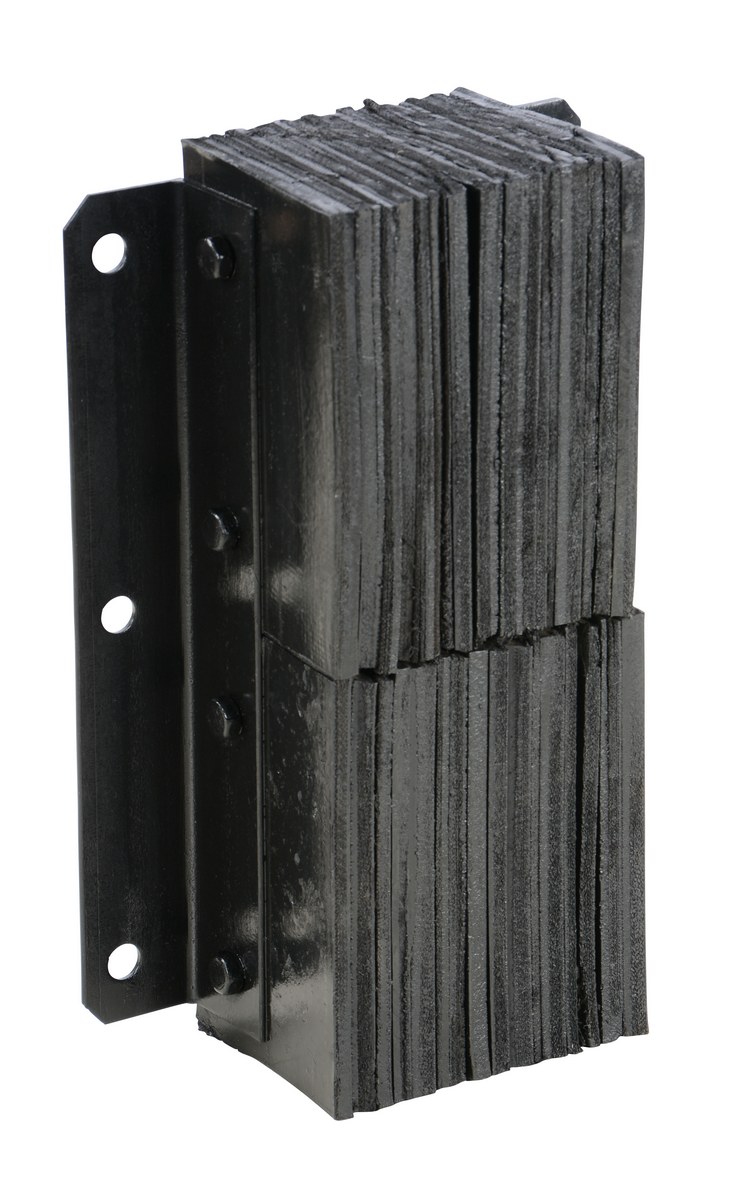

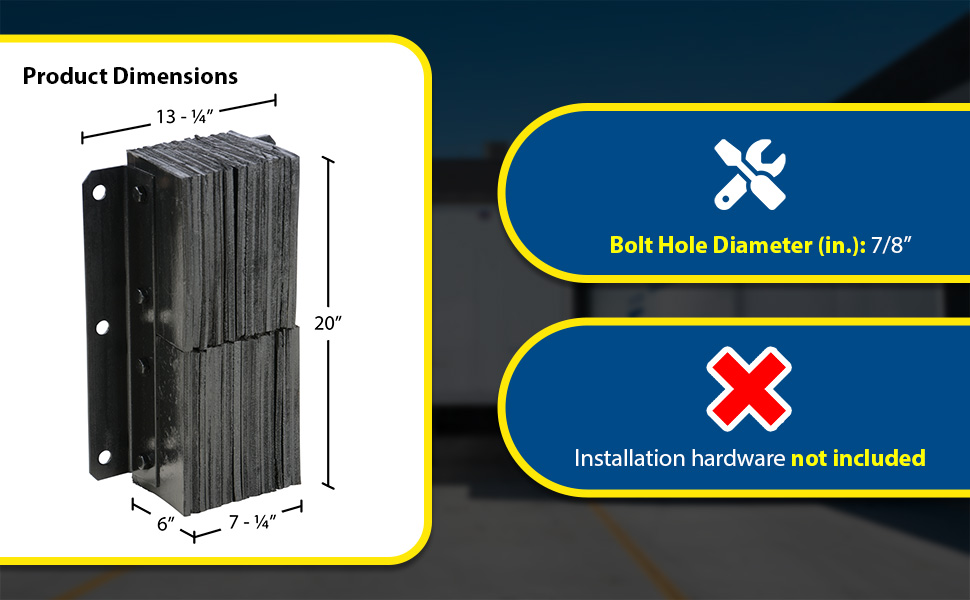

V-1120-6 V-1120-6Rubber Laminated Dock Bumper 20 In. x 11 In. x 6 In. BlackRubber Height (in.): 20
Rubber Width (in.): 7-1/4		50
V-1124-4.5 V-1124-4.5Rubber Laminated Dock Bumper 24 In. x 11 In. x 4-1/2 In. BlackRubber Height (in.): 24
Rubber Width (in.): 7-1/4		47

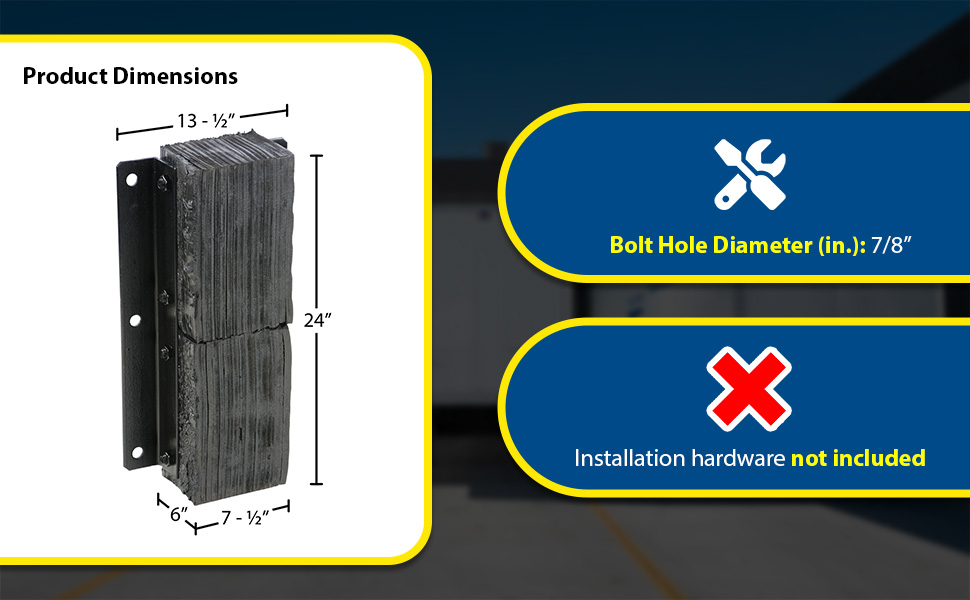

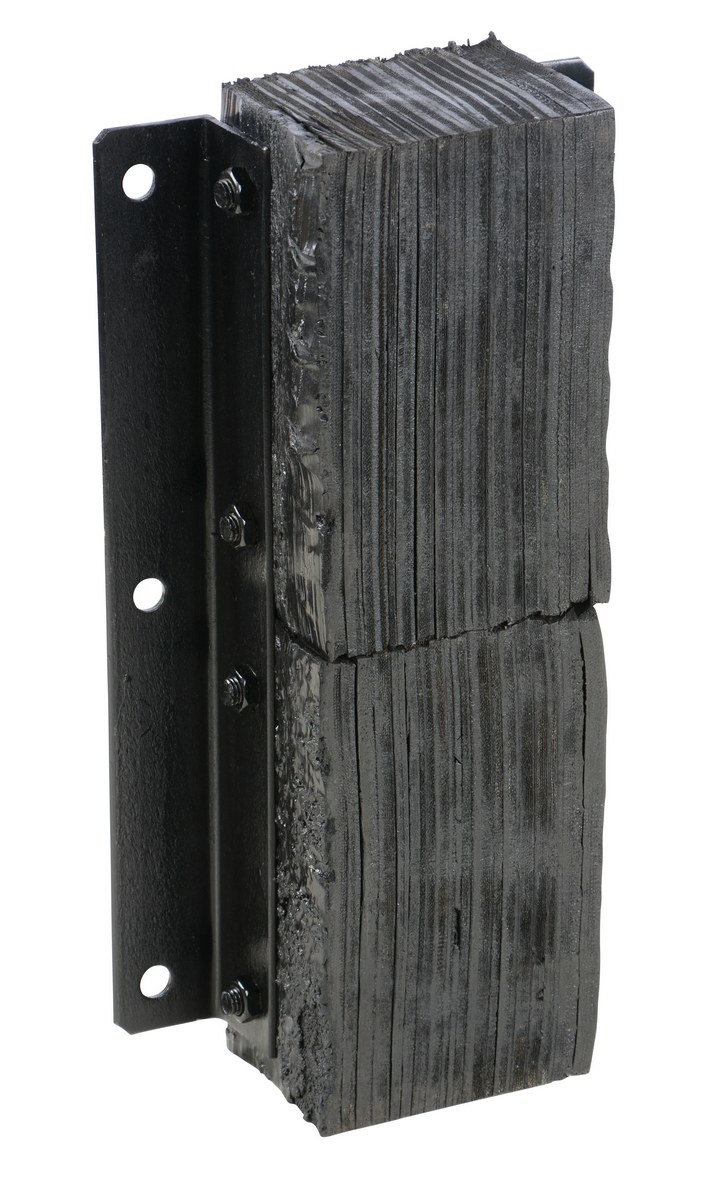

V-1124-6 V-1124-6Rubber Laminated Dock Bumper 24 In. x 11 In. x 6 In. BlackRubber Height (in.): 24
Rubber Width (in.): 7-1/4		61

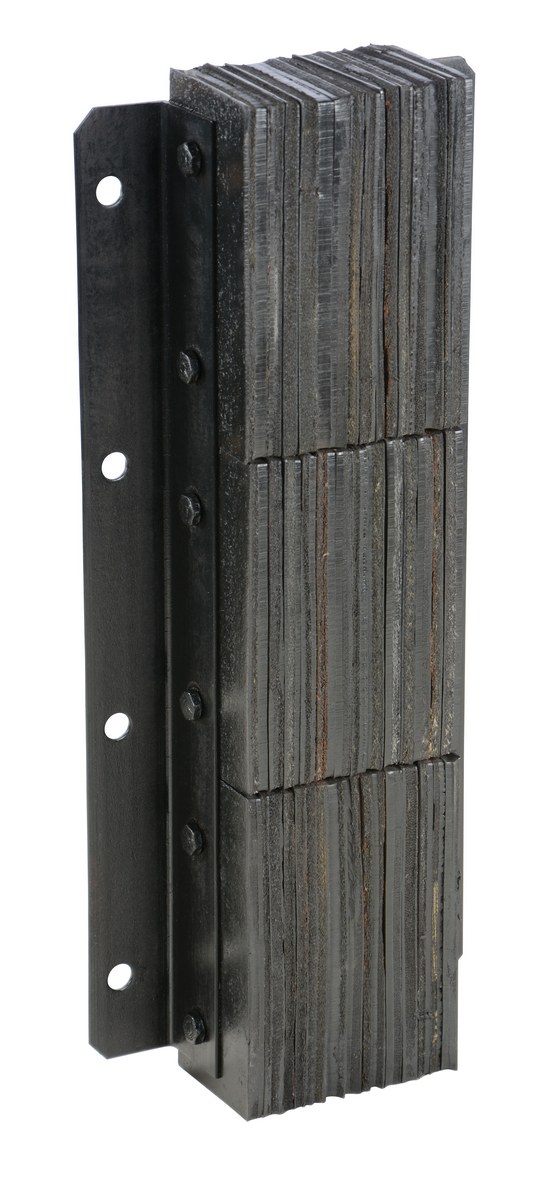

V-1130-4.5 V-1130-4.5Rubber Laminated Dock Bumper 30 In. x 11 In. x 4-1/2 In. BlackRubber Height (in.): 30
Rubber Width (in.): 7-1/4		92
V-1130-6 V-1130-6Rubber Laminated Dock Bumper 30 In. x 11 In. x 6 In. BlackRubber Height (in.): 30
Rubber Width (in.): 7-1/4		113

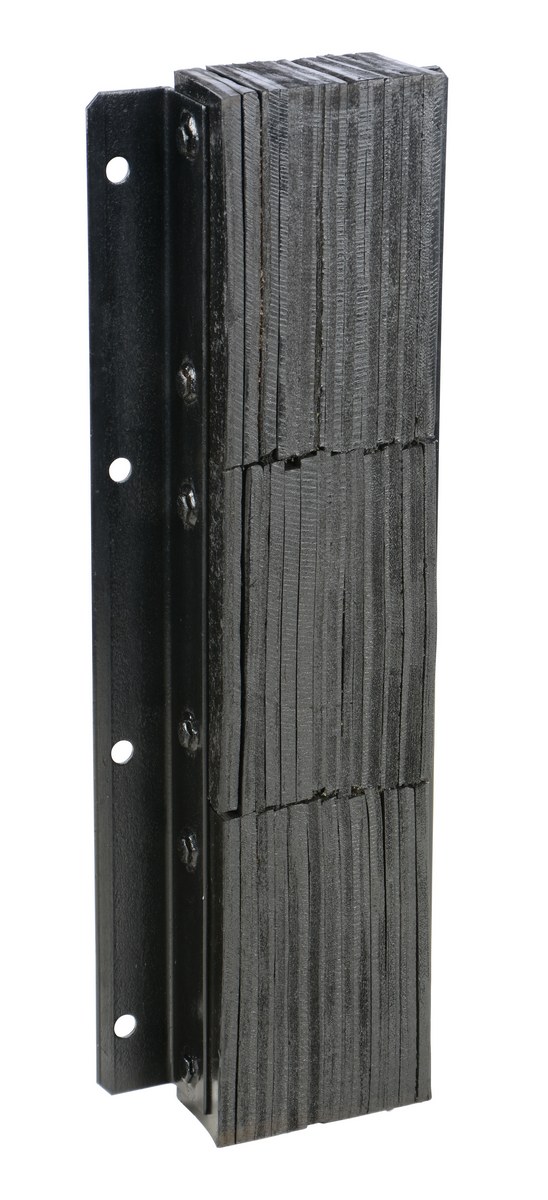

V-1136-4.5 V-1136-4.5Rubber Laminated Dock Bumper 36 In. x 11 In. x 4-1/2 In. BlackRubber Height (in.): 36
Rubber Width (in.): 7-1/4		123

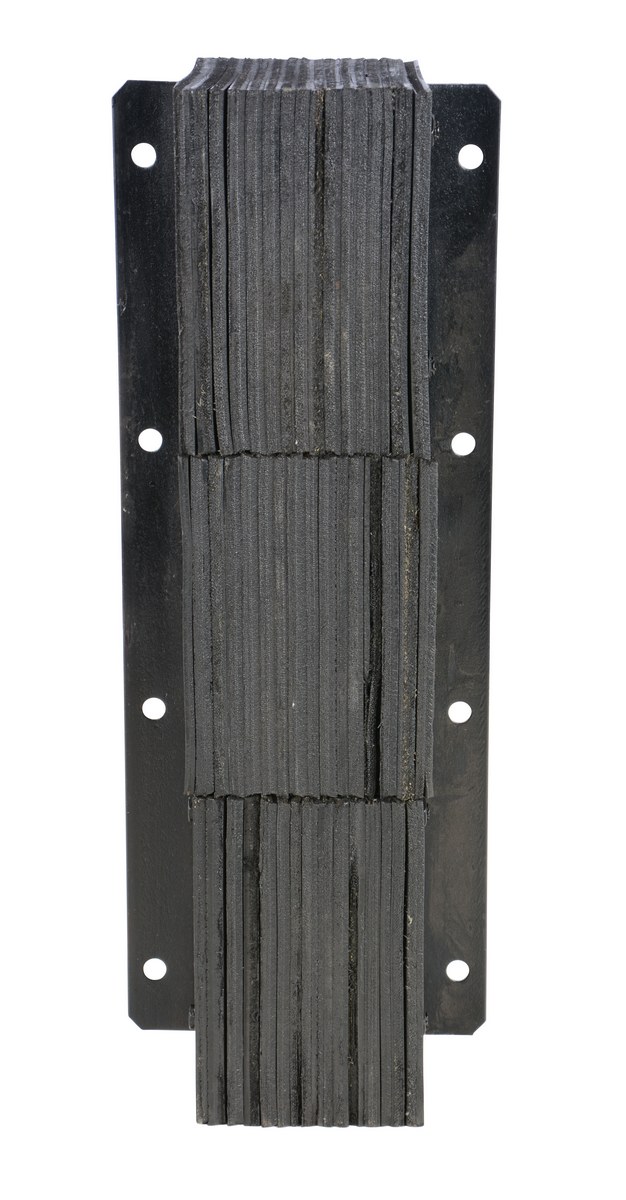

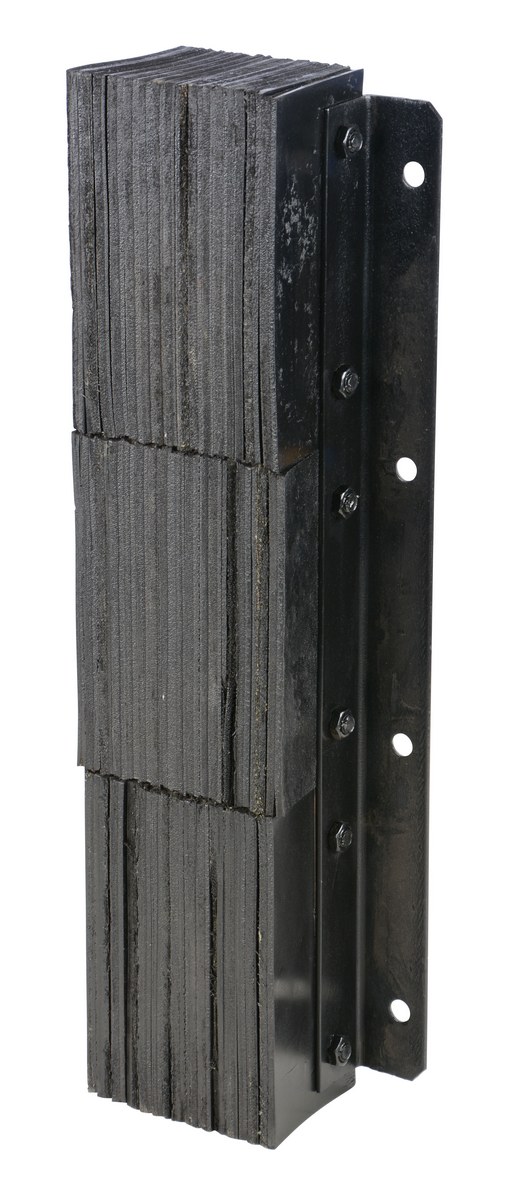

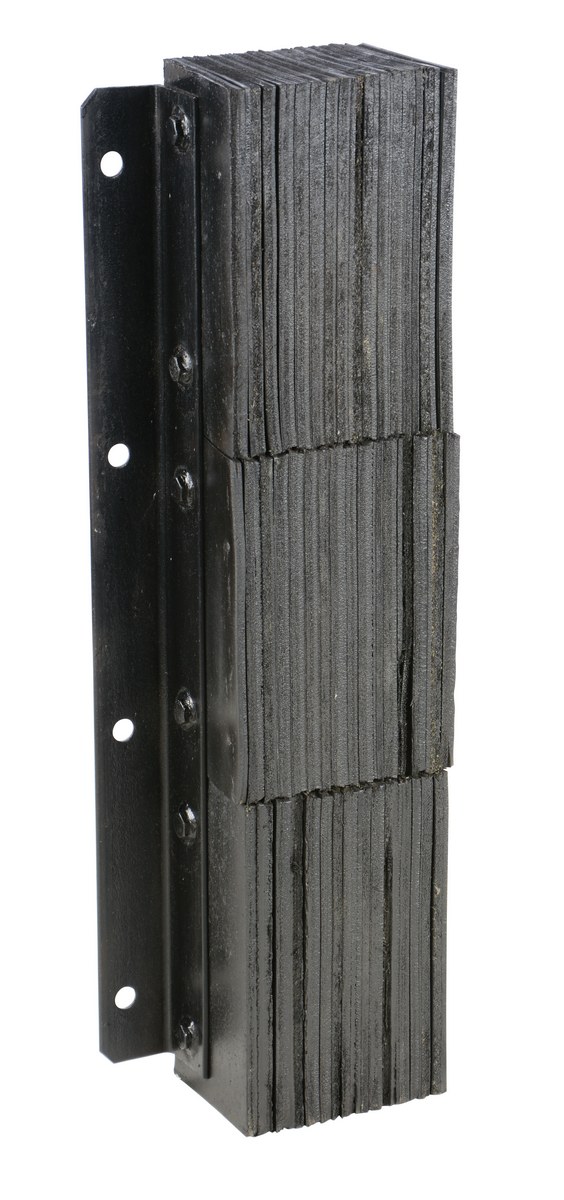

V-1136-6 V-1136-6Rubber Laminated Dock Bumper 36 In. x 11 In. x 6 In. BlackRubber Height (in.): 36
Rubber Width (in.): 7-1/4		134

Options


Anchor Bolts Hardware for Concrete Installation
Model Image Quantity
& Size		 Wt. (lbs)
AS-344 (1) 3/4" x 4" 2
AS-344-4PK (4) 3/4"x 4" 2
