Product Family Overview


General Purpose Floor Locks
SERIES: FL-LK

Floor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Brake is independent of casters and can be installed to any convenient location on the cart. Designed to be mounted to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1-1/2" off the floor when retracted.

Floor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Brake is independent of casters and can be installed to any convenient location on the cart. Designed to be mounted to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1-1/2" off the floor when retracted.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

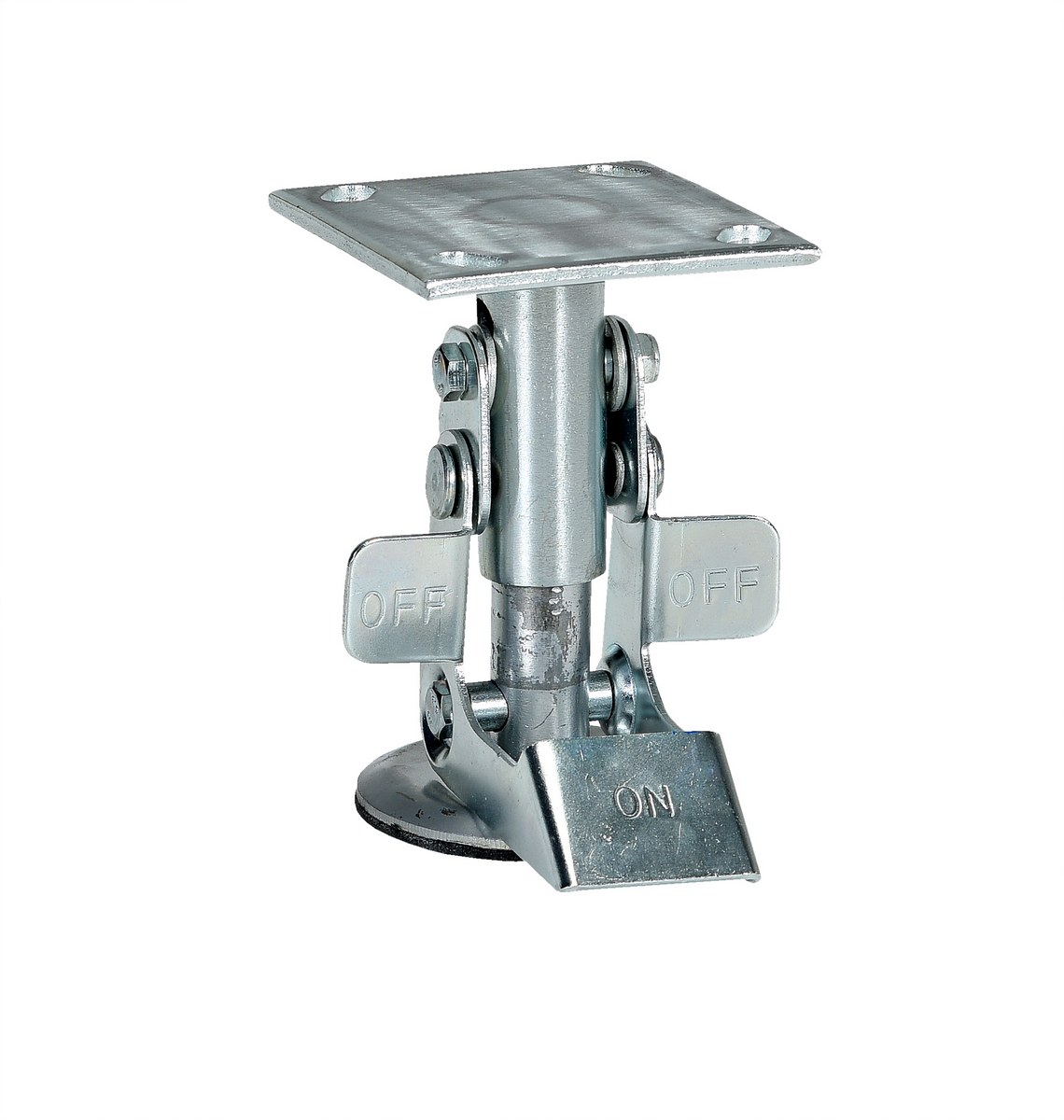

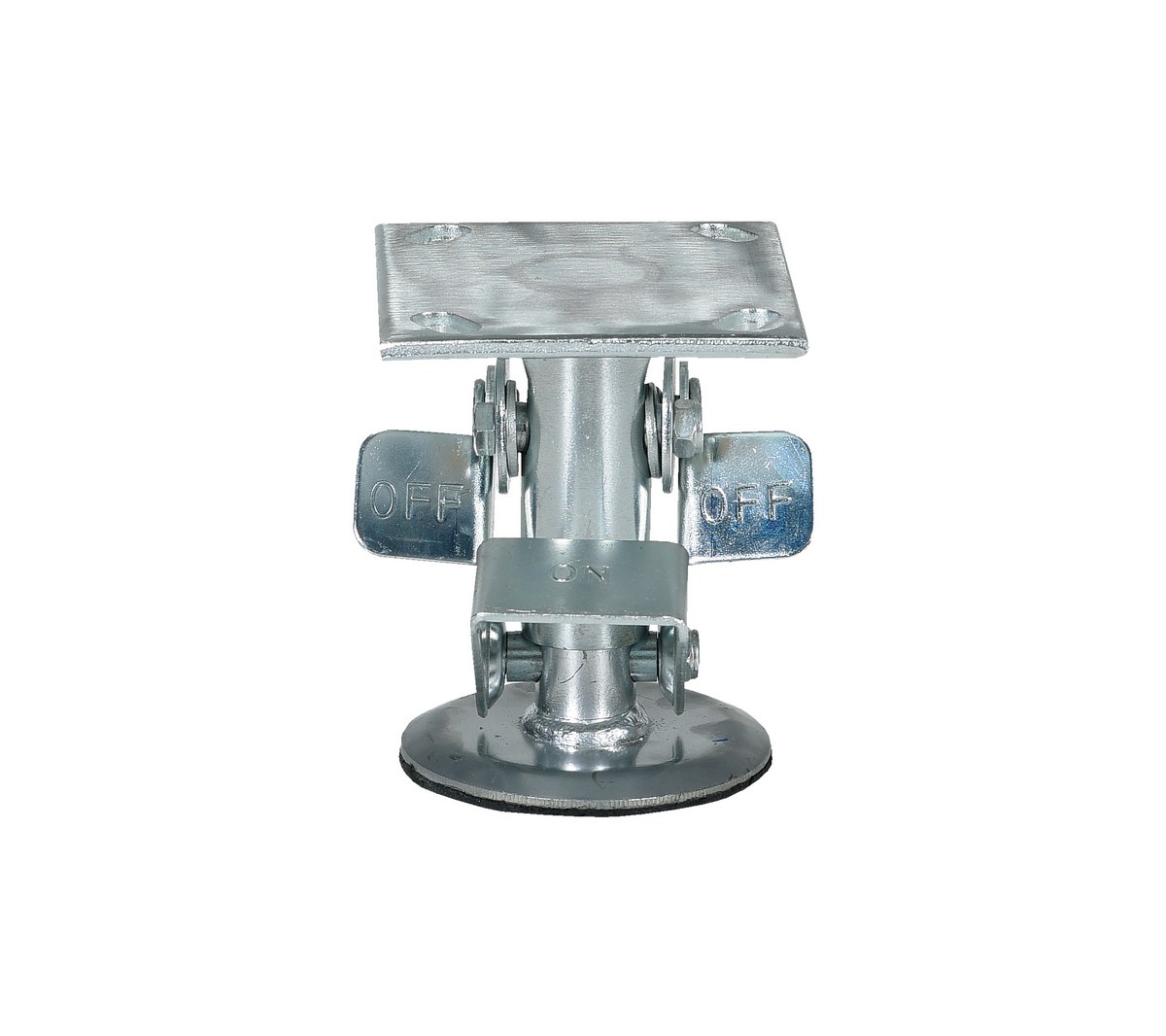

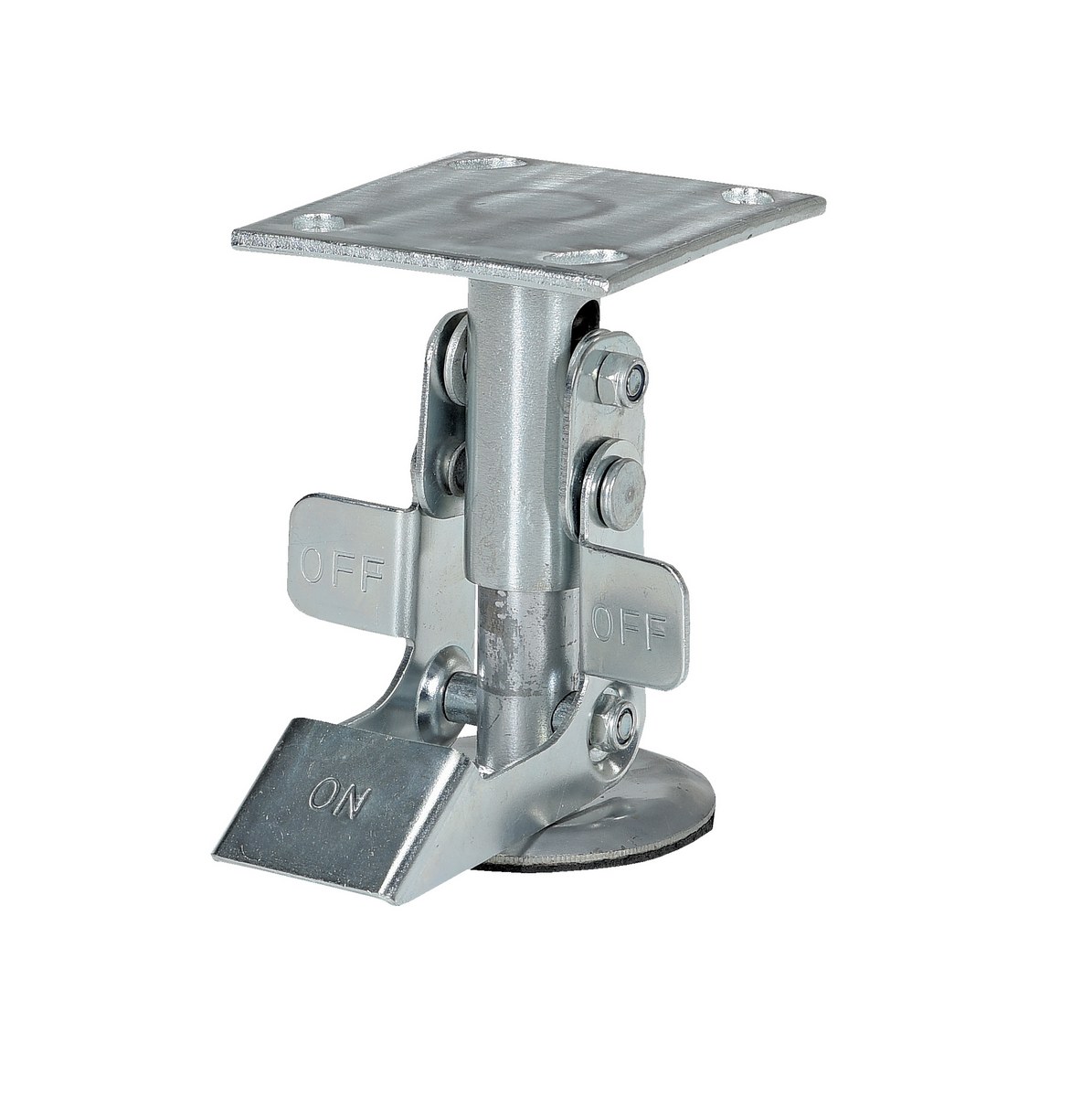

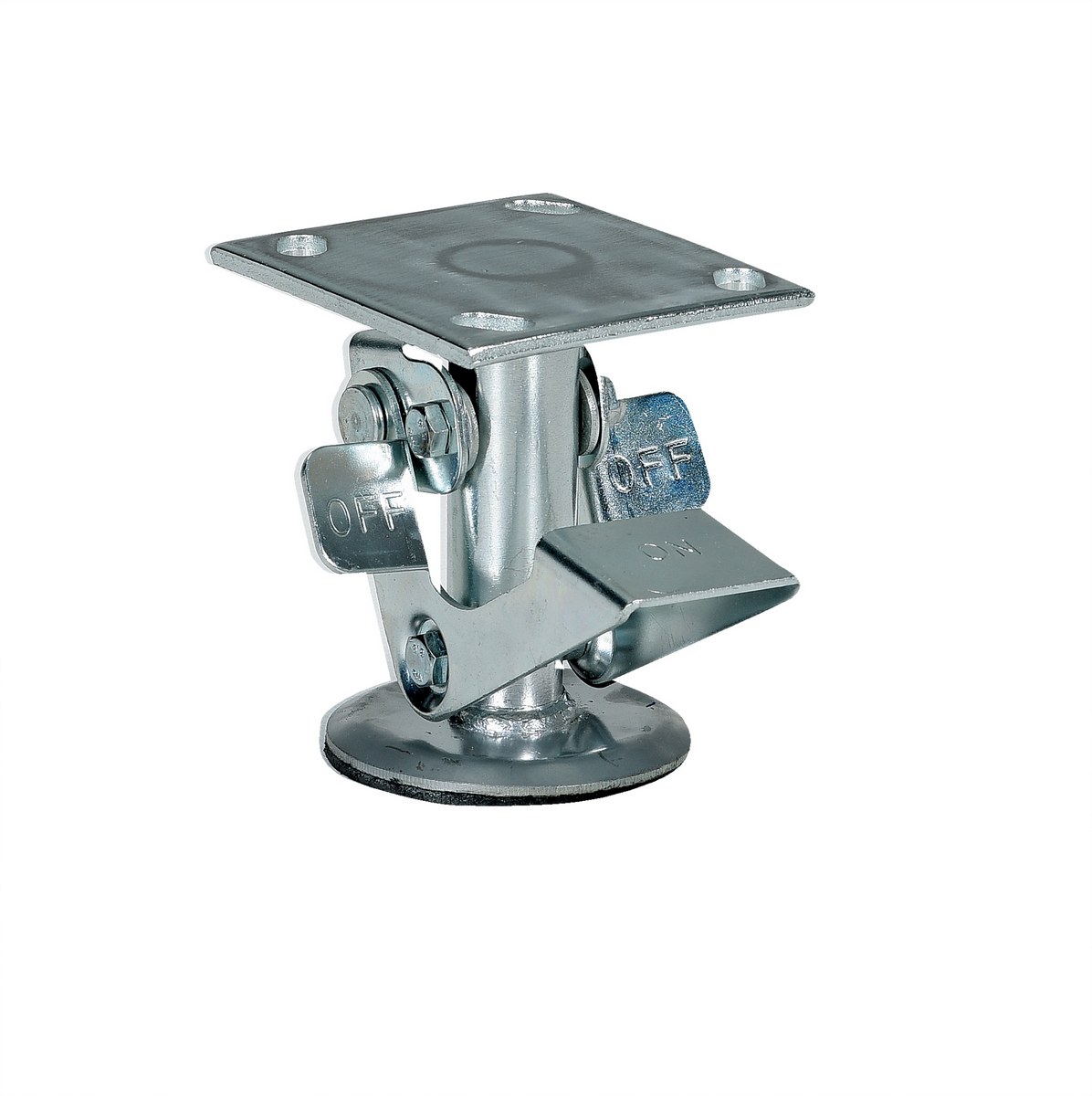

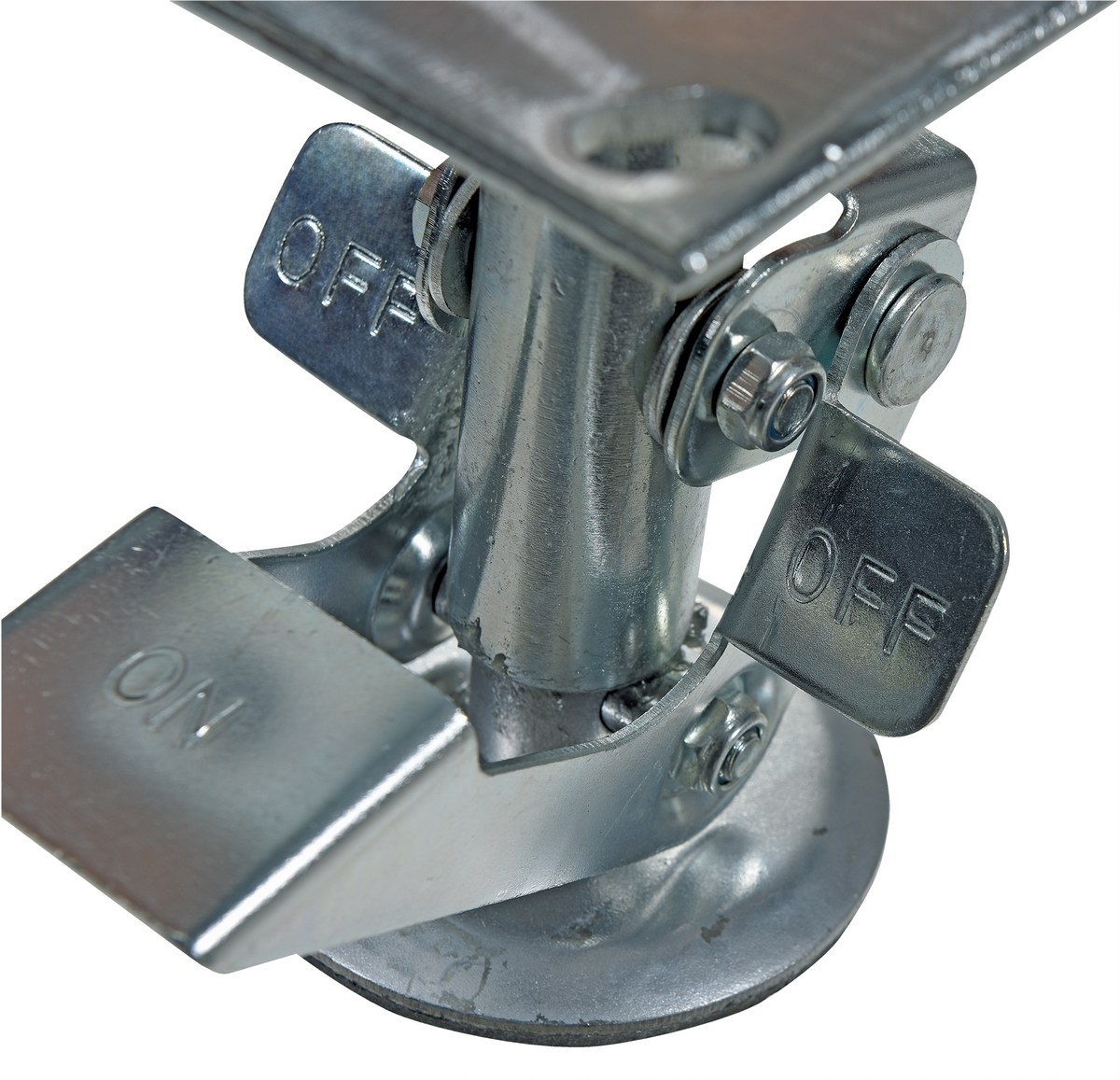

FL-LK-4E FL-LK-4E30 Days Limited WarrantySteel Top Mount Floor Lock 4-7/8 to 5-5/8 In. Height SilverCaster Diameter (in.): 4
Mount Height (in.): 5-5/8
4

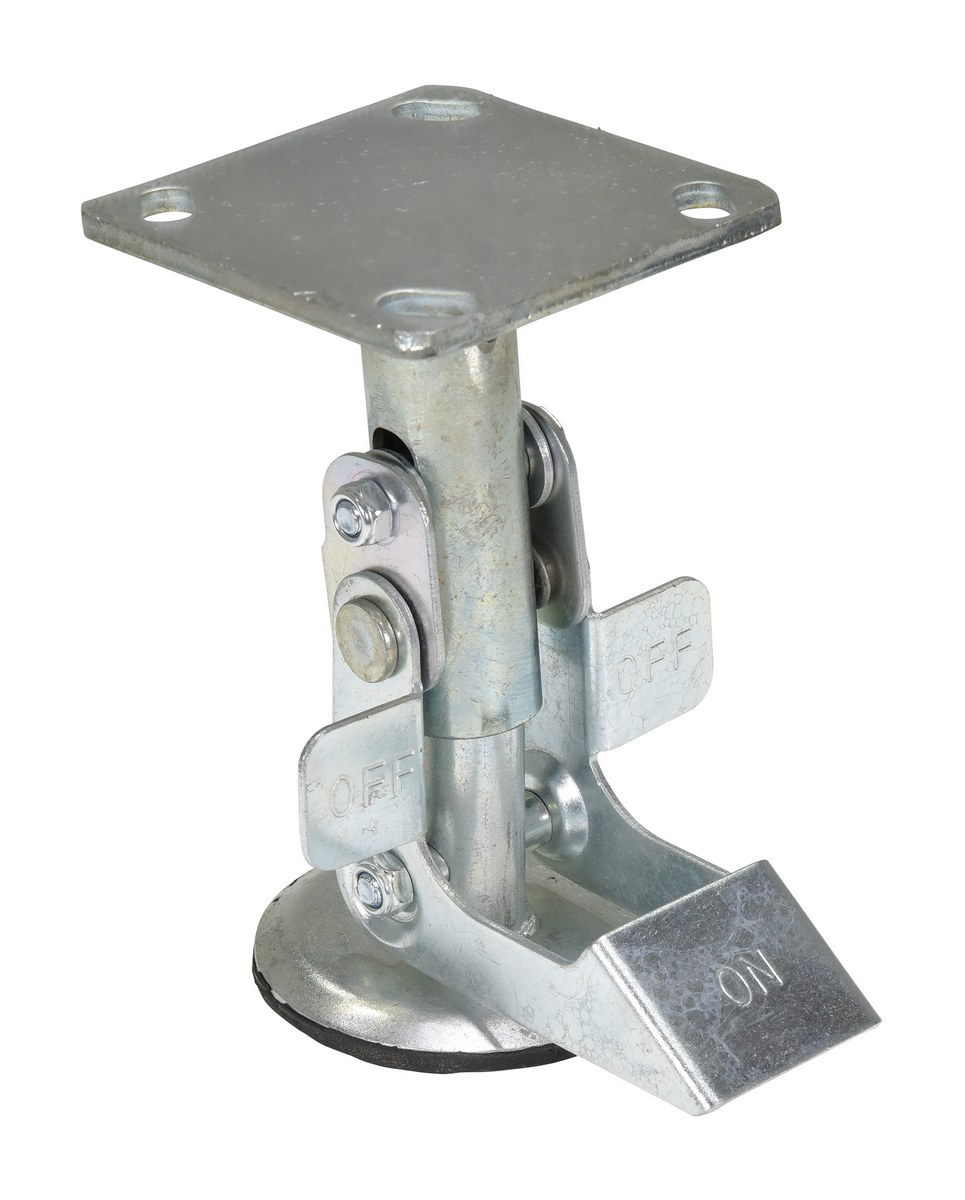

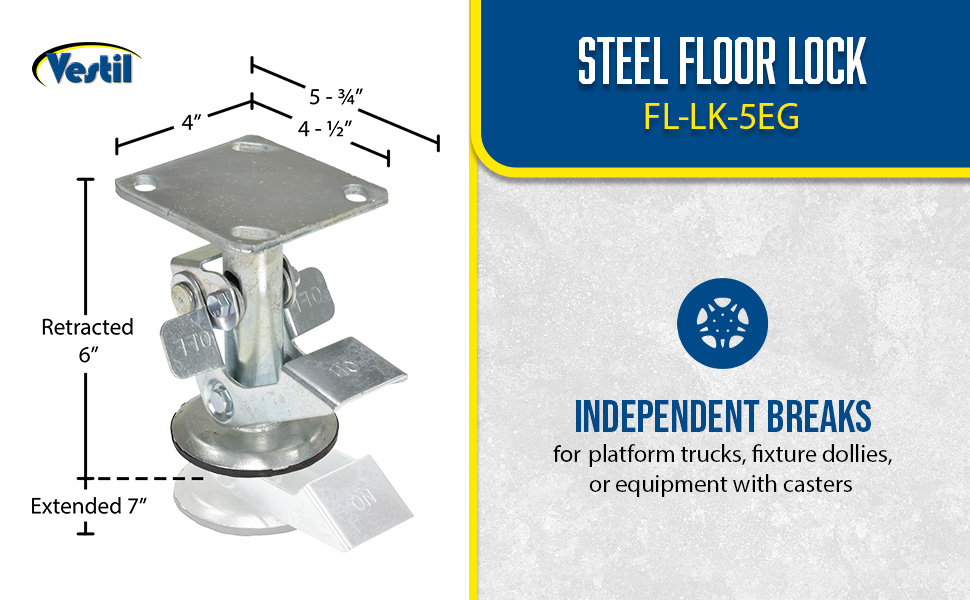

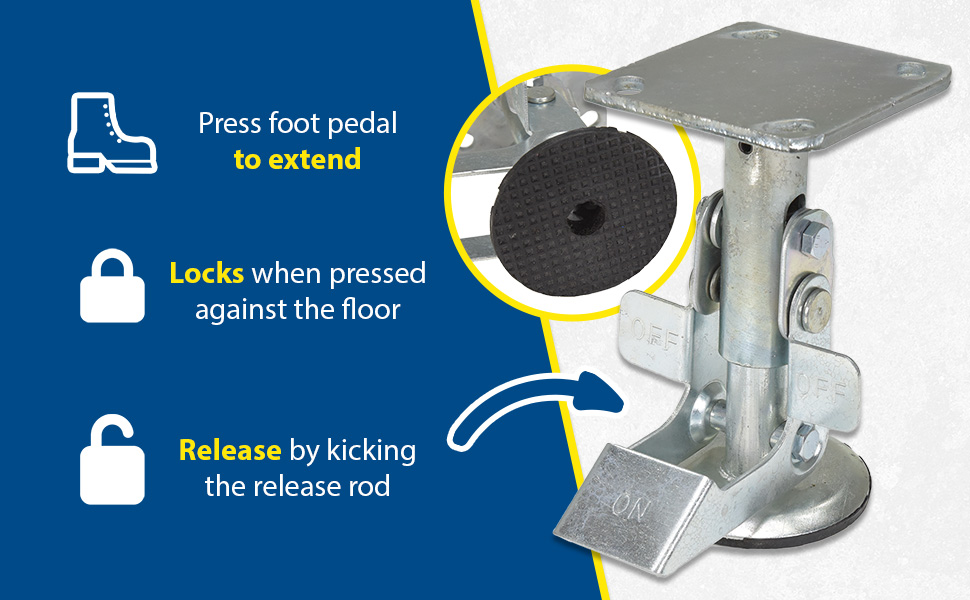

FL-LK-5EG FL-LK-5EG30 Days Limited WarrantySteel Top Mount Floor Lock 6 to 7 In. Height SilverMounting Height (in.): 7
Height Retracted (in.): 6
5
FL-LK-5X FL-LK-5X30 Days Limited WarrantySteel Top Mount Floor Lock 4-1/2 to 5-5/8 In. Height SilverMounting Height (in.): 5-5/8
Retracted Height (in.): 4-1/2
9

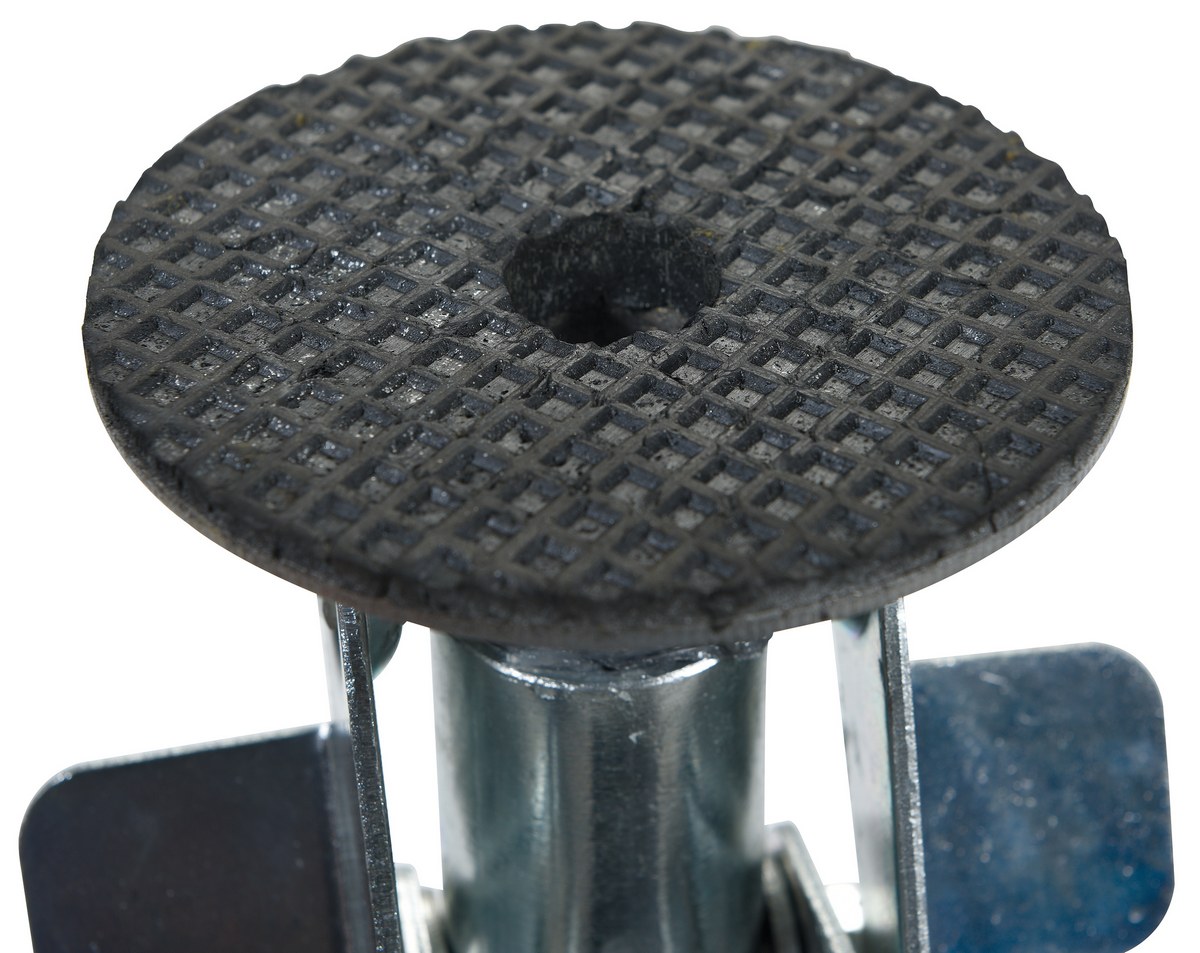

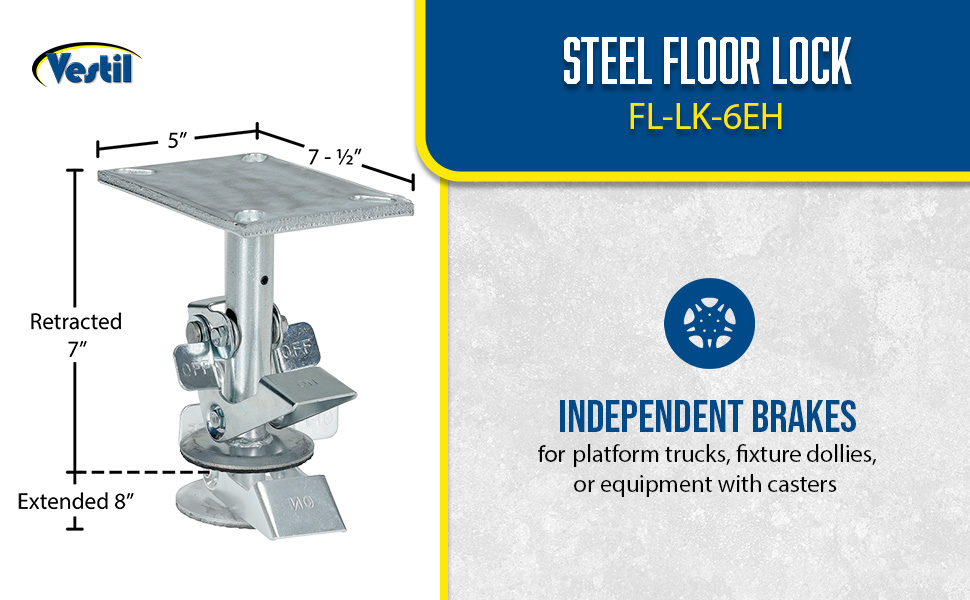

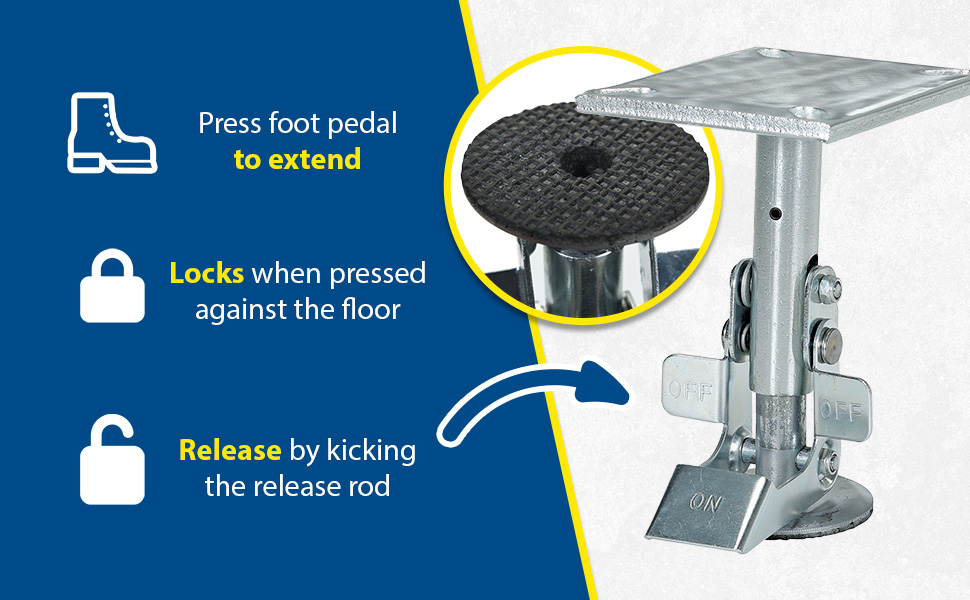

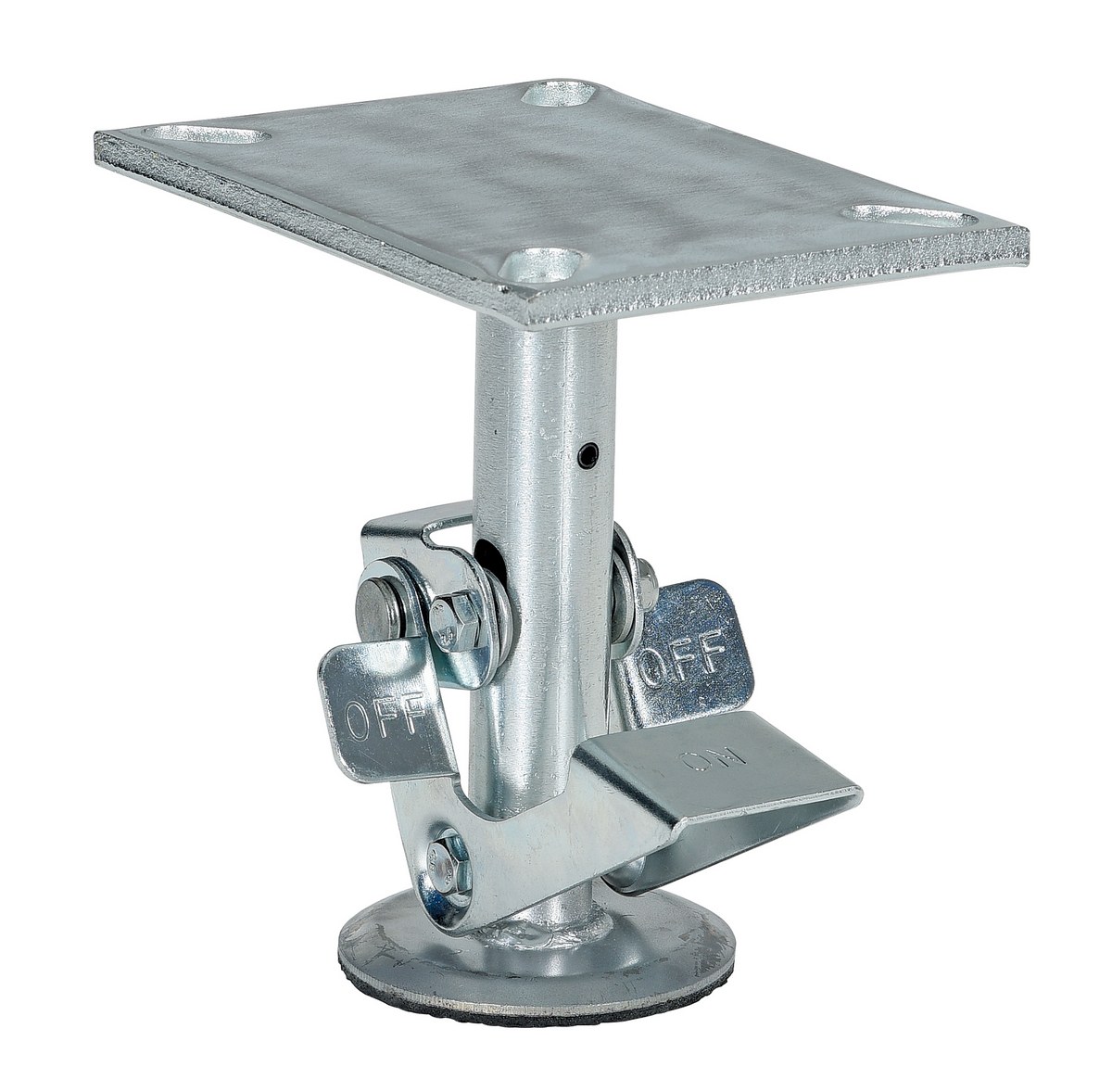

FL-LK-6EH FL-LK-6EH30 Days Limited WarrantySteel Top Mount Floor Lock 7 to 8 In. Height SilverMounting Height (in.): 8
Retracted Height (in.): 7
7

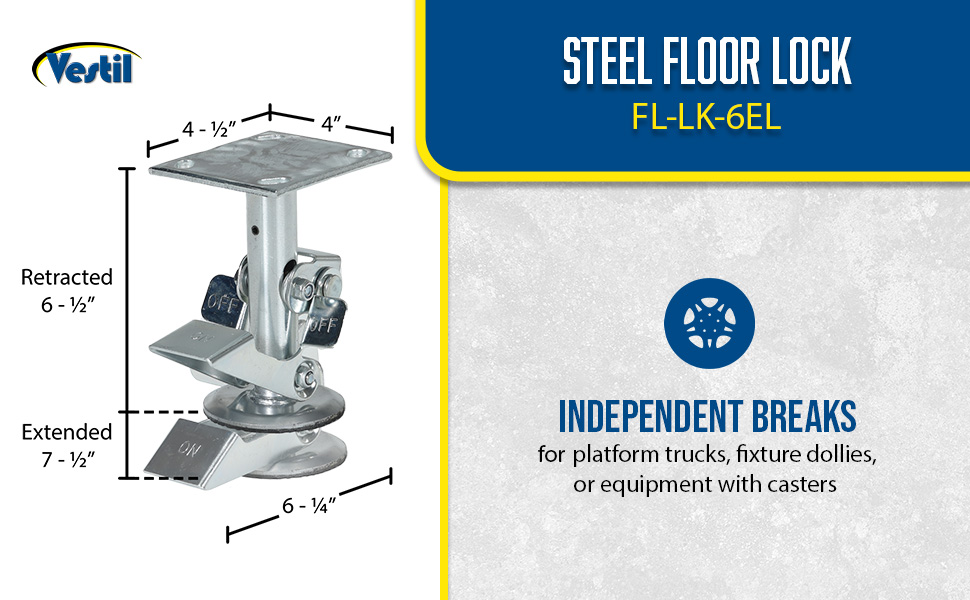

FL-LK-6EL FL-LK-6EL30 Days Limited WarrantyGalvanized Steel Top Mount Floor Lock 6-1/2 to 7-1/4 In. Height GrayMounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/2
4

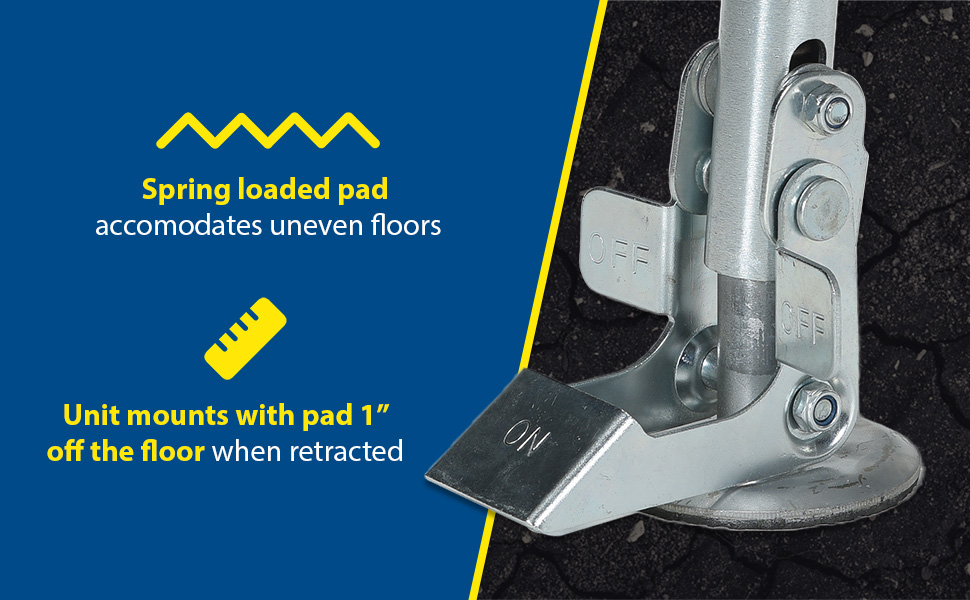

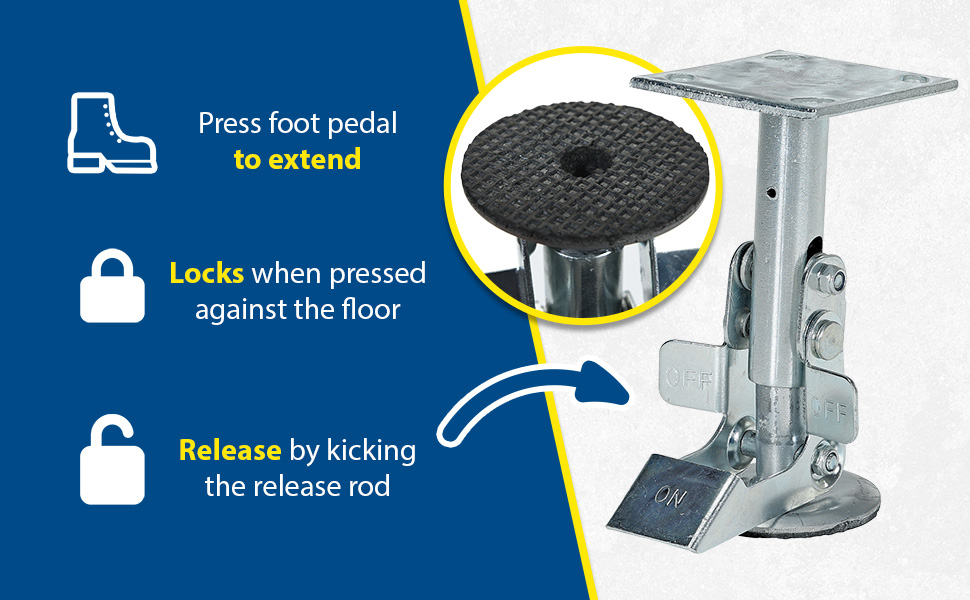

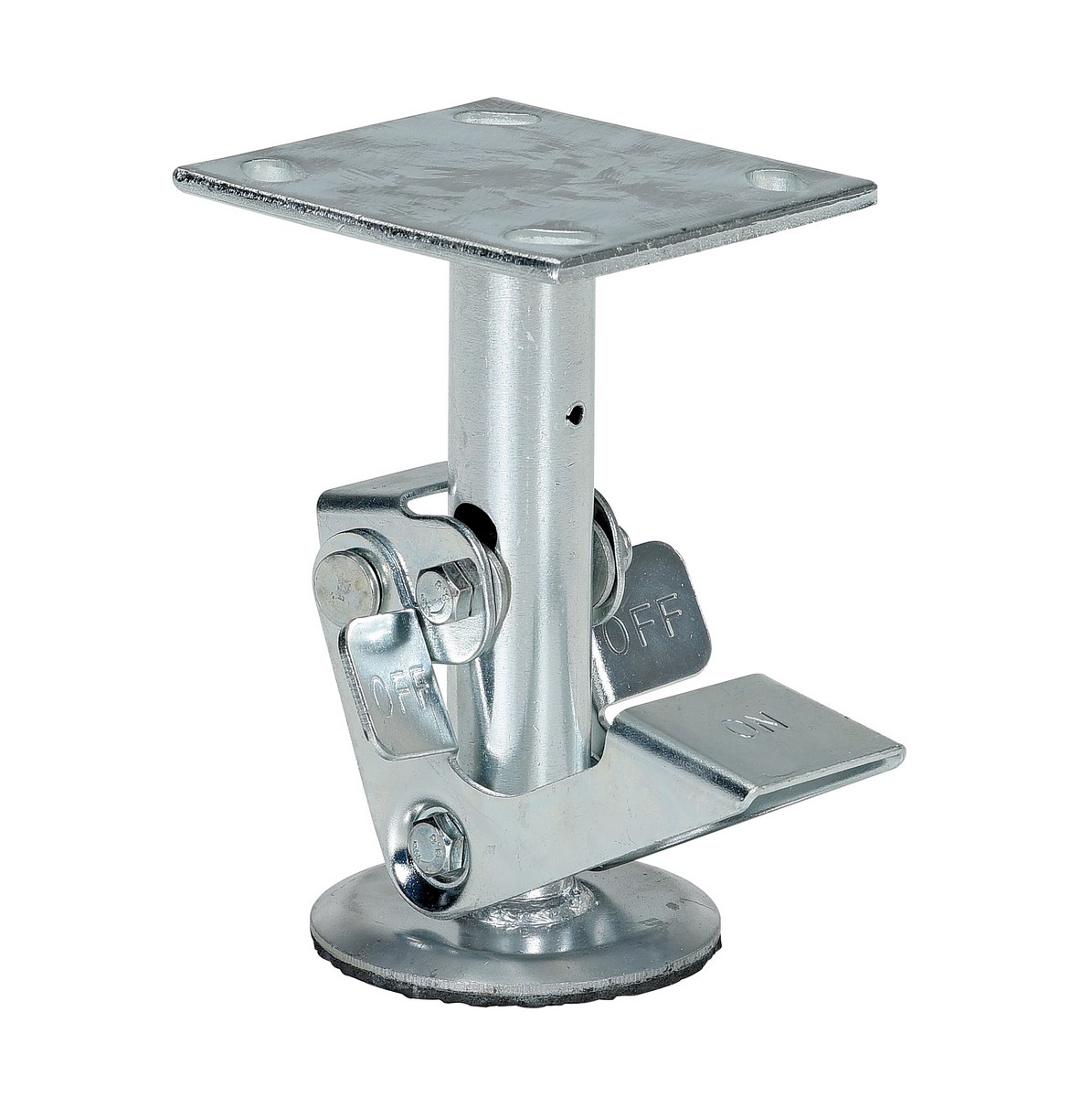

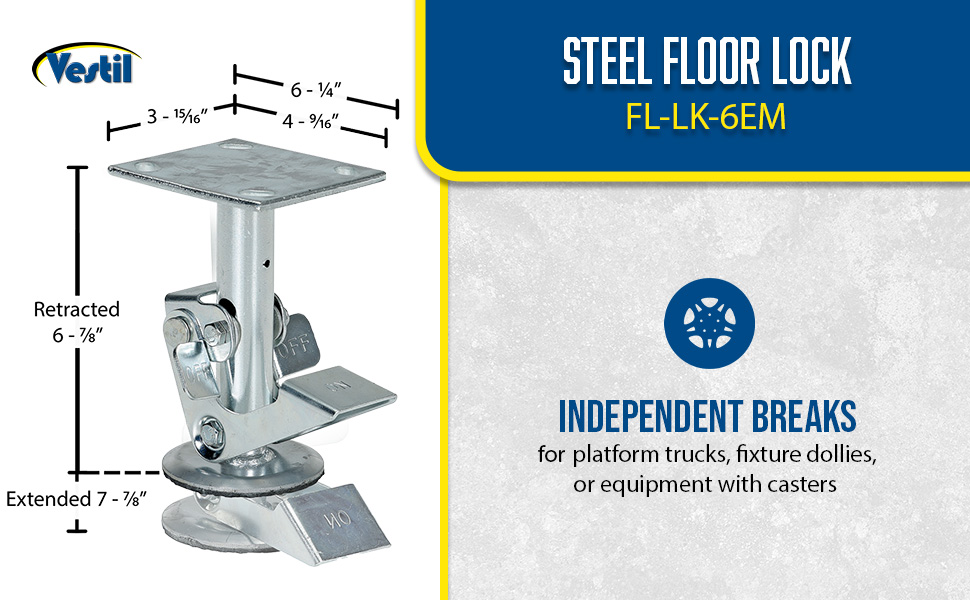

FL-LK-6EM FL-LK-6EM30 Days Limited WarrantySteel Top Mount Floor Lock 6-7/8 to 7-1/2 In. Height SilverMounting Height (in.): 7-1/2
Retracted Height (in.): 6-7/8
4
FL-LK-7G FL-LK-7G30 Days Limited WarrantySteel Top Mount Floor Lock 6-1/4 to 7-3/4 In. Height SilverMounting Height (in.): 7-3/4
Retracted Height (in.): 6-1/4
11

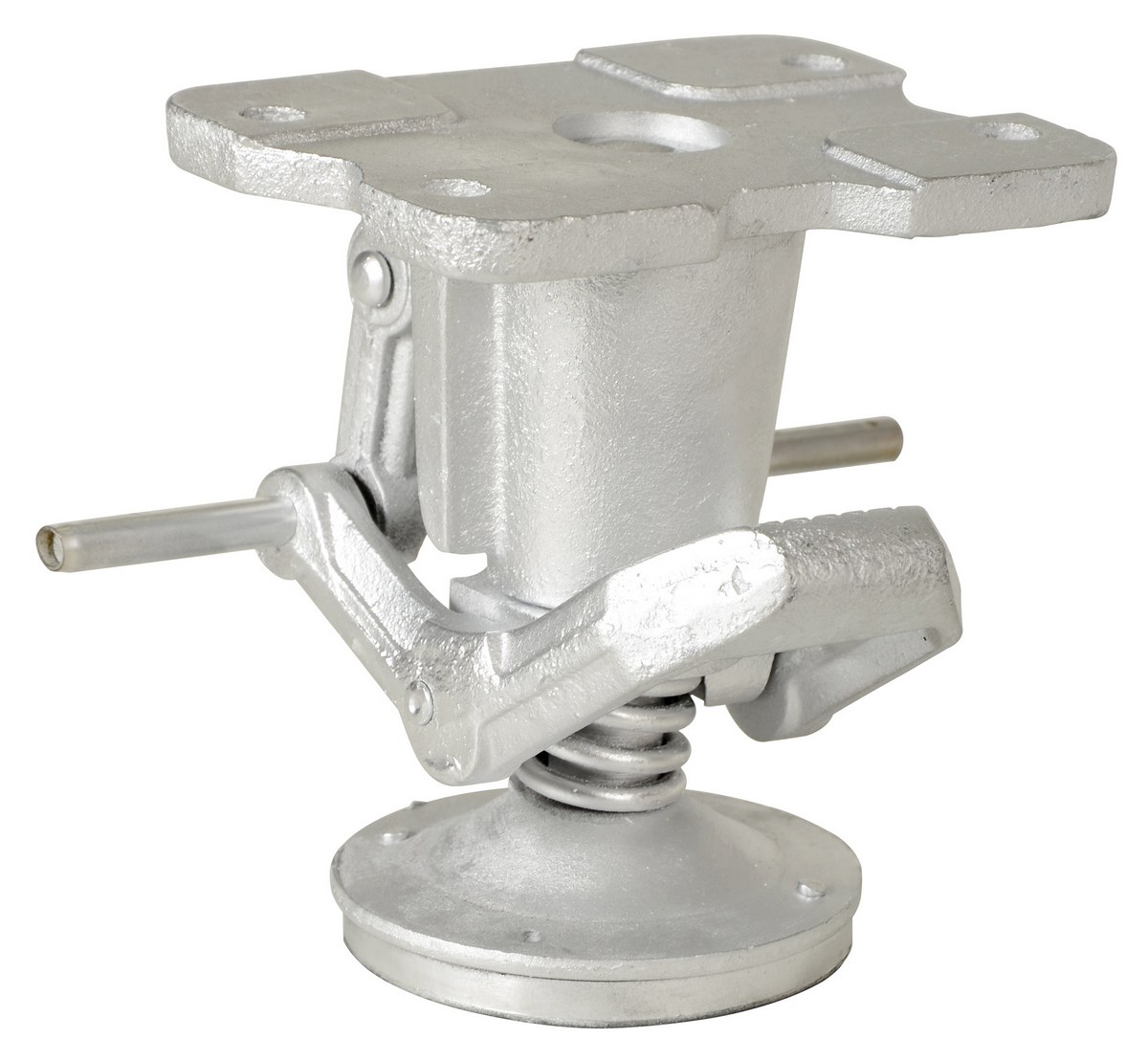

FL-LK-7X FL-LK-7X30 Days Limited WarrantySteel Floor Lock 6-1/4 to 7-1/4 In. Height SilverMounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/4
11

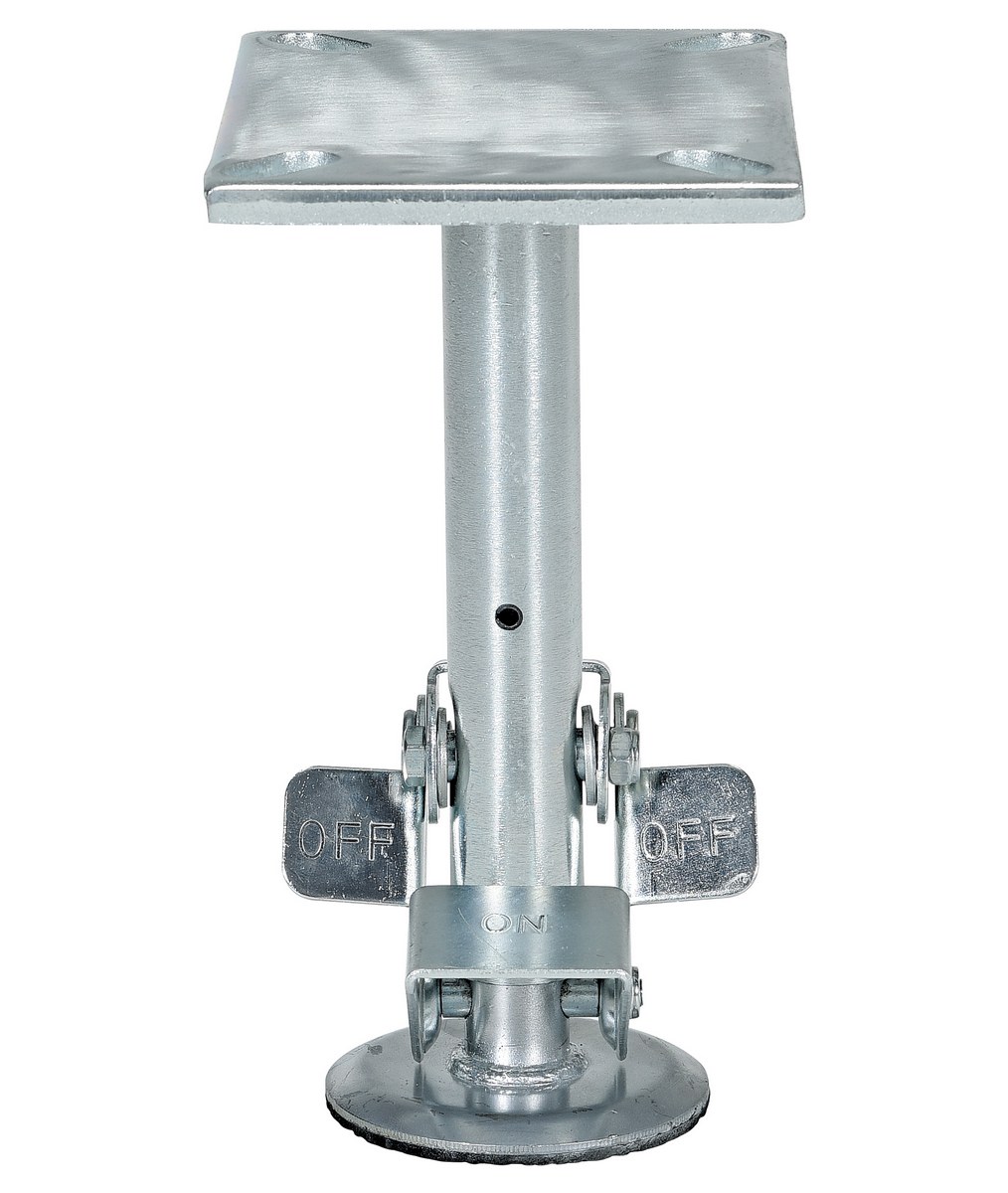

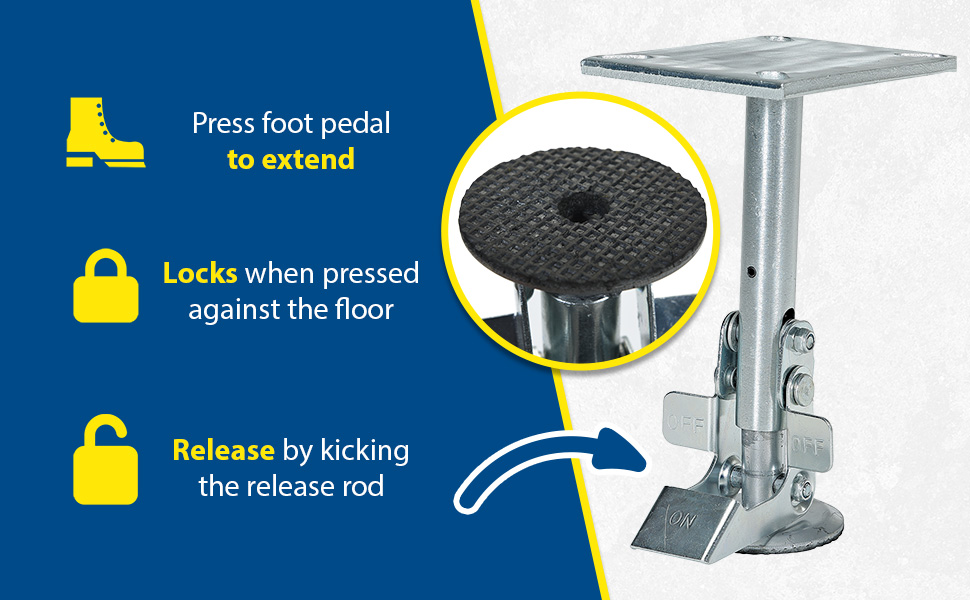

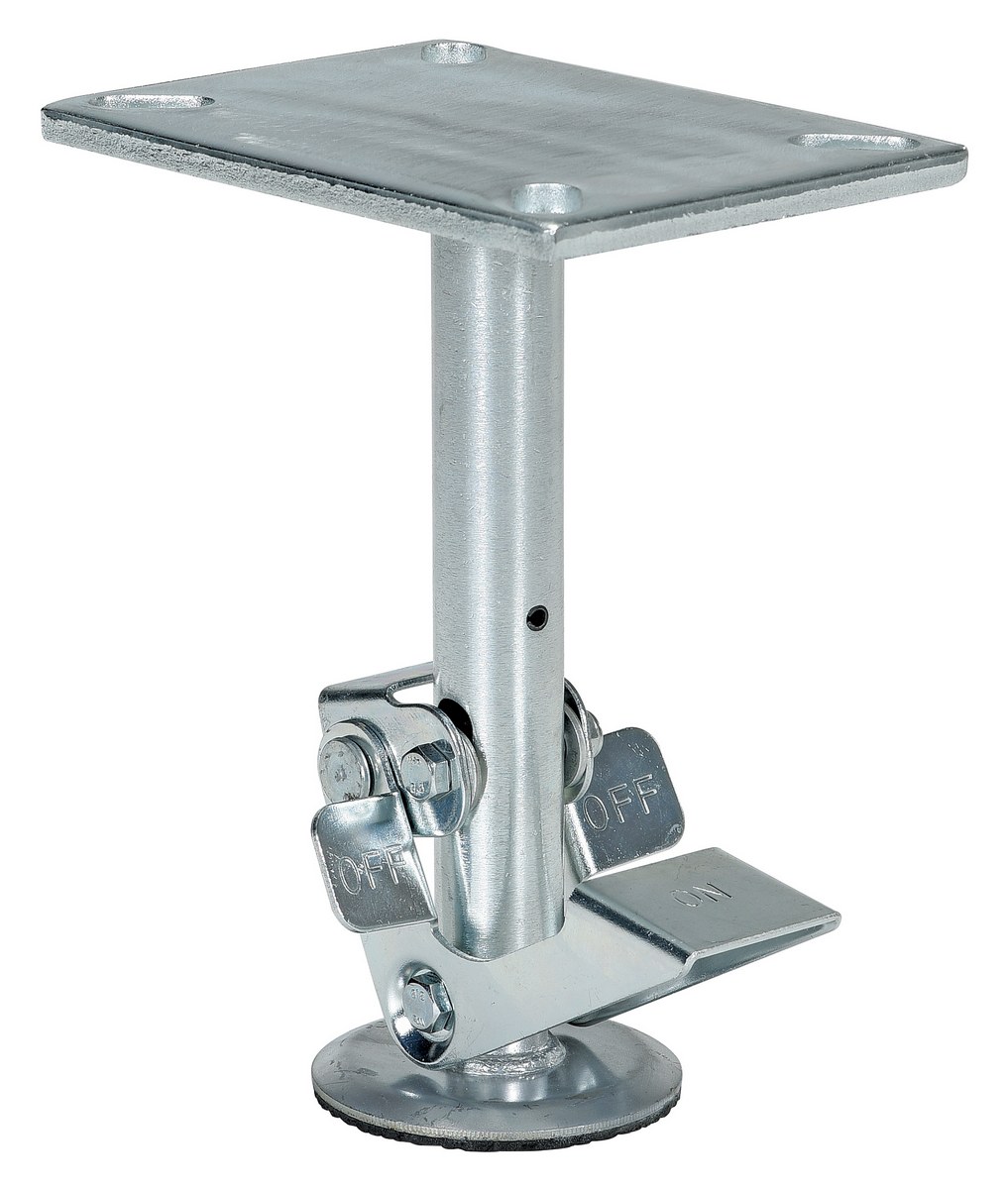

FL-LK-8EH FL-LK-8EH30 Days Limited WarrantySteel Floor Lock 9-1/2 to 10-1/8 In. Height SilverMounting Height (in.): 10-1/2
Retracted Height (in.): 9-5/8
7

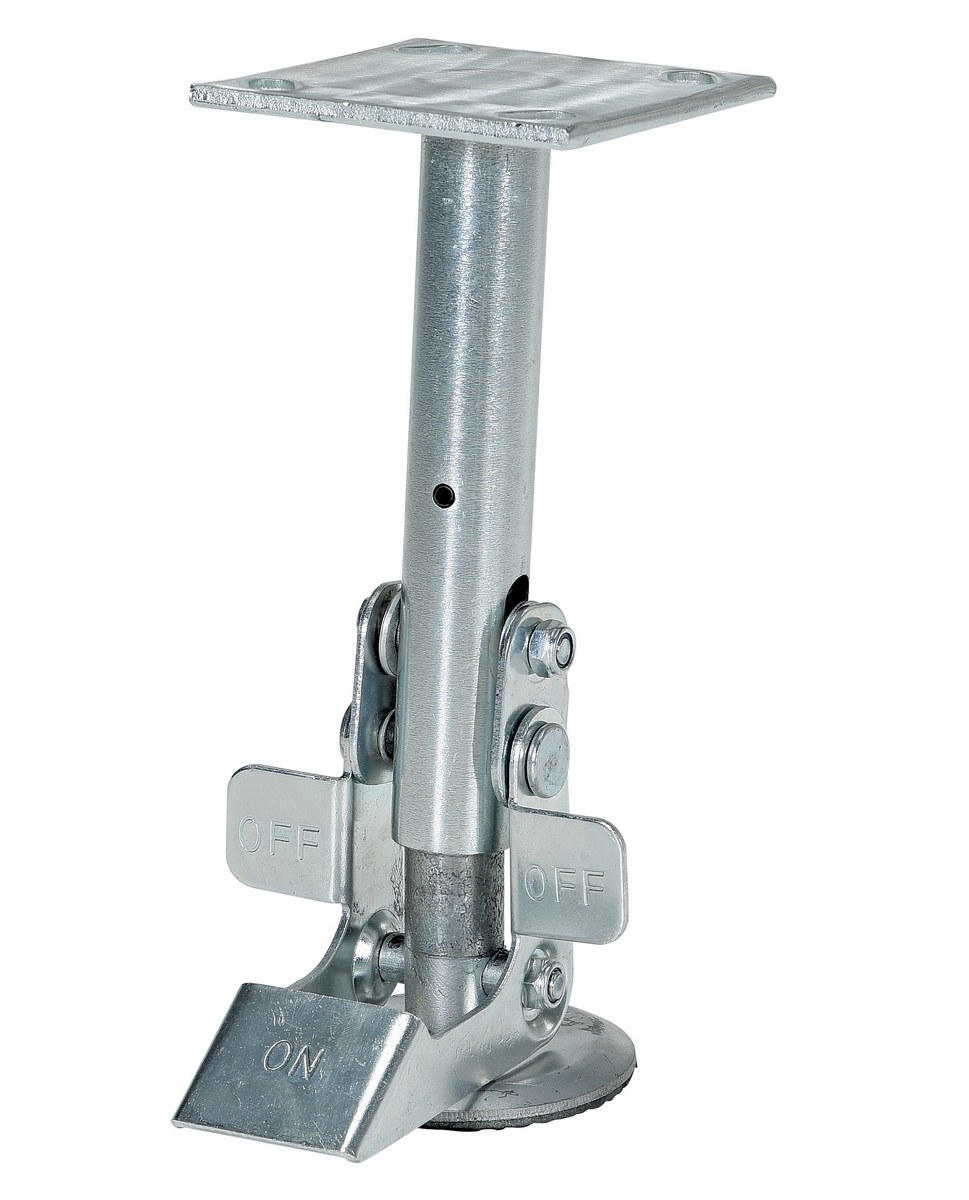

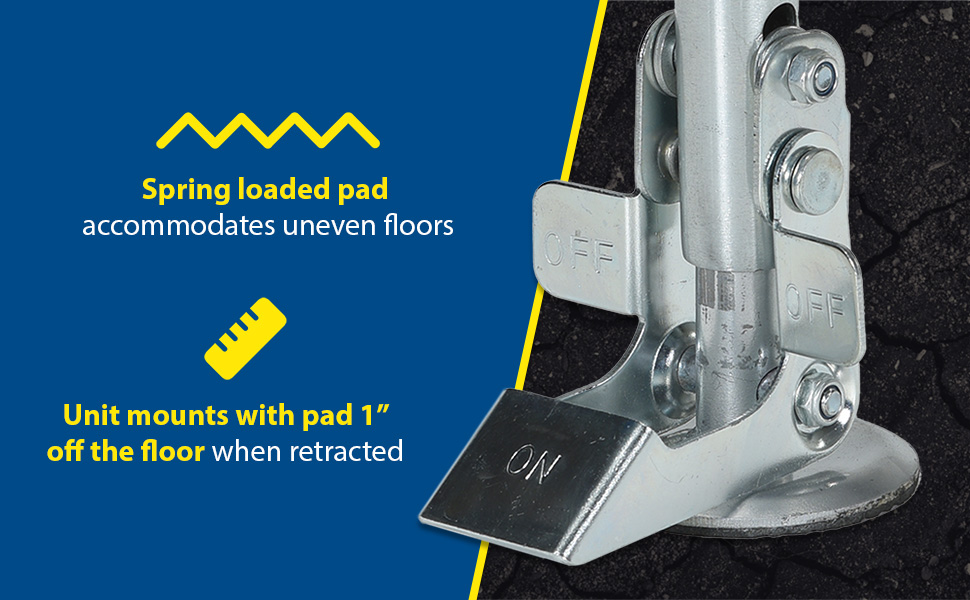

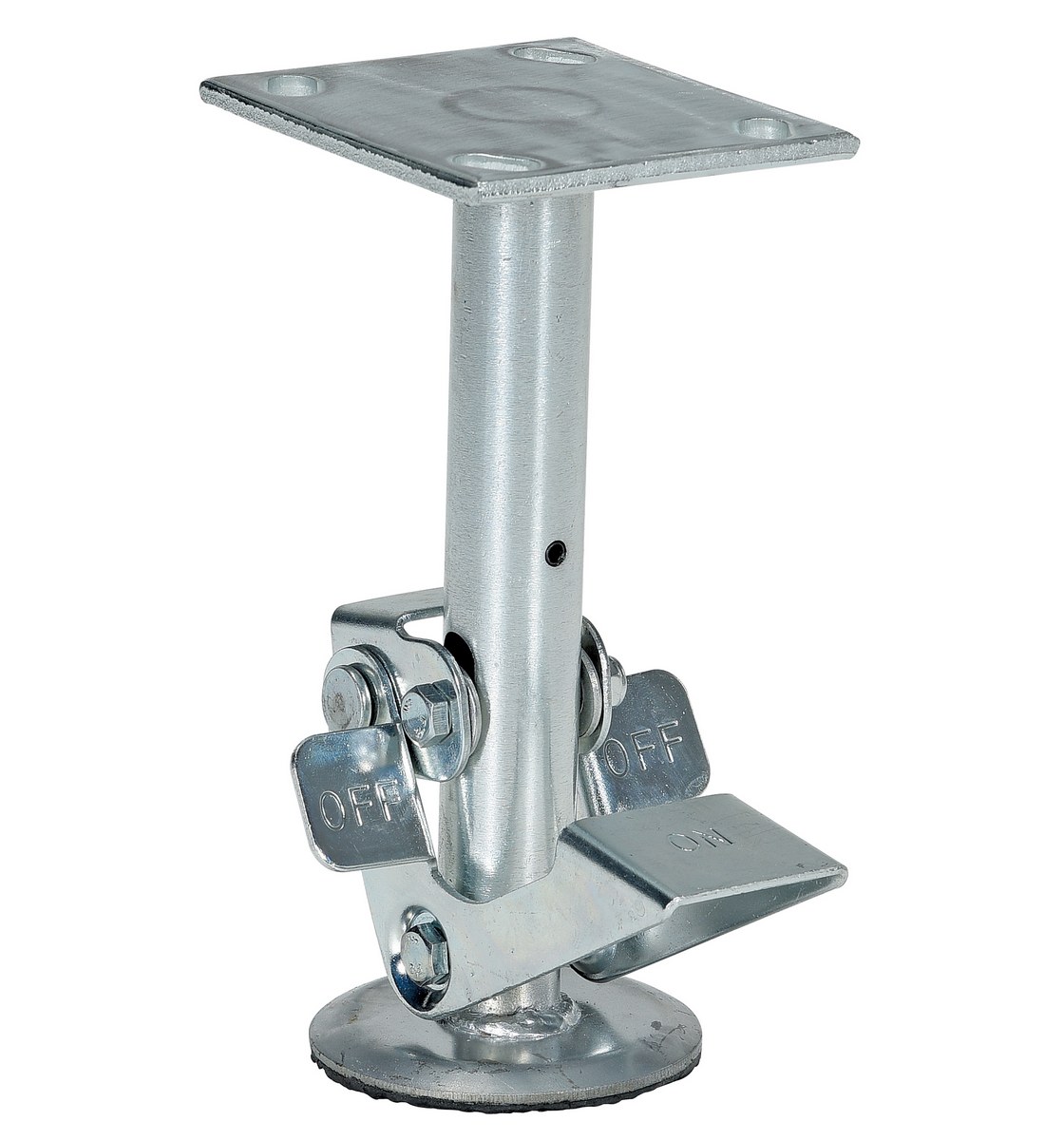

FL-LK-8EL FL-LK-8EL30 Days Limited WarrantySteel Floor Lock 9-1/2 to 8-3/4 In. Height SilverMounting Height (in.): 9-1/2
Retracted Height (in.): 8-3/4
4

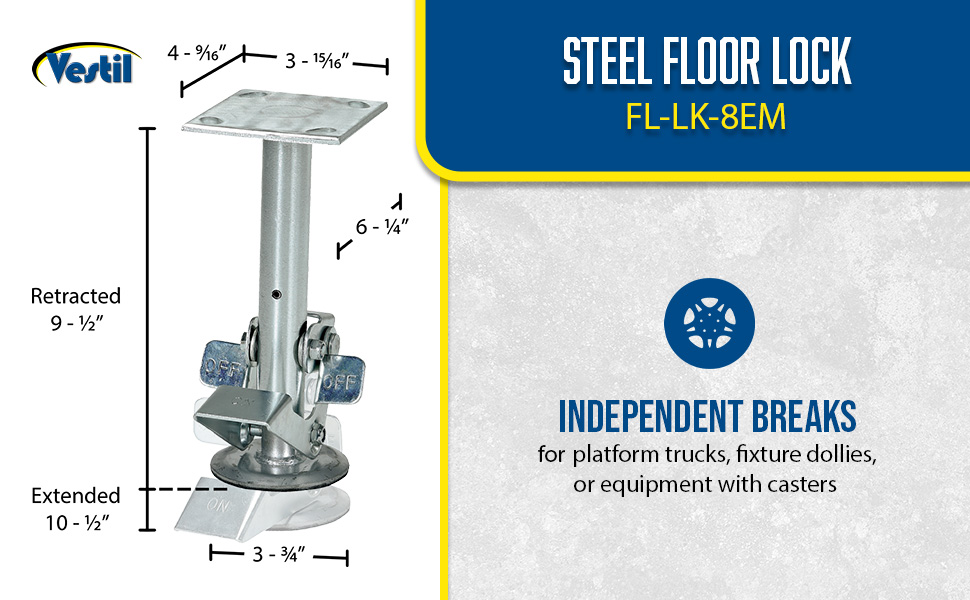

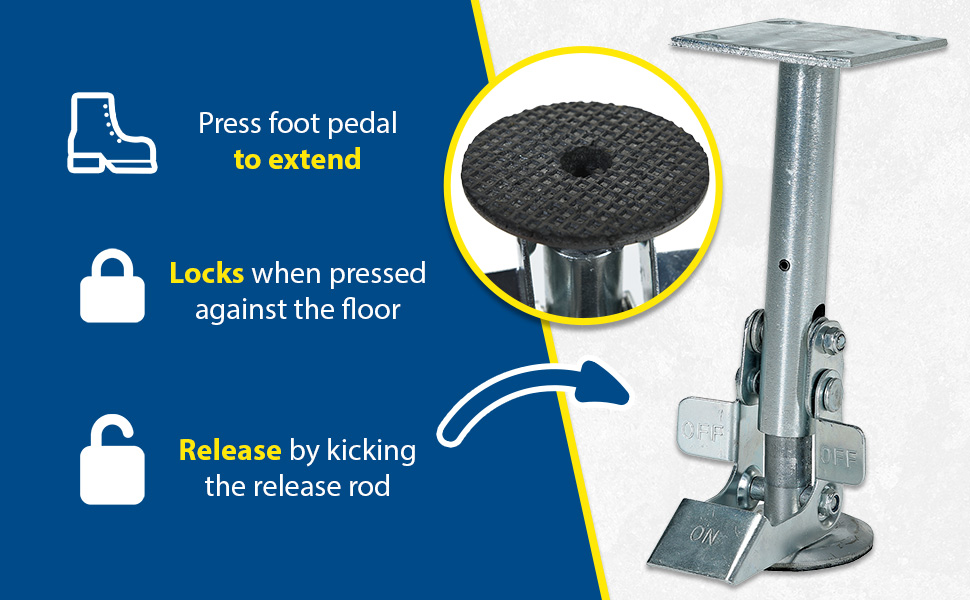

FL-LK-8EM FL-LK-8EM30 Days Limited WarrantySteel Floor Lock 9-1/2 to 10-1/8 In. Height SilverMounting Height (in.): 10-1/8
Retracted Height (in.): 9-1/2
5

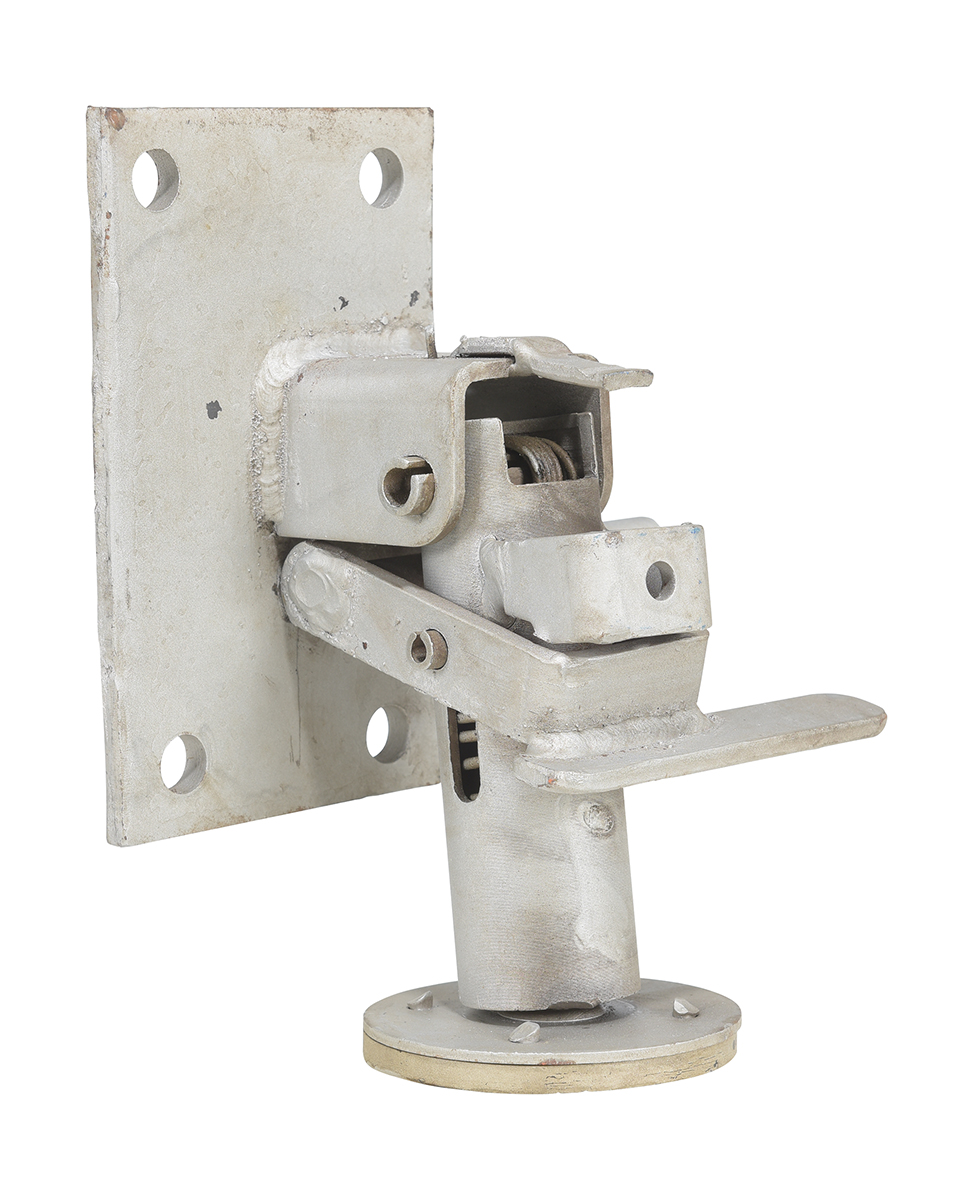

FL-LK-S FL-LK-S30 Days Limited WarrantySteel Floor Lock 7 In. to 8-3/16 In. Height SilverMounting Height (in.): 8-3/16
Retracted Height (in.): 7
6

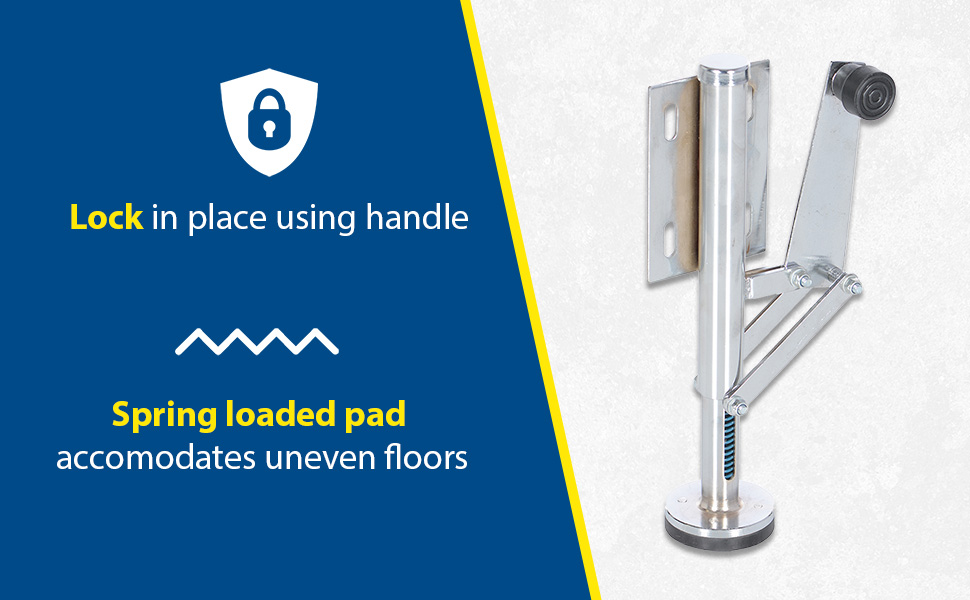

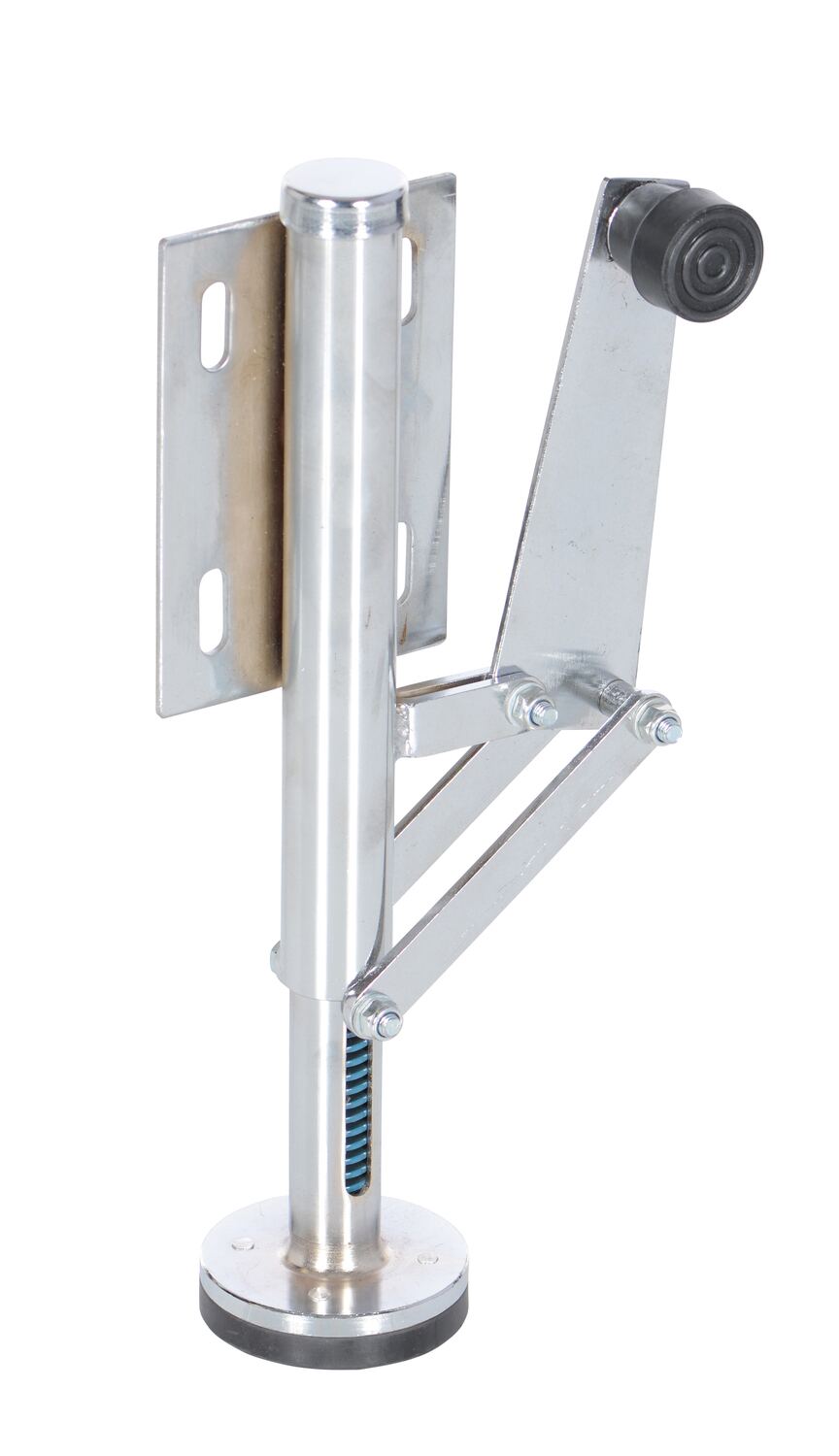

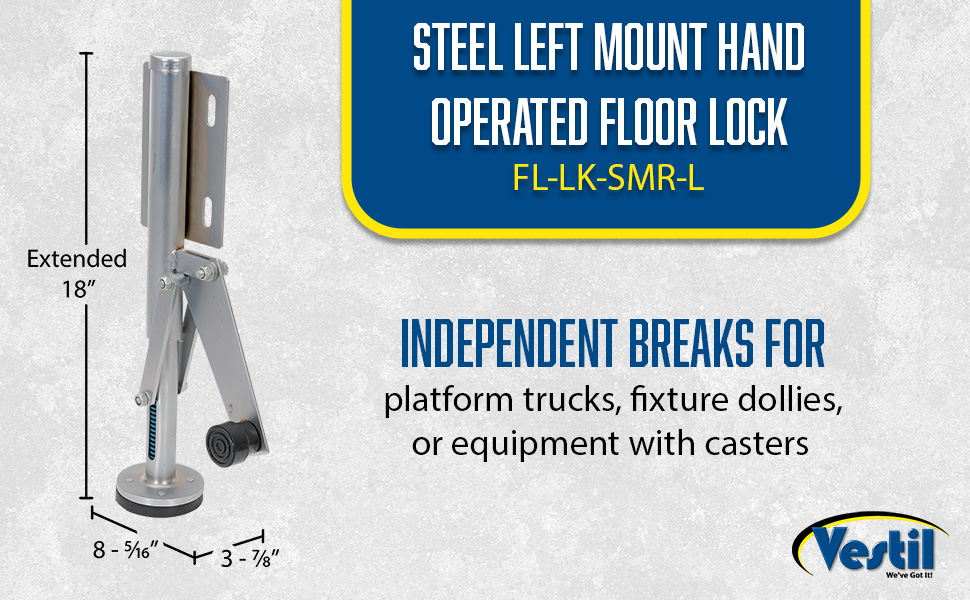

FL-LK-SMR-L FL-LK-SMR-L30 Days Limited WarrantySteel Left Mount Floor Lock 10 to 12 In. Height SilverMounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
9

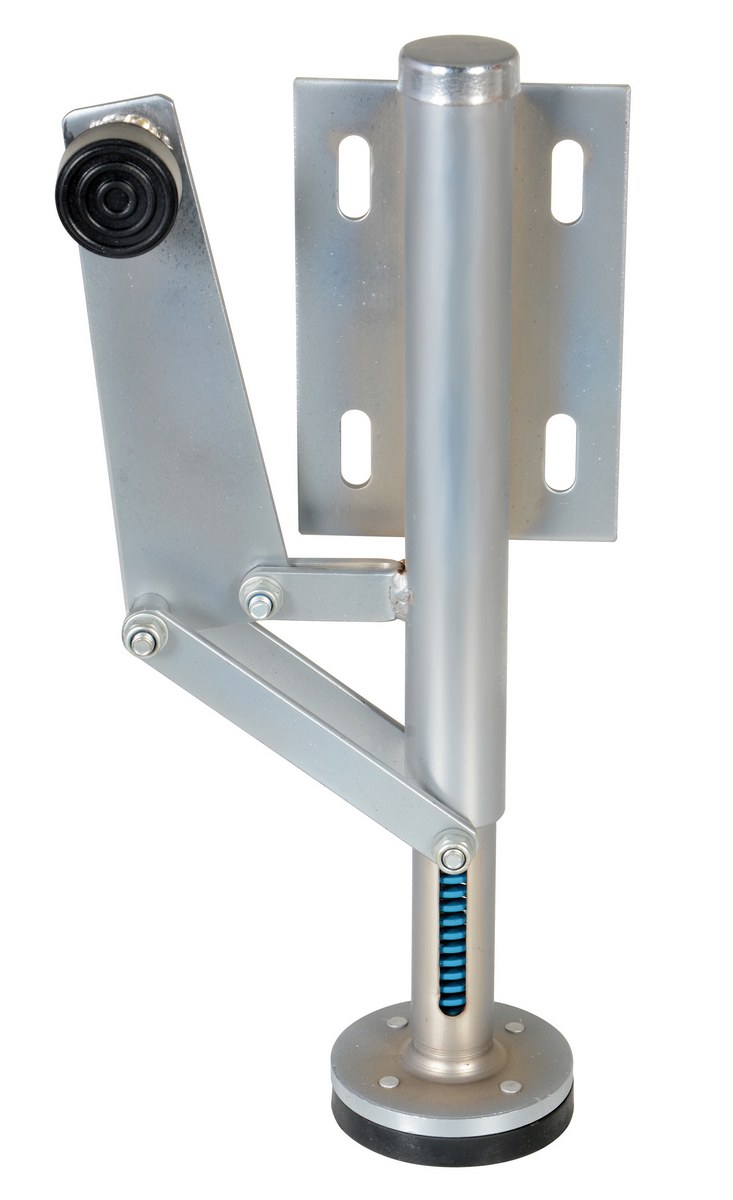

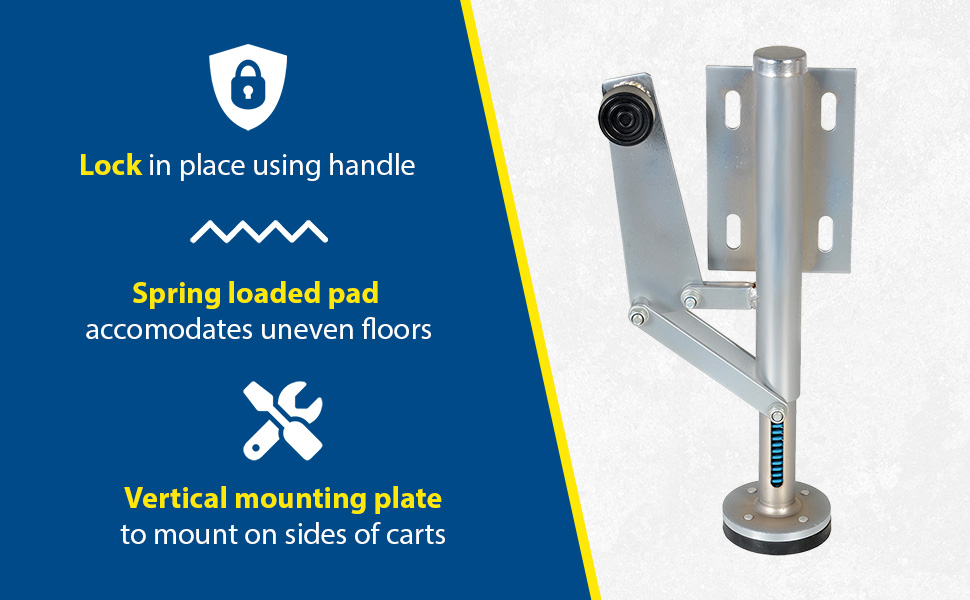

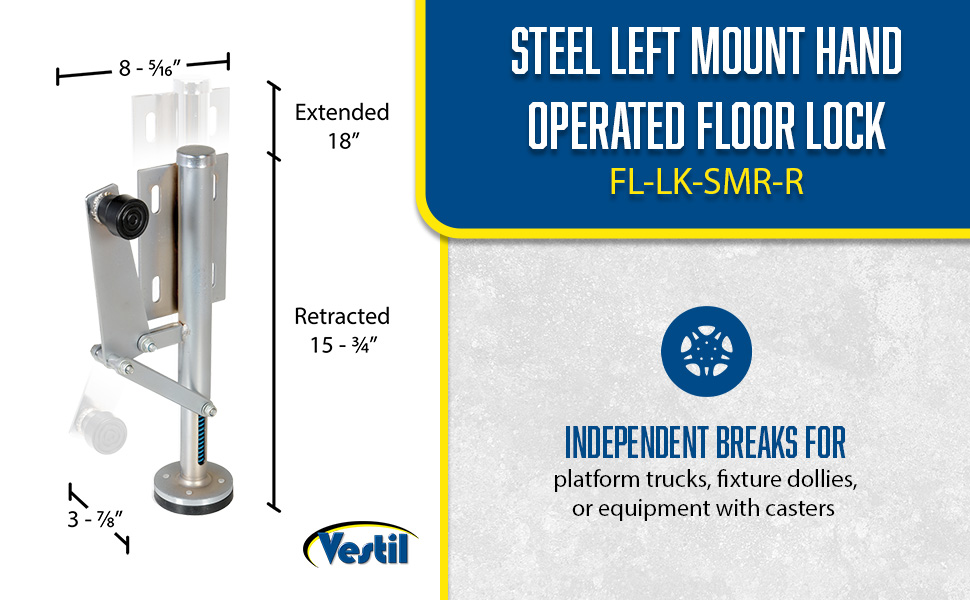

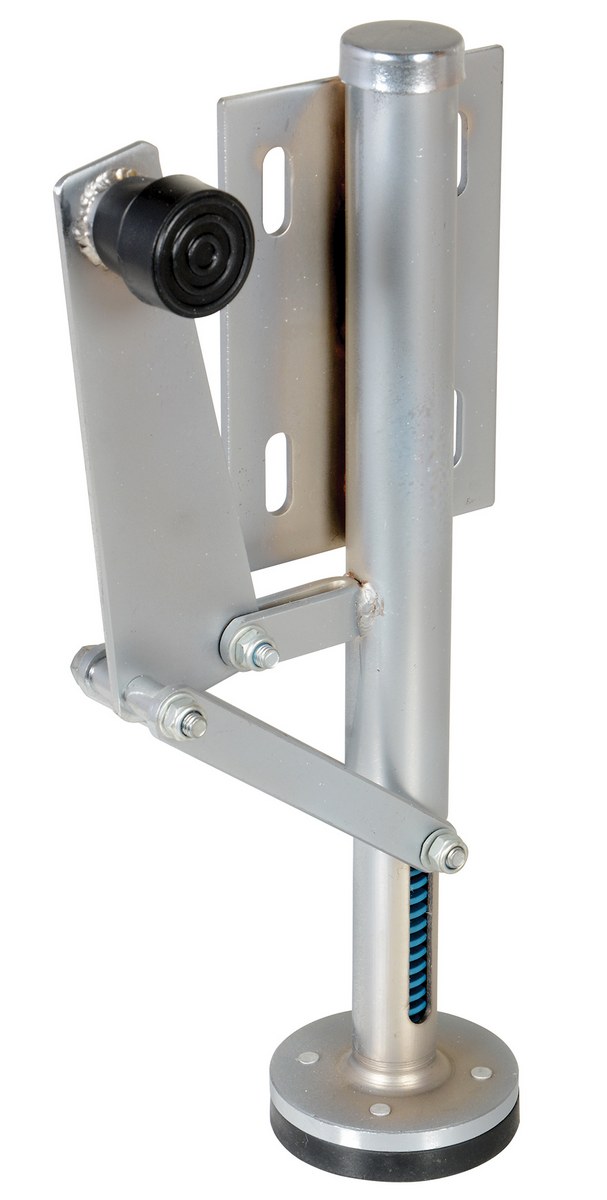

FL-LK-SMR-R FL-LK-SMR-R30 Days Limited WarrantySteel Right Mount Floor Lock 10 to 12 In. Height SilverMounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
9

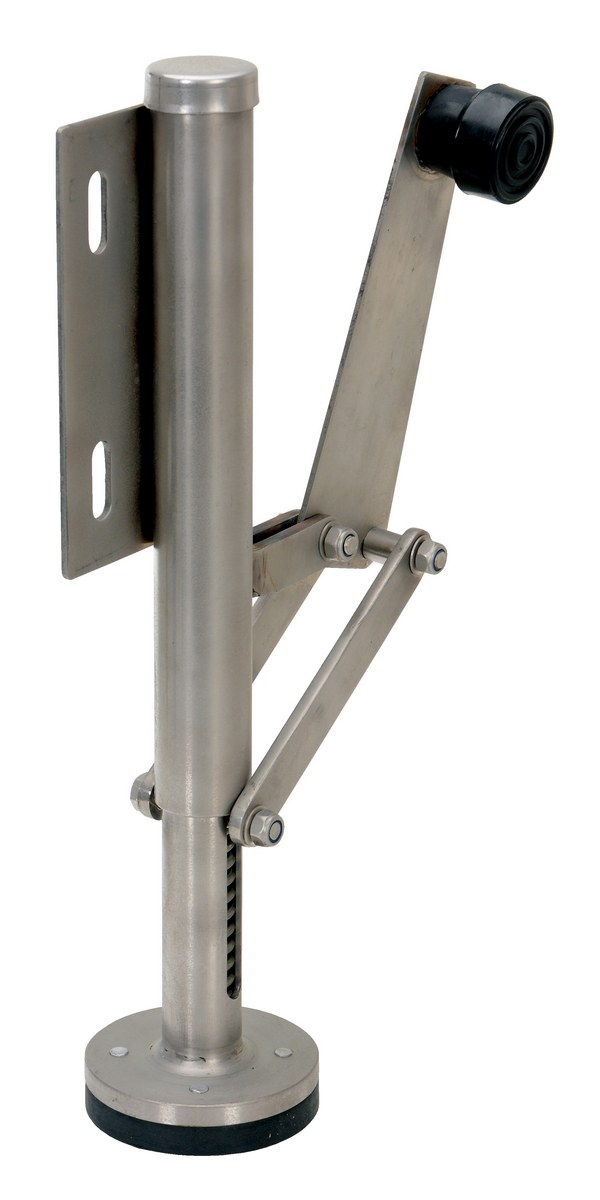

FL-LK-SMR-SS-L FL-LK-SMR-SS-L30 Days Limited WarrantyStainless Steel Left Mount Floor Lock 10 to 12 In. Height SilverMounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
9

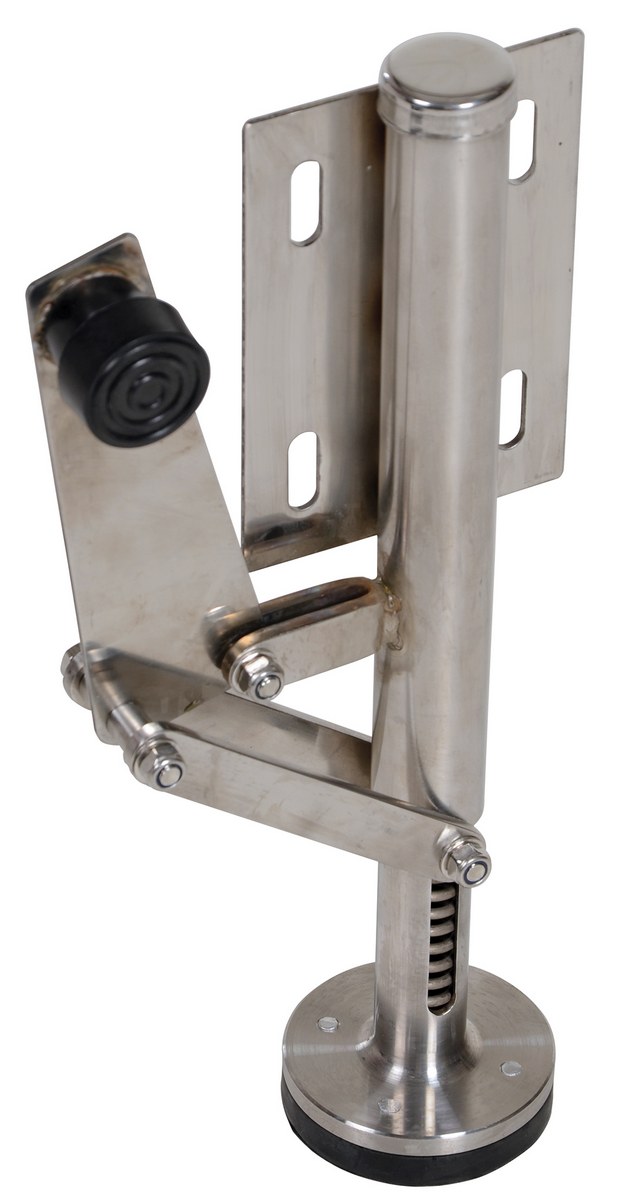

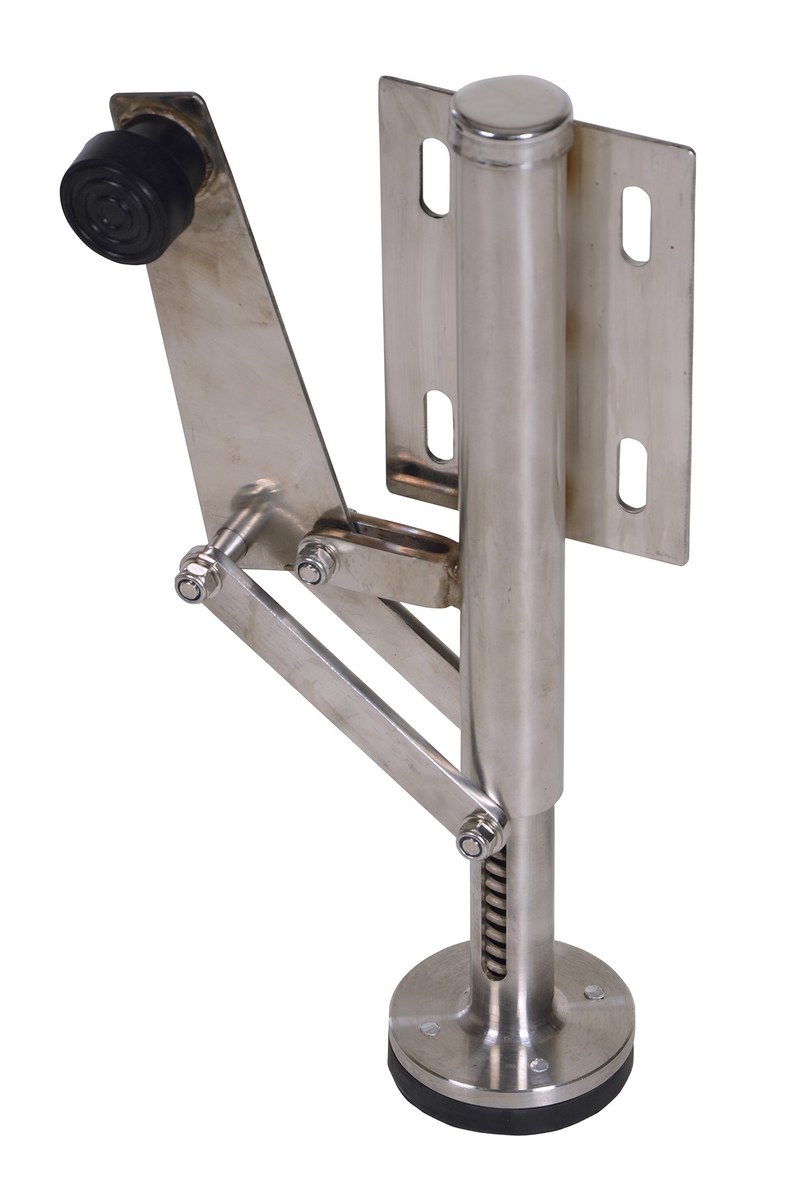

FL-LK-SMR-SS-R FL-LK-SMR-SS-R30 Days Limited WarrantyStainless Steel Right Mount Floor Lock 10 to 12 In. Height SilverMounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
9

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

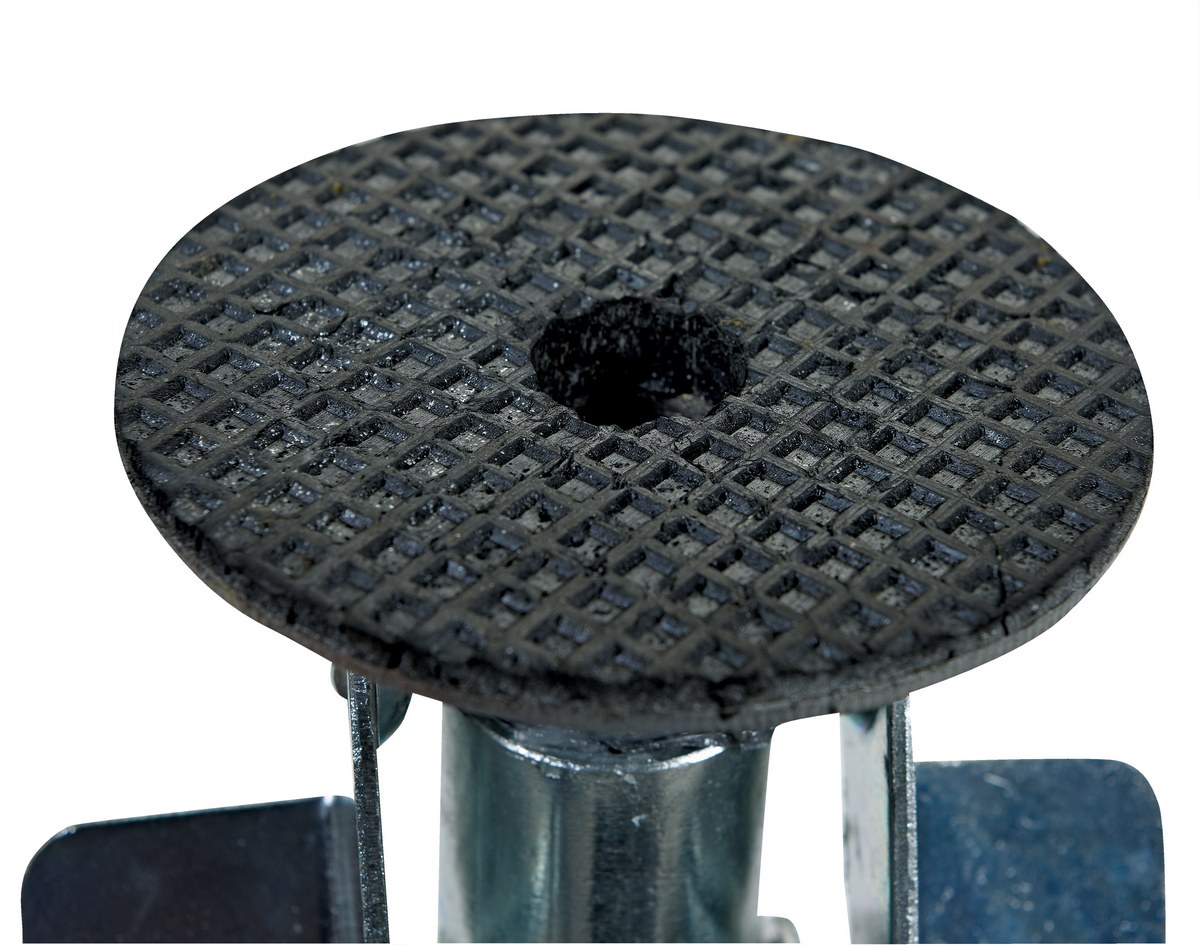

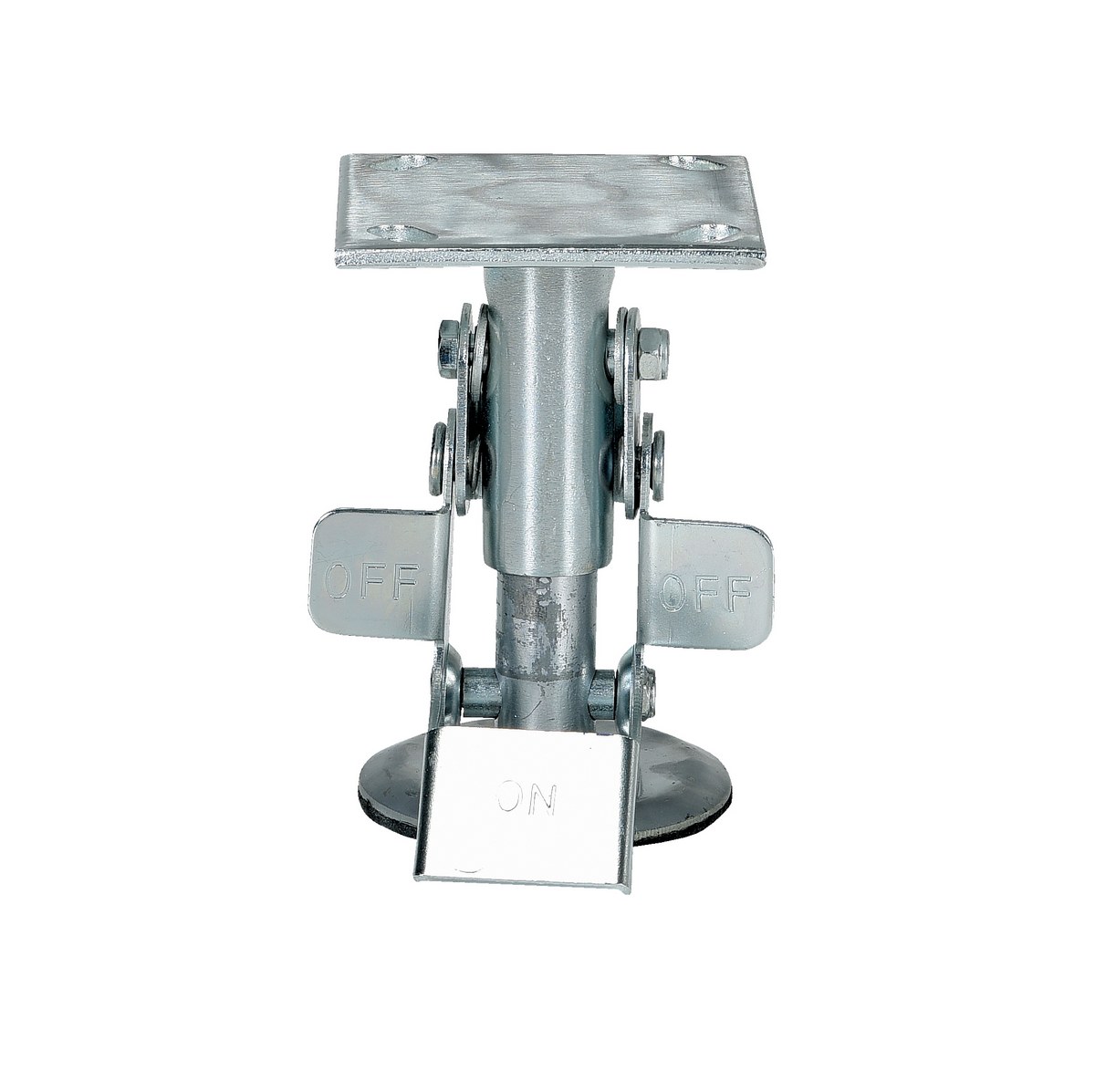

FL-LK-4E
Unit:
Size: W x L x H
Weight:
Limited Warranty
Caster Diameter (in.): 4
Mount Height (in.): 5-5/8
Caster Diameter (in.): 4
Mount Height (in.): 5-5/8

FL-LK-5EG
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7
Height Retracted (in.): 6
Mounting Height (in.): 7
Height Retracted (in.): 6

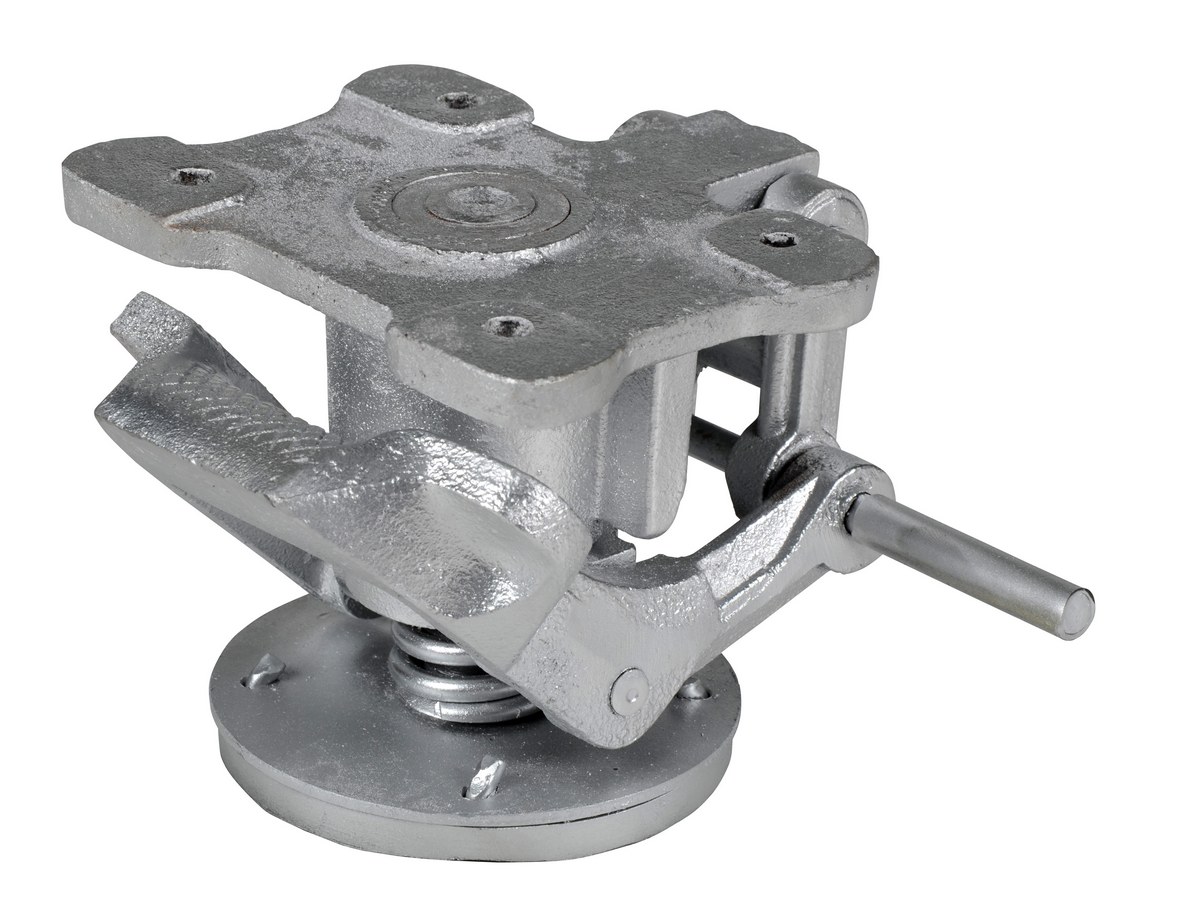

FL-LK-5X
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 5-5/8
Retracted Height (in.): 4-1/2
Mounting Height (in.): 5-5/8
Retracted Height (in.): 4-1/2

FL-LK-6EH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 8
Retracted Height (in.): 7
Mounting Height (in.): 8
Retracted Height (in.): 7

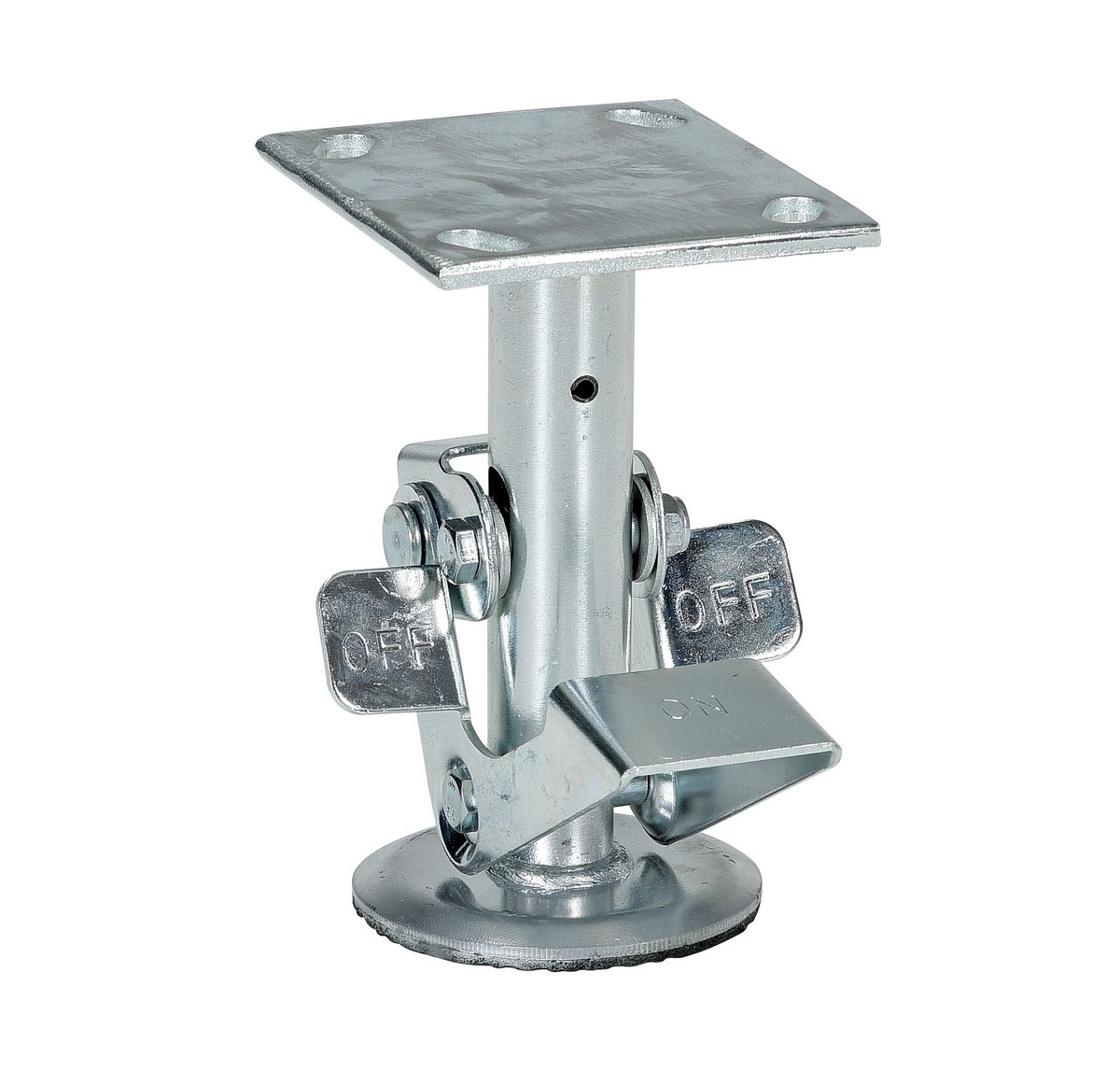

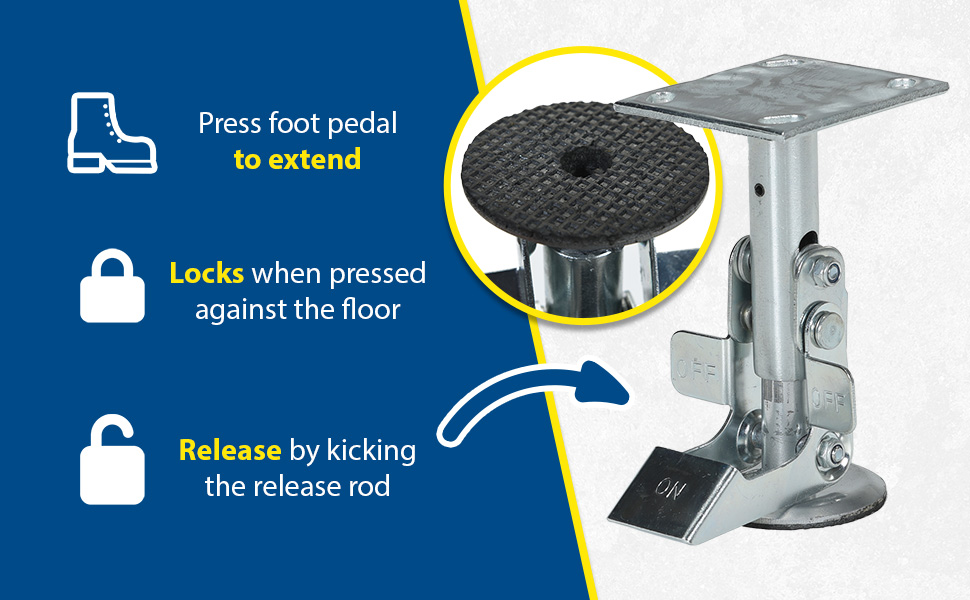

FL-LK-6EL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/2
Mounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/2

FL-LK-6EM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7-1/2
Retracted Height (in.): 6-7/8
Mounting Height (in.): 7-1/2
Retracted Height (in.): 6-7/8

FL-LK-7G
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7-3/4
Retracted Height (in.): 6-1/4
Mounting Height (in.): 7-3/4
Retracted Height (in.): 6-1/4

FL-LK-7X
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/4
Mounting Height (in.): 7-1/4
Retracted Height (in.): 6-1/4

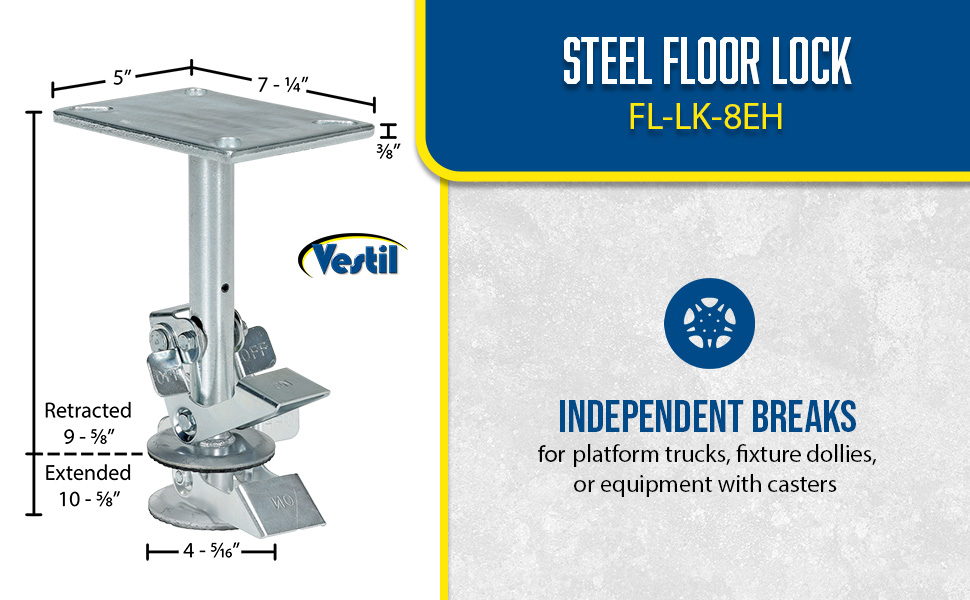

FL-LK-8EH
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10-1/2
Retracted Height (in.): 9-5/8
Mounting Height (in.): 10-1/2
Retracted Height (in.): 9-5/8

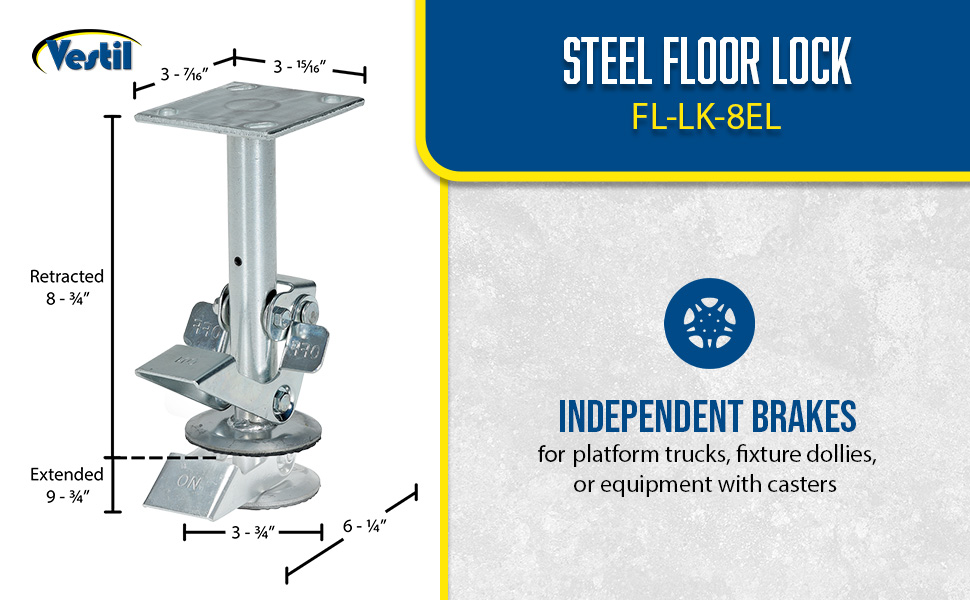

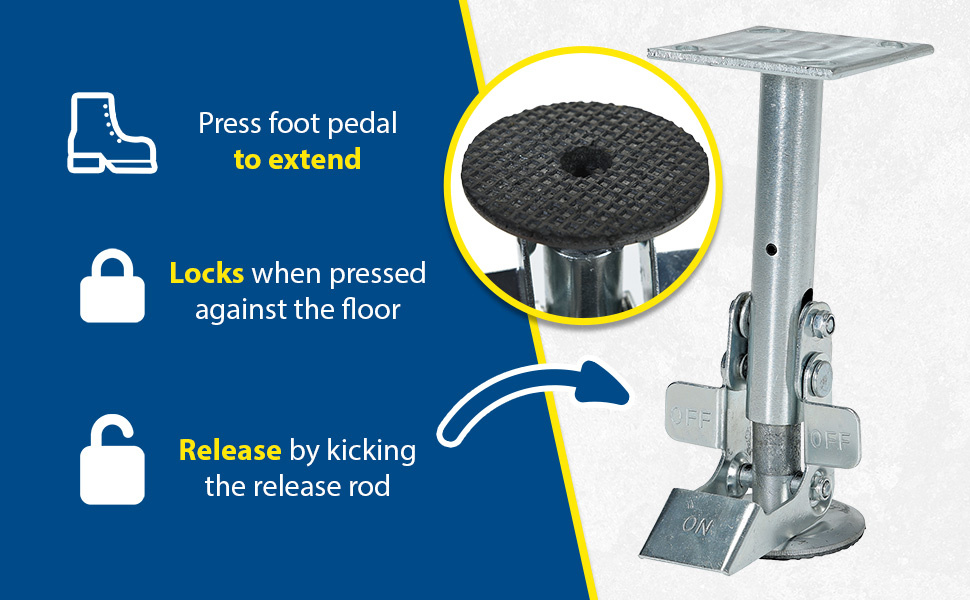

FL-LK-8EL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 9-1/2
Retracted Height (in.): 8-3/4
Mounting Height (in.): 9-1/2
Retracted Height (in.): 8-3/4

FL-LK-8EM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10-1/8
Retracted Height (in.): 9-1/2
Mounting Height (in.): 10-1/8
Retracted Height (in.): 9-1/2

FL-LK-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 8-3/16
Retracted Height (in.): 7
Mounting Height (in.): 8-3/16
Retracted Height (in.): 7

FL-LK-SMR-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10

FL-LK-SMR-R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10

FL-LK-SMR-SS-L
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10

FL-LK-SMR-SS-R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10
Mounting Height (in.): 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.): 10

General Purpose Floor Locks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


FL-LK-4E

FL-LK-5EG

FL-LK-5X

FL-LK-6EH

FL-LK-6EL

FL-LK-6EM

FL-LK-7G

FL-LK-7X

FL-LK-8EH

FL-LK-8EL

FL-LK-8EM

FL-LK-S

FL-LK-SMR-L

FL-LK-SMR-R

FL-LK-SMR-SS-L

FL-LK-SMR-SS-R

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the capacity of the floor lock?

A: The FL-LK-4E has a capacity of 1200 lbs.


Q: What is the capacity, as well as the force required to engage them?

A: Locking capacity is 1,200 lbs. Force required to engage the brake: 20 - 30 lbs.


Q: What is the capacity rating on the FL-LK-SMR-L and the FL-LK-SMR-R ?

A: The locking capacity is 2,000 lbs.
