Product Family Overview


Portable Infrared Heat Panels
SERIES: PIHP

Portable Infrared Heat Panels are a great asset in cold work areas. Built to withstand industrial applications, such as auto collision repair shops. Units can be rolled easily to an array of areas without the need of additional personnel of lifting devices. The overall height allows the heat to expand more freely through out the workspace and quickly diminishes cold areas.

  • Allows the user to precisely direct heat to the target area
  • Simple portability between work stations
  • Heat pane is easily positioned with adjustable hinges
  • Rapidly reaches full temperature capacity

Portable Infrared Heat Panels are a great asset in cold work areas. Built to withstand industrial applications, such as auto collision repair shops. Units can be rolled easily to an array of areas without the need of additional personnel of lifting devices. The overall height allows the heat to expand more freely through out the workspace and quickly diminishes cold areas.

  • Allows the user to precisely direct heat to the target area
  • Simple portability between work stations
  • Heat pane is easily positioned with adjustable hinges
  • Rapidly reaches full temperature capacity

Additional Models In This Family

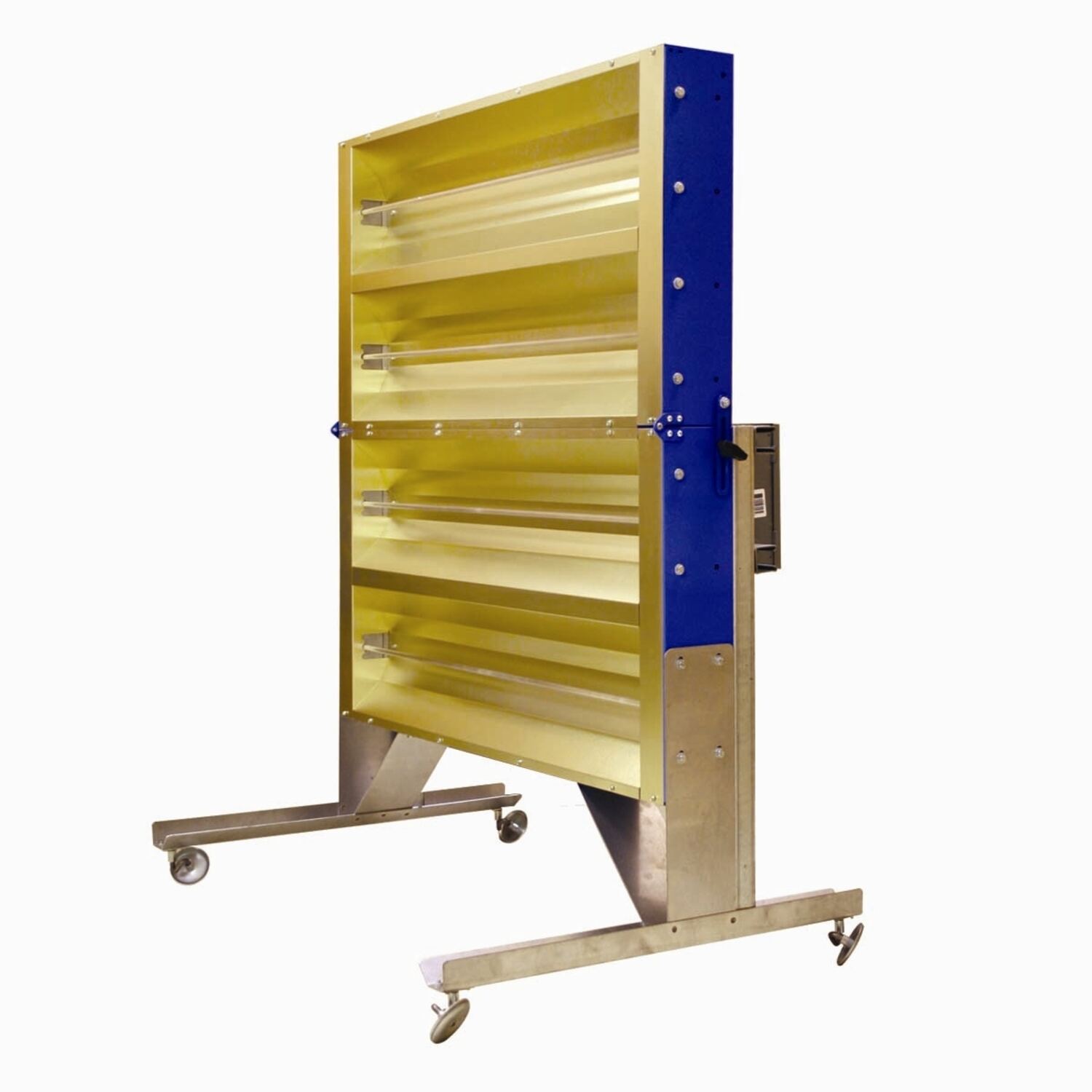

PIHP-4

model PIHP-4

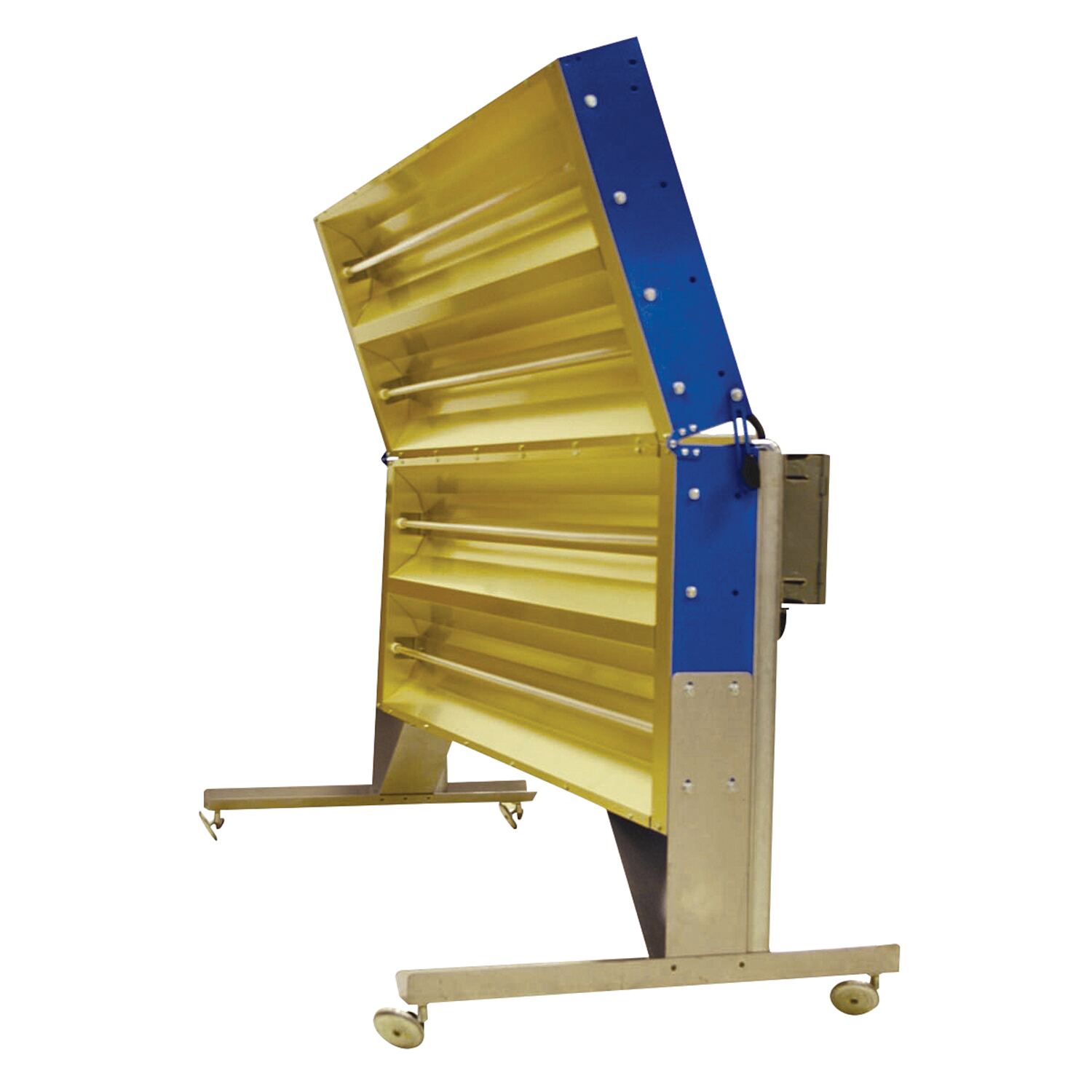

PIHP-6

model PIHP-6

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PIHP-11 PIHP-111 Year Limited WarrantyPortable Infrared Heat Panel 30 In. x 66-5/8 In. x 89-1/2 In. 11200 Watts GoldHeated Area Width (in.): 61
Heated Area Height (in.): 77
225
PIHP-4 PIHP-41 Year Limited WarrantyPortable Infrared Heat Panel 30 In. x 44-5/8 In. x 56-1/2 In. 4800 Watts GoldHeated Area Width (in.): 40
Heated Area Height (in.): 44
116
PIHP-6 PIHP-61 Year Limited WarrantyPortable Infrared Heat Panel 30 In. x 66-5/8 In. x 56-1/2 In. 6400 Watts GoldHeated Area Width (in.): 61
Heated Area Height (in.): 44
141

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

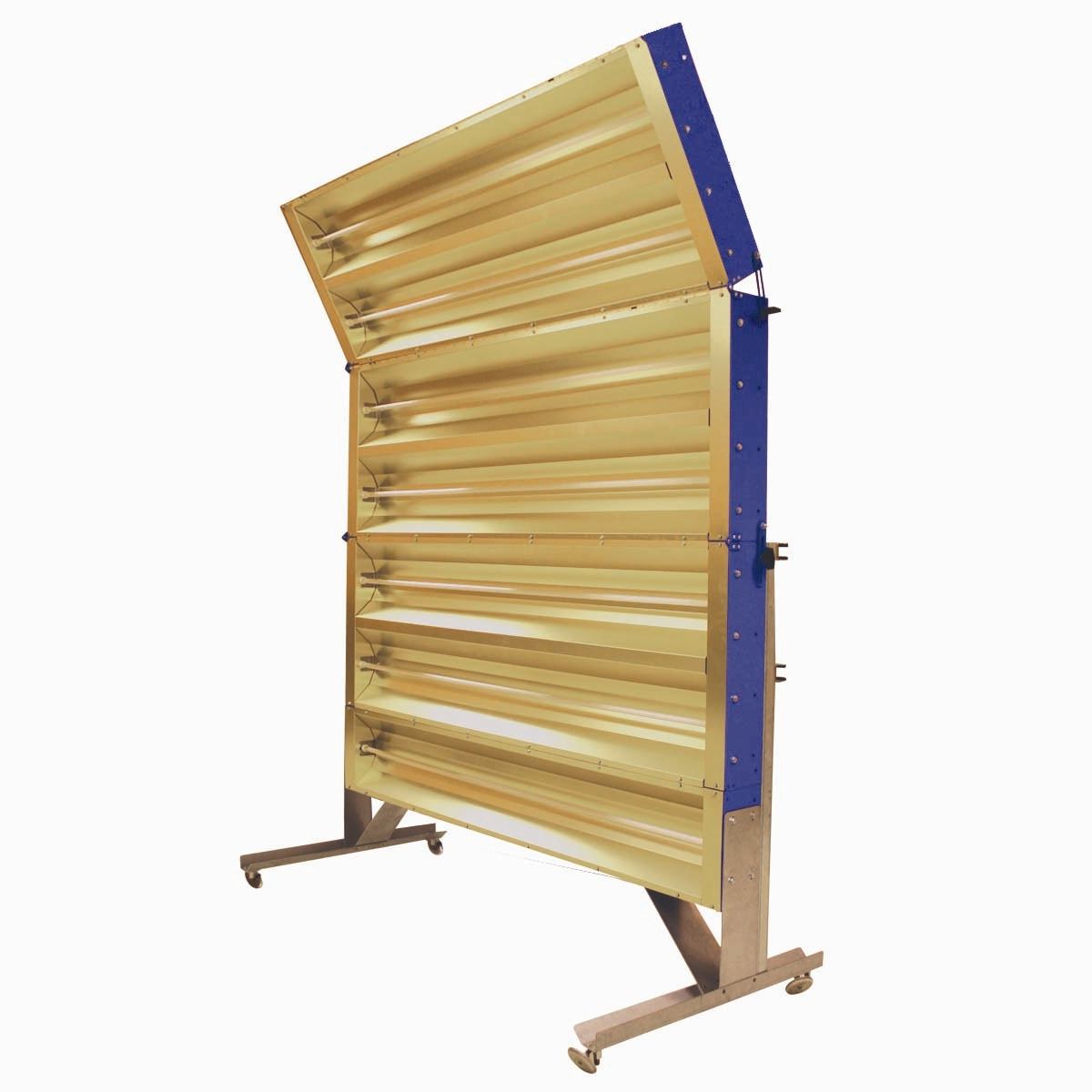

PIHP-11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Heated Area Width (in.): 61
Heated Area Height (in.): 77
Heated Area Width (in.): 61
Heated Area Height (in.): 77

PIHP-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Heated Area Width (in.): 40
Heated Area Height (in.): 44
Heated Area Width (in.): 40
Heated Area Height (in.): 44

PIHP-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Heated Area Width (in.): 61
Heated Area Height (in.): 44
Heated Area Width (in.): 61
Heated Area Height (in.): 44

Portable Infrared Heat Panels PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the temperature range of the heaters?

A: There is no temperature range these are designed to heat objects or to dry paint. The closer the heater is to the object the hotter it gets. The element temperature is 1500 degrees F on the bulb.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Portable Infrared Heat Panels




Portable Infrared Heat Panels are a great asset in cold work areas. Built to withstand industrial applications, such as auto collision repair shops. Units can be rolled easily to an array of areas without the need of additional personnel of lifting devices. The overall height allows the heat to expand more freely through out the workspace and quickly diminishes cold areas.

  • Allows the user to precisely direct heat to the target area
  • Simple portability between work stations
  • Heat pane is easily positioned with adjustable hinges
  • Rapidly reaches full temperature capacity


Model # Description Attributes Net Wt.
(lbs)
PIHP-11 PIHP-11Portable Infrared Heat Panel 30 In. x 66-5/8 In. x 89-1/2 In. 11200 Watts GoldHeated Area Width (in.): 61
Heated Area Height (in.): 77
225
PIHP-4 PIHP-4Portable Infrared Heat Panel 30 In. x 44-5/8 In. x 56-1/2 In. 4800 Watts GoldHeated Area Width (in.): 40
Heated Area Height (in.): 44
116
PIHP-6 PIHP-6Portable Infrared Heat Panel 30 In. x 66-5/8 In. x 56-1/2 In. 6400 Watts GoldHeated Area Width (in.): 61
Heated Area Height (in.): 44
141
