Polyurethane (SI) Casters

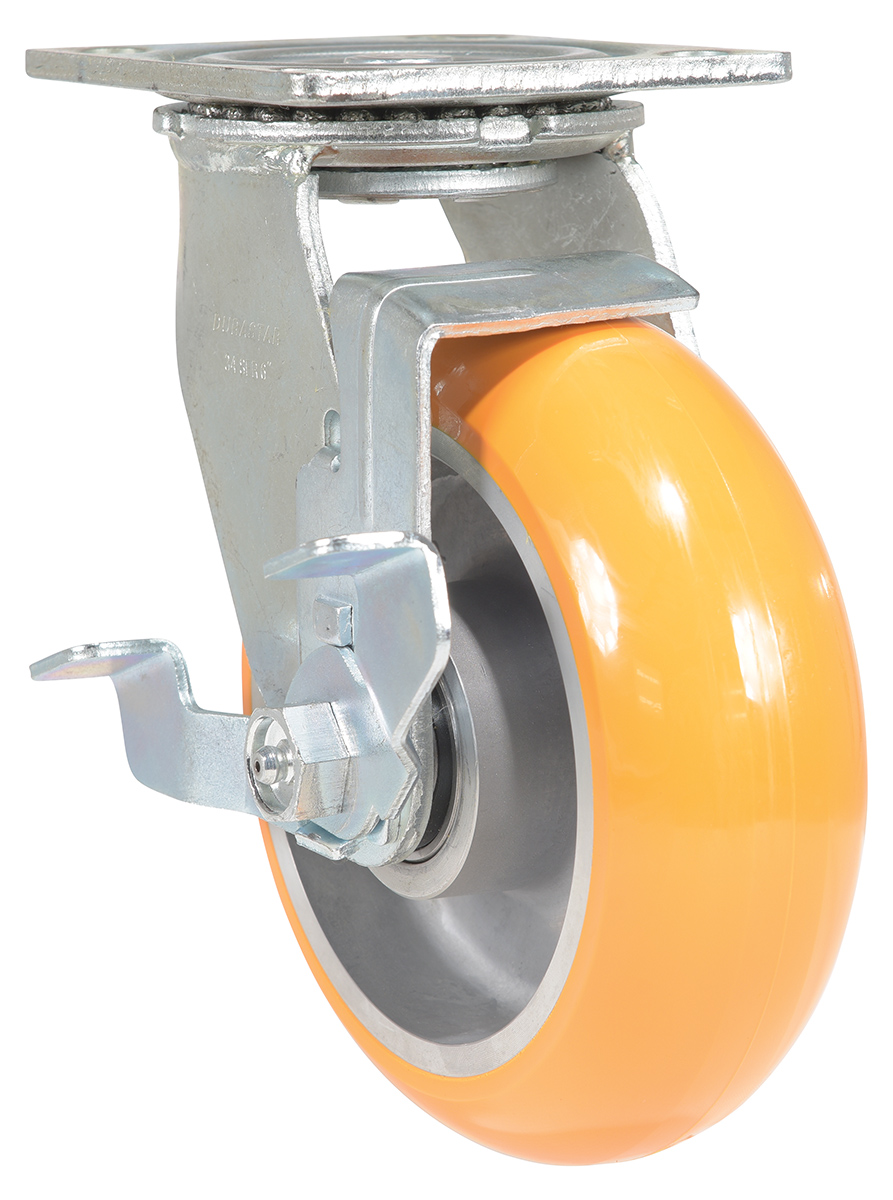

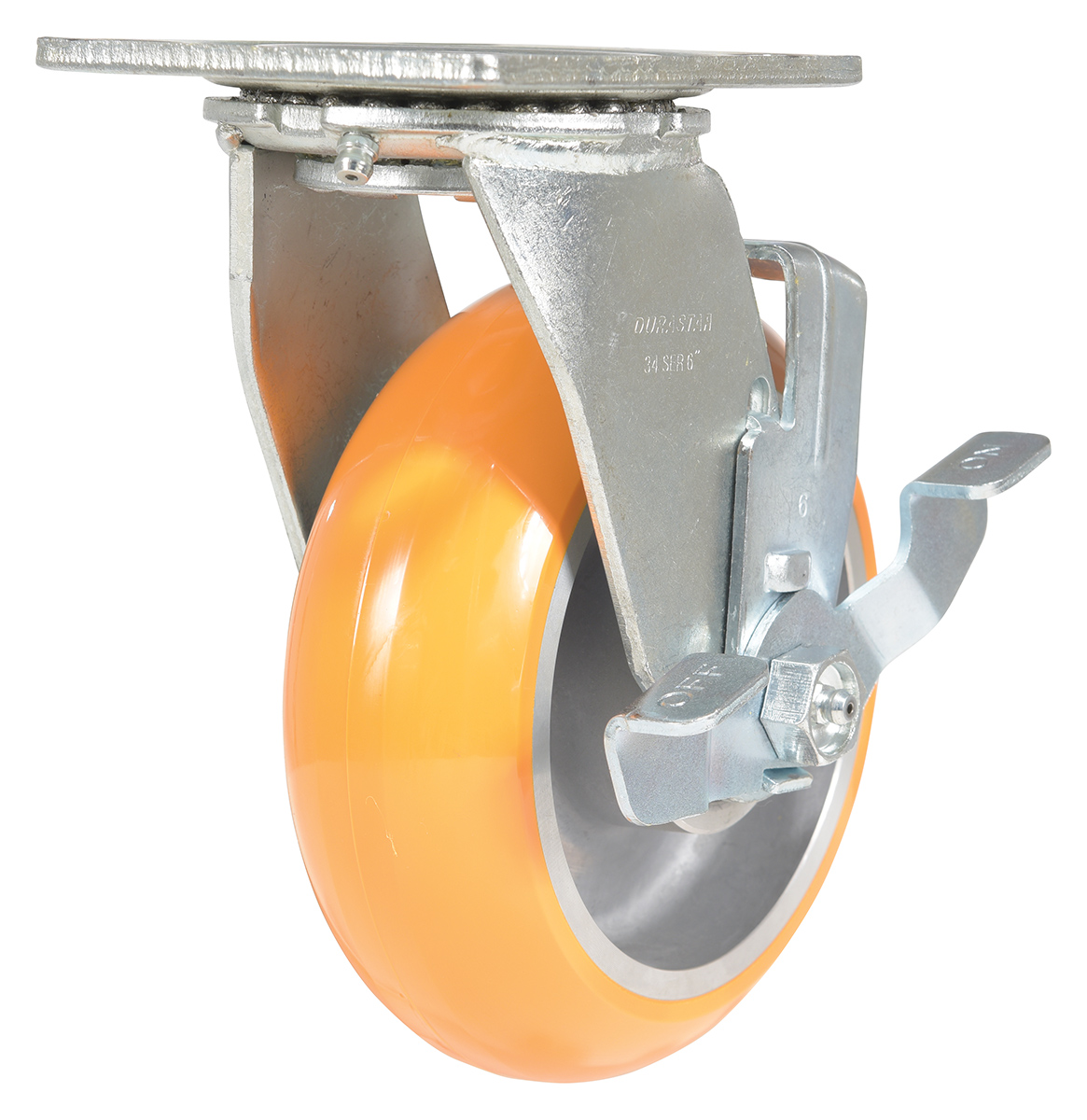

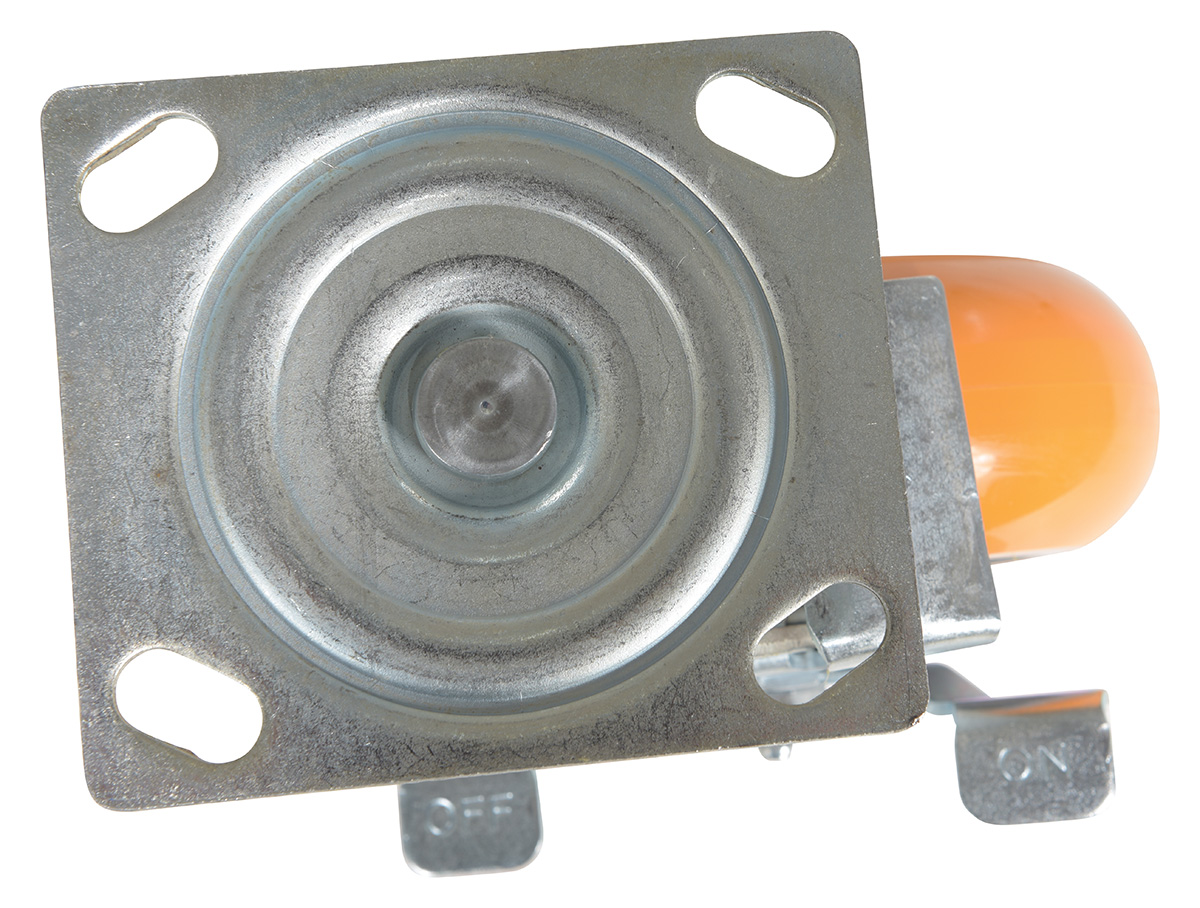

model: CST-F34-6X2SI-SWB

Featured Casters & Wheels

Ductile Steel Wheel

Polyurethane Casters

TPR (Thermoplastic Rubber) Casters

Dual Wheel Polyurethane (SI) - Highly Ergonomic Upgrade Casters

Polyurethane (DT, Green) Casters

Urethane Solid Foam Wheels

Semi-Steel Casters

Glass Filled Nylon (RX)

Cast Iron/ Semi-Steel Casters

model chart

Product Family Overview

Print Friendly

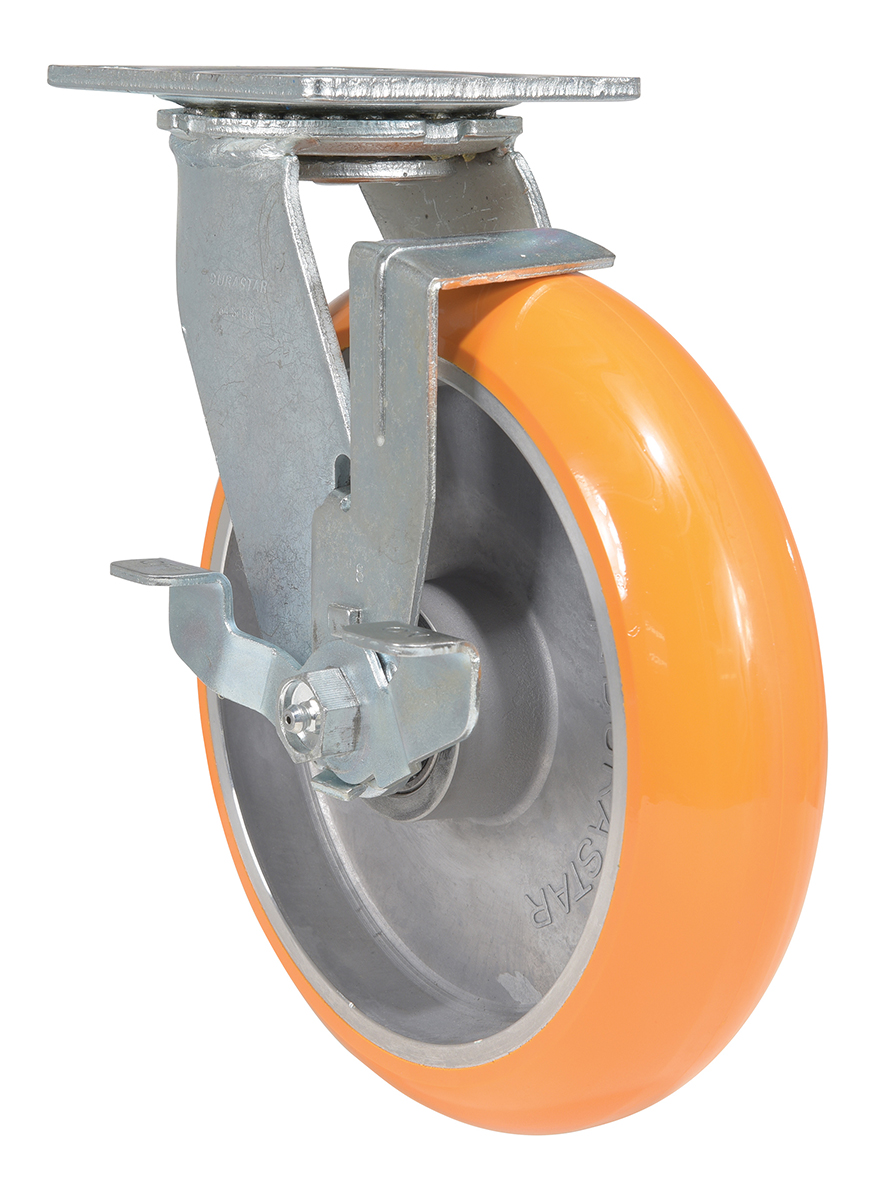

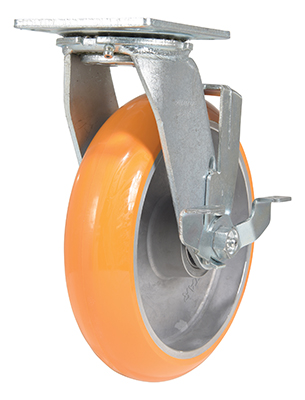

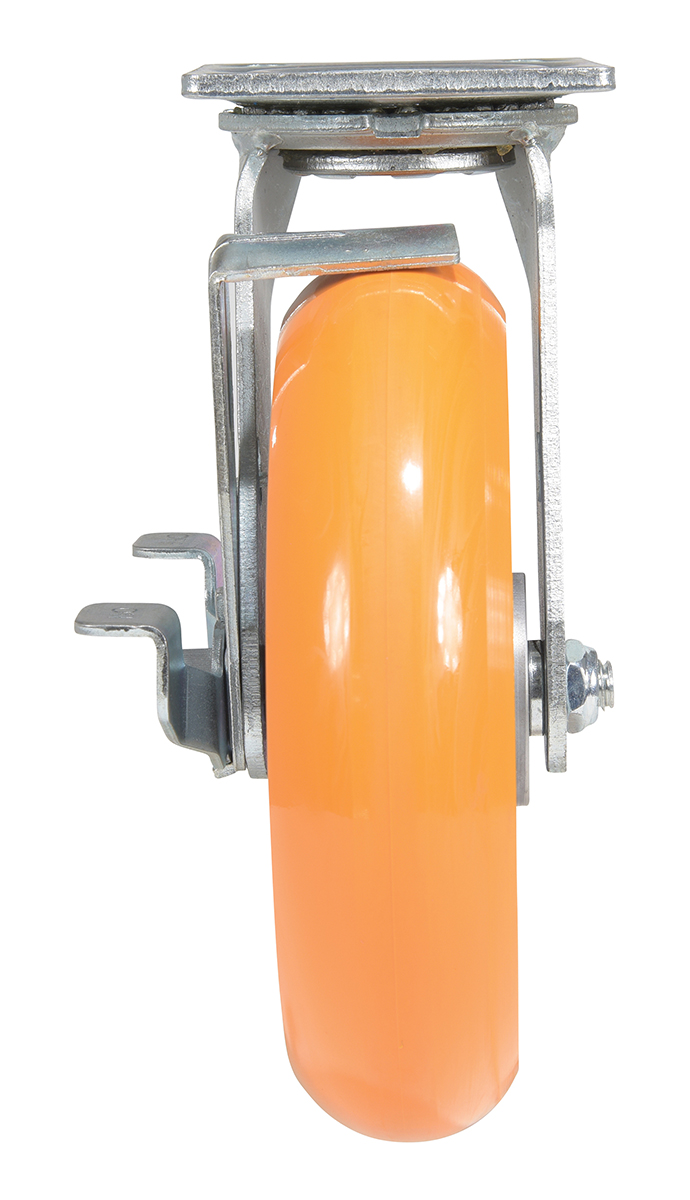

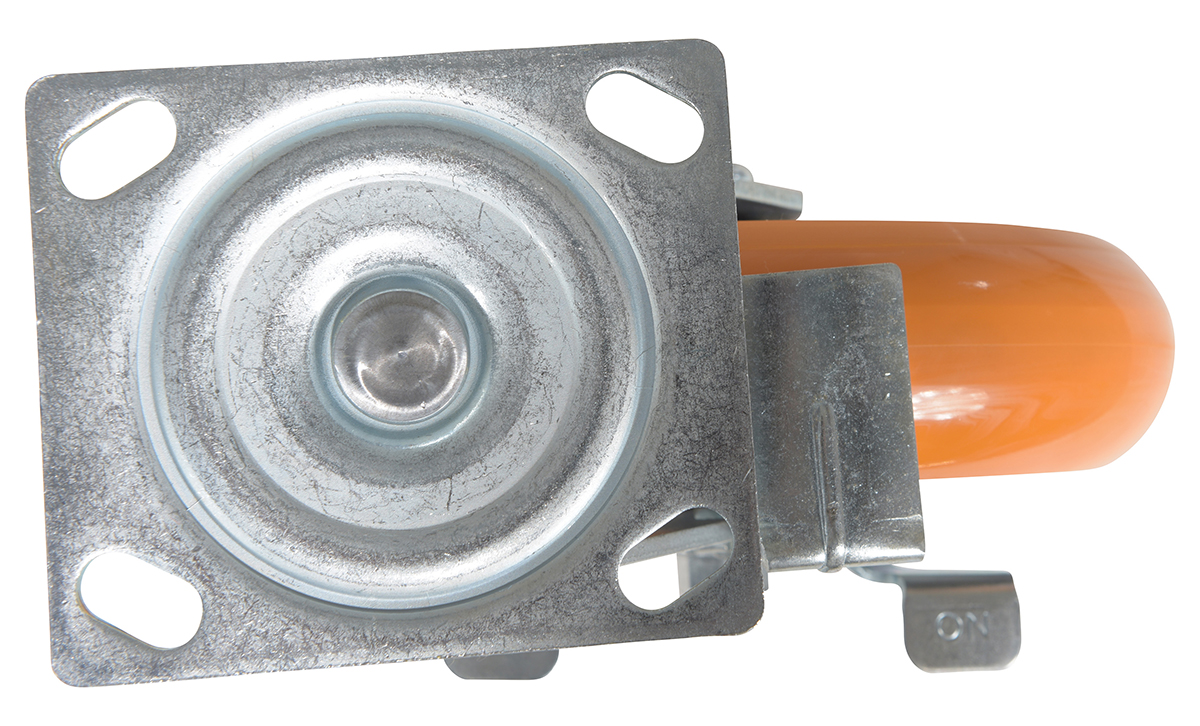

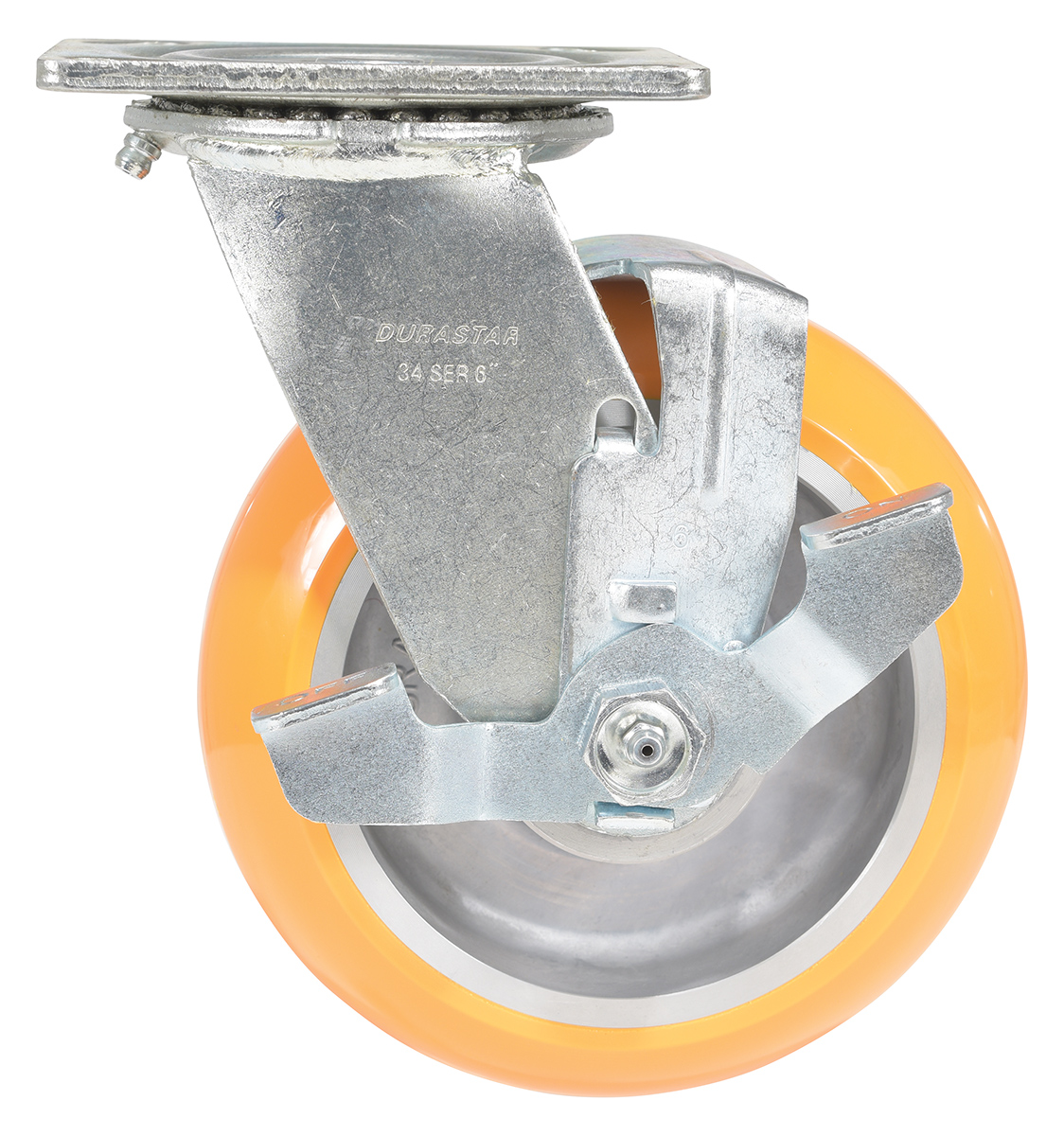

Polyurethane (SI) Casters

SERIES: CST-F34-SI

Constructed of proprietary, high-grade elastic polyurethane and coupled with 6203 premium precision ball bearings for added strength and durability. The upgraded tread provides a longer life, reduces the force required for movement, rejects debris, and offers exceptional floor preservation. Orange tread color. 85 shore a. Wheel core is constructed of high-grade, light-weight, water resistant aluminum.

Non-marking high-quality proprietary tread
Smooth Ride Performance
Rejects Debris
Reduces Push/Pull Force Required For Movement
High Capacity
Ergonomic Donut Design
Light Weight, Rust Resistant Aluminum Core
Premium sealed precision ball bearings

Non-marking high-quality proprietary tread
Smooth Ride Performance
Rejects Debris
Reduces Push/Pull Force Required For Movement
High Capacity
Ergonomic Donut Design
Light Weight, Rust Resistant Aluminum Core
Premium sealed precision ball bearings

Other "Go-To" Casters

TPR - Thermoplastic Rubber (DK) Casters

Polyurethane Casters (Yellow)

Flat-Free (Rubber)

Polyurethane with Thread Guard Casters

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

model CST-F34-4X2SI-SWB

model CST-F34-4X2SI-SWTB1

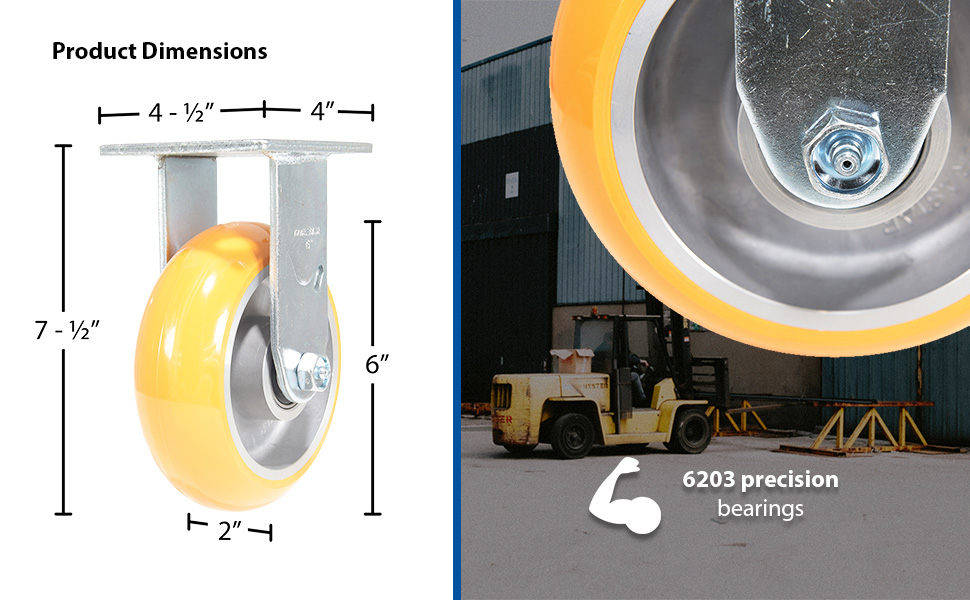

model CST-F34-6X2SI-R

model CST-F34-6X2SI-S

model chart

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)
CST-F34-4X2SI-R	1 YEAR Limited Warranty	4 x 2	RIGID	1000	5-3/4	4 x 4-1/2	4
CST-F34-5X2SI-R	1 YEAR Limited Warranty	5 x 2	RIGID	1200	6-1/2	4 x 4-1/2	5
CST-F34-6X2SI-R	1 YEAR Limited Warranty	6 x 2	RIGID	1250	7-1/2	4 x 4-1/2	5
CST-F34-8X2SI-R	1 YEAR Limited Warranty	8 x 2	RIGID	1250	9-3/8	4 x 4-1/2	7
CST-F34-4X2SI-S	1 YEAR Limited Warranty	4 x 2	SWIVEL	1000	5-3/4	4 x 4-1/2	5
CST-F34-5X2SI-S	1 YEAR Limited Warranty	5 x 2	SWIVEL	1200	6-1/2	4 x 4-1/2	8
CST-F34-6X2SI-S	1 YEAR Limited Warranty	6 x 2	SWIVEL	1250	7-1/2	4 x 4 1/2	6
CST-F34-8X2SI-S	1 YEAR Limited Warranty	8 x 2	SWIVEL	1250	7-1/2	4 x 4-1/2	7
CST-F34-4X2SI-SWB	1 YEAR Limited Warranty	4 x 2	SWIVEL W/BRAKE	1000	5-3/4	4 x 4-1/2	6
CST-F34-5X2SI-SWB	1 YEAR Limited Warranty	5 x 2	SWIVEL W/BRAKE	1200	6-1/2	4 x 4-1/2	6
CST-F34-6X2SI-SWB	1 YEAR Limited Warranty	6 x 2	SWIVEL W/BRAKE	1250	7-1/2	4 x 4-1/2	6

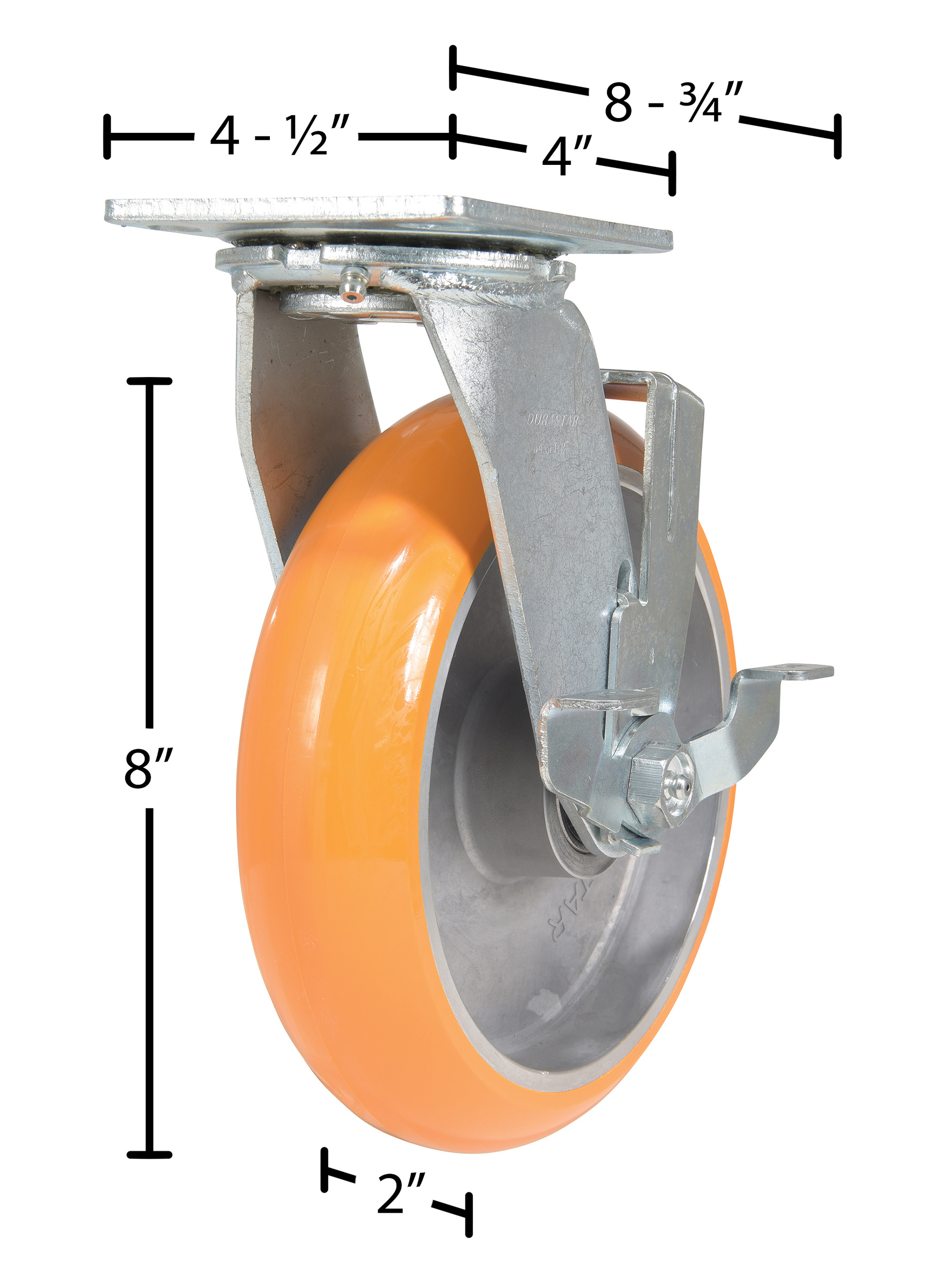

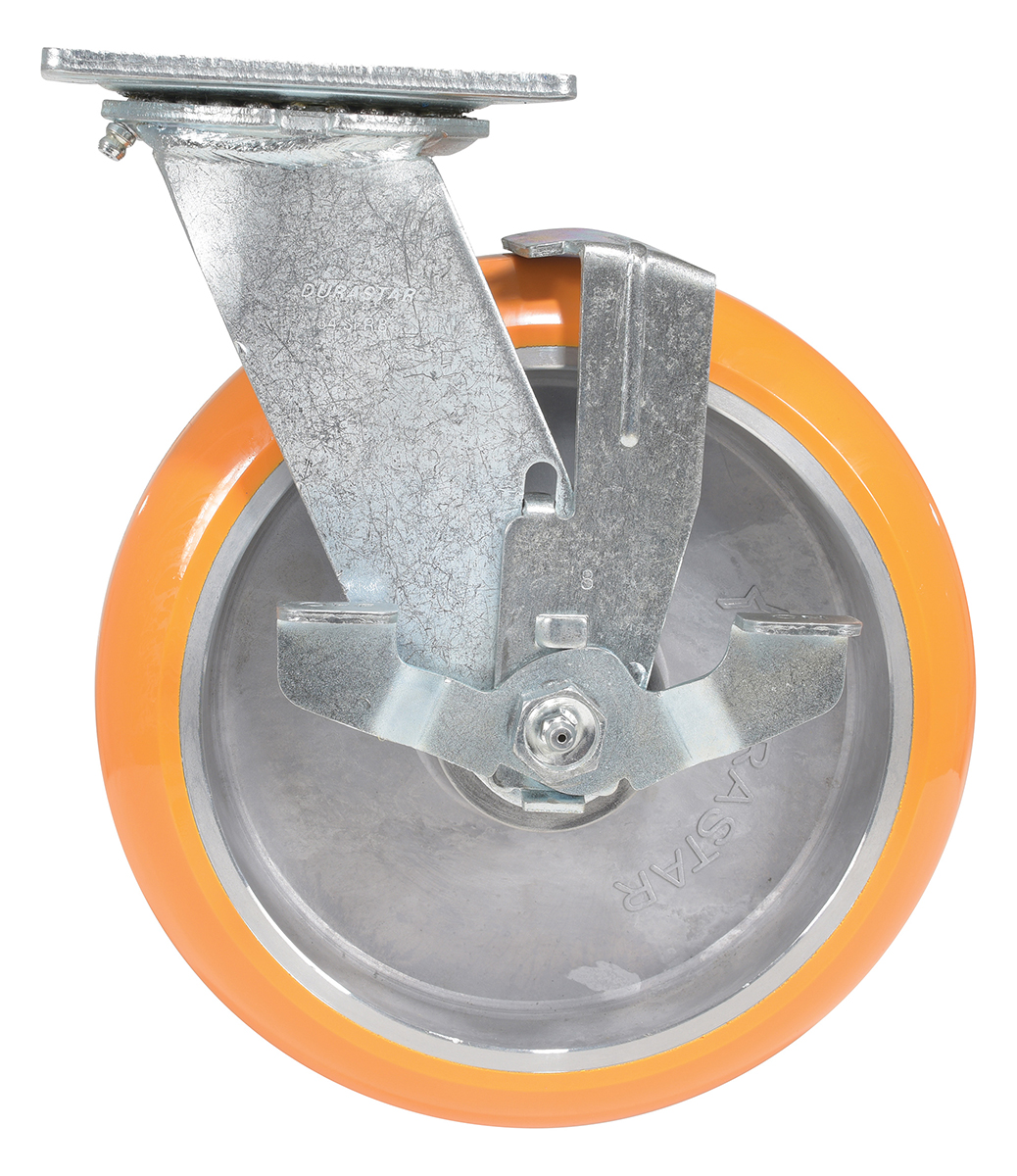

CST-F34-8X2SI-SWB	1 YEAR Limited Warranty	8 x 2	SWIVEL W/BRAKE	1250	9-3/8	4 x 4-1/2	7
CST-F34-4X2SI-SWTB1	1 YEAR Limited Warranty	4 x 2	Swivel w/Total Brake	1000	5-3/4	4 x 4-1/2	6
CST-F34-5X2SI-SWTB1	1 YEAR Limited Warranty	5 x 2	Swivel w/Total Brake	1200	6-1/2	4 x 4-1/2	6
CST-F34-6X2SI-SWTB1	1 YEAR Limited Warranty	6 x 2	Swivel w/Total Brake	1250	7-1/4	4 x 4-1/2	7
CST-F34-8X2SI-SWTB1	1 YEAR Limited Warranty	8 x 2	Swivel w/Total Brake	1250	9-3/8	4 x 4-1/2	8
