Vertical Plate Clamps

Print Friendly

Model Chart
PDF's
Image Gallery
FEATURED Vertical Plate Clamps

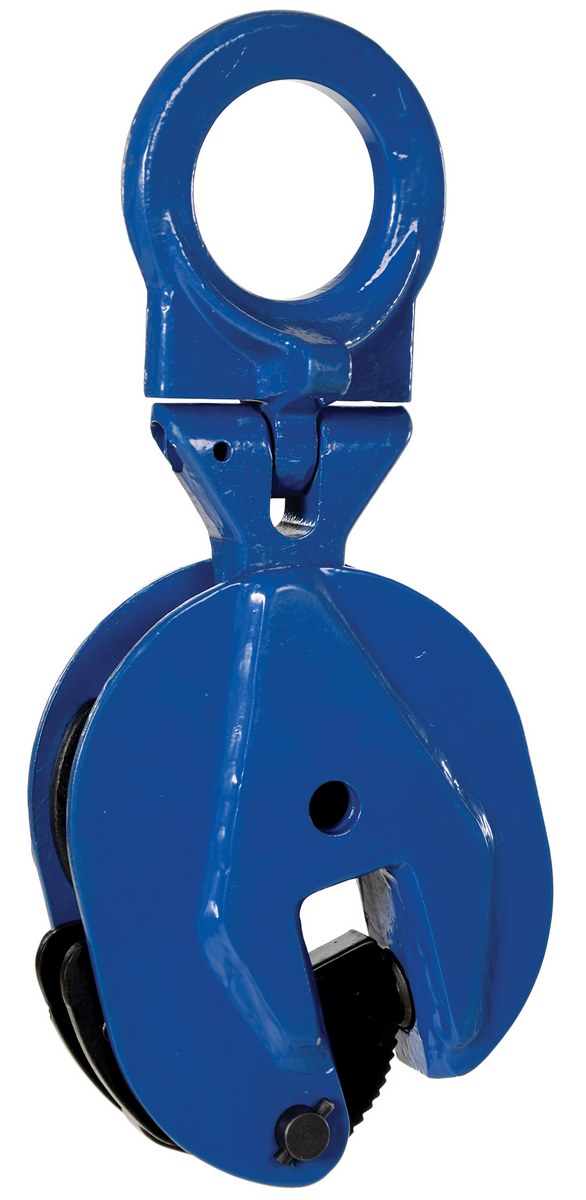

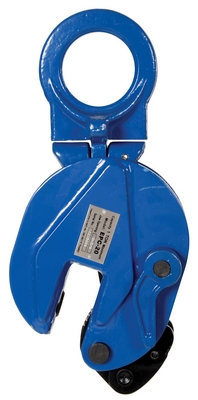

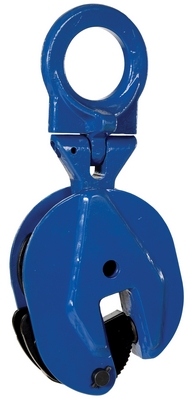

model: EPC-20

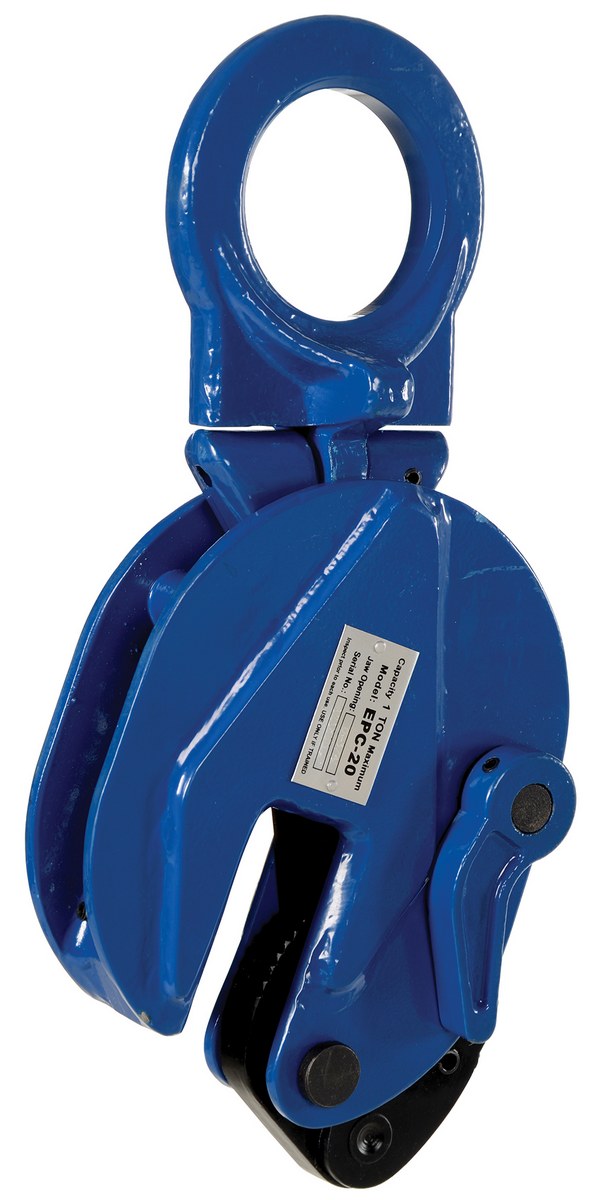

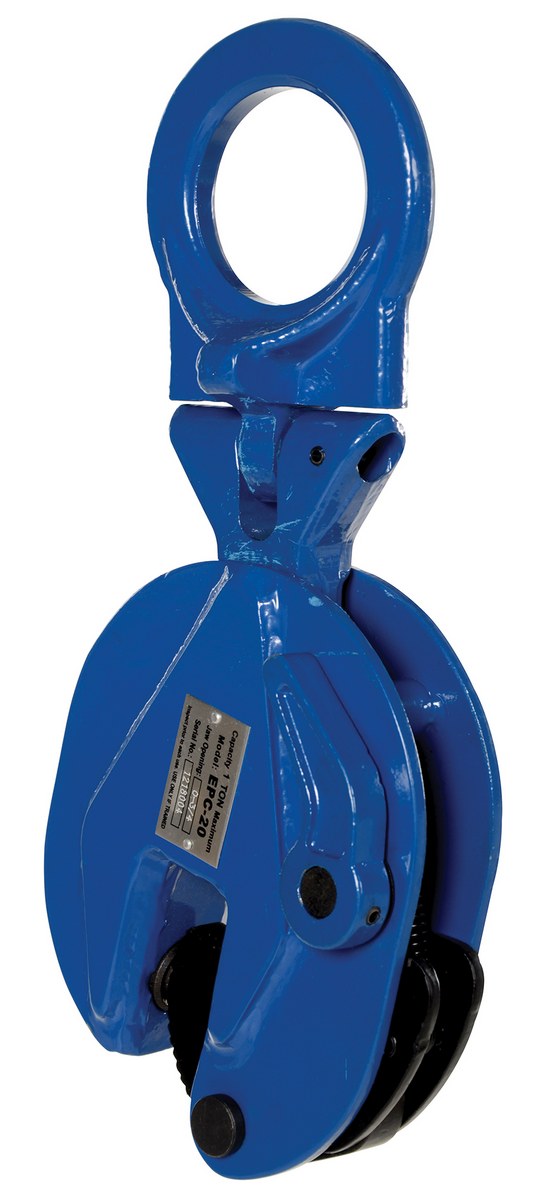

EPC-20_A.jpg EPC-20_B.jpg EPC-20_C.jpg EPC-20_D.jpg EPC-20_E.jpg EPC-20_A+_A.jpg EPC-20_A+_B.jpg EPC-20_A+_C.jpg More Images +
Vertical Plate Clamps
SERIES: EPC   4Products
Powder Coat Quick Ship

Vertical Steel Plate Lifting Clamps for Hoist and Crane Handling

Vertical steel plate lifting clamps provide a dependable solution for lifting and positioning clean steel plate in fabrication shops, steel service centers, warehouses, maintenance departments, and industrial production areas. Designed for use with overhead hoists or cranes, these clamps help operators handle one plate at a time in a vertical position with better control and efficiency.

Pivoting Bale and Secure Grip

A pivoting bale supports easier alignment and more versatile lifting angles during operation. Automatic serrated hardened steel cams and pads grip the plate securely, while the drop-forged steel case provides maximum strength for demanding material handling applications.

Working Load and Plate Range

This family includes working load limits from 1,000 lb. to 6,600 lb., with maximum plate thickness capacities from approximately 0.59 inch to 1.19 inches depending on model. Minimum plate weight requirements apply, and clamps should not be used to lift loads less than 10 percent of the rated capacity.

Application and Safety Guidelines

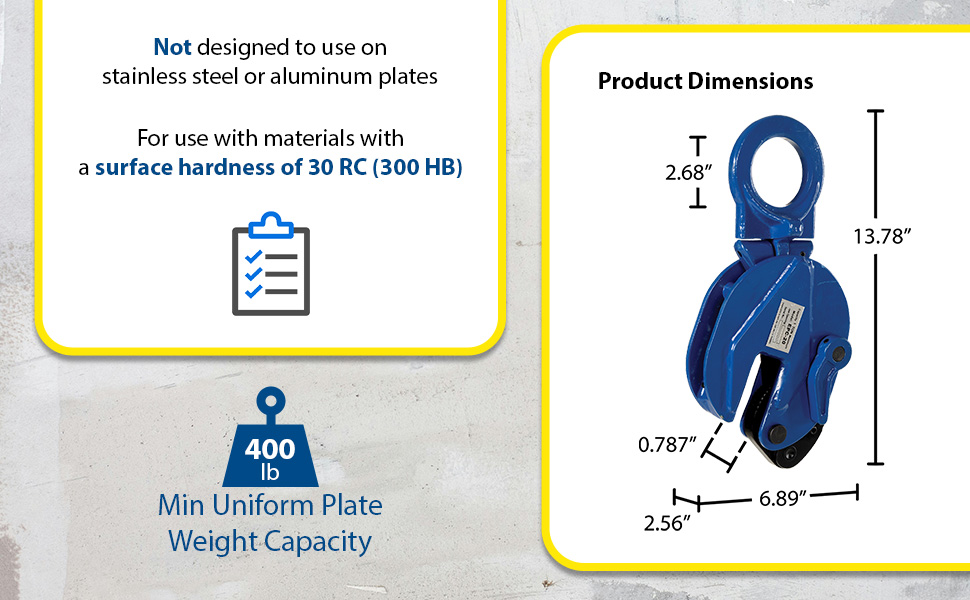

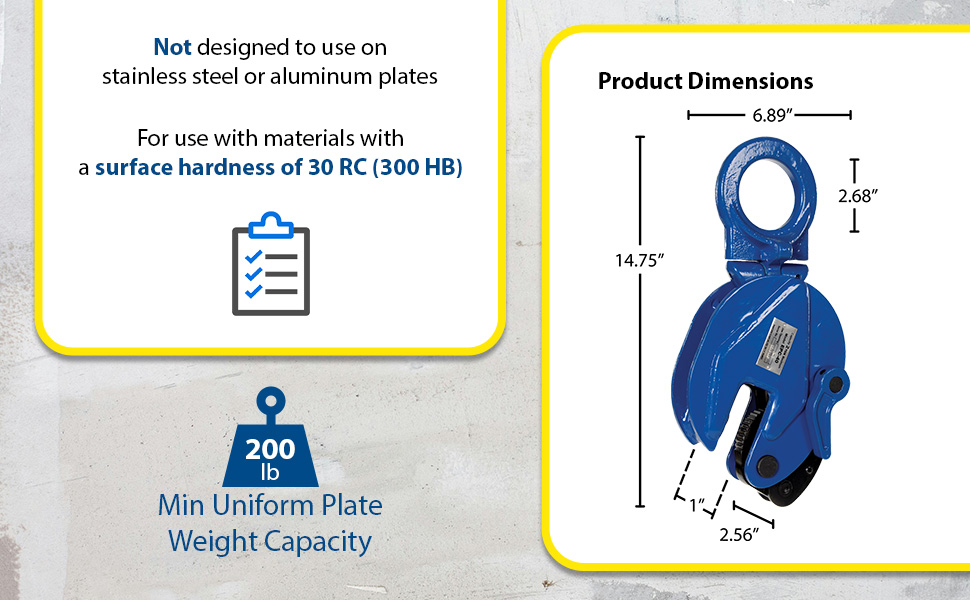

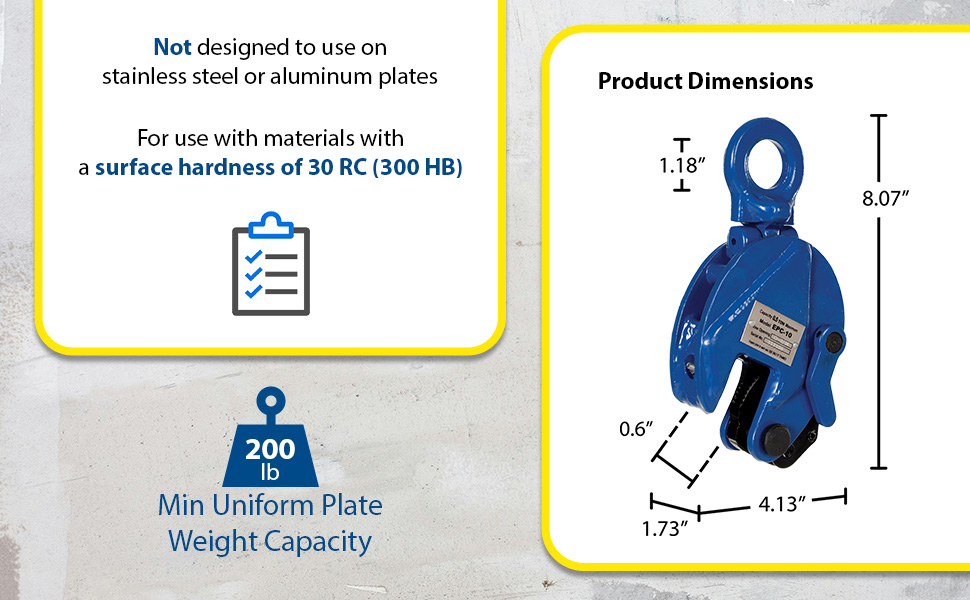

These vertical plate clamps are designed to meet ASME B30.20 and are intended for clean, oil-free steel plate with surface hardness up to 30 RC or 300 HB. They are not designed for stainless steel or aluminum plate. This family offers rugged plate handling tools for controlled lifting, staging, and positioning work.

Vertical Plate Clamps

model: EPC-20

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

EPC-10
EPC-20

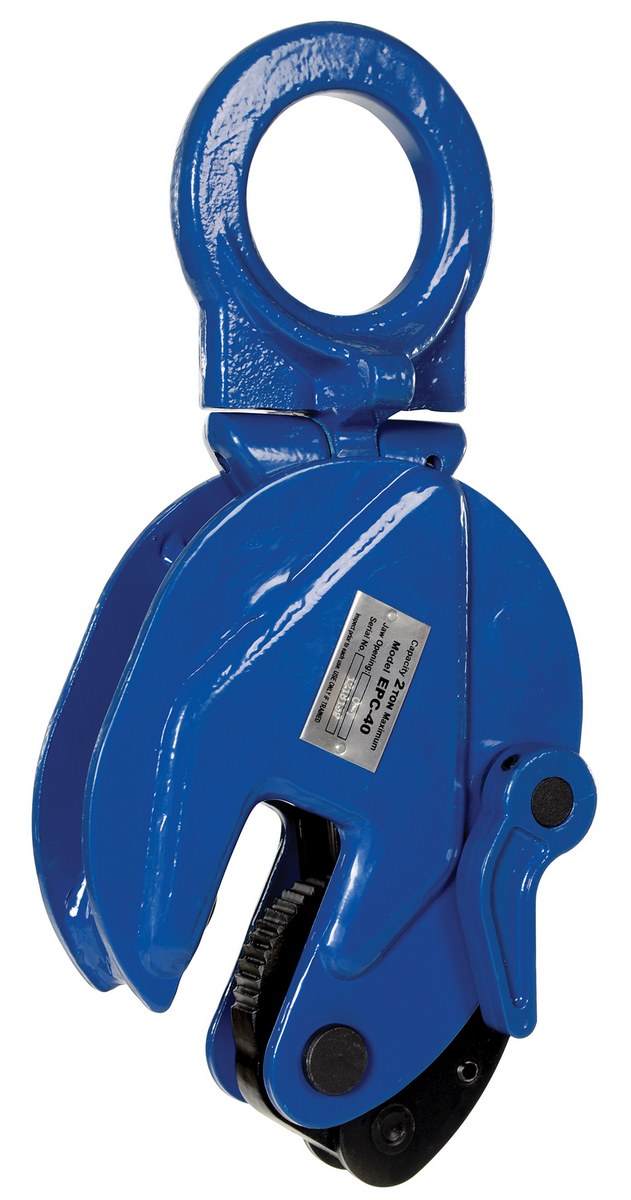

EPC-40
EPC-80
PDFs will open in a new window when clicked.

Owner's Manuals

1
EPC, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

4
EPC-10
Open Drawing
EPC-20
Open Drawing
EPC-40
Open Drawing
EPC-80
Open Drawing

Testing Certificates

4
EPC-10
Open Certificate
EPC-20
Open Certificate
EPC-40
Open Certificate
EPC-80
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

0
No other PDFs for this product family.

Enhanced Product Content

EPC-10

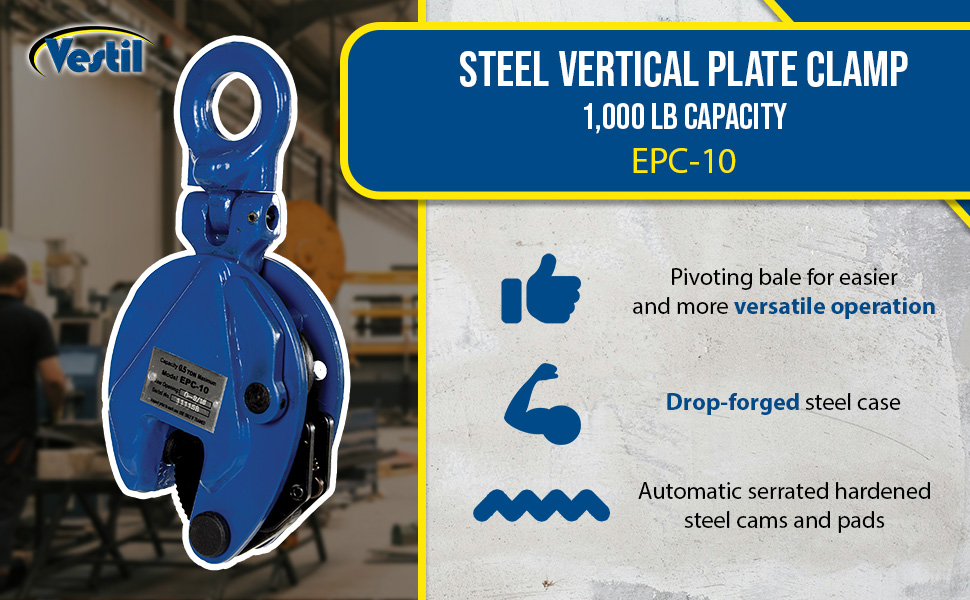

EPC-10 EPC-10 A+ Content - 1
EPC-10 EPC-10 A+ Content - 3
EPC-10 EPC-10 A+ Content - 2
EPC-20

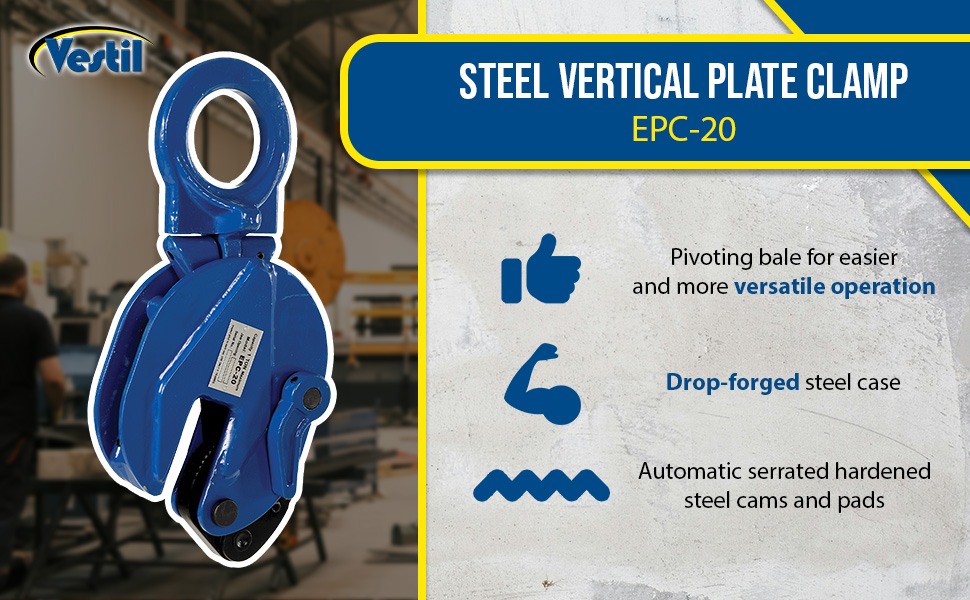

EPC-20 EPC-20 A+ Content - 2
EPC-20 EPC-20 A+ Content - 1
EPC-20 EPC-20 A+ Content - 3
EPC-40

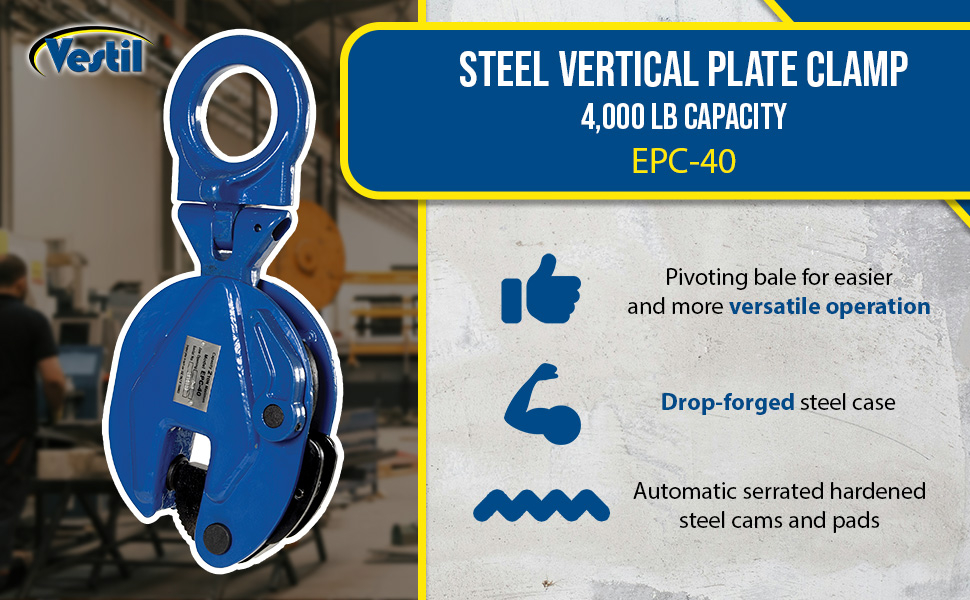

EPC-40 EPC-40 A+ Content - 3
EPC-40 EPC-40 A+ Content - 2
EPC-40 EPC-40 A+ Content - 1

Related or Similar Products:

More From Clamps & Tongs





Vertical Plate Clamps




Vertical Steel Plate Lifting Clamps for Hoist and Crane Handling

Vertical steel plate lifting clamps provide a dependable solution for lifting and positioning clean steel plate in fabrication shops, steel service centers, warehouses, maintenance departments, and industrial production areas. Designed for use with overhead hoists or cranes, these clamps help operators handle one plate at a time in a vertical position with better control and efficiency.

Pivoting Bale and Secure Grip

A pivoting bale supports easier alignment and more versatile lifting angles during operation. Automatic serrated hardened steel cams and pads grip the plate securely, while the drop-forged steel case provides maximum strength for demanding material handling applications.

Working Load and Plate Range

This family includes working load limits from 1,000 lb. to 6,600 lb., with maximum plate thickness capacities from approximately 0.59 inch to 1.19 inches depending on model. Minimum plate weight requirements apply, and clamps should not be used to lift loads less than 10 percent of the rated capacity.

Application and Safety Guidelines

These vertical plate clamps are designed to meet ASME B30.20 and are intended for clean, oil-free steel plate with surface hardness up to 30 RC or 300 HB. They are not designed for stainless steel or aluminum plate. This family offers rugged plate handling tools for controlled lifting, staging, and positioning work.


Model # Description Attributes Net Wt.
(lbs)

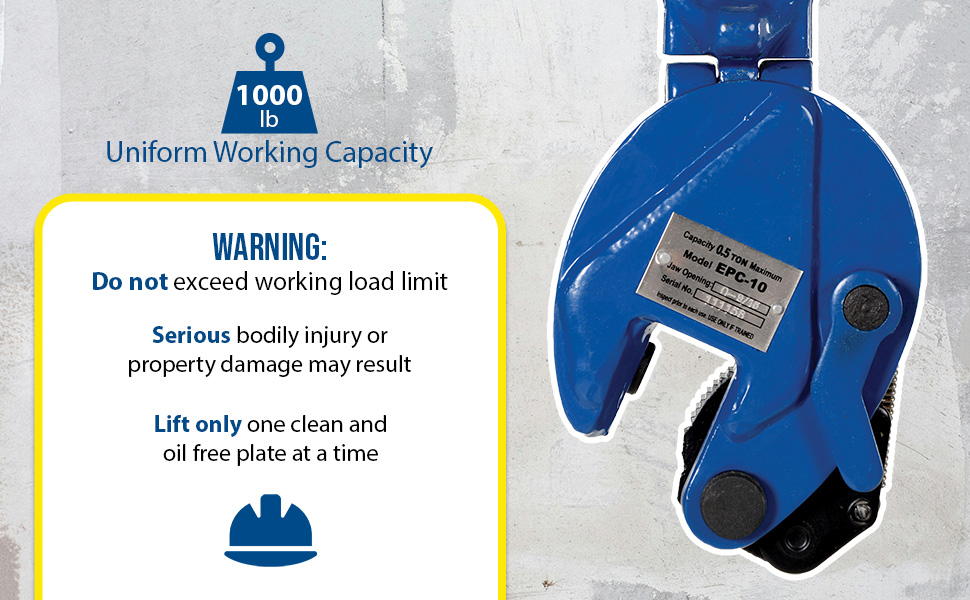

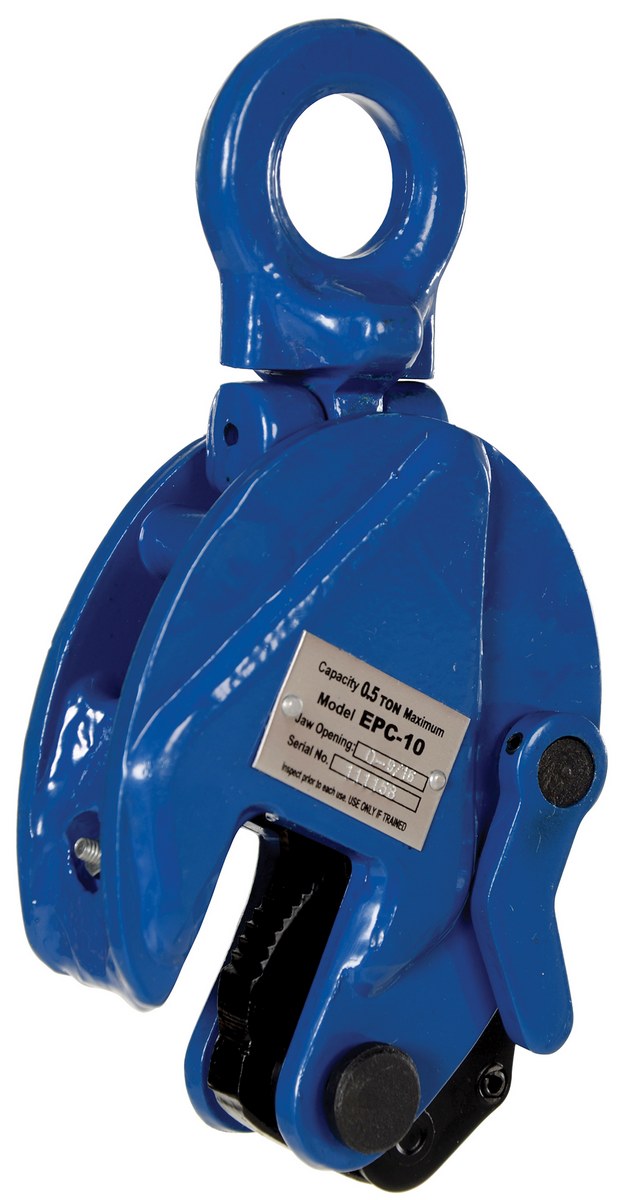

EPC-10 EPC-10Steel Vertical Plate Clamp 1,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 200
Uniform Working Load Limit (lb.): 1,000		5

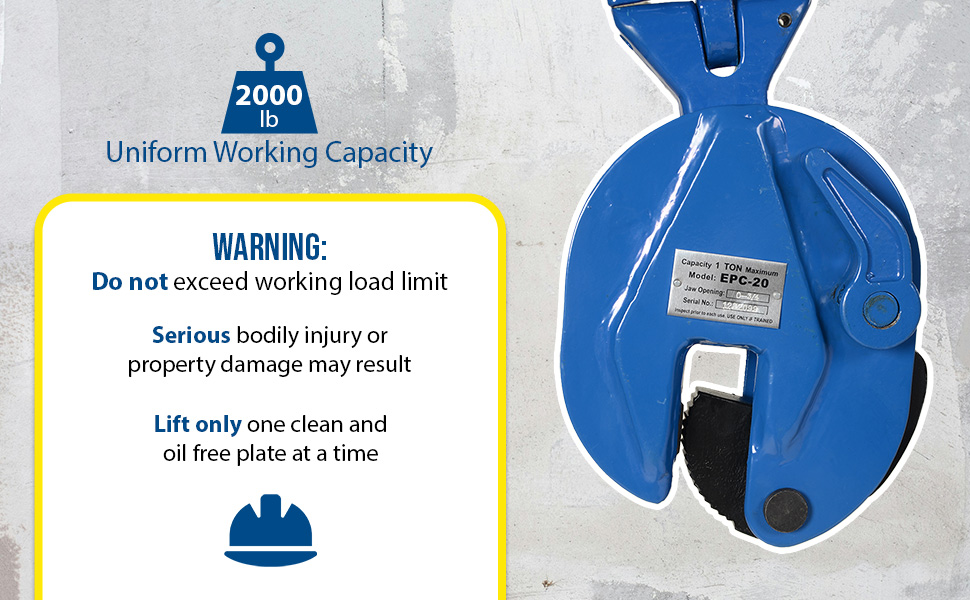

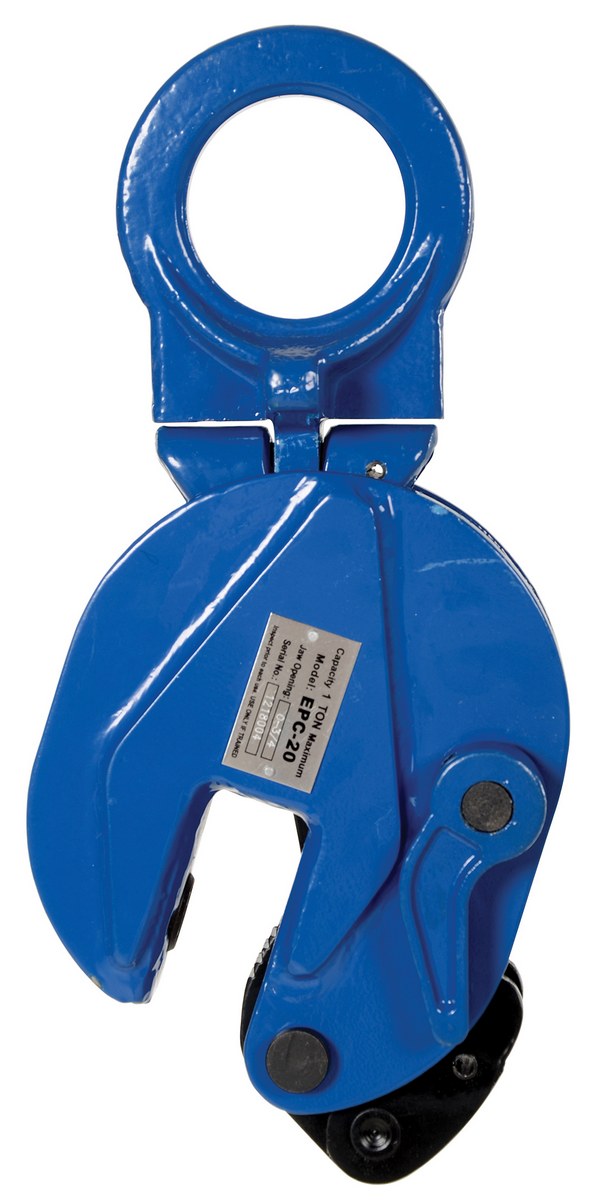

EPC-20 EPC-20Steel Vertical Plate Clamp 2,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 400
Uniform Working Load Limit (lb.): 2,000		16

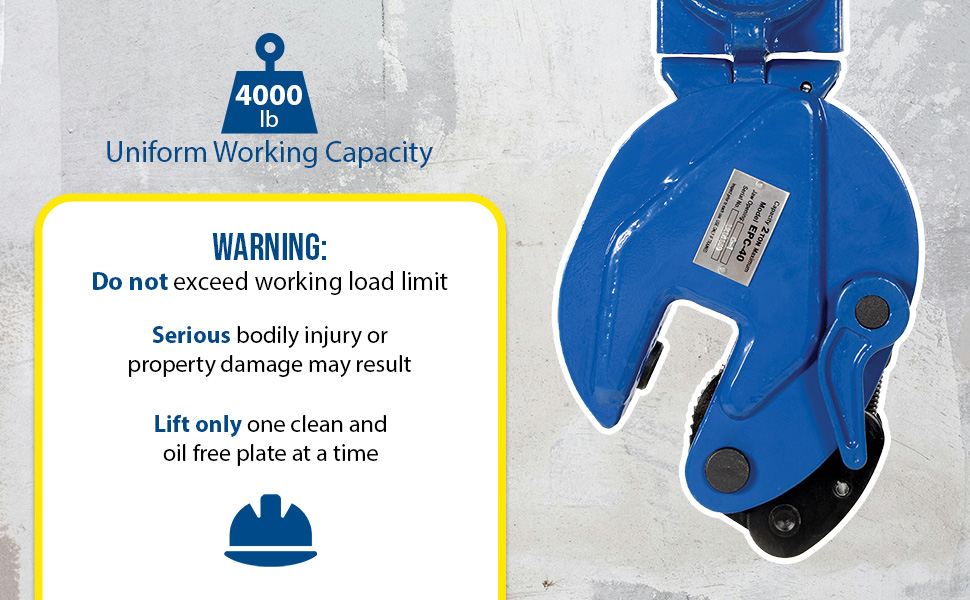

EPC-40 EPC-40Steel Vertical Plate Clamp 4,000 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 800
Uniform Working Load Limit (lb.): 4,000		17

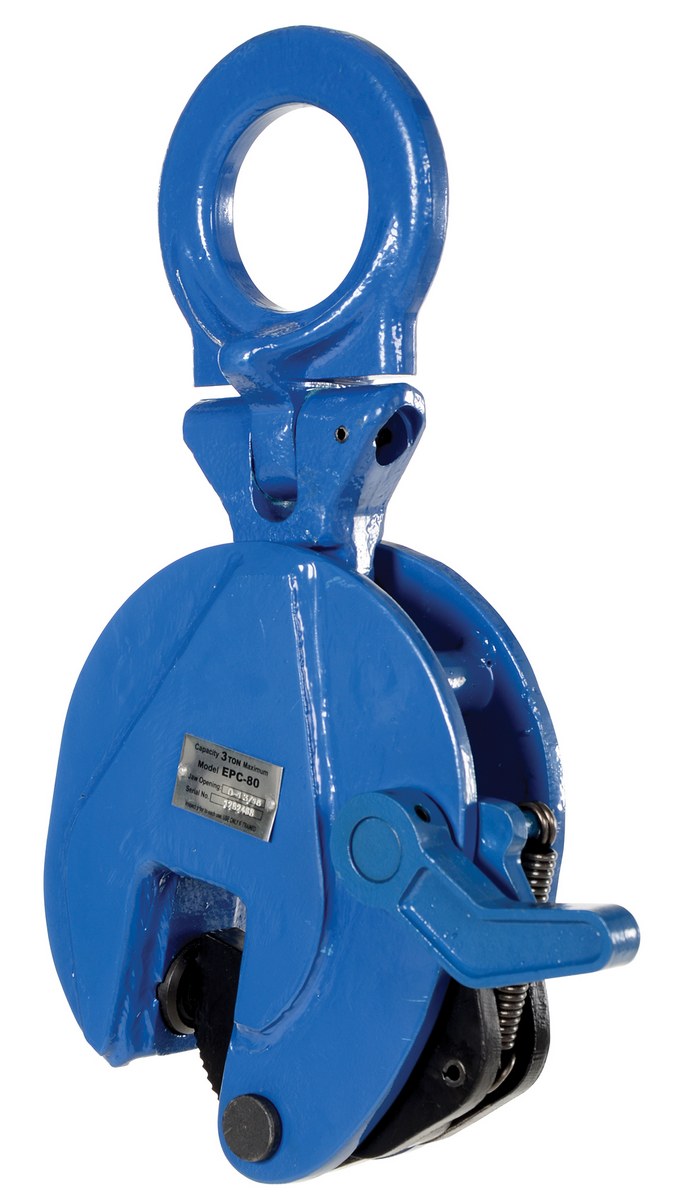

EPC-80 EPC-80Steel Vertical Plate Clamp 6,600 Lb. Capacity BlueMin Uniform Plate Weight (lb.): 1,320
Uniform Working Load Limit (lb.): 6,600		32
