Steel Safety Railings

SERIES: VDKR

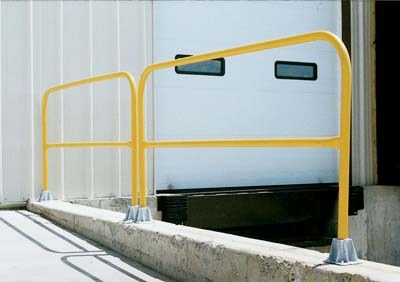

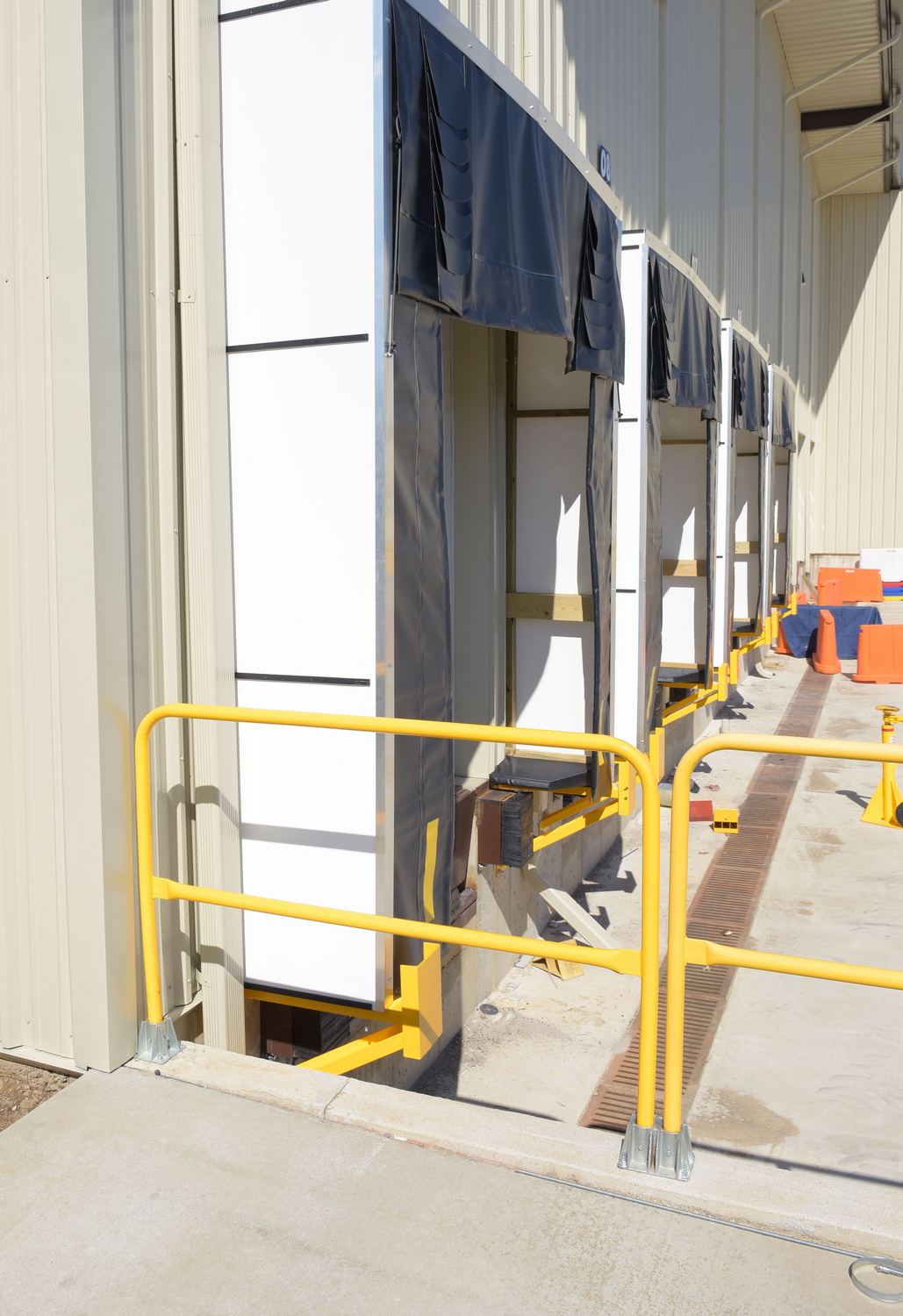

Protect people from uneven walkways and mezzanine drop-off's. The safety railing is constructed of schedule 10 steel. All models have an outside pipe diameter of 1-5/8". Handrails are 42" high with a 21" mid-rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets accept wood 2" x 4" or 2" x 6" when toe boards are required. Two (2) lag down holes are pre-drilled for permanently mounting the railing. The steel design includes a baked-in powder-coated finish, which is available in a variety of colors found in the table below. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.

Check Out Our Aluminum Safety Railing

Check Out Our Steel Safety Railing w/ Welded Baseplate

Protect people from uneven walkways and mezzanine drop-off's. The safety railing is constructed of schedule 10 steel. All models have an outside pipe diameter of 1-5/8". Handrails are 42" high with a 21" mid-rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets accept wood 2" x 4" or 2" x 6" when toe boards are required. Two (2) lag down holes are pre-drilled for permanently mounting the railing. The steel design includes a baked-in powder-coated finish, which is available in a variety of colors found in the table below. The VDKR series safety rail products comply with U.S. Occupational Safety and Health Administration (OSHA) General Industry requirements for guardrail systems in 29 CFR 1910.29.

Check Out Our Aluminum Safety Railing

Check Out Our Steel Safety Railing w/ Welded Baseplate

Other Safety Railing

Swivel Dock Gates

Aluminum Safety Railings

Dock Barricades

Steel Safety Railings

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

VDKR-BASE

VDKR-P102

VDKR-G3

VDKR-P107

VDKR-8-TB

VDKR-G4

VDKR-3

VDKR-P101

VDKR-G3

VDKR-4

VDKR-10

VDKR-BASE

VDKR-P101

VDKR-G4

VDKR-BASE-W

Safety Railing Specialty Colors Available!

Steel VDKR Colors

YELLOW (standard)

YELLOW (standard)
Model Suffix: No Suffix

BLACK

BLACK
Model Suffix: -BK

BLUE

BLUE
Model Suffix: -BL

GRAY

GRAY
Model Suffix: -GYSG

ORANGE

ORANGE
Model Suffix: -OR

RED

RED
Model Suffix: -RD

SILVER

SILVER
Model Suffix: -SL

WHITE

WHITE
Model Suffix: -WT

Notice These swatches are a representation of the colors available, and may not be exact.

For a list of Model Numbers of each Color, Go down to the Model chart below and choose your color from the
Alternate Colors Menu

Applications

Construction Projects

Municipalities

Universities

Military

Restaurants

Warehouses

Hotels

Train Stations

Superstores

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

	Model #				Description	Attributes	Net Wt. (lbs)

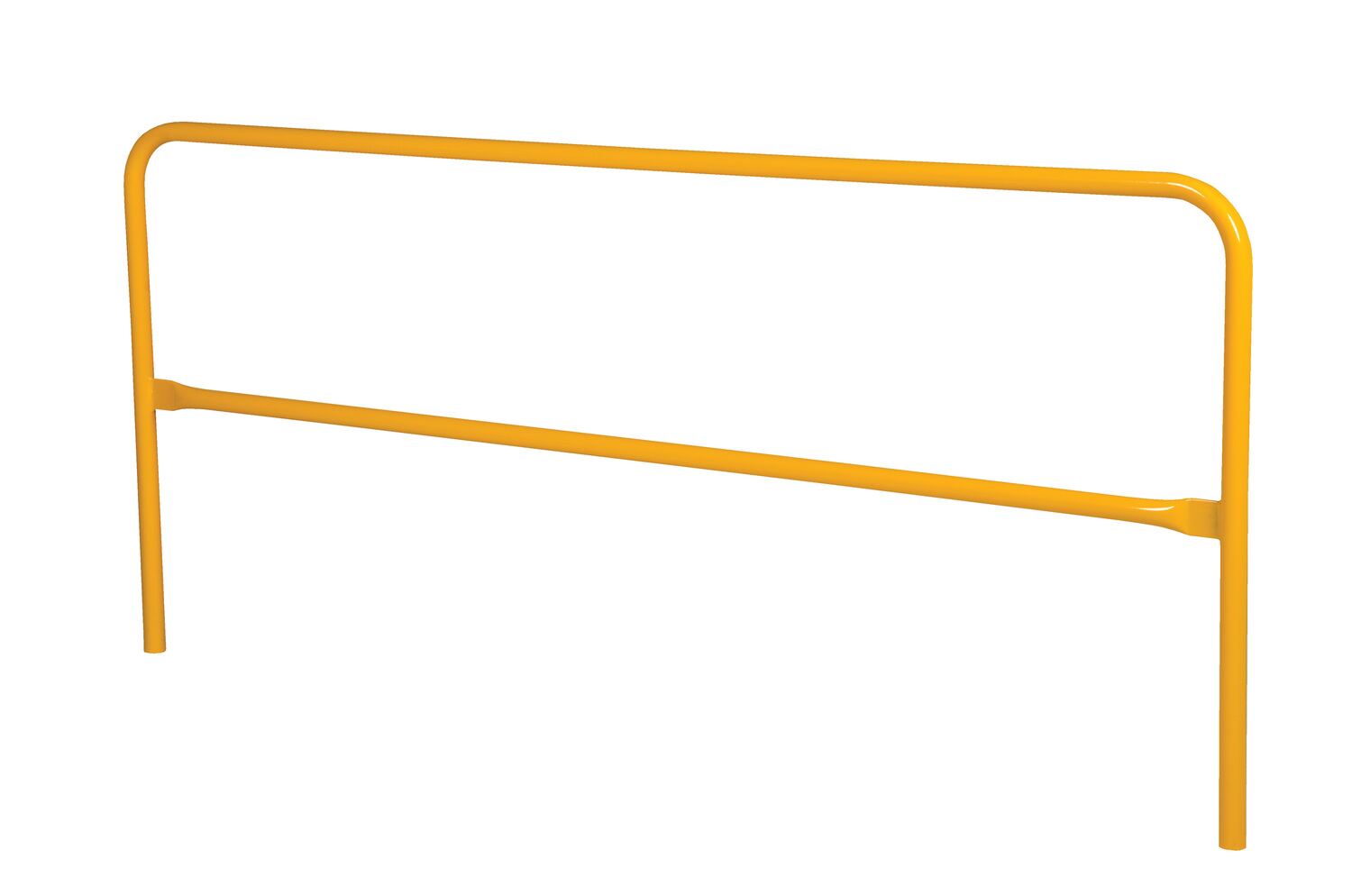

	VDKR-10			90 Days Limited Warranty	Steel Safety Railing 10 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	99

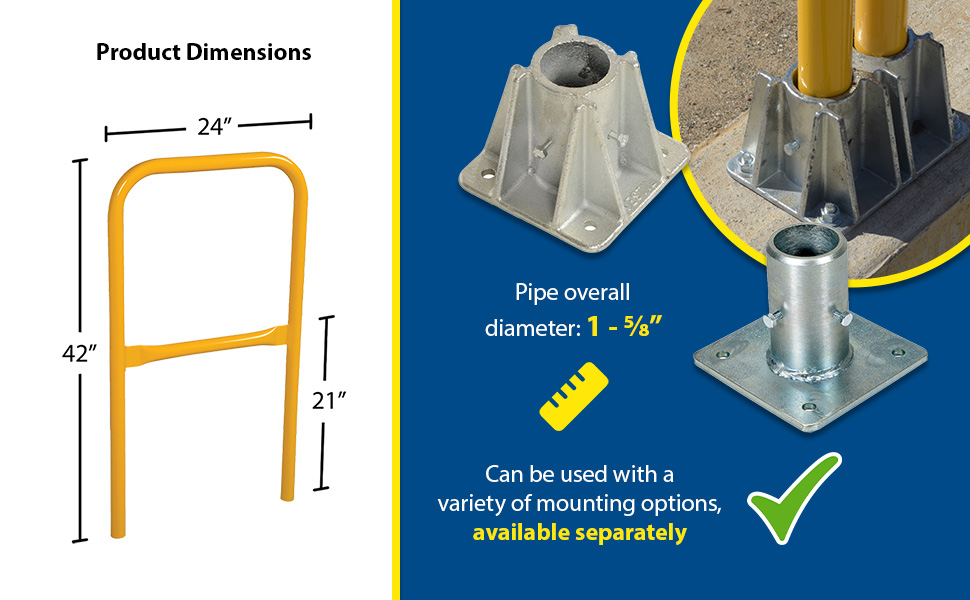

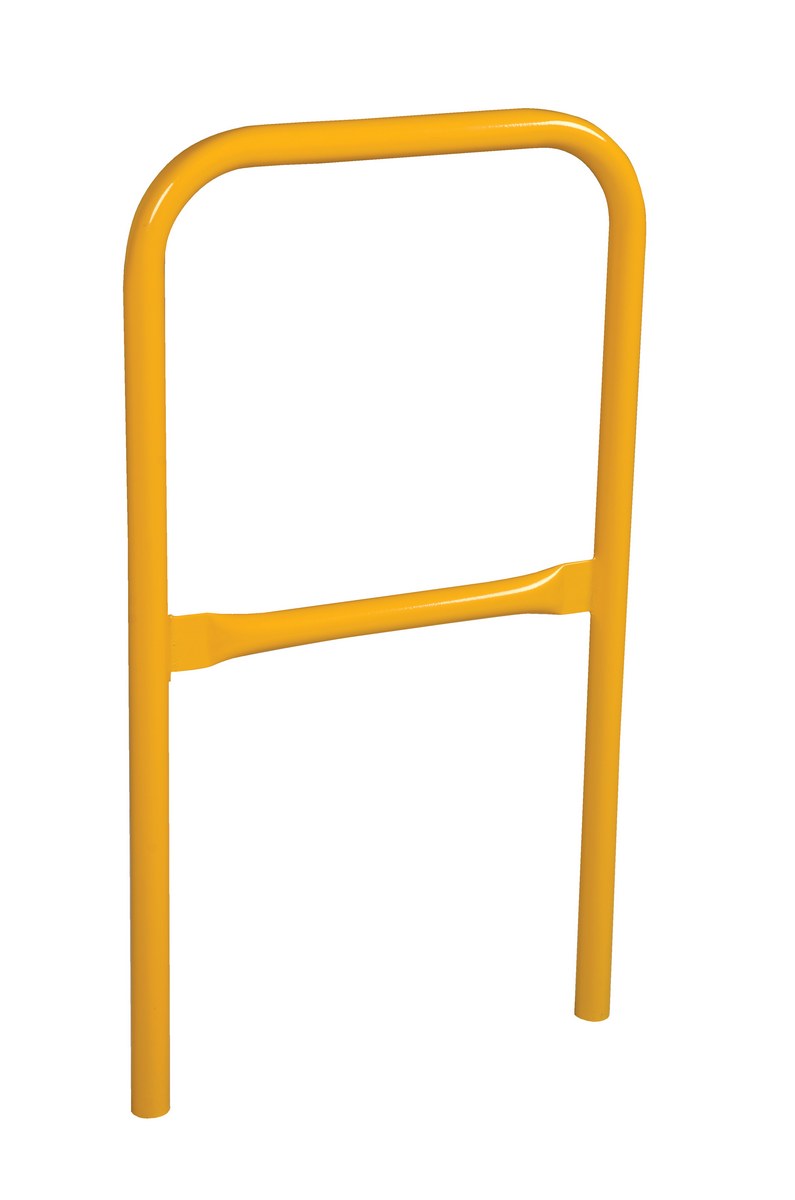

	VDKR-2			90 Days Limited Warranty	Steel Safety Railing 2 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	19

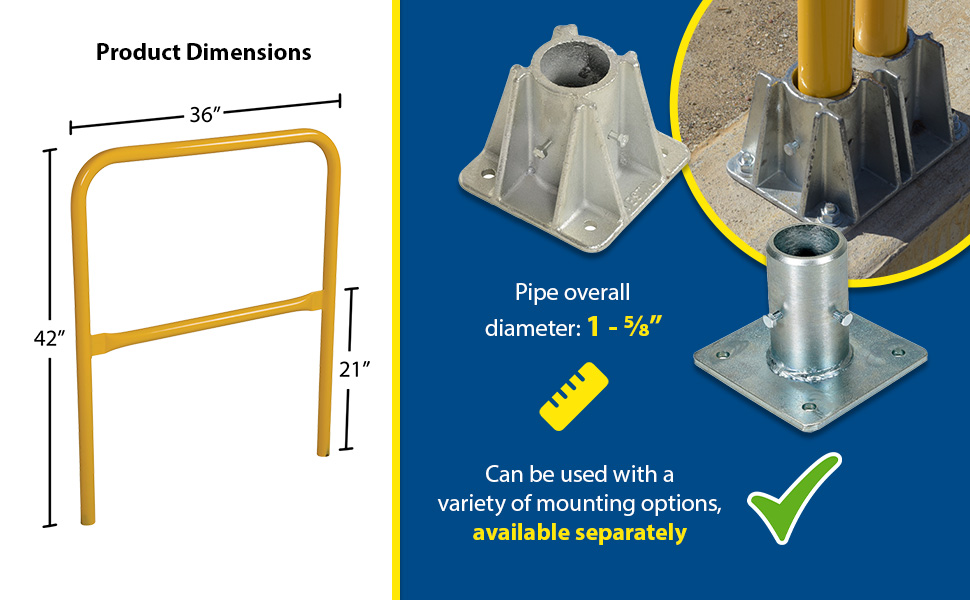

	VDKR-3			90 Days Limited Warranty	Steel Safety Railing 3 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	24

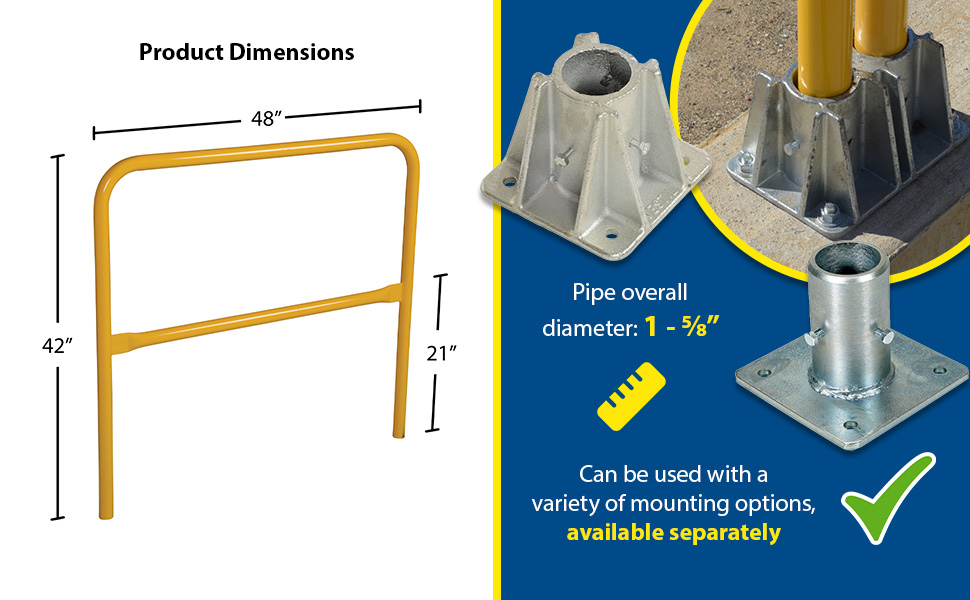

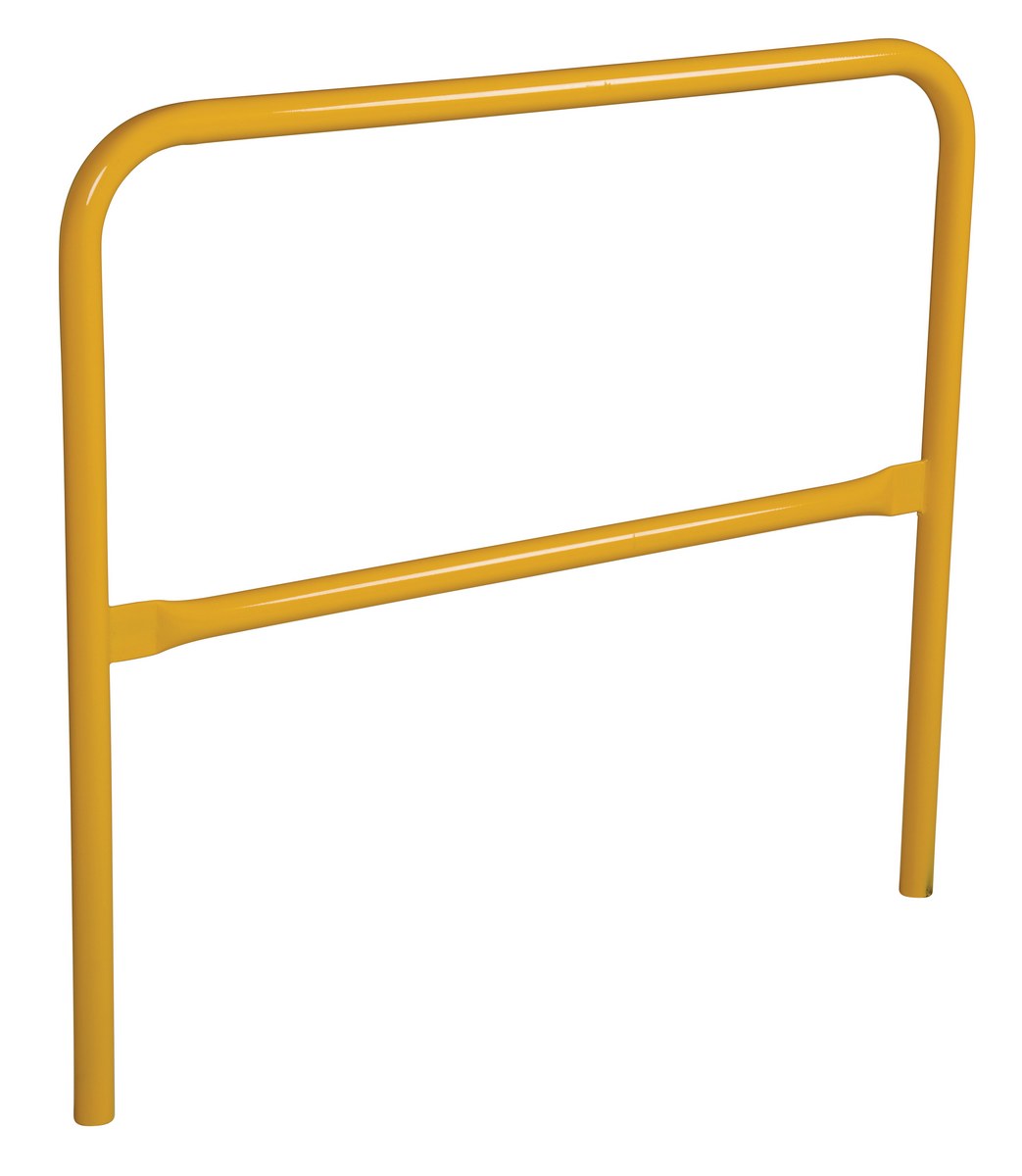

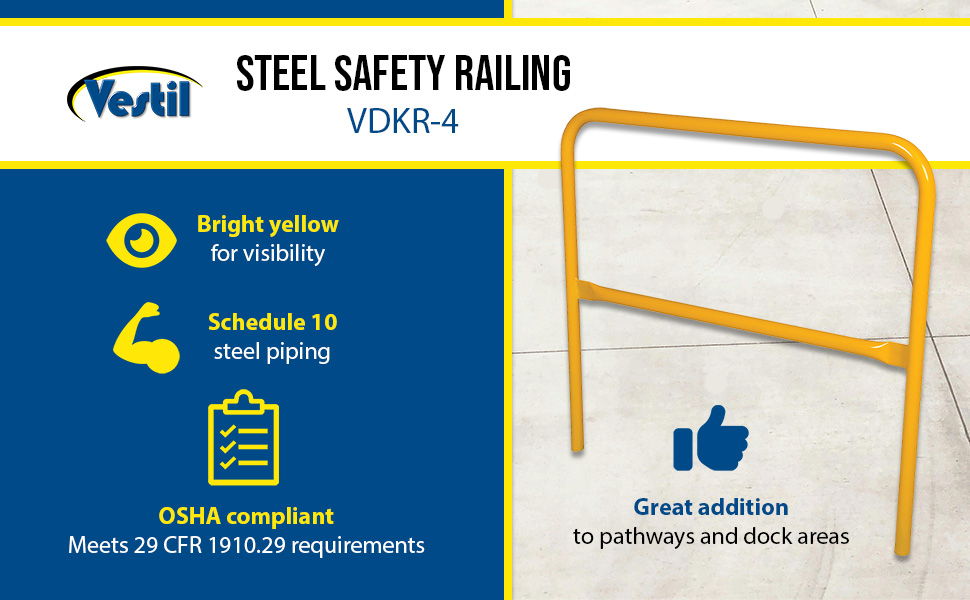

	VDKR-4			90 Days Limited Warranty	Steel Safety Railing 4 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	90

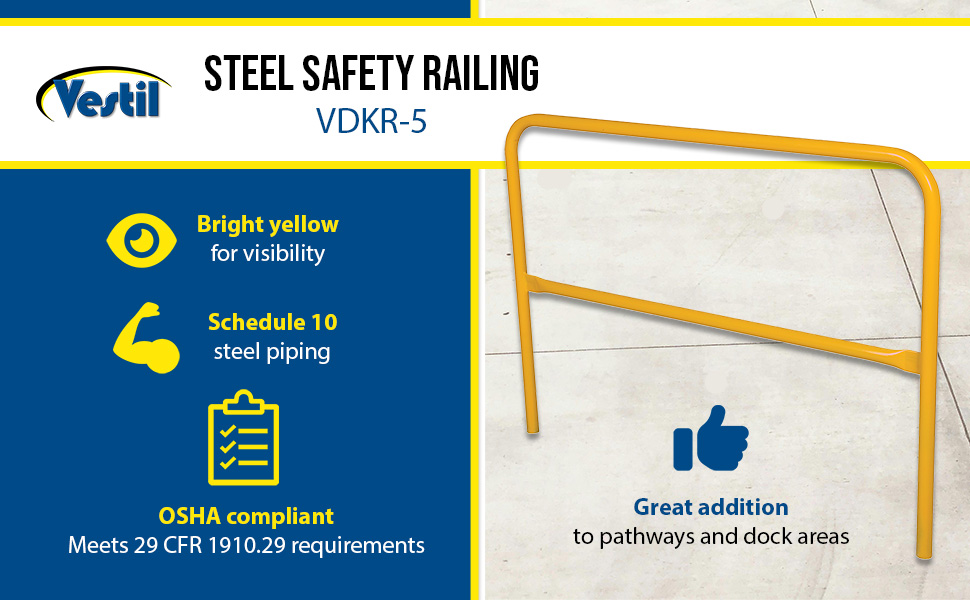

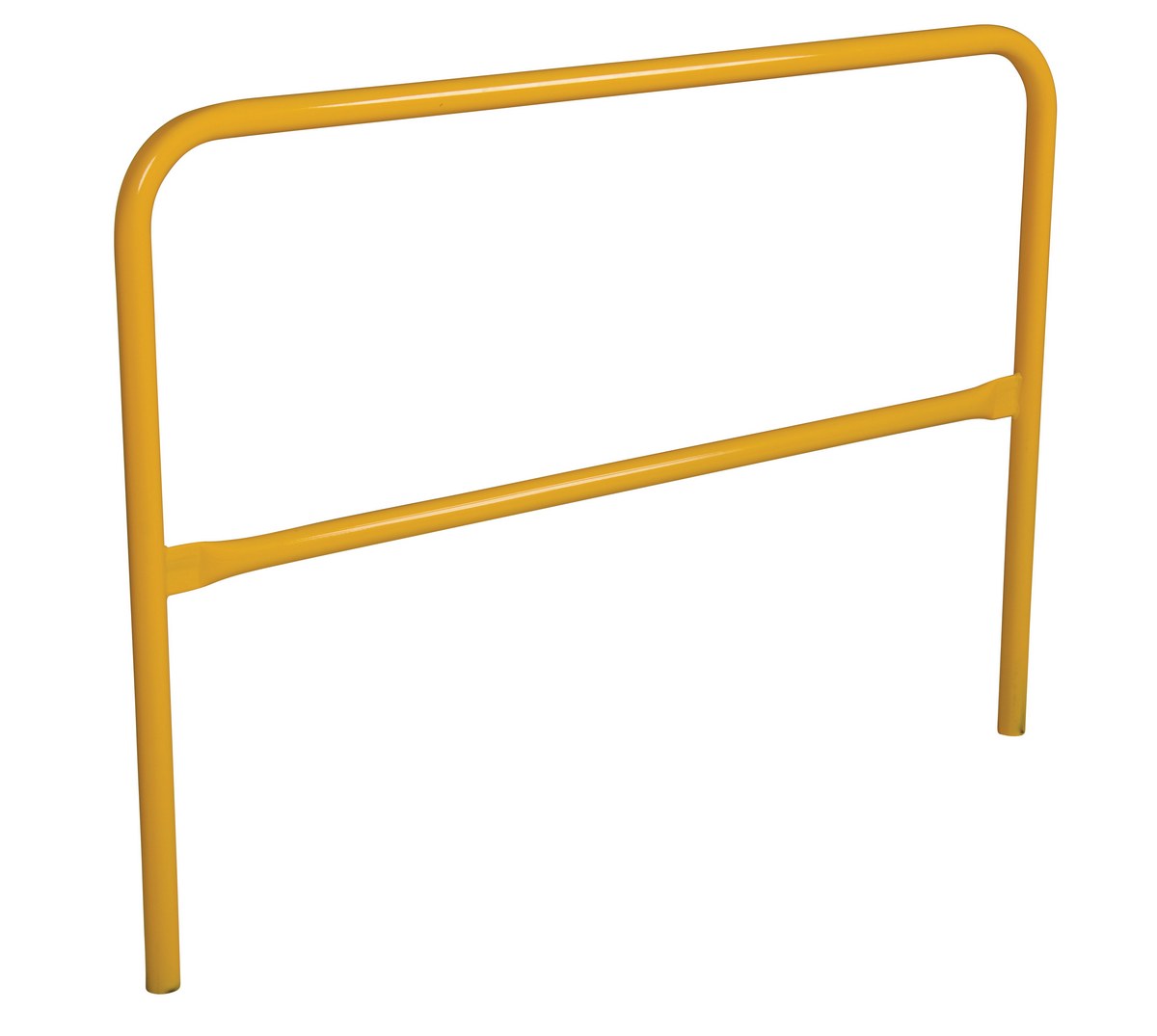

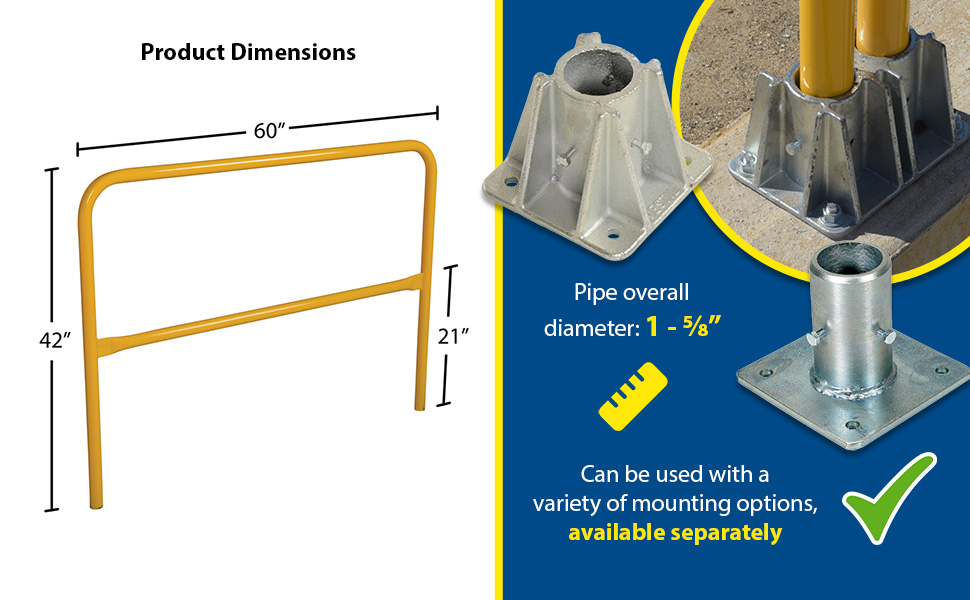

	VDKR-5			90 Days Limited Warranty	Steel Safety Railing 5 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	33

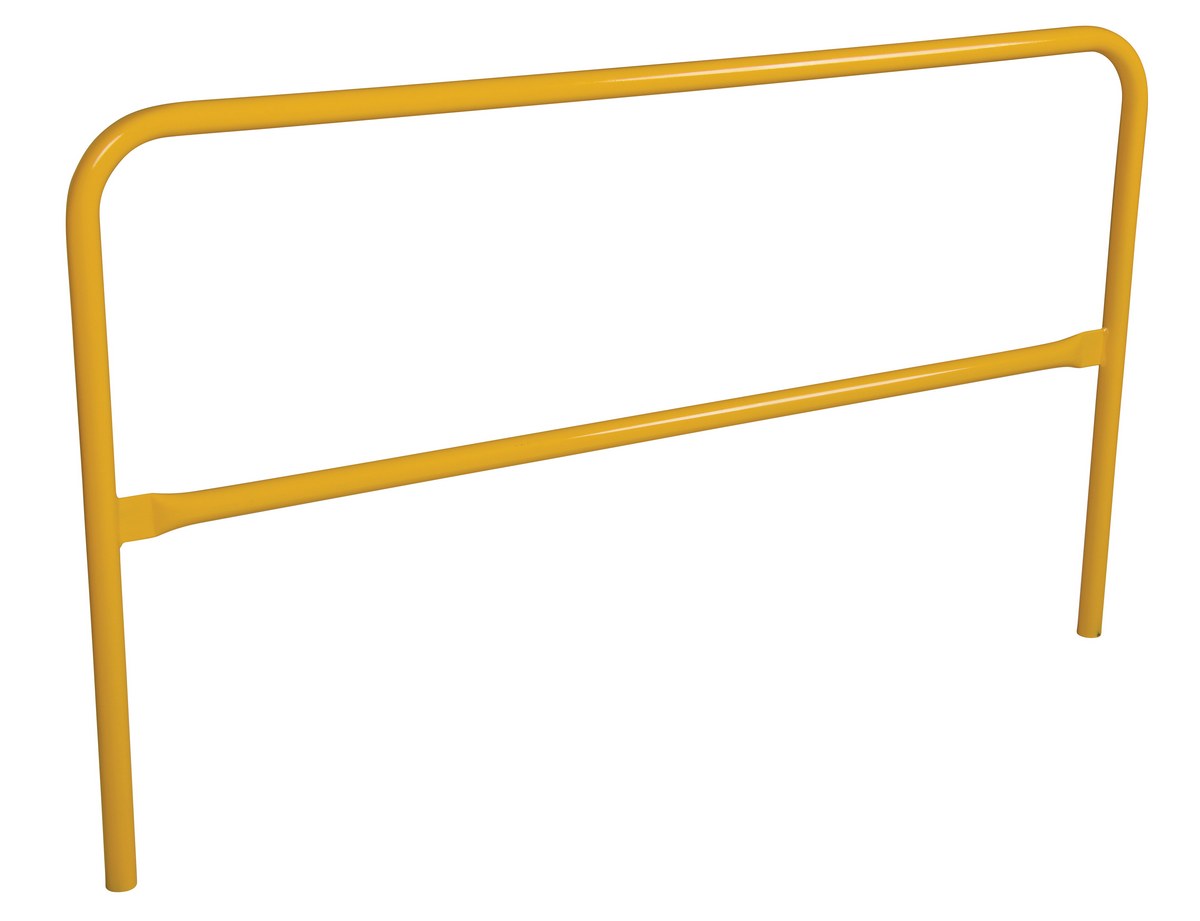

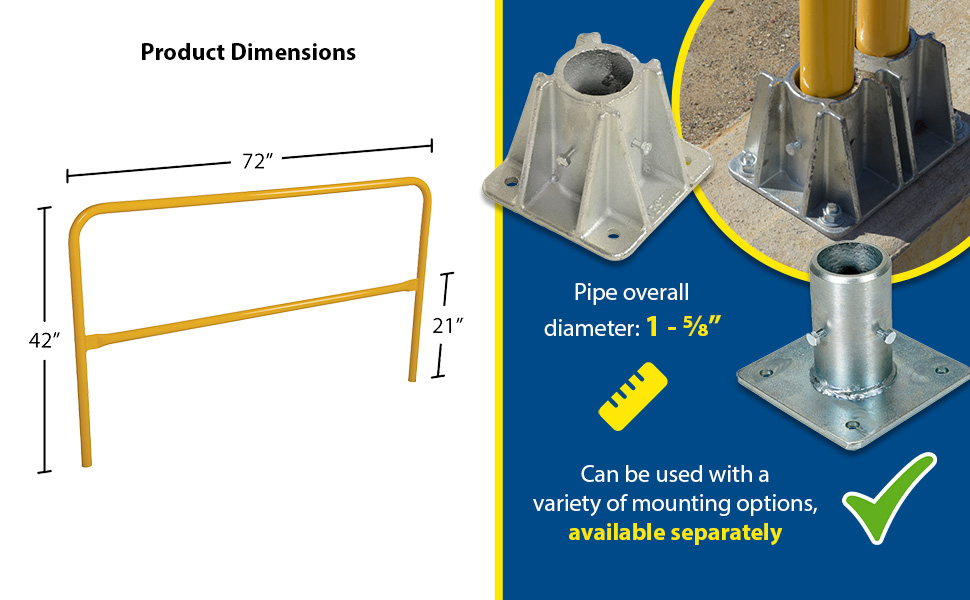

	VDKR-6			90 Days Limited Warranty	Steel Safety Railing 6 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	110

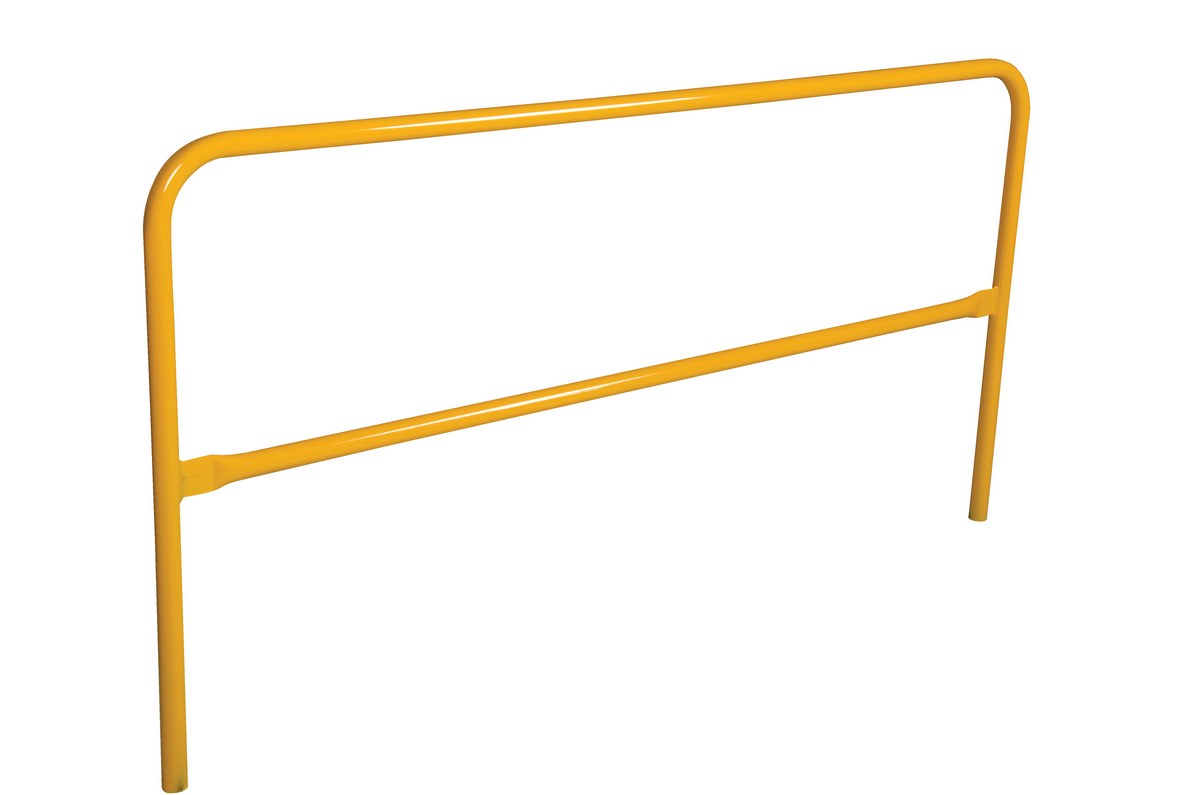

	VDKR-7			90 Days Limited Warranty	Steel Safety Railing 7 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	88

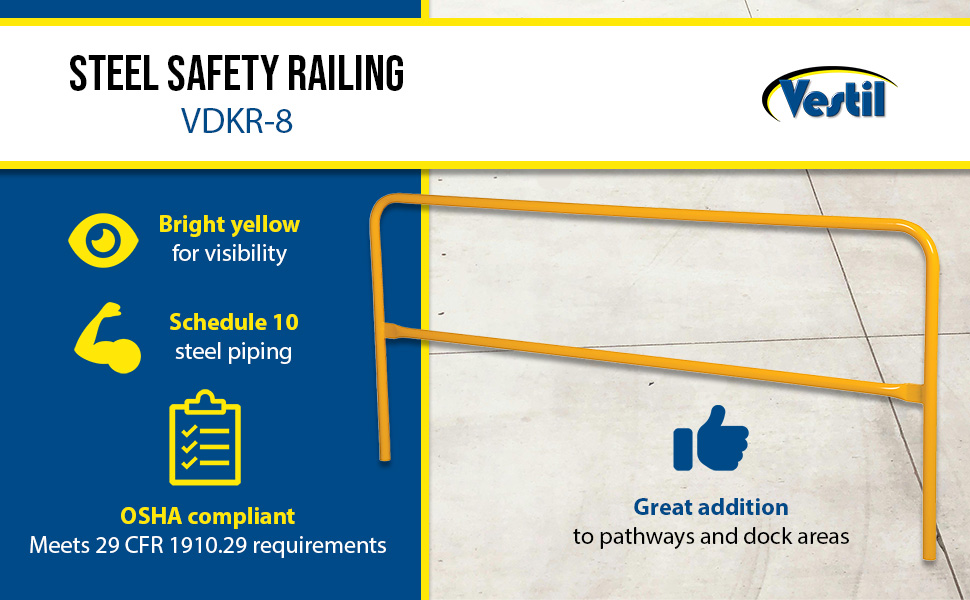

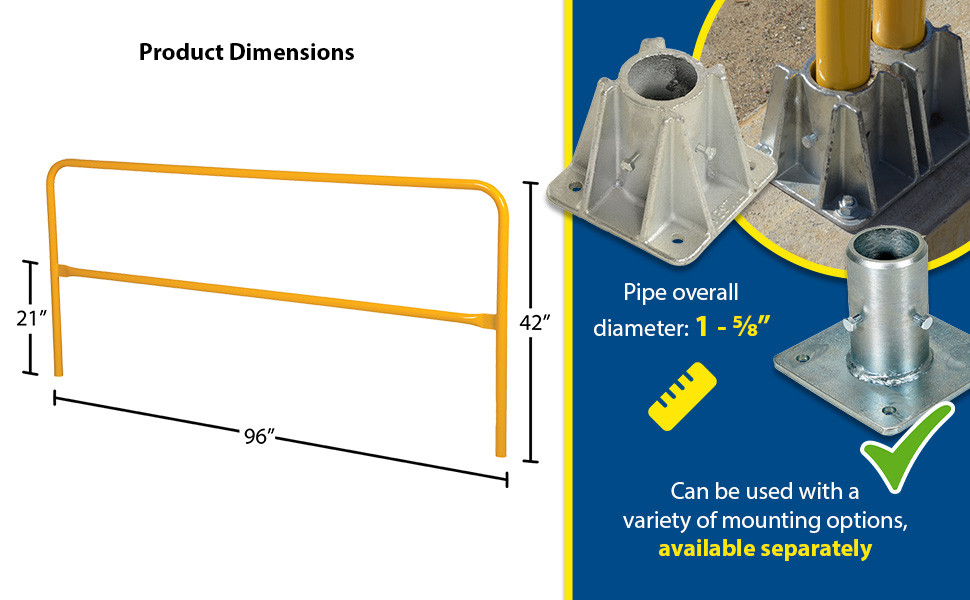

	VDKR-8			90 Days Limited Warranty	Steel Safety Railing 8 Ft. Length Yellow	Midrail Height (in.): 21 Steel Pipe (schedule): 10	96

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VDKR-10

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-2

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-3

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-4

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-5

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-6

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-7

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

VDKR-8

Unit:
Size: W x L x H
Weight:
Limited Warranty
Midrail Height (in.): 21
Steel Pipe (schedule): 10
Midrail Height (in.): 21
Steel Pipe (schedule): 10

For More Details of the Option Click the Red Model Button

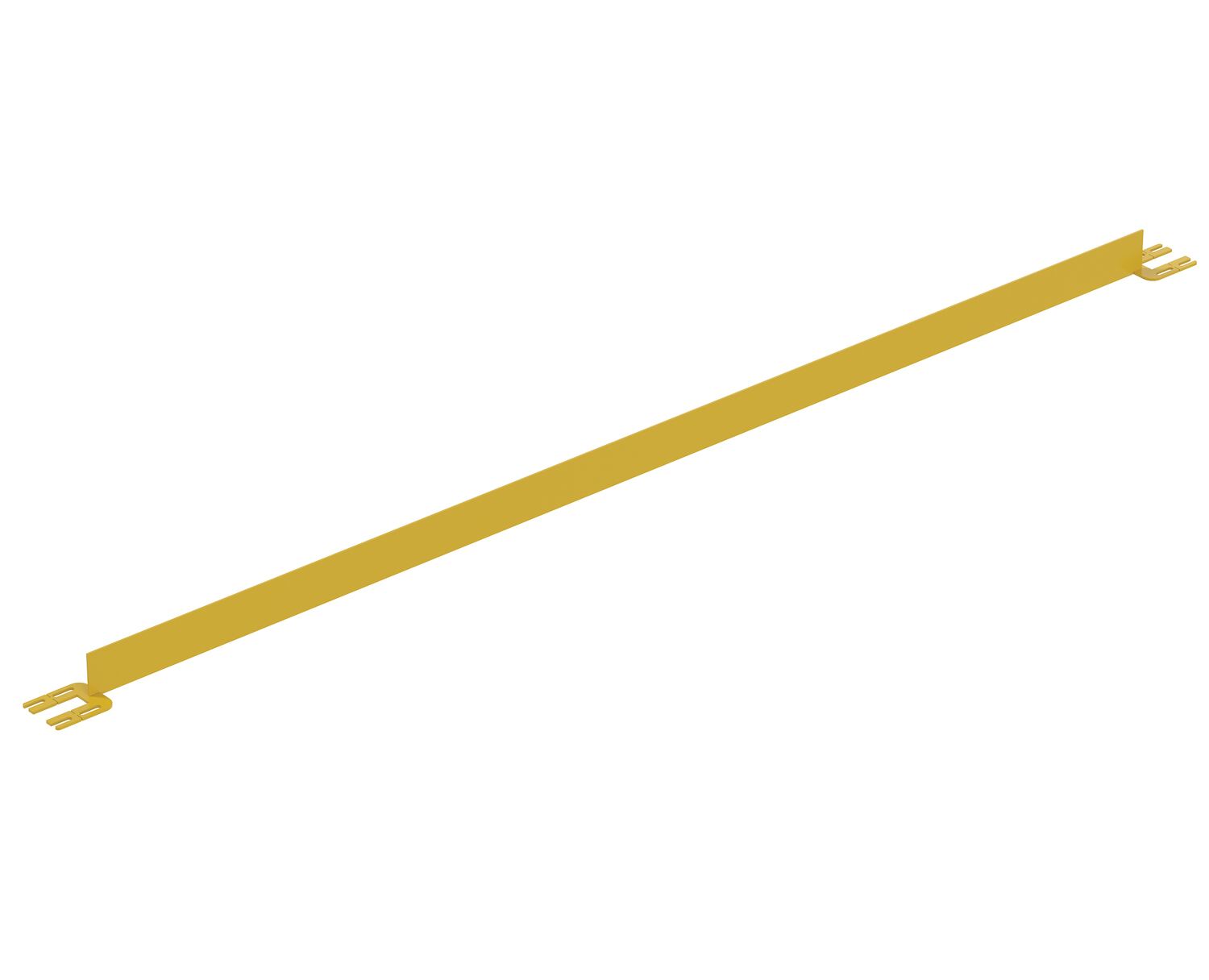

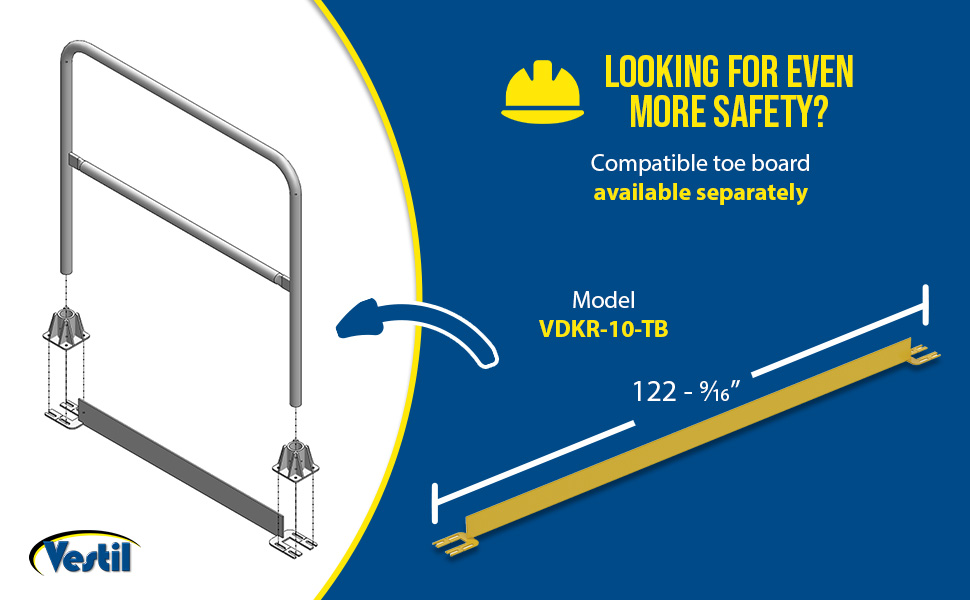

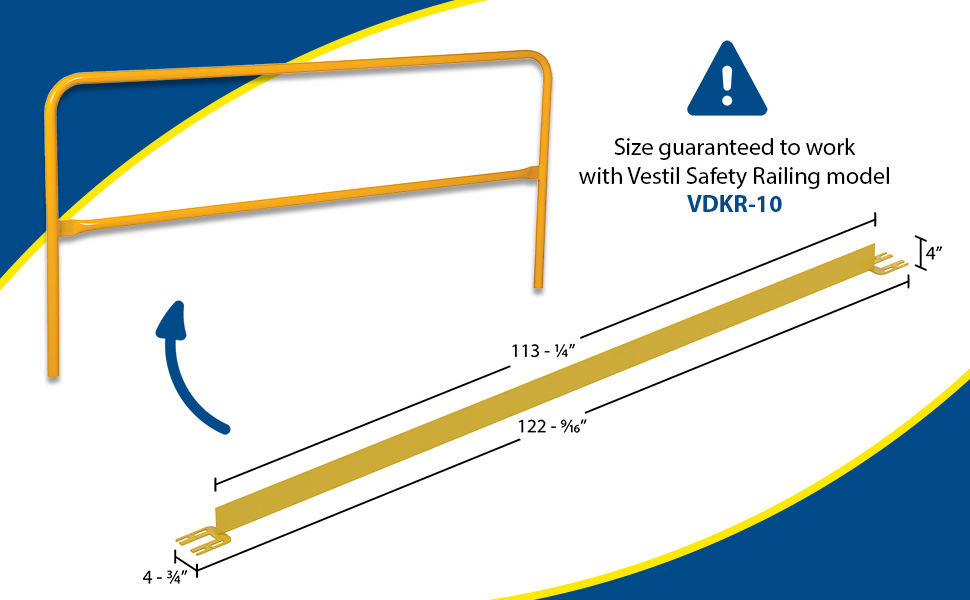

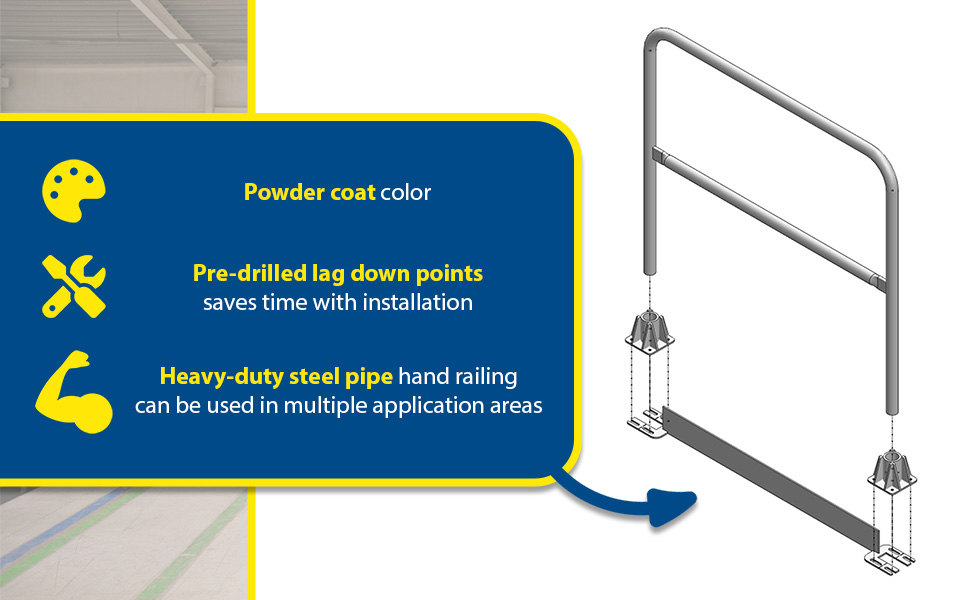

VDKR-10-TB			90 Days Limited Warranty	Steel Toe Board for Pipe Safety Railing 10 Ft. Length Yellow	Toeboard Plate Length (in.): 122.5 Mounting Plate Width (in.): 4-3/4	27

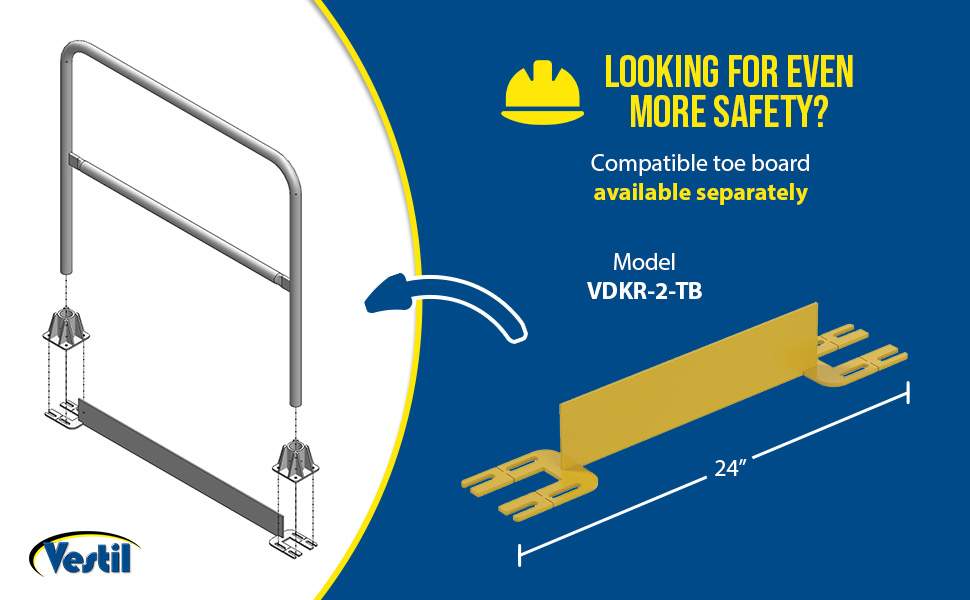

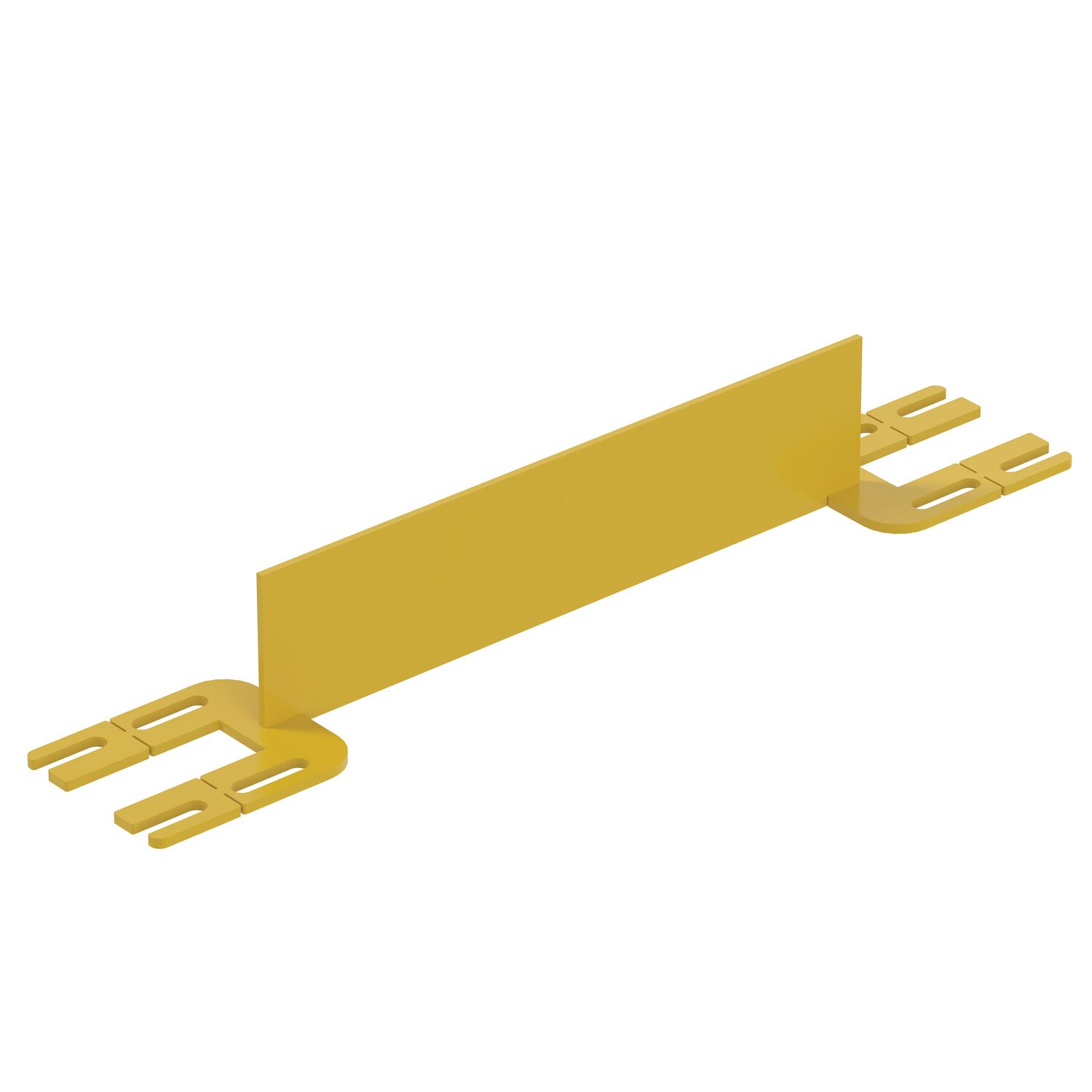

VDKR-2-TB			90 Days Limited Warranty	Steel Toe Board for Pipe Safety Railing 2 Ft. Length Yellow	Toeboard Plate Length (in.): 17-1/4 Mounting Plate Width (in.): 4-3/4	7

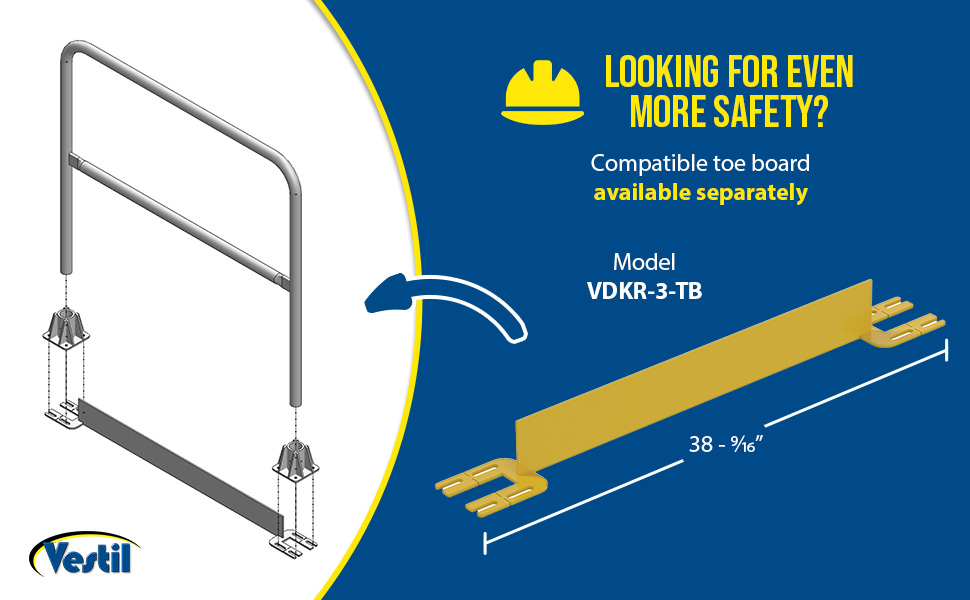

VDKR-3-TB			90 Days Limited Warranty	Steel Toe Board for Pipe Safety Railing 3 Ft. Length Yellow	Toeboard Plate Length (in.): 29-1/4 Mounting Plate Width (in.): 4-3/4	10

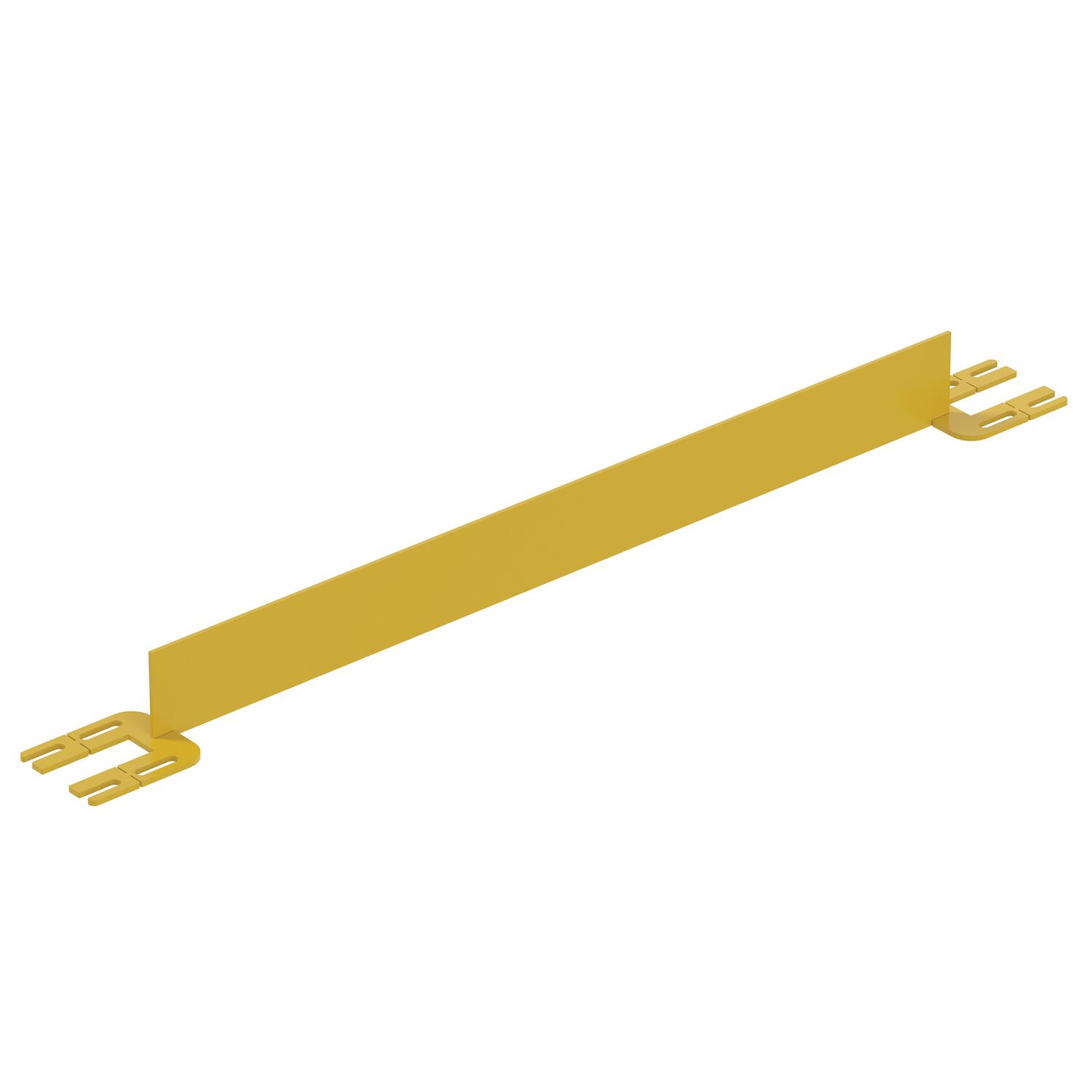

VDKR-4-TB			90 Days Limited Warranty	Steel Toe Board for Pipe Safety Railing 4 Ft. Length Yellow	Toeboard Plate Length (in.): 41-1/4 Mounting Plate Width (in.): 4-3/4	14

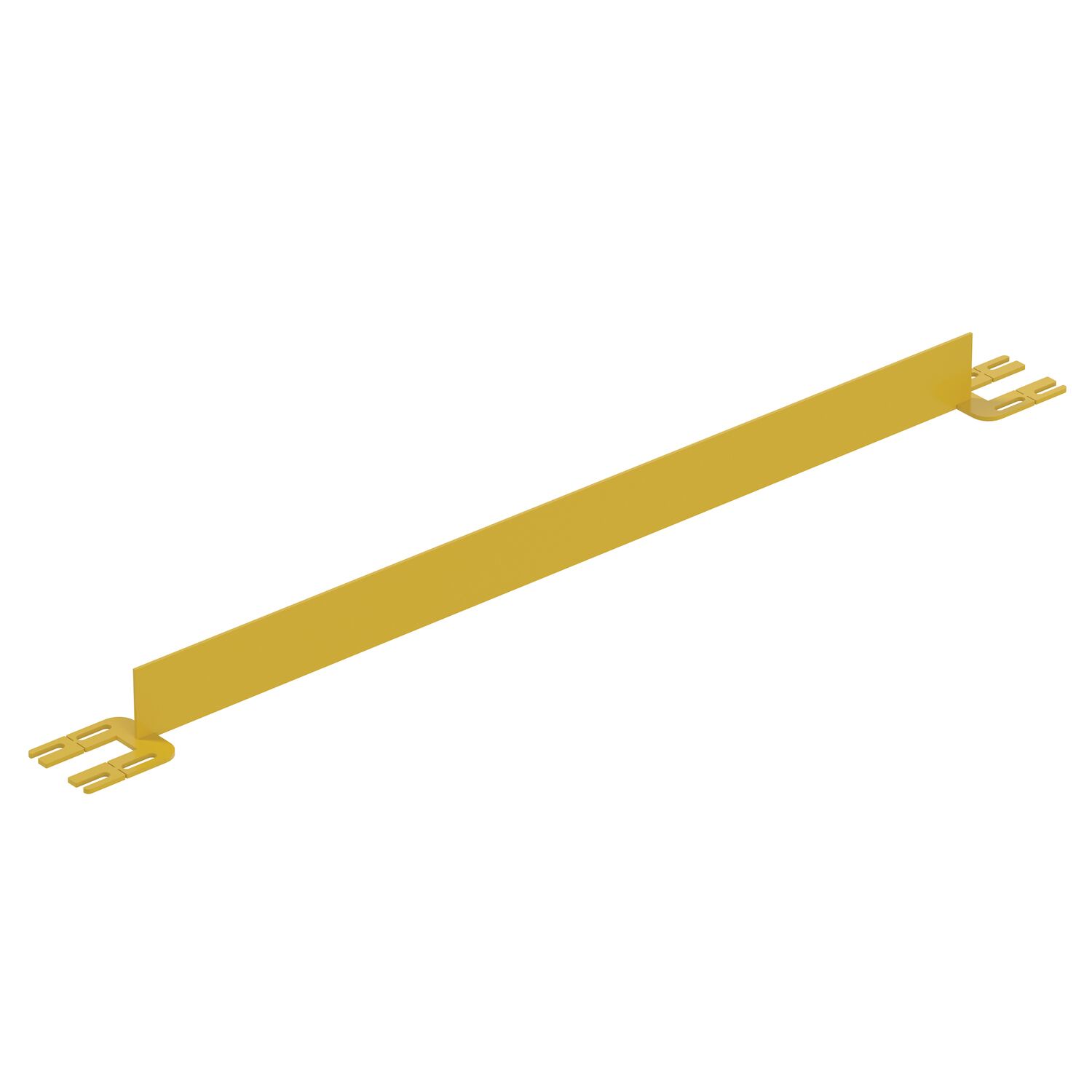

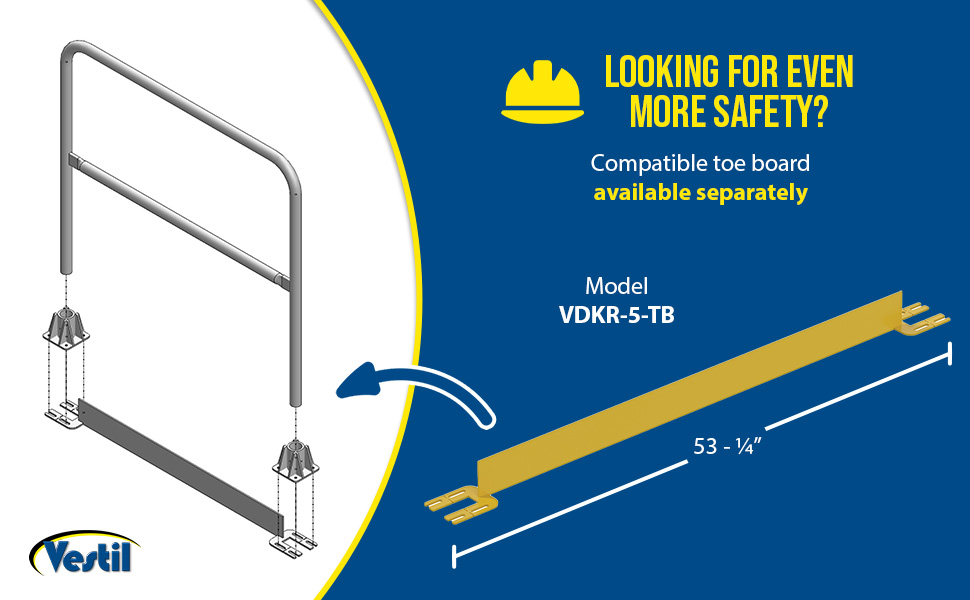

VDKR-5-TB			90 Days Limited Warranty	Steel Toe Board for Pipe Safety Railing 5 Ft. Length Yellow	Toeboard Plate Length (in.): 53-1/4 Mounting Plate Width (in.): 4-3/4	22

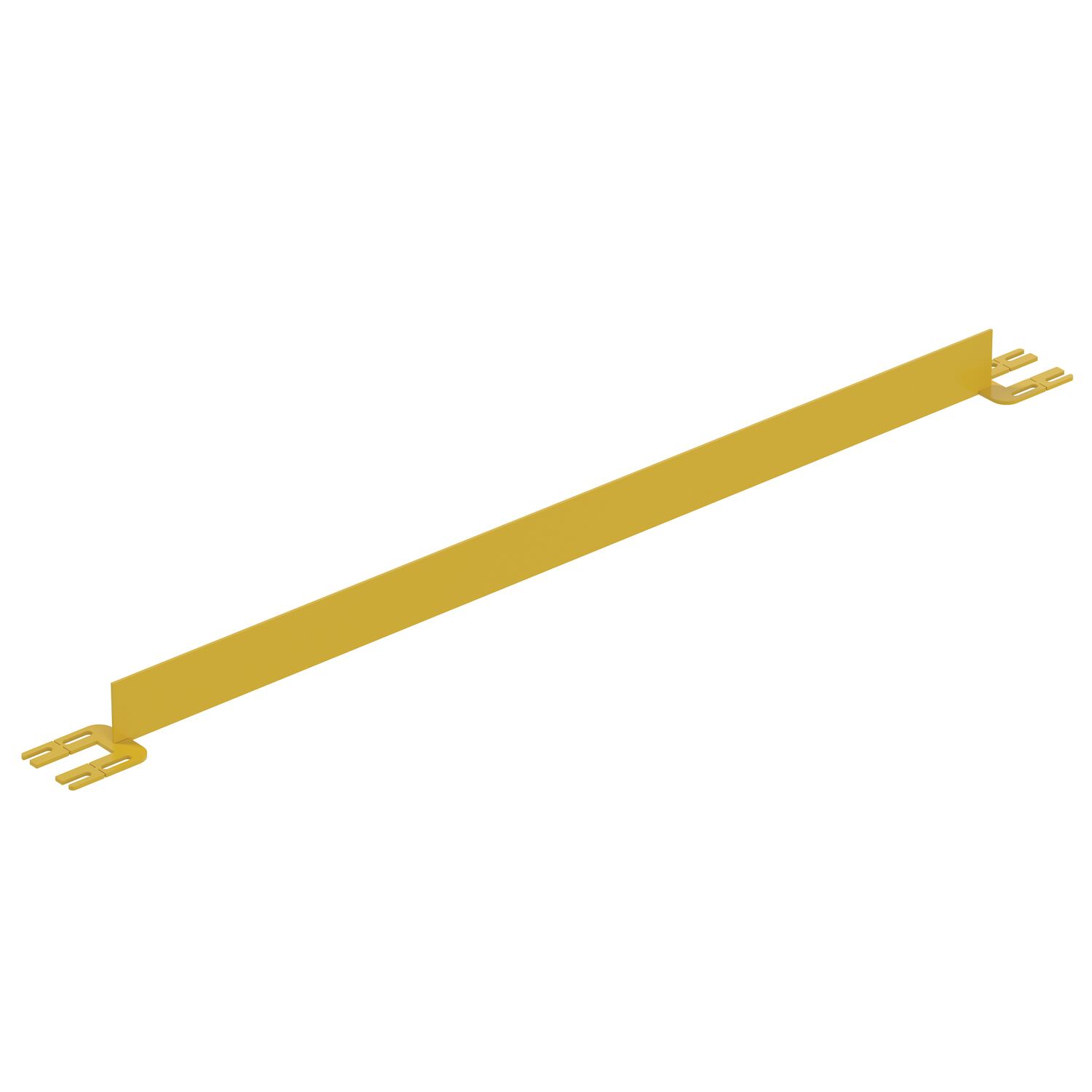

VDKR-6-TB			90 Days Limited Warranty	Steel Toe Board for Pipe Safety Railing 6 Ft. Length Yellow	Toeboard Plate Length (in.): 65-1/4 Mounting Plate Width (in.): 4-3/4	51

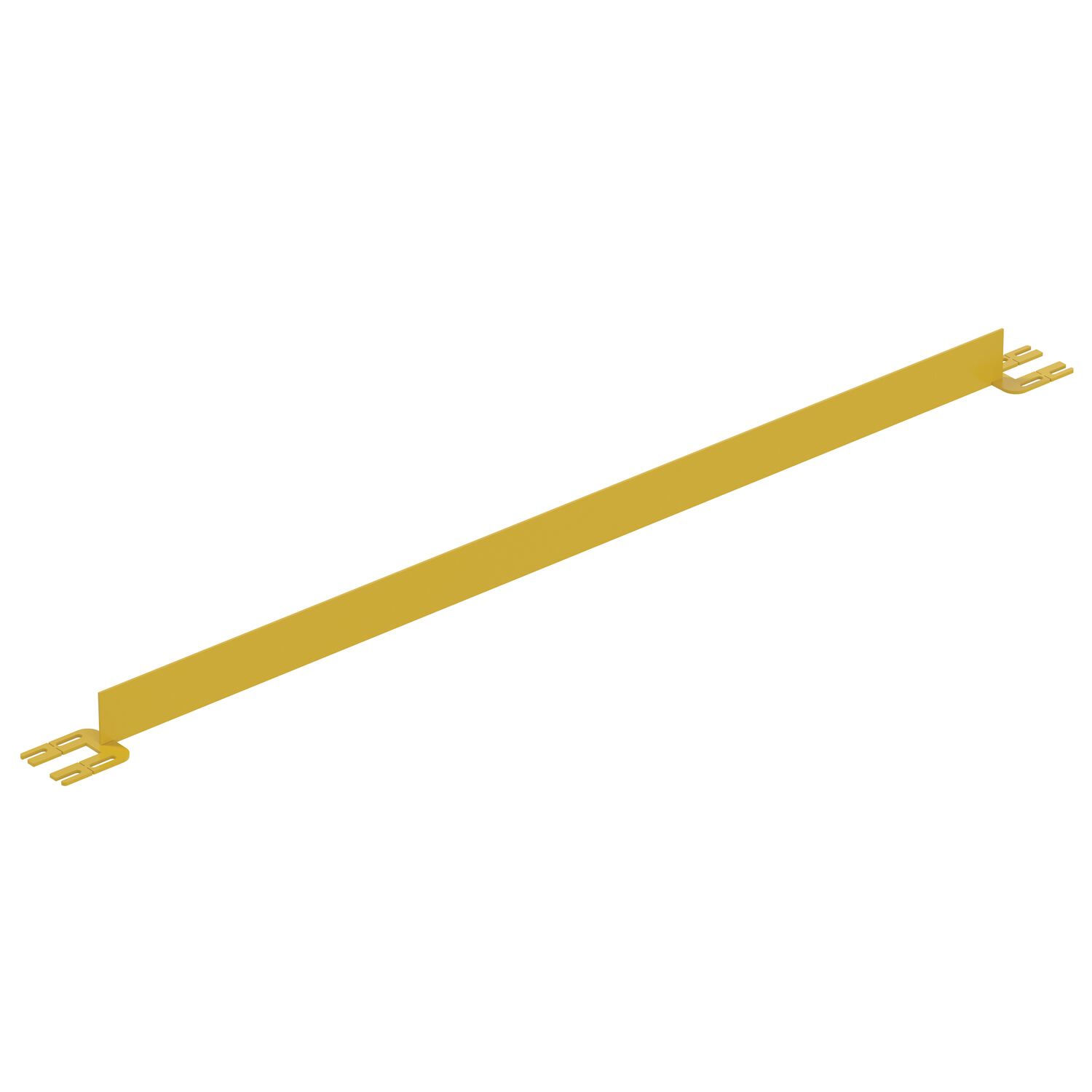

VDKR-7-TB			90 Days Limited Warranty	Steel Toe Board for Pipe Safety Railing 7 Ft. Length Yellow	Toeboard Plate Length (in.): 77-1/4 Mounting Plate Width (in.): 4-3/4	30

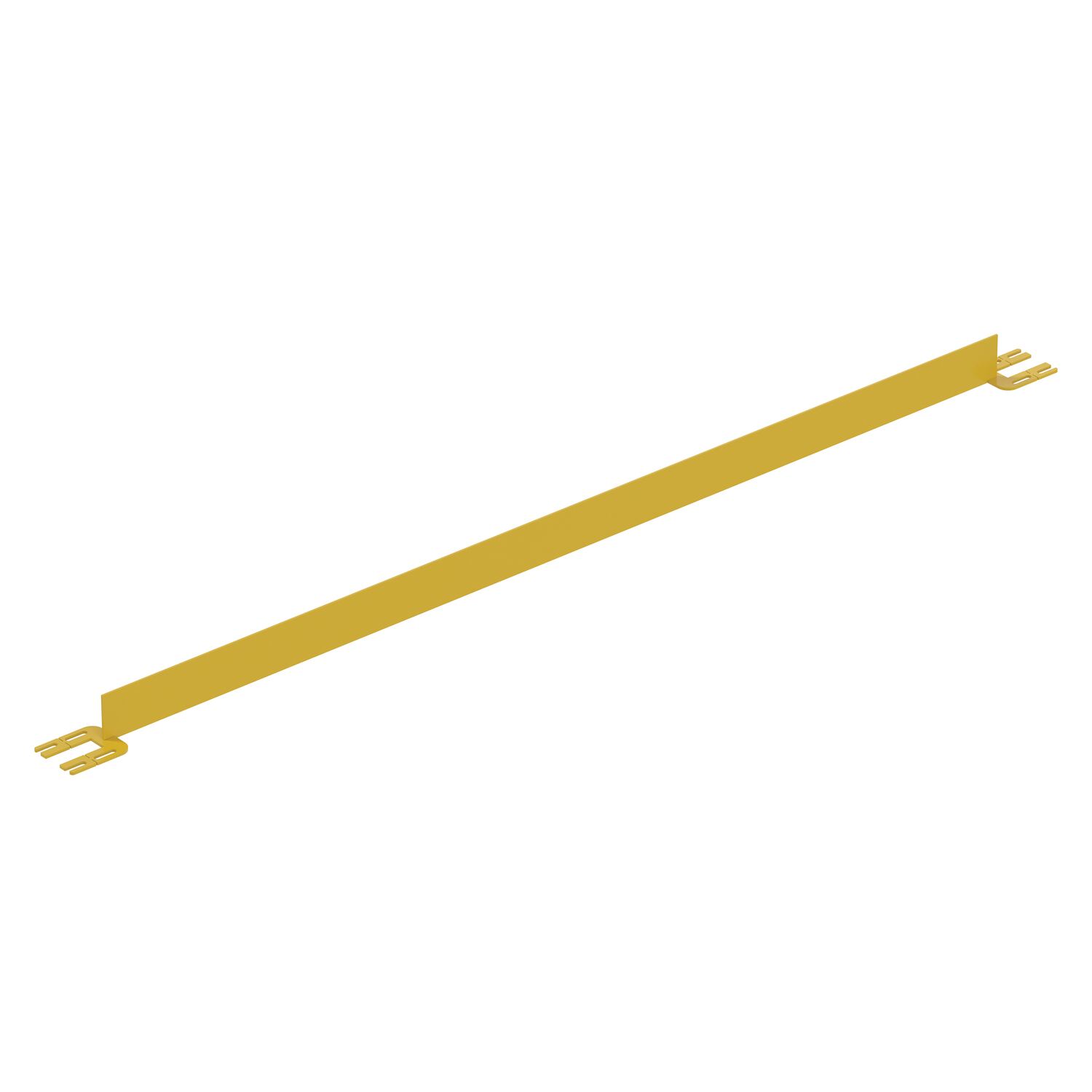

VDKR-8-TB			90 Days Limited Warranty	Steel Toe Board for Pipe Safety Railing 8 Ft. Length Yellow	Toeboard Plate Length (in.): 89-1/4 Mounting Plate Width (in.): 4-3/4	58

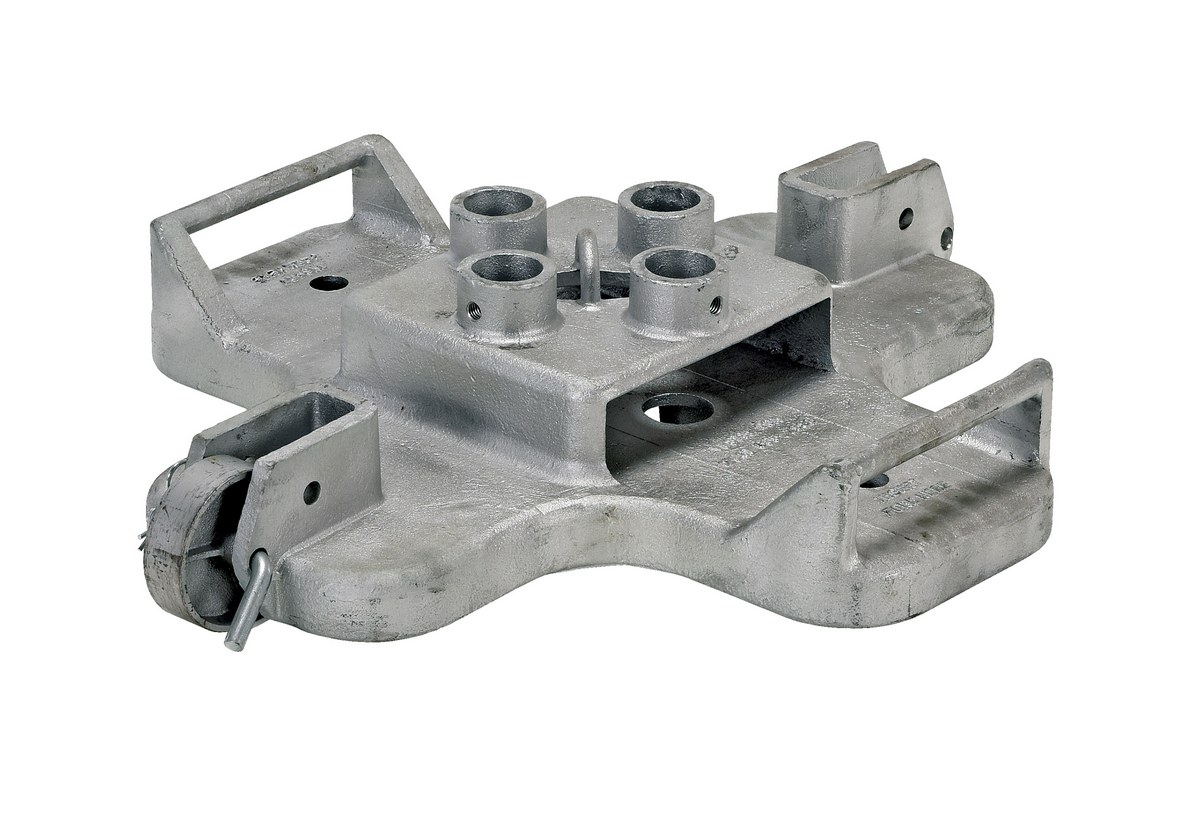

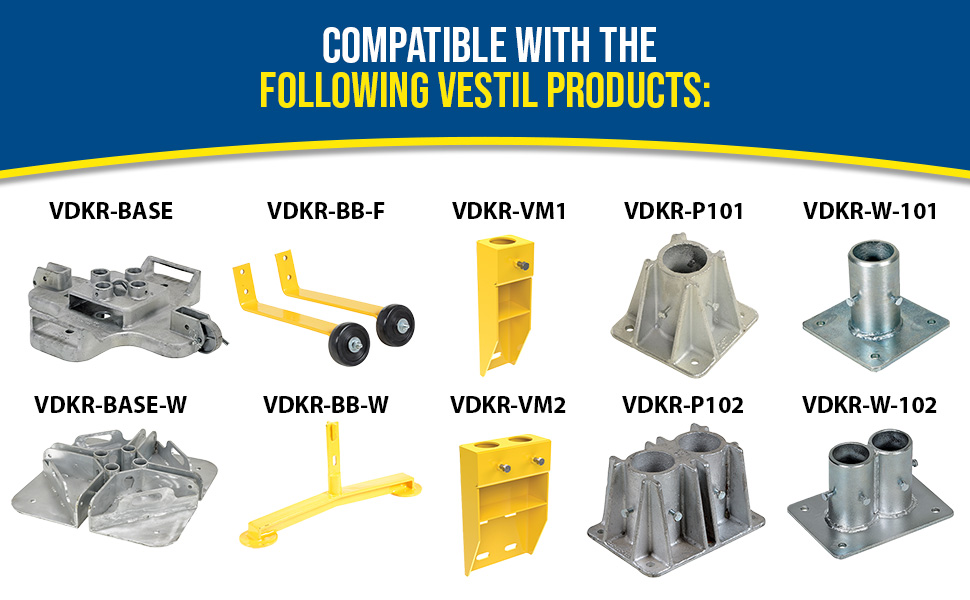

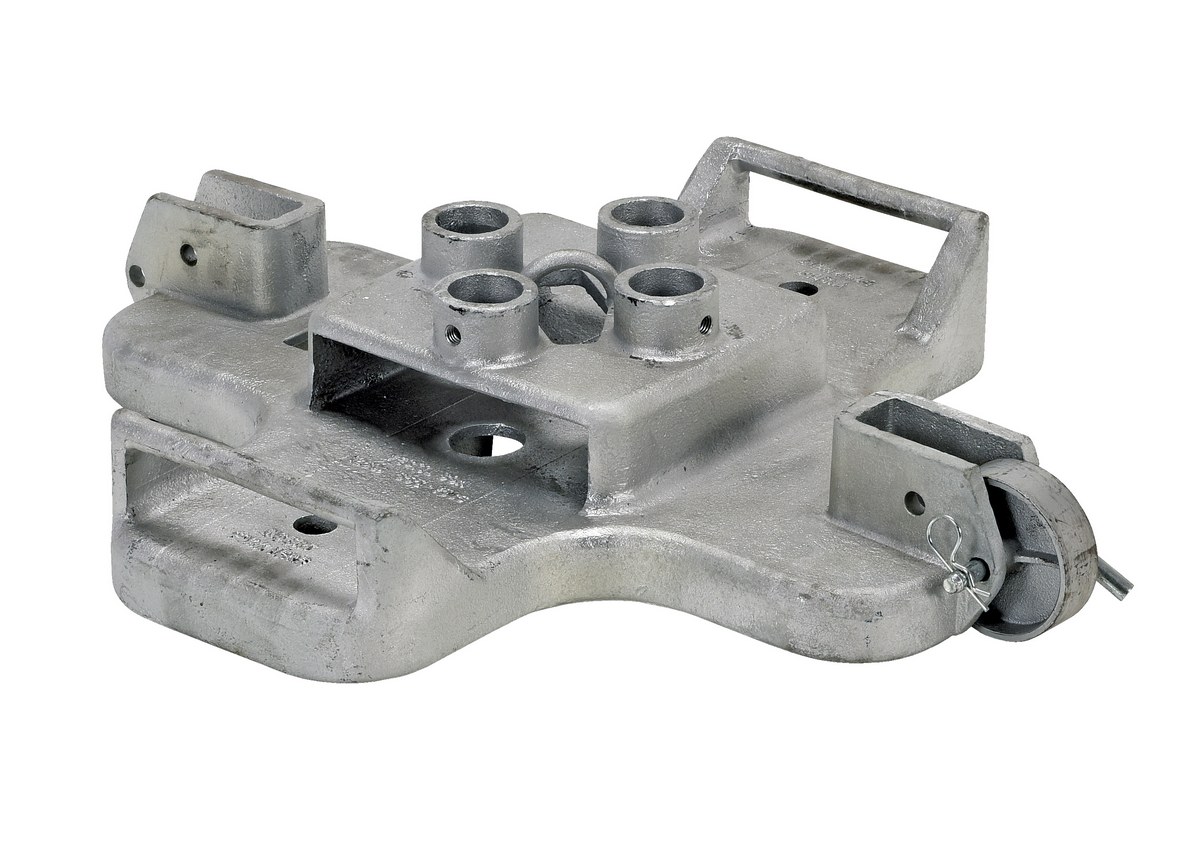

VDKR-BASE			90 Days Limited Warranty	Cast Iron Pipe Safety Railing Base 2.13 In. x 28.5 In. x 5.7 In. Gray	Wood Toe Board Length (in.): 2 Wood Toe Board Height (in.): 4 or 5	137

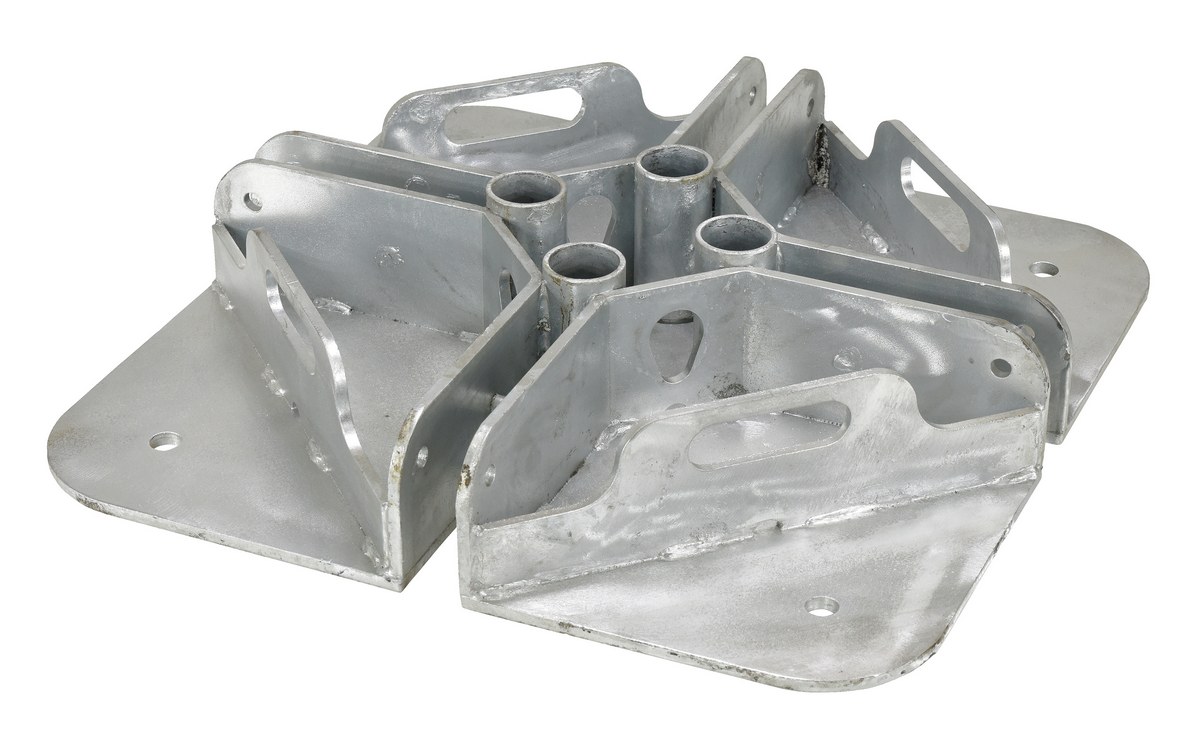

VDKR-BASE-W			90 Days Limited Warranty	Galvanized Steel Pipe Safety Railing Welded Base 24 In. x 24 In. Gray	Hardware Category: Railing Hardware Function: Secure Pipe Railing to a central location	135
VDKR-BB-F			90 Days Limited Warranty	Steel Pipe Railing Barricade Base with Feet Yellow	Reflective: No	6
VDKR-BB-W			90 Days Limited Warranty	Steel Pipe Railing Barricade Base With Wheels Yellow	Wheel Diameter (in.): 3 Wheel Width (in.): 1	7

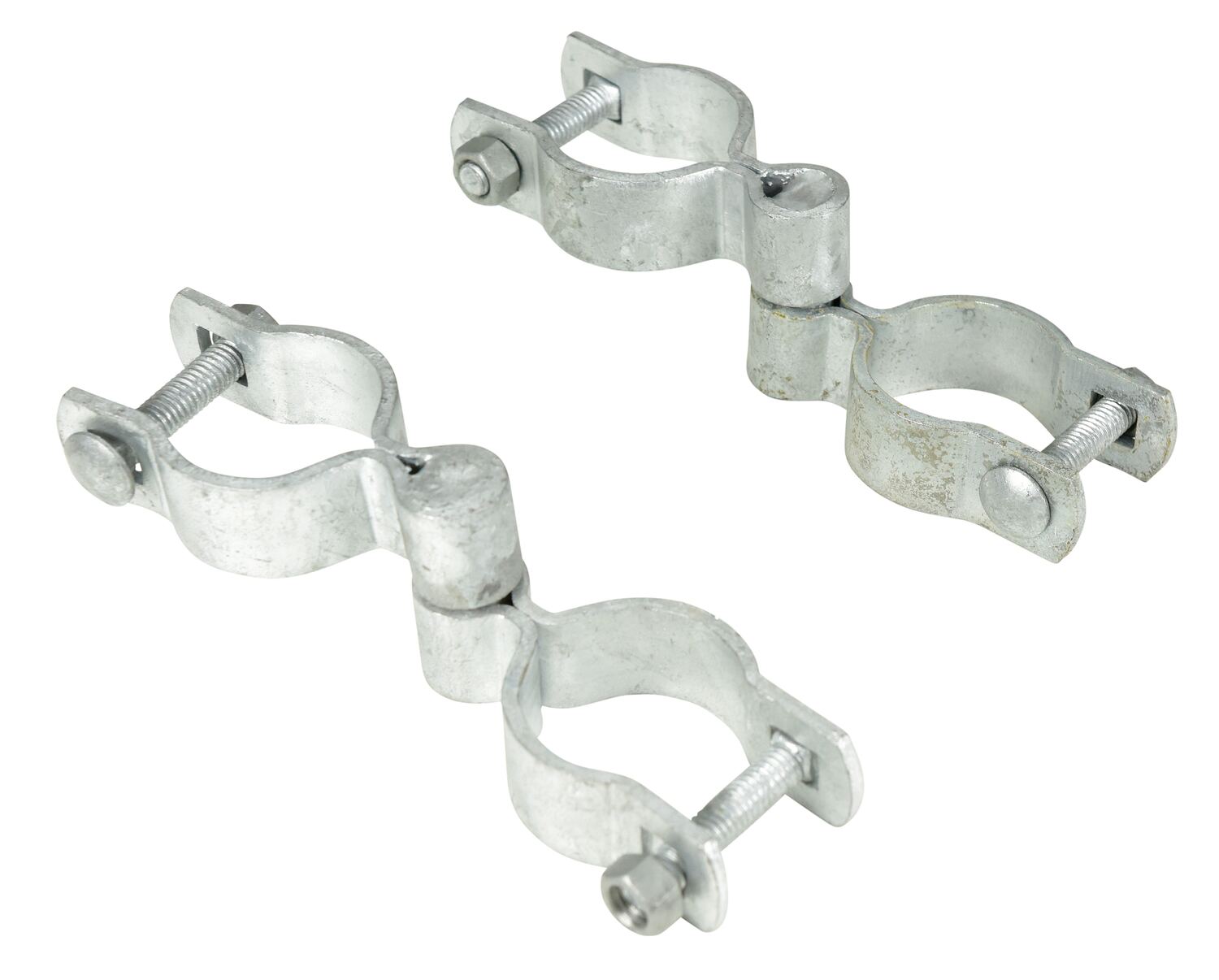

VDKR-CON			90 Days Limited Warranty	Steel Hinged Connectors For Pipe Safety Railing Silver	Male Connector (qty.): 2 Female Connector (qty.): 2	3

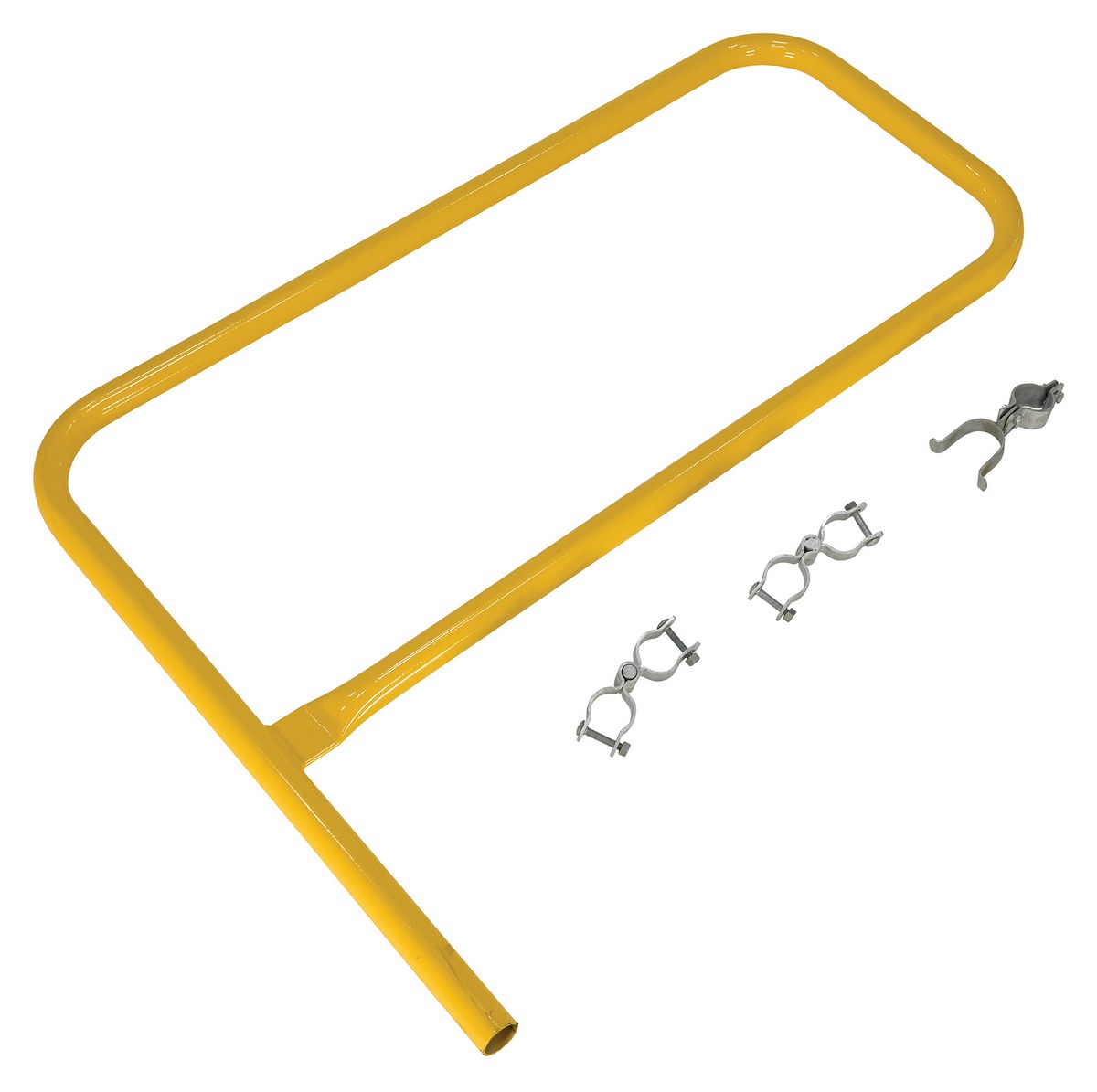

VDKR-G3			90 Days Limited Warranty	Steel Pipe Safety Railing Gate P-Shaped 36 In. x 36 In. Yellow	Usable Width (in.): 36	23

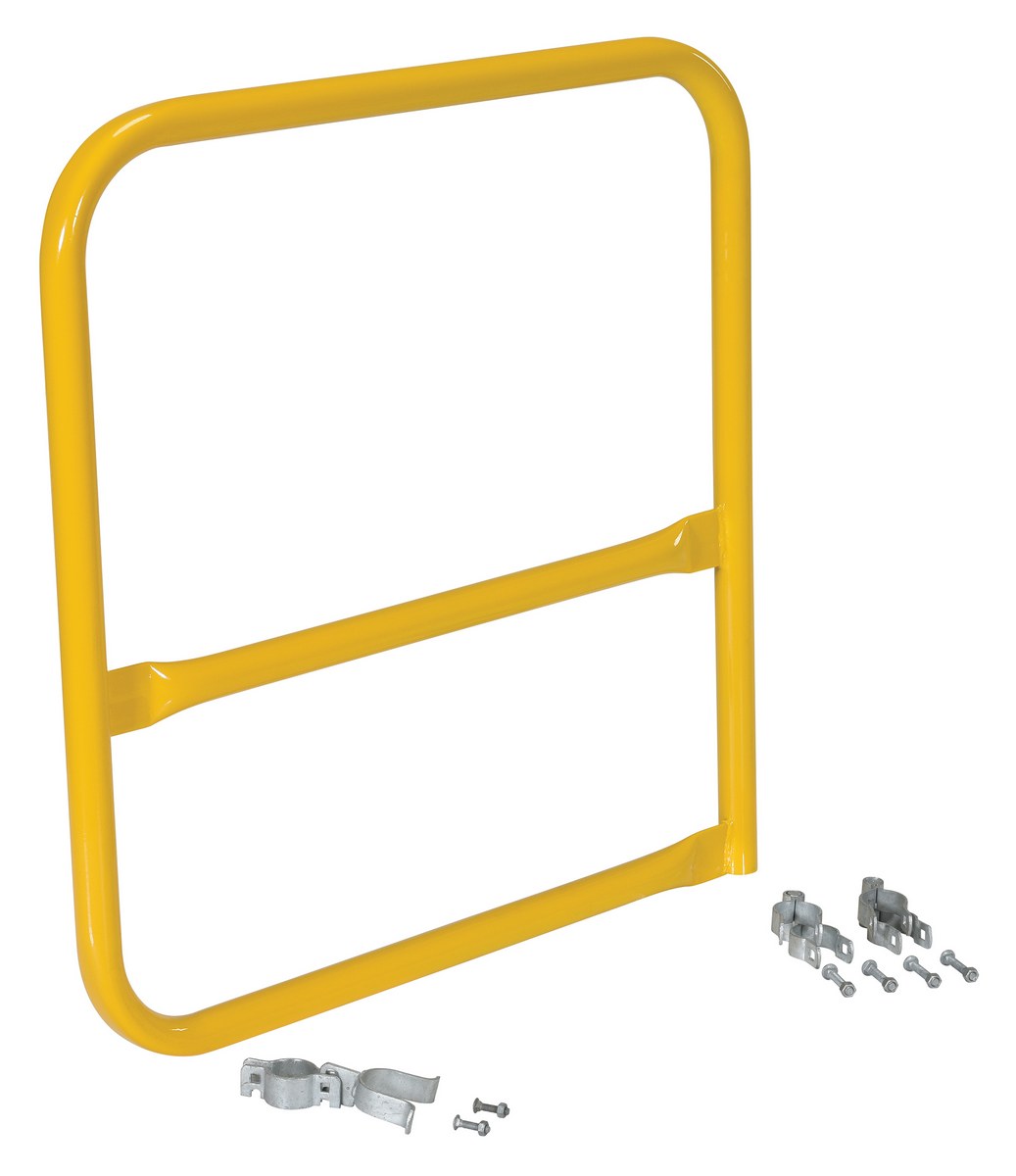

VDKR-G3-B			90 Days Limited Warranty	Steel Pipe Safety Railing Gate B-Shaped 36 In. x 36 In. Yellow	Usable Width (in.): 36 Schedule 10 Pipe (in.): 1-1/4	35

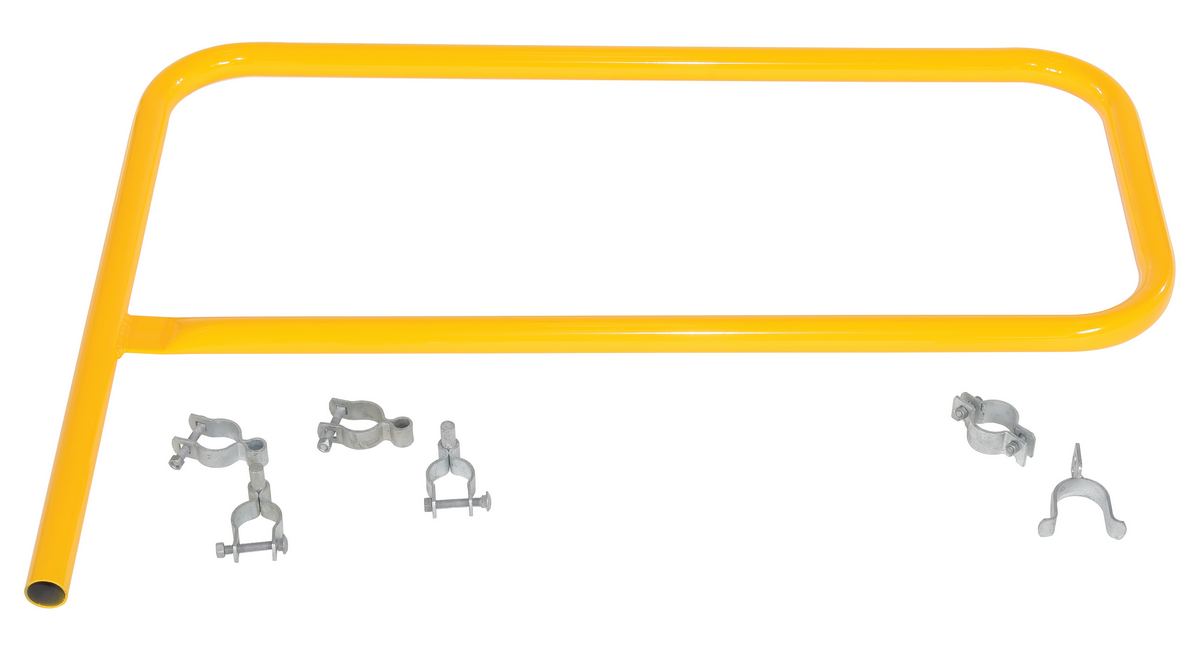

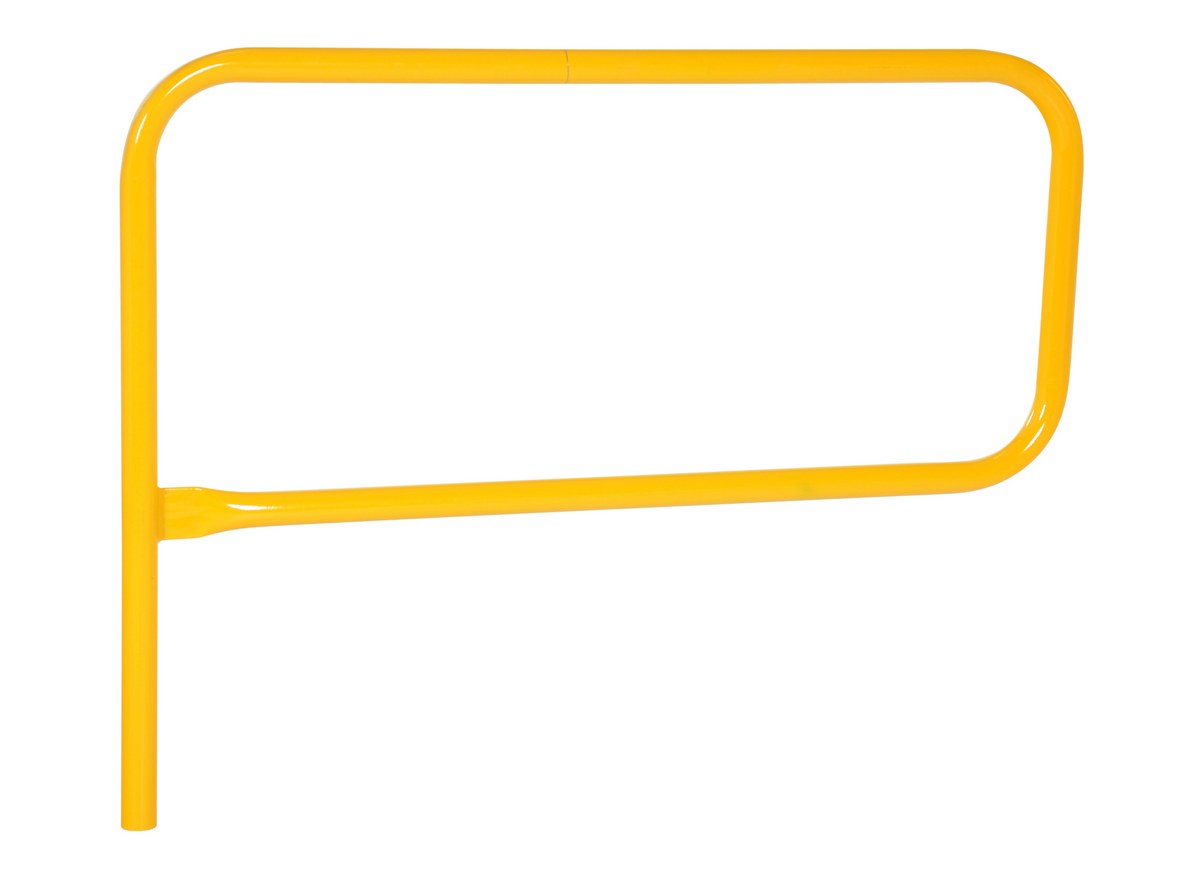

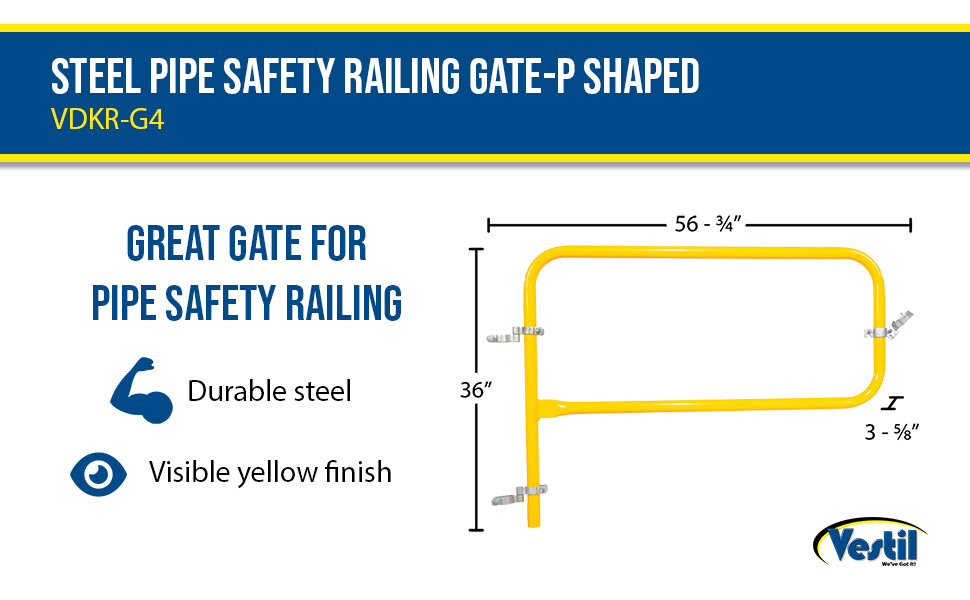

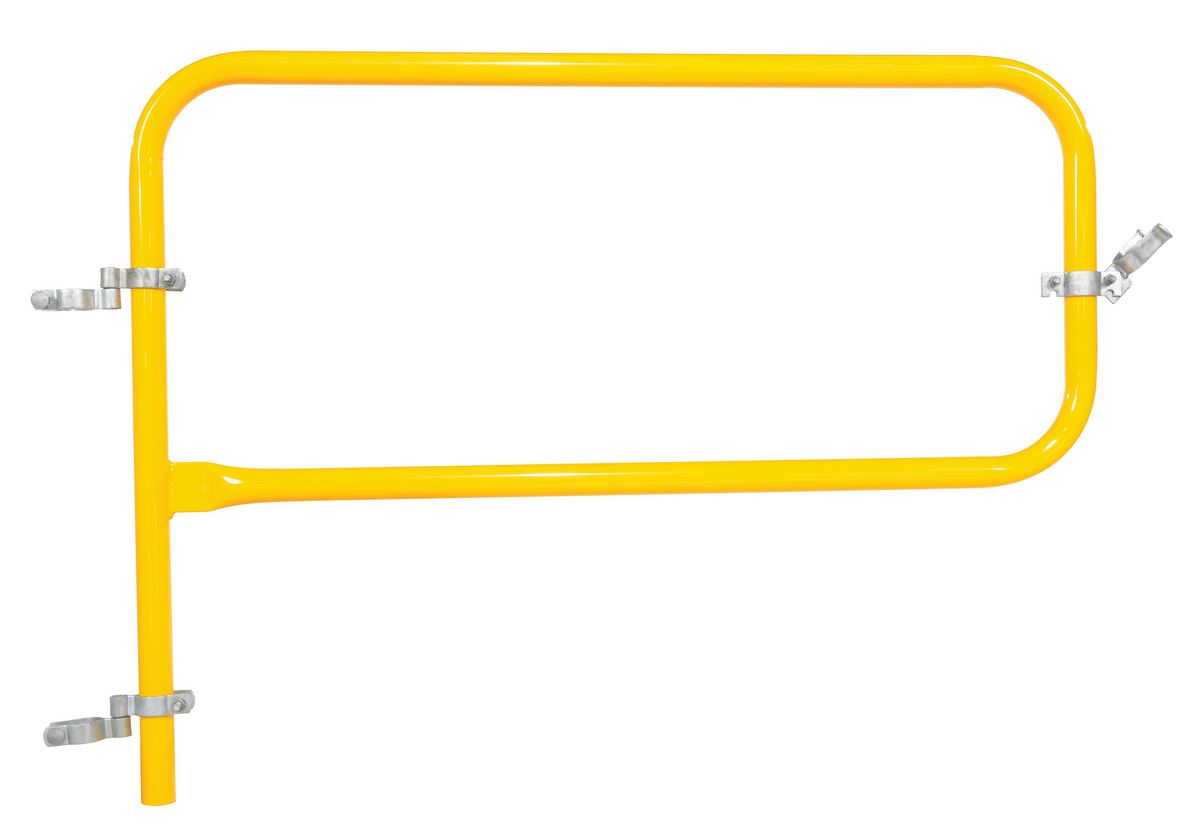

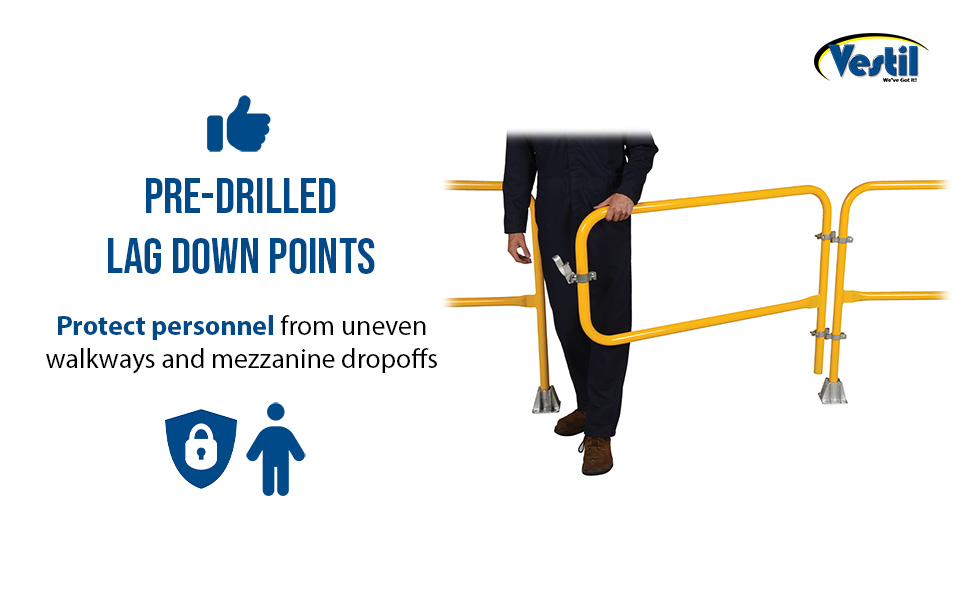

VDKR-G4			90 Days Limited Warranty	Steel Pipe Safety Railing Gate-P Shaped 48 In. x 36 In. Yellow	Usable Width (in.): 48	55

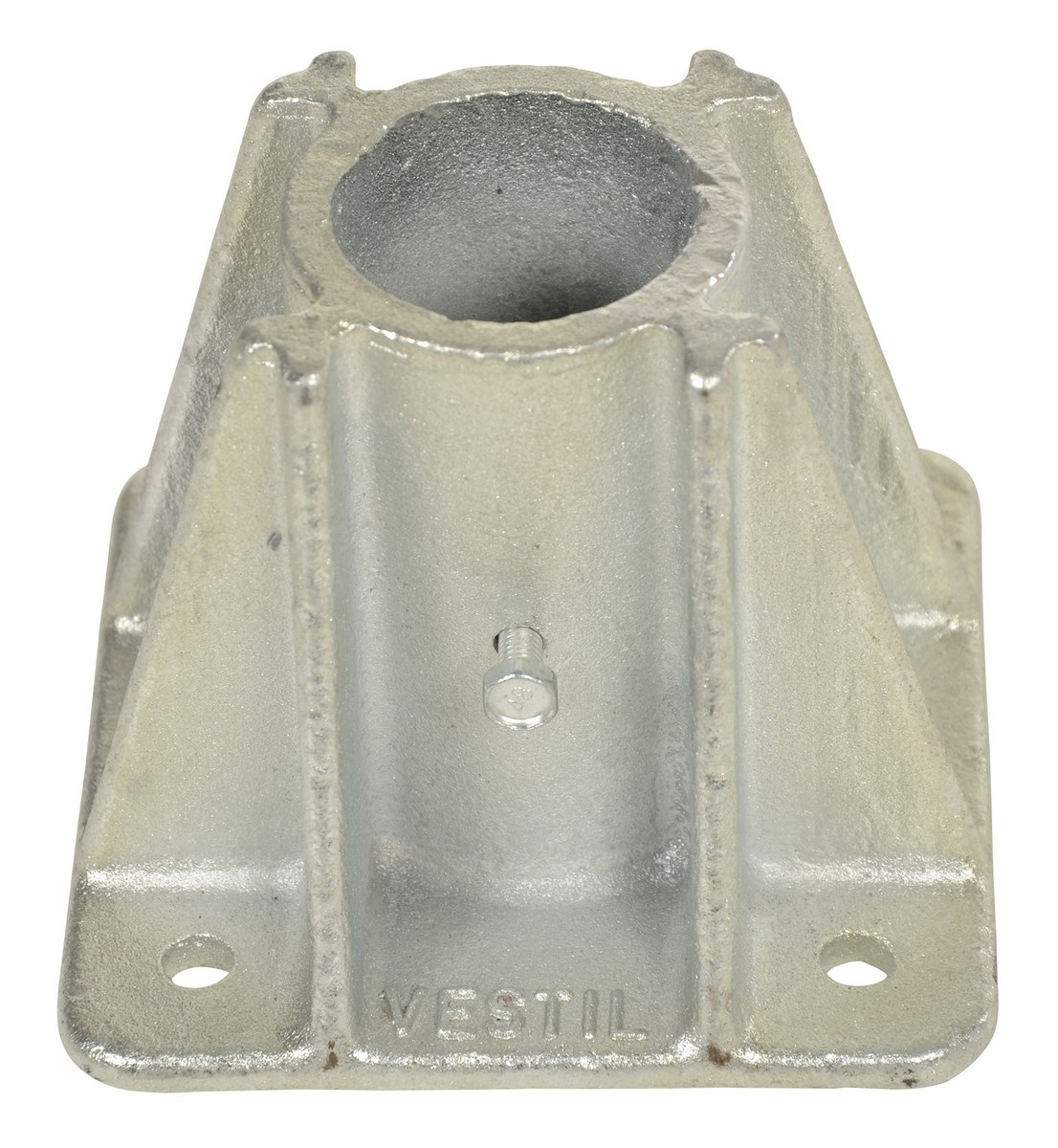

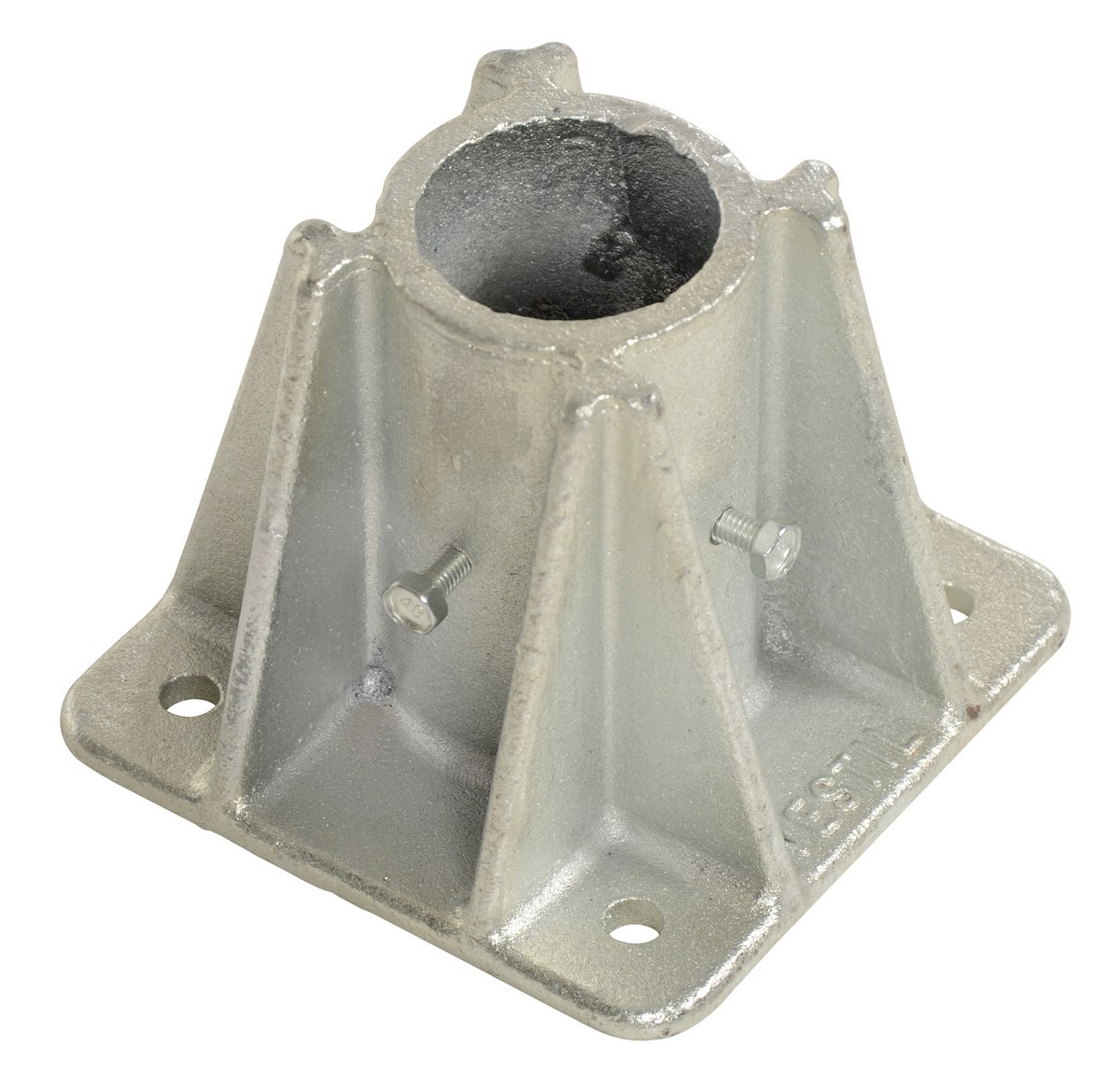

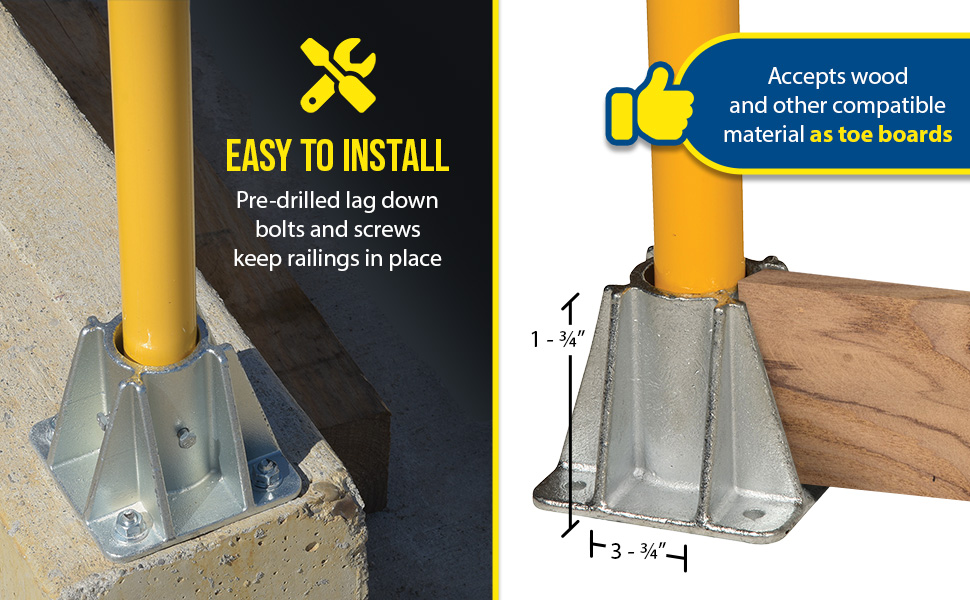

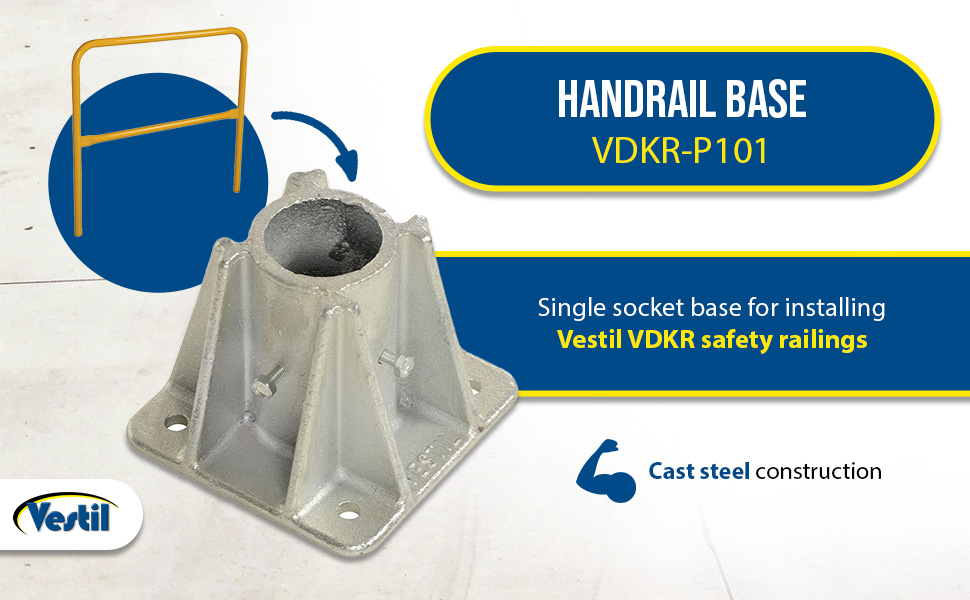

VDKR-P101			90 Days Limited Warranty	Cast Steel Single Socket For Pipe Safety Railing Silver	Wood Toe Board Length (in.): 2 Wood Toe Board Height (in.): 4 or 6	6

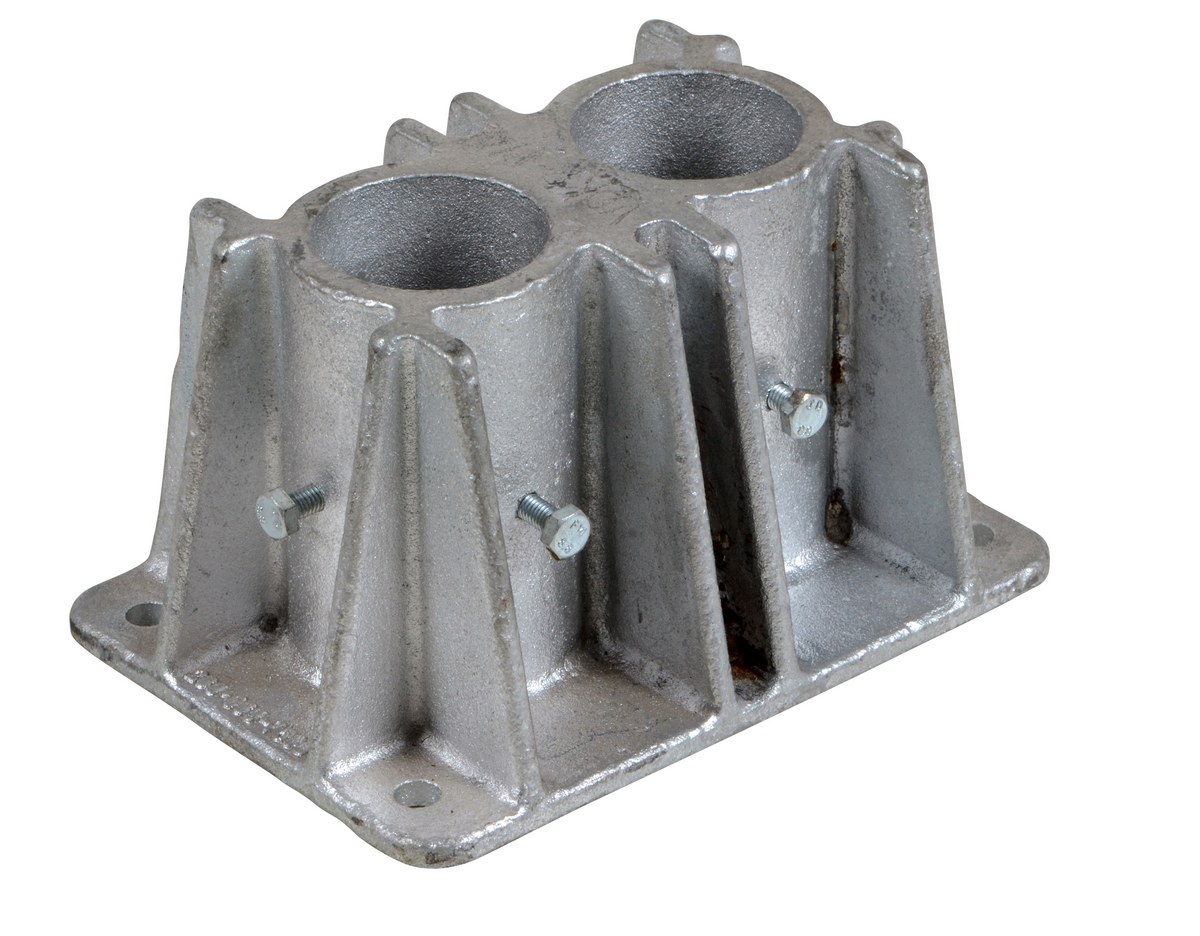

VDKR-P102			90 Days Limited Warranty	Cast Steel Double Socket For Pipe Safety Railing Silver	Wood Toe Board Length (in.): 2 Wood Toe Board Height (in.): 4 or 6	11

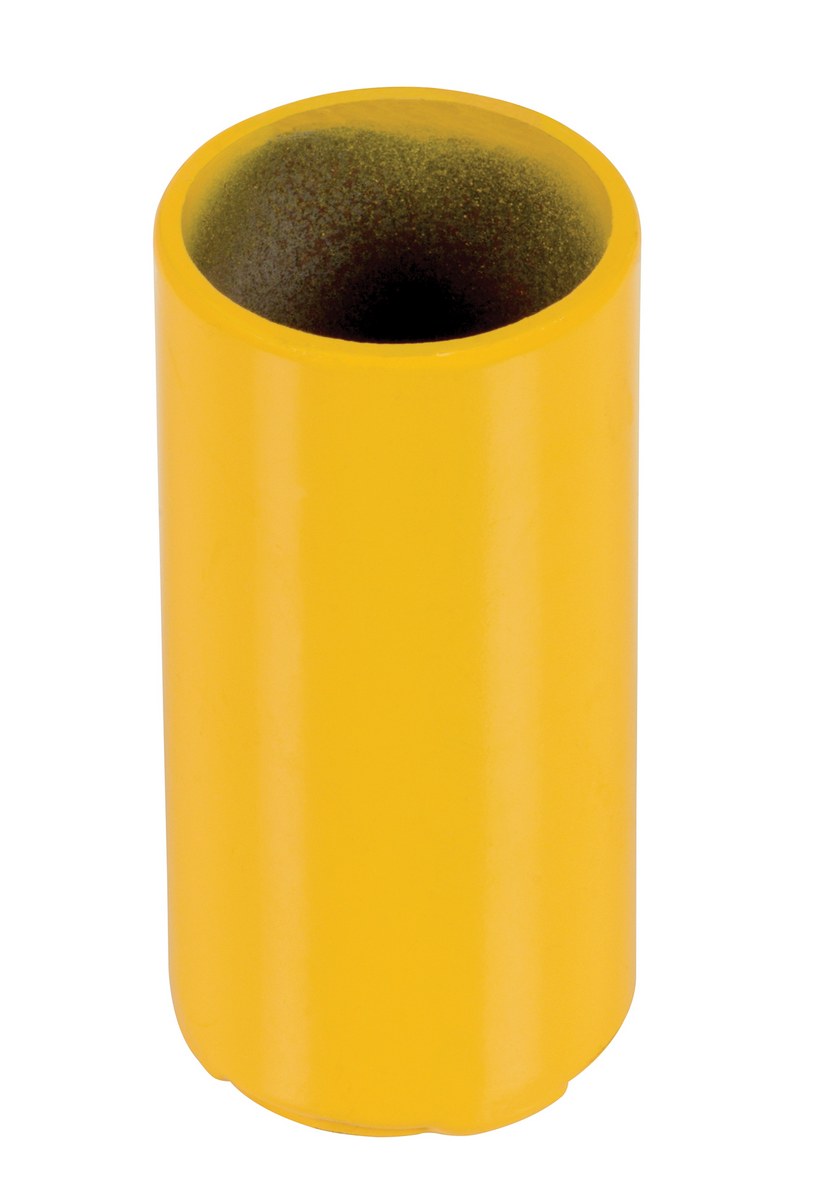

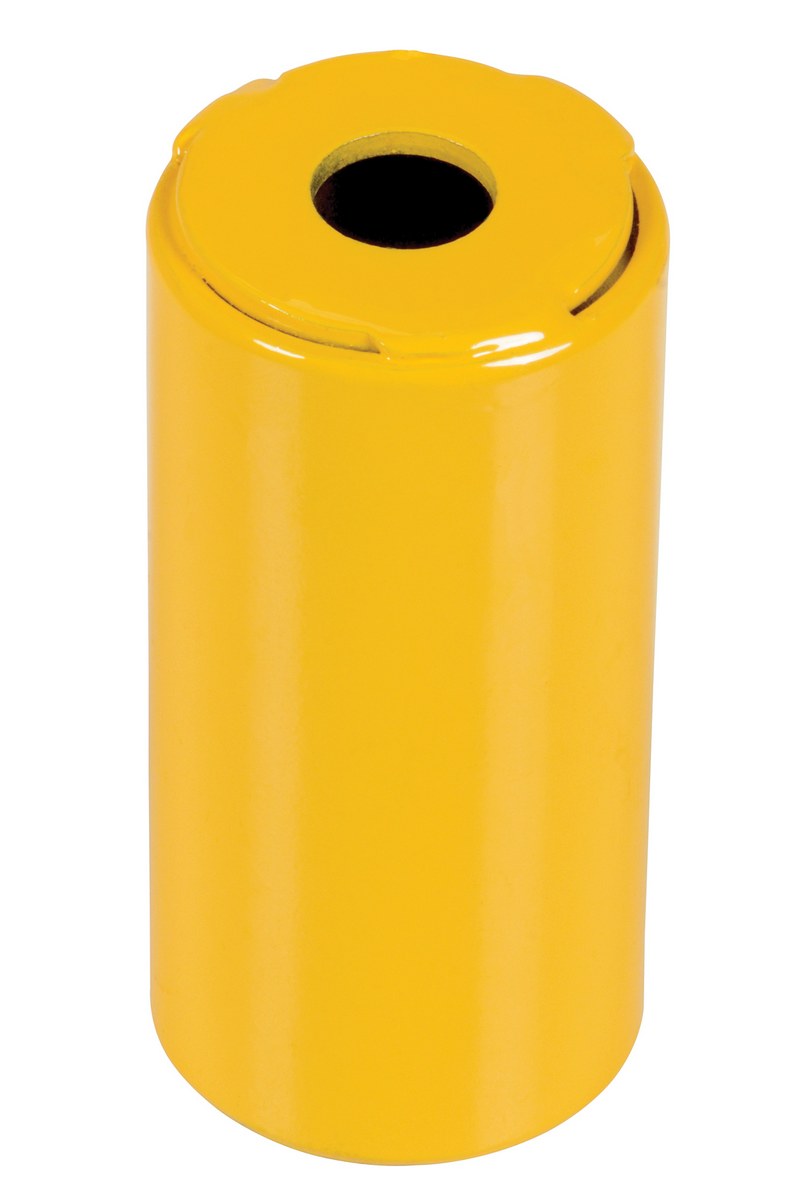

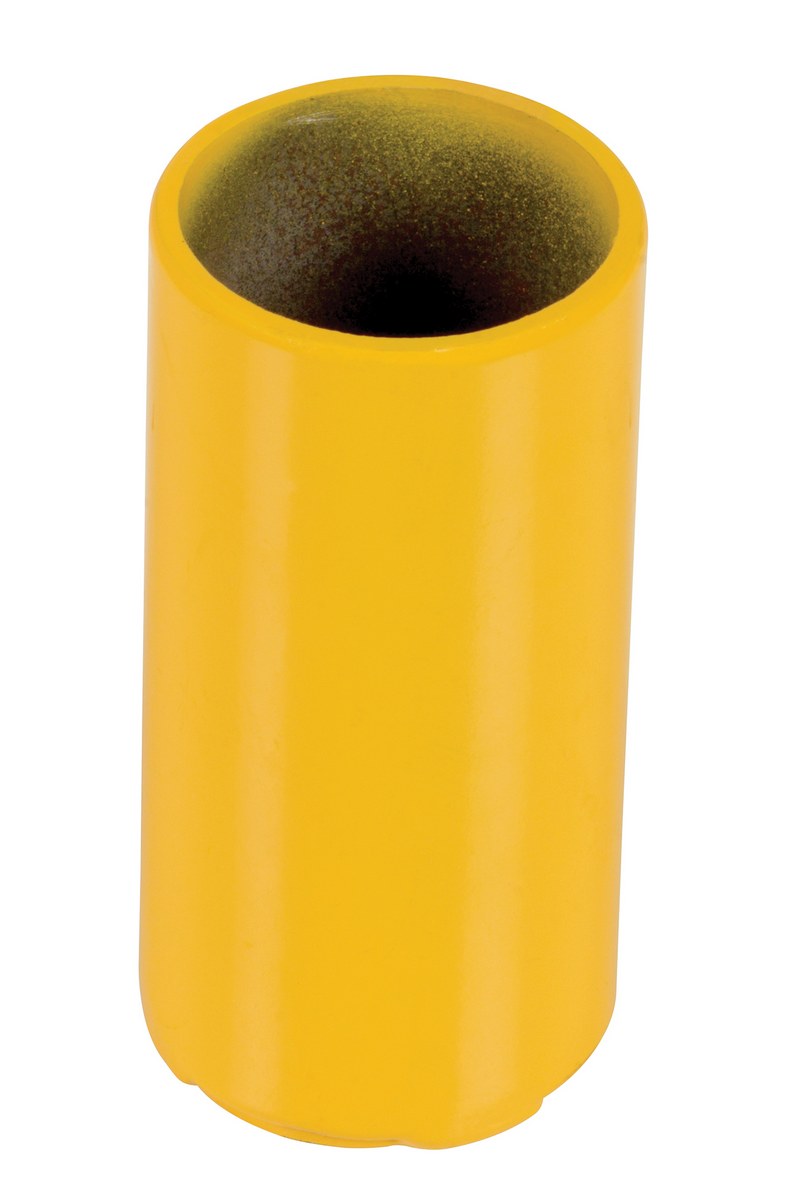

VDKR-P107			90 Days Limited Warranty	Steel Sleeve 2 In. Diameter For Pipe Safety Railing Yellow	Inner Diameter (in.): 1.737 Outer Diameter (in.): 2.026	1

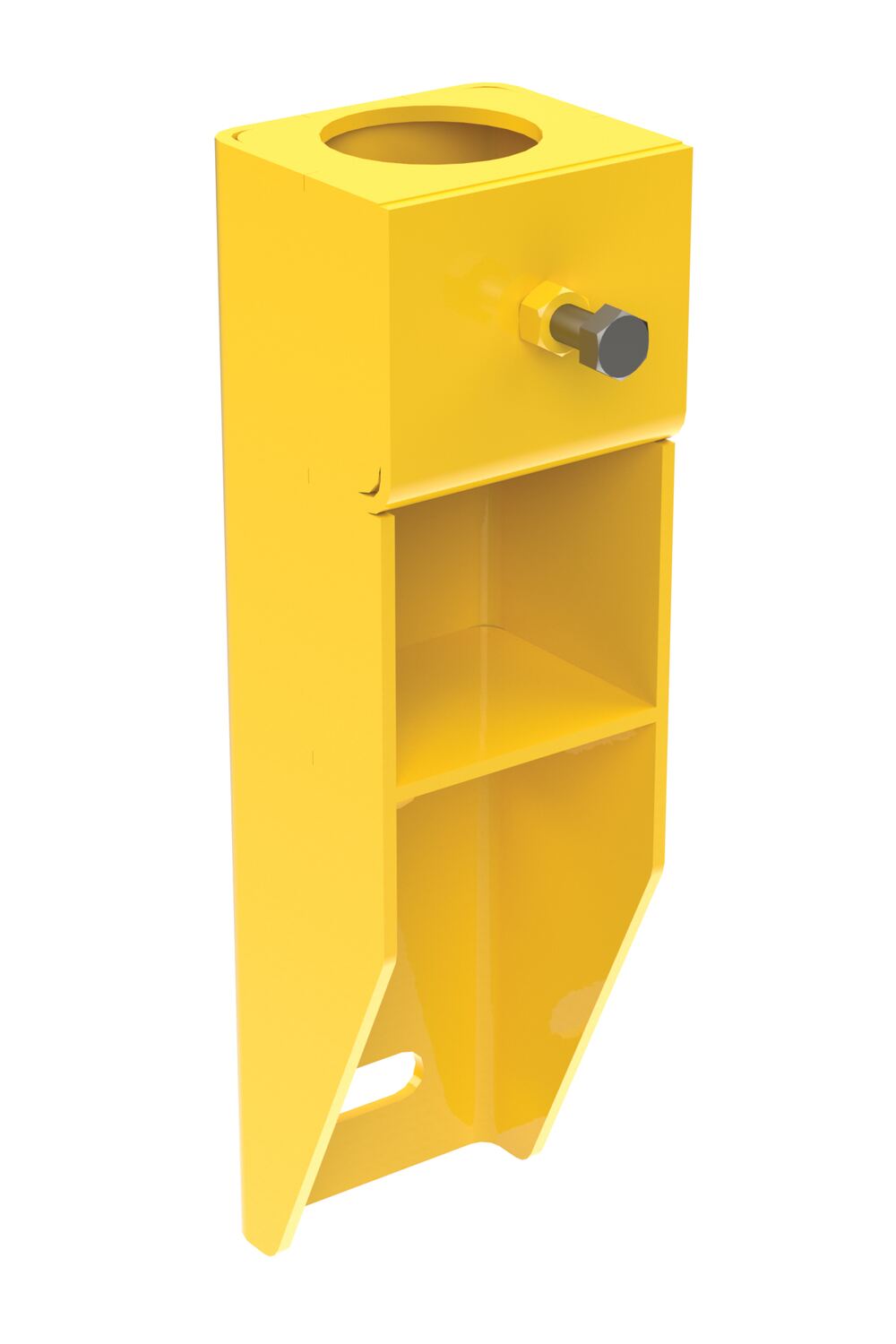

VDKR-VM1	NEW		90 Days Limited Warranty	Steel Vertical Wall Mount Handrail Socket Single Pocket	Mounting Hole Slotted Quantity/Width/Length (in.): (2) 1/2 x 1	6

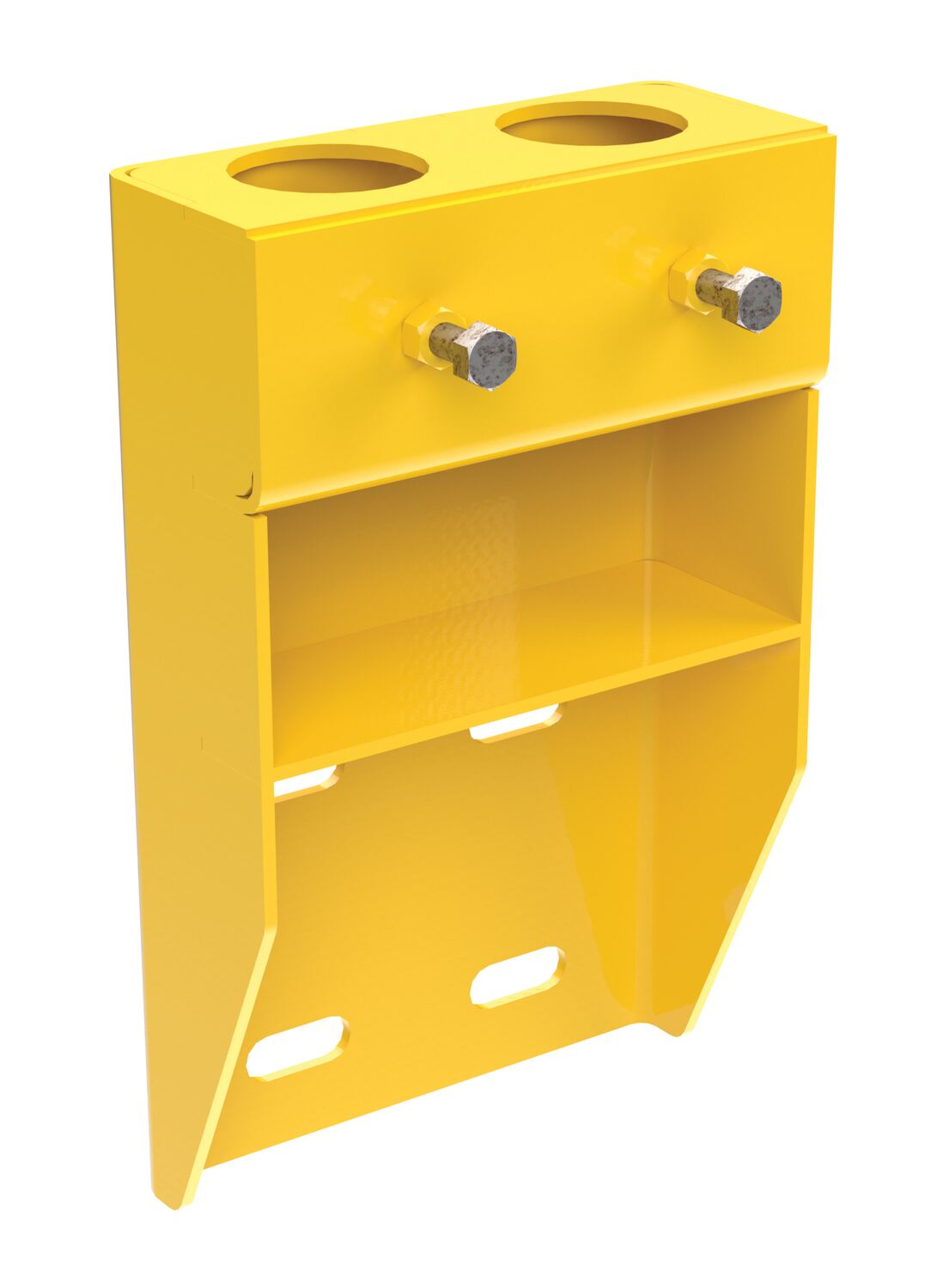

VDKR-VM2			90 Days Limited Warranty	Steel Wall Mount Bracket For Pipe Safety Railing Yellow	Mounting Hole Slotted Quantity/Width/Length (in.): (4) 1/2 x 1	10

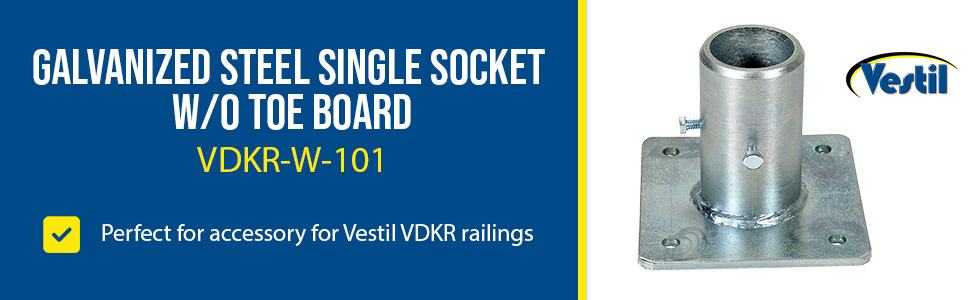

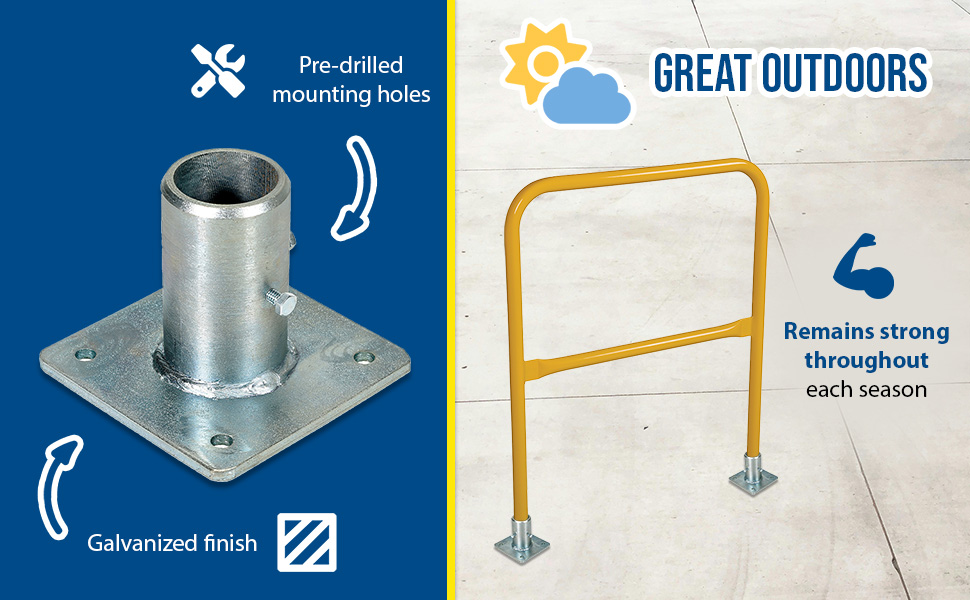

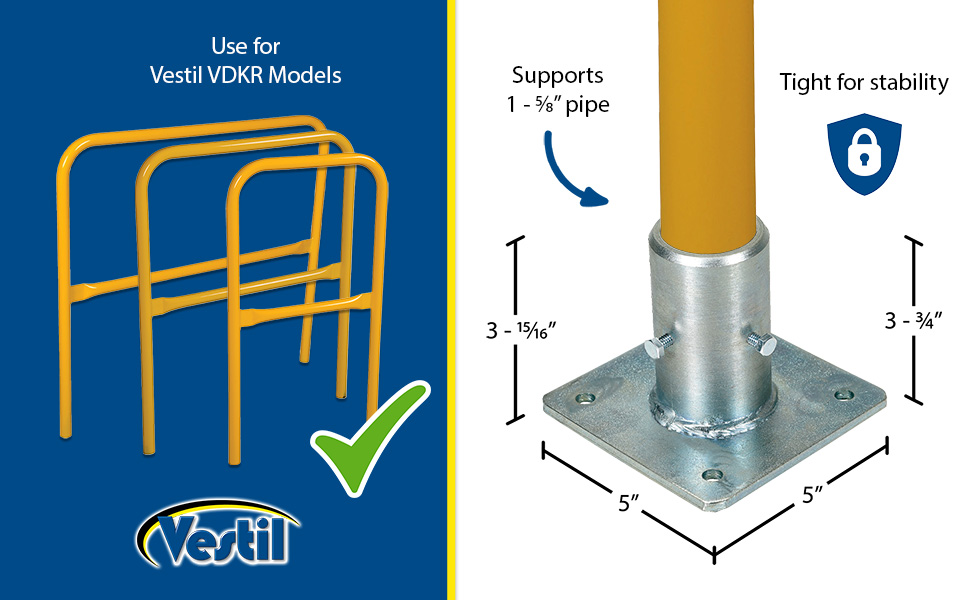

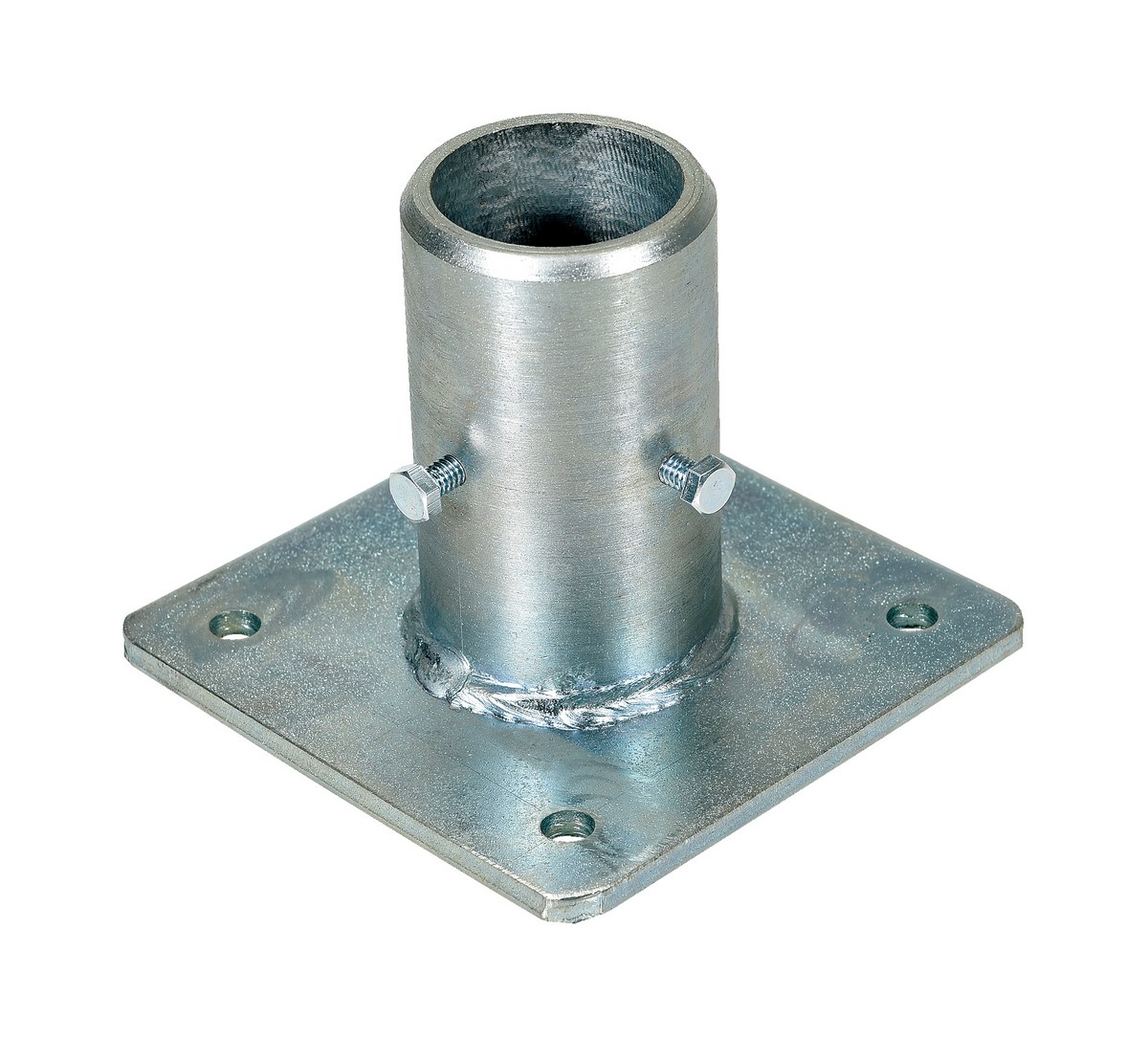

VDKR-W-101			90 Days Limited Warranty	Galvanized Steel Single Socket Without Toe Board For VDKR Models	Bolt Hole Quantity: 4 Pipe O.D. (in.): 1-5/8	5

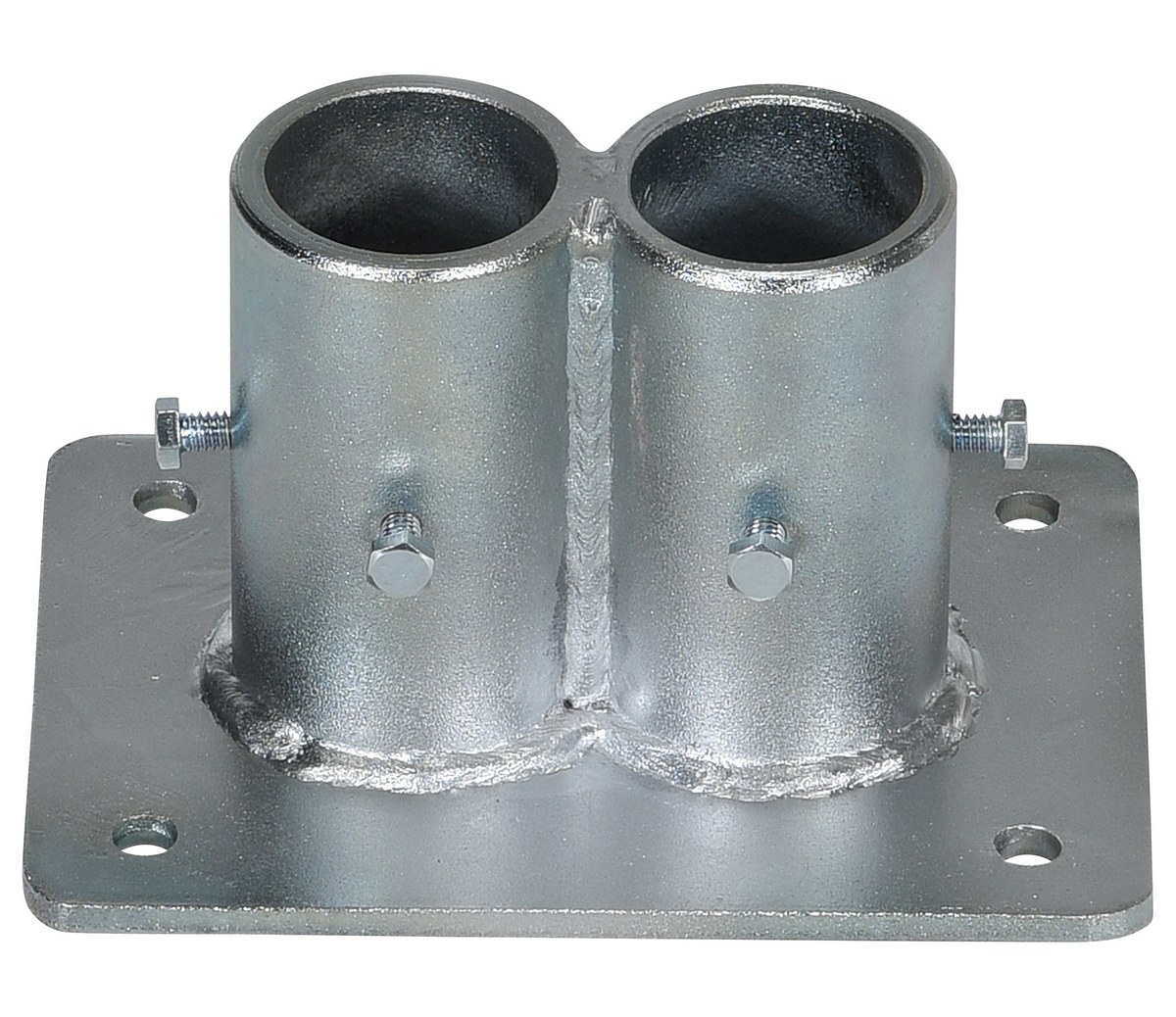

VDKR-W-102			90 Days Limited Warranty	Galvanized Steel Double Socket Without Toe Board For VDKR Models	Distance between sockets (in.): 1/2 Sockets on Centers (in.): 2-1/4	7

Model	Image	PDF	Description					Wt. (lbs)
AS-383			Anchor Bolts [for concrete (1) 3/8" x 3"]					1
AS-383-4PK			Anchor Bolts [for concrete (4) 3/8" x 3"]					4

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Steel Safety Railings PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product

Survey Sheets

VDKR
Survey Sheet

VDKR-BASE
Survey Sheet

Approval Drawings

VDKR-BASE-W

Testing Certificates

VDKR-10

VDKR-10-TB

VDKR-2

VDKR-2-TB

VDKR-3

VDKR-3-TB

VDKR-4

VDKR-4-TB

VDKR-5

VDKR-5-TB

VDKR-6

VDKR-6-TB

VDKR-7

VDKR-7-TB

VDKR-8

VDKR-8-TB

VDKR-BASE

VDKR-BASE-W

VDKR-BB-F

VDKR-BB-W

VDKR-CON

VDKR-G3

VDKR-G3-B

VDKR-G4

VDKR-P101

VDKR-P102

VDKR-P107

VDKR-VM1

VDKR-VM2

VDKR-W-101

VDKR-W-102

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...

Directory Links Of Available PDF's For All Products

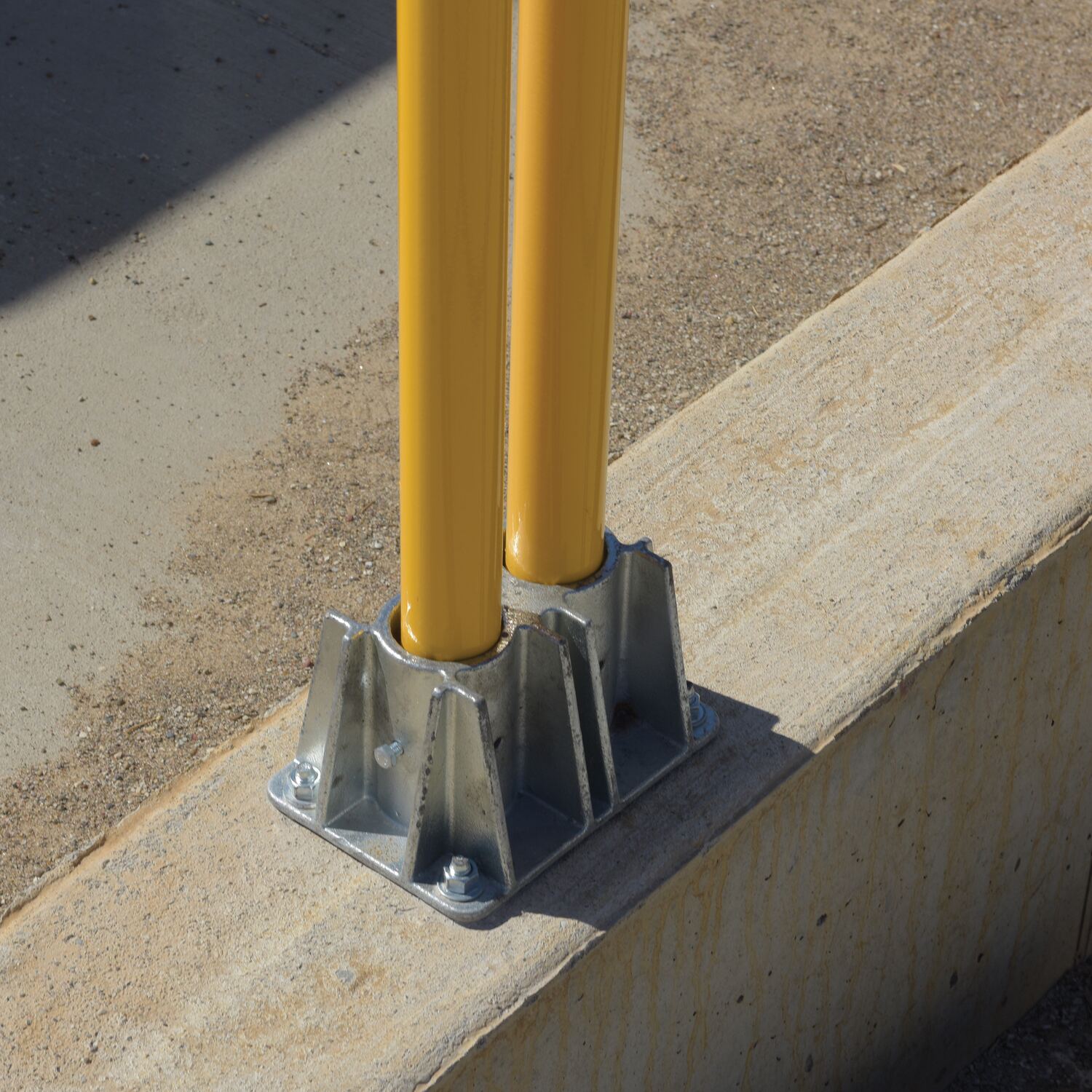

Q: I'm interested in the steel safety railing. When using the double socket what is the gap between the two railings?

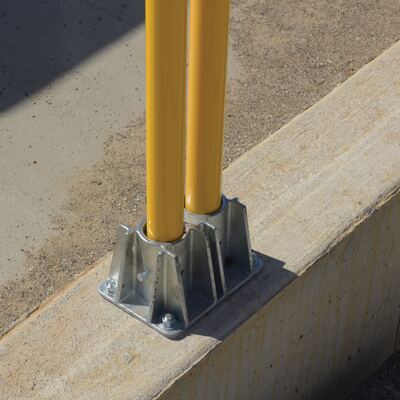

A: When using the VDKR-P102 socket the distance between the two railings is approximately 1".

Q: We are installing the safety railing and using the double socket. VDKR-P102. How much does it add to the length of the safety railings?

A: The VDKR-P102 double socket has approximately 1" in between the two railings

Q: We are interested in the safety railings. Will we need the VDKR-CON to connect multiple rails?

A: The VDKR-CON can be used with some of the bases. Please note if you are using VDKR-P102, VDKR-W-102, VDKR-BASE, or VDKR-BASE-W the connectors (VDKR-CON) should be excluded.

Q: What is the capacity of the railing?

A: The VDKR will support 200 lbs. of force in any direction.

Q: Does this gate swing in both directions?

A: Yes, the gate swings in both directions.

Q: What grade is the steel?

A: The VDKR steel is Grade B.
