Galvanized Construction Barrier Systems

- - - -

Description
Model Chart
PDF's
Image Gallery

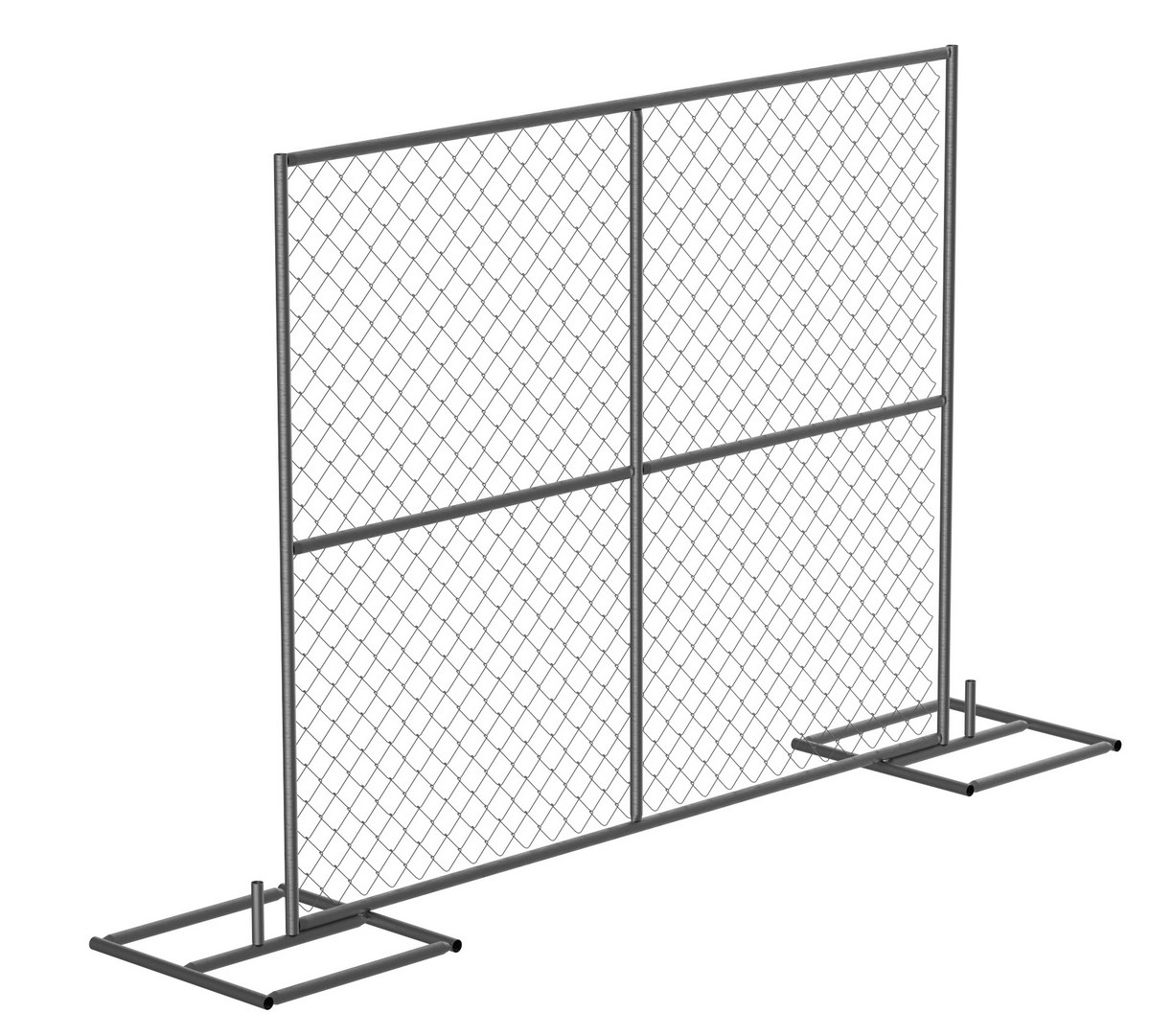

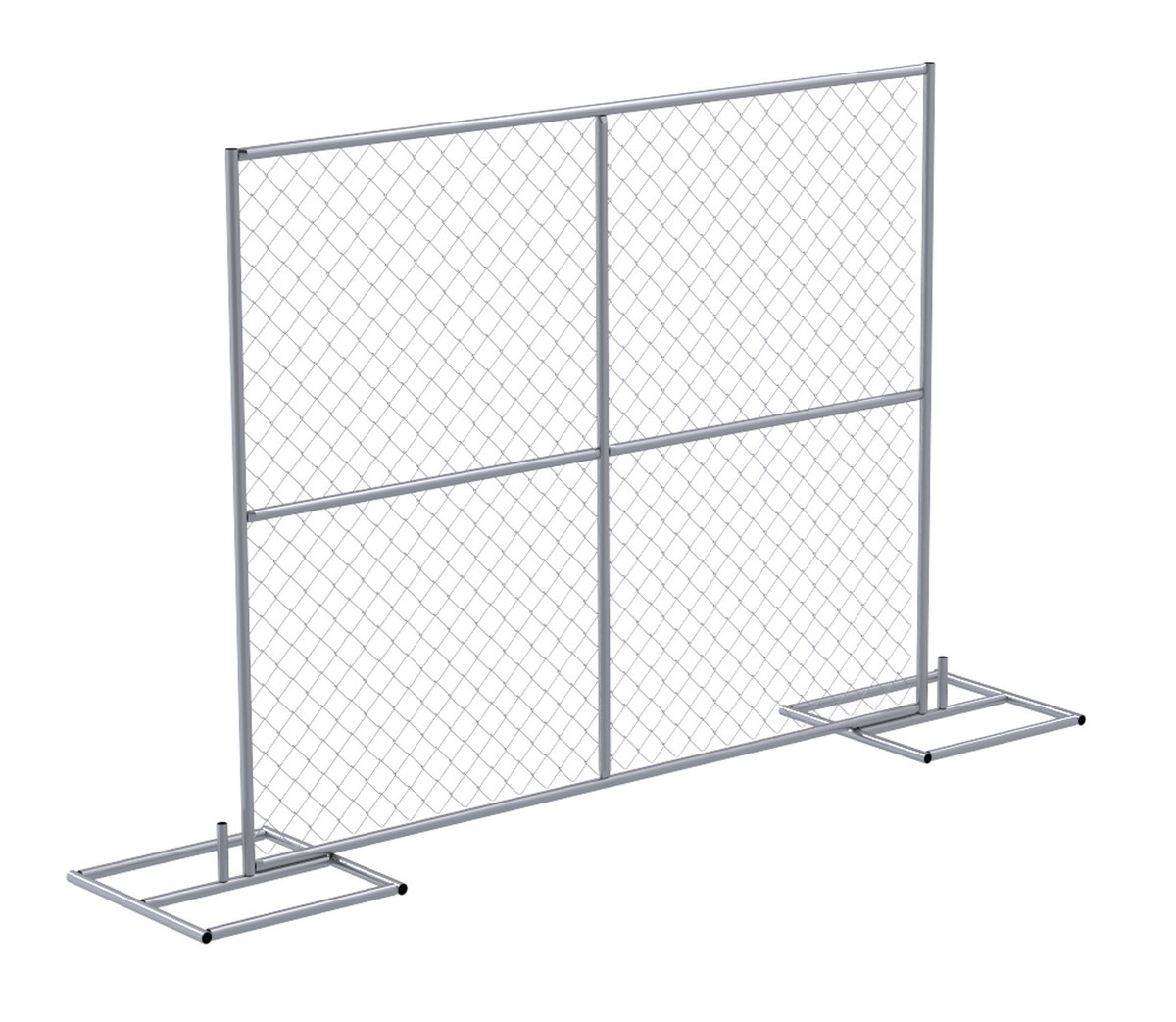

HRAIL-9072_C.jpg HRAIL-9072_B.jpg HRAIL-9072_A.jpg
Galvanized Construction Barrier Systems

model: HRAIL-9072



Featured Protective Barriers


Semi-Permanent Barriers
Portable Base Plastic Bollard
Steel Pipe Safety Bollards
Machinery Guards
Sign Base Systems
Adjustable Perimeter Guard Systems
Expand-A-Gates
Crowd Control Barriers Cart
Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards
model chart

Product Family Overview

Print Friendly
Galvanized Construction Barrier Systems
SERIES: HRAIL

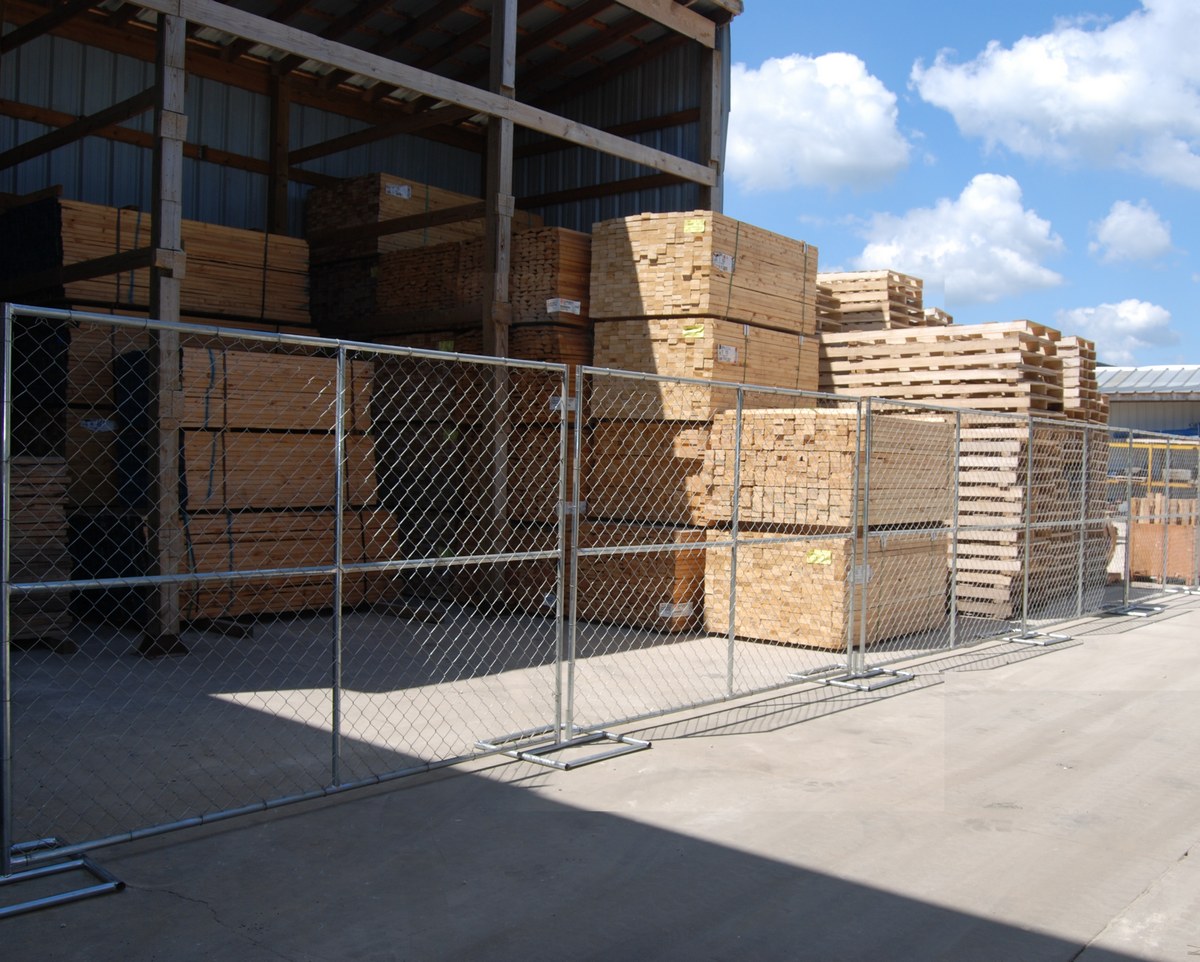

Designed for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.

  • Design temporarily secures job site from theft, hazard liability, and dumping
  • Barrier panel section for construction safety barriers
  • Includes one vertical and one horizontal brace
  • Chain link fence is secured to barrier with steel ties

Designed for use as a temporary construction safety barrier. Welded steel construction with a galvanized finish. Barrier panel sections are made from 1-1/4" diameter steel tubing and includes one vertical and one horizontal brace. Ten (10) gauge chain link fence is secured to barrier with steel ties. Chain link fence openings are 2-3/8" x 2-3/8". Base unit includes two receiver posts allowing for the connection of two panels. Connectors are used for securing two (2) panel sections together.

  • Design temporarily secures job site from theft, hazard liability, and dumping
  • Barrier panel section for construction safety barriers
  • Includes one vertical and one horizontal brace
  • Chain link fence is secured to barrier with steel ties

Other Safety Railing

 Crowd Control Interlocking Barriers Economical Safety Swing Gate Steel Safety Railings Mezzanine Safety Gates

Additional Models In This Family
view entire Image Gallery

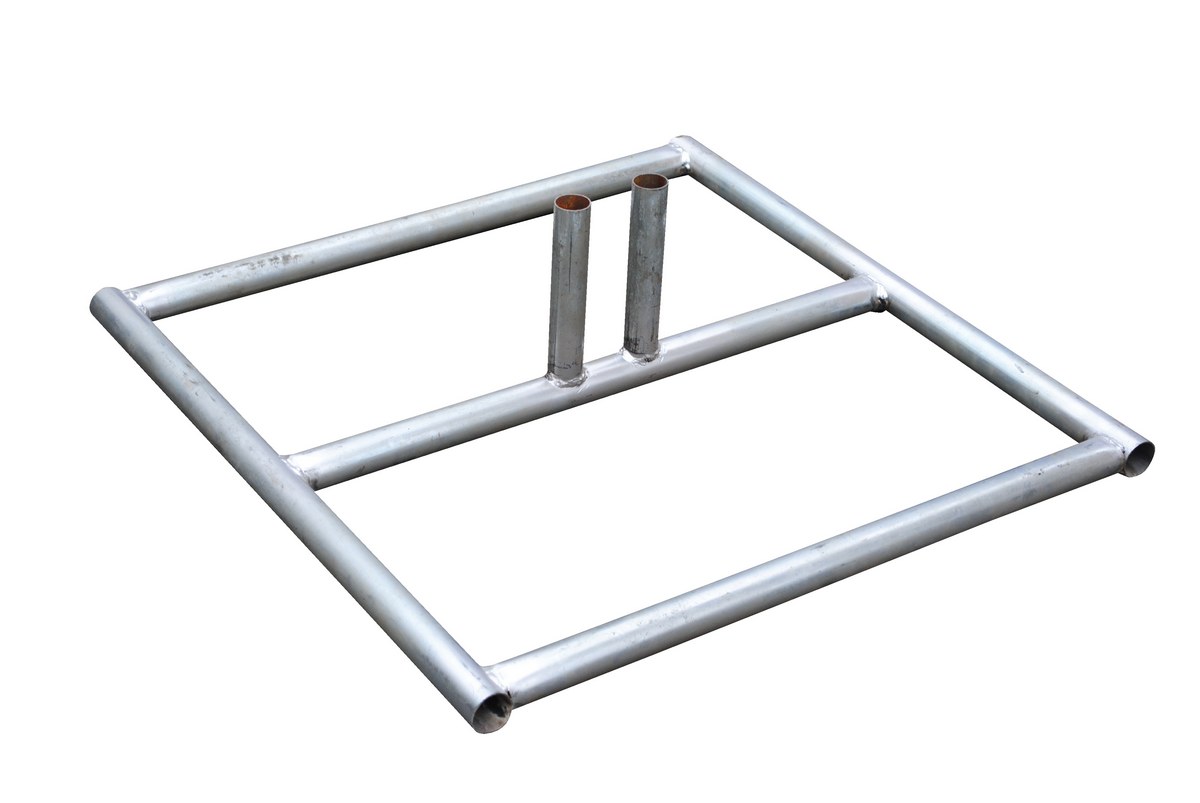

HRAIL-BASE

HRAIL-BASE

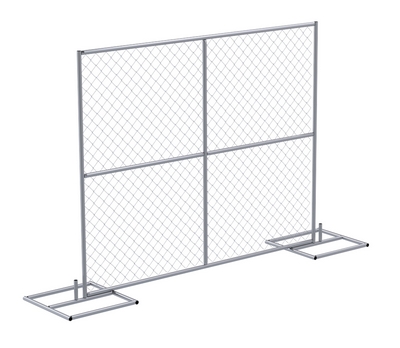

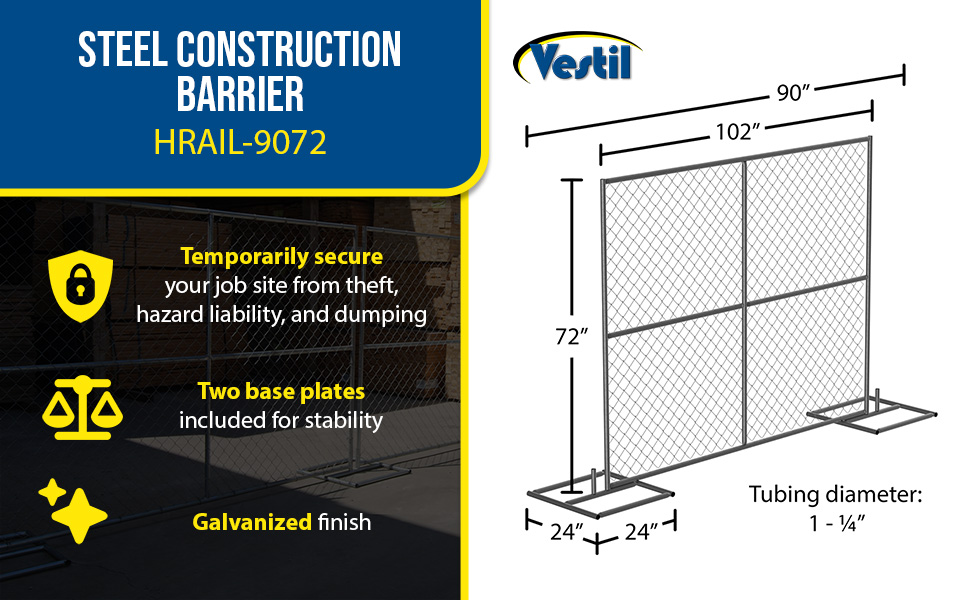

HRAIL-9072

HRAIL-9072

HRAIL-9072

HRAIL-9072

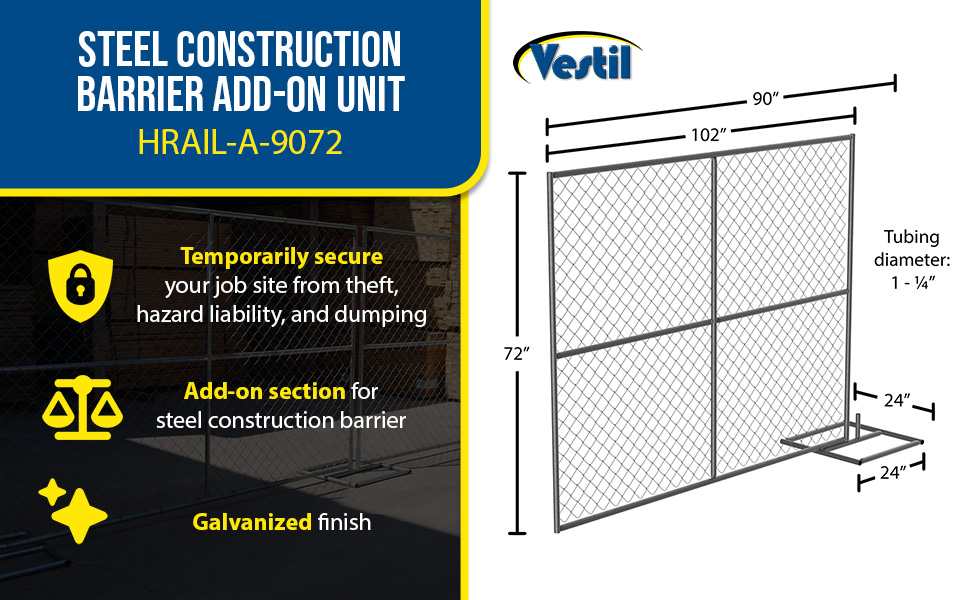

HRAIL-A-9072

HRAIL-A-9072

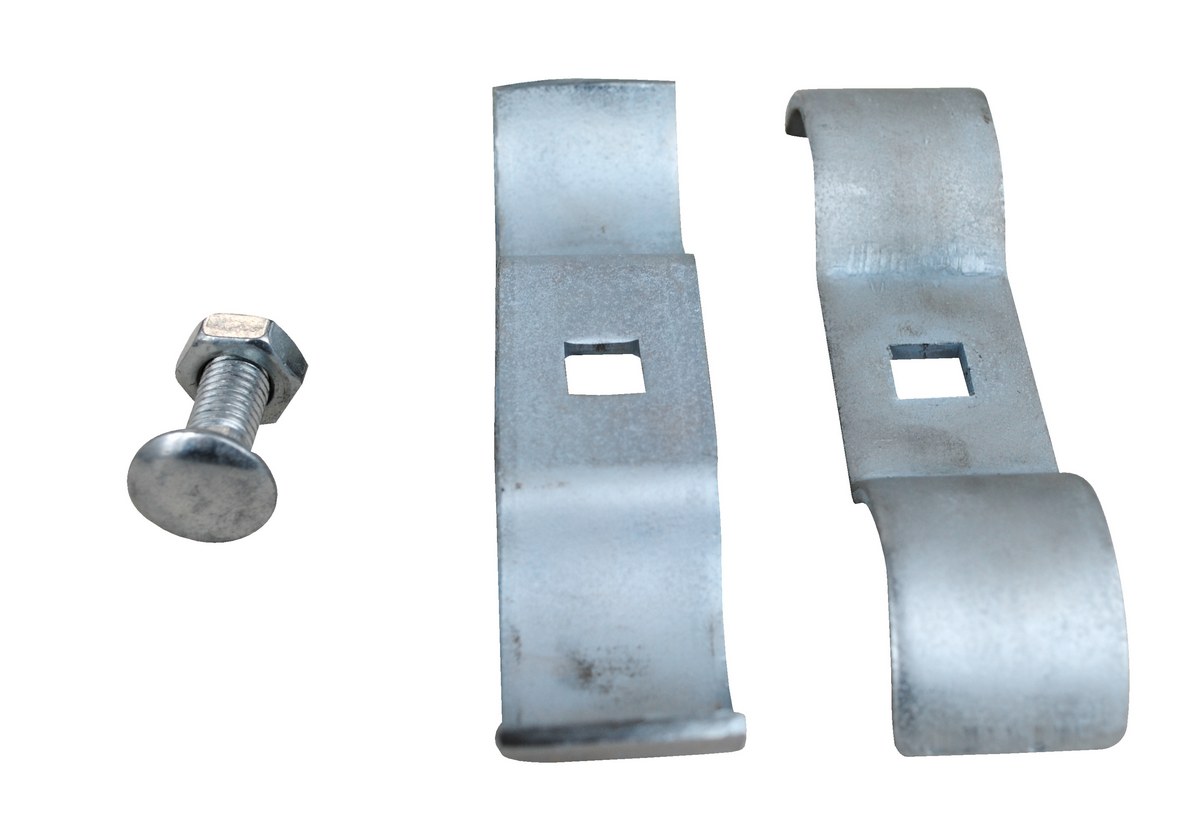

HRAIL-CON

HRAIL-CON

HRAIL-CON

HRAIL-CON

HRAIL-9072

HRAIL-9072

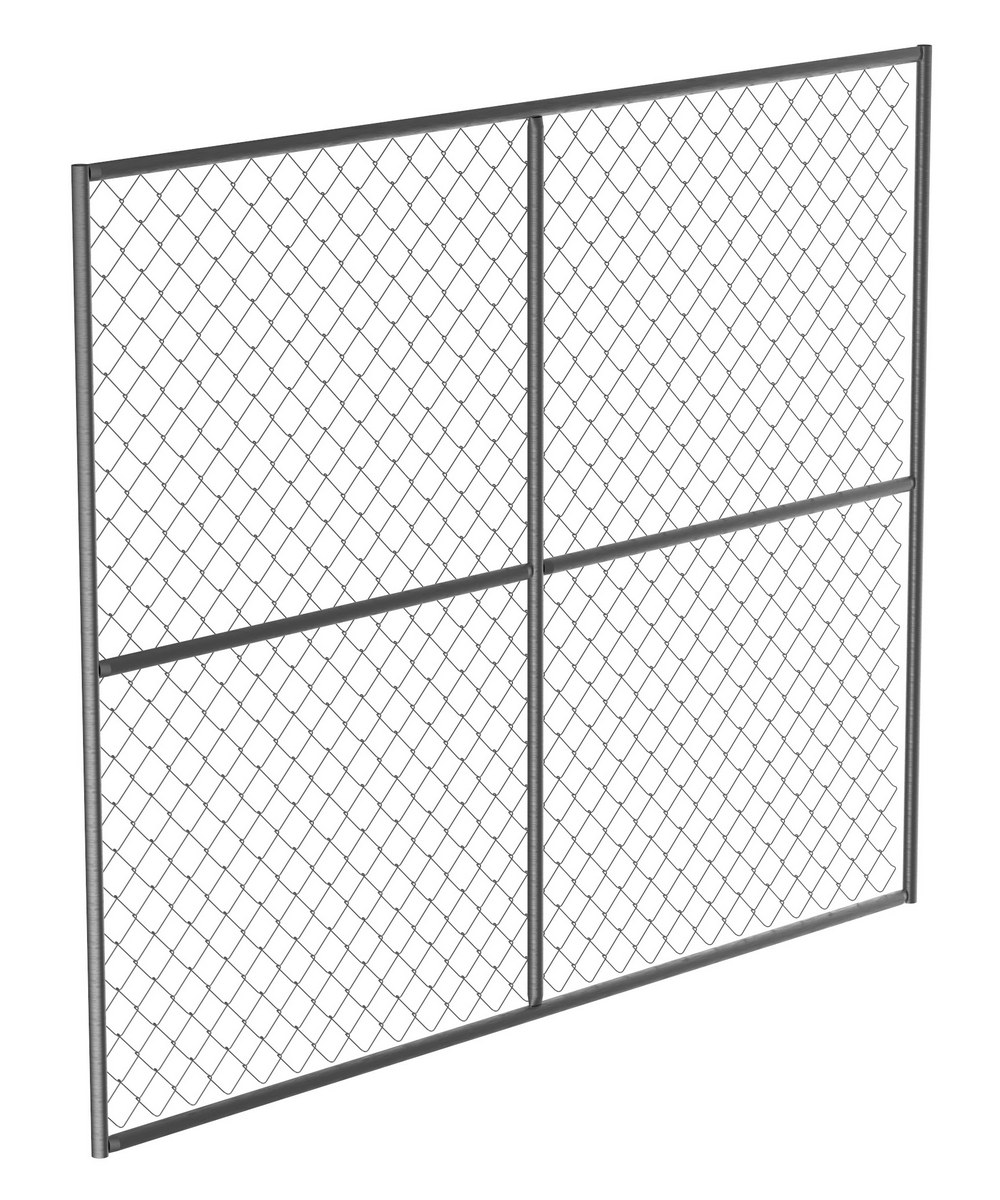

HRAIL-PNL

HRAIL-PNL

Applications



Military

Municipalities

Universities

Superstores

Construction Projects

Train Stations
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HRAIL-9072 HRAIL-907290 Days Limited WarrantySteel Construction Barrier System SilverPanel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10		104

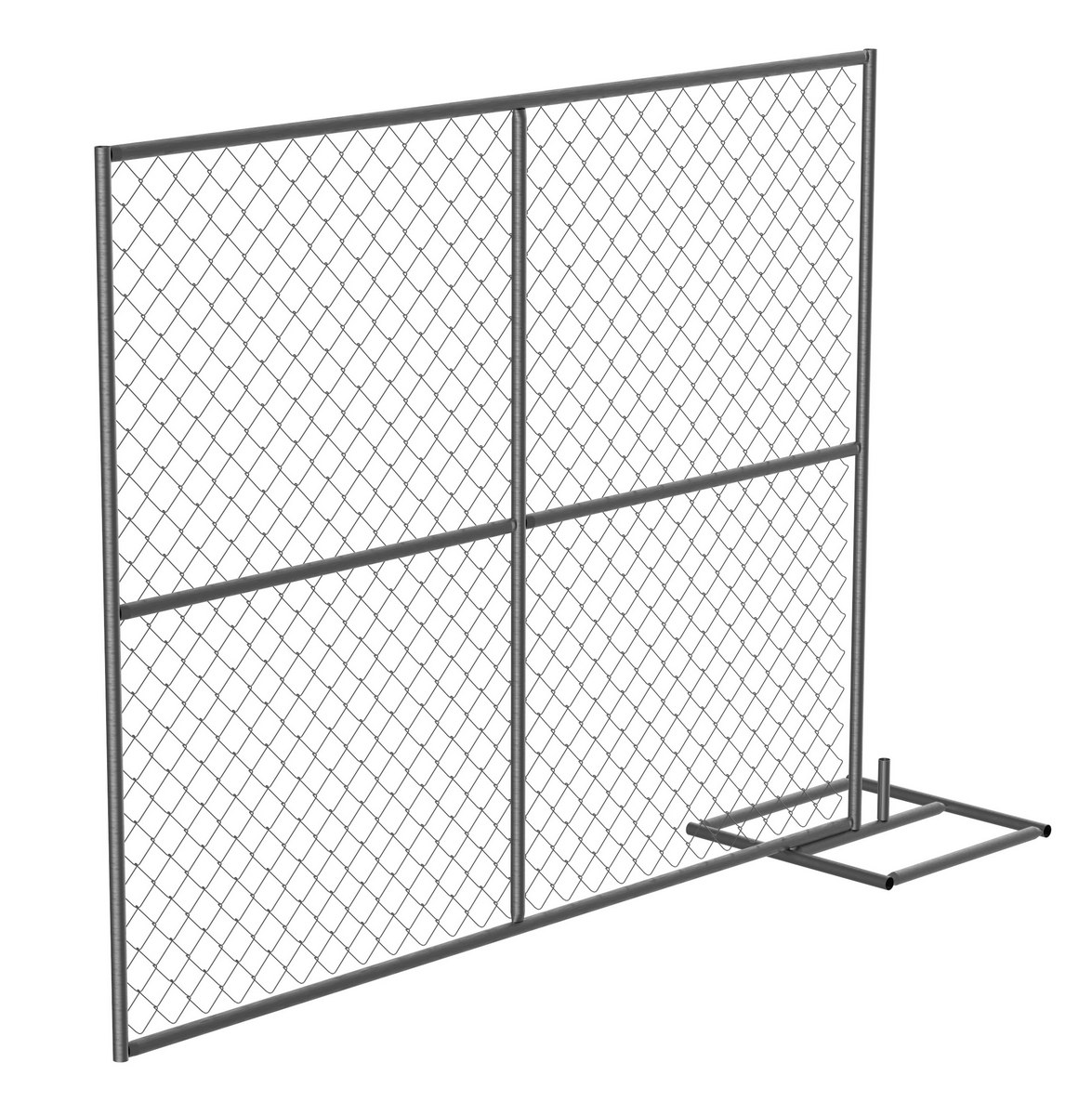

HRAIL-A-9072 HRAIL-A-907290 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Add On Unit For HRAIL-9072Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10		115
HRAIL-BASE HRAIL-BASE90 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Base For HRAIL ModelsBase Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2		7
HRAIL-CON HRAIL-CON90 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Connector For HRAIL ModelsRecommended Use: For use with HRAIL Models
Application: Connector Bracket		3
HRAIL-PNL HRAIL-PNL90 Days Limited WarrantyGalvanized Steel Construction Safety Barrier Panel Unit For HRAIL ModelsPanel Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10		111

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

HRAIL-9072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10

HRAIL-A-9072
Unit:
Size: W x L x H
Weight:
Limited Warranty
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Panel and Base Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10

HRAIL-BASE
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2
Base Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2

HRAIL-CON
Unit:
Size: W x L x H
Weight:
Limited Warranty
Recommended Use: For use with HRAIL Models
Application: Connector Bracket
Recommended Use: For use with HRAIL Models
Application: Connector Bracket

HRAIL-PNL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Panel Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Panel Tubing Diameter (in.): 1-1/4
Chain Link (Gauge): 10
Galvanized Construction Barrier Systems PDF's will open in a new window when clicked.

Manuals


HRAIL-9072
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Is there a temporary gate for this fence?

A: We do not have a gate for this barrier system.

Q: What is the inside diameter of the base tube on the HRAIL-BASE?

A: The inside diameter of the HRAIL-BASE is 15/16". The outside diameter is 1.10".

Q: I saw the pipe size this fits is 1-1/4". That translates into 1-5/8 outside diameter correct?

A: 1.25 L x 5.25 W x 1.125 H and weight is 2 lbs. The OD of the pipe this connector fits on is 1 1/4 in. The bold that holds the connector together can be adjusted, so I believe it will work with a 1 5/8 in OD, but it is designed for the 1 1/4 in OD round.

Q: Does this item came already assembled or does it come in separate pieces?

A: That piece is already assembled. If you need the whole "construction barrier system" it's listed under HRAIL-9072 and will need easy assembly.
