AIR-J

Printer Friendly
Available
AIR-J
AIR-J AIR-J AIR-J AIR-J AIR-J

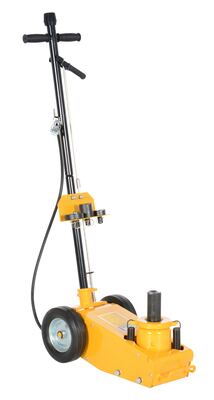

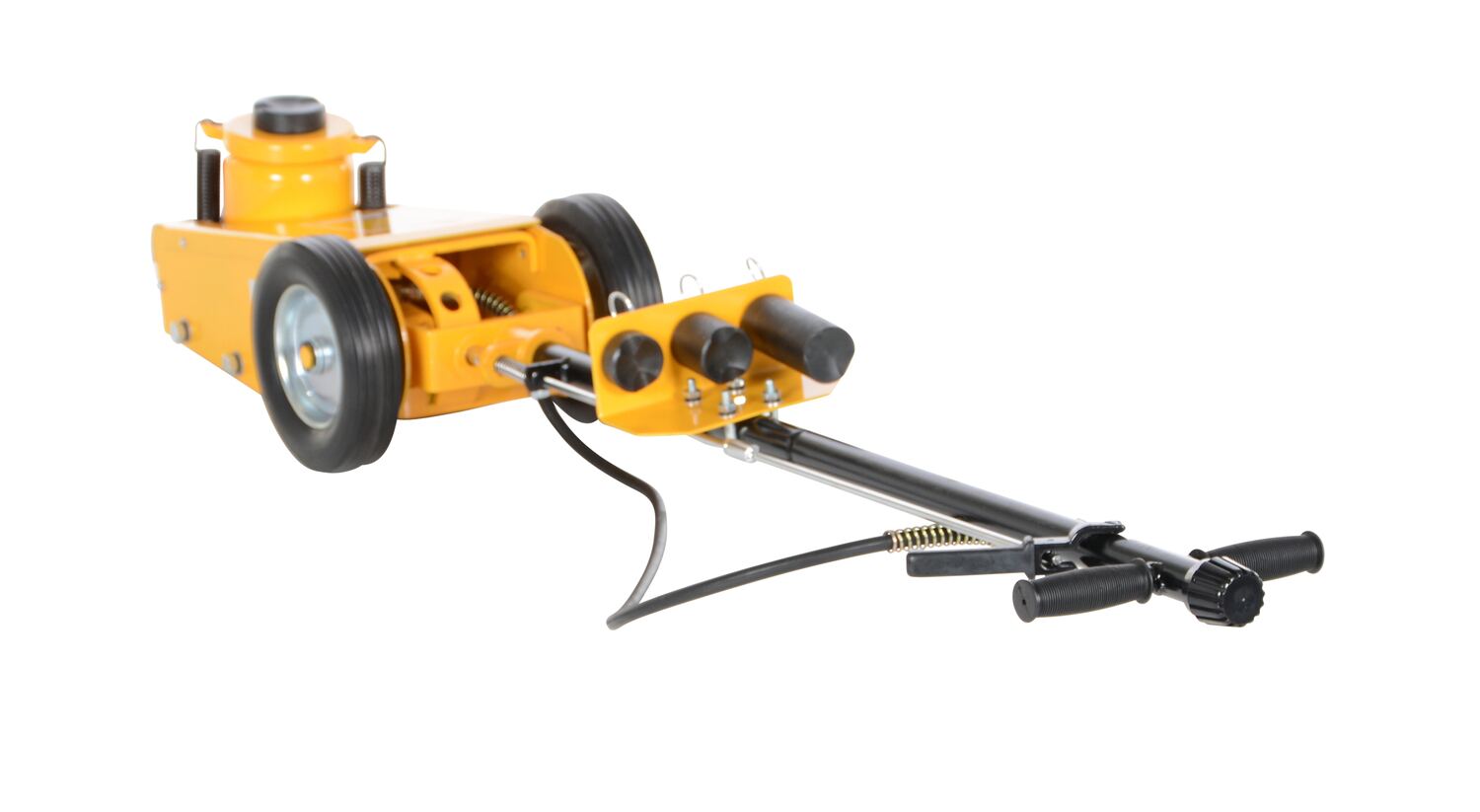

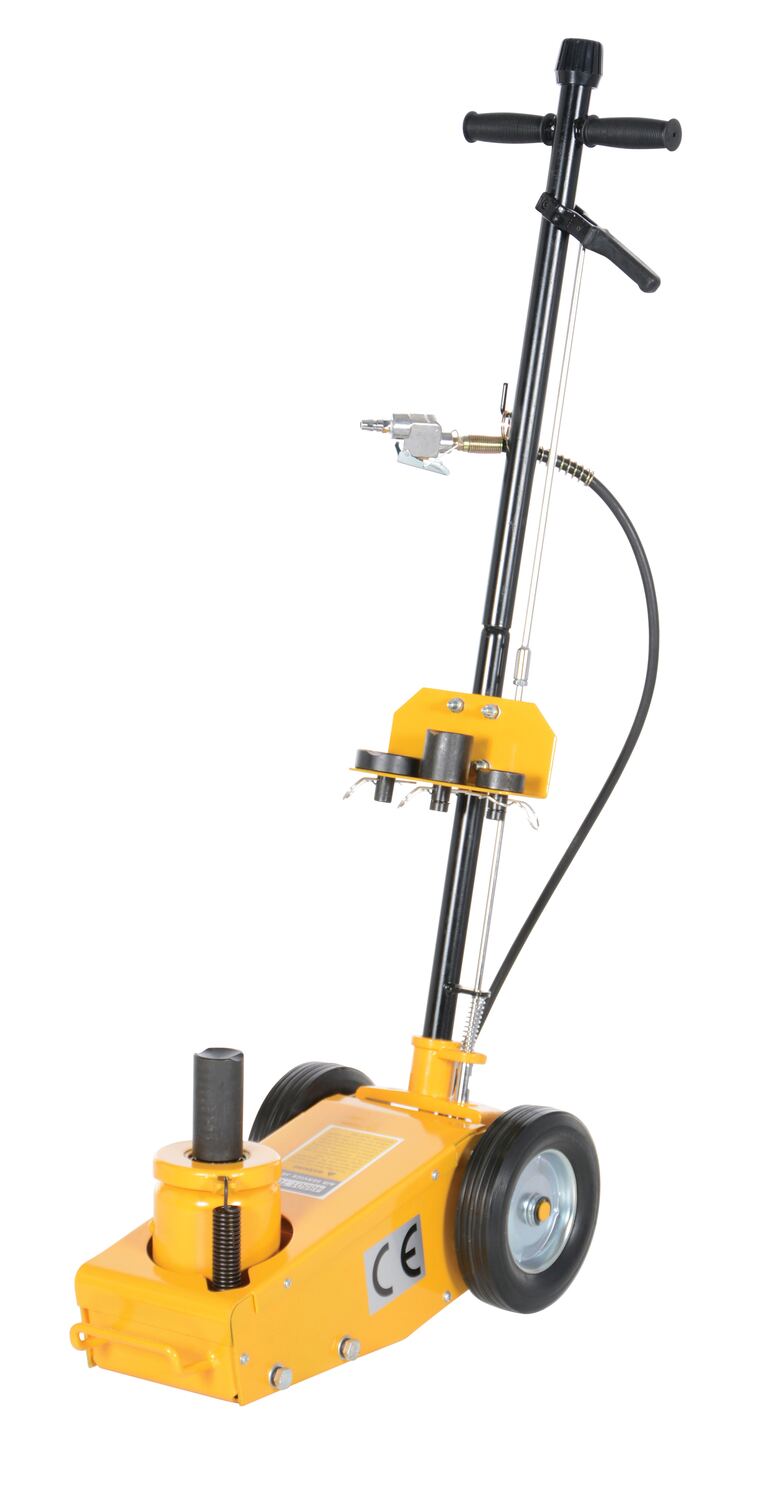

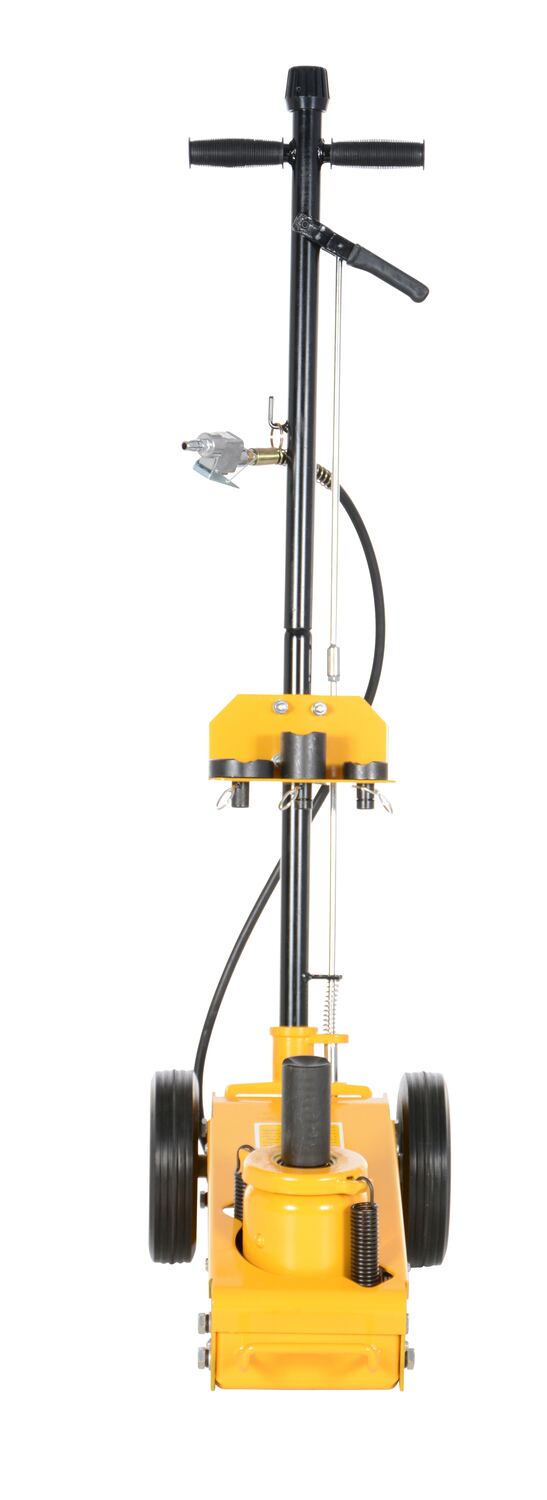

Steel Air Powered Fork Truck Jack 8-1/2 In. - 18-1/4 In. Lift Height 44,000 Lb. Capacity Yellow

The air powered Fork Truck jack has an air-assist motor that quickly raises saddle to lift point and then lifts load to desired height. The air power allows for quick and easy operation. Unit uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

  • Air-assist motor lifts load to desired height
  • Air power allows for quick and easy operation
  • Unit uses coupler hook-up to a shop air compressor
  • Pressure relief valve is located on top of handle for metered control
Assembled Wt.(lbs.): 106 Assembled Size: 12"W x 25"L x 48"H

Total Ship Wt.(lbs.): 146 (only 1 package) Package 1 Size: 40"W x 48"D x 16"H Color: Yellow

Uniform Capacity (lb.): 44,000 Lowered Height (in.): 8-1/4 Raised Height (in.): 18-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: AIR-J
Available
AIR-J

Steel Air Powered Fork Truck Jack 8-1/2 In. - 18-1/4 In. Lift Height 44,000 Lb. Capacity Yellow

The air powered Fork Truck jack has an air-assist motor that quickly raises saddle to lift point and then lifts load to desired height. The air power allows for quick and easy operation. Unit uses standard coupler hook-up to a shop air compressor with air regulator control lever handle. Pressure relief valve is located on top of handle for metered control and load height adjustment.

  • Air-assist motor lifts load to desired height
  • Air power allows for quick and easy operation
  • Unit uses coupler hook-up to a shop air compressor
  • Pressure relief valve is located on top of handle for metered control
Dimensions: 12"W x 25"L x 48"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 146 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 44,000 Lowered Height (in.): 8-1/4 Raised Height (in.): 18-1/4
