COLA-4-56-44

Printer Friendly
Available
COLA-4-56-44
COLA-4-56-44

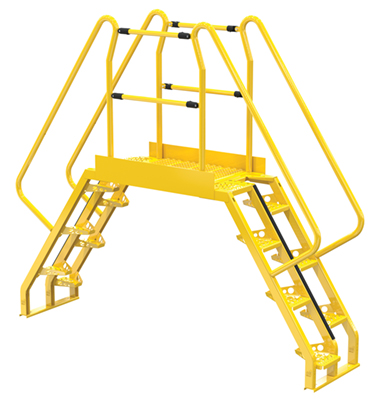

Steel Alternating Crossover Ladder 14 Step 56 Degrees 105 In. x 91 In. 350 Lb. Capacity Yellow

Mount this alternating step cross-over ladder where you need permanent access at crossover points. Alternating step design for shorter overall span than other units. The upper platform features removable two sided high handrail with mid-rail and fixed toe boards to prevent objects from rolling off. Includes lag-down points for securing to floor.

  • Alternating step design offers shorter overall span than other units
  • Pre-drilled lag-down points make installation quick and easy
  • Two-sided hand railing provides adder user safety
  • Meets OSHA rule 1910.25(f) et seq
Assembled Wt.(lbs.): 347 Assembled Size: 24.0625"W x 104.75"L x 90.75"H

Total Ship Wt.(lbs.): 390 (only 1 package) Package 1 Size: 40"W x 112"D x 45"H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7 Clearance Span Height (in.): 45-1/2
Clearance Span Width (in.): 37-1/4 Step Angle (degrees): 56 Platform Handrail Height (in.): 39
Platform Mid-Rail (in.): 21 Toeboard (in.): 4 Usable Width between Handrails (in.): 20-1/16
Step Width (in.): 9-1/8 Step Depth (in.): 10-1/2 Base Width (in.): 23-11/16
Tread: Serrated OSHA: 1910.25(f) et seq

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: COLA-4-56-44
Available
COLA-4-56-44

Steel Alternating Crossover Ladder 14 Step 56 Degrees 105 In. x 91 In. 350 Lb. Capacity Yellow

Mount this alternating step cross-over ladder where you need permanent access at crossover points. Alternating step design for shorter overall span than other units. The upper platform features removable two sided high handrail with mid-rail and fixed toe boards to prevent objects from rolling off. Includes lag-down points for securing to floor.

  • Alternating step design offers shorter overall span than other units
  • Pre-drilled lag-down points make installation quick and easy
  • Two-sided hand railing provides adder user safety
  • Meets OSHA rule 1910.25(f) et seq
Dimensions: 24.0625"W x 104.75"L x 90.75"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 390 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 350 Number of Steps on Each Side: 7 Clearance Span Height (in.): 45-1/2
Clearance Span Width (in.): 37-1/4 Step Angle (degrees): 56 Platform Handrail Height (in.): 39
Platform Mid-Rail (in.): 21 Toeboard (in.): 4 Usable Width between Handrails (in.): 20-1/16
Step Width (in.): 9-1/8 Step Depth (in.): 10-1/2 Base Width (in.): 23-11/16
Tread: Serrated OSHA: 1910.25(f) et seq
