DCR-880-H-HP-DC

Printer Friendly
Available
DCR-880-H-HP-DC
DCR-880-H-HP-DC

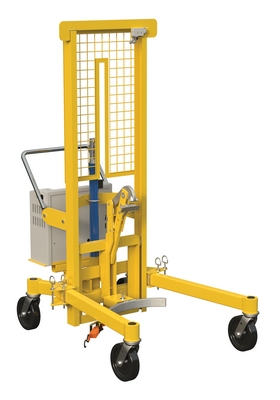

Steel Economical DC Drum Transporter 55 Gallon 800 Lb. Capacity Yellow

Unique portable economical drum transporter is designed to lift and transport drums with a top lip. Steel jaw securely grips the top lip of the drum. DC powered lift mechanism. Straddle legs rotate for access to drums on pallets. All welded steel construction powder coated with a safety yellow finish.

  • Unique portable design transports drums with a top lip
  • Steel jaw securely grips the top lip of the drum
  • Straddle legs rotate for access to drums on pallets
  • Powder coated with a safety yellow finish
Assembled Wt.(lbs.): 334 Assembled Size: 68.875"W x 49.875"L x 72.125"H

Total Ship Wt.(lbs.): 445 (only 1 package) Package 1 Size: 38"W x 64"D x 75"H Color: Yellow

Uniform Capacity (lb.): 880 Caster Quantity/Diameter/Width (in.): (4) 8x2 Caster Material: Phenolic
Caster Type: Swivel Operation: DC Accepts: Steel, Plastic and Fiber Drums
Jaw Service Range (in. to in.): 34-1/2 to 76-13/16 Cradle Depth (in.): 3 Cradle Width (in.): 16-1/2
Cradle Height (in.): 2 Compatible Drum Size (gallon): 55 Maximum Overall Height (in): 81-7/16
Maximum Overall Length (in.): 49-7/8 Minimum Overall Length (in.): 43-9/16 Maximum Overall Width (in.): 68-15/16
Minimum Overall Width (in.): 37-3/4 Maximum Inside Width (in.): 61-7/16 Maximum Inside Width (in.): 30-1/4
Frame Height (in.): 72-1/8 Rasied Jaw Height (in.): 76-13/16 Lowered Jaw Height (in.): 34-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: DCR-880-H-HP-DC
Available
DCR-880-H-HP-DC

Steel Economical DC Drum Transporter 55 Gallon 800 Lb. Capacity Yellow

Unique portable economical drum transporter is designed to lift and transport drums with a top lip. Steel jaw securely grips the top lip of the drum. DC powered lift mechanism. Straddle legs rotate for access to drums on pallets. All welded steel construction powder coated with a safety yellow finish.

  • Unique portable design transports drums with a top lip
  • Steel jaw securely grips the top lip of the drum
  • Straddle legs rotate for access to drums on pallets
  • Powder coated with a safety yellow finish
Dimensions: 68.875"W x 49.875"L x 72.125"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 445 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 880 Caster Quantity/Diameter/Width (in.): (4) 8x2 Caster Material: Phenolic
Caster Type: Swivel Operation: DC Accepts: Steel, Plastic and Fiber Drums
Jaw Service Range (in. to in.): 34-1/2 to 76-13/16 Cradle Depth (in.): 3 Cradle Width (in.): 16-1/2
Cradle Height (in.): 2 Compatible Drum Size (gallon): 55 Maximum Overall Height (in): 81-7/16
Maximum Overall Length (in.): 49-7/8 Minimum Overall Length (in.): 43-9/16 Maximum Overall Width (in.): 68-15/16
Minimum Overall Width (in.): 37-3/4 Maximum Inside Width (in.): 61-7/16 Maximum Inside Width (in.): 30-1/4
Frame Height (in.): 72-1/8 Rasied Jaw Height (in.): 76-13/16 Lowered Jaw Height (in.): 34-1/2
