DJG-100MW

DJG-100MW

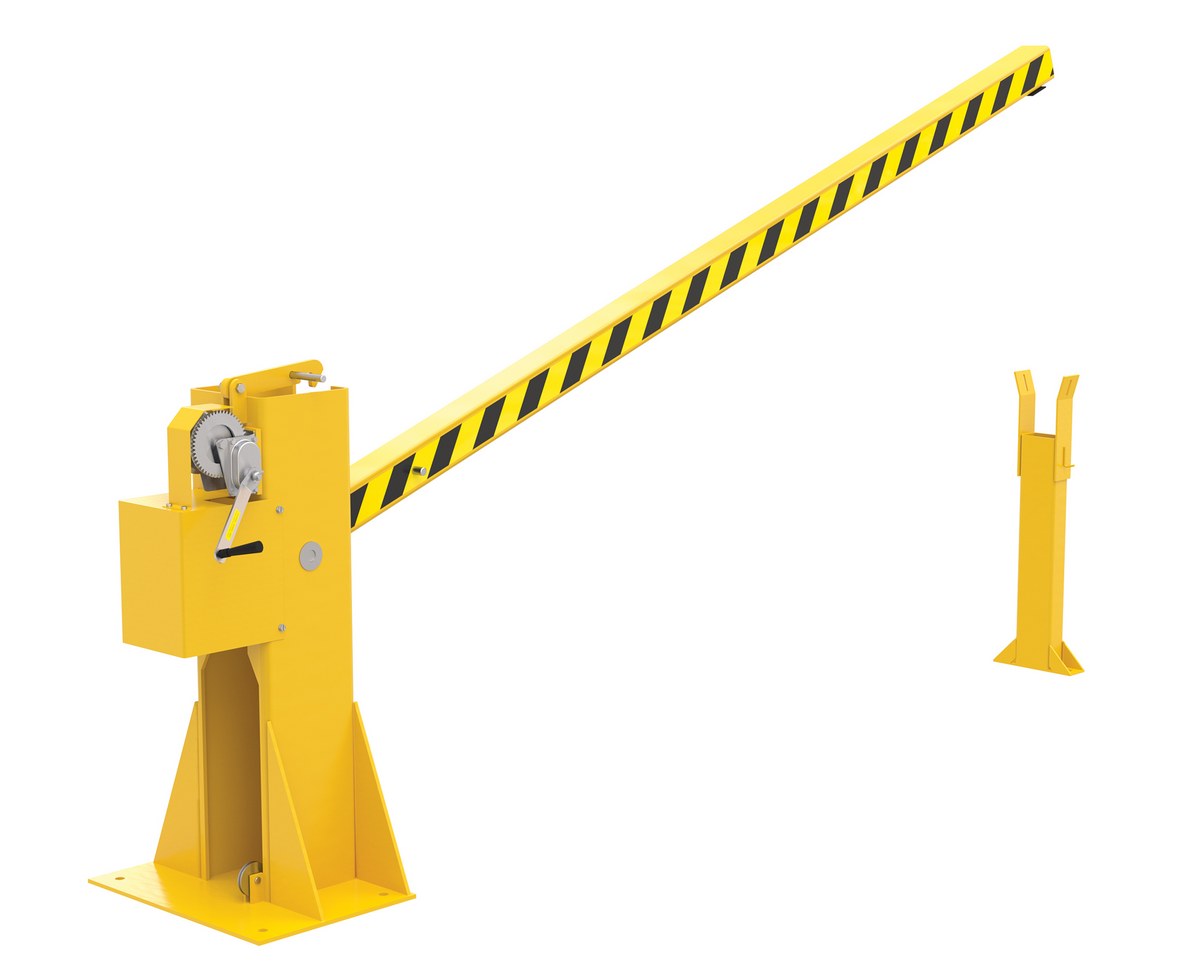

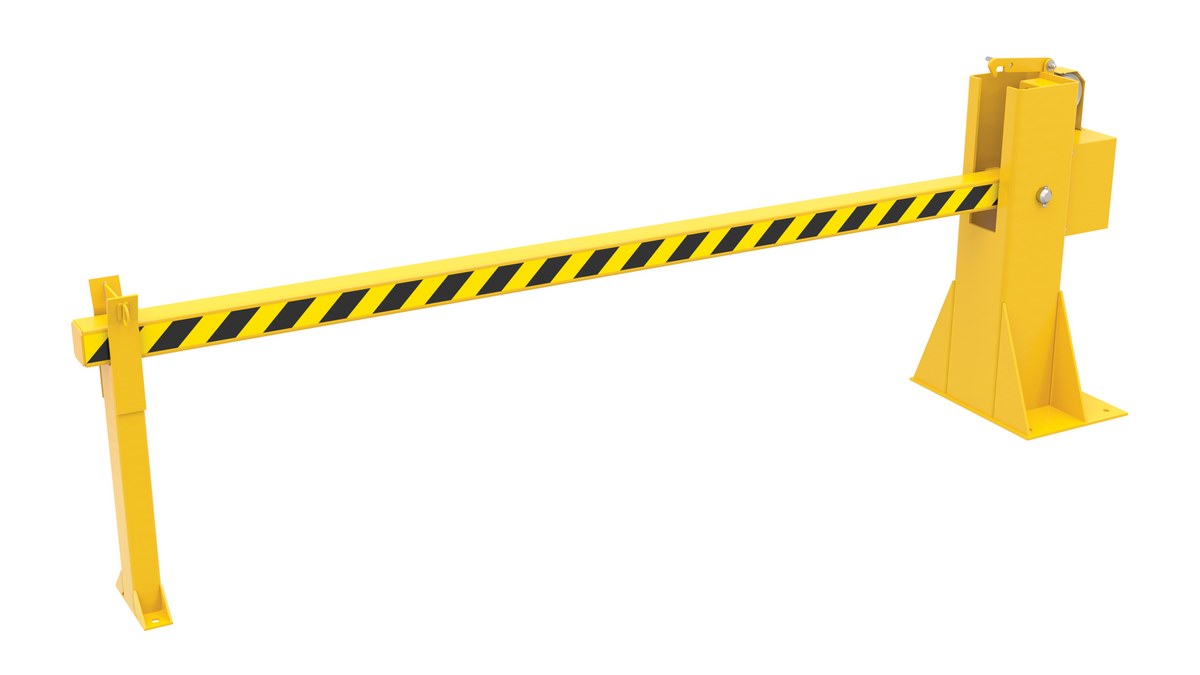

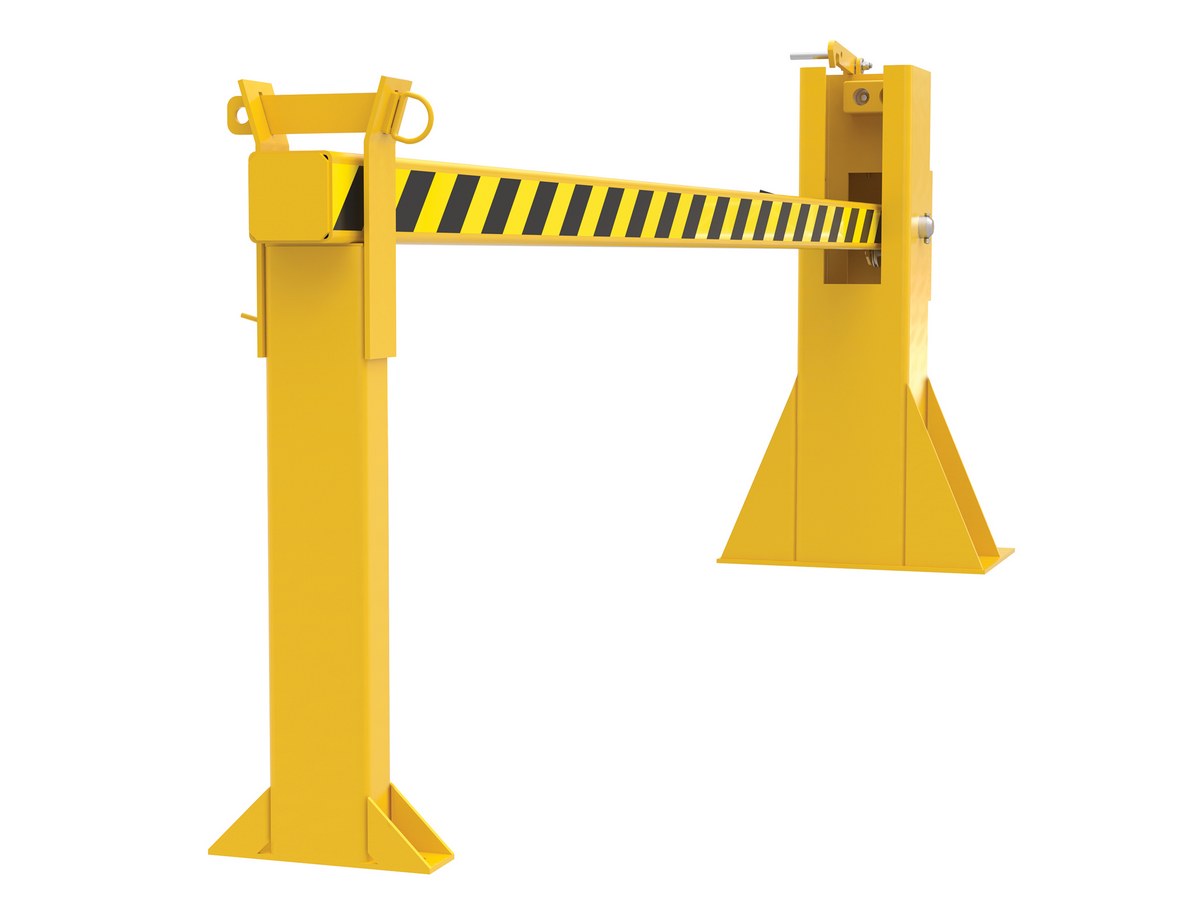

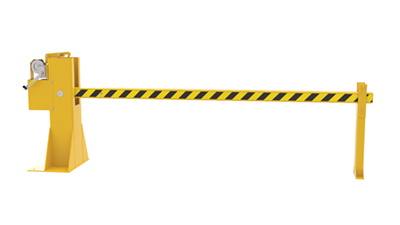

Steel Dock Barricade Manual Hand Crank 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. Installation is simple, anchor the unit to the floor. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included.

  • Unique design protects open doorways at loading docks
  • Manual hand crank easily raises and lowers arm
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Total Ship Wt.(lbs.): 539 (only 1 package) Size: 24"W x 133.25"L x 45.625"H Color: Yellow

Impact Rating (lb. at mph.): 4,000 at 4 Door Width/Height (ft.): 8 x 8 Arm Height Raised (in.): 149
Arm Height Lowered (in.): 32 Operation: Manual Hand Crank

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DJG-100MW


DJG-100MW

Steel Dock Barricade Manual Hand Crank 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. Installation is simple, anchor the unit to the floor. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included.

  • Unique design protects open doorways at loading docks
  • Manual hand crank easily raises and lowers arm
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Dimensions: 24"W x 133.25"L x 45.625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215013536 GTIN: 00691215013536
Warranty: -- Shipping Weight: 539 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Impact Rating (lb. at mph.): 4,000 at 4 Door Width/Height (ft.): 8 x 8 Arm Height Raised (in.): 149
Arm Height Lowered (in.): 32 Operation: Manual Hand Crank
