Model Details

DLT-30

Printer Friendly

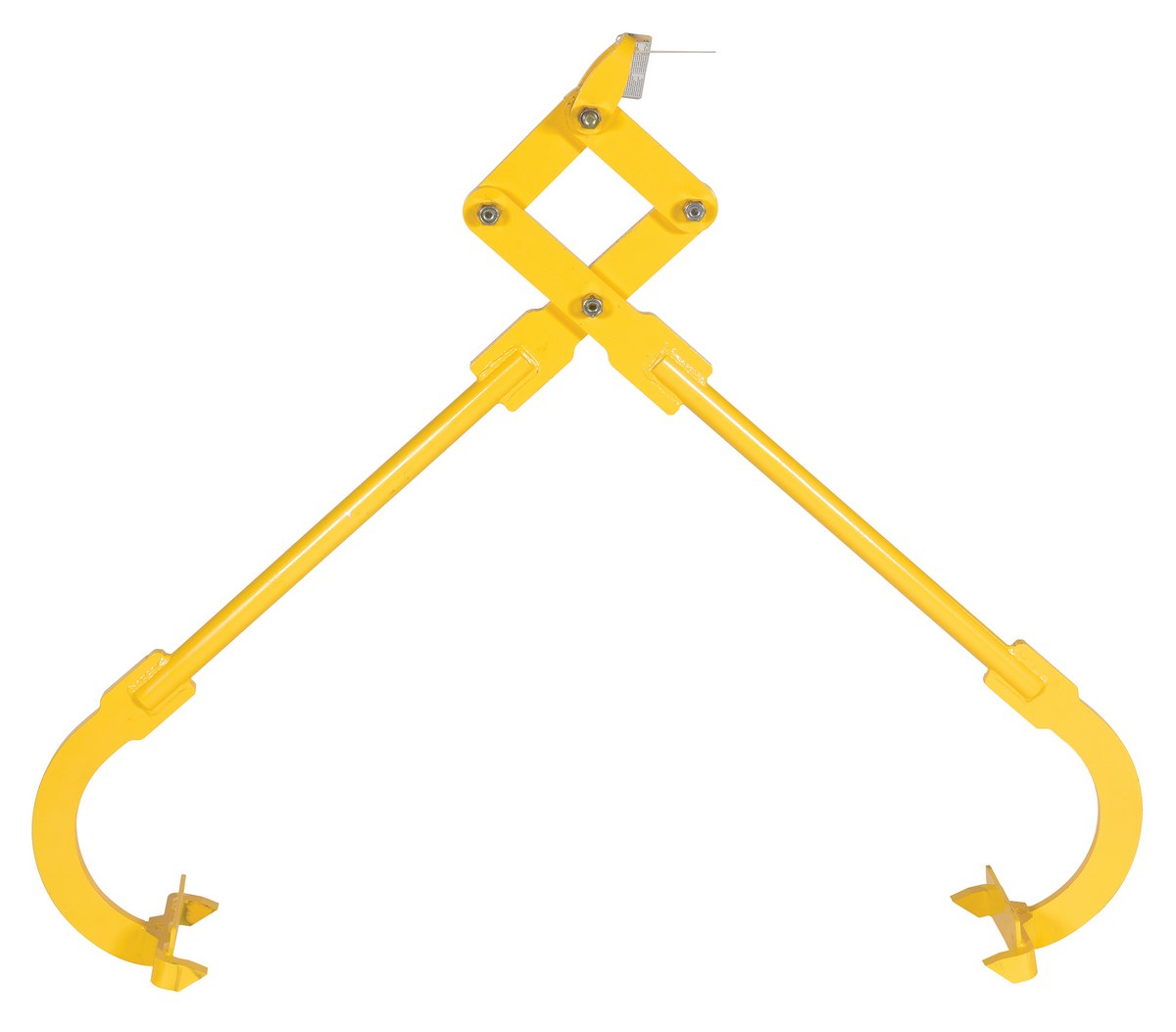

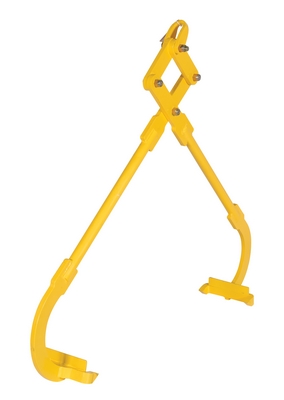

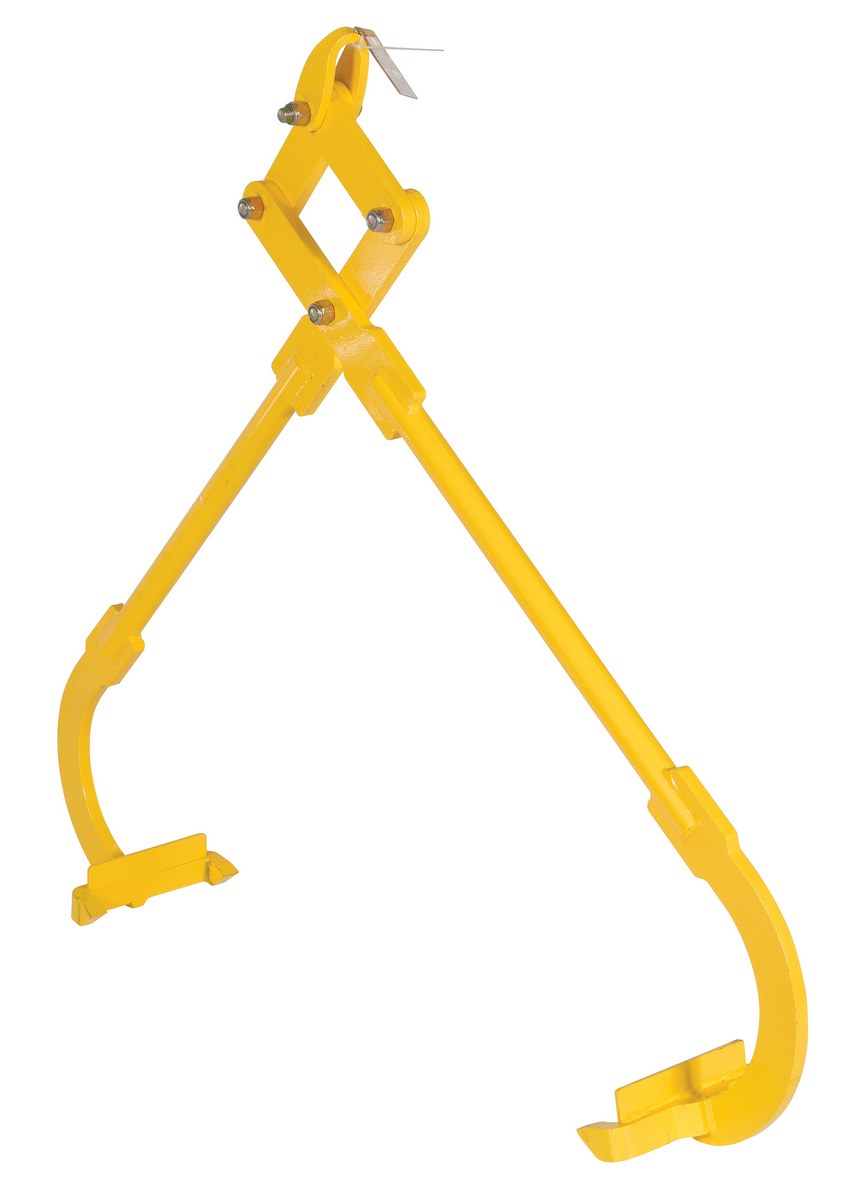

DLT-30

Steel Heavy Duty Die Lifting Tongs 38-9/16 In. Maximum Opening Width 3000 Lb. Capacity Yellow

The heavy-duty lifting tong is a great addition to the material handling capabilities of manufacturing facilities. The unit is constructed of powder coated steel for strength and durability while lifting heavy loads. The yellow finish promotes a clearly visible unit when safely transferring products.

  • Tong is designed for lifting dies with overhead lifting devices
  • Use with either an overhead chain or fork truck for optimal use
  • Manufactured to ASME B30.20 standards
  • Includes lifting ring for easy use with overhead hoist
Total Ship Wt.(lbs.): 126 (only 1 package) Size: 57.5313"W x 10"L x 60.5625"H Color: Yellow

Uniform Capacity (lb.): 3,000 Maximum Width Opening (in.): 38-9/16 Clevis Bracket Opening Width (in.): 1-5/8
Clevis Bracket Inside Width (in.): 1-5/8 Clevis Bracket Inside Length (in.): 3-1/4 Clevis Bracket Thickness (in.): 1/2
Pin: 3/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DLT-30
DLT-30

Steel Heavy Duty Die Lifting Tongs 38-9/16 In. Maximum Opening Width 3000 Lb. Capacity Yellow

The heavy-duty lifting tong is a great addition to the material handling capabilities of manufacturing facilities. The unit is constructed of powder coated steel for strength and durability while lifting heavy loads. The yellow finish promotes a clearly visible unit when safely transferring products.

  • Tong is designed for lifting dies with overhead lifting devices
  • Use with either an overhead chain or fork truck for optimal use
  • Manufactured to ASME B30.20 standards
  • Includes lifting ring for easy use with overhead hoist
Dimensions: 57.5313"W x 10"L x 60.5625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215054829 GTIN: 00691215054829
Warranty: -- Shipping Weight: 126 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3,000 Maximum Width Opening (in.): 38-9/16 Clevis Bracket Opening Width (in.): 1-5/8
Clevis Bracket Inside Width (in.): 1-5/8 Clevis Bracket Inside Length (in.): 3-1/4 Clevis Bracket Thickness (in.): 1/2
Pin: 3/4
