Model Details

EMLT-200

Printer Friendly
EMLT-200

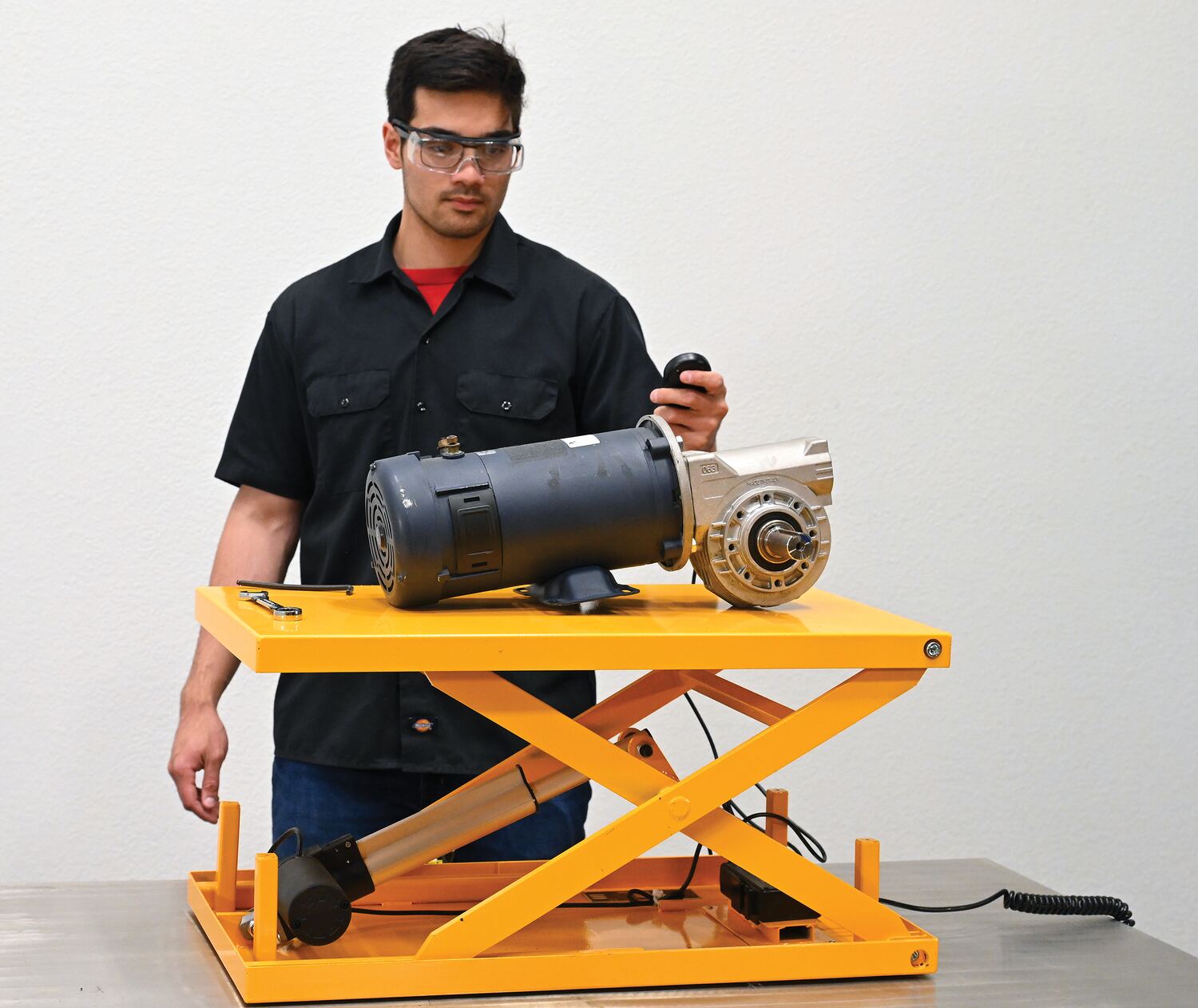

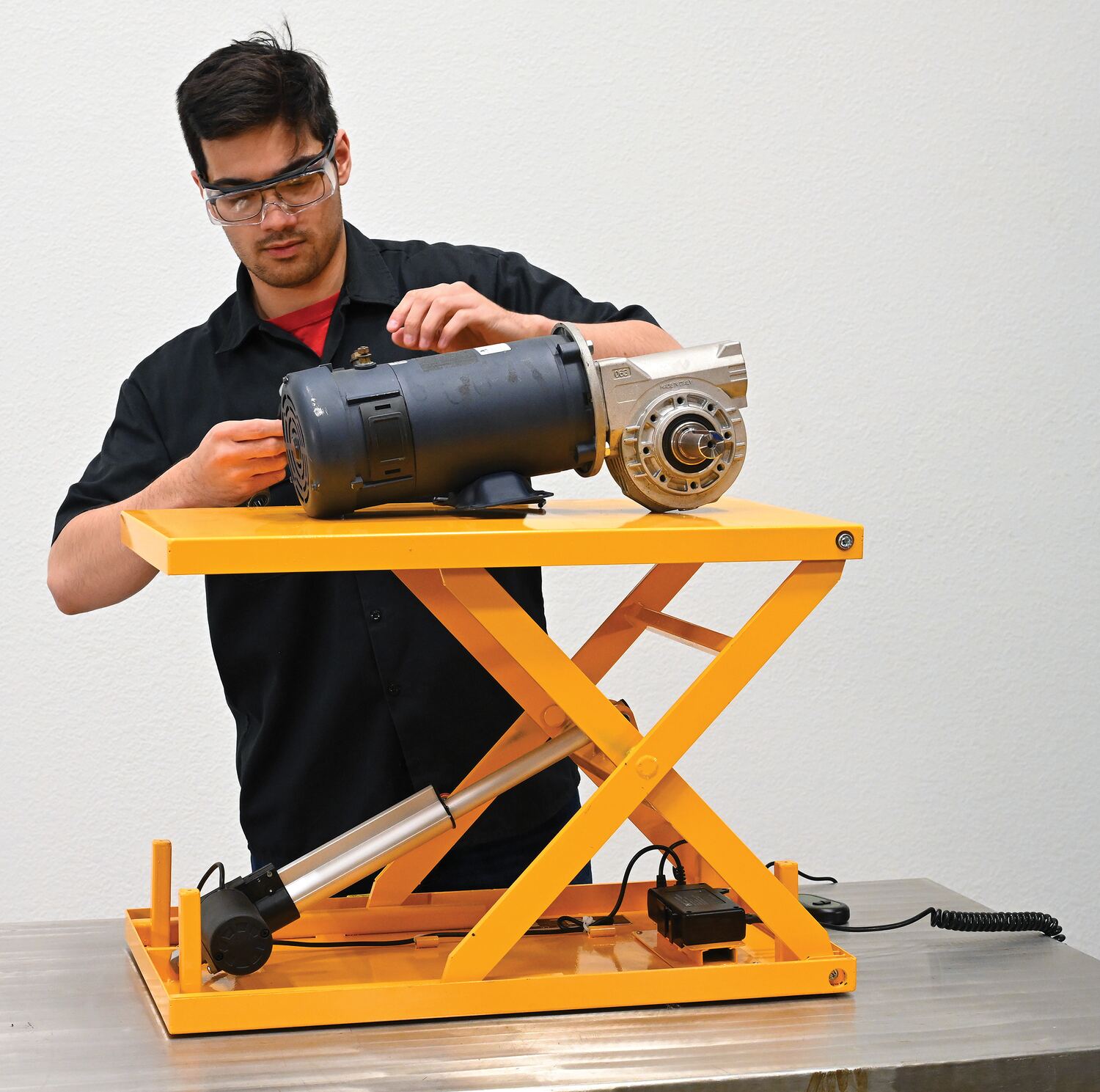

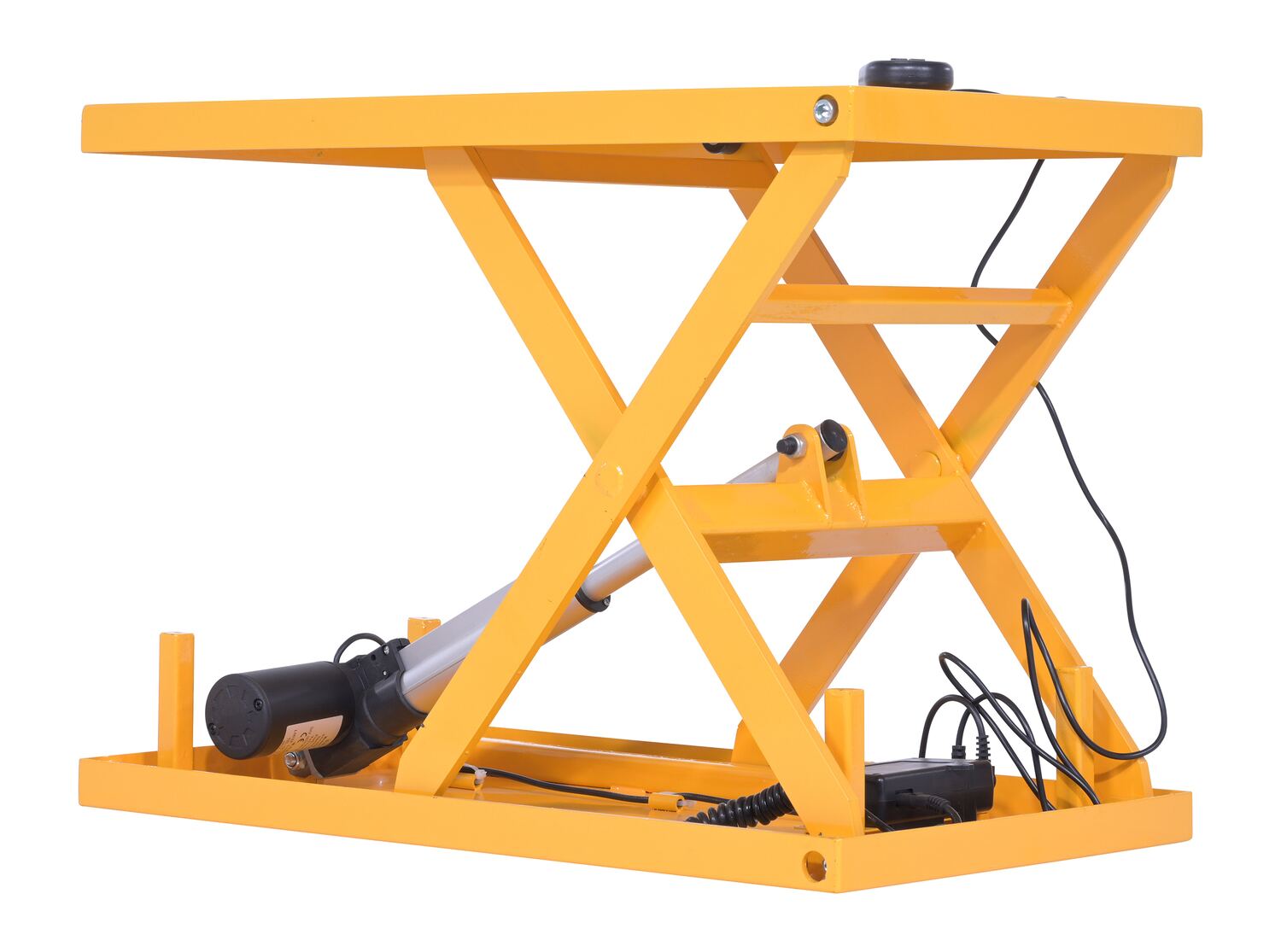

Steel Electric Linear Actuated Scissor Lift Table 27-3/4 In. x 15-3/4 In. x 15 In. 200 Lb. Capacity Yellow

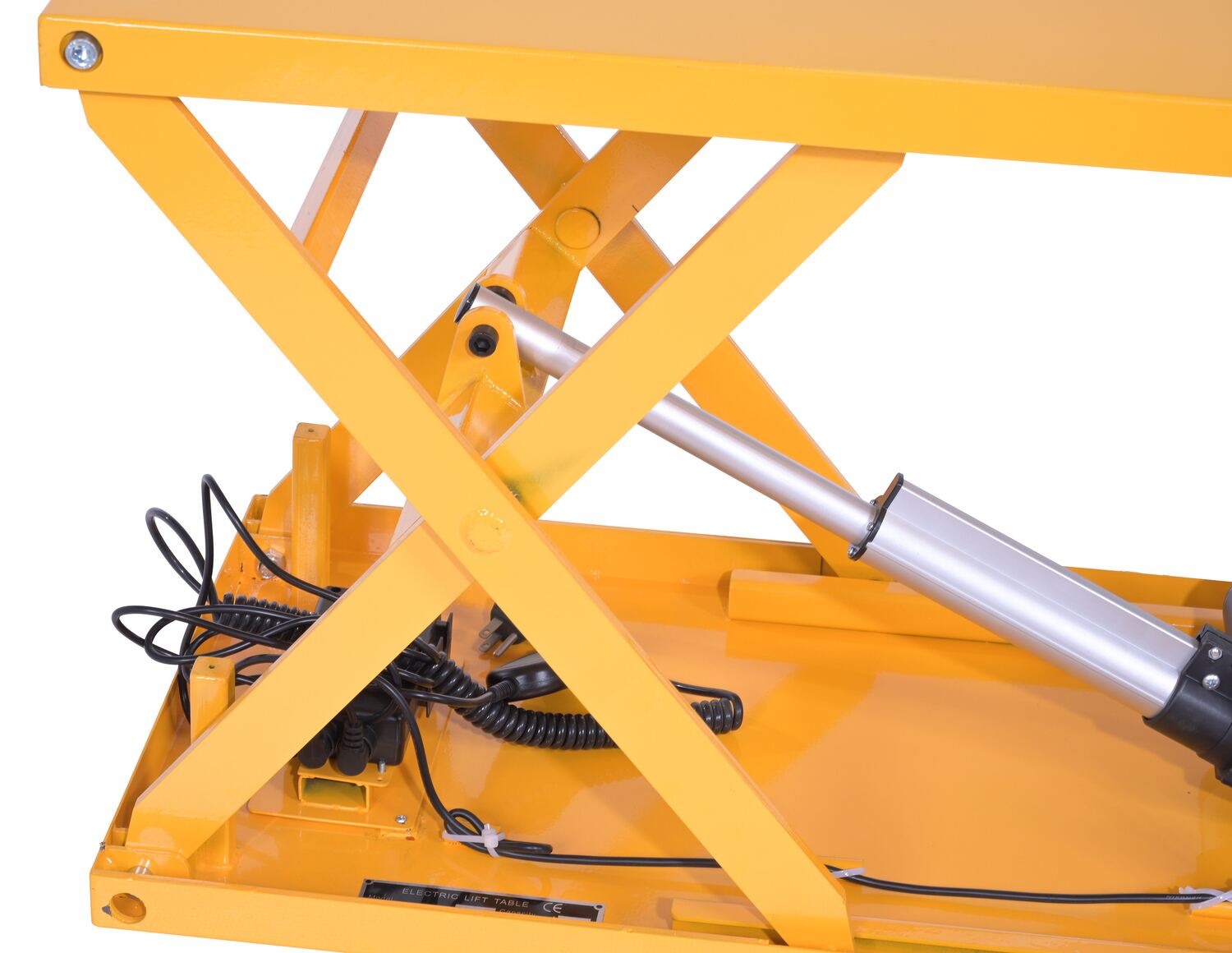

With user well-being always at the forefront of everyone's mind, the linear actuated lift table provides an ergonomically friendly option in an otherwise UN-ergonomic world. Due to its small size and lightweight structure the lift table works well when placed directly onto existing work benches or tables. This addition allows the user to work on small, heavy objects, at precise heights. The linear actuator not only plays an integral role in raising and lowering the table top quickly and efficiently. But, it also minimizes any platform drift, which is a common occurrence with standard hydraulic carts and tables. The unique open sided table design lets the user load and unload products without obstruction or hindrance.

  • 30 second travel time
  • Maintenance-free with grease lubrication

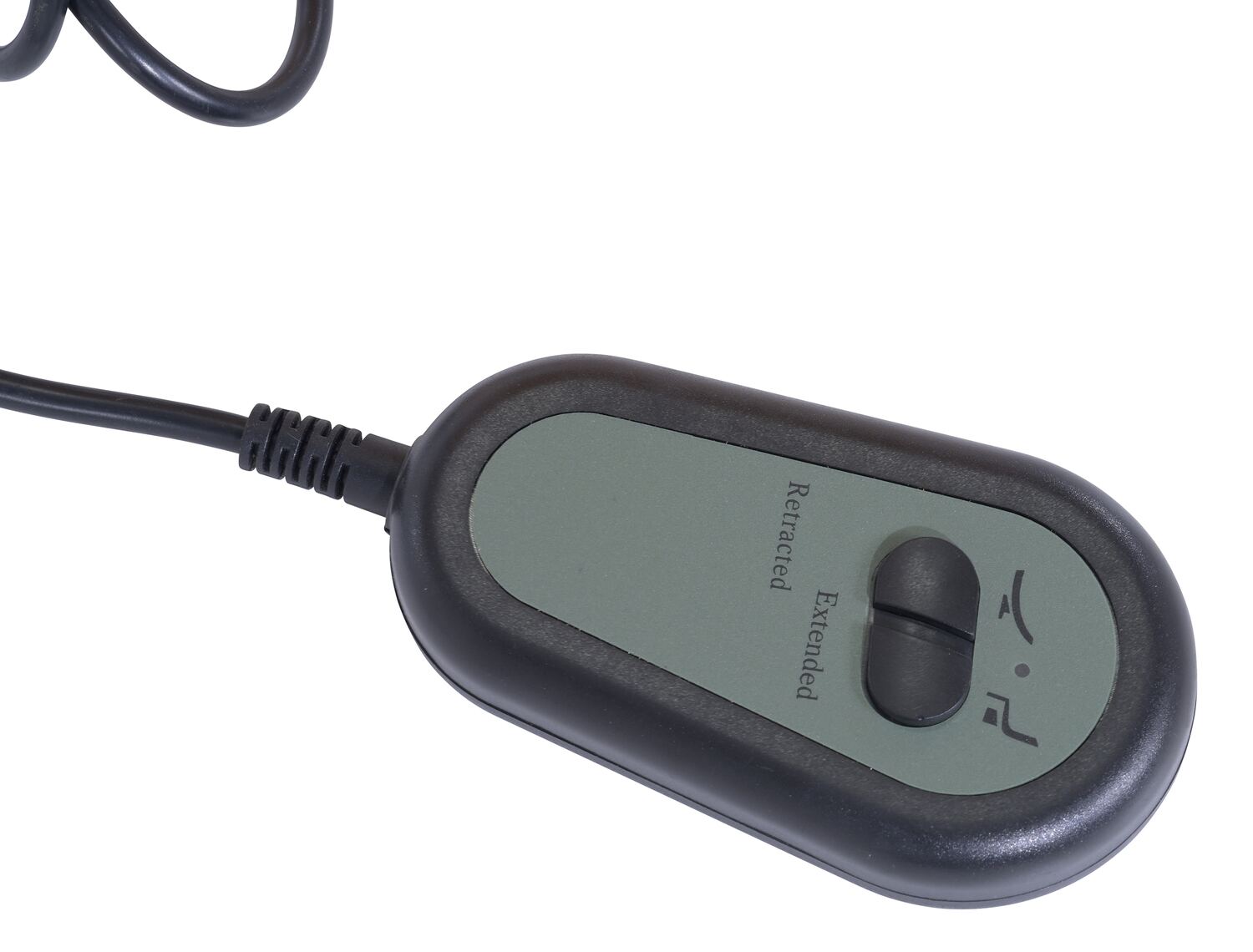

  • Hand controlled platform movement
  • 115V-1PH electric operation
Total Ship Wt.(lbs.): 73 (only 1 package) Size: 15.75"W x 27.75"L x 20"H Color: Yellow

Uniform Capacity (Lbs.): 200 Overall Height (in.): 20 Overall Width (in.): 15-3/4
Overall Length (in.): 27-3/4 Platform Size (in.): 27-3/4 x 15-3/4 Lowered Height (in.): 5
Raised Height (in.): 20 Control: Hand Voltage/Phase: 115V-1PH
Travel Time (sec.): 30

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EMLT-200
EMLT-200

Steel Electric Linear Actuated Scissor Lift Table 27-3/4 In. x 15-3/4 In. x 15 In. 200 Lb. Capacity Yellow

With user well-being always at the forefront of everyone's mind, the linear actuated lift table provides an ergonomically friendly option in an otherwise UN-ergonomic world. Due to its small size and lightweight structure the lift table works well when placed directly onto existing work benches or tables. This addition allows the user to work on small, heavy objects, at precise heights. The linear actuator not only plays an integral role in raising and lowering the table top quickly and efficiently. But, it also minimizes any platform drift, which is a common occurrence with standard hydraulic carts and tables. The unique open sided table design lets the user load and unload products without obstruction or hindrance.

  • 30 second travel time
  • Maintenance-free with grease lubrication
  • Hand controlled platform movement
  • 115V-1PH electric operation
Dimensions: 15.75"W x 27.75"L x 20"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215377331 GTIN: 00691215377331
Warranty: -- Shipping Weight: 73 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (Lbs.): 200 Overall Height (in.): 20 Overall Width (in.): 15-3/4
Overall Length (in.): 27-3/4 Platform Size (in.): 27-3/4 x 15-3/4 Lowered Height (in.): 5
Raised Height (in.): 20 Control: Hand Voltage/Phase: 115V-1PH
Travel Time (sec.): 30
