FAB-10-ERGO-FL

Printer Friendly
Available
FAB-10-ERGO-FL
FAB-10-ERGO-FL FAB-10-ERGO-FL FAB-10-ERGO-FL FAB-10-ERGO-FL

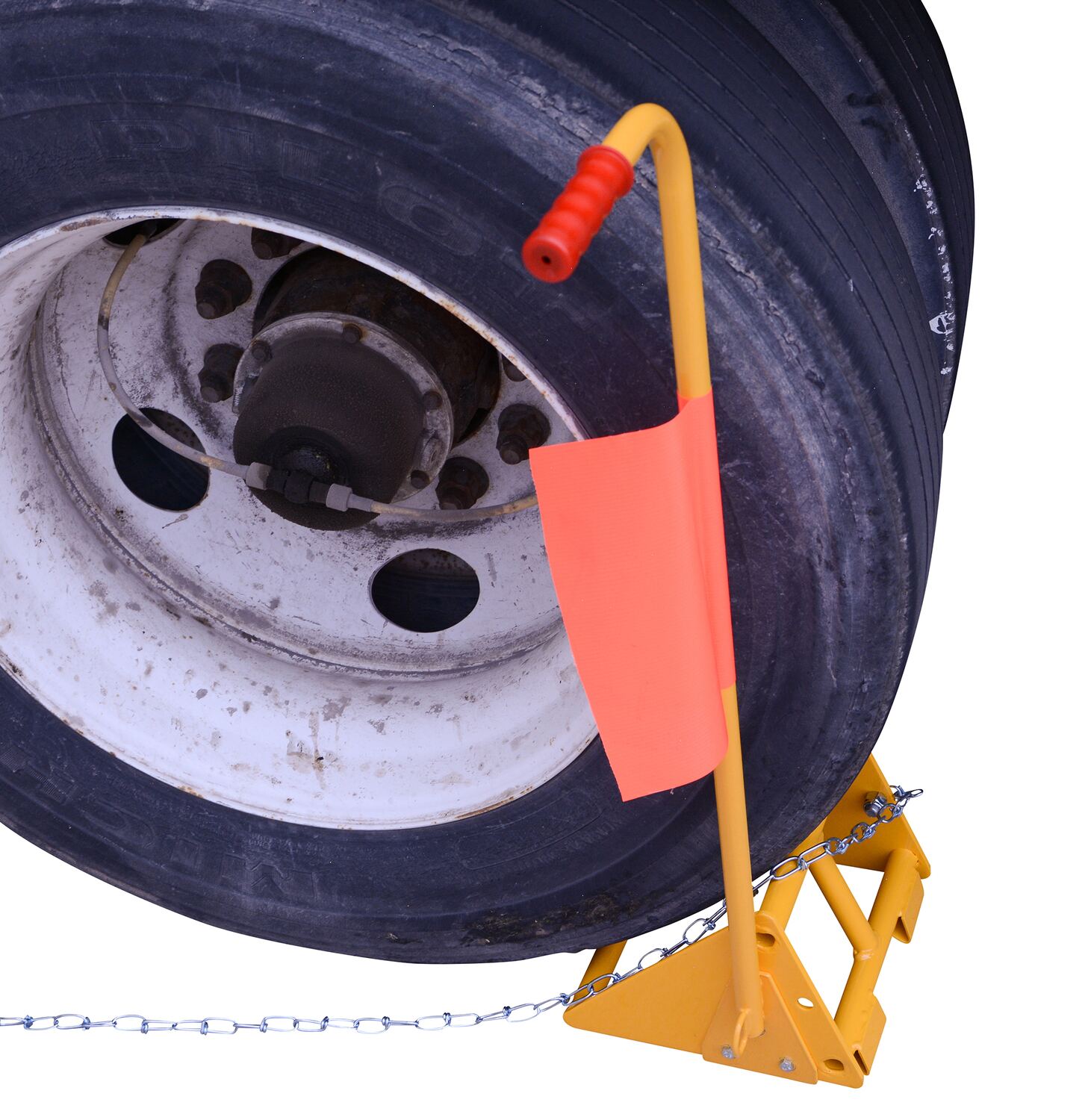

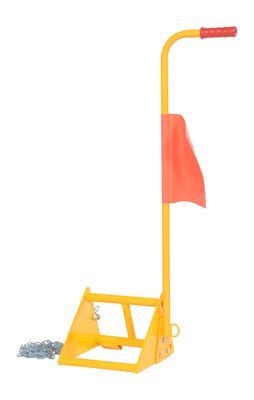

Fabricated Steel Wheel Chock With Ergonomic Handle and Flag Yellow

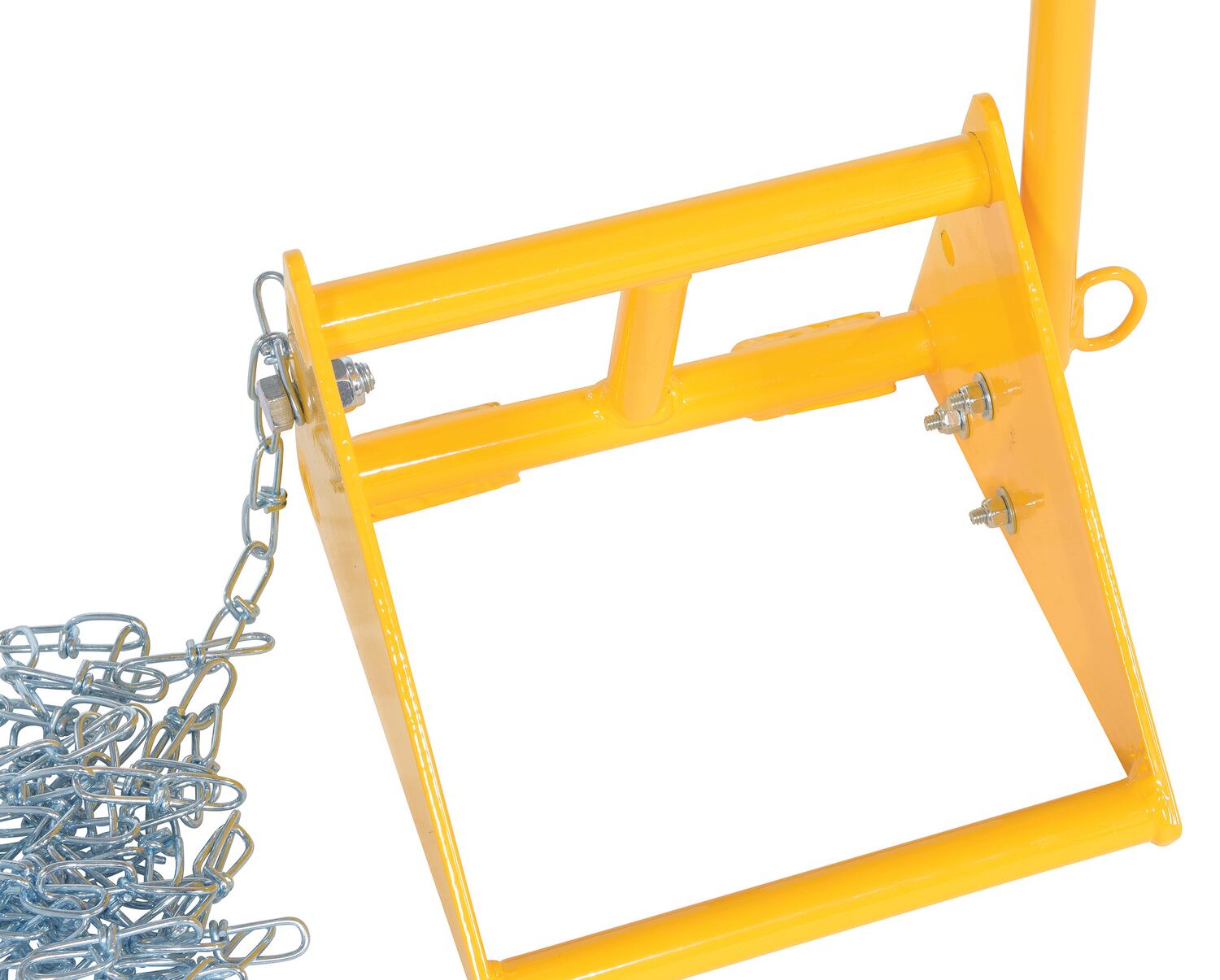

The fabricated ergo-handle Wheel Chock has an ergonomic design that makes it easy to move wheel chocks in and out of position under trailer wheels. It reduces the risk of back, knee, and foot injuries. The handle is constructed of steel and includes a yellow powder coat finish. D-ring provided for attaching security chain. A vinyl flag is included to provide added visibility and awareness to the chock. Assembly required.

  • Open design is lightweight yet strong
  • Powder coat yellow finish makes unit easily visible
  • Fabricated steel gives unit a long lasting design
  • Open face radius works with a variety do tire sizes
Assembled Wt.(lbs.): 12 Assembled Size: 18.5625"W x 10"L x 37.9375"H

Total Ship Wt.(lbs.): 16 (Multiple Packages: P1: 5 lbs + P2: 11 lbs) Package 1 Size: 9"W x 39"D x 6"H Color: Yellow

Usable Chock Width (in.): 9-13/16 Chain Length (ft.): 10 Chock Height (in.): 8-1/4
Flag Material: Vinyl

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

30 Days Limited Warranty

Details For Model: FAB-10-ERGO-FL
Available
FAB-10-ERGO-FL

Fabricated Steel Wheel Chock With Ergonomic Handle and Flag Yellow

The fabricated ergo-handle Wheel Chock has an ergonomic design that makes it easy to move wheel chocks in and out of position under trailer wheels. It reduces the risk of back, knee, and foot injuries. The handle is constructed of steel and includes a yellow powder coat finish. D-ring provided for attaching security chain. A vinyl flag is included to provide added visibility and awareness to the chock. Assembly required.

  • Open design is lightweight yet strong
  • Powder coat yellow finish makes unit easily visible
  • Fabricated steel gives unit a long lasting design
  • Open face radius works with a variety do tire sizes
Dimensions: 18.5625"W x 10"L x 37.9375"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 5 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Usable Chock Width (in.): 9-13/16 Chain Length (ft.): 10 Chock Height (in.): 8-1/4
Flag Material: Vinyl
