GR-H2R-CRV-BO-4-HDG

Printer Friendly
Available
GR-H2R-CRV-BO-4-HDG
GR-H2R-CRV-BO-4-HDG GR-H2R-CRV-BO-4-HDG GR-H2R-CRV-BO-4-HDG

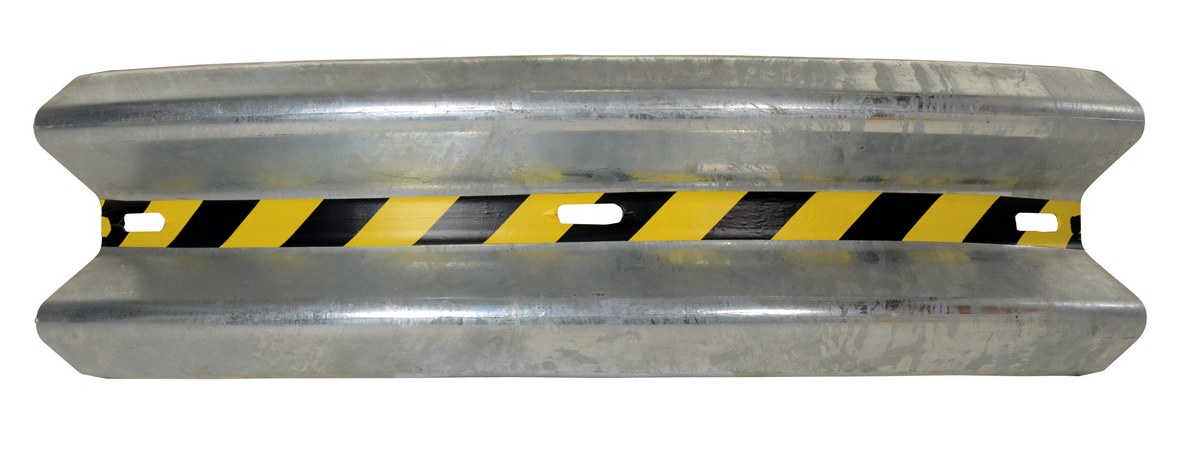

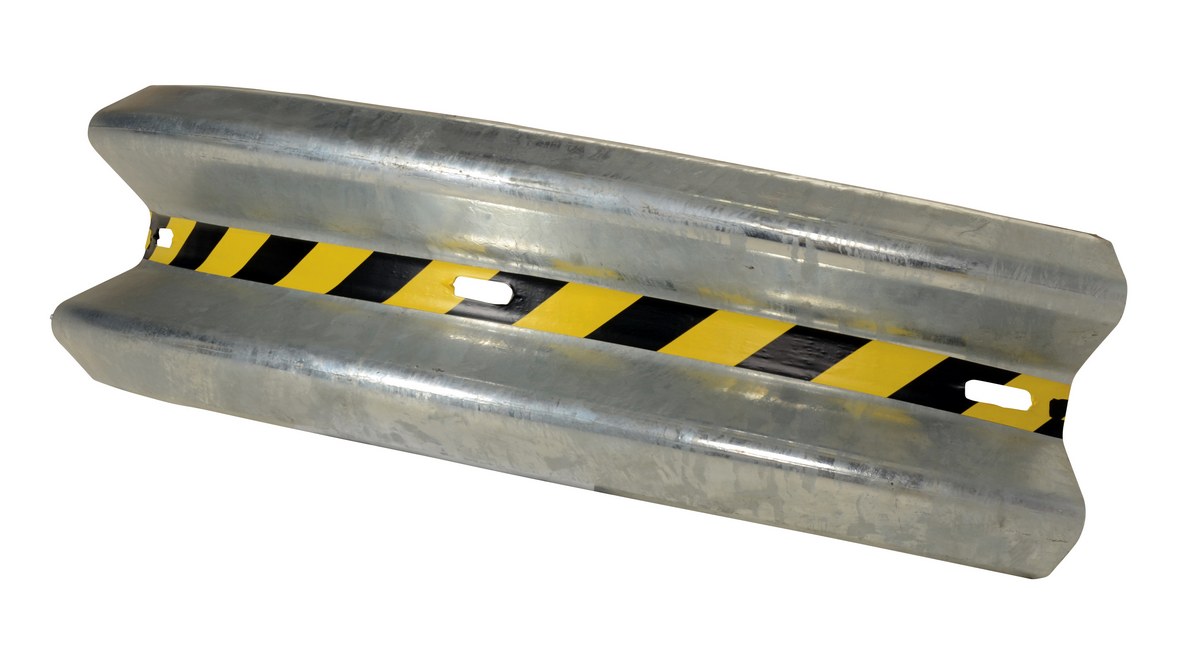

Galvanized Steel Curved Guard Rail 48 In. Length Gray

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong steel guard rail those worries can be eased. A curved design allows the rail to be placed in a variety of areas. This rail is double ribbed for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • Economical system can be utilized indoors or outdoors
  • 2 Ribbed design for secure protection
  • Hot dipped galvanized for a rugged long lasting finish
  • Steel construction offers strong reliable protection
Assembled Wt.(lbs.): 30 Assembled Size: 4.625"W x 48"L x 12"H

Total Ship Wt.(lbs.): 32 (only 1 package) Package 1 Size: 15"W x 47"D x 15"H Color: Gray

Mounting Posts Required (qty.): 2 Rail Style Curved (degrees): 90 Impact Resistance: 4,000 lb. @ 4 mph
Overlap on Shared Post Deduct (in.): 5 Rail Mounting Hole Slotted (in.): 3/4 x 2-1/2 Radius (in.): 30-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: GR-H2R-CRV-BO-4-HDG
Available
GR-H2R-CRV-BO-4-HDG

Galvanized Steel Curved Guard Rail 48 In. Length Gray

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong steel guard rail those worries can be eased. A curved design allows the rail to be placed in a variety of areas. This rail is double ribbed for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • Economical system can be utilized indoors or outdoors
  • 2 Ribbed design for secure protection
  • Hot dipped galvanized for a rugged long lasting finish
  • Steel construction offers strong reliable protection
Dimensions: 4.625"W x 48"L x 12"H Sell UOM: -- Color: Gray
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 32 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Mounting Posts Required (qty.): 2 Rail Style Curved (degrees): 90 Impact Resistance: 4,000 lb. @ 4 mph
Overlap on Shared Post Deduct (in.): 5 Rail Mounting Hole Slotted (in.): 3/4 x 2-1/2 Radius (in.): 30-1/2
