HCH-3-20

Printer Friendly
Available
HCH-3-20
HCH-3-20 HCH-3-20 HCH-3-20

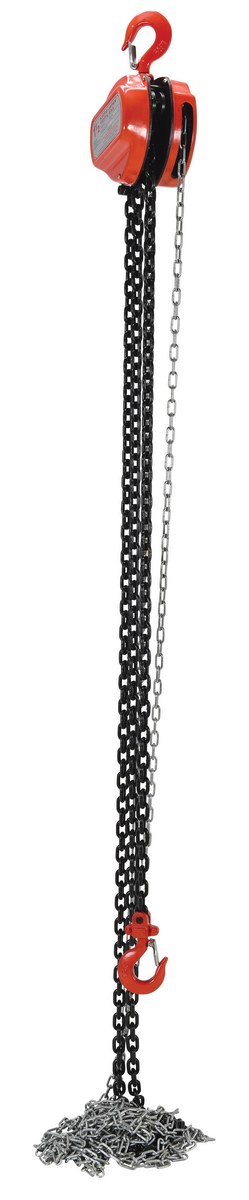

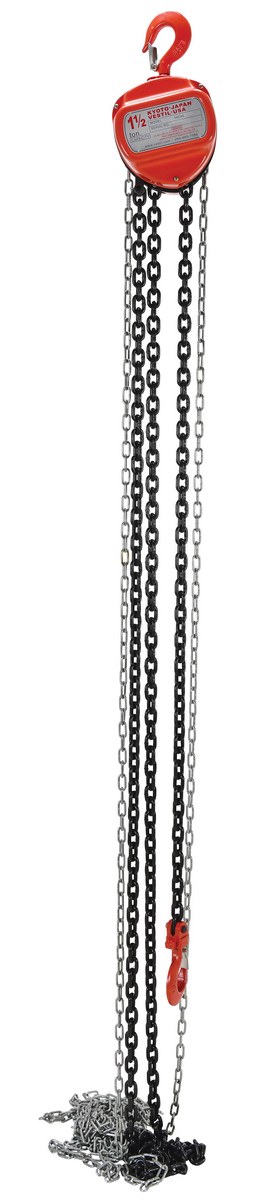

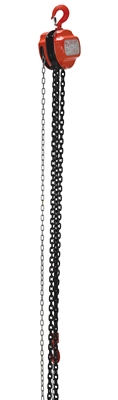

Steel Manual Chain Hoist 20 Ft. Lift 3,000 Lb. Capacity Orange

The hand chain hoists are ideal for industrial applications. The hoist is light weight, ergonomically friendly to handle, and designed for comfortable use in low headroom /confined areas or work. Features include a pull chain with upper and lower hooks constructed of forged steel for additional strength and hardened two stage gears for a quicker pulling time.

  • Hand chain hoists is ideal for industrial applications for optimal results
  • Ergonomic design is easy to handle and for comfortable use in confined areas
  • Features durable construction for added strength and long life
  • Includes a pull chain and hardened two stage gears for a quicker pulling time
Assembled Wt.(lbs.): 53 Assembled Size: 11"W x 14"L x 7"H

Total Ship Wt.(lbs.): 53 (only 1 package) Package 1 Size: 11"W x 14"D x 7"H Color: Orange

Uniform Capacity (lb.): 3,000 Standard Lift (ft.): 20 Headroom (in.): 15

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: HCH-3-20
Available
HCH-3-20

Steel Manual Chain Hoist 20 Ft. Lift 3,000 Lb. Capacity Orange

The hand chain hoists are ideal for industrial applications. The hoist is light weight, ergonomically friendly to handle, and designed for comfortable use in low headroom /confined areas or work. Features include a pull chain with upper and lower hooks constructed of forged steel for additional strength and hardened two stage gears for a quicker pulling time.

  • Hand chain hoists is ideal for industrial applications for optimal results
  • Ergonomic design is easy to handle and for comfortable use in confined areas
  • Features durable construction for added strength and long life
  • Includes a pull chain and hardened two stage gears for a quicker pulling time
Dimensions: 11"W x 14"L x 7"H Sell UOM: -- Color: Orange
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 53 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 3,000 Standard Lift (ft.): 20 Headroom (in.): 15
