Model Details
The Heavy Duty guard rail is ideal for protecting material handling appliances and products. The heavy duty guard rail pipe is tucked inside an hope durable plastic sheath for longevity. Rail is attachable to surface by a four bolt mount for easy, precise positioning when meeting specific needs. Varying lengths available upon request.
Crash Rating (lb.) at 8 MPH: 12000 | Steel Rails (in./schedule): 6/40 | Steel Posts (in./schedule): 4/80 |
HDPE Thickness (in.): 1/4 | HDPE temperature minimum/maximum (Fahrenheit): (-40) to 210 | Nominal Wall Thickness (in.): 1/4 |
Base Plate Length (in.): 10 | Base Plate Width (in.): 10 | Base Plate Thickness (in.): 5/8 |
Quickship Item?
Can It Ship UPS/FedEx?
PDF Documents

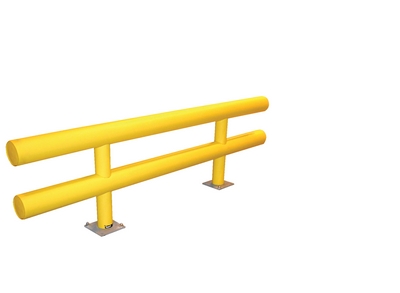

Details For Model: HDGR-12-42 |
||||||||||||||||||||||||||
Steel Heavy Duty Guard Rail 144 In. x 42 In. 12000 Lb. Capacity YellowThe Heavy Duty guard rail is ideal for protecting material handling appliances and products. The heavy duty guard rail pipe is tucked inside an hope durable plastic sheath for longevity. Rail is attachable to surface by a four bolt mount for easy, precise positioning when meeting specific needs. Varying lengths available upon request.
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
