Model Details

← All Products- ← Fork Truck Attachments- ← Misc. Fork Attachments -← Fork Truck Grapple Attachment- HMG-35-4

HMG-35-4

Printer Friendly
Available
HMG-35-4
HMG-35-4 HMG-35-4 HMG-35-4 HMG-35-4 HMG-35-4 HMG-35-4 HMG-35-4 HMG-35-4 HMG-35-4 HMG-35-4

Steel Hydraulic Material Grapple 35 In. Opening 4000 lb Capacity Black

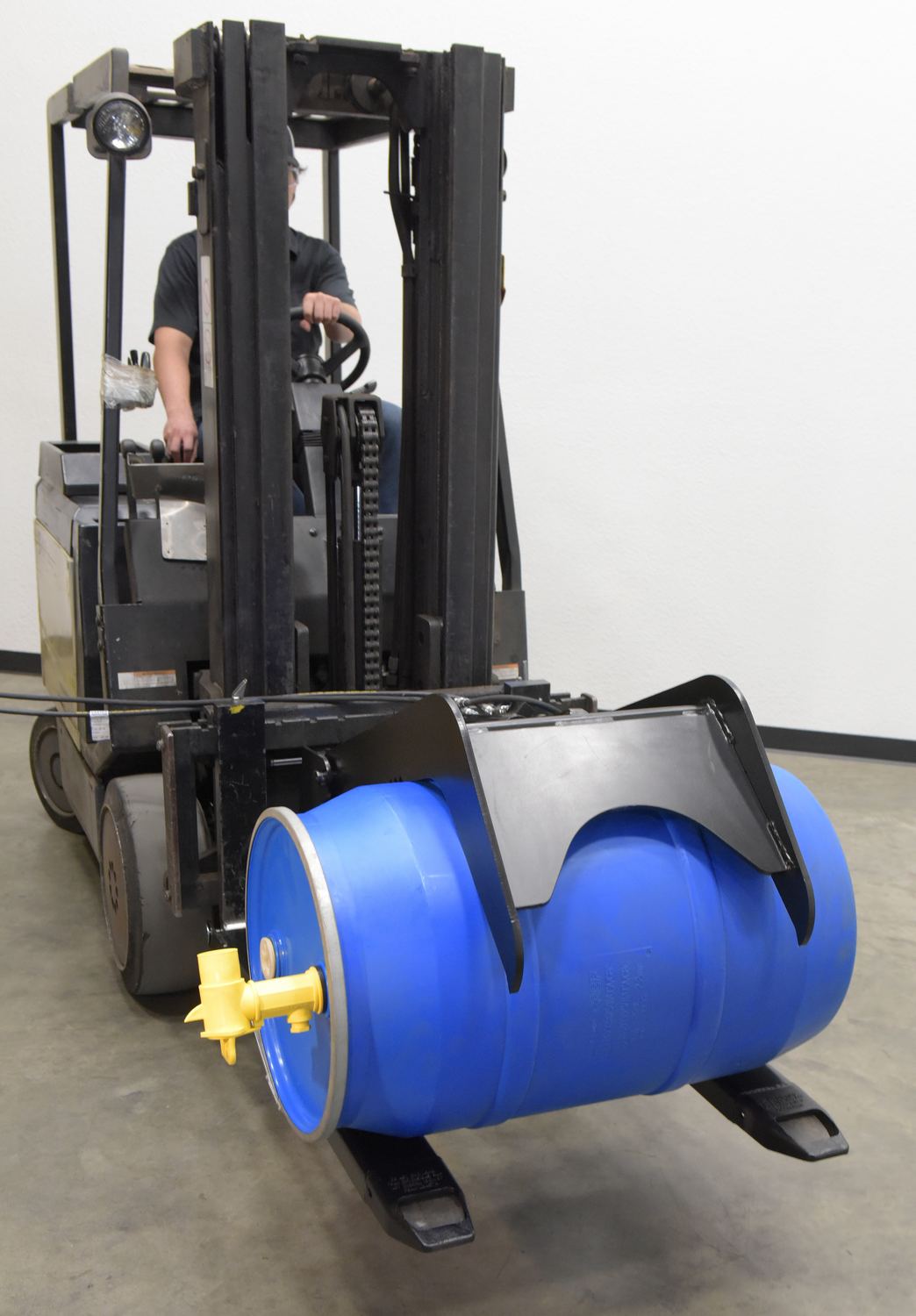

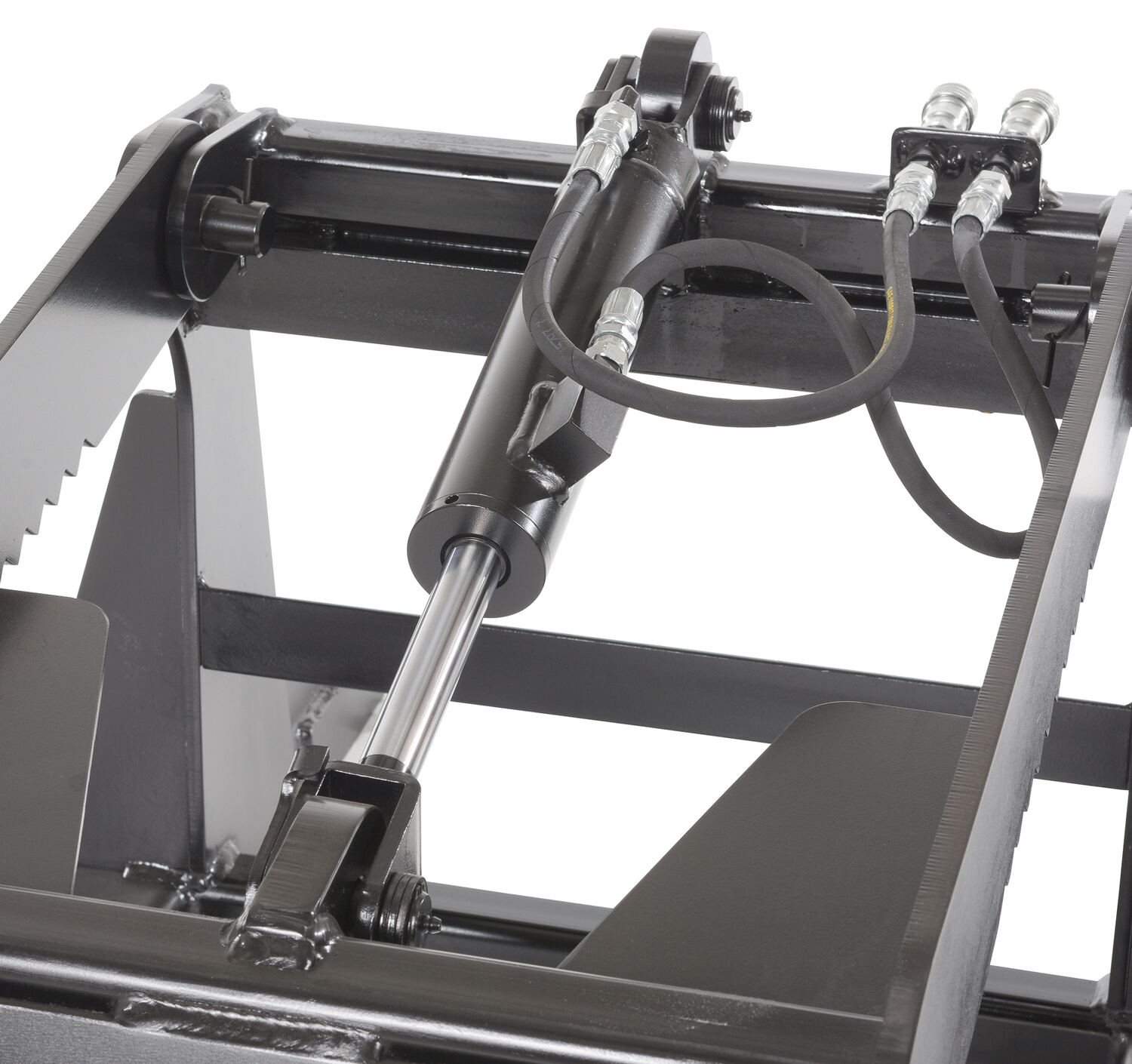

A material grapple attachment helps secure round or oversized items. With an arched two arm design, needless product movement is minimized during transference between areas. The top two arms also have a saw-like pattern for increased control during loading and unloading. The unit is operated by use of the fork trucks hydraulic lines. The grapple includes a steel frame with a powder coat finish.

  • 4" wide fork pockets
  • 35" opening height
  • 4000 lbs. capacity
  • 26.375" fork pocket center to fork pocket center
Assembled Wt.(lbs.): 290 Assembled Size: 33.5"W x 51.75"L x 43.375"H

Total Ship Wt.(lbs.): 296 (only 1 package) Package 1 Size: 40"W x 64"D x 30"H Color: Black Non-Returnable

Uniform Capacity (lbs.): 4,000 Usable Length (in.): 32 Minimum Usable Width (in.): 30
Usable Opening (in.): 35 Fork Pockets (in.): 4 x 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: HMG-35-4
Available
HMG-35-4

Steel Hydraulic Material Grapple 35 In. Opening 4000 lb Capacity Black

A material grapple attachment helps secure round or oversized items. With an arched two arm design, needless product movement is minimized during transference between areas. The top two arms also have a saw-like pattern for increased control during loading and unloading. The unit is operated by use of the fork trucks hydraulic lines. The grapple includes a steel frame with a powder coat finish.

  • 4" wide fork pockets
  • 35" opening height
  • 4000 lbs. capacity
  • 26.375" fork pocket center to fork pocket center
Dimensions: 33.5"W x 51.75"L x 43.375"H Sell UOM: -- Color: Black
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 296 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lbs.): 4,000 Usable Length (in.): 32 Minimum Usable Width (in.): 30
Usable Opening (in.): 35 Fork Pockets (in.): 4 x 2
