Model Details

HWSS-2600-NR

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
HWSS-2600-NR

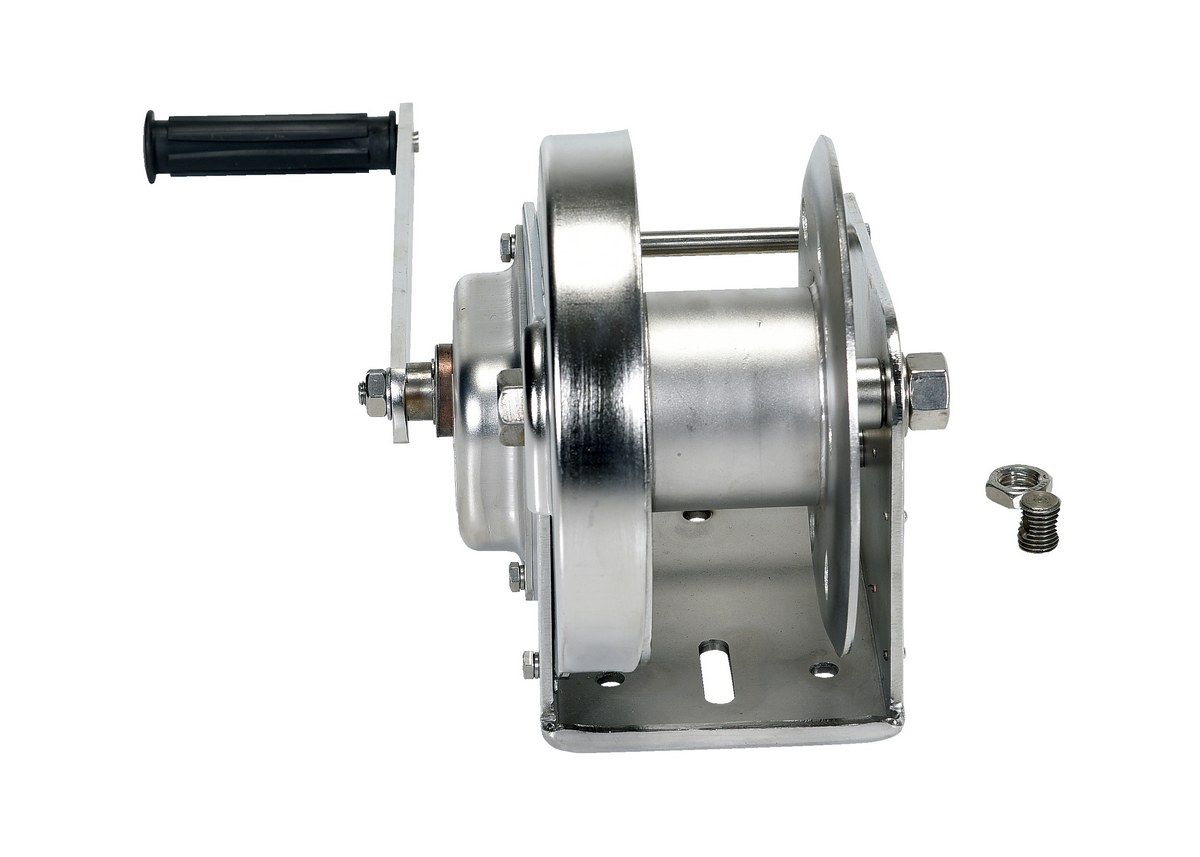

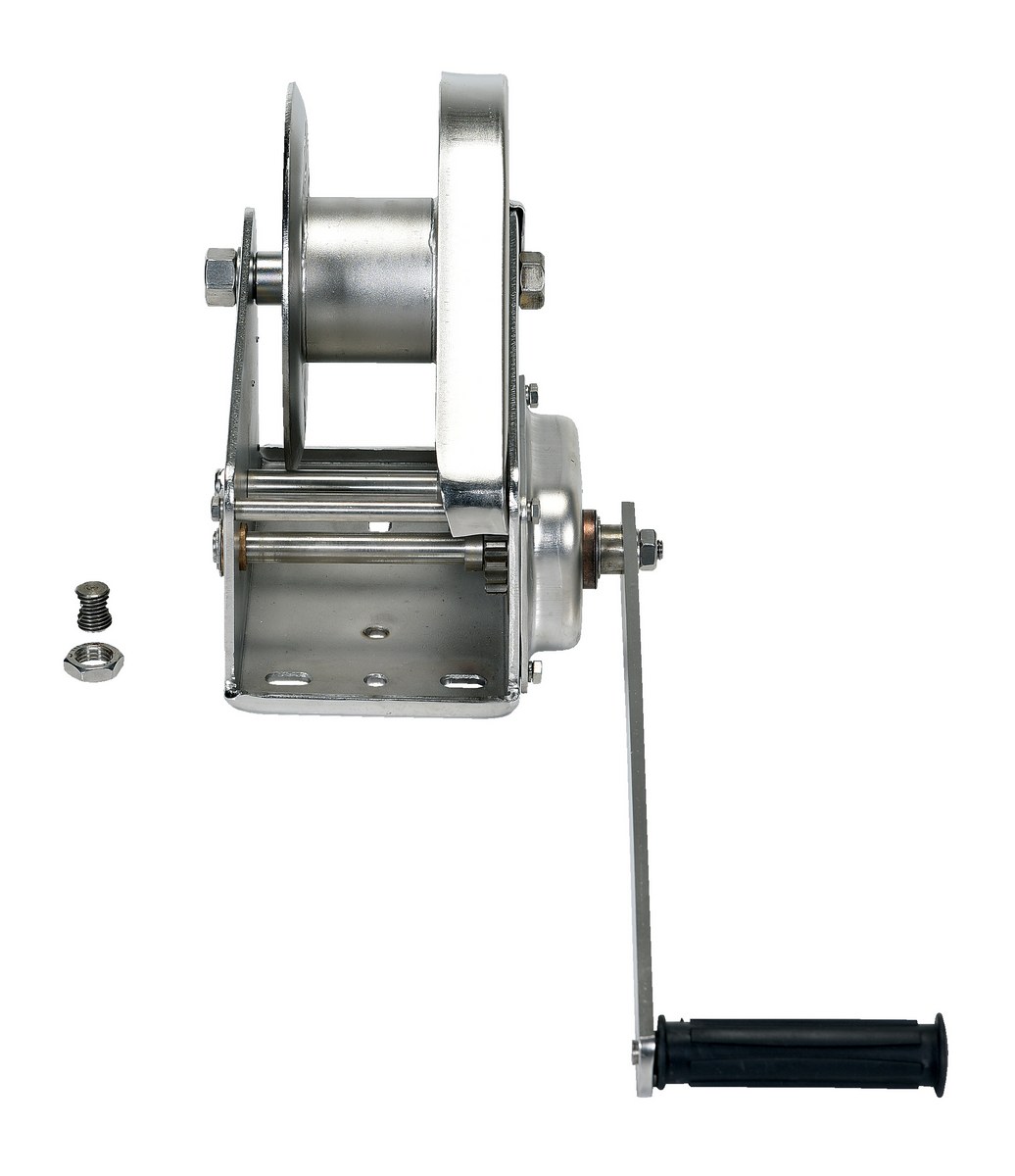

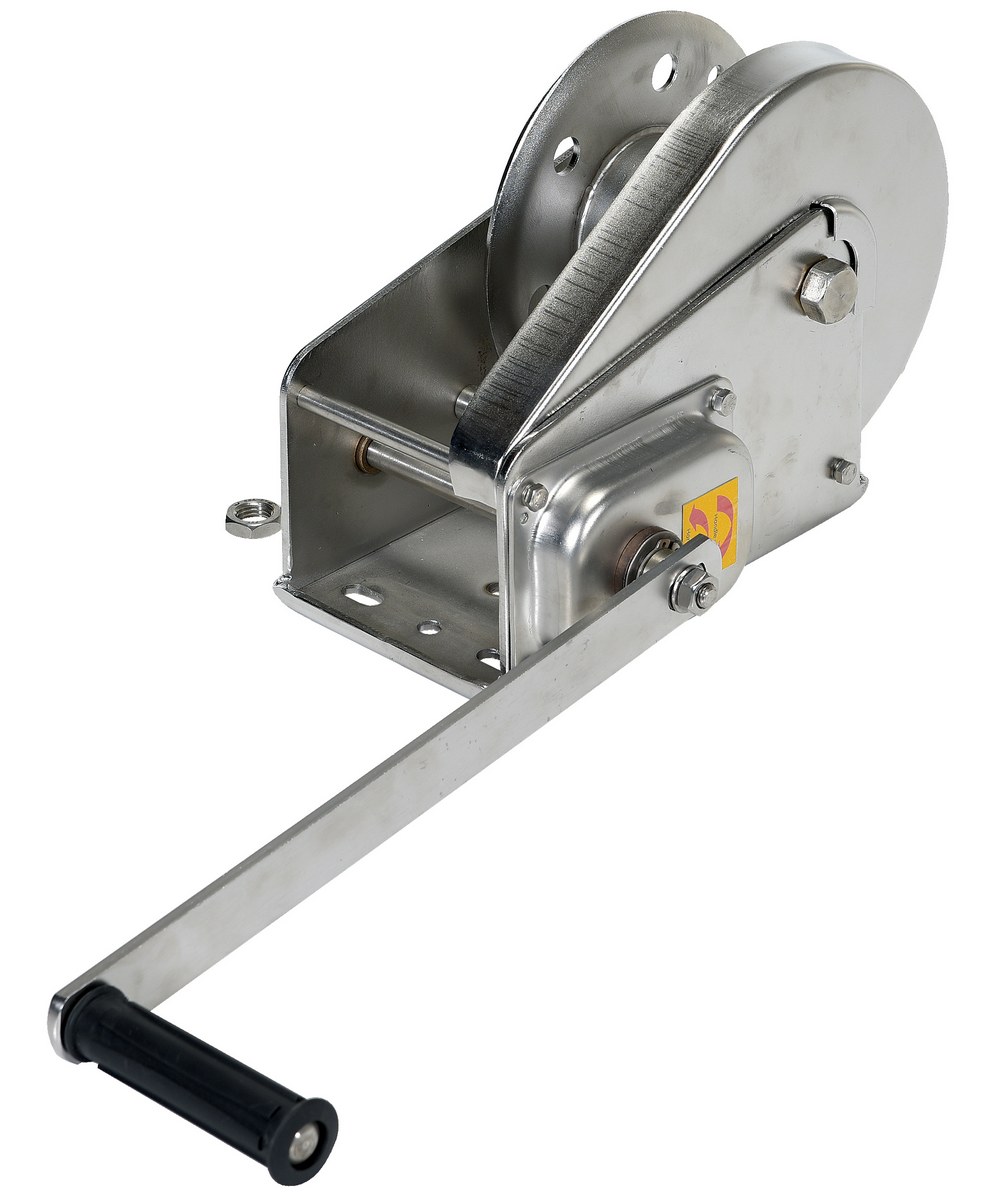

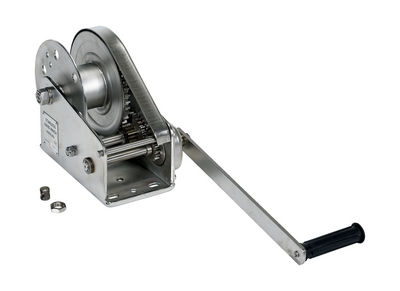

Stainless Steel Hand Winch 2600 Lb. Capacity Silver

The Stainless Steel hand winches are constructed of 304 stainless steel for corrosion resistance. Machine-cut spur gears ensure smooth accurate operation, while protective gear covers keep dirt out and help prevent worker injuries. Winches feature a drum clamp for easy attachment of wire rope (not included) and an automatic brake for positive load control during lifting and lowering operations.

  • Resilient to weather damage
  • Manual design provides precise positioning
  • Auto grasp to hold load in place
  • Great for quick lifting
Total Ship Wt.(lbs.): 22 (only 1 package) Size: 11.5"W x 8.25"L x 23.25"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 2600 Gear Ratio: 10:1 Handle Length (in.): 12-1/2
Type: Single Base Plate Width (in.): 5 Base Plate Length (in.): 9-1/2
Mounting Holes (qty.): 7 Mounting Hole Diameter (in.): 3/8 Base Plate Thickness (in.): 1/8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: HWSS-2600-NR
HWSS-2600-NR

Stainless Steel Hand Winch 2600 Lb. Capacity Silver

The Stainless Steel hand winches are constructed of 304 stainless steel for corrosion resistance. Machine-cut spur gears ensure smooth accurate operation, while protective gear covers keep dirt out and help prevent worker injuries. Winches feature a drum clamp for easy attachment of wire rope (not included) and an automatic brake for positive load control during lifting and lowering operations.

  • Resilient to weather damage
  • Manual design provides precise positioning
  • Auto grasp to hold load in place
  • Great for quick lifting
Dimensions: 11.5"W x 8.25"L x 23.25"H Sell UOM: EA-Each Color: Silver
Material: 304 Stainless Steel UPC: 691215116015 GTIN: 00691215116015
Warranty: -- Shipping Weight: 22 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2600 Gear Ratio: 10:1 Handle Length (in.): 12-1/2
Type: Single Base Plate Width (in.): 5 Base Plate Length (in.): 9-1/2
Mounting Holes (qty.): 7 Mounting Hole Diameter (in.): 3/8 Base Plate Thickness (in.): 1/8
