JIB-CB-100-8-10-BC

Printer Friendly
Available
JIB-CB-100-8-10-BC
JIB-CB-100-8-10-BC

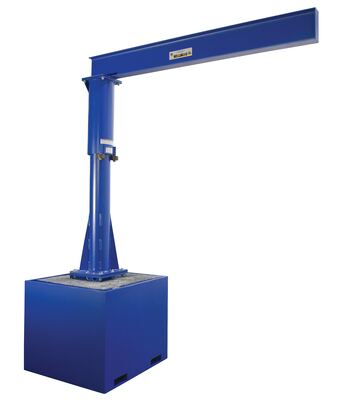

Steel Portable Jib Crane with Filled Base 8 Ft. I-Beam 1000 Lb. Capacity Blue

Unique design allows for easy transportation of jib crane with a fork truck. Fixed length I-beam will pivot 360° for complete access. Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship knocked down. Flatbed required for delivery. Unit not for use as a fork truck attachment.

  • Includes built-in fork tubes
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Assembled Wt.(lbs.): 5675 Assembled Size: 42.1875"W x 111.125"L x 130.25"H

Total Ship Wt.(lbs.): 5855 (Multiple Packages: P1: 635 lbs + P2: 5220 lbs) Package 1 Size: 44"W x 101"D x 25"H Color: Blue

Uniform Capacity (lb.): 1,000 Overall I-Beam Length (in): 96 Usable I-Beam Length (in): 83-3/4
I-Beam Height (in.): 10-1/8 I-Beam Flange Width (in.): 4 Fillable Base Height (in.): 36
Rotation (degrees): 360 Base Length (in.): 42-3/16 Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-5/8 Fork Tube Height (in.): 2-5/8 Fork Centers (in.): 24
Under I-Beam Height (in): 120-3/16 Operation Mode: Manual Overall Length (in.): 111-1/8"
Overall Width (in.): 42-3/16" Overall Height (in.): 130-1/4"

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: JIB-CB-100-8-10-BC
Available
JIB-CB-100-8-10-BC

Steel Portable Jib Crane with Filled Base 8 Ft. I-Beam 1000 Lb. Capacity Blue

Unique design allows for easy transportation of jib crane with a fork truck. Fixed length I-beam will pivot 360° for complete access. Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship knocked down. Flatbed required for delivery. Unit not for use as a fork truck attachment.

  • Includes built-in fork tubes
  • Concrete filled base for immediate use
  • Upright vertical column bolts to base for optimal efficiency
  • Steel construction for strength and durability
Dimensions: 42.1875"W x 111.125"L x 130.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215127196 GTIN: 00691215127196
Warranty: -- Shipping Weight: 635 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Overall I-Beam Length (in): 96 Usable I-Beam Length (in): 83-3/4
I-Beam Height (in.): 10-1/8 I-Beam Flange Width (in.): 4 Fillable Base Height (in.): 36
Rotation (degrees): 360 Base Length (in.): 42-3/16 Base Width (in.): 42-3/16
Fork Tube Width (in.): 7-5/8 Fork Tube Height (in.): 2-5/8 Fork Centers (in.): 24
Under I-Beam Height (in): 120-3/16 Operation Mode: Manual Overall Length (in.): 111-1/8"
Overall Width (in.): 42-3/16" Overall Height (in.): 130-1/4"
