L-270-DC-HD-CTD

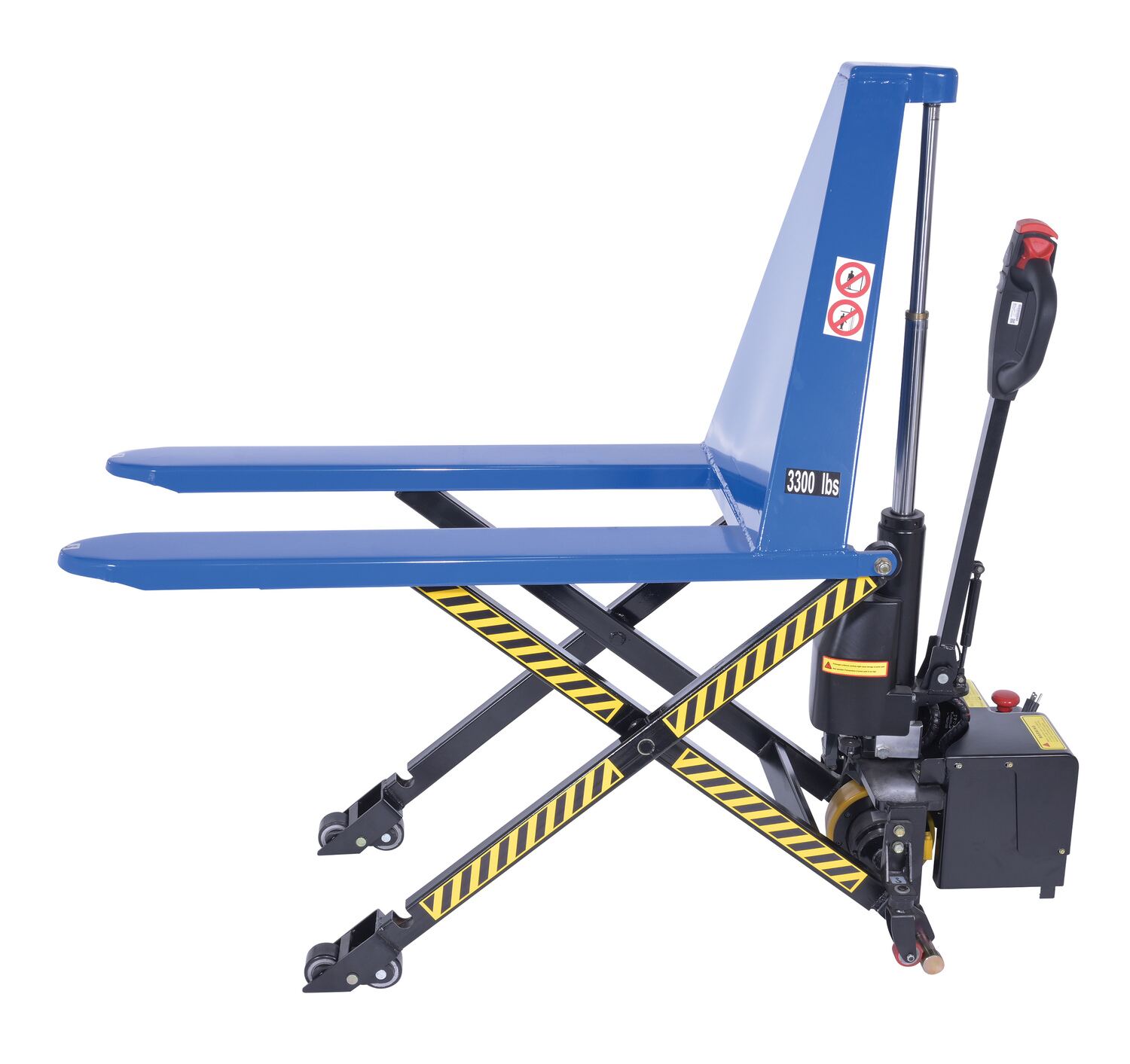

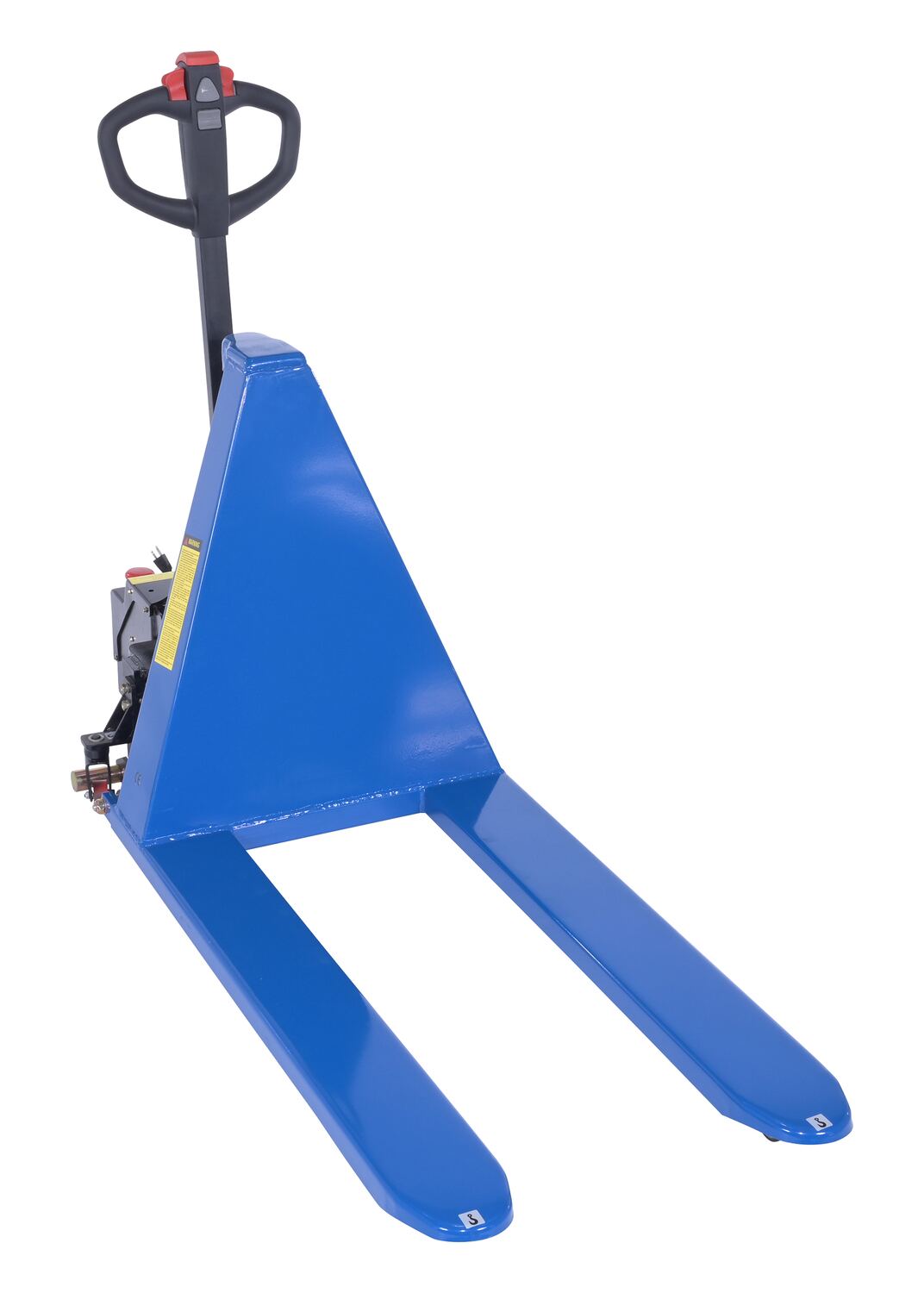

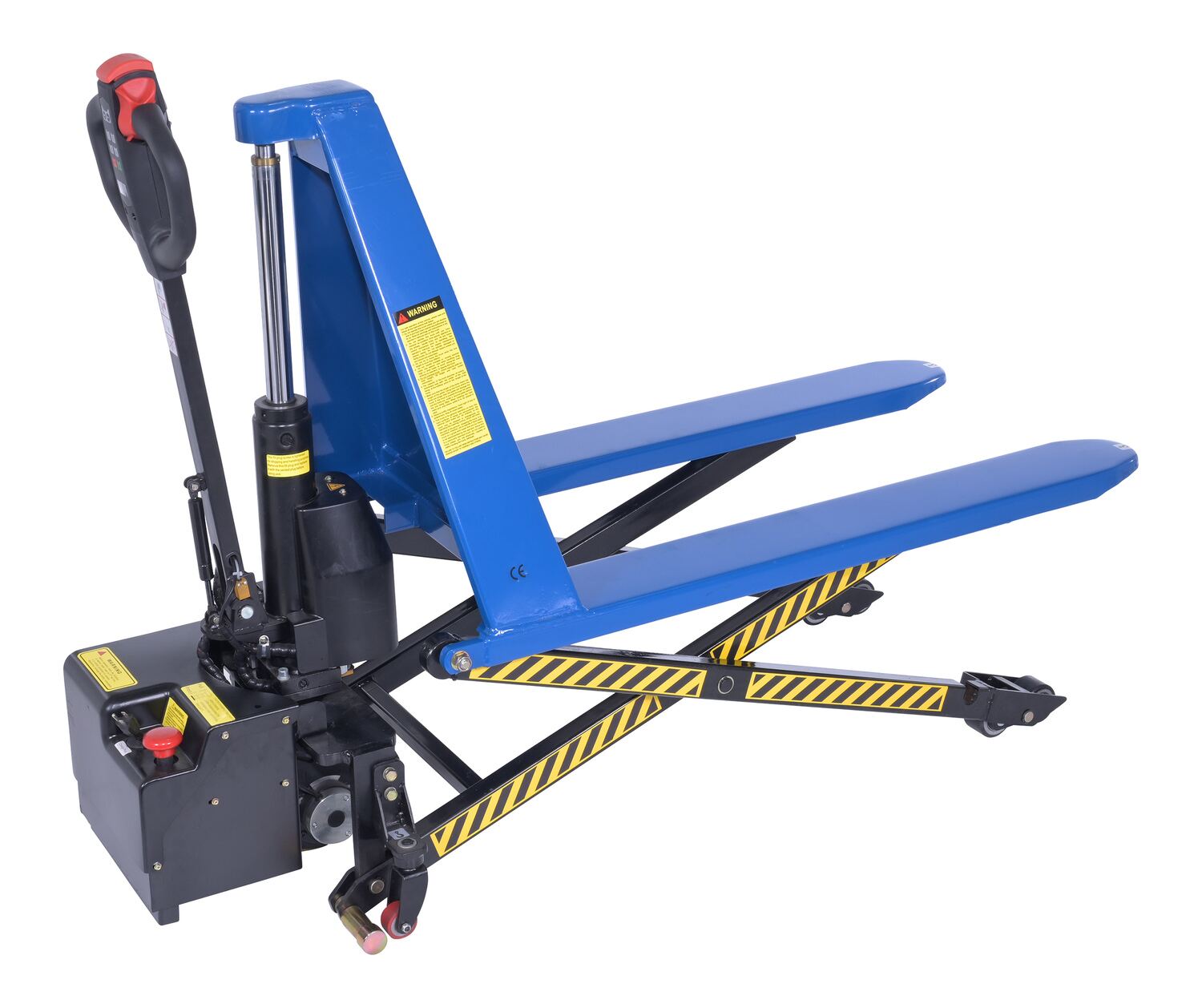

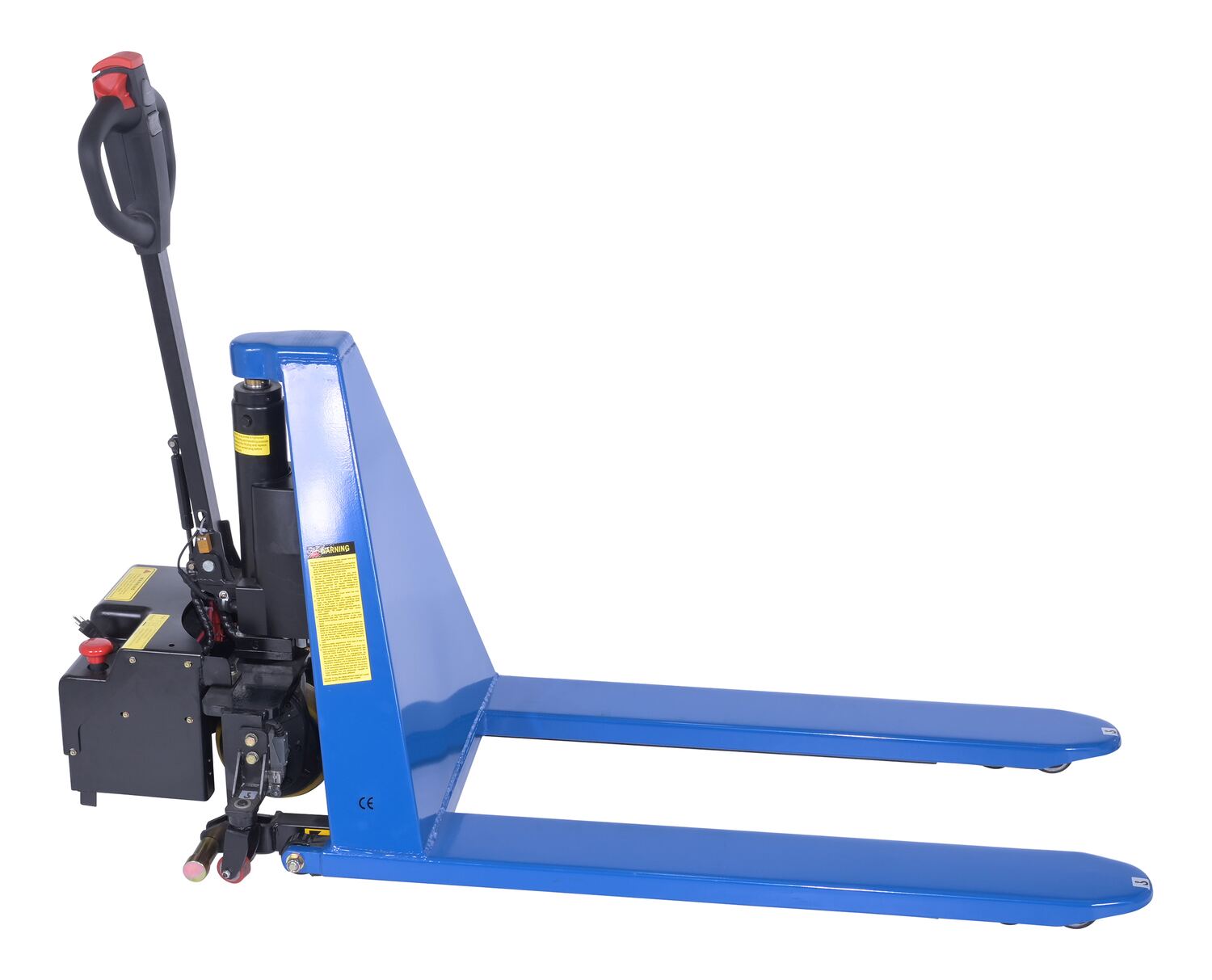

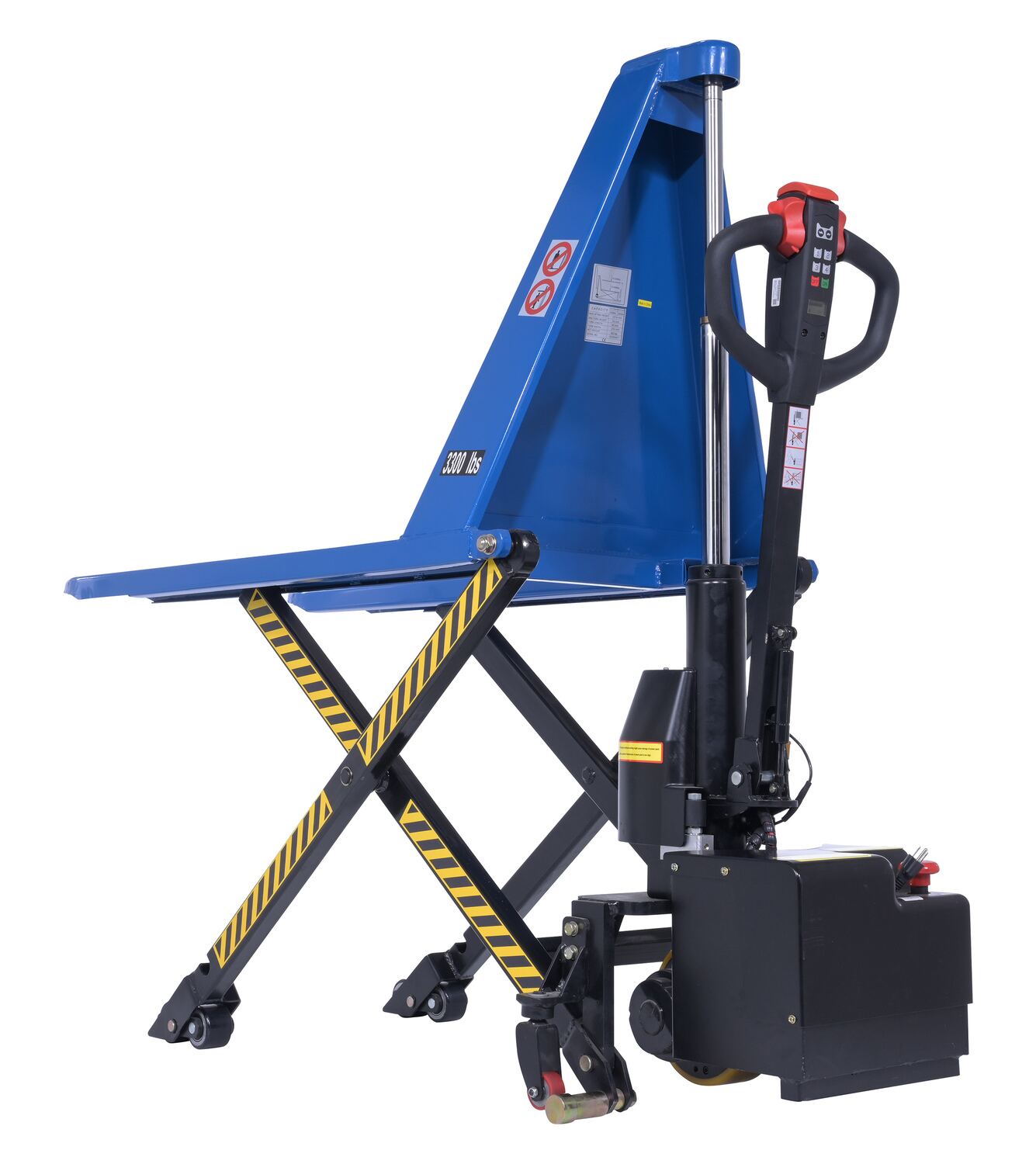

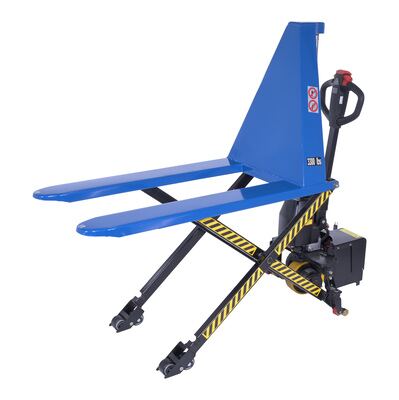

Steel DC Powered Tote Lift 27x45 Traction Drive 3000 Lb. Capacity Blue

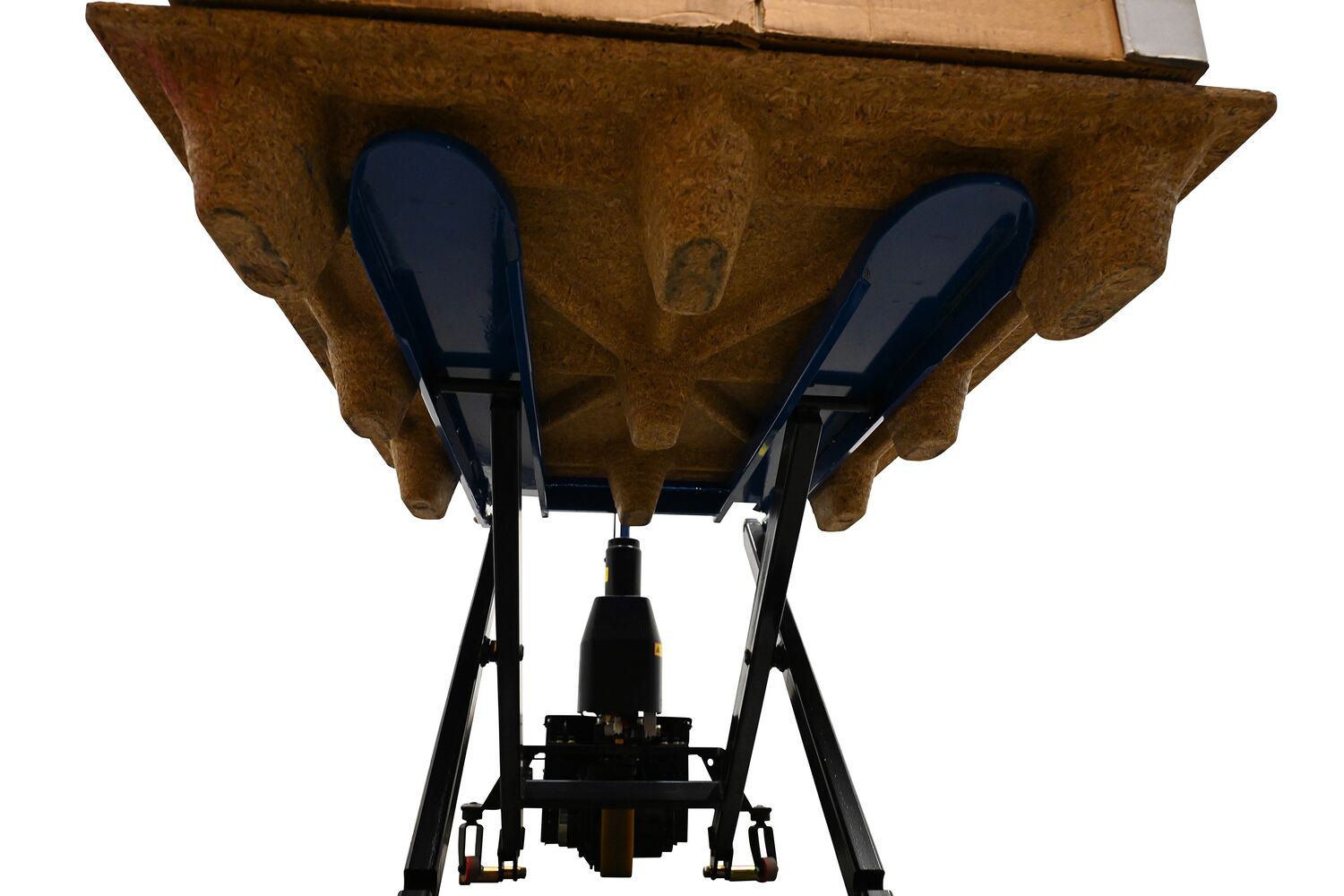

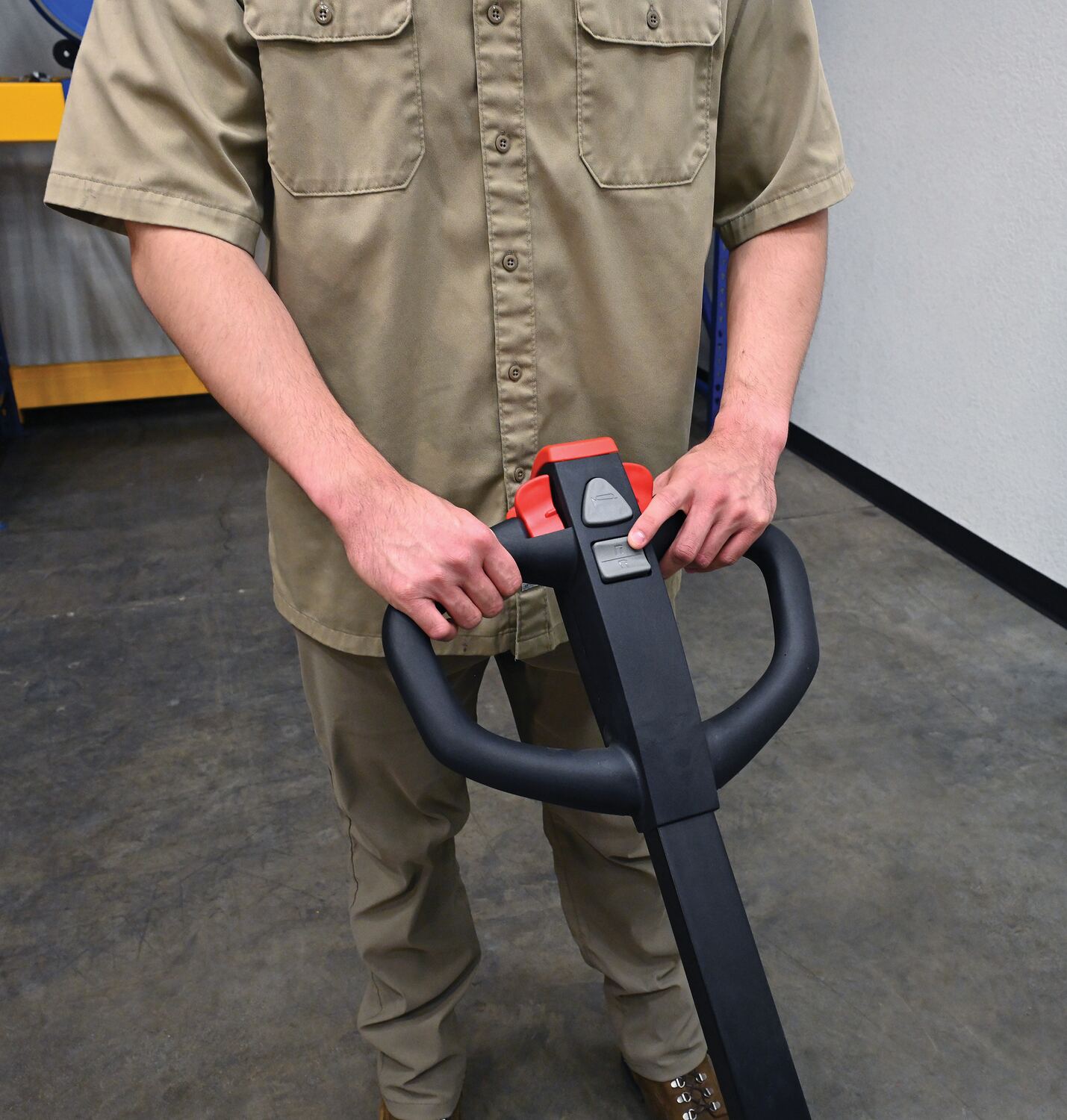

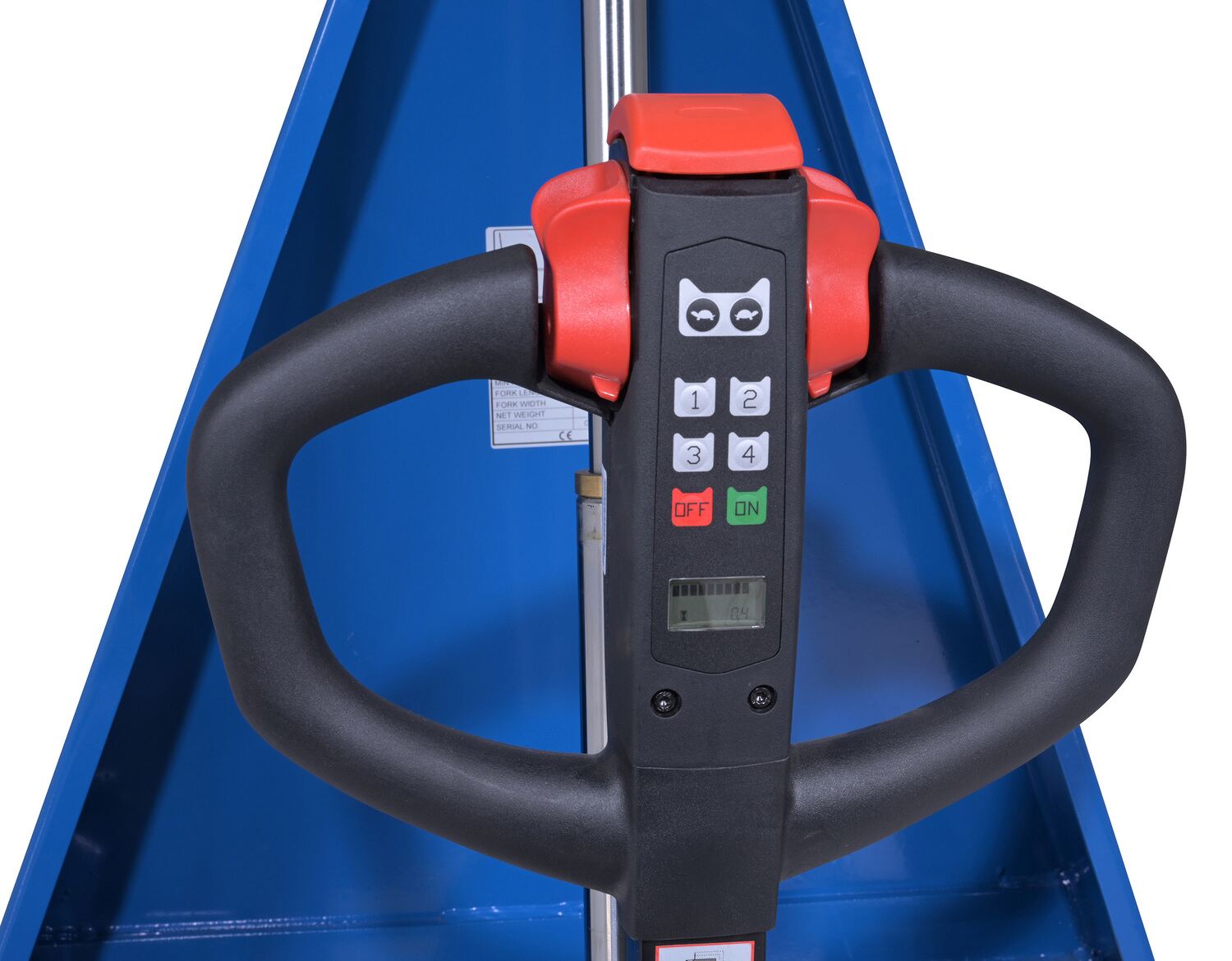

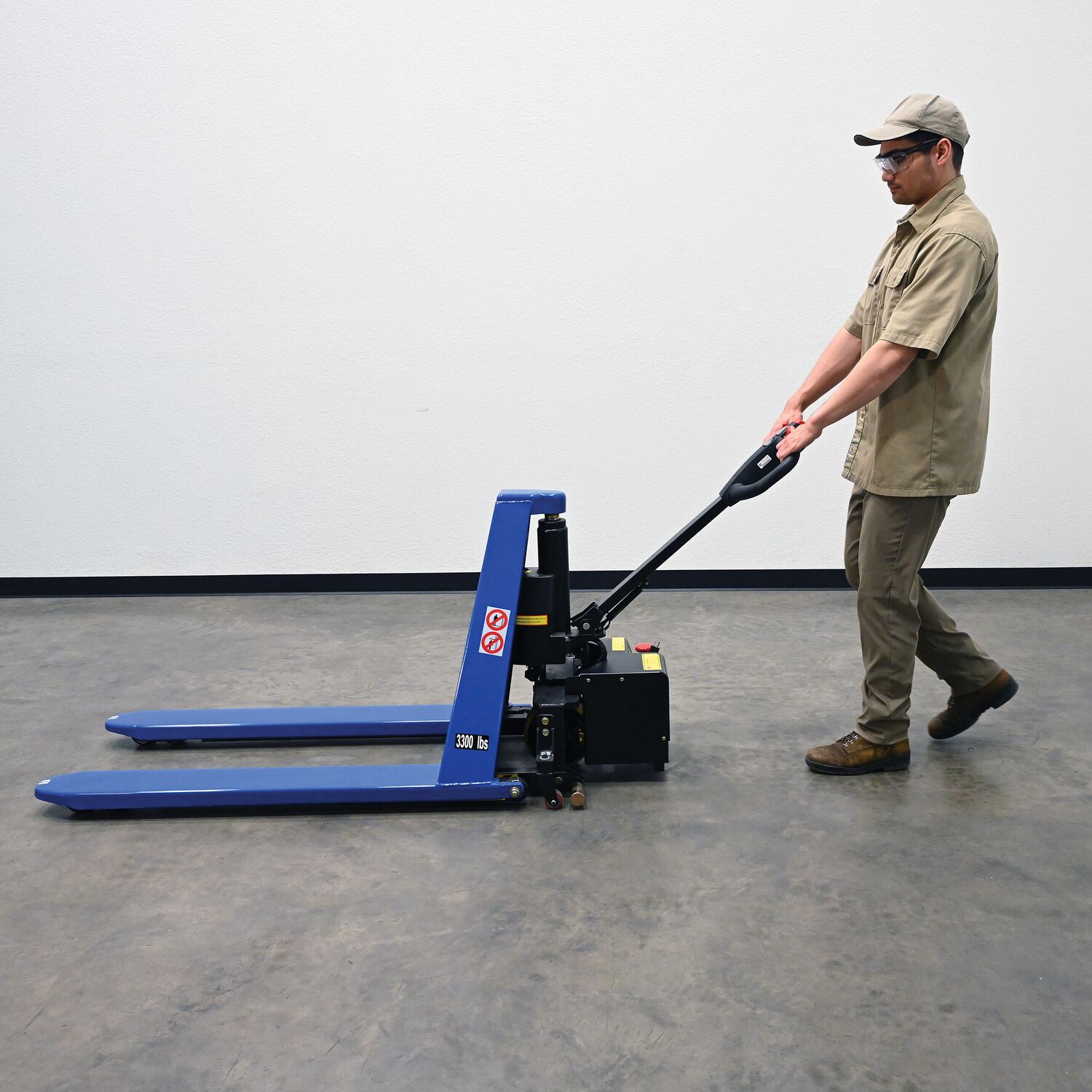

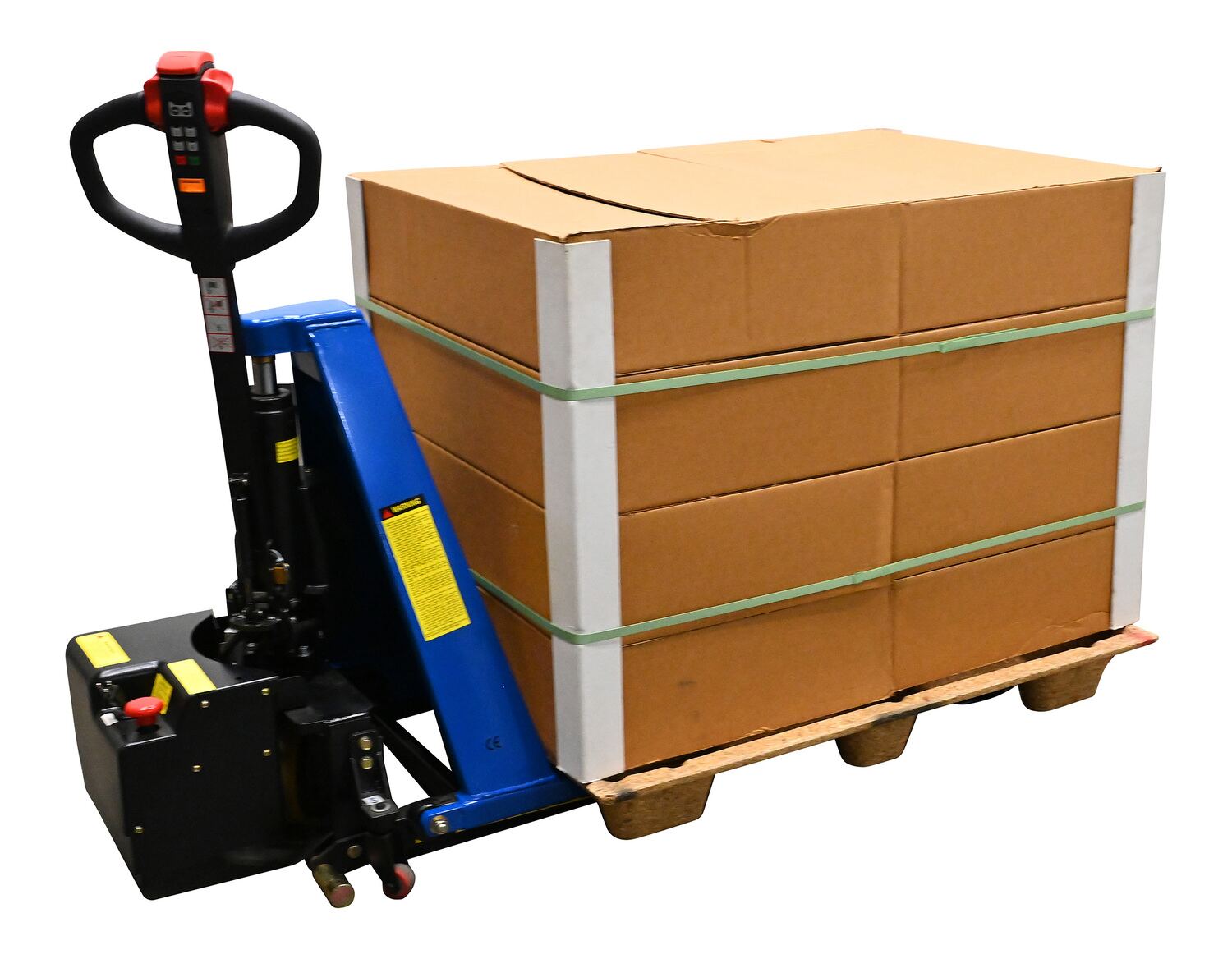

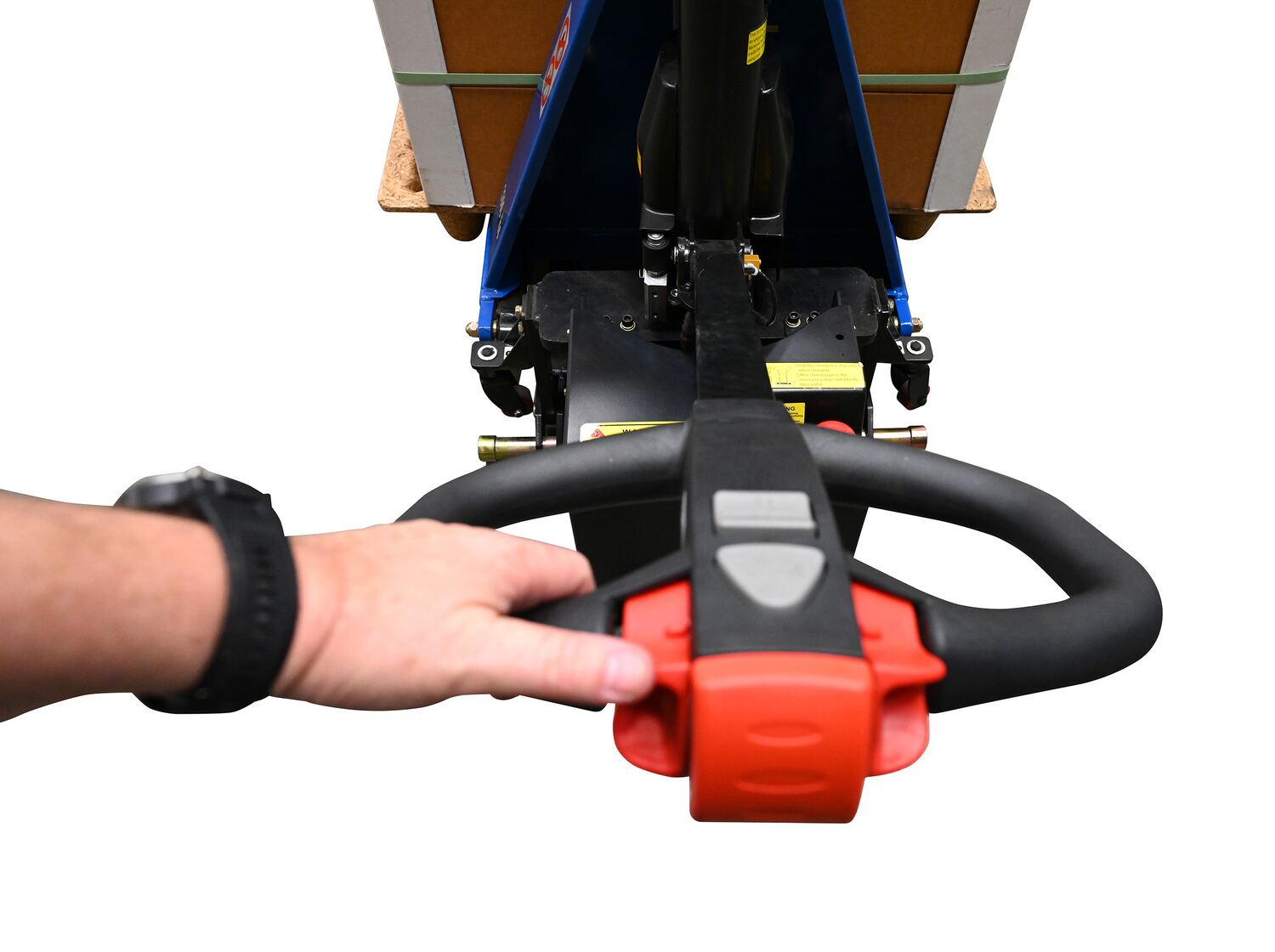

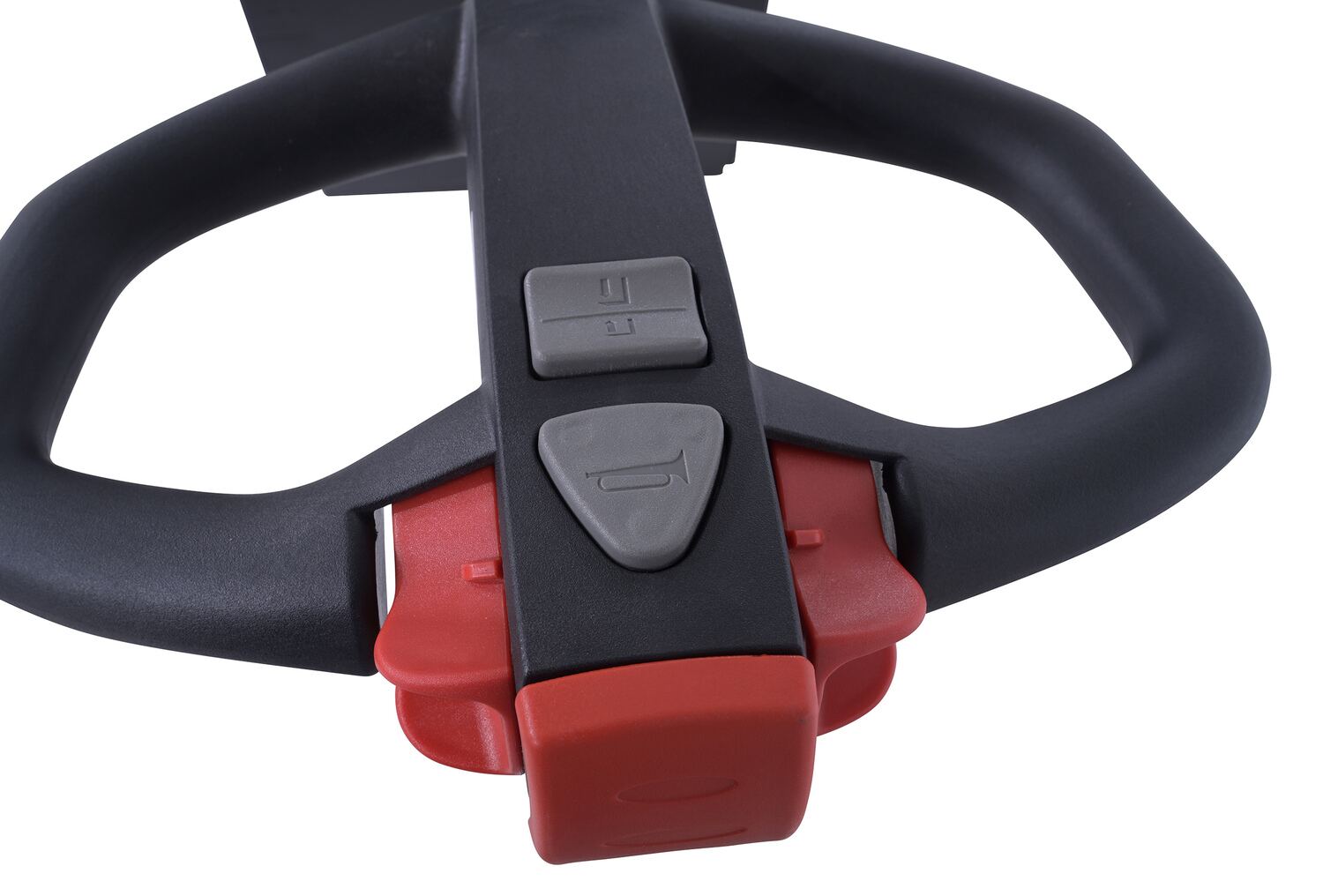

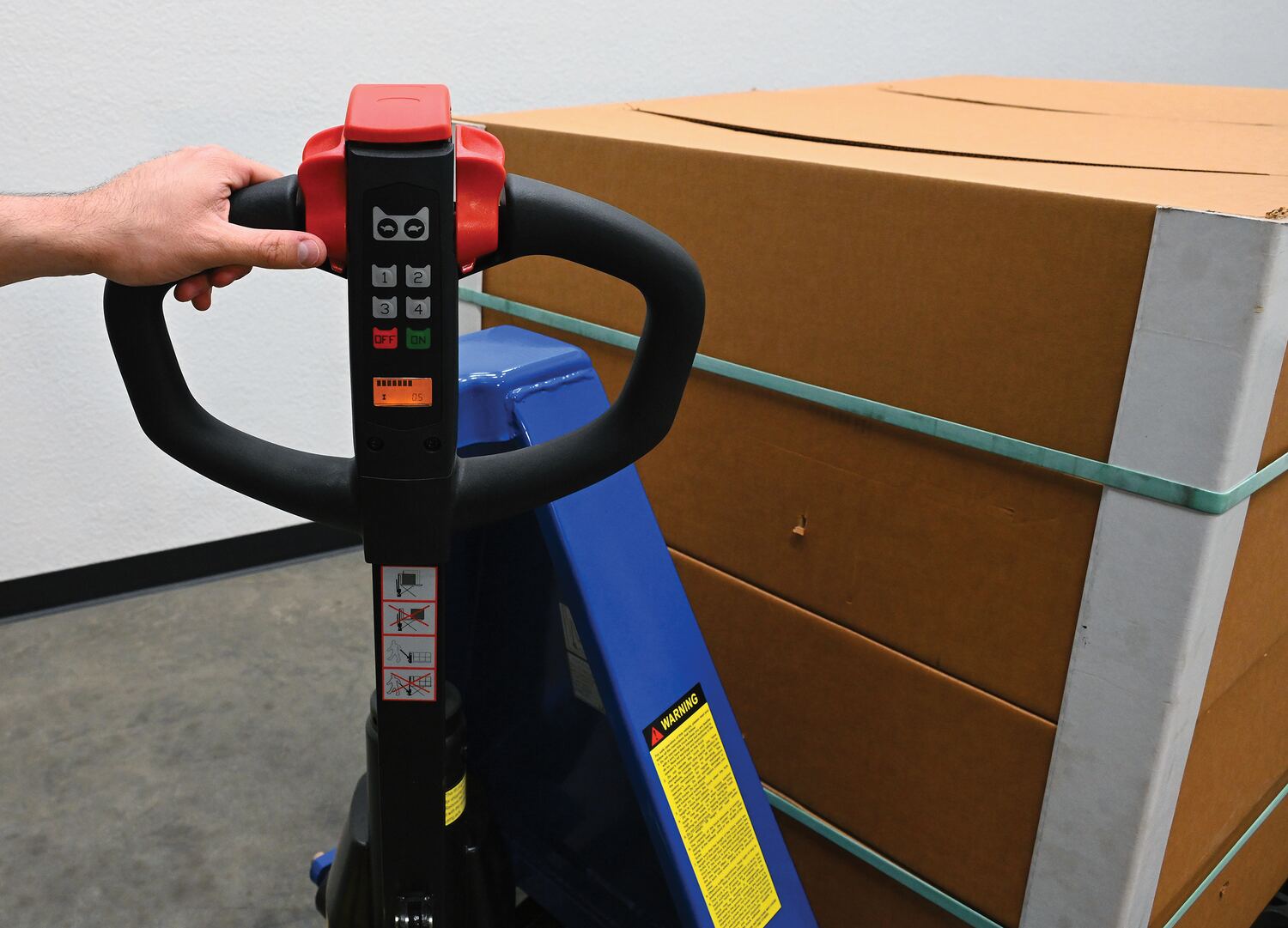

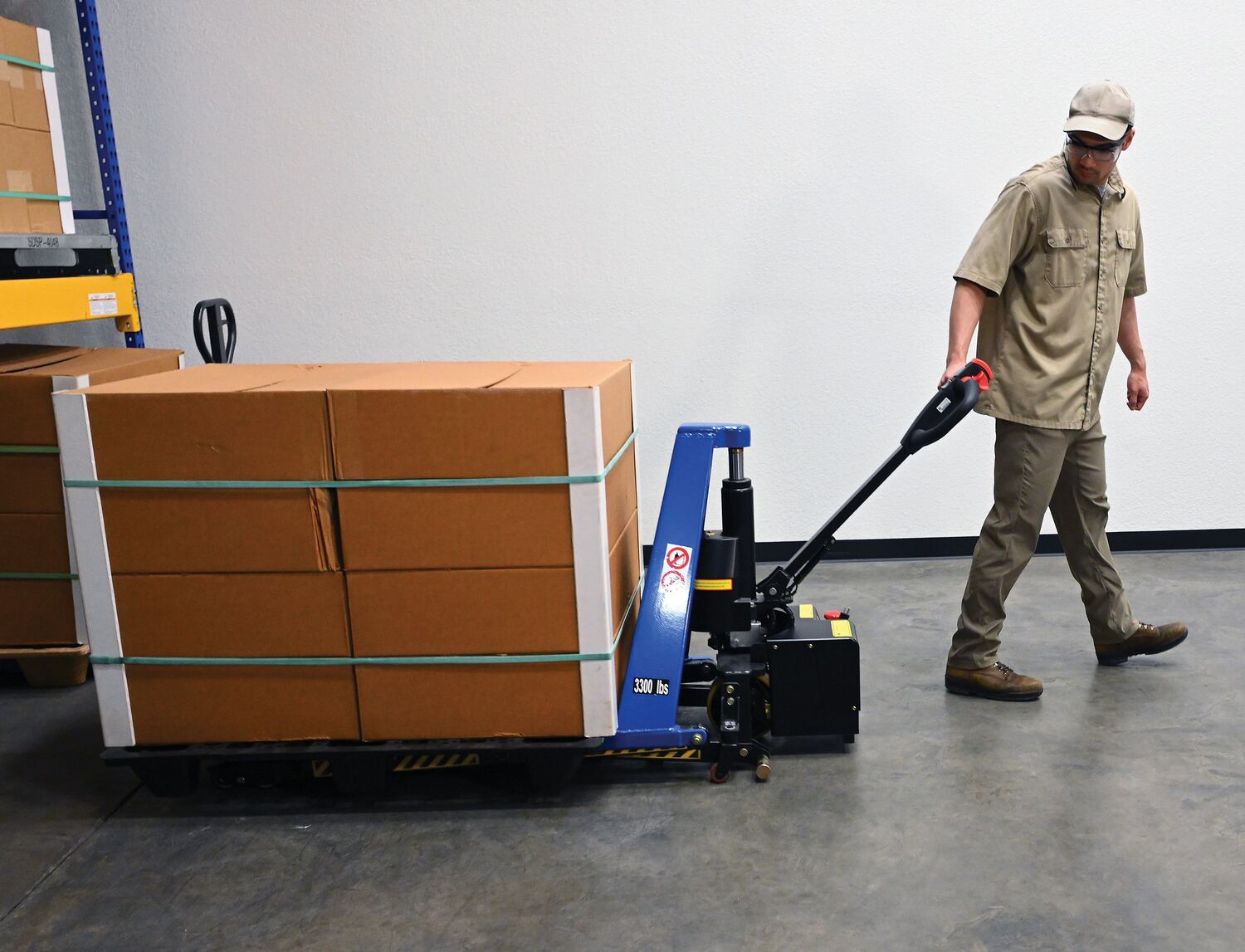

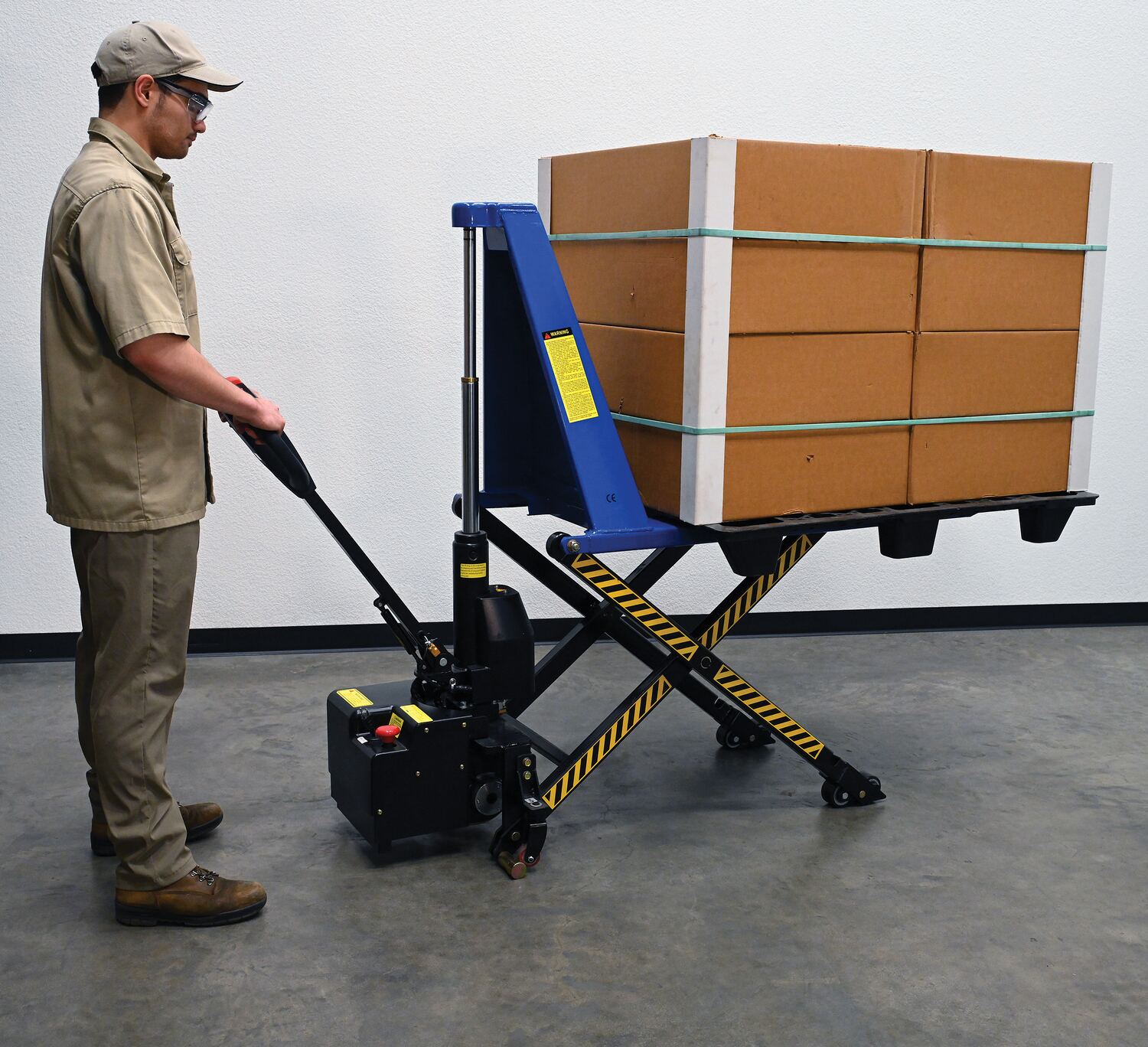

This tote lifter is specifically designed to raise open bottom skids, boxes, and baskets. With an ergonomic handle and adjustable speeds, light and heavy loads are easily accommodated. Built-in controls are located on the steering handle and are effortlessly accessible. The open sided design allows for a safe loading and unloading process.

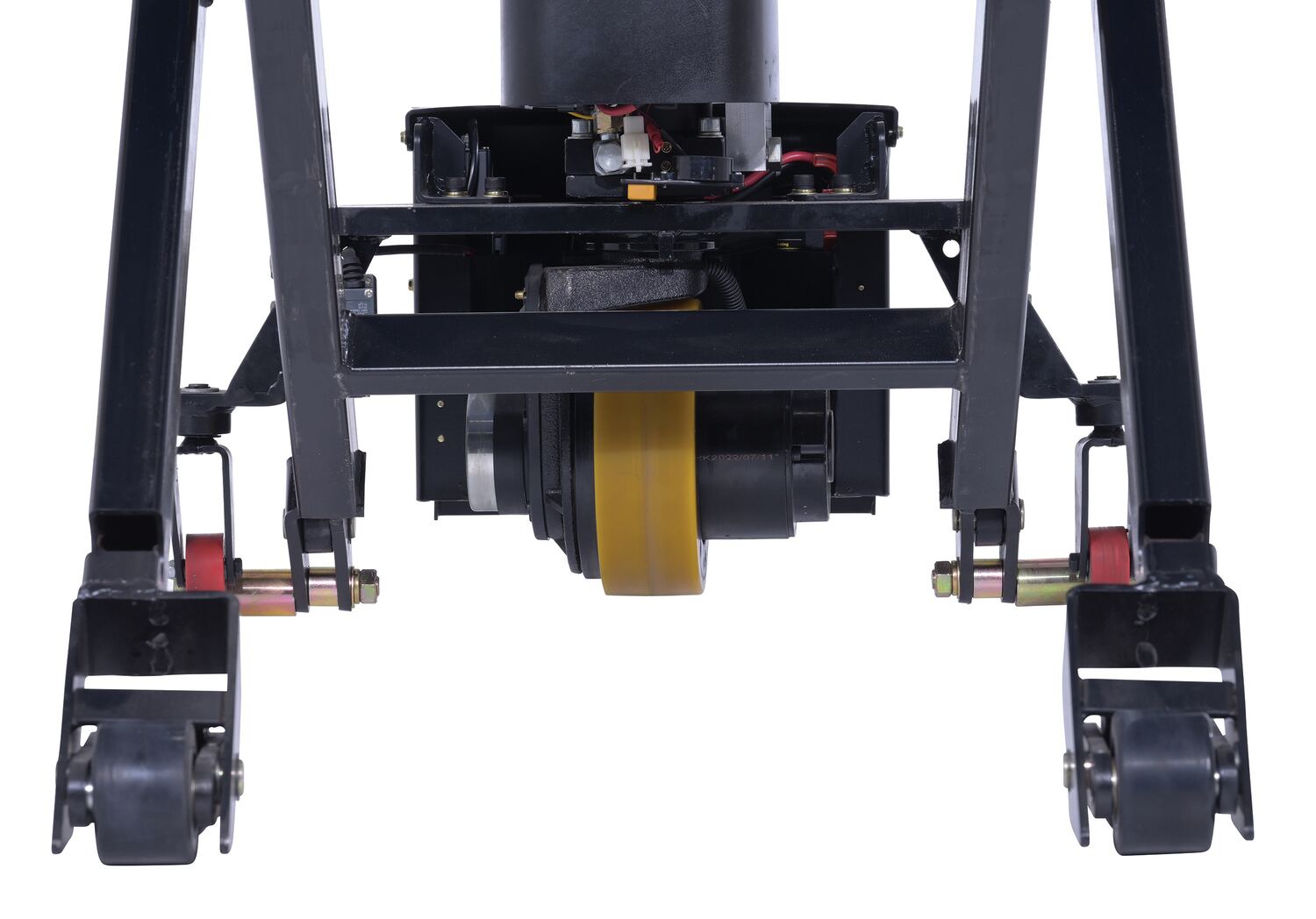

  • Powered traction drive

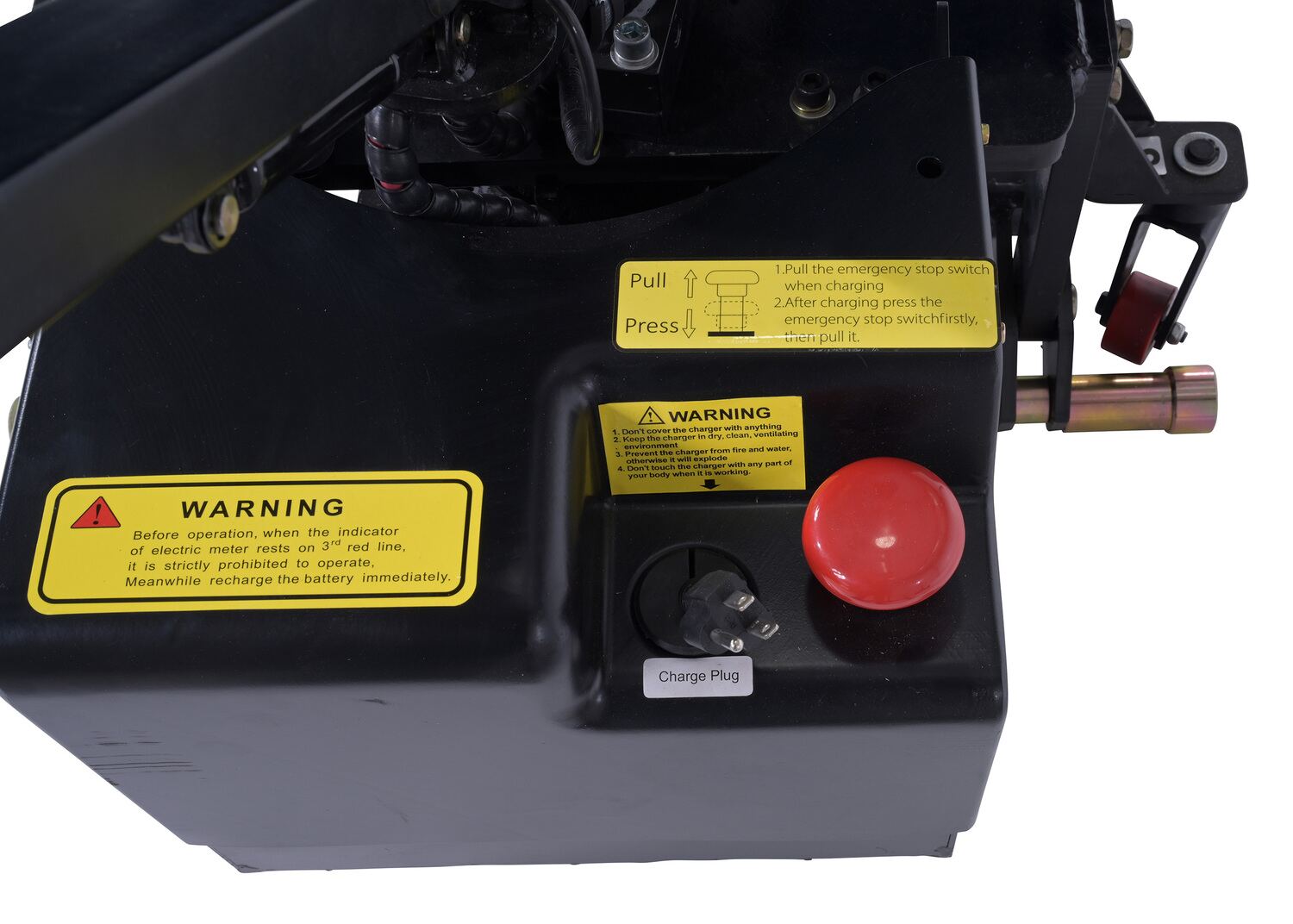

  • On-board battery charger
  • Two internal gel batteries

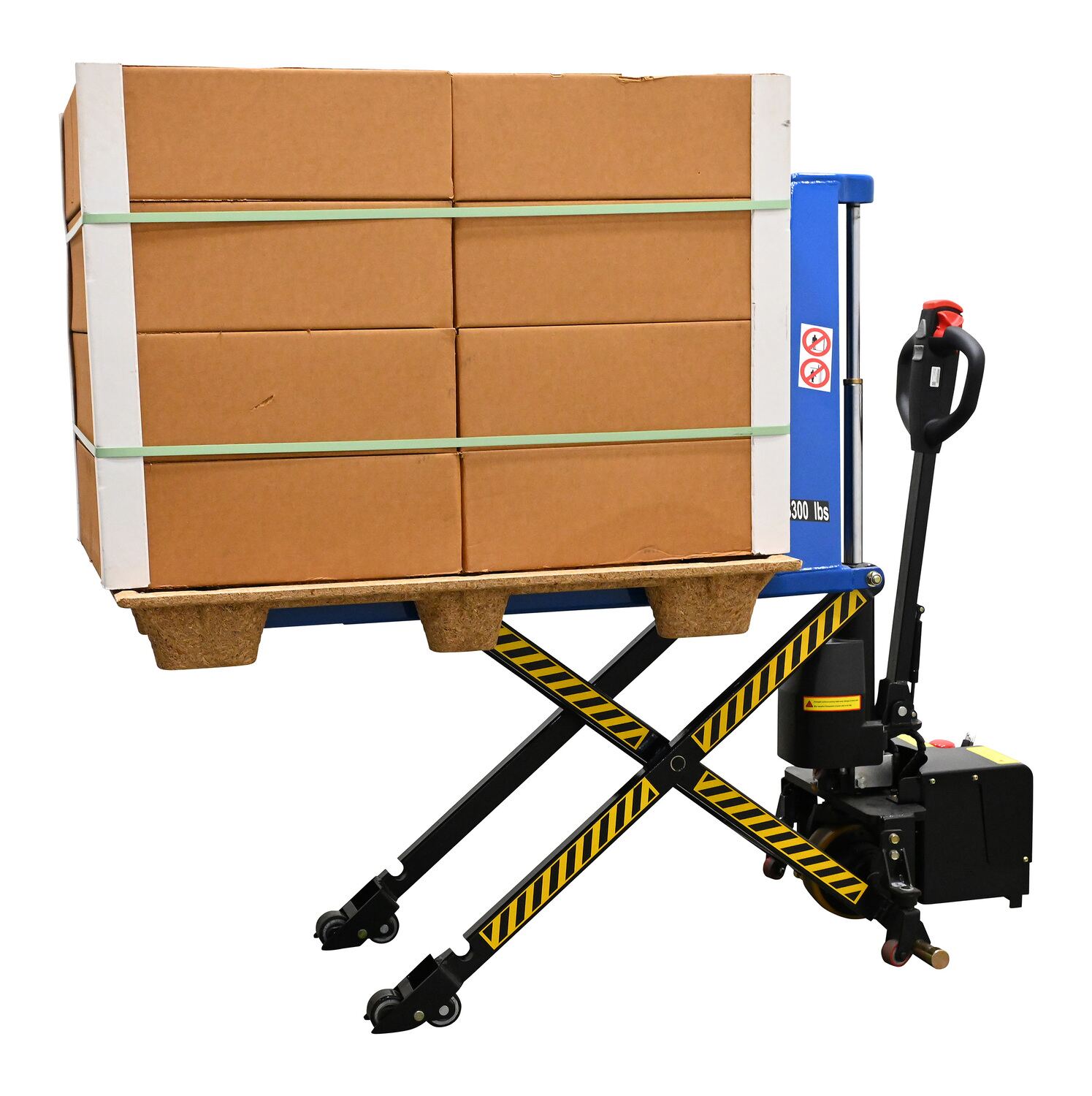

  • Side load stabilizers
Total Ship Wt.(lbs.): 410 (only 1 package) Size: 26.75"W x 62.25"L x 51.25"H Color: Blue QuickShip

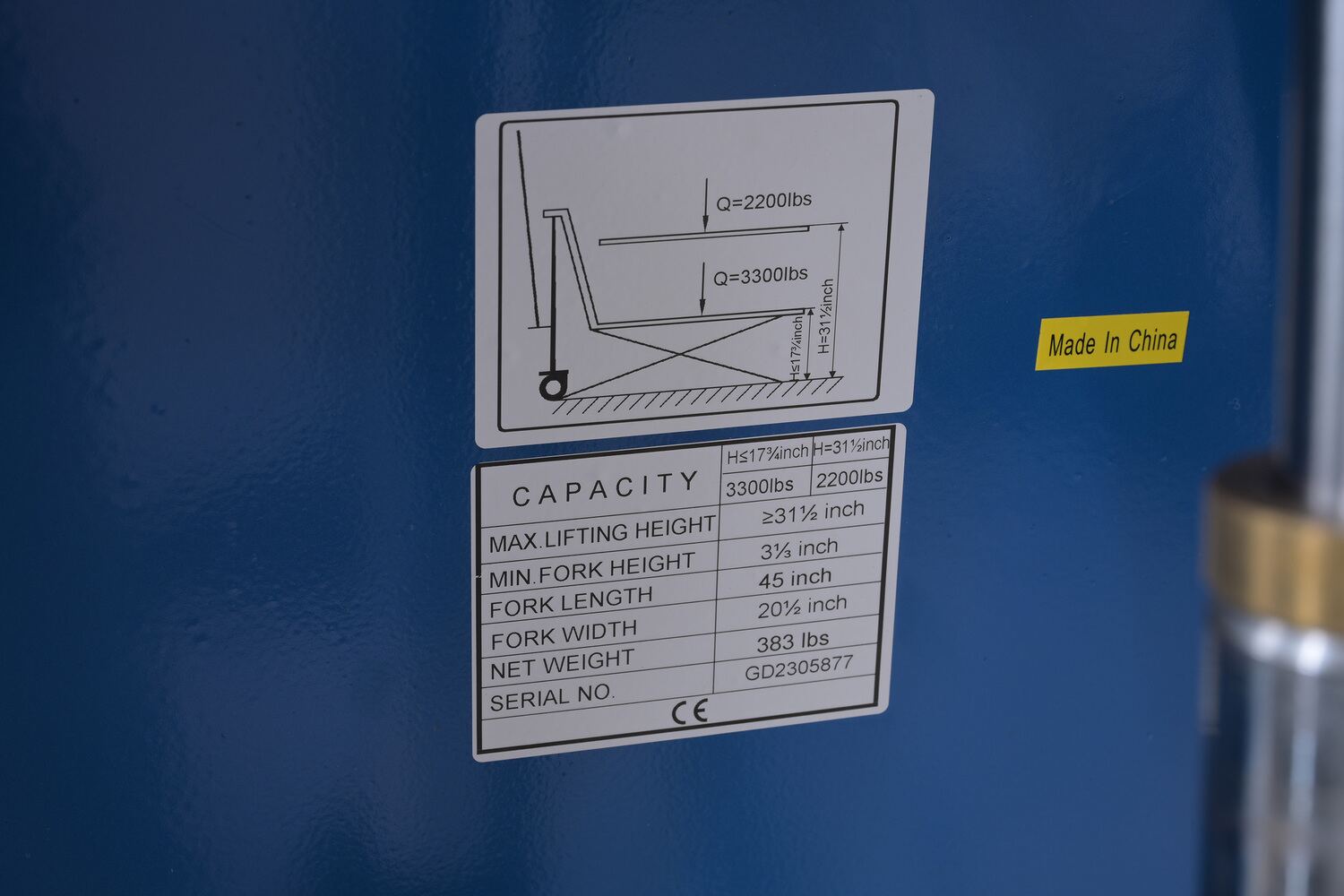

Uniform Capacity (lb.): 3000 Operation: 12 Volt DC Power Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27 Fork Length (in.): 45 Lowered Height (in.): 3-1/2

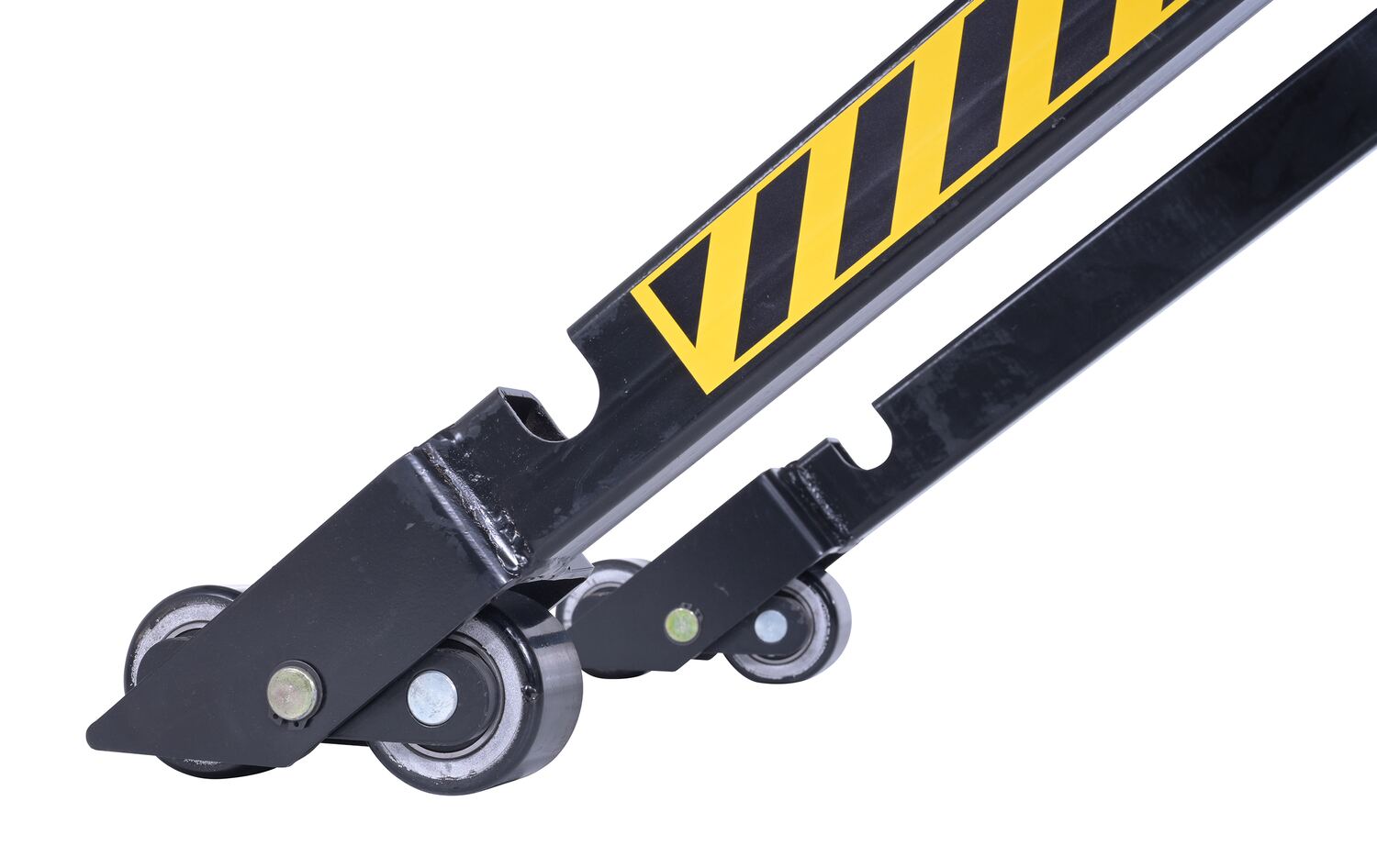

Raised Height (in.): 31-1/2 Front Roller Diameter (in.): 3 Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4 Rear Wheel Width (in.): 1-5/8 Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30 Handle Material: Steel/Plastic Maximum Amperage: 140

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: L-270-DC-HD-CTD
L-270-DC-HD-CTD

Steel DC Powered Tote Lift 27x45 Traction Drive 3000 Lb. Capacity Blue

This tote lifter is specifically designed to raise open bottom skids, boxes, and baskets. With an ergonomic handle and adjustable speeds, light and heavy loads are easily accommodated. Built-in controls are located on the steering handle and are effortlessly accessible. The open sided design allows for a safe loading and unloading process.

  • Powered traction drive
  • On-board battery charger
  • Two internal gel batteries
  • Side load stabilizers
Dimensions: 26.75"W x 62.25"L x 51.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215377171 GTIN: 00691215377171
Warranty: -- Shipping Weight: 410 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 3000 Operation: 12 Volt DC Power Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27 Fork Length (in.): 45 Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2 Front Roller Diameter (in.): 3 Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4 Rear Wheel Width (in.): 1-5/8 Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30 Handle Material: Steel/Plastic Maximum Amperage: 140
