LM-CM3-EBT-4

Printer Friendly
Available
LM-CM3-EBT-4
LM-CM3-EBT-4

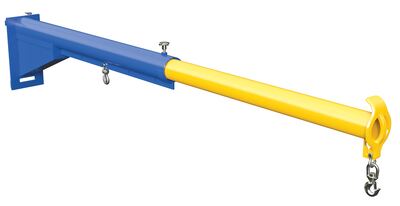

Steel Carriage Mount Lift Master Boom Class III 4,000 Lb. Capacity Blue and Yellow

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

  • Converts fork trucks into overhead lifting cranes
  • Class III carriage mount
  • Telescoping design
  • Hooks included for simple product attachment
Assembled Wt.(lbs.): 383 Assembled Size: 12"W x 145.875"L x 27.625"H

Total Ship Wt.(lbs.): 414 (only 1 package) Package 1 Size: 44"W x 96"D x 17"H Color: Blue/Yellow

Mounting Style: Carriage Mount Class 3 Uniform Capacity (lbs): 4,000 Capacity at 48 In Extended (lb.): 3750
Capacity at 60 In Extended (lb.): 3500 Capacity at 72 In Extended (lb.): 3250 Capacity at 84 In Extended (lb.): 3000
Capacity at 96 In Extended (lb.): 2750 Capacity at 108 In Extended (lb.): 2500 Capacity at 120 In Extended (lb.): 2250
Capacity at 132 In Extended (lb.): 2000 Capacity at 144 In Extended (lb.): 1750 Overall Width (in.): 12
Overall Length (in.): 145-7/8 Overall Height (in.): 27-5/8 Retracted Center of Gravity (in.): 33-3/4
Extended Center of Gravity (in.): 50-7/8 Vertical Center of Gravity (in.): 18-3/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Marketing Specs.

MFG Model # (Series)
LM-CM3-EBT-4
Product Name
Steel Carriage Mount Lift Master Boom Class III 4,000 Lb. Capacity Blue and Yellow
Assembled Depth (in.)
145.875
Assembled Width(in.)
12
Assembled Height(in.)
27.625
Assembled Weight(lbs.)
383
Color/Finish
Blue/Yellow

Logistics

Package Depth (in.)
96
Package Width (in.)
44
Package Height (in.)
17
Package Weight (in.)
414
LTL Freight
LTL Palletized

Warranty

Manufactuer Warranty
1 Year Limited Warranty
Returnable? Y/N
Y

Prop 65 Warning

Copyright © 2025 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LM-CM3-EBT-4
Available
LM-CM3-EBT-4

Steel Carriage Mount Lift Master Boom Class III 4,000 Lb. Capacity Blue and Yellow

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

  • Converts fork trucks into overhead lifting cranes
  • Class III carriage mount
  • Telescoping design
  • Hooks included for simple product attachment
Dimensions: 12"W x 145.875"L x 27.625"H Sell UOM: -- Color: Blue/Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 414 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Mounting Style: Carriage Mount Class 3 Uniform Capacity (lbs): 4,000 Capacity at 48 In Extended (lb.): 3750
Capacity at 60 In Extended (lb.): 3500 Capacity at 72 In Extended (lb.): 3250 Capacity at 84 In Extended (lb.): 3000
Capacity at 96 In Extended (lb.): 2750 Capacity at 108 In Extended (lb.): 2500 Capacity at 120 In Extended (lb.): 2250
Capacity at 132 In Extended (lb.): 2000 Capacity at 144 In Extended (lb.): 1750 Overall Width (in.): 12
Overall Length (in.): 145-7/8 Overall Height (in.): 27-5/8 Retracted Center of Gravity (in.): 33-3/4
Extended Center of Gravity (in.): 50-7/8 Vertical Center of Gravity (in.): 18-3/8
