Model Details

PM5-2748-FP

Printer Friendly
PM5-2748-FP

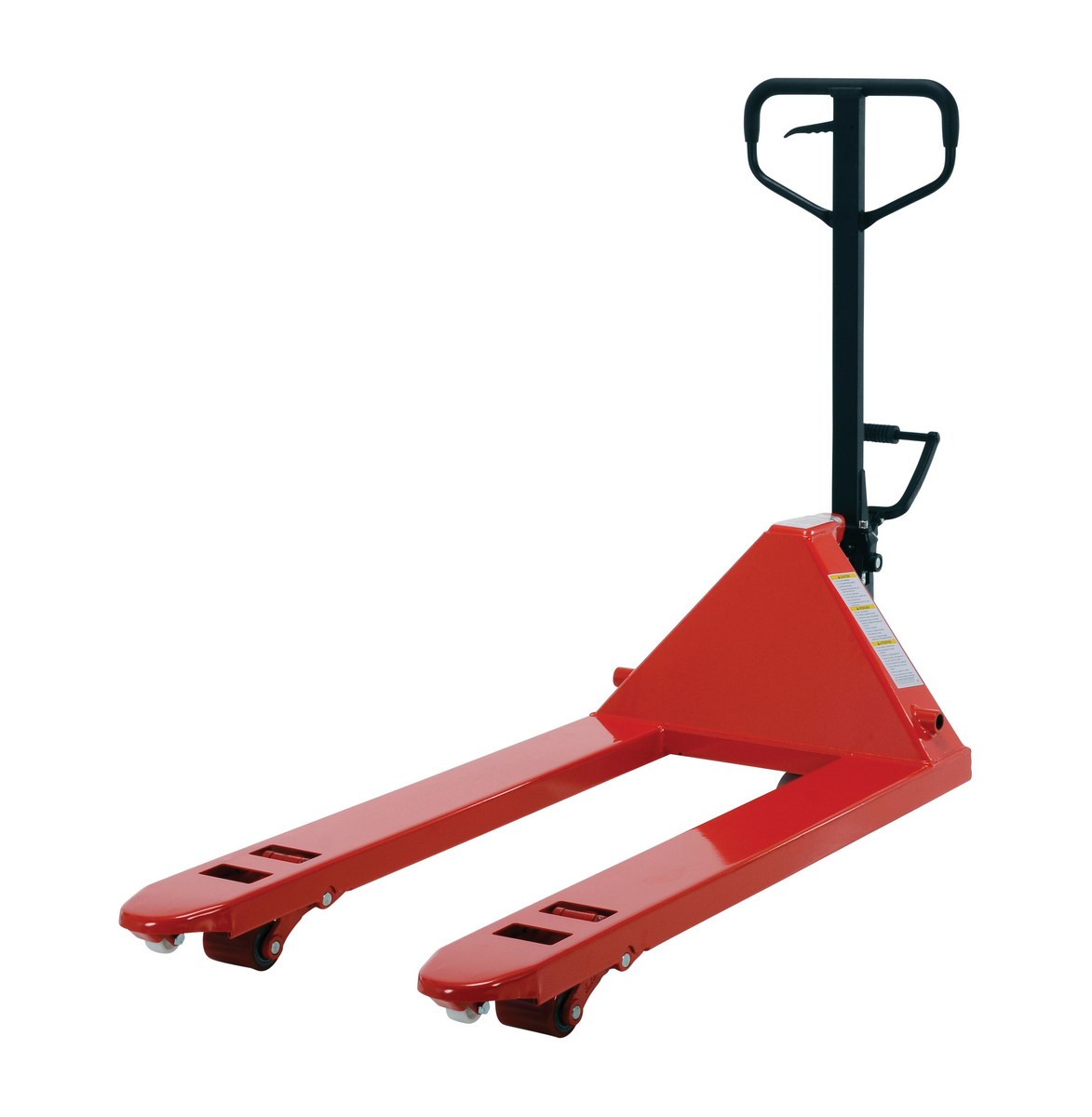

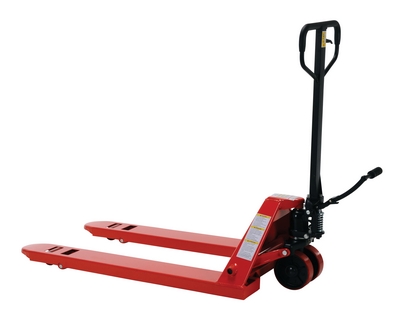

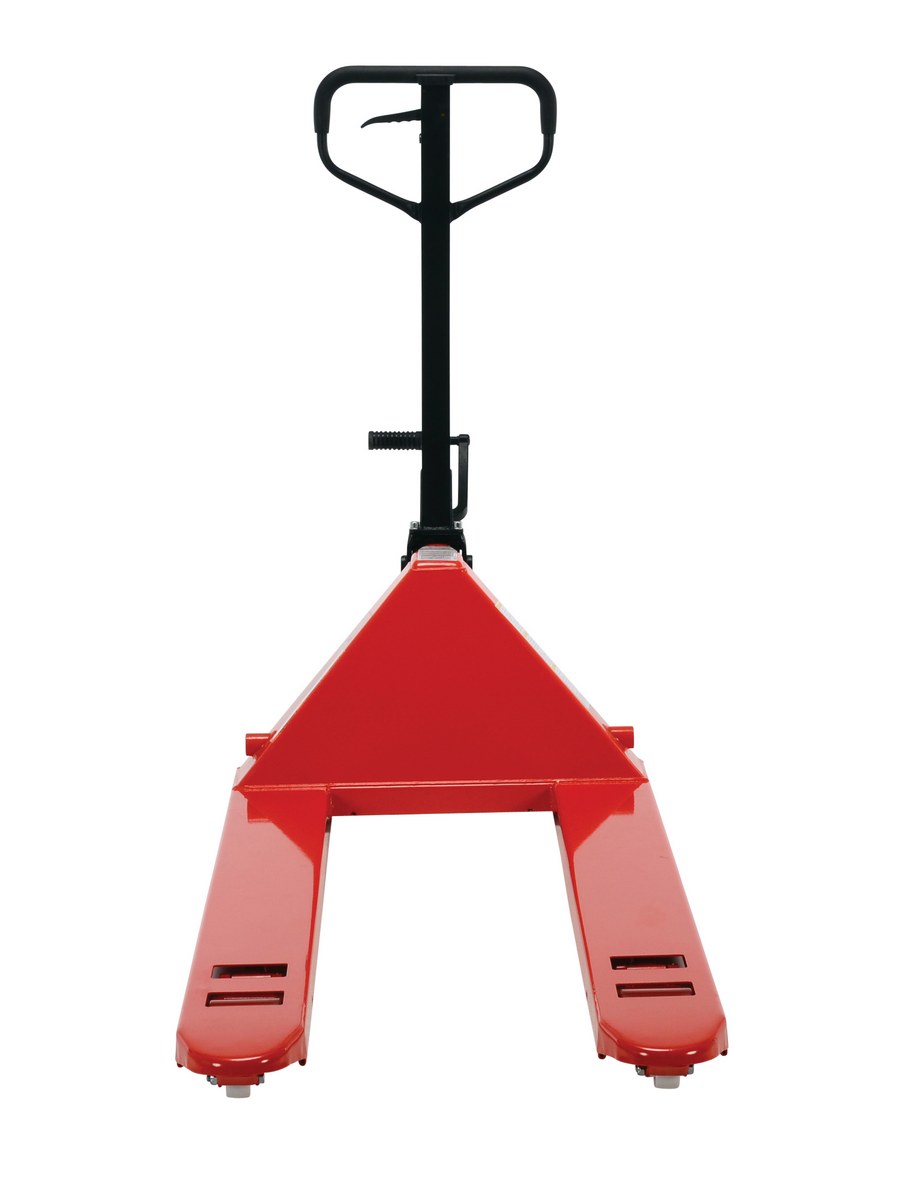

Wheel Nose Pallet Truck with Foot Pedal 27 In. x 48 In. 5500 Lb. Capacity Red

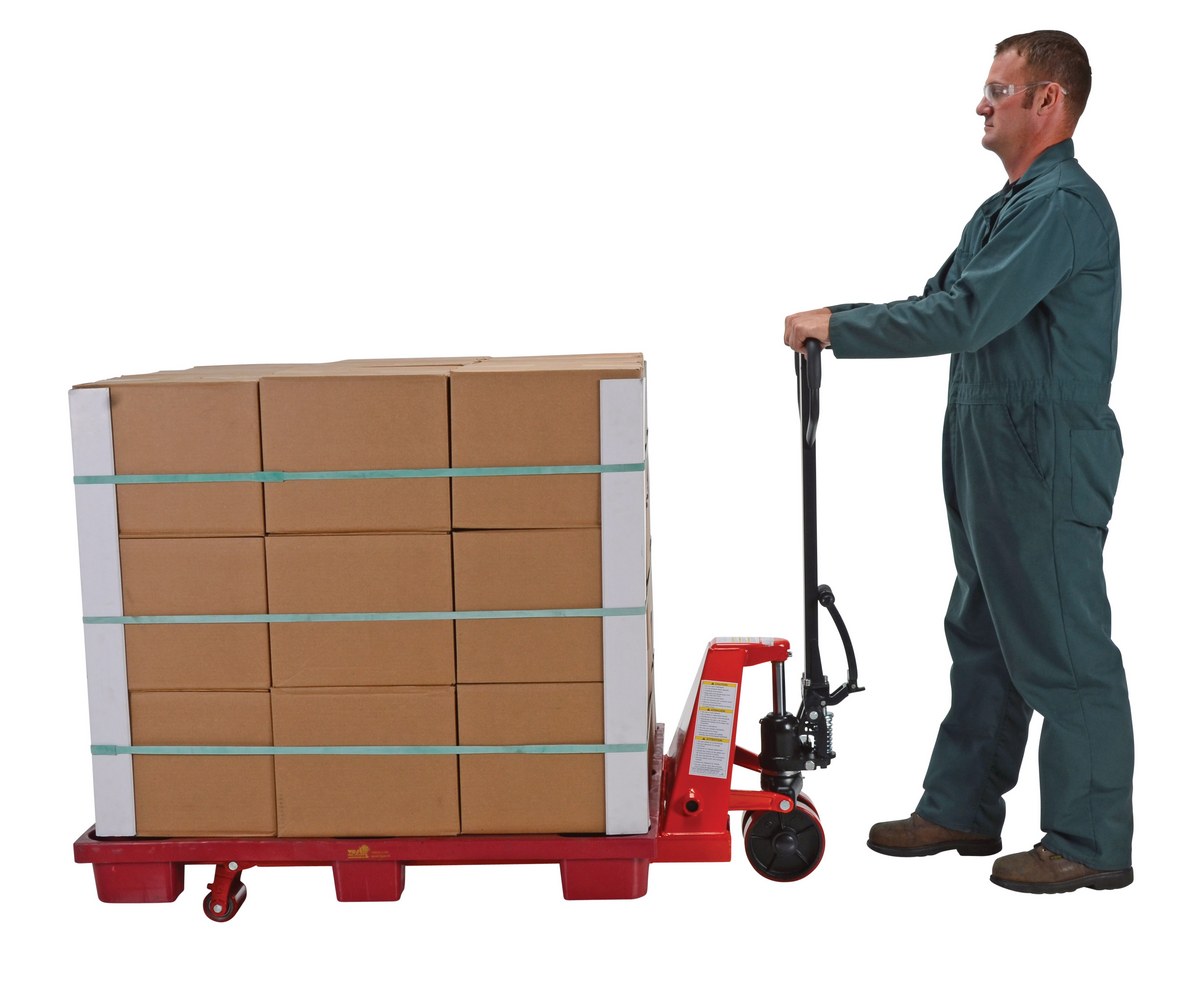

An economical way for one person to move heavy pallet loads without the use of a fork truck. The unit includes two articulating steering wheels and tow front loaders. The truck is raised and lowered with a foot pump mechanism. Ergonomic design requires only 75 lbs. of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The pallet truck is equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy access seal replacement.

  • Lifts by foot pump activation
  • Strong maneuver ability when loaded
  • Extra strength forks for lifting capabilities
  • Traverses smoothly over a variety of terrains
Total Ship Wt.(lbs.): 222 (only 1 package) Size: 27"W x 66"L x 49"H Color: Red

Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 4 Load Roller Width (in.): 3

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM5-2748-FP
PM5-2748-FP

Wheel Nose Pallet Truck with Foot Pedal 27 In. x 48 In. 5500 Lb. Capacity Red

An economical way for one person to move heavy pallet loads without the use of a fork truck. The unit includes two articulating steering wheels and tow front loaders. The truck is raised and lowered with a foot pump mechanism. Ergonomic design requires only 75 lbs. of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The pallet truck is equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy access seal replacement.

  • Lifts by foot pump activation
  • Strong maneuver ability when loaded
  • Extra strength forks for lifting capabilities
  • Traverses smoothly over a variety of terrains
Dimensions: 27"W x 66"L x 49"H Sell UOM: EA-Each Color: Red
Material: Steel UPC: 691215113342 GTIN: 00691215113342
Warranty: -- Shipping Weight: 222 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 7 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 4 Load Roller Width (in.): 3
