Model Details

QIT-10

Printer Friendly
QIT-10

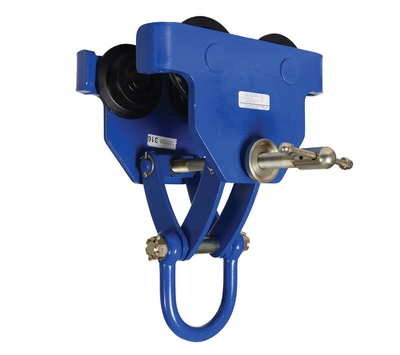

Steel Quick Install Manual Trolley 13-5/8 In. x 20-3/16 In. x 20-3/8 In. 10000 Lb. Capacity Blue

This quick install manual trolley is dependable, easy and safe to use. Designed to easily adjust to the width of virtually any S, H, W and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a beam clamp). Each trolley includes four (4) rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included).

  • Manual adjusting screw with locking collar for quick and easy width adjustment
  • Locking ring prevents trolley width from changing accidentally
  • Sealed bearing rollers provide long life
  • Lifting eye is located at the bottom of the trolley for safe hoist attachment
Total Ship Wt.(lbs.): 68 (only 1 package) Size: 20.1875"W x 13.625"L x 20.375"H Color: Blue

Uniform Capacity (lb.): 10,000 Fits Beam Flange Width (in.): 4 to 11-3/4 Headroom (in.): 13 7/8
Min/Max Height (in): 17 1/4 to 20 3/8 Shackle Width (in): 4 1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: QIT-10
QIT-10

Steel Quick Install Manual Trolley 13-5/8 In. x 20-3/16 In. x 20-3/8 In. 10000 Lb. Capacity Blue

This quick install manual trolley is dependable, easy and safe to use. Designed to easily adjust to the width of virtually any S, H, W and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a beam clamp). Each trolley includes four (4) rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included).

  • Manual adjusting screw with locking collar for quick and easy width adjustment
  • Locking ring prevents trolley width from changing accidentally
  • Sealed bearing rollers provide long life
  • Lifting eye is located at the bottom of the trolley for safe hoist attachment
Dimensions: 20.1875"W x 13.625"L x 20.375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215066334 GTIN: 00691215066334
Warranty: -- Shipping Weight: 68 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 10,000 Fits Beam Flange Width (in.): 4 to 11-3/4 Headroom (in.): 13 7/8
Min/Max Height (in): 17 1/4 to 20 3/8 Shackle Width (in): 4 1/4
