SWR-CPL-24-8-96

Printer Friendly
Available
SWR-CPL-24-8-96
SWR-CPL-24-8-96

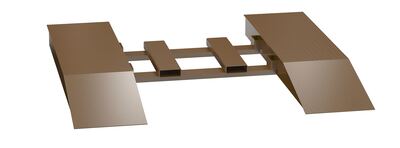

Steel Wheel Risers With Pick-Up Loop 96" X 24" X 8.25" 40,000 Lb. Capacity Brown

The steel wheel riser is equipped with fork slots for ease in fork truck transporting. Wheel risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. ramps may be stacked for compact storage when not in use.

  • Built-in fork pocket loop
  • Raised diamond tread plate surface provides a non-slip grip
  • 24" fork pocket center
  • 1/4" thick material
Assembled Wt.(lbs.): 828 Assembled Size: 101.125"W x 96.0625"L x 8.25"H

Total Ship Wt.(lbs.): 878 (only 1 package) Package 1 Size: 52"W x 96"D x 19"H Color: Brown Non-Returnable

Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 96.0625 Individual Wheel Riser Width (in.): 24
Individual Wheel Riser Height (in.): 8.25 Width Between Wheel Risers (in.): 53.125 Fork Pocket Width (in.): 7.5
Fork Pocket Height (in.): 2.5 Fork Pocket Center (in.): 24

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

30 Days Limited Warranty

Details For Model: SWR-CPL-24-8-96
Available
SWR-CPL-24-8-96

Steel Wheel Risers With Pick-Up Loop 96" X 24" X 8.25" 40,000 Lb. Capacity Brown

The steel wheel riser is equipped with fork slots for ease in fork truck transporting. Wheel risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. ramps may be stacked for compact storage when not in use.

  • Built-in fork pocket loop
  • Raised diamond tread plate surface provides a non-slip grip
  • 24" fork pocket center
  • 1/4" thick material
Dimensions: 101.125"W x 96.0625"L x 8.25"H Sell UOM: -- Color: Brown
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 878 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 96.0625 Individual Wheel Riser Width (in.): 24
Individual Wheel Riser Height (in.): 8.25 Width Between Wheel Risers (in.): 53.125 Fork Pocket Width (in.): 7.5
Fork Pocket Height (in.): 2.5 Fork Pocket Center (in.): 24
