Model Details

← All Products- ← Storage Solutions- ← Various Racking -← Versa Racks- V-1

V-1

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
V-1
V-1

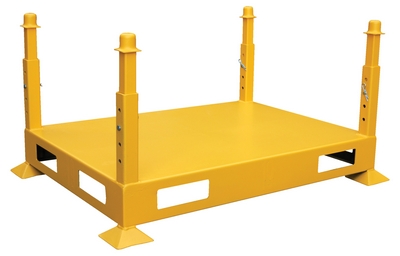

Welded Steel Versa Rack Base with Non-Removable Post 4,000 Lb. Capacity Yellow

Versa rack base with non-removable posts provides versatility, efficiency, and durability. Great for transportation and storage. Change post height by one (1) inch increments depending on application. Double post pins provide support. Large target and pintle for speedy alignment. Four (4)-way fork entry on all models.

  • Great for transportation and storage
  • Change post height by 1" increments
  • Double post pins provide support
  • Large target and pintle for speedy alignment
Assembled Wt.(lbs.): 178 Assembled Size: 49.4375"W x 43.5"L x 23.75"H

Total Ship Wt.(lbs.): 214 (only 1 package) Package 1 Size: 48"W x 42"D x 4"H Color: Yellow

Uniform Capacity (lb.): 4,000 Component: Base w/Non-Removable Posts Usable Width/Length (in.): 48 x 42
Adjustable Post Height (in.): 11-1/4 to 17-1/4 Retracted Height (in.): 17-3/4 Maximum Stacking (qty.): 5
Usable Fork Width/Length (in.): 8 x 2-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: V-1
V-1

Welded Steel Versa Rack Base with Non-Removable Post 4,000 Lb. Capacity Yellow

Versa rack base with non-removable posts provides versatility, efficiency, and durability. Great for transportation and storage. Change post height by one (1) inch increments depending on application. Double post pins provide support. Large target and pintle for speedy alignment. Four (4)-way fork entry on all models.

  • Great for transportation and storage
  • Change post height by 1" increments
  • Double post pins provide support
  • Large target and pintle for speedy alignment
Dimensions: 49.4375"W x 43.5"L x 23.75"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 214 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Component: Base w/Non-Removable Posts Usable Width/Length (in.): 48 x 42
Adjustable Post Height (in.): 11-1/4 to 17-1/4 Retracted Height (in.): 17-3/4 Maximum Stacking (qty.): 5
Usable Fork Width/Length (in.): 8 x 2-1/2
