VHPS-2000-AA-118

Printer Friendly
Available
VHPS-2000-AA-118
VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118 VHPS-2000-AA-118

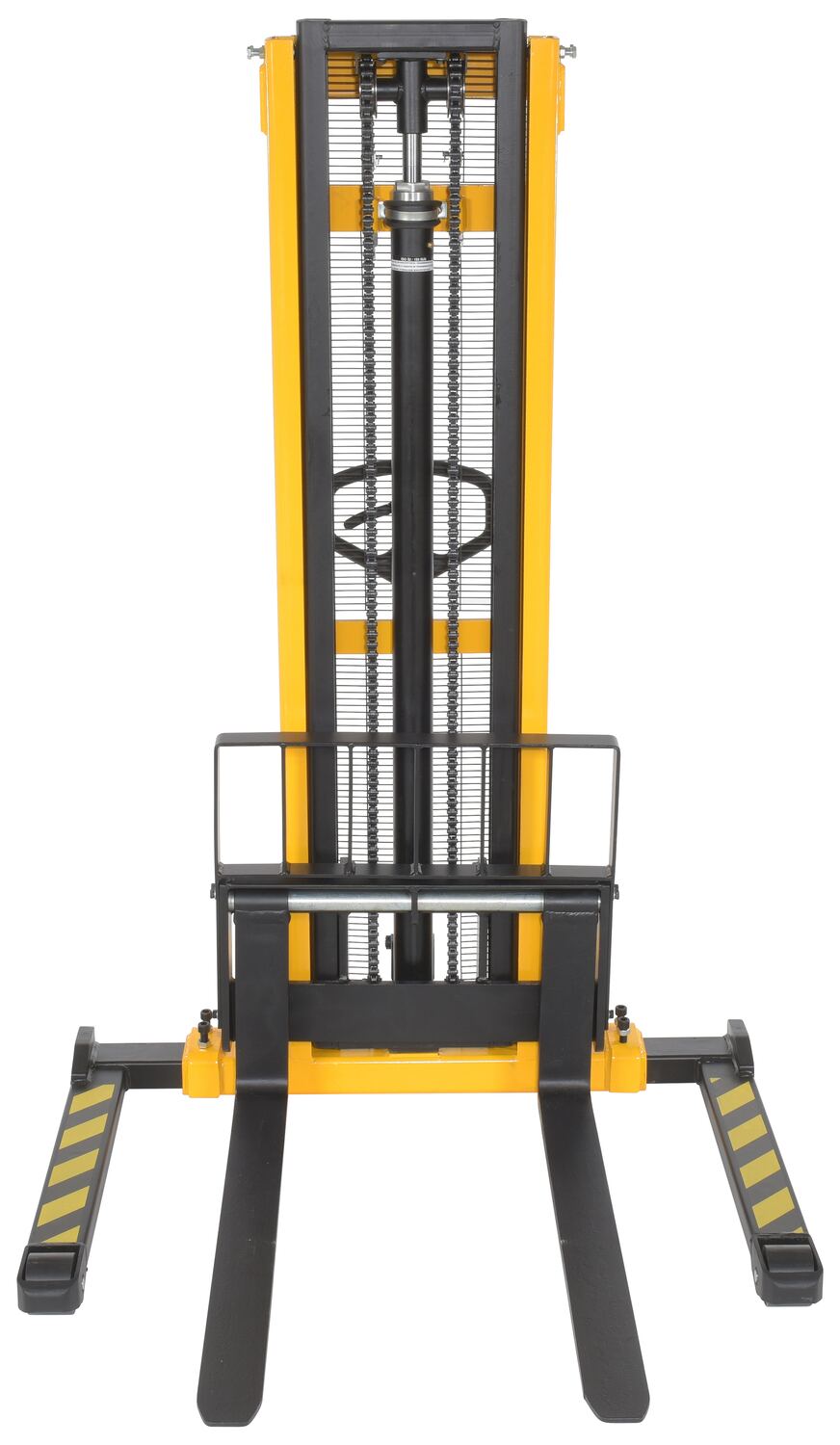

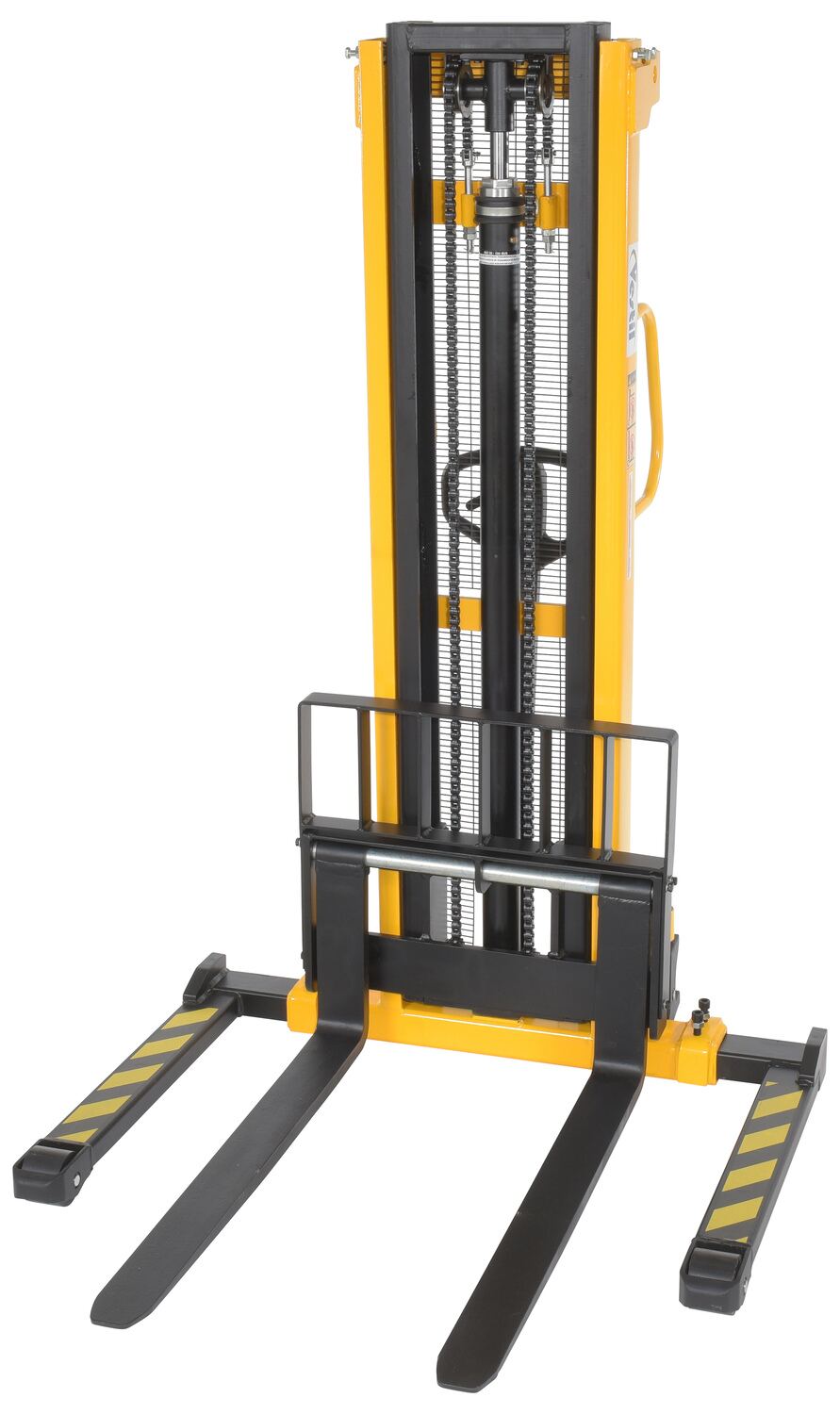

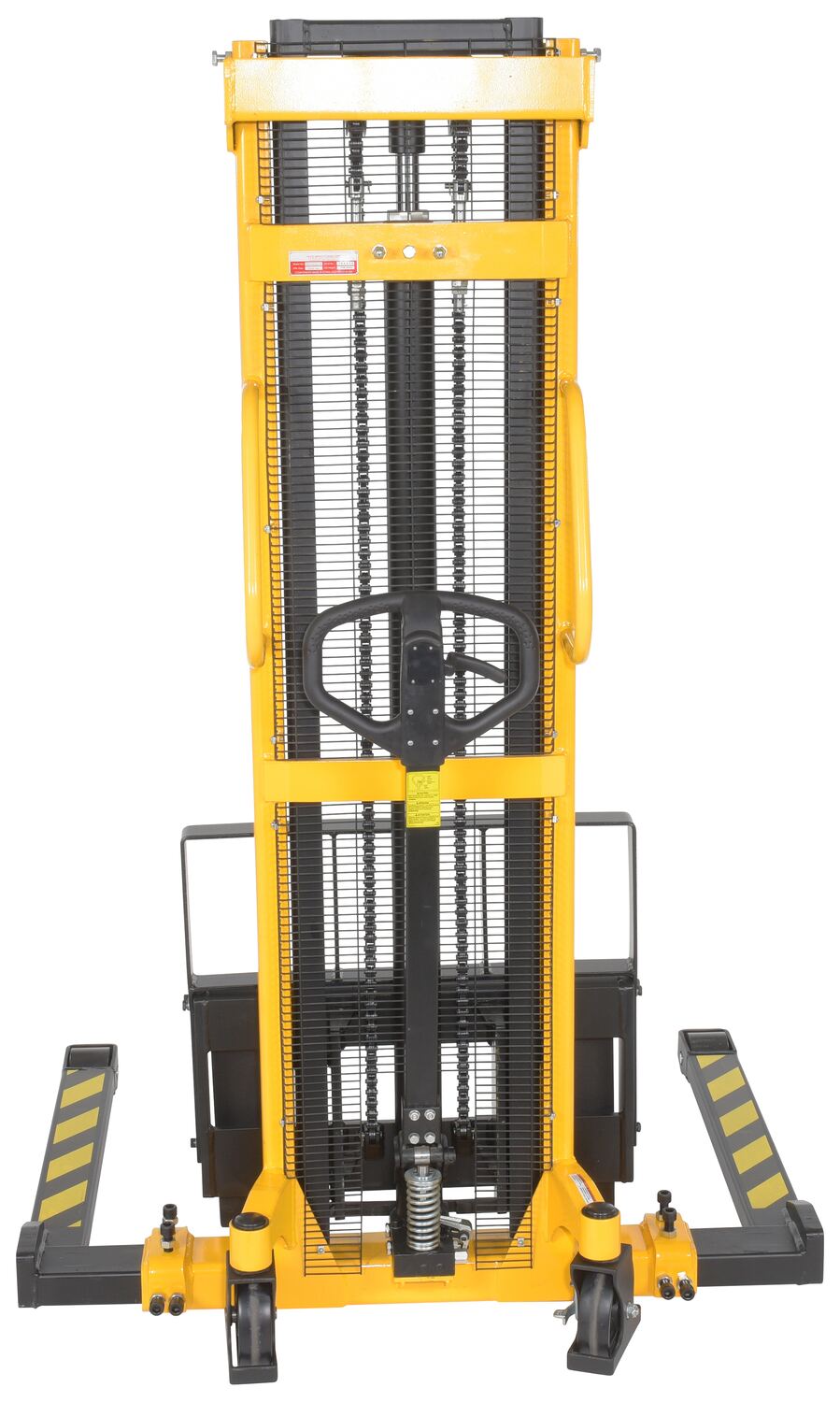

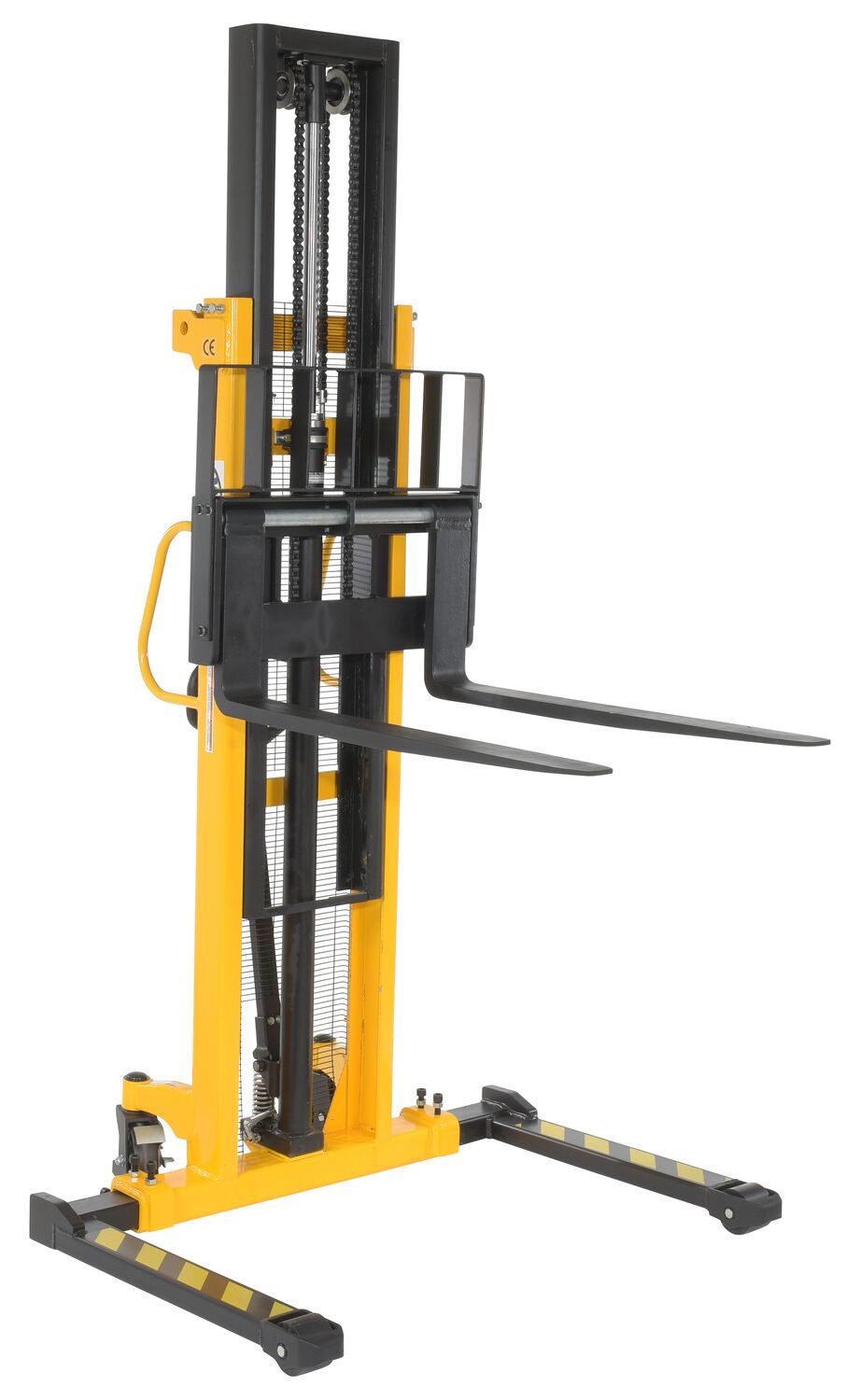

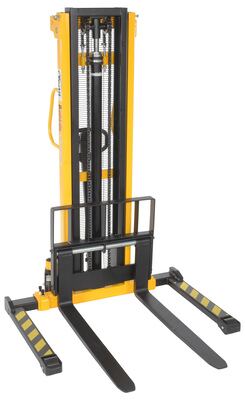

Steel Stacker Manual Pump 2 - 118 In. 1,500 - 2,000 Lb. Capacity Black / Yellow

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Unique design is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Manual design offers easier and safer lifting
  • Adjustable forks maintain stability and can be maneuvered to fit the desired position
Assembled Wt.(lbs.): 926 Assembled Size: 57.875"W x 62"L x 78.5"H

Total Ship Wt.(lbs.): 996 (only 1 package) Package 1 Size: 65"W x 68"D x 88"H Color: Black / Yellow

Power Source: Manual Minimum Lift Height (in): 2.125 Capacity (lbs) at 0 (in) - 62 (in): 2,000
Capacity (lbs) at 62 (in) - 118 (in): 1,500 Fork Length (in): 42 Fork Width (in): 4
Adjustable Forks: Yes Minimum Width Between Forks (in): 7.875 Maximum Width Between Forks (in): 26.75

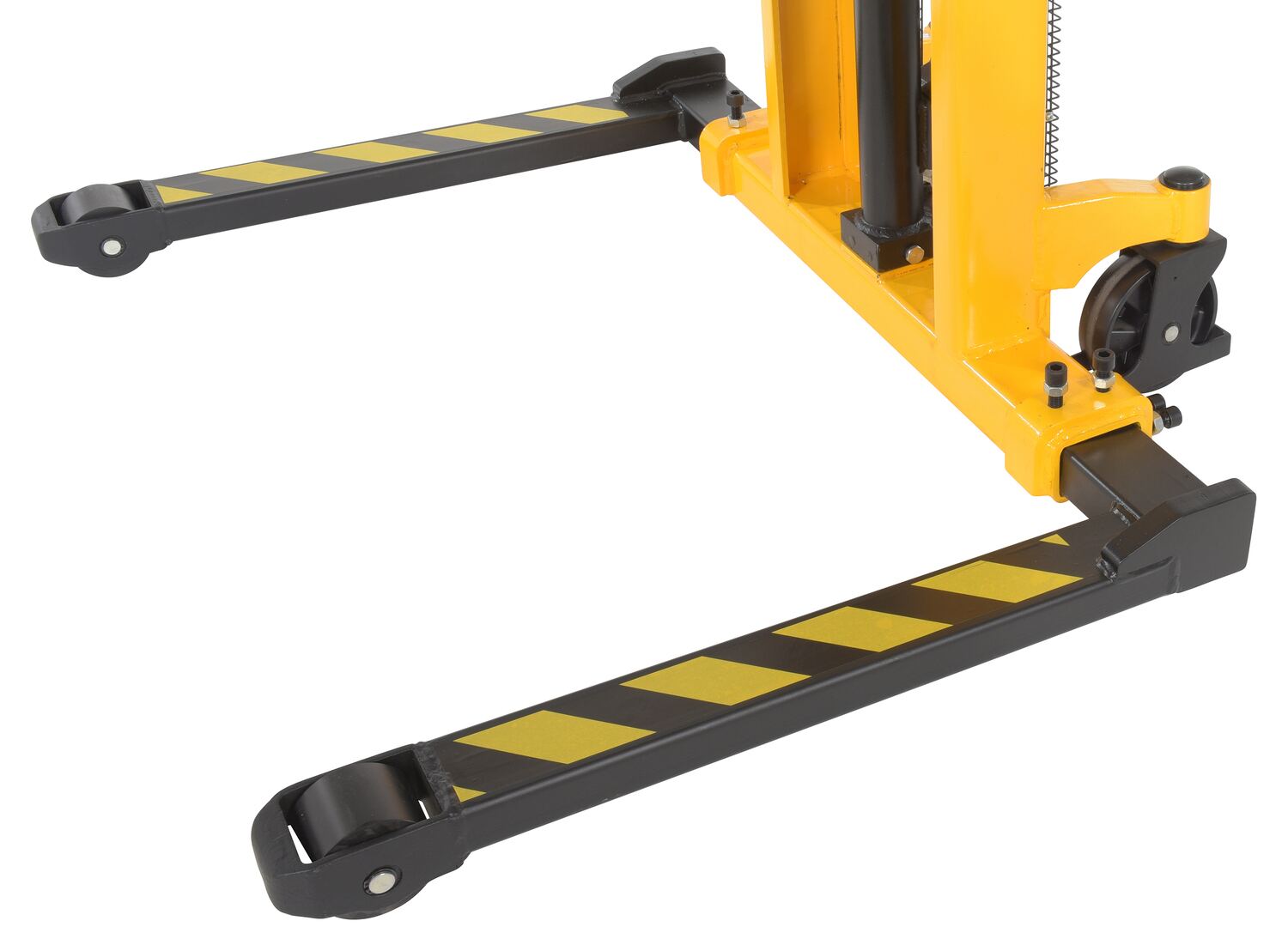

Adjustable Legs: Yes Leg Width (in): 4 Minimum Width Between legs (in): 40
Maximum Width Between legs (in): 50 Number of Casters / Wheels: 4 Wheel Material: Poly on Steel
Rear Wheel Diameter (in): 7 Front Wheel Diameter (in): 4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VHPS-2000-AA-118
Available
VHPS-2000-AA-118

Steel Stacker Manual Pump 2 - 118 In. 1,500 - 2,000 Lb. Capacity Black / Yellow

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Unique design is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Manual design offers easier and safer lifting
  • Adjustable forks maintain stability and can be maneuvered to fit the desired position
Dimensions: 57.875"W x 62"L x 78.5"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 996 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Power Source: Manual Minimum Lift Height (in): 2.125 Capacity (lbs) at 0 (in) - 62 (in): 2,000
Capacity (lbs) at 62 (in) - 118 (in): 1,500 Fork Length (in): 42 Fork Width (in): 4
Adjustable Forks: Yes Minimum Width Between Forks (in): 7.875 Maximum Width Between Forks (in): 26.75
Adjustable Legs: Yes Leg Width (in): 4 Minimum Width Between legs (in): 40
Maximum Width Between legs (in): 50 Number of Casters / Wheels: 4 Wheel Material: Poly on Steel
Rear Wheel Diameter (in): 7 Front Wheel Diameter (in): 4
