Product Family Overview


Polyurethane (DT, Green) Casters
SERIES: CST-F34-DT

Made with 100% pure polyurethane tread. This caster is a great upgrade for standard polyurethane. Designed using a new liquid cast flow fusion that ensures a 100% mechanical bond to core and "zero" trapped air. It has a high resistance to debris and most chemicals. The proprietary tread provides good floor preservation, and has a longer life performance than standard polyurethanes. Green tread color. 90-95 shore a. Wheel center is constructed of polyolefin.

  • Non-marking high-quality proprietary tread
  • 100% Mechanical bond to core
  • Resists mosts solvents, oils, grease, and water
  • Premium precision ball bearings

Made with 100% pure polyurethane tread. This caster is a great upgrade for standard polyurethane. Designed using a new liquid cast flow fusion that ensures a 100% mechanical bond to core and "zero" trapped air. It has a high resistance to debris and most chemicals. The proprietary tread provides good floor preservation, and has a longer life performance than standard polyurethanes. Green tread color. 90-95 shore a. Wheel center is constructed of polyolefin.

  • Non-marking high-quality proprietary tread
  • 100% Mechanical bond to core
  • Resists mosts solvents, oils, grease, and water
  • Premium precision ball bearings

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

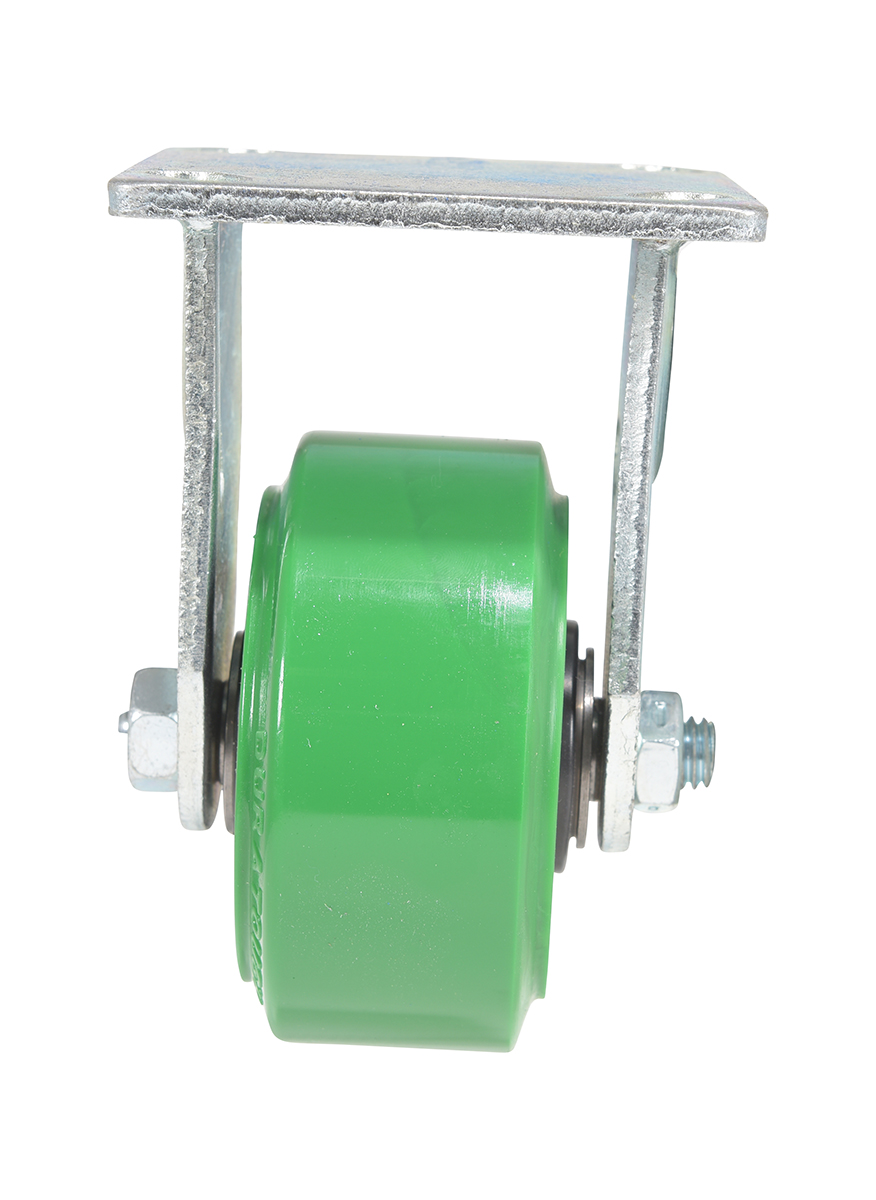

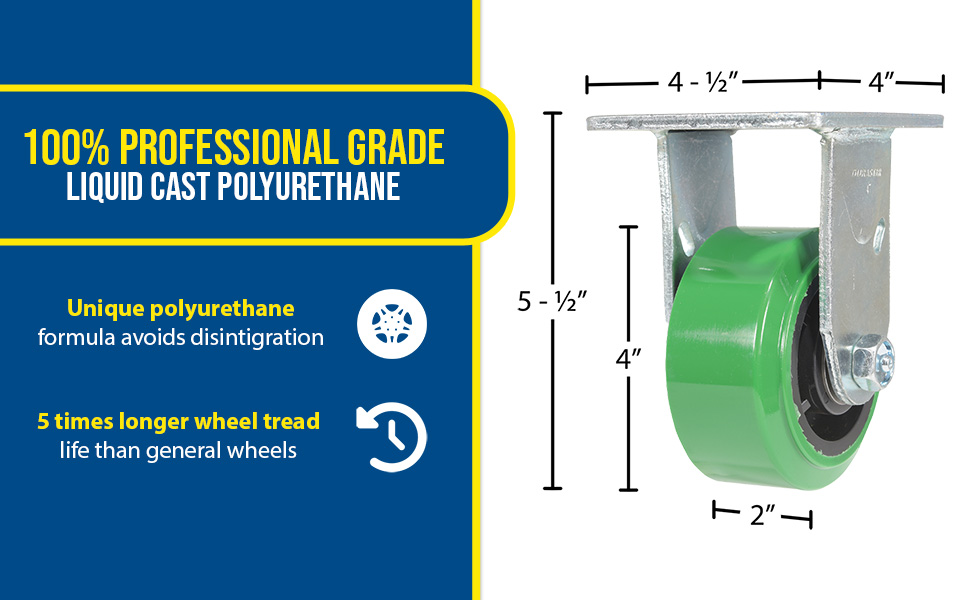

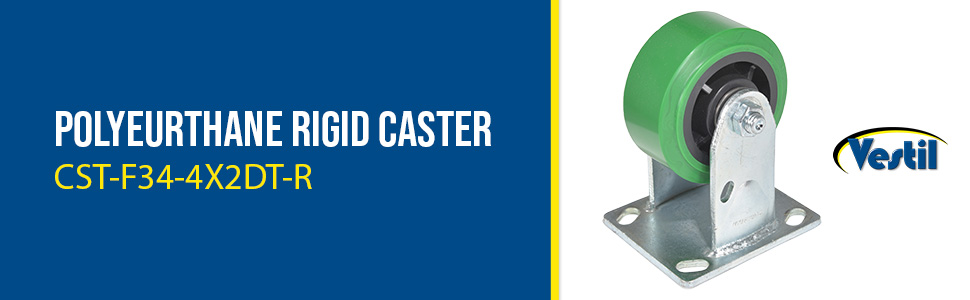

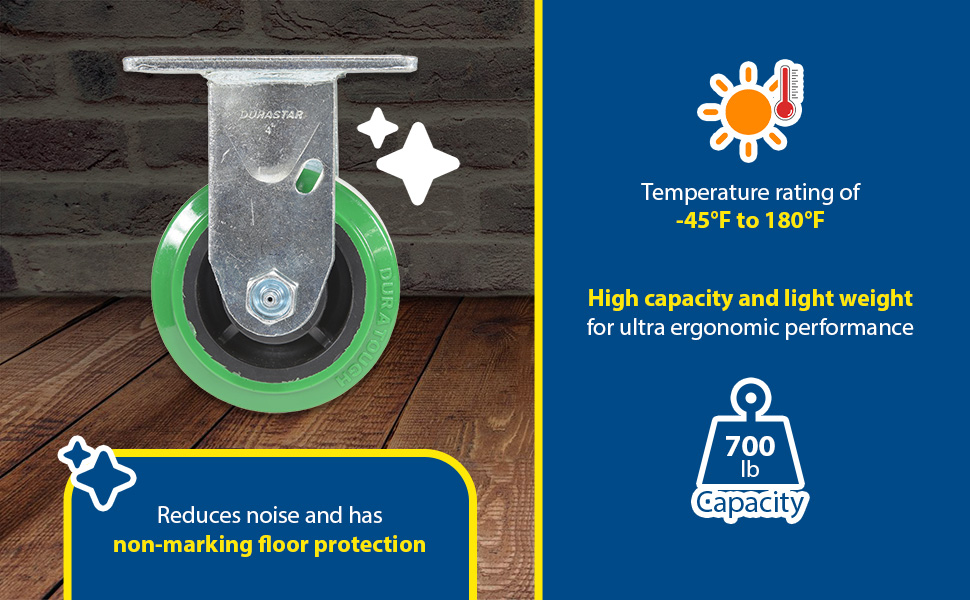

CST-F34-4X2DT-R CST-F34-4X2DT-R1 YEAR Limited Warranty4 x 2RIGID7005-1/2 4 x 4-1/24
CST-F34-5X2DT-R CST-F34-5X2DT-R1 YEAR Limited Warranty5 x 2RIGID7506-1/2 4 x 4-1/24

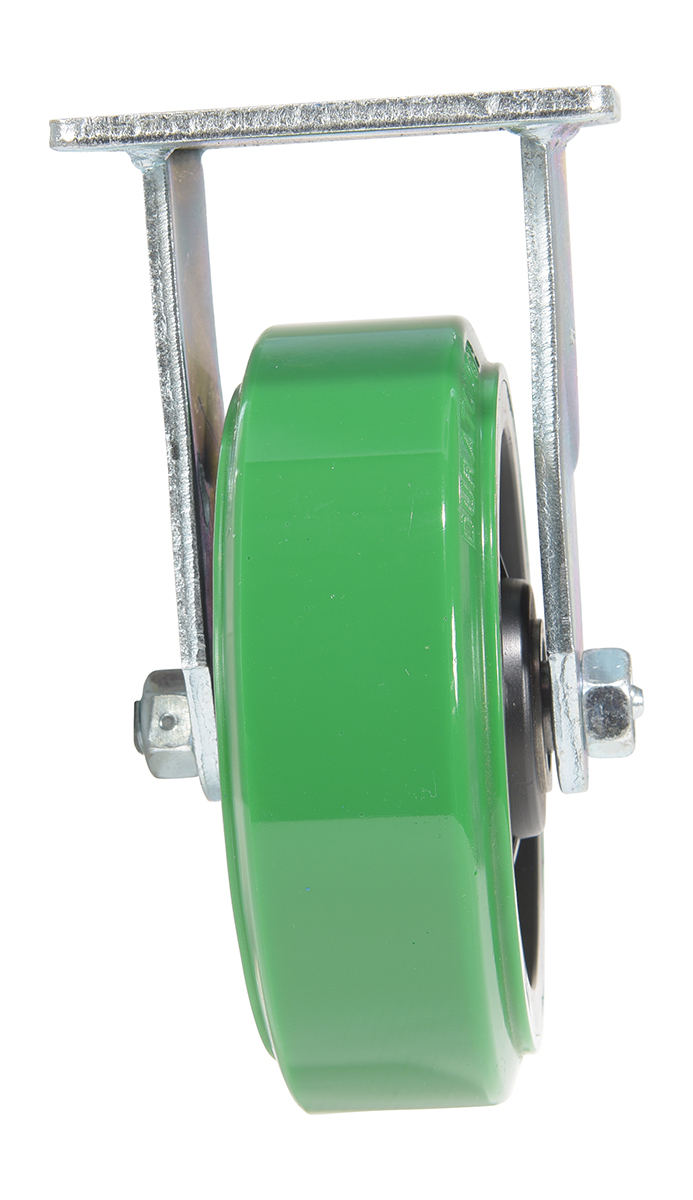

CST-F34-6X2DT-R CST-F34-6X2DT-R1 YEAR Limited Warranty6 x 2RIGID9007-1/2 4 x 4-1/25

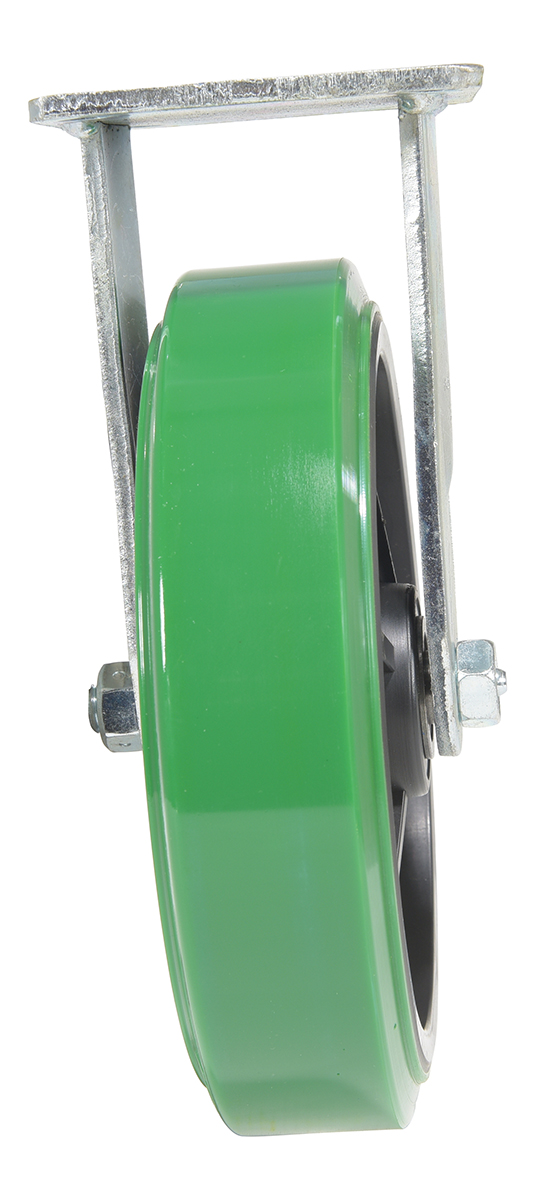

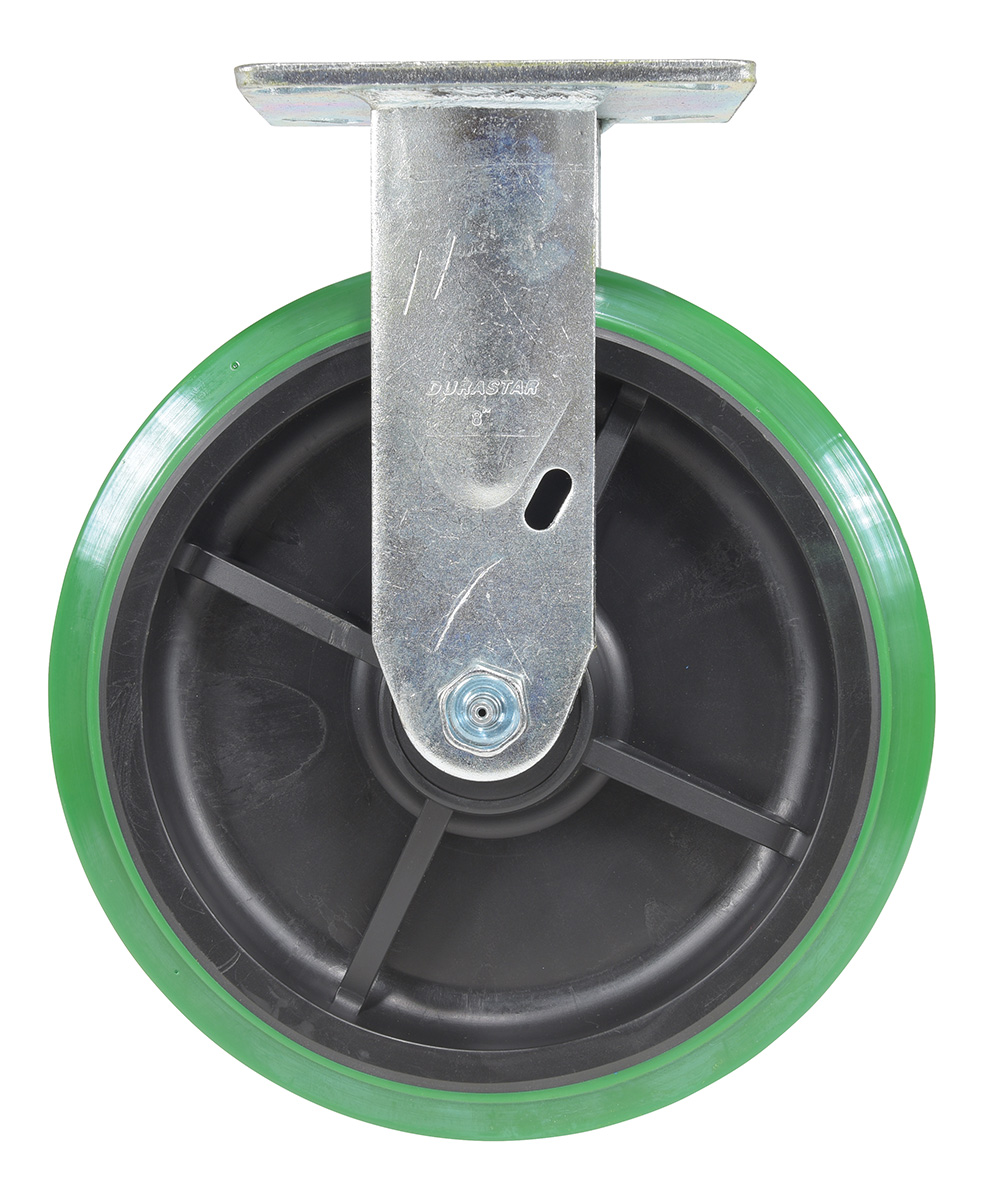

CST-F34-8X2DT-R CST-F34-8X2DT-R1 YEAR Limited Warranty8 x 2RIGID10009-3/8 4 x 4-1/26
CST-F34-4X2DT-S CST-F34-4X2DT-S1 YEAR Limited Warranty4 x 2SWIVEL7005-1/2 4 x 4-1/25
CST-F34-5X2DT-S CST-F34-5X2DT-S1 YEAR Limited Warranty5 x 2SWIVEL7506-1/2 4 x 4-1/25
CST-F34-6X2DT-S CST-F34-6X2DT-S1 YEAR Limited Warranty6 x 2SWIVEL9007-1/2 4 x 4-1/26
CST-F34-8X2DT-S CST-F34-8X2DT-S1 YEAR Limited Warranty8 x 2SWIVEL10009-3/8 4 x 4-1/26

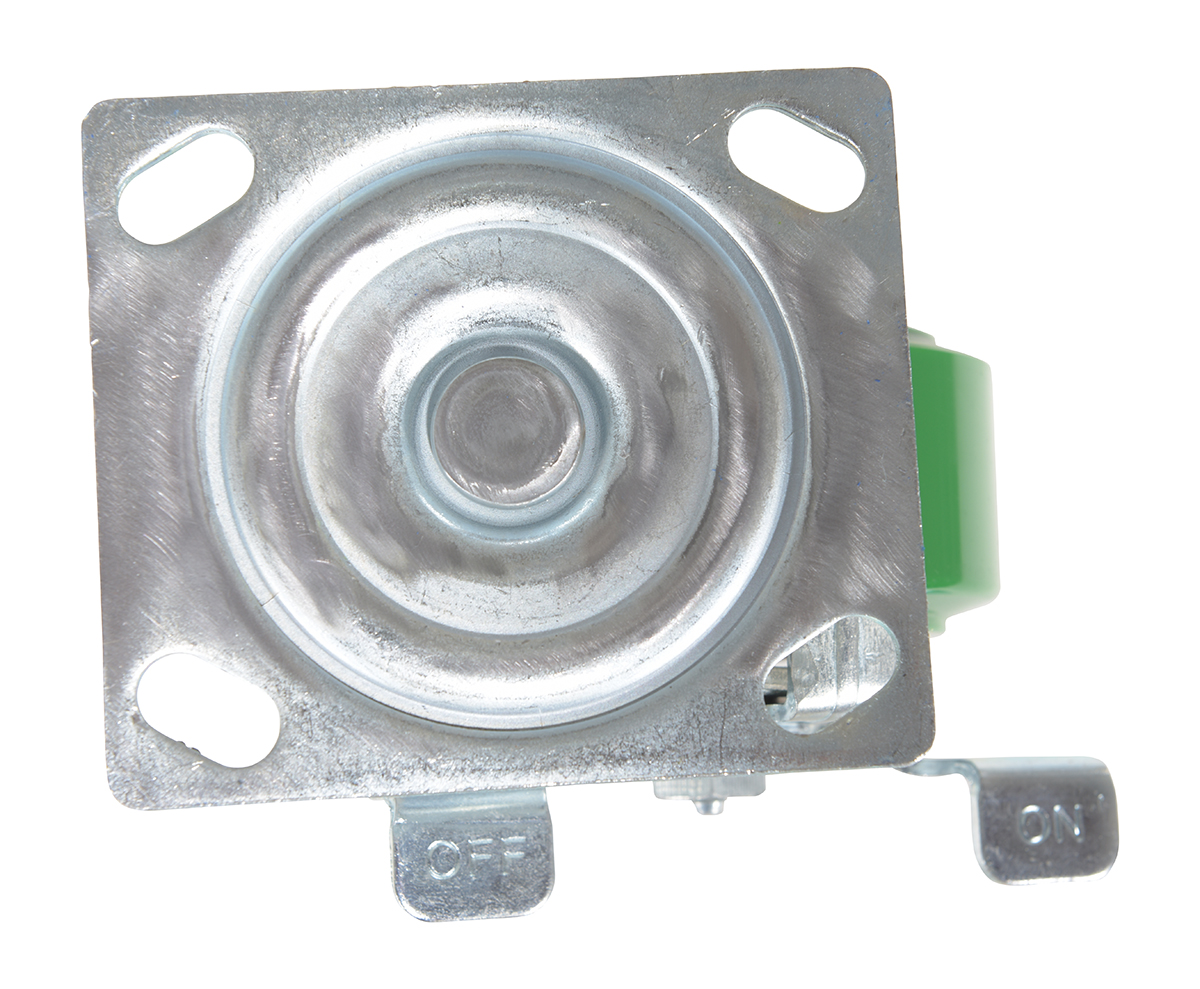

CST-F34-4X2DT-SWB CST-F34-4X2DT-SWB1 YEAR Limited Warranty4 x 2SWIVEL W/BRAKE7005-1/2 4 x 4-1/25
CST-F34-5X2DT-SWB CST-F34-5X2DT-SWB1 YEAR Limited Warranty5 x 2SWIVEL W/BRAKE7506-1/2 4 x 4-1/26
CST-F34-6X2DT-SWB CST-F34-6X2DT-SWB1 YEAR Limited Warranty6 x 2SWIVEL W/BRAKE9007-1/2 4 x 4-1/26

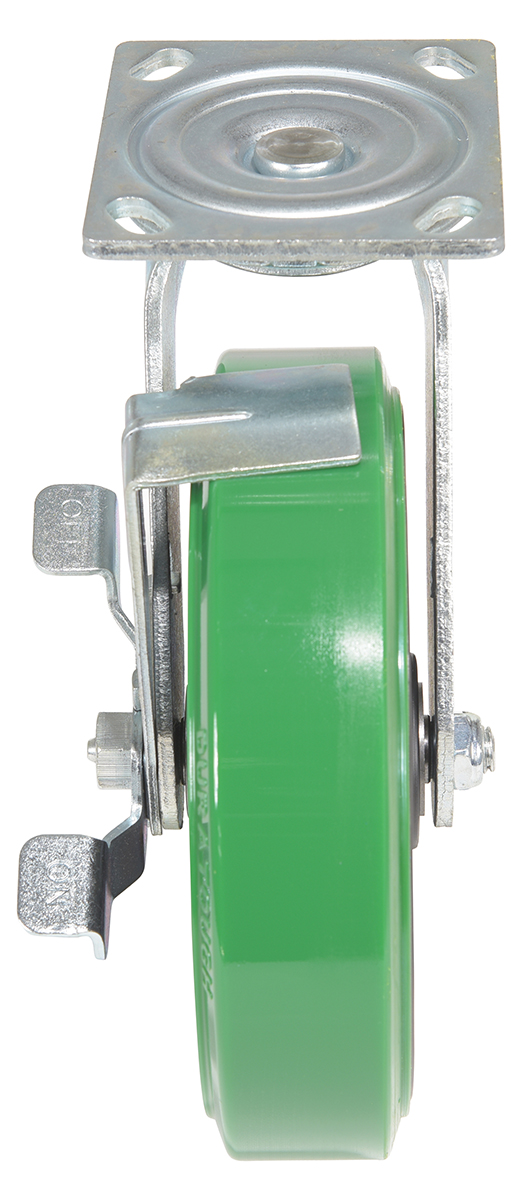

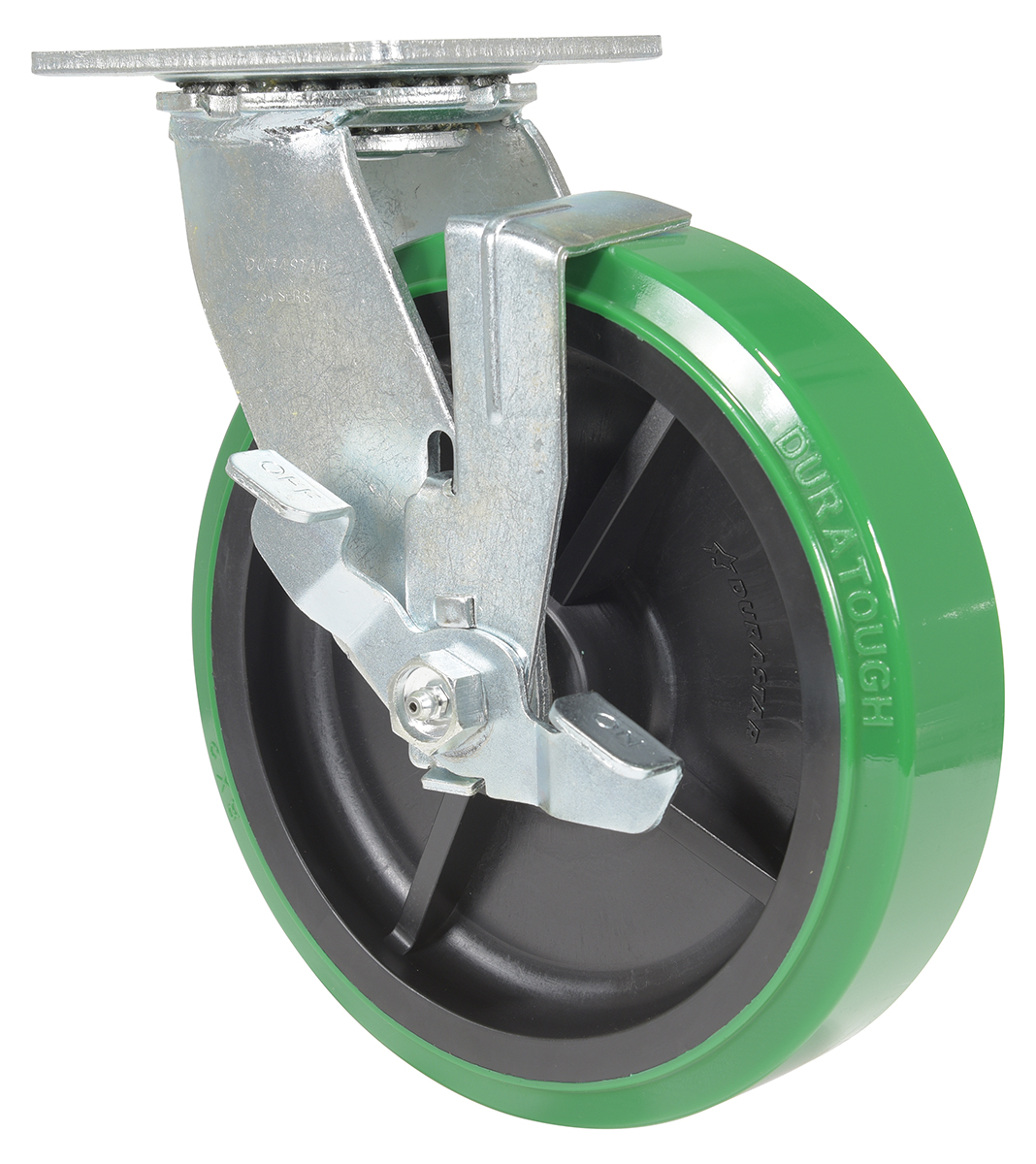

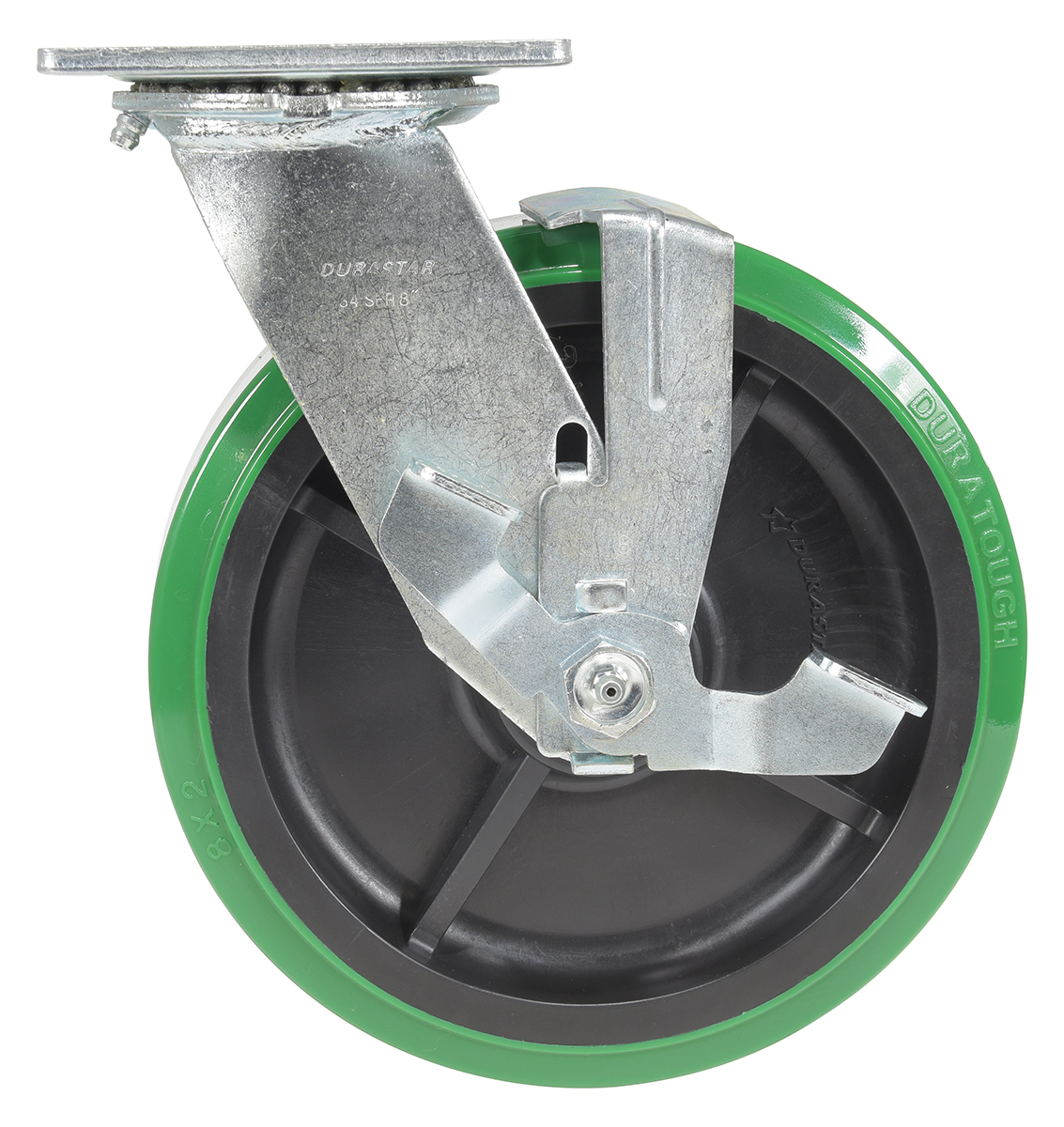

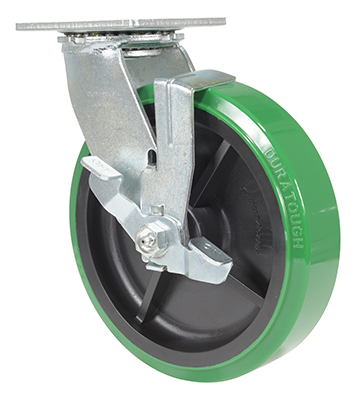

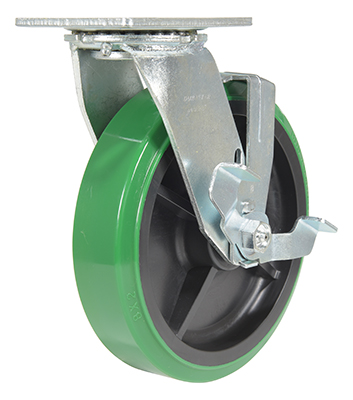

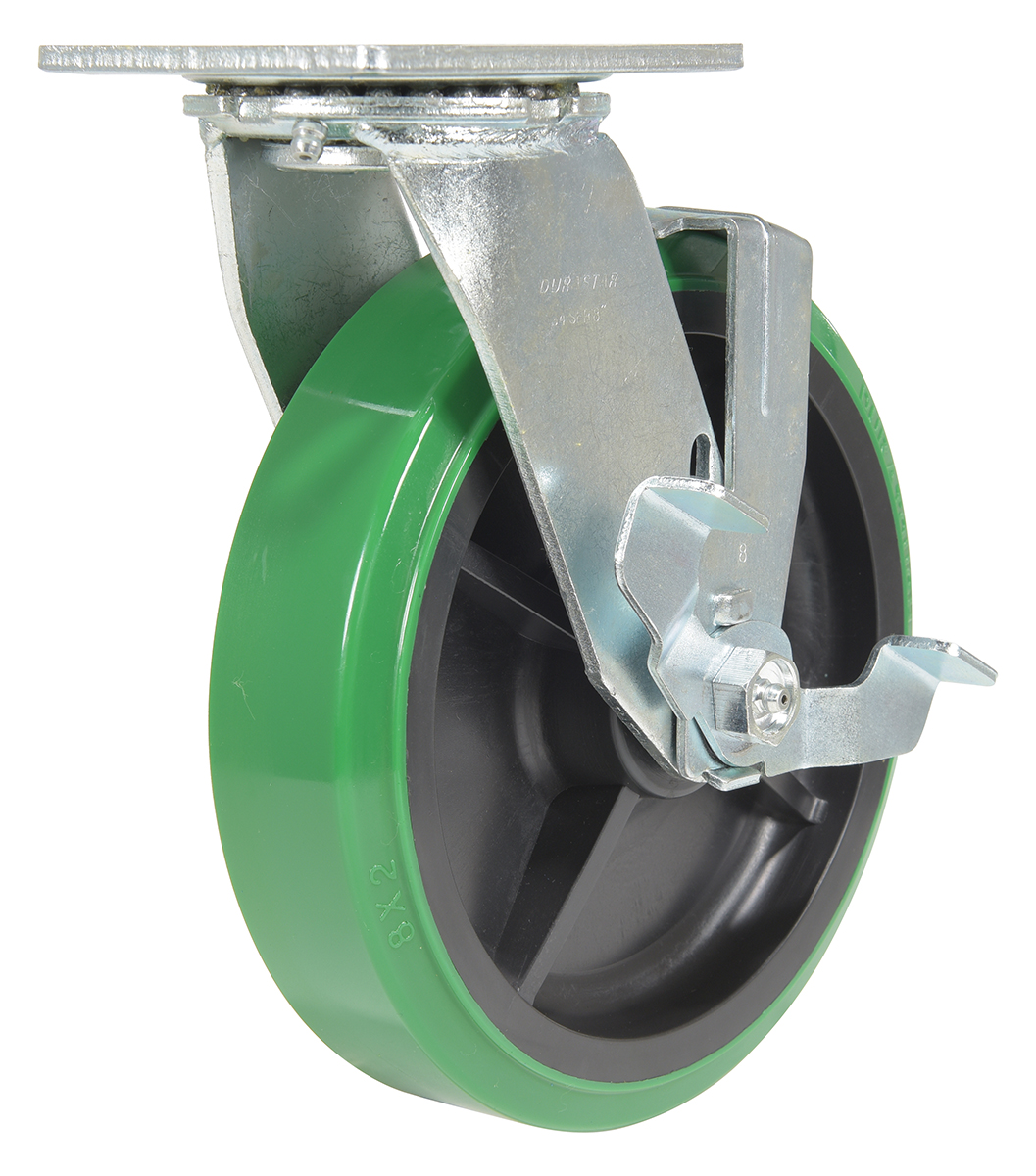

CST-F34-8X2DT-SWB CST-F34-8X2DT-SWB1 YEAR Limited Warranty8 x 2SWIVEL W/BRAKE10009-3/8 4 x 4-1/27

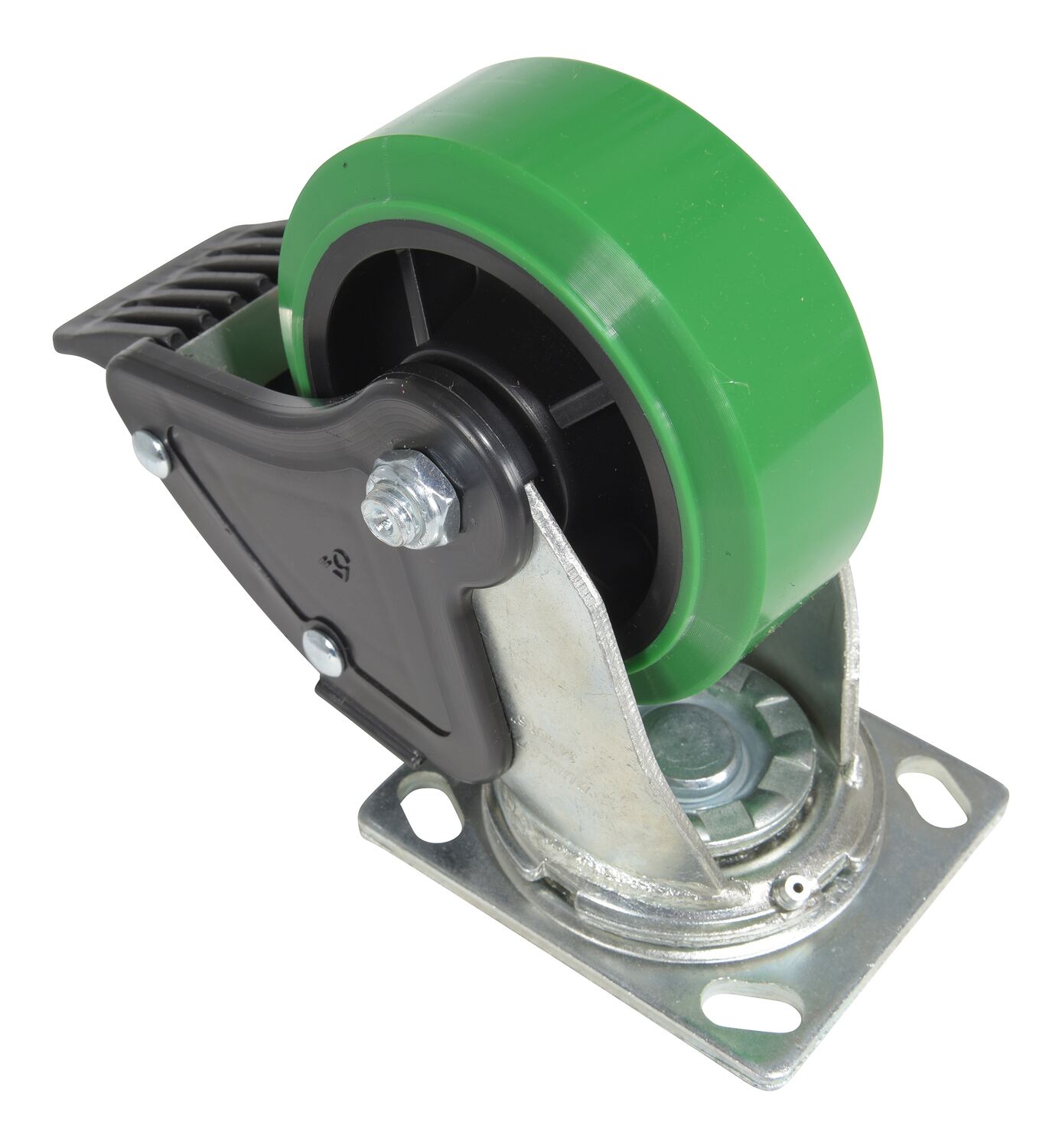

CST-F34-5X2DT-SWTB1 CST-F34-5X2DT-SWTB11 YEAR Limited Warranty5 x 2Swivel w/Total Brake7506-1/2 4 x 4-1/26

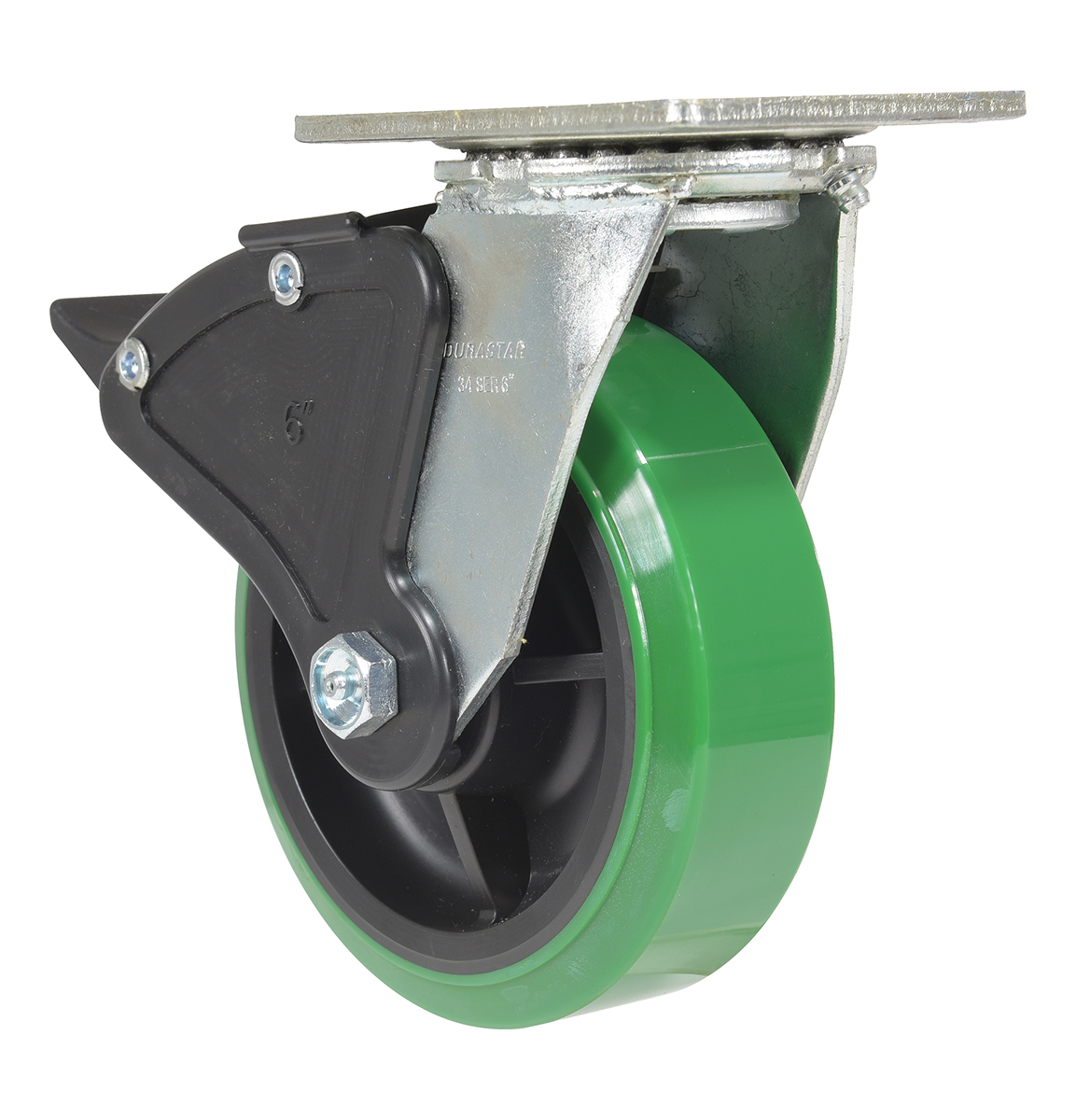

CST-F34-6X2DT-SWTB1 CST-F34-6X2DT-SWTB11 YEAR Limited Warranty6 x 2Swivel w/Total Brake9007-3/8 4 x 4-1/26

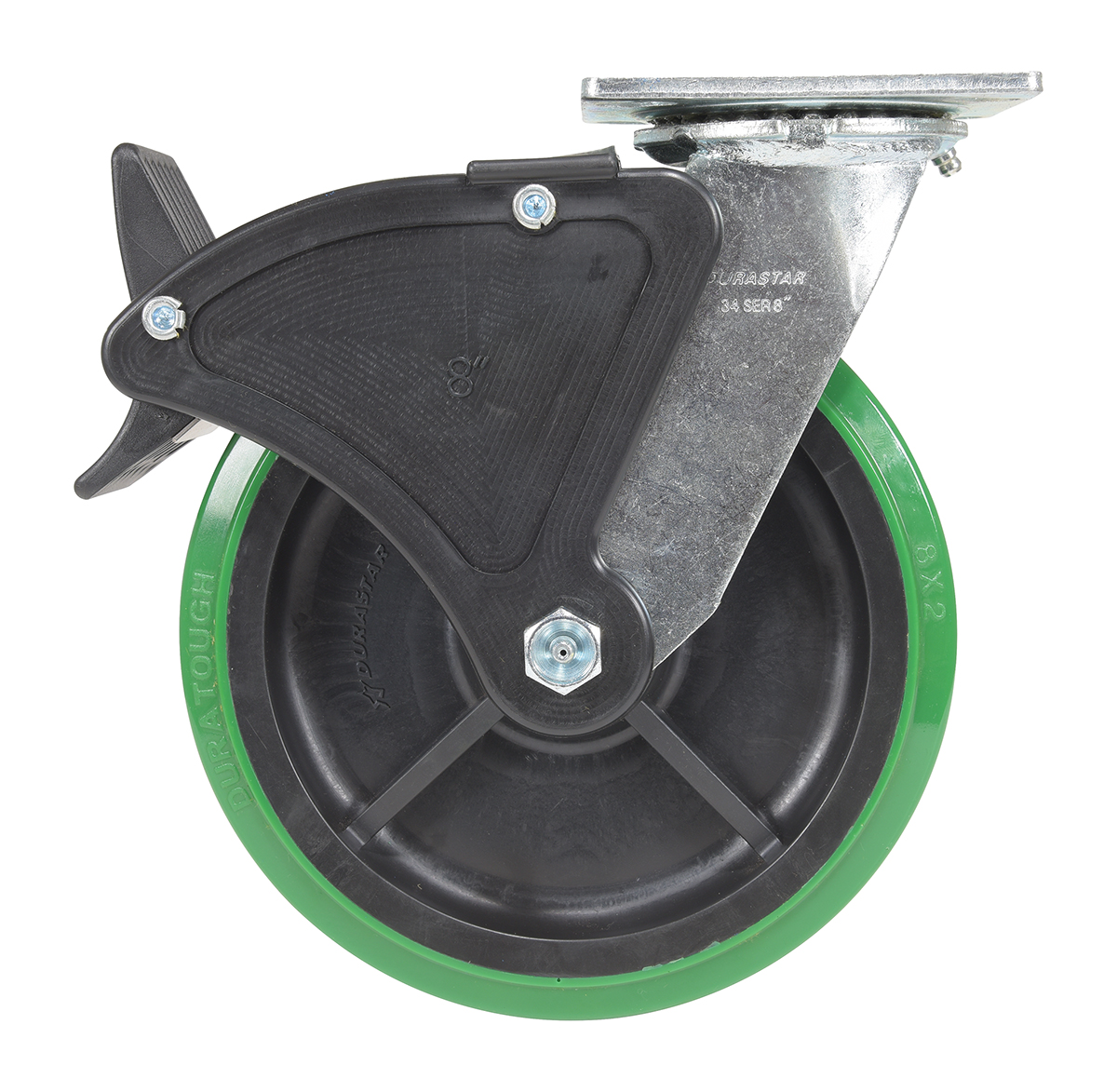

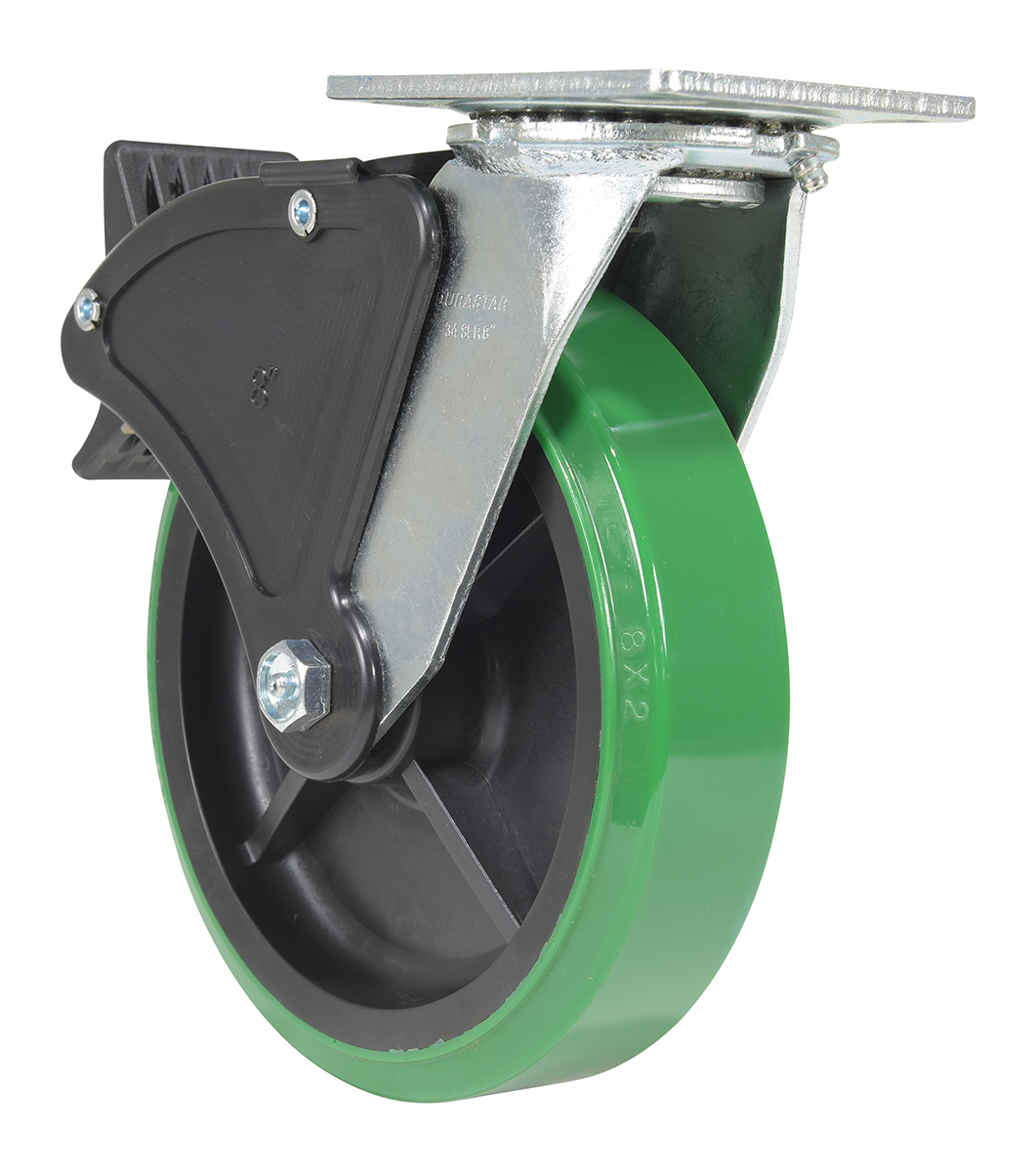

CST-F34-8X2DT-SWTB1 CST-F34-8X2DT-SWTB11 YEAR Limited Warranty8 x 2Swivel w/Total Brake10009-3/8 4 x 4-1/27
CST-F34-4X2DT-SWTB1 CST-F34-4X2DT-SWTB11 YEAR Limited Warranty4 x 2SWTB17005-1/2 4 x 4-1/25

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Polyurethane (DT, Green) Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-F34-4X2DT-SWTB1

CST-F34-5X2DT-SWTB1

CST-F34-6X2DT-S

CST-F34-6X2DT-SWB

SDS Sheets

No SDS Sheets For This Product

Other PDF's
